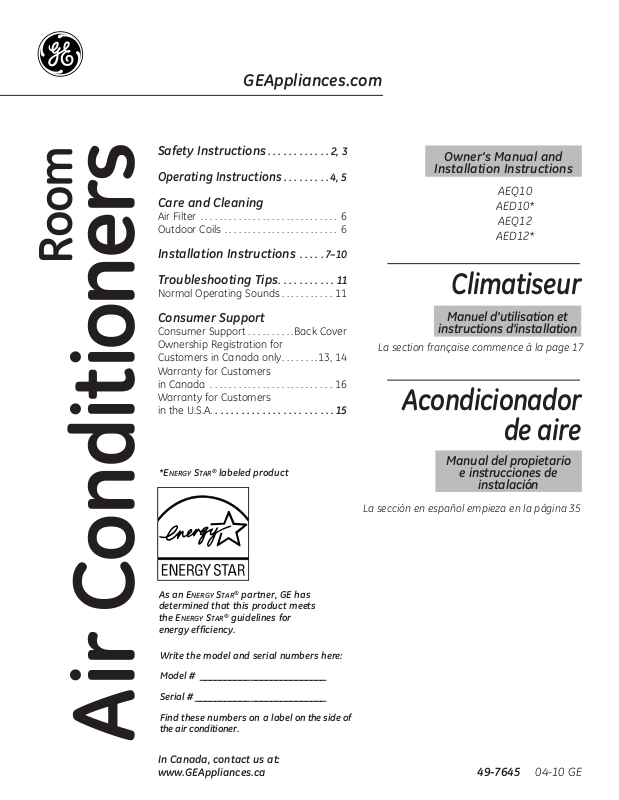

GE AED10, AEQ12, AEQ10, AED12 User Manual

GEAppliances.com

Safety Instructions ............ 2, 3

Operating Instructions

Care and Cleaning

Air Filter ............................. 6

Outdoor Coils ........................6

Room

Installation Instructions .....7–10

Troubleshooting Tips ...........11

Normal Operating Sounds ...........11

Consumer Support

Consumer Support ..........Back Cover

Ownership Registration for

Customers in Canada only ........13, 14

Warranty for Customers

in Canada ..........................16

Warranty for Customers

in the U.S.A. ....................... 15

.........4, 5

Owner’s Manual and

Installation Instructions

AEQ10

AED10*

AEQ12

AED12*

Climatiseur

Manuel d’utilisation et

instructions d’installation

La section française commence à la page 17

Acondicionador

de aire

*EnErgy Star® labeled product

As an EnErgy Star® partner, GE has determined that this product meets the EnErgy Star® guidelines for energy efficiency.

Write the model and serial numbers here:

Model # _________________________

Serial # __________________________

Find these numbers on a label on the side of the air conditioner.

Air Conditioners

Manual del propietario

e instrucciones de

instalación

La sección en español empieza en la página 35

In Canada, contact us at: www.GEAppliances.ca

49-7645 04-10 GE

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

Safety InstructionsOperating Instructions

SAFETY PRECAUTIONS

Care and Cleaning

n Use this appliance only for its intended

purpose as described in this Owner’s Manual.

n This air conditioner must be properly

installed in accordance with the Installation Instructions before it is used.

n Never unplug your air conditioner by pulling

on the power cord. Always grip plug firmly and pull straight out from the receptacle.

n Replace immediately all electric service

cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

n Turn the unit OFF and unplug your air

conditioner before cleaning.

n GE does not support any servicing of the

air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.

n For your safety…do not store or use

combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

n All air conditioners contain refrigerants,

which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

n If the receptacle does not match the plug,

the receptacle must be changed out by a qualified electrician.

n These R410A air conditioning systems

require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only.

Installation InstructionsTroubleshooting TipsConsumer Support

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

WARNING!

USE OF EXTENSION CORDS—115-Volt models only

GEAppliances.com

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

READ AND FOLLOW THIS SAFETY INFORMATION

SAVE THESE INSTRUCTIONS

CAREFULLY

Operating InstructionsSafety Instructions

Care and Cleaning

Consumer SupportTroubleshooting TipsInstallation Instructions

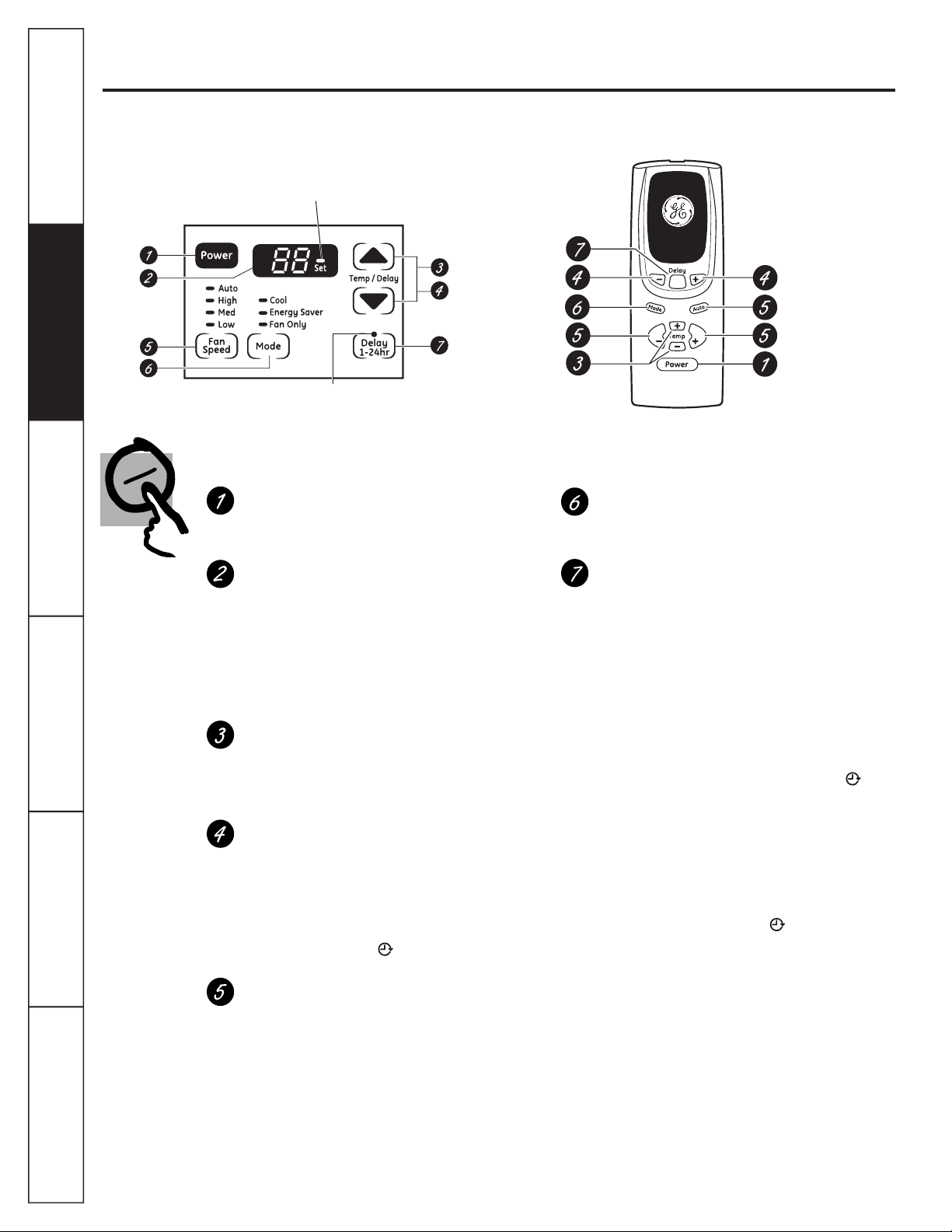

About the controls on the air conditioner.

Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

NOTE: The display always shows the room temperature except when setting the Set temperature or the Delay timer.

Safety InstructionsOperating Instructions

Air Conditioner Controls

Light indicates the unit is in the temperature or delay time Set mode.

Light indicates the delay timer is set.

Delay 1–24hr

Delay timer Decrease

Mode select

Fan speed Decrease

Temperature set Increase and Decrease

Remote Control

Controls

FanFan

Delay timer Increase

Auto Fan on

Fan speed Increase

Unit power on/off

Care and Cleaning

Installation InstructionsTroubleshooting TipsConsumer Support

Power Pad

Turns air conditioner on and off. When turned on, the display will show the room temperature.

Display

Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting.

Temp Increase ▲ /Decrease ▼ Pads

Use to set temperature when in Cool or Energy Saver mode. The Set light will turn on while

setting.

Delay Timer Increase▲ (+) /Decrease ▼(–) Pads

Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the delay time when using the Delay 1–24hr timer ( ). The Set light will turn on while setting.

Fan Speed Pads

Use to set the fan speed to Low, Med, High or Auto on the unit. NOTE: On the remote control, use the fan speed Increase + /

Decrease – pads to set the fan speeds to Low, Med or High. Use the Auto pad to turn Auto

fan on.

Mode Pad

Use to set the air conditioner to Cool, Energy Saver or Fan Only mode.

Delay Pads

Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings.

Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours.

How to set:

Press the Delay 1–24hr pad on the unit or the

pad on the remote control. Each touch of the

Increase ▲ / Decrease▼pads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals. The Set light will turn on while setting.

To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the pad on the remote control. Use the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.

To cancel the timer, press the Delay 1–24hr pad until the light on the Delay 1–24hr pad goes off.

Power Outage Recovery Feature

In the case of a power outage or interruption, the

unit will automatically re-start in the settings last used after the power is restored. If the Delay 1–24hr

feature was set, it will resume countdown. You may need to set a new time if desired.

Cool Mode

Use the Cool mode at Low, Med, High or Auto Fan Speed for cooling. Use the Temperature Increase ▲

/ Decrease ▼ pads to set the desired temperature between 64°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.

GEAppliances.com

Cooling Descriptions

For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.

For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.

For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set

temperature.

Operating InstructionsSafety Instructions

Energy Saver Mode

Controls the fan.

ON—The fan will cycle on and off with the

compressor. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. NOTE: The fan may continue to

run for a short time after the compressor cycles off.

Fan Only Mode

Use the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.

Auto Fan Speed

Set to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature.

If the room needs more cooling, the fan speed will automatically increase. If the room needs less cooling, the fan speed will automatically decrease.

Care and Cleaning

OFF—The fan runs all the time, while the compressor

cycles on and off.

NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

Remote Control

n To ensure proper operation, aim the remote

control at the signal receiver on the air conditioner.

n The remote control signal has a range of

up to 20 feet.

n Make sure nothing is between the air conditioner

and the remote control that could block the signal.

n Make sure batteries are fresh and installed

correctly as indicated on the remote control.

Consumer SupportTroubleshooting TipsInstallation Instructions

About the controls on the air conditioner

Additional important information.

Air Direction

Use the lever to adjust the air direction left and right

Safety InstructionsOperating Instructions

only.

Care and cleaning of the air conditioner.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

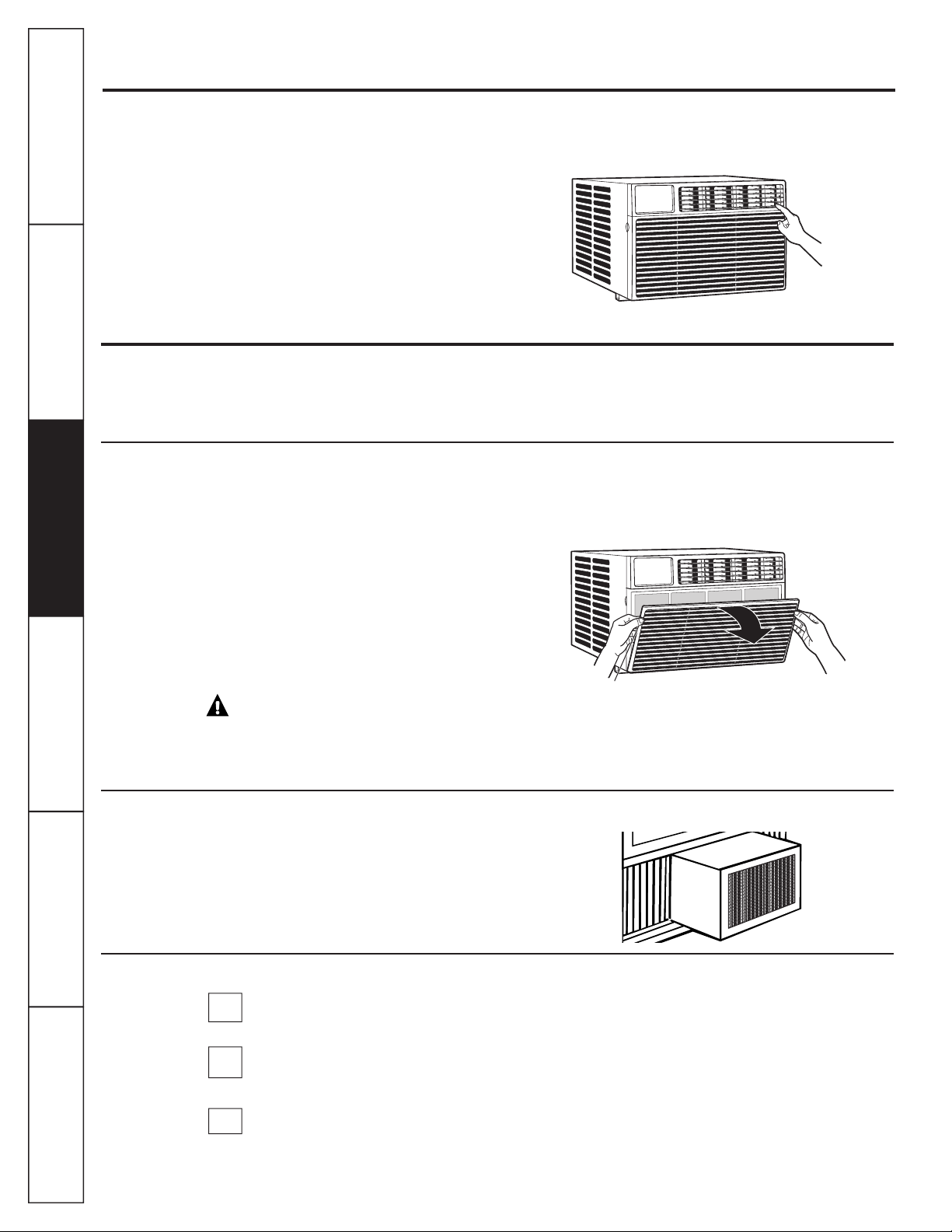

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Care and Cleaning

Installation InstructionsTroubleshooting TipsConsumer Support

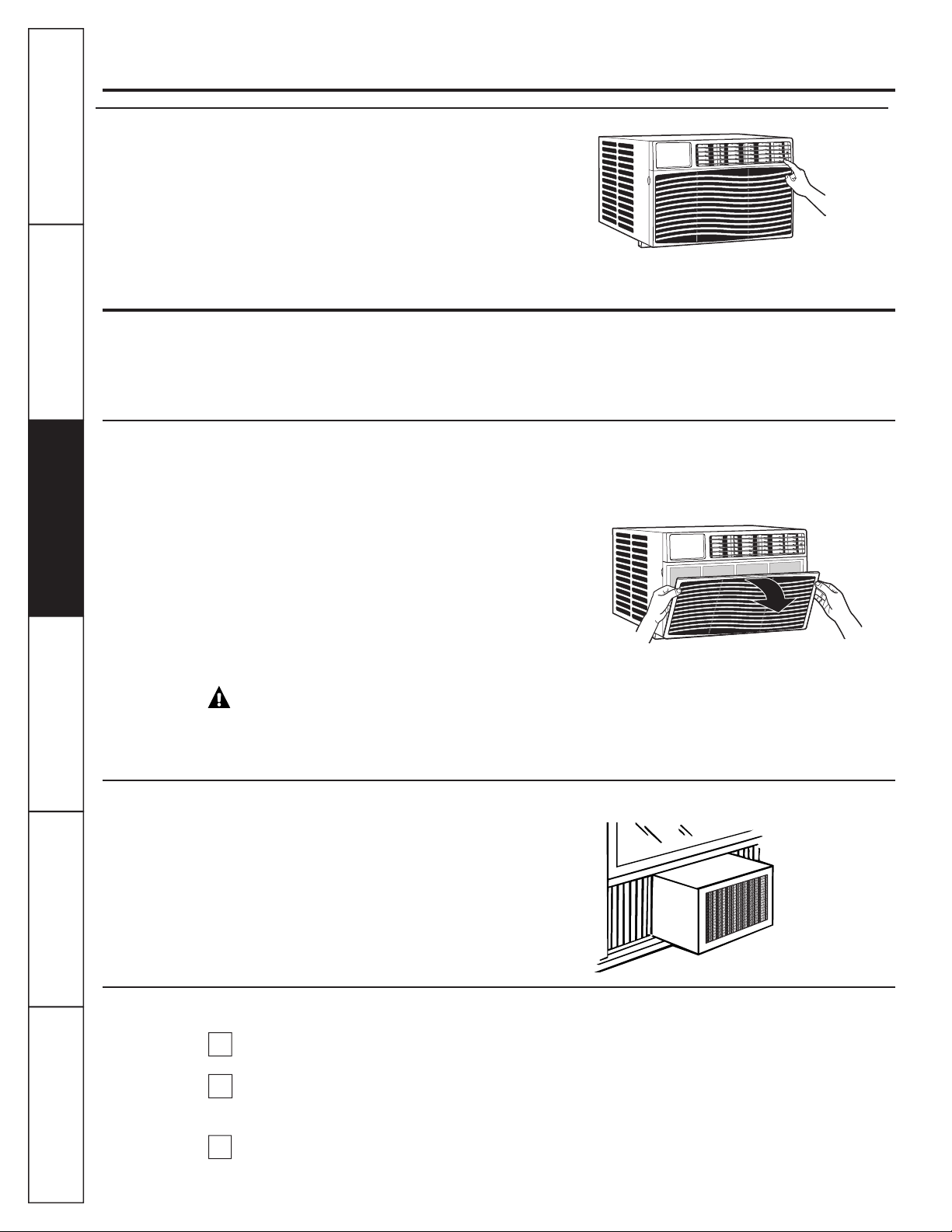

To remove:

Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45º position. Remove the filter.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

CAUTION: DO NOT operate the air

conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Tab

How to Insert the Batteries in the Remote Control

Remove the battery cover by sliding it according

to the arrow direction.

Insert new batteries, making sure that the (+)

and (–) of battery are installed correctly.

Reattach the cover by sliding it back

into position.

NOTES:

n Use 2 “AAA” (1.5 volt) alkaline batteries. Do not

use rechargeable batteries.

n Remove the batteries from the remote control if

the system is not going to be used for a long time.

n Do not mix old and new batteries. Do not mix

alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

Installation Air Conditioner Instructions

Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these

instructions for local inspector’s use.

•

IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions for

future reference.

• Skill level – Installation of this appliance requires

basic mechanical skills.

• Completion time –

• We recommend that two people install

this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

Approximately 1 hour

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special

problems—consult a qualified electrician.

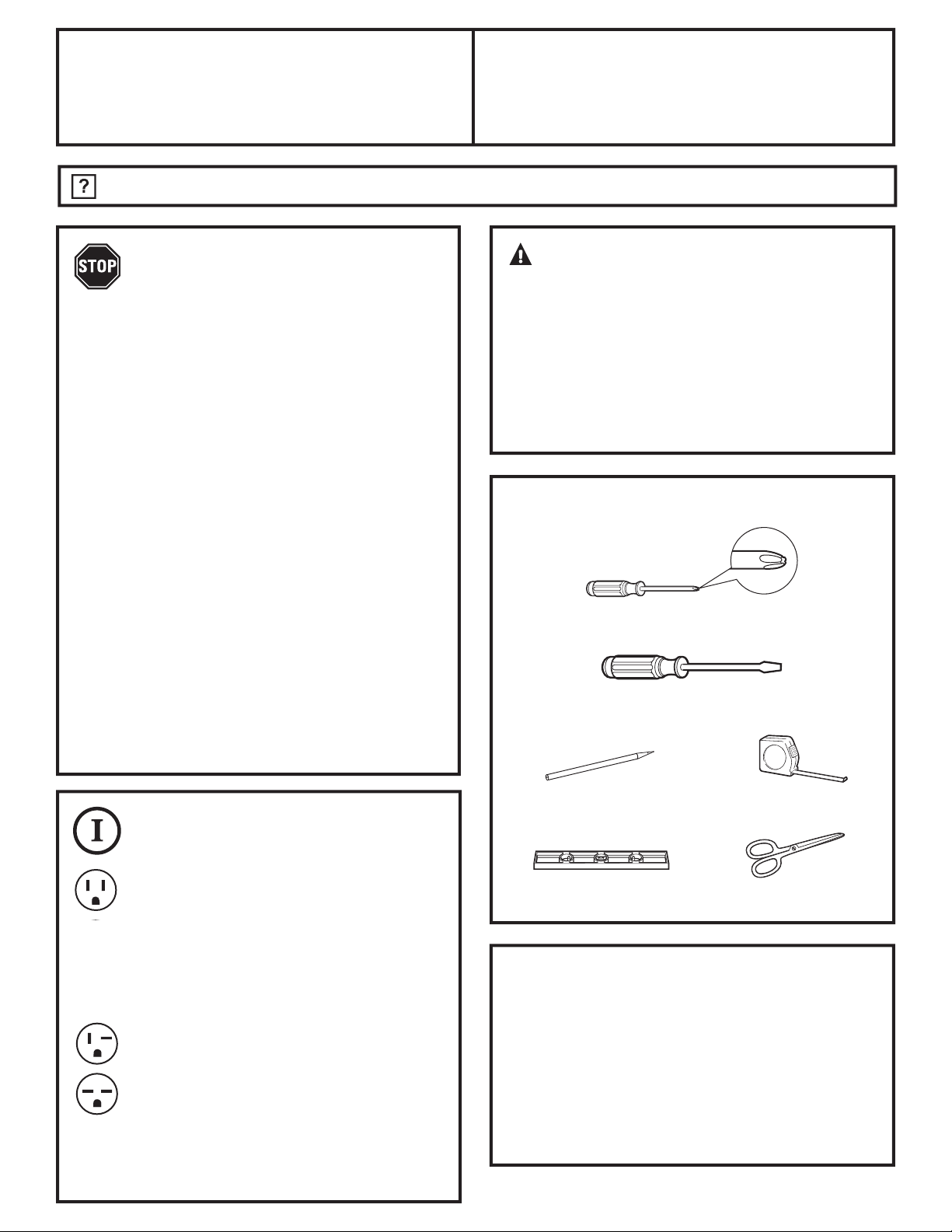

TOOLS YOU WILL NEED

Phillips-head screwdriver

Flat-blade screwdriver

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt AC,

protected with a time-delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

Ruler or tape measurePencil

Level

Scissors or knife

Installation Instructions

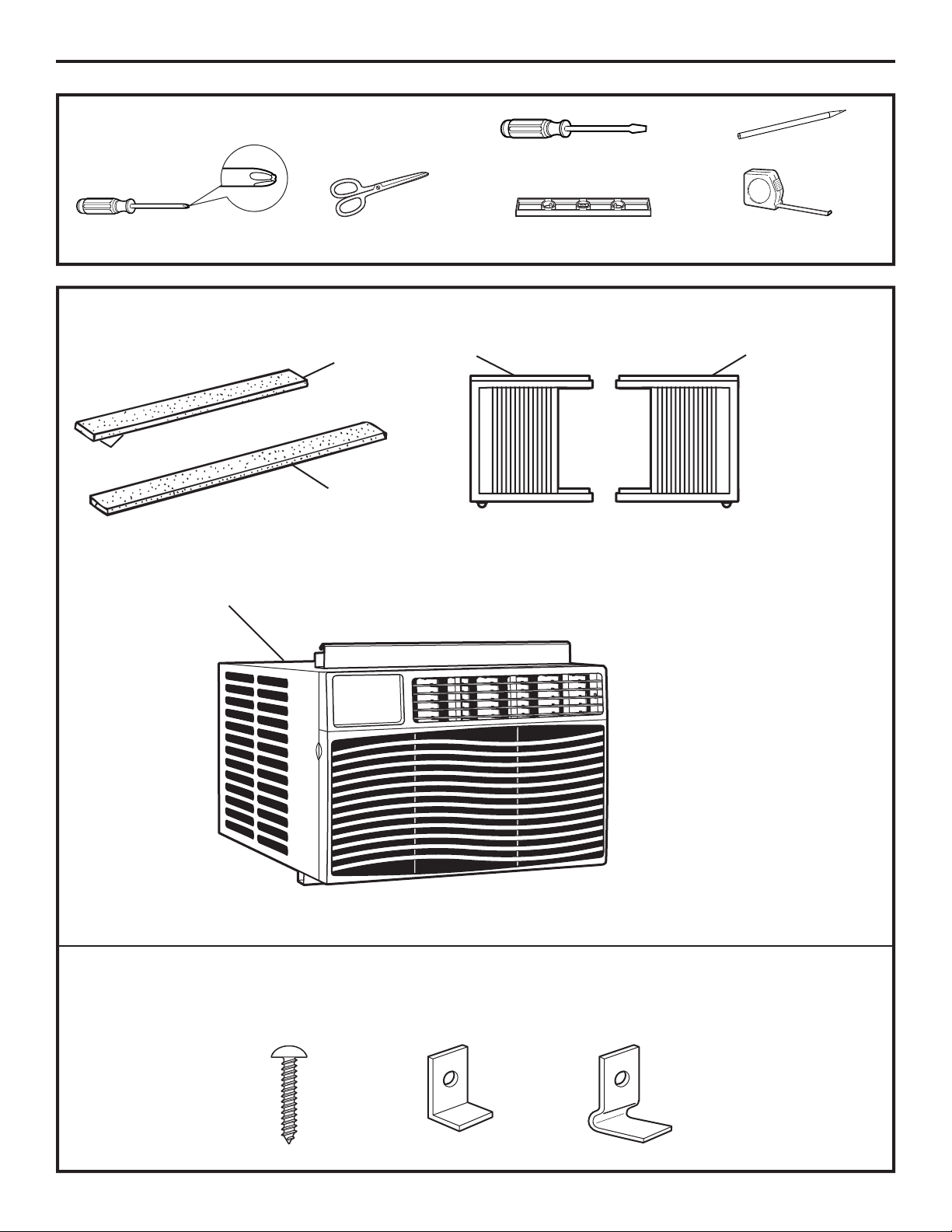

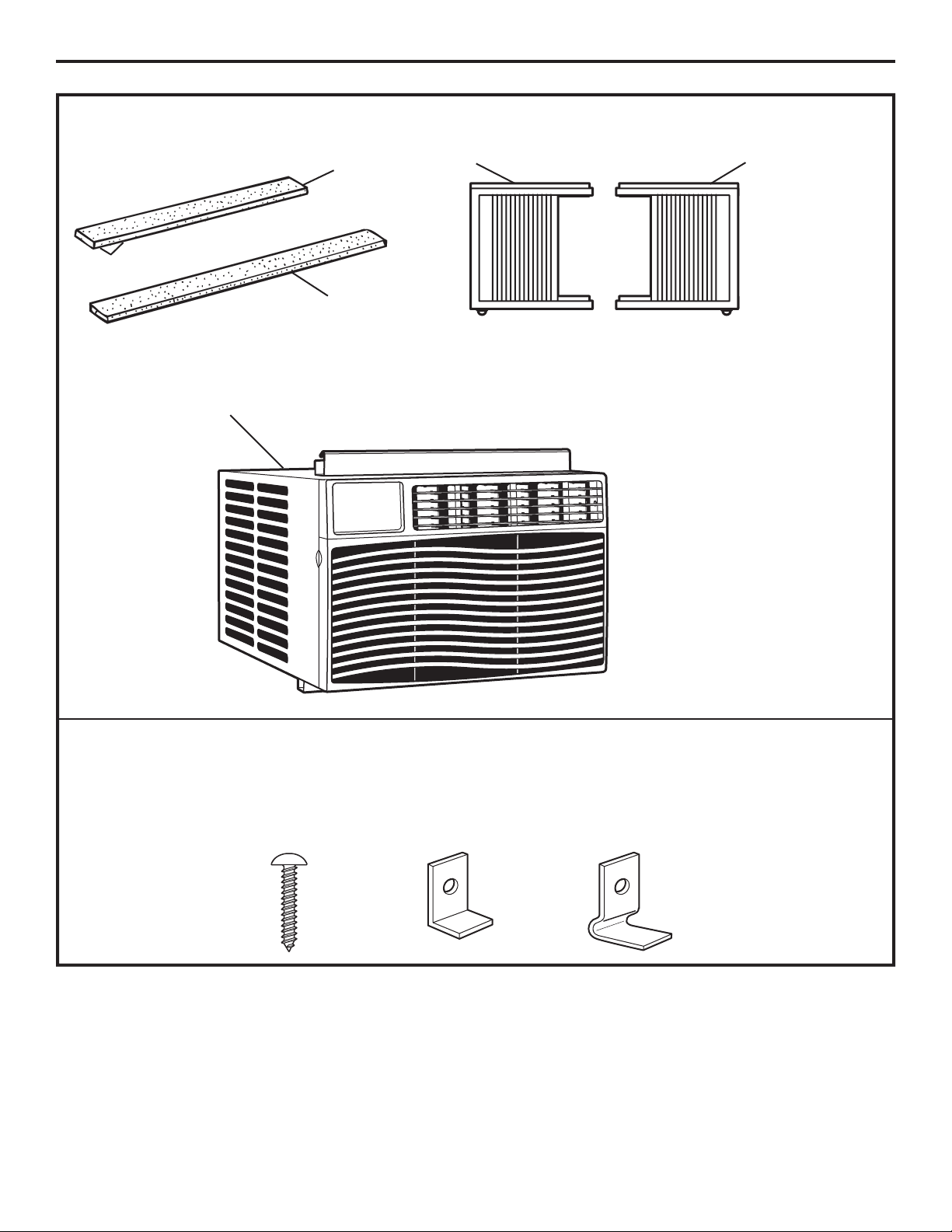

PARTS INCLUDED

(Appearance may vary)

Air

conditioner

Window

sash seal

Foam top

window gasket

Left

accordion

panel

Right

accordion

panel

Screw (6)

Window locking

bracket (1)

Frame locking

bracket (2)

Installation Instructions

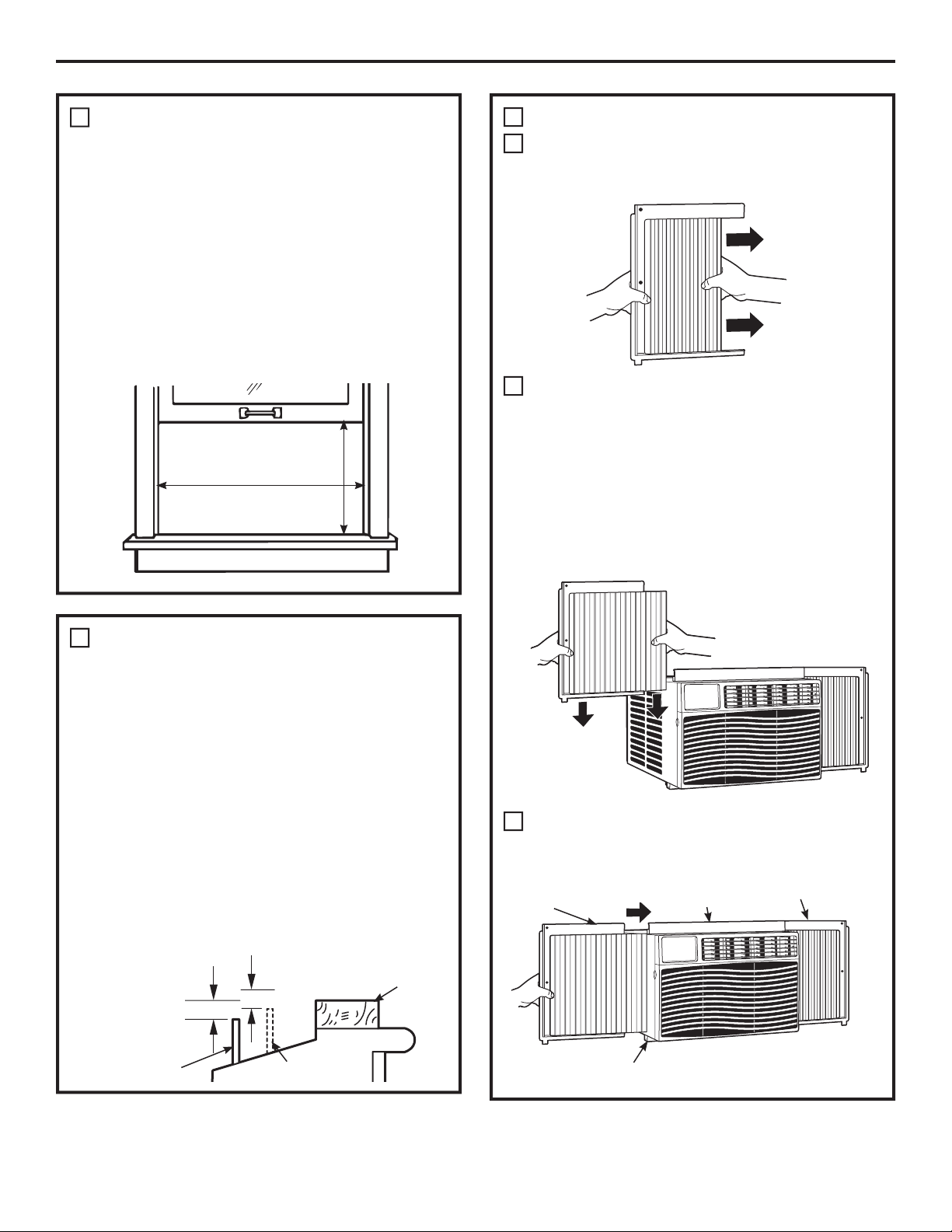

WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

• The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.

• All supporting parts must be secured to firm wood, masonry or metal.

•The electrical outlet must be within reach of the power cord.

15 ½” min.

(With accordion panels)

22″ to 36″

PREPARE THE AIR CONDITIONER

Hold the accordion panel in one hand and

gently pull back to free the open end.

Slide the free end of the accordion panel into

the side panel rails. Slide the panel down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on the cabinet.

NOTE: There is a right and a left accordion panel. Be sure to use the proper panel for each side.

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.

WOOD PIECES WIDTH: 2” LENGTH: Long enough to fit inside the window

frame. THICKNESS: To determine the thickness, place a

piece of wood on the sill to make it 1/2” higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

1/2″ higher than vinyl frame (on some windows)

1/2″ higher than storm window frame

Storm window frame

Sill

Vinyl frame

Wood

Slide the left and right accordion panels into

the top and bottom mounting rails.

Top left

Bottom mounting rail

Top mounting rail

Top right

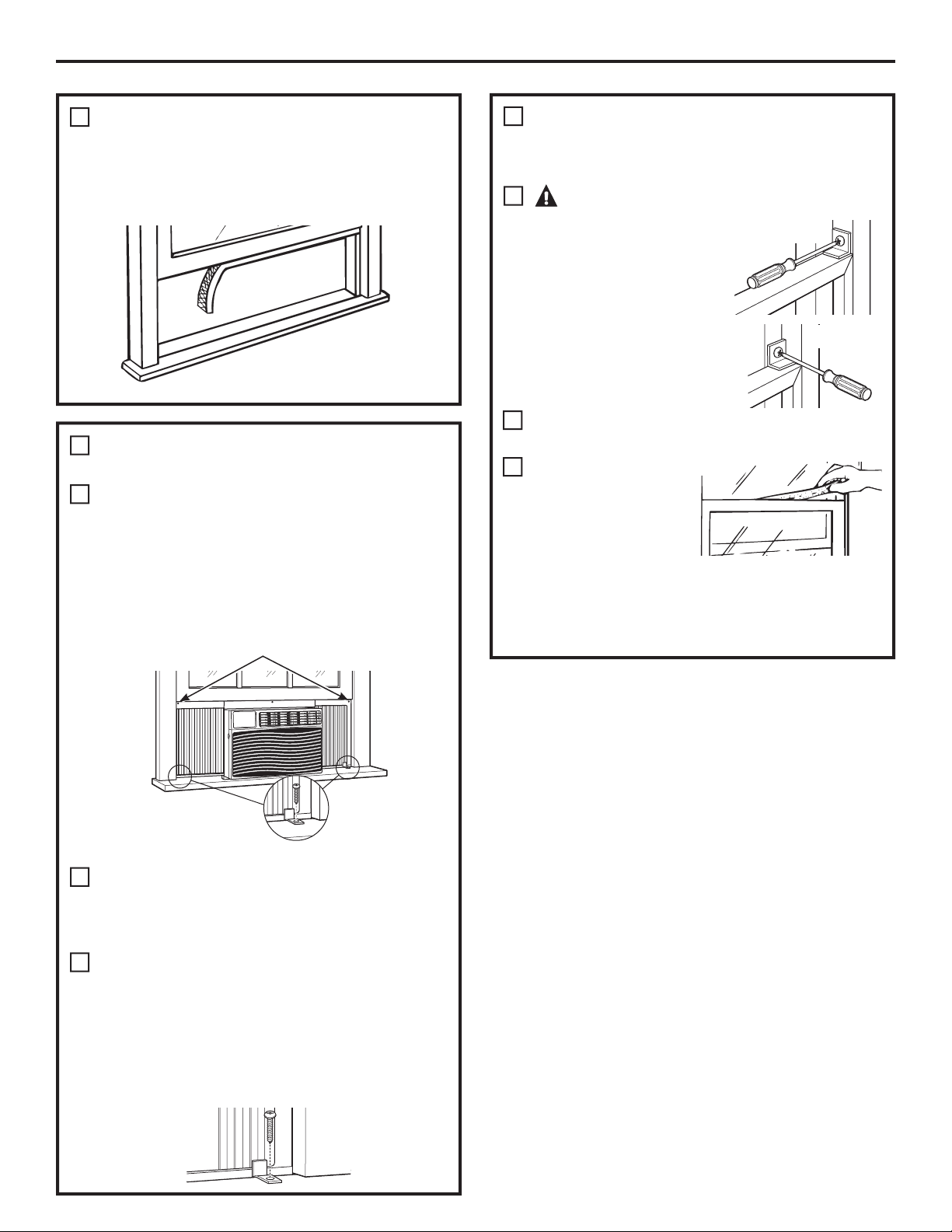

Installation Instructions

PREPARE THE WINDOW

Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

INSTALL THE AIR CONDITIONER IN

THE WINDOW

Place the air conditioner on the sill with the

bottom mounting rail against its back edge. Center it and close the window securely behind the top mounting rail. It should be level or slightly tilted to the outside. Use a level; about a 1/3 bubble will be the correct case slant to the outside.

2 Screws

INSTALL SUPPORT BRACKET AND

FOAM TOP WINDOW GASKET

CAUTION:

To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb with one screw.

Cut the foam top window gasket to the window width.

Stuff the foam between the glass and the window to prevent air and insects from getting into the room. NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

Vinyl

Wood

2 Frame locking brackets

Extend the left and right accordion panels to the vertical window sashes and attach 2 screws through the holes in the upper panels, as appropriate.

Install the frame locking brackets between the

bottom of the accordion panel and the window sill. Attach with 2 screws. NOTE: To prevent the window sill from splitting, drive the pilot holes before driving the screws.

Troubleshooting Tips.

GEAppliances.com

Problem Possible Causes What To Do

Air conditioner The air conditioner • Make sure the air conditioner plug is pushed does not start is unplugged. completely into the outlet.

The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace breaker is tripped. the fuse or reset the breaker.

Power failure. •The unit will automatically re-start in the settings last

used after the power is restored.

•There is a protective time delay (approximately

3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned

back on.

The current interrupter • Press the RESET button located on the power cord plug. device is tripped.

Air conditioner does Airflow is restricted. • Make sure there are no curtains, blinds or furniture not cool as it should blocking the front of the air conditioner.

The temp control may • On models with touch pads: In the Cool mode, press the not be set correctly. Decrease ▼ pad.

The air filter is dirty. • Clean the filter at least every 30 days.

The room may have been hot. • When the air conditioner is first turned on, you need

Cold air is escaping. • Check for open furnace registers and cold air returns. Cooling coils have iced up. • See “Air conditioner freezing up” below.

• If the RESET button will not stay engaged, discontinue

use of the air conditioner and contact a qualified service technician.

• On models with control knobs, turn the temperature knob to a higher number.

See the Care and Cleaning section.

to allow time for the room to cool down.

Operating InstructionsSafety Instructions

Care and Cleaning

Air conditioner Ice blocks the air flow • On models with control knobs, set the mode control at freezing up and stops the air conditioner High Fan or High Cool with the Temp at 1 or 2.

from cooling the room.

The remote control The batteries are inserted • Check the position of the batteries. They should be is not working incorrectly. inserted in the opposite (+) and (–) direction.

The batteries may be dead. • Replace the batteries.

Water drips outside Hot, humid weather. • This is normal.

Water drips indoors The air conditioner is not • For proper water disposal, make sure the air conditioner

tilted to the outside. slants slightly from the case front to the rear.

Water collects in Moisture removed from air • This is normal for a short period in areas with little base pan and drains into base pan. humidity; normal for a longer period in very humid areas.

• On models with touch pads, set the controls at High Fan or High Cool and set the thermostat to a higher temperature.

Normal Operating Sounds

n You may hear a pinging noise caused by

water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

n You may hear the thermostat click when the

compressor cycles on and off.

n Water will collect in the base pan during

high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

n The fan may run even when the compressor

does not.

Consumer SupportTroubleshooting TipsInstallation Instructions

Notes.

Safety InstructionsOperating Instructions

Care and Cleaning

Installation InstructionsTroubleshooting TipsConsumer Support

Please place in envelope and mail to: Veuillez mettre dans une enveloppe et envoyez à :

OWNERSHIP REGISTRATION P.O. BOX 1780 MISSISSAUGA, ONTARIO L4Y 4G1

(FOR CANADIAN CONSUMERS ONLY)

GE Air Conditioner—One-Year Limited Warranty.

(For customers in the U.S.A.)

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care

technician. To schedule service, visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737). Have serial number and model number available when calling

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

for service.

For The Period Of: GE Will Replace:

One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.

From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and related original purchase service to replace the defective part.

What Is Not Covered:

n Service trips to your home to teach you how to

use the product.

n Improper installation, delivery or maintenance. If you

have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible

for providing adequate electrical connecting facilities.

n Failure of the product resulting from modifications to

the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

n In commercial locations, labor necessary to move the

unit to a location where it is accessible for service by an individual technician.

n Replacement of house fuses or resetting of circuit

breakers.

n Failure due to corrosion on models not corrosion-

protected.

n Damage to the product caused by improper power

supply voltage, accident, fire, floods or acts of God.

n Incidental or consequential damage caused by possible

defects with this air conditioner.

n Damage caused after delivery.

Operating InstructionsSafety Instructions

Care and Cleaning

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in

this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer SupportTroubleshooting TipsInstallation Instructions

+ 33 hidden pages

GE AED10, AEQ12, AEQ10, AED12 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
