GE Appliances
Air Conditioner
Owner’s Manual
Models: ABN12 ABN24 ABM18
ABN14 ABM14 ABM22
ABN18 ABM15 ABM24
GE Answer Center
®
800.626.2000
49-7349
Welcome to the GE family. We’re
proud of our quality products and
we believe in dependable service.
You’ll see it in this easy-to-use
manual and you’ll hear it in the
friendly voices of our customer
service department.
Best of all, you’ll experience
these values each time you enjoy
the comfort of your air conditioner.
That’s important, because your
new air conditioner will be part of
your family for a long time.
Welcome
Write down the model and serial
numbers here.
They are on a label
on the left side of the air conditioner below the air discharge area.
Model number
Serial number
Date of purchase
Staple your receipt to the inside back
cover of this manual. You will need it
to obtain service under warranty.
Start Here!…Before using your air conditioner
Need Help?
Read this manual.
It contains
instructions to help you use and
maintain your air conditioner
properly.
Save time and money.
Check the
section titled “If Something Goes
Wrong” before calling. This section helps you to solve common
problems that might occur.
If you do need service, you can
relax knowing help is only a
phone call away. A list of toll-free
customer service numbers is
included in the back of this book.
Or call the
GE Answer Center
®
at 800.626.2000,
24 hours a day,
7 days a week.
Help us
help you
800.626.2000
Before you call for service,
there are a few things you
can do to help us serve you
better.
2
IMPORTANT SAFETY INFORMATION
3
READ ALL SAFETY INFORMATION
BEFORE USING
• This air conditioner must be
properly installed in accordance
with the Installation Instructions
before it is used.
• Repair or replace immediately
all electric service cords that have
become frayed or otherwise
damaged.
• Turn the mode control knob to
OFF
and unplug your air conditioner
before making any repairs.
NOTE:
We strongly recommend
that any servicing be performed by
a qualified individual.
Because most 2-prong outlets are
not grounded, we strongly advise
against using an adapter plug.
However, a temporary connection
may be made where local codes
permit and if the 2-prong wall outlet is properly grounded.
When you plug the adapter in,
make sure the larger prong goes
into the larger slot to provide the
proper polarity for the power cord.
FOR PROPER GROUNDING:
1 Screw the adapter to the outlet,
using the outlet cover screw.
2 Ground the outlet through the house
wiring.
When disconnecting the power
cord from the adapter, hold the
adapter close to the outlet while
pulling the plug out. If this is not
done, the grounding connector is
likely to break with repeated use.
If the grounding connector breaks,
DO NOT USE
the air conditioner
until a proper ground has again
been made.
Adapter Plug
This is a temporary method.
UL-listed adapters are available at most hardware stores.

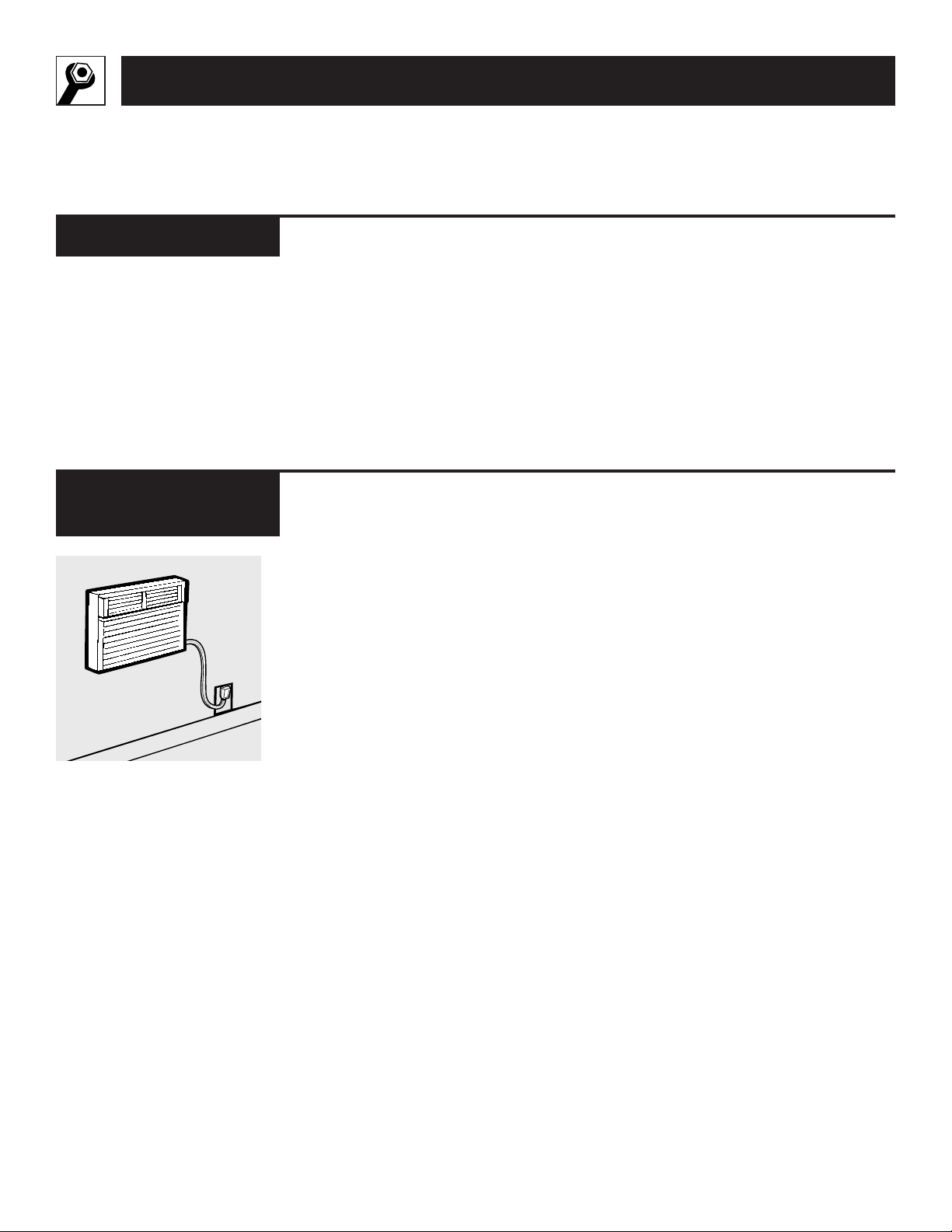

If an extension cord is required to
reach the nearest wall receptacle,
use only a UL-listed, 3-wire,
grounded, 14 gauge, 15A, 125V
appliance extension cord. For
models with nameplate ratings
greater than 12 amperes, do not
use an extension cord.
CAUTION:
DO NOT use an extension cord with
any of the 208/230-volt models.
Extension Cord
SAVE THESE INSTRUCTIONS
HIGH COOL, MED COOL
and
LOW COOL
provide
cooling with different fan speeds.
FAN ONLY
provides air circulation and filtering
without cooling.
NOTE:
If you move the switch from a cool setting to
OFF or to a fan setting, wait at least 3 minutes
before switching back to a cool setting.
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. The higher the number selected,
the cooler the indoor air will become.
The blower runs as long as the Mode Control is
not on
OFF
.
4
Operating Instructions
The controls on your air conditioner
2
2
1
Mode Control Temp Control
1
MODE CONTROLS TEMP CONTROLS
Your model will look like one of these.
ENERGY
OFF
FAN
ONLY
SAVINGS
LOW
COOL
HIGH
COOL
MED
COOL
MED
COOL
LOW
COOL
NORMAL
HIGH
COOL
5
4
3
2
1
6
7
8
HIGH
COOL
MED
COOL
OFF
FAN
ONLY
LOW
COOL
5
4
3
2
6
7
8
9
1
10
5
Cooling Descriptions
FOR NORMAL COOLING
Select
MED COOL
with the
temp at 4 or 5.
FOR MAXIMUM COOLING
Select
HIGH COOL
with the
temp at 8 or 10.
FOR QUIETER & NIGHTIME COOLING
Select
LOW COOL
with the
temp at 3 or 4.
The energy saving switch
controls the fan. On some
models, this feature is on the
mode control knob. Other
models use a separate selector
switch.
ON
or
ENERGY SAVING
—the fan
and compressor cycle on and off
together. This
results in wider
variations of room temperature
and humidity.
Normally used
when the room is unoccupied.
NORMAL
—the fan runs all the
time, while the compressor
cycles on and off. This switch
must be set at
NORMAL
in order
to use the fan setting (on the
mode control).
Tabs inside the horizontal
louvers let you control the air
direction left, right or straight
ahead.
43
3 4
Energy Saving Vent Control Air Direction
5
5
The vent control is a lever
located on the control panel.
When the vent control is set at
normal, only the air inside the
room is circulated, cooled
and filtered.
When set at exhaust, some
indoor air will be exhausted
from the room. This will reduce
the cooling effect.
EXHAUST NORMAL
Your model will look
like one of these.
ENERGY SAVING
ON
NORMAL
ENERGY
OFF
FAN
ONLY
SAVINGS
LOW
COOL
HIGH
COOL
MED
COOL
MED
COOL
LOW
COOL
NORMAL
HIGH
COOL
Operating Instructions
Care & Cleaning
Turn the air conditioner off and
remove the plug from the wall outlet before cleaning.
To clean, use water and a mild
detergent. Do not use bleach or
abrasives.
Grille and Case
The coils on the outdoor side of
the air conditioner should be
checked regularly. If they are
clogged with dirt or soot they may
be professionally steam cleaned, a
service available through your GE
service outlet.
Outdoor Coils
6

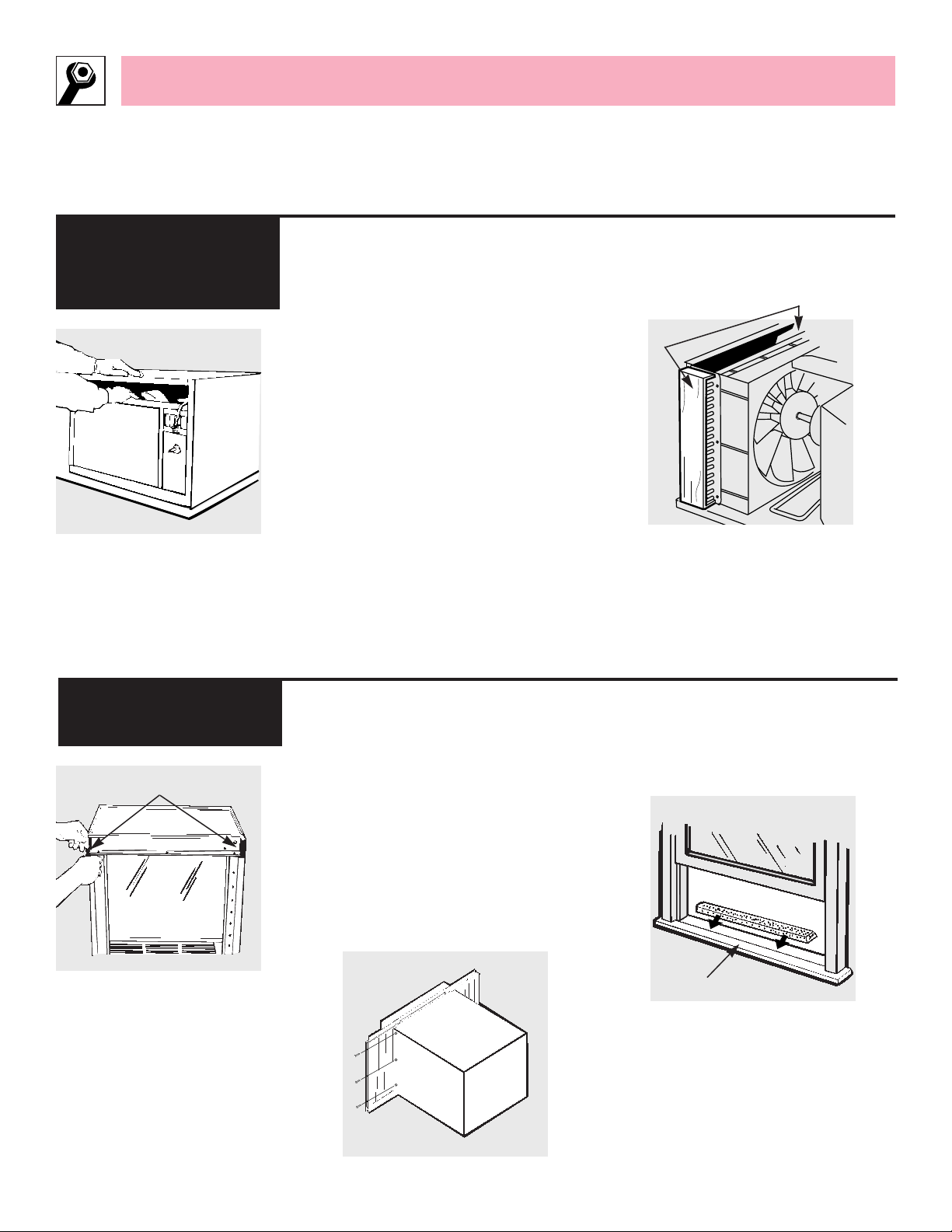

The air filter is behind the front
grille insert and should be checked
and cleaned at least every 30 days
or more often if necessary.
To remove the front grille insert:
Place your hand on the bottom of
the front grille. Pull it out and
down to release the tabs.
Remove the air filter. The filter
can be washed in warm soapy
water. Rinse and let the filter dry
before replacing it.
To replace the grille insert:
Hook the tabs on the left and
right side. Gently press until it
snaps into place.
CAUTION:
DO NOT operate the air conditioner
without a filter because dirt and
lint will clog the unit and reduce
performance.
Front Grille and
Air Filter
Installation Instructions
Important Electrical Safety–Read Carefully
7
• For personal safety, this air
conditioner must be properly
grounded.
• It is important to have the wall
outlet and circuit checked by a
qualified electrician if there is any
doubt as to whether a proper
ground exists.
• Follow National Electrical
Code (NEC) or local codes
and ordinances.
CAUTION:
•
Do not, under any circumstances,
cut or remove the third (ground)
prong from the power cord.
•
Do not change the plug on the
power cord of this air conditioner.
•
Aluminum house wiring may
present special problems—
consult a qualified electrician.
Important Notes
Installer: Leave these
instructions with the
appliance.
Owner: Keep these
instructions for future
use.
The 230/208-volt models require
their own single branch circuit supplying 230/208-volt a.c., protected
with a time delay fuse or circuit
breaker.
This is recommended for best
performance and to prevent overloading house wiring circuits,
which could cause a possible fire
hazard from overheating wires.
The 115-volt models require a
115/120-volt a.c., 60 Hz grounded
outlet protected with a 15-amp
time delay fuse or circuit breaker.
The 3-prong grounding plug
minimizes the possibility of electric
shock hazard.
If the wall outlet you
plan to use is only a 2-prong outlet,
it is your responsibility to have it
replaced with a properly grounded
3-prong wall outlet.
Electrical
Requirements
PPaarraalllleell
115V., 15 Amp.
PPeerrppeennddiiccuullaarr
230/208V., 20 Amp.
TTaannddeemm
230/208V., 15 Amp.
LLaarrggee TTaannddeemm
230/208V., 30 Amp.
Installation Instructions
Before you begin
8

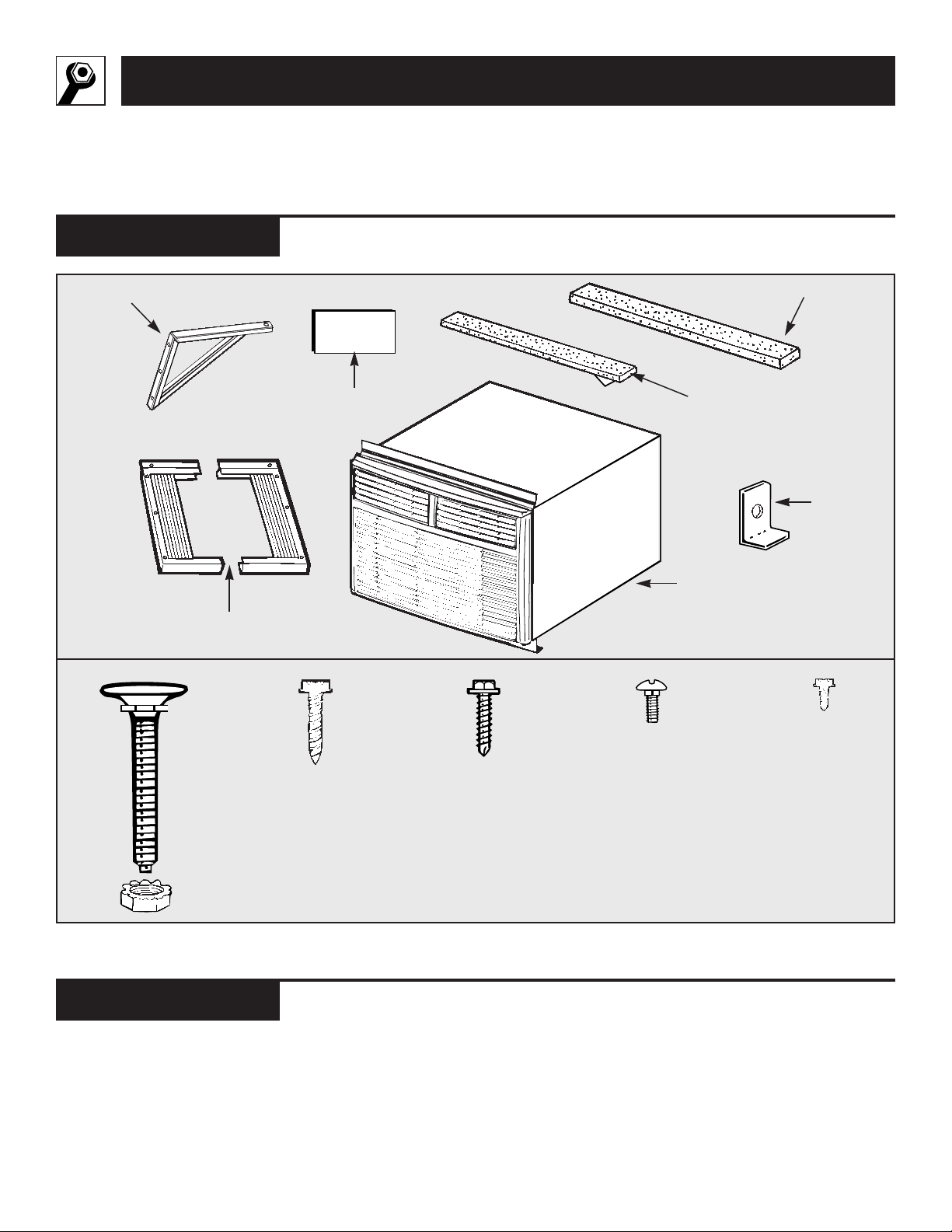

Parts Included
• Blade-type screwdriver
• 1/4
″hex-head nut driver
• 9/16″ open-end or
adjustable wrench
• Ruler or tape measure
• Scissors or knife
• Level
• Pencil
Tools Needed
Air conditioner
(Some models have a
control panel door.)
1″ screws (3) 3/4″ screws (5)2 Leveling bolts & nuts
Support brackets (2)
Sill pads (2)
1/2″ screws (4) 1/4″ screws (6)
Window
locking
bracket
Foam top window gasket
Bottom window gasket
Filler panels (2)
9

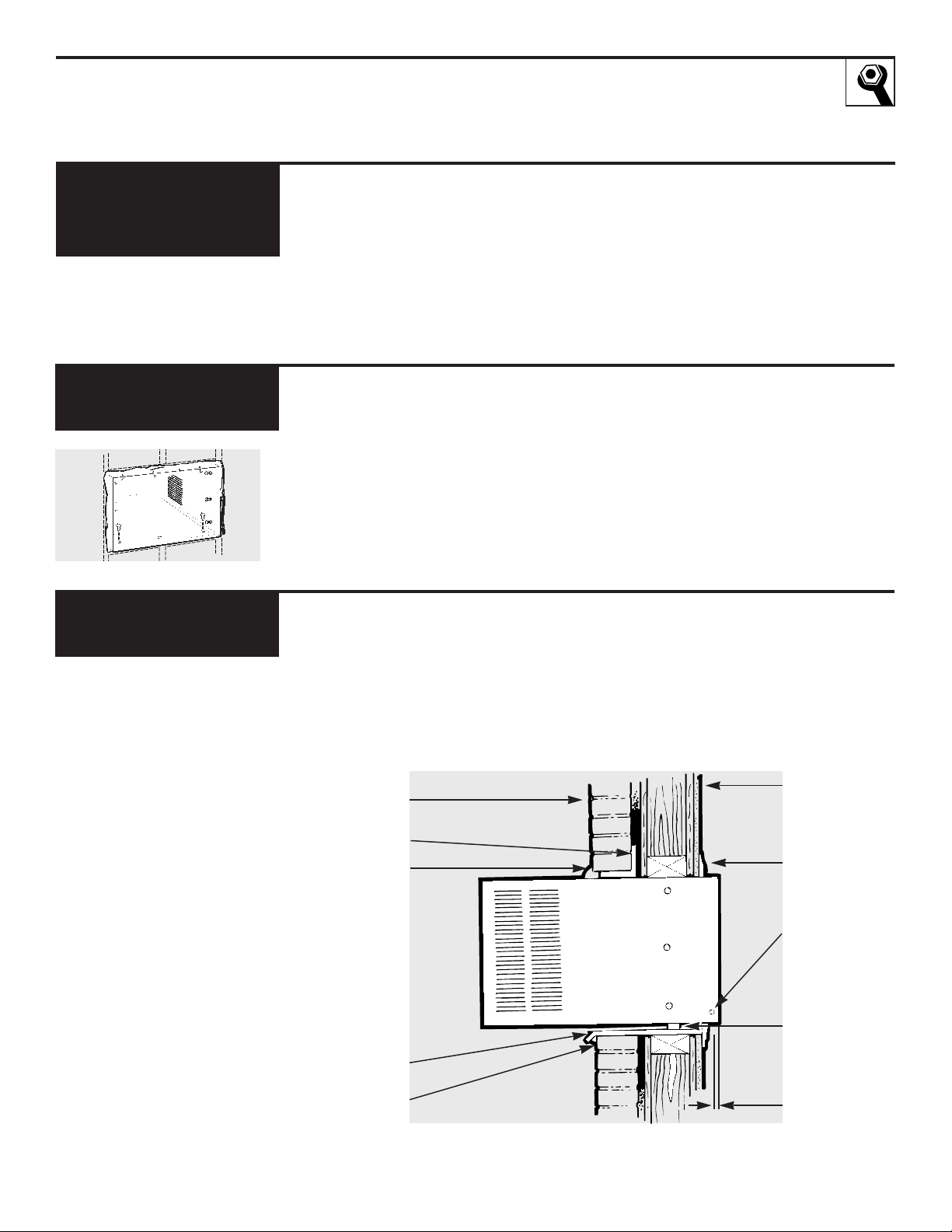

• These instructions are for a
standard double-hung window.
You will need to modify them for
other types of windows.
• The air conditioner can be
installed without the filler panels
if needed to fit in a narrow window. See the window opening
dimensions to the right.
• All supporting parts should be
secured to firm wood, masonry
or metal.
• The electrical outlet must be
within reach of the power cord.
Do not use an extension cord.
Window
Requirements
A storm window frame will not
allow the air conditioner to tilt
towards the outside and will keep it
from draining properly. To adjust
for this, attach a piece of wood to
the stool.
WOOD PIECES:
WIDTH:
2″
LENGTH:
Long enough to fit inside
the window frame.
THICKNESS:
To determine the
thickness, place a piece of wood on
the stool to make it 1/2″ higher
than the top of the storm window
frame.
Attach securely with nails or screws
provided by the installer.
Storm Window
Requirements
Window opening dimensions
are for a standard double-hung
window.
171⁄4″ min.
301⁄2″ to 401⁄2″
(With filler panels)
263⁄4″ min.
(Without filler panels)
1/2″ higher
than frame
Stool
Storm
window
frame
Wood
1
Turn the case so that its open
end is up. Apply one sill pad to
each side of the bottom front
corner of the case.
2
Insert the right and left hand
filler panels into the top and
bottom rails. Secure them
with six 1/4
″screws, three on
each side.
3
Peel the backing off the bottom
window gasket and place onto
the backside of the window stool.
Installation Instructions
Read completely then follow step-by-step
10
Prepare the Case and
the Window
1
Remove the front grille insert
and the air filter.
2
Remove the control knobs by
pulling straight off.
3
Remove the 4 screws behind the
air filter area that hold the front
grille to the case. Remove the
lower front screw at the bottom
of the control panel. Save these
screws. You will need them at the
end of the installation.
4
Remove the 2 screws on the outside of the case that hold the case
to the unit. Remove the air conditioner by grasping inside of the
unit and pulling forward.
5
Remove the cardboard that
protects the coils on the sides
of the unit.
REMOVE BEFORE
OPERATION
Remove the Air
Conditioner From
the Case
Sill pads
Stool
Remove
1
Center the case in the window.
Lower the window until it touches
behind the air conditioner
top rail. Make sure the bottom
rail is behind the window stool.
2
Locate the 3 holes that are on
the plate at the front of the case.
Drill 1/8″ pilot holes. Using 3
1″ screws attach the case to the
window stool.
3
Assemble the 2 leveling bolts
and nuts to the support brackets.
4
Attach the support brackets to
the bottom of the case with
1/2″ screws, 2 on each side.
5
On the outside, turn the
leveling bolts until each one
makes contact with the wall.
Make sure the back of the case
tilts 1/4″ to 3/8″lower than the
front. Tighten the nuts.
CAUTION:
•
Use a wood block between the
leveling bolts and the wall if the
outside wall is weak or if the
weight of the air conditioner falls
between the studs in the wall.
Install the Case and
the Support Brackets
11
Wood
block
(if needed)
12
1
Carefully slide the air conditioner back into the case and
replace the 2 screws which
secure the unit to the case.
2
Reinstall the front grille and 5
screws removed earlier. Attach
the air filter, front grille insert
and control knobs.
CAUTION:
•
To avoid injury, use additional help
to lift and move the air conditioner
back into the case.
•
DO NOT lift the window sash
while the air conditioner is
installed in the case. Always
remove the unit before raising the
window to avoid injury and damage
to the air conditioner.
Replace the Air
Condtioner in
the Case
1
Cut the foam top window gasket
to the window width.
2
Stuff the foam between the
glass and the window to prevent
air and insects from getting into
the room.
3
Attach the window locking
bracket with a 3/4
″ screw.
Install the Window
Gasket and the
Locking Bracket
Installation Instructions
1
Extend the filler panels on both
sides until they touch the window
tracks.
2
Secure the top and the bottom
with four 3/4″ long screws on
each side.
INSTALLATION WITHOUT THE
FILLER PANELS
If filler is required on the sides
of the air conditioner, cut filler
sheet (not supplied) to size and
fill both sides.
Slide Out the
Filler Panels
13
Through-the-Wall Installation
1
Remove the front grille insert,
air filter and the front grille.
2
Remove the two grounding/
anti-theft screws from either
side of the case.
3
Slide the air conditioner from
the case by pulling on the bottom
lip of the air conditioner while
holding the case.
For specific instructions, refer to
Window Installation Instructions.
Remove the Air
Conditioner from
the Case
1
Place the case in the wall
opening with a 1/4″ minimum
tilt to the outside.
2
Secure the bottom rail, case sides
and top to the wooden frame
using 1″ long #10 screws.
NOTE:
Drill holes in the case sides and top,
if necessary, for proper installation.
If the frame is oversized, use shims
to prevent cabinet distortion.
Install the Case in
the Wall
1
Caulk the sides and the top on
the outdoor side of the case. On
the roomside, caulk around the
bottom rail to prevent moisture
from getting through to the
interior wall.
2
Install wood trim molding, if
desired, on the inside wall
around the case.
Finish the Wall
Opening
Plaster
line
Trim
molding
(if desired)
Holes for #10
1″ long
wood screws
Flashing
Brick veneer
Lintel angle
(if required)
Caulking
Caulking
Caulking
(between
bottom rail
and flashing)
1
1
⁄2″
min.
Roomside
Grounding/
anti-theft screw
14
Installation Instructions
1
Slide the air conditioner into the
case and replace the front grille.
2
Install the two ground/anti-theft
screws removed at the beginning
of the installation.
3
Make sure the unit is
OFF
before
plugging into the outlet.
4
Use the putty to fill in holes or air
leaks.
Replace the Air
Conditioner
Support brackets are recommended
for walls under 5
″thick. Refer to
the assembly of the support brackets in the Window Installation.
A wooden strip secured to the outside wall should be used with the
sill support brackets.
Support Brackets
15
You may hear a pinging noise caused by water being picked up
and thrown against the condenser on rainy days or when the
humidity is high. This design feature helps remove moisture
and improve efficiency.
You may hear the thermostat click when the compressor cycles
on and off.
Water will collect in the base pan during high humidity or on rainy
days. The water may overflow and drip from the outdoor side
of the unit.
The fan may run even when the compressor is not.
Noise Explanation
"CLICK"
D R I P
WHIR!
PIN
G
!
Helpful Information
Things That Are Normal
16
If Something Goes Wrong
Before You Call for Service
Air Conditioner
Doesn’t Start
Air Conditioner Does
Not Cool as it Should
The air conditioner • Make sure the air conditioner plug is
is unplugged pushed completely into the outlet.
The fuse is blown/circuit • Check the house fuse/circuit breaker
breaker is tripped box and replace fuse or reset the
breaker.
Power failure
• If power failure occurs, turn the mode
control to
OFF
. When power is restored,
wait 3 minutes to restart the air conditioner
to prevent tripping of the compressor
overload.
Problem Possible Causes What to Do
Air Conditioner
Freezing Up
Ice blocks the air flow • Set the mode control at
FAN ONLY
or
HIGH
and stops the air conditioner
COOL
with the temp at 1 or 2.
from cooling the room
Airflow is restricted
• Make sure there are no curtains, blinds
or furniture blocking the front of the
air conditioner.
The temp control may • Turn the knob to a higher number.
not be set high enough The highest setting provides maximum
cooling.
The air filter is dirty • Clean the filter at least every 30 days.
See the Care and Cleaning section.
The room may have been hot • When the air conditioner is first turned on
you need to allow time for the room to
cool down.
Cold air is escaping • Check for open furnace floor registers and
cold air returns.
• Set the vent in the closed position.
Cooling coils have iced up • See freezing up below.
Notes
17
18
Notes
800.626.2000
TDD
800-833-4322
GE Service Numbers
We’ll be there!
Open 24 hours a day,
7 days a week.
GE Answer Center
®
800-GE-CARES
(800-432-2737)
We provide expert repair service,
scheduled at a time that’s
convenient for you.
Our factory-trained technicians
know your appliance inside and out—
so most repairs can be handled in
just one visit.
In-Home Repair Service
800-626-2224
With a service contract GE
Consumer Service will still be there
after your warranty expires.
With a multiple-year contract,
you’re assured of future service at
today’s prices.
Service Contracts
800-626-2002
Individuals qualified to service
their
own appliances can have
parts or accessories sent directly
to their home.
VISA, MasterCard and Discover
cards are accepted.
Care and cleaning instructions contained in this manual cover procedures to be performed by any user.
Other servicing generally should be
referred to qualified service personnel. Caution must be exercised,
since improper servicing may cause
unsafe operation.
Parts and Accessories
If for some reason you
are not happy with the
service you receive, here
are three steps to follow
for further help.
First,
contact the people who serviced your appliance. Explain why
you are not pleased.
Next,
if you are still not pleased,
write all the details—including
your phone number—to:
Consumer Relations
GE Appliances
Louisville, KY 40225
Finally,
if your problem is still
not resolved, write:
Major Appliance
Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
Further Service
19
Printed in the United States
10-96 CG
ABN12 ABN24 ABM18
ABN14 ABM14 ABM22
ABN18 ABM15 ABM24
What is Not
Covered
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
FULL ONE-YEAR WARRANTY
For one year from date of original purchase, we will provide, free of charge,
parts and service labor in your home to
repair or replace
any
part of the room air
conditioner that fails because of
a manu-
facturing defect.
FULL FIVE-YEAR WARRANTY
For five years from the date of original
purchase, we will provide, free of charge,
parts and service labor in your home to
repair or replace any part of the sealed refrig-
erating system (the compressor, condenser,
evaporator and all connecting tubing)
that fails because of a manufacturing
defect.
**********************************
This warranty is extended to the origi-
nal purchaser and any succeeding
owner for products purchased for use
in the 48 mainland states, Hawaii and
Washington, D.C. In Alaska the warranty
is the same except that it is LIMITED
because you must pay to ship the product to the service shop or for the service
technician’s travel costs to your home.
All warranty service will be provided by
our Factory Service Centers or by our
authorized Customer Care
®
servicers
during normal working hours.
Should your appliance need service,
during warranty period or beyond,
call 800-GE-CARES (800-432-2737).
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer
affairs office or your state’s Attorney General.
Warrantor: General Electric Company If further help is needed concerning this warranty, write:
Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225
Staple sales slip or cancelled check here. Proof of original purchase
date is needed to obtain service under warranty.
AIR
CONDITIONER
WARRANTY
What is Covered
• Service trips to your home to teach
you how to use the product.
Read your Owner’s Manual. If you then
have any questions about
operating the
product, please contact
your dealer or
our Consumer Affairs office at the
address below, or call, toll free:
GE Answer Center
®
800.626.2000
consumer information service
• Improper installation.
If you have an installation problem, or
if the air conditioner is of improper
cooling capacity for the intended use,
contact your dealer or installer. You
are
responsible for providing adequate
elec-
trical connecting facilities.
• Replacement of house fuses or reset-
ting
of circuit breakers.
• In commercial locations labor neces-
sary to move the unit to a location
where it is accessible for service by an
individual technician.
• Failure of the product resulting from
modifications to the product or due
to unreasonable use including failure
to provide reasonable and necessary
maintenance.
•
Failure due to corrosion on models not
corrosion-protected.
•
Damage to product caused by improper power supply voltage, accident,
fire,
floods or acts of God.
Pub. No. 49-7349
BT14933-167
Loading...
