GE ABHG Installation Guide
GE
Lighting Solutions
AlbeoTM LED Luminaire
Modular High & Low Bay Lighting
ABHG-Series CE
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Installation Guide
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
Prepare Electrical Wiring
Electrical Requirements
• The LED luminaire must be connected to the mains
supply according to its ratings on the product label.
• Use an input cord with 3 conductors each with a
cross-section between 1,5mm2 and 2,5mm2 of type
HD-21 or HD-22.
• Suitable for use indoors.
Grounding Instructions
• The grounding and bonding of the overall system
shall be done in accordance to local electric code of
the country where the luminaire is installed.
WARNING
RISK OF ELECTRIC SHOCK
• Turn power off before inspection, installation
or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all local codes.
• Use only IEC approved wire for input/output
connections. Minimum size 18 AWG (0,75mm2).
imagination at work
Luminaire Installation
Carefully unpack unit and properly inspect for defects before installing. Wear work gloves to prevent dirt and oil from being
1
transferred to the luminaire.
Select the appropriate mounting method based on the ordering number logic chosen.
2
Fixture Weight
ABHG-series
LED Modules Max. Weight
1 module 5,9 kg
2 modules 7,7 kg
3 modules 14,1 kg
4 modules 16,4 kg
Chain or Cable Mounting: Please
3
follow local codes and minimum load
rating guidelines when selecting and
installing a cable or chain.
NOTE: When selecting chain, a
joint in a circular chain link shall
be welded. A joint in a chain link of
another shape shall not be located
within 30 degrees of the vertical
unless welded.
Rod mount
bracket
Attach to
structural member
Mounting
inserts
Tighten screws
Direct Mounting: Hang two chains/
4 5
cables from a structural member
of the ceiling. Fixture must be
supported independently of an
outlet box. Tighten adjustment
screws on all four mounting inserts,
then attach chain or cable to
mounting inserts on both ends of
xture.
Attach to
structural member
Fasten
with nuts
Attach to
structural member
Indirect Mounting for Uplighting:
Hang two chains/cables from a
structural member of the ceiling.
Fixture must be supported
independently of an outlet box.
Attach chain or cable to eye bolt
mounts on both ends of xture.
Note: Mounted xture must have a
minimum distance to lighted objects
of 0,25m.
Rod Mount Kit: Attach two rod mount brackets to xture using four 10-32 x 3/8”
6
pan head screws per bracket. Secure 1/2” threaded rods into structural members
in ceiling. Place a nut on each threaded rod where xture should hang. Slide xture
onto threaded rods and tighten second nut onto rods to secure xture.

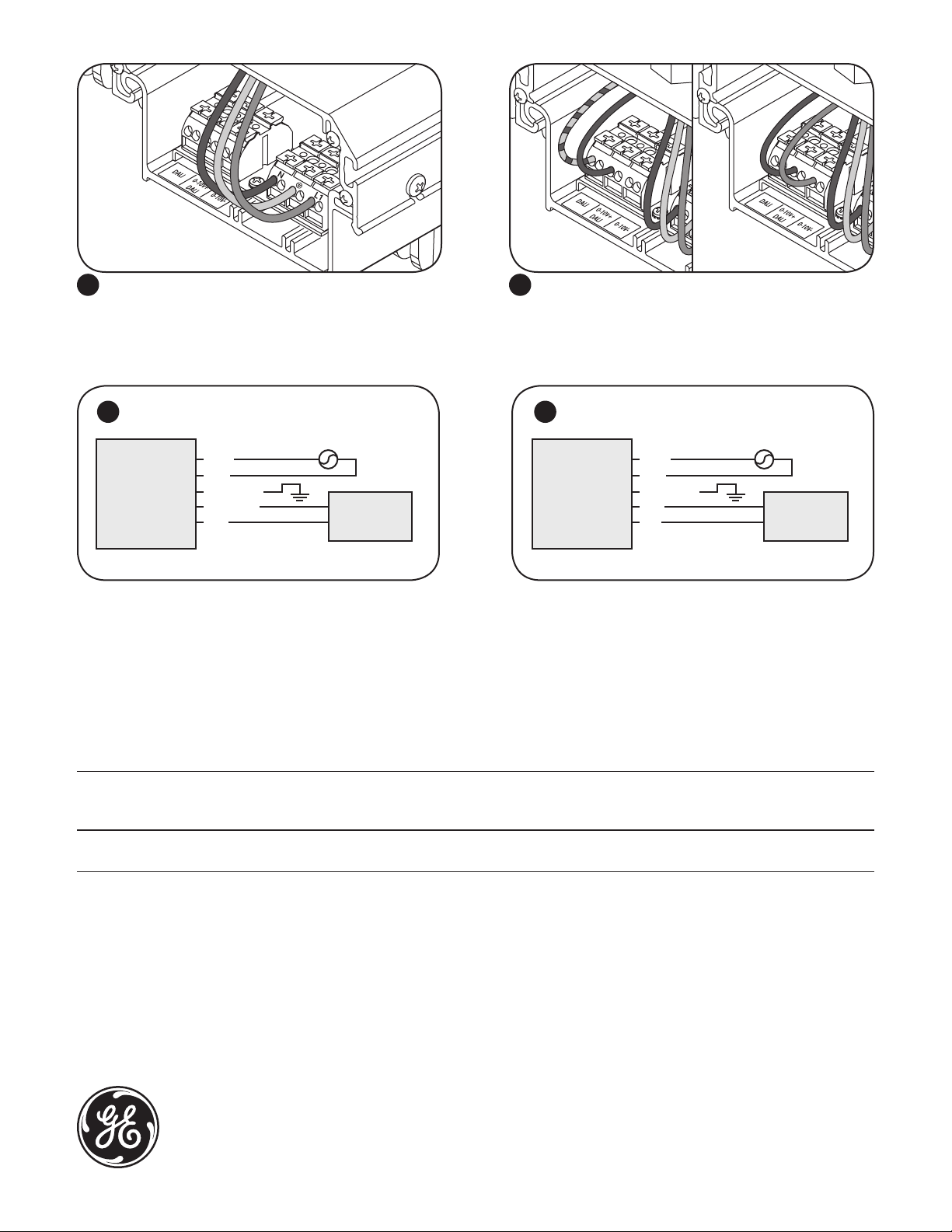

Electrical Connections (220–240V~)
For optional
dimming line
AC line
Loosen screws to remove endcap. Bring AC line through the rst hole on top of the xture
1 2
using supplied cable gland. Optionally, bring the dimming
control wires through the second hole on top of the
xture using supplied cable gland.
