GE 28300EE2, 28300 User Manual

Model 28300 2 in 1 - Internet Phone User’s Guide
can be used with the internet
or as a landline telephone
Quick
Set-Up
Guide
2
Important Information
NOTICE: This product meets the applicable Industry Canada technical specifications.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
The equipment must be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe systems, if present, are connected together. This precaution may be particularly important in rural areas.
CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
NOTES: This equipment may not be used on coin service provided by the telephone company.
Interference Information
This equipment generates and uses radio frequency energy which may interfere with residential radio and television reception if not properly installed and used in accordance with instructions contained in this manual. Reasonable protection against such interference is ensured, although there is no guarantee this will not occur in a given installation. If interference is suspected and verified by switching this equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient the radio/television receiver’s antenna, relocate the equipment with respect to the receiver, plug the equipment and receiver into separate circuit outlets. The user may also wish to consult a qualified radio/television technician for additional suggestions. This equipment has been fully tested and complies with all limits for Class B
computing devices pursuant to part 15 FCC Rules and Regulations.
Telephone Network Information
Should your equipment cause trouble on your line which may harm the telephone network, the telephone company, where practicable, may notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately.
The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company will likely give you adequate notice to allow you to maintain uninterrupted service.
Notice must be given to the telephone company upon termination of your telephone from your line.
3
REN Number
On the bottom of this equipment is a label indicating, among other information, the Ringer Equivalence Number (REN) for the equipment.
The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company.
REN Number is located on the cabinet bottom.
Licensing
Licensed under US Patent 6,427,009.
Hearing Aid Compatibility (HAC)
This telephone system meets FCC/Industry Canada standards for Hearing Aid Compatibility.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Information for DECT Product
This 28300 telephone is compliant with the DECT 6.0 standard which operates in the
1.92GHz to 1.93GHz frequency range.
4
Table of Contents
Important InformatIon .................................2
Interference InformatIon .............................2
telephone network InformatIon .................2
ren number ...............................................3
lIcensIng .....................................................3
hearIng aId compatIbIlIty (hac) .................3
fcc rf radIatIon exposure statement ........3
InformatIon for dect product ..................3
table of contents .......................................4
IntroductIon ...............................................7
before you begIn ........................................7
Parts CheCklist (for model 28300xx1) .7
telePhone JaCk requirements.........................8
InstallatIon .................................................8
digital seCurity system ...................................8
imPortant installation guidelines .................8
handset layout ...........................................9
base layout .................................................9
InstallIng the phone ..................................10
installing the handset Battery ...................10
Base station ....................................................10
software InstallatIon ...............................11

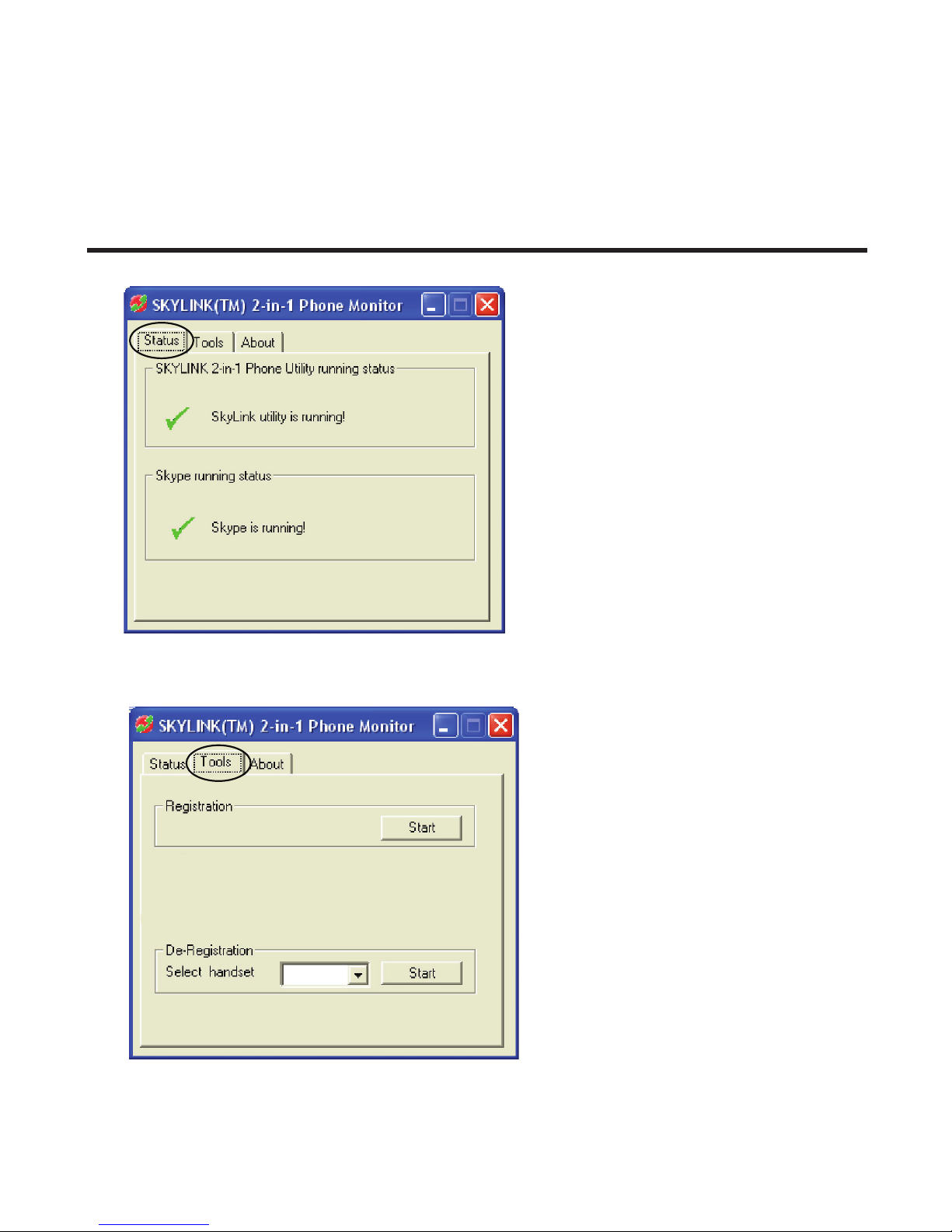

skylInk™ operatIon guIde .....................13
to uninstall the software .....................14
programmIng the telephone ......................14
timer .................................................................15
time format ................................................15
CloCk (set date/time) ..............................15
alarm ..........................................................15
handset settings ...........................................16
language ....................................................16
ringer tyPe ................................................17
ringer Volume ...........................................17
message waiting ......................................18
wallPaPer ..................................................19
Contrast .....................................................19
key tones ...................................................19
auto answer .............................................20
handset name ...........................................20
menu Color ...............................................21
BaCklight ....................................................21
skyPe ContaCts ..........................................21
registration ...............................................22
deregistration ...........................................22
seleCt Base ................................................23
default setting .........................................23
Base settings ..................................................23
ringer tyPe ................................................24
ringer on/off ..........................................24
skyPe status ...............................................24
default setting .........................................24
funCtion ..........................................................25
games ..........................................................25
telephone operatIon .................................25
Power on/off oPeration ............................25
making a Call.................................................25
traditional landline Calls .....................25
skyPe Calls ................................................ 26
answering a Call ..........................................28
Call waiting ...................................................28
dialing from ContaCts..................................30
adJusting earPieCe and ringer Volume .....30
muting the miCroPhone and ringer ..........30
Paging the handset .......................................30
handset sPeaker Phone ...............................31
key loCk ..........................................................31
5
Call transfer/forwarding(aPPliCaBle only
with additional handsets) .................... 31
Intercom operatIon ...................................32
handset to handset interCom Call ...........32
reCeiVing an interCom Call..........................32
adVanCed interCom features .......................32
reCeiVing an inComing Call during an
interCom Call ............................................32
using interCom with external telePhone
Calls ...........................................................32
two-way Calling ..................................... 33
conference operatIon
..............................33
loCal three-way ConferenCe Call .......33
skyPe ConferenCe Call ............................34
ConferenCe Call with a landline and an
skyPe ContaCt............................................34
call log....................................................34
Browsing Call logs ....................................35
deleting Call logs .......................................36
contacts (landlIne only) ..........................36
searChing ........................................................ 37
adding .............................................................. 37
grouP ...............................................................38
sPeed dial ....................................................... 38
CheCk memory ................................................39
emergenCy Call ..............................................39
changIng the battery ................................39
battery safety precautIons .......................40
shortcut key guIde ...................................40
lcd Icon guIde .........................................41
troubleshootIng guIde ..............................42
forgot Base Pin .....................................42
telePhone solutions ................................42
Caller id solutions .................................44
skyPe solutions.........................................44
Battery solutions .....................................45
general product care ..............................45
accessory InformatIon ..............................46
causes of poor receptIon .........................46
servIce.......................................................47
Index .........................................................48
SE E MARKIN G O N BO TTOM / BACK OF PRODUCT
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
THE LIGHTNING FLASH AND ARROW HEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.
CAUTION:
Table of Contents
6
Connect to
traditional phone
system
Connect to
Skype™
Get Connected Easily
System Requirements
Recommended: PC running Windows 2000 or XP 1 GHz processor 256 MB RAM 30 MB free space on hard drive Cable, DSL or equivalent broadband connection to Internet Standard PSTN line (RJ-11)
Minimum: PC running Windows 2000 or XP 400 MHz processor 128 MB RAM 10M free disk space on hard drive Internet Connection (either dial-up: minimum 33.6 Kbps modem, or any broadband: cable, DSL, etc.)
? ?
steps
3
setup your
GE 28300 USB DECT
step 1
download and install Skype™ software from www.skype.com
1. go to website: www.skype.com
2. download the free software
3. follow the install wizard
1. put the CD into the CD-rom drive of your computer
2. double click the setup icon
3. follow the install wizard
1. plug in power cord
2. connect to your landline socket with phone cable
3. connect to USB port when prompted by CD-rom
step 2
install the software in the CD to your computer
step 3
connect the GE 28300 to your computer and landline respectively
now you can make and receive both traditional phone calls & VOIP calls
traditional phone calls
VOIP calls
7
Introduction
CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference.
IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your home that isn’t cordless, in
case the power in your home goes out.
Before You Begin
Parts Checklist (for model 28300xx1)
Make sure your package includes the items shown here.
Base
Handset
Telephone
line cord
AC power
adaptor
2 AAA
Nickel-metal
Hydride
batteries
Battery
compartment
cover
SKYLINK™
Install
CD ROM
For Model 28300xx2 there will be ONE additional handset, belt clip, battery compartment cover, 2 AAA Nickel-metal Hydride batteries and a charge
cradle than shown above.
Belt
clip
PAGE
SKYLINK™ Dual Phone Utility
8
Telephone Jack Requirements
To use this phone with a landline, you need an RJ11C type modular telephone jack, which might look like the one pictured here, installed in your home. If you don’t have a modular jack, call your local phone company to find out how to get one installed.
Installation
Digital Security System
Your cordless phone uses a digital security system to protect against false ringing, unauthorized access, and charges to your phone line.
INSTALLATION NOTE: This product operates at a frequency of
1.9GHz. to provide communication with minimal interference from other electronic devices. To further minimize the possibility of interference, the base of the cordless telephone should not be placed near or on top of a TV, microwave oven, or VCR. If interference continues, move the cordless telephone further away from these appliances.
Important Installation Guidelines
• Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave ovens, heating appliances and direct sunlight.
• Avoid areas of excessive dust, moisture and low temperature.
• Avoid other cordless telephones.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
Modular
telephone
line jack
Wall plate
9
PAGE
Base Layout
Handset Layout
Soft Key Left (SKL/ | )
(button)
display
speaker (button)
#/PAUSE/lock
(button)
INT
(intercom button)
END CALL
(button)
REDIAL/flash
(button)
*
(button)
5/6Navigational
(button)
Landline (button)
[traditional call]
earpiece
Skype (button)
[computer call]
Soft Key Right (SKR/ | )
(button)
microphone
IN USE/CID/VM
(indicator)
CHARGE
(indicator)
PAGE
(indicator)
10
Installing the Phone
Installing the Handset Battery
NOTE: You must connect the handset battery before using the cordless handset(s).
CAUTION: To reduce the risk of fire or personal injury, use only the Thomson Inc. approved model GP80AAAHC - NiMH
1.2V 800mAh rechargeable Nickel-metal Hydride battery, which is compatible with this unit.
1. Locate batteries and battery door which are packaged together inside a plastic bag and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Insert the batteries.
4. Close the battery compartment by pushing the door up until it snaps into place.
Base Station
1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and place your cordless telephone on a level surface near your personal computer.
System Requirements:
Recommended: Minimum:
PC running Windows 2000 or XP PC running Windows 2000 or XP 1 GHz processor 400 MHz processor 256 MB RAM 128 MB RAM 30 MB free space on your hard drive 10M free disk space on your hard drive Cable, DSL or equivalent broadband Internet Connection (either dial-up: connection to Internet minimum 33.6 Kbps modem, Standard landline (RJ-11) or any broadband: cable, DSL, etc.)
11
2. Plug one end of the telephone line cord into the TEL jack on the back of the base and the other end into a modular jack.
3. Plug the AC power converter into the electrical outlet and the DC connector into the jack on the back of the base.
4. Place the handset in the base cradle. The CHARGE indicator turns on, verifying the battery is charging.
Allow handset to charge for 16 hours prior to first use. If you do not properly charge the handset, battery performance is compromised.
CAUTION: Use only the model 5-2711 power adaptor that came with this unit. Using other power adaptors may damage the unit.
Software Installation
Verify that the USB cable is NOT connected to computer before starting this installation.
1. Insert the SKYLINK™ 2-in-1 Phone Utility CD in your personal computer. Select the install language, and click [Next] to continue.
-OR-
If the following screen does not appear, find SKYLINK™ Setup and click on icon to
start the SKYLINK™ 2-in-1 Phone Utility procedure.
2. Wait while the program prepares setup. Click [Cancel] ONLY if you wish to stop the installation.
3. The Welcome screen appears. Click [Next] to continue or [Cancel] to terminate the procedure.
12
4. Select "I accept the terms of the license agreement" and click [Next] to continue.
5. The folder where setup installs the files can be changed. The default directory is “C:\Program Files\SKYLINK\SKYLINK™ 2-in-1 Phone Utility”. Press [Change…] to change the directory. Click [Next] to continue.
6. The Install screen appears. Click [Install] to continue.
7. Connect USB cable when prompted. Wait 10 seconds, then press [OK].
8. Install is complete. Click [Finish] to exit the program.
NOTE: If the Skype™ program is not installed on the computer, it will prompt you to install. Click [Yes], to automatically go to the Skype website where you can download the Skype software. Click [No] to cancel.
9. A Skype prompt window will pop-up, select "Allow this program to use Skype" to assure that the Skylink ™2-in-1 Phone Utility works properly with Skype.
Important: If you do not select “Allow this program to use Skype” the Skype connection will not work with this phone and you will
have to remove and reinstall the
SKYLINK™ 2-in-1 Phone Utility
software.
After successful installation, a SKYLINK™ 2-in-1 Phone Utility icon will appear in your toolbar menu. Right-Click on the icon to view the following options;
Open Monitor Opens the SKYLINK™ 2-in-1 Phone Utility Monitor window,
see SKYLINK™ Operation Guide section for more detail.
13
Start when windows start Automatically starts the SKYLINK™ 2-in-1 Phone Utility
when computer is started or rebooted. This can be turned ON or OFF as the user prefers.
Exit Closes the SKYLINK™ 2-in-1 Phone Utility.
SKYLINK™ Operation Guide
The "Status" screen indicates SKYLINK™ and Skype are operational.
The "Tools" screen allows you to easily register handsets and deregister handsets from the drop down menu.
The "About" screen has information regarding SKYLINK™ 2-in-1 Phone Monitor.
14
To Uninstall the Software
If you choose to uninstall the software from the PC.
1. Go to the START/Setting/Control Panel, choose the icon "Add or Remove Programs".
2. Select "SKYLINK™ 2-in-1 Phone Utility" from the list and click [Remove] to uninstall.
3. A message box appears. Click [Yes] to continue, or [No] to cancel.
4. After uninstalling the program, click [Finish] to exit.
Programming the Telephone
LCD Standby Screen The screen displays various information regarding the status of your phone the
handset name, time, battery charge status and wallpaper when idle. It also displays information when using Skype.
The handset menu gives you access to all of the built-in features. Press the Menu (SKL) button to display the first menu Contacts, and press 5 or 6 buttons to navigate to the desired menu option. Press the OK (SKL) button to activate a menu option. For details on programming, refer to the applicable section.
During programming, you may press the Back (SKR) button at any time to exit the menu and keep the previous setting.
CONTACTS The telephone can store up to 100 landline entries in
the contacts list with three numbers per entry.
CALL LOG Review Caller ID data (20 record limit) and Skype call
data (unlimited); allows you to review a number and dial or redial.
TIMER Set time format, clock and alarm settings.
HANDSET SETTINGS Allows you to set preferences for the handset.
BASE SETTINGS Allows you to set preferences for the base.
FUNCTION Games selection.
15
Timer
There are three programmable menus available: Time Format, Clock and Alarm.
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to TIMER.
3. Press the OK (SKL) button to enter the menu.
Time Format
Choose between 12 hour or 24 hour format. From the TIMER menu;
1. Use the 6 or 5 button to scroll to TIME FORMAT.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to 12 Hours or 24 Hours.
4. Press the OK (SKL) button to save your selection.
Clock (Set Date/Time)
From the TIMER menu;
1. Use the 6 or 5 button to scroll to CLOCK.
2. Press the OK (SKL) button to enter the menu.
3. Use the number keypad to input the date.
4. Press the OK (SKL) button to save your selection.
5. Use the number keypad to input the time.
6. Press the OK (SKL) button to save your selection.
7. Use the 6 or 5 button to scroll to AM or PM.
8. Press the OK (SKL) button to save your selection.
Alarm
Select the settings for your alarm notification. From the TIMER menu;
1. Use the 6 or 5 button to scroll to ALARM.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to select On/Off, Ringer Type or Ringer Volume and press the OK (SKL) button.
16
On/Off
There are four options: Off, Once, Everyday, and Weekday.
Off - Press the OK (SKL) button to confirm. Once, Everyday, and Weekday - Press the OK (SKL) button to enter the menu. Set
the time using the keypad, then press OK (SKL) button to confirm.
NOTE: Once the alarm is set, the alarm icon will appear in the top icon bar.
Ringer Type
1. Use the 6 or 5 button to scroll to the desired ring tone for your alarm.
2. Press the OK (SKL) button to confirm your selection.
Ringer Volume
1. Use the 6 or 5 button to scroll to the desired ring volume for your alarm.
2. Press the OK (SKL) button to confirm your selection.
Handset Settings
There are sixteen programmable menus available: Language, Ringer Type, Ringer Volume, Message Waiting, Wallpaper, Contrast, Key Tones, Auto Answer, Handset Name, Menu Color, Backlight, Skype Contacts, Registration, De-registration, Select Base and Default Setting.
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to HANDSET SETTINGS.
3. Press the OK (SKL) button to enter the menu.
Language
This menu allows you to change the language of the display prompts and the input special characters for French or Spanish text. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to LANGUAGE.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to the desired language. The default is ENGLISH.
17
4. Press the OK (SKL) button to save your selection.
NOTE: When English is selected, press the OK (SKL) button if you would like to add an additional input language, (or Cancel (SKR) to use English character set only) then press the 6 or 5 button to scroll to French or Spanish character set and press the OK (SKL) button to confirm. Press the Back (SKR) repeatedly to return to the main menu.
5. Press the BACK (SKR) button twice to return to main menu.
Ringer Type
This menu allows you to change the ringer tone (from 10 ring melodies) for each category/group. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to RINGER TYPE.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to a category.
4. Press the OK (SKL) button to enter.
5. Use the 6 or 5 button to scroll to the desired ring tone.
6. Press the OK (SKL) button to confirm your selection.
Ringer Volume
This menu allows you to change the ringer volume (5 levels) for each category/group. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to RINGER VOLUME.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to a category.
4. Press the OK (SKL) button to enter.
5. Use the 6 or 5 button to scroll to the desired ring volume.
6. Press the OK (SKL) button to confirm your selection.
18
Message Waiting
If you have subscribed to a voice messaging service, the green message light on the base will flash to alert you that you have messages waiting. To hear your messages, contact your voice messaging service provider.
NOTE: For quick dialing you can store the voice messaging service number on your phone. To dial the programmed VoiceMail number, press and hold the * button for 2 seconds.
To store/dial the voice messaging service number:
From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to MESSAGE WAITING.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to SERVICE.
4. Press the OK (SKL) button to enter the menu.
5. Enter the number of your messaging service provider.
6. Press the OK (SKL) button to confirm your selection.
NOTE: Press the (landline) button to dial the number. Press the END CALL button to return to standby mode.
When you have listened to your messages, to turn off the flashing message light:
From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to MESSAGE WAITING.
2. Press the OK (SKL) button to confirm your selection.
3. Use the 6 or 5 button to scroll to CLEAR MESSAGE.
4. Press the OK (SKL) button to confirm your selection.
NOTE: Press the END CALL button to return to standby mode.
19
Wallpaper
You may choose from the 3 preset images. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to WALLPAPER.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to the desired selection.
4. Press the OK (SKL) button to save your selection.
Contrast
You may choose from the 5 contrast levels. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to CONTRAST.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to the desired selection.
4. Press the OK (SKL) button to save your selection.
Key Tones
This menu allows you to ON or OFF the key tones. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to KEY TONES.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to On or Off.
4. Press the OK (SKL) button to save your selection.
20
Auto Answer
If Auto Answer is set to ON, you can answer the phone by lifting it from cradle. If Auto Answer is OFF, you must press the (Skype) or (landline) or (speaker) or INT button on the handset
From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to AUTO ANSWER.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to On or Off.
4. Press the OK (SKL) button to save your selection.
Handset Name
This menu allows you to enter a name for the handset, which displays on the idle screen. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to HANDSET NAME.
2. Press the OK (SKL) button to enter the menu.
3. Enter the handset name (up to 10 characters). More than one letter is stored in each of the number keys.
Directory Keypad Character Selection
Button Character Order Button Character Order 1 [- ? ! , . & = : # ” $] 7 [p q r s] [P Q R S] 2 [a b c] [A B C] 8 [t u v] [T U V] 3 [d e f] [D E F] 9 [wxy z] [W XY Z] 4 [g h i] [G H I] 0 space 5 [j k l] [J K L]] * shift lowercase, capitals, numbers 6 [m n o] [M NO] # [* + % @ ( ) / [ ] ; _ ’ ^]
4. Press the OK (SKL) button to save your selection.
NOTE: If you make a mistake, use the DELETE (SKR) button to backspace and delete one character at a time or press and hold to delete all.
21
Menu Color
This feature allows you change the background color and the color of the highlighter from 4 color schemes. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to Menu Color.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to the desired selection.
4. Press the OK (SKL) button to save your selection.
Backlight
During an incoming ring, the backlight is always on. When alarm rings, the backlight is on for 5 seconds. After a call ends, the backlight is on for 3 seconds. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to BACKLIGHT.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to Normal or Power Saving.
4. Press the OK (SKL) button to save your selection.
NOTE: If Power Saving mode is chosen, the backlight will be on for 15 seconds. If Normal mode is selected, it will be on for 30 seconds.
Skype Contacts
From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to Skype CONTACTS.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to All or Online.
NOTE: If All is chosen, all contacts are displayed. If Online is chosen, only online users are displayed.
4. Press the OK (SKL) button to save your selection.
22
Registration
Your handset is pre-registered and ready to use. It is not recommended that handset be registered again unless absolutely necessary. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to REGISTRATION.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to a specific base (1-4).
4. Press the OK (SKL) button.
5. While the system is searching, press and hold the PAGE button on base station for 2 seconds until the Charge/In Use indicator blinks.
NOTE: The maximum number of handsets that can be registered to a base, is six. The maximum number of bases to which a handset can be registered to, is four.
Deregistration
Deregistration cancels registration. During the deregistration process, keep the handset near the base. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to DE-REGISTRATION.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to a specific handset (1-6) and press the OK (SKL) button
4. Press the OK (SKL) button to confirm the selection. You will hear a confirmation tone when handset is deregistered.
WARNING: It is not recommended that a handset be deregistered unless absolutely necessary because once a handset is deregistered, that handset’s telephone features cannot be used until the handset is re­registered.
5. Select Back, if you do not want to deregister.
NOTE: When you complete the deregistration process, NOT REGISTERED shows on the display. To use the handset, you must
register the handset.
23
Select Base
This option allows you to register a handset to more than one base and select which base it takes the signal from. The handset can also search for the most suitable base automatically if Auto Base is selected. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to SELECT BASE.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to a specific base (1-4, Auto Base).
4. Press the OK (SKL) button to save your selection.
Default Setting
This option allows you to return the handset to factory preset settings. From the HANDSET SETTINGS menu;
1. Use the 6 or 5 button to scroll to DEFAULT.
2. Press the OK (SKL) button to enter the menu.
3. Press the OK (SKL) button to confirm the selection.
NOTE: If you select OK, all the settings in the programmable menu are returned to factory default setting. You will hear a confirmation tone.
Base Settings
There are four programmable menus available: Ringer Type, Ringer On/Off, Skype Status and Default Setting.
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to BASE SETTINGS.
3. Press the OK (SKL) button to enter the menu.
24
Ringer Type
This menu allows you to change the ringer tone (from 5 ring melodies) for the base. From the BASE SETTINGS menu;
1. Use the 6 or 5 button to scroll to RINGER TYPE.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to select the desired ring tone (1-5).
4. Press the OK (SKL) button to confirm your selection.
Ringer On/Off
From the BASE SETTINGS menu;
1. Use the 6 or 5 button to scroll to RINGER ON/OFF.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to scroll to On or Off.
4. Press the OK (SKL) button to save your selection.
Skype Status
From the BASE SETTINGS menu;
1. Use the 6 or 5 button to scroll to MY Skype STATUS.
2. Press the OK (SKL) button to enter the menu.
3. There are 7 different settings: Online, Offline, Skype Me, Away, Not Available, Do Not Disturb, Invisible. These are described on the Skype website user Help/Online Status. Use the 6 or 5 button to scroll to your desired Skype Status.
4. Press the OK (SKL) button to save your selection.
NOTE: If no PC connection is available, the message “PC Not Available” appears in the display.
Default Setting
This option allows you to return the base to factory preset settings. From the BASE SETTINGS menu;
1. Use the 6 or 5 button to scroll to DEFAULT.
2. Press the OK (SKL) button to enter the menu.
3. Press the OK (SKL) button to confirm the selection.
25
NOTE: If you select OK, all the settings in the programmable menu are returned to factory default setting. You will hear a confirmation tone.
Function
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to FUNCTION.
3. Press the OK (SKL) button to enter the menu.
Games
This menu allows you to choose from two different games. From the FUNCTION menu;
1. Use the 6 or 5 button to scroll to GAMES.
2. Press the OK (SKL) button to enter the menu.
3. Use the 6 or 5 button to select the desired game.
4. Press the OK (SKL) button to confirm your selection.
NOTE: Select [Play] to start the game. Select [Help] to get operational guide for the game.
Telephone Operation
Power On/Off Operation
The handset is powered on by connecting the battery or if the handset has been powered down, press and hold the END CALL button for 2 seconds.
To power off the handset, press and hold the END CALL button for 2 seconds.
Note: If the handset is on the cradle, only the (speaker) and END CALL buttons are functional.
Making a Call
Traditional Landline Calls
1. Pick up the handset, and press the (landline) or (speaker) button. Wait for a dial tone, then dial the desired number.
-OR-
26
Dial the number and then press the (landline) or (speaker) button.
NOTE: If you make a mistake, use the DELETE (SKR) button to backspace and delete one number at a time.
2. When finished, press the END CALL button or place the handset in the base cradle to hang up.
NOTE: During the conversation, you can use
the 6 or 5 button
to
adjust the receiver/speaker volume (5 levels). NOTE: Call timer will start counting when you press the telephone
key and go off-hook, the call timer format is HH:MM:SS. NOTE: After connection is established, user can view phone book by
pressing the Contact (SKR) button
Skype Calls
In order to make or receive a Skype call, please check the following:
1. PC is powered on and not in standby or hibernate mode.
2. Skype is logged into and running properly (Skype software should be 1.4 or later version).
3. 28300 Hardware connected to PC and USB Driver is functioning properly.
SkypeOut™ Call
SkypeOut allows you to use your internet connection to call ordinary telephones and mobile telephones worldwide.
1. Dial the number with format; 001, area code, telephone number. You must dial the "1" and the area code even if it is a local number, othewise you will dial up another country. For international calls; 011, country code, telephone number.
- OR -
Press the (Skype) button. The first entry in the Skype contacts list appears. Use
the 6 or 5 button to scroll to the required subscriber from the list or enter the first letter of the name.
2. Press the (Skype) button to connect.
3. When finished, press the END CALL button.
27
Skype Call
Use Skype to call other Skype users free of charge. Make sure that Skype™ is installed and activated on your computer.
1. Press the (Skype) button. The first entry in the Skype contacts list appears.
2. Use the 6 or 5 button to browse the contacts (online or all) or enter the first letter of the desired name to select a Skype contact.
3. Press the (Skype) button to connect.
4. When finished, press the END CALL button.
During an Ongoing Landline Call
1. Press the (Skype) button to put the landline call on hold.
2. Press the (Skype) button again to enter into the Skype contacts list.
3. Use the 6 or 5 button to browse the contacts (online or all) or enter the first letter of the desired name to select a Skype contact.
4. Press the (Skype) button to connect.
5. Toggle between the two calls by pressing the (Skype) button to select Skype call or the (landline) button to select the landline call.
NOTE: To terminate the ongoing Skype call and return to the landline call, press the the (Skype) button while on the line or press the (landline) button to release the landline line and turn
to the Skype call.
4. When finished, press the END CALL button to end both calls.
NOTE: If one call is ended, the other ongoing call can be terminated by pressing the END CALL key.
28
Answering a Call
When a landline call is received, if you subscribe to Call Waiting Caller ID service from your phone company, the phone number and name will appear.
When an Skype call is received, the incoming Skype username or SkypeIn™ number will be shown on the LCD.
When an intercom call is received, the caller’s handset number will appear. When receiving a landline or Skype call, all handsets registered to base will ring and
IN USE indicator on base will flash.
1. Press the (Skype) or (landline) or (speaker) or INT button on the handset.
NOTE: When the Auto Answer function is active, a connection is automatically established.
NOTE: You can reject the call by pressing the END CALL button.
2. When finished, press the END CALL button or place the handset in the base cradle to hang up.
Call Waiting
During an ongoing call, you can always start a new call by pressing the corresponding landline or Skype call button.
Incoming Landline Call during a Landline Call
1. Press the REDIAL button to place the ongoing call on hold and connect to the incoming call.
2. Toggle between the two calls by pressing the REDIAL button.
3. When finished, press the END CALL button to end both calls.
Incoming Landline Call during Skype Call or Incoming Skype Call during Landline Call
1. Press the (Skype) or (landline) button to place the ongoing call on hold and connect to the incoming call.
2. Toggle between the two calls by pressing the (Skype) button to select the Skype call or the (landline) button to select the landline call.
29
NOTE: You can press
the (Skype) button to
terminate the ongoing
Skype call and turn to the landline call or press
the (landline)
button
to release the landline line and turn to the Skype call.
3. When finished, press the END CALL button to end both calls.
NOTE: If one call is ended, the other ongoing call can be terminated by press the END CALL button.
Redial
The phone stores the last 20 dialed landline numbers in the Line Dialed Log and an unlimited amount of dialed Skype usernames or SkypeOut numbers in the Skype Dialed log.
1. Press the REDIAL/flash button to view the dialed calls.
- OR -
Through the Call Log menu.
NOTE: If there is no record in the Dialed Call Log, empty information will display and it will automatically return to the main menu.
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to CALL LOG.
3. Press the OK (SKL) button to enter the menu.
4. Use the 6 or 5 button to select desired type of dialed call.
5. Press the SELECT (SKL) button to confirm your selection.
6. Press the (landline) or (speaker) to redial the desired record. If Skype Dialed is selected, (Skype) button is available too.
7. When finished, press the END CALL button.
30
Dialing from Contacts
1. Press the CONTACT (SKR) button, the first entry in the phone book appears. (Or “No Records” if there are no entries.)
- OR -
You can access the Phone Book through user menu.
1. Make sure your phone is OFF (not in talk mode).
2. Press the MENU (SKL) button and use the 6 or 5 button to scroll to CONTACTS.
3. Press the OK (SKL) button to enter the menu.
4. Use the 6 or 5 button to to scroll to SEARCH.
5. Press the OK (SKL) button to enter the menu.
6. Enter the first letter of the name to quick search an entry.
7. Press the OK (SKL) button to select.
8. Scroll to entry and press the (landline) or (speaker) to dial the desired record
9. When finished, press the END CALL button.
Adjusting Earpiece and Ringer Volume
Use the 6 or 5 button to adjust ringer volume during incoming ring signal, adjust ear-piece volume after call has been answered.
Muting the Microphone and Ringer
Press the MUTE (SKL) button to switch the microphone on or off during a call. Press the MUTE (SKL) button to switch the ringer on or off during ringing.
Paging the Handset
If a handset has been misplaced, it is possible to call all the registered handsets by pressing the PAGE button on the base station. The handset page ring can be stopped until by pressing any button.
Loading...
+ 70 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
