GE 175D1807P633 User Manual

GEAppliances.com

175D1807P633 49-90369 07-09 JR

Washers

Safety Instructions . . . . . . . . . . . . . 2, 3

Operating Instructions

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 4

Control Settings . . . . . . . . . . . . . . . . . . . . 5–7

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Loading and Using the Washer . . . . .9–12

Installation Instructions . . . . .13–18

Drain Requirements . . . . . . . . . . . . . . . . . .16

Electrical Requirements . . . . . . . . . . . . . . .16

Grounding Requirements . . . . . . . . . . . . .16

Installing the Washer . . . . . . . . . . . . .17, 18

Location of Your Washer . . . . . . . . . . . . .14

Preparing to Install Your Washer . . . . . .13

Replacement Parts . . . . . . . . . . . . . . . . . . .18

Rough-In Dimensions . . . . . . . . . . . . . . . . .14

Unpacking Your Washer . . . . . . . . . . . . . .15

Water Supply Requirements . . . . . . . . . .16

Troubleshooting Tips . . . . . . . . .19–21

Consumer Support

Consumer Support . . . . . . . . . . Back Cover

Warranty (Canada) . . . . . . . . . . . . . . . . . . 23

Warranty (U.S.) . . . . . . . . . . . . . . . . . . . . . . 22

Owner’s Manual &

Installation Instructions

Write the model and serial numbers here:

Model # __________________ Serial # __________________

You can find them on a label inside the door.

As an ENERGY STAR®partner, GE has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

Laveuses

Lavadoras

Manuel d’utilisation

et d’installation

Manual del propietario

e instalación

La section française commence à la page 25

La sección en español empieza en la página 49

WCVH4800K WCVH4815K

■ Install or store where it will not be exposed

to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.

■ Properly ground washer to conform with all governing

codes and ordinances. Follow details in Installation Instructions.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

The instructions in this manual and all other literature included with this washer are not meant to cover every possible condition and situation that may occur. Good, safe practices and caution MUST be applied when installing, operating and maintaining any appliance.

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on

all hot water faucets and allowing them to run for several minutes. Do this before using any electrical

appliance

which is connected to the hot water system. This simple procedure will allow any built-up hydrogen

gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used.

■ Keep the area underneath and around your

appliances free of combustible materials such as lint, paper, rags and chemicals.

■ Do not leave the washer door open. An open door

could entice children to hang on the door or crawl inside the washer.

■ Close supervision is necessary if this appliance is

used by or near children. Do not allow children to play on, with or inside this or any other appliance.

■ Keep all laundry aids (such as detergents, bleaches,

etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.

■ Never climb on or stand on the washer top.

YOUR LAUNDRY AREA

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Consumer SupportTroubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

■ Never reach into washer while it is moving.

Wait until the machine has completely stopped before opening the door.

■ Do not mix chlorine bleach with ammonia

or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.

■ Do not wash or dry articles that have been

cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

■ The laundry process can reduce the flame

retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer’s wash and care instructions.

■ To minimize the possibility of electric shock,

unplug this appliance from the power supply or disconnect the washer at the building’s distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing the power button does NOT disconnect the appliance from the power supply.

■ Never attempt to operate this appliance

if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

■ Do not slam the washer door closed. Do not try

to force the door open when locked (LOCKED indicator ON). This could result in damage to the washer.

■ The washer is equipped with an over-temperature

detection system. The motor will stop if it becomes overheated. The washer will turn off the motor for 2 minutes to cool down. If the motor is still too hot after 2 minutes, the washer will repeat the cool-down a total of 3 times. If the motor remains too hot after 3 cool-downs, the washer will be paused until it is manually started again.

WHEN USING THE WASHER

■ Turn off water faucets to relieve pressure

on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.

■ Before discarding a washer, or removing it

from service, remove the washer door to prevent children from hiding inside.

■ Do not attempt to repair or replace any part of

this appliance unless specifically recommended in this Owner’s Manual, or in published user-repair instructions that you understand and have the skills to carry out.

■ Do not tamper with controls.

WHEN NOT IN USE

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Use this appliance only for its intended purpose as described in this Owner’s Manual.

GEAppliances.com

About the washer control panel.

You can locate your model number on a label inside the door.

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Power

Press to “wake up” the display. If the display is active, press to put the washer into standby mode.

NOTE: Pressing POWER does not disconnect the appliance from the power supply.

WARNING! To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT

SAFETY INSTRUCTIONS before operating this appliance.

Quick Start

If the screen is dark, press the POWER button to “wake up” the display.

Press the

POWER

button.

Select a wash cycle. (Defaults are set for each wash cycle. These default settings can be changed. See Control settings for more information.)

If you selected a wash cycle, press the START/PAUSE button.

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation

Instructions

Control settings. GEAppliances.com

Wash Cycles

The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The Gentle Wash

™

lifters lightly tumble the clothes into the water and

detergent solution to clean the load.

WHITES/ For heavily to lightly soiled white cottons, household linens, work and play clothes.

HEAVY DUTY

COLORS/NORMAL For heavy to lightly soiled colorfast cottons, household linens, work and play

clothes.

WRINKLE FREE For Easy Care and permanent press items. (PERMA PRESS)

ACTIVE WEAR For active sports, exercise and some casual wear clothes. Fabrics include modern

technology finishes and fibers such as spandex, stretch and microfibers.

DELICATES For lingerie and special-care fabrics with light to normal soil. Provides gentle

tumbling and soak during wash and rinse.

HANDWASH For items labeled hand-washable with light soils. Provides gentle rocking to mimic

the handwashing action.

SPEED WASH For lightly soiled items that are needed in a hurry. Cycle time is approximately

30 minutes, depending on selected options.

RINSE & SPIN To quickly rinse out any items at any time.

DRAIN & SPIN Drain and spin at any time.

BASKET CLEAN To clean drum and reduce odor.

NOTE: Basket Clean is a special cycle used to clean the washer drum and reduce

odor. DO NOT add garments to this cycle. Remove detergent cup and add one cup of bleach or other commercially available product manufactured for this purpose, such as Tide®Washing Machine Cleaner.

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Soil Level

Changing the SOIL level increases or decreases the wash time to remove different amounts of soil. To change the SOIL level, press the SOIL level button until you have reached the desired setting.

You can choose between Extra Light, Light, Normal, Heavy or Extra Heavy soil.

Spin Speed

Changing the SPIN setting changes the final spin speed of the cycles. Always follow the garment manufacturer’s care label when changing the SPIN setting.

To change the SPIN setting, press the SPIN setting button until you have reached the desired setting. You can choose between No Spin, Low, Medium, High or Extra High Spin. Higher spin speeds are not available on certain cycles, such as Delicates.

Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics.

Wash Temp

Adjust to select the proper water temperature for the wash cycle. The rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles.

Follow the fabric manufacturer’s care label when selecting the wash temperature. To change the wash temperature, press the TEMP button until you have reached the desired

setting. You can choose between Tap Cold, Cold, Warm, Hot or Sanitize. The Sanitized wash temperature is not available on certain cycles, such as Delicates.

When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on the Whites/Heavy Duty wash cycle. For best results, select the heavy soil setting when using the Sanitize wash temperature setting.

Start/Pause

Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. This function can be used to add garments during a cycle. Press again to restart the wash cycle.

NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current wash cycle will be cancelled.

NOTE: In some cases the washer will drain first, then unlock the door when it is paused. NOTE: The washer performs automatic system checks after pressing the START/PAUSE button.

Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.

Control settings.

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation

Instructions

GEAppliances.com

Signal

When the light is “on,” the washer will beep at the end of the cycle and every time you press a button on the control panel.

To turn the signal off, press the SIGNAL button and the light will go off.

Extra Rinse

Use an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads.

Delay Start

Use to delay the start of your washer.

1. Choose your wash cycle and any

options.

2. Press DELAY START button. You can

change the delay time in 1-hour increments (up to 18 hours) each time you press the DELAY START button. Stop pressing the button when your desired time is displayed.

3. Press the START/PAUSE button to start

the countdown.

The countdown time will be shown in the

ESTIMATED TIME REMAINING display.

NOTES:

■ If the door is opened while the washer

is in DELAY, the countdown time will continue to count down the delay time. If the door is not closed and the countdown time expires, the cycle will not start until the door is closed and the START/PAUSE button is pressed.

■ You can delay the start of a washer cycle up to 18 hours.

The light on the button will light up when

DELAY START is on.

Lock

You can lock the controls to prevent any selections from being made. Or you can lock or unlock the controls after you have started a cycle.

Children cannot accidentally start the washer by touching pads with this option selected.

To lock the washer, press and hold the TEMP and SPIN buttons together for 3 seconds.

To unlock the washer controls, press and hold the TEMP and SPIN buttons together for 3 seconds. A sound is made to indicate the lock/unlock status.

The control lock icon on the display will light up when it is on.

NOTE: The POWER button can still be used when the machine is locked.

My Cycle

To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.

To use your custom cycle, press the MY CYCLE button before washing a load.

To change the saved cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds.

NOTE: When using MY CYCLE, wash options cannot be modified after the cycle has been started.

NOTE: If you change wash options with MY CYCLE before starting the cycle, the MY CYCLE light will turn off and you will be returned to the base cycle.

The Fabric Softener Compartment

If desired, pour the recommended amount of liquid fabric softener into the compartment labeled “FABRIC SOFTENER.”

Use only liquid fabric softener in the dispenser.

Dilute with water to the maximum fill line.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which could stain clothes.

NOTE: Do not pour fabric softener directly on the wash load.

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

About the washer features.

The Dispenser Drawer

Slowly open the dispenser drawer by pulling it out until it stops.

After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.

You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer.

Use only HE High-Efficiency detergent.

The Liquid Bleach Compartment

If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the right compartment labeled “LIQUID BLEACH” marked with this symbol .

It is recommended to use High-Efficiency (HE) bleach in this front-load washer.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

NOTE: Do not use powdered bleach in the dispenser.

The Detergent Compartment

■ Only use high-efficiency detergent in this washer. Use the detergent manufacturer’s recommended amount. DO NOT fill above the MAX line.

The detergent compartment is in the left side of the dispenser drawer. The detergent cavity (cup removed) is used for powder detergent, and the detergent cup is used for liquid detergent.

■ Powder Detergent – Remove the detergent cup and pour the suggested amount of powder detergent into the detergent cavity.

■ Liquid Detergent – Leave the detergent cup in the drawer and pour liquid detergent into the cup. Do not fill above the MAX line.

■ Add measured detergent to the left detergent compartment of the dispenser drawer.

■ Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid highefficiency detergent can be used.

■ Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer since it can lead to oversudsing and detergent residue being left on the clothes.

Detergent Cup – Use for Liquid Detergent

Detergent Cavity – Use for Powder Detergent

Liquid Bleach Compartment

Fabric Softener Compartment

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation

Instructions

Loading and using the washer.

Always follow fabric manufacturer’s care label when laundering. GEAppliances.com

Sorting Wash Loads

Loading the Washer

The wash drum may be fully loaded with loosely added items. Do not wash garments containing

flammable materials (waxes, cleaning fluids, etc.).

To add items after the washer has started, press START/PAUSE and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing START/PAUSE, depending on the machine conditions. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press

START/PAUSE to restart.

Colors

Whites

Lights Darks

Soil

Heavy

Normal

Light

Fabric

Delicates

Easy Care

Sturdy Cottons

Lint

Lint Producers Lint Collectors

■ Combine large and small items in a load. Load large items first. Large items should not be more than

half the total wash load.

■ Washing single items is not recommended. This may cause an out-of-balance load. Add one or two

similar items.

■ Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.

■ Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency

washer, so it uses less water, making dye transfer more common.

Care and Cleaning/General Maintenance

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Wipe or dust spills or washing compounds with a damp cloth. Washer control panel and finishes may be damaged by some laundry pretreatment and stain remover products. Apply these products away from the washer. The fabric may then be washed and dried normally. Damage to your washer caused by these products is not covered by your warranty. Do not hit surface with sharp objects.

Interior: Dry around the washer door opening, flexible gasket (including attached hoses) and door glass. These areas should always be clean to ensure a watertight seal.

It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other commercially available product manufactured for this purpose, such as Tide®Washing Machine Cleaner) poured into the bleach section of the dispenser (no clothes) using the BASKET CLEAN cycle (found in the WASHER cycles menu).

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this manual. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

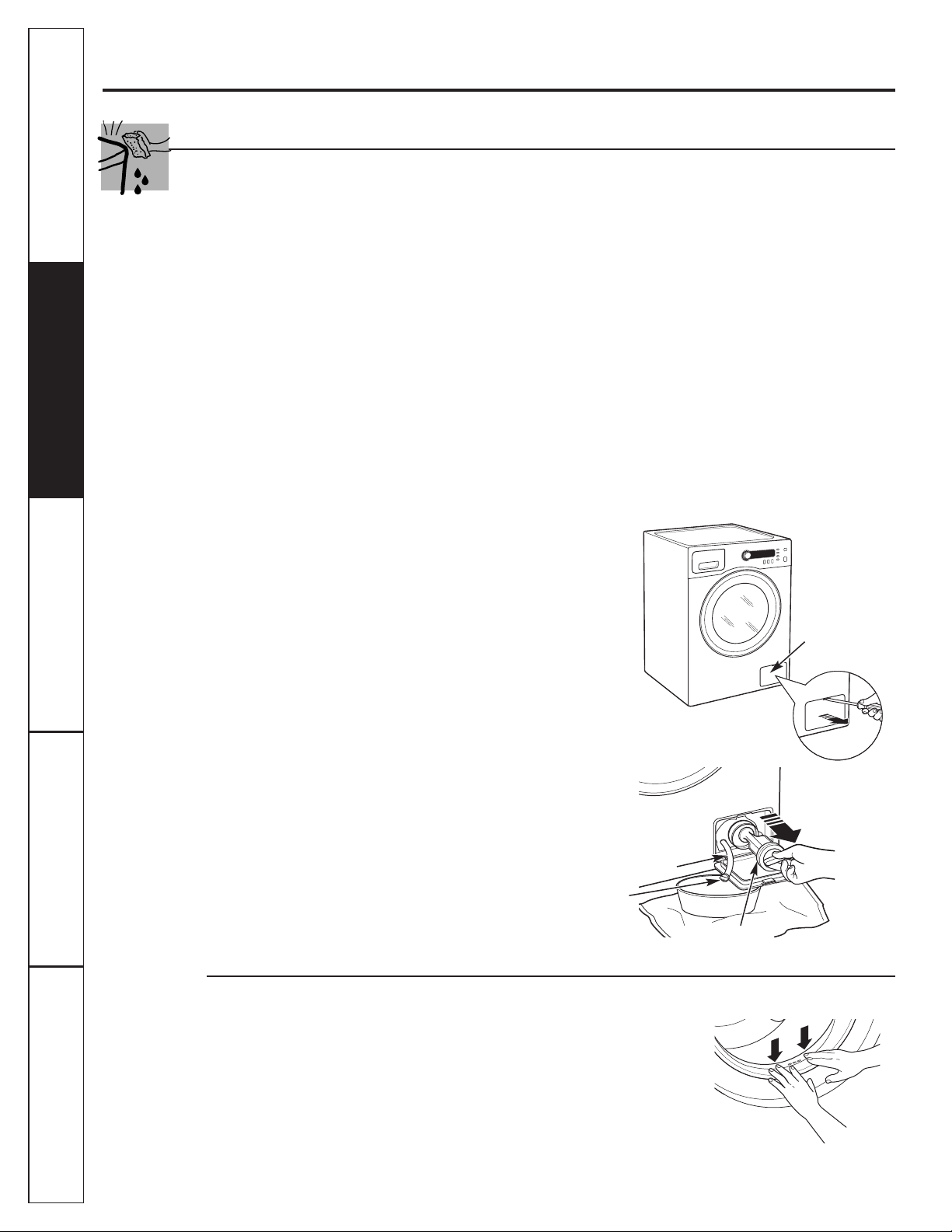

Clean Pump Filter

Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.

1. With a knife or slotted screwdriver, pry open the door on

the bottom right of the front of the unit.

2. Twist the small white cap counterclockwise a quarter turn

and unhook the small rubber hose. Pull the hose out of the hole and remove the white drain hose plug above a small pan to capture any water that may drain. Drain the excess water. Replace.

3. Unscrew the pump filter. Rinse. Replace.

4. Close the access door.

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Loading and using the washer.

Pump Filter

Drain Plug

Drain Hose

Cleaning the Door Gasket

Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.

While holding down the door gasket, inspect the interior of the gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.

When you are finished cleaning the door gasket, remove your hands and the gaskets will return to the operating position.

Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

■ Remove the drawer by first pulling it out until it stops. Then reach back into the rear center of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.

■ Remove all cups and inserts from the dispenser drawer. Rinse the inserts, cups and drawer with hot water to remove traces of accumulated laundry products.

■ To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.

■ Return inserts to the proper compartments. Replace the dispenser drawer.

■ To reduce buildup in the Dispenser Drawer area:

Use only HE High-Efficiency detergent.

Lock tab is visible only after drawer has been pulled out

Always follow fabric manufacturer’s care label when laundering. GEAppliances.com

Consumer SupportTroubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Loading and using the washer.

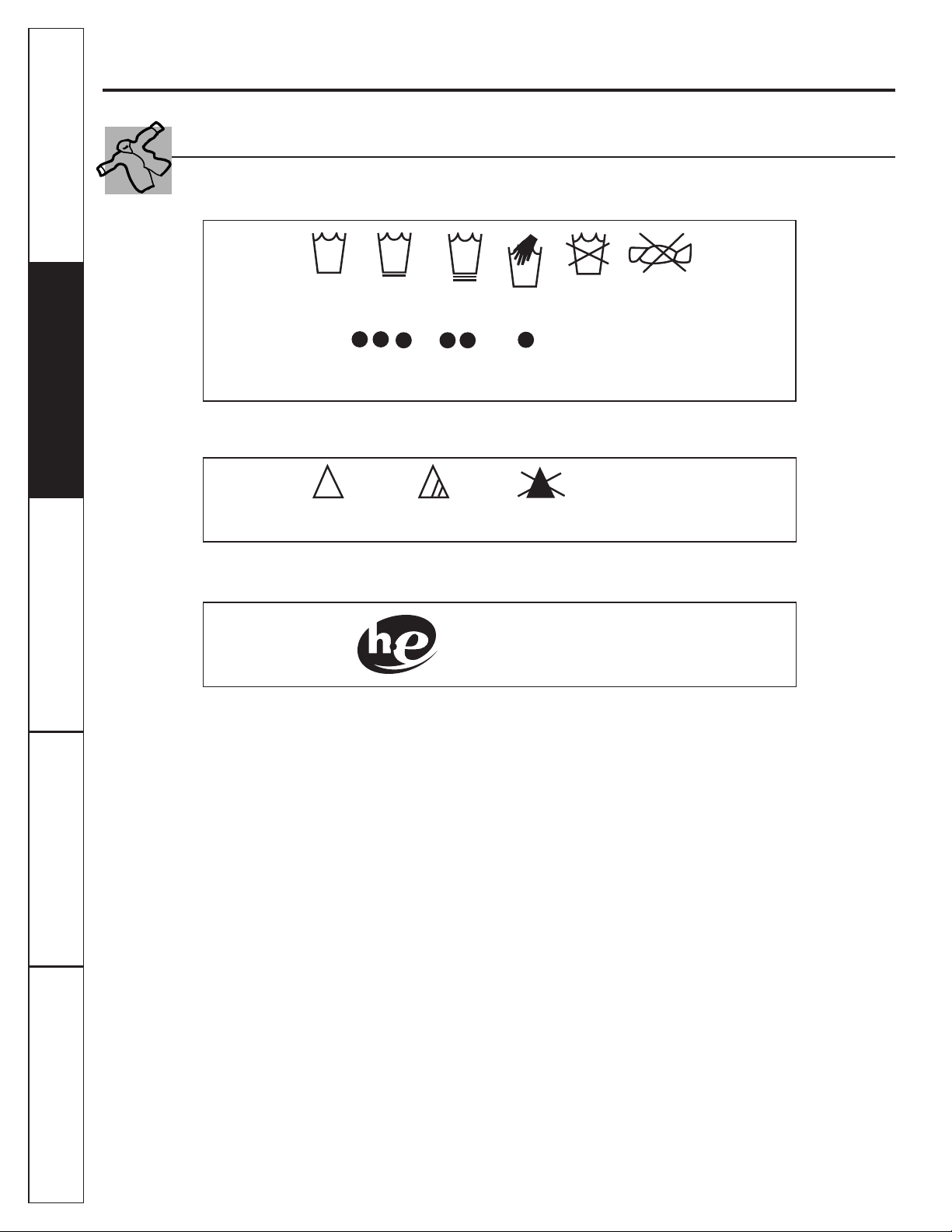

Fabric Care Labels

Machine wash cycle

Normal

Permanent Press/

wrinkle resistant

Gentle/

delicate

Hand wash

Do not wash Do not wring

Bleach symbols

Any bleach

(when needed)

Only non-chlorine bleach

(when needed)

Do not bleach

WASH LABELS

BLEACH LABELS

Below are fabric care label “symbols” that affect the clothing you will be laundering.

DETERGENT LABELS

Use only HE High-Efficiency detergent.

Consumer Support Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344

or visit www.GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT –Save these instructions

for local inspector’s use.

•

IMPORTANT –Observe all governing

codes and ordinances.

•

Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions

for future reference.

• Skill level – Installation of this appliance requires

basic mechanical and electrical skills.

• Completion time – 1-3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

WARNING

• This appliance must be properly grounded and

installed as described in these Installation Instructions.

• Do not install or store appliance in an area where

it will be exposed to water/weather. See Location of Your Washer section.

• NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.

FOR YOUR SAFETY:

TOOLS REQUIRED FOR WASHER INSTALLATION

❏ Wrench (provided) ❏ Channel-lock adjustable pliers ❏ Carpenter’s level

❏ Water Hoses (2)

PARTS SUPPLIED

❏ Wrench

❏ Hose Guide

❏ Hose Fittings (4)

❏ Detergent Cup

❏ Shipping Bolt

Hole Covers (5)

Installation Washer

Instructions

WCVH4800 and WCVH4815

Installation Instructions

LOCATION OF YOUR WASHER

Do Not Install the Washer:

1.In an area exposed to dripping water or outside

weather conditions. The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.

2.In an area where it will come in contact with curtains

or drapes.

3.On carpet. The floor MUST be a hard surface with

a maximum slope of 1/2″ per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.

NOTE: If floor is in poor condition, use 3/4″ impregnated plywood sheet solidly attached to existing floor covering.

IMPORTANT:

Minimum Installation Clearances

• When installed in alcove: Sides, Rear,

Top = 0″ (0 cm)

• When installed in closet: Sides, Rear,

Top = 0″ (0 cm), Front = 1″ (2.54 cm)

• Closet door ventilation openings required:

2 louvers each 60 square in. (387 cm2), located 3″ (7.6 cm) from top and bottom of door

ROUGH-IN DIMENSIONS

SIDE

FRONT

23.5”

(597 mm)

33.4”*

(849 mm)

26.6”

(676.5 mm)

33.4”*

(849 mm)

*NOTE:

Washer legs have 0.75” (19 mm) adjustability. Stacked: 67.7” (171.8 cm)

CONTRACTOR DIMENSIONS

BACK

21”

(533 mm)

6.25”

(159 mm)

4”

(102 mm)

29.75”

(756 mm)

27.75”

(705 mm)

UNPACKING THE WASHER

WARNING: Recycle or destroy the carton

and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

1. Cut and remove all packaging straps.

2. While it is in the carton, carefully lay the washer on its

side. DO NOT lay the washer on its front or back.

3. Turn down the bottom flaps. Remove all base packaging

including the styrofoam base.

4. Carefully return the washer to an upright position and

remove the carton by lifting it upward.

5. Carefully move the washer to within 4 feet (122cm)

of the final location.

6. Remove the following from the back side of the washer:

5 bolts 5 plastic spacers (including rubber grommets)

7. Insert shipping bolt hole covers into shipping bolt holes.

NOTES:

• Failure to remove the shipping braces can cause the washer to become severely unbalanced.

• Save all bolts for future use.

• If you must transport the washer at a later date, you must

reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

Installation Instructions

UNPACKING THE WASHER (cont.)

+ 34 hidden pages
