GATEWAY COMPUTER

REFERENCEGUIDE

®

Contents

Chapter 1: About This Reference. . . . . . . . . . . . 1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Accessing the online User Guide . . . . . . . . . . . . . . . . . . . . . . 2 Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . 3 Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Checking Out Your Computer . . . . . 5

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 3: Setting Up and Getting Started . . 11

Working safely and comfortably . . . . . . . . . . . . . . . . . . . . . 12 Reducing eye strain . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Setting up your computer desk and chair . . . . . . . . . . . 13 Sitting at your computer . . . . . . . . . . . . . . . . . . . . . . . . 14 Avoiding discomfort and injury from repetitive strain . 14

Preparing power connections . . . . . . . . . . . . . . . . . . . . . . . 14 Protecting from power source problems . . . . . . . . . . . 14 Checking the voltage selection . . . . . . . . . . . . . . . . . . . . 15 Connecting to a broadband modem or network . . . . . . . . 15 Connecting a dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . 16 Starting your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Waking up your computer . . . . . . . . . . . . . . . . . . . . . . . 17 Turning off your computer . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Restarting (rebooting) your computer . . . . . . . . . . . . . . . . . 18 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Premium multimedia keyboard features . . . . . . . . . . . . 19 Elite multimedia keyboard features . . . . . . . . . . . . . . . . 20 Using the mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using optical drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Loading an optical disc . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Identifying optical drive types . . . . . . . . . . . . . . . . . . . . 25 Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

i

Contents

Creating discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . 28 Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using the diskette drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Configuring the audio jacks . . . . . . . . . . . . . . . . . . . . . . . . . 32 Installing a printer, scanner, or other device . . . . . . . . . . . 33

Chapter 4: Upgrading Your Computer . . . . . . . 35

Preventing static electricity discharge . . . . . . . . . . . . . . . . . 36 Opening the case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Removing the side panel . . . . . . . . . . . . . . . . . . . . . . . . 37 Removing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . 38 Closing the case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Replacing the front bezel . . . . . . . . . . . . . . . . . . . . . . . . 39 Replacing the side panel . . . . . . . . . . . . . . . . . . . . . . . . . 40 Replacing the color panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Installing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Adding or replacing an optical disc drive . . . . . . . . . . . . . . 45 Replacing the memory card reader . . . . . . . . . . . . . . . . . . . 47 Adding or replacing a hard drive . . . . . . . . . . . . . . . . . . . . . 49 Replacing the heat sink and processor . . . . . . . . . . . . . . . . 51 Adding or replacing an expansion card . . . . . . . . . . . . . . . . 53 Replacing the system battery . . . . . . . . . . . . . . . . . . . . . . . . 55 Replacing the system board . . . . . . . . . . . . . . . . . . . . . . . . . 57

Chapter 5: Maintaining Your Computer. . . . . . 59

Setting up a maintenance schedule . . . . . . . . . . . . . . . . . . . 60 Caring for your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Cleaning your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Cleaning the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Cleaning the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Cleaning the mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Cleaning optical discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Updating Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

ii

www.uk.gateway.com

Using BigFix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Managing hard drive space . . . . . . . . . . . . . . . . . . . . . . . . . 66 Checking hard drive space . . . . . . . . . . . . . . . . . . . . . . . 66 Deleting unnecessary files . . . . . . . . . . . . . . . . . . . . . . . 67 Checking the hard drive for errors . . . . . . . . . . . . . . . . 68 Defragmenting the hard drive . . . . . . . . . . . . . . . . . . . . 69 Backing up files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Scheduling maintenance tasks . . . . . . . . . . . . . . . . . . . . . . . 72 Moving from your old computer . . . . . . . . . . . . . . . . . . . . . 73 Transferring files and settings automatically . . . . . . . . 73 Transferring files and settings manually . . . . . . . . . . . . 74

Chapter 6: Troubleshooting . . . . . . . . . . . . . . . 77

Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Add-in cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 CD or DVD drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Diskette drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 DVD drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Expansion cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Floppy drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Media Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Modem (cable or DSL) . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Modem (dial-up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

iii

Contents

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Recovering your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Recovering pre-installed software and drivers . . . . . . 100 Using Microsoft System Restore . . . . . . . . . . . . . . . . . 106 Recovering your system to its factory condition . . . . 109 Recovering your system using the Windows DVD . . . 110 Telephone support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Before calling Gateway Customer Care . . . . . . . . . . . . 111 Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Calling Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Appendix A: Legal Notices . . . . . . . . . . . . . . . . . 115

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

iv

CHAPTER1

About This Reference

About this guide

Accessing the online User Guide

Gateway contact information

Microsoft Certificate of Authenticity

For more information

1

CHAPTER 1: About This Reference

About this guide

This guide includes information and maintenance instructions that are specific to your model of Gateway computer. Some illustrations in this guide may look different than your computer because hardware options and port locations may vary. For all other computer information, see your online User Guide.

Formore information

For more information about your computer, visit Gateway’s Support page at www.uk.gateway.com or the Web address shown on your computer’s label. The Support page also has links to additional Gateway documentation and detailed specifications.

Accessing the online User Guide

In addition to this guide, your User Guide has been included on your hard drive. Your User Guide is an in-depth, easy-to-read manual that includes information on the following topics:

Help and technical support

Using and customizing Windows and other software

Controlling audio and video settings

Using the Internet

Protecting your files

Playing and recording media

Networking

To access your User Guide:

Click (Start), All Programs, then click Gateway Documentation.

2

www.uk.gateway.com

Gateway contact information

The label on the top of your computer contains information that identifies your computer model and serial number. Gateway Customer Care will need this information if you call for assistance.

Serial number Technical Support telephone number

Microsoft Certificate of

Authenticity

The Microsoft Certificate of Authenticity label found on the back or side of your computer includes the product key code for your operating system. If you ever reinstall Windows from the installation DVD, you will need to enter these numbers to activate Windows.

3

CHAPTER 1: About This Reference

4

CHAPTER2

Checking Out Your

Computer

Front

Back

5

CHAPTER 2: Checking Out Your Computer

Front

Memory card reader

DVD/CD drive

IEEE 1394/ FireWire™ port

Diskette or removable

hard drive (optional) Headphone jack

Microphone jack

Power button/ power indicator

USB ports

DVD/CD drive (optional)

Video jack (optional)

Audio left jack (optional)

Audio right jack (optional)

6











www.uk.gateway.com













Component

Icon

Description













Memory card









Insert a memory card from a digital camera,

reader









MP3 player, PDA, cellular telephone, or other











device into the memory card reader.

Optical disc drive









Use this drive to listen to audio CDs, install











games and programs, watch DVDs, and store











large files onto recordable discs (depending











on drive type). This drive may be a CD,











recordable CD, DVD, recordable DVD, Blu-ray,











or HD DVD drive. For more information about











your drive, see “Identifying optical drive











types” on page 25.













IEEE 1394 port









Plug IEEE 1394 (also known as Firewire®)



















devices (such as a digital camcorder) into











these 6-pin IEEE 1394 ports.



























































Diskette or









Use this drive to read from and write to 3.5"

removable hard









diskettes, or use this bay to connect a

drive (optional)









removable hard drive.













Headphone jack









Plug powered, analog front speakers, an



















external amplifier, or headphones into this











jack. This jack is color-coded green.











Microphone jack









Plug a microphone into this jack. This jack is











color-coded pink.













Power









Press this button to turn the power on or off.

button/power









You can also configure the power button to

indicator









operate in Standby/Resume mode or











Hibernate mode. The power indicator lights











when the computer is turned on.

USB ports









Plug USB (Universal Serial Bus) devices (such











as a USB external drive, printer, scanner,











camera, keyboard, or mouse) into these ports.













Video, Audio left,









Connect your video camera to these jacks.

and Audio right











jacks (optional)























7

CHAPTER 2: Checking Out Your Computer

Back

Important

Your computer’s hardware options and port locations may vary from this illustration.



Voltage switch





































Case cover thumbscrew







































Power connector























































































PS/2 keyboard port





































PS/2 mouse port







































Monitor (VGA) port





































Parallel port



























































































































IEEE 1394/FireWire™ port





































Ethernet (network) jack







































USB ports























































































































S/PDIF jack (optional)





































Center/subwoofer jack













































































Surround L/R speaker jack



Microphone jack





































Audio in/side speaker jack







































Headphone/front











































speaker jack





































Case cover thumbscrew











































































TV tuner





































Video card (optional)







































(optional)



















































































Modem (line) jack































































































































Telephone jack













































































































































Wireless network antenna























connectors (optional)







































Wireless network antenna (optional)









































































Component

Icon









Description

















































Voltage switch





















The switch is preset at the factory. Make





























sure that this is set to the correct voltage





























for your area.



Power connector





















Plug the power cord into this connector.















































PS/2 keyboard port





















Plug a PS/2 keyboard into this port.



































































































































































8









www.uk.gateway.com













Component

Icon



Description













Monitor (VGA) port









Plug a VGA (blue connector) monitor cable











into this port.













IEEE 1394 port









Plug IEEE 1394 (also known as Firewire)



















devices (such as a digital camcorder) into











this 6-pin IEEE 1394 port. For more





















information, see “Installing a printer,











scanner, or other device” on page 33.























USB ports









Plug USB (Universal Serial Bus) devices











(such as a USB printer, scanner, camera,











keyboard, or mouse) into these ports. For











more information, see “Installing a printer,











scanner, or other device” on page 33.













S/PDIF output jack









Plug an optical cable from an amplifier or

(optional)









entertainment system into this jack for











digital sound.

Microphone jack









Plug a microphone into this jack.

(pink plug)























Headphone/analog









This jack is user configurable for one of the









speakers jack (green









following:

plug)









Headphone: Plugheadphonesoramplified

-OR-









speakers into this jack (Default).

Front speakers jack









Stereo out: Plug your front left and right











speakers into this jack.











For more information, see “Configuring the











audio jacks” on page 32.

TV tuner card









Plug a video tuner or antenna into this











optional jack.













Wireless network









Connect this antenna to your wireless

antenna (optional)









network antenna card (optional).

and connectors











Case thumbscrew









Remove this screw before opening the











case.













PS/2 mouse port









Plug a PS/2 mouse into this port.

































Parallel port









Plug a parallel device (such as a printer)











into this port.























9

CHAPTER 2: Checking Out Your Computer

Component

Icon

Description









Ethernet (network)





Plug an Ethernet network cable or a device





jack





(such as a DSL or cable modem for a







broadband Internet connection) into this







jack. For more information, see “Learning







about the Internet” in the online User







Guide.

Center/subwoofer





Plug your center speaker and subwoofer

jack (orange plug)





into this jack. For more information, see

(optional)





“Configuring the audio jacks” on page 32.









Rear speaker jack





Plug your rear right and left speakers into





(black plug)





this jack. For more information, see







“Configuring the audio jacks” on page 32.

Audio input (Line in)





This jack is user configurable for one of the

jack (blue plug)





following:

-OR-





Stereo in: Plug an external audio input

Side speaker jack





source (such as a stereo) into this jack so







you can record sound on your computer







(Default).







Stereo out: Plug your side left and right







speakers into this jack.







For more information, see “Configuring the







audio jacks” on page 32.









Video card (optional)





Plug a VGA (blue connector) or DVI (white







connector) monitor into a port on this card,







if installed.

Modem jack





Plugamodemcableintothisjack. For more

(optional)





information, see “Connecting a dial-up







modem” on page 16.









Telephone jack





Plug the cord from your telephone into this

(optional)





jack.









10

CHAPTER3

Setting Up and Getting

Started

Working safely and comfortably

Preparing power connections

Connecting to a broadband modem or network

Connecting a dial-up modem

Starting your computer

Turning off your computer

Restarting (rebooting) your computer

Using the keyboard

Using the mouse

Using optical drives

Using the memory card reader

Using the diskette drive

Adjusting the volume

Configuring the audio jacks

Installing a printer, scanner, or other device

11

CHAPTER 3: Setting Up and Getting Started

Working safely and comfortably

Before using your computer, follow these general guidelines for setting up a safe and comfortable work area and avoiding discomfort and strain:

Keep hands and arms parallel to the floor.

Adjust the screen so it is perpendicular to your line of sight, and the top of the screen is no higher than eye level.

Place your feet flat on the floor or on a footrest.

Keep ventilation openings clear of obstructions.

Top of screen is not higher than eye level

Screen is perpendicular to your line of sight

Hands and arms are parallel to the floor

Feet are flat on the floor

12

www.uk.gateway.com

Reducing eye strain

Sunlight or bright indoor lighting should not reflect on the monitor screen or shine directly into your eyes.

Position the computer desk and screen so you can avoid glare on your screen and light shining directly into your eyes. Reduce glare by installing shades or curtains on windows, and by installing a glare screen filter.

Use soft, indirect lighting in your work area. Do not use your computer in a dark room.

Set paper holders at the same height and distance as the monitor.

Avoid focusing your eyes on your computer screen for long periods of time. Every 10 or 15 minutes, look around the room, and try to focus on distant objects.

Setting up your computer desk and chair

When you are setting up your computer desk and chair, make sure that the desk isthe appropriate height and the chair helps you maintain good posture.

Select a flat surface for your computer desk.

Adjust the height of the computer desk so your hands and arms are positioned parallel to the floor when you use the keyboard and touchpad. If the desk is not adjustable or is too tall, consider using an adjustable chair to control your arm’s height above the keyboard.

Use an adjustable chair that is comfortable, distributes your weight evenly, and keeps your body relaxed.

Position your chair so the keyboard is at or slightly below the level of your elbow. This position lets your shoulders relax while you type.

Adjust the chair height, adjust the forward tilt of the seat, or use a footrest to distribute your weight evenly on the chair and relieve pressure on the back of your thighs.

Adjust the back of the chair so it supports the lower curve of your spine. You can use a pillow or cushion to provide extra back support.

13

CHAPTER 3: Setting Up and Getting Started

Sitting at your computer

Avoid bending, arching, or angling your wrists. Make sure that they are in a relaxed position when you type.

Do not slouch forward or lean far back. Sit with your back straight so your knees,hips, and elbowsform right angles when you work.

Take breaks to stand and stretch your legs.

Avoid twisting your torso or neck.

Avoiding discomfort and injury from repetitive strain

Vary your activities to avoid excessive repetition.

Take breaks to change your position, stretch your muscles, and relieve your eyes.

Find ways to break up the work day, and schedule a variety of tasks.

Preparing power connections

Protecting from power source problems

Warning

High voltages can enter your computer through both the power cord and the modem connection. Protect your computer by using a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem, use a surge protector that has an antenna/cable TV jack. During an electrical storm, unplug both the surge protector and the modem.

During a power surge, the voltage level of electricity coming into your computer can increase to far above normal levels and cause data lossorsystem damage. Protect yourcomputer and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your computer.

An uninterruptible power supply (UPS) supplies battery power toyourcomputerduring apowerfailure.Althoughyoucannot run your computer for an extended period of time with a UPS, a UPS lets you run your computer long enough to save your work and shut down your computer normally.

14

www.uk.gateway.com

Checking the voltage selection

Caution

If you set the voltage selection switch incorrectly, your system will be damaged. Make sure this switch is set correctly for your location before turning on your computer. In the United States, the utility power is supplied at a nominal 115 volts at 60 Hz. The power supply should always be set to this when your computer is operating in the United States. In other areas of the world, such as Europe, the utility power is supplied at 230 volts at 50 Hz. If your computer is operating in an environment such as this, the voltage switch should be moved to 230.

The power supply, a component built into your computer, provides power to the system board, add-in cards, and peripheral devices. The power supply’s voltage selection for your location istypically set at the factory, but you can change it to match the electrical service available in your usage area (such as while in another country). Use the power selection switch on the back of your computer to set the voltage to 115V or 230V.

To set the voltage selection switch:

1Disconnect your computer’s power cable.

2Use a tool such as an opened paper clip to slide the voltage selection switch to the correct voltage position. The switch is located on the back of your computer, near the power cable connector.

Connecting to a broadband modem or network

Important

Your computer may be equipped with a built-in Ethernet (network) jack. For information about setting up a wired or wireless Ethernet network, see your online User Guide.

You can connect your computer to a cable or DSL modem or to a wired Ethernet network.

To connect to a broadband modem or to an Ethernet network:

1Insert one end of the network cable into the network jack on the back of your computer.

2Insert the other end of the network cable into a cable modem, DSL modem, or network jack.

15

CHAPTER 3: Setting Up and Getting Started

Connecting a dial-up modem

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Your computer may have a 56K modem that you can use with a standard telephone line to connect to the Internet or fax documents.

To connect the modem:

1Insert one end of the modem cable into the modem jack on the modem at the back of your computer.

2Insert the other end of the modem cable into a telephone wall jack. (The modem will not work with digital or PBX telephone lines.)

3If you want, you can connect a telephone to the PHONE jack on the modem at the back of your computer.

Starting your computer

To start your computer:

1Connect the power, network, mouse, and keyboard cables to your computer according to the setup poster.

2Press the power button on the front of your computer. If your computer does not turn on, check the power cable connections.

Important

Your computer has a built-in, variable-speed fan. In addition, your computer uses a powerful processor which produces heat and has its own cooling fan. Both the system fan and processor fan can run at different speeds at times to ensure correct system cooling. You may notice an increase in the fan noise when the fan is running at high speed and a decrease in the fan noise when it switches to normal speed.

3If you are starting your computer for the first time, follow the on-screen instructions to select the language and time zone and to create your first user account.

4Attach and turn on any USB or audio peripheral devices, such as printers, scanners, and speakers. If you need to attach a peripheral device to the parallel or serial ports, turn off your computer first. See the documentation that came with each device for its setup instructions.

16

www.uk.gateway.com

5To open your computer’s Start menu, click (Start). From that menu, you can run programs and search for files. For more information on using your computer’s menus, see “Using Windows” and “Customizing Windows” in your online User Guide.

Waking up your computer

Tip

For more information about changing the power button mode, see the “Customizing” chapter in your online User Guide.

When you have not used your computer for several minutes, it may enter a power-saving mode called Sleep. While in Sleep mode, the power indicator on the power button flashes.

If your computer is in Sleep mode, move the mouse, press a key on the keyboard, or press the power button to “wake” it up. If the computer remains in Sleep mode, press the power button.

Turning off your computer

Warning

When you turn off your computer, certain components in the power supply and system board remain energized. In order to remove all electrical power from your computer, unplug the power cord and modem cable from the wall outlets. We recommend disconnecting the power cord and modem cable when your computer will not be used for long periods.

Important

If for some reason you cannot use the Shut Down option in Windows to turn off your computer, press and hold the power button for about five seconds, then release it.

Putting your computer into Sleep mode is the easiest way to power down your computer. Although it does not turn your computer completely off, it does turn off or slow down most system operations to save power, and saves your desktop layout so the next time you restore power, the programs are laid out just as you left them. Waking your computer from a Sleep state is much fasterthanturning on yourcomputerafter it has been turned completely off.

17

CHAPTER 3: Setting Up and Getting Started

To put your computer to sleep:

1Click (Start), then click (power). The computer saves your session and partially shuts down to save power.

2To “wake” your computer, press a key on the keyboard or press the power button. If the computer remains in Sleep mode, press the power button.

To turn off your computer:

1Click (Start), click the arrow next to the lock icon, then click Shut Down. The computer turns off.

2To completely disconnect all power (such as for servicing internal components), also disconnect the power cord.

Restarting (rebooting) your computer

If your computer does not respond to keyboard or mouse input, you may need to restart (reboot) your computer.

To restart your computer:

1Click (Start), click the arrow next to the lock icon, then click Restart. Your computer turns off, then turns on again.

18

www.uk.gateway.com

2If your computer does not turn off, press and hold the power button until the computer turns off (about five seconds), then press it again to turn the computer back on.

Using the keyboard

Premium multimedia keyboard features

The keyboard has several different types of keys and buttons. Your keyboard also has status indicators that show which keyboard feature is active.









Function keys























Indicators

Editing buttons

Internet buttons

Audio playback buttons Navigation keys





Internet buttons



























































































































































































































































































































































































































































































































































































































































































































































Windows keys

Application key Directional keys Numeric keypad







Feature

Icon

Description







Editing buttons



Press these buttons to copy, cut, and paste.







Function keys



Press these keys to start program actions. Each





program uses different function keys for





different purposes. See the program





documentation to find out more about the





function key actions.







Internet buttons



Press these buttons to launch your Internet





home page or search, or e-mail programs.

Audio playback



Press these buttons to play your audio files and

buttons



to adjust the volume.







19

CHAPTER 3: Setting Up and Getting Started

Feature

Icon

Description











Navigation keys







Press these keys to move the cursor to the









beginning of a line, to the end of a line, up the









page, down the page, to the beginning of a









document, or to the end of a document.

Indicators







Show if your NUM LOCK, CAPS LOCK, or









SCROLL LOCK keys are activated. Press the









corresponding key to activate the function.











Windows keys







Press one of these keys to open the Windows















Start menu. These keys can also be used in









combination with other keys to open utilities like









F (Find/Search), R (Run), and E (Computer).











Application key







Press this key to access shortcut menus and help















assistants in Windows.

















































Directional keys







Press these keys to move the cursor up, down,









right, or left.

Numeric keypad







Press these keys to type numbers when the









numeric keypad (NUM LOCK) is turned on.











Elite multimedia keyboard features

The keyboard has several different types of keys and buttons. Your keyboard also has status indicators that show which keyboard feature is active.

Sleep button Function keys

Application buttons

Audio playback

Indicators

buttons



































































Windows keys

Application key

Navigation keys Numeric keypad

20









www.uk.gateway.com











Feature

Icon

Description











Sleep button







Press this button to activate your computer’s















Sleep (power-saving) mode.





















Function keys







Press these keys to start program actions.









Each program uses different function keys for









different purposes. See the program









documentation to find out more about the









function key actions.











Application buttons







Press these buttons to launch your Internet









home page, search for files, or launch the









calculator program.

Audio playback







Press these buttons to play your audio files

buttons







and to adjust the volume.











Indicators







Show if your NUM LOCK, CAPS LOCK, or









SCROLL LOCK keys are activated. Press the









corresponding key to activate the function.

Windows keys







Press one of these keys to open the Windows









Start menu. These keys can also be used in









combination with other keys to open utilities









like F (Find/Search), R (Run), and









E (Computer).











Application key







Press this key to access shortcut menus and















help assistants in Windows.

















































Editing buttons







Press these buttons to copy, cut, and paste.











Navigation keys







Press these keys to move the cursor to the









beginning of a line, to the end of a line, up the









page, down the page, to the beginning of a









document, or to the end of a document. Press









the arrow keys to move the cursor.

Numeric keypad







Press these keys to type numbers when the









numeric keypad (NUM LOCK) is turned on.











21

CHAPTER 3: Setting Up and Getting Started

Using the mouse

Scroll wheel

Right button

Left button

The mouse is a device that controls the pointer movement on the computer display. This illustration shows the standard mouse.

As you move the mouse, the pointer (arrow) on the display moves in the same direction.

You can use the left and right buttons on the mouse to select objects on the display.

22

www.uk.gateway.com

You can use the scroll wheel on the mouse to move through a document. This feature is not available in all programs.

To...

Do this...











Move the







Move the mouse around. If you





pointer on the







reach the edge of your mouse

computer







pad and need to move the

display







mouse farther, lift the mouse









and place it in the middle of the









mouse pad, then continue









moving the mouse.







Select an object







Position the pointer over the

onthecomputer







object. Quickly press and

display







release the left mouse button.









This is called clicking.











Start a program







Position the pointer over the





or open a file or







object. Quickly press and

folder







release the left mouse button









twice. This is called









double-clicking.







Access a







Position the pointer over the

shortcut menu







object. Quickly press and

or find more







release the right mouse button

information







once. This is called

about an object







right-clicking.

on the display.



















Move an object







Position the pointer over the







onthecomputer







object. Press the left mouse

display.







button and hold it down. Move









(drag) the object to the









appropriate part of the









computer display. Release the









button to drop the object









whereyou wantit.Thisiscalled









clicking and dragging.











For more information about how to adjust the double-click speed, pointer speed, right-hand or left-hand configuration, and other mouse settings, see the “Customizing” chapter in your online User Guide. For instructions on how to clean the mouse, see “Cleaning the mouse” on page 63.

23

CHAPTER 3: Setting Up and Getting Started

Using optical drives

Features

Your optical drive has the following basic components:

Flip-down door

Activity indicator

Eject button

Loading an optical disc

To insert an optical disc:

1Press the eject button on the optical disc drive.

Important

When you place a single-sided disc in the tray, make sure that the label side is facing up. If the disc has two playable sides, place the disc so the name of the side you want to play is facing up.

2Place the disc in the tray with the label facing up.

3Press the eject button to close the tray.

24

www.uk.gateway.com

Identifying optical drive types

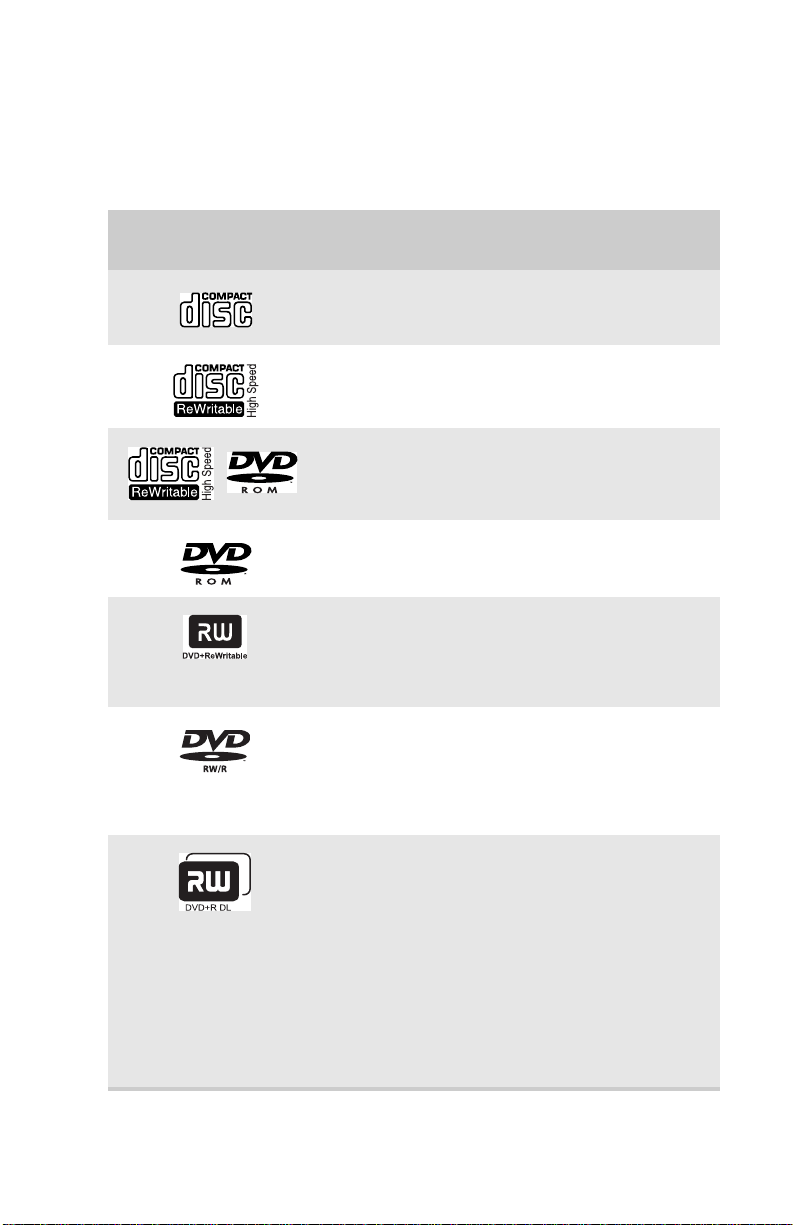

Your computer may contain one of the following drive types. Press the drive’s eject button, then Look on the front of the drive’s disc tray for one or more of the following logos:

If your optical drive has

Yourdrivetype

Use your drive for...

this logo...

is...



































CD

Installing programs, playing































audio CDs, and accessing data.



















































CD-RW

Installing programs, playing

















audio CDs, accessing data, and

















creating CDs.

































DVD/CD-RW

Installing programs, playing































audio CDs, accessing data,

















creating CDs, and playing

















DVDs.

































































DVD

Installing programs, playing

















audio CDs, playing DVDs, and

















accessing data.

































DVD+RW

Installing programs, playing































audio CDs, playing DVDs,

















accessing data, and recording

















video and data to CDs and

















DVD+R or DVD+RW discs.

































DVD R/RW

Installing programs, playing

















audio CDs, playing DVDs,

















accessing data, and recording

















video and data to CDs and

















DVD+R, DVD+RW, DVD-R, and

















DVD-RW discs.

































Double layer

Installing programs, playing





























DVD+RW

audio CDs, playing DVDs,

















accessing data, and recording

















video and data to CDs and

















double layer DVD+R discs.

















Note: To use the double layer

















capability of the double layer

















recordable DVD drive, the

















blank DVDs you purchase must

















state Double Layer, Dual Layer,

















or DL. Using other types of

















blank media will result in less

















capacity.



















25

CHAPTER 3: Setting Up and Getting Started

If your optical drive has

Yourdrivetype

this logo...

is...









DVD-RAM/-RW





















RECORDER





Blu-ray Disc

HD-DVD

Use your drive for...

Installing programs, playing audio CDs, playing DVDs, accessing data, and recording video and data to CDs and DVD-RAM, DVD-R, or DVD-RW discs.

Installing programs, playing audio CDs, playing DVDs, playing Blu-ray Discs, accessing data, and recording video and data to CDs, DVD-RAM, DVD-R, DVD-RW, and Blu-ray discs.

Installing programs, playing audio CDs, playing DVDs and HD-DVDs, accessing data, and recording video and data to CDs, DVD-RAM, DVD-R, DVD-RW, and HD-DVD discs.

Playing discs

Playing a CD

Important

Some music CDs have copy protection software. You may not be able to play these CDs on your computer.

A standard compact disc (CD) can hold an entire album of digital songs and can be played on a CD player or your computer’s CD drive.

Use a music program or Windows Media Player on your computer to:

Play music CDs

Create MP3 music files from your music CDs

Edit music track information

Use your music files to build a music library

For more information about playing CDs, see your online User Guide.

26

www.uk.gateway.com

Playing a DVD

A Digital Versatile Disc (DVD) is similar to a standard CD but has greater data capacity. Because of this increased capacity, full-length movies, several albums of music, or several gigabytes of data can fit on a single disc. DVDs can be played on a DVD player or a DVD drive-equipped computer. For more information about playing DVDs, see your online User Guide.

Playing a Blu-ray Disc

Blu-ray Disc is a high-capacity optical disc that can store much more data than a DVD. A dual-layer Blu-ray Disc can hold 50 GB of files, about 23 hours of standard-definition video, or about nine hours of high-definition video. Blu-ray Discs can be played on a Blu-ray-compatible player or a Blu-ray drive-equipped computer. For more information about playing Blu-ray Discs, see your online User Guide.

Playing an HD-DVD

HD-DVD is a high-capacity optical disc that can store much more data than a DVD. A dual-layer HD-DVD can hold 30 GB of files, about 14 hours of standard-definition video, or about 5.5 hours of high-definition video. HD-DVDs can be played on an HD-DVD-compatible player or an HD-DVD drive-equipped computer. For more information about playing HD-DVDs, see your online User Guide.

27

CHAPTER 3: Setting Up and Getting Started

Creating discs

Recordingto optical discs

You can use the disc burning program on your computer to copy tracks from a music CD to your hard drive, copy or create data discs, create music CDs, create video DVDs, and more. For more information about creating CDs and DVDs, see your online User Guide.

Creating audio andvideo files

You can create audio and music files, either from scratch or from music CDs. You can also create video files from home video. For more information, see your online User Guide.

Copying optical discs

You can copy optical discs to make backups of your data. For more information, see your online User Guide.

Using the memory card reader

You can use the optional memory card reader to transfer pictures from a digital camera to your computer. You can also use the memory card reader to transfer data between your computer and a device that uses memory cards, such as a PDA, MP3 player, or cellular telephone. (Your computer’s memory card reader may look different.)

Activity indicator

Memory card reader slots

28

www.uk.gateway.com

Memory card types

The memorycardreadersupportsseveralmemorycardtypes. To determine which types are supported by your card reader and the slots to use for each type of card, examine the face plate of the reader. Each slot is assigned a different drive letter (for example, the E: and F: drives), so data can be transferred from one memory card type to another.

Using a memory card

Caution

Before inserting a memory card into a slot, make sure that the slot is empty, or you could damage the card reader.

To insert a memory card:

1Insert the memory card into the appropriate memory card slot.

2To access a file on the memory card, click (Start), then click Computer. Double-click the drive letter (for example, the E: drive), then double-click the file name.

To remove a memory card:

Wait for the memory card reader access indicator to stop blinking, then pull the memory card out of the slot.

Caution

Do not remove the memory card or turn off the computer while the memory card reader access indicator is blinking. You could lose data. Also, remove the memory card from the reader before you turn off the computer.

Important

Do not use the remove hardware icon in the taskbar to remove the memory card, or you will have to restart the computer to re-enable the memory card reader.

29

CHAPTER 3: Setting Up and Getting Started

Using the diskette drive

The optional diskette drive (not available on all systems) uses 3.5-inch diskettes (sometimes called floppy disks). Diskettes are useful for storing files or transferring files to another computer. (Your computer’s diskette drive may look different.)

Drive activity light

Diskette slot

Eject button

To load a diskette:

1Insert the diskette into the diskette drive with the label facing up.

2To access a file on the diskette, click (Start), then click Computer. Double-click the diskette drive letter (for example, the A: drive), then double-click the file name.

3To remove the diskette,makesurethat thedrive activity light is off, then press the eject button.

Adjusting the volume

You can adjust volume using your speakers’ controls or the Windows volume controls. You can also adjust the volume of specific sound devices in your computer.

To adjust the overall volume using hardware controls:

If you are using external speakers, turn the knob on the front of the speakers.

-OR-

Use the mute and volume control buttons on the keyboard. For more information, see “Using the keyboard” on page 19.

30

www.uk.gateway.com

To adjust the volume from Windows:

1Click (Volume) on the taskbar. The volume control slider opens.

2Click and drag the slider up to increase volume and down to decrease volume.

3To mute the volume, click (Mute). To restore volume, click it again.

4To adjust device volume levels, click Mixer. The Volume Mixer dialog box opens, where you can click and drag sliders for individual devices.

Tip

Adjust the Windows Sounds slider to change system sounds volume independently of general volume (such as the volume used for music and game sounds).

31

CHAPTER 3: Setting Up and Getting Started

5Click X in the top-right corner of the window to close it.

Help

For more information about adjusting the volume, click Start, then click Help and Support. Type adjusting volume in the Search Help box, then press ENTER.

Configuring the audio jacks

If the back of your computer has five audio jacks, they are universal jacks. This means that they can be used for more than one purpose. For example, the blue jack on the computer can be a stereo in jack or a stereo out jack. To use the audio jacks for something other than the default audio device, you need to configure the audio jacks.

To configure the audio jacks:

Shortcut

Start Ö Control Panel Ö Hardware and Sound Ö Advanced

1Connect your audio device(s) to the computer audio jack(s).

2Click (Start), then click Control Panel. The Control Panel window opens.

3Click Hardware and Sound, Sound, the Playback tab, then click Configure.

-OR-

If your computer has the Realtek Sound Effect Manager installed, double-click the Sound Effect Manager icon on the taskbar. The Realtek dialog box opens.

4Follow the on-screen instructions to configure the audio jacks for your speaker setup.

32

www.uk.gateway.com

Installing a printer, scanner, or other device

Important

Before you install a printer, scanner, or other peripheral device, see the device documentation and installation instructions.

Your computer has one or more of the following ports: IEEE 1394 (also known as Firewire®), Universal Serial Bus (USB), serial, and parallel. You use these ports to connect peripheral devices such as printers, scanners, and digital cameras to your computer. For more information about port locations, see “Checking Out Your Computer” on page 5.

IEEE 1394 and USB ports support plug-and-play and hot-swapping, which means that your computer will usually recognize such a device whenever you plug it into the appropriate port. When you use an IEEE 1394 or USB device for the first time, your computer will prompt you to install any software the device needs. After doing this, you can disconnect and reconnect the device at any time.

Help

For more information about installing peripheral devices, click Start, then click Help and Support. Type installing devices in the Search Help box, then press ENTER.

Parallel and serial port devices are not plug-and-play. See the device documentation for detailed information and installation instructions.

33

CHAPTER 3: Setting Up and Getting Started

34

CHAPTER4

Upgrading Your Computer

Preventing static electricity discharge

Opening the case

Closing the case

Replacing the color panel

Installing memory

Replacing the system battery

Adding or replacing an optical disc drive

Replacing the memory card reader

Adding or replacing a hard drive

Replacing the heat sink and processor

Adding or replacing an expansion card

Replacing the system board

35

CHAPTER 4: Upgrading Your Computer

Preventing static electricity discharge

Warning

To avoid exposure to dangerous electrical voltages and moving parts, turn off your computer and unplug the power cord and modem and network cables before opening the case.

To prevent risk of electric shock, do not insert any object into the vent holes of the power supply.

The componentsinsideyourcomputerareextremelysensitive to static electricity, also known as electrostatic discharge (ESD).

Before opening the computer case, follow these guidelines:

Wear a grounding wrist strap (available at most electronics stores) and attach it to a bare metal part of your computer.

Turn off your computer.

Touch a bare metal surface on the back of the computer.

Unplug the power cord and the modem and network cables.

Caution

ESD can permanently damage electrostatic discharge-sensitive components in your computer. Prevent ESD damage by following ESD guidelines every time you open the computer case.

Before working with computer components, follow these guidelines:

Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.

Remove components from their antistatic bags only when you are ready to use them. Do not lay components on the outside of antistatic bags because only the inside of the bags provide electrostatic protection.

Always hold expansion cards by their edges or their metal mounting brackets. Avoid touching the edge connectors and components on the cards. Never slide expansion cards or components over any surface.

36

www.uk.gateway.com

Opening the case

Your computer case provides easy access to internal components.

Removing the side panel

Warning

To avoid exposure to dangerous electrical voltages and moving parts, turn off your computer, then unplug the power cord and modem cable before opening the case.

To remove the side panel:

1Follow the instructions in “Preventing static electricity discharge” on page 36.

2Shut down your computer, then disconnect the power cord and modem, network, and all peripheral device cables.

3Press the power button for ten seconds to drain any residual power from your computer.

4Loosen the two captive thumbscrews on the back edge of the side panel. (These screws cannot be removed.)

5Slide the side panel toward the back of your computer, then pull the panel away from your computer.

37

+ 99 hidden pages
