Gateway GT350 F1 Specifications
1
GT350 F1 specifications
Product overview
The Gateway GT350 F1 is a dual-socket tower or 4U rack mountable server for flexible environment
delivering blazing performance and exceptional expansion capability. Offering high reliability, latest
technology, cost-effective growth, and comprehensive management features, Gateway GT350 F1 delivers
high-availability, power efficient solution in departmental and medium enterprise environment deployments.

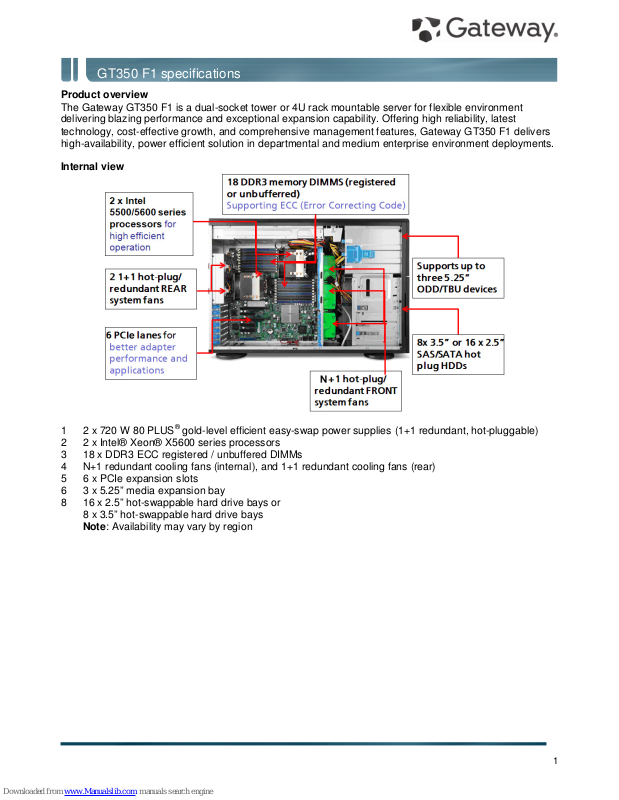

Internal view
1 2 x 720 W 80 PLUS® gold-level efficient easy-swap power supplies (1+1 redundant, hot-pluggable)
2 2 x Intel® Xeon® X5600 series processors
3 18 x DDR3 ECC registered / unbuffered DIMMs
4 N+1 redundant cooling fans (internal), and 1+1 redundant cooling fans (rear)
5 6 x PCIe expansion slots
6 3 x 5.25” media expansion bay
8 16 x 2.5” hot-swappable hard drive bays or
8 x 3.5” hot-swappable hard drive bays
Note: Availability may vary by region
2
GT350 F1 specifications
Front View
4U Rackmount View
Rear View
Front I/O
1 2 x USB ports
2 ID LED button
3 Network, hard drive and power status indicators
Rear I/O
1 PS2 mouse and keyboard ports
2 4 x USB ports
3
GT350 F1 specifications
3 2 x Gigabit LAN port (RJ-45)
4 Video port
5 Serial port
6 System ID LED
7 Management port (RJ-45)
What's New
• New Intel® Xeon® 5600 Series processors
Intel Xeon X5675, X5672, E5649, E5645, E5607, E5606, E5603
• Hot-pluggable/redundant power supply with 80 PLUS® gold-level efficiency
• Smart Server Manager v1.1 with improved management functionality
Product Specifications
Processors and Chipset
• Up to two Intel® Xeon® 5500/5600 series processors
• Chipset: Intel® 5520
Memory
• Memory capacity:
Registered DIMM: 1, 2, 4, 8, 16 GB
Unbufferred DIMM: 1, 2, 4 GB
• Maximum capacity: up to 192 GB registered DIMMs when fully populated with 2 DIMMs per channel in
12 slots
• Maximum capacity: up to 48 GB unbuffered DIMMs when fully populated with 2 DIMMs per channel in
12 slots
Network Controllers
• Integrated dual-port Intel® 82576EB Gigabit Ethernet Controller (2 ports total)
Storage
• Hard disk form factor: 2.5” or 3.5”
• Type: SAS / SATA / SSD with hot-plug capability
• 3.5” Maximum capacity:
Up to 16 TB SATA HDD (2 TB 3.5" x 8 HDDs)
Up to 4.8 TB SAS (600 GB 3.5” x 8 HDDs)
• 2.5” Maximum capacity:
Up to 16 TB SATA HDD (1 TB 2.5" x 16 HDDs)
Up to 9.6 TB SAS (600 GB 2.5” x 16 HDDs)
Storage Controllers
• Integrated Intel® ICH10R Serial ATA host controller (six 3 Gb/s SATA ports) with software RAID 0, 1, 5,
10 support
• Optional PCIe 4-/8-/16-port SAS RAID card
Expansion slots
• 2 x PCIe® 2.0 x8 (x 16 connector)
• 2 x PCIe® 2.0 x4 (x8 connector)
• 1 x PCIe® 1.0 x4 (x8 connector)
• 1 x Flex I/O (PCIe® x8)
4
GT350 F1 specifications
Management
• Gateway Smart Server Manager
• System ID LED buttons, System Health LED
• Gateway Smart Console for server management and KVM over IP remote management
Deployment/Serviceability
• Gateway Smart Setup
• BIOS Update Tool
• IPMI Firmware Update Tool
Operating Systems
• Windows Server® 2008
• Windows Server 2008 R2
• Windows Server 2003
• Red Hat Enterprise Linux 5.4
• SuSE Linux Enterprise Server 11
• VMware ESXi™ 4
• VMware ESX™ 4
Input/output interface
Front
• One Power/off button
• LED indicators: power, HDD activity, LAN port 1 through 2, ID, and System status
Rear
• PS2 keyboard port
• PS2 mouse port
• 4 x USB 2.0 ports
• BMC Management port
• Serial port
• Video port
• 2 x Gigabit port
• ID LED
Optical drive
• 5.25” SATA DVD Super multi
• 5.25” tape drive
Chassis/Form Factor
• Tower/ 4U rack mountable
Power Supply
• 2 x 720 W 80 PLUS® gold-level efficient, easy-swap power supply (1+1 redundant, hot-pluggable)
Regulatory Compliant Standards
EMC
• FCC (Class A)
• CE (Class A)
• BSMI (Class A)
Safety
5
GT350 F1 specifications
•
UL/cUL
• CB
Nemko/GS
Environmental Specifications
Dimensions 434 (H) x 648 (D) x 178 (W) mm (17.2 x 25.5 x 7 inches)
Weight Maximum 39 kg (88.1 lbs)
Minimum (includes a single HDD, CPU and
RAM, and PSU)
28.5 kg (62.8 lbs)
System inlet
temperature
Operating 10° - 35° C (50° - 95° F)
Non-operating -40° - 70° C (-40° - 158° F)
Relative
humidity
Operating 8 - 90 %
Non-operating 5 - 95 %
Acoustics Idle
LWAd 6.2 BA
LpAm 43.6 dBA
Operating
LWAd 6.0 BA
LpAm 43.9 dBA
Power Rated Steady –state power 720 W
Maximum Peak Power 728 W
BTU rating 2456.64 BTU/hr at 100 - 240 VAC
6
GT350 F1 specifications
Technical specifications
PCIe® specifications
The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the
PCI-E bus segments. Details about each bus segment follow the table.
NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one
direction per lane for Gen 2.
Expansion
slot
Number Type Bus width1 Voltage Connector Location Length
PCIe x16 2 PCIe Gen2 x8 3.3V x16 Onboard Full height
PCIe x8 2 PCIe Gen2 x4 3.3V x8 Onboard Full height
PCIe x8 1 PCIe Gen1 x4 3.3V x8 Onboard Full height
Flex I/O 1 PCIe Gen2 x8 3.3V x8 Onboard Full height
NOTE:
1. Indicates the number of physical electrical lanes running to a PCIe® connector.
2. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus
assignment number.
3. Slots are enumerated differently based on the operating system. Microsoft® operating systems
enumerate Device ID by bus starting from the lowest bus to the highest.
Onboard storage specifications
Item Description
Controller Intel® 82801JR (ICH10R) I/O Controller Hub
Simultaneous drive transfer channels 6 onboard SATA ports
Max throughput per channel 3 Gb/s
Data transfer method
• Non-RAID mode
• RAID mode
Drive type supported Serial ATA
RAID levels support
• RAID 0, 1, 10, 5 (Intel software RAID)
• RAID 0, 1, 10 (Adaptec software RAID)
NOTE: Intel software RAID only supports Windows OS
RAID function support
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
NOTE: This controller does not support LED functions
RAID OS support
•
Windows Server 2008
• Windows Server 2008 R2
• Windows Server 2003
• Red Hat Enterprise Linux 5.4
• SuSE Linux Enterprise Server 11
