Gastroback 40126 User Manual
GASTROBACK
INSTRUCTIONS FOR USE AND RECIPES
DESIGN JUICER PRO
®
Art.-Nr. 40126 Design Juicer Pro
Read all provided instructions before first use!
Model and attachments are subject to change!
For household use only!
Carefully read all provided instructions before you start running
the appliance and pay attention to the warnings mentioned in
these instructions.
Table of Contents
Knowing your Design Juicer Pro ........................................................................... 35
Important safeguards .......................................................................................... 36
Safeguards for daily operation ........................................................................ 37
Important safeguards for all electrical appliances ............................................... 39
Movable and sharp-edged parts – risk of injury ................................................. 39
Technical details ................................................................................................ 40
Operating ......................................................................................................... 41
Assembling the appliance ............................................................................... 41
Operating your Design Juicer Pro ..................................................................... 44
Emptying the pulp container during juicing ........................................................ 45
Disassembling your juicer ................................................................................ 46
Care and cleaning ............................................................................................. 48
Trouble shooting guide ....................................................................................... 49
To clear blockage .......................................................................................... 50
Tips on juicing ................................................................................................... 51
Storage ............................................................................................................. 55
Notes for disposal .............................................................................................. 55
Information and service ....................................................................................... 55
Warranty .......................................................................................................... 55
Recipe ideas ...................................................................................................... 56
34
KNOWING YOUR DESIGN JUICER PRO
1. Food pusher with cannelure:
for pushing whole fruit and
vegetables down the feed chute
2. Patented extra wide feed chute:
You can fill in whole fruit such
as apples, carrots, tomatoes and
peeled oranges. For quick and
easy juicing of fruit and vegetables.
1.
2.
3. Juicer cover
(dishwasher safe) with inter
locking safety arm: stops the
juicing without the
juicer cover locked in place.
4. Stainless steel micro
mesh filter basket
(dishwasher safe)
5. Filter bowl surround
with juice spout
6. Large pulp container
(dishwasher safe)
7. Safety arm
8. Motor block
with 950 Watt motor
9. On-/Off-switch
with 2 speed settings
3.
4.
5.
6.
7.
8.
9.
10. Rubberfeet
35
The current interest in fresh and unprocessed food is the reason for fresh fruit and vegetable
juices to become a favourite component of our daily food and well balanced diet.
The Design Juicer Pro has a special designed large feed chute, a 3 litre pulp container,
a big juice jug and a stainless steel titanium reinforced micro mesh filter. It operates with
a high performance 950 watt motor which makes the juice production easy and efficient.
The parts have a smooth surface with no grooves and rough edges and can be cleaned easily after use. The provided juice jug finishes with the juice run-out and therefore eliminates
any splatter during operation. It has a volumetric capacity of 1,000 ml and a nice grip for
easy and comfortable handling.
Please read all the advice and instructions with care and keep the manual. Only use the
appliance to process fresh food.
IMPORTANT SAFEGUARDS
Carefully read all instructions before operating and save the instructions for further reference. Do not attempt to use this appliance for any other than the intended use, described
in these instructions. Any other use, especially misuse, can cause severe injury or damage
by electric shock, fire or moving mechanical parts. This instruction is an essential part of
the appliance. When passing on the appliance to a third person, ensure to include these
instructions.
Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service centre.
Please contact your vendor.
Important Instructions
• Never leave the appliance unattended when in operational mode.
• Always make sure the appliance is properly and completely assembled before connecting
to power outlet and operating. The unit will not turn ›on‹ unless properly assembled.
• Do not let the motor run permanently for longer then 7 minutes to avoid overheating.
• Do not operate the appliance continuously on heavy loads for more than 10 seconds.
If this is the case the motor slows down because the appliance is overloaded or the fruit
chunks are too big. Cut the fruit in smaller pieces and try smaller amounts at one time. To
continue juicing turn the appliance off and then on again. (None of the recipes in this book
are considered a heavy load.)
• ATTENTION: Extra wide feed chute. Never put fingers, wooden spoons or other foreign
substance (such as hair, clothing, brushes, cloths) into the feed chute when the appliance is
plugged into the power point. Do not
other foreign substances. Always use the food pusher provided. Always turn the appliance
off, wait for the motor to stop moving and then pull the plug before taking off the lid of the
juicer.
• Do not push products into the feed chute with your fingers or foreign objects. Always
use the food pusher provided.
• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.
push products into the feed chute with your fingers or
36 37
• The blades on the base of the stainless steel micro mesh filter and inside the feed chute
are very sharp. Pay attention when handling the parts. Only touch the stainless steel micro
mesh filter on the edge and handle with care when cleaning with the nylon bristle brush.
• ATTENTION:
Ensure that the filter basket is clean before starting to operate the appli-
ance.
• Do not leave food leftovers dehumidify on the appliance or parts of the appliance. If
pulp dehumidifies on the micro mesh filter it may clog the fine pores of the micro mesh filter
thereby lessening the effectiveness of the juicer.
• Note: The juice jug lid can be used to avoid any splatter. Alternatively you can fit the
custom-designed juice nozzle over the juice spout and place a glass underneath. The juice
nozzle will prevent splatter, ensuring mess free juicing.
• ATTENTION: Empty the pulp container and juice jug in time to avoid run-over and splatter which might causes damages to the appliance.
• Never clean the motor block in the dishwasher.
• Always turn the appliance off and pull the plug when the appliance is not in use or
when disassembling, moving or cleaning the appliance.
Safeguards for Daily Operation
• Only use the appliance for the intended purpose. Any non-appropriate use and misuse
can cause damages and heavy personal injuries through voltage, fire and moving parts.
Only operate the appliance as described in the directions.
• Do not use the appliance in moist and wet areas. Do not use the appliance in moving
vehicles or boats. Only use the appliance indoors.
• Store and use the appliance in a clean, frost free environment where it is protected
from dampness, moist and immoderate and extraordinary burden (such as: downfall, beat,
overheating, moisture in the motorblock).
• Do not use or store the appliance outdoors.
• Store appliance and parts out of reach of children.
• The work space has to be easily accessible, solid, even, dry and of sufficient size.
not use the appliance in moist and wet areas.
• Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill, or oven). Do not place the appliance near the edge of the table or counter or on
inclined or wet surfaces or where it can fall.
• Do not use the appliance if it is damaged or parts of the appliance are damaged. Do
not use the appliance if the rotating filter basket is damaged. Do not use the appliance if it
does not function properly or if it was excessively loaded. The appliance is likely damaged
if the appliance or parts of the appliance show cracks, exorbitant wearing down, alterations
or leaks. It is also likely damaged if the drive wheel of the motorblock moves slowly. Take
the appliance for technical maintenance and repair to an authorised service centre.
• Only use parts, spare parts and supplies which are provided and recommended by the
manufacturer. Damaged or improper units may break in use, damage the appliance or
cause injury.
Do
37
• Always make sure the appliance is properly and completely assembled before connecting
to power outlet and operating. The unit will not turn ›on‹ unless properly assembled.
• Do not
let the motor run permanently for longer then 7 minutes to avoid overheating.
• While proceeding Do not push the food pusher too hard down. Empty the pulp container and juice jug in time to avoid run-over and splatter which might causes damages to
the appliance. When proceeding hard or stringily food or if you press the stamp down too
hard the motor could stop or slow down. In this case turn off the appliance immediately and
pull the plug to avoid overheating. Operate according to the instructions ›Trouble shooting
guide‹.
• Never clean or operate the appliance or units of the appliance with abrasive or hard
sharp-edged items.
• Never use force operating the appliance to avoid damage of the parts of the appliance.
• The appliance is not suitable for mincing nuts, chocolate or similar ingredients. The appliance is not suitable to make minced meet or to blend food.
• Do not put any cloth or napkins underneath the appliance to avoid endangering by fire
and electric shocks.
• Never place the appliance close to the edge of the working area. Never place the appliance close to a strong heat source or a hot surface (for example: heater, stove or grill)
• Never let water or other liquids run into the motorblock.
• Never clean the line cord or the motorblock in the dishwasher, poor liquids over the
appliance or douse or dip it in water or other liquids. In case that water or other liquids ran
into the motorblock while operating turn off the appliance immediately, pull the plug and
dry the appliance with a clean cloth.
• Never leave children unsupervised when the appliance or parts of the appliance are in
reach. Never let children play with the appliance or units of the appliance. Children and
invalid people have to be supervised using the appliance.
• Never leave the appliance unattended, when the plug is plugged into the power outlet.
• Always turn the appliance off and pull the plug when the appliance is not in use or when
disassembling, moving or cleaning the appliance.
• Make sure that the appliance is turned off before pulling the plug out of the power outlet.
• To avoid damage, do not use any abrasive cleaners, corrosive chemicals (i.e. disinfectants, bleach) or cleaning pads for operation or cleaning. Do not
utensils for operation or cleaning.
use any hard or sharp
Important Safeguards for all Electrical Appliances
• Always uncoil the power cord completely before installing the appliance.
• Place the appliance close to a power outlet and connect it directly without using any
extension cords to avoid additional risks of injury through fire or voltage.
• Only install the appliance in proper form secure grounding receptacle with adequate electric power supply (alternating current; 230 - 240 V, 50 - 60 Hz) and ground fault circuit interrupter. The maximum power consumption of the appliance is 950 Watt. You should also install
a fuse with a release current of maximum 30mA. If necessary ask your electrician for help.
38 39
• Never pull, rip, bend, clamp, squish or knot the line cord. Pay attention to the power
cord not hanging of the table. Attend to nobody getting caught in loops of the power cord
or pulling the appliance of the work space. When pulling the plug always catch hold of the
enclosure of the plug.
• Do not immerse the motor housing or power cord in water or any other liquid. Do not
pour or drip any liquids on the motor housing or power cord. When liquids are spilled on
the motor housing, immediately unplug the appliance and dry the motor housing to avoid
risk of electric shock or fire. Do not attempt to operate the appliance, when liquids are on
or in the motor housing.
Movable and sharp-edged parts – risk of injury
• The feed chute is designed exceedingly large. Never put fingers, wooden spoons or other
foreign substance (such as hair, clothing, brushes, cloths) into the feed chute when the appliance is plugged into the power outlet.
• Always turn the appliance off, wait for the motor to stop moving and then pull the plug
before taking off the lid of the outlet.
• Only use the provided food pusher to push food through the feed chute.
• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.
• The blades on the base of the stainless steel micro mesh filter and inside the feed chute
are very sharp. Pay attention when handling the parts. Only touch the stainless steel micro
mesh filter on the edge and handle with care when cleaning with the nylon bristle brush.
Only store the appliance completely assembled. This way the blades will be out of reach.
• Never put foreign substance or hard objects into the feed chute. Remove all inedible parts
(such as stem, hard peeling and seeds) of the food before putting them into the feed chute.
• The motor pursues running for a little while after turning the appliance off. Wait until the
motor stops running completely before you open or move the appliance.
TECHNICAL DETAILS
Model: Art.-No. 40126 Design Juicer Pro
Power Supply: 230 - 240 V / 50 - 60 Hz
Power consumption: 800 - 950 W
Rotations: 6,500 - 13,000 per minute
Length of power cord: ca. 90 cm
Weight: ca. 4.6 kg
Dimensions: (W x D x H): 330 x 210 x 430 mm
Capacity, Juice Box: 1 Litre
Certification:
40 41
OPERATING
ASSEMBLING YOUR DESIGN JUICER
Step 1:
Place the filter bowl surround on the motor
block (picture 1).
Step 2:
WARNING: Handle the parts with care
and do not use any force. Pay attention
to the sharp blades on the stainless steel
micro mesh filter and the feed chute to
avoid injury. Always completely assemble
your juicer before you plug the plug into
the power outlet.
ATTENTION: Ensure the stainless steel filter basket is clean before assembling. Any
dehumidified left over food on the basket
will block the fine mesh holes. If necessary
remove excess fibre build up (from fruit or
vegetables) according to the instructions
›Care and Cleaning‹.

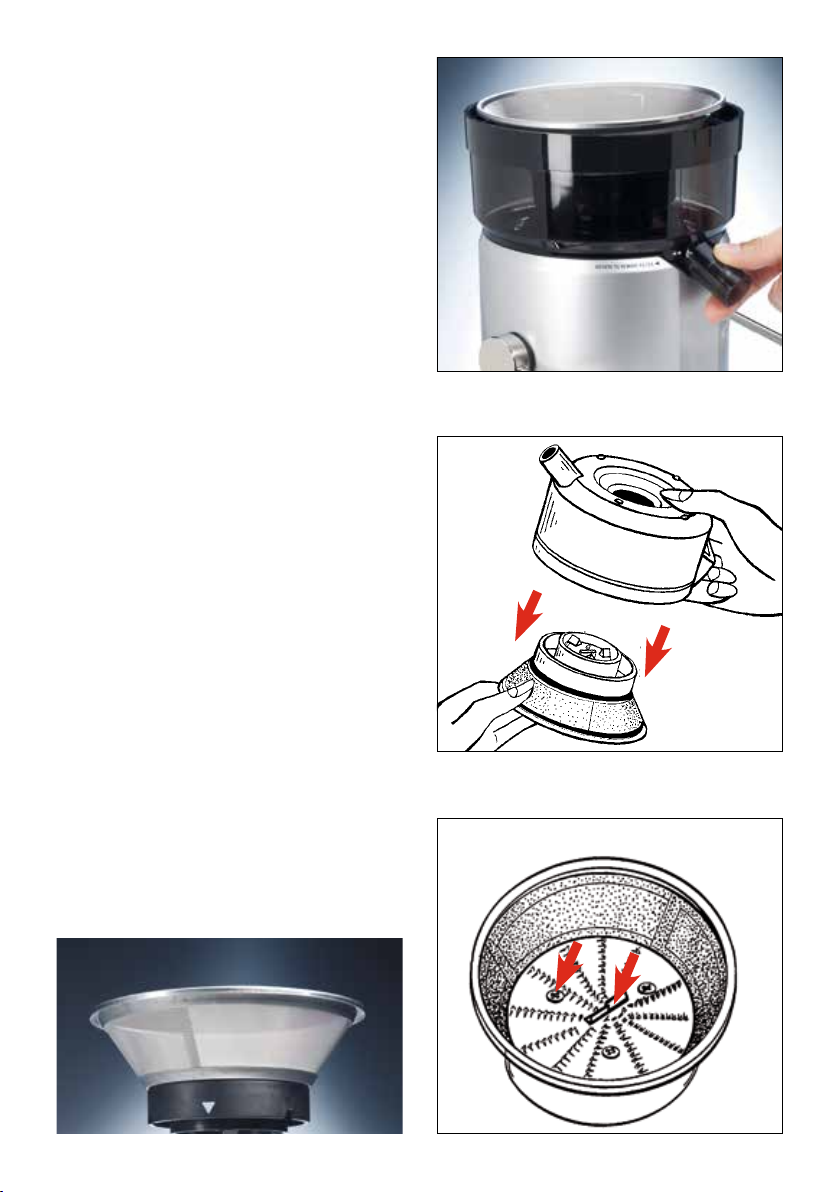

Align the arrows on the stainless steel filter
basket with the arrows on the motor drive
coupling and push down until it clicks into
place. Ensure the stainless steel filter basket
is fitted securely inside the integrated pulp
container and onto the motor base (picture 2).
2
Step 3:
Place the juicer cover over the stainless
steel filter on top of the filter bowl surround
(picture 3). The feed chute has to be positioned in the middle of the filter basket and
the pulp spouting of the cover has to face
away from the interlocking safety arm.
1
2
3
Step 4:
Raise the safety locking arm straight up and
lock into the two grooves on both sides of
the juicer cover. The safety locking arm
should now be in a vertical position and
locked into place on top of the juicer cover
(picture 4).
IMPORTANT: If the safety locking arm is
not in the right position the motor will not
start moving.
4
Secure the safety arm by lifting it into the
two grooves of the cover (picture 4a).
4a
5a
Food
Pusher
Groove

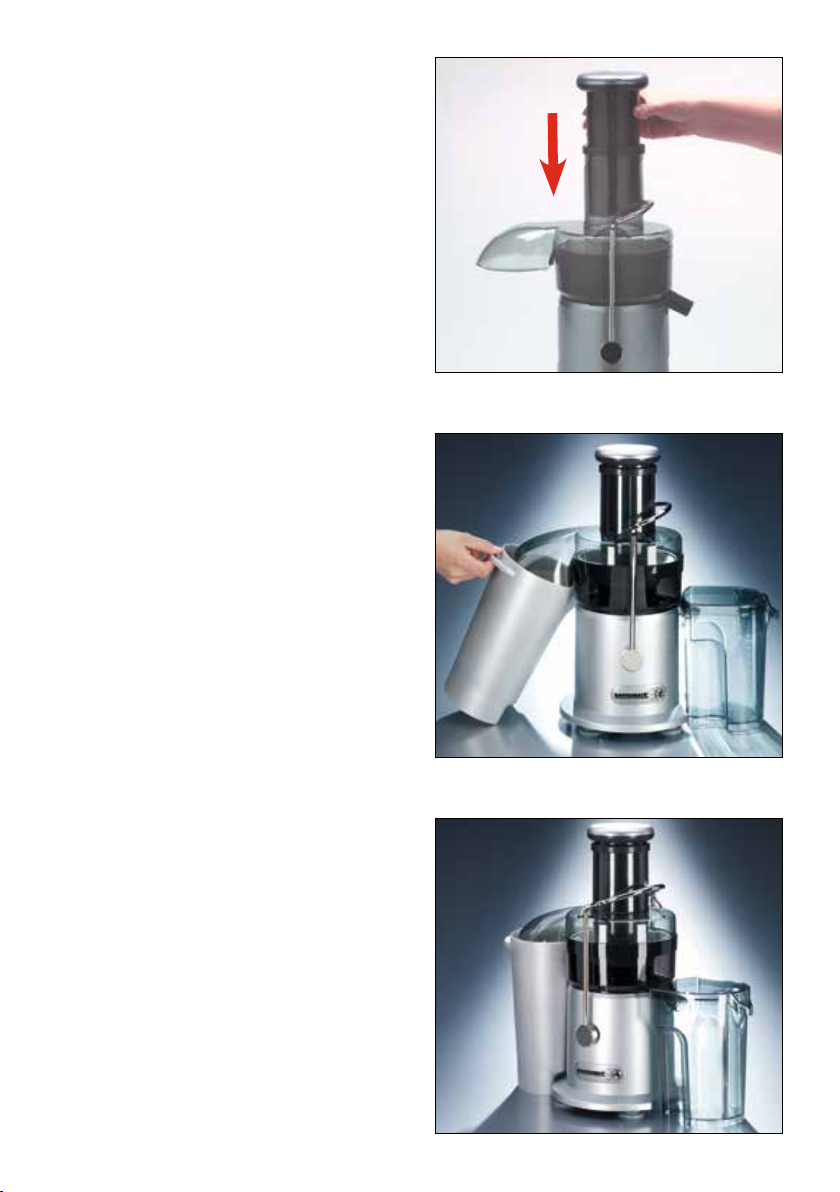

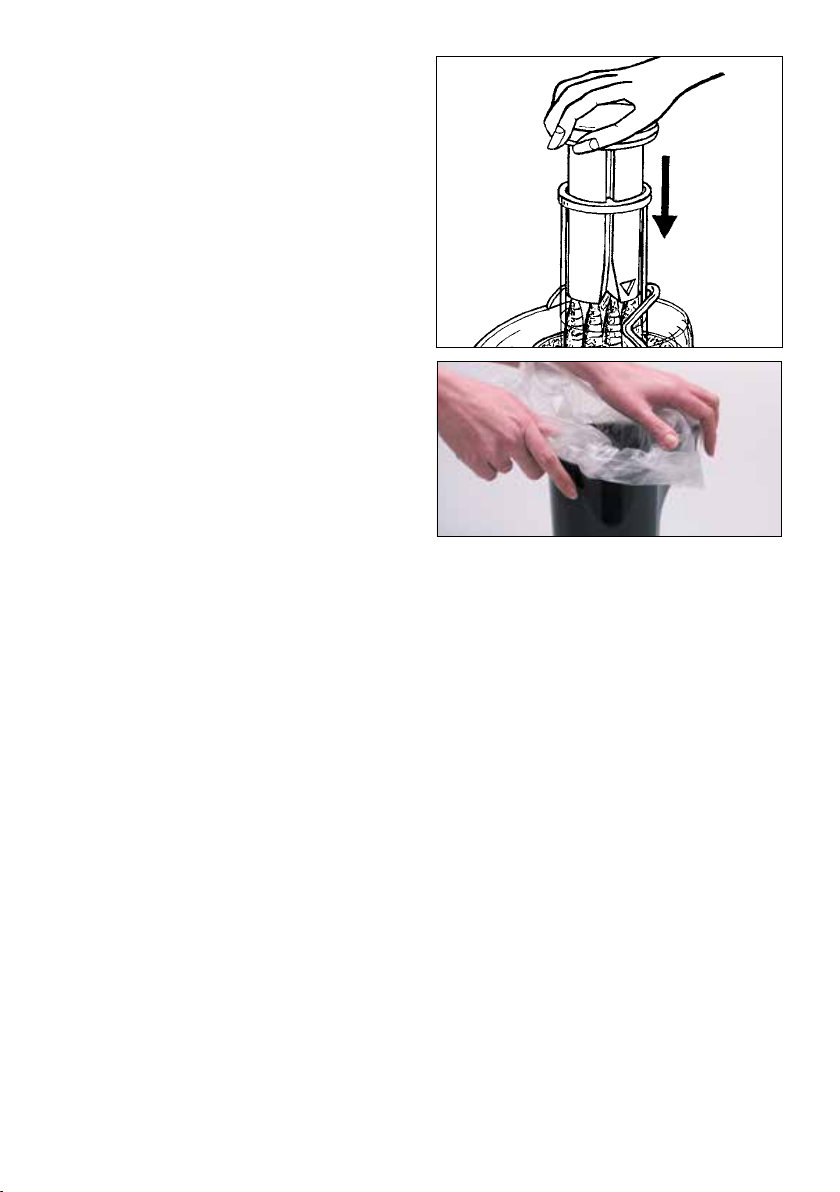

Step 5:
Slide the food pusher down the feed chute
by aligning the groove of the food pusher
with the small protrusion on the inside
of the top of the feed chute. Continue to
slide the food pusher down the feed chute
(picture 5a).
42 43
Loading...
