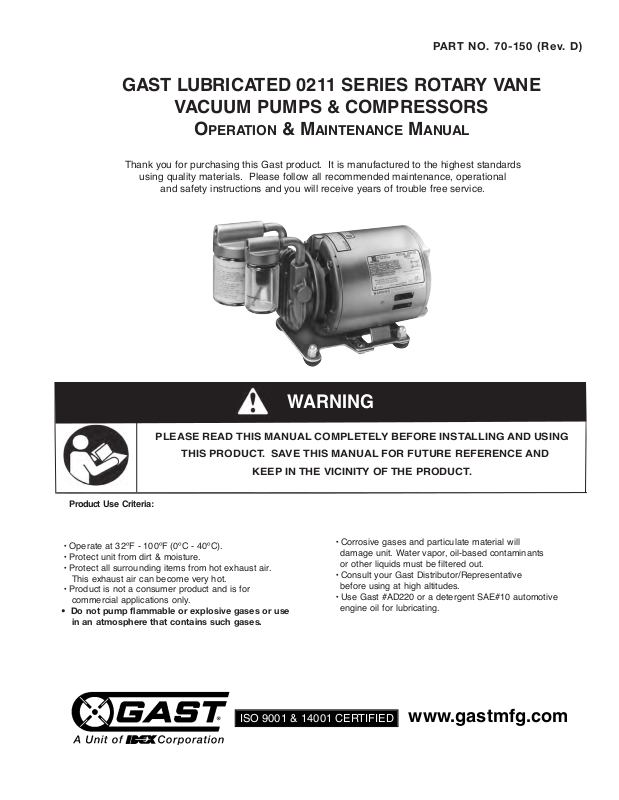

Gast 0211 User Manual

www.gastmfg.com

ISO 9001 & 14001 CERTIFIED

PART NO. 70-150 (Rev. D)

WARNING

PLEASE READ THIS MANUAL COMPLETELY BEFORE INSTALLING AND USING

THIS PRODUCT. SAVE THIS MANUAL FOR FUTURE REFERENCE AND

KEEP IN THE VICINITY OF THE PRODUCT.

GAST LUBRICATED 0211 SERIES ROTARY VANE

VACUUM PUMPS & COMPRESSORS

PERATION & MAINTENANCE MANUAL

O

Thank you for purchasing this Gast product. It is manufactured to the highest standards

using quality materials. Please follow all recommended maintenance, operational

and safety instructions and you will receive years of trouble free service.

Product Use Criteria:

• Operate at 32ºF - 100ºF (0ºC - 40ºC).

• Protect unit from dirt & moisture.

• Protect all surrounding items from hot exhaust air.
This exhaust air can become very hot.

• Product is not a consumer product and is for
commercial applications only.

• Do not pump flammable or explosive gases or use
in an atmosphere that contains such gases.

• Corrosive gases and particulate material will
damage unit. Water vapor, oil-based contaminants
or other liquids must be filtered out.

• Consult your Gast Distributor/Representative
before using at high altitudes.

• Use Gast #AD220 or a detergent SAE#10 automotive
engine oil for lubricating.

INSTALLATI ON

c

Disconnect electrical power at the circuit breaker
or fuse box before installing this product.

Install this product where it will not come into
contact with water or other liquids.

Install this product where it will be weather
protected.

Electrically ground this product.

Failure to follow these instructions can result in
death, fire or electrical shock.

WARNING

Electrical Shock Hazard

WARNING

DANGER

Your safety and the safety of others

is extremely important.

We have provided many important safety messages
in this manual and on your product. Always read
and obey all safety messages.

This is the safety alert symbol. This symbol
alerts you to hazards that can kill or hurt you and
others. The safety alert symbol and the words
“DANGER” and “WARNING” will precede all safety
messages. These words mean:

You will

be killed or seriously injured if you don’t

follow instructions.

You can

be killed or seriously injured if you don’t

follow instructions.

All safety messages will identify the hazard, tell you
how to reduce the chance of injury, and tell you
what can happen if the safety instructions are not
followed.

Grounded Plug

Grounding Pin

Grounded Outlet

120-volt grounded connectors
shown. 220/240-volt grounded
connectors will differ in shape.

DIAGRAM A

Moisture Trap

Liquid or moisture vapor will damage the pump. Install a
moisture trap if liquids could be drawn into the pump. For
the correct type and size, contact your local Distributor or
the factory.

Plumbing

To prevent air flow restriction, use pipe and fittings that
are the same size or larger than the threaded ports of the
pump. The ports are marked "IN" and "OUT". If the
distance is great, use lines with a larger diameter than
the connections. Give lines a uniform slope, place drain
cock at low point, and avoid extra elbows. For ease of
servicing, use a union or hose with clamps near the
pump (a hose helps eliminate noise and vibration). If a
vacuum/pressure supply tank is used, slope the line
towards tank, provide a drain at the bottom, and place a
check valve between the tank and pump so the pump will
not run backwards when turned off.

Motor Control

It is your responsibility to contact a qualified
electrician to assure that the electrical installation is
adequate and in conformance with all national and local
codes and ordinances.

Determine the correct overload setting required to
protect the motor (see motor starter manufacturer’s
recommendations). Select fuses, motor protective
switches or thermal protective switches to provide
protection. Fuses act as short circuit protection for the
motor, not as protection against overload. Incoming line
fuses help to withstand the motor’s starting current.
Motor starters with thermal magnetic overload or circuit
breakers protect motor from overload or reduced
voltage conditions.

Correct installation is your responsibility. Make sure you
have the proper installation conditions and that
installation clearances do not block air flow. Proper
guards should be installed to prevent contact with
moveable parts of this pump. Do Not lift the unit by the
fan shroud.

Blocking air flow over the product in any way can cause
the product to overheat.

Mounting

Position the mounting the product to a stable, rigid
operating surface and using shock mounts will reduce
noise and vibration.

2

The wiring diagram supplied with the product provides
required electrical information. Check that power
source is correct to properly operate the dual-voltage
motors.

Electrical Connection

c

Disconnect electrical power supply cord before
performing maintenance on this product.

If product is hard wired into system, disconnect
electrical power at the circuit breaker or fuse box
before performing maintenance on this product.

Failure to follow these instructions can result in
death, fire or electrical shock.

Electrical Shock Hazard

WARNING

WARNING

Injury Hazard

Air stream from product may contain solid or liquid
material that can result in eye or skin damage.

Wear hearing protection. Sound level from product
may exceed 85 db(A).

Failure to follow these instructions can result in eye
injury or other serious injury.

Pump only clean dry air.
Do not pump flammable or explosive gases or use

in an atmosphere that contains such gases.

Install proper safety guards as needed. Pumps with
glass jars need safety guards to protect against
breaking glass.

Use only recommended air handling parts acceptable
for pressure not less than 70 psi.

Keep fingers and objects away from openings and
rotating parts.

When provided, motor terminal covers must be in
place for safe operation.

Check that coupling guard and shroud are in place
before operating.

Product surfaces may become hot during operating,
allow product surfaces to cool before handling.

Do not direct air stream at body. Air stream from
product may contain solid or liquid material that can
result in eye or skin damage, wear proper eye
protection.

Do not spray flammable or combustible liquid.

Model with a power supply cord:

This product must be grounded. For either 120-volt or
220/240-volt circuits connect power supply cord
grounding plug to a matching grounded outlet. Do not
use an adapter. (See DIAGRAM A)

In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an
escape wire for the electric current. This product may
be equipped with a power supply cord having a
grounding wire with an appropriate grounding plug.
The plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.

Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood,
or if you are not sure whether the product is properly
grounded. Do not modify the plug provided. If it will not
fit the outlet, have the proper outlet installed by a
qualified electrician.

Model that is permanently wired:

This product must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding terminal or lead on the product.

Power supply wiring must conform to all required safety
codes and be installed by a qualified person. Check
that supply voltage agrees with that listed on product
nameplate.

OPERATION

Extension cords:

Use only a 3-wire extension cord that has a 3-blade
grounding plug. Connect extension cord plug to a
matching 3-slot receptacle. Do not use an adapter.
Make sure your extension cord is in good condition.
Check that the gage wire of the extension cord is the
correct size wire to carry the current this product will
draw. Be sure the three phase motor turns in the proper
direction of rotation after installation. Turning in the
wrong direction will drastically reduce vane life.

Minimum gage wire for extension cords

Amps Volts Length of cord in feet

120v 25 50 100 150 200 250 300 400 500
240v 50 100 200 300 400 500 600 800 1000

0-2 18 18 18 16 16 14 14 12 12
2-3 18 18 16 14 14 12 12 10 10
3-4 18 18 16 14 12 12 10 10 8
4-5 18 18 14 12 12 10 10 88
5-6 18 16 14 12 10 10 888
6-8 18 16 12 10 10 8666
8-10 18 14 12 10 88664
10-12 16 14 10 886644
12-14 16 12 10 866642
14-16 16 12 10 866442
16-18 14 12 8864422
18-20 14 12 8664422

It is your responsibility to operate this product at
recommended pressures or vacuum duties and room
ambient temperatures. Do Not start against a vacuum
or pressure load.

Start Up

If pump is extemely cold, let it warm up to room
temperature before starting. If motor fails to start or
slows down significantly under load, shut off and
disconnect from power supply. Check that the voltage
is correct for motor and that motor is turning in the
proper direction. Turning in the wrong direction will
drastically reduce vane life. Vane life will be drastically
reduced if motor is not operating properly. Vanes can
break or be damaged if motor/pump runs in the wrong
direction.

MAINTENANCE

3

It is your responsibility to:

• Regularly inspect and make necessary repairs to
product in order to maintain proper operation.

• Make sure that pressure and vacuum is released

from product before starting maintenance.

Check intake and exhaust filters after first 500 hours of
operation. Clean filters and determine how frequently
filters should be checked during future operation. This

one procedure will help to assure the productʼs
performance and service life.

Check that all external accessories such as relief valves
and gauges are attached to cover and are not damaged
before re-operating product.

SHUTDOWN PROCEDURES

It is your responsibility to follow proper shutdown
procedures to prevent product damage.

Failure to do so may result in premature pump failure.
The Gast Manufacturing lubricated Vacuum Pumps and
Compressors are constructed of ferrous metals or
aluminum which are subject to rust and corrosion when
pumping condensable vapors such as water. Follow the
steps below to assure correct storage and shutdown
between operating periods

1. Disconnect plumbing.

2. Operate product for at least 5 minutes without
plumbing.

3. Cover inlet port (vacuum side) and run pump for 1-3

minutes. Shut the pump down under vacuum.

4. This unit requires lubrication. Refill oil reservoir to
proper level before storage.

5. Be sure to plug open ports so dirt and other
contaminants do not enter the unit. It is now ready
for shutdown.

Clean filters when necessary by removing and washing
in a solvent or soap and water. After cleaning, dry with
compressed air to make sure all moisture is removed
before replacing filters.

Flushing

Flushing this product to remove excessive dirt, foreign
particles, moisture or oil that occurs in the operating
environment will help to maintain proper vane
performance. If your pump is not getting the vacuum or
pressure level expected, flushing is required. Vanes will
stick when dirty and may cause pump to be noisy or
inefficient.

Use only Gast Flushing Solvent or other non-petroleum
based flushing solvent. Do Not use kerosene or ANY
other combustible solvent to flush product.

1. Disconnect electrical power supply.

2. Release all pressure and vacuum from pump.

3. Remove all accessories at the inlet and exhaust
ports.

4. Remove filter.

5. Start product. Place towel over exhaust port to
clean up solvent. If using liquid solvent, pour
several tablespoons directly into inlet port. If using
Gast Flushing Solvent, spray solvent for 5-10
seconds into inlet port.

6. Block the inlet port and draw a deep vacuum for

15-20 seconds. Release the vacuum.

7. Listen for changes in the sound of the motor. If
motor sounds smooth, go to next step. If motor
does not sound like it is running smoothly, repeat
steps 5 and 6 until you can hear a difference in the
operating sound of the pump.

8. Start the pump and let it run for 1 minute, then turn
pump off.

9. Replace all accessories at the inlet and exhaust
ports.

10. Replace filter before resuming operation.

4

SERVICE KIT INSTALLATION

c

Disconnect electrical power supply cord before
installing Service Kit.

If product is hard wired into system, disconnect
electrical power at the circuit breaker or fuse box
before installing Service Kit.

Disconnect air supply and vent all air lines to
release pressure or vacuum.

Failure to follow these instructions can result in
death, fire or electrical shock.

WARNING

Electrical Shock Hazard

Gast will NOT guarantee field-rebuilt product
performance. For performance guarantee, the product
must be returned to a Gast Authorized Service Facility.

Service Kit contents vary. Most contain vanes, gaskets
oiler wick and filter elements.

Disposal

Parts of the rotary vane pumps and compressors,
shafts, iron or aluminum castings, plastic or glass
parts or bearings, may be recycled as scrap
materials.

(Please note current regulations)

Do Not attempt to remove the rotor. It is held in place
by Loctite and can only be serviced by a Gast
Authorized Service Facility.

PUMP DISASSEMBLY

1. Remove the End Plate bolts.

DO NOT at any time remove the rotor or loosen
any of the electric motor thru-bolts.

2. Remove End Plate and check for scoring on End
Plate, Rotor, and Body. Surfaces should be
smooth. If severe scoring is visible contact an
Authorized Service Facility.

3. Remove vanes.

4. Clean all surfaces with Gast recommended
Flushing solvent and dry well.

PUMP RE-ASSEMBLY

5. Apply a light coat of Gast recommended Oil
part# AD220,(an equivalent 10 wt. high detergent
oil can also be used) to the vanes.

6. Re-install vanes, noting the proper direction of
the beveled edge (Refer to exploded view).

7. Install End Plate and tighten End Plate Bolts.

8. Install new cover gasket on Filter/Muffler Assem­bly and Lubricator.

9. Before putting the pump into service, ensure
that any external accessories have not been
damaged.

If the pump fails to produce proper vacuum or pressure,
or is excessively noisy, turn off and return unit to an
Authorized Service Facility.

5

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION

REF DESCRIPTION QTY 0211-V36 0211-P3B
NO.

1 BODY 1 AC129 AC129
2 END PLATE 1 AC130S AC130R
3 ROTOR 1 CM20M CM20M

∆ VANE 4 AA345B AA345B

4

∆ BODY SPACER 1 AA34 AA34

5
6 FOOT SUPPORT ASSM 1 AC136 AC136
7 OIL FILTER ASSEMBLY 1 AA680K AA680K

∆ COVER GASKET 1 AA691 AA691

8

∆ FILTER FELT 3 AA683B AA683B

9

∆ SEPARATOR FELT 1 AA698 AA698

10

∆ OILER WICK 1 AA699 AA699

11
12 JAR 1 AA690-43 AA690-43
13 EXHAUST FILTER & OIL TRAP 1 AB580C
14 COVER & BAIL ASSEMBLY 1 AB589C

∆ ELEMENT GASKET 1 AB585

15

∆ JAR GASKET 1 AB582

16
17 GLASS BOWL 1 AB583
18 EXHAUST MUFFLER & OIL TRP 1 V425B

∆ COVER GASKET 1 B62A

19
20 JAR 1 AA125A

∆ FILTER FELTS 2 B344A

21
22 ELEMENT 1 AB584

SERVICE KIT 1 K216 K217

6

Gast finished products, when properly installed and operated under normal conditions of use, are warranted by Gast to
be free from defects in material and workmanship for a period of twelve (12) months from the date of purchase from
Gast or an authorized Gast Representative or Distributor. In order to obtain performance under this warranty, the buyer
must promptly (in no event later than thirty (30) days after discovery of the defect) give written notice of the defect to
Gast Manufacturing Incorporated, PO Box 97, Benton Harbor Michigan USA 49023-0097 or an authorized Service
Center (unless specifically agreed upon in writing signed by both parties or specified in writing as part of a Gast OEM
Quotation). Buyer is responsible for freight charges both to and from Gast in all cases.

This warranty does not apply to electric motors, electrical controls, and gasoline engines not supplied by Gast. Gast’s
warranties also do not extend to any goods or parts which have been subjected to misuse, lack of maintenance,
neglect, damage by accident or transit damage.

THIS EXPRESS WARRANTY EXCLUDES ALL OTHER WARRANTIES OR REPRESENTATIONS EXPRESSED OR
IMPLIED BY ANY LITERATURE, DATA, OR PERSON. GAST’S MAXIMUM LIABILITY UNDER THIS EXCLUSIVE
REMEDY SHALL NEVER EXCEED THE COST OF THE SUBJECT PRODUCT AND GAST RESERVES THE RIGHT,
AT ITS SOLE DISCRETION, TO REFUND THE PURCHASE PRICE IN LIEU OF REPAIR OR REPLACEMENT.

GAST WILL NOT BE RESPONSIBLE OR LIABLE FOR INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND,
however arising, including but not limited to those for use of any products, loss of time, inconvenience, lost profit, labor
charges, or other incidental or consequential damages with respect to persons, business, or property, whether as a
result of breach of warranty, negligence or otherwise. Notwithstanding any other provision of this warranty, BUYER’S
REMEDY AGAINST GAST FOR GOODS SUPPLIED OR FOR NON-DELIVERED GOODS OR FAILURE TO FURNISH
GOODS, WHETHER OR NOT BASED ON NEGLIGENCE, STRICT LIABILITY OR BREACH OF EXPRESS OR
IMPLIED WARRANTY IS LIMITED SOLELY, AT GAST’S OPTION, TO REPLACEMENT OF OR CURE OF SUCH
NONCONFORMING OR NON-DELIVERED GOODS OR RETURN OF THE PURCHASE PRICE FOR SUCH GOODS
AND IN NO EVENT SHALL EXCEED THE PRICE OR CHARGE FOR SUCH GOODS. GAST EXPRESSLY DISCLAIMS
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE WITH RESPECT
TO THE GOODS SOLD. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTIONS SET
FORTH IN THIS WARRANTY, notwithstanding any knowledge of Gast regarding the use or uses intended to be made
of goods, proposed changes or additions to goods, or any assistance or suggestions that may have been made by Gast
personnel.

Unauthorized extensions of warranties by the customer shall remain the customer’s responsibility.

CUSTOMER IS RESPONSIBLE FOR DETERMINING THE SUITABILITY OF GAST PRODUCTS FOR CUSTOMER’S
USE OR RESALE, OR FOR INCORPORATING THEM INTO OBJECTS OR APPLICATIONS WHICH CUSTOMER
DESIGNS, ASSEMBLES, CONSTRUCTS OR MANUFACTURES.

This warranty can be modified only by authorized Gast personnel by signing a specific, written description of any
modifications.

WARRANTY

MAINTENANCE RECORD

DATE PROCEDURE PERFORMED

7

TROUBLESHOOTING CHART

www.gastmfg.com

ISO 9001 & 14001 CERTIFIED

Low High Pump Motor Reason and remedy

Vacuum Pressure Vacuum Pressure Overheat Overload for problem.

• • At pump ••Filter dirty.
Clean or replace.

• At pump ••Muffler dirty.
Clean or replace.

• At pump ••Vacuum line collapsed.
Repair or replace.

••••Relief valve set too high.
Inspect and adjust.

•• Relief valve set too low.
Inspect and adjust.

••At pump At pump • • Plugged vacuum/pressure line.
Inspect and repair.

•• Vanes sticking.
Clean or replace.

•• Vanes worn.
Replace.

•• Shaft seal worn.
Replace.

•• ••Dust or offset powder in pump.
Inspect and clean.

•• • Motor not wired correctly.
Check wiring diagram and line voltage.

• • • • Running at too high an RPM.
Check wiring diagram and line voltage.

- 269-926-6171

We have Gast Certified Service Centers throughout the world. For the most up­to-date listing, contact one of our sales offices below:

Gast Manufacturing, Inc.

P.O. Box 97
2300 Highway M139
Benton Harbor, MI 49022
Ph: 269/926-6171
FAX: [phone]
www.gastmfg.com

European Sales & Service
Headquarters

Gast Group Limited
A Unit of IDEX Corporation
Unit 11, The I O Centre
Nach Road
Redditch B98 7AS
United Kingdom
Tel: [phone]
Fax: [phone]
www.gastmfg.com
www.jun-air.com

Gast Hong Kong

Unit 12, 21/F, Block B
New Trade Plaza
6, On Ping Street, Shatin
N. T. Hong Kong
Ph: (852) 2690 1066
Fax: [phone]
www.gasthk.com

8
