Gasmate PH7056, PH7057 User Manual

STELLAR BLACK

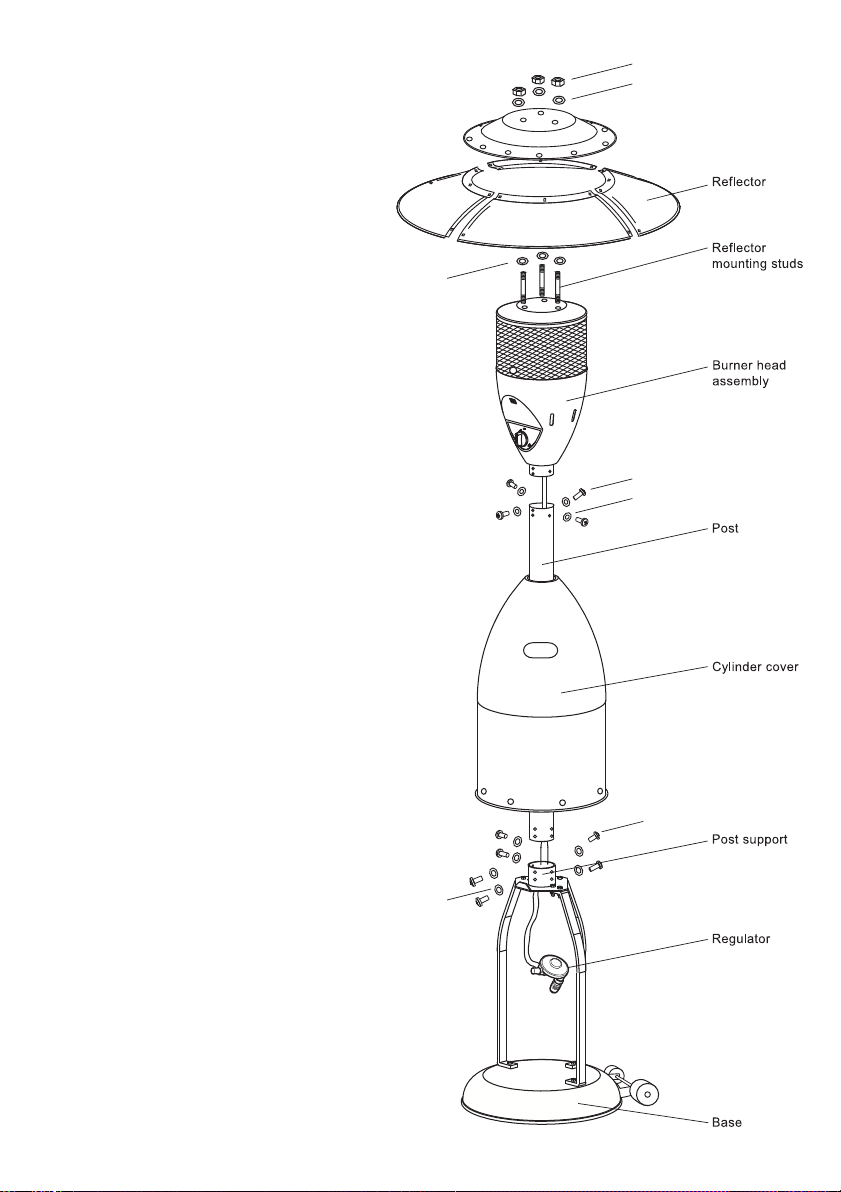

DELUXE PATIO HEATER

Model No. PH7056 / PH7057

The ideal solution for extending the outdoor

entertaining season

Direct ignition

Maximum output 40MJ/h

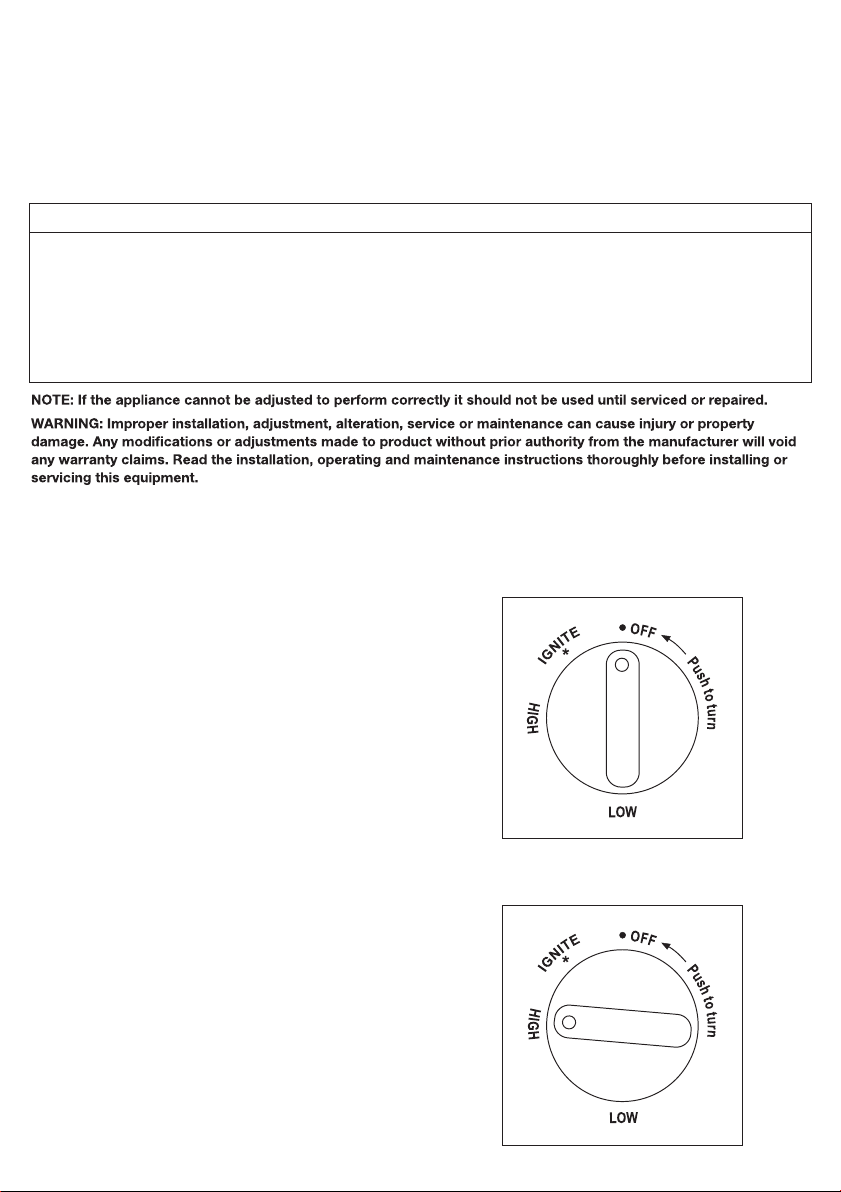

Adjustable heat output

Includes wheels

Operates for approximately 9 hours on a properly ﬁlled 9Kg propane cylinder

Includes a safety ‘tip-over’ switch that halts supply of gas to the unit should it be accidentally knocked over

Flame safeguard system for enhanced safety

Complete with hose and regulator

For outdoor use only

Gas certiﬁed to Australian standards

FOR YOUR SAFETY

If you smell gas:

1. Shut off the gas to the appliance.

2. Extinguish any open ﬂame.

3. If odour continues, immediately call your gas supplier.

Do not store or use gasoline or other ﬂammable vapour and liquids in the vicinity of this or any other appliance.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

Read the instructions thoroughly before installing or servicing this equipment.

FOR OUTDOOR USE ONLY PROPANE GAS

Important: Retain these instructions for future use.

03908 04/19

Installation, Operation and Maintenance Instructions

INSTALLATION

Important Safety Rules

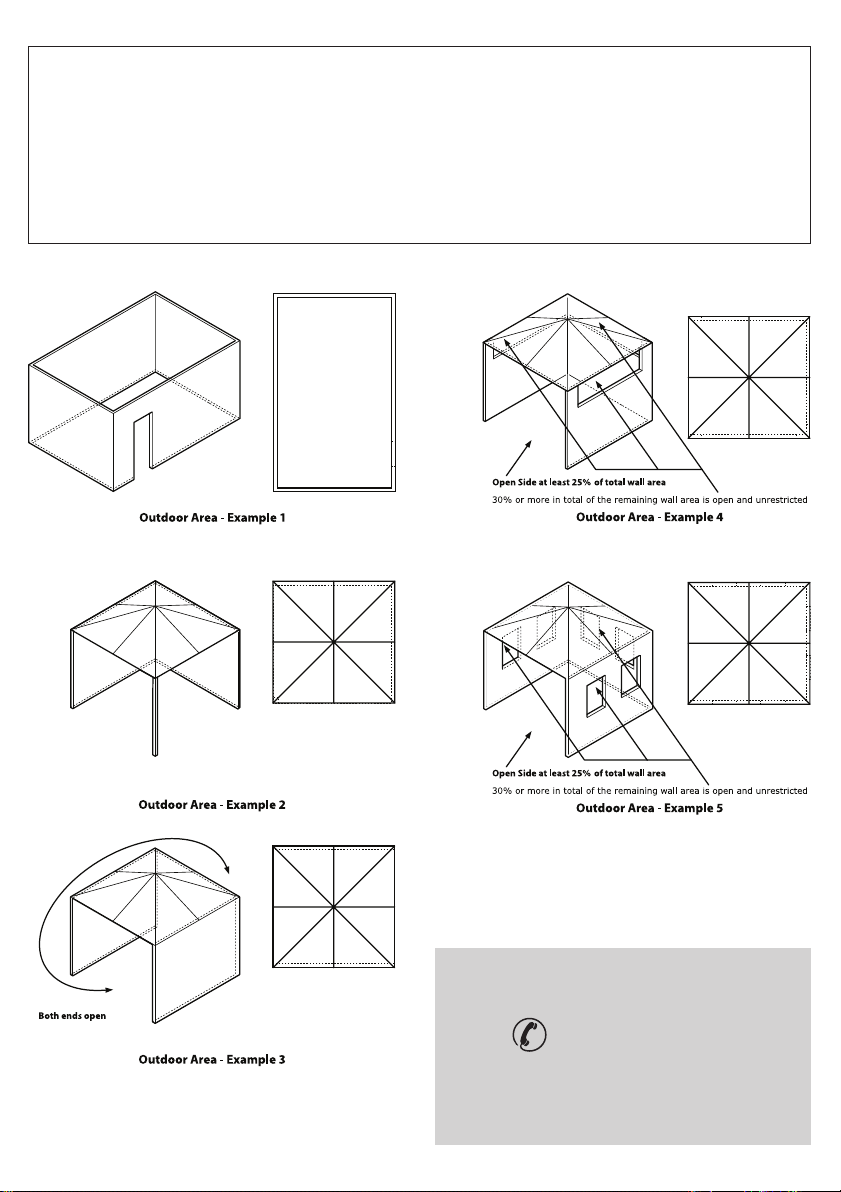

This appliance must only be used in a well ventilated area.

1. This appliance shall not be installed or used indoors, in buildings, garages or any other enclosed area.

2. DO NOT place articles on or against this appliance.

3. DO NOT use or store ﬂammable materials near this appliance.

4. Children and adults should be alerted to the hazards of high surface temperatures, burns and clothing ignition.

5. Children should be carefully supervised when they are in the area of the appliance.

6. NEVER hang anything including clothes or other ﬂammable items on the appliance.

7. DO NOT operate this appliance unless it is fully assembled with burner guard in place.

8. DO NOT SPRAY AEROSOLS IN THE VICINITY

OF THIS APPLIANCE WHILE IT IS IN OPERATION.

9. Installation and repair should be done by a qualiﬁed service person. The appliance must be inspected before use and at least annually by a qualiﬁed service person. It is imperative that control compartment, burners and circulating air passages of the heater be kept clean.

Prior to assembling your appliance, the following must be reviewed. Compliance with the following should result in satisfactory heater operation. This instruction manual should be retained for future reference. The installation must conform with local codes or authority having jurisdiction.

1. The patio heater is intended for heating residential and non-residential outdoor spaces. The installation must conform with local codes and with the Australian Standard AS/NZS 5601.

2. Adequate clearance around air openings into the combustion chamber, clearances from combustible materials, provisions for accessibility and for combustion and ventilating air supply must be maintained at all times when the appliance is operating.

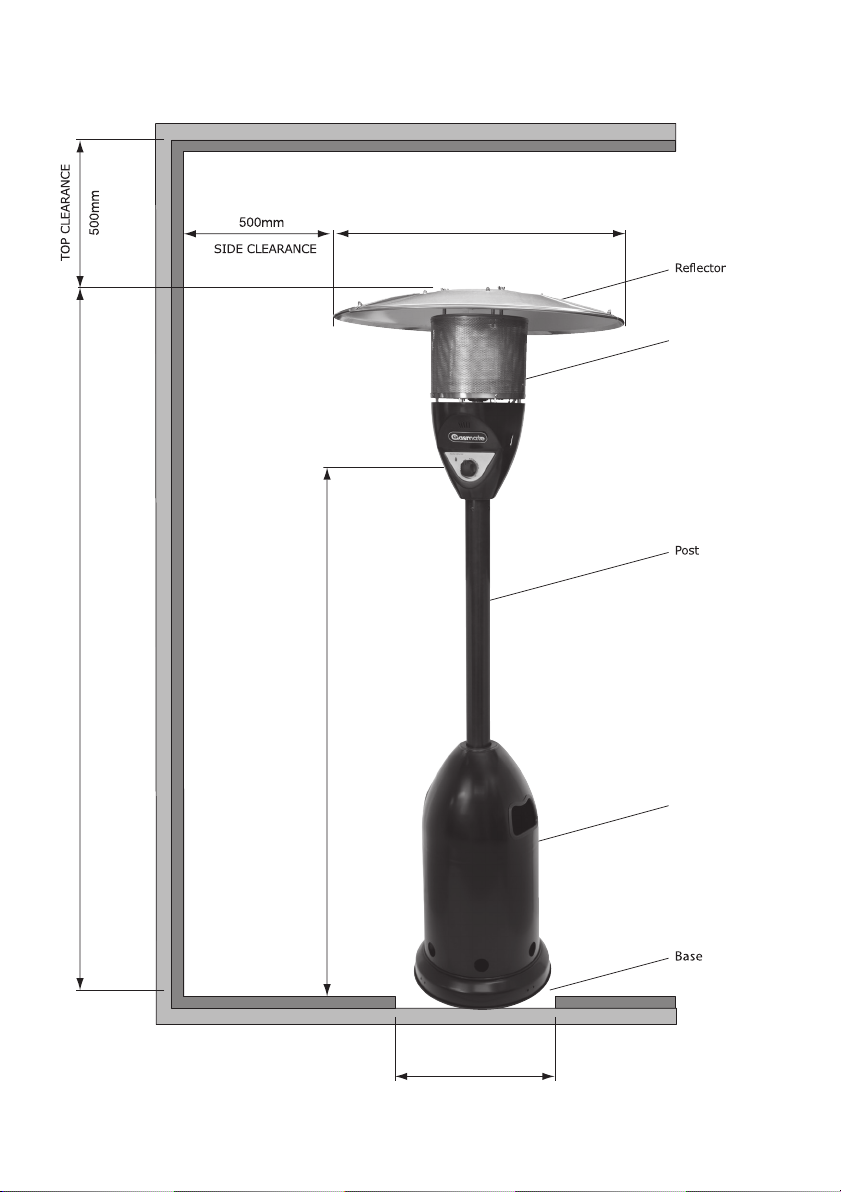

3. Proper clearance from combustible materials must be maintained at all times. The minimum clearances are as follows:

Minimum Clearance from Combustibles:

Side 500 mm Rear 500 mm

Ceiling 500 mm

Combustible materials are considered to be wood, compressed paper, plant ﬁbres, plastic, plexiglas or other materials capable of being ignited and burned.

Such materials shall be considered combustible even though ﬂame proofed, ﬁre-retardant treated or plastered. Additional clearance may be required for glass, painted surfaces and other materials which may be damaged by radiant or convection heat.

4. Heaters must be placed on a level and adequate footing and be readily accessible.

5. The gas manifold supply pressure must be regulated at

2.75 kPa utilising an AGA approved regulator (supplied with heater).

6. The appliance must be inspected before each use, and at least annually by a qualiﬁed service person.

a. The appliance area must be kept clear and free of

combustible materials, gasoline and other ﬂammable vapours and liquids.

b. Gas oriﬁces and burner must be kept clear of dirt

and cobwebs. Flow of combustion and ventilation air through the perforated portions of the heater must not be obstructed. Cleaning with a soft brush before use and at least every six months is recommended.

c. All gas connections should be checked for

leaks utilising a soap solution. Never use a ﬂame for this purpose.

d. The ﬂame pattern should be visually checked

whenever heater is operated. If ﬂames extend beyond surface of the guard the appliance should be turned off and should not be operated again until the unit is serviced and or repaired.

e. Any cleaning agent used on the heater should be of a

non-combustible and non-corrosive nature.

f. The stainless steel emitter normally does not require

cleaning and should NEVER be painted.

7. The hose must be protected from contact with hot or sharp surfaces both during use and while in storage. The hose assembly should be visually inspected prior to each use of the heater. If excessive abrasion or wear is evident, or the hose is cut, it must be replaced prior to operating the heater. The replacement hose assembly may be obtained from the manufacturer.

8. DO NOT use any pressure regulator or hose assembly other than those supplied with the appliance. Replacement pressure regulator and hose assembly must be those speciﬁed. Replacement parts maybe obtained from the manufacturer or your local sales representative.

9. Installation and use of this heater must conform with local codes and AS/NZS 5601.

10. This heater is designed to operate with a standard 9Kg propane cylinder with Approved Cylinder Connection.

11. The valve outlet must be maintained in good condition. When the cylinder is not in use, be sure to cover it with a dust cap. A leak test should be performed with soapy water whenever connecting a new cylinder. NEVER use a match to test for leaks.

12. The propane cylinder must be turned off whenever the heater is not in use. When the heater is to be stored indoors, the propane cylinder and the heater must be disconnected and the cylinder stored in accordance with the Standard for Storage and Handling of Liqueﬁed Gases.

13. The patio heater has been designed with several safety features which include a tip over switch.

NOTE: The plastic container in the base must be ﬁlled with sand before use.

Any modiﬁcation to the heater not described in the installation instructions may compromise the safety of this appliance. Special concern is as follows:

(1) DO NOT shorten post length;

(1) DO NOT bypass thermocouple safety;

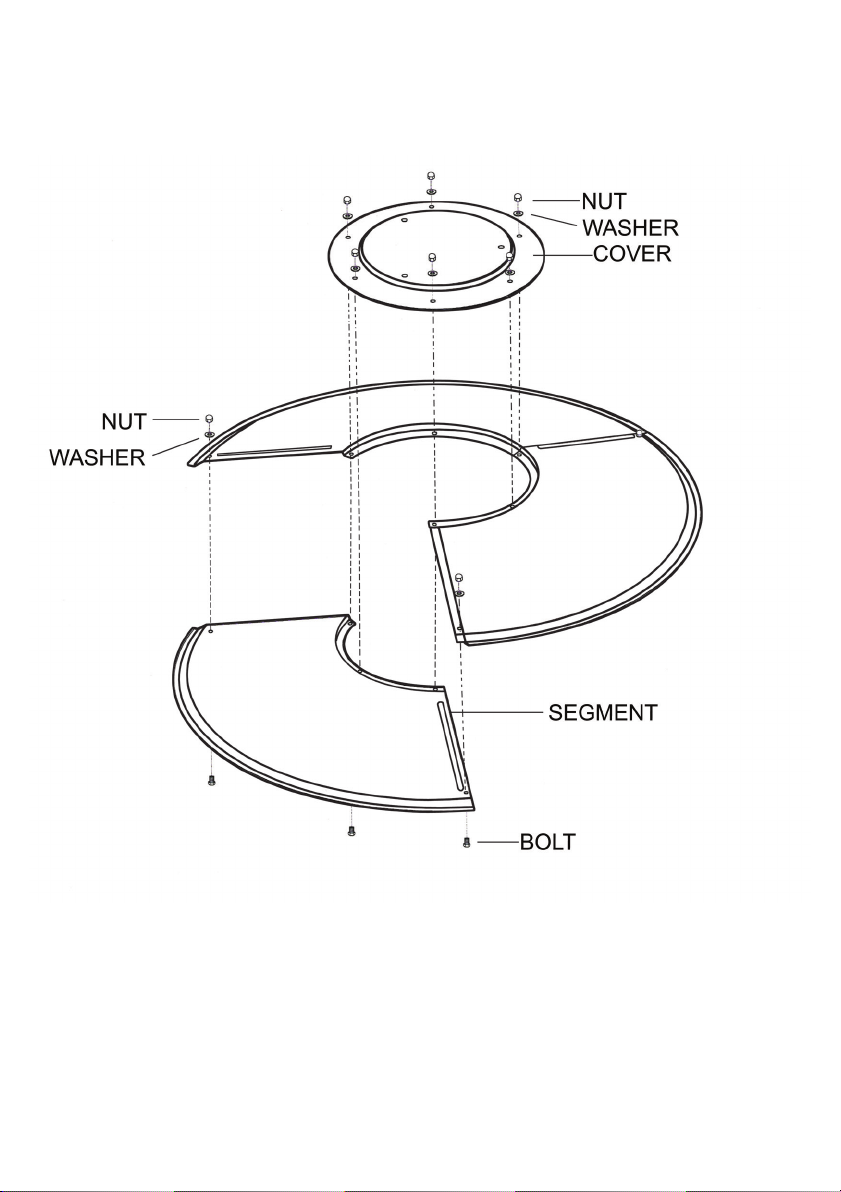

(2) DO NOT operate heater without the reﬂector;

Clothing or other ﬂammable materials should not be hung from the heater, or placed on or near the heater. The area above the burner may be extremely hot. Direct contact with these metal surfaces should be avoided in order to prevent burns or clothing ignition.

POL CYLINDER CONNECTION DEVICE

Screw the coupling nut of regulator into the cylinder valve outlet.

Type of Gas Propane

Consumption 40 MJ/h

Operating Pressure 2.75 kPa

Injector Size 1.9 mm

PH7056 Colour Black

PH7057 Colour Graphite

Heater speciﬁcations can be found on the data label.

IMPORTANT

Storage of an appliance indoors with the cylinder attached is only permitted if the size of the cylinder complies with AS/NZS 1596; otherwise cylinders must be stored outdoors in a well ventilated area.
