Using this Manual Introduction
1 – Introduction
Using this Manual
This manual is designed to aid Gilbarco’s Authorized Service Contractor (ASC) or Customer
Specified Contractor (CSC) in ordering replacement parts for the Cash Flow Network (CFN)
Islander I or Islander II Systems.
!
!
WARNING
WARNING
Electrical shock hazards exist in Gasboy CFN components. Gasboy systems are
to be serviced only by properly trained personnel. During the warranty period,
Gasboy systems must be serviced and repaired only by trained ASCs (see the
Warranty for details or contact your Gasboy representative)/ CSCs. To reduce the
risk of electrical shock when servicing, turn off and lock out all breakers which
supply power to the CFN System (all components) at the master electrical panel.
The drawings and part lists on the following pages provide an easy reference for identifying
CFN Islander parts and their corresponding part numbers. Multiple views of the system are
provided to ensure that all parts are identified. Using the part numbers when ordering will
expedite your order and reduce the possibility of wrong parts being shipped.
An asterisk (*) in front of a part number denotes that the part is a subpart of the preceding part
without an asterisk. Consecutive part numbers with asterisks are all subparts of the first
preceding part without an asterisk.
For example:
1 C05686 Filter Assy., RF Module
2 *C08330 Filter, RF Module #06AR2
3 *C08723 Fuse, 2 Amp - Quick Blow
In the example, parts 2 and 3 are subparts of part 1. If part 1 was ordered, parts 2 and 3 would
be included. If needed, part 2 or 3 could be ordered separately.
Intended Users
The intended users of this manual are:
•ASCs
•CSCs
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 1
Introduction Related Reading
Related Reading
The following documents contain information related to CFN Islander:
Document Number Title GOLD® Library
C35520 CFN Series Islander Installation Manual Gasboy Fuel Management Products
C35963 CFN Islander II Installation Manual Gasboy Fuel Management Products
C01665 CFN Series Site Controller (SC) II & Islander II
Start-Up Manual
MDE-4311 CFN Series SC II Manager’s Manual Gasboy Fuel Management Products
MDE-4312 CFN Series SC II Configuration Manual Gasboy Fuel Management Products
Gasboy Fuel Management Products
Abbreviations and Acronyms
The following table contains a list of acronyms used in this manual.
Acronym Definition
AC Alternating Current
ASC Authorized Service Contractor
CSC Customer Specified Contractor
CFN Cash Flow Network
CPU Central Processing Unit
DC Direct Current
DET Data Entry Terminal
EPROM Erasable Programmable Read-Only Memory
IC Integrated Circuit
LCD Liquid Crystal Display
LED Light Emitting Diode
OTP One Time Programmable
PCB Printed Circuit Board
SPDT Single Pole Double Throw
Page 2 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Front View CFN Islander Replacement Parts
2 – CFN Islander Replacement Parts
Spare Parts Kits
The following spare parts kits are available for Islander Systems:
C06695 Islander I Spare Parts Kit
C04896 CFN I and Islander Spare Parts Kit
C04985 Islander II Spare Parts Kit
C04897 CFN II and Islander Spare Parts Kit
Head, Front View
OPERATOR INSTRUCTIONS
Head Assembly, Mag Reader, Optical Reader, Islander and Satellite
Head Assembly, Mag Reader, Optical Reader, Islander II
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 3
CFN Islander Replacement Parts Head, Front View
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C06615 Wrapper Assy., Head, Islander
3 *C35470 Housing, Wrapper Weld Assy.
4 *C34780 Bracket, Shield Retainer, Top
5 *C35494 Shield, Head Housing Wrapper
6 *C01989 Gasket, Bulk
7 C08739 Nut, Wing
8 C35474 Window, LCD
9 C34136 Window, Illumination
10 C09986 Card Reader Assembly
*C09989 Adapter Plate
*C09988 Card Reader
*027073 Gasket
*C34613 Gasket, Mag Card Reader
*053652 Screw, 8-32 x 1/4 TT
*C07519 Cable Assembly
*053737 Screw, 8-32 x 3/8 TT
11 C06651 Kit, Keyboard Hardware, Islander
12 *C01230 Gasket, 5 x 4 Keypad
13 C01231 Decal, Gasboy, Display
14 C35471 Window, Lamp Display
15 C06561 Cable Assy., w/Disable Pumps, SW-Islander
16 *C01223 Switch, Operator, Momentary
17 *C01591 Contact Block
18 C34843 Cover Assy., Card Reader (Optical and FleetKey
only)
19 C08800 Overlay, Islander Mag Head
20 C09497 Decal, Optical Reader Insert
21 C05630 Reader, Optical, w/Conn
22 C34841 Adapter Plate, Optical Reader
23 C08822 Washer, Ground, Shockproof
24 C35298 Key Adapter Bracket, 1-key (Islander II only)
C35287 Key Adapter Bracket, 2-key (Islander II only)
25 C02848 Key Receptacle (Islander II only)
26 C09499 Decal, Key Reader Insert (Islander II only)
*Denotes that this is a subpart used in the preceding assembly.
Page 4 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Outside Right Partition, Wrapper Removed, Islander CFN Islander Replacement Parts
Head, Outside Right Partition, Wrapper Removed, Islander
C06575 Head Assembly, Mag Reader, Islander
C06576 Head Assembly, Optical Reader, Islander
C06583 Head Assembly, Mag Reader, Satellite
C06584 Head Assembly, Optical Reader, Satellite
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C34728 Door Weld Assy.
3 C34753 Cam. Lock DET, Rear Door
4 035009 Lock, 90o w/cover
5 C01589 Cable, Eye Assy.
6 C05776 Wire Assy., Ground
7 C06646 PCB Assy., 485 Conn
8 C05377 PCB Assy., Disable Pumps
9 C06566 Cable Assy., 485 PCB, Disable Pumps
10 C06561 Cable Assy., Mag w/Disable Pumps Switch
11 027146 Gasket, Strip (1.5 pcs/head)
12 C34843 Cover Assy., Card Reader (Optical Reader only)
13 026799 Gasket, Lock
14 C34826 Guide, Light Shields
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 5
CFN Islander Replacement Parts Head, Outside Right Partition, Wrapper Removed, Islander
Item Part No. Description
15 C02671 Switch, Cherry
16 C35239 Bracket, Hinge Gasket Support
17 C08801 Decal, Islander Ratings
18 C08872 Decal, Danger High Voltage
Page 6 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Outside Right Partition, Wrapper Removed, Islander II CFN Islander Replacement Parts
Head, Outside Right Partition, Wrapper Removed, Islander II
C07170 Head Assembly, Mag Reader, Islander II
C07173 Head Assembly, Optical Reader, Islander II
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C34728 Door Weld Assy
3 C34753 Cam. Lock DET, Rear Door
4 035009 Lock, 90o w/cover
5 C01589 Cable, Eye Assy
6 C05776 Wire Assy., Ground
7 C06646 PCB Assy., 485 Conn
8 C05377 PCB Assy., Disable Pumps
9 C06566 Cable Assy., 485 PCB, Disable Pumps
10 C06561 Cable Assy., Mag w/ Disable Pumps Switch
11 027146 Gasket, Strip (1.5 pcs/head)
12 C34843 Cover Assy., Card Reader (Optical Reader Only)
13 026799 Gasket, Lock
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 7
CFN Islander Replacement Parts Head, Outside Right Partition, Wrapper Removed, Islander II
Item Part No. Description
14 C34826 Guide, Light Shields
15 C02671 Switch, Cherry
16 C35239 Bracket, Hinge Gasket Support
17 C08801 Decal, Islander Ratings
18 C08872 Decal, Danger High Voltage
19 C06667 Modem Kit, Field Upgrade, 2400B
C07197 Modem Kit, Field Upgrade, 33600B
20 *C07122 PCB Assy., Modem 2400B
*C07123 PCB Assy., Modem 33600B
21 *C05737 Cable Assy., Phone Line
22 *C05356 Cable Assy., Phone Dual (6P/4W)
23 *C35475 Bracket Assy., Phone Jack Mounting
24 *C05738 Cable Assy., 20-position Ribbon
*Denotes that this is a subpart used in the preceding assembly.
Page 8 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander CFN Islander Replacement Parts
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander
C06575 Head Assembly, Mag Reader, Islander
C06576 Head Assembly, Optical Reader, Islander
C06583 Head Assembly, Mag Reader, Satellite
C06584 Head Assembly, Optical Reader, Satellite
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 026980 Gasket
3 C06563 Cable Assy., Beeper/Inter SW/PRN
4 *C03140 Beeper, 4-8 VDC, 85DBA, Cont Tone
5 C07519 Cable Assy
6 C35476 Bracket Assy., Keypad, Htr Support
7 C06662 Cable Assy., Keypad
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 9
CFN Islander Replacement Parts Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander
Item Part No. Description
8 C06646 PCB Assy., RS-485 Conn.
9 C06566 Cable Assy., RS-485 PCB, Disable Pumps
10 C34843 Cover Assy., Card Reader (Optical Reader Only)
11 C09986 Card Reader Assembly
*C09989 Adapter Plate
*C09988 Card Reader
*027073 Gasket
*C34613 Gasket, Mag Card Reader
*053652 Screw, 8-32 x 1/4 TT
*C07519 Cable Assembly
*053737 Screw, 8-32 x 3/8 TT
12 C06564 Cable Assy., DC Power Reader PCB
13 C05857 PCB Assy., ICR2 CPU
14 *C06426KICR2EN IC, Programmed, 32K OTP (sub-part of 13)
C08175KSTRGT IC, Programmed, 16K EPROM (For use with C05375 PCB only)
15 C06043 Cable Assy., Ribbon LCD/Rdr
16 C06639 LCD Display/Connector Assy.
17 C06370 PCB Assy., I/F LCD
18 C34826 Guide, Light Shields
19 C06569 Cable Assy., Display Power
20 C06560 Cable Assy., Heaters/Therm
21 *C08314 Heater, 15W, 120VAC, 1 x 5 strip
22 *C08716 Heater, 50W, 120VAC, 1 x 5 strip (Not Shown)
23 *C03956 Thermo, Close 50F/Open 65F
24 027146 Gasket, Strip (1.5 pcs/head)
25 C06580 PCB Assy., Interface, Site Comm I/O
26 C35524 Bracket, Hardware Assembly
27 C02671 Switch, Cherry
28 C01589 Cable, Eye Assy.
29 C34840 Bracket, Optical Reader Mtg.
30 C05630 Reader, Optical w/connector
31 C05504 PCB Assy., Optical Card Reader
32 C04853 Cable Assy., Ribbon, 26-pos
33 C06571 Cable Assy., DC Power, Optical Reader
34 C07122 Modem, Internal, 2400B
OR
35 C07123 Modem, Internal 33600B
36 C05737 Cable Assy., Phone Line
37 C05356 Cable Assy., Phone Dual (6P/4W)
38 C35475 Bracket Assy., Phone Jack Mounting
39 C05738 Cable Assy., 20-position ribbon
*Denotes that this is a subpart used in the preceding assembly.
Page 10 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander II CFN Islander Replacement Parts
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander II
PORT 1 PORT 3
Head Assembly, Mag Reader, Optical Reader, FleetKey; Islander II, Satellite
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 026980 Gasket
3 C06563 Cable Assy., Beeper/Inter SW/PRN
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 11
CFN Islander Replacement Parts Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander II
Item Part No. Description
4 *C03140 Beeper, 4-8 VDC, 85DBA, Cont Tone
5 C07519 Cable Assy.
6 C35476 Bracket Assy., Keypad, Htr Support
7 C06662 Cable Assy., Keypad
8 C06646 PCB Assy., RS-485 Conn.
9 C06566 Cable Assy., RS-485 PCB, Disable Pumps
10 C34843 Cover Assy., Card Reader (Optical and FleetKey only)
11 C09986 Card Reader Assembly
*C09989 Adapter Plate
*C09988 Card Reader
*027073 Gasket
*C34613 Gasket, Mag Card Reader
*053652 Screw, 8-32 x 1/4 TT
*C07519 Cable Assembly
*053737 Screw, 8-32 x 3/8 TT
12 C06564 Cable Assy., DC Power Reader PCB
13 C05857 PCB Assy., ICR2 CPU
14 *C06426KICR2EN IC, Programmed, 32K OTP
C08175KSTRGT IC, Programmed, 16K EPROM (For use with C05375 PCB only)
15 C06043 Cable Assy., Ribbon LCD/Rdr
16 C06639 LCD Display/Connector Assy.
17 C06370 PCB Assy., I/F LCD
18 C34826 Guide, Light Shields
19 C06569 Cable Assy., Display Power
20 C06560 Cable Assy., Heaters/Therm
21 *C08314 Heater, 15W, 120VAC, 1 x 5 strip
22 *C08716 Heater, 50W, 120VAC, 1 x 5 strip (Not Shown)
23 *C03956 Thermo, Close 50F/Open 65F
24 027146 Gasket, Strip (1.5 pcs/head)
25 C06580 PCB Assy., Interface, Site Comm I/O
26 C35524 Bracket, Hardware Assembly
27 C02671 Switch, Cherry
28 C01589 Cable, Eye Assy.
29 C34840 Bracket, Optical Reader Mtg.
30 C05630 Reader, Optical w/connector
31 C05504 PCB Assy., Optical Card Reader
32 C04853 Cable Assy., Ribbon, 26-pos.
33 C06571 Cable Assy., DC Power, Optical Reader
40 C07163 Cable Assy., DC Power, Islander II Comm I/O
41 C06753 Cable Assy., Ribbon, 20-pos; 12 "L.
42 C35298 Key Adapter Bracket, 1-key
C35287 Key Adapter Bracket, 2-key
43 C02848 Key Receptacle and Tie Wrap, 8" L
Page 12 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander II CFN Islander Replacement Parts
Item Part No. Description
45 C05881 Cable Assy., Ribbon, 10-position, Key I/F
46 C36030 Bracket, Key I/F PCB Mount
47 C04371 Trim material (Need 2 per item 46)
48 C05159 PCB Assy., Key I/F
49 C06043 Cable Assy., Ribbon 26-position, Key I/F
50 C05880 Cable Assy., DC power, Key I/F
51 C09921 C09921Decal, Islander Port 0/1/2/3
*Denotes that this is a subpart used in the preceding assembly.
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 13
CFN Islander Replacement Parts Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander II
This page is intentionally left blank.
Page 14 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander Satellite With Gate CFN Islander
Head, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander Satellite With Gate
C06578 Head Assembly, Mag Reader, Satellite, Gate
C06581 Head Assembly, Optical Reader, Satellite, Gate
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C09128 Decal, Gate W/D
3 C05402 Cable Assy., Beeper/Inter SW/PRN
4 *C03140 Beeper, 4-8 VDC, 85DBA, Cont Tone
5 C07519 Cable Assy.
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 15
CFN Islander Replacement PartsHead, Inside Right Partition, Wrapper Removed, Rear Door Removed, Islander Satellite
Item Part No. Description
6 C35476 Bracket Assy., Keypad, Htr Support
7 C06662 Cable Assy., Keypad
8 C06646 PCB Assy., RS-485 Conn.
9 C06566 Cable Assy., RS-485 PCB, Disable Pumps
10 C34843 Cover Assy., Card Reader (Optical Reader only)
11 C09986 Card Reader Assembly
*C09989 Adapter Plate
*C09988 Card Reader
*027073 Gasket
*C34613 Gasket, Mag Card Reader
*053652 Screw, 8-32 x 1/4 TT
*C07519 Cable Assembly
*053737 Screw, 8-32 x 3/8 TT
12 C06564 Cable Assy., DC Power Reader PCB
13 C05857 PCB Assy., ICR2 CPU
14 *C06426KICR2EN IC, Programmed, 32K OTP (Subpart of item 13)
C08175KSTRGT IC, Programmed,16K EPROM (For use with C05375 PCB only)
15 C06043 Cable Assy., Ribbon LCD/Rdr
16 C06639 LCD Display/Connector Assy.
17 C06370 PCB Assy., I/F LCD
18 C34826 Guide, Light Shields
19 C07195 Cable Assy., Gate I/O
20 C06560 Cable Assy., Heaters/Therm
21 *C08314 Heater, 15W, 120VAC, 1 x 5 strip
22 *C08716 Heater, 50W, 120VAC, 1 x 5 strip (Not Shown)
23 *C03956 Thermo, Close 50F/Open 65F
24 027146 Gasket, Strip (1.5 pcs/head)
25 C05834 PCB Assy., Gate I/O
26 *C09753 Connector, 8-pos., TB Plug
27 C35524 Bracket, Hardware Assembly
28 C01589 Cable, Eye Assy.
29 C34840 Bracket, Optical Reader Mtg.
30 C05630 Reader, Optical w/connector
31 C05504 PCB Assy., Optical Card Reader
32 C04853 Cable Assy., Ribbon, 26-pos.
33 C06571 Cable Assy., DC Power, Optical Reader
34 027073 Gasket, 1/16 x 1/4 (27" per head)
*Denotes that this is a subpart used in the preceding assembly.
Page 16 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander CFN Islander Replacement Parts
Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander
C06575 Head Assembly, Mag Reader, Islander
C06576 Head Assembly, Optical Reader, Islander
C06583 Head Assembly, Mag Reader, Satellite
C06584 Head Assembly, Optical Reader, Satellite
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C06564 Cable Assy., DC Power Reader PCB
3 C06562 Cable Assy., Fan, Therm
4 *C02071 Fan, Tubeaxial, 115VAC
5 *C03955 Thermo, Close 80F/Open 65F (Not Shown)
6 C06560 Cable Assy. Heater/Therm
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 17
CFN Islander Replacement Parts Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander
Item Part No. Description
7 *C08716 Heater, 50W, 120VAC, 1 x 5 Strip
8 *C08314 Heater, 15W, 120VAC, 1 x 5 strip
9 *C03956 Thermo, Close 50F/Open 65F
10 C08721 IC, Programmed C01367, 32K EPROM
11 C05860 IC, Programmed C01368, 64K EPROM
NOTE: Items 10 and 11 may be ordered together as item CPK008K51242.
12 C05820 PCB Assy., Site Controller I, CPU-512
13 *C01961 IC, Programmed, 2K EEROM
14 *C05848 PCB Assy., RS-485 Driver Protection
15 *C03391 IC, Opto Coupler, Dual
16 C06759 Site Controller Memory PCB Replacement Kit
17 C04930 Site Controller Keyswitch
18 C03756 Bushing, Snap-in
19 C06555 Cable Assy., AC Power
20 C35493 Panel, Perf. Light Screen
21 C02207 Clamp, Ribbon Cable
22 C06570 Cable Assy., 25D/20 Pos
23 C35471 Window, Lamp Display
24 C01231 Decal, Gasboy, Display
25 C34136 Window, Illumination
26 C06569 Cable Assy., Display Power
27 027146 Gasket, Strip (1.5 pcs/head)
28 C06557 Cable Assy., Phone 1:1 (4P/4W)
29 C08800 Overlay, Islander Mag Head
C09497 Decal, Optical Reader Insert
30 C35474 Window, LCD
31 C35472 Bracket, Standoff Assy., LCD mount
32 C06043 Cable Assy., Ribbon LCD/Rdr
33 C06639 Kit, LCD, I/F PCB, & Programmed IC
34A *C06370 PCB Assy., LCD I/F (See DISPLAY NOTE)
34B *C05567 LCD/Conn Assy. (See DISPLAY NOTE)
35 C35473 Bracket, LCD Heater Mount
36 C35476 Bracket Assy., Keypad, Htr Support
37 C06651 Kit, Keyboard/Hardware Islander
38 *C01230 Gasket, 5 x 4 Keypad
39 C06565 Cable Assy., DC Power Site PCB
40 *C08799 Fuse, 5 AMP QB Pico Axial
41 C06580 PCB Assy., Interface, Site Comm I/O
42 C08802 Decal, PWR/ON/OFF/FUSE
*Denotes that this is a subpart used in the preceding assembly
DISPLAY NOTE: Users with Islander serial numbers ISL11930 (mfr. ~12/2000) and before
must order kit C06639 (item 33); not individual components (items 34A and 34B).
Page 18 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander II CFN Islander Replacement Parts
Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander II
C07170 Head Assembly, Mag Reader, Islander II
C07173 Head Assembly, Optical Reader, Islander II
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C06564 Cable Assy., DC Power Reader PCB
3 C06562 Cable Assy., Fan, Therm
4 *C02071 Fan, Tubeaxial, 115VAC
5 *C03955 Thermo, Close 80F/Open 65F (Not Shown)
6 C06560 Cable Assy. Heater/Therm
7 *C08716 Heater, 50W, 120VAC, 1 x 5 Strip
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 19
CFN Islander Replacement Parts Head, Inside Left Partition, Wrapper Removed, Rear Door Removed, Islander II
Item Part No. Description
8 *C08314 Heater, 15W, 120VAC, 1 x 5 strip
9 *C03956 Thermo, Close 50F/Open 65F
10 C08721KS240X IC, Programmed C01367, 32K EPROM
12 C05852 PCB Assy., Site Controller II+ CPU
14 *C05848 PCB Assy., RS-485 Driver Protection
15 *C03391 IC, Opto Coupler, Dual
16 C05849 PCB Assy., Memory w/PCMCIA, Islander II
18 C03756 Bushing, Snap-in
19 C06555 Cable Assy., AC Power
20 C35493 Panel, Perf. Light Screen
21 C02207 Clamp, Ribbon Cable
22 C06570 Cable Assy., 25D/20 Pos
23 C35471 Window, Lamp Display
24 C01231 Decal, Gasboy, Display
25 C34136 Window, Illumination
26 C06569 Cable Assy., Display Power
27 027146 Gasket, Strip (1.5 pcs/head)
28 C06557 Cable Assy., Phone 1:1 (4P/4W)
29 C08800 Overlay, Islander Mag Head
C09497 Decal, Optical Reader Insert
30 C35474 Window, LCD
31 C35472 Bracket, Standoff Assy., LCD mount
32 C06043 Cable Assy., Ribbon LCD/Rdr
33 C06639 Kit, LCD, I/F PCB, & Programmed IC
34A *C06370 PCB Assy., LCD I/F (See DISPLAY NOTE)
34B *C05567 LCD/Conn Assy. (See DISPLAY NOTE)
35 C35473 Bracket, LCD Heater Mount
36 C35476 Bracket Assy., Keypad, Htr Support
37 C06651 Kit, Keyboard/Hardware Islander
38 *C01230 Gasket, 5 x 4 Keypad
39 C07164 Cable Assy., DC Power PCB, Islander II
40 *C08799 Fuse, 5 AMP QB Pico Axial
41 C06580 PCB Assy., Interface, Site Comm I/O
42 C08802 Decal, PWR/ON/OFF/FUSE
43 C06753 Cable Assy., Ribbon, 20-pos. 12"L
44 C09604 Card, PCMCIA 2 Mb SRAM w/battery
*C09417 Battery, Lithium Coin, #CR2025 (Not Shown)
or
*C09625 Battery, Lithium Coin, #BR2325 (Not Shown)
*Denotes that this is a subpart used in the preceding assembly
DISPLAY NOTE: Users with Islander serial numbers ISL11930 (mfr. ~12/2000) and before
must order kit C06639 (item 33); not individual components (items 34A and 34B).
Page 20 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Outside Left Partition CFN Islander Replacement Parts
Head, Outside Left Partition
C06575 Head Assembly, Mag Reader, Islander
C06576 Head Assembly, Optical Reader, Islander
C06583 Head Assembly, Mag Reader, Satellite
C06584 Head Assembly, Optical Reader, Satellite
C07170 Head Assembly, Mag Reader, Islander II
C07173 Head Assembly, Optical Reader, Islander II
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C34728 Door Weld Assy.
3 035009 Lock, 90o w/Cover
4 026799 Gasket, Lock, White
5 C34753 Cam. Lock DET, Rear Door
6 C08739 Nut, Wing #1/4-20
7 C06615 Wrapper Assembly
8 *C35470 Housing, Wrapper Weld Assy.
9 *C34780 Bracket, Shield Retainer, Top
10 *C35494 Shield, Head Housing Wrapper
11 *C01989 Gasket, Bulk
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 21
CFN Islander Replacement Parts Head, Outside Left Partition
Item Part No. Description
12 C34769 Cover, Power Supply
13 C08822 Washer, Gnd, Shockproof
14 C34826 Guide, Light Shields
15 C08800 Overlay, Islander Mag Head
C08806 Overlay, Islander, Optical
16 C06554 Cable Assy., Lamp Bracket
17 C06561 Cable Assy., w/ Disable Pumps
18 *C01223 Switch, Operator, Momentary
19 *C01591 Contact Block
20 C34843 Cover Assembly, Card Reader (Optical Reader only)
21 C06556 Cable Assy., DC Power, SCSI
22 *C08799 Fuse, 5 AMP QB Pico Axial
23 C09053 Power Supply,C01481 w/Ground Wire
24 C06649 Cable Assy., Surge Protector
25 C02065 Fuse Holder, 3AG Panel Mount Solder
C09546 Fuse Holder, Quick Conn.
26 C02634 Fuse, 3 Amp, SB, 3AG, Glass
27 C08802 Decal, PWR/ON/OFF/FUSE
28 C08756 Label, Danger High Voltage
29 C06555 Cable Assy., AC Power, Islander
C06647 Cable Assy., AC Power, Satellite Only
30 *C02704 Switch, Toggle, SPST, 15A, Spade
31 *C02446 Filter, Line Interference
32 C03756 Bushing, Snap-in
33 C06586 Cable Assy., DC Power, Site PCB, SC I
C07164 Cable Assy., DC Power, Site PCB, SC II
34 *C08799 Fuse, 5 AMP QB Pico Axial
35 C04930 Site Controller Keyswitch Assy. (Islander I only)
36 C06562 Cable Assy., Fan, Therm
37 *C02071 Fan, Tubeaxial, 115VAC
38 *C03955 Thermo, Close 80F/Open 65F (Not Shown)
39 C06586 Cable Assy., Power Supply, DL, Satellite Only
*Denotes that this is a subpart used in the preceding assembly.
Page 22 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Top View, Wrapper And Rear Door Removed, Islander CFN Islander Replacement Parts
Head, Top View, Wrapper And Rear Door Removed, Islander
C06575 Head Assembly, Mag Reader, Islander
C06576 Head Assembly, Optical Reader, Islander
C06583 Head Assembly, Mag Reader, Satellite
C06584 Head Assembly, Optical Reader, Satellite
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C06554 Cable Assy., Lamp Bracket
3 *C35523 Bracket, Hardware Assy, Lamp, Mntg
4 *033393 Lampholder, Min, Bipin, Fluorescent
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 23
CFN Islander Replacement Parts Head, Top View, Wrapper And Rear Door Removed, Islander
Item Part No. Description
5 *058108 Starter Socket, Bryant
6 *058109 Starter, Fluorescent
7 *C08692 Ballast, Keystone
8 C34826 Guide, Light Shields
9 C08690 Lamp, Fl Min Bipin, F8T5/CW
10 C34136 Window, Illumination
11 C06639 LCD Display/Connector Assy.
12 C06370 PCB Assy., I/F LCD
13 C06043 Cable Assy., Ribbon LCD/Rdr
14 C05857 PCB Assy., ICR2 CPU
15 C05377 PCB Assy., Disable Pumps
16 C06566 Cable Assy., 485 PCB, Disable Pumps
17 C06646 PCB Assy., 485 Conn
18 C06557 Cable Assy., Phone 1:1 (4P/4W)
19 C35524 Bracket, Hardware Assembly, Wrapper Support
20 C06560 Cable Assy., Heaters/Therm
21 *C03956 Thermo, Close 50F/Open 65F
22 *C08716 Heater, 50W, 120VAC, 1 x 5 strip (Not Shown)
23 *C08314 Heater, 15W, 120VAC, 1 x 5 strip (Not Shown)
24 026980 Gasket
25 C02671 Switch, Cherry
26 C06555 Cable Assy., AC Power
C06647 Cable Assy., AC Power, Satellite Only
27 C06562 Cable Assy., Fan, Therm
28 *C03955 Thermo, Close 80F/Open 65F
29 *C02071 Fan, Tubeaxial, 115VAC
30 C03756 Bushing, Snap-in
31 C04930 Site Controller Keyswitch
32 C06759 SC Memory PCB Replacement Kit
33 C05820 PCB Assy., Site Controller I, CPU-512
34 C06570 Cable Assy., 25D/20 Pos
35 C06580 PCB Assy., Interface, Site Comm I/O
36 C06565 Cable Assy., DC Power Site PCB
37 C08871 Screen, 4" Fan Guard
*Denotes that this is a subpart used in the preceding assembly.
Page 24 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Head, Top View, Wrapper And Rear Door Removed, Islander II CFN Islander Replacement Parts
Head, Top View, Wrapper And Rear Door Removed, Islander II
PO
RT 0
PORT
2
C07170 Head Assembly, Mag Reader, Islander II
C07173 Head Assembly, Optical Reader, Islander II
Item Part No. Description
1 C35495 Head, Base Weld Assy.
2 C06554 Cable Assy., Lamp Bracket
3 *C35523 Bracket, Hardware Assy, Lamp, Mntg
4 *033393 Lampholder, Min, Bipin, Fluorescent
5 *058108 Starter Socket, Bryant
6 *058109 Starter, Fluorescent
7 *C08692 Ballast, Keystone
8 C34826 Guide, Light Shields
9 C08960 Lamp, Fl Min Bipin, F8T5/CW
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 25
CFN Islander Replacement Parts Head, Top View, Wrapper And Rear Door Removed, Islander II
Item Part No. Description
10 C34136 Window, Illumination
11 C06639 LCD Display/Connector Assy.
12 C06370 PCB Assy., I/F LCD
13 C06043 Cable Assy., Ribbon LCD/Rdr
14 C05857 PCB Assy., ICR2 CPU
15 C05377 PCB Assy., Disable Pumps
16 C06566 Cable Assy., 485 PCB, Disable Pumps
17 C06646 PCB Assy., 485 Conn
18 C06557 Cable Assy., Phone 1:1 (4P/4W)
19 C35524 Bracket, Hardware Assembly, Wrapper Support
20 C06560 Cable Assy., Heaters/Therm
21 *C03956 Thermo, Close 50F/Open 65F
22 *C08716 Heater, 50W, 120VAC, 1 x 5 strip (Not Shown)
23 *C08314 Heater, 15W, 120VAC, 1 x 5 strip (Not Shown)
24 026980 Gasket
25 C02671 Switch, Cherry
26 C06555 Cable Assy., AC Power
27 C06562 Cable Assy., Fan, Therm
28 *C03955 Thermo, Close 80F/Open 65F
29 *C02071 Fan, Tubeaxial, 115VAC
30 C03756 Bushing, Snap-in
31 C09921 Decal, Islander Port 0/1/2/3
32 C05849 PCB Assy., Memory w/PCMCIA, Islander II
33 C05852 PCB Assy., Site Controller II+ CPU
34 C06570 Cable Assy., 25D/20 Pos
35 C06580 PCB Assy., Interface, Site Comm I/O
36 C06565 Cable Assy., DC Power Site PCB
37 C08871 Screen, 4" Fan Guard
38 C09607 Card, PCMCIA 2 Mb SRAM w/Battery
*C09417 Battery, Lithium Coin, #CR2025 (Not Shown)
or
*C09625 Battery, Lithium Coin, #BR2325 (Not Shown)
*Denotes that this is a subpart used in the preceding assembly.
Page 26 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Non-printer Pedestal, Left Side CFN Islander Replacement Parts
Non-printer Pedestal, Left Side
C06606 Pedestal Assy., Non-printer, Islander
C06607 Pedestal Assy., Non-printer, Satellite
C07166 Pedestal Assy., Non-printer, Islander II
Item Part No. Description
1 C35490 Weld Assy, Pedestal, Non-printer
2 C06685 Cover Assy., 8H Ped Access
3 *C35568 Door Weld Assy., Ped Side
4 *035009 Lock, 90o w/Cover
5 *026799 Gasket, Lock
6 *027064 Gasket, 1/8 x 3/8
7 *0M0049 Cam Lock, Bezel, Finished
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 27
CFN Islander Replacement Parts Non-printer Pedestal, Left Side
Item Part No. Description
8 *027065 Gasket, 1/8 x 1/2
9 *C08677 Handle, Recessed, SST, 4" Center (Not Shown)
10 C33540 Cover, Access, 10 x 14
11 C35491 Bracket Assy., N Ped PS & Cage
12 C35492 Bracket Assy., NP Ped Relays
13 C08709 Cable Eye Assy., Door Catch
14 C06686 Wire Assy., Gdn, 8R/14 AWG
15 026886 Gasket, 1/8 x 3/8 Bulk (order 3 feet)
16 C08307 Bushing, Snap-in, 1.969 ID
17 C02827 Bushing, Snap-in, 1" ID
18 C35556 Bracket, Top Rain Channel
19 C35558 Bracket, Top Cover Support
20 C35564 Bracket, Pedestal, Lower Splash Guard
21 C35573 Bracket, Side, RH Rain Sup NP Ped
22 C35574 Bracket, Side, LH Rain Sup NP Ped
23 C35575 Bracket, Side, Rain Ch N/P Ped
24 C06558 Cable Assy., Phone, 1:1 (4P/4W)

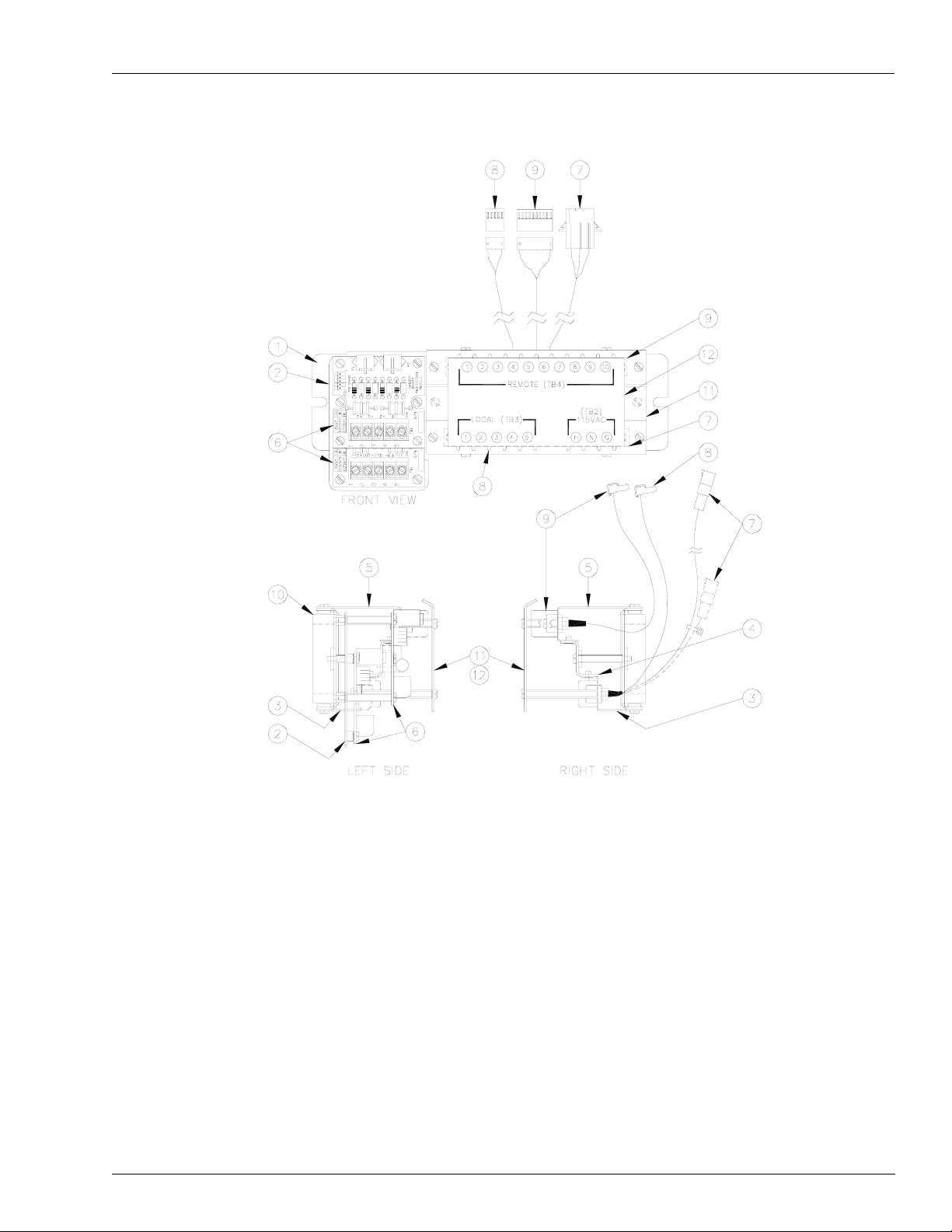

25 C06611 TB/Bracket Assy., Islander Non-printer
C06610 TB/Bracket Assy., Satellite Non-printer
C07167 TB/Bracket Assembly, Islander II, Non-printer
26 *C35484 Bracket Assy., Comm, I/F & TBs
27 *C06609 Cable Assy., 3 TB Ped (TB2)
28 *C05379 PCB Assy., RS-485 Protection
29 *C01224 Decal, Ped AC TB, Islander
*C01225 Decal, Ped AC TB, Satellite Only
30 *C35489 Cover, Comm I/F TB's, Clear
31 *C35488 Bracket Assy., Pedestal 485 Brd Mnt
32 *C06597 Cable Assy., 5TB Peds (TB3) (Qty=1 for Islander,
33 *C06596 Cable Assy., 10TB Peds (TB4)
*Denotes that this is a subpart used in the preceding assembly.
Qty=3 for Islander II)
Page 28 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Printer Pedestal, Star Printer, Right Side CFN Islander Replacement Parts
Printer Pedestal, Star Printer, Right Side
C06602 Pedestal Assy., Printer, Islander
C06604 Pedestal Assy., Printer, Satellite
C07168 Pedestal Assy., Printer, Islander II
Item Part No. Description
1 C35577 Pedestal Weld Assy.
2 C08945 Lamp, 44 Min Bay (Old Style)
4 C09682 LED Indicator (New Style)
5 C34993 Paper Chute Weld Assy.
6 C35015 Bracket, Receipt Paper Catch
7 C34981 Bracket Weld Assy., Front Slide
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 29
CFN Islander Replacement Parts Printer Pedestal, Star Printer, Right Side
Item Part No. Description
8 C06996 Door Assy., Receipt Access (NOTE: Also select one of item 9 when
ordering this part)
9 Available Silkscreeens
C36029 Card/Key/Code - English
C36039 Card/Key/Code - French
10 *C08108 Handle, Pull
11 *C01989 Gasket, Bulk
12 *C34975 Plate, Receipt Printer Door Catch
13 C33540 Cover, Access 10 x 14
14 C01741 Mag Catch, Snap-in
15 C05672 Printer Slide Assy.
16 *C01962 Slide Assy., 12" PR, modified
17 *C08946 Paper, #RF-4.5-5, Low Bulk
18 *C08941 Ribbon, Star Printer
19 *C34994 Bracket, Paper Support, RH
20 *C34986 Bracket, Paper Support, LH
21 *C34970 Roller, Printer Paper
22 *C03334 Switch, SPDT Snap-Action
23 *C34985 Weld Assy., Printer Slide
24 *C35352 Bracket, Gasket Assy., Star Pedestal
25 *C05285 Cable Assy., Paper Low and Print Cnt
26 *C08933 Board, Controller
27 *C34987 Bracket, Printer Mounting
28 *C08932 Printer, w/Paper Cutter
29 *C08883 Label, Star Printer Maintenance
30 *C35374 Printer Stop Bracket Assy. (Not Shown)
31 C02827 Bushing, Snap-in, 1" ID
32 C35128 Frame, Receipt Star Door Hinge
33 C05789 Door Assy., Printer Access, Star
34 *C35012 Weld Assy., Printer Door
35 *C01990 Gasket, Bulk 5/8T x 3/4W
36 *C04665 PCB Assy., Star Printer Power
37 *035004 Lock, Southco
38 *035003 Key, Southco
39 *026813 Gasket, Draw Latch Lock
40 *C01452 Decal, Paper Feed Star (Not Shown)
41 *C08847 Decal, Brd Status, Star
42 C08307 Bushing, Snap-in 1.969 ID
43 C06686 Wire Assy., Ground, 8R/14AWG
44 C08709 Cable Eye Assy., Door Catch
45 C06682 Cover Assy., Printer Ped, Side
46 *C35563 Door Assy., Weld Ped, Side Access
47 *035009 Lock, 90o w/cover
Page 30 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Printer Pedestal, Star Printer, Right Side CFN Islander Replacement Parts
Item Part No. Description
48 *026799 Gasket, Lock, White
49 *0M0049 Cam Lock, Bezel, Finished
50 *027064 Gasket, 1/8 x 3/8
51 *027065 Gasket, 1/8 x 1/2
52 C06086 Cable Heater Assy, Star
53 *C08716 Heater, 50W, 120VAC, 1 x 5 strip
54 *C03580 Heater, 25W, 120VAC 1 x 5 strip
55 *C03956 Thermo, Close 50F/Open 65F
56 *0M0068 Bushing, Snap-in, 1/4" ID
57 C01744 Bushing, Shoulder
58 C06573 Cable Assy., PRN/Lamps, Ped
59 *C05395 Cable Assy., Printer Power
60 *C01985 Cable, Spirol Wrap, 1/4" OD
61 *C06572 Cable Assy., Aux Printer Board
62 026886 Gasket, 1/8 x 3/4 Bulk (order 3 feet)
63 C05075 Cable Assy., Printer Comm
64 C35556 Bracket, Top Rain Channel
65 C35558 Bracket, Top Cover Support
66 C35557 Bracket, Side Rain Channel
67 C35560 Bracket, Left Side Cover Support
68 C35564 Bracket, Pedestal, Lower Splash Guard
69 C35559 Bracket, Right Side Cover Support
70 C35478 Bracket Assy., Pped Relay & PS
71 C08872 Decal, Danger High Voltage
*Denotes that this is a subpart used in the preceding assembly.
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 31
CFN Islander Replacement Parts Printer Pedestal, Star Printer, Right Side
This page is intentionally left blank.
Page 32 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Printer Pedestal, Left Side CFN Islander Replacement Parts
Printer Pedestal, Left Side
Item Part No. Description
1 C35577 Pedestal Weld Assy.
2 C06682 Cover Assy., Printer Ped, Side
3 *C35563 Door Asy., Weld Ped, Side Access
4 *035009 Lock, 90o w/cover
5 *026799 Gasket, Lock
6 *027064 Gasket, 1/8 x 3/8
7 *0M0049 Cam Lock, Bezel, Finished
8 *027065 Gasket, 1/8 x 1/2
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 33
CFN Islander Replacement Parts Printer Pedestal, Left Side
Item Part No. Description
9 C35479 Bracket Assy., Pped, TB's & Cage
10 C35558 Bracket, Top Cover Support
11 C35556 Bracket, Top Rain Channel
12 C35559 Bracket, Right Side Cover Support
13 C35560 Bracket, Left Side Cover Support
14 C35564 Bracket, Pedestal, Lower Splash Guard
15 C35557 Bracket, Side Rain Channel
16 C08307 Bushing, Snap-in, 1.969 ID
17 C06558 Cable Assy., Phone, 1:1 (4P/4W)
18 C06598 TB/Bracket Assy., Islander, Printer
C06599 TB/Bracket Assy., Satellite, Printer
C07165 TB/Bracket Assy., Islander II, Printer
19 *C35484 Bracket Assy., Comm, I/F & TBs
20 *C05379 PCB Assy., RS485 Protection
21 *C06588 Cable Assy., 3 TB PPED (TB2)
22 *C01224 Decal, Pedestal, TB Bracket, Islander
*C01225 Decal, Pedestal, TB Bracket, Satellite
23 *C06597 Cable Assy., 5TB Peds (TB3), Islander Only
24 *C06596 Cable Assy., 10TB Peds (TB4), Islander Only
25 *C35489 Cover, Comm I/F TB's, Clear, Islander Only
26 C08872 Decal, Danger High Voltage
*Denotes that this is a subpart used in the preceding assembly.
Page 34 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Islander Terminal Block Assemblies CFN Islander Replacement Parts
Islander Terminal Block Assemblies
C06598 TB Bracket Assembly, Islander, Printer
C06611 TB Bracket Assembly, Islander, Non-Printer
C07165 TB Bracket Assembly, Islander II, Printer
C07167 TB Bracket Assembly, Islander II, Non-Printer
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 35
CFN Islander Replacement Parts Islander Terminal Block Assemblies
Item Part No. Description
1 C35484 Bracket Assy., Comm, I/F & TBs, SCSI
2 C35488 Bracket Assy., Pedestal Brd Mnt
3 C35487 Bracket Assy., Comm Bottom TB Mnt
4 C35486 Bracket Assy., Comm Mid TB Mnt
5 C35485 Bracket Assy., Comm Top TB Mnt
6 C05379 PCB Assy., RS485 Protection, Islander and Satellite
7 C06588 Cable Assy., 3 TB PPED (TB2), (C06598 and C07165 assemblies
C06609 Cable Assy., 3 TB Ped (TB2), (C06611 and C07167 assemblies
8 C06597 Cable Assy., 5TB Peds (TB3) (one for Islander I; three for Islander
9 C06596 Cable Assy., 10TB Peds (TB4)
10 C08307 Bushing, Snap-in, 1.969 ID
11 C35489 Cover, Comm I/F TB's, Clear
12 C01224 Decal, Pedestal, TB Bracket
only)
only)
II)
Page 36 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Islander Terminal Block Assemblies CFN Islander Replacement Parts
This page is intentionally left blank.
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 37
CFN Islander Replacement Parts Satellite Terminal Block Assemblies
Satellite Terminal Block Assemblies
C06599 TB Bracket Assembly, Satellite, Printer
C06610 TB Bracket Assembly, Satellite, Non-Printer
Item Part No. Description
1 C35484 Bracket Assy., Comm, I/F & TBs
2 C06609 Cable Assy., 3 TB Ped (TB2), (C06610 assembly only)
C06588 Cable Assy., 3 TB PPED (TB2), (C06599 assembly only)
3 C05379 PCB Assy., RS485 Protection, Islander and Satellite
4 C01225 Decal, Pedestal, TB Bracket, Satellite
Page 38 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Pedestal Options, Islander CFN Islander Replacement Parts
Pedestal Options, Islander
C06603 Pump Control, 1-4 Hoses, Printer (Weights & Measures)
C07560 Pump Control, 1-4 Hoses, Printer (Fleet)
Item Part No. Description
1 C06600 Cage Assy., 3-slot Pump Control, SC
2 C06591 Cable Assy., DC Power Ped PCU
3 C06593 Cable Assy., 4 Relay Control, SC
4 C06567 Cable Assy., PCU Comm
5 C32731 Plate, Silk-Screened Escutcheon
6 C06594 Relay and Cable Assy., Pedestal, Weights &
Measures
C05052 Relay and Cable Assy., Pedestal, Fleet
7 C02418 Decal Nos. 1-2-3-4
8 C05040 Power Supply Assy., Weights & Measures
C05059 Power Supply Assy., Fleet
9 C08237 Connector, 12-position TB/PG
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 39
CFN Islander Replacement Parts Pedestal Options, Islander
Item Part No. Description
10 C08528 Connector, 8-position TB/PG
11 C05667 Veeder-Root Power and Bracket Assy.
12 *C05378 PCB Assy., Veeder-Root Power - CFN
13 *C02331 Fuse, 1 AMP, Quick-blow
14 C06757 Surge Protector Assembly
*Denotes that this is a subpart used in the preceding assembly.
Page 40 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Pedestal Pump Control Unit CFN Islander Replacement Parts
Pedestal Pump Control Unit
C06605 Pump Control, 1-8 Hoses, Non-printer (Weights & Measures)
C07570 Pump Control, 1-8 Hoses, Non-printer (Fleet)
C06650 Pump Control, 1-4 Hoses, Non-printer (Weights & Measures)
C07565 Pump Control, 1-4 Hoses, Non-printer (Fleet)
Item Part No. Description
1 C06600 Cage Assy., 3-slot Pump Control
2 C06590 Cable Assy., DC Power, PCU, 1-8 Hose only
C06591 Cable Assy., DC Power Ped PCU, 1-4 Hose only
3 C06593 Cable Assy., 4 Relay Control
4 C06608 Cable Assy. PCU Comm, 1-8 Hose only
C06567 Cable Assy. PCU Comm, 1-4 Hose only
5 C32731 Plate, Silk-Screened Escutcheon
6 C06594 Relay and Cable Assy., Pedestal (Weights & Measures)
C05052 Relay and Cable Assy., Pedestal (Fleet)
7 C02418 Decal Nos. 1-2-3-4
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 41
CFN Islander Replacement Parts Pedestal Pump Control Unit
Item Part No. Description
8 C05040 Power Supply Assy. (Weights & Measures)
C05059 Power Supply Assy. (Fleet)
9 C02293 Decal Nos. 1-2-3-4
10 C06595 Cable Assy., AC PS, Head
11 C08237 Connector, 12-position TB/PG
12 C08528 Connector, 8-position TB/PG
13 C02952 Decal Nos. 5-6-7-8, 1-8 Hose only
14 C05667 Veeder-Root Power and Bracket Assy.
15 *C05378 PCB Assy., Veeder-Root Power - CFN
16 *C02331 Fuse, 1 AMP, Quick-blow
17 C06757 Surge Protector Assembly
*Denotes that this is a subpart used in the preceding assembly.
Page 42 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Card Cage CFN Islander Replacement Parts
Card Cage
Item Part No. Description
1 C35481 Weld Assy., 3-slot PC Cage
2 C05371 PCB Assy., PPC Motherboard
3 C03177 Guide, PC Board
4 C34716 Stiffener, 1/4 x 4.461 lg.
5 C05668 PCB Assy, Pedestal Pump Control
6 *C03315 Connector, Jumper 2 Position Female
7 C05837 PCB Assy., Pump Control EXPMUX CPU
8 *C08574KPCUX IC, Programmed C03673 8K x 8 CMOS
9 *C08014 Fuse, Picofuse, 1/16 Amp PC Mount
10 *C02978 IC, RS-485 line driver
11 *C03391 IC, RS-485 line receiver
*Denotes that this is a subpart used in the preceding assembly.
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 43
CFN Islander Replacement Parts Pump Control Power Supply
Pump Control Power Supply
C05040PCU Power Supply
Item Part No. Description
1 C02065 Fuse Holder, Solder Terminal Panel Mount
C09546 Fuse Holder, Quick Conn
2 C04044 Fuse, 1 Amp Slow Blow
3 C32727 Weld Assy., PCU Power Supply Encl.
4 C08209 Switch, SPDT Rocker Snap In Mount
5 C35536 Enclosure Cage, PPC Power Supply
6 C05320 PCB Assy., PPC Power Supply
7 C08016 Fuse, Picofuse 1.5 Amp PC Mount
8 *C02824 Fuse, 3 Amp Picofuse PC Mount
9 C05041 Cable Assy., Power Supply Line, PPC
10 C08608 Decal, Pedestal PCU, Power Supply
*Denotes that this is a subpart used in the preceding assembly.
Page 44 PT-1955 CFN Islander Replacement Parts Manual · August 2005
Pedestal Pump Control Relay Module Assembly CFN Islander Replacement Parts
Pedestal Pump Control Relay Module Assembly
C06594 Pedestal Pump Control Relay Module Assembly
Item Part No. Description
1 C05043 PPC Relay Module Power Cable Assy.
2 C05034 PPC Relay Module PEM Hardware Assy.
3 C08530 Relay, Solid State SPST 240VAC 10 Amp, 3-32VDC Control
4 C04477 Relay, Solid State SPST 240VAC 25 Amp, 3-32VDC Control
5 C08746 Relay, Solid State SPST 240VAC 40 Amp, 3-32VDC Control
PT-1955 CFN Islander Replacement Parts Manual · August 2005 Page 45
CFN Islander Replacement Parts Pedestal Pump Control Relay Module Assembly
This page is intentionally left blank.
Page 46 PT-1955 CFN Islander Replacement Parts Manual · August 2005
© 2005 GASBOY
7300 West Friendly Avenue • Post Office Box 22087
Greensboro, North Carolina 27420
Phone 1-800-444-5529 • http://www.gasboy.com • Printed in the U.S.A.
Loading...
