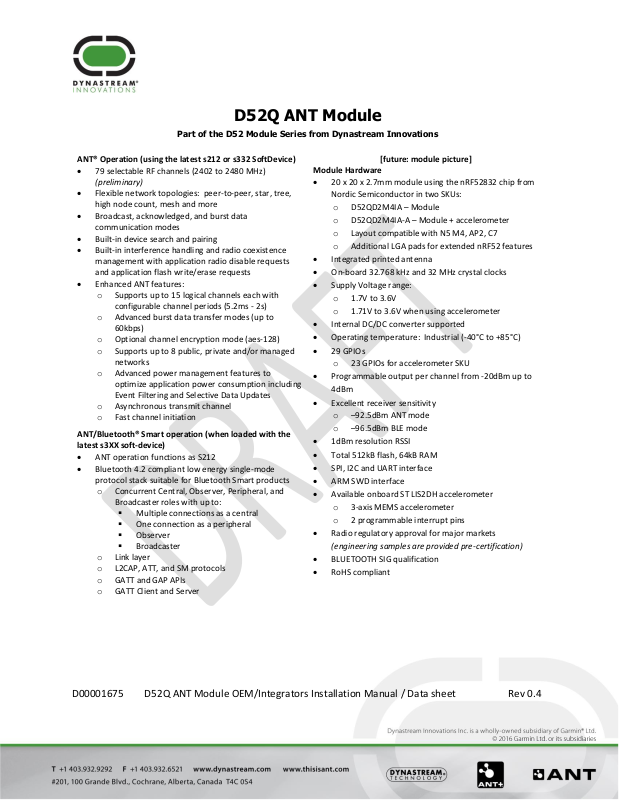

ANT® Operation (using the latest s212 or s332 SoftDevice)

 79 selectable RF channels (2402 to 2480 MHz)

(preliminary)

 Flexible network topologies: peer-to-peer, star, tree,

high node count, mesh and more

 Broadcast, acknowledged, and burst data

communication modes

 Built-in device search and pairing
 Built-in interference handling and radio coexistence

management with application radio disable requests
and application flash write/erase requests

 Enhanced ANT features:

o Supports up to 15 logical channels each with

configurable channel periods (5.2ms - 2s)

o Advanced burst data transfer modes (up to

60kbps)

o Optional channel encryption mode (aes-128)
o Supports up to 8 public, private and/or managed

networks

o Advanced power management features to

optimize application power consumption including
Event Filtering and Selective Data Updates

o Asynchronous transmit channel
o Fast channel initiation

ANT/Bluetooth® Smart operation (when loaded with the
latest s3XX soft-device)

 ANT operation functions as S212
 Bluetooth 4.2 compliant low energy single-mode

protocol stack suitable for Bluetooth Smart products

o Concurrent Central, Observer, Peripheral, and

Broadcaster roles with up to:

 Multiple connections as a central
 One connection as a peripheral
 Observer
 Broadcaster

o Link layer
o L2CAP, ATT, and SM protocols
o GATT and GAP APIs
o GATT Client and Server

[future: module picture]

Module Hardware

 20 x 20 x 2.7mm module using the nRF52832 chip from

Nordic Semiconductor in two SKUs:

o D52QD2M4IA – Module
o D52QD2M4IA-A – Module + accelerometer
o Layout compatible with N5 M4, AP2, C7
o Additional LGA pads for extended nRF52 features

 Integrated printed antenna
 On-board 32.768 kHz and 32 MHz crystal clocks
 Supply Voltage range:

o 1.7V to 3.6V
o 1.71V to 3.6V when using accelerometer

 Internal DC/DC converter supported
 Operating temperature: Industrial (-40°C to +85°C)
 29 GPIOs

o 23 GPIOs for accelerometer SKU

 Programmable output per channel from -20dBm up to

4dBm

 Excellent receiver sensitivity

o –92.5dBm ANT mode
o –96.5dBm BLE mode

 1dBm resolution RSSI
 Total 512kB flash, 64kB RAM
 SPI, I2C and UART interface
 ARM SWD interface
 Available onboard ST LIS2DH accelerometer

o 3-axis MEMS accelerometer
o 2 programmable interrupt pins

 Radio regulatory approval for major markets

(engineering samples are provided pre-certification)

 BLUETOOTH SIG qualification
 RoHS compliant

D52Q ANT Module

Part of the D52 Module Series from Dynastream Innovations

D00001675 D52Q ANT Module OEM/Integrators Installation Manual / Data sheet Rev 0.4

Page 2 of 20 D52Q ANT Module Datasheet, Rev 0.4

1 Table of Contents

D52Q ANT Module ................................................................................................................................................................. 1

2 Table of Figures ............................................................................................................................................................ 4

3 List of Tables ................................................................................................................................................................. 4

4 Notices and Restricted use Information .................................................................................................................... 5

4.1 Preliminary Data Sheet ................................................................................................................................. 5

4.2 Notices and restricted use:............................................................................................................................ 5

4.3 Warranty Information ................................................................................................................................... 5

4.4 SoftDevice Licensing and Use ........................................................................................................................ 6

4.5 Regulatory Compliance Information (TBD) ..................................................................................................... 6

5 D52 ANT SoC Module Family Overview ...................................................................................................................... 7

6 D52Q ANT SoC Module Overview ............................................................................................................................... 7

6.1 Nomenclature ............................................................................................................................................... 8

6.2 Production Tracking Code ............................................................................................................................. 8

6.3 Models ......................................................................................................................................................... 8

6.4 D52 ANT SoC Module Starter Kits and Components ........................................................................................ 8

7 Product Overview ......................................................................................................................................................... 9

7.1 Block Diagrams ............................................................................................................................................ 9

7.2 Pin-outs ..................................................................................................................................................... 10

7.3 (Optional) Accelerometer Specification ........................................................................................................ 12

7.4 Preloaded Software .................................................................................................................................... 12

7.5 D52 Module Programming ........................................................................................................................... 13

7.5.1 Programming via SWD interface .................................................................................................... 13

7.5.2 Initializing the SoftDevice ............................................................................................................. 14

7.5.3 Configuring the dc/dc converter .................................................................................................... 14

7.6 Design considerations ................................................................................................................................. 14

7.6.1 M4 (D52Q) module mounting ....................................................................................................... 14

7.6.2 M6 module mounting ................................................................................................................... 14

7.7 Assembly Considerations ............................................................................................................................. 14

7.7.1 Moisture Control ........................................................................................................................... 14

7.7.2 Solder Stencil Design of D52Q (M4) Module................................................................................... 14

7.7.3 Cleaning Process .......................................................................................................................... 14

8 Regulatory Approvals and Compliance ................................................................................................................... 14

8.1 United States ............................................................................................................................................. 15

8.2 Canada ...................................................................................................................................................... 15

8.3 European Economic Area ............................................................................................................................ 16

8.4 Australia and New Zealand .......................................................................................................................... 16

8.5 Japan ......................................................................................................................................................... 16

8.6 BLUETOOTH Qualification ........................................................................................................................... 16

9 Electrical Specifications ............................................................................................................................................ 16

dynastream.com thisisant.com

Page 3 of 20 D52Q ANT Module Datasheet, Rev 0.4

9.1 Absolute Maximum Ratings ......................................................................................................................... 16

9.2 Recommended Operating Conditions ........................................................................................................... 16

9.3 Radio Operation Specifications and Antenna Characteristics.......................................................................... 16

9.4 Electrical Specifications ............................................................................................................................... 17

10 Mechanical Drawings ................................................................................................................................................ 18

11 Support ...................................................................................................................................................................... 19

11.1 ANT Forum ............................................................................................................................................ 19

11.2 Technical References ............................................................................................................................. 19

11.3 ANT Developer’s Zone ............................................................................................................................ 19

11.4 ANT and ANT+ Social Media................................................................................................................... 19

12 Appendix A – Using the ANT Network Processor Configuration ........................................................................... 20

13 Appendix C – D52Q Module Pre-Loaded Software Versions ................................................................................. 20

dynastream.com thisisant.com

Page 4 of 20 D52Q ANT Module Datasheet, Rev 0.4

2 Table of Figures

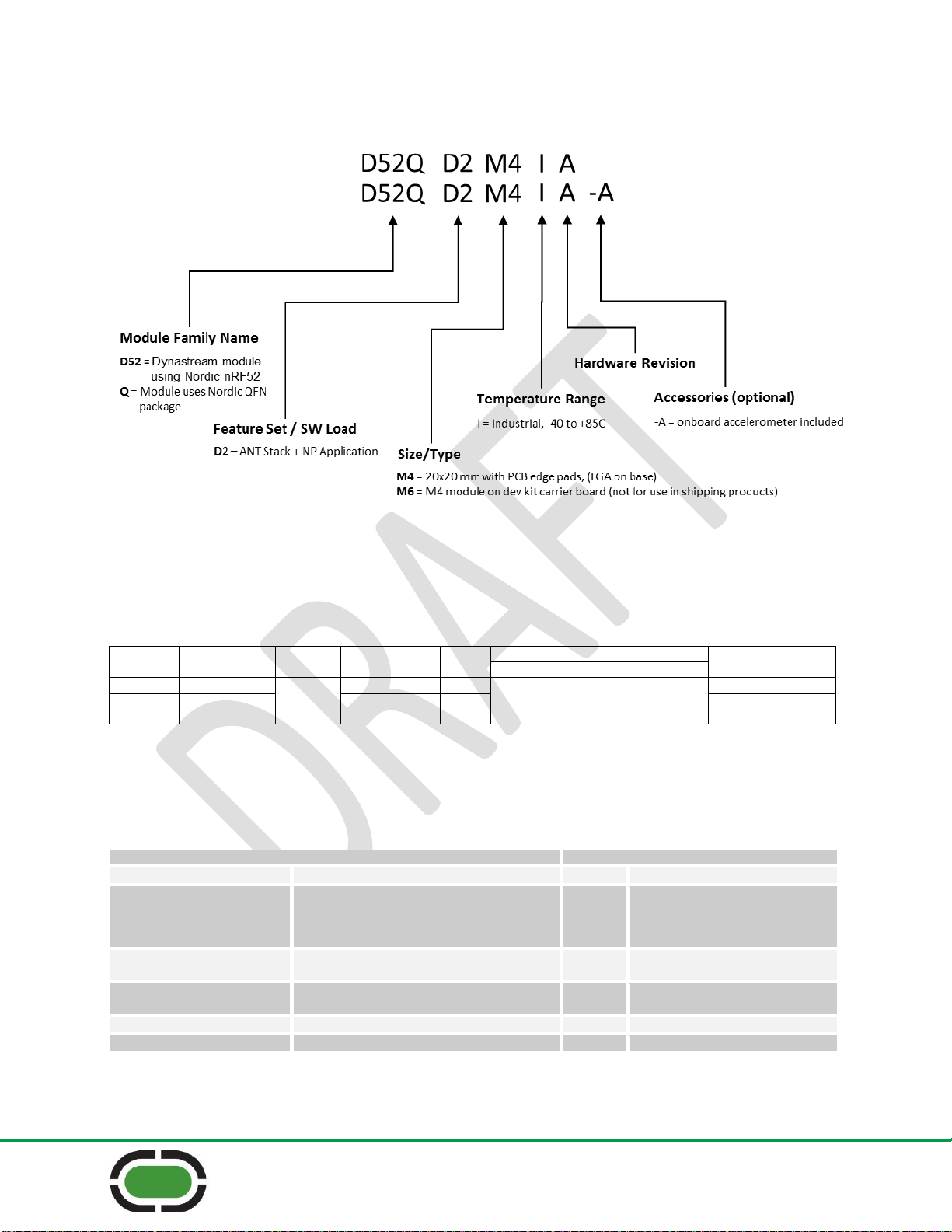

Figure 1: D52Q Module Nomenclature ......................................................................................................... 8

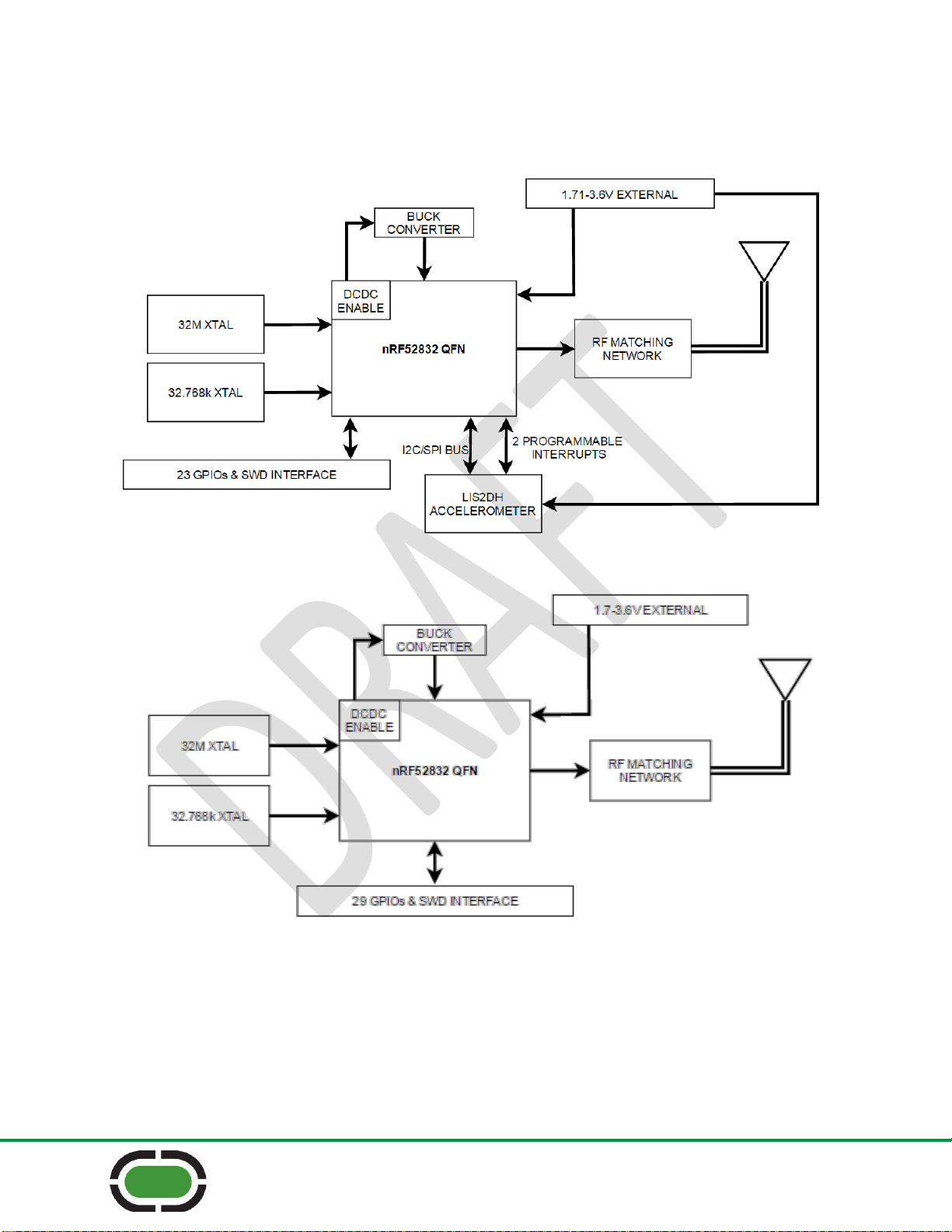

Figure 2: D52QD2M4IA-A (with accelerometer) Module Block Diagram ......................................................... 9

Figure 3: D52QD2M4IA Module Block Diagram ............................................................................................ 9

Figure 4: D52Q M4 Bottom View ............................................................................................................... 10

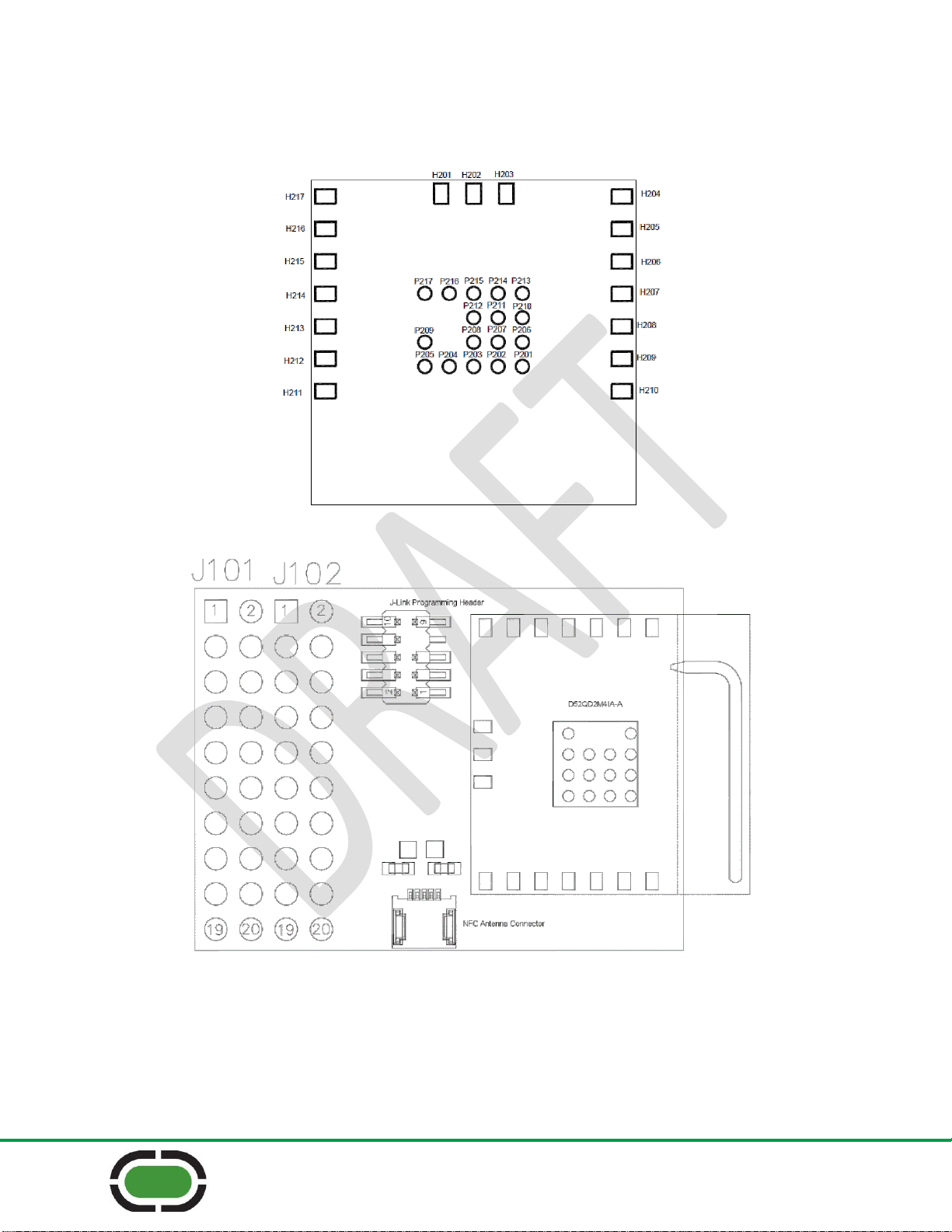

Figure 5: D52Q M6 - Top View .................................................................................................................. 10

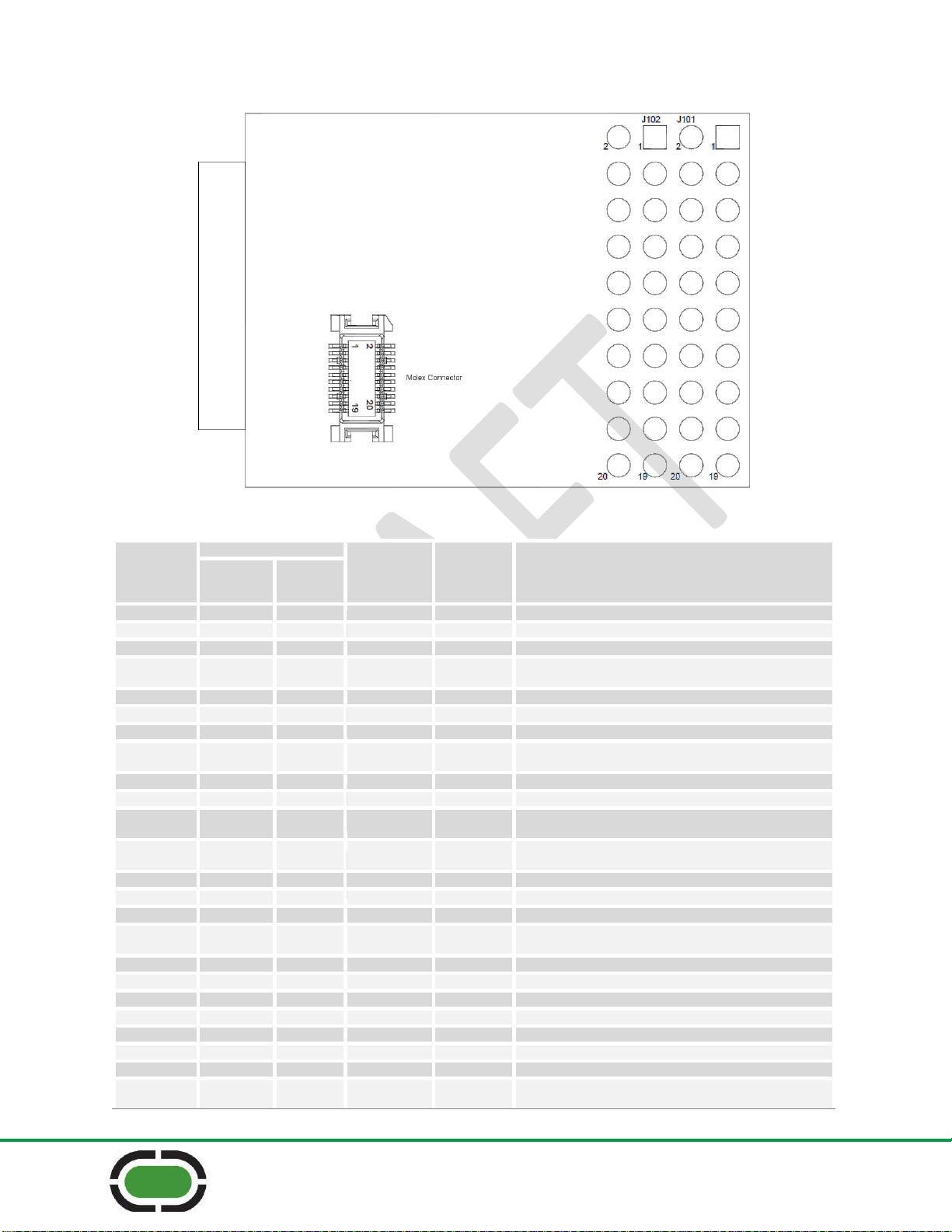

Figure 6: D52Q M6 - Bottom View............................................................................................................. 11

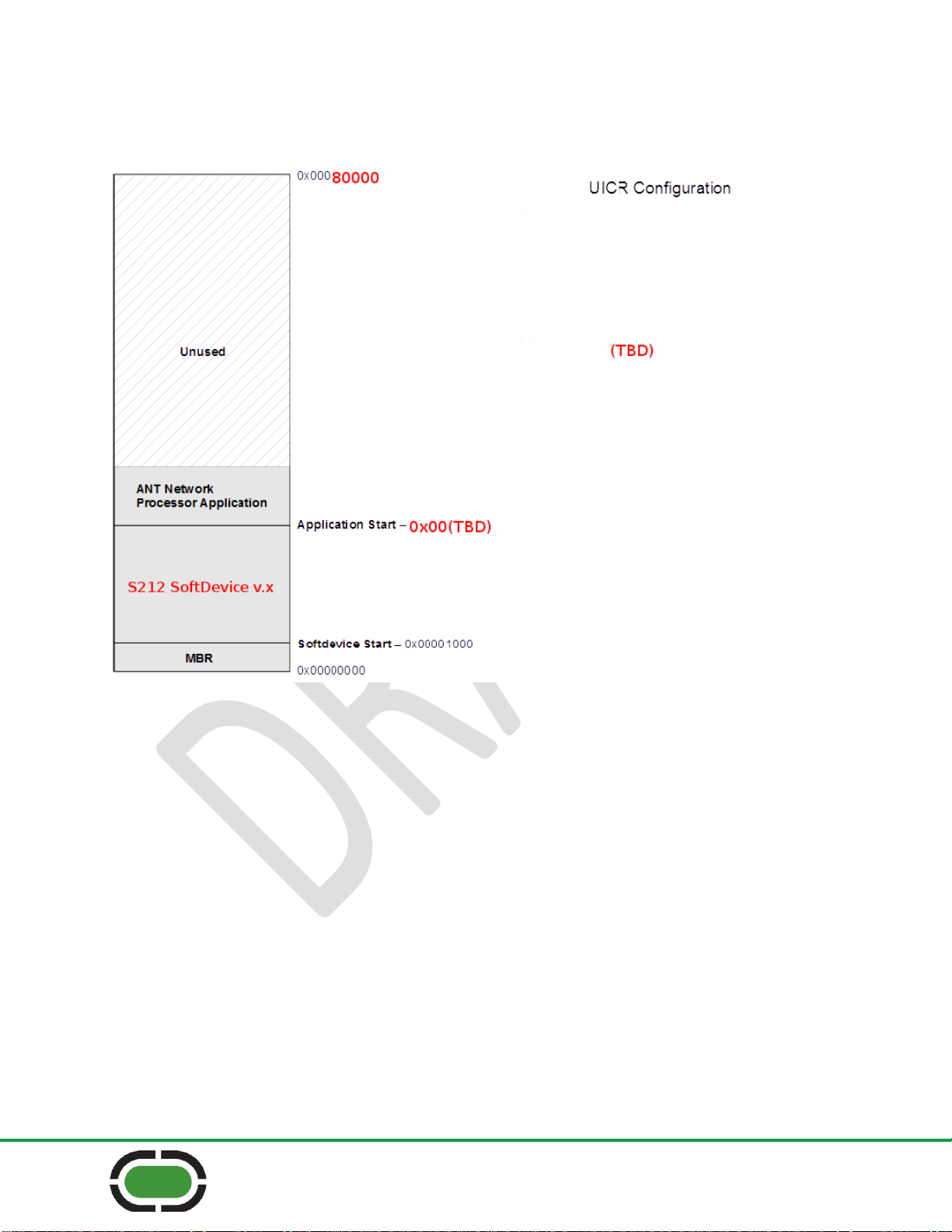

Figure 7 - Memory Map of D52Q Preloaded Software ................................................................................. 13

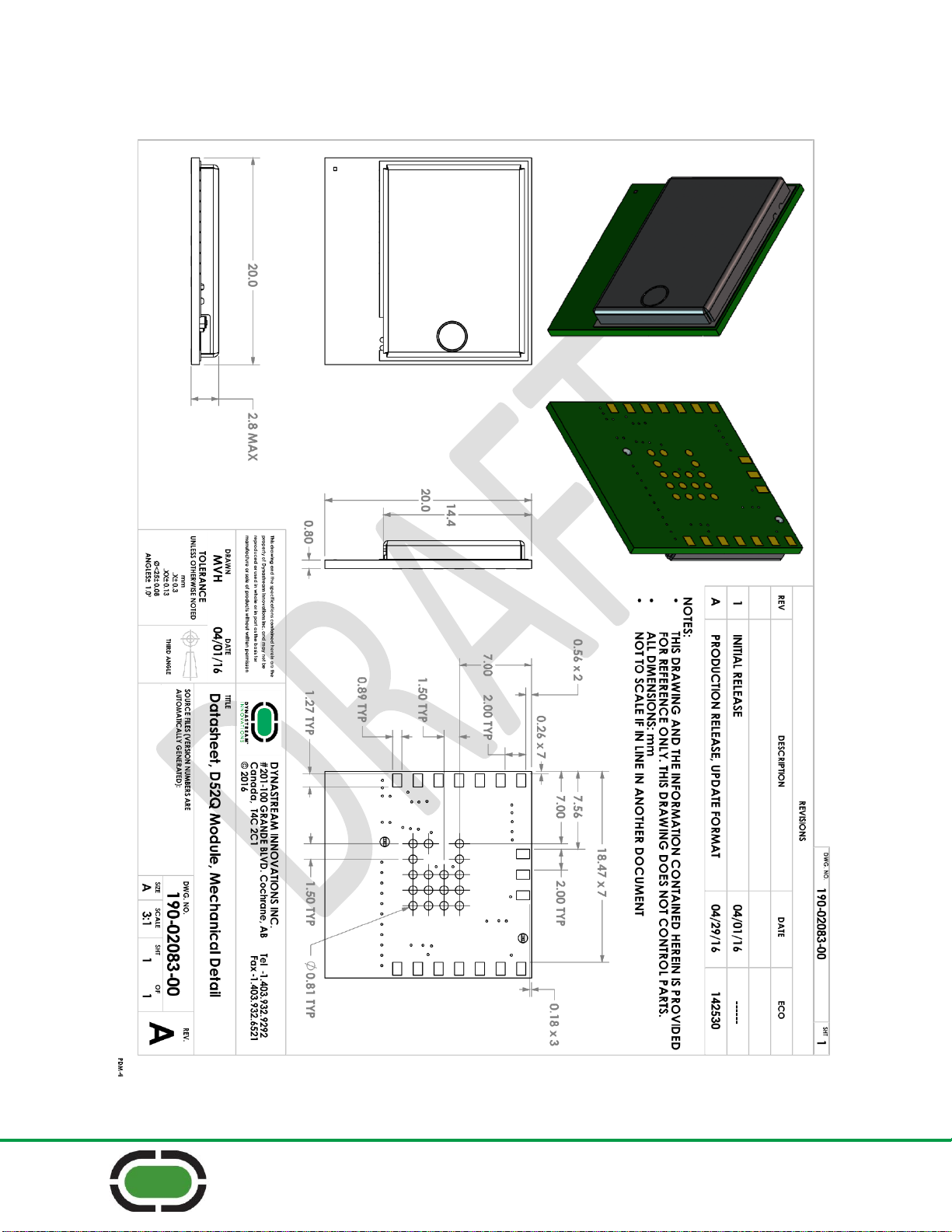

Figure 8: D52Q Mechanical Drawing ........................................................................................................ 18
