Page 1
GTR 225/225A/225B
Pilot’s Guide
Page 2
© 2012 Garmin Ltd. or its subsidiaries. All rights reserved.
This manual reflects the operation of System Software version 2.00, or later. Some differences in operation
may be observed when comparing the information in this manual to later software versions.
Garmin International, Inc., 1200 East 151st Street, Olathe, KS 66062, U.S.A.
Tel: 913/397.8200 Fax: 913/397.8282
Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A.
Tel: 503/391.3411 Fax 503/364.2138
Garmin (Europe) Ltd., Liberty House, Bulls Copse Road, Hounsdown Business Park, Southampton,
SO40 9RB, U.K.
Tel. +44 (0) 870 850 1243 Fax +44 (0) 238 052 4004
Garmin Corporation, No. 68, Zhangshu 2nd Road, Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.)
Tel: 886/02.2642.9199 Fax: 886/02.2642.9099
Garmin Singapore Pte. Ltd., 46 East Coast Road, #05-06 Eastgate, Singapore 428766
Tel : (65) 63480378 Fax : ( 65 ) 63480278
At Garmin, we value your opinion. For comments about this guide, please e-mail:
Techpubs.Salem@Garmin.com
www.garmin.com
https://fly.garmin.com/fly-garmin
Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted,
disseminated, downloaded or stored in any storage medium, for any purpose without the express written
permission of Garmin. Garmin hereby grants permission to download a single copy of this manual and of
any revision to this manual onto a hard drive or other electronic storage medium to be viewed for personal
use, provided that such electronic or printed copy of this manual or revision must contain the complete text
of this copyright notice and provided further that any unauthorized commercial distribution of this manual
or any revision hereto is strictly prohibited.
This part shall comply with Garmin Banned and Restricted Substances document, 001-00211-00.
Garmin® is a registered trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used
without the express permission of Garmin.
November 2012 Printed in the U.S.A.
Page 3
LIMITED WARRANTY
All Garmin avionics products are warranted to be free from defects in materials or workmanship for:
two years from the date of purchase for new Remote-Mount and Panel-Mount products; one year
from the date of purchase for new portable products and any purchased newly-overhauled products;
six months for newly-overhauled products exchanged through a Garmin Authorized Service Center;
and 90 days for factory repaired or newly-overhauled products exchanged at Garmin in lieu of repair.
Within the applicable period, Garmin will, at its sole option, repair or replace any components that
fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts
or labor, provided that the customer shall be responsible for any transportation cost. This warranty
does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts,
such as batteries, unless product damage has occurred due to a defect in materials or workmanship;
(iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external
causes; (iv) damage caused by service performed by anyone who is not an authorized service
provider of Garmin; or (v) damage to a product that has been modified or altered without the written
permission of Garmin. In addition, Garmin reserves the right to refuse warranty claims against
products or services that are obtained and/or used in contravention of the laws of any country.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING
UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY
VARY FROM STATE TO STATE.
IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR
FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Garmin retains the exclusive right to repair or replace (with a new or newly-overhauled replacement
product) the product or software or offer a full refund of the purchase price at its sole discretion.
SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
Online Auction Purchases: Products purchased through online auctions are not eligible for
warranty coverage. Online auction confirmations are not accepted for warranty verification. To obtain
warranty service, an original or copy of the sales receipt from the original retailer is required. Garmin
will not replace missing components from any package purchased through an online auction.
International Purchases: A separate warranty may be provided by international distributors for
devices purchased outside the United States depending on the country. If applicable, this warranty is
provided by the local in-country distributor and this distributor provides local service for your device.
Distributor warranties are only valid in the area of intended distribution. Devices purchased in the
United States or Canada must be returned to the Garmin service center in the United Kingdom, the
United States, Canada, or Taiwan for service.
To obtain warranty service, contact your local Garmin Authorized Service Center. For assistance in
locating a Service Center near you, visit the Garmin web site at http://www.garmin.com or contact
Garmin Customer Service at 866-739-5687.
Garmin GTR 225/225A/225B Pilot’s Guide
i190-01182-00 Rev. A
Page 4
WARNING: For safety reasons, GTR 225 operational procedures must be
learned on the ground.
CAUTION: The Garmin GTR 225 does not contain any user-serviceable
parts. Repairs should only be made by an authorized Garmin service center.
Unauthorized repairs or modifications could void both the warranty and
the pilot’s authority to operate this device under FAA/FCC regulations.
CAUTION: The GTR 225 display uses a lens coated with a special antireflective coating that is very sensitive to skin oils, waxes, and abrasive
cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTIREFLECTIVE COATING. It is very important to clean the lens using a clean,
lint-free cloth and an eyeglass lens cleaner that is specified as safe for
anti-reflective coatings.
NOTE: Do not use outdated database information. Databases used in the
system must be updated regularly in order to ensure that the information
remains current. Pilots using an outdated database do so entirely at their
own risk.
NOTE: Garmin recommends that if flying in a region with 8.33 kHz COM
channel spacing, the radio should remain in 8.33 kHz mode. This will prevent
the loss of stored user and recent frequencies.
NOTE: All visual depictions contained within this document, including
screen images of the GTR 225 bezel and displays, are subject to change
and may not reflect the most current GTR 225 software. Depictions of
equipment may differ slightly from the actual equipment.
NOTE: This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This product, its packaging, and its components contain chemicals
known to the State of California to cause cancer, birth defects, or
reproductive harm. This notice is being provided in accordance with
California’s Proposition 65. If you have any questions or would like
additional information, please refer to our web site at www.garmin.com/
prop65.
ii
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 5
NOTE: Canadian installations: In accordance with Canadian Radio
Specifications Standard 102 (RSS 102), RF field strength exposure to
persons from an antenna connected to this device should be limited to 60
V/m for controlled environment and 28 V/m for uncontrolled environment.
NOTE: This device complies with Part 15 of
the FCC limits for Class B digital devices. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. Furthermore, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful
interference, the user is encouraged to try
to correct the interference by relocating the
equipment or connecting the equipment to a
different circuit than the affected equipment.
Consult an authorized dealer or other qualified
avionics technician for additional help if these
remedies do not correct the problem.
Operation of this device is subject to the
following conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.
Help us better support you by completing our
or stolen unit tracking. Please, have the serial
web site (www.garmin.com) and look for our
anti-reflective coating which is very sensitive to
skin oils, waxes and abrasive cleaners. It is very
important to clean the lens using an eyeglass
lens cleaner which is specified as safe for anti-
reflective coatings and a clean, lint-free cloth.
To obtain accessories for your unit, please
contact your Garmin dealer.
on-line registration form today! Registration
ensures that you will be notified of product
updates and new products and provides lost
number of your unit handy, connect to our
Product Registration link on the Home page.
The display surface is coated with a special
Garmin GTR 225/225A/225B Pilot’s Guide
iii190-01182-00 Rev. A
Page 6
Product Registration and Support
Help us better support you by completing your online registration today!
Have the serial number of your product handy and connect to the Garmin
web site (www.garmin.com or https://fly.garmin.com/fly-garmin). Look for the
Product Registration link on the Home page. Also, be sure to record your serial
number in the space provided.
If you have any questions, the Garmin Product Support department may be
reached Monday through Friday, 7:00 AM to 7:00 PM Central Time.
US: 913-397-8200
US Toll Free: 1-866-739-5687
Canada Toll Free: 1-866-429-9296
Record of Revisions
Part Number Revision Date Description
190-01182-00 A 11/19/12 Initial release
iv
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 7
Contents
Product Registration and Support .....................................................................iv
1 Getting Started ....................................................................................1-1
1.1 Product Description .............................................................................. 1-1
1.2 Pilot Controls ....................................................................................... 1-2
1.2.1 Power/Com Volume/Squelch Knob ......................................... 1-2
1.2.2 Tuning LARGE/SMALL Concentric (Cursor) Knobs ................... 1-3
1.2.3 FLIP/FLOP Key ....................................................................... 1-3
1.2.4 Com Key ............................................................................... 1-3
1.2.5 MEM Key .............................................................................. 1-3
1.2.6 ICS Key ................................................................................. 1-3
1.2.7 CLR (Clear) Key ..................................................................... 1-3
1.2.8 ENT (Enter) Key ..................................................................... 1-3
1.2.9 FUNC (Function) Key.............................................................. 1-4
1.2.10 MON (Monitor) Key ............................................................... 1-4
1.3 USB Port .............................................................................................. 1-4
2 Basic Operation ....................................................................................2-1
2.1 Power On ............................................................................................2-1
2.2 Com Radio ..........................................................................................2-1
2.2.1 Selecting a Com Frequency .................................................... 2-1
2.2.2 Monitoring the Standby Com Channel ...................................2-2
2.2.3 Saving a Com Channel ..........................................................2-2
2.2.4 Com Database Look-Up ......................................................... 2-4
2.2.5 Emergency Channel ............................................................... 2-4
2.2.6 Stuck Mic .............................................................................. 2-5
2.2.7 Frequency Database Reverse Look-Up .................................... 2-5
2.2.8 Remote Frequency Selection Control ...................................... 2-5
3 Functions ..............................................................................................3-1
3.1 Functions Description ........................................................................... 3-1
3.2 Com Frequencies .................................................................................3-2
3.2.1 Recent Com Frequencies ........................................................ 3-2
3.2.2 Com User Frequencies ........................................................... 3-3
3.2.2.1 Viewing the Com User Frequency ........................................... 3-3
3.2.2.2 Deleting the Com User Frequency ..........................................3-3
3.2.2.3 Editing a Com User Frequency ...............................................3-4
Garmin GTR 225/225A/225B Pilot’s Guide
v190-01182-00 Rev. A
Page 8
3.2.3 Com Database Frequencies .................................................... 3-5
3.2.4 Com Nearest Airports (APT) ................................................... 3-6
3.2.5 Com Nearest Area Control Center (ACC) Frequencies .............3-6
3.2.6 Com Nearest Flight Service Station (FSS) Frequencies ............. 3-7
3.2.7 Com Nearest Weather (WX) Frequencies ................................ 3-8
3.3 ICS Configuration ................................................................................3-9
3.3.1 Adjust Intercom ..................................................................... 3-9
3.3.2 Aux Audio ........................................................................... 3-10
3.3.3 Intercom On/Off ..................................................................3-11
3.3.4 Speaker On/Off .................................................................... 3-11
3.4 System Configuration ......................................................................... 3-12
3.4.1 Com Spacing ....................................................................... 3-12
3.4.2 Display Brightness ...............................................................3-13
3.4.3 Display Contrast .................................................................. 3-14
3.4.4 Database Info ...................................................................... 3-14
3.4.5 Load Database ....................................................................3-15
3.4.6 Software Version .................................................................3-16
3.4.7 Serial Number .....................................................................3-16
3.5 Timers ...............................................................................................3-17
3.5.1 Setting Up the Count Down Timer ........................................ 3-17

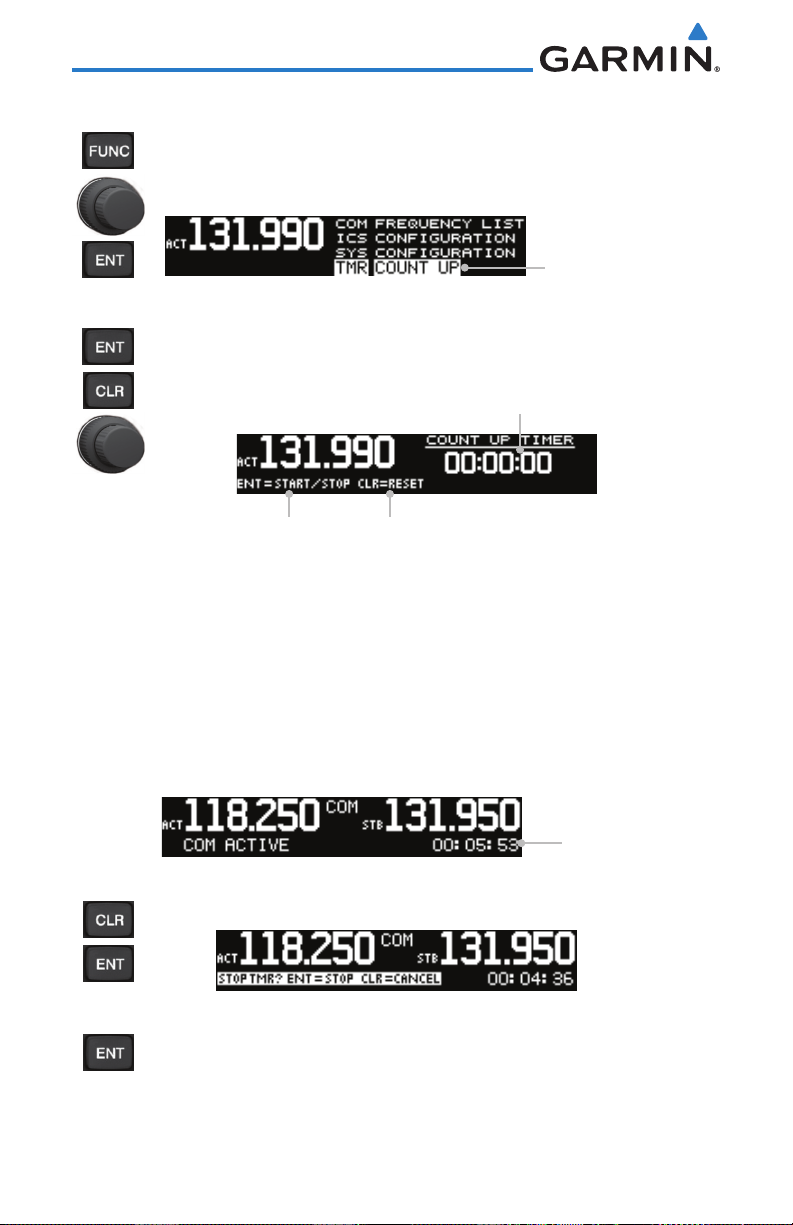

3.5.2 Setting Up the Count Up Timer ............................................ 3-18
3.5.3 Viewing Timers in the Com Display .......................................3-18
4 Appendix ..............................................................................................4-1
4.1 Troubleshooting ................................................................................... 4-1
4.2 Updating the Frequency Database ........................................................ 4-3
4.2.1 Downloading the Frequency Database ................................... 4-3
4.2.2 Updating the GTR 225 Frequency Database ........................... 4-3
4.3 Messages ............................................................................................ 4-4
Index .....................................................................................................Index-1
vi
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 9
1 GETTING STARTED
1.1 Product Description
The GTR 225 Com Radio series provides a powerful VHF communications
transceiver in a small footprint at a very affordable price. Besides traditional Com
features, the GTR 225 series also incorporates workload-reducing functions
such as most-used frequency storage in memory.
The GTR 225 series has the ability to monitor the standby Com frequencies.
The GTR 225 (10 watt) Com radio operates in the aviation voice band, from
118.000 to 136.975 MHz, in 25 kHz steps (default). For European operations,
the additional Com radio configuration of 8.33 kHz steps is provided with the
GTR 225A (10 watt) and GTR 225B (16 watt).
Photo Sensor
Power On/Off,
Com Volume,
Squelch On/Off
Frequency
Monitor Key
Press To Return To
Com Display
Press To View Recent or User Freq
Press To Select Intercom Function
Figure 1-1 GTR 225 Front Panel Description
Locking
Screw
Frequency Transfer
(FLIP/FLOP) Key
USB Port
LARGE and
SMALL Knobs
(Frequency
Adjust)
Enter Key
Clear Data Key
Function Selection
Garmin GTR 225/225A/225B Pilot’s Guide
1-1190-01182-00 Rev. A
Page 10
1.2 Pilot Controls
The GTR 225 controls have been designed to simplify operation of the
system and minimize workload and the time required to access sophisticated
functionality. Controls are comprised of dual concentric knobs for frequency
tuning, Com volume/squelch knob, and bezel keys.
1.2.1 Power/Com Volume/Squelch Knob
The Power/Com Volume/Squelch knob located in the top left
corner of the bezel controls audio volume for the Com radio.
Rotating the knob clockwise past the detent turns power on
and counter-clockwise turns power off. When the Com radio is
active, press the Power/Com Volume/Squelch knob to toggle
automatic squelch control On/Off for the Com radio.
Com Mode
Annunciator
Squelch, TX, or RX
Annunciator
Active Frequency
Annunciator
Com Volume Bar Graph
Figure 1-2 Com Volume and Squelch Display Description
Standby Frequency
Annunciator
The Com radio features an automatic squelch to reject many localized noise
sources. You may override the squelch function by pressing the
Volume/Squelch
knob. This facilitates listening to a distant station or setting
Power/Com
the desired volume level.
To override the automatic squelch, press the
knob momentarily. Press the
Power/Com Volume/Squelch
Power/Com Volume/Squelch
knob again to
return to automatic squelch operation. A “SQ” indication appears to the left of
the active Com frequency window in the upper left corner of the display when
automatic squelch is overridden.
1-2
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 11
1.2.2 Tuning LARGE/SMALL Concentric (Cursor)
Knobs
The LARGE right and
frequencies and data entry.
LARGE, Outer Knob
SMALL right
knobs are used for tuning
SMALL, Inner Knob
1.2.3 FLIP/FLOP Key
Press and release the FLIP/FLOP key to switch between the
active (left-most) and standby (right-most) frequency. Switching
between Com frequencies is disabled while you are transmitting.
1.2.4 Com Key
Press the COM key to return to the Com radio mode.
1.2.5 MEM Key
Press the MEM key to recall and toggle between the Com Recent
and User Frequency lists.
1.2.6 ICS Key
Press the ICS key to toggle display of the ICS settings for Intercom
On/Off, AUX Audio, or the Intercom settings.
1.2.7 CLR (Clear) Key
Pressing the CLR key erases information, cancels entries, and
resets timers.
1.2.8 ENT (Enter) Key
Press the ENT key to save selected values, to confirm a prompt,
or to save the Standby frequency.
Garmin GTR 225/225A/225B Pilot’s Guide
1-3190-01182-00 Rev. A
Page 12
1.2.9 FUNC (Function) Key
The FUNC (Function) key accesses function categories for
the following: the Com Radio, ICS Configuration, System
Configuration, and Timer. Pressing the FUNC key once displays
the Function mode. Pressing the FUNC key a second time exits
the Function mode.
1.2.10 MON (Monitor) Key
The MON (Monitor) key will engage the monitor function where
the Standby frequency may be monitored while still listening to
the Active frequency.
1.3 USB Port
The USB port is used to update the frequency database in the GTR 225.
NOTE: Garmin recommends the use of a USB 2.0 compatible USB flash
drive for updating the database.
1-4
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 13
2 BASIC OPERATION
2.1 Power On
Turn the GTR 225 on by either turning the Power/Com Volume/
Squelch knob clockwise to turn the power on or, if installed,
turning on the master switch that powers the radios.
2.2 Com Radio
2.2.1 Selecting a Com Frequency
New frequencies are first selected as a Standby frequency and then toggled to
the Active side with the FLIP/FLOP key. While viewing the Standby frequency
display, use the LARGE and SMALL knobs on the right side of the GTR 225 to
select the desired frequency.
1. Press COM, if necessary, to reach the Com radio function. The
COM annunciator on the top line of the display will show.
2. Turn the LARGE knob to change the values in one MHz
increments. The MHz selection range is between 118 and 136
in one MHz steps.
3. Turn the SMALL knob to change the values in 25 kHz or 8.33
kHz increments. The kHz selection range is between 000 and
975 kHz in 25 kHz steps or 000 and 990 kHz in 8.33 kHz steps.
4. Turn the LARGE and SMALL knobs clockwise to increase and
counterclockwise to decrease the frequency values. Standby
frequency selection is not inhibited during transmit.
5. When connected to a position source, nearby station identifiers
will be shown for the selected frequency. Frequencies with
multiple types will have an asterisk next to the identifier.
Asterisk Indicates Multiple Types
Exist For The Selected Frequency
Identifier and Type Shown For
The Selected Frequency
Figure 2-1 Com Frequency Selection
6. Press and release the FLIP/FLOP key to toggle the Standby
frequency to the Active frequency.
Garmin GTR 225/225A/225B Pilot’s Guide
2-1190-01182-00 Rev. A
Page 14
2.2.2 Monitoring the Standby Com Channel
The Frequency Monitoring function allows you to monitor the Standby
frequency for activity, while listening to the Active frequency.
Press the MON key in the Com function to listen to the standby
frequency. A small “MN” will replace the “STB” to the left of the
Standby frequency.
Monitor
Annunciation
Figure 2-2 Com Frequency Monitor Annunciation
Standby
Frequency Being
Monitored
When the Active frequency receives a signal, the unit will switch automatically
to the Active frequency. The Active frequency quality is not affected. The
Frequency Monitor function is turned off by pressing the MON key again.
2.2.3 Saving a Com Channel
The current Standby frequency may be saved into the Com User Frequency
database from the Com display or the Com User Function. The Com User
Frequency database can hold up to 15 frequencies.
NOTE: When switching from 8.33 kHz to 25 kHz mode, any 8.33 kHzspecific user frequencies will be deleted from the user frequency list. This
only affects the user frequencies within the 8.33 kHz spectrum.
1. Press ENT. The Standby frequency is selected and the Waypoint
name field will be active.
2. Turn the SMALL knob to select characters.
3. Turn the LARGE knob to move the cursor.
Number of
Frequencies Saved
Turn Small Knob To
Select Character
Press the ENT Key to Save
the Displayed Value
Figure 2-3 Com User Frequency Name Selection
Press the CLR Key To Revert
to the Previous Value
Turn Large Knob To
Move Cursor
4. After selecting the desired characters, press ENT.
2-2
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 15
5. Turn the LARGE knob to select the waypoint Type.
6. Turn the SMALL knob to select the Type from the list.
Selected Wpt Type
Figure 2-4 Com User Frequency Type Selection
Frequency Type Symbol Description
TWR Tower
GND Ground
ATIS Automatic Terminal Information Service
AWS Automated Weather Observing System
ATF Aerodrome Traffic Frequency
ARR Arrival
APPR Approach
DEP Departure
CLR Clearance
CTAF Common Traffic Advisory Frequency
FSS Flight Service Station
RFS Remote Flight Service Station
MF Mandatory Frequency
UNI Unicom
Blank None
Table 2-1 - Com Frequency Type List
7. After making a selection, press ENT.
Garmin GTR 225/225A/225B Pilot’s Guide
2-3190-01182-00 Rev. A
Page 16
2.2.4 Com Database Look-Up
1. Press the CURSOR knob from the Com display to activate the
database look-up function.
Identifier Field Active
for Selection
Figure 2-5 Database Identifier Active for Selection
2. Turn the SMALL knob to select characters and turn the LARGE
knob to move the cursor.
Figure 2-6 Database Identifier Selection
3. After selecting the desired characters, press ENT. Turn the
SMALL knob to scroll through the list of waypoint types.
Waypoint Types with a “+” sign will have more frequencies
for the same type. After selection, the selected waypoint and
type will be remembered for 30 minutes.
Turn SMALL Knob
To Select Character
Turn LARGE Knob
To Move Cursor
Selected Identifier
Turn the SMALL Knob To
Select Frequency Type
Figure 2-7 Database Waypoint Type Selection
4. Press ENT to copy the frequency into the Standby frequency
location. Press and release the FLIP/FLOP key to swap the
Active and Standby frequencies.
2.2.5 Emergency Channel
1. Press and hold the FLIP/FLOP key or the Com Remote Transfer
(COM RMT XFR) key for approximately two seconds. I
Figure 2-8 Emergency Channel
2. The Emergency Channel will be inserted into the Active
Frequency position and the previous Active Frequency will
become the Standby Frequency.
2-4
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 17
NOTE: Pressing and holding the Com Remote Transfer (COM RMT XFR)
key for approximately two seconds, on units so configured, will lock the
COM board, preventing further changes in Com frequency until the Com
board is unlocked, by pressing the Com Remote Transfer key again for two
seconds. The following message will notify the pilot that the Com board
has been locked: “COM LOCKED TO 121.5 MHZ. HOLD REMOTE COM
TRANSFER KEY TO EXIT.”
NOTE: Under some circumstances if the Com system loses communication
with the main system, the radio will automatically tune to 121.50 MHz for
transmit and receive regardless of the displayed frequency.
2.2.6 Stuck Mic
The GTR 225 helps protect you from a situation where the microphone may
get stuck in the ON or Transmit position. If the microphone is keyed for longer
than 35 seconds, the GTR 225 will return to the receive mode on the selected
frequency.
A “Stuck Mic” message will display until the transmit key is released. Alerts
will display until the error clears or the user acknowledges it.
2.2.7 Frequency Database Reverse Look-Up
The airport identifier and frequency type will be shown for frequencies that
are in the database when the unit is receiving a valid position input.
Types with a “+” sign will have more frequencies for the same type.
Waypoint
Airport Identifier Shown
For Freqs In Database
Figure 2-9 Frequency Database Reverse Look-Up
2.2.8 Remote Frequency Selection Control
On units configured for remote Com frequency Recall, pressing the remote
recall switch will load the next preset Com frequency into the unit’s Standby
frequency box. The remote recall switch can be pressed multiple times to scroll
the entire preset frequency list through the Standby frequency box (the list will
“wrap” from the bottom of the list back up to the top, skipping any empty preset
positions).
The standby frequency isn’t activated until a Com FLIP/FLOP switch (either
bezel-mounted or remote (COM RMT XFR) is pressed. Remote Frequency Selection
only functions on units configured for a remote Com Frequency recall switch.
Garmin GTR 225/225A/225B Pilot’s Guide
2-5190-01182-00 Rev. A
Page 18
This page intentionally left blank
2-6
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 19
3 FUNCTIONS
The Functions section allows provides information about Com Frequencies,
Internal Communications System (ICS) Configuration, System Configuration
(SYS), and Timers (TMR).
3.1 Functions Description
Com Freq
ICS Config
SYS Config
Timers
Recent Freqs
User Freqs
Database
Nearest Apt
Nearest ACC
Nearest FSS
Nearest WX
Adjust Intrcom
Aux Audio
Intrcom On/Off
Speaker On/Off
Com Spacing
DSPL Brt
DSPL Contrast
Database Info
Load Database
Software Ver
Serial Number
Count Up
ENT - Start/Stop
CLR - Reset
Count Down
ENT - Start/Stop
CLR - Reset
Push CRSR - Settings
ENT - Accept
Figure 3-1 Functions Diagram
Garmin GTR 225/225A/225B Pilot’s Guide
3-1190-01182-00 Rev. A
Page 20
1. Press the FUNC key to access the Functions.
2. Turn the LARGE knob to select the COM, ICS, or SYS functions.
3. Turn the SMALL knob to view the choices in each function.
4. Press the ENT key to access the function.
5. Press the FUNC key again to exit Functions.
3.2 Com Frequencies
The Com Frequencies category in the Functions section contains recently
used frequencies (Recent), user-defined frequencies (User), and a database of all
frequencies provided in the standard default memory (Database).
3.2.1 Recent Com Frequencies
The last 20 Com frequencies used are kept in the list of Recent Com
Frequencies and can be accessed in this function.
NOTE: When switching from 8.33 kHz to 25 kHz mode, any 8.33 kHzspecific user frequencies will be deleted from the user frequency list. This
only affects the user frequencies within the 8.33 kHz spectrum.
1. Press FUNC to access the Functions. Turn the LARGE knob to
select the Com Function. Turn the SMALL knob to view the
Recent frequency function. Then, press ENT.
2. Turn the SMALL knob to select an Entry (1-20).
Turn SMALL Knob
To Select Entry
Selected Frequency
Press ENT to Make the Selected
Press <-> To Make the
Selected Frequency The
Active Frequency
Figure 3-2 Recent Com Frequencies
Frequency the Standby
3. Press and release the FLIP/FLOP key to transfer the displayed
channel to the Active frequency position. Press the ENT key
to transfer the displayed channel to the Standby frequency
position.
3-2
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 21
3.2.2 Com User Frequencies
Fifteen Com User Frequencies can be saved with an assigned waypoint
(WPT) identifier and Type.
NOTE: When switching from 8.33 kHz to 25 kHz mode, any 8.33 kHzspecific user frequencies will be deleted from the user frequency list. This
only affects the user frequencies within the 8.33 kHz spectrum.
3.2.2.1 Viewing the Com User Frequency
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the Com Frequency Function.
Selected Frequency
Select Wpt Name
Figure 3-3 Viewing User Com Frequencies
Select Wpt Type
2. Turn the SMALL knob to view the Com User frequency
function. Then, press ENT. Turn the SMALL knob to view the
User Frequencies.
3. Press and release the FLIP/FLOP key to set the displayed
frequency as the Active frequency.
4. Press the ENT key to set the displayed frequency as the Standby
frequency.
3.2.2.2 Deleting the Com User Frequency
1. Press the CLR key to delete this User frequency.
Press ENT Key To Delete
Selected Freq
Active Frequency
Position In List.
Turn SMALL Knob
To Select Entry.
Press ENT To Confirm
Deleting The Selected Freq
Figure 3-4 Deleting User Com Frequencies
Garmin GTR 225/225A/225B Pilot’s Guide
Selected Frequency
3-3190-01182-00 Rev. A
Page 22
2. Press the ENT key to confirm deletion of the displayed
frequency.
3.2.2.3 Editing a Com User Frequency
1. Press FUNC. Turn the LARGE knob to reach the Com functions
and then turn the SMALL knob to select the Com User
Frequencies. Press ENT.
Select User Freqs
Figure 3-5 Com User Frequency Function
2. Press the CRSR (SMALL knob) to start editing the Com User
frequency. Turn the SMALL knob to select the MHz values
and turn the LARGE knob to move the cursor and then the
SMALL knob to select kHz values.
Select User Freq Value
Figure 3-6 Com User Frequency Value Selection
3. Turn the LARGE knob to select the Wpt Name. Turn the SMALL
knob to select characters and turn the LARGE knob to move
the cursor.
Select User Wpt Name
Figure 3-7 Com User Frequency Name Selection
4. After selecting the desired characters, press ENT.
5. Turn the LARGE knob to select the Waypoint Type field.
6. Turn the SMALL knob to select the Waypoint Type.
Figure 3-8 Com User Frequency Type Selection
Select Wpt Type
7. After selecting the Waypoint Type, press ENT to accept changes
to the User Frequency.
3-4
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 23
3.2.3 Com Database Frequencies
The GTR 225 contains a large database of Com frequencies that may be
recalled by identifier.
Turn SMALL Knob
To Select Character
Turn LARGE Knob
To Move Cursor
Figure 3-9 Com Database Frequencies
1. Press FUNC to access the Functions. With the Com Frequency
Function highlighted, turn the SMALL knob to view the Com
Database function. Then, press ENT.
2. Turn the SMALL knob to select the desired character.
3. Turn the LARGE knob to move the cursor to highlight a
character.
4. Repeat steps 2 and 3 to complete the desired identifier and
then press the ENT key.
5. If available, the Frequency Type will be highlighted. Turn the
SMALL knob to select the desired frequency.
Press ENT Key To Set
Selected Freq As Standby
Selected Frequency
Press FLIP/FLOP Key To Set
Selected Freq As Active
Figure 3-10 Selected Com Database Frequency
Selected Identifier
Turn SMALL Knob
To Select Freq Type
6. Press and release the FLIP/FLOP key to set the selected
frequency as the Active frequency.
7. Press the ENT key to set the selected frequency as the Standby
frequency.
Garmin GTR 225/225A/225B Pilot’s Guide
3-5190-01182-00 Rev. A
Page 24
3.2.4 Com Nearest Airports (APT)
The GTR 225 will report the 25 nearest Airports (APT), when interfaced with
an appropriate GPS receiver.
Turn SMALL Knob
To Scroll Through
Available Airports
Figure 3-11 Com Nearest APT Frequencies
1. Press FUNC to access the Functions. With the Com Frequency
Function highlighted, turn the SMALL knob to view the Com
Nearest APT function. Then, press ENT.
2. Turn the SMALL knob to display the available airports.
3. Press the ENT key to set the displayed airport frequency as
the Standby or press and release the FLIP/FLOP key to set it
as the Active frequency. Or, press the CLR key to return to the
Functions display.
3.2.5 Com Nearest Area Control Center (ACC)
Frequencies
The GTR 225, when interfaced with an appropriate GPS receiver, will report
the 25 nearest Area Control Center (ACC) frequencies. ACCs are also known as
Air Route Traffic Control Centers (ARTCC).
Turn SMALL Knob
To Scroll Through
Available Frequencies
Figure 3-12 Com Nearest ACC Frequencies
1. Press FUNC to access the Functions. With the Com Frequency
Function highlighted, turn the SMALL knob to view the Com
Nearest ACC function. Then, press ENT.
2. Turn the SMALL knob to display the available ACCs.
3-6
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 25
3. Press the ENT key to insert the highlighted frequency as the
Standby frequency. Or, press the CLR key to return to the
Functions display.
4. Press and release the FLIP/FLOP key to set the selected
frequency as the Active frequency.
3.2.6 Com Nearest Flight Service Station (FSS)
Frequencies
The GTR 225, when interfaced with an appropriate GPS receiver, will report
the 25 nearest Flight Service Station (FSS) frequencies.
Turn SMALL Knob
To Scroll Through
Available Frequencies
Figure 3-13 Com Nearest FSS Frequencies
1. Press FUNC to access the Functions. With the Com Frequency
Function highlighted, turn the SMALL knob to view the Com
Nearest FSS function. Then, press ENT.
2. Turn the SMALL knob to display the available FSS
frequencies.
3. Press the ENT key to insert the highlighted frequency as the
Standby frequency. Or, press the CLR key to return to the
Functions display.
4. Press and release the FLIP/FLOP key to set the selected
frequency as the Active frequency.
Garmin GTR 225/225A/225B Pilot’s Guide
3-7190-01182-00 Rev. A
Page 26
3.2.7 Com Nearest Weather (WX) Frequencies
The GTR 225, when interfaced with an appropriate GPS receiver, will report
the 25 nearest Weather (WX) frequencies.
Turn SMALL Knob
To Scroll Through
Available Frequencies
Figure 3-14 Com Nearest Weather Frequencies
1. Press FUNC to access the Functions. With the Com Frequency
Function highlighted, turn the SMALL knob to view the Com
Nearest Weather function. Then, press ENT.
2. Turn the SMALL knob to display the available Weather
frequencies.
3. Press the ENT key to insert the highlighted frequency as the
Standby frequency. Or, press the CLR key to return to the
Functions display.
4. Press and release the FLIP/FLOP key to set the selected
frequency as the Active frequency.
3-8
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 27
3.3 ICS Configuration
The Internal Communications System (ICS) Configuration allows you to
adjust the intercom, set the Aux Audio, turn the Intercom On/Off, and turn the
speaker On/Off.
3.3.1 Adjust Intercom
The Adjust Intercom function allows you to set values for the Intercom
squelch and volume. The Intercom On/Off function must be set to On to make
the Adjust Intercom function available.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the ICS Function. Turn the SMALL knob to view the
Adjust Intercom function. Then, press the ENT key.
Figure 3-15 Select the Adjust Intercom Function
2. Turn the SMALL knob to set the ICS Squelch value. Then, press
the ENT key.
Turn Small Knob To Adjust Intercom Squelch
Turn LARGE And Then
SMALL Knob To Adjust
Intercom Volume
Press the ENT Key to Save
the Displayed Value
Press the CLR Key To Revert
to the Previous Value
Figure 3-16 Adjust the Intercom Values
3. Turn the LARGE knob to select the ICS Squelch or Volume.
Turn the SMALL knob to set the value. Then, press the ENT
key to save the selected values.
Garmin GTR 225/225A/225B Pilot’s Guide
3-9190-01182-00 Rev. A
Page 28
3.3.2 Aux Audio
The Aux function allows you to turn Aux Audio On/Off and set the volume
value.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the ICS Function. Turn the SMALL knob to view the
Aux Volume function. Then, press the ENT key.
Figure 3-17 Select the Aux Audio Function
2. Turn the SMALL knob to turn the Aux Audio On or Off.
3. Turn the LARGE knob to select the Aux Volume. Turn the
SMALL knob to set the value. Then, press the ENT key.
Turn Small Knob To Turn Aux On/Off
Turn LARGE And
Then SMALL Knob To
Adjust Aux Volume
Press the ENT Key to Save
the Displayed Value
Press the CLR Key To Revert
to the Previous Value
Figure 3-18 Adjust the Aux Audio
4. Press the CLR key to revert to the previous Volume value and
then repeat step 3 to select a new value.
3-10
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 29
3.3.3 Intercom On/Off
The Intercom On/Off function toggles intercom on and off. The intercom
can also be toggled on/off with a remote switch, if installed. The Intercom On/
Off function must be set to On to make the Adjust Intercom function available.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the ICS Function. Turn the SMALL knob to view the
Intercom On/Off function. Then, press the ENT key.
Turn SMALL Knob To Select On or Off
Press ENT to Accept
the Selected Value
Figure 3-19 Turn the Intercom On/Off
Press CLR to Return
to the Default Value
2. Turn the SMALL knob to set the Intercom On or Off. Then,
press the ENT key to save the selected value.
3.3.4 Speaker On/Off
The Speaker On/Off function toggles the speaker output on and off.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the ICS Function. Turn the SMALL knob to select the
Speaker On/Off function. Then, press ENT.
Turn SMALL Knob To Select On or Off
Press ENT to Accept
the Selected Value
Figure 3-20 Turn the Speaker On/Off
2. Turn the SMALL knob to set the speaker output On or Off.
Then, press the ENT key to save the selected value.
Press CLR to Return
to the Default Value
Garmin GTR 225/225A/225B Pilot’s Guide
3-11190-01182-00 Rev. A
Page 30
3.4 System Configuration
The System Configuration function will show the Software Version, Database
Info, and Serial Number as well as, allowing you to set values for the Com
spacing, Display Brightness, and Display Contrast, and use the Load Database
feature to update databases.
3.4.1 Com Spacing
Com spacing may be selected between 8.33 kHz and 25 kHz to allow for
regional requirements.
NOTE: When switching from 8.33 kHz to 25 kHz mode, any 8.33 kHzspecific user frequencies will be deleted from the user frequency list. This
only affects the user frequencies within the 8.33 kHz spectrum.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Com spacing function. Then, press the ENT key.
Turn the SMALL Knob to
Select the Channel Spacing
3-12
Press ENT to Accept
the Selected Value
Figure 3-21 Com Spacing Display
Press CLR to Return
to the Previous Value
2. Turn the SMALL knob to set the Com spacing and then press
the ENT key.
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 31
3.4.2 Display Brightness
As it arrives from the factory, the GTR 225 automatically adjusts its display
brightness for the current lighting conditions. A small sensor on the display
is used for this function. A manual adjustment is available for controlling the
brightness level of the display as an offset from the “normal” or zero position.
The limits of the adjustment range are: -10 (Low Display Intensity) and 100
(High Display Intensity). A value above zero means brighter than normal and a
value below zero means darker than normal. The range can be adjusted by using
the SMALL knob to adjust the value.
The GTR 225 will either control dimming based on the photocell or the
lighting bus. This is set in configuration mode during installation and is not
selectable by the pilot.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Display Brightness function. Then, press the ENT key.
Current Display
Brightness
Press ENT to Accept
the Selected Value
Figure 3-22 Set Display Brightness
Press CLR to Return
to the Previous Value
Turn the SMALL Knob to
Select the Offset Value
2. Turn the SMALL knob to set the value. Then, press the ENT
key.
Garmin GTR 225/225A/225B Pilot’s Guide
3-13190-01182-00 Rev. A
Page 32
3.4.3 Display Contrast
The Display Contrast has a range from -50 (Low Display Contrast) and 50
(High Display Contrast) with 0 as the default. The range can be adjusted by
using the SMALL knob to adjust the value.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Display Contrast function. Then, press the ENT key.
Press ENT to Accept
the Selected Value
to the Previous Value
Figure 3-23 Set Display Contrast
Press CLR to Return
Turn the SMALL Knob to
Select the Offset Value
2. Turn the SMALL knob to set the value. Then, press the ENT
key.
3.4.4 Database Info
The Database information for the GTR 225 unit is displayed. This information
is useful when contacting Customer Support.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Database Version function. Then, press the ENT key.
Database Cycle
Database Effectivity Date
Figure 3-24 Database Info Display
2. Press the FUNC key to return to the main display.
3-14
Garmin GTR 225/225A/225B Pilot’s Guide
190-01182-00 Rev. A
Page 33
3.4.5 Load Database
The GTR 225 has a USB connector to allow for easily updating the system
databases.
NOTE: Garmin recommends the use of a USB 2.0 compatible USB flash
drive for updating the database.
1. Insert the supplied cable into the USB port on the top right
corner of the GTR 225.
2. Insert the USB memory device into the other end of the
cable.
USB Port
USB Cable
USB Memory Device
Figure 3-25 USB Update Progress
3. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Load Database function. Then, press the ENT key.
Figure 3-38 Database Update Display
4. Verify the database version on USB. Then, press the ENT key.
Updating will begin automatically.
Figure 3-39 Verify Database Version
Garmin GTR 225/225A/225B Pilot’s Guide
3-15190-01182-00 Rev. A
Page 34
5. Wait until the updating process is complete and then remove
the memory device and cable. The unit will reset automatically
once the database is updated.
6. Verify the correct frequency database is loaded after power-up.
3.4.6 Software Version
The software versions of the GTR 225 unit are displayed. This information is
useful when contacting Customer Support.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function.
2. Turn the SMALL knob to view the Software Version function.
Then, press the ENT key.
Display Software Version
Com Software Version
Figure 3-27 Software Versions Display
3. Press the FUNC key to return to the main menu.
3.4.7 Serial Number
The serial number of the GTR 225 unit is displayed. This information is
useful when contacting Customer Support.
1. Press FUNC to access the Functions. Turn the LARGE knob
to select the SYS Function. Turn the SMALL knob to view the
Serial Number function. Then, press ENT.
Unit Serial Number
ID Is Used With The
flyGarmin Services
Figure 3-28 Serial Number Display
2. Press the FUNC key to return to the main menu.
