GPS 16x

TECHNICAL

SPECIFICATIONS

Garmin International, Inc.

1200 E. 151

Olathe, KS 66062 USA

190-00228-08, Revision A

December 2007

Street

1200 East 151

Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282

Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB, U. K. Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251

Garmin Corporation No. 68, Jangshu 2

Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded, or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (

www.garmin.com) for current updates and supplemental information

concerning the use and operation of this and other Garmin products. Garmin

, MapSource®, and WAAS Enabled® are registered trademarks of Garmin Ltd. or its subsidiaries and may

not be used without the express permission of Garmin. Web site address: www.garmin.com

RECORD OF REVISIONS

Revision

Date

A 12/7/07 Initial Release --

Description ECO #

190-00228-08 GPS 16x Technical Specifications Rev. A

Page i

TABLE OF CONTENTS

1 Introduction..............................................................................................................................1

1.1 Caution............................................................................................................................................................1

1.2 Limited Warranty............................................................................................................................................2

1.3 Overview.........................................................................................................................................................3

1.4 Features...........................................................................................................................................................3

1.5 Technical Specifications..................................................................................................................................4

1.5.1 Physical Characteristics........................................................................................................................................ 4

1.5.1.1 Size............................................................................................................................................................ 4

1.5.1.2 Weight....................................................................................................................................................... 4

1.5.1.3 Cable......................................................................................................................................................... 4

1.5.1.4 Color ......................................................................................................................................................... 4

1.5.1.5 Case Material ............................................................................................................................................ 4

1.5.2 Electrical Characteristics....................................................................................................................................... 4

1.5.2.1 Input Voltage............................................................................................................................................. 4

1.5.2.2 Input Current............................................................................................................................................. 4

1.5.2.3 Standby Current ........................................................................................................................................ 4

1.5.2.4 GPS Receiver Sensitivity.......................................................................................................................... 4

1.5.3 Environmental Characteristics.............................................................................................................................. 4

1.5.4 GPS Performance.................................................................................................................................................. 5

1.5.4.1 Receiver .................................................................................................................................................... 5

1.5.4.2 Acquisition Times..................................................................................................................................... 5

1.5.4.3 Sentence Rate............................................................................................................................................ 5

1.5.4.4 Accuracy ................................................................................................................................................... 5

1.5.5 Interfaces............................................................................................................................................................... 5

1.5.5.1 Port 1......................................................................................................................................................... 5

1.5.5.2 Port 2......................................................................................................................................................... 5

1.5.5.3 PPS............................................................................................................................................................ 6

1.5.5.4 Power Control ........................................................................................................................................... 6

2 GPS 16x Wiring and Pinouts..................................................................................................7

2.1 GPS 16x Pinout...............................................................................................................................................7

2.2 GPS 16x Wiring Diagrams..............................................................................................................................8

3 Mechanical Characteristics & Mounting...............................................................................9

3.1 GPS 16x Flush Mount.....................................................................................................................................9

3.2 GPS 16x Optional Magnetic Mount..............................................................................................................10

4 Software Interface..................................................................................................................11

4.1 Received NMEA 0183 Sentences .................................................................................................................11

4.1.1 Almanac Information (ALM).............................................................................................................................. 11

4.1.2 Sensor Initialization Information (PGRMI)........................................................................................................ 12

4.1.3 Sensor Configuration Information (PGRMC)..................................................................................................... 12

4.1.4 Additional Sensor Configuration Information (PGRMC1) ................................................................................. 13

4.1.5 Output Sentence Enable/Disable (PGR MO) ....................................................................................................... 13

4.2 Transmitted NMEA 0183 Sentences.............................................................................................................14

4.2.1 Sentence Transmission Rate................................................................................................................................ 14

4.2.2 Transmitted Time................................................................................................................................................ 15

4.2.3 Global Positioning System Almanac Data (ALM).............................................................................................. 15

4.2.4 Global Positioning System Fix Data (GGA)....................................................................................................... 15

4.2.5 GPS DOP and Active Satellites (GSA)............................................................................................................... 16

4.2.6 GPS Satellites in View (GSV) ............................................................................................................................ 16

4.2.7 Recommended Minimum Specific GPS/TRANSIT Data (RMC)....................................................................... 16

4.2.8 Track Made Good and Ground Speed (VTG)..................................................................................................... 16

4.2.9 Geographic Position (GLL)................................................................................................................................. 17

190-00228-08 GPS 16x Technical Specifications Rev. A

Page ii

4.2.10 Estimated Error Information (PGRME).............................................................................................................. 17

4.2.11 GPS Fix Data Sentence (PGRMF)...................................................................................................................... 17

4.2.12 Map Datum (PGRMM)....................................................................................................................................... 17

4.2.13 Sensor Status Information (PGRMT).................................................................................................................. 17

4.2.14 3D Velocity Information (PGRMV)................................................................................................................... 18

4.2.15 DGPS Beacon Information (PGRMB)................................................................................................................ 18

4.3 Baud Rate Selection......................................................................................................................................18

4.4 One-Pulse-Per-Second (PPS) Output............................................................................................................18

4.5 Received RTCM Data...................................................................................................................................18

Appendix A: Earth Datums........................................................................................................19

Appendix B: Garmin Binary Output Format...........................................................................22

Position Record............................................................................................................................................................... 22

Satellite Data Record...................................................................................................................................................... 23

Sample C Code ............................................................................................................................................................... 24

Appendix C: Ephemeris Data download (Programming Example)........................................25

Synopsis.......................................................................................................................................................................... 25

Garmin Binary Format Review....................................................................................................................................... 25

Ephemeris Download Procedure..................................................................................................................................... 26

TX Packet: Ephemeris Data Request ...................................................................................................................... 26

RX Packet: Acknowledgement............................................................................................................................... 26

RX Packet: Number of Data Packets to Expect...................................................................................................... 26

TX Packet: Acknowledgement................................................................................................................................ 26

RX Packet: Ephemeris Data.................................................................................................................................... 27

TX Packet: Download Complete............................................................................................................................. 29

Appendix D: Sensor Configuration Software ...........................................................................30

Downloading the Sensor Configuration Software........................................................................................................... 30

Selecting a Model ........................................................................................................................................................... 30

Connecting to the Sensor................................................................................................................................................ 30

File Menu........................................................................................................................................................................ 31

Comm Menu................................................................................................................................................................... 31

Config Menu................................................................................................................................................................... 31

View Menu ..................................................................................................................................................................... 32

Help Menu...................................................................................................................................................................... 32

LIST OF TABLES AND FIGURES

Table 1: GPS 16x Wire Pinout ......................................................................................................................................7

Figure 1: Computer Serial Port Interconnection............................................................................................................8

Figure 2: PDA Serial Port Interconnection....................................................................................................................8

Figure 3: Basic NMEA Device Interconnection............................................................................................................8

Figure 4: GPS 16x Flush Mount Dimensions...............................................................................................................9

Figure 5: Optional GPS 16x Magnetic Mount .............................................................................................................10

Table 2: NMEA 0183 Output Sentence Order and Size..............................................................................................14

Table 3: Characters per Second for Available Baud Rates..........................................................................................14

190-00228-08 GPS 16x Technical Specifications Rev. A

Page iii

1 INTRODUCTION

1.1 CAUTION

CAUTION

The GPS system is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. Although the GPS 16x is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted, and therefore become unsafe. Use these products at your own risk. To reduce the risk, carefully review and understand all aspects of these Technical Specifications before using the GPS 16x. When in actual use, carefully compare indications from the GPS to all available navigation sources including the information from other NAVAIDs, visual sightings, charts, etc. For safety, always resolve any discrepancies before continuing navigation.

FCC

Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet that is on a different circuit from the GPS unit.

• Consult the dealer or an experienced radio/TV technician for help.

This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modiﬁcations could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulatio ns.

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 1

1.2 LIMITED WARRANTY

This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.

This product is intended to be used only as a travel aid and must not be used for any purpose requiring precise measurement of direction, distance, location, or topography. Garmin makes no warranty as to the accuracy or completeness of map data in this product.

THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE E XCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PART I CULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YO U SPECIF IC LE GAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.

IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you.

Garmin retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

To obtain warranty service, contact your local Garmin authorized dealer or call Garmin Product Support for shipping instructions and an RMA tracking number. Securely pack the unit and a copy of the original sales receipt, which is required as the proof of purchase for warranty repairs. Write the tracking number clearly on the outside of the package. Send the unit, freight charges prepaid, to any Garmin warranty service station.

Online Auction Purchases: Products sold through online auctions are not eligible for rebates or other special offers from Garmin. Online auction conﬁrmations are not accepted for warranty veriﬁcation. To obtain warranty service, an original or copy of the sales receipt from the original retailer is required. Garmin will not replace missing components from any package purchased through an online auction.

International Purchases: A separate warranty is provided by international distributors for units purchased outside the United States. This warranty is provided by the local in-country distributor and this distributor provides local service for your unit. Distributor warranties are only valid in the area of intended distribution. Units purchased in the United States or Canada must be returned to the Garmin service center in the United Kingdom, the United States, Canada, or Taiwan for service.

Garmin International, Inc. 1200 E 151st Street, Olathe, Kansas 66062 U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax. 913/397.8282

Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251

Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 2

1.3 OVERVIEW

The GPS 16x series products are complete GPS sensors including embedded receiver and antenna, designed for a broad spectrum of Original Equipment Manufacture (OEM) system applications. Based on the proven technology found in other Garmin GPS receivers, the GPS 16x tracks multiple satellites at a time while providing fast time-tofirst-fix, one-second navigation updates, and low power consumption. This generation of GPS sensors includes the capability of FAA Wide Area Augmentation System (WAAS) differential GPS.

The GPS 16x design uses the latest technology and high-level circuit integration to ach ieve superior performance while minimizing space and power requirements. All critical components of the system including the RF/IF receiver hardware and the digital baseband are manufactured by Garmin to ensure the quality and capability of the GPS. The hardware capability combined with software intelligence makes the GPS 16x easy to integrate and use.

The GPS 16x series products are designed to withstand rugged operating conditions and are waterproof to IEC 60529 IPX7, immersion in 1 meter of water for 30 minutes. These complete GPS receivers require minimal additional components to be supplied by an OEM or system integrator. A minimum system must provide the GPS with a source of power and a clear view of the GPS satellites. The system may communicate with the GPS via an asynchronous serial communications port. Internal FLASH memory allows the GPS to retain critical data such as satellite orbital parameters, last-known position, date, and time. End user interfaces such as keyboards and displays are the responsibility of the application designer.

1.4 FEATURES

• GPS receiver tracks and uses multiple satellites for fast, accurate positioning and velocity estimates.

• Differential DGPS capability using real-time WAAS or RTCM corrections yielding 3 to 5 meter position

accuracy (see section

• Compact, rugged design ideal for applications with minimal space.

1.5 Technical Specifications).

• May be remotely mounted in an out-of-the-way location.

• Factory configuration meets the needs of most systems that expect NMEA 0183 data from a GPS receiver.

Configuration commands are available to customize the NMEA 0183 output (see

NMEA 0183 Sentences

• Highly accurate one-pulse-per-second (PPS) output for precise timing measurements. Pulse width is

configurable in 20 millisecond increments from 20 ms to 980 ms with 1 μs accuracy.

• Configurable for binary format data output on COM 1 port.

• Flexible input voltage levels of 3.3 Vdc to 6.0 Vdc with over-voltage protection in the GPS 16xLVS, and

8.0 Vdc to 40 Vdc in the GPS 16xHVS.

• FLASH-based program with new software revisions available through Web site download.

• Non-volatile memory does not require battery backup.

• Waterproof design allows continuous exposure to the prevailing weather conditions at most locations.

section 4.1 Received

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 3

1.5 TECHNICAL SPECIFICATIONS

Specifications are subject to change without notice.

1.5.1 Physical Characteristics

1.5.1.1 Size

3.58” (91.0 mm) diameter, 1.65” (42 mm) high

1.5.1.2 Weight

• GPS 16xLVS only: 6.0 oz (169 g)

• GPS 16xHVS only: 6.1 oz (174 g)

• GPS 16xLVS with 5-meter cable: 11.3 oz (320 g)

• GPS 16xHVS with 5-meter cable: 11.5 oz (325 g)

• GPS 16xLVS & 16xHVS cable alone: 5.3 oz (151 g)

1.5.1.3 Cable

GPS 16xLVS & 16xHVS: Black PVC-jacketed, 5-meter, foil-shielded, 8-conductor 28 AWG with RJ-45 termination

1.5.1.4 Color

GPS 16xLVS & 16xHVS: Black with white logos

1.5.1.5 Case Material

Polycarbonate thermoplastic that is waterproof to IEC 60529 IPX7 level (immersion in 1 meter of water for 30 minutes).

1.5.2 Electrical Characteristics

1.5.2.1 Input Voltage

• GPS 16xLVS: 3.3 Vdc to 6.0 Vdc regulat ed, <10 0 mV ripple

• GPS 16xHVS & 17HVS: 8.0 Vdc to 40 Vdc unregulated

1.5.2.2 Input Current

• GPS 16xHVS: 100 mA @ 8 Vdc

65 mA @ 12 Vdc 28 mA @ 40 Vdc

• GPS 16xLVS: 90 mA typical

1.5.2.3 Standby Current

<10 µA for all GPS 16x models

1.5.2.4 GPS Receiver Sensitivity

-185 dBW minimum

1.5.3 Environmental Characteristics

• Operating Temperature: -30°C to +80°C (-22°F to +176°F)

• Storage Temperature: -40°C to +80°C (-40°F to +176°F)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 4

1.5.4 GPS Performance

1.5.4.1 Receiver

WAAS Enabled® GPS receiver continuously tracks and uses multiple satellites to compute and update your position.

1.5.4.2 Acquisition Times

• Reacquisition: Less than 2 seconds

• Hot: Approx. 1 second (all data known)

• Warm: Approx. 38 seconds (initial position, time, and almanac known; ephemeris unknown)

• Cold: Approx. 45 seconds

1.5.4.3 Sentence Rate

1 second default; NMEA 0183 output interval configurable from 1 to 900 seconds in 1-second increments

1.5.4.4 Accuracy

• GPS Standard Positioning Service (SPS)

Position: <15 meters, 95% typical (100 meters with Selective Availability on) Velocity: 0.1 knot RMS steady state

• DGPS (USCG/RTCM)

Position: 3–5 meters, 95% typical Velocity: 0.1 knot RMS steady state

• DGPS (WAAS)

Position: <3 meters, 95% typical Velocity: 0.1 knot RMS steady state

• PPS Time: ±1 microsecond at rising edge of PPS pulse (subject to Selective Availability)

• Dynamics: 999 knots velocity (only limited at altitude greater than 60,000 feet), 3g dynamics

1.5.5 Interfaces

• True RS-232 output, asynchronous serial input compatible with RS-232 or TTL voltage levels, RS-232

polarity.

• User selectable baud rate: 4800, 9600, 19200, or 38400.

1.5.5.1 Port 1

• Configurable between NMEA 0183 Versions 2.00 (factory default) and 3.00

• ASCII output sentences GPALM, GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG (NMEA-

approved sentences); PGRMB, PGRME, PGRMF, PGRMM, PGRMT, and PGRMV (Garmin proprie t a ry sentences)

NMEA 0183 Outputs (see section 4.2 Transmitted NMEA 0183 Sentences for full protocol specifications)

•

o Position, velocity, and time o Receiver and satellite status o Differential Reference Station ID and RTCM Data age o Geometry and error estimates

•

NMEA 0183 Inputs (see section 4.1 Received NMEA 0183 Sentences for full protocol specificati ons)

o Initial position, date, and time (not required) o Earth datum and differential mode configuration command, PPS Enable, GPS satellite almanac

• Configurable for binary data output

1.5.5.2 Port 2

Real-time Differential Correction input (RTCM SC-104 message types 1, 2, 3, 7, and 9)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 5

1.5.5.3 PPS

1 Hz pulse, programmable width, 1 μs accuracy

1.5.5.4 Power Control

• Off: Open circuit

• On: Ground, or pull to low logic level <0.3 volts

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 6

2 GPS 16x WIRING AND PINOUTS

2.1 GPS 16x PINOUT

The GPS 16xLVS and GPS 16xHVS sensors utilize an 8-pin RJ-45 plug. The following is a functional description of each wire in the cable assembly.

RJ-45

Wire

Color

Signal

Name

Description

1 Red POWER GPS 16xLVS: Regulated +3.3 to +6 Vdc. Typical operating current is 80 mA.

An internal 6.67 Vdc transient zener diode and a positive temperature coefficient resistor protect from transients and over-voltages. With voltages greater than 6.8 Vdc the zener will draw several amps of current through the resistor, causing it to heat rapidly and eventually power the unit off, unless an external fuse blows first. When proper supply voltages are returned, the resistor will cool and allow the GPS 16xLVS to operate. GPS 16xHVS: Vin can be an unregulated 8.0 Vdc to 40 Vdc, optimized for 12 Vdc. Typical operating power is 780 mW. This voltage drives a switching regulator with a nominal 5.0 Vdc output, which powers an internal linear

regulator, producing the system Vcc. 2 Black GROUND Power and Signal Ground 3 Yellow REMOTE

POWER ON/OFF

External Power Control Input. Active (ON) if less than 0.3 Vdc. Inactive (OFF) if

open-circuit. Pulling this pin to ground enables the unit; leaving the pin open-

circuited powers the internal regulators off and drops the supply current to less

than 1 mA. This input is intended to be driven by an open-collector output. 4 Blue PORT 1

DATA IN

First Serial Asynchronous Input. RS-232 compatible with maximum input

voltage range -25 < Vdc < 25. This input may also be directly connected to

standard 3 to 5 Vdc CMOS logic. The low signal voltage requirement is <0.6 V,

and the high signal voltage requirement is >2.4 Vdc. Input impedance is between

3.0 and 7.0 kΩ. This input may be used to receive serial initialization/ section 4.1 Received NMES 0183 Sentences.

5 White PORT 1

DATA OUT

configuration data as specified in First Serial Asynchronous Output. This RS-232 compatible output normally provides serial data which is formatted per NMEA 0183, Version 3.0. The NMEA 0183 baud rate is switchable in the range of 4800 to 38400 baud. Th e default baud rate is 4800.

6 Gray PPS One-Pulse-Per-Second Output. Typical voltage rise and fall times are 300 ns.

Impedance is 150 Ω. Open circuit output voltage is low = 0 Vdc and high = Vin in the GPS 16xLVS, and low = 0 Vdc and high = 5.0 Vdc in the GPS 16xHVS and GPS 17HVS. The default format is a 100 ms wide active-high pulse at a 1 Hz rate; the pulse width is configurable in 20 ms increments. Rising edge is synchronized to the start of each GPS second. This output provides bet we e n 800 mVp-p to 1.7 Vp-p for GPS 16xLVS and 1.4 Vp -p for the GPS 16xHVS and 17HVS into a 50 Ω load. The pulse time measured at the 50% voltage point will be about 50 ns earlier with a 50 Ω load than with no load.

7 Green PORT 2

DATA IN

Second Serial Asynchronous Input, electrically identical to PORT 1 DATA IN. This input may be used to receive serial differential GPS data formatted per

RTCM SC-104 Recommended Standards For Differential Navstar GPS Service,

section 4.5 Received RTCM Data for details).

8 Violet PORT 2

DATA

Version 2.2 (see Second Serial Asynchronous Output, electrically identical to PORT 1 DATA OUT. Reserved for future use.

OUT

Table 1: GPS 16x Wire Pinout

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 7

2.2 GPS 16x WIRING DIAGRAMS

Figure 1: Computer Serial Port Interconnection

Figure 2: PDA Serial Port Interconnection

Figure 3: Basic NMEA Device Interconnection

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 8

3 MECHANICAL CHARACTERISTICS & MOUNTING

3.1 GPS 16x FLUSH MOUNT

1.65 inches [42 mm]

120 Degrees

2.44 inches [62 mm]

Figure 4: GPS 16x Flush Mount Dimensions

M4 Thread

3.58 inches [91 mm]

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 9

3.2 GPS 16x OPTIONAL MAGNETIC MOUNT

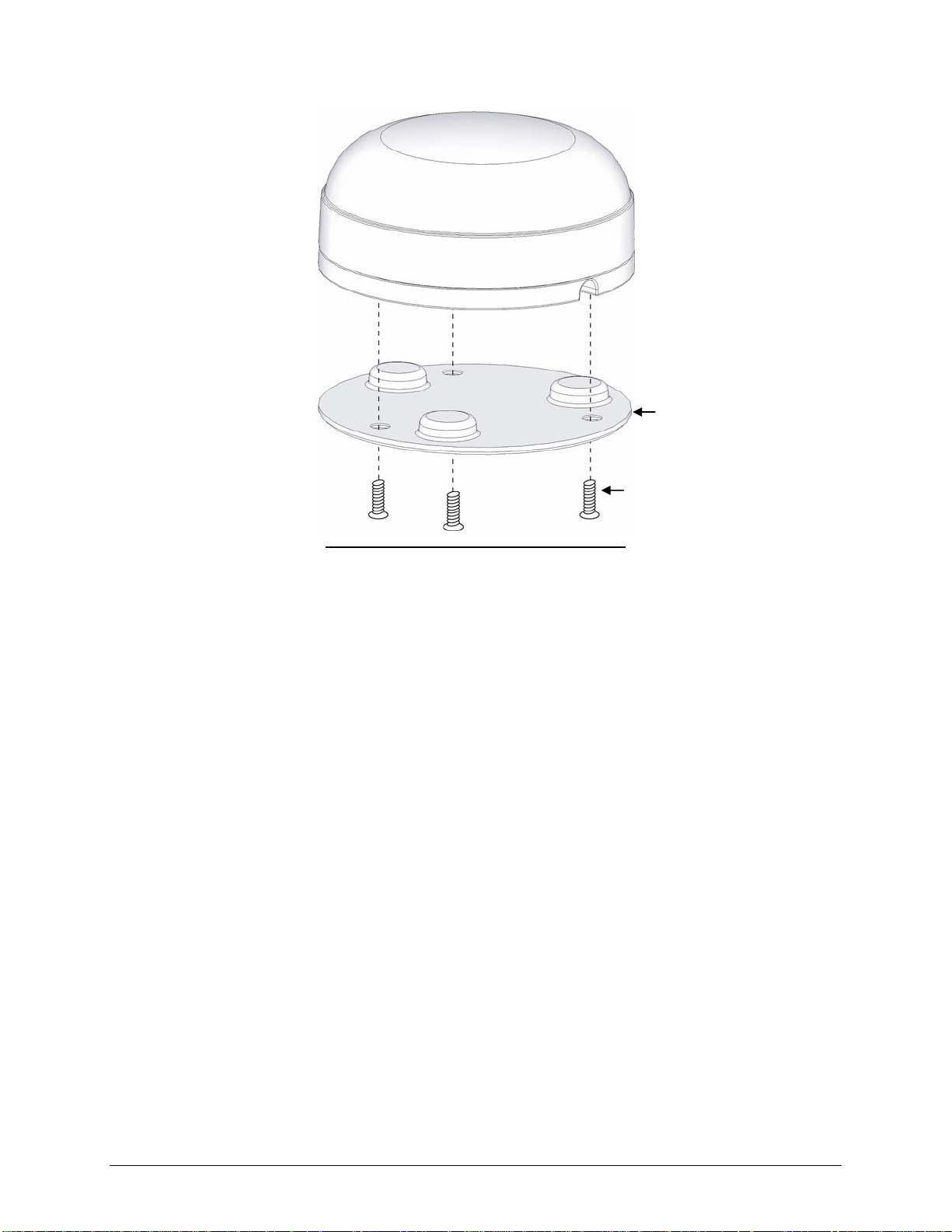

Figure 5: Optional GPS 16x Magnetic Mount

Magnetic Mount

M4 Flat Head Screws (3 each)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 10

4 SOFTWARE INTERFACE

The GPS 16x series products interface protocol design on COM 1 is based on the National Marine Electronics Association’s NMEA 0183 ASCII interface specification. The COM 2 port can receive differential GPS (DGPS) correction data using the Radio Technical Commission for Maritime Services’ RTCM SC-104 standard. These standards are fully defined in NMEA 0183, Version 3.0 (copies may be obtained from NMEA,

RTCM Recommended Standards For Differential Navstar GPS Service, Version 2.2, RTCM Special Committee No. 104 (copies may be obtained from RTCM,

The GPS 16x series products interface protocol, in addition to transmitting navigation information as defined by NMEA 0183, transmits additional information using the convention of Garmin proprietary sentences.

www.rtcm.org).

www.nmea.org) and

Binary information can alternatively be output on the COM 1 port; see for details.

The following sections describe the NMEA 0183 data format of each sentence transmitted and received by the GPS 16x series products. The baud rate selection, one-pulse-per-second output interfaces and RTCM differential GPS input are also described.

Appendix B: Garmin Binary Output Format

4.1 RECEIVED NMEA 0183 SENTENCES

The following paragraphs define the sentences that can be received on the GPS sensors’ COM 1 port. Null fields in the configuration sentence indicate no change in the particular configuration parameter. All sentences received by the GPS sensor must be terminated with <CR><LF>, the ASCII characters for carriage return (0D hexadecimal) and line feed (0A hexadecimal). The checksum *hh is used for parity checking data and is not required, but is recommended for use in environments containing high electromagnetic noise. It is generally not required in normal PC environments. When used, the parity bytes (hh) are the ASCII representation of the exclusive-or (XOR) sum of all the characters between the “$” and “*” characters, non-inclusive. The hex representation must be a capital letter, such as 3D instead of 3d. Sentences may be truncated by <CR><LF> after any data field and valid fields up to that point will be acted on by the sensor.

4.1.1 Almanac Information (ALM)

The $GPALM sentence can be used to initialize the GPS sensor’s stored almanac information in the unlikely event of non-volatile memory loss or after storing longer than six months without tracking GPS satellites.

$GPALM,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>,<13>,<14>,<15>*hh<CR><LF>

<1> Total number of ALM sentences to be transmitted by the GPS sensor during almanac download. This

field can be null or any number when sending almanac to the GPS sensor.

<2> Number of current ALM sentence. This field can be null or any number when sendin g almanac to the

GPS sensor. <3> Satellite PRN number, 01 to 32 <4> GPS week number <5> SV health, bits 17-24 of each almanac page <6> Eccentricity <7> Almanac reference time <8> Inclination angle <9> Rate of right ascension

<10> Root of semi major axis <11> Omega, argument of perigee <12> Longitude of ascension node <13> Mean anomaly <14> af0 clock parameter <15> af1 clock parameter

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 11

4.1.2 Sensor Initialization Information (PGRMI)

The $PGRMI sentence provides information used to initialize the GPS sensor’s set position and time used for satellite acquisition. Receipt of this sentence by the GPS sensor causes the software to restart the satellite acquisition process. If there are no errors in the sentence, it will be echoed upon receipt. If an error is detected, the echoed PGRMI sentence will contain the current default values. Current PGRMI defaults (with the exception of the Receiver Command, which is a command rather than a mode) can also be obtained by sending $PGRMIE to the GPS sensor.

$PGRMI,<1>,<2>,<3>,<4>,<5>,<6>,<7>*hh<CR><LF>

<1> Latitude, ddmm.mmm format (leading zeros must be transmitted) <2> Latitude hemisphere, N or S <3> Longitude, dddmm.mmm format (leading zeros must be transmitted) <4> Longitude hemisphere, E or W <5> Current UTC date, ddmmyy format <6> Current UTC time, hhmmss format <7> Receiver Command, A = Cold Start, R = Unit Reset

4.1.3 Sensor Configuration Information (PGRMC)

The $PGRMC sentence provides information used to configure the GPS sensor’s operation. Configuration parameters are stored in non-volatile memory and retained between power cycles. The GPS sensor will echo this sentence upon its receipt if no errors are detected. If an error is detected, the echoed PGRMC sentence will contain the current default values. Current default values can also be obtained by sending $PGRMCE to the GPS sensor.

$PGRMC,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>,<13>,<14>*hh<CR><LF>

<1> Fix mode, A = Automatic, 3 = 3D exclusively <2> Altitude above/below mean sea level, -1500.0 to 18000.0 meters <3> Earth datum index. If the user datum index (96) is specified, fields <4> through <8> must contain valid

values. Otherwise, fields <4> through <8> must be null. Refer to

earth datums and the corresponding earth datum index. <4> User earth datum semi-major axis, 6360000.000 to 6380000.000 meters (.001 meters resolution) <5>

User earth datum inverse flattening factor, 285.0 to 310.0 (10 <6> User earth datum delta x earth centered coordinate, -5000.0 to 5000.0 meters (1 meter resolution) <7> User earth datum delta y earth centered coordinate, -5000.0 to 5000.0 meters (1 meter resolution) <8> User earth datum delta z earth centered coordinate, -5000.0 to 5000.0 meters (1 meter resolution) <9> Differential mode, A = Automatic (output DGPS data when available, non-DGPS otherwise), D =

Differential exclusively (output only differential fixes)

<10> NMEA 0183 Baud rate, 3 = 4800, 4 = 9600, 5 = 19200, 6 = 300, 7 = 600, 8 = 38400 <11> No Effect (This field is not used on this model and is included only for backwards compatibility) <12> PPS mode, 1 = Off, 2 = On <13> PPS pulse length, 0 though 48 = (n+1)*20 ms.

Example: n = 4 corresponds to a 100 ms wide pulse

<14> Dead reckoning valid time 1 to 30 (sec)

All configuration changes take affect after receipt of a valid value except baud rate and PPS mode. Baud rate and PPS mode changes take effect on the next power cycle or an external reset event.

Appendix A: Earth Datums for a list of

-9

resolution)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 12

4.1.4 Additional Sensor Configuration Information (PGRMC1)

The $PGRMC1 sentence provides additional information used to configure the GPS sensor operation. Configuration parameters are stored in non-volatile memory and retained between power cycles. The GPS sensor will echo this sentence upon its receipt if no errors are detected. If an error is detected, the echoed PGRMC1 sentence will contain the current default values. Current default values can also be obtained by sending $PGRMC1E to the GPS sensor.

$PGRMC1,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>,<13>,<14>*hh<CR><LF>

<1> NMEA 0183 output time 1-900 (sec) <2> Binary Output Data, 1 = Off, 2 = On. <3> No Effect (This field is not used on this model and is included only for backwards compatibility) <4> DGPS beacon frequency: 0.0, 283.5–325.0 kHz in 0.5 kHz steps <5> DGPS beacon bit rate: 0, 25, 50, 100, or 200 bps <6> DGPS beacon scanning, 1 = Off, 2 = On <7> NMEA 0183 version 2.30 mode indicator, 1 = Off, 2 = On <8> DGPS mode, W = WAAS Only, N = None (DGPS disabled) <9> Power Save Mode, P = Power Save mode, N = Normal

<10> No Effect (Adaptive Transmission Enabled, 1 = Off, 2 = On) <11> No Effect (Auto Power Off, 1 = Off, 2 = On) <12> No Effect (Power On with External Charger, 1 = Off, 2 = On) <13> PPS Auto Off Mode, 1 = Off, 2 = On <14> No Effect (This field is not used on this model and is included only for backwards compatibility)

Configuration changes take effect immediately, with the exception of Binary Output Data and PPS Auto Off Mode, which take effect on the next power cycle or a reset event. A reset can be commanded by sending the sentence “$PGRMI,,,,,,,R” (see data mode, it is necessary to send the following eight-byte data stream to temporarily change the data format to NMEA 0183. Then follow by sending a PGRMC1 sentence that turns off the Binary Output Data format:

section 4.1.2 Sensor Initialization Information (PGRMI). If the GPS sensor is in the Binary

10 0A 02 26 00 CE 10 03 (Hexadecimal)

4.1.5 Output Sentence Enable/Disable (PGRMO)

The $PGRMO sentence provides the ability to enable and disable specific output sentences. The following sentences are enabled at the factory: GPGGA, GPGSA, GPGSV, GPRMC, and PGRMT. This sentence is not intended for turning on and off sentences as a means of polling while the receiver is in use; instead, it is intended to allow systems integrators to initialize the GPS receiver so it produces only the sentences required by the target application.

$PGRMO,<1>,<2>*hh<CR><LF>

<1> Target sentence description (e.g., PGRMT, GP GSV, etc.) <2> Target sentence mode, wher e:

0 = disable specified sentence

1 = enable specified sen tence

2 = disable all output sentences

3 = enable all output sentences (except GPALM)

4 = restore factory default output sentences

The following notes apply to the PGRMO input sentence: If the target sentence mode is “2” (disable all), “3” (enable all), or “4” (restore defaults), the target sentence

description is not checked for validity. In this case, an empty field is allowed (e.g., $PGRMO,,3), or the mode field may contain from 1 to 5 characters.

If the target sentence mode is “0” (disable) or “1” (enable), the target sentence description field must be an identifier for one of the sentences that can be output by the GPS sensor.

If either the target sentence mode field or the target sentence description field is not valid, the PGRMO sentence will have no effect.

$PGRMO,GPALM,1 will cause the GPS sensor to transmit all stored almanac information. All other NMEA 0183 sentence transmission will be suspended temporarily.

$PGRMO,,G will cause the COM port to change to Garmin Data Transfer format for the duration of the power cycle. You must enable Garmin Data Transfer format to update the GPS 16x series products.

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 13

4.2 TRANSMITTED NMEA 0183 SENTENCES

The subsequent paragraphs define the sentences that can be transmitted on COM 1 by the GPS sensor.

4.2.1 Sentence Transmission Rate

Sentences are transmitted with respect to the user selected baud rate. The GPS sensor will transmit each sentence (except where noted in particular transmitted sentence descriptions) at a

periodic rate based on the user selected baud rate and user selected output sentences. The GPS sensor will transmit the selected sentences contiguously. The length of the transmission can be determined by the following equation and Tables 2 and 3:

total characters to be transmitted length of transmission = -------------------------------------------- characters transmitted per second

Sentence Output by Default? Maximum Characters

GPRMC GPGGA

GPGSA GPGSV

PGRME 35

GPGLL 44

GPVTG 42 PGRMV 32 PGRMF 82 PGRMB 40

PGRMM 32

PGRMT

Table 2: NMEA 0183 Output Sentence Order and Size

   



74 82 66 70

Baud Characters per Second

4800 480

9600 960 19200 1920 38400 3840

Table 3: Characters per Second for Available Baud Rates

The maximum number of fields allowed in a single sentence is 82 characters including delimiters. Values in the table include the sentence start delimiter character “$” and the termination delimiter <CR><LF>. The factory set defaults will result in a once-per-second transmission at the NMEA 0183 specification transmission rate of 4800 baud.

Regardless of the selected baud rate, the information transmitted by the GPS sensor is referenced to the one-pulseper-second output pulse immediately preceding the GPRMC sentence, or whichever sentence is output first in the burst (see Table 2 above).

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 14

4.2.2 Transmitted Time

The GPS sensor outputs Coordinated Universal Time (UTC) date and time of day in the transmitted sentences. Before the initial position fix, the on-board clock provides the date and time of day. After the initial position fix, the date and time of day are calculated using GPS satellite information and are synchronized with the on e-pulse-persecond output.

The GPS sensor uses information obtained from the GPS satellites to add or delete UTC leap seconds and correct the transmitted date and time of day. The transmitted date and time of day for leap second correction follow the guidelines in National Institute of Standards and Technology Special Publication 432 (Revised 1990). This document is for sale by the Superintendent of Documents, U.S. Government Printing Office, Washington, D.C., 20402, U.S.A.

When a positive leap second is required, one second is inserted at the beginning of the first hour (0h 0m 0s) of the day that the positive leap is occurring. The minute containing the leap second is 61 seconds long. The GPS sensor would have transmitted this information for the leap second added December 31, 1998 as follows:

$GPRMC,235959,A,3851.3651,N,09447.9382,W,000.0,221.9,071103,003.3,E*69 $GPRMC,000000,A,3851.3651,N,09447.9382,W,000.0,221.9,081103,003.3,E*67 $GPRMC,000000,A,3851.3651,N,09447.9382,W,000.0,221.9,081103,003.3,E*67 $GPRMC,000001,A,3851.3651,N,09447.9382,W,000.0,221.9,081103,003.3,E*66 If a negative leap second should be required, one second will be deleted at the end of some UTC month. The minute

containing the leap second will be only 59 seconds long. In this case, the GPS sensor will not transmit the time of day 0h 0m 0s (the “zero” second) for the day from which the leap second is removed.

$GPRMC,235959,A,3851.3650,N,09447.9373,W,000.0,000.0,111103,003.3,E*69 $GPRMC,000001,A,3851.3650,N,09447.9373,W,000.0,000.0,121103,003.3,E*6A $GPRMC,000002,A,3851.3650,N,09447.9373,W,000.0,000.0,121103,003.3,E*69

4.2.3 Global Positioning System Almanac Data (ALM)

Almanac sentences are not normally transmitted. Almanac transmission can be initiated by sending the GPS sensor a $PGRMO,GPALM,1 command. Upon receipt of this command, the GPS sensor will transmit available almanac information on GPALM sentences. During the transmission of almanac sentences, other NMEA 0183 data output will be suspended temporarily.

$GPALM,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>,<13>,<14>,<15>*hh<CR><LF> <field information> can be found in

section 4.1.1 Almanac Information (ALM).

4.2.4 Global Positioning System Fix Data (GGA)

$GPGGA,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,M,<10>,M,<11>,<12>*hh<CR><LF>

<1> UTC time of position fix, hhmmss format <2> Latitude, ddmm.mmmm format (leading zeros will be transmitted) <3> Latitude hemisphere, N or S <4> Longitude, dddmm.mmmm format (leading zeros will be transmitted) <5> Longitude hemisphere, E or W <6> GPS quality indication, 0 = Fix not available, 1 = Non-differential GPS fix available, 2 = Differential GPS

(DGPS) fix available, 6 = Estimated <7> Number of satellites in use, 00 to 12 (leading zeros will be transmitted) <8> Horizontal dilution of precision, 0.5 to 99.9 <9> Antenna height above/below mean sea level, -9999.9 to 99999.9 meters

<10> Geoidal height, -999.9 to 9999.9 meters <11> Differential GPS (RTCM SC-104) data age, number of seconds since last valid RTCM transmission (null if

not an RTCM DGPS fix)

<12> Differential Reference Station ID, 0000 to 1023 (leading zero s will be transmitted, null if not an RTCM

DGPS fix)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 15

4.2.5 GPS DOP and Active Satellites (GSA)

$GPGSA,<1>,<2>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<4>,<5>,<6>*hh<CR><LF>

<1> Mode, M = Manual, A = Automatic <2> Fix type, 1 = Not available, 2 = 2D, 3 = 3D <3> PRN number, 01 to 32, of satellite used in solution, up to 12 transmitted (leading zeros will be transmitted) <4> Position dilution of precision, 0.5 to 99.9 <5> Horizontal dilution of precision, 0.5 to 99.9 <6> Vertical dilution of precision, 0.5 to 99.9

4.2.6 GPS Satellites in View (GSV)

$GPGSV,<1>,<2>,<3>,<4>,<5>,<6>,<7>,...<4>,<5>,<6>,<7>*hh<CR><LF>

<1> Total number of GSV sentences to be transmitted <2> Number of current GSV sentence <3> Total number of satellites in view, 00 to 12 (leading zeros will be transmitted) <4> Satellite PRN number, 01 to 32 (leading zeros will be transmitted) <5> Satellite elevation, 00 to 90 degrees (leading zeros will be transmitted) <6> Satellite azimuth, 000 to 359 degrees, true (leading zeros will be transmitted) <7> Signal to noise ratio (C/No) 00 to 99 dB (leading zeros will be transmitted)

Note: Items <4>,<5>,<6>, and <7> repeat for each satellite in view to a maximum of four (4) satellites per sentence. Additional satellites in view information must be sent in subsequent bursts of NMEA 0183 data. These fields will be null if unused.

4.2.7 Recommended Minimum Specific GPS/TRANSIT Data (RMC)

$GPRMC,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>*hh<CR><LF>

<1> UTC time of position fix, hhmmss format <2> Status, A = Valid position, V = NAV receiver warning <3> Latitude, ddmm.mmmm format (leading zeros will be transmitted) <4> Latitude hemisphere, N or S <5> Longitude, dddmm.mmmm format (leading zeros will be transmitted) <6> Longitude hemisphere, E or W <7> Speed over ground, 000.0 to 999.9 knots (leading zeros will be transmitted) <8> Course over ground, 000.0 to 359.9 degrees, true (leading zeros will be transmitted) <9> UTC date of position fix, ddmmyy format

<10> Magnetic variation , 000.0 to 180.0 degrees (leading zeros will be transmitted) <11> Magnetic variation direction, E or W (westerly variation adds to true course) <12> Mode indicator (only output if NMEA 0183 version 2.30 active), A = Autonomous,

D = Differential, E = Estimated, N = Data not valid

4.2.8 Track Made Good and Ground Speed (VTG)

$GPVTG,<1>,T,<2>,M,<3>,N,<4>,K,<5>*hh<CR><LF>

<1> True course over ground, 000 to 359.9 degrees (lead ing zeros will be transmitted) <2> Magnetic course over ground, 000 to 359.9 degrees (leading zeros will be transmitted) <3> Speed over ground, 000.0 to 999.9 knots (leading zeros will be transmitted) <4> Speed over ground, 0000.0 to 1851.8 kilometers per hour (leading zeros will be transmitted) <5> Mode indicator (only output if NMEA 0183 version 2.30 active), A = Autonomous,

D = Differential, E = Estimated, N = Data not valid

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 16

4.2.9 Geographic Position (GLL)

$GPGLL,<1>,<2>,<3>,<4>,<5>,<6>,<7>*hh<CR><LF>

<1> Latitude, ddmm.mmmm format (leading zeros will be transmitted) <2> Latitude hemisphere, N or S <3> Longitude, dddmm.mmmm format (leading zeros will be transmitted) <4> Longitude hemisphere, E or W <5> UTC time of position fix, hhmmss format <6> Status, A = Valid position, V = NAV receiver warning <7> Mode indicator (only output if NMEA 0183 version 2.30 active), A = Autonomous,

D = Differential, E = Estimated, N = Data not valid

4.2.10 Estimated Error Information (PGRME)

$PGRME,<1>,M,<2>,M,<3>,M*hh<CR><LF>

<1> Estimated horizontal position error (HPE), 0.0 to 999.9 meters <2> Estimated vertical position error (VPE), 0.0 to 999.9 meters <3> Estimated position error (EPE), 0.0 to 999.9 meters

4.2.11 GPS Fix Data Sentence (PGRMF)

$PGRMF,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>,<13>,<14>,<15>*hh<CR><LF>

<1> GPS week number (0 to 1023) <2> GPS seconds (0 to 604799) <3> UTC date of position fix, ddmmyy format <4> UTC time of position fix, hhmmss format <5> GPS leap second count <6> Latitude, ddmm.mmmm format (leading zeros will be transmitted) <7> Latitude hemisphere, N or S <8> Longitude, dddmm.mmmm format (leading zeros will be transmitted) <9> Longitude hemisphere, E or W

<10> Mode, M = Manual, A = Automatic <11> Fix type, 0 = no fix, 1 = 2D fix, 2 = 3D fix <12> Speed over ground, 0 to 1851 kilometers/hour <13> Course over ground, 0 to 359 degrees, true <14> Position dilution of precision, 0 to 9 (rounded to nearest integer value) <15> Time dilution of precision, 0 to 9 (rounded to nearest integer value)

4.2.12 Map Datum (PGRMM)

The Garmin Proprietary sentence $PGRMM gives the name of the map datum currently in use by the GPS sensor. This information is used by the Garmin MapSource real-time plotting application.

$PGRMM,<1>*hh<CR><LF>

<1> Name of map datum currently in use (variable length field, for example., “WGS 84”)

4.2.13 Sensor Status Information (PGRMT)

The Garmin Proprietary sentence $PGRMT gives information concerning the status of the GPS sensor. This sentence is transmitted once per minute regardless of the selected baud rate.

$PGRMT,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>*hh<CR><LF>

<1> Product, model and software version (variable length field, e.g., “GPS 16xHVS VER 2.05”) <2> No Effect (This field is not used on this model and is included only for backwards compatibility) <3> No Effect (This field is not used on this model and is included only for backwards compatibility) <4> No Effect (This field is not used on this model and is included only for backwards compatibility) <5> No Effect (This field is not used on this model and is included only for backwards compatibility) <6> No Effect (This field is not used on this model and is included only for backwards compatibility) <7> No Effect (This field is not used on this model and is included only for backwards compatibility) <8> No Effect (This field is not used on this model and is included only for backwards compatibility) <9> No Effect (This field is not used on this model and is included only for backwards compatibility)

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 17

4.2.14 3D Velocity Information (PGRMV)

$PGRMV,<1>,<2>,<3>*hh<CR><LF>

<1> True east velocity, -514.4 to 514.4 meters/second <2> True north velocity, -514.4 to 514.4 meters/second <3> Up velocity, -999.9 to 999.9 meters/second

4.2.15 DGPS Beacon Information (PGRMB)

Note: PGRMB is not supported at this time. $PGRMB,<1>,<2>,<3>,<4>,<5>,K,<6>,<7>*hh<CR><LF>

<1> No Effect (This field is not used on this model and is included only for backwards compatibility) <2> No Effect (This field is not used on this model and is included only for backwards compatibility) <3> No Effect (This field is not used on this model and is included only for backwards compatibility) <4> No Effect (This field is not used on this model and is included only for backwards compatibility) <5> Distance to beacon reference station in kilometers <6> No Effect (This field is not used on this model and is included only for backwards compatibility) <7> DGPS fix source (R = RTCM, W = WAAS, N = Non-DGPS Fix) <8> DGPS mode, A = Automatic, W = WAAS Only, R = RTCM Only, N = None (DGPS disabled)

4.3 BAUD RATE SELECTION

Baud rate selection can be performed by sending the appropriate configuration sentence to the GPS sensor as described in the $PGRMC

section 4.1.3 Sensor Configuration Information (PGRMC), field <10>.

4.4 ONE-PULSE-PER-SECOND (PPS) OUTPUT

The highly accurate one-pulse-per-second (PPS) output is provided for applications requiring precise timing measurements. The signal is generated after the initial position fix has been calculated and continues until the unit is powered down. The rising edge of the signal is synchronized to the start of each GPS second. Regardless of the selected baud rate, the information transmitted by the GPS sensor is referenced to the pulse immediately preceding the NMEA 0183 RMC sentence.

The accuracy of the one-pulse-per-second output is maintained only while the GPS sensor can compute a valid position fix. To obtain the most accurate results, the one-pulse-per-second output should be calibrated against a local time reference to compensate for cable and internal receiver delays and the local time bias.

The default pulse width is 100 ms, however; it may be programmed in 20 ms increments between 20 ms and 980 ms as described in $PGRMC

section 4.1.3 Sensor Configuration Information (PGRMC), field <13>.

4.5 RECEIVED RTCM DATA

Position accuracy of less than 5 meters can be achieved with the GPS 16x series products by using Differential GPS (DGPS) real-time pseudo-range correction data in RTCM SC-104 format, with message types 1, 2, 3, 7, and 9. These corrections can be received by the GPS 16x series products on COM 2. The RTCM data must be received at the same baud rate as the COM 1 port. For details on the SC-104 format, refer to RTCM Paper 134-89/SC 104-68 by the Radio Technical Commission for Maritime Services.

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 18

APPENDIX A: EARTH DATUMS

The following is a list of the Garmin GPS 16x Earth datum indices and the corresponding earth datum name (including the area of application):

0 ADINDAN - Ethiopia, Mali, Senegal, Sudan 1 AFGOOYE - Somalia 2 AIN EL ABD 1970 - Bahrain Island, Saudi Arabia 3 ANNA 1 ASTRO 1965 - Cocos Island 4 ARC 1950 - Botswana, Lesotho, Malawi, Swaziland, Zaire, Zambia, Zimbabwe 5 ARC 1960 - Kenya, Tanzania 6 ASCENSION ISLAND 1958 - Ascension Island 7 ASTRO BEACON E - Iwo Jima Island 8 AUSTRALIAN GEODETIC 1966 - Australia, Tasmania Island 9 AUSTRALIAN GEODETIC 1984 - Australia, Tasmania Island 10 ASTRO DOS 71/4 - St. Helena Island 11 ASTRONOMIC STATION 1952 - Marcus Island 12 ASTRO B4 SOROL ATOLL - Tern Island 13 BELLEVUE (IGN) - Efate and Erromango Islands 14 BERMUDA 1957 - Bermuda Islands 15 BOGOTA OBSERVATORY - Colombia 16 CAMPO INCHAUSPE - Argentina 17 CANTON ASTRO 1966 - Phoenix Islands 18 CAPE CANAVERAL - Florida, Bahama Islands 19 CAPE - South Africa 20 CARTHAGE - Tunisia 21 CHATHAM 1971 - Chatham Island (New Zealand) 22 CHUA ASTRO - Paraguay 23 CORREGO ALEGRE - Brazil 24 DJAKARTA (BATAVIA) - Sumatra Island (Indonesia) 25 DOS 1968 - Gizo Island (New Georgia Islands) 26 EASTER ISLAND 1967 - Easter Island 27 EUROPEAN 1950 - Austria, Belgium, Denmark, Finland, France, Germany, Gibraltar, Greece, Italy,

Luxembourg, Netherlands, Norway, Portu ga l , Spai n, Sweden, Switzerland 28 EUROPEAN 1979 - Austria, Finland, Netherlands, Norway, Spain, Sweden, Switzerland 29 FINLAND HAYFORD 1910 - Finland 30 GANDAJIKA BASE - Republic of Maldives 31 GEODETIC DATUM 1949 - New Zealand 32 ORDNANCE SURVEY OF GREAT BRITAIN 1936 - En gl an d, Isl e of Man, Scotland, Shetland Islands,

Wales 33 GUAM 1963 - Guam Island 34 GUX 1 ASTRO - Guadalcanal Island 35 HJORSEY 1955 - Iceland 190-00228-08 GPS 16x Technical Specifications Rev. A

Page 19

36 HONG KONG 1963 - Hong Kong 37 INDIAN - Bangladesh, India, Nepal 38 INDIAN - Thailand, Vietnam 39 IRELAND 1965 - Ireland 40 ISTS O73 ASTRO 1969 - Diego Garcia 41 JOHNSTON ISLAND 1961 - Johnston Island 42 KANDAWALA - Sri Lanka 43 KERGUELEN ISLAND - Kerguelen Island 44 KERTAU 1948 - West Malaysia, Singapore 45 L.C. 5 ASTRO - Cayman Brac Island 46 LIBERIA 1964 - Liberia 47 LUZON - Mindanao Island 48 LUZON - Phillippines (excluding Mindanao Island) 49 MAHE 1971 - Mahe Island 50 MARCO ASTRO - Salvage Islands 51 MASSAWA - Eritrea (Ethiopia) 52 MERCHICH - Morocco 53 MIDWAY ASTRO 1961 - Midway Island 54 MINNA - Nigeria 55 NORTH AMERICAN 1927 - Alaska 56 NORTH AMERICAN 1927 - Bahamas (excluding San Salvador Island) 57 NORTH AMERICAN 1927 - Central America (Belize, Costa Rica, El Salvador, Guatemala, Honduras,

Nicaragua) 58 NORTH AMERICAN 1927 - Canal Zone 59 NORTH AMERICAN 1927 - Canada (including Newfoundland Island) 60 NORTH AMERICAN 1927 - Caribbean (Barbados, Caicos Islands, Cuba, Dominican Republic, Grand

Cayman, Jamaica, Leeward Islands, Turks Islands) 61 NORTH AMERICAN 1927 - Mean Value (CONUS) 62 NORTH AMERICAN 1927 - Cuba 63 NORTH AMERICAN 1927 - Greenland (Hayes Peninsula) 64 NORTH AMERICAN 1927 - Mexico 65 NORTH AMERICAN 1927 - San Salvador Island 66 NORTH AMERICAN 1983 - Alaska, Canada, Central America, CONUS, Mexico 67 NAPARIMA, BWI - Trinidad and Tobago 68 NAHRWAN - Masirah Island (Oman) 69 NAHRWAN - Saudi Arabia 70 NAHRWAN - United Arab Emirates 71 OBSERVATORIO 1966 - Corvo and Flores Islands (Azo re s) 72 OLD EGYPTIAN - Egypt 73 OLD HAWAIIAN - Mean Value 74 OMAN - Oman

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 20

75 PICO DE LAS NIEVES - Canary Islands 76 PITCAIRN ASTRO 1967 - Pitcairn Island 77 PUERTO RICO - Puerto Rico, Virgin Islands 78 QATAR NATIONAL - Qatar 79 QORNOQ - South Greenland 80 REUNION - Mascarene Island 81 ROME 1940 - Sardinia Island 82 RT 90 - Sweden 83 PROVISIONAL SOUTH AMERICAN 1956 - Bolivia, Chile, Colombia, Ecuador, Guyana, Peru,

Venezuela 84 SOUTH AMERICAN 1969 - Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay,

Peru, Venezuela, Trinidad and Tobago 85 SOUTH ASIA - Singapore 86 PROVISIONAL SOUTH CHILEAN 1963 - South Chile 87 SANTO (DOS) - Espirito Santo Island 88 SAO BRAZ - Sao Miguel, Santa Maria Islands (Azores) 89 SAPPER HILL 1943 - East Falkland Island 90 SCHWARZECK - Namibia 91 SOUTHEAST BASE - Porto Santo and Madeira Islands 92 SOUTHWEST BASE - Faial, Graciosa, Pico, Sao Jorge, and Terceira Islands (Azores) 93 TIMBALAI 1948 - Brunei and East Malaysia (Sarawak and Sabah) 94 TOKYO - Japan, Korea, Okinawa 95 TRISTAN ASTRO 1968 - Tristan da Cunha 96 User defined earth datum 97 VITI LEVU 1916 - Viti Levu Island (Fiji Islands) 98 WAKE-ENIWETOK 1960 - Marshall Islands 99 WORLD GEODETIC SYSTEM 1972 100 WORLD GEODETIC SYSTEM 19 84 101 ZANDERIJ - Surinam 102 CH-1903 - Switzerland 103 Hu - Tzu - Shan 104 Indonesia 74 105 Austria 106 Potsdam 107 Taiwan - modified Hu-Tzu-Shan 108 GDA - Geocentric Datum of Australia 109 Dutch

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 21

APPENDIX B: GARMIN BINARY OUTPUT FORMAT

Note: The following applies to all software versions of GPS 16xLVS and GPS 16xHVS. Two records are transmitted once per second by the GPS 16x series products. One record contains primarily post-

process information, such as position and velocity information. The second record contains receiver measurement information. The records are sent at a default baud rate of 9600 ba ud, 8 data bits, and no parity.

Records begin with a delimiter byte (10 hex). The second byte identifies the record type (33 hex for a position record, 34 hex for a receiver measurement). The third byte indicates the size of the data. The fourth byte is the first byte of data. The data is then followed by a checksum byte, a delimiter byte (10 hex), and an end-of-transmission character (03 hex).

Note: If RTCM-104 differential data is sent to the GPS sensor, the board will reset the Garmin Binary Output Data baud rate to the same baud rate used for RTCM-104 data. If the differential inputs are used on the GPS sensor, the RTCM-104 data must be sent to the GPS sensor at 9600 baud (preferred) or 4800 baud. RTCM-104 baud rates less than 4800 baud are not supported by the GPS sensors as it would limit bus bandwidth past the point where a onceper-second Garmin binary output data rate coul d be m a i nta i ned .

Position Record

- 0x10 (DLE is first byte)

- 0x33 (Position record identifier)

- 0x40 (Size of data)

- cpo_pvt_data (See description below)

- one-byte checksum (The addition of bytes between the delimiters should equal 0)

- 0x10 (DLE)

- 0x03 (ETX is last byte)

typedef struct { float alt; float epe; float eph; float epv; int fix; double gps_tow; double lat; double lon; float lon_vel; float lat_vel; float alt_vel; float msl_hght; int leap_sec; long grmn_days; } cpo_pvt_data;

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 22

alt Ellipsoid altitude (meters) epe Estimated position error (meters) eph Position error, horizontal (meters) epv Position error, vertical (meters) fix 0 = no fix; 1 = no fix; 2 = 2D; 3 = 3D; 4 = 2D differential; 5 = 3D differential; 6 and greater = not defined gps_tow GPS time of week (sec) lat Latitude (radians) lon Longitude (radians) lon_vel Longitude velocity (meters/second) lat_vel Latitude velocity (meters/second) alt_vel Altitude velocity (meters/ second) msl_hght height (mean sea level) (meters) leap_sec UTC leap seconds grmn_days Garmin days (days since December 31, 1989)

Satellite Data Record

The satellite data has a record ID of 0x72 with 84 (0x54) data bytes. The data bytes contain data for 12 satellites as described below.

typedef struct { uint8 svid; //space vehicle identification (1–32 and 33–64 for WAAS) uint16 snr; //signal-to-noise ratio uint8 elev; //satellite elevation in degrees uint16 azmth; //satellite azimuth in degrees uint8 status; //status bit-field } cpo_sat_data;

The status bit field represents a set of booleans described below:

Bit Meaning when bit is one (1)

0 The unit has ephemeris data for the specified satellite. 1 The unit has a differential correction for the specified satellite. 2 The unit is using this satellite in the solution.

This pattern is repeated for 12 satellites for a total of 12 X 7 bytes = 84 (0x54) bytes. The RS-232 Packet for the Satellite Record looks like:

- 0x10 (DLE is first byte)

- 0x72 (Record ID – single byte)

- 0x54 (Number of data bytes – single byte)

- 12 cpo_sat_data records

- 0x## (2’s complement of the arithmetic sum of the bytes between the delimiters)

- 0x10 (DLE)

- 0x03 (ETX is last byte) The USB Packet for the Satellite Record looks like:

- 0x72 (Record ID – single byte)

- 0x54 (Number of data bytes – single byte)

- 12 cpo_sat_data records

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 23

Sample C Code

DLE and ETX bytes: Sample C code to receive the two records should filter DLE and ETX bytes as described below:

typedef enum { DAT, DLE, ETX } rx_state_type;

/* Declare and initialize static variables */ static char in_que[ 256 ]; static int in_que_ptr = 0; static rx_state_type rx_state = DAT;

. . .

void add_to_que( char data ) { #define DLE_BYTE 0x10 #define ETX_BYTE 0x03

if ( rx_state == DAT ) { if ( data == DLE_BYTE ) { rx_state = DLE; } else { in_que[ in_que_ptr++ ] = data; } } else if ( rx_state == DLE ) { if ( data == ETX_BYTE ) { rx_state = ETX; } else { rx_state = DAT; in_que[ in_que_ptr++ ] = data; } } else if ( rx_state == ETX ) { if ( data == DLE_BYTE ) { rx_state = DLE; } }

if ( in_que_ptr > 255 ) { in_que_ptr = 0; } }

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 24

APPENDIX C: EPHEMERIS DATA DOWNLOAD (PROGRAMMING EXAMPLE)

Synopsis

This section describes, using an example, how to download ephemeris information from a Garmin 15, 16, 17 or 18 family GPS unit with the exception of the GPS 15-W and the GPS 15-F.

Garmin Binary Format Review

To download the ephemeris data, you must first command the unit to output information in Garmin Binary Format (Garmin mode) instead of the default NMEA output format. To put the unit in Garmin mode, connect to the unit using a terminal program and send the following NMEA sentence: $PGRMO,,G*hh<CR><LF>

The checksum *hh is used for parity checking data and generally is not required in normal PC environments, but is recommended for use in environments containing high electromagnetic noise. When used, the parity bytes (hh) are the ASCII representation of the exclusive-or (XOR) sum of all the characters between the “$” and “*” characters, non-inclusive. Sentences may be truncated by <CR><LF> after any data field and valid fields up to that point will be acted on by the GPS sensor. See power cycle.

Now that unit is in Garmin binary format, transmitted and received packe t s are structured as follows:

Byte Description Name Notes

Packet Delimiter DLE 0x10 Packet ID (type) ID Packet type Data Size SIZE Number of bytes in data portion(not

Data bytes DATA Not to exceed 256 bytes . . . . . . . . . Checksum CHKSUM 2’s complement of the arithmetic sum of

Packet Delimiter DLE 0x10 End of Packet ETX 0x03

section 4 Software Interface. The unit will stay in Garmin mode until the next

including escaped DLEs. See below)

all the bytes from the Packet ID byte to the last DATA byte(inclusive) not counting escaped DLEs. See below

The DLE (0x10) is a delimiter byte used in conjunction with the ETX byte to determine beginning and ending of a packet. However, a 0x10 could appear in the data itself; if this occurs, the byte is escaped with another DLE byte (sometimes referred to as DLE stuffing). In other words, if a DLE occurs in the data, another DLE is transmitted immediately after to indicate that it is a data byte and it is not being used as a delimiter. Note that the size byte of the packet does not count the second DLE byte in an escaped DLE pair in the data field. Since a DLE that is a part of the data will have a second DLE to escape it, a single DLE followed by an ETX byte means that the end of a packet has been reached.

In order to interpret these packets properly, one must remove the escaped DLE bytes. This can be achieved using an algorithm similar to the

190-00228-08 GPS 16x Technical Specifications Rev. A

Sample C Code fragment on the previous page.

Page 25

Ephemeris Download Procedure

The following is the sequence of events that occurs when downloading ephemeris.

Send a packet containing the command that requests ephemeris data (IOP_DOWN_LOAD_EPH). The packet should look like this:

TX Packet: Ephemeris Data Request

Byte Description Name HEX Value

Delimiter DLE 0x10 Command Data ID IOP_CMND_DATA 0x0A Number of bytes in data SIZE 0x02 Request to D/L ephemeris IOP_DOWN_LOAD_EPH 0x5D Pad to 2 bytes DATA 0x00 Checksum calculation CHKSUM 0x97* Delimiter DLE 0x10 End ETX 0x03

* From now on, checksum calculation will not be shown for every packet example

The unit will return an acknowledgement packet that will look like this:

RX Packet: Acknowledgement

Byte Description Name HEX Value

Delimiter DLE 0x10 Acknowledgement ID IOP_ACK_BYTE 0x06 Number of bytes in data SIZE 0x02 Request to D/L ephemeris IOP_CMND_DATA 0x0A Pad DATA 0x00 Checksum calculation CHKSUM ---- Delimiter DLE 0x10 End of packet ETX 0x03

Then, the unit will immediately send a packet communicating how many data packets to expect for the ephemeris download (a maximum of twelve):

RX Packet: Number of Data Packets to Expect

Byte Description Name HEX Value

Delimiter DLE 0x10 Record ID IOP_RECORDS 0x1B Number of bytes in data SIZE 0x02 Number of records NUM_SV 0x0C Pad DATA 0x00 Checksum calculation CHKSUM ---- Delimiter DLE 0x10 End of packet ETX 0x03

This packet requires acknowledgement, as shown below (note that the data field contains the IOP_RECORDS ID to indicate the acknowledgement of the IOP_RECORDS packet):

TX Packet: Acknowledgement

Byte Description Name HEX Value

Delimiter DLE 0x10 Record ID IOP_ACK_BYTE 0x06 Number of bytes in data SIZE 0x02 Pad DATA 0x00 ID of packet being ACK’d IOP_RECORDS 0x1B Checksum calculation CHKSUM ---- Delimiter DLE 0x10 End of packet ETX 0x03

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 26

Next, the unit will send the specified number of packets containing the ephemeris informatio n. An example packet is shown below. Each packet should be acknowled ged as before (be sure to modify the ACK packet to indicate what type of packet being acknowledged. For ephemeris data, the ID is 0x35).

RX Packet: Ephemeris Data

Byte Description Name HEX Value

Delimiter DLE 0x10 Ephemeris data ID IOP_SPC_EPH_DATA 0x35 Number of bytes in data SIZE 0x78 Ephemeris data DATA ----

. . . . . . . . .

Checksum calculation CHKSUM ---- Delimiter DLE 0x10 End of packet ETX 0x03

The data portion of each packet can then be parsed into an instance of the following structure. Each of these structures represents data from a single satellite.

typedef struct /* ephemeris data record for SPC */ { sint16 wn; /* week number (weeks) */ float toc; /* reference time of clock parameters (s) */ float toe; /* reference time of ephemeris parameters (s) */ float af0; /* clock correction coefficient - group delay (s) */ float af1; /* clock correction coefficient (s/s) */ float af2; /* clock correction coefficient (s/s/s) */ float ura; /* user range accuracy (m) */ double e; /* eccentricity (-) */ double sqrta; /* square root of semi-major axis (a) (m**1/2) */ double dn; /* mean motion correction (r/s) */ double m0; /* mean anomaly at reference time (r) */ double w; /* argument of perigee (r) */ double omg0; /* right ascension (r) */ double i0; /* inclination angle at reference time (r) */ float odot; /* rate of right ascension (r/s) */ float idot; /* rate of inclination angle (r/s) */ float cus; /* argument of latitude correction, sine (r) */ float cuc; /* argument of latitude correction, cosine (r) */ float cis; /* inclination correction, sine (r) */ float cic; /* inclination correction, cosine (r) */ float crs; /* radius correction, sine (m) */ float crc; /* radius correction, cosine (m) */ unsigned char iod; /* issue of data */ } SDM_spc_eph_type;

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 27

An example function to do the parsing is shown below. Note that the double data types are converted by the function cnvt_ieee_double(). This function merely swaps the upper and lower words of the double. This is necessary on GPS 15, 16, 17 series sensors due to a compatibility issue with the IEEE floating point standard): In this example, the array m_TempArray

/**************************************************************************** * * PROCEDURE NAME: * copyData - ephemeris data unpacker * * DESCRIPTION: * unpacks data from ephemeris packet DATA field after extraneous DLEs * have been removed. Note that sint16 refers to a signed 16-bit * integer type. * ****************************************************************************/ void GPM_ephList::copyData /* ephemeris data unpacker */ ( GPM_ephData* pTemp /* pointer to ephemeris data array */ ) { pTemp->EphStruct.wn = *(sint16*)&m_TempArray[IDX_EPH_WN]; pTemp->EphStruct.toc = *(float*)&m_TempArray[IDX_EPH_TOC]; pTemp->EphStruct.toe = *(float*)&m_TempArray[IDX_EPH_TOE]; pTemp->EphStruct.af0 = *(float*)&m_TempArray[IDX_EPH_AF0]; pTemp->EphStruct.af1 = *(float*)&m_TempArray[IDX_EPH_AF1]; pTemp->EphStruct.af2 = *(float*)&m_TempArray[IDX_EPH_AF2]; pTemp->EphStruct.ura = *(float*)&m_TempArray[IDX_EPH_URA];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_E]); pTemp->EphStruct.e = *(double*)&m_TempArray[IDX_EPH_E];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_SQRTA]); pTemp->EphStruct.sqrta = *(double*)&m_TempArray[IDX_EPH_SQRTA];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_DN]); pTemp->EphStruct.dn = *(double*)&m_TempArray[IDX_EPH_DN];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_M0]); pTemp->EphStruct.m0 = *(double*)&m_TempArray[IDX_EPH_M0];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_W]); pTemp->EphStruct.w = *(double*)&m_TempArray[IDX_EPH_W];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_OMG0]); pTemp->EphStruct.omg0 = *(double*)&m_TempArray[IDX_EPH_OMG0];

cnvt_ieee_double((long *)&m_TempArray[IDX_EPH_I0]); pTemp->EphStruct.i0 = *(double*)&m_TempArray[IDX_EPH_I0];

pTemp->EphStruct.odot = *(float*)&m_TempArray[IDX_EPH_ODOT]; pTemp->EphStruct.idot = *(float*)&m_TempArray[IDX_EPH_IDOT]; pTemp->EphStruct.cus = *(float*)&m_TempArray[IDX_EPH_CUS]; pTemp->EphStruct.cuc = *(float*)&m_TempArray[IDX_EPH_CUC]; pTemp->EphStruct.cis = *(float*)&m_TempArray[IDX_EPH_CIS]; pTemp->EphStruct.cic = *(float*)&m_TempArray[IDX_EPH_CIC]; pTemp->EphStruct.crs = *(float*)&m_TempArray[IDX_EPH_CRS]; pTemp->EphStruct.crc = *(float*)&m_TempArray[IDX_EPH_CRC]; pTemp->EphStruct.iod = *(unsigned char*)&m_TempArray[IDX_EPH_IOD];

return;

} /* copyData */

contains the data portion of the ephemeris packet (with DLE stuffing removed).

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 28

Each data member of the ephemeris data structure is indexed into the data array of the ephemeris packet and cast as the appropriate data type. The indices are as follows (note that they correlate to the data members of the structure respectively):

#define IDX_EPH_WN 0 #define IDX_EPH_TOC 4 #define IDX_EPH_TOE 8 #define IDX_EPH_AF0 12 #define IDX_EPH_AF1 16 #define IDX_EPH_AF2 20 #define IDX_EPH_URA 24 #define IDX_EPH_E 28 #define IDX_EPH_SQRTA 36 #define IDX_EPH_DN 44 #define IDX_EPH_M0 52 #define IDX_EPH_W 60 #define IDX_EPH_OMG0 68 #define IDX_EPH_I0 76 #define IDX_EPH_ODOT 84 #define IDX_EPH_IDOT 88 #define IDX_EPH_CUS 92 #define IDX_EPH_CUC 96 #define IDX_EPH_CIS 100 #define IDX_EPH_CIC 104 #define IDX_EPH_CRS 108 #define IDX_EPH_CRC 112 #define IDX_EPH_IOD 116

The last packet will be a “download complete” packet that will look like this:

TX Packet: Download Complete

Byte Description Name HEX Value

Delimiter DLE 0x10 Download Complete ID IOP_DL_CMPLT 0x0c Number of bytes in data SIZE 0x02 Ephemeris Download ID IOP_DOWN_LOAD_EPH 0x5D Pad DATA 0x00 Checksum calculation CHKSUM ---- Delimiter DLE 0x10 End of packet ETX 0x03

After properly acknowledging this packet (ACK the IOP_DL_CMPLT ID), the ephemeris download is complete.

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 29

APPENDIX D: SENSOR CONFIGURATION SOFTWARE

SNSRCFG configures the GPS sensors based on user-selected parameters. Some application features include the ability to download GPS sensor configuration, maintain different configurations in files, and perform GPS sensor configurations quickly with the use of one function key.

This section provides a brief overview of the Sensor Configuration Software. Refer to this section when using the software to configure your Garmin sensor.

Downloading the Sensor Configuration Software

The Garmin Sensor Configuration Software (SNSRCFG.exe) is available from the Garmin Web site. To download the software, start at

www.garmin.com/oem, select the GPS 16x, and then select Updates and

Downloads. The Garmin Sensor Configuration Software (S NSRCF G.exe) is included in the software update download.

Selecting a Model

After opening the program (snsrcfg.exe), the Set Base Model to… window appears. Select the radio button next to the type of Garmin sensor you are configuring.

Connecting to the Sensor

After selecting the type of sensor, the following window opens. This is the Main Interface Screen for the program. To configure your sensor, you must

first connect to the sensor.

1. Select Config > Switch to

NMEA Mode (or press the F10 key).

2. Select Comm > Setup to open

the Comm Setup window.

3. Select the serial port to which

the sensor is connected. Select Auto to have the program automatically determine the baud rate, or select Manual to manually select the baud rate of the GPS 16x. Click OK when done.

4. Click the Connect icon

select Comm > Connect.

5. To view the current

programming of the sensor, select Config > Get Configuration from GPS (or press the F8 key). The current programming of the sensor is displayed in the window shown to the right.

, or

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 30

File Menu

The File Menu allows you to open, save, and print sensor configurations. The items in the File Menu work like most Windows-based programs.

Comm Menu

The Comm (Communication) Menu allows you to set the port number, baud rate, and then connect and disconnect from the sensor.

Setup: Opens the Comm Setup window. Select the serial port to which the sensor is connected from the drop-down list. Then select Auto (the program determines the baud rate on its own) or Manual (you then enter the baud rate) for the baud rate entry.

Connect: Select Connect to connect to the sensor to change or view the configuration.

Disconnect: Select Disconnect to disconnect from the sensor.

Config Menu

The Config (Configuration) Menu allows you to configure the sensor as it is connected.

Sensor Configuration (F6): Opens the Sensor Configuration window, shown to the right. Many of the fields in this window should be left alone. Refer to the beginning of this manual for clarification about some of these fields. For the most part, this window is used to enter a new latitude, longitude, and altitude for the sensor. This is especially helpful when you are programming the sensor for use in a particular geographic location.

Resetting the unit (Reset Unit) performs a reset on the unit, much like cycling the power.

Resetting the non-volatile memory (Reset NonVol) will clear all of the data from the non-volatile memory.

NMEA Sentence Selections (F7): Displays the NMEA Sentence Selections window. If the sentence is enabled, a check mark appears in the box to the left of the sentence name. Click the box to enable or disable to the sentence.

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 31

Get Configuration From GPS (F8): Retrieves the current programming from the sensor. The programming is then displayed in the Main Interface window.

Send Configuration To GPS (F9): Sends the changes you have made to the programming to the sensor. Switch to NMEA Mode (F10): Switche s the unit to NMEA Mode. The sensor must be in NMEA Mode when

connected to this software.

Switch to Garmin Mode (F11): Switches the unit to Garmin Mode. Update Software (F12): After you have downloaded a new software version for the sensor, you can update the

sensor with the new software. Select Update Software and then select the file using the Open dialog box. You must locate both the .rgn file and the updater.exe file.

View Menu

The View Menu allows you to view the NMEA sentences transmitted by the sensor. You can also customize how the program looks by showing and hiding the Toolbar and Status Bar.

Help Menu

The Help Menu displays the software version and copyright information.

For the latest free software updates (excluding map data) throughout the life of your

Garmin products, visit the Garmin Web site at

www.garmin.com.

Garmin International, Inc.

1200 East 151

Street, Olathe, Kansas 66062, U.S.A.

Garmin (Europe) Ltd.

Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB, U.K.

Garmin Corporation

No. 68, Jangshu 2

Road, Shijr, Taipei County, Taiwan

www.garmin.com

Part Number 190-00228-08 Rev. A

190-00228-08 GPS 16x Technical Specifications Rev. A

Page 32

Garmin 16 x User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 INTRODUCTION

1.1 CAUTION

1.2 LIMITED WARRANTY

1.3 OVERVIEW

1.4 FEATURES

1.5 TECHNICAL SPECIFICATIONS

1.5.1 Physical Characteristics

1.5.1.1 Size

1.5.1.2 Weight

1.5.1.3 Cable

1.5.1.4 Color

1.5.1.5 Case Material

1.5.2 Electrical Characteristics

1.5.2.1 Input Voltage

1.5.2.2 Input Current

1.5.2.3 Standby Current

1.5.2.4 GPS Receiver Sensitivity

1.5.3 Environmental Characteristics

1.5.4 GPS Performance

1.5.4.1 Receiver

1.5.4.2 Acquisition Times

1.5.4.3 Sentence Rate

1.5.4.4 Accuracy

1.5.5 Interfaces

1.5.5.1 Port 1

1.5.5.2 Port 2

1.5.5.3 PPS

1.5.5.4 Power Control

2 GPS 16x WIRING AND PINOUTS

2.1 GPS 16x PINOUT

2.2 GPS 16x WIRING DIAGRAMS

3 MECHANICAL CHARACTERISTICS & MOUNTING

3.2 GPS 16x OPTIONAL MAGNETIC MOUNT

4 SOFTWARE INTERFACE

4.1 RECEIVED NMEA 0183 SENTENCES

4.1.1 Almanac Information (ALM)

4.1.2 Sensor Initialization Information (PGRMI)

4.1.3 Sensor Configuration Information (PGRMC)

4.1.4 Additional Sensor Configuration Information (PGRMC1)

4.1.5 Output Sentence Enable/Disable (PGRMO)

4.2 TRANSMITTED NMEA 0183 SENTENCES

4.2.1 Sentence Transmission Rate

4.2.2 Transmitted Time

4.2.3 Global Positioning System Almanac Data (ALM)

4.2.4 Global Positioning System Fix Data (GGA)

4.2.5 GPS DOP and Active Satellites (GSA)

4.2.6 GPS Satellites in View (GSV)

4.2.7 Recommended Minimum Specific GPS/TRANSIT Data (RMC)

4.2.8 Track Made Good and Ground Speed (VTG)

4.2.9 Geographic Position (GLL)

4.2.10 Estimated Error Information (PGRME)

4.2.11 GPS Fix Data Sentence (PGRMF)

4.2.12 Map Datum (PGRMM)

4.2.13 Sensor Status Information (PGRMT)

4.2.14 3D Velocity Information (PGRMV)

4.2.15 DGPS Beacon Information (PGRMB)

4.3 BAUD RATE SELECTION

4.4 ONE-PULSE-PER-SECOND (PPS) OUTPUT

4.5 RECEIVED RTCM DATA

APPENDIX A: EARTH DATUMS

APPENDIX B: GARMIN BINARY OUTPUT FORMAT

Position Record

Satellite Data Record

Sample C Code

APPENDIX C: EPHEMERIS DATA DOWNLOAD (PROGRAMMING EXAMPLE)

Synopsis

Garmin Binary Format Review

Ephemeris Download Procedure

TX Packet: Ephemeris Data Request

RX Packet: Acknowledgement

RX Packet: Number of Data Packets to Expect

TX Packet: Acknowledgement

RX Packet: Ephemeris Data

TX Packet: Download Complete

APPENDIX D: SENSOR CONFIGURATION SOFTWARE

Downloading the Sensor Configuration Software
