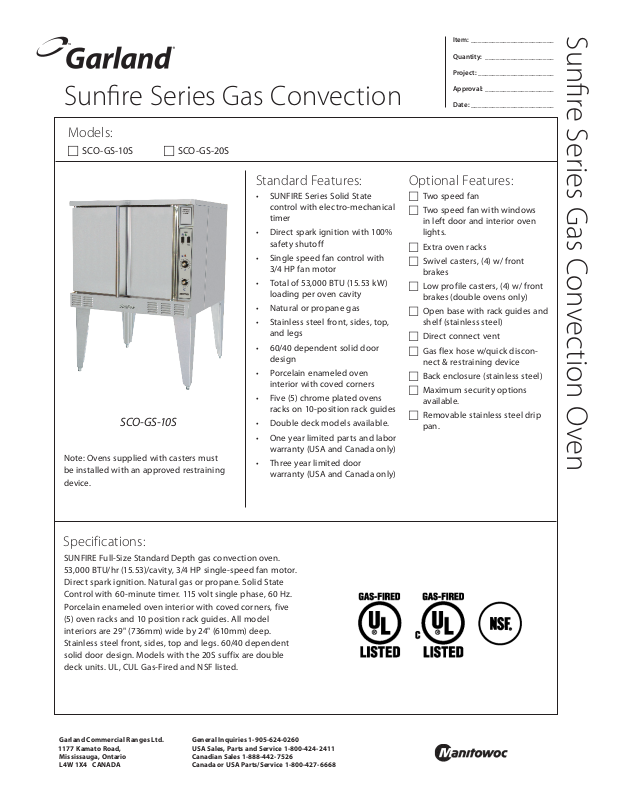

Garland SCOGS10SLP, SCOGS20SLP, SCOGS20SNG Specifications
Sunre Series Gas Convection
Models:
SCO-GS-10S SCO-GS-20S
Item: _______________________
Quantity: ___________________
Project: _____________________
Approval: ___________________
Date: _______________________
Sunre Series Gas Convection Oven
SCO - GS -10 S
Note: Ovens supplied with casters must
be installed with an approved restraining
device.
Standard Features:
• SUNFIRE Series Solid State
control with electro-mechanical
timer
• Direct spark ignition with 100%
safety shutoff
• Single speed fan control with
3/4 HP fan motor
• Total of 53,000 BTU (15.53 kW)
loading per oven cavity
• Natural or propane gas
• Stainless steel front, sides, top,
and legs
• 60/40 dependent solid door
design
• Porcelain enameled oven
interior with coved corners
• Five (5) chrome plated ovens
racks on 10-position rack guides
• Double deck models available.
• One year limited parts and labor
warranty (USA and Canada only)
• Three year limited door
warranty (USA and Canada only)
Optional Features:
Two speed fan
Two speed fan with windows
in left door and interior oven
lights.
Extra oven racks
Swivel casters, (4) w/ front
brakes
Low profile casters, (4) w/ front
brakes (double ovens only)
Open base with rack guides and
shelf (stainless steel)
Direct connect vent
Gas flex hose w/quick discon-
nect & restraining device
Back enclosure (stainless steel)
Maximum security options
available.
Removable stainless steel drip
pan.
Specifications:
SUNFIRE Full-Size Standard Depth gas convection oven.
53,000 BTU/hr (15.53)/cavity, 3/4 HP single-speed fan motor.
Direct spark ignition. Natural gas or propane. Solid State
Control with 60-minute timer. 115 volt single phase, 60 Hz.
Porcelain enameled oven interior with coved corners, five
(5) oven racks and 10 position rack guides. All model
interiors are 29" (736mm) wide by 24" (610mm) deep.
Stainless steel front, sides, top and legs. 60/40 dependent
solid door design. Models with the 20S suffix are double
deck units. UL, CUL Gas-Fired and NSF listed.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquiries 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Sunre Series Gas Convection Oven
Model
SCO-GS-10S 29 (736) 24 (610) 24 (610) 38 (965) 57-1/2 (14 61) 41-1/4 (10 48) 750/3 41 80
SCO-GS-20S 29(736) 24(610) 24(610) 38(965) 70-1/ 2 (1791) 41-1/4 (10 48) 1500/6 82 160
** Height with or without standard casters. Height with low prole casters (double deck) is 68-1/2" (1740mm).
Models
Single Deck 53,000 15. 53 (1) @ 3/4" NPT
Double Deck 106,000 31.06 (1) @1" NPT
*Maximum Pressure 13.8" WC @ 70°F (21°C)
Many local codes exist and it is the responsibility of the owner and installer to comply with those codes.
These appliances are intended for commercial use by professionally trained personnel.
Int . Dimensio ns : In (mm) Ex t. Dimensions: In (mm) Ship Wt Ship Dim.
W H D W H ** D (w/moto r) Lbs/kg Cubic Ft.
Input Ratings, Natural & Propane Operating Pressure *
BTU/hr kW Equiv. Gas Inlet Natural Propane 120V/1Ph.
4" WC
(10 mba r)
10" WC
(25 mbar)
Electrical
Specications
(1)@9. 8 A
(2)@9.8A
Gas Input Ratings shown here are for installations up to
3,000 ft. (915m) above sea level. Specify altitudes over
3,000 ft.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquiries 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Installation Notes:
Combustible & Non-Combustible
Wall Clearances:
Sides 1" (25mm) Back 3" (76mm)
Entry Clearances: In (mm)
Crated 47"
(119 4 mm)
Notes:
1. Standard electrical specifications include motor requirements.
2. (120V units) 115V, 3/4 HP, 1725 rpm; 2-speed motor option, 1140
and 1725 rpm, 60Hz.
3. A 6 ft. line cord is provided for each 120V deck with a (NEMA
#5 -15P) plug.
4. It is recommended a separate 15 AMP circuit for each 120V unit.
Uncrated 32-1/2"
(826mm)
Form# SCOGS (04/24/15)
