Garland E22-36-48GMX Parts List
E22-36-48GMX

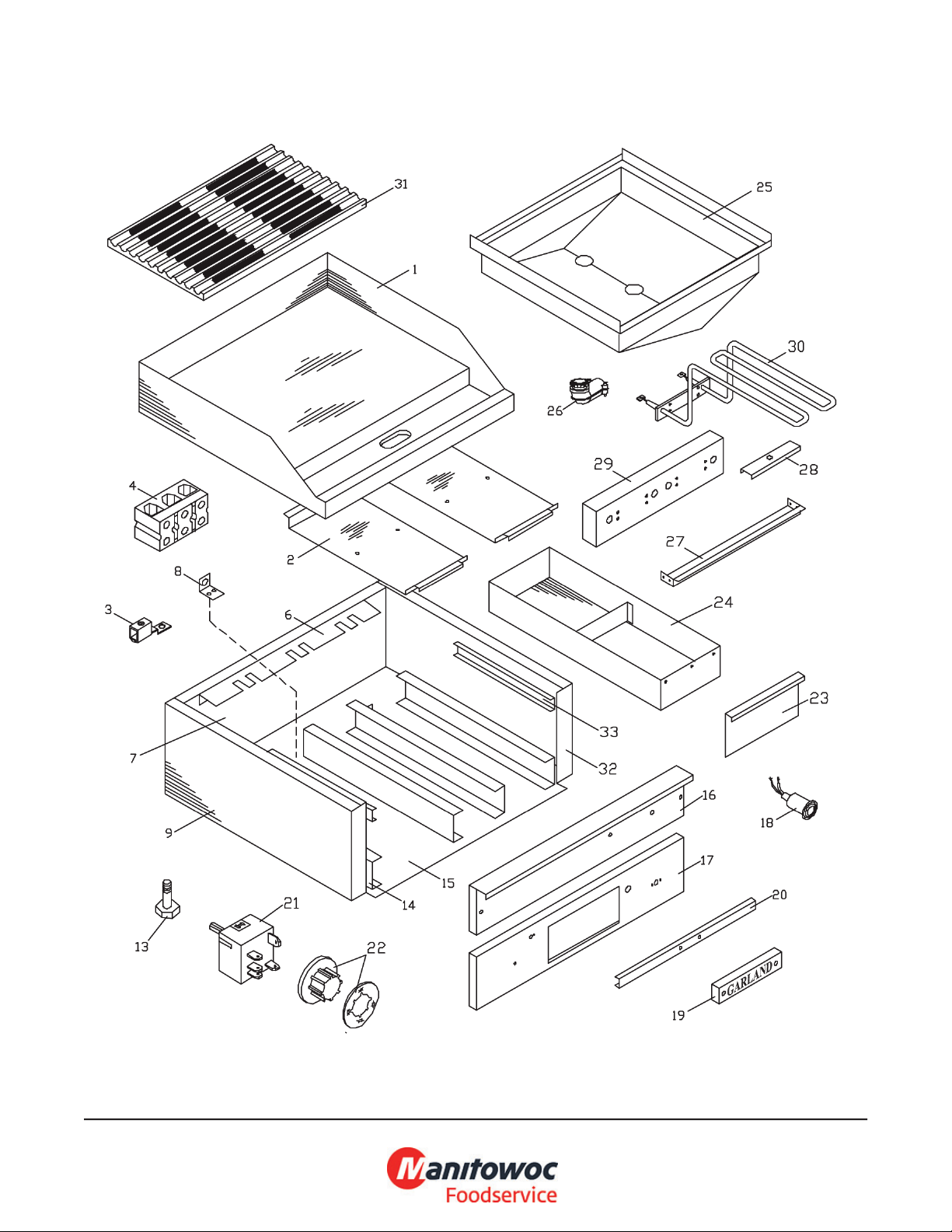

Char Broilers Models E22-12B
Char Broilers Models E22-12B
G_EC_PL_COUNTER_E22SERIES_1.pdf
E22-36-48GMX
Char Broilers Models E22-12B
# PART # DESCRIPTION QTY Note
1 G0908-012-8 Main Top Assembly 1
2 G0915-01-6 Terminal Box Cover Assembly 1
3 G01500-1 Ground Lug 1
4 2147300 Terminal Block 1
5 G2689-1-6 Banking Plate 2 [1]
6 G0922-12-9 Grease Diverter 1
7 G0905-012-8 Main Back Assembly 1
7 G0905-012-9 Main Back Assembly 1
9 G2606-01-82 Body Side Assembly - Left - Painted
9 G2606-01-92 Body Side Assembly - Left - SS 1
13 F157 Bolt - 0.375"-16 x 1.06" 4
14 G2652-1-7 Grease Pan Support 2
15 G0914-1-7 Main Bottom 1
16 G0852-012-9 Upper Front Panel Assembly 1
17 G0916-12-9 Upper Front Panel 1
18 G01296-3 Green Pilot Light - 240V 1
19 4529725 Garland Logo 1
21 G03185-2 Infinite Switch - 240V 1 [2]
22 G02716-1 Dial - (Universal) Small Shaft 1 [3]
22 G02725-4 Dial Insert 1 [4]
23 G2654-1-9 Grease Pan Front 1
24 G2653-1-8 Grease Pan 1
25 G0920-01-8 Grease Hopper Assembly 1
26 1028500 BX Connector - 0.375" x 90° 1
27 G0847-1-72 Element Terminal Box Cover 1
28 G0857-1-9 Element Clamp 6
29 G0848-1-7 Terminal Box 1
30 G0875-1 Element Assembly - 240V/1.35KW 2
30 G0875-2 Element Assembly - 208V/1.35KW 2
30 G0875-4 Element Assembly - 220V/1.35KW 2 [2]
31 G0844-1 Broiler Grate 1
32 G2606-01-81 Body Side Assembly - Right - Painted 1
32 G2606-01-91 Body Side Assembly - Right - SS 1
33 G0900-01-8 Slide Assembly 2
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - RECOMMENDED STOCK PARTS
[3] - Universal
[4] - OFF/MIN/2-6/MAX
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Char Broilers Models E22-12B
G_EC_PL_COUNTER_E22SERIES_1.pdf
E22-36-48GMX

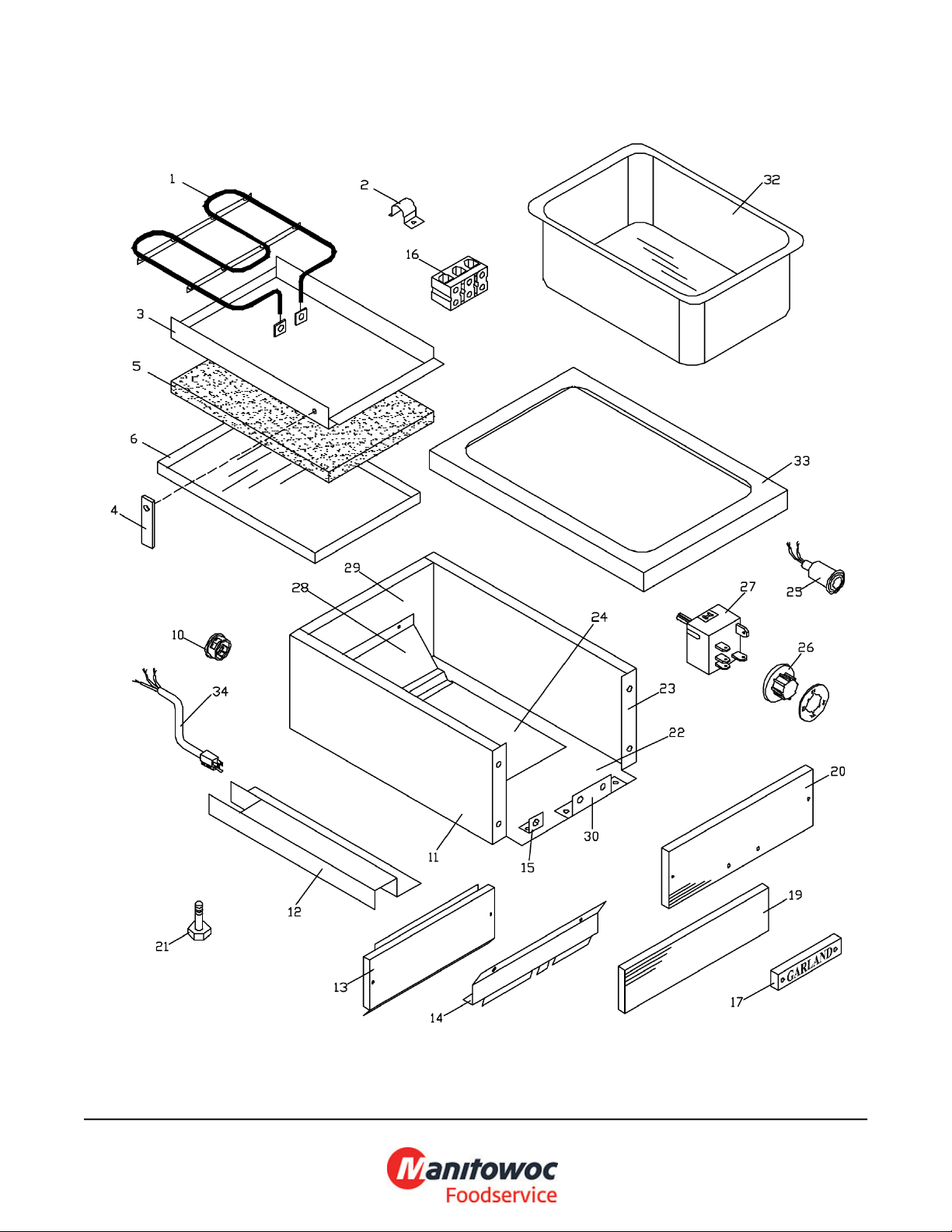

Food Warmer Models E22-15WP
Food Warmer Models E22-15WP
G_EC_PL_COUNTER_E22SERIES_10.pdf
E22-36-48GMX
Food Warmer Models E22-15WP
# PART # DESCRIPTION QTY Note
1 G0569-1 Element Assembly - 120V/1KW 1 [1]
1 G1713-7 Element 115/120V Up to Code 721 1 [1]
2 F301 Element Clamp 1
3 G0576-1-6 Element Upper Pan 1
4 G2629-1-7 Pan Support 2
5 1472205 Insulation - 17" x 12" x 1" 1
6 G0577-1-6 Element Baffle Pan 1
7 G0355-1 Surface Utility Box-Temco 1 [2]
7 G0355-2 Blank Steel Plate 1 [2]
8 1028500 BX Connector - 0.375" x 90° 1 [2]
8 G01497-1 Straight Connector - 0.375" 1 [2]
9 G01507-1 Chase Nipple - #842-TB 1 [2]
10 1028802 Heyco Bushing 1
11 G2606-01-82 Body Side Assembly - Left - Painted 1
12 G2625-1-7 Wire Channel 1
13 G2623-1-7 Shield Upper Front 1
14 G0578-1-7 Shield Lower Front 1
15 G2687-1-7 Cable Support 1
16 G01269-1 Terminal Block 1 [3]
17 4529725 Garland Logo 1
18 G1555-6 Blank ID Plate 1 [2]
19 G2622-15-9 Lower Front Panel 1
20 G0131-15-9 Upper Front Panel 1
21 F157 Bolt - 0.375"-16 x 1.06" 4
22 G2619-15-7 Main Bottom 1
23 G2606-01-81 Body Side Assembly - Right - Painted 1
24 G0579-1-7 Element Support Lower 1
25 G01296-3 Green Pilot Light - 240V 1 [1]
26 G02725-4 Dial Insert 1 [4]
27 G03185-1 Infinite Switch - 120V 1 [1]
28 G2626-2-7 Element Support 1
29 G2620-15-8 Main Back 1
30 G2691-1-7 Switch Mounting Bracket 1
31 G2689-1-6 Banking Plate 2 [2]
32 G0439-2-9 Food Warmer Well 1
33 G2618-15-9 Main Top 1
34 4523398 Power Cord with Plug - 6' L 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Use 2147300
[4] - OFF/MIN/2-6/MAX
RECOMMENDED STOCK PARTS
Food Warmer Models E22-15WP
G_EC_PL_COUNTER_E22SERIES_10.pdf
E22-36-48GMX
Fryers Models E-22-14F
Fryers Models E-22-14F
G_EC_PL_COUNTER_E22SERIES_11.pdf
E22-36-48GMX
Fryers Models E-22-14F
# PART # DESCRIPTION QTY Note
1 G1603-1-9 Tie Bar Support 1
2 G1588-1 Element Fryer - 240V/5.3KW 1 [1]
2 G1588-2 Element Fryer - 208V/5.3KW 1 [1]
2 G1588-3 Element Fryer - 220V/5.3KW 1 [1]
3 G1610-1-8 Terminal Box 1
4 G1597-2-8P Control Panel Plated 1
5 G1156-1 Straight Through Fitting 2
6 G2694-01-8P End Post Assembly Plated 2
7 G1599-5-9 Locking Brace 1
8 G2639-1-9 Extension Angle 1
9 G2630-014-8P Main Top Assembly Plated 1
10 G01500-1 Ground Lug 1
11 G2635-014-8 Main Back Assembly 1
12 G2672-01-82 Main Side Assembly - Left 1
13 F157 Bolt - 0.375"-16 x 1.06" 4
14 G2637-1-7 Terminal Shield 1
15 G2636-1-7 Terminal Protection Side 1
16 G2621-14-9 Upper Front Panel 1 [1]
17 G2638-14-7 Front Shield 1
18 G2634-14-7 Main Bottom 1
19 G2672-01-81 Main Side Assembly - Right 1
20 G2610-14-9 Lower Front Panel 1
21 4529725 Garland Logo 1
22 G02700-3 Fryer Basket Twin - Right 1 [1]
22 G02700-4 Fryer Basket Twin - Left 1 [1]
22 G02701-2 Fryer Basket Single Opt [1]
23 G02691-030-8P Fry Tank Assembly 1
24 G02716-1 Dial - (Universal) Small Shaft 1 [2]
24 G02725-20 Dial Insert 1 [3]
24 G02725-12 Dial Insert 1 [4]
25 G01296-2 Pilot Amber 1
26 G2939-1-8 Switch Bracket 1
27 G2693-1 Thermostat G1 200F TO 400F 1 [1]
28 2113600 High Limit Thermostat 1 [5]
29 CK162 Zip Timer Conversion Kit 3
30 G1155-1 Black PVC Grommet 2 [6]
31 F139 Clamp Tinnerman 4
32 G1639-1-9 Bracket Handle 1
33 G1629-1-9P Lifting Handle Plastic Dip 1 [1]
34 G2689-1-6 Banking Plate 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Universal
[3] - OFF/200F/375F
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Fryers Models E-22-14F
G_EC_PL_COUNTER_E22SERIES_11.pdf
E22-36-48GMX
Fryers Models E-22-14F
# PART # DESCRIPTION QTY Note
[4] - OFF/95C/190C
[5] - NOT ILLUSTRATED
[6] - NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Fryers Models E-22-14F
G_EC_PL_COUNTER_E22SERIES_11.pdf
E22-36-48GMX
Fryers Models E22-28FT
Fryers Models E22-28FT
G_EC_PL_COUNTER_E22SERIES_12.pdf
E22-36-48GMX
Fryers Models E22-28FT
# PART # DESCRIPTION QTY Note
1 G1603-1-9 Tie Bar Support 2
2 G1588-1 Element Fryer - 240V/5.3KW 2 [1]
2 G1588-2 Element Fryer - 208V/5.3KW 2 [1]
2 G1588-3 Element Fryer - 220V/5.3KW 2 [1]
3 G1610-1-8 Terminal Box 2
4 G1597-2-8P Control Panel Plated 2
5 G1156-1 Straight Through Fitting 4
6 G2694-01-8P End Post Assembly Plated 2
6 G2695-01-8P Center Post Assembly - Plated 1
7 G1599-5-9 Locking Brace 2
8 G2639-1-9 Extension Angle 2
9 G2640-028-8P Main Top Assembly Plated 1
10 G01499-1 Ground Terminal 105A Large SLU-70 1
11 G2635-028-8 Main Back Assembly 1
12 G2672-01-82 Main Side Assembly - Left 1
13 F157 Bolt - 0.375"-16 x 1.06" 4
14 G2637-1-7 Terminal Shield 1
15 G2636-1-7 Terminal Protection Side 1
16 G2621-28-9 Upper Front Panel 1
17 G2638-28-7 Front Shield 1
18 G2634-28-7 Main Bottom 1
19 G2672-01-81 Main Side Assembly - Right 1
20 G2610-28-9 Lower Front Panel 1
21 4529725 Garland Logo 1
22 G02700-3 Fryer Basket Twin - Right 1 [1]
22 G02700-4 Fryer Basket Twin - Left 1 [1]
22 G02701-2 Fryer Basket Single 1 [1]
23 G02691-030-8P Fry Tank Assembly 2
24 G02716-1 Dial - (Universal) Small Shaft 2 [2]
24 G02725-20 Dial Insert 2 [3]
24 G02725-12 Dial Insert 2 [4]
25 G01296-2 Pilot Amber 2 [1]
26 G2939-1-8 Switch Bracket 2
27 G2693-1 Thermostat G1 200F TO 400F 2 [1]
28 2113600 High Limit Thermostat 2 [5]
29 CK162 Zip Timer Conversion Kit 6
30 G1155-1 Black PVC Grommet 4 [5]
31 F139 Clamp Tinnerman 8
32 G1639-1-9 Bracket Handle 2
33 G1629-1-9P Lifting Handle Plastic Dip 2
34 G2689-1-6 Banking Plate 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Universal
[3] - OFF/200F/375F
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Fryers Models E22-28FT
G_EC_PL_COUNTER_E22SERIES_12.pdf
E22-36-48GMX
Fryers Models E22-28FT
# PART # DESCRIPTION QTY Note
[4] - OFF/95C/190C
[5] - NOT ILLUSTRATED
Fryers Models E22-28FT
G_EC_PL_COUNTER_E22SERIES_12.pdf
E22-36-48GMX
Grddles Models E22-18G-1
Grddles Models E22-18G-1
G_EC_PL_COUNTER_E22SERIES_13.pdf
E22-36-48GMX
Grddles Models E22-18G-1
# PART # DESCRIPTION QTY Note
1 G01882-018-8 Griddle Assembly 1
2 G01787-1 Element - 208V/4KW 1 [1]
2 G01787-2 Element - 240V/4KW 1 [1]
3 G2402-1-5 Top Support Prop 1
4 G01891-1-6 Bulb Clamp 1
5 G01885-1-6 Element Clamp 2
6 G01887-01-7 Wire Way Channel Assembly 1
7 G01888-1-7 Terminal Box Cover 1
8 G01924-1-7 Terminal Box Heat Shield 1
9 G01890-1-7 Control & Pilot Baffle 2
10 G01930-01-7 Wireway Assembly 1
11 G01500-1 Ground Lug 1
12 2147300 Terminal Block 1
13 G2689-1-6 Banking Plate 2 [2]
14 G2606-01-82 Body Side Assembly - Left - Painted 1
14 G2606-01-92 Body Side Assembly - Left - SS 1
15 G01889-1-7 Grease Box Cover 1
16 G2744-01-6 Drain Chute Assembly 1
17 F157 Bolt - 0.375"-16 x 1.06" 4
18 G02068-18-7 Main Bottom 1
19 G2670-018-7 Switch Cover Assembly 1
20 G2652-1-7 Grease Pan Support 1
21 G2669-18-9 Upper Front Panel 1
22 G2657-18-9 Lower Front Panel 1
23 G01296-2 Pilot Amber 1 [1]
24 4529725 Garland Logo 1
25 G02716-1 Dial - (Universal) Small Shaft 1 [3]
25 G02725-19 Dial Insert 1 [4]
25 G02725-11 Dial Insert Griddle Celsius 1 [5]
26 G2674-1 Thermostat G1 150F TO 450F 1
27 G2606-01-81 Body Side Assembly - Right - Painted 1
27 G2606-01-91 Body Side Assembly - Right - SS 1
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-018-8 Main Back Assembly 1
30 G2671-018-9 Main Back Assembly 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Grddles Models E22-18G-1
G_EC_PL_COUNTER_E22SERIES_13.pdf
E22-36-48GMX
Grddles Models E22-18G-2
Grddles Models E22-18G-2
G_EC_PL_COUNTER_E22SERIES_14.pdf
E22-36-48GMX
Grddles Models E22-18G-2
# PART # DESCRIPTION QTY Note
1 G2664-018-8 Fryer Top Assembly 1
2 G1713-1 Griddle Element - 240V 2 [1]
2 G1713-2 Griddle Element - 208V 2 [1]
3 G2402-1-5 Top Support Prop 1
4 G2395-2-9 Element Clamp 2
5 G1705-1-9 Element Clamp Short 4
7 G2668-1-6 Element Baffle 1
8 G2667-1-6 Element Cover 1
9 G2615-1-7 Terminal Protection Box 1
10 G01500-1 Ground Lug 1
11 2147300 Terminal Block 1
12 G2689-1-6 Banking Plate 2 [2]
13 G2617-01-7 Wire Way Assembly 1
14 G2655-1-7 Grease Pan Guard 1
15 G2744-01-6 Drain Chute Assembly 1
16 F157 Bolt - 0.375"-16 x 1.06" 4
17 G2606-01-82 Body Side Assembly - Left - Painted 1
17 G2606-01-92 Body Side Assembly - Left - SS 1
18 G2651-18-7 Main Bottom 1
19 G2652-1-7 Grease Pan Support 2
20 G2669-18-9 Upper Front Panel 1
21 G2657-18-9 Lower Front Panel 1
22 G01296-2 Pilot Amber 1
23 4529725 Garland Logo 1 [1]
24 G02716-1 Dial - (Universal) Small Shaft 1 [3]
24 G02725-19 Dial Insert 1 [4]
24 G02725-11 Dial Insert Griddle Celsius 1 [5]
25 G2674-1 Thermostat G1 150F TO 450F 1 [1]
26 G2670-18-7 Switch Cover 1
27 G2606-01-81 Body Side Assembly - Right - Painted 1 [1]
27 G2606-01-91 Body Side Assembly - Right - SS 1 [1]
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-018-8 Main Back Assembly 1
30 G2671-018-9 Main Back Assembly 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
Grddles Models E22-18G-2
G_EC_PL_COUNTER_E22SERIES_14.pdf
E22-36-48GMX
Grddles Models E22-24G-1
Grddles Models E22-24G-1
G_EC_PL_COUNTER_E22SERIES_15.pdf
E22-36-48GMX
Grddles Models E22-24G-1
# PART # DESCRIPTION QTY Note
1 G01881-024-8 Griddle Assembly 1
2 G01816-1 Element - 208V/3350W 2 [1]
2 G01816-2 Element - 240V/3350W 2 [1]
2 G01816-3 Element - 220V/3350W 2 [1]
3 G2402-1-5 Top Support Prop 1
4 G01891-1-6 Bulb Clamp 2
5 G01884-1-6 Element Clamp 4
6 G01887-01-7 Wire Way Channel Assembly 1
7 G01888-1-7 Terminal Box Cover 1
8 G01925-1-7 Terminal Box Heat Shield 1
9 G01890-1-7 Control & Pilot Baffle 2
10 G01930-01-7 Wireway Assembly 1
11 G01499-1 Ground Terminal 105A Large SLU-70 1
12 2147300 Terminal Block 2
13 G2689-1-6 Banking Plate 2 [2]
14 G2606-01-82 Body Side Assembly - Left - Painted 1
14 G2606-01-92 Body Side Assembly - Left - SS 1
15 G01889-1-7 Grease Box Cover 1
16 G2744-01-6 Drain Chute Assembly 1
17 F157 Bolt - 0.375"-16 x 1.06" 4
18 G02068-24-7 Main Bottom 1
19 G2686-024-7 Switch Cover Assembly 1
20 G2652-1-7 Grease Pan Support 1
21 G2656-24-9 Upper Front Panel 1
22 G2657-24-9 Lower Front Panel 1
23 G01296-2 Pilot Amber 2 [1]
24 4529725 Garland Logo 1
25 G02716-1 Dial - (Universal) Small Shaft 2 [3]
25 G02725-19 Dial Insert 2 [4]
25 G02725-11 Dial Insert Griddle Celsius 2 [5]
26 G2674-1 Thermostat G1 150F TO 450F 2 [1]
27 G2606-01-81 Body Side Assembly - Right - Painted 1
27 G2606-01-91 Body Side Assembly - Right - SS 1
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-024-8 Main Back Assembly 1
30 G2671-024-9 Main Back Assembly 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Grddles Models E22-24G-1
G_EC_PL_COUNTER_E22SERIES_15.pdf
E22-36-48GMX
Grddles Models E22-24G-2
Grddles Models E22-24G-2
G_EC_PL_COUNTER_E22SERIES_16.pdf
E22-36-48GMX
Grddles Models E22-24G-2
# PART # DESCRIPTION QTY Note
1 G2675-06-8 Fryer Top Assembly 1
2 G2679-1 Element - 208V/3350W 2 [1]
2 G2679-2 Element - 240V/3350W 2 [1]
3 G2402-1-5 Top Support Prop 1
4 G2395-2-9 Element Clamp 2
6 G1705-2-9 Element Clamp Long 6
7 G2683-24-6 Element Baffle 1
8 G2682-24-6 Element Cover 1
9 G2615-1-7 Terminal Protection Box 1
10 G01500-1 Ground Lug 1
11 2147300 Terminal Block 1
12 G2689-1-6 Banking Plate 2 [2]
13 G2617-01-7 Wire Way Assembly 2
14 G2655-1-7 Grease Pan Guard 1
15 G2744-01-6 Drain Chute Assembly 1
16 F157 Bolt - 0.375"-16 x 1.06" 4
17 G2606-01-82 Body Side Assembly - Left - Painted 1
17 G2606-01-92 Body Side Assembly - Left - SS 1
18 G2651-24-7 Main Bottom 1
19 G2652-1-7 Grease Pan Support 2
20 G2656-24-9 Upper Front Panel 1
21 G2657-24-9 Lower Front Panel 1
22 G01296-2 Pilot Amber 2
23 4529725 Garland Logo 1 [1]
24 G02716-1 Dial - (Universal) Small Shaft 2 [3]
24 G02725-19 Dial Insert 2 [4]
24 G02725-11 Dial Insert Griddle Celsius 2 [5]
25 G2674-1 Thermostat G1 150F TO 450F 2 [1]
26 G2686-24-7 Switch Cover 1 [1]
27 G2606-01-81 Body Side Assembly - Right - Painted 1
27 G2606-01-91 Body Side Assembly - Right - SS 1
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-024-8 Main Back Assembly 1
30 G2671-024-9 Main Back Assembly 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
Grddles Models E22-24G-2
G_EC_PL_COUNTER_E22SERIES_16.pdf
E22-36-48GMX
Grddles Models E22-36G-1
Grddles Models E22-36G-1
G_EC_PL_COUNTER_E22SERIES_17.pdf
E22-36-48GMX
Grddles Models E22-36G-1
# PART # DESCRIPTION QTY Note
1 G01880-036-8 Griddle Assembly 1
2 G01816-1 Element - 208V/3350W 3 [1]
2 G01816-2 Element - 240V/3350W 3 [1]
2 G01816-3 Element - 220V/3350W 3 [1]
3 G2402-1-5 Top Support Prop 1
4 G01891-1-6 Bulb Clamp 3
5 G01884-1-6 Element Clamp 6
6 G01887-01-7 Wire Way Channel Assembly 1
7 G01888-1-7 Terminal Box Cover 1
8 G01925-1-7 Terminal Box Heat Shield 1
9 G01890-1-7 Control & Pilot Baffle 3
10 G01930-01-7 Wireway Assembly 2
11 G01499-1 Ground Terminal 105A Large SLU-70 1
12 2147300 Terminal Block 2
13 G2689-1-6 Banking Plate 2 [2]
14 G2606-01-82 Body Side Assembly - Left - Painted 1
14 G2606-01-92 Body Side Assembly - Left - SS 1
15 G01889-1-7 Grease Box Cover 1
16 G2744-01-6 Drain Chute Assembly 1
17 F157 Bolt - 0.375"-16 x 1.06" 4
18 G02068-24-7 Main Bottom 1
19 G2686-024-7 Switch Cover Assembly 1
20 G2652-1-7 Grease Pan Support 1
21 G2684-36-9 Upper Front Panel 1
22 G2657-36-9 Lower Front Panel 1
23 G01296-2 Pilot Amber 3 [1]
24 4529725 Garland Logo 1
25 G02716-1 Dial - (Universal) Small Shaft 3 [3]
25 G02725-19 Dial Insert 3 [4]
25 G02725-11 Dial Insert Griddle Celsius 3 [5]
26 G2674-1 Thermostat G1 150F TO 450F 3 [1]
27 G2606-01-81 Body Side Assembly - Right - Painted 1
27 G2606-01-91 Body Side Assembly - Right - SS 1
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-036-8 Main Back Assembly 1
30 G2671-036-9 Main Back Assembly SS 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
RECOMMENDED STOCK PARTS
Grddles Models E22-36G-1
G_EC_PL_COUNTER_E22SERIES_17.pdf
E22-36-48GMX
Grddles Models E22-36G-2
Grddles Models E22-36G-2
G_EC_PL_COUNTER_E22SERIES_18.pdf
E22-36-48GMX
Grddles Models E22-36G-2
# PART # DESCRIPTION QTY Note
1 G2675-05-8 Fryer Top Assembly 1
2 G2679-1 Element - 208V/3350W 3 [1]
2 G2679-2 Element - 240V/3350W 3 [1]
3 G2402-1-5 Top Support Prop 1
4 G2395-2-9 Element Clamp 3
5 G1705-1-9 Element Clamp Short 2
6 G1705-2-9 Element Clamp Long 8
7 G2681-36-6 Element Baffle 1
8 G2680-36-6 Element Cover 1
9 G2615-1-7 Terminal Protection Box 1
10 G01500-1 Ground Lug 1
11 2147300 Terminal Block 1
12 G2689-1-6 Banking Plate 2 [2]
13 G2617-01-7 Wire Way Assembly 2
14 G2655-1-7 Grease Pan Guard 1
15 G2744-01-6 Drain Chute Assembly 1
16 F157 Bolt - 0.375"-16 x 1.06" 4
17 G2606-01-82 Body Side Assembly - Left - Painted 1
17 G2606-01-92 Body Side Assembly - Left - SS 1
18 G2651-36-7 Main Bottom 1
19 G2652-1-7 Grease Pan Support 2
20 G2684-36-9 Upper Front Panel 1
21 G2657-36-9 Lower Front Panel 1
22 G01296-2 Pilot Amber 3
23 4529725 Garland Logo 1
24 G02716-1 Dial - (Universal) Small Shaft 3 [3]
24 G02725-19 Dial Insert 3 [4]
24 G02725-11 Dial Insert Griddle Celsius 3 [5]
25 G2674-1 Thermostat G1 150F TO 450F 3 [1]
26 G2685-36-7 Switch Cover 1 [1]
27 G2606-01-81 Body Side Assembly - Right - Painted 1
27 G2606-01-91 Body Side Assembly - Right - SS 1
28 G2654-1-9 Grease Pan Front 1
29 G2653-1-8 Grease Pan 1
30 G2671-036-8 Main Back Assembly 1
30 G2671-036-9 Main Back Assembly SS 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - NOT ILLUSTRATED
[3] - Universal
[4] - OFF/100F/450F
[5] - OFF/40C/230C
Grddles Models E22-36G-2
G_EC_PL_COUNTER_E22SERIES_18.pdf
E22-36-48GMX
Hot Plate E22-12H
Hot Plate E22-12H
G_EC_PL_COUNTER_E22SERIES_19.pdf
E22-36-48GMX
Hot Plate E22-12H
# PART # DESCRIPTION QTY Note
1 G2614-1-8 Backguard Cover 1
2 G2613-1-9 Backguard 1
3 G1705-1-9 Element Clamp Short 2
4 G2673-1-7 Vent Stock 1
5 G2612-1-7 Rear Shield Upper 1
6 G2612-2-7 Rear Shield Lower 1
7 G2608-012-8 Main Back Assembly 1
8 G2689-1-6 Banking Plate 2 [1]
9 G2617-01-7 Wire Way Assembly 1
10 G2606-01-82 Body Side Assembly - Left - Painted 1
11 F157 Bolt - 0.375"-16 x 1.06" 4
12 G1555-1 ID Plate - Front 1 [1]
13 G2610-12-9 Lower Front Panel 1
14 4529725 Garland Logo 1
15 G02716-1 Dial - (Universal) Small Shaft 2 [2]
15 G02725-4 Dial Insert 2 [3]
16 G03185-2 Infinite Switch - 240V 2 [4]
17 G1555-2 Rear ID Plate 1 [1]
18 G2609-1-9 Upper Front Panel 1
19 G2607-12-7 Main Bottom 1
20 G2611-12-7 Switch Cover 1
21 G2606-01-81 Body Side Assembly - Right - Painted 1
22 G2605-1-8P Main Top Plated 1
23A 2195100 Surface Element - 208V - 6.5" 1 [4]
23A 2195101 Surface Element - 240V - 6.5” 1 [4]
23B 2602499 Ring Assembly - 6.5" 1 [4]
23C 2195200 Reflector Pans - 6-0.5” 1 [4]
23D 2195800 Split Terminal Block 1 [5]
23E 2627700 Terminal Block Clip 1 [4]
24A 2195000 Surface Element - 208V - 8” 1
1
24A 2195001 Surface Element - 240V - 8” 1 [6]
24B 2602399 Ring Assembly - 8" 1 [4]
24C 2195300 Ballast 1 [4]
24D 2195800 Split Terminal Block [5]
24E 2627700 Terminal Block Clip 1 [4]
25 G01500-1 Ground Lug
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - Universal
RECOMMENDED STOCK PARTS
[3] - OFF/MIN/2-6/MAX
RECOMMENDED STOCK PARTS
[4] - RECOMMENDED STOCK PARTS
[5] - Small
RECOMMENDED STOCK PARTS
[6]
Hot Plate E22-12H
G_EC_PL_COUNTER_E22SERIES_19.pdf
Loading...
