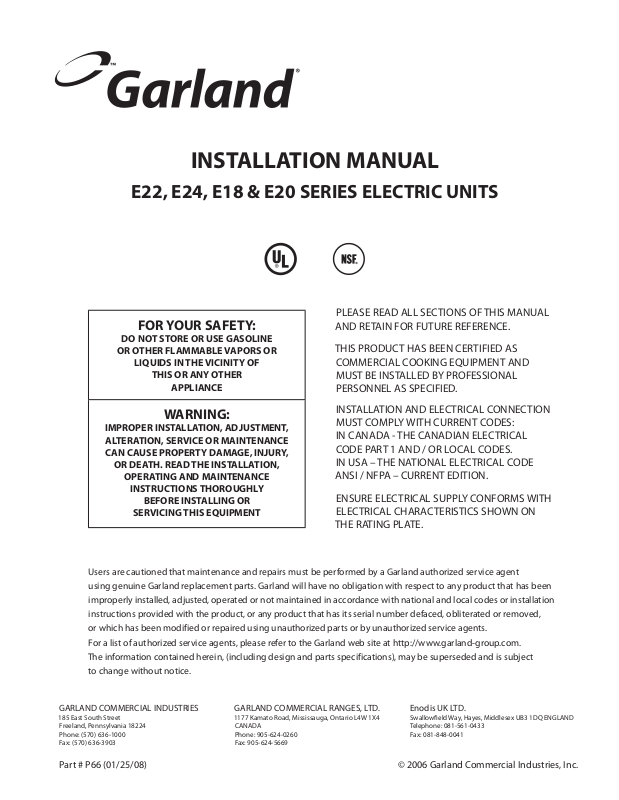

Garland E18FBL Installation Manual

INSTALLATION MANUAL

E22, E24, E18 & E20 SERIES ELECTRIC UNITS

PLEASE READ ALL SECTIONS OF THIS MANUAL

FOR YOUR SAFETY:

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS OR

LIQUIDS IN THE VICINITY OF

THIS OR ANY OTHER

APPLIANCE

AND RETAIN FOR FUTURE REFERENCE.

THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL

PERSONNEL AS SPECIFIED.

WARNING:

IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,

OR DEATH. READ THE INSTALLATION,

OPERATING AND MAINTENANCE

INSTRUCTIONS THOROUGHLY

BEFORE INSTALLING OR

SERVICING THIS EQUIPMENT

INSTALLATION AND ELECTRICAL CONNECTION

MUST COMPLY WITH CURRENT CODES:

IN CANADA - THE CANADIAN ELECTRICAL

CODE PART 1 AND / OR LOCAL CODES.

IN USA – THE NATIONAL ELECTRICAL CODE

ANSI / NFPA – CURRENT EDITION.

ENSURE ELECTRICAL SUPPLY CONFORMS WITH
ELECTRICAL CHARACTERISTICS SHOWN ON

THE RATING PLATE.

Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent

using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been

improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation

instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,

or which has been modified or repaired using unauthorized parts or by unauthorized service agents.

For a list of authorized service agents, please refer to the Garland web site at http://www.garland-group.com.

The information contained herein, (including design and parts specifications), may be superseded and is subject

to change without notice.

GARLAND COMMERCIAL INDUSTRIES

185 East South Street
Freeland, Pennsylvania 18224
Phone: [phone]
Fax: [phone]

Part # P66 (01/25/08) © 2006 Garland Commercial Industries, Inc.

Part # P66 (01/25/08) Page 1

GARLAND COMMERCIAL RANGES, LTD.

1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: [phone]
Fax: [phone]

Enodis UK LTD.

Swalloweld Way, Hayes, Middlesex UB3 1DQ ENGLAND
Telephone: [phone]
Fax: [phone]

IMPORTANT INFORMATION

WARNING:
This product contains chemicals known to the state of california to cause cancer and/or birth defects
or other reproductive harm. Installation and servicing of this product could expose you to airborne
particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers
is known to the state of California to cause cancer.

Part # P66 (01/25/08)Page 2

TABLE OF CONTENTS

IMPORTANT INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Uncrating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Statutory Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Rating Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

E22 Series Installation Of Banking Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

E24 Series Installation of Banking Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

CS22 Counter Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

CS24 Counter Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Fryers – Model E22-14F & E22-28FT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hot Plate – Model E22-12H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Griddles –Model E22-18G, E22-24G & E22-36G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Sandwich Griddle – Model E22-18SG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Food Warmers – Model E22-15W, E22-15WP, E24-32W & E24-32WP. . . . . . . . . . . . . . . . . .7

Pizza Ovens – Model E22-22P & E22-22PP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Broilers – Models E22-12B, E22-24B & E22-36B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Hot Plate – Model E24-12H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Fryers – Model E24-31F, E24-31SF, E24-31FBL, E24-31SFBL, E18F, E18SF,

E18FBL & E18SFBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Griddles – Model E24-24G, E24-36G, E24-48G, E24-60G & E24-72G . . . . . . . . . . . . . . . .10

Stock Pots Ranges – Model E20-SP & E20-SPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Part # P66 (01/25/08) Page 3

GENERAL INFORMATION

Uncrating

Carefully remove the units from the carton.

Remove all packing material from the units. On stainless steel
and brushed chrome units, the protective material covering
the stainless steel and brushed chrome should be removed.

Statutory Regulations

The installation and connection should comply with current
codes in Canada – The Canadian electrical code part 1 and /
or local codes. In USA – The National Electrical Code ANSI /
NFPA – Current Edition, and include

1. Switch panel size

INSTALLATION

2. Overload protection

3. Wire type

4. Wire size

5. Temperature limitations of the wires

6. Method of connection (Cable, Conduit, etc.)

Rating Plate

Ensure that the electrical supply conforms with the electrical
characteristics shown on the rating plate.

For serial plate location (showing voltage and loading), wall
clearances and required temperate ratings for supply cable,
refer to the section for the model being installed.

E22 Series Installation Of Banking Plates

All units may be installed independently or banked with
other E22 or G22 Series equipment. To ensure a matching
and permanent t between units, two banking plates are
available for each unit to be installed. One at the front and
one at the rear of each two units being banked together.
(If 2-1/2” (64mm) legs are supplied with the unit, discard
leveling bolts and replace with the 2-1/2” (64mm) legs.

1. Level each unit by adjustment of leveling bolts or legs.
Use a spirit level and level unit four ways; across front and
back and down left and right edges. Level all other units
to the rst unit.

Note: Griddles may not rest evenly on the unit body if

units are not leveled.

2. Remove sheet metal screws at rear of unit.

3. Attach one banking plate in position at rear by placing
the 1/4” (6 mm) diameter holes in the banking plate
over the screw holes in the rear of units and fasten by
replacing the sheet metal screws removed in Step 2.

4. Push units into position on counter top or back bar.

5. Remove lower front panels, by removing the acorn nuts
on each side of the panel. NOTE: CARE SHOULD BE TAKEN
WHEN REMOVING LOWER FRONT PANEL, SO THAT THE
WIRES ARE NOT DISENGAGED FROM THE SWITCHES OR
CONTROLS.

6. Place the second banking plate in position so that the
5/8” (16mm) diameter Holes in the banking plate t
over the lower front panel mounting bolts, with the 1/4”
(6mm) diameter holes in the banking plate at the bottom.

7. Secure the banking plate to both units, with the sheet
metal screws provided with the banking plates.

8. Replace and secure the lower front panels

E24 Series Installation of Banking Plates

All units may be installed independently or banked with
other E24 or G24 Series equipment. To ensure a matching
and permanent t between units, a front banking plate is
supplied with each unit. If 2 1/2”(64 mm) legs are supplied
with nit, discard leveling bolts and replace with 2 1/2”
(64 mm) legs.

Part # P66 (01/25/08)Page 4
