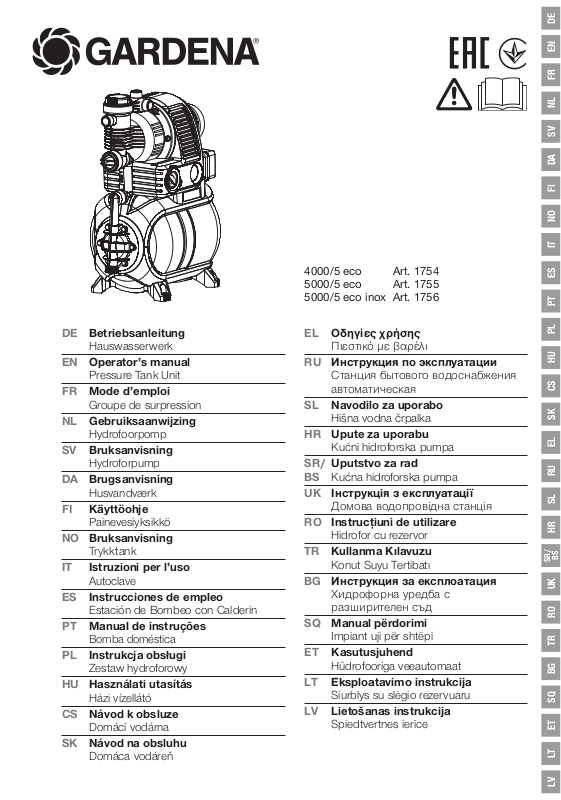

4000/5 eco Art. 1754 5000/5 eco Art. 1755 5000/5 eco inox Art. 1756

DEENFRNLSVDAFINOITESPTPLHUCSSKELRUSLHR

DE Betriebsanleitung

Hauswasserwerk

EN Operator’s manual

Pressure Tank Unit

FR Mode d’emploi

Groupe de surpression

NL Gebruiksaanwijzing

Hydrofoorpomp

SV Bruksanvisning

Hydroforpump

DA Brugsanvisning

Husvandværk

FI Käyttöohje

Painevesiyksikkö

NO Bruksanvisning

Trykktank

IT Istruzioni per l’uso

Autoclave

ES Instrucciones de empleo

Estación de Bombeo con Calderín

PT Manual de instruções

Bomba doméstica

PL Instrukcja obsługi

Zestaw hydroforowy

HU Használati utasítás

Házi vízellátó

CS Návod k obsluze

Domácí vodárna

SK Návod na obsluhu

Domáca vodáreň

EL Οδηγίες χρήσης

Πιεστικό με βαρέλι

RU Инструкция по эксплуатации

Станция бытового водоснабжения

автоматическая

SL Navodilo za uporabo

Hišna vodna črpalka

HR Upute za uporabu

Kućni hidroforska pumpa

SR / Uputstvo za rad BS Kućna hidroforska pumpa

UK Інструкція з експлуатації

Домова водопровідна станція

RO Instrucţiuni de utilizare

Hidrofor cu rezervor

TR Kullanma Kılavuzu

Konut Suyu Tertibatı

BG Инструкция за експлоатация

Хидрофорна уредба с

разширителен съд

SQ Manual përdorimi

Impiant uji për shtëpi

ET Kasutusjuhend

Hüdrofooriga veeautomaat

LT Eksploatavimo instrukcija

Siurblys su slėgio rezervuaru

LV Lietošanas instrukcija

Spiedtvertnes ierīce

SR /

UKROTRBGSQETLTLV

Page 2

DE Produkthaftung

Wir weisen ausdrücklich darauf hin, dass wir in Übereinstimmung mit dem Produkthaftungsgesetz nicht für Schäden haften, die durch unsere Produkte entstehen, wenn diese unsachgemäß und nicht durch einen von uns autorisierten Servicepartner repariert wurden oder wenn keine Original GARDENA Teile oder von uns zugelassene Teile verwendet wurden.

EN Product liability

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA-approved service partner or where original GARDENA parts or parts authorised by GARDENA were not used.

FR Responsabilité

Conformément à la loi relative à la responsabilité du fait des produits défectueux, nous déclarons expressément par la présente que nous déclinons toute responsabilité pour les dommages résultant de nos produits, si lesdits produits n‘ont pas été correctement réparés par un partenaire d‘entretien agréé GARDENA ou si des pièces d’origine GARDENA ou des pièces agréées GARDENA n‘ont pas été utilisées.

NL Productaansprakelijkheid

Conform de Duitse wet inzake productaansprakelijkheid verklaren wij hierbij uitdrukkelijk dat wij geen aansprakelijkheid aanvaarden voor schade ontstaan uit onze producten waarbij deze producten niet zijn gerepareerd door een GARDENA-erkende servicepartner of waarbij geen originele GARDENA-onderdelen of onderdelen die door GARDENA zijn goedgekeurd zijn gebruikt.

SV Produktansvar

I enlighet med tyska produktansvarslagar förklarar vi härmed uttryckligen att vi inte åtar oss något ansvar för skador som orsakas av våra produkter där produkterna inte har genomgått korrekt reparation från en GARDENA-godkänd servicepartner eller där originaldelar från GARDENA eller delar godkända av GARDENA inte använts.

DA Produktansvar

I overensstemmelse med den tyske produktansvarslov erklærer vi hermed udtrykkeligt, at vi ikke påtager os noget ansvar for skader på vores produkter, hvis de pågældende produkter ikke er blevet repareret korrekt af en GARDENA-godkendt servicepartner, eller hvor der ikke er brugt originale GARDENA-reservedele eller godkendte reservedele fra GARDENA.

FI Tuotevastuu

Saksan tuotevastuulain mukaisesti emme ole vastuussa laitteiden vaurioista, jos korjauksia ei ole tehnyt GARDENAn hyväksymä huoltoliike tai jos niiden syynä on muiden kuin alkuperäisten GARDENA-varaosien tai GARDENAn hyväksymien varaosien käyttö.

IT Responsabilità del prodotto

In conformità con la Legge tedesca sulla responsabilità del prodotto, con la presente dichiariamo espressamente che decliniamo qualsiasi responsabilità per danni causati dai nostri prodotti qualora non siano stati correttamente riparati presso un partner di assistenza approvato GARDENA o laddove non siano stati utilizzati ricambi originali o autorizzati GARDENA.

ES Responsabilidad sobre el producto

De acuerdo con la Ley de responsabilidad sobre productos alemana, por la presente declaramos expresamente que no aceptamos ningún tipo de responsabilidad por los daños ocasionados por nuestros productos si dichos productos no han sido reparados por un socio de mantenimiento aprobado por GARDENA o si no se han utilizado piezas originales GARDENA o piezas autorizadas por GARDENA.

PT Responsabilidade pelo produto

De acordo com a lei alemã de responsabilidade pelo produto, declaramos que não nos responsabilizamos por danos causados pelos nossos produtos, caso os tais produtos não tenham sido devidamente reparados por um parceiro de assistência GARDENA aprovado ou se não tiverem sido utilizadas peças GARDENA originais ou peças autorizadas pela GARDENA.

PL Odpowiedzialność za produkt

Zgodnie z niemiecką ustawą o odpowiedzialności za produkt, niniejszym wyraźnie oświadczamy, że nie ponosimy żadnej odpowiedzialności za szkody poniesione na skutek użytkowania naszych produktów, w przypadku gdy naprawa tych produktów nie była odpowiednio przeprowadzana przez zatwierdzonego przez firmę GARDENA partnera serwisowego lub nie stosowano oryginalnych części GARDENA albo części autoryzowanych przez tę firmę.

HU Termékszavatosság

A németországi termékszavatossági törvénnyel összhangban ezennel nyomatékosan kijelentjük, hogy nem vállalunk felelősséget a termékeinkben keletkezett olyan károkért, amelyek valamely GARDENA által jóváhagyott szervizpartner által nem megfelelően végzett javításból adódtak, vagy amely során nem eredeti GARDENA alkatrészeket vagy a GARDENA által jóváhagyott alkatrészeket használtak fel.

CS Odpovědnost za výrobek

V souladu s německým zákonem o odpovědnosti za výrobek tímto výslovně prohlašujeme, že nepřijímáme žádnou odpovědnost za poškození vzniklá na našich výrobcích, kdy zmíněné výrobky nebyly řádně opraveny schváleným servisním partnerem GARDENA nebo kdy nebyly použity originální náhradní díly GARDENA nebo náhradní díly autorizované společností GARDENA.

SK Zodpovednosť za produkt

V súlade s nemeckými právnymi predpismi upravujúcimi zodpovednosť za výrobok týmto výslovne prehlasujeme, že nenesieme žiadnu zodpovednosť za škody spôsobené našimi výrobkami, v prípade ktorých neboli náležité opravy vykonané servisným partnerom schváleným spoločnosťou GARDENA alebo neboli použité diely spoločnosti GARDENA alebo diely schválené spoločnosťou GARDENA.

EL Ευθύνη προϊόντος

Σύμφωνα με τον γερμανικό νόμο περί Ευθύνης για τα Προϊόντα, με το παρόν δηλώνουμε ρητώς ότι δεν αποδεχόμαστε καμία ευθύνη για τυχόν ζημίες που προκύπτουν από τα προϊόντα μας εάν αυτά δεν έχουν επισκευαστεί σωστά από κάποιον εγκεκριμένο συνεργάτη επισκευών της GARDENA ή εάν δεν έχουν χρησιμοποιηθεί αυθεντικά εξαρτήματα GARDENA ή εξαρτήματα εγκεκριμένα από την GARDENA.

SL Odgovornost proizvajalca

V skladu z nemškimi zakoni o odgovornosti za izdelke, izrecno izjavljajo, da ne sprejemamo nobene odgovornosti za škodo, ki jo povzročijo naši izdelki, če teh niso ustrezno popravili GARDENINI odobreni servisni partnerji ali pri tem niso bili uporabljeni originalni GARDENINI nadomestni deli ali GARDENINIMI homologiranimi nadomestnimi deli.

HR Pouzdanost proizvoda

Sukladno njemačkom zakonu o pouzdanosti proizvoda, ovime izričito izjavljujemo kako ne prihvaćamo nikakvu odgovornost za oštećenja na našim proizvodima nastala uslijed neispravnog popravka od strane servisnog partnera kojeg odobrava GARDENA ili uslijed nekorištenja originalnih GARDENA dijelova ili dijelova koje odobrava GARDENA.

RO Răspunderea pentru produs

În conformitate cu Legea germană privind răspunderea pentru produs, declarăm în mod expres prin prezentul document că nu acceptăm nicio răspundere pentru defecţiunile suferite de produsele noastre atunci când acestea nu au fost reparate în mod corect de un atelier de service partener, aprobat de GARDENA, sau când nu au fost utilizate piese GARDENA originale sau piese autorizate de GARDENA.

BG Отговорност за вреди, причинени от стоки

Съгласно германския Закон за отговорността за вреди, причинени от стоки, с настоящото изрично декларираме, че не носим отговорност за щети, причинени от нашите продукти, ако те не са били правилно ремонтирани от одобрен от GARDENA сервиз или ако не са използвани оригинални части на GARDENA или части, одобрени от GARDENA.

ET Tootevastutus

Vastavalt Saksamaa tootevastutusseadusele deklareerime käesolevaga selgesõnaliselt, et me ei kanna mingisugust vastutust meie toodetest tingitud kahjude eest, kui need tooted ei ole korrektselt parandatud GARDENA heakskii detud hoolduspartneri poolt või kui parandamisel ei ole kasutatud GARDENA originaalosi või GARDENA volitatud osi.

LT Gaminio patikimumas

Mes aiškiai pareiškiame, kad, atsižvelgiant į Vokietijos gaminių patikimumo įstatymą, neprisiimame atsakomybės dėl bet kokios žalos, patirtos dėl mūsų gaminių, jeigu jie buvo netinkamai taisomi arba jų dalys buvo pakeistos neoriginaliomis GARDENA dalimis ar nepatvirtintomis dalimis, arba jeigu remonto darbai buvo atliekami ne GARDENA techninės priežiūros centro specialistų.

LV Atbildība par produkcijas kvalitāti

Saskaņā ar Vācijas likumu par atbildību par produkcijas kvalitāti ar šo mēs paziņojam, ka neuzņemamies atbildību par bojājumiem, kas radušies, lietojot mūsu izstrādājumus, kuru remontu nav veicis uzņēmuma GARDENA apstiprināts apkopes partneris vai kuru remontam netika izmantotas oriģinālās GARDENA detaļas vai detaļas, kuru lietošanu apstiprinājis uzņēmums GARDENA.

Page 3

Man.

Auto

Man.

Auto

Man.

Auto

447 mm

549 mm

292 mm

Off

Start

Off

Art. 1723 / Art. 1724

Start

9 8

ECO MAX

TD1

294 mm153 mm

146 mm

E H

s a

615 mm

576 mm

Page 4

with physical, sensory or mental disabilities or a lack of experience and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance must not be performed by children without supervision. The use of this product by young people under the age of 16 is not recommended. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.

Intended use:

The GARDENA Pressure Tank Unit is intended for private use in the house and garden; it is not intended for operation of watering equipment and accessories in public gardens.

Liquids pumped:

The GARDENA Pressure Tank Unit can be used to deliver rainwater, tap water and chlorinated water.

CAUTION! The GARDENA Pressure Tank Unit is not suitable for con tinuous operation (e.g. industrial use, continuous circulation operations). Corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater and food must not be pumped. The temperature of the liquid must not exceed 35 °C.

1. SAFETY

Translation of the original instructions.

This product may be used under supervision, or if instruction regarding the safe

use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons

IMPORTANT! Read the operator’s manual carefully before use and keep for future reference.

Electrical safety

DANGER! Electric shock!

Risk of injury due to electric shock.

v Always unplug your Pressure Tank Unit before filling, after operation,

when troubleshooting and before carrying out any maintenance work.

The product must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

The pump must be located on solid, even ground, protected from flooding. Take care that the pump cannot fall into water.

As an additional safety device an authorised safety switch can be used. v Please ask your electrician for his advice. Data indicated on the type plate must match the technical data of the mains

supply. The power cable as well as any extension cable must not have a smaller diameter

than rubber sheathed cables according to DIN VDE 0620 (see 8. TECHNICAL DATA – Connection cable).

Protect the power cable from heat, oil and sharp edges. Do not use the power cable for carrying the pump or for unplugging. v If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid a hazard.

The pump must not be used when people are in water.

In Austria

In Austria the electrical connection must satisfy the ÖVE-EM 42, T2 (2000)/1979

§ 22 to § 2022.1. This requires that pumps used for swimming pools and garden ponds may only be powered through an isolating trans former.

v Please ask your electrician for his advice.

In Switzerland

In Switzerland portable devices that are used outdoors must be connected through an earth leakage circuit breaker. Mobile appliances that are used outdoors must be connected via aresidual-current device.

General safety warnings

Risk of injury due to hot water!

If the pressure switch is defective or if the water supply on the intake side of the pump fails, any water remaining in the pump may heat up, generating a risk of injuries caused by hot water on leakage.

The pump is equipped with a temperature fuse, which switches off the pump at highwater temperatures (approx. 65 °C) (orange warning lamp lights up).

v After temperature-related cut-out, disconnect the pump from the

mains via the main circuit breaker, let the water cool (approx. 10 – 15 min.) and secure the water supply on the intake side before putting into operation again.

Page 5

v Before operating the pressure tank unit, first make a visual check to ensure

there is no damage to the pressure tank unit (especially regarding power cable

and plug). A damaged pressure tank unit must not be used. v In case of damage, please have the pressure tank unit checked by our

GARDENA Service Centre or by an authorised electrician. Protect the pump from rain. Do not use the pressure tank unit in a wet or moist

area. In order to avoid dry-running of the pressure tank unit, take care that the end of

the suction hose is always submerged into the liquid. The pressure tank unit must not be run dry nor with the stopcock in the suction

pipework closed. v Before each operation, fill the pressure tank unit to overflowing with approx.

2to 3 l of the liquid to be pumped! Sand and other abrasive substances in the liquid cause increased wear and

reduce the pump’s output. When using the pump for domestic water supply, please adhere to the local

water and sewerage regulations. In addition observe the regulations of DIN 1988. v If necessary contact your local water authority. DANGER! This product makes an electromagnetic field while it operates. This

field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

DANGER! Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

(e. g. by fastening it to a wooden post) to relieve the pump of the weight of the suction hose.

If very fine dirt is present in the pumping medium, we recommend the use of a GARDENA Pump Preliminary Filter Art. no. 1730 / 1731.

Connect hose to the output side [ Fig. I3 ]:

Note:

Use pressure-tight GARDENA hoses, 19 mm (3/4") in diameter, in connection with the GARDENA Quick-Release Threaded Connector with

33.3 mm (G1) internal thread, Art. no. 7109, and the GARDENA Suction and High Pressure Connector, Art. no. 7120, for 19 mm (3/4") hoses and a GARDENA Hose Clip, Art. no. 7192.

Under no circumstances use these hoses on the suction side.

1. Connect the delivery hose to the delivery side.

2. Unused pressure connections must be closed off with an end cap

Tip: With fixed piping, only assign max. 2 connections can be bled off via the end cap 9 of the third connection. Permanent pipes must be laid at an ascending angle in order to allow the water to flow back into the pump on the pressure side.

with one of the three connections 8

so that the air

2. INITIAL OPERATION

Installing the Pressure Tank Unit:

The installation position must be firm and dry, and permit a secure mounting for the pressure tank unit.

v Install the Pressure Tank Unit at a safe distance from the pumping

medium.

The pump must be installed in a location with low air humidity and sufficient ventilation in the area of the ventilation slots. It must be at a distance of at least 5 cm from the walls. No dirt contamination (e. g. sand or earth) may be sucked in through the ventilation slots.

Fixed installation of the Pressure Tank Unit [ Fig. I1 ]:

v The Pressure Tank Unit can be screwed with all 4 feet

surface 1.

Alternatively, spring mounted feet (Art. 1753-00.901.00) for low vibration and quiet running are available as accessories via the GARDENA Service.

Install the pressure tank unit so that there is room to place a suitably sized drainage tray under the drain screw drained.

If possible, install the unit higher than the surface of the water to be pumped. If this is not possible, install a vacuum-resistant valve between the unit and the suction hose, for example for cleaning the integrated filter.

If the pump is permanently installed indoors for domestic water supply, the Pressure Tank Unit should not be connected to the domestic water pipework with rigid pipes but with flexible tubing, to reduce noise and to avoid damage to the pump caused by pressure blows.

If the system is being installed permanently, please fit suitable valves on both the intake and delivery sides. This is important e. g. for maintenance and cleaning work or if the system is being shut down.

The connection pieces on the intake and delivery sides may only be tightened by hand.

Connect the hose to the suction side [ Fig. I2 ]:

A vacuum-tight suction hose must be used e. g.: – GARDENA Suction Unit Art. no. 1411 / 1418 / 1412 or – GARDENA Bore Hole Suction Hose Art. no. 1729.

Do not use any water hose snap connection system components on the intake side!

v Connect the suction hose

connection 6 of the pump.

Connect the suction hoses tion piece (e.g. Art. no. 1723/1724) 4 with the intake side connection and screw in place so that they are airtight.

To reduce the pump repriming time, we recommend using a suction hose with backflow preventer, which prevents the suction hose emptying automatically when the Pressure Tank Unit is switched off.

For suction heights exceeding 4 m also secure the suction hose

to allow the unit or system to be

with the intake side

without a threaded connector via a connec-

onto asolid

3. OPERATION

Starting the Pressure Tank Unit [ Fig. O1 / O2 / O3 ]:

DANGER! Electric shock! v Before filling the pump, unplug the equipment from the

CAUTION! v Fill the pump to the overflow (approx. 2 to 3 l) with water each

1. Turn the rotary switch

2. Unscrew the cover

3. Open an end cap

4. Open any valves in the delivery line (watering accessories, water stop,

5. Slowly pour pumping medium (approx. 2 to 3 l) through the filler neck

6. Screw the filter chamber cover

7. Close the end cap

8. Insert the mains plug into a 230 V mains socket.

9. Turn the rotary switch

Once priming has taken place, the rotary switch switches auto matically to AUTO and the dry-running safety is activated. Once the maximum pressure is reached the pump will switch off auto matically. When the pressure falls below the minimum value due to water being drawn off, the pump will switch on again automatically.

CAUTION!

If the pump has not started priming after 10 min.,

v See 6. TROUBLESHOOTING “The pump sucks nothing up”.

The maximum self-priming head of 8 m is only achieved if the pump is filled until it overflows from the filler connection e and the delivery hose is held high enough during self-priming so that no water can escape from the pump via the delivery hose. It is not necessary to hold up the delivery hose if filled suction hoses with backflow preventer are used.

Manual mode (Man.) [ Fig. O4 ]:

When conveying very large water quantities at very low pressure, the pump switches off in Auto mode for safety reasons. However, should this operation be required, the pump can be operated in manual mode

(Man.) Warning: This deactivates the dry-running safety. v Pull the rotary switch

mains.

time before the pump is switched on.

to OFF.

of the filter chamber by hand.

on the delivery side to bleed off the air.

etc.) and drain off any residual water in the delivery hose so that the air can escape during filling and priming.

until water emerges from the open delivery side connection 8.

closed again, turning by hand until it

stops.

ned to bleed off the air.

ately!

turn the rotary switch

The pump will start.

on the delivery side which had been ope-

to START.The pump will start immedi-

to OFF.

and turn to Man.

Page 6

ECO switch [ Fig. O5 ]:

In order to save energy (up to 15 %), the cut-out pressure on the pump can, depending on the individual application, be regulated between ECO and MAX (the pressure difference between ECO and MAX totals approx. 1 bar).

v Turn the ECO rotary switch

to the required position.

Note on the use of sprinklers:

Depending on the flow rate of the sprinkler, an uneven watering pattern may occur through the pump being switched on and off automatically.

4. STORAGE

To put into storage [ Fig. S1 / O1 ]:

If there is a risk of frost, the Pressure Tank Unit must be emptied and stored where it will not become frozen. The product must be stored away from children.

1. Turn the rotary switch

to OFF.

2. Unplug the mains connection for the pump.

3. Open the delivery side consumer.

4. Unscrew the end cap

and screw out the check valve t using

a suitable tool.

5. Tip the pump in the direction of the water outlet so that the Pressure Tank Unit is completely drained off.

6. Store the pressure tank unit in a dry, frost-free place.

Disposal:

(in accordance with RL2012/19/EC)

The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations.

IMPORTANT!

v Dispose of the product through or via your municipal recycling

collection centre.

5. MAINTENANCE

DANGER! Electric shock! v Pull out mains plug before undertaking any maintenance.

Clean suction filter [ Fig. M1 / O1 / M2 ]:

1. Turn the rotary switch

to OFF.

2. If necessary, close all the shut-off devices on the intake side.

3. Unscrew and remove cover

4. Draw out filter unit

5. Hold beaker

z u

firmly, turn filter u anti-clockwise A and draw out B

of the filter chamber.

vertically upwards.

(bayonet fitting).

6. Clean beaker

under running water and clean the filter u e. g. with

a soft brush.

7. Refit filter again in reverse order.

Cleaning the check valve [ Fig. M3 / O1 ]:

1. Turn the rotary switch

to OFF.

2. If necessary, close all valves on the intake side.

3. Open all pressure side outlets, so that the pressure side is depressurised.

4. Unscrew the end cap

5. Screw out the cover

and drain off the water

of the check valve (if applicable using asuitable

tool).

6. Remove the valve body

and wash it under running water.

7. Refit in reverse order.

8. Switch the Pressure Tank Unit back on again (see 3. OPERATION).

6. TROUBLESHOOTING

DANGER! Electric shock! v Unplug the cable at the mains before trouble-shooting. Work on the electrical parts must only be carried out by

GARDENA Service Centres.

Problem Possible Cause Remedy The pump sucks nothing up Rotary switch is not turned to

Pump motor does not start or stops suddenly during operation

Pump motor runs, but quantity delivered or pressure fall away suddenly

Pump switches on and off too frequently

Pump switches on and off several times before shutting down

Orange warning lamp illuminates

START.

The pump is sucking air through a leak at a connection on the suction side.

Pump is not adequately primed with the liquid to be pumped.

Air cannot escape on the pressure side, because the pressure side outlets are closed.

End of the suction hose is not in the water, the non-return valve at the end of the suction hose is missing or leaking, the suction hose is kinked, connections are leaking or the suction filter is blocked.

Mains plug not plugged in. v Insert mains plug into a mains

Power failure. v Check fuse and cables.

Thermo circuit breaker activated (orange warning lamp lights up and the pump housing is heated).

The dry-running safety has been activated (orange warning lamp lights up).

Water removal in Auto mode too high. Pressure monitoring has been activated (orange warning lamp lights up).

Leak on the suction side. v Repair the leak.

Too little water on intake side. v Throttle the pump on the

Suction filter, check valve or backflow preventer at the end of the suction hose is blocked.

Leakage on delivery side. v Check the delivery side

Pressure in the boiler is too low.

Boiler diaphragm is damaged. v Contact GARDENA Service.

Installation-related fluctuations in pressure.

Pressure dropping below

0.8 bar during operation.

Restart the pump

(see 3. OPERATION).

Check all connections and

make them air-tight as necessary.

Fill the pump and ensure that

the water is able to flow back into the pressure line (see 3. OPERATION).

v Open the pressure side

outlets.

Check the complete suction

hose from suction point through to the pump for leaktightness and repair any leaks as necessary. Check the intake side water supply. If applicable, clean the suction filter.

socket (230 V AC).

1. Turn the rotary switch to OFF

2. Open consumer (relief pressure).

3. Ensure sufficient ventilation and allow the pump to cool for approx. 15 min.

4. Restart the pump (see 3. OPERATION).

v Check the water supply on

the intake side and restart the pump (see 3. OPERATION).

v Turn the rotary switch to Man.

(Warning! Dry-running safety is deactivated).

pressure side so that the flow quantity on the suction side is governed by that on the pressure side.

v Clean the suction filter, check

valve or backflow preventer.

for leaks and remove as necessary.

v Top up the air in the storage

tank (see below).

Turn ECO switch slightly

towards MAX.

v Turn the rotary switch to

“Man” (see section entitled “Manual mode” in the operating instructions)

– or – v restart the pump (see section

3. OPERATION) and then limit water consumption until the pressure increases to above

0.8 bar (rotary switch will automatically spring to “Auto”).

Top up the air in the storage tank [ Fig. T1 ]:

The pressure in the storage tank must be approx. 1.0 bar.

To top up the air, an air pump / tyre pump with a pressure gauge (manometer) is required.

1. Unscrew the protective cover

2. Open all pressure side outlets, so that the pressure side is depressurised.

3. Attach the air pump / tyre pump to the boiler valve

and pump air in

until the air pump/tyre pump pressure gauge shows approx. 1.0 bar.

4. Screw the protective cover

back on.

Page 7

NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist

dealers approved by GARDENA.

7. ACCESSORIES

GARDENA Suction Hoses Kink and vacuum-resistant, sold by the metre with 19 mm (3/4"),

GARDENA Suction Hose Fittings

Suction Filter with Backflow Preventer

GARDENA Pump Preliminary Filter

GARDENA Bore Hole Suction Hose

GARDENA Spring mounted feet (4 x)

25 mm (1") or 32 mm (5/4") diameter without fittings or in fixed lengths Art. no. 1411 / 1418, complete with fittings.

For vacuum-resistant connection of the pump to the suction hose sold by the metre.

To equip suction hoses with Backflow Preventer sold by the metre.

Recommended for pumping sandy water. Art. 1730 / 1731

For vacuum-resistant connection of the pump to boreholes or pipe networks. Length 0.5 m. With 33.3 mm (G1) female thread at both ends.

Spring mounted feet for vibration-free, quiet running. Can be obtained via GARDENA Service.

8. TECHNICAL DATA

Pressure Tank Unit Unit Wert (Art. 1754) Wert (Art. 1755) Wert (Art. 1756) Mains voltage /

Mains frequency Rated Power W 850 1100 1200 Connection cable m 1.5 H05RN-F 1.5 H07RN-F 1.5 H07RN-F Max. delivery capacity l/h 3500 4500 4500 Max. pressure /

max. delivery head Max. suction height m 8 8 8 Cut-in pressure bar 1.5 ± 0,1 1.8 ± 0,1 1.8 ± 0,1 Switch-off pressure

eco/max. Perm. internal pressure

(delivery side) Weight kg 15.0 17.0 17.0 Dimensions (L x W x H)

[ Fig. TD1 ] Sound power level L

measured/guaranteed Uncertainty k

Measuring process complying with: 1) RL 2000/14/EG

exposure. The vibration emission value can vary during actual use of the electric power tool.

NOTE: The stated vibration emission value has been measured according to a standardized test procedure and can be used for comparison of one electric power tool with another. It can also be used for preliminary evaluation of

V / Hz (AC) 230 / 50 230 / 50 230 / 50

bar / m 4.5 / 45 5.0 / 50 5.0 / 50

bar 2.2 / 3.2 2.5 / 3.5 2.5 / 3.5

bar 6 6 6

cm 45 x 29 x 62 45 x 29 x 62 45 x 29 x 62

dB (A)

83 / 84

2.1

87 /88

2.1

If problems arise with this product, please contact our Service department or send the defective product along with a brief description of the fault to GARDENA Manufacturing GmbH, making sure to have sufficiently covered any shipping costs and to have followed the relevant postage and packaging guidelines. A warranty claim must be accompanied by a copy of the proof of purchase.

Consumables:

The impeller and filter are wearing parts and are therefore not covered by the warranty.

Art. 1723 / 1724

Art. 1726 / 1727

Art. 1729

Art. 1753-00.901.00

87 /89

2.3

9. SERVICE / WARRANTY

Service:

Please contact the address on the back page.

Warranty:

In the event of a warranty claim, no charge is levied to you for the services provided.

GARDENA Manufacturing GmbH offers a two-year warranty (effective as of the date of purchase) for this product. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults. This warranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

• The product was used for its intended purpose as per the recommendations in the operating instructions.

• Neither the purchaser nor a third party has attempted to repair the product.

This manufacturer’s warranty does not affect warranty entitlements against the dealer / retailer.

Page 8

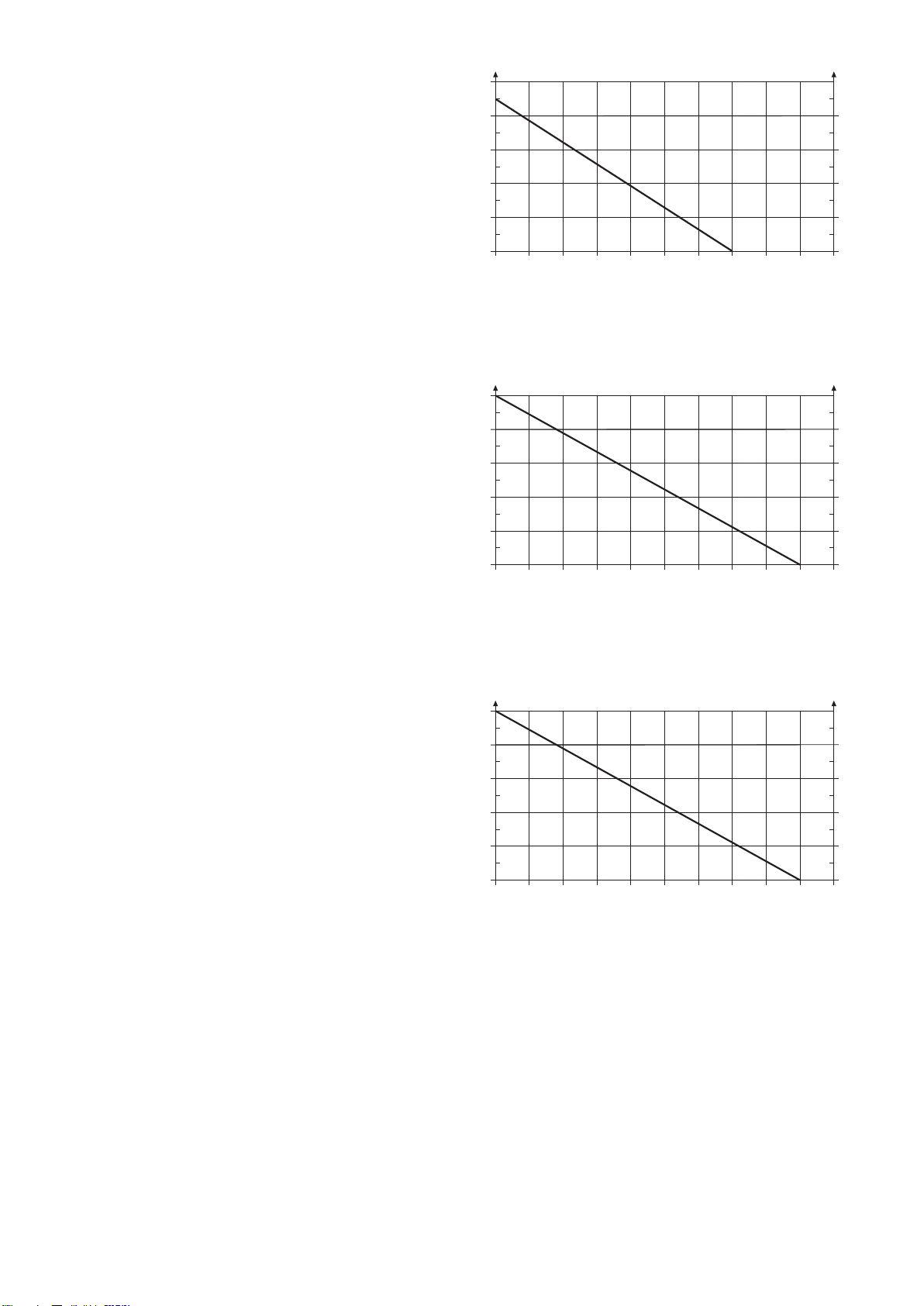

Pumpen-Kennlinien Performance characteristics Courbes de performance Prestatiegrafiek Kapacitetskurva Ydelses karakteristika Pumpun ominaiskäyrä Pumpekarakteristikk Curva di rendimento Curva característica de la bomba Características de performance Charakterystyka pompy Szivattyú-jelleggörbe Charakteristika čerpadla Charakteristiky čerpadla Χαρακτηριστικό διάγραμμα Характеристика насоса Karakteristika črpalka Obilježja pumpe Karakteristika pumpe Крива характеристики насоса Caracteristică pompă Pompa karakter eğrisi Помпена характеристика Fuqia e pompës Pumba karakteristik Siurblio charakteristinė kreivė Sūkņa raksturlīkne

4000/5 eco

bar m

0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 l/h

5000/5 eco

bar m

0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 l/h

5000/5 eco inox

bar m

0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 l/h

Page 9

DE EU-Konformitätserklärung

Der Unterzeichner, Husqvarna AB, 561 82 Huskvarna, Schweden, bescheinigt hiermit, dass die nachstehend auf geführten Geräte bei Verlassen des Werks die harmonisierten EU-Leitlinien, EU-Normen für Sicherheit und besondere Normen erfüllen. Dieses Zertifikat verliert seine Gültigkeit, wenn die Geräte ohne unsere Genehmigung verändert werden.

EN EC Declaration of Conformity

The undersigned, Husqvarna AB, 561 82 Huskvarna, Sweden, hereby certifies that, when leaving our factory, the units indicated below are in accordance with the This certificate becomes void if the units are modified without our approval.

FR Déclaration de conformité CE

Le constructeur, soussigné : Husqvarna AB, 561 82 Huskvarna, Suède, déclare qu’à la sortie de ses usines le matériel neuf désigné ci-dessous était conforme aux prescriptions des directives européennes énoncées ciaprès et conforme aux règles de sécurité et autres règles qui lui sont applicables dans le cadre de l’Union européenne. Toute modification apportée à cet appareil sans notre accord annule la validité de ce certificat.

NL EG-conformiteitsverklaring

De ondergetekende, Husqvarna AB, 561 82 Huskvarna, Zweden, verklaar t hierbij dat de producten die hieronder staan vermeld, wanneer ze onze fabriek verlaten, in overeenstemming zijn met de geharmoniseerde Europese richtlijnen, EU-normen voor veiligheid en productspecifieke normen. Dit certificaat vervalt als de producten worden aangepast zonder onze toestemming.

SV EG-försäkran om överensstämmelse

Undertecknad firma Husqvarna AB, 561 82 Huskvarna, Sverige, intygar härmed att nedan nämnda produkter, när de lämnar vår fabrik, överensstämmer med EU:s riktlinjer, EU:s säkerhetsstandarder och produktspecifika standarder. Detta intyg skall ogiltigförklaras om produkten ändras utan vårt godkännande.

DA EU-overensstemmelseserklæring

Undertegnede, Husqvarna AB, 561 82 Huskvarna, Sverige erklærer hermed, at nedenfor anførte enheder er i overensstemmelse med de harmoniserede EUret fabrikken. Denne erklæring ugyldiggøres, hvis enhederne ændres uden vores godkendelse.

FI EY-vaatimustenmukaisuusvakuutus

Husqvarna AB, 561 82 Huskvarna, Ruotsi, vakuuttaa täten, että alla mainitut laitteet ovat tehtaalta lähtiessään yhdenmukaistettujen EU-säännösten, EU:n turvastandardien ja tuotekohtaisten standardien mukaisia. Tämä vakuutus mitätöityy, jos laitteita muokataan ilman hyväksyntäämme.

IT Dichiarazione di conformità CE

La sottoscritta Husqvarna AB, 561 82 Huskvarna, Svezia, certifica che il prodotto qui di seguito indicato, nei modelli da noi commercializzati, è conforme alle prodotto. Qualunque modifica apportata al prodotto senza nostra specifica autorizzazione invalida la presente dichiarazione.

ES Declaración de conformidad CE

El abajo firmante, Husqvarna AB, 561 82 Huskvarna, Suecia, certifica por la presente que, cuando salen de la fábrica, las unidades indicadas a continuación cumplen las normas de armonización de la UE, las normas de la UE sobre seguridad y las normas específicas del producto. Este certificado quedará sin efecto si se modifican las unidades sin nuestra autorización.

PT Declaração de conformidade CE

O abaixo-assinado, Husqvarna AB, 561 82 Huskvarna, Suécia, certifica por este meio que, ao sair da nossa fábrica, as unidades indicadas acima estão em conformidade com as diretrizes uniformizadas da UE, os padrões de segurança da UE e os padrões específicos do produto. Este certificado deixa de ser válido se as unidades forem modificadas sem a nossa aprovação.

PL Deklaracja zgodności WE

Niżej podpisany przedstawiciel firmy Husqvarna AB, 561 82 Huskvarna, Szwecja, niniejszym oświadcza, że podane poniżej wyroby opuszczające fabrykę są zgodne ze zharmonizowanymi normami UE oraz z obowiązującymi w UE przepisami bezpieczeństwa i normami dotyczącymi danego produktu. Modyfikacja wyrobów bez naszej zgody powoduje unieważnienie niniejszego certyfikatu.

monised EU guidelines, EU standards of safety and product specific standards.

har

gslinjer, EU-standarder for sikkerhed og produktspecifikke standarder, når de forlader

nin

dir

ettive armonizzate UE nonché agli standard di sicurezza UE e agli standard specifici di

HU EK megfelelőségi nyilatkozat

Alulírott Husqvarna AB, 561 82 Huskvarna, Svédország ezzel tanúsítja, hogy az alábbiakban leírt egységek a gyár elhagyásakor megfeleltek a harmonizált uniós előírásoknak és biztonsági és termékspecifikus szabványoknak. Ez a tanúsítvány érvényét veszti, ha az egységeket jóváhagyásunk nélkül átalakítják.

CS Prohlášení o shodě ES

Níže uvedená společnost Husqvarna AB, 561 82 Huskvarna, Švédsko, tímto potvrzuje, že při opuštění naší továrny jsou jednotky uvedené níže v souladu s harmonizovanými pokyny EU, standardy EU ohledně bezpečnosti a specifickými produktovými standardy. Tento certifikát pozbývá platnosti, pokud dojde k úpravě jednotek bez našeho schválení.

SK EÚ vyhlásenie o zhode

Dolu podpísaná spoločnosť Husqvarna AB, 561 82 Huskvarna, Švédsko týmto osvedčuje, že nižšie uvedené jednotky boli v súlade s harmonizovanými usmerneniami EÚ, normami EÚ v oblasti bezpečnosti a špecifickými normami týkajúcimi sa produktu v čase opustenia výrobného závodu. Toto osvedčenie stráca platnosť, ak boli jednotky zmenené bez nášho súhlasu.

EL Δήλωση Συμμόρφωσης ΕΚ

Η υπογεγραμμένη εταιρεία, Husqvarna AB, 561 82 Huskvarna, Σουηδία, πιστοποιεί ότι, κατά την έξοδο από το εργοστάσιο, οι μονάδες που αναφέρονται κατω τέρω συμμορφώνονται με τις εναρμονισμένες οδηγίες ΕΕ, τα πρότυπα ασφαλείας της ΕΕ και τα συγκεκριμένα πρότυπα προϊόντος. Αυτό το πιστοποιητικό καθίσταταιάκυρο εάν οι μονάδες έχουν τροποποιηθεί χωρίς την έγκρισή μας.

SL Izjava ES o skladnosti

Spodaj podpisana, Husqvarna AB, 561 82 Huskvarna, Švedska, s to izjavo potrjuje, da je bila spodaj navedena enota ob izhodu iz tovarne skladna z usklaje postane neveljavna v primeru neodobrene spremembe enote.

HR Izjava o usklađenosti EZ

Niže potpisana Husqvarna AB, 561 82 Huskvarna, Švedska, ovime potvrđuje kako su u nastavku navedene jedinice prilikom napuštanja tvornice bile u skladu s usklađenim smjernicama EU, EU sigurnosnim standardima i standardima specifičnima za proizvod. Ova certifikacija poništava se ako se jedinice izmjenjuju bez odobrenja.

RO Declaraţie de conformitate CE

Subscrisa, Husqvarna AB, 561 82 Husqvarna, Suedia, certifică prin prezenta că, la momentul ieşirii din fabrica noastră, unităţile indicate mai jos sunt în conformitate cu directivele UE armonizate, cu standardele UE de siguranţă şi cu standardele specifice ale produsului. Prezentul certificat devine nul dacă unităţile sunt modificate fără aprobarea noastră.

BG Декларация за съответствие на ЕО

С настоящото долуподписаната, Husqvarna AB, 561 82 Huskvarna, Швеция, удостоверява, че при напускане на фабриката модулите, посочени по-долу, са в съответствие с хармонизираните директиви на ЕС, стандартите на ЕС за безопасност и специфичните за продукта стандарти. Този сертификат става невалиден, ако модулите са променени без нашето одобрение.

ET EÜ vastavusdeklaratsioon

Allakirjutanu Husqvarna AB, 561 82 Huskvarna, Rootsi, kinnitab käesolevaga, et tehasest väljumisel vastavad allpool nimetatud seadmed harmoneeritud EL-i suunis tele, EL-i ohutusstandarditele ja tootele eriomastele standarditele. See vastavuskinnitus kaotab kehtivuse, kui seadet muudetakse ilma meie heakskiiduta.

LT EB atitikties deklaracija

Husqvarna AB, 561 82 Huskvarna, Sweden, garantuoja, kad iš gamyklos siunčiami toliau nurodyti įrenginiai atitinka suderintus EB reikalavimus, EB saugos ir konkretaus gaminio standartus. Pakeitus gaminį be mūsų patvirtinimo, nutraukiamas šio sertifi kato galiojimas.

LV EK atbilstības deklarācija

Uzņēmums Husqvarna AB, 561 82 Huskvarna, Zviedrija, ar parakstu apliecina, ka tālāk minētās vienības, pametot rūpnīcu, atbilst saskaņotajām ES vadlīnijām, ES drošības standartiem un izstrādājumam specifiskajiem standartiem. Šis sertifikāts tiek anulēts, ja šīs vienības tiek modificētas bez mūsu apstiprinājuma.

ami EU, standardi EU za varnost in standardi, specifičnimi za izdelek. Izjava

nimi smerni c

Produktbezeichnung: Description of the product: Désignation du produit : Beschrijving van het product: Beskrivning av produkten: Beskrivelse af produktet: Tuotteen kuvaus: Descrizione del prodotto: Descripción del producto: Descrição do produto: Opis produktu: A termék leírása: Popis výrobku: Popis produktu: Περιγραφή του προϊόντος: Opis izdelka: Opis proizvoda: Descrierea produsului: Описание на продукта: Toote kirjeldus: Gaminio aprašas: Izstrādājuma apraksts:

Produkttyp: Product type: Type de produit : Producttype: Produkttyp: Produkttype: Tuotetyyppi: Tipo adi prodotto: Tipo de producto: Tipo de produto: Typ produktu:

4000/5 eco 5000/5 eco 5000/5 eco inox

EU-Richtlinien: EC-Directives: Directives CE : EG-richtlijnen: EU-direktiv: EF-direktiver: EY-direktiivit: Direttive UE: Directiva CE: Diretivas CE: Dyrektywy WE: EK-irányelvek: Předpisy ES: Smernice EÚ: Οδηγίες ΕΚ: Direktive EU: EC direktive: Directive CE: Директиви на ЕО: EÜ direktiivid:

Terméktípus: Druh výrobku: Typ produktu: Τύπος προϊόντος: Vrsta izdelka: Vrsta proizvoda: Tip produs: Тип продукт: Tootetüüp: Gaminio tipas: Produkta veids:

EB direktyvos: EK direktīvas:

2014/35/EG 2014/30/EG 2011/65/EG 2000/14/EC 97/23/EG

Hauswasserwerk Pressure Tank Unit Groupe de surpression Hydrofoorpump Hydroforpump Husvandværk Painevesiyksikkö Autoclave Estación de Bombeo con Calderín Bomba doméstica Zestaw hydroforowy Házi vízellátó Domácí vodárna Domáca vodáreň Πιεστικό με βαρέλι Hišna vodna črpalka Kućni hidroforska pumpa Hidrofor cu rezervor Хидрофорна уредба с разширителен съд Hüdrofooriga veeautomaat Siurblys su slėgio rezervuaru Spiedtvertnes ierīce

Artikelnummer: Article number: Référence : Artikelnummer: Artikelnummer: Artikelnummer: Tuotenumero: Codice articolo: Referencia: Número de referência: Numer katalogowy:

Cikkszámok: Objednací číslo: Objednávacie číslo: Κωδικός είδους: Številka izdelka: Kataloški broj: Cod articol: Артикул номер: Artiklinumber: Dalies numeris: Artikula numurs:

1754 1755 1756

Hinterlegte Dokumentation: GARDENA Technische Dokumentation, M. Kugler 89079 Ulm

Deposited Documentation: GARDENA Technical Documentation, M. Kugler 89079 Ulm

Documentation déposée: Documentation technique GARDENA, M. Kugler 89079 Ulm

Konformitätsbewer tungsverfahren: Nach 2000/14/EG Art. 14 Anhang V

Conformity Assessment Procedure: according to 2000/14/EC Art.14 Annex V

Procédure d’évaluation de la conformité : Selon 2000/14/CE art. 14 Annexe V

Harmonisierte EN-Normen / Harmonised EN:

EN 60335-1 EN 60335-2-41 EN 13831

Schall-Leistungspegel: gemessen / garantiert Noise level: measured / guaranteed Niveau sonore : mesuré / garanti Geluidsniveau: gemeten / gegarandeerd Ljudnivå: uppmätt / garanterad Støjniveau: målt / garanteret Äänitaso: mitattu / taattu Livello acustico: misurato / garantito Nivel de ruido: medido / garantizado Nível de ruído: medido / garantido Poziom hałasu: zmierzony / gwarantowany Zajszint: mért / garantált Hladina hluku: naměřená / zaručená Hladiny hluku: namerané/zaručené

Anbringungsjahr der CE-Kennzeichnung: Year of CE marking: Année d’apposition du marquage CE : Installatiejaar van de CE-aanduiding: Märkningsår: CE-Mærkningsår: CE-merkin kiinnitysvuosi: Anno di applicazione della certificazione CE: Colocación del distintivo CE: Ano de marcação pela CE: Rok nadania oznakowania CE: CE-jelzés elhelyezésének éve:

Ulm, den 22.01.2016 Ulm, 22.01.2016 Fait à Ulm, le 22.01.2016 Ulm, 22-01-2016 Ulm, 2016.01.22. Ulm, 22.01.2016 Ulmissa, 22.01.2016 Ulm, 22.01.2016 Ulm, 22.01.2016 Ulm, 22.01.2016 Ulm, dnia 22.01.2016 Ulm, 22.01.2016 Ulm, 22.01.2016 Ulm, dňa 22.01.2016 Ulm, 22.01.2016 Ulm, 22.01.2016 Ulm, dana 22.01.2016 Ulm, 22.01.2016 Улм, 22.01.2016 Ulm, 22.01.2016 Ulm, 22.01.2016 Ulme, 22.01.2016

Επίπεδο θορύβου: μετρημένο / εγγυημένο Raven zvočne moči: izmerjena / zagotovljena Razina buke: mjerena / zajamčena Nivel de zgomot: măsurat / garantat Ниво на шум: измерено / гарантирано Müratase: mõõdetud / garanteeritud Triukšmo lygis: išmatuotas / garantuojamas Trokšņa līmenis : mērītais / garantētais

1754 83 dB (A) / 84 dB (A) 1755 87 dB (A) / 88 dB (A) 1756 87 dB (A) / 89 dB (A)

Rok umístění značky CE: Rok udelenia značky CE: Έτος σήματος CE: Leto namestitve CE-oznake: Godina dobivanja CE oznake: Anul de marcare CE: Година на поставяне на CE-маркировка: CE-märgistuse paigaldamise aasta: Metai, kada pažymėta CE-ženklu: CE-marķējuma uzlikšanas gads:

Der Bevollmächtigte Authorised representative Le mandataire De gevolmachtigde Auktoriserad representant Autoriseret repræsentant Valtuutettu edustaja Persona delegata La persona autorizada O representante Pełnomocnik Meghatalmazott Zplnomocněnec Splnomocnený Ο εξουσιοδοτημένος Pooblaščenec Ovlaštena osoba Conducerea tehnică Упълномощен Volitatud esindaja Įgaliotasis atstovas Pilnvarotā persona

Reinhard Pompe

Vice President

2013

Page 10

Deutschland /Germany

GARDENA Manufacturing GmbH Central Service

Lorenser-Straße 40

Hans

89079 Ulm

D Produktfragen: (+49) 731 490 Reparaturen: (+49) 731 490 service

Albania

COBALT Sh.p.k. Rr. Siri Kodra 1000 Tirana

Argentina

Husqvarna Argentina S.A. Av.del Libertador 5954 Piso 11–Torre B (C1428ARP) Buenos Aires Phone: (+54) 11 5194 5000 info.gardena ar.husqvarna.com

Armenia

Garden Land Ltd. 61 Tigran Mets 0005 Yerevan

Australia

Husqvarna Australia Pty. Ltd. Locked Bag 5 Central Coast BC NSW 2252 Phone: (+61) (0) 2 4352 7400 customer.service husqvarna.com.au

Austria /Österreich

Husqvarna Austria GmbH Industriezeile 36 4010 Linz Tel. : (+43) 732 7701 01 service.gardena husqvarnagroup.com

Azerbaijan

Firm Progress a. Aliyev Str. 26A 1052 Baku

Belgium

Husqvarna België nv/sa Gardena Division Rue Egide Van Ophem 111 1180 Uccle / Ukkel Tel.: (+32) 2 720 92 12

info

Bosnia / Herzegovina

SILK TRADE d.o.o. Industrijska zona Bukva bb 74260 Tešanj

Brazil

Husqvarna do Brasil Ltda Av. Francisco Matarazzo, 1400 São Paulo CEP: 05001 Tel: 0800 marketing.br.husqvarna husqvarna.com.br

Bulgaria

AGROLAND България АД бул. 8 Декември, №13 Офис 5 1700 Студентски град София Тел. : (+ 359) 246669 10

info

Canada /USA

GARDENA Canada Ltd. 100 Summerlea Road Brampton, Ontario L6T 4X3 Phone: (+1) 905 792 9330 info

Chile

Maquinarias Agroforestales Ltda. (Maga Ltda.) Santiago, Chile Avda. Chesterton # 8355 comuna Las Condes Phone: (+56) 2 202 4417 Dalton Zipcode: 7560330

123

290

gardena.com

–

gardena.be

–

19º andar

–

903

112252

agroland.eu

gardenacanada.com

maga.cl

485

China

Husqvarna (Shanghai) Management Co., Ltd.

富世华（上海）管理有限公司

3F, Benq Square B, No207, Song Hong Rd., Chang Ning District, Shanghai, PRC. 200335

上海市长宁区淞虹路207号明基广场B座3楼，邮编：200335

Colombia

Husqvarna Colombia S.A. Calle 18 No. 68 D Industrial de Montevideo Bogotá, Cundinamarca Tel. 571 2922700 ext. 105 jairo.salazar husqvarna.com.co

Costa Rica

Compania Exim Euroiberoamericana S.A. Los Colegios, Moravia, 200 metros al Sur del Colegio Saint Francis Phone: (+506) 297 6883 exim_euro

Croatia

Husqvarna Austria GmbH Industriezeile 36 4010 Linz Tel. : (+43) 732 7701 01 service.gardena husqvarnagroup.com

Cyprus

Med Marketing 17 Digeni Akrita Ave P.O. Box 27017 1641 Nicosia

Czech Republic

Husqvarna Česko s.r.o. Türkova 2319/ 5b 149 00 Praha 4 – Chodov Bezplatná infolinka: 800 100425

servis

cz.husqvarna.com

Denmark

GARDENA DANMARK Lejrvej 19, st. 3500 Værløse Tlf.: (+45) 70 2647 70 husqvarna www.gardena.com/ dk

Dominican Republic

BOSQUESA, S.R.L Carretera Santiago Licey Km. 5 ½ Esquina Copal II. Santiago Dominican Republic Phone: (+809) 736-0333 joserbosquesa

Ecuador

Husqvarna Ecuador S.A. Arupos E1-181 y 10 de Agosto

Quito, Pichincha Tel. (+593) 22800739 francisco.jacome husqvarna.com.ec

Estonia

Husqvarna Eesti OÜ Valdeku 132 EE-11216 Tallinn info

gardena.ee

Finland

Oy Husqvarna Ab Gardena Division Lautatarhankatu 8 B/ PL 3 00581 HELSINKI www.gardena.fi

France

Husqvarna France 9/11 Allée des pierres mayettes 92635 Gennevilliers Cedex France http:// www.gardena.com/fr N° AZUR: 0 810 00 78 23 (Prix d’un appel local)

31, zona

–

San José

racsa.co.cr

husqvarna.dk

claro.net.do

485

Georgia

Transporter LLC 8/57 Beliashvili street 0159 Tbilisi, Georgia Phone: (+995) 322 14 7171

Great Britain

Husqvarna UK Ltd Preston Road Aycliffe Industrial Park Newton Aycliffe County Durham DL5 6UP info.gardena husqvarna.co.uk

Greece

Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ Λεωφ. Αθηνών 92 Αθήνα Τ.Κ.104 42 Ελλάδα Τηλ. (+30) 210 5193 100

info

Hungary

Husqvarna Magyarország Kft. Ezred u. 1 1044 Budapest Telefon: (+36) 1 251 vevoszolgalat.husqvarna husqvarna.hu

Iceland

Ó. Johnson & Kaaber Tunguhalsi 1 110 Reykjavik

ooj

Ireland

Husqvarna UK Ltd Preston Road Aycliffe Industrial Park Newton Aycliffe County Durham DL5 6UP info.gardena husqvarna.co.uk

Italy

Husqvarna Italia S.p.A. Via Santa Vecchia 15 23868 VALMADRERA (LC) Phone: (+39) 0341.203.111 assistenza.italia it.husqvarna.com

Japan

KAKUICHI Co. Ltd. Sumitomo Realty & Development Kojimachi BLDG., 8F

1 Nibanncyo

5 Chiyoda Tokyo 102 Phone: (+81) 33 264 4721 m_ishihara

Kazakhstan

LAMED Ltd. 155/1, Tazhibayevoi Str. 050060 Almaty IP Schmidt Abayavenue 3B 110 005 Kostanay

Korea

Kyung Jin Trading CO.,LTD. 107-4, SunDuk Bld., YangJae-dong, Seocho-gu, Seoul, (zipcode: 137-891) Phone: (+82) (0)2 574-6300

Kyrgyzstan

Alye Maki av. Moladaya Guardir J 3 720014 Bishkek

Latvia

Husqvarna Latvija SIA Ulbrokas 19A

LV-1021 Rīga

info

Lithuania

UAB Husqvarna Lietuva Ateities pl. 77C

LT info

papadopoulos.com.gr

ojk.is

0084

kaku-ichi.co.jp

gardena.lv

52104 Kaunas

gardena.lt

4161

Luxembourg

Magasins Jules Neuberg 39, rue Jacques Stas Luxembourg Case Postale No. 12 Luxembourg 2010 Phone: (+352) 40 1401

api

Mexico

AFOSA Av. Lopez Mateos Sur # 5019 Col. La Calma 45070 Zapopan, Jalisco Mexico Phone: (+52) 33 3818 icornejo

Moldova

Convel S.R.L. 290A Muncesti Str. 2002 Chisinau

Netherlands

Husqvarna Nederland B.V. GARDENA Division Postbus 50131 1305 AC ALMERE Phone: (+31) 36 52100 10 info

Neth. Antilles

Jonka Enterprises N.V. Sta. Rosa Weg 196 P.O. Box 8200 Curaçao Phone: (+599) 9 76766 55 pgm

New Zealand

Husqvarna New Zealand Ltd. PO Box 76 Manukau City 2241 Phone: (+64) (0) 9 9202410 support.nz

Norway

Husqvarna Norge AS Gardena Division Trøskenveien 36 1708 Sarpsborg info

Peru

Husqvarna Perú S.A. Jr. Ramón Cárcamo 710 Lima 1 Tel : (+51) 1 3320 400 ext.416 juan.remuzgo husqvarna.com

Poland

Husqvarna Poland Spółka z o.o. ul. Wysockiego 15 b

03 Phone: (+ 48) 22330 96 00 gardena

Portugal

Husqvarna Portugal, SA Lagoa 2635 Tel.: (+351) 21 922 85 30 Fax : (+ 351) 21 922 85 36 info

Romania

Madex International Srl Soseaua Odaii 117 RO 013603 Bucure Phone: (+ 40) 21 352.76.03

madex

Russia /Россия

ООО „Хускварна“ 141400, Московская обл., г. Химки, улица Ленинградская, владение 39, стр.6 Бизнес Центр „Химки Бизнес Парк“, помещение ОВ02_04 http: //www.gardena.ru

Serbia

Domel d.o.o. Autoput za Novi Sad bb

11273 Belgrade Phone: (+381) 118 4888 12 miroslav.jejina

Gasperich 2549

neuberg.lu

afosa.com.mx

gardena.nl

jonka.com

437

husqvarna.co.nz

gardena.no

371 Warszawa

husqvarna.com.pl

Albarraque

595 Rio de Mouro

gardena.pt

ines.ro

domel.rs

123,

ti, S1

3434

Singapore

Hy-Ray PRIVATE LIMITED 40 Jalan Pemimpin #02

08 Tat Ann Building Singapore 577185 Phone: (+65) 6253 2277 shiying

hyray.com.sg

Slovak Republic

Husqvarna Česko s.r.o. Türkova 2319/ 5b 149 00 Praha 4 – Chodov Bezplatná infolinka: 800 154044

servis

sk.husqvarna.com

Slovenia

Husqvarna Austria GmbH Industriezeile 36 4010 Linz Tel. : (+43) 732 7701 01 service.gardena husqvarnagroup.com

South Africa

Husqvarna South Africa (Pty) Ltd Postnet Suite 250 Private Bag X6, Cascades, 3202 South Africa Phone: (+27) 33 846 9700 info

gardena.co.za

Spain

Husqvarna España S.A. Calle de Rivas nº10 28052 Madrid Phone: (+34) 91 70805 00 atencioncliente

Suriname

Agrofix n.v. Verlengde Hogestraat #22 Phone: (+597) 472426 agrofix

sr.net Pobox : 2006 Paramaribo Suriname

Sweden

Husqvarna AB Gardena Division S gardenaorder

Switzerland /Schweiz

Husqvarna Schweiz AG Consumer Products Industriestrasse 10 5506 Mägenwil Phone: (+41) (0) 62887 37 90 info

Turkey

Dost Bahçe Dış Ticaret Mümessillik A.Ş Yunus Mah. Adil Sok. No:3 Ic Kapi No: 1 Kartal 34873 Istanbul

Phone: (+90) 216 3893 939 info

Ukraine / Україна

ТОВ «Хускварна Україна» вул. Васильківська, 34, офіс 204 03022, м. Київ Тел. (+38) 044 498 39 02

info

Uruguay

FELI SA Entre Ríos 1083 CP 11800 Montevideo Tel : (+598) 22 03 18 44 info

Venezuela

C Av. Caroní, Edif. Trezmen, PB. Colinas de Bello Monte. 1050 Caracas. Tlf: (+58) 212 992 33 22 info

0000

1754-20.960.04/0218

Manufacturing GmbH

Manufacturing GmbH D-89070 Ulm

D-89070 Ulm

http://www.gardena.com

http: //www.gardena.com

–

South America

561 82 Huskvarna

gardena.ch

dostbahce.com.tr

gardena.ua

–

Uruguay

felisa.com.uy

orporación Casa y Jardín C.A.

casayjardin.net.ve

20.960.08 / 0618

GARDENA

485

gardena.es

husqvarna.se
