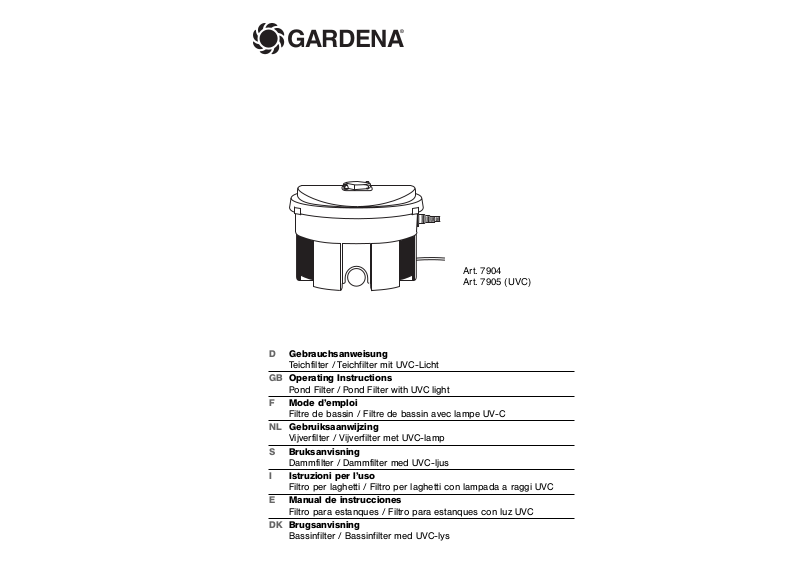

Page 1
GARDENA
®
D Gebrauchsanweisung
Teichfilter / Teichfilter mit UVC-Licht
GB Operating Instructions
Pond Filter / Pond Filter with UVC light
F Mode d’emploi
Filtre de bassin / Filtre de bassin avec lampe UV-C
NL Gebruiksaanwijzing
Vijverfilter / Vijverfilter met UVC-lamp
S Bruksanvisning
Dammfilter / Dammfilter med UVC-ljus
I Istruzioni per l’uso
Filtro per laghetti / Filtro per laghetti con lampada a raggi UVC
E Manual de instrucciones
Filtro para estanques / Filtro para estanques con luz UVC
DK Brugsanvisning
Bassinfilter / Bassinfilter med UVC-lys
Art. 7904
Art. 7905 (UVC)
Page 2
13
G
GARDENA Pond Filter /
Pond Filter with UVC light
Welcome to GARDENA aquamotion ...
Please read these operating instructions carefully and observe
the notes given.
Use the instructions to familiarise yourself with the equipment,
the operating controls, their correct use, and the notes on safety.
A For safety reasons, children under 16 as well as persons
not familiar with these operating instructions should not use this
Pond Filter.
Keep these operating instructions in a safe place.
Application Range of Your Filter
The GARDENA Pond Filter and the GARDENA UVC Pond Filter
have been designed for domestic outdoor use around your home
and garden for the sole purpose of cleaning garden ponds with
or without fish stock.
A The Pond Filter must not be used for industrial applications
and in conjunction with chemicals, food, flammable and explosive substances.
Intended purpose
Attention
A For Your Safety
UVC light:
Caution! Ultraviolet radiation.
This radiation is harmful to eyes and skin.
➔ Never operate the lamp without its casing!
The UVC light should be operated using a residual current device with a residual current rating of ≤ 30 mA (DIN VDE 0100702 and 0100-738). Please consult a professional electrician.
If extension or connector cables or adapters are used, they
must be earthed.
Mains power cables should not have a smaller cross-section
than a rubber sheathed cable of the designation H05 RNF.
Extension cables must meet the requirements of DIN VDE 0620.
In Austria power cables should correspond to ÖVE-EM 42,
T 2 (2000) /1979 § 22 according to § 2022.1. According to this
standard units used in swimming pools and ponds should
only be operated via an isolating transformer. Please contact
your electrician.
Caution!
Protect eyes
from flash
Using the UVC light
Extension cables
Mains power cables
For Austria
Page 3
15
G
14
G
In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.
Carry out a visual check before operating the device in order
to see whether the UVC light, in particular the mains power
cables and plugs have been damaged. A damaged lamp must
not be used. In case of damage please have the UVC light
tested either by our GARDENA Service Centre or by an authorised electrician.
Check line voltage. Data indicated on the type plate must match
technical data of the mains supply.
Position the Pond Filter in a firm and dry area, protected from
flooding, within a distance of at least 2 metres from the pond
(only for Pond Filter with UVC Light).The filter must be protected
from falling into the pond. Please consult a professional electrician.
.
Never operate the UVC light if water is not flowing through it.
First connect the power cable of the pump before operating
the UVC light.
.
If the power cable, the inspection window or the casing of the
UVC light seem to be faulty, the lamp must not be operated.
An integrated thermostat switches off the UVC light if it overheats. The light is switched back on again once it has cooled
down.
Do not carry the UVC light by its cable, and do not use the
cable to disconnect the plug. Protect the cable from heat, oil
and sharp edges.
When the UVC light is out of operation or not in use or before
maintenance disconnect the plug!
Take care that the electrical connections are kept dry.
Make sure that the water outlet is always kept free of obstructions and check it regularly. The filter must never be allowed
to overflow at any time (for example, due to the outlet being
blocked). In that case, the pond would be in danger of being
emptied!
➔ Make sure you clean the filter or the outlet regularly (see
paragraph on care instructions).
Please comply with local noise protection regulations.
For Switzerland
Visual check
Check line voltage
Positioning
the Pond Filter
Do not operate UVC light,
if ...
Thermostat
Do not carry the UVC light
by its cable
Disconnect the plug
Electrical connections
Keep water outlet free
of obstructions –
filter must not be allowed
to overflow
Comply with noise
protection regulations
1
Install the filter in
a position near your
pond.
2
Connect a hose to
the water inlet of the
pond filter and connect it with the pump
in the pond.
33
Connect a DN 70
sewage pipe to
the outlet of the
pond filter and run
it to your pond.
If your pump comes
with a UVC light,
fit the lamp.
44
Connect first the power
cable of the pump,
and if necessary the
UVC light, to a 230-VAC socket.
Assembly of the UVC-light
Remove the filter cover 1. To do this, pull the side tabs outwards
and remove the cover. Insert the tube supplied 2into the centre
of the filter. Make sure it fits properly into middle of the recesses
4
.
Insert the UVC light socket 3into the centre opening so that the
mains cable fits into the recess in the cover. Insert and turn both
tommy screws 5one quarter turn.
Replace the filter cover 1.
Brief Operating Instructions
What You Should Know About Ponds and Filters
Garden ponds are not as deep as natural water features.The lack
of depth means that a garden pond heats up and cools down
much more quickly. These changes in temperature and environmental factors such as fertilisers, plant residues etc., are among
the main causes of excess levels of nutrients and hence of growth
of algae.
In garden ponds the density of fish stock per cubic meter is usually
higher than in natural ponds. As the fish usually also receive more
food than in their natural environment, the amount of pollution due
to excrement is very high.
Excess growth of algae, as well as the high level of pollution due
to fish excrement causes a lack of oxygen in your pond; its biological balance has been disturbed.
➔ Problem: the level of nutrients in your pond is too high.
The most effective solution to this problem is to decrease the
level of nutrients available by means of a biological process and
Excess growth of algae –
murky pond
High density of fish stock
Decrease the level of
nutrients and increase
the oxygen supply
Page 4
17
G
16
G
➔Multi-layer biological filter system with a very large surface area
Here pollutants are decomposed using oxygen (aerobic process)
and without oxygen (anaerobic process). Harmful nitrites are
decomposed by useful bacteria, which become established in the
system.
The previously purified pond water is subjected to radiation with
short-wave UVC light (ultraviolet radiation).This reduces growth
of algae and fights harmful bacteria which may cause diseases
in fish.
70 mm standard outlet connection for, e.g., soil pipes.
Drain for sludge and water. Prior to frosty conditions, for example,
the filter can be drained and may be left outside during winter.
To indicate the UVC light is switched on (blue lamp).
* applies only to GARDENA Pond Filter with UVC light, Art. No. 7905
The UVC-light for the Pond Filter Art. No. 7904 is available from GARDENA Customer Services.
$
Biological purification
of the water
%
*
UVC-radiation
&
Connection for
sewage pipes
/
Water and
dirt-drain screw
(
Inspection glass
Function
.
May be connected to the connection hose leading to the pump
in the pond.
.
The water flows into the filter forming a circle. The water deflector (= inlet nozzle) causes powerful swirling movements in
the water, supplying it with oxygen from the air.
Floating substances and biological sludge form deposits due to
centrifugal force and the effects of gravity.
➔ Coarse mechanical filtering (black filter foam)
Large dirt particles are retained by the high-volume foam filter
element. The concentration of oxygen causes the formation of
nitrosomonas bacteria, which transform ammonia, a substance
highly harmful to fish, into nitrite.
➔ Fine mechanical filtering and biological filtering (grey foam filter)
With the help of oxygen and nitrobacter-bacteria, nitrites are
decomposed into nitrates. Nitrates can be absorbed naturally by
plants and decomposed.
Pos. Element
!
Water inlet
"
Vortex-System
(Deposit area)
§
Mechanical
multi-filtering
Operation
The universal fitting provides various options for fitting a hose,
i.e., connections for
.
19 mm (3/4” )or
.
25 mm (1” )or
.
32 mm (1 1/4 ” )or
.
38 mm (1 1/2 ” ) hoses.
➔ Using a saw, cut off the parts of the universal fitting that you do
not need inside the nut, otherwise the pump may perform less
efficiently.
➔ To choose a hose size, please read paragraph “Installation
Instructions”.
Push 2 hose-clips over the ends of the hose, then push the hose
into the universal fitting and over the pump connection. Fix the
hose using these hose-clips. If necessary, assemble the universal
fitting and water deflector after dismantling
If you have unscrewed the universal fitting in order to saw part
of it off, assemble it as follows:
.
Remove the cover of your pond filter.
.
Using one hand, hold the water deflector (= inlet nozzle) with
the opening pointing downwards, on the inside of the pond filter,
and with the other hand, firmly screw on the universal fitting
from the outside.
➔ Make sure the seal is properly fitted.
.
Adjust the water deflector to an angle of 15- 30° to the vertical.
Caution! If incorrectly adjusted, the filter can overflow and the
pond will be drained.
to remove excess nutrients while at the same time increasing the
oxygen supply.
The growth of algae can be restricted by installing a filter. Floating
substances (e.g. floating algae), which cause the water to be
murky, are filtered out and the water is purified. This helps the
pond to regain its biological balance. However, existing algae (e.g.
thread algae) visible at the time of installation must be skimmed off
(e.g. with the GARDENA combisystem Pond Sieve, Art. No. 7933).
Use of the UVC light reduces growth of algae. The algae solidify
and disease-causing bacteria are destroyed.
Installing a filter
Use of the UVC light
Functions of Your Pond Filter
3/4”
1”
11/4”
11/2”
If necessary, assemble the
universal fitting and water
deflector after dismantling
Page 5
19
G
18
G
A Please Note when Installing
There is increased bacterial activity from + 10°C upwards.
The filter system is a biological system and it will therefore take
several weeks for it to develop its full effectiveness.
If possible the filter should be allowed to operate continuously
and not to dry out.
Bacterial activity
New installation
Continuous operation
Installation Instructions
Pond size and
Difference in level Hose Observation Pump type
water quality
Pond surface
slightly dirty area / GARDENA
dirty (fish stock) Water inlet
of the filter FSP
1 up to 8 m
3
up to 4 m
3
0.75 m 32 mm (1 1/4 ” ) Single
5500
2 up to 5 m3up to 2.5 m
3
1.5 m 25 mm (1”) filter operation
3 up to 11 m
3
up to 5,5 m
3
1 m
38 mm (1 1/2 ” )
Single
10000
4 up to 8 m3up to 4 m
3
2 m filter operation
5 up to 11 m
3
up to 5,5 m
3
3 m 38 mm (1 1/2 ” ) Single
15000
6 up to 8 m3up to 4 m
3
4 m 32 mm (1 1/4 ” ) filter operation
7 up to 22 m
3
up to 11 m
3
1 m 38 mm (1 1/2 ” ) Double
10000
8 up to 16 m3up to 8 m
3
2 m 32 mm (1 1/4 ” ) filter operation
9 up to 32 m
3
up to 16 m
3
1 m 38 mm (1 1/2 ” )
10 up to 26 m3up to 13 m
3
2 m 38 mm (1 1/2 ” ) Double
15000
11 up to 22 m3up to 11 m
3
3 m 38 mm (1 1/2 ” ) filter operation
12 up to 16 m3up to 8 m
3
4 m 32 mm (1 1/4 ” )
Determine the amount of water in your pond, e.g. when filling it up for the first time, using your own
water-meter.
Example:
.
You have determined the size of your pond as being about 3.5 m3. There are fish in your pond.:
➔ Line 4 : dirty (fish stock) up to 4 m
3
The difference in level between the surface of your pond and the water inlet of the filter must not be
higher than 2 metres. Therefore, clean your pond with single filter operation, using a 38 mm (1 1/ 2”)
hose in conjunction with the GARDENA Submersible Pump for Pond Filter or Stream FSP 10000,
Art. No. 7869.
When using the pumps FSP 10000/ 15000 the water flow through
the filter can be increased by removing the restrictor
1
from the
water deflector.
This is done by pressing down on the restrictor and simultaneously
pulling it out of the output opening.
We recommend that, if necessary, you fill the pond filter with
GARDENA Zeolite (Art. No. 7914 and 7915) in order to obtain an
even larger surface area and hence a greater purification effect.
To do this, remove the filter cover, take the bio surface elements
out of the filter and then remove the top basket. Fill this basket
with Zeolith and replace the top basket with the bio-surface elements. Then fit the cover.
Note:
To ensure the zeolith functions correctly, we recommend you
replace or clean it every 6 months (e.g. in salt water).
Install the pond filter in a position close to the pond (e.g. behind
bushes).
➔ The container must be level and positioned on an even, firm
surface. Please make sure that the minimum distance of 2 metres
from the pond is adhered to (➔ see “For Your Safety”).
Put a 70 mm-standard soil pipe (DN 70 pipe sections and / or
bends available in specialised plumbing shops) onto the return
pipe. We recommend that you run the return pipe in such a way
that the purified water will be led indirectly into the pond, e.g.
via a small stream. In this way, the purified water will receive
more oxygen.
Not
e:
.
If you run the sewage pipes outdoors, we recommend you use
UV-resistant pipes.
.
Lubricate the seals (e.g. with plumbing lubricant or any other
acid-free lubricant) before installing the connectors.
Fit the lamp supplied as described in the section “How to Change
the Lamp”.
Please note: due to an integrated safety switch the lamp only
lights up when the filter is installed completely.
Switch on the pump before connecting the plug of the UVC light
to a 230-V-AC socket.
When the lamp is lit, a blue shimmer of light can be seen through
the inspection window on the UVC light.
For dual filter operation, fit a T-piece (available from GARDENA
customer services). Then connect each outlet via two hoses to
a GARDENA pond filter.
Restrictor
If necessary, fill with Zeolite
Installing the pond filter
Attaching the sewage pipes
Pond Filter with UVC light
Switching on the pump
Inspection window
Dual filter operation
Page 6
21
G
20
G
Storage during Winter
.
Store the UVC light, after cleaning and drying it thoroughly in a
dry place, protected from frost.
.
Drain the filter container via the drain screw and cover it in order
to prevent rainwater penetrating. Leave the filter “dry”.
.
Also drain all the connecting pipes and remove them, if necessary.
Available Accessories
If your pond filter is not fitted with a UVC light, then it is available
from GARDENA Customer services.
.
Use a knife to cut out a disc in the groove provided in the dent
of the lid cover (➔ top) and then insert the lamp.
.
To fix the connecting screws turn them 90° clockwise.
.
To operate the light, connect it with a 230-V-AC socket.
A Please observe the safety instructions and warnings in these
operating instructions when using UVC light!
We recommend filling the bottom basket of the pond filter with
Zeolite (1.5 l) to ensure a larger surface and therefore an improved cleaning effect.
GARDENA Zeolite 1 l, Art. No. 7914
GARDENA Zeolite 5 l, Art. No. 7915
Trouble-Shooting
Problem Probable cause Remedy
Water is not clear. UVC light is not switched on. Check electrical connections.
The glass tube of the UVC light Clean the glass tube of your
is dirty. UVC light (see paragraph on
“How to Change a Lamp” ).
Pump capacity not suitable. Check your pump capacity
according to the paragraph
“Installation Instructions”.
The floating material in the Remove algae and leaves
pond is brown and sinks to mechanically from the pond,
the bottom. e. g. with the GARDENA
combisystem Pond Sieve,
Art. No. 7933.
The pond is extremely dirty Check the nitrate content
and full of excess nutrients. (e.g. with the GARDENA
Pond-Testset, Art. No. 7920).
If necessary, change the water
and clean the pond.
GARDENA UVC light
GARDENA Zeolite
Care Instructions
The GARDENA Pond filters are largely maintenance-free.
But they must be cleaned when necessary.
1. Disconnect the UVC light !
2. Switch off the pump.
3. Remove the filter-cover by pulling the lateral locks outwards
and lift off the cover in an upwards direction.
4. Tilt the holding-down devices slightly to one side and then
remove them by pulling upwards.
5. ➔ If the filter is slightly dirty, unscrew the dirt-drain screw and
push the foam filter down so that the dirt can be drained out
through the outlet.
➔ If it is very dirty, remove the foam filter and clean it under
running water.
6. Flush the whole filter out with water to ensure that all dirt
particles are removed.
7. If necessary, clean the UVC light, e.g. with a glass detergent.
Please read the paragraph on “How to Change the Lamp”.
8. Reassemble the clean foam filter – first the fine (grey) and
then the coarse filter (black).
➔ Make sure the clips are properly re-attached.
9. Replace the holding-down devices so that they are angled
at 90° to one another.
➔ Important: position the first holding-down device towards
the universal connector.
10. Close the filter by replacing the cover. The groove of the cover
must face one of the holding-down devices.
➔ Make sure the lid locks properly!
11. Then switch on the pump again and connect the UVC light to
a 230-V-AC socket.
Important ! Do not use any chemical detergents as they would
kill off the bacteria.
How to Change the Lamp
1. Disconnect the UVC light !
2. Unscrew each of the tommy screws one quarter turn.
3. Remove the UVC lamp from the cover in an upward direction.
4. Loosen the screws (a) with a cross-tip screwdriver.
5. Pull off the seal flange in a downward direction.
6. Pull out the glass tube with the O-ring from the intermediate
flange.
7. Remove the lamp from its holder and, if necessary, change
the lamp or clean it. Important! Use only lamps of the type
TUV PL-S, 9 Watt. They are available from GARDENA
Customer Services.
8. Clean the glass tube and check the O-Ring for damages and,
if necessary, replace it (available from GARDENA Customer
Services).
9. Push the lamp back into its holder and re-assemble it, reversing the above steps.
10. Put the UVC light in its position in the lid cover and close
the pond filter using the cover.
11. Connect the UVC light to a 230-V-AC socket (➔ when the
UVC light is lit, the inspection glass turns a bluish colour).
Page 7
22
G
Index – Contents
Accessories . . . . . . . . . . . . . . . . 21
Applications range
of your filter . . . . . . . . . . . . . . 13
Assembly of the UVC-light . . 15
Bacterial activity . . . . . . . . . . . . 19
Brief operating instructions 15
Care instructions
. . . . . . . . . . . . 20
Connection . . . . . . . . . . . . . . . . . 17
Dual filter operation . . . . . . . . . 18
Fish stock . . . . . . . . . . . . . . . . . . . 15
Function
. . . . . . . . . . . . . . . . . . . . 16
Growth of algae
. . . . . . . . . . . . . 15
Guarantee
. . . . . . . . . . . . . . . . . . 22
Hose connection
pump – pond filter . . . . . . . . 17
How to change the lamp . . . . 20
Installation . . . . . . . . . . . . . . . . . . 19
Lack of oxygen
. . . . . . . . . . . . . 15
Mains power cables . . . . . . . . . 13
Multi-filtering . . . . . . . . . . . . . . . . 16
New installation . . . . . . . . . . . . . 19
Operation . . . . . . . . . . . . . . . . . . . 17
Product liability
. . . . . . . . . . . . . 22
Safety instructions
. . . . . . . . . . 13
Service centre addresses
. . . 88
Storage . . . . . . . . . . . . . . . . . . . . . 21
Switching on the pump . . . . . . 18
Trouble-Shooting . . . . . . . . . . . . 21
Universal fitting . . . . . . . . . . . . . 17
UVC-radiation
. . . . . . . . . . . . . . . 13
Vortex System . . . . . . . . . . . . . . 16
What you should know
about ponds and filters . . . 15
Zeolite . . . . . . . . . . . . . . . . . . 18 /21
GARDENA guarantees the
Filter for 3 years and the UVClight for 1 year (from date of
purchase). This guarantee
covers all serious defects of
the unit that can be proved to
be material or manufacturing
faults. Under warranty we will
either replace the unit or repair
it free of charge if the following
conditions apply:
.
The unit must have been
handled properly and in
keeping with the require-
ments of the operating instructions. Neither the purchaser nor a non-authorised
third party have attempted
to repair the unit.
Parts subject to wear (e.g.
luminaries) are excluded
from this guarantee.
This manufacturer’s guarantee
does not affect the user’s existing warranty claims against the
dealer/seller.
In the event of a fault, please
send the defective unit together
with the receipt and a description of the fault, postage paid,
to one of the GARDENA
Service Centres on the back
of this page.
Guarantee
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Product liability
Problem Probable cause Remedy
Water is not clear. Excess density of fish As a guideline for fish stock
and animal stock. the following rule applies:
maximum length of fish 60 cm
in 1m3of pond water.
If you have any problems with your Pond Filter, please contact our Service or return the defective unit
together with a short description of the problem – in case of guarantee, with the warranty card duly
completed and signed – postage paid to one of the GARDENA Service Centres listed on the back
of this leaflet.
Page 8
Deutschland
GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490 - 123
Reparaturen: (07 31) 490 -290
Argentina
Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires
Australia
NYLEX Corporation Ltd.
25-29 Nepean Highway
P.O. Box 68
Mentone, Victoria 3194
Austria
GARDENA Österreich Ges. m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Belgium
MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem
Brazil
M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.
Bulgaria / България
ДЕНЕКС ООД
бул. „Черни връх“ 43
София 1407
Canada
GARDENA Canada Ltd.
100, Summerlea Road
Brampton, Ontario
Canada L6T 4X3
Chile
Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes - Santiago de Chile
Costa Rica
Compania Exim
Euroiberoamericana S.A.
350 Sur del Automercado
Los Yoses
San Pedro
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Czech Republic
GARDENA spol. s.r.o.
Ripská 20
62700 Brno
Denmark
GARDENA Danmark A/S
Naverland 8
2600 Glostrup
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex
Great Britain
GARDENA UK Ltd.
27- 28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS
Greece
Agrokip G. Psomadopoulos & Co.
20, Lykourgou str.
Kallithea - Athens
Hungary
GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest
Iceland
Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik
Republic of Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)
Japan
KAKUDAI Mfg. Co. Ltd.
1-4- 4, Itachibori Nishi-ku
Osaka 550
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010
Netherlands
MARKT (Holland) BV
Postbus 219
1380 AE Weesp
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
New Zealand
NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau
Norway
GARDENA Norge A/S
Postboks 214
2013 Skjetten
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Portugal
MARKT (Portugal), Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins
Russia / Россия
АО АМИДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква
Singapore
Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027
Slowenia / Croatia
Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin
South Africa
GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Spain
ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona
Sweden
GARDENA Svenska AB
Box 9003
20039 Malmö
Switzerland
GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach
Ukraine / Украина
АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033
Turkey
Dost Diþ Ticaret Mümessillik A.Þ.
Yeþilbaðlar Mah. Baþkent
Cad. No. 26
Pendik - Ýstanbul
USA
GARDENA
3085 Shawnee Drive
Winchester, VA 22604
7904- 20.960.03 /0001
GARDENA Kress + Kastner GmbH
Postfach 27 47, D - 89070 Ulm
http: // www.gardena.de
T30584469901C / Id. 22345/07 H
Loading...
