GAO EFP700ET User guide

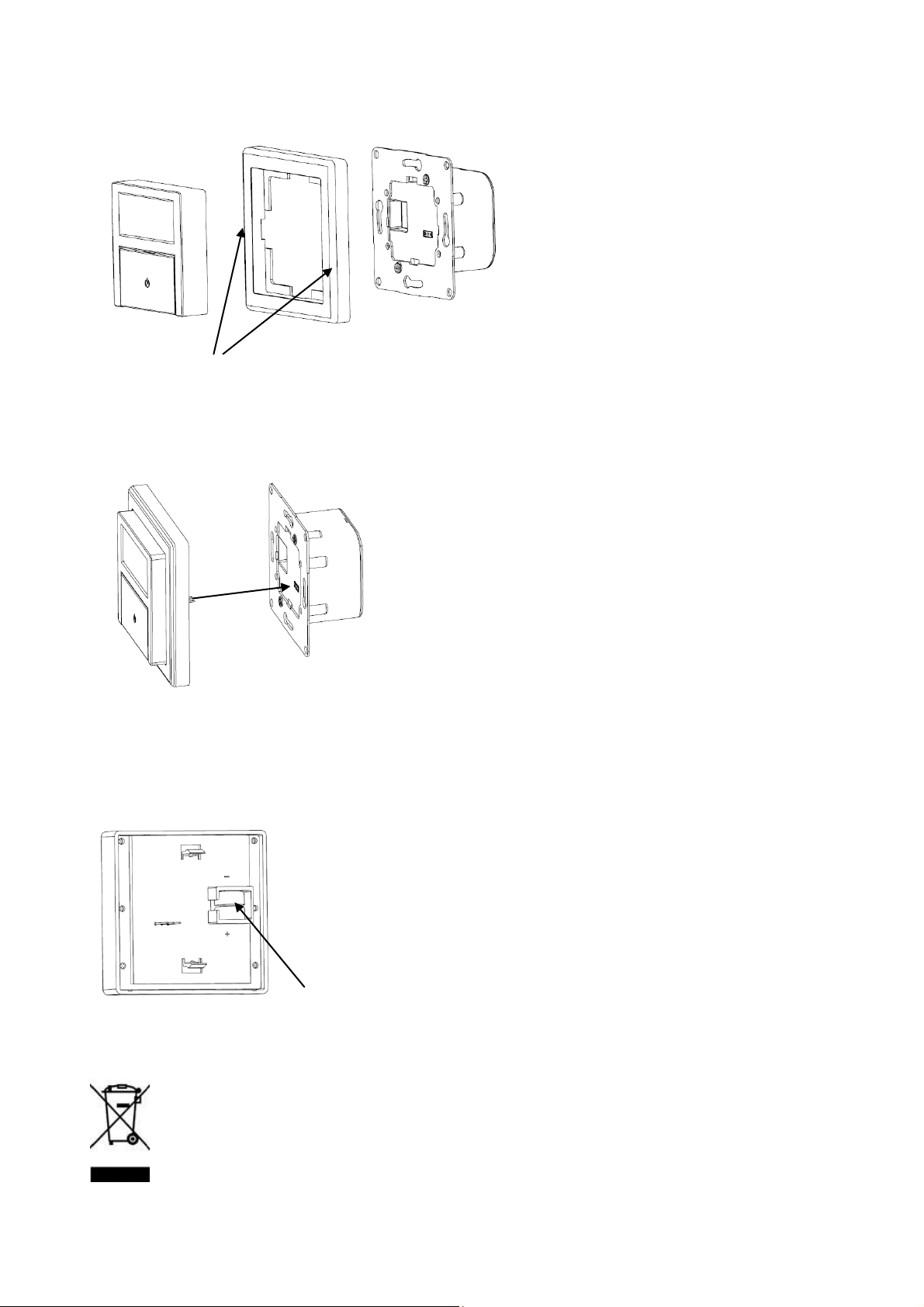

Instruction manual for wall-in digital timer

Buttons

Functions

R

Press to reset

Manual ON/OFF button, change the current power status

Also can clear and resume the setting during programming

PROG

Press to program setting/browse

RND

Press to set Random function

CD

Press to set countdown OFF

ON/OFF mode and clock mode change

+

Adjust button, press for setting of Daylight Saving time

-

Adjust button

Clock setting

Item nr: EFP700ET

A. Function

1. 20 programs per day, 15 configurations of weekly settings

2. Countdown period, 1min. to 99hrs and 59 minutes

3. Random function

4. ON/OFF mode and clock mode changing

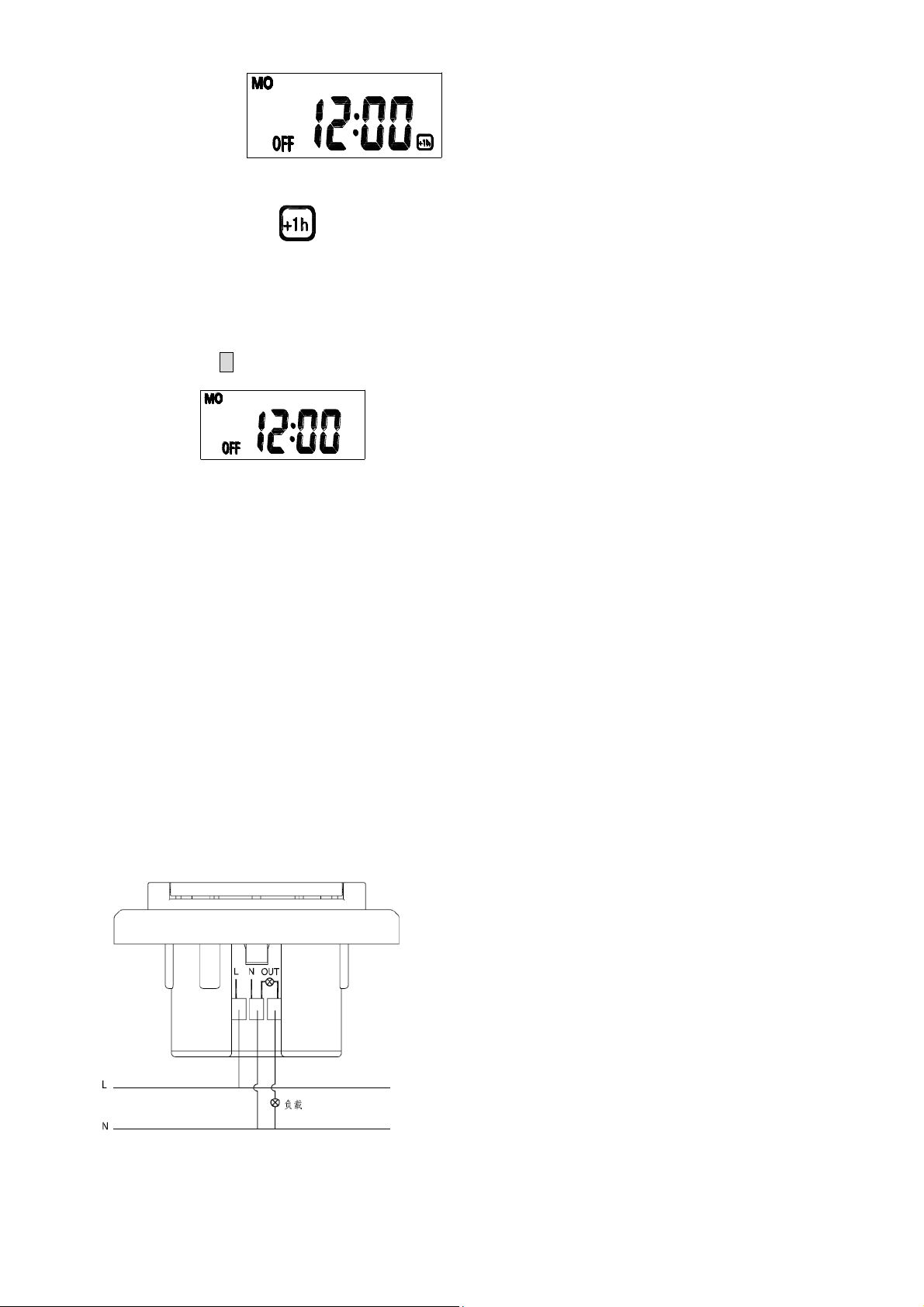

5. Daylight Saving Time

6. It is ideal for energy saving and home security purposes, it is also a great choice for

smart home

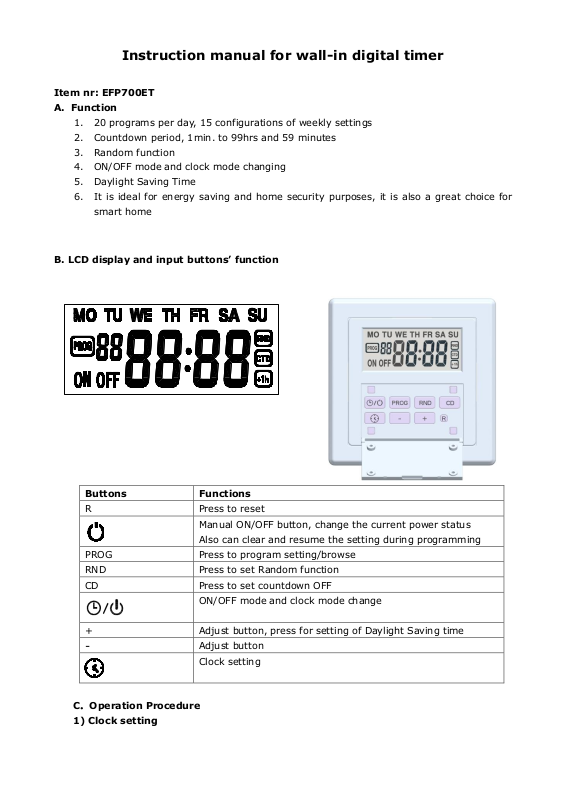

B. LCD display and input buttons’ function

C．Operation Procedure

1) Clock setting

1. Press to set the clock. Day on LCD flashes.

2. Press + or – to set the day. Press ‘ ’ to confirm. Hours on LCD flashes.

3. Press + or – to set hour. Press ‘ ’ to confirm. Minute display will now flash.

4. Press + or – to select the minute. Press ‘ ’ to confirm and exit current clock setting

mode.

2) Program setting

In clock mode, when the ‘PROG’ button is pressed, the timer enters the timer setting mode,

which can provide up to 20 ON/OFF settings per day. The ON/OFF settings can be programmed

at your choice of 15 different weekly setting as listed here:

1. MO TU WE TH FR SA SU 9. MO WE FR

2. MO (Only) 10. TU TH SA

3. TU (Only) 11. SA SU

4. WE (Only) 12. MO TU WE

5. TH (Only) 13. TH FR SA

6. FR (Only) 14. MO TU WE TH FR

7. SA (Only) 15. MO TU WE TH FR SA

8. SU (Only)

Programming procedure：

PROGRAM 1 ON:

When PROG is pressed, ‘1 ON’ will flash, then it comes to following operations

a. DAYS OF WEEK –Press ‘PROG’ button. The LCD will flash the week day(s) selection

options as noted above. Press + or – to select your choice of week days – or

individual day.

b. HOUR - Press ‘PROG’ again. The LCD will now flash the hour. Press + or – to

select the hours. It is 24 hrs display.

c. MINUTE – Press ‘PROG’. The LCD will now flash the minute. Press + or – to set

the minute. You have now chosen your first program ON time.

Repeat the above procedure to set the PROGRAM 1 OFF and other programs.

NOTE:

 If, while programming, there is no activity (pressing buttons) for over 10 seconds,

timer will automatically exit the setting mode. Or you can choose to press to

exit the setting.

 To accelerate selection, press and hold the + or – button.
 When in ‘PROG’ mode, other settings will be disabled.
 During setting, you can use any one of the 4 small buttons at the corner to

clear/resume your current program setting

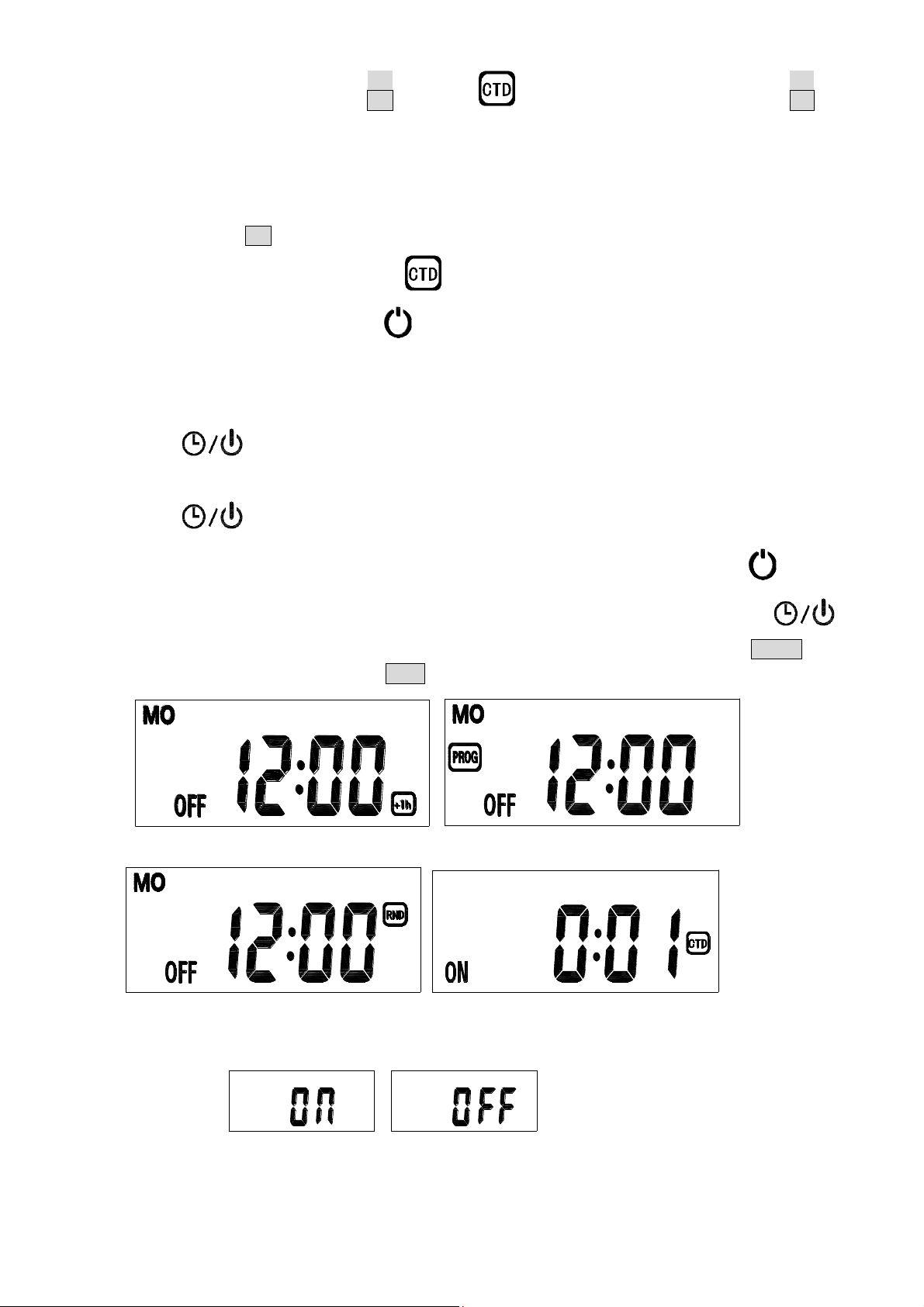

 If the timer running under your timer setting, a ‘ ’ logo will appear on the

LCD screen

3) Random setting

1. In clock mode, press ‘RND’ button to activate the random function. The ‘ ’ logo will

appear on the LCD screen. Your timer is now set for a random ON/OFF.

2. This function allows for a random ON and OFF during 18:00PM to 6:00AM the next day.

The OFF period will be 26-42 minutes.; and ON period will be 10-26minutes randomly

NOTE:

 When in ‘ ’ mode, other settings will be disabled.
 It repeats daily.

4) Countdown Setting

1. In clock mode, Press ‘CD’ button to set countdown, minute will be flashing on the LCD

screen. Press the + or – button to increase or decrease your countdown timer selection.

2. Press ‘CD’ button again, hour will be flashing on the LCD. Press the + or – button to

increase or decrease your countdown timer selection.

3. Press ‘CD’ button again to exit the countdown setting and start countdown function. The

logo will be flashing on the LCD screen. Your device will go off after time is counted

down and the logo will disappear.
