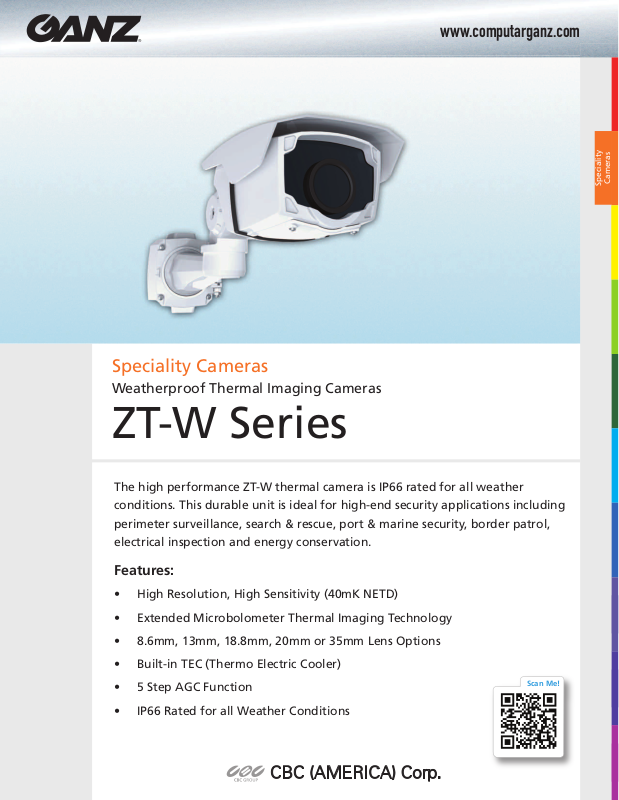

Ganz ZT-W320 Specsheet
www.computarganz.com
Cameras
Speciality
Speciality Cameras
Weatherproof Thermal Imaging Cameras
ZT-W Series
The high performance ZT-W thermal camera is IP66 rated for all weather
conditions. This durable unit is ideal for high-end security applications including
perimeter surveillance, search & rescue, port & marine security, border patrol,
electrical inspection and energy conservation.
Features:
• High Resolution, High Sensitivity (40mK NETD)
• Extended Microbolometer Thermal Imaging Technology
• 8.6mm, 13mm, 18.8mm, 20mm or 35mm Lens Options
• Built-in TEC (Thermo Electric Cooler)
• 5 Step AGC Function
• IP66 Rated for all Weather Conditions
Scan Me!
www.computarganz.com
ZT-W Series Weatherproof Thermal Imaging Cameras
Ideal for Perimeter, Transportation and Marine Security Applications
Specifications
Model
Camera/
Lens
Function
ZT-W
Type Uncooled Microbolometer
Sensor
Resolution D1 Class with Original Scaling Technology
Measuring Wavelength
NETD (Noise Equivalent Temperature Difference) 40mK / F1.0
Video Output
Output Frequency 59.94Hz (30FPS)
Lens Options 8.6mm, 13mm, 18.8mm, 20mm, 35mm
Calibration Auto / Manual / Interval (up to 3,600 sec) Mode Selectable
Image Flip Vertical (Flip), Horizontal (Mirror) ON/OFF
Inverse Mode ON/OFF
AGC ON/OFF One-push (5 step)
Output Mode NTSC/PAL Mode Selectable
Image Mode B/W and Three Color Mode
Digital Zoom X 4 (15 Steps)
Cell Size 25µm
Pixels 384 x 288
8 ∼ 14µm
NTSC / PAL (Switchable), Digital 8bit (BT.656)
Physical
Temperature Range Process MIN/MAX Temperature Range Selectable
Range of Observation Display
Menu OSD Menu Available
Power Source 12VDC
Power Consumption 17W Max
Temperature -31ºF ~ 131ºF (-35ºC ~ 55ºC)
TEC (Thermo Electric Cooler) Built-in
Dimensions 5.7” W x 4.3” H x 11.2” D (145 W x 110 H x 285mm D)
IP Rating IP66
All specifications are subject to change without notice.
-4º F ∼ 248º F (Normal Mode) -4º F ∼ 1202º F (High Temp Mode)
www.computarganz.com © 2012 CBC (AMERICA) Corp. All Rights Reserved. 09/12
