Ganz DR16HD-1TB, DR16HD-2TB, DR16HD-4TB, DR16HD, DR4HD-1TB Specsheet

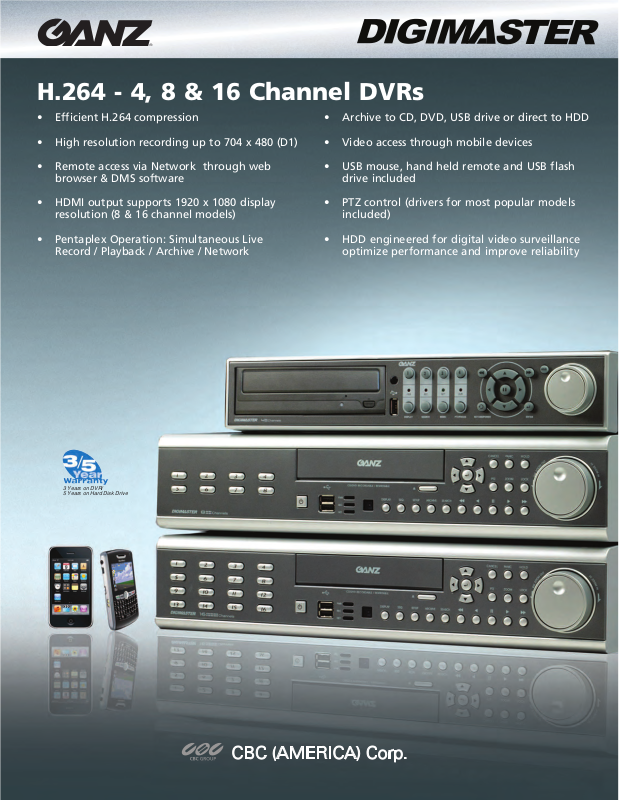

H.264 - 4, 8 & 16 Channel DVRs

• Efficient H.264 compression

• High resolution recording up to 704 x 480 (D1)

• Remote access via Network through web
browser & DMS software

• HDMI output supports 1920 x 1080 display
resolution (8 & 16 channel models)

• Pentaplex Operation: Simultaneous Live
Record / Playback / Archive / Network

• Archive to CD, DVD, USB drive or direct to HDD

• Video access through mobile devices

• USB mouse, hand held remote and USB flash
drive included

• PTZ control (drivers for most popular models
included)

• HDD engineered for digital video surveillance
optimize performance and improve reliability

3 Years on DVR/
5 Years on Hard Disk Drive

 Specifications

Model DR16HD DR8HD DR4HD

Operating System LINUX

Pentaplex Function Simultaneous Live / Record / Playback / Archive / Network

Video Compression H.264 Codec (DSP Based)

Display Speed 480 ips 240 ips 120 ips

Resolution Modes up to 704 x 480 (D1)

Video Input 16 CH (BNC) 8 CH (BNC) 4 CH (BNC)

HDMI MAX (1920 x 1080) n/a

Video
Output

Screen Division Live Mode: 1, 4, 6, 8, 9, 16 Live Mode: 1, 4, 6, 8, Live Mode: 1, 4

Playback Variable speeds up to 64x, Instant playback mode

Search Modes Calendar Search by Time / Date, Event Search, Panorama Search

Motion Detection Adjustable grid (20 x 12), 10 step sensitivity level

Health Monitoring Auto detects and monitors HDD problems

Panic Recording Overrides recording settings for best quality recording

Audio In/Out 4 Line in (RCA) / 1 Line out (RCA), Codec:G.711 (audio synchronized with video)

Alarm In/Out 16 IN / 16 OUT 8 IN / 8 OUT 4 IN / 1 OUT

Storage Up to 4 HDDs (SATA) Up to 2 HDDs (SATA)

Archiving CD/DVD-RW, USB Device (HDD, DVD, Thumb Drive) & Network using AVI file

USB Port 2 Front, 1 Rear 2 Front

PTZ Support Supports most PTZ protocols, includes 255 presets

PTZ & Keyboard Control RS-485

System Control USB Mouse, Front button, Remote controller & Keyboard controller

Network LAN, DHCP, Dynamic IP, DDNS

Power 100~220VAC, 50~60Hz 12VDC/5A
Operating Temperature 14º ~ 104º F / -10º ~ 40º C / Humidity 10% ~ 90% (non-condensing)

Dimensions 16.9” W x 18.1” D x 3.5”H 14.2” W x 15.3” D x 2.8”H

Weight 16.1 lbs. 8.4 lbs.

Remote Software DMS Support, Web Browser, PDA Viewer, Smart Phone

Certifications CE & FCC & MIC & WEEE, RoHS

VGA monitor 1 VGA (1280 x 1024)

Sub monitor 1 Composite (BNC) / 1 SVHS

Spot-Out 4 Analog (BNC) 2 Analog (BNC) 1 Analog (BNC)

Loop-Out 16 CH (BNC) 8 CH (BNC) 4 CH (BNC)

 Models

Models
4 Channel DVR 8 Channel DVR 16 Channel DVR
DR4HD no hard drive DR8HD no hard drive DR16HD no hard drive
DR4HD-500 500 GB HDD DR8HD-500 500 GB HDD DR16HD-500 500 GB HDD
DR4HD-1TB 1 TB HDD DR8HD-1TB 1 TB HDD DR16HD-1TB 1 TB HDD
DR4HD-2TB 2 TB HDD DR8HD-2TB 2 TB HDD DR16HD-2TB 2 TB HDD

- - DR8HD-3TB 3 TB HDD DR16HD-3TB 3 TB HDD

--DR8HD-4TB 4 TB HDD DR16HD-4TB 4 TB HDD

 Optional Accessories

Model Description
DR4-RM1A 19”rack mount kit for 4 channel models

DR-RM2 19”rack mount kit for 8 and 16 channel models

ZCA-SC201 PTZ Dome Controller (for DR16HD)

All specifications are subject to change without notice
