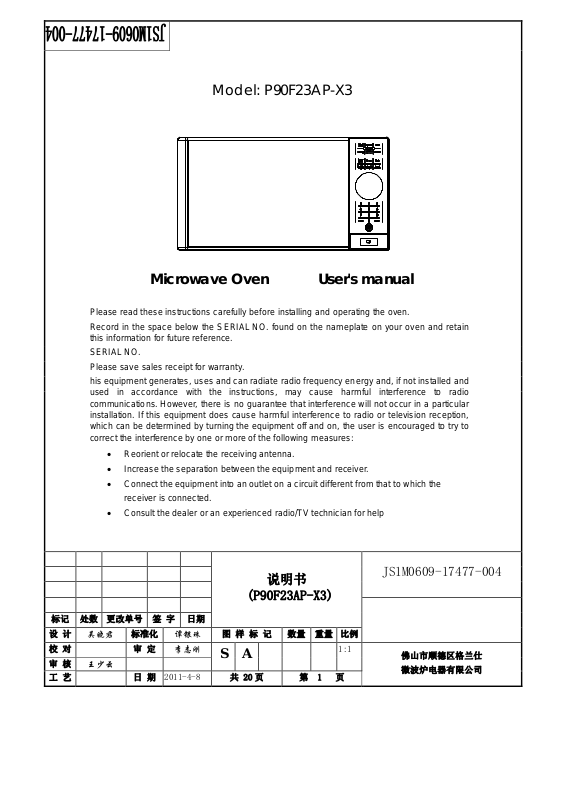

Galanz 9023007 Users Manual

Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference. SERIAL NO. Please save sales receipt for warranty. his equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Microwave Oven User's manual
Model: P90F23AP-X3
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 1 页
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
PPRREECCAAUUTTIIOONNSS TTOO AAVVOOIIDD PPOOSSSSIIBBLLEE
EEXXPPOOSSUURREE TTOO EEXXCCEESSSSIIVVEE
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
1. Door (bent),
2. Hinges and latches (broken or loosened),
3. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
MMIICCRROOW
WAAVVEE EENNEERRGGYY
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS..............................................................................4
INSTALLATION GUIDE.........................................................................................................6
GROUNDING INSTRUCTIONS............................................................................................6
UTENSILS GUIDE................................................................................................................7
COOKING TECHNIQUES.....................................................................................................9
SPECIFICATIONS ..............................................................................................................10
PART NAMES.....................................................................................................................11
CONTROL PANEL..............................................................................................................12
OPERATION INSTRUCTIONS...........................................................................................13
Setting the clock..........................................................................................................13
Setting the timer..........................................................................................................13
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 2 页
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
Setting a cooking program..........................................................................................13
Speed defrost..............................................................................................................14
Cook by weight ...........................................................................................................15
Defrost by weight ........................................................................................................16
Setting child lock.........................................................................................................17
QUICK COOK SETTINGS..................................................................................................17
POPCORN..................................................................................................................17
BAKED POTATO.........................................................................................................18
PIZZA..........................................................................................................................18
BEVERAGE ................................................................................................................18
FROZEN DINNER ......................................................................................................18
REHEAT......................................................................................................................19
CLEANING AND CARE ......................................................................................................20
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 3 页
SED239X3B-PBFC0A
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
IIMMPPOORRTTAANNTT SSAAFFEETTYY
IINNSSTTRRUUCCTTIIOONNSS
When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, and injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "grounding instructions” on page 3.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible
materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the
power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food
in the cavity when not in use.
9. Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 4 页
SED239X3B-PBFC0A
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
4) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven.
11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
14. Do not cover or block any openings on the appliance.
15. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
16. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.
17. Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang over edge of table or counter.
18. Use only thermometers, which are specifically designed for use in microwave ovens.
19. Do not operate any heating or cooking appliance beneath this appliance.
20. Be certain the glass tray and roller rings are in place when you operate the oven
21. This appliance should be serviced only by qualified service personnel, contact nearest authorized service facility for examination, repair, or adjustment.
22. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
SAVE THESE INSTRUCTIONS
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 5 页
SED239X3B-PBFC0A
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven but contact qualified service personnel.
3. This microwave oven must be placed
on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are generated, or near combustible
IINNSSTTAALLLLAATTIIOONN GGUUIIDDEE
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.
6. Make sure that the power supply cord is
undamaged and does not run under the oven or over any hot or sharp surface.
7. The socket must be readily accessible
so that it can be easily unplugged in an emergency.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either:
1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance, or 2) Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman
GGRROOUUNNDDIINNGG IINNSSTTRRUUCCTTIIOONNSS
标记 处数 更改单号 签 字 日期
校 对 审 定 李志刚
审 核 王少云 工 艺 日 期 2011-4-8 共 20 页 第 6 页
SED239X3B-PBFC0A
S A
说明书
(P90F23AP-X3)
1:1
JS1M0609-17477-004
佛山市顺德区格兰仕 微波炉电器有限公司
