Gai-tronics 711-102 DATASHEET

Pub. DS711-102

GAI-TRONICS® CORPORATION

A HUBBELL COMPANY

Model 711-102

Desk-Edge Subset

General Information

This data sheet applies to the Model 711-102 Single Party Desk-Edge Subset, which is intended for use in
GAI-Tronics Page/Party

The subset enables you to perform page and party line communication when installed with a remote
amplifier and enclosure. The rugged remote subsets include a pressbar handset, and a handset cradle.
The subset’s compact design allows it to be mounted where space is limited. The compact size is made
possible by housing most of the support electronics in a separate remote amplifier.

The angle bracket, supplied with the subset, supports a wide variety of mounting options. The integral
connectorized cable permits mounting up to eight feet from the amplifier.

®

and SmartSeries systems.

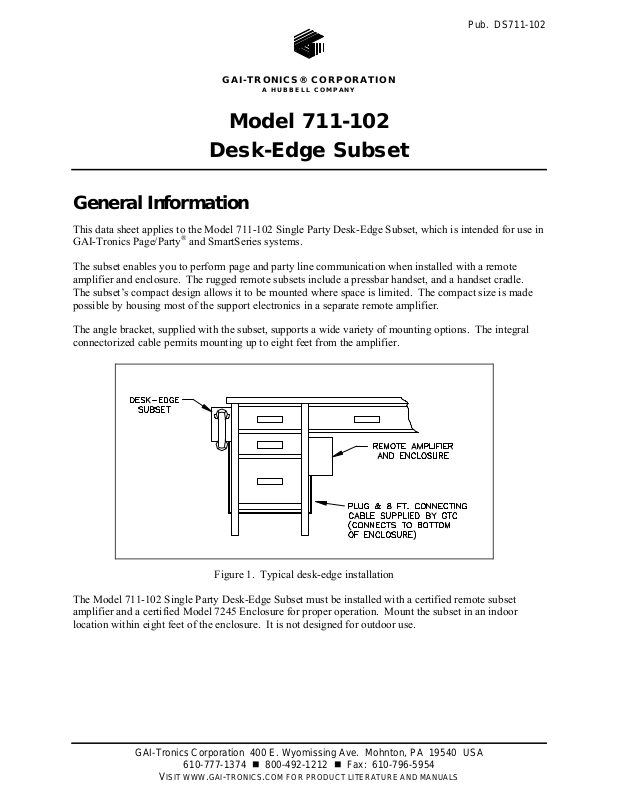

Figure 1. Typical desk-edge installation

The Model 711-102 Single Party Desk-Edge Subset must be installed with a certified remote subset
amplifier and a certified Model 7245 Enclosure for proper operation. Mount the subset in an indoor
location within eight feet of the enclosure. It is not designed for outdoor use.

GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA

610-777-1374  800-492-1212  Fax: [phone]

V

ISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS

Pub. DS711-102

Model 711-102 Desk-Edge Subset Page: 2 of 2

The subsets provide the following features/functions, when installed with a certified Model 723
SmartSeries

Remote Subset Amplifier and Model 7245 Remote Amplifier Enclosure, in a SmartSeries

ADVANCE system:

• Paging

• Party line communication over one party line

• Magnetic hookswitch

• Page duration limit

• Off-hook duration limit

• Normal and alarm mode page destinations

• Normal and alarm mode page priorities

• Normal and alarm mode pre-announcement tones

WARNING

Explosion hazard - substitution of components may impair suitability for

Class 1, Div. 2 usage.

Specifications

Construction/finish...................................................... 16-gauge cold-rolled steel/gray polyurethane enamel

Handset microphone ..............................................................................Dynamic, noise-canceling, 10 ohms

Receiver ...................................................................... Dynamic, 150 ohms, hearing aid compatible

Cable ................................................................................................ PVC retractile, 6-foot extended

Material............................................................................................................................. Gray ABS

External controls ................................................................................................ Handset pressbar for paging

Mounting......................................................................................................... Desk-edge or similar location;

Two 13/64-inch mounting holes (in bracket)

Temperature range ................................................................................−22° F to 158° F (−30° C to +70° C)

Connections ......................................................................8-foot cable with connector, hard-wired to subset

Dimensions ....................................................7.38 H × 3.12 W × 4.00 D inches (187.4 × 79.2 × 101.6 mm)

Shipping weight ............ .....................................................................................3.6 lbs. (1.63 kg) maximum

Approvals

NRTL certified for use in US and Canada for .........................................Class 1, Div. 2, Groups A, B, C, D

when connected to a certified Model 7245 Enclosure using a certified Model 723 Amplifier

CE Mark
