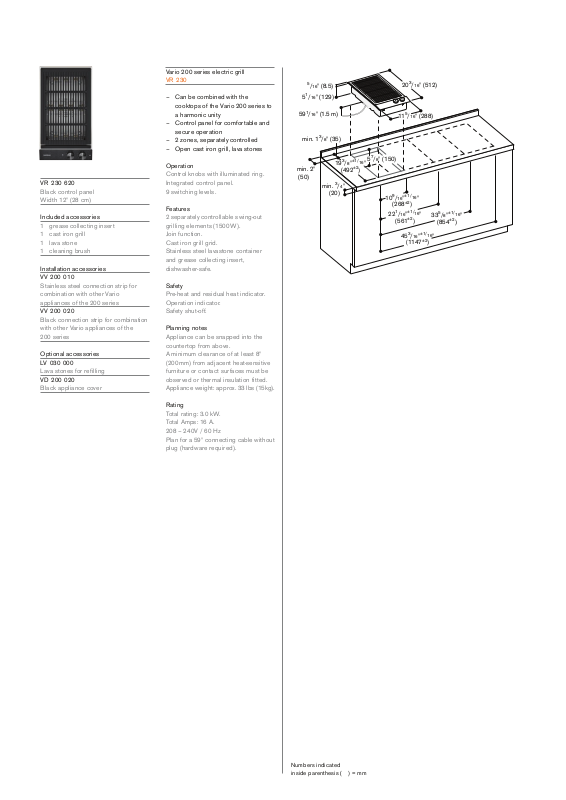

Gaggenau VR230620 Specifications

V R 230 620

min. 2"

(8.5)

min.

(1.5 m)

min.

203/16" (

512)

115/16" (288)

193/8"

±1/

16

"

(

(20)

(50)

5

/16"

13/8"

(35)

591/16"

3

/4"

492±2)

109/16"

±1/

16

"

(

268±2)

221/16"

±1/

16

"

(

561±2)

335/8"

±1/

16

"

(

854±2)

453/16"

±1/

16

"

(

1147±2)

57/8" (

150)

51/16" (

129)

Black control panel
Width 12" (28 cm)

Included accessories

1 grease collecting insert
1 cast iron grill
1 lava stone
1 cleaning brush

Installation accessories
V V 200 010

Stainless steel connection strip for
combination with other Vario
appliances of the 200 series

V V 200 020

Black connection strip for combination
with other Vario appliances of the
200 series

Optional accessories
L V 030 000

Lava stones for refilling

V D 200 020

Black appliance cover

Vario 200 series electric grill

V R 230

– Can be combined with the

cooktops of the Vario 200 series to
a harmonic unity

– Control panel for comfortable and

secure operation
– 2 zones, separately controlled
– Open cast iron grill, lava stones

Operation

Control knobs with illuminated ring.
Integrated control panel.
9 switching levels.

Features

2 separately controllable swing-out
grilling elements (1500 W).
Join function.
Cast iron grill grid.
Stainless steel lavastone container
and grease collecting insert,
dishwasher-safe.

Safety

Pre-heat and residual heat indicator.
Operation indicator.
Safety shut-off.

Planning notes

Appliance can be snapped into the
countertop from above.
A minimum clearance of at least 8"
(200 mm) from adjacent heat-sensitive
furniture or contact surfaces must be
observed or thermal insulation fitted.
Appliance weight: approx. 33 lbs (15kg).

Rating

Total rating: 3.0 kW.
Total Amps: 16 A.
208 – 240V / 60 Hz
Plan for a 59" connecting cable without
plug (hardware required).

Numbers indicated

inside parenthesis ( ) = mm
