Gaggenau
Gaggenau
Instruction manual
Instrucciones de uso
Instruções de serviço
Οδηγíες χρήσεω
VL 040/041 115
Downdraft ventilation
Extractor de superficie
Elemento de ventilação de bancada
Εξαεριστήρας βάσης εστιών
Table of contents 3
Índice 11
Índice 19
Πίνακας περιεχομένων 27
2
Table of contents
Instruction manual
Important safety information 4
Environmental protection 6
Saving energy 6
Environmentally-friendly disposal 6
Operating modes 6
Exhaust air mode 6
Air recirculation 6
Your new appliance 7
Hob ventilation 7
Accessories 7
Special accessories 7
Installation accessories 8
Operation 8
Switching on 8
Switching off 8
Ventilation moulding 8
Cleaning 9
Cleaning the appliance 9
Fitting and removing the metal grease filter 9
Cleaning the metal mesh grease filters 10
Aftersales service 10
: Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau-eshop.com
3
m Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and
the household environment only. The appliance
is not intended for use outside. Do not leave the
appliance unattended during operation. The
manufacturer is not liable for damage which is
caused by improper use or incorrect operation.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the
age of 8 years old and by persons with reduced
physical, sensory or mental capabilities or by
persons with a lack of experience or knowledge
if they are supervised or are instructed by a
person responsible for their safety how to use
the appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Dangerous or explosive materials and vapours must not be extracted.
Ensure that no small parts or liquids get into the appliance.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
Danger of death!
Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances
(e.g. gas, oil, wood or coal-operated heaters,
continuous flow heaters or water heaters) obtain
combustion air from the room in which they are
installed and discharge the exhaust gases into
the open air through an exhaust gas system (e.g.
a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
▯ Adequate incoming air must therefore
always be ensured.
▯ An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the partial
vacuum in the place where the heat-producing
appliance is installed does not exceed 4 Pa
(0.04 mbar). This can be achieved when the air
needed for combustion is able to enter through
This appliance is not intended for operation with an external clock timer or a remote control.
4
openings that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means.
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

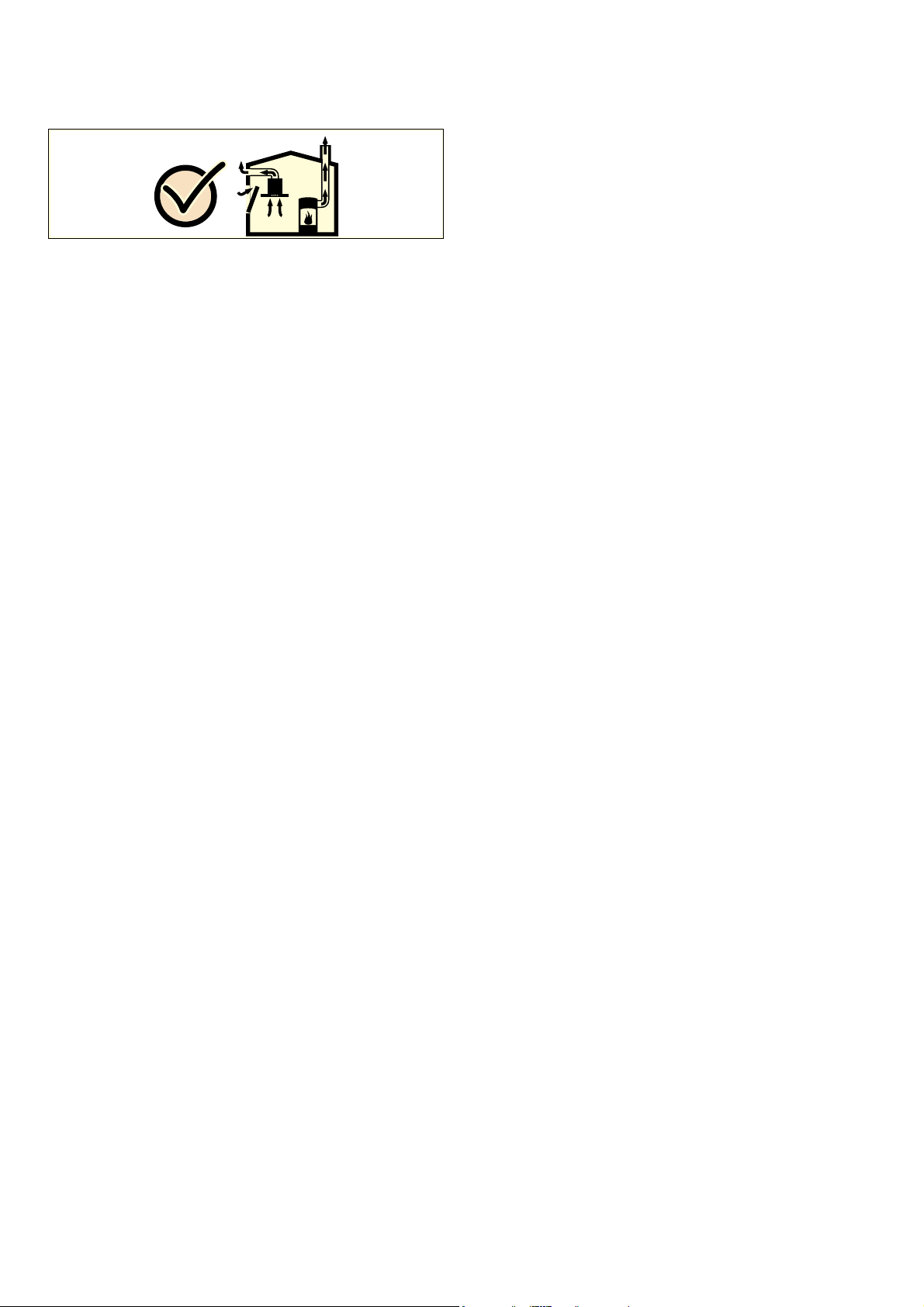

Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Risk of fire!
▯ Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Risk of fire!
▯ Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heatproducing appliance for solid fuel (e.g. wood
or coal) unless a closed, non-removable
cover is available. There must be no flying
sparks.
Risk of fire!
▯ Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
▯ The grease deposits in the grease filter may
ignite. If the appliance operates beside a
gas-fired appliance, a ventilation moulding
must be attached when cooking. The
ventilation moulding improves the extraction
behaviour for gas-fired appliances. The
ventilation moulding prevents small flames
from going out as a result of a draft.
Risk of burns!
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
Risk of electric shock!
▯ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
▯ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged power
cables replaced by one of our trained aftersales technicians. If the appliance is
defective, unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
▯ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Risk of damage due to ingress of humidity into the
electronic circuitry. Never clean operator controls with a
wet cloth.
Surface damage due to incorrect cleaning. Clean
stainless steel surfaces in the direction of the grain
only. Do not use any stainless steel cleaners for
operator controls.
Surface damage due to strong or abrasive cleaning
agents. Never use strong and abrasive cleaning agents.
5
Environmental protection
Operating modes
Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy when
using the appliance, and how to dispose of your
appliance properly.
Saving energy
▯ Only switch the ventilation on when necessary. You
do not need to switch the ventilation on when
cooking something for a short time that does not
have a strong smell.
▯ Select a fan setting according to what you are
cooking.
▯ Switch the ventilation off again after cooking.
▯ Cleaning the grease filter regularly will increase the
efficiency of the ventilation.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance can be used in exhaust-air mode or
circulating-air mode.
Exhaust air mode
The air which is drawn in is cleaned by the
grease filters and conveyed to the exterior
by a pipe system.
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heating appliances.
▯ Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
▯ If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
Air recirculation
The air which is drawn in is cleaned by
the grease filters and an activated carbon
filter, and is conveyed back into the
kitchen.
Note: To bind odours in air recirculation mode, you
must install an activated carbon filter. The different
options for operating the appliance in air recirculation
mode can be found in the brochure. Alternatively, ask
your dealer. The required accessories are available from
specialist retailers, from customer service or from the
Online Shop.
6
Your new appliance
Your new appliance and its accessories are described in
this section.
Hob ventilation
*UDWLQJ
*UHDVHILOWHU
9/
Notes
‒ The positioning plate should be used to correctly
position the grease filter when air is evacuated via
an outlet/outlets to the side(s). Place the
positioning plate in the ventilation element such
that the bend in the middle is facing the air outlet.
Place the grease filter onto the positioning plate.
‒ If air is evacuated downwards, place the grease
filter into the ventilation element without the
positioning plate. It does not matter which way
round the grease filter is.
9/
3RVLWLRQLQJSODWH
&RQWURONQRE
Accessories
The scope of delivery includes the following
accessories:
▯ Metal grease filter
▯ Cover grille
Special accessories
You can order the following special accessories from
your specialist dealer:
LS 041 001 Ventilation moulding for VL 040/041
beside gas appliance
Only use the accessories as specified. The
manufacturer accepts no liability if these accessories
are used incorrectly.
7
Installation accessories
AD 724 040 Connection piece for round duct DN
125 mm
For side connection to VL, additional
adapter plate AD 724 041 is required
AD 724 041 Adapter plate for side connection from
AD 724 040 to VL
AD 854 046 Connecting piece for flat duct system
with guidance fins 1 x NW 150 mm, flat
Operation
Thoroughly clean the appliance and accessories before
using them for the first time.
Note: VL 040 can only be operated in combination with
VL 041. All operator inputs apply to both hob ventilators.
That is to say: if you set the control knob to level 1, both
hob ventilators are operated at level 1.
VV 200 014 stainless steel connection strip for
combination with further Vario
appliances
VV 200 034 aluminium connection strip for
combination with further Vario
appliances

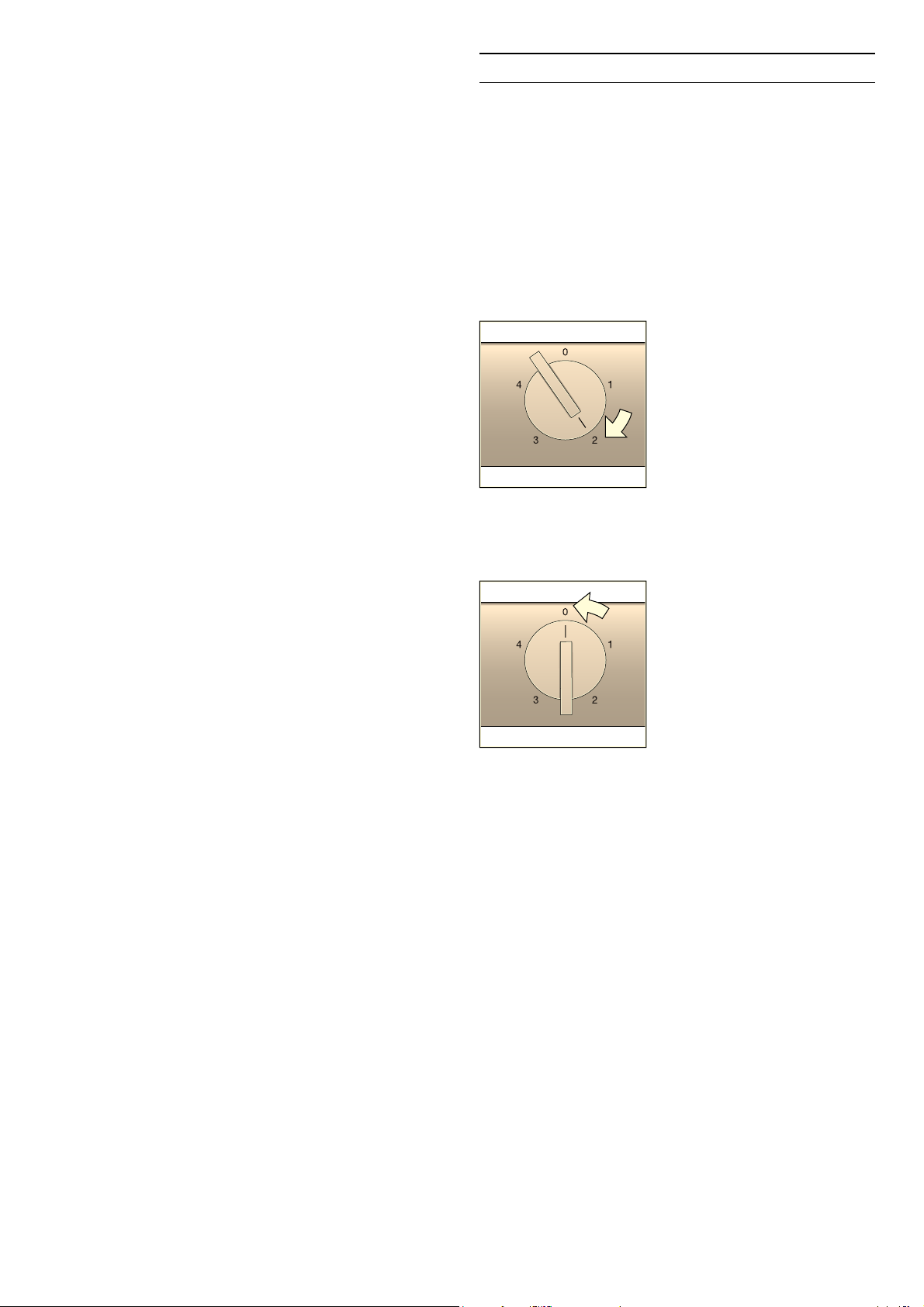

Switching on
Turn the control knob to the
right to the position you
require (0-4).
Switching off
Turn the control knob to the
left to the 0 position.
Ventilation moulding
If the downdraft ventilation operates beside a gas-fired
appliance, a ventilation moulding LS 041 001 must be
attached when cooking. The ventilation moulding
improves the extraction behaviour for gas-fired
appliances. The ventilation moulding prevents small
flames from going out as a result of a draft.
8
Cleaning
Risk of burns!
m
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
m Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
m Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Caution!
Risk of surface damage: Do not use these cleaners
‒ harsh or abrasive cleaning agents
‒ oven cleaners
‒ corrosive or aggressive cleaners, or those
containing chlorine
‒ cleaning agents with a high alcohol content
‒ hard and scratchy sponges, brushes or scouring
pads
Fitting and removing the metal grease filter
If such an agent comes into contact with the appliance,
wash it off immediately with water.
Thoroughly wash out new sponge cloths before using
them!
Cleaning the appliance
Note: The appliance's surface and operator controls are
sensitive to scratches. You can obtain suitable cleaning
and care agents for your appliance via the hotline or the
online shop. Observe the warranty provisions in the
attached service booklet and the following notes on
cleaning:
▯ Clean the surfaces with a soft, moist cloth,
detergent or a mild window cleaner. Soften dried-on
soiling with a moist cloth. Do not scrape!
▯ Clean stainless steel surfaces in the grind direction
only.
▯ Do not use a stainless steel cleaner for operator
controls.
1 Remove the ventilation grating. 2 Pull the metal grease filter up and out of the
appliance. Take out the positioning plate (if fitted).
Insertion is in the reverse sequence to removal. Insert
the positioning plate only if there is a side air outlet.
Insert the positioning plate such that the bend in the
middle is facing the air outlet.
9
Cleaning the metal mesh grease filters
Aftersales service
m Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
‒ Do not use any aggressive, acidic or alkaline
cleaning agents.
‒ When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
‒ The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
In the dishwasher:
Note: When cleaning the ventilation moulding in the
dishwasher, light discolouration may occur. This does
not have any effect on the function of the metal grease
filter.
▯ Do not clean heavily soiled metal grease filters
together with dishes.
▯ Place the metal grease filter loosely into the
dishwasher. Do not let the metal grease filter
become jammed.
▯ Place the metal grease filter into the dishwasher
with its opening facing downwards.
By hand:
Our after-sales service is there for you if your appliance
needs to be repaired. We will always find an appropriate
solution in order to avoid unnecessary visits by
engineers.
When calling us, please give the product number (E no.)
and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
bearing these numbers can be found on the appliance.
To save time, you can make a note of the number of your
appliance and the telephone number of the after-sales
service in the space below, should it be required.
E no. FD no.
After-sales service
Please note that a visit from an after-sales service
engineer is not free of charge, even during the warranty
period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
GB 0344 892 8988
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak.
Off peak 0.0088 € per minute.
O
Note: You can use a special grease solvent for stubborn
dirt. It can be ordered via the Online Shop.
▯ Soak the metal mesh grease filters in a hot soapy
solution.
▯ Clean the filters with a brush and then rinse them
thoroughly.
▯ Leave the metal mesh grease filters to drain.
AU 1300 368 339
NZ 09 477 0492
Trust the expertise of the manufacturer, and rest
assured that the repair will be carried out by trained
service technicians using original spare parts for your
domestic appliance.
10
Índice
Instrucciones de uso
Indicaciones de seguridad importantes 12
Protección del medio ambiente 14
Ahorro de energía 14
Eliminación de residuos respetuosa con el
medio ambiente 14
Modos de funcionamiento 14
Funcionamiento en salida de aire al exterior 14
Funcionamiento con recirculación de aire 14
Su nuevo aparato 15
Ventilación de placa de cocción 15
Accesorio 15
Accesorios especiales 15
Accesorio de instalación 16
Manejo 16
Conectar 16
Apagar 16
Carril de circulación del aire 16
Limpieza 17
Limpiar el aparato 17
Desmontar y montar el filtro de metal antigrasa 17
Limpiar el filtro de metal antigrasa 18
Servicio de atención al cliente 18
: Encontrará más información sobre productos,
accesorios, piezas de repuesto y servicios en internet:
www.gaggenau.com y también en la tienda online:
www.gaggenau-eshop.com
11
Loading...
