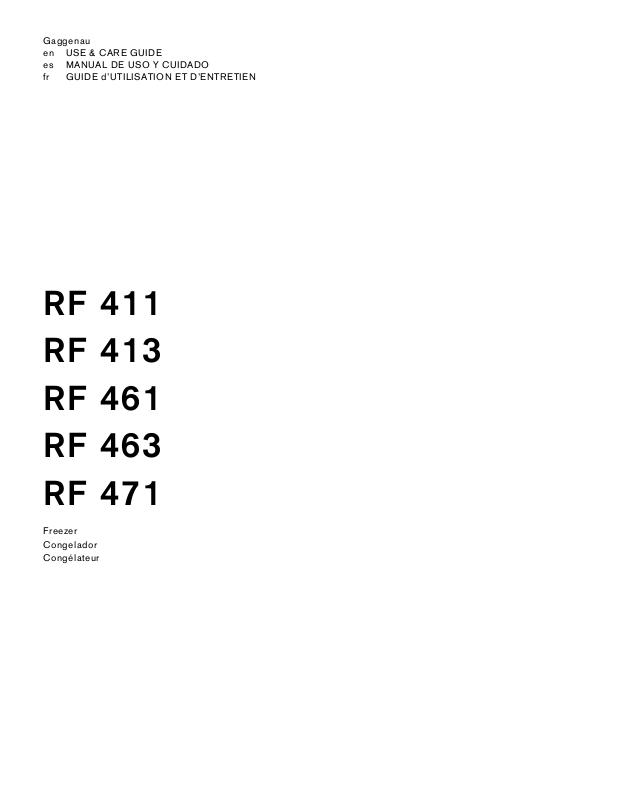

Gaggenau
enUSE & CARE GUIDE
esMANUAL DE USO Y CUIDADO
frGUIDE d’UTILISATION ET D’ENTRETIEN
RF 411
RF 413
RF 461
RF 463
RF 471
Freezer
Congelador
Congélateur
en Table of Contents 3
es Índice 25
frTable des matières 51
en Table of Contents
enOperating instructions
Important Safety Instructions 4
Information Concerning Disposal 5
Installing the Appliance 6
Ventilation 6
Scope of Delivery 6
Connecting the Appliance 7

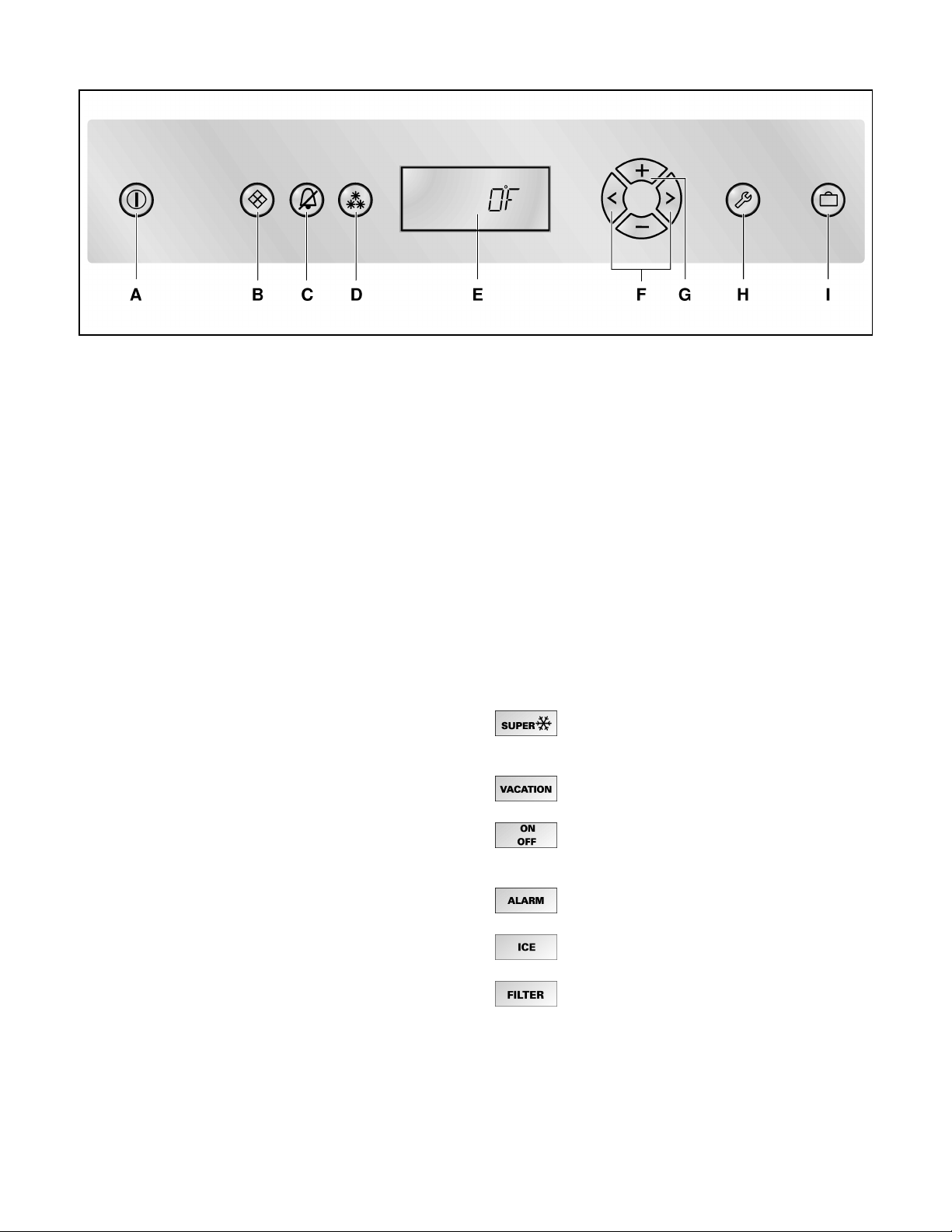

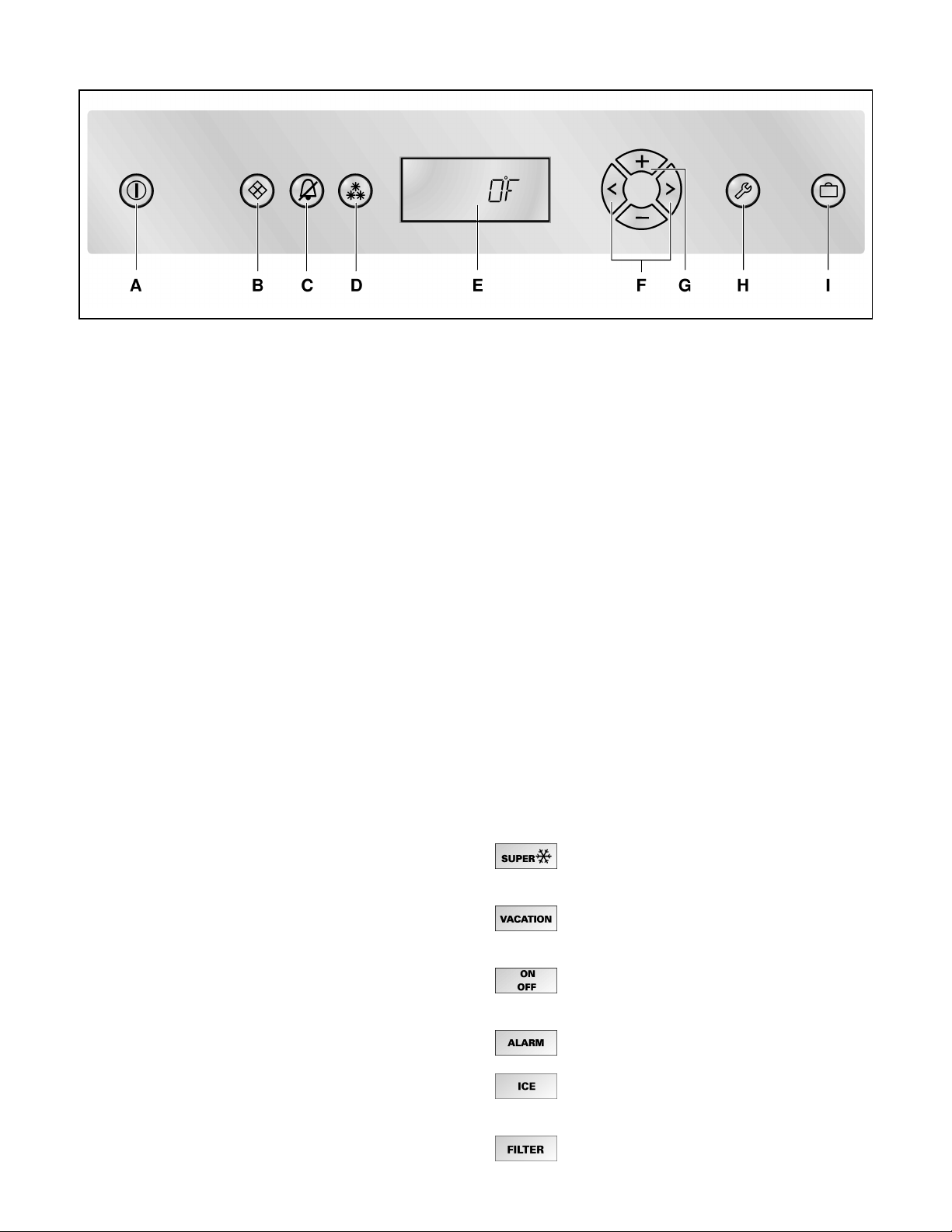

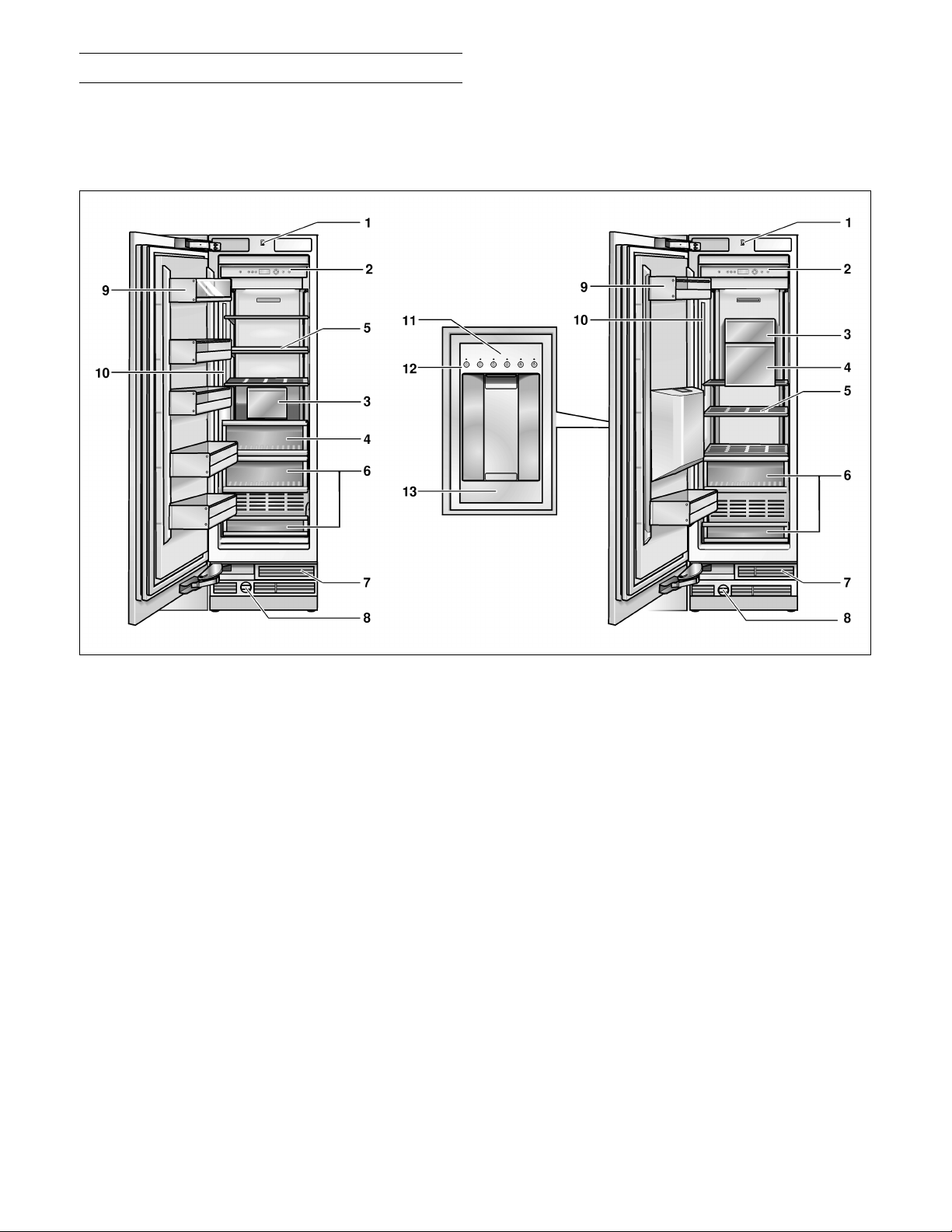

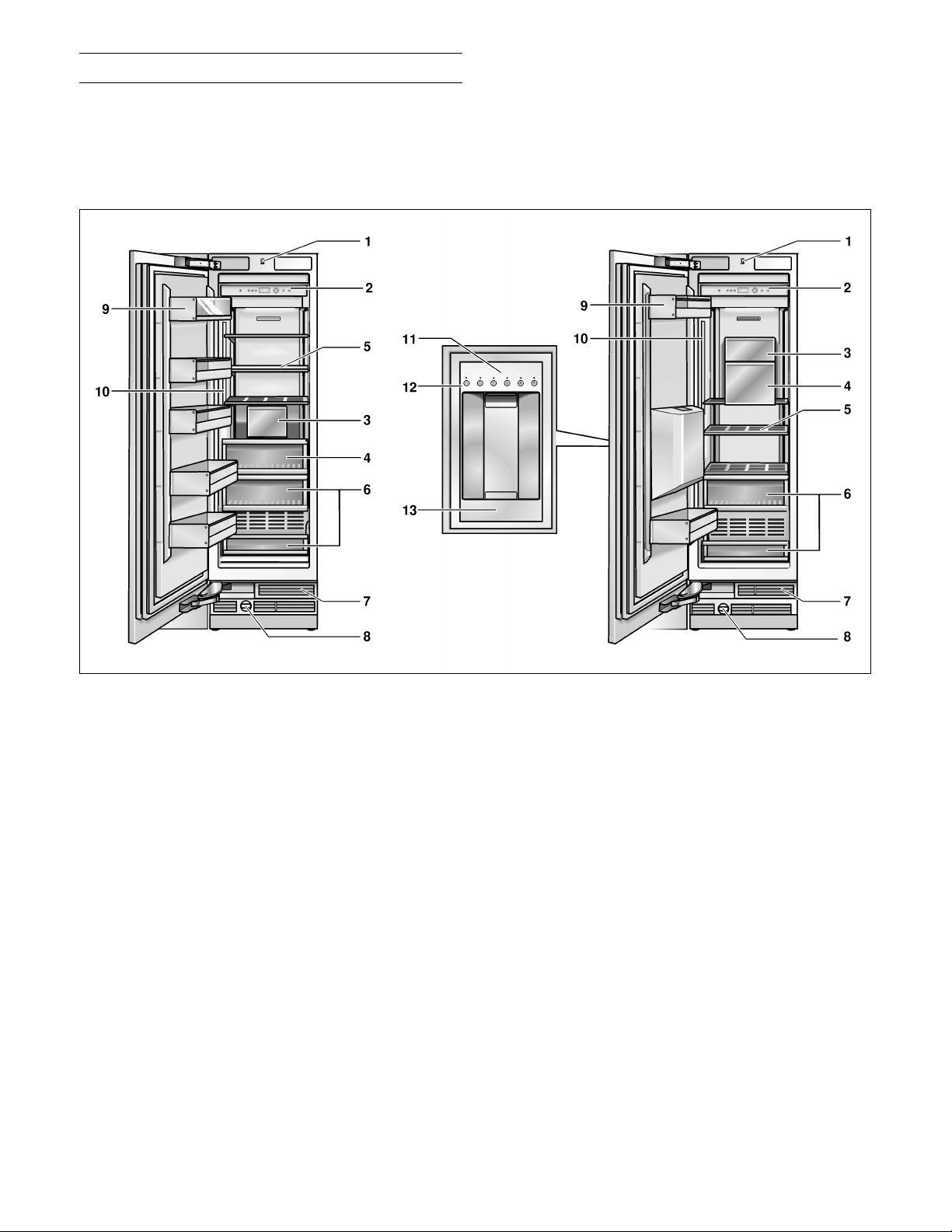

Getting to Know Your Appliance 8
Switching the Appliance On 10

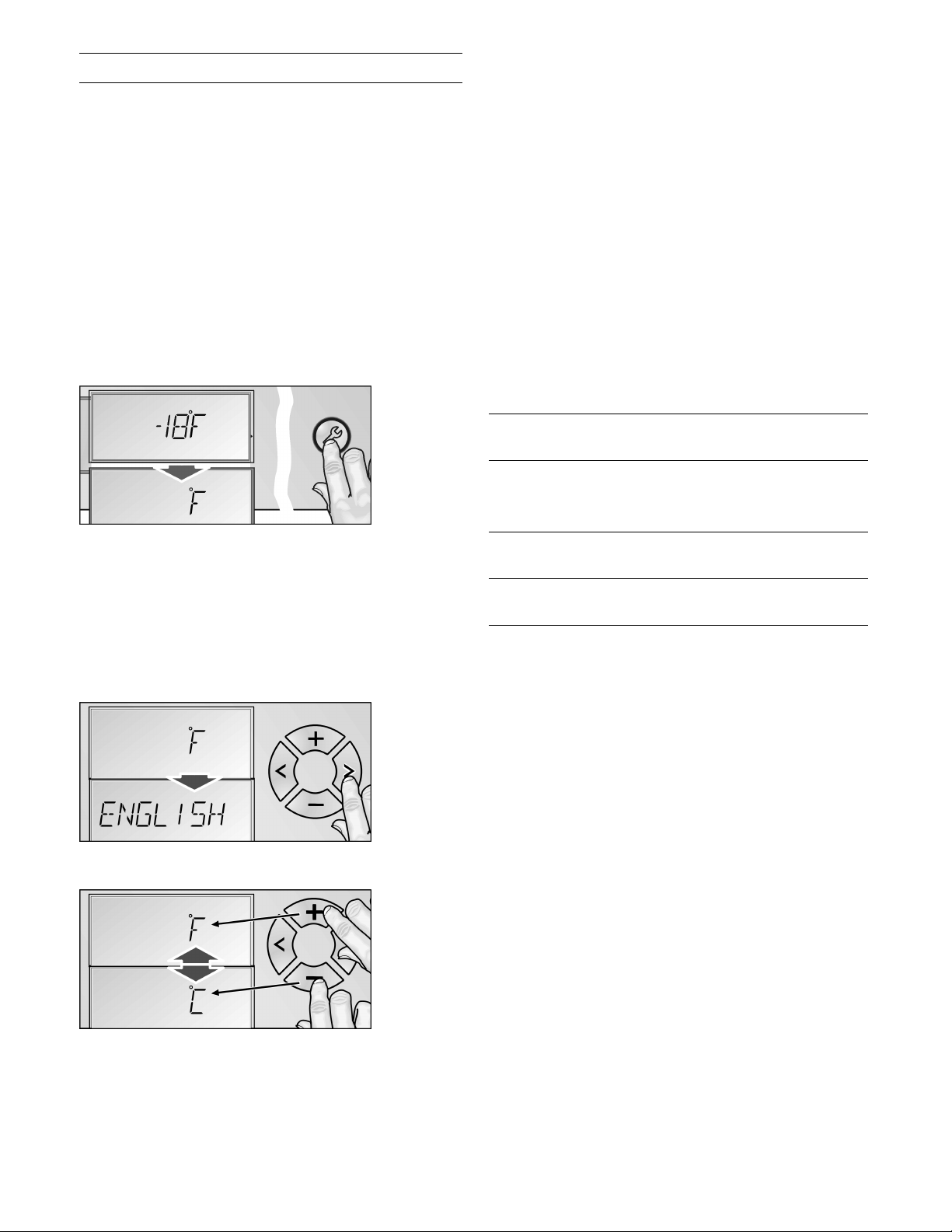

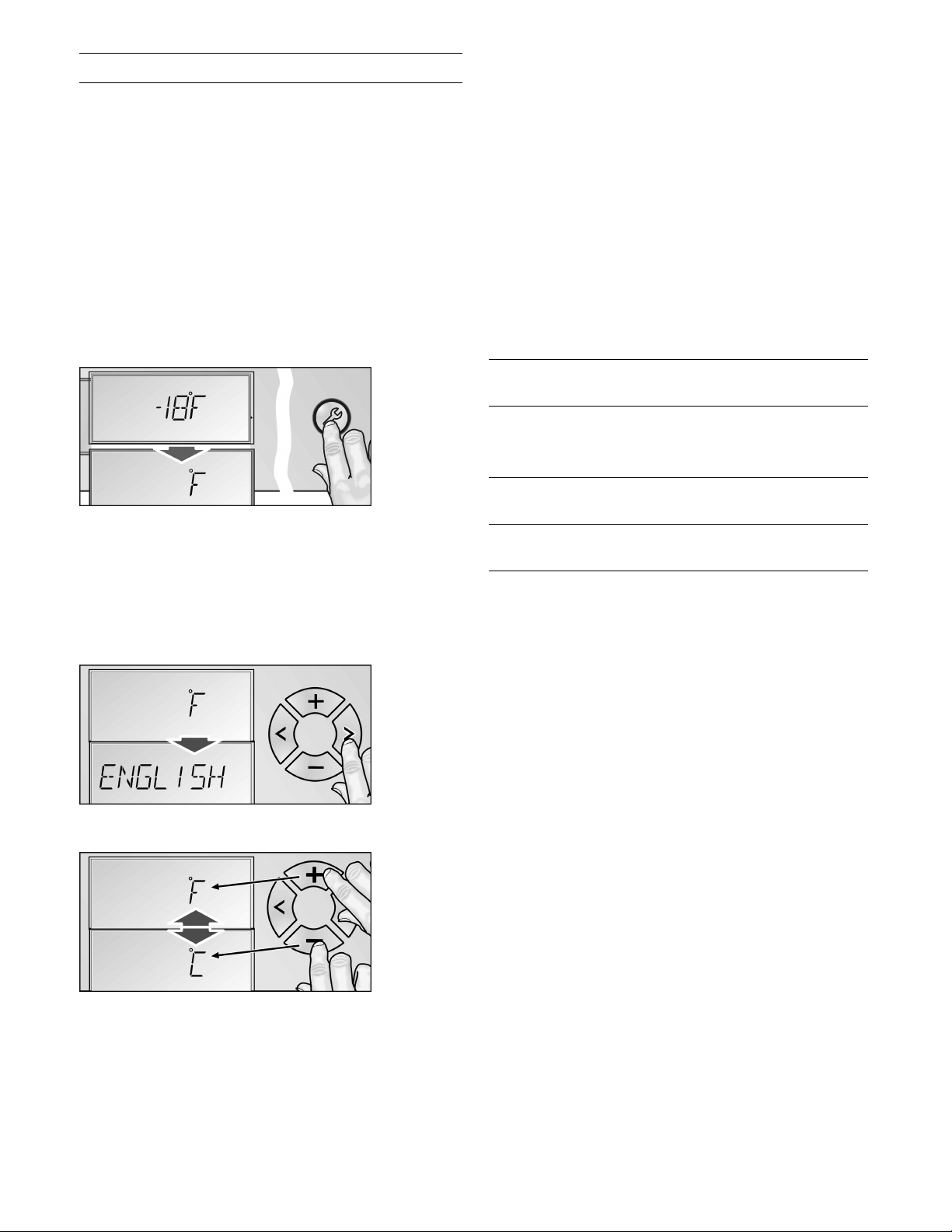

Setting the Language 10
Setting the Temperature Unit 10
Setting the Temperature 10

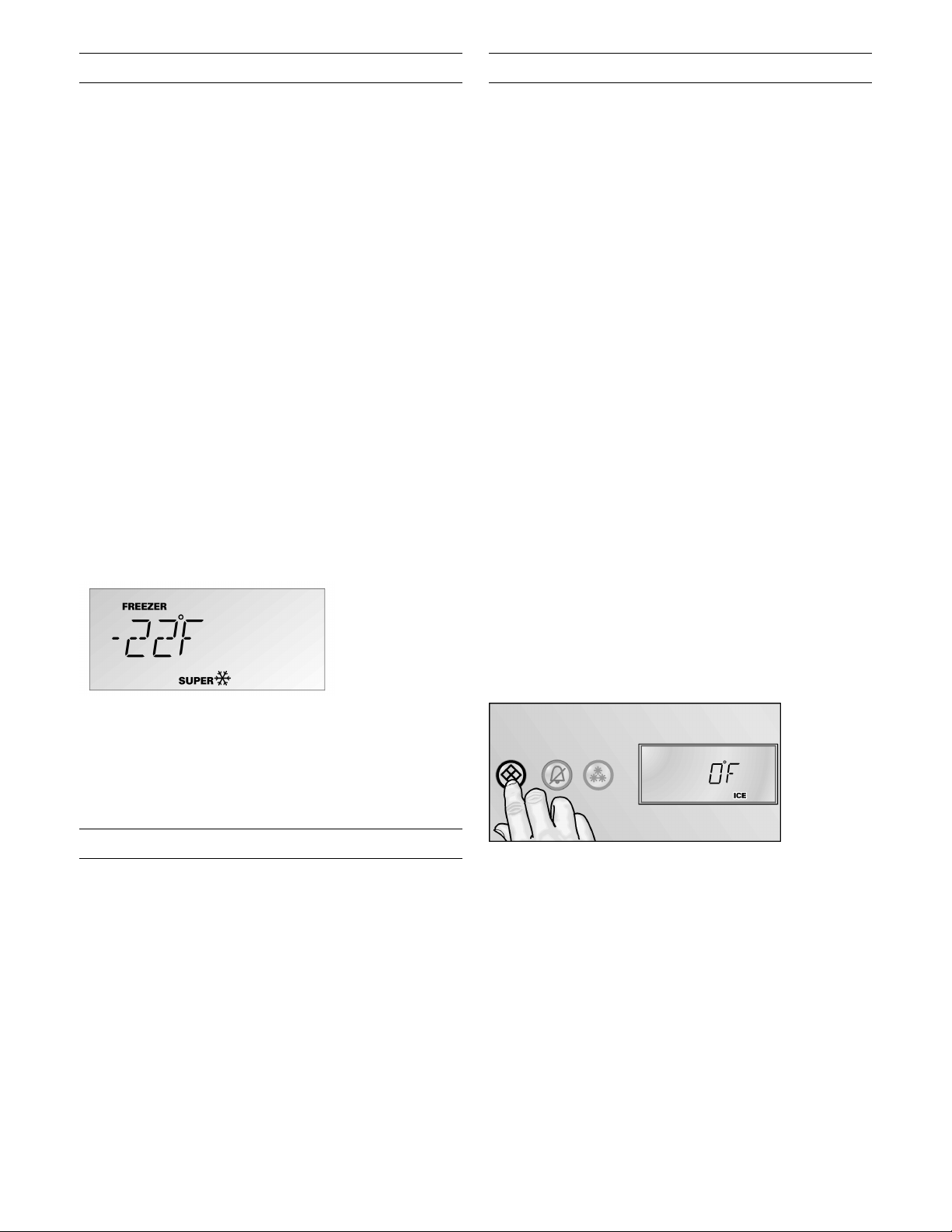

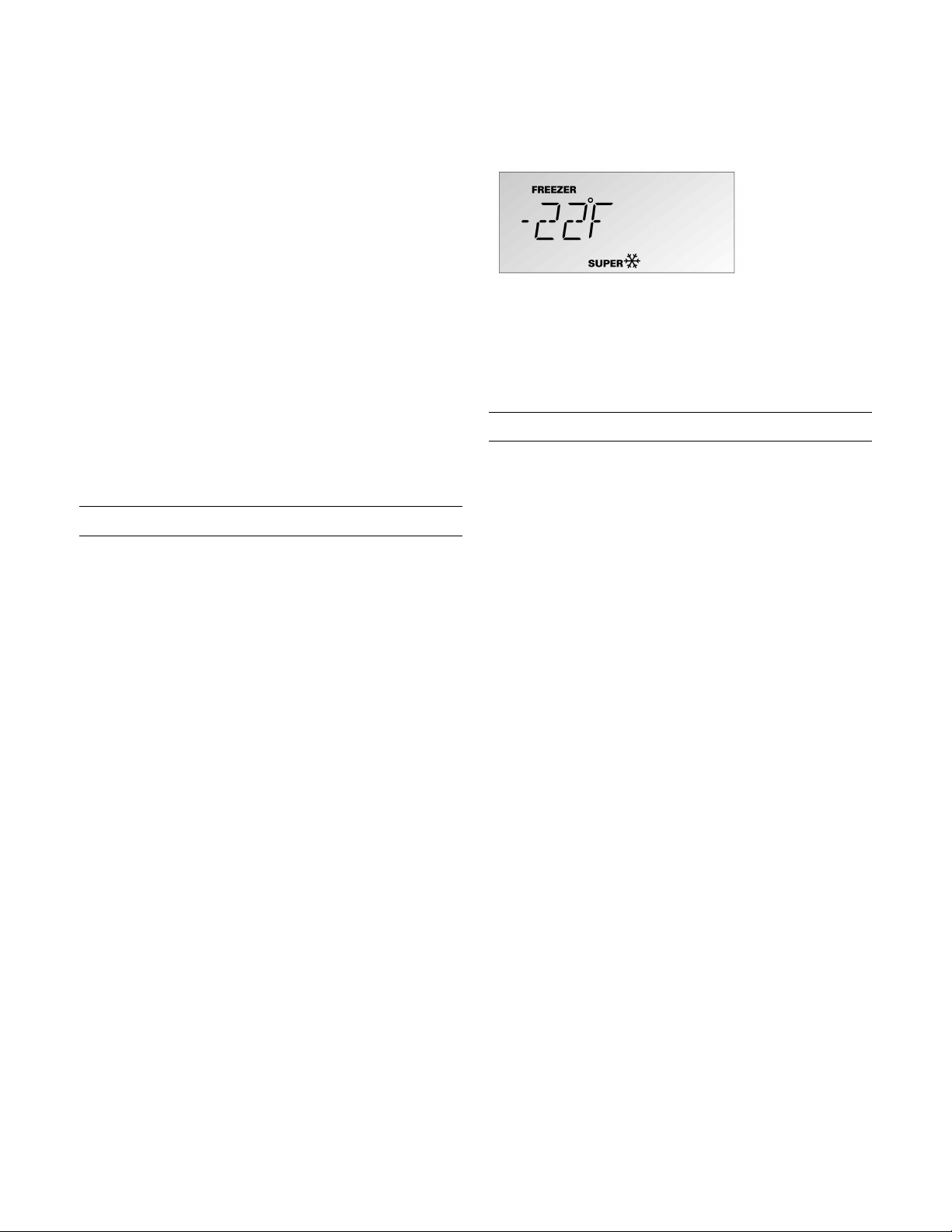

Super Freezing 14
Thawing Frozen Food 14

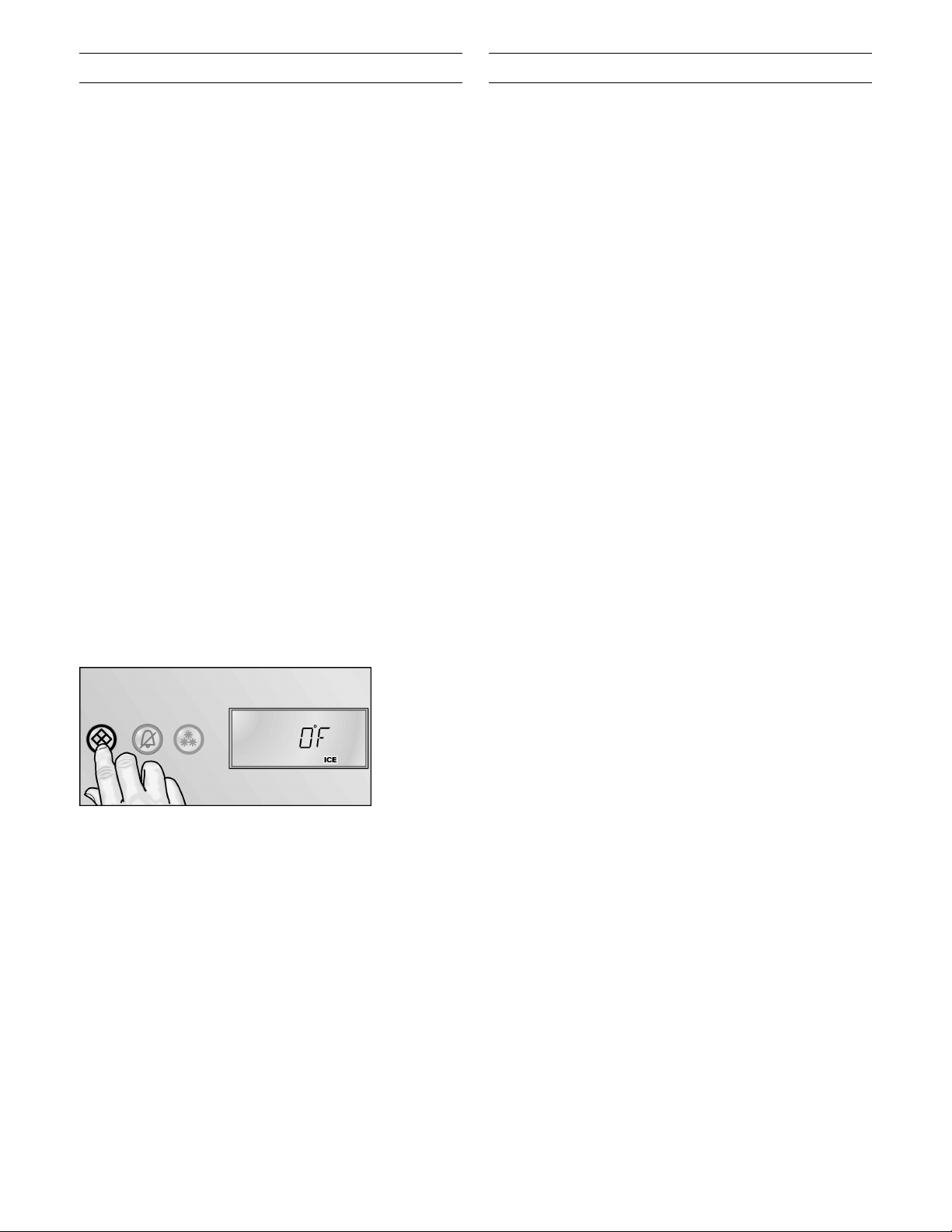

Ice Maker 15

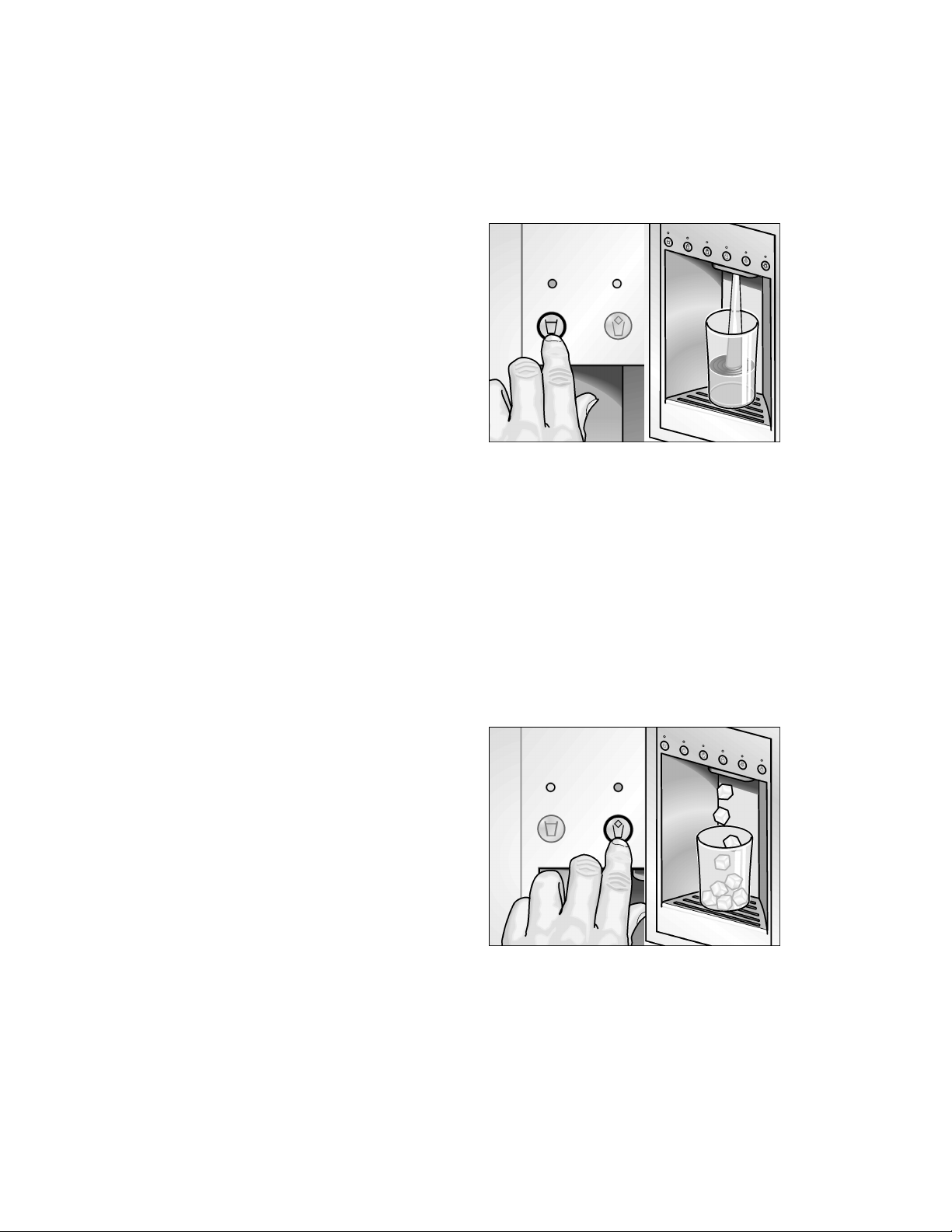

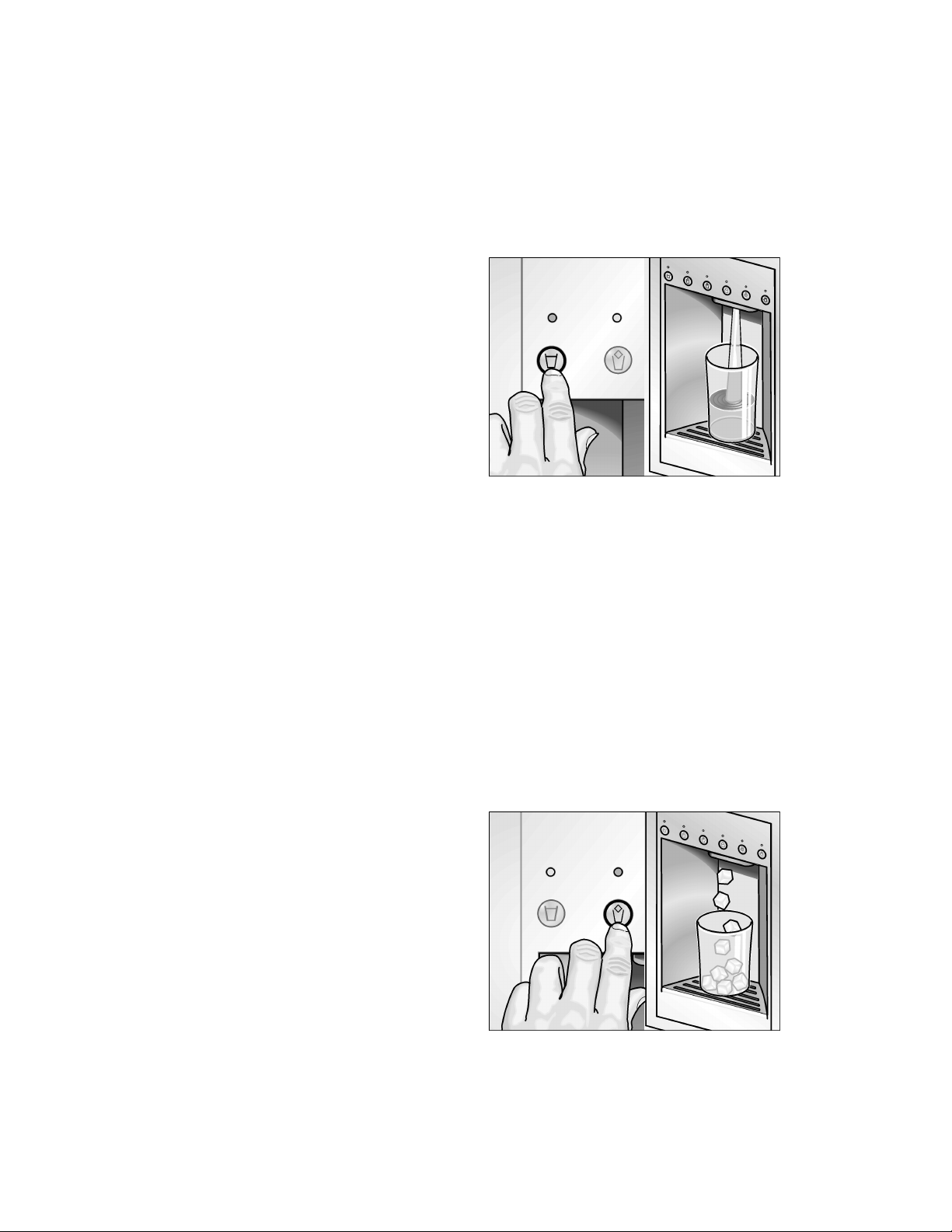

Ice and Water Dispenser 15

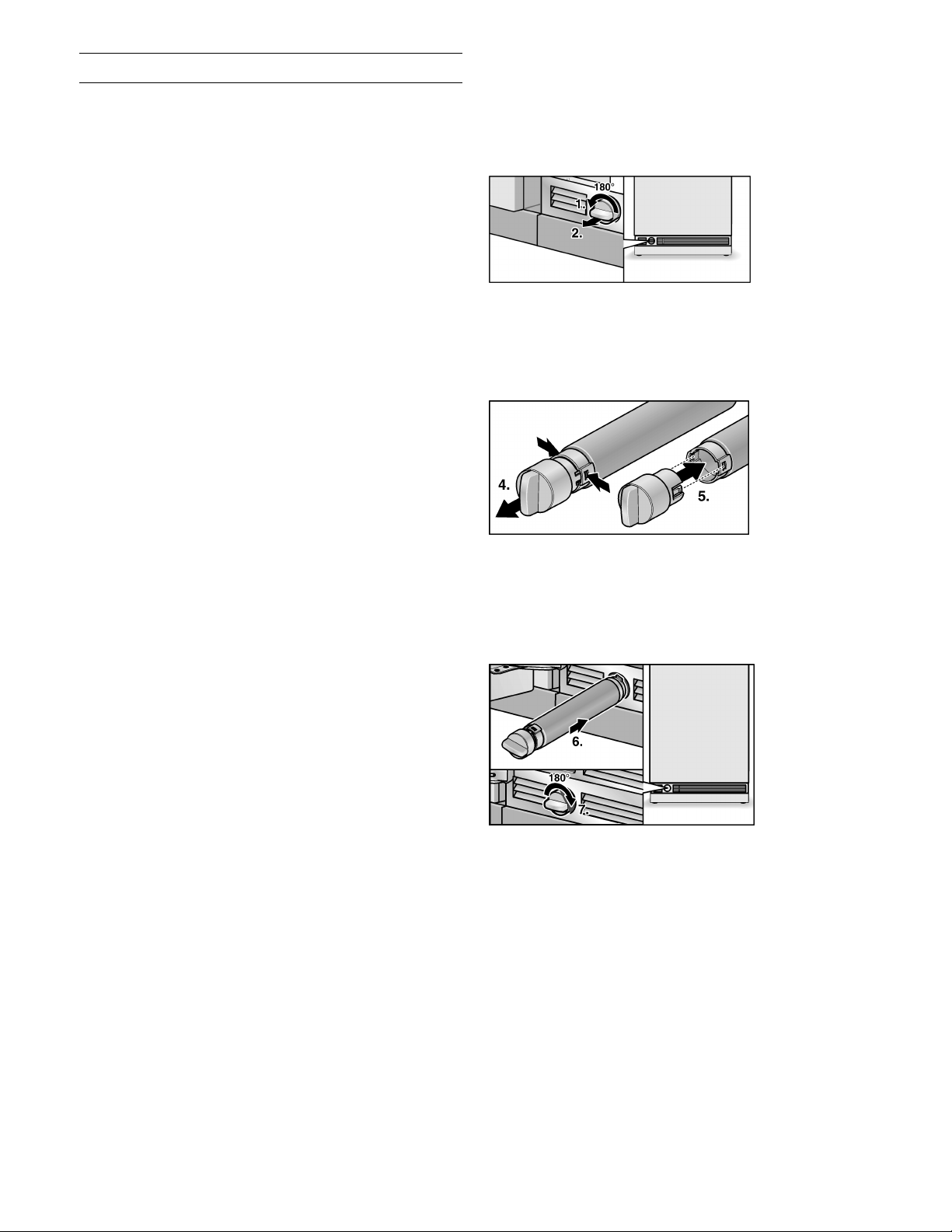

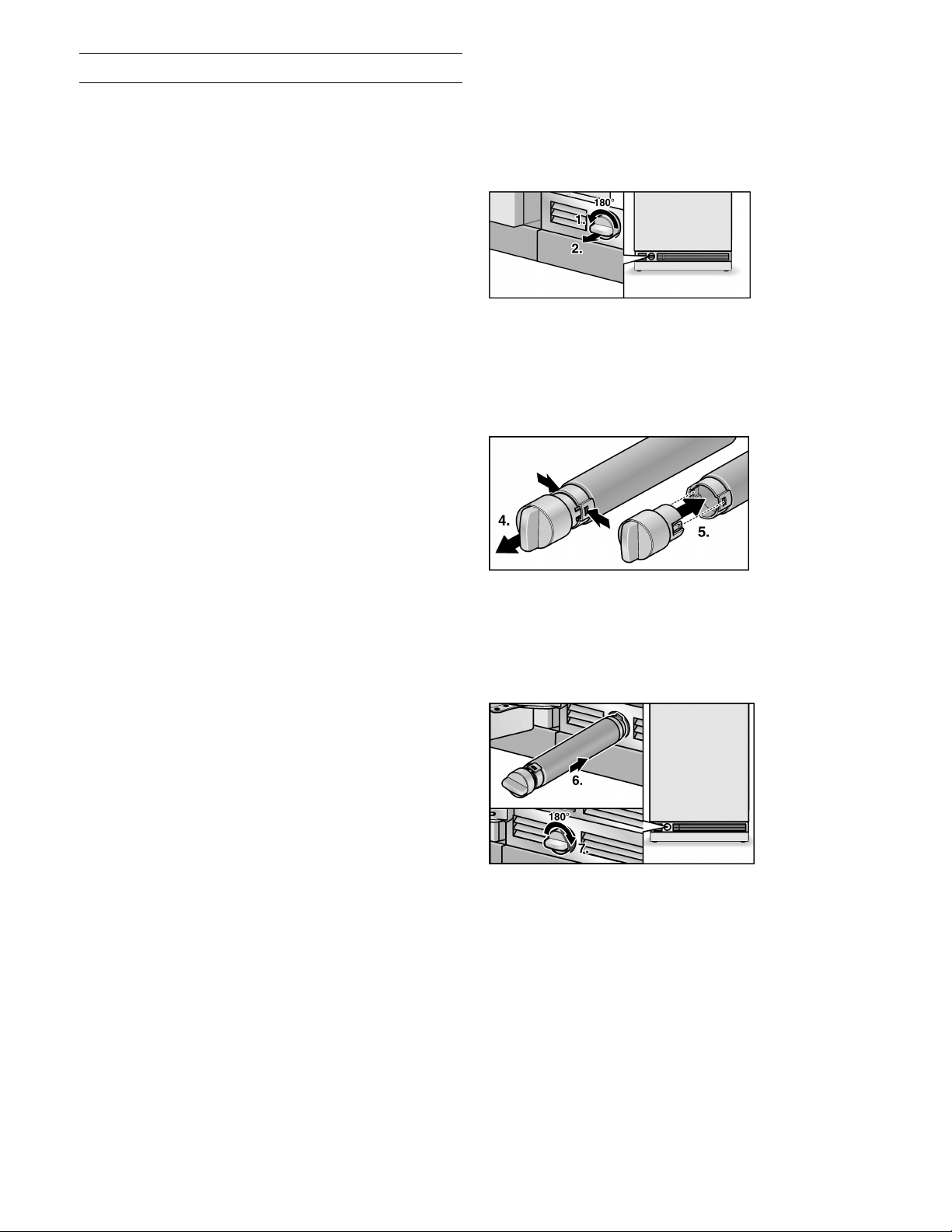

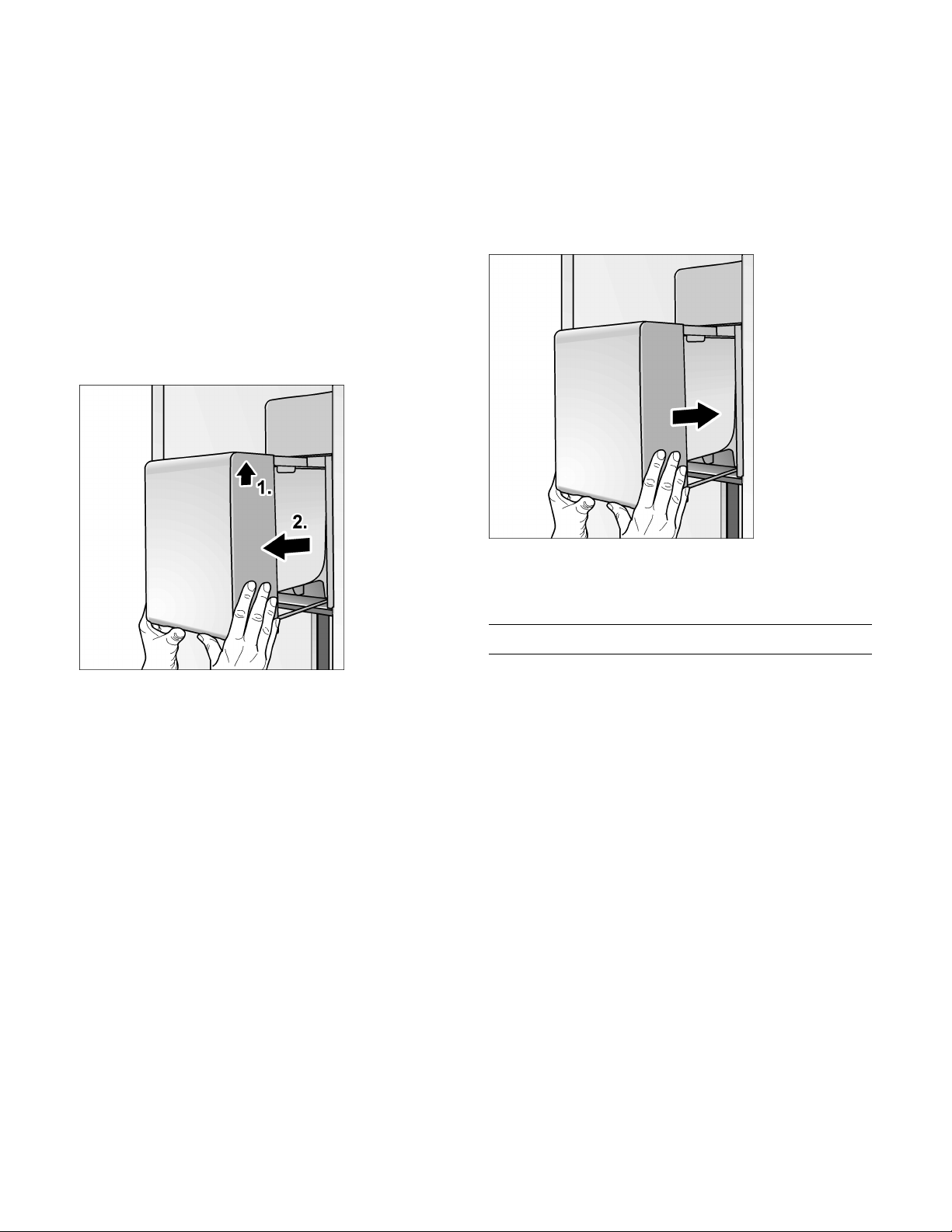

Water Filter 17
Specification and Performance Data Sheet 18

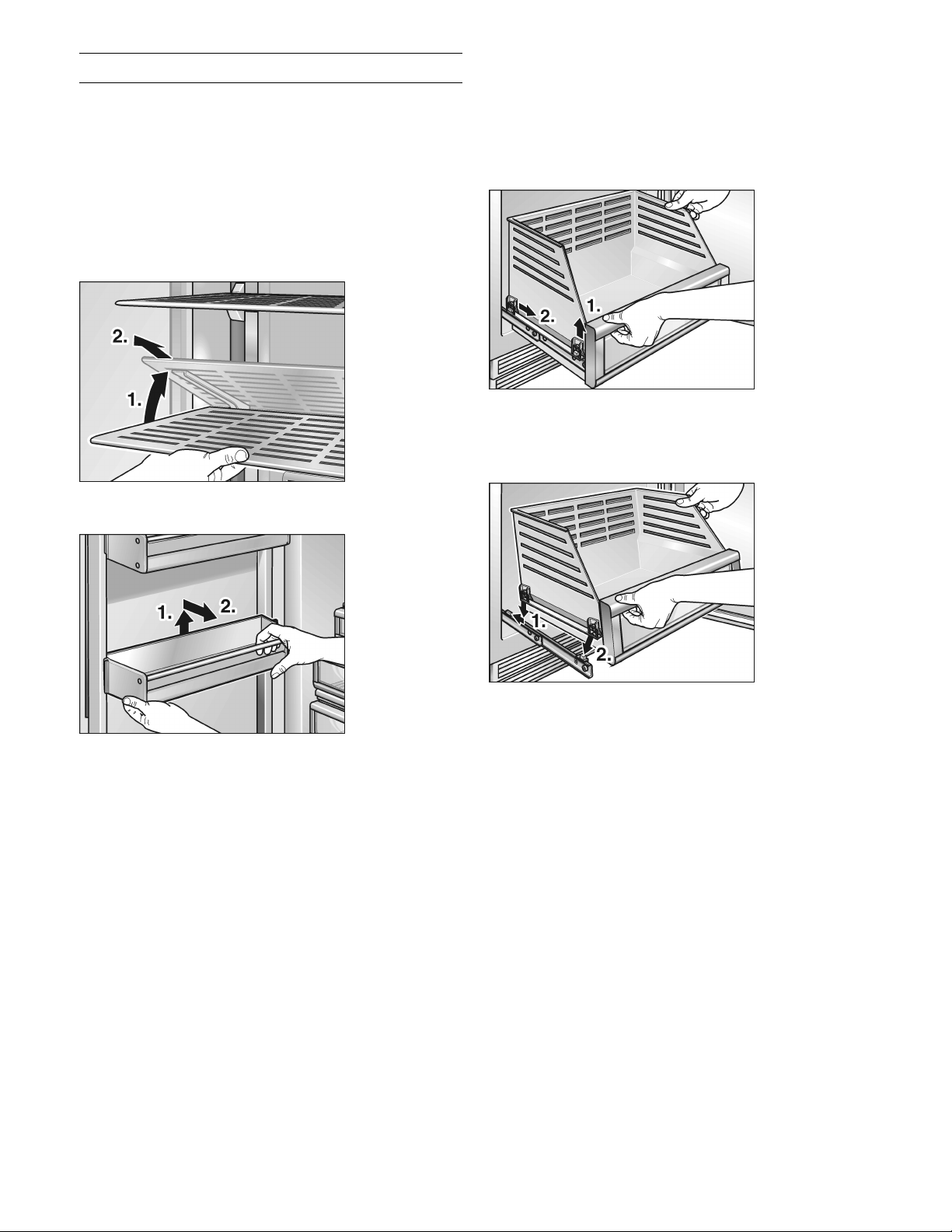

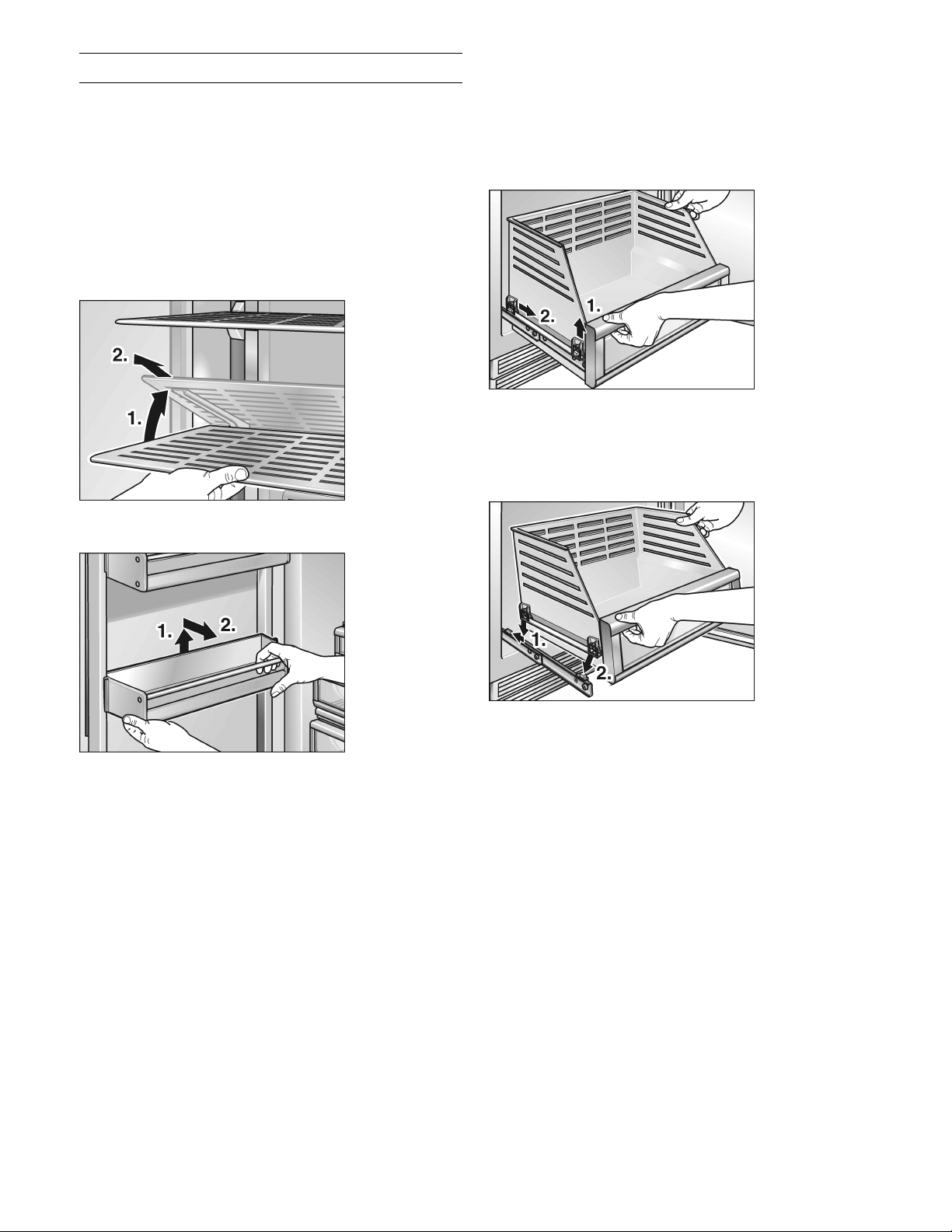

Interior Fittings 19
Switching Off and Disconnecting the Appliance 20
Defrosting 20
Cleaning the Appliance 20
Light (LED) 21
Special Functions 11
Alarm Function 12
Freezer Compartment 13
Freezing and Storing Food 13
Freezing Fresh Food 13
Tips for Saving Energy 21
Operating Noises 21
Before Calling for Service 22
Customer Service 24
3
, Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS!
Important Safety Instructions. READ AND SAVE THESE INSTRUCTIONS!
Definition
Important Information When Using
WARNING:
This indicates that serious injury or death may result
due to non-observance of this warning.
CAUTION:
This indicates that minor or moderately severe injury
may result due to non-observance of this warning.
WARNING: Before You Switch
the Appliance On
Please read the Operating and Installation
Instructions carefully, including the following. They
contain important safety information and instructions
for installation, use and maintenance for
the appliance.
The manufacturer is not liable if you fail to comply with
the instructions and warnings. Retain all documents
for subsequent use or for the next owner.
Technical Safety
Improper installations and repairs may put the user at
considerable risk.
Repairs may be performed by an authorized service
provider.
Only use original parts supplied by the manufacturer.
The manufacturer guarantees that only these parts
satisfy the safety requirements.
If the Power Cord of this appliance is damaged, it
must be replaced by authorized service personnel or a
qualified person.
The appliance comes with a UL registered 3-wire
Power Cord.
An approved power cable extension may be purchased
from Customer Service only.
Never sever or remove the third (earth) conductor
from the Power Cord.
The appliance requires a 3-wire receptacle. The
receptacle must installed by a licensed electrician
only.
the Appliance
▯Never use electrical appliances inside
the appliance (e.g. heater, electric ice maker,
etc.). Risk of explosion!
▯Never use a steam cleaner to defrost or clean
the appliance! The steam may penetrate electrical
parts and cause a short-circuit. Risk of electric
shock!
▯Do not use pointed or sharp-edged objects
to remove frost or layers of ice. You could damage
the refrigerant tubes. Leaking refrigerant may
ignite or cause eye injuries.
▯Do not store products that contain flammable
propellants (e.g. spray cans) or explosive
substances in the appliance. Risk of explosion!
▯Do not stand on or lean heavily against base of
appliance, drawers or doors, etc.
▯To clean the appliance, pull out the mains plug or
switch off the electrical breaker or fuse! Do not
pull out the mains plug by tugging the cable.
▯Bottles that contain a high percentage of alcohol
must be sealed and stored in an upright position.
▯Keep plastic parts and the door seal free of oil
and grease. Otherwise, parts and door seal will
become porous.
▯Never cover or block the Ventilation Openings for
the appliance.
▯People (children incl.) who have limited physical,
sensory or mental abilities or inadequate
knowledge must not use this appliance unless
they are supervised or given meticulous
instructions.
▯Do not store bottled or canned drinks (especially
carbonated drinks) in the Freezer Compartment.
Bottles and cans may explode!
▯Never put frozen food straight from the Freezer
Compartment into your mouth.
Risk of low-temperature burns!
▯Avoid prolonged touching of frozen food, ice
or the evaporator pipes, etc.
Risk of low-temperature burns!
Where there is a 2-wire standard wall receptacle, it is
the personal responsibility and duty of the customer to
have this receptacle replaced with a correctly earthed
3-wire wall receptacle. Do not use any adapter plugs.
4
Children in the Household
▯Keep children away from packaging and its parts.
Danger of suffocation from folding cartons
and cling wrap!
▯Do not allow children to play with the appliance!
▯If the appliance features a lock:
Keep the key out of the reach of children!
RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigeration products
are still dangerous…even if they will sit for “just a few
days”. Please follow these instructions when product
has reached the end of service to help prevent
accidents:
▯Remove the doors.
▯Leave the shelves in place so that children may
not easily climb inside.
General Regulations
The appliance is suitable
▯for freezing food,
▯for making ice,
▯for dispensing drinking water.
This appliance is intended for use in the home
and the home environment.
The refrigeration circuit has been tested for leaks
before leaving the factory.
Information Concerning Disposal
* Disposal of Packaging
The packaging protects your appliance from damage
during transit. All utilized materials are
environmentally safe and recyclable. Please help us by
disposing the packaging in an environmentally friendly
manner.
Please ask your dealer or inquire at your local
authority about current means of disposal.
* Disposal of Your Old Appliance
Old appliances are not worthless trash! Valuable raw
materials can be reclaimed by recycling.
, WARNING:
1.Pull out the Power Plug.
2.Cut Off the Power Cord and discard with
the Power Plug.
3.Do not take out the trays and shelves. This helps
to prevent children from climbing in!
4.Do not allow children to play with the appliance
once it has spent its useful life. Could cause
suffocation!
Refrigerators contain refrigerant and gases in
the insulation. Refrigerant and gases must be
disposed of professionally. Ensure that tubing of
the refrigerant circuit is not damaged prior to proper
disposal.
State of California Proposition 65
Warnings
WARNING:
,
This product contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm.
5
Installing the Appliance
Ventilation
Have a technician install and connect the appliance
according to the enclosed Installation Instructions.
, WARNING:
Do not install the appliance:
▯outdoors,
▯in an environment subject to drips of water,
▯in rooms with risk of frost.
Transporting
The appliances are heavy and must be secured during
transportation and installation.
Because of the weight/dimensions of the appliance
and to minimize the risk of injuries and damage
to the appliance at least two people are necessary
to set-up the appliance securely.
Installation Location
A dry, well-ventilated room is suitable as
an installation location. The installation location
should not be exposed to direct sunlight or placed
near a heat source, e.g. a cooker, radiator, etc.
If installation next to a heat source is unavoidable, use
a suitable insulating plate or observe the following
minimum distances from the heat source:
The refrigeration unit is ventilated only via
the ventilation grille in the base. Never cover
the ventilation grille or place anything in front of it.
Otherwise the refrigeration unit must work harder,
increasing the power consumption.
Scope of Delivery
After unpacking all parts, check for any damage
in transit.
If you have any complaints, please contact the dealer
from whom you purchased the appliance or our
Customer Service department.
The following parts are included:
▯Built-in appliance
▯Interior fittings (depending on model)
▯Bag containing installation materials
▯Operating Instructions
▯Installation Instructions
▯Customer Service Booklet
▯Warranty enclosure
▯Information on the energy consumption and
noises.
▯1.2“ (3 cm) to electric or gas cookers.
▯12“ (30 cm) to an oil or coal-fired cooker.
The floor of the installation location must not give
way; if required, reinforce floor. To ensure that the Ice
Maker functions correctly, the appliance must be
upright.
6
Connecting the Appliance
Electrical Connection
Have a technician install and connect the appliance
according to the enclosed Installation Instructions.
Do not remove the transportation protection devices
from the shelves and storage compartments until
the appliance has been installed.
Always connect the water before the power.
Apart from statutory national regulations, you should
comply with all applicable local electricity and water
companies codes and requirements.
After installing the appliance, wait at least 1 hour
before switching the appliance On. During
transportation the oil in the compressor may have
flowed into the refrigeration system.
Before switching the appliance On for the first time,
clean the interior of the appliance (see chapter
“Cleaning the Appliance”).
Water Connection
,
CAUTION:
Connect the appliance to a drinking water line only:
hose set:
The water may be connected only by a competent fitter
according to the local regulations of the appropriate
Water Supply company.
A cold water connection is necessary for operating
the automatic Ice Maker. The water pressure must be
between 29 and 116 p.s.i. (2.0 and 8.0 bar). The
installation must correspond to the local plumbing
regulations.
Install a separate shut-off valve in the cold water
supply line.
The Shut-Off-Valve should not be located behind
the appliance. It is recommended that you mount
the Shut-Off-Valve directly next to the appliance or at
another place that is easily accessible.
When installing the water connection, observe the
permitted installation areas for the water line.
, WARNING:
Avoid the risk of an electric shock!
, WARNING:
Insert into a grounded 3-wire receptacle. Never
remove grounding phase. Do not use any adapters. Do
not use any extension cords.
, WARNING:
Non-compliance with these instructions may result
in death, fire or an electric shock. Improper
connection of the protective conductor may result in
an electric shock. If you are in doubt whether
the appliance has been grounded properly, have
the appliance tested by a qualified electrician or
service technician.
Do not use extensions or distributors.
The receptacle must be installed according to the
Installation Manual.
The appliance complies with protection class I.
Connect the appliance to 115 V/60 Hz AC through
a correctly installed 3-wire grounded receptacle.
The receptacle must be protected with a 10 to 16 A
fuse.
The appliance comes with a UL registered 3-wire
Power Cord.
Check on the Rating Plate whether the indicated
voltage and current type correspond with the values of

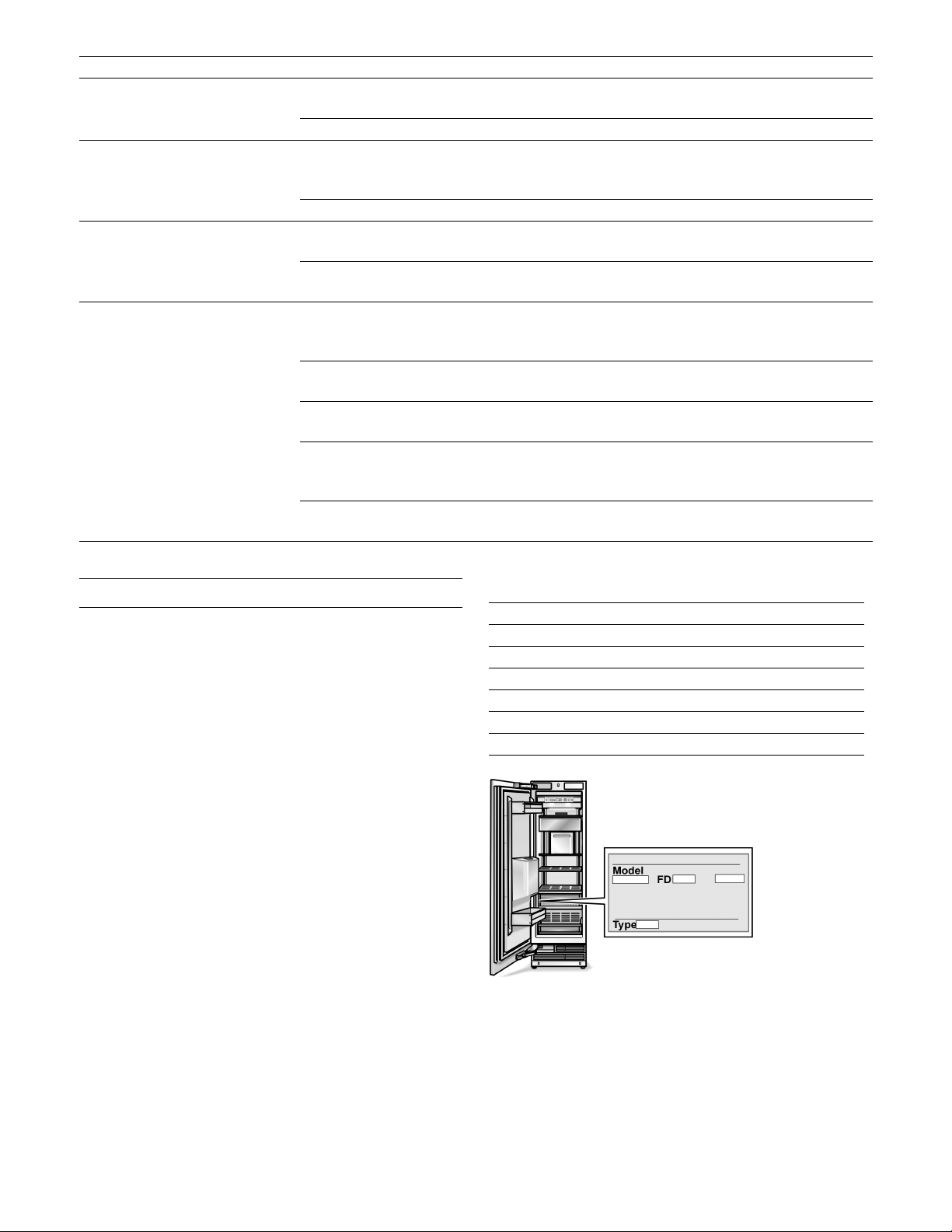

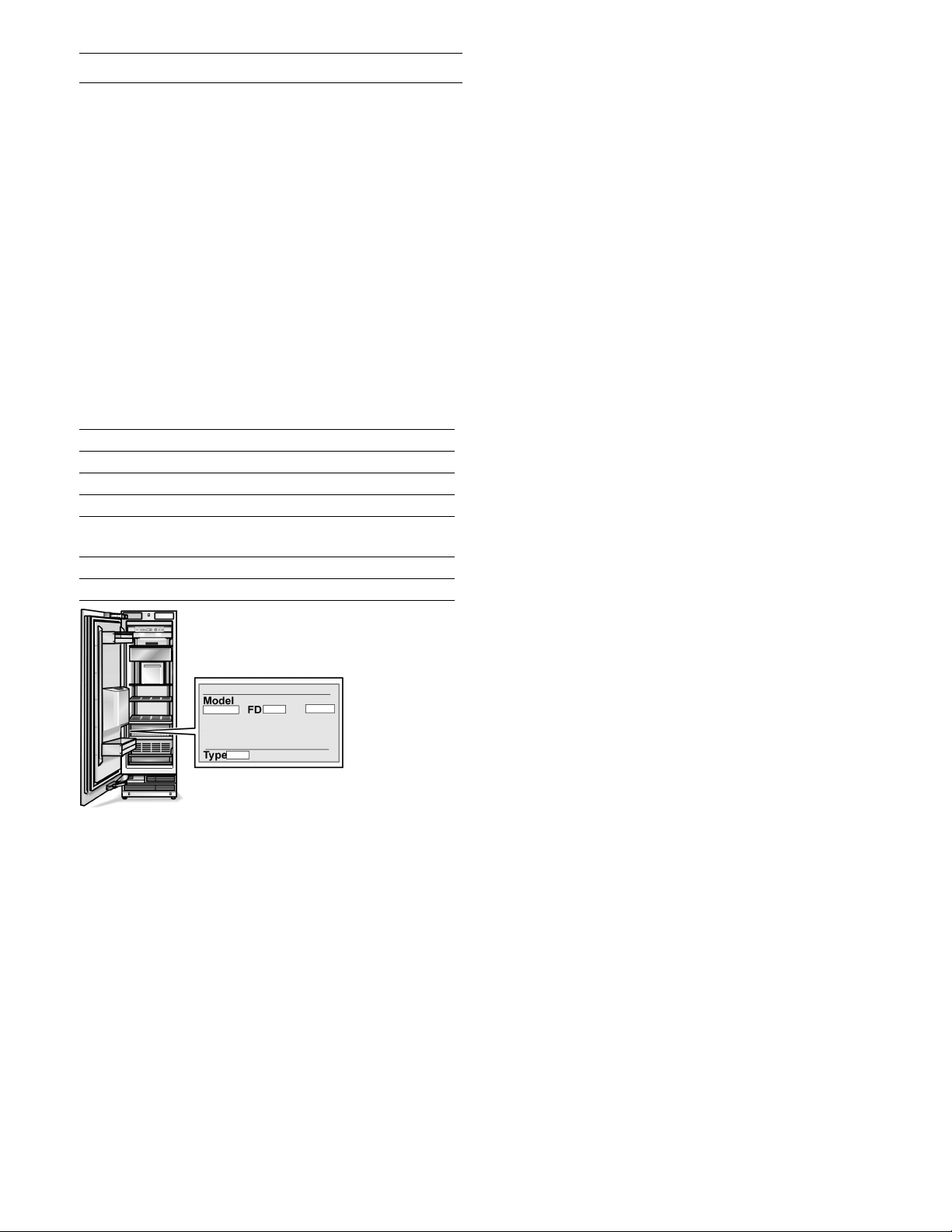

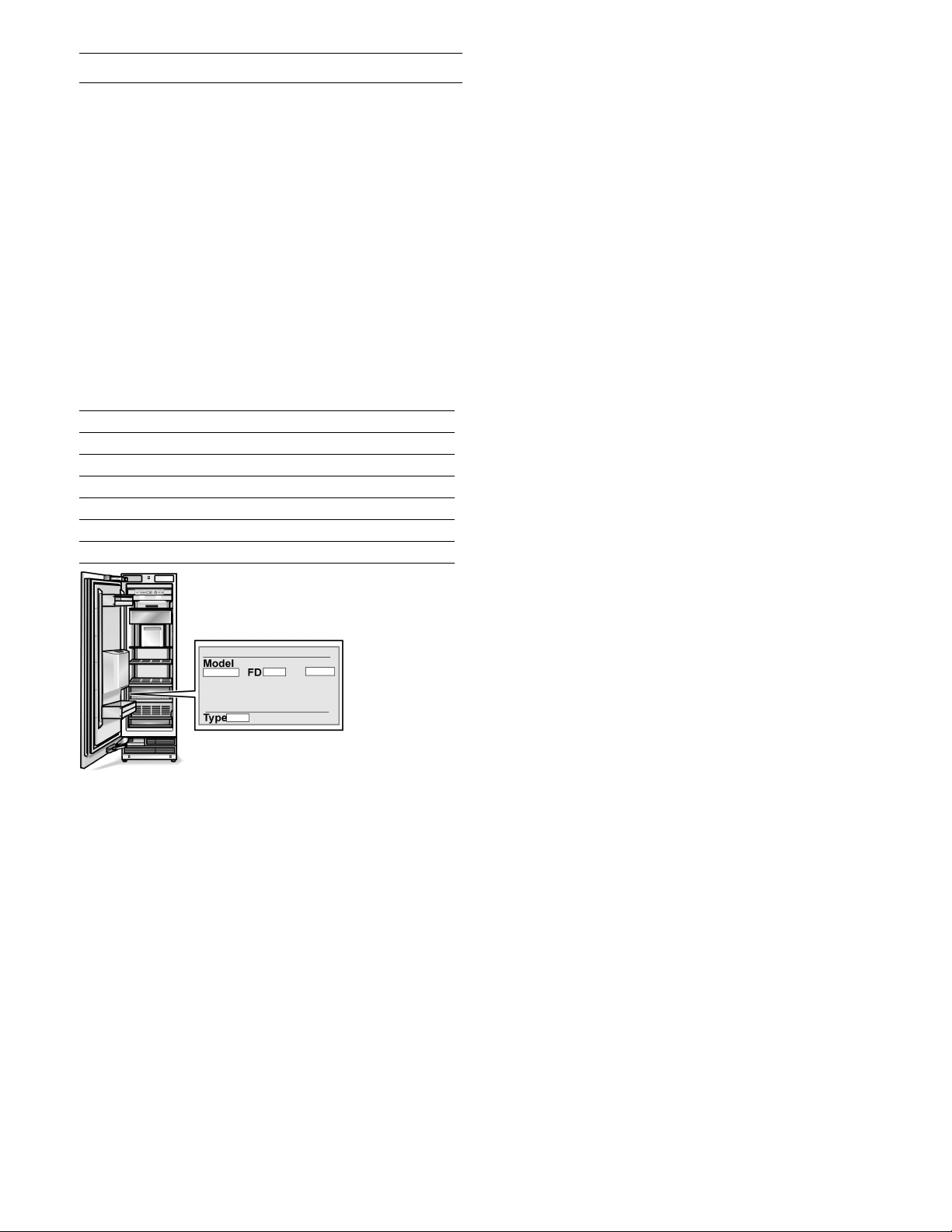

your power supply. The location of the Rating Plate
can be found in the chapter “Customer Service”.
, WARNING:
Never connect the appliance to electronic energy
saving devices.
Our appliances can be used with power line and sinecontrolled inverters. Power line-controlled inverters
are used for photovoltaic systems which
are connected directly to the national grid. Sinecontrolled inverters must be used for isolated
applications (e.g. on ships or in mountain lodges)
which are not connected directly to the national grid.
For connection to the drinking water mains use only
water pipes which are suitable for drinking water.
Observe national regulations and the connection
conditions of the local Water Supply companies.
7
Getting to Know Your Appliance
These Operating Instructions refer to several models.
The diagrams may differ.
1Light Switch
2Controls
3Ice Maker
4Ice Cube Container
5Shelf in the Freezer Compartment
6Tray
7Ventilation
8Water Filter
9Door Shelf
10Light (LED)
11Ice and Water Dispenser
12Controls for Ice and Water Dispenser
13Water Drip Tray
8
Controls
APOWER Button ÿ
Serves to switch the whole appliance On and
Off.
B
ICE Button Ü
Serves to switch the Ice Maker On and Off.
See chapter “Ice Maker”.
CALARM Button ±
Serves to switch the warning signal Off.
See chapter “Alarm function”.
D
SUPER Button ³
Serves to switch the Super Freezing On and
Off.
See chapter “Super Freezing”
EDisplay Panel
The temperature in the Freezer Compartment
is shown in the Display Panel. Activated
special functions are shown via “symbol”.
The menus and setting options which are
available are represented on the Display Panel
in the Setup Mode. See chapter “Special
Functions”.
FSelection Buttons ¾ ¿
The temperature setting is activated using
the Selection Buttons, see chapter “Setting
the Temperature”.
For selecting a menu in the Setup Mode,
see chapter “Special Functions”, section
“Setup Mode”.
GSetting Buttons @/A
The temperature can be changed using
the Setting Buttons, see chapter “Setting
the Temperature”.
More settings can be selected in the Setup
Mode, see chapter “Special Functions”.
HSETUP Button μ
This button starts and ends the Setup Mode.
If the Setup Mode is ended using
the SETUP Button, the changes that have
been made are stored.
IVACATION Button ¶
This button is used to switch Vacation Mode
On and Off, see chapter “Special Functions”,
section “Vacation Mode”.
Note:
A sound can be heard every time a button is pushed
if this function is selected in the “Sound” menu during
the Setup Mode.
Symbols in the Display Field
Super Freezing is active (see chapter
“Super Freezing”).
Vacation Mode is active (see chapter
“Special Functions”).
For the setting options in the Setup
Mode (see chapter “Special Functions”).
A warning message is displayed
(see chapter “Alarm function”).
Ice Maker is switched on (see chapter
“Ice Maker”).
Signal to the Water Filter is displayed
(see chapter “Water Filter”).
9

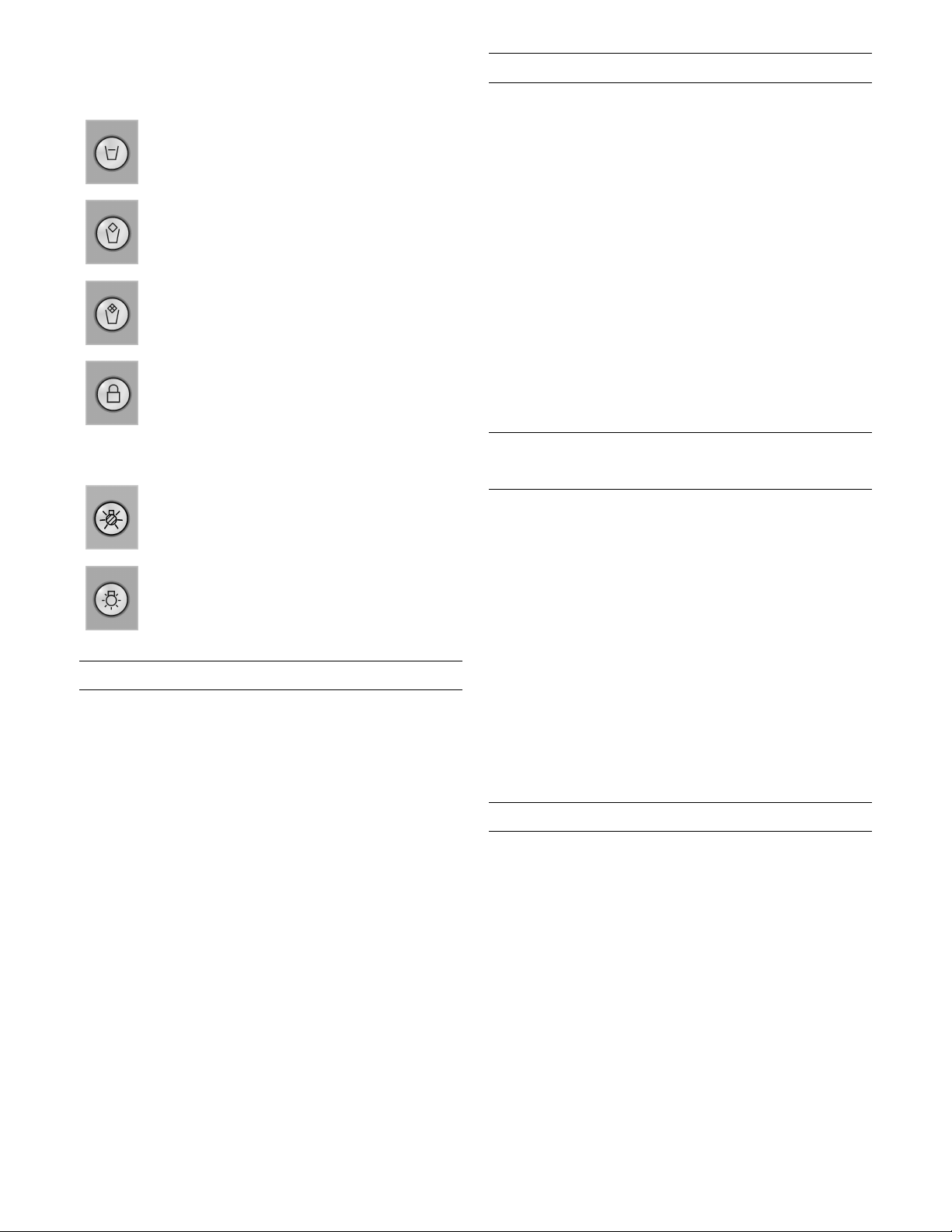

Ice and Water Dispenser Controls
Setting the Language
Water Dispense Button.
Ice Cube Dispense Button.
Crushed Ice Dispense Button.
Lock Button for the Ice and Water
Dispenser Control Panel (childproof
lock).
To lock and unlock, hold down the
button for 3 seconds.
Switch light with low brightness On and
Off.
Switch light with full brightness On and
off.
Switching the Appliance On
Switch the appliance On with the POWER Button ÿ.
The Display Languages can be changed according
to the table in the chapter “Special Functions”,
section “Setup Mode”.
To change the Display Language:
1.Press the SETUP Button μ.
2.Press the ¾ or ¿ Selection Button, until the set
language is displayed.
3.Press the @ or A Setting Button, until the desired
language is displayed.
4.Press the SETUP Button μ, in order to store
the settings.
The set temperature is displayed again on the
Display Panel.
Setting the Temperature Unit
The temperature can be displayed in degrees
Celsius (°C) or degrees Fahrenheit (°F).
1.Press the SETUP Button μ.
The first menu (Temperature Unit) is displayed.
2.Press the @ or A Setting Button in order
to switch between degrees Fahrenheit (°F) and
degrees Celsius (°C).
3.Press the SETUP Button μ, in order to store
the settings.
The set temperature is displayed again on the
Display Panel.
The appliance begins to cool. Light turns on when
the door is open.
, CAUTION:
Keep hands and fingers away from front and rear
openings of the freezer door or freezer drawer when
closing. Risk of injury to hands or fingers.
Never allow children to climb on or play with
the freezer door.
Operating Tips
▯When the appliance has been switched on, it may
take several hours until the set temperature is
reached.
▯The fully automatic No Frost system ensures that
the Freezer Compartment remains free of ice.
Defrosting is not required.
Setting the Temperature
Freezer Compartment
(can be selected from +7 °F (-14 °C)
to –9 °F (-23 °C))
We recommend a setting of 0 °F (-18 °C).
1.Press the ¾ Selection Button.
2.Set the temperature with the @ (warmer) or A
(cooler) Setting Buttons.
10
Special Functions
Switching Off
Press the SETUP Button μ.
The following Special Functions can be selected
or displayed:
Setup Mode
In Setup Mode you can make your personal settings.
Switching On
Press the SETUP Button μ.
The first menu (temperature unit) is displayed on the
Display Panel.
Making Settings
1.Switch on Setup Mode.
2.Press the Selection Button ¾ or ¿.
The next menu is displayed and its current setting
(mostly ON or OFF).
All of the changed settings are stored.
Note:
If no button is selected within 20 seconds, the Setup
Mode ends automatically. All of the changed settings
are stored. The set temperature is displayed again on
the Display Panel.
Menus in the Setup Mode
The following settings can be made.
MenuPossible setting
Temperature Unit°C (degrees Celsius)
°F (degrees Fahrenheit)
LanguageEnglish
French
Spanish
SoundOn
Off
Energy Saving Mode (Eco
Function)
On
Off
Vacation Mode
If leaving the appliance for a long period of time, you
can switch the appliance over to the energy-saving
Vacation Mode.
3.Press the Setting Button @ or A.
4.Press the Selection Button ¾ or ¿ to save and
move to the next menu.
When Vacation Mode is switched On, the following
settings are made:
▯The appliance operates in Energy-Saving Mode.
▯The light is switched Off.
▯The “Super Freezing” function is ended
(if activated).
Switching On
Press the VACATION Button ¶.
The “VACATION” symbol is displayed on the Display
Panel.
Switching Off
Press the VACATION Button ¶.
The previous settings and temperature values are
restored.
11
Rest Mode
When Rest Mode is switched On, the following
settings are switched Off:
▯Ice Maker
▯Acoustic Signal
▯Interior Light
▯Messages in the Display Panel
▯The background illumination of the Display Panel
is reduced
▯Buttons are locked.
Switching On
1.Press and hold down the SUPER Button ³.
2.Press the VACATION Button ¶.
3.Press the SUPER Button ³ and hold down for
a further 3 seconds.
The “VACATION” symbol flashes on the Display
Panel and “RESTMODE” is displayed.
Switching Off
Press the VACATION Button ¶.
The previous settings and temperature values are
once again activated.
Alarm Function
Door Alarm
The Door Alarm switches On if an appliance door is
left open for longer than three minutes. Close
the door to switch Off the Warning Signal.
Temperature Alarm
The Temperature Alarm switches On if the Freezer
Compartment is too warm and the frozen food is at
risk of thawing.
The set temperature of the Freezer Compartment
flashes and “ALARM” is displayed on the display
panel.
When the ALARM button ± is pressed,
the temperature display for the Freezer Compartment
indicates for five seconds the warmest temperature
reached in the Freezer Compartment.
Then this value is deleted. The temperature display for
the Freezer Compartment indicates the set Freezer
Compartment temperature without flashing.
Henceforth the “warmest temperature” will be
redefined and saved.
Energy Saving Mode
If the Energy Saving Function (Eco Function) is
activated, the appliance switches to the Energy Saving
Operation. This Energy Saving Function is preset
at the factory in order to reduce energy consumption.
The background illumination of the Display Panel is
likewise reduced.
Switching On
1.Press the SETUP Button μ.
2.Press the Selection Button ¿, until “ECO MODE”
and the current setting (OFF) is displayed.
3.Press the Setting Button @, in order to reset
the setting.
4.Press the SETUP Button μ, in order to store
the setting.
“ECO” is displayed on the Display Panel.
Switching Off
1.Press the SETUP Button μ.
2.Press the Selection Button ¿, until “ECO MODE”
and the current setting (ON) is displayed.
3.Press the Setting Button A, in order to reset
the setting.
4.Press the SETUP Button μ, in order to store
the setting.
The alarm display goes out as soon as the set
temperature has been reached again.
The alarm may switch on without any risk to the frozen
food:
▯when the appliance is switched On,
▯when large quantities of fresh food are placed
in the appliance,
▯if the Freezer Compartment Door is open too
long.
Switching Off the Alarm
Press the ALARM button ± to switch Off the Warning
Signal.
12
Freezer Compartment
Freezing Fresh Food
,
WARNING:
Do not store explosive substances in the appliance.
Risk of explosion!
, CAUTION:
Do not refreeze thawing or thawed food. Before
freezing the food, first boil or fry it. Never keep frozen
food longer than the maximum storage duration.
Using the Freezer Compartment
▯To store deep-frozen food.
▯To freeze food.
▯To make ice cubes.
Note:
Ensure that the Freezer Compartment door has been
closed properly. If the door is open, the frozen food
will thaw. The Freezer Compartment will become
covered in thick ice. Also, energy is wasted due to
high power consumption!
Freezing and Storing Food
Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavor and
color, vegetables should be blanched before freezing.
Eggplants, peppers, zucchini and asparagus do not
require blanching.
Literature on freezing and blanching can be found
in bookshops.
Note:
Keep food that is to be frozen away from food that
is already frozen.
▯The following foods are suitable for freezing:
Cakes and pastries, fish and seafood, meat,
game, poultry, vegetables, fruit, herbs, eggs
without shells, dairy products such as cheese,
butter and quark, and ready meals and leftovers
such as soups, stews, cooked meat and fish,
potato dishes, soufflés and desserts.
▯The following foods are not suitable for freezing:
Types of vegetables that are usually consumed
raw such as lettuce or radishes, eggs in shells,
grapes, whole apples, pears and peaches, hardboiled eggs, yogurt, soured milk, sour cream,
crème fraîche and mayonnaise.
Purchasing Frozen Food
▯Packaging must not be damaged.
▯Use by the “expiration” date.
▯Temperature in the supermarket freezer must be
0 °F (-18 °C) or lower.
▯If possible, transport deep-frozen food in
an insulated bag and place immediately
in the Freezer Compartment.
Packing Frozen Food
To prevent food from losing its flavor or drying out,
place in airtight containers.
1.Place food in packaging.
2.Remove air.
3.Seal the wrapping.
4.Label packaging with contents and date
of freezing.
Suitable Packaging:
Cling wrap, tubular film made of polyethylene,
aluminum foil, freezer containers.
These products are available from specialist outlets.
Unsuitable Packaging:
Wrapping paper, greaseproof paper, cellophane, bin
liners and used shopping bags.
Items Suitable for Sealing Packaged Food:
Rubber bands, plastic clips, string, cold-resistant
adhesive tape, etc.
Bags and tubular film made of polyethylene can
be sealed with a film heat sealer.
13
Shelf Life of Frozen Food
Depends on the type of food.
At a temperature of 0 °F (-18 °C):
▯Fish, sausage, ready meals and cakes
and pastries:
up to 6 months
▯Cheese, poultry and meat:
up to 8 months
▯Vegetables and fruit:
up to 12 months
Super Freezing
Food should be frozen solid as quickly as possible
in order to retain vitamins, nutritional value,
appearance and flavor.
To prevent an undesirable temperature rise when
placing fresh food in the Freezer Compartment,
switch On super freezing several hours beforehand.
As a rule, 4–6 hours is adequate. 24 hours are
necessary when using the maximum freezer capacity
fully.
Thawing Frozen Food
Depending on the type and application, select one of
the following options:
▯at room temperature,
▯in the refrigerator,
▯in an electric oven, with/without convection,
▯in the microwave.
Note:
Do not refreeze thawing or thawed food. Only ready
meals (boiled or fried) may be refrozen.
Do not store the frozen produce for the maximum
storage period.
After 2 days the temperature set before super freezing
is automatically restored.
Switching On
Press the SUPER Button ³.
The Display Panel indicates the symbol “SUPER¾”.
Switching Off
Press the SUPER Button ³.
14
Ice Maker
Ice and Water Dispenser
The Ice Maker makes ice cubes.
The Ice Maker starts to make ice cubes as soon as
the appliance has reached the set temperature. When
the Ice Cube Container is full, the Ice Maker stops ice
production automatically.
, CAUTION:
Do not place bottles or food in the Ice Cube
Container in order to cool them quickly. The Ice Maker
may be blocked and could be damaged.
Switching On
Note:
If the Ice Maker is used for the first time and/or after
a long period of not being used, do not use the ice
that is produced in the first day for hygienic reasons.
Throw the ice cubes away and clean the Ice Cube
Container.
1.Make sure that Ice Cube Container is in its place
and locked into position.
2.Press the ICE button Ü.
The symbol “ICE” is lit on the Display Panel.
(not all models)
The following can be dispensed as required:
▯cooled water,
▯crushed ice,
▯ice cubes.
, WARNING:
Never reach into the Ice Cube Dispenser opening!
Risk of injury!
, CAUTION:
Do not place bottles or food in the Ice Cube
Container in order to cool them quickly. The Ice Maker
may be blocked and could be damaged.
Using the Ice and Water Dispenser
The Ice and Water Dispenser only works when
the appliance is connected to the water line.
When the appliance has been switched On, it takes
approximately 24 hours until the first batch of ice
cubes are ready.
Switching Off
Note:
Before switching the Ice Maker Off, it is most
important that you switch the Water Supply to
the appliance Off for a few hours.
Press the ICE button Ü.
Once the appliance has been connected, the water
line has to be purged of any trapped air.
Run the drinking water and pour out until the water
can be dispensed without bubbles. Pour away the first
5 glasses.
When using the Ice Maker for the first time, do not
use the first 30-40 ice cubes out of hygienic reasons.
Operating the Ice Maker
When the Freezer Compartment has reached its
freezing temperature, water flows into the Ice Maker
and freezes into ice cubes. When the ice cubes are
ready, they are automatically discharged into the Ice
Cube Container.
Occasionally the sides of the ice cubes stick together.
When they are conveyed to the outlet opening, they
usually break away from each other.
When the Ice Cube Container is full, the Ice Maker
stops ice production automatically.
Note:
To prevent ice cubes from sticking together,
a Rotating Metal Screw (Agitation Function) can be
switched On for 2 seconds (see chapter “Getting to
Know Your Appliance”, section “Ice and Water
Dispenser Controls”).
15
Observing Drinking Water Quality
Dispensing Ice/Water
All materials used in the Ice and Water Dispenser are
odorless and tasteless.
If the water has an aftertaste, this may be caused by:
▯Mineral and chlorine content of the drinking
water.
▯Material of the domestic water line and
connection line.
▯Freshness of the drinking water. If water has not
been dispensed for a long time, the water may
have a “stale” taste. In this case fill
approximately 15 glasses of water and throw
away.
We recommend that you regularly dispense a little
fresh water from the Water Dispenser and that you do
not switch the appliance Off. This will ensure that
the best water quality is retained.
Taste and odor of the water are improved by
installation of the enclosed Water Filter.
The enclosed Water Filter will filter only particles out
of the water, not bacteria or microbes.
▯Select the Ice and Water Dispenser Button
(Water, Crushed Ice or Ice Cubes).
▯Keep pressing the button until the required
quantity is in the glass.
Dispensing Water
Note:
The water from the Water Dispenser is cooled
to a palatable temperature. If you would like the water
colder, place ice cubes in the glass before dispensing
the water.
Dispensing Ice
, CAUTION:
Do not use the Ice Dispenser for longer than
3 minutes within a time period of 15 minutes. Wait for
a few minutes more before dispensing more. Risk of
damage to the appliance!
16
Water Filter
,
WARNING:
Do not use the appliance in places where the water
quality is risky or not sufficiently known about without
suitable disinfection, before and after filtering.
A Filter Cartridge for filtering particles can be
obtained from Customer Service or a specialist
dealer.
, CAUTION:
Exchanging the Filter Cartridge
1.Turn the Filter Cap on the base of the appliance
by 90–180° anti-clockwise.
2.Pull out the Filter Cartridge.
▯After installing a new Filter Cartridge, always
discard the ice produced within the first 24 hours
after switching On the Ice Maker.
▯If the ice has not been used for a prolonged
period, pour all ice cubes out of the Ice Cube
Container and also discard the ice produced
within the next 24 hours.
▯If the appliance or the ice has not been used
actively for several weeks or months or if the
ice cubes have an unpleasant taste or odor,
change the Filter Cartridge.
▯Air trapped in the system may cause water to
escape and the Filter Cartridge to be ejected.
Caution when removing.
▯The Filter Cartridge must be changed at least
every 6 months.
Important Information Concerning
the Water Filter
▯After use, the water system is subject to low
pressure. Be careful when removing the Filter
Cartridge!
▯Rinse the water system through if the appliance
has not been used for a long period, or if
the water tastes or smells unpleasant. In addition,
draw water from the Water Dispenser for several
minutes. If the unpleasant taste or smell persists
exchange the Filter Cartridge.
▯If the appliance or the ice has not been used
actively for several weeks or months or the ice
cubes taste or smell unpleasantly, change the
Water Filter.
▯Air trapped in the system can cause water
discharge or discharge of the Filter Cartridge. Be
careful during removal.
▯The Filter must be changed at least every 6
months.
3.Take a new Filter Cartridge from the packet
and remove the protective cap.
4.Take the Filter Cap off of the used Filter
Cartridge.
5.Place the Filter Cap on the fresh Filter Cartridge.
6.With the Filter Cap in a horizontal position, feed
the Filter Cartridge into the opening on
the appliance base as far as it will go.
7.Turn the Filter Cartridge 90–180° in a clockwise
direction.
8.Draw a few glasses of water from the Water
Dispenser. Doing this removes air from the water
system.
9.Pour water out of the used Filter Cartridge. The
Filter Cartridge can be disposed of in
the household trash.
Note:
The appliance could be used without a Water Filter.
If you select this option, replace the Water Filter with
a Particle Cartridge. In this case the Filter Display can
be deactivated to prevent the Filter Change Display.
To purchase a Water Filter Replacement Cartridge,
contact your local dealer or call 1-800-735-4328.
17
Specification and Performance Data
Sheet
Replacement Water Filter: Use CUNO Filter Model
9000 077 09 or 9000 077 104
The model was tested by NSF International with
reference to ANSI/NSF Standards 42 & 53
and certified for a reduction in the substances cited
below.
The concentration of the indicated substances which
are dissolved in water and penetrate the system was
reduced to a value below or equal to the permitted
limit value in accordance with NSF/ANSI 42
and 53 for water discharged out of the appliance.
Note:
Even though the tests were conducted under standard
laboratory conditions, the actual performance may
deviate from these tests.
The system was tested and certified on model
9000 077 095 by NSF International with reference to ANSI/NSF Standard 53 for a reduction
in cysts and turbidity, as well as with reference
to ANSI/NSF Standard 42 for a reduction in
the taste and odor of chlorine.
Nominal particle class: I
Nominal service life:
739.68 gallons (2,800 liters)
SubstanceAverage in
Cysts *166,500Min. 50,000/l199.9999.95199.99511077-03
Turbidity10.711 x 1 NTU0.3 l97.100.5 NTU0.4995.42511078-03
Particle
* Based on the use of Cryptosporium parvum ocysts.
Inflow
concentration
10,000 particles/ml
Waste water
concentration
30.58399.52> 85 %69.00098.9511079-03
Average
reduction
as %
Max. permitted
concentration in
waste water
Max. waste
water
Min.
reduction
as %
NSF test
Without appropriate disinfection before and after
connecting it to the system, this product should
Application Guidelines / Water Supply Parameters:
NOT be used if the water is microbiologically
contaminated or if the quality has not been
Water Pressure30 - 120 psi
(207 - 827 kPa)
Water Temperature *33 °F - 100 °F
(0.6 °C - 38 °C)
Flow Rate0.75 gpm (2.83 l/min.)
▯The system is to be installed and operated
according to the guidelines recommended by
the manufacturer.
▯The Filter is to be changed every 6-9 months.
ascertained. A system certified for cyst reduction
should be used for disinfected water which possibly
contains filterable cysts.
A one-year warranty is issued for the entire system
(except disposable cartridge). With reference
to disposable cartridges a warranty is issued for
material and processing faults only. As the service life
of disposable cartridges depends on the local water
conditions, no warranty is issued for them.
More detailed information on the prices of spare parts
is available from your appliance dealer or parts
▯Rinse the new Filter thoroughly for 5 minutes.
▯More detailed information can be found on
the Warranty Card.
salesman on site.
Manufactured by:
Cuno Engineered Products
18
1000 Apollo Road
Eagan, MN 55121-2240 U.S.A.
Interior Fittings
Removing the Shelves
You can reposition the Shelves inside the appliance
and Door Shelves as required.
Lift the Shelves and remove.
Shelves inside the Compartment
Door Shelves
3.Lower Tray and push back.
Ice Cube Container
(not available on all models)
, CAUTION:
A full Ice Cube Container is heavy!
Note:
Before removing the Ice Cube Container, switch
the Ice Maker Off, see chapter “Ice Maker”.
Containers in the Freezer
Compartment
The Containers in the Freezer Compartment can be
taken out for cleaning.
1.Lift Tray slightly and take out.
2.Lift Tray at front slightly and insert into the
runners.
19
Switching Off and Disconnecting the
Appliance
Switching the Appliance Off
1.Press the POWER Button ÿ.
2.Unplug the Power Plug.
Disconnecting the Appliance
If you do not use the appliance for a prolonged
period:
1.Before switching Off, it is most important that you
switch the Water Supply to the appliance Off for
a few hours.
2.Take all food out of the appliance.
3.Switch the appliance Off.
4.Unplug the Power Plug or switch the fuse Off.
5.Empty and clean the Ice Cube Container
(see chapter “Cleaning the Appliance”).
6.Clean the appliance interior (see chapter
“Cleaning the Appliance”).
7.Leave the appliance doors open to prevent odors
from forming.
Proceed as Follows:
1.Before cleaning: Switch the appliance Off.
2.Unplug the Power Plug or switch the fuse Off.
3.Take out the frozen food and store in a cool
location. Place the ice pack (if enclosed)
on the food.
4.Clean the appliance with a soft cloth, lukewarm
water and a little pH neutral cleaning liquid.
Prevent the rinsing water from running into the
light.
5.Wipe the Door Seal with clear water only
and then wipe dry thoroughly.
6.After cleaning, reconnect and switch
the appliance back On.
7.Put the frozen food back in the Freezer
Compartment.
Interior Fittings
All variable parts of the appliance can be taken out for
cleaning (see chapter “Interior Fittings”).
Cleaning the Ice Cube Container
If ice cubes have not been dispensed for a prolonged
period, they will shrink, have a stale taste and stick
together. Therefore, the Ice Cube Container should
be cleaned regularly.
Defrosting
Defrosting is actuated automatically.
Cleaning the Appliance
,
WARNING:
Never clean the appliance with a steam cleaner!
, CAUTION:
▯Do not use abrasive, chloride or acidic cleaning
agents or solvents.
▯Do not use scouring or abrasive sponges.
The metallic surfaces could corrode.
▯Never clean Shelves and Containers in
the dishwasher. The parts may become deformed!
, CAUTION:
A full Ice Cube Containeris heavy.

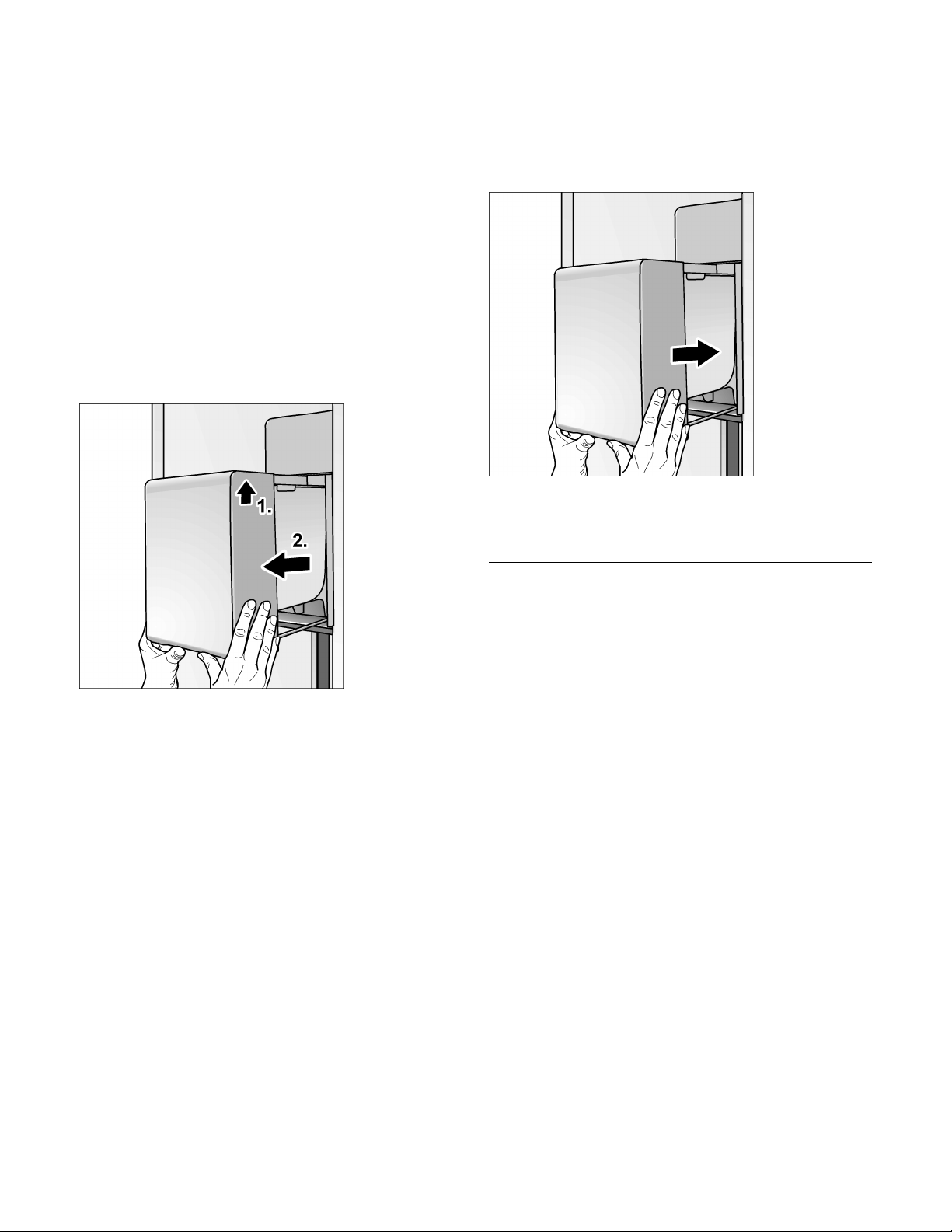

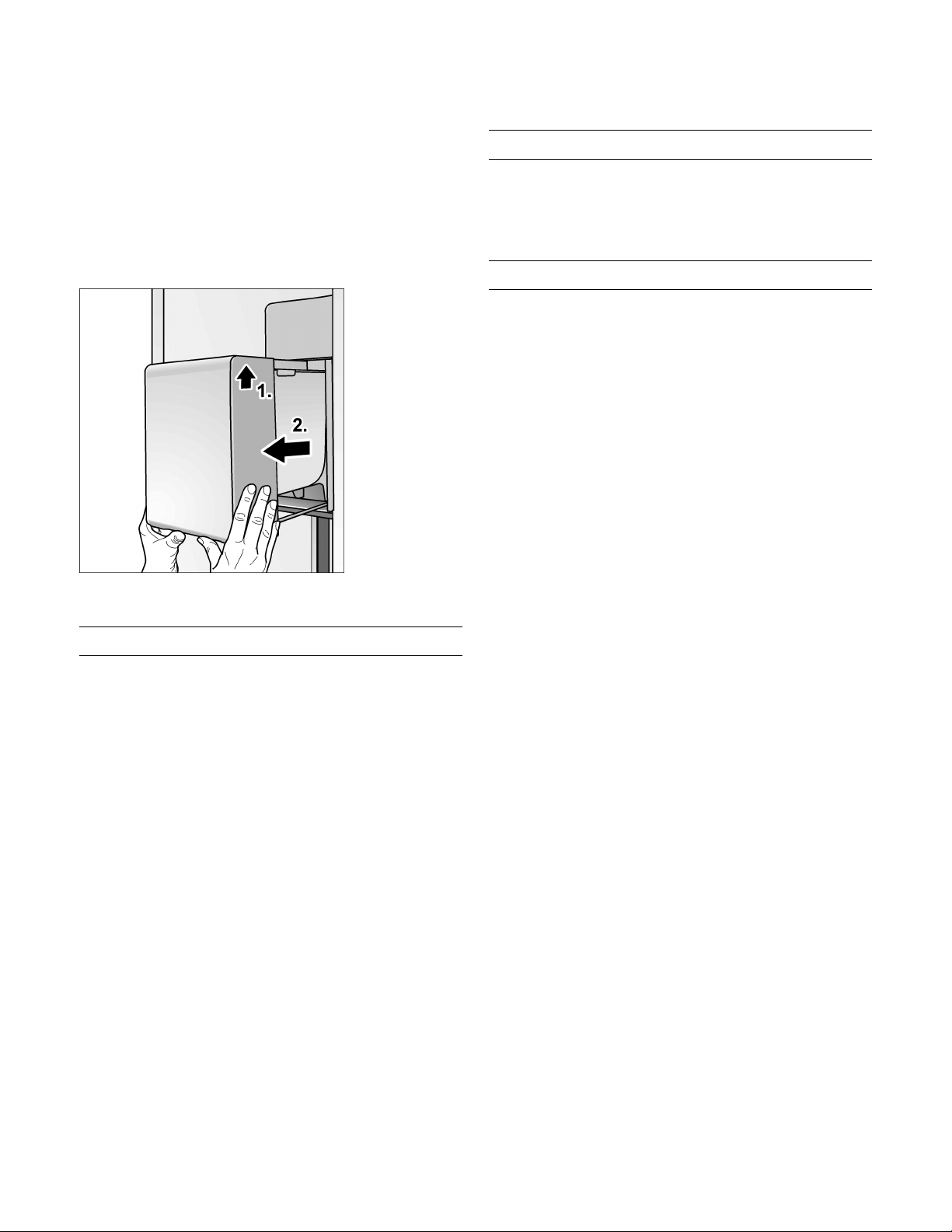

1.Remove the Ice Cube Container.
2.Pull out the Ice Cube Container, empty and clean
with lukewarm water.
20
3.Thoroughly rub the Ice Cube Container and
Rotating Metal Screw (for appliances with
Agitation or Dispensing Function) dry so that new
ice cubes cannot freeze to them.
4.Insert Ice Cube Container and push back until it
engages. If the Ice Cube Container cannot be
pushed all the way back, twist the Rotating Metal
Screw in the Ice Cube Container.
Operating Noises
Normal Noises
Droning
Motors are running (e.g. refrigeration units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing or water is
flowing into the Ice Maker.
Clicking
Motor, switches or solenoid valves are switching On/
Off.
Rumbling
Ready ice cubes from the Ice Maker are falling into
the Ice Cube Container.
Ice cube production continues.
Light (LED)
Your appliance features a maintenance-free LED
Light.
These lights may be repaired by Customer Service
or authorized technicians only.
Tips for Saving Energy
▯Install the appliance in a dry, well ventilated room!
The appliance should not be installed in direct
sunlight or near a heat source (e.g. radiator,
cooker).
If required, use an insulating plate.
▯Do not block the Ventilation Openings
in the appliance.
▯Allow warm food and drinks to cool down before
placing in the appliance!
▯When thawing frozen products, place them
in the refrigerator. Use the coldness of the frozen
food to cool food.
▯Open the appliance as briefly as possible!
Preventing Noises
The appliance is not level
Please align the appliance with a spirit level. Use the
Height-Adjustable Feet or place packing underneath
them.
The appliance is not free-standing
Please move the appliance away from adjacent units
or appliances.
Containers or Shelves wobble or stick
Please check the removable parts and re-insert them
correctly, if required.
Bottles or containers are touching each other
Move the bottles or containers slightly away from each
other.
21
Before Calling for Service
Before you call Customer Service:
Please check whether you can troubleshoot yourself based on the following information.
Customer Service will charge you for advice – even if the appliance is still under guarantee!
Appliance
FaultPossible causeRemedial action
Appliance has no refrigeration
capacity.
The light does not work.
The display does not illuminate.
The refrigeration unit is switching
On more frequently and for
longer.
The light (LED) does not work.The LED lamp is defective.Call Customer Service.
Display indicates “E..”.Electronics have detected a fault.Call Customer Service.
Display indicates
“LOWPOWER”.
Display indicates
“HIGHVOLT”.
Appliance has been switched Off.Press the POWER Button ÿ.
Power failure.Check whether the power is on.
The fuse has been switched Off.Check the fuse.
The Power Plug has not been inserted
properly.
Appliance opened frequently.Do not open the appliance unnecessarily.
The Ventilation Openings have been
covered.
Large quantities of fresh food are placed
in the freezer.
Light switch is jammed.Check whether it can be moved.
The line voltage falls below
the permitted limiting value.
The line voltage exceeds the permitted
limiting value.
Check whether the Power Plug is secure.
Remove obstacles.
Switch Super Freezing On.
When the line voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer, inform
the energy supply company.
When the line voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer, inform
the energy supply company.
22
Ice Maker/Ice and Water Dispenser
FaultPossible causeRemedial action
No water can be drawn but ice is
discharged.
The Ice Maker doesn’t work.Ice Maker is not connected to the power
No water or ice is available at the
Dispenser.
The Ice Maker does not make
enough ice or the ice is
deformed.
The Ice Maker does not make any
ice.
Devices defect.Call Customer Service.
Call Customer Service.
supply.
Ice Maker does not contain any fresh
water.
Temperature in the Freezer
Compartment is too warm.
The Ice and Water Dispenser Control
Panel is locked (childproof lock).
Water Tank fills up.When used for the first time, it takes about
Appliance and Ice Maker were switched
On only recently.
A lot of ice has been taken.Approximately 24 hours are needed until the
Low water pressure.Connect the appliance to the stipulated water
The Filter Cartridge is blocked or needs
to be replaced.
The appliance or Ice Maker has only just
been switched On.
A lot of ice has been taken.Approximately 24 hours are needed until
Low water pressure.Connect the appliance to the stipulated water
The Filter Cartridge is blocked or needs
to be replaced.
Temperature in the Freezer
Compartment is too warm.
The Ice Maker is switched Off.Switch the Ice Maker On at the control panel.
The appliance is not supplied with water. Contact the installer or the Water Supply
Water Supply has kinks.Turn Off the Water Supply at the Shut Off Tap.
Low Water Pressure.Connect the appliance to the stipulated water
Temperature in the freezer space is too
warm.
Ice Cube Container is not properly
inserted.
Incorrect Shut Off Tap installed.Incorrect Shut Off Taps can cause low water
Ensure that the water is properly connected.
Set temperature slightly colder in the Freezer
Compartment.
Unlock the Ice and Water Dispenser Control
Panel.
2 minutes for the Water Tank fill up.
Approximately 24 hours are needed until ice
production starts.
Ice Cube Container is filled.
pressure only (see chapter "Connecting
Appliance", section "Water Connection").
Exchange the Filter Cartridge.
Approximately 24 hours are needed until ice
production starts.
the Ice Cube Container is filled again.
pressure only (see chapter “Connecting
Appliance”, section “Water Connection”).
Exchange the Filter Cartridge.
Set temperature slightly colder in the Freezer
Compartment.
company.
Smoothen out the kinks, exchange where
necessary.
pressure only (see chapter “Connecting
Appliance”, section “Water Connection”).
Check Freezer Compartment temperature and,
if required, set slightly colder.
Check the position, re-insert where necessary.
pressure and damage to the appliance.
23
Loading...
+ 53 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
