RC 462
RC 472
Gaggenau
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
MANUAL DE USO Y DE CUIDADO
English ................................................................... 3
Français ................................................................. 26
Español ................................................................. 50
2
Contents
IMPORTANT SAFETY INSTRUCTIONS ............... 5
DEFINITIONS .......................................................... 5
GENERAL SAFETY PRECAUTIONS ........................ 5
RISK OF CHILD ENTRAPMENT .............................. 5
ELECTRICAL CONNECTION .................................. 5
GROUNDING INSTRUCTION .................................. 5
IMPORTANT INFORMATION WHEN USING
THE APPLIANCE .................................................... 6
TECHNICAL SAFETY .............................................. 6
CFC DISPOSAL ...................................................... 6
RETAIN THE INSTRUCTIONS ................................. 6
GENERAL INFORMATION FOR USE ...................... 6
Congratulations .................................................... 6
Your new appliance .............................................. 7
Motorized shelf ..................................................... 10
Temperature controlled drawer ........................... 10
Variable interior design ........................................ 11
Control panel ........................................................ 13
Setting the temperature ....................................... 14
Fast cooling function ........................................... 14
Setup mode .......................................................... 15
Settings which can be changed in Setup mode ...... 15
Temperature unit .................................................... 16
Language setting .................................................... 16
Energy-saving mode .............................................. 16
Installation ............................................................. 8
Installation room ..................................................... 8
Ambient temperature .............................................. 8
Ventilation ............................................................... 8
Installation cavity ..................................................... 8
Furniture/Fixtures .................................................... 8
Base ....................................................................... 8
Installing and connecting the appliance .............. 9
Connection to the power supply .......................... 9
Switching on the appliance .................................. 9
Switching off and disconnecting
the appliance ........................................................... 9
Switching off the appliance ..................................... 9
Alarm function ....................................................... 17
Switching off the warning signal .............................. 17
Door alarm .............................................................. 17
Vacation mode ..................................................... 17
Rest mode ............................................................. 17
Refrigerating ......................................................... 18
Arrange food as follows .......................................... 18
When placing food in the appliance, please note .... 18
When buying food, please note .............................. 18
How to save energy ............................................. 18
Operating noises ................................................... 18
Quite normal noises ................................................ 18
Disconnecting the appliance ................................... 9
Noises which can easily be eliminated .................... 18
3
Defrosting ............................................................. 18
Cleaning the appliance ......................................... 19
Cleaning the filter of
temperature controlled drawer .................................... 19
Odors ..................................................................... 19
Warning messages via the display ...................... 19
Troubleshooting .................................................... 21
Changing the bulb ................................................ 21
Halogen bulbs above .............................................. 21
Halogen bulbs at the side ....................................... 22
Halogen bulb in temperature controlled drawer ....... 23
Changing the activated charcoal air filter ........... 23
Service .................................................................. 24
STATEMENT OF LIMITED
PRODUCT WARRANTY ............................................... 24
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
READ AND SAVE THESE INSTRUCTIONS!
DEFINITIONS
m
WARNING – This indicates that death or serious injuries
may occur as a result of not observing this warning.
m
CAUTION – This indicates that minor or moderate
injuries or damage may occur as a result of not
observing this warning.
WARNING
CAUTION
NOTE
IMPORTANT NOTE/NOTE – This symbol is used
to draw the user's attention to something in particular.
GENERAL SAFETY PRECAUTIONS
m
m
RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigeration products are still
dangerous – even if they will sit for “just a few days.” If you
are getting rid of your old appliance, please follow these
instructions to help prevent accidents.
Before you throw away your old refrigeration product:
– Take off the doors.
– Leave the shelves in place so that children may
not easily climb inside.
Keep children away from packaging materials – Danger of
suffocation from folding cartons and cling wrap!
ELECTRICAL CONNECTION
The appliance comes with an UL listed, 3-wire power
supply cord.
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
The appliance requires a 3-wire receptacle.
The receptacle must be installed by a licensed electrician
only.
When using this appliance, always exercise basic safety
precautions, including the following:
1. Use this appliance only for its intended purpose
as described in this owner's manual.
2. This refrigerator must be properly installed in
accordance with the Installation Instructions before it
is used.
3. Do not allow children to climb, stand or hang on the
shelves in the refrigerator. They could seriously
injure themselves and damage the refrigerator.
4. After your refrigerator is in operation, do not touch
the cold surfaces in the refrigerator compartment,
particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
5. Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
6. For cleaning and exchanging the bulb, pull the mains
plug out or switch off the fuse. Do not pull out the mains
plug by tugging the cable.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
7. A burned-out light bulb may break when being
replaced. NOTE: Setting the refrigerator temperature
controls to OFF does not remove power to the light
circuit.
Where a standard two-prong wall receptacle is encountered,
it is the personal responsibility and obligation of the customer
to have it replaced with a properly grounded three-prong wall
receptacle.
Do not use an adapter plug.
GROUNDING INSTRUCTION
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance
for the electric current.
Improper connection of the equipment grounding conductor
may result in electric shock. Have the appliance checked by
a qualified electrician or service technician if you are in doubt
as to whether the appliance has been properly grounded.
Some local regulations may require a separate ground.
In such cases, the required accessory ground wire,
clamp and screw must be purchased separately.
Never ground the appliance to plastic plumbing lines,
gas lines or water pipes.
5
IMPORTANT INFORMATION WHEN
USING THE APPLIANCE
People who have limited physical, sensory or mental abilities
or inadequate knowledge must not use this appliance unless
they are supervised or given meticulous instructions.
The appliance is not isolated from the mains when switched
off by the POWER button.
RETAIN THE INSTRUCTIONS
Please read these operating instructions as well as the
installation instructions and all information enclosed with
the appliance and follow accordingly.
Save these instructions for local inspector's use. Observe
all governing codes and ordinances. Retain all documents
for subsequent use or for the next owner.
Never use electrical appliances inside the appliance
(e.g. heater, ice maker, etc.). Risk of explosion!
NEVER use a steam cleaner to defrost or clean the
appliance! The steam may penetrate electrical parts and
cause a short-circuit. Risk of electric shock!
Do not store products which contain flammable propellants
(e.g. spray cans) or explosive substances in the appliance.
Risk of explosion!
Use the motorized shelf carefully. Do not squeeze hands
between motorized shelf and the evap cover.
Do not stand or support yourself on the base, drawers or
doors, etc.
Bottles which contain a high percentage of alcohol must be
sealed and stored in an upright position.
Keep plastic parts and the door seal free of oil and grease.
Otherwise, parts and door seal will become porous.
Never cover or block the ventilation openings for the
appliance.
TECHNICAL SAFETY
Only customer service may change the power cord and carry
out any other repairs. Improper installations and repairs may
put the user at considerable risk.
Only original parts supplied by the manufacturer may be
used. The manufacturer guarantees that only these parts
satisfy the safety requirements.
Note to installer – Be sure to leave these instructions
with the consumer.
Note to consumer – Keep these instructions with your
Owner's Manual for future reference.
GENERAL INFORMATION FOR USE
This appliance is suitable for refrigerating food.
This appliance is designed for domestic use only.
Congratulations
With the purchase of your new refrigerator you have opted
for a modern, high-quality domestic appliance.
Your refrigerator is distinguished by its economical energy
consumption.
Each appliance which leaves our factory is inspected
thoroughly to ensure that it functions properly and is
in perfect condition.
If you have any questions – particularly concerning
installation and connection of the appliance – please do not
hesitate to contact our customer service.
Further information and a selection of our products can
be found on our home page.
CFC DISPOSAL
Your old refrigerator may have a cooling system that used
CFC's (chlorofluorocarbons). CFC's are believed to harm
stratospheric ozone.
If you are throwing away an old refrigeration product, make
sure the CFC refrigerant is removed for proper disposal
by a qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
6

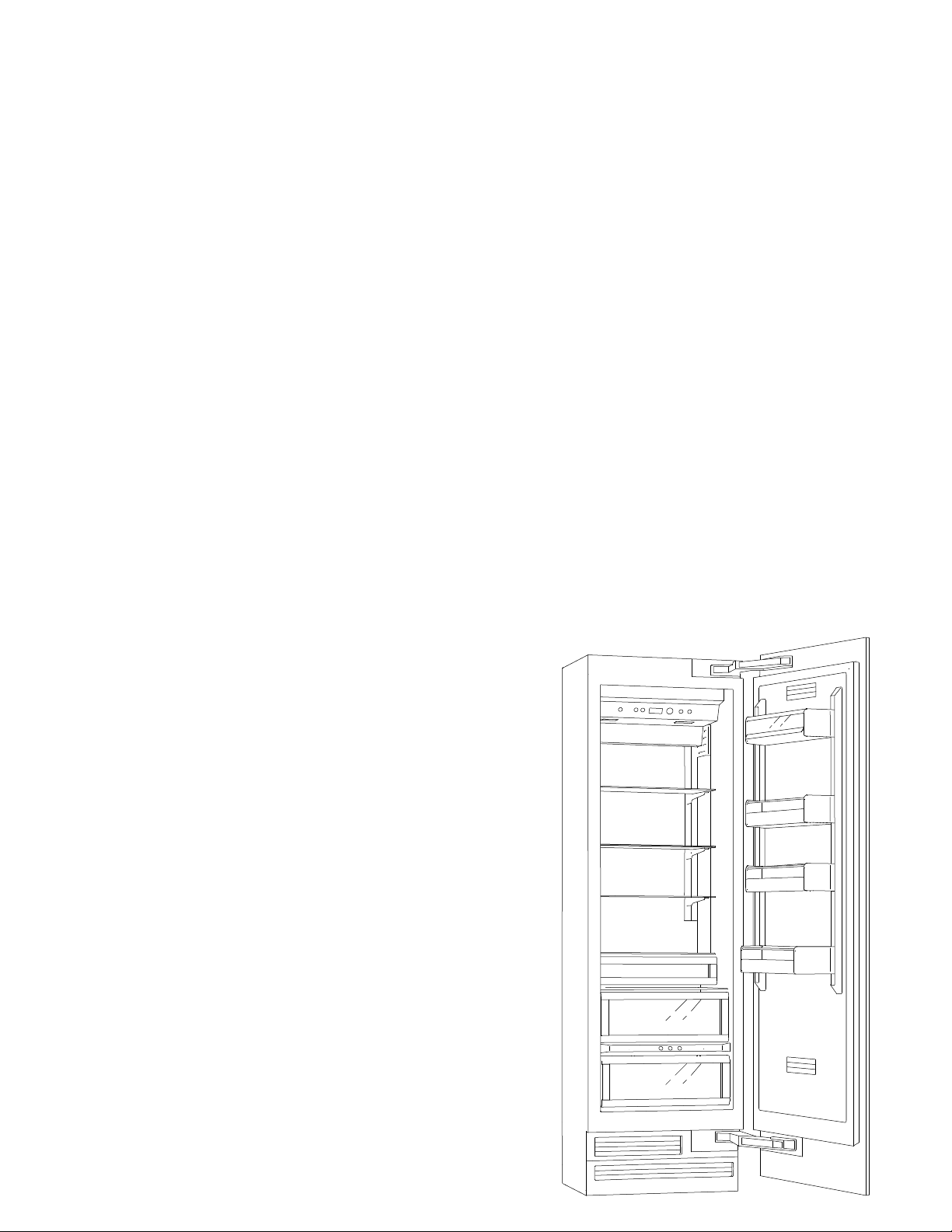

Your new appliance
These operating instructions refer to several models. Diagrams may vary.
1 Control panel
2 Motorized shelf
3 Button for motorized shelf
4 Glass shelves in refrigerator for storing cooked
food, dairy products, meat products
5Container
for storing deli, snacks
6 Vegetable container
7 Control buttons for temperature controlled drawer
8 Temperature controlled drawer
9 Butter and cheese compartment for storage
of various, condiments, bottles and jars
10 Door storage bins
11 Gallon door bin
12 Wine shelf *
* not all models
7
Installation
m
Do not install the appliance:
– outdoors,
– in an environment with dripping water,
– in rooms which are at risk of frost.
The appliance is very heavy – for empty weight see
the following table:
Refrigerator 24" 310 Ibs/140 kg
Refrigerator 30" 350 Ibs/158 kg
WARNING
m
Installation room
Install the appliance in a dry, well ventilated room.
The installation location should neither be exposed to direct
sunlight nor near a heat source, e.g. a cooker, radiator, etc.
If installation next to a heat source is unavoidable,
use a suitable insulating plate or observe the following
minimum distances to a heat source:
1
–1
/4” (3 cm) to electric or gas cookers.
13
– from an oil or solid-fuel cooker 11
/16" (30 cm).
Ambient temperature
The climatic class can be found on the rating plate.
It states the room temperature within which the appliance
can be operated.
Installation cavity
It is important to observe the specified dimensions
of the installation cavity for a trouble-free installation
of the appliance and for the subsequent general view
of the furniture front.
In particular ensure that the cavity is square.
Squareness can be checked by suitable means, e.g. spirit
level, diagonal measurements, etc.
Furniture/Fixtures
The new appliance will be mounted securely to adjacent and
overhead furniture/fixtures.
For this reason it is essential that all attachable furniture/
fixtures are connected securely to the base or the wall
by suitable means. If making structural changes fix the
appliance in place again corresponding to the installation
instructions.
Base
To ensure that the appliance is installed securely and
functions properly, the base must be flat and level.
The base must be made of hard, rigid material.
The installation area must be the same height as the rest
of the room.
On account of the heavy weight of a fully loaded appliance,
a load-bearing base is required.
For fully-loaded weight see the following table:
Climatic class Permitted ambient temperature
SN
N
ST
T
+50 °F to 89.6 °F
(+10 °C to 32 °C)
+60.8 °F to 89.6 °F
(+16 °C to 32 °C)
+60.8 °F to 100.4 °F
(+16 °C to 38 °C)
+60.8 °F to 109.4 °F
(+16 °C to 43 °C)
Ventilation
Never cover the ventilation openings in the base panel. The
cooling motor otherwise has to increase its output, and this
increases the electricity consumption.
8
– Refrigerator 24" 890 Ibs/400 kg
– Refrigerator 30" 1110 Ibs/500 kg
If in doubt, contact an architect or a building expert.
Installing and connecting the appliance
m
CAUTION
m
The receptacle must be fitted with a 10 to 16 A fuse.
Please observe in this coherence the following table:
Have the appliance installed by an electrician according
to the enclosed installation instructions.
After installing the appliance, wait at least 8 hours before
switching on the appliance. During transit the oil in the
refrigeration system may have moved.
Before switching on the appliance for the first time, clean
the inside of the appliance.
Apart from statutory national regulations, you should adhere
to the connection terms applied by local electricity and water
companies.
Do not remove the transportation protection devices from
the shelves and storage compartments until the appliance
has been installed.
Connection to the power supply
m
Avoid electrical shock hazard!
– Plug into a grounded 3 prong outlet.
– Do not remove ground prong.
WARNING
m
Appliance Maximal load at one time
Refrigerator 24“ 2 Ampere
Refrigerator 30“ 2 Ampere
Switching on the appliance
Press the POWER button O.
When the appliance has been switched on, the appliance
begins to cool down. When the doors are open, the interior
lights come on.
NOTE
The preset temperatures (factory settings) are reached
after several hours. Do not put any food in the appliance
beforehand.
To change the preset temperatures –> see “Setting the
temperature”.
Switching off and disconnecting
the appliance
– Do not use an adapter.
– Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Improper connection of the equipment grounding
conductor
appliance checked by
technician if you are in doubt as to whether the appliance
has been properly grounded.
The appliance comes with an UL listed, 3-wire power supply
cord.
The appliance requires a 3-wire receptacle.
The receptacle must be installed by a licensed electrician only.
may result in electric shock. Have the
a qualified electrician or service
Switching off the appliance
Press the POWER button O.
Disconnecting the appliance
If you do not use the appliance for a prolonged period:
Switch off the appliance.
Take all food out of the appliance.
Pull out the mains plug or switch off the fuse.
Clean the appliance interior
(see “Cleaning the appliance”).
To prevent odors, leave the doors open.
9

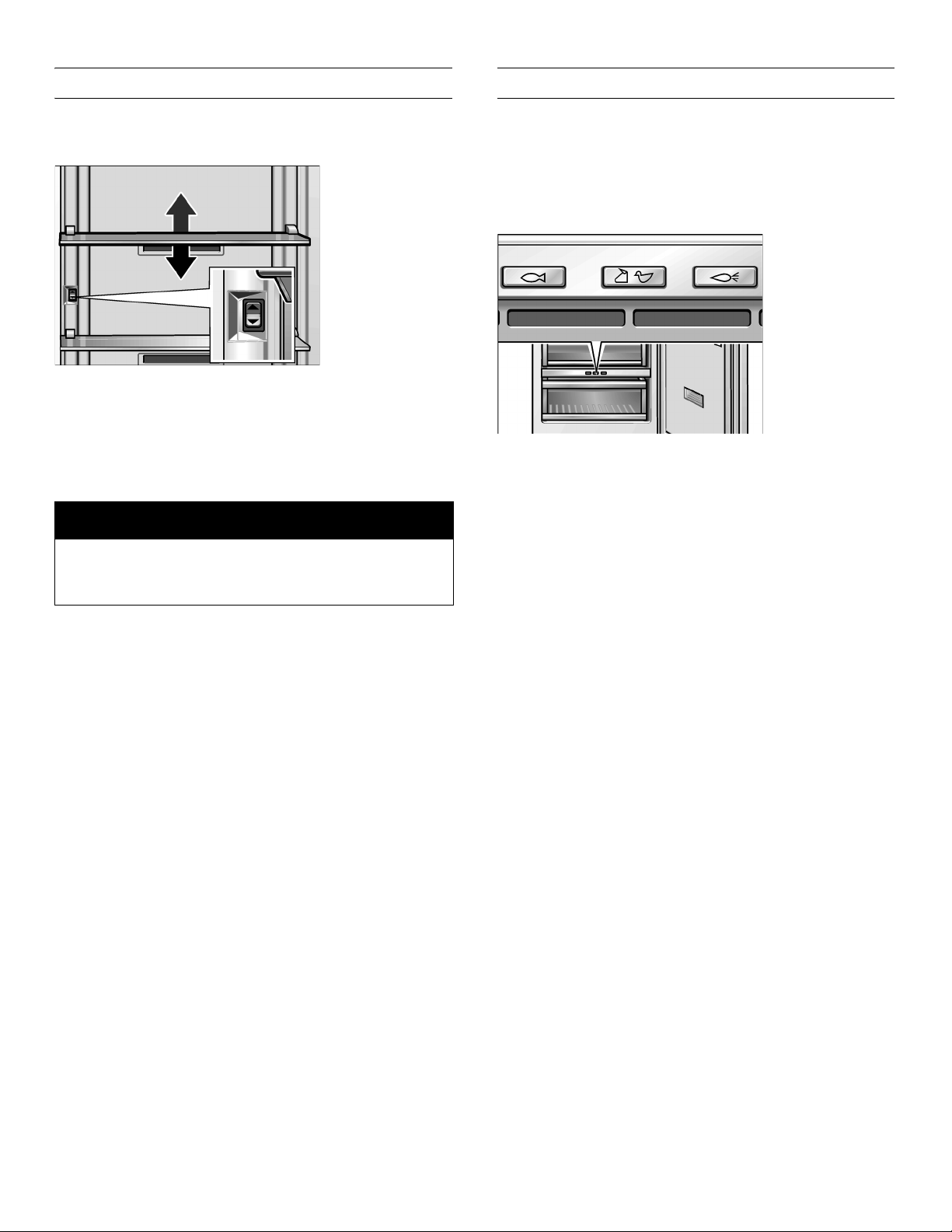

Motorized shelf
Temperature controlled drawer
The appliance features a motorized height-adjustable shelf.
The height of this shelf can be adjusted when it is loaded.
Toggle switch up: shelf moves up
Toggle switch down: shelf moves down
NOTE
Maximum load of the motorized shelf: 22.1 Ibs/10 kg.
In case of overload the mechanism is blocked
temporarilly.
The temperature in this “cool-fresh” compartment is about
32 °F (0 °C). The low temperature and high air humidity
provide optimum storage conditions for fresh food. Food can
be stored up to three times longer than in the normal cooling
zone without loss of freshness.
Select the appropriate food (fish/meat-poultry/produce)
with the selection button.
The selection is displayed when the corresponding LED
comes on.
The temperature controlled drawer features an
exchangeable filter. See “Cleaning the filter of temperature
controlled drawer”.
10

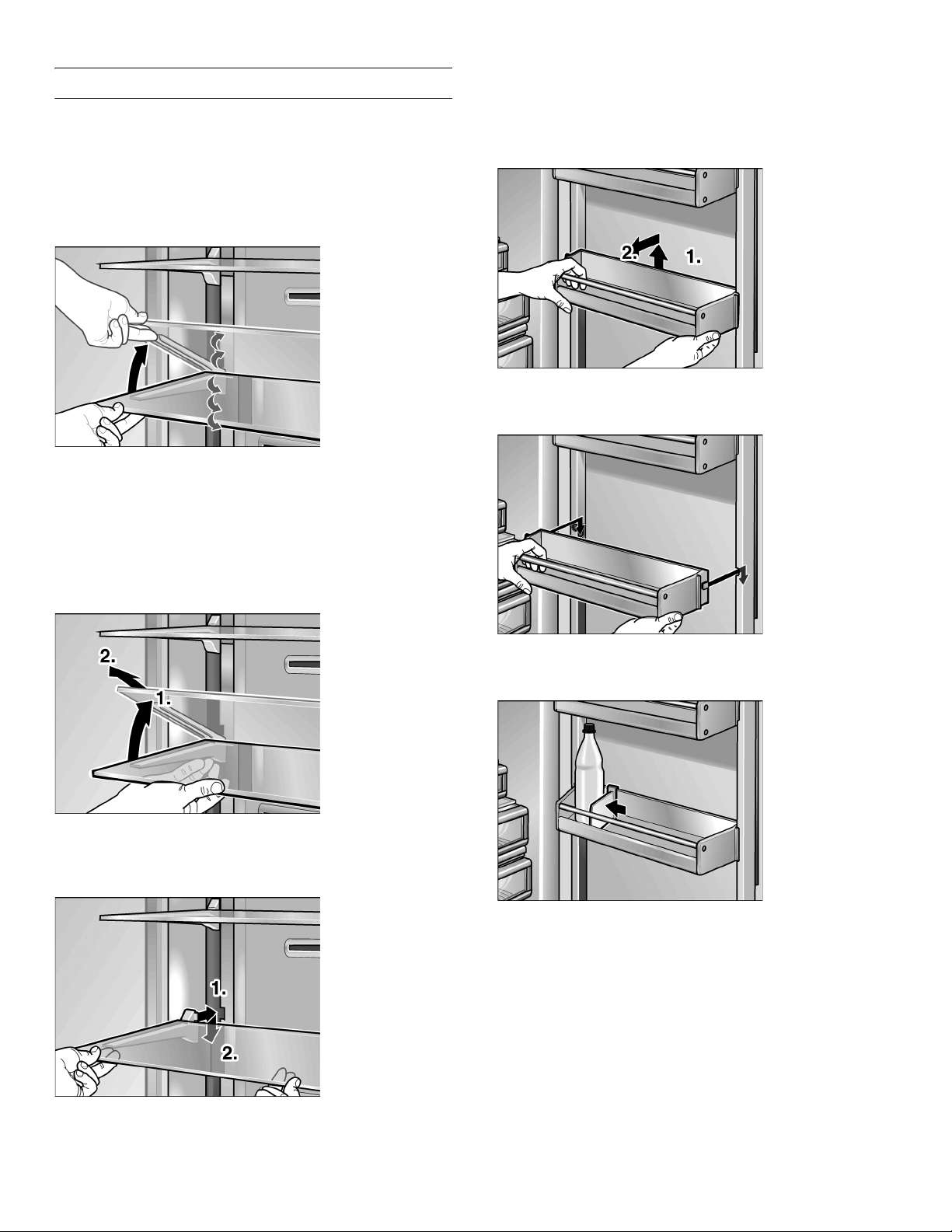

Variable interior design
You can re-arrange the shelves inside the appliance and
the containers in the door as required.
Glass shelves
The height of the glass shelves can be adjusted.
Lift the shelf at the front and move it up or down in the
guides.
Lower the shelf to the required position and snap it into
the preset openings in the guide.
To remove the shelves:
Door storage compartment
Lift the container and remove.
Lift the shelf at the front, move it as far as the openings
on the guide rail and remove.
Insert the container at the required height and press down.
Place the bottle holder at the required position in the
gallon door bin.
Insert the shelf at the required height and press down.
11

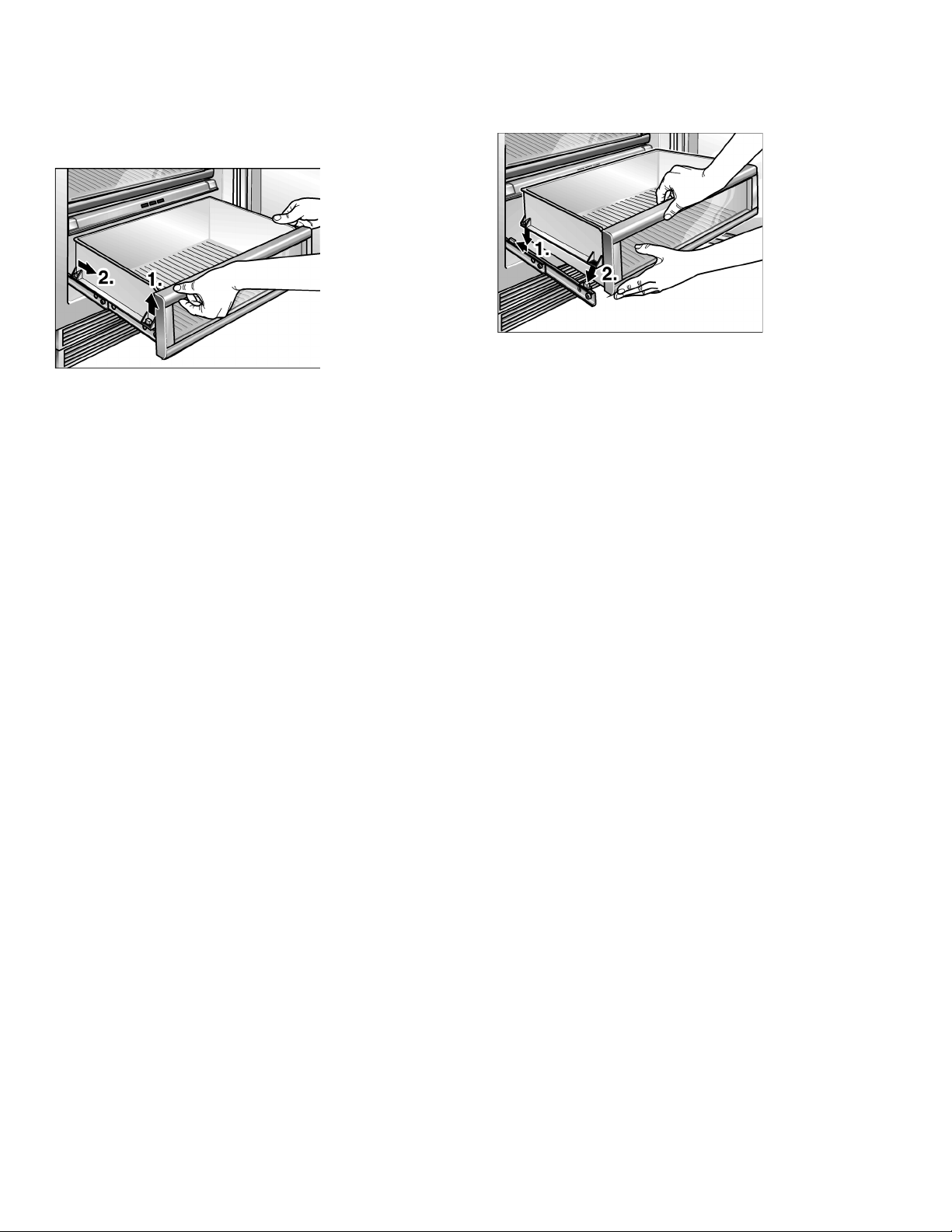

Drawers
To remove the drawers, lift them slightly and remove.
To replace the drawers, lift them at the front slightly and
reinsert in the pullout.
Move the drawer upwards and slide it backwards.
12
Control panel
To utilize all the functions of your appliance, we recommend that you familiarize yourself thoroughly with the control panel and
the setting options.

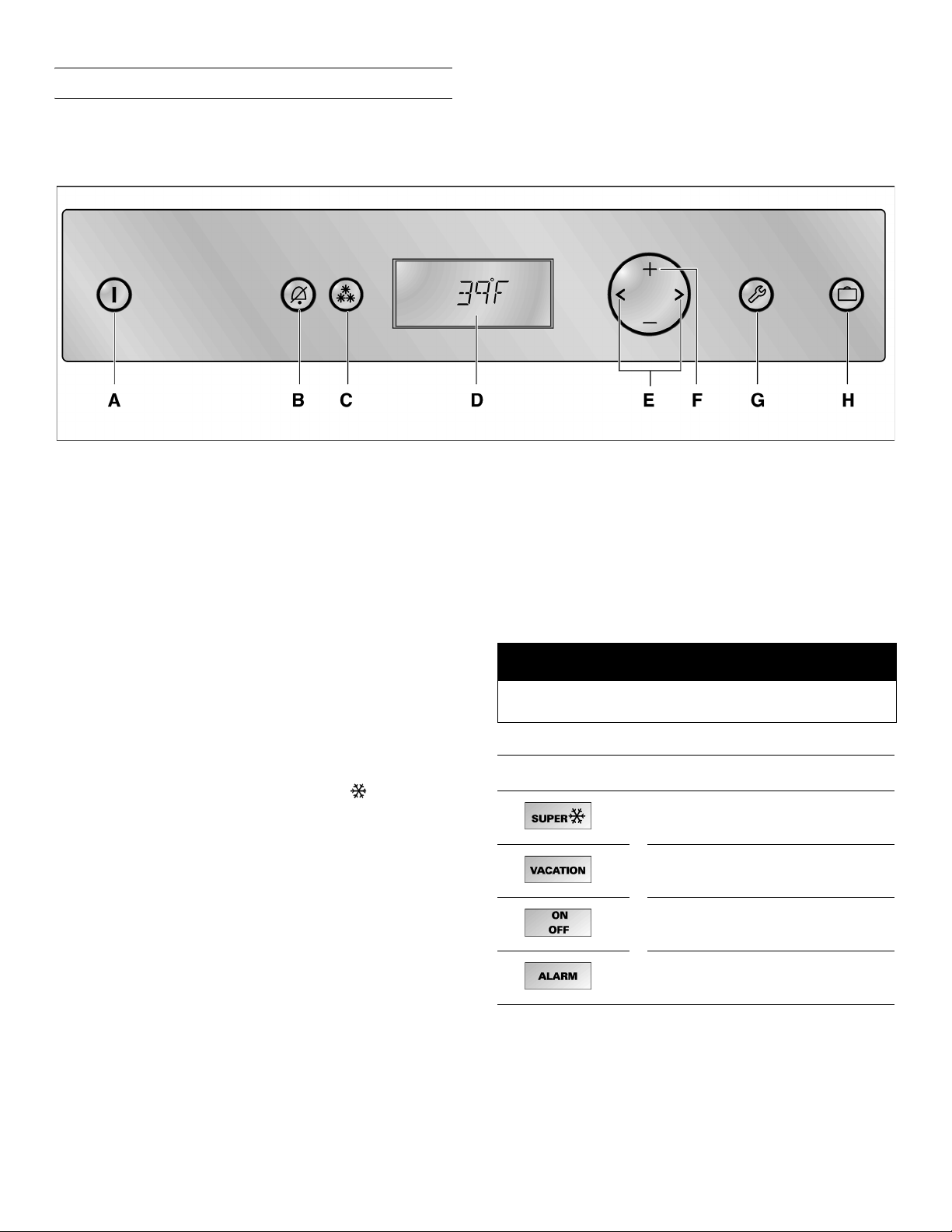

A POWER button
Switches the appliance on and off.
B ALARM OFF button
Switches off a warning signal.
See section on “Warning messages via the display”.
C FAST COOLING button
Switches the Fast cooling function on and off for the
refrigerator compartment. See section on “Fast cooling
function”.
DDisplay
The set required temperature of the appliance is indicated
on the display. Activated special functions are indicated via
symbols, e.g. Fast cooling function – Super .
In Setup mode the menus as well as the setting options are
indicated on the display. See section on “Setup mode”.
E<> buttons
Select the menus in Setup mode.
See section on “Setup mode”.
O
.
3
GSETUP button
This button activates and also ends Setup mode.
When Setup mode is ended with the SETUP button
the changed settings are saved.
H VACATION button
Switches Vacation mode on and off.
See section on “Vacation mode”.
W
W,
$
NOTE
Each button depression is acknowledged by a signal if the
o setting is activated in Setup mode, Tone menu.
Symbols at Display
The Fast cooling function is
activated, see page 14.
The Vacation mode is activated,
see page 17.
Setting options in Setup mode,
see page 15.
The required temperature adjustment is activated with
the <>buttons. See section on “Setting the temperature”.
F
+ – buttons
Select the available parameters of the menu.
See section on “Setup mode”.
The displayed temperature of the appliance is also changed
with the + – buttons. See section on “Setting the
temperature”.
An alarm is indicated, see page 20.
13

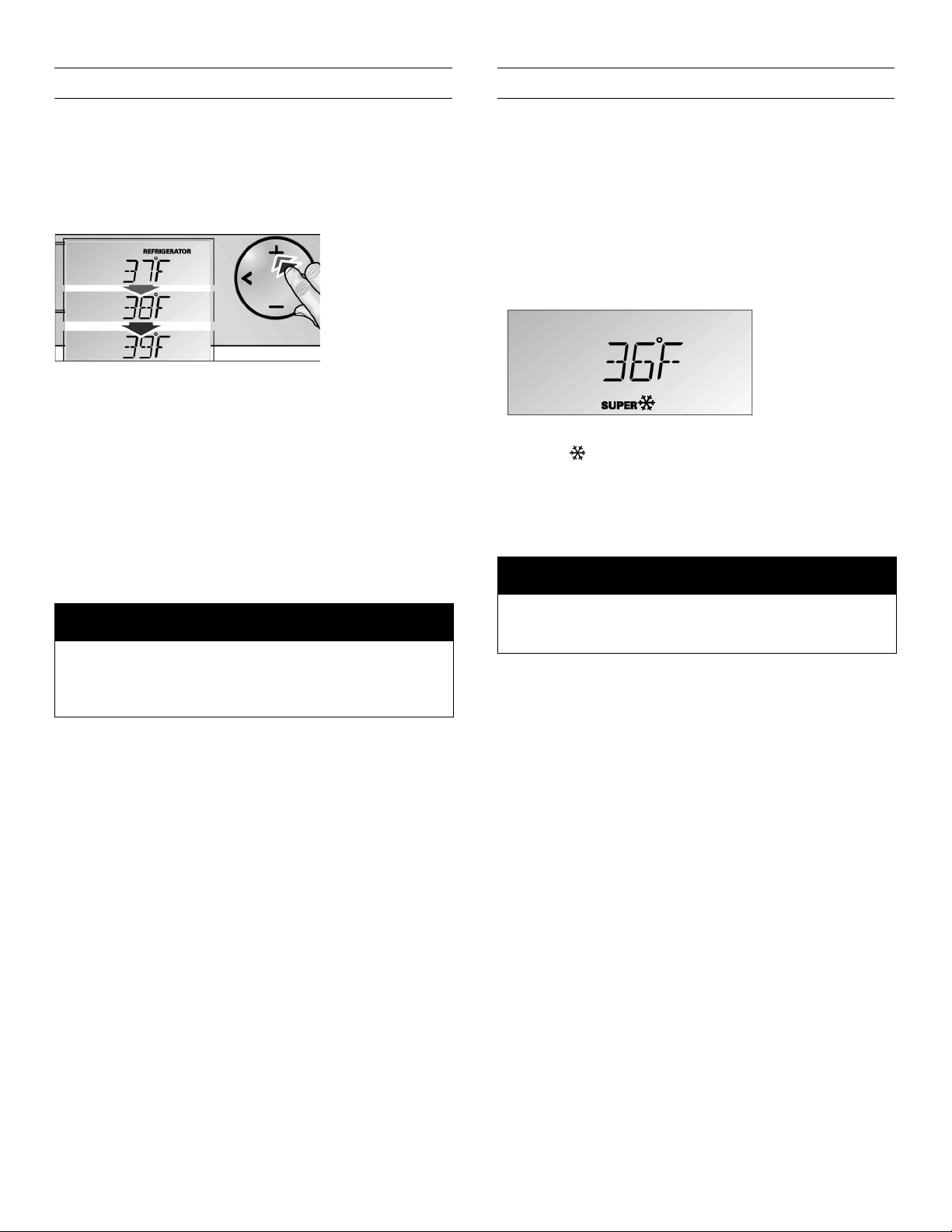

Setting the temperature
Fast cooling function
The temperature can be set from 35 °F to 46 °F
(+2 °C to +8 °C). We recommend a setting of 37 °F (+3 °C).
Perishable food should not be stored warmer
than 39 °F (+4 °C).
The temperature can be changed with the + buttons
(warmer) or – (colder). The temperature can be set at one
degree intervals.
To adjust the required temperature:
Activate the Setup mode with the < or > button.
The
REFRIGERATOR symbol is displayed.
Set the required temperature with the + (warmer) or
– (colder) buttons.
The Fast cooling function is ideal for the rapid cooling of
drinks and refrigerating large quantities of food.
When the Fast cooling function is activated, the appliance is
cooled as cold as possible to a preset temperature set at the
factory for approx. 6 hours.
The function is activated by pressing the FAST COOLING
button
The
displayed.
Fast cooling function ends by pressing the FAST COOLING
button
3.
Super symbol and the Fast cooling temperature are
3 again.
NOTE
NOTE
Depending on the model, the appliance can also be
switched off or switched to Vacation mode via the
temperature setting. When the highest temperature has
been reached,
OFF is displayed.
After approx. 6 hours the refrigerator automatically
switches back to the temperature set before Fast
cooling function.
14

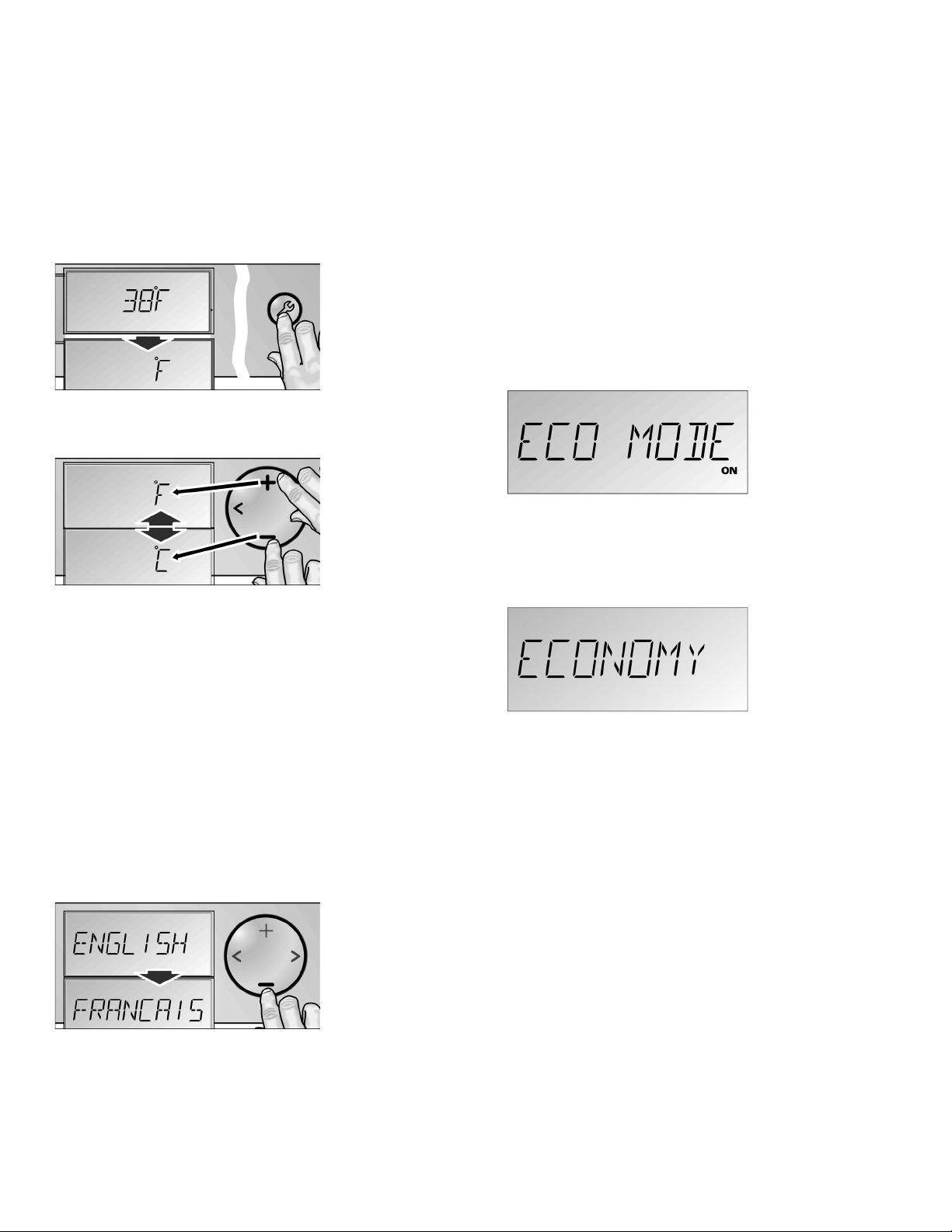

Setup mode
There are several menus for adjusting the appliance
functions to individual requirements. These adjustments can
be made in Setup mode.
To activate Setup mode:

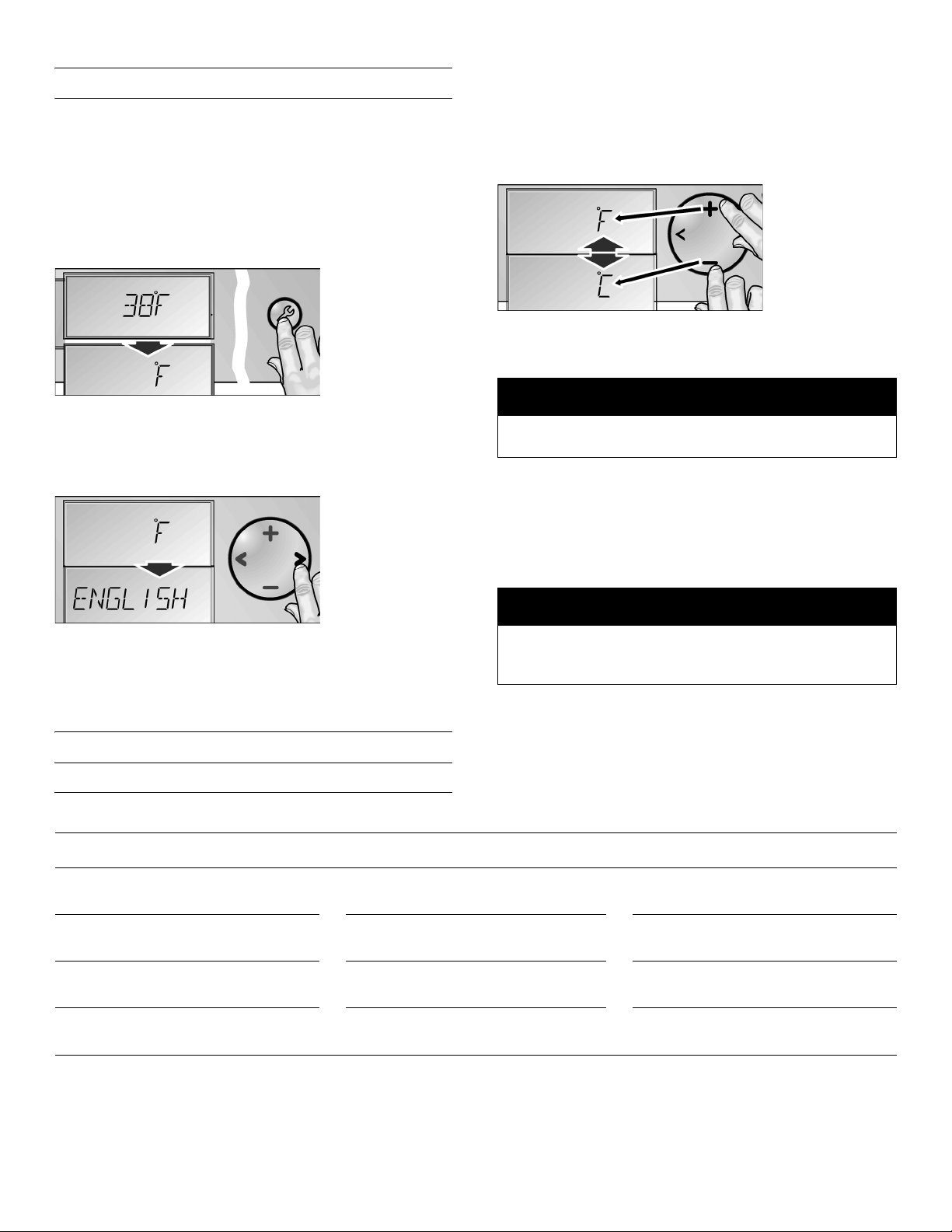

Press the SETUP button W.
The first menu (temperature unit) is displayed.
To switch to the next menu:
To select between the different setting options within one
menu:
Press the + or – button.
NOTE
A modified setting is saved when the next menu is
selected with the < or > button.
To end Setup mode:
Press the SETUP button W.
All modified settings are saved.
NOTE
If no button is pressed within 12 seconds, Setup mode
Press the < or > button. The next menu and the current
setting (usually
ON / OFF) are displayed.
ends automatically. All modified settings are saved.
The required temperature is displayed again.
Settings which can be changed
in Setup mode
Menu Setting options Displayed text
Temperature unit °F (degrees Fahrenheit)
°C (degrees Celsius)
Language English
French
Tone On
Off
Energy-saving mode (Eco function) On
Off
°F
°C
ENGLISH
FRANCAIS
TONE
ECO MODE
15
Temperature unit
Energy-saving mode
The temperature can be displayed in degrees Fahrenheit (°F)
or degrees Celsius (°C).
Press the SETUP button W.
The first menu (temperature unit) is displayed.
Press the + or – button to switch between degrees
Fahrenheit (°
F) or degrees Celsius (°C).
When the Economy function (Eco) is activated, the appliance
switches to an energy-saving mode.
This Economy functions set at the factory to be energetically
more favorable. The background light of the display is
reduced also.
The Economy function is activated in Setup mode.
Press the SETUP button W.
Press the > button until ECO MODE is displayed.
Press the + or – button to change ON / OFF.
Press the SETUP button W to save the setting.
Press the Setup button W to save the setting.
Language setting
When the appliance has been switched on, error messages
and settings in Setup mode are displayed in English.
Alternatively the information can be displayed in French.
Switch on Setup mode.
Press the > button until
Press the + or – button to switch to FRANCAIS.
Press the SETUP button W to save the setting.
ENGLISH is displayed.
ECONOMY is displayed in the standard display.
The function is ended by:
– switching off the Eco function in Setup mode,
– activating the Fast cooling function,
– changing the required temperature of the appliance,
– switching off the appliance with the POWER button
O.
16
Alarm function
Rest mode
Switching off the warning signal
Press the alarm button . to switch off the warning signal.
Door alarm
The door alarm switches on if an appliance door is left open
for longer than three minutes.
Close the door to switch off the warning signal.
Vacation Mode
If you are away for a prolonged period, you can switch the
appliance to an energetically more favorable mode. When
Vacation mode is active,
When Rest mode is switched on, the following settings
are switched off:
– Fast cooling (if switched on)
– Accoustic signal
– Interior light
– Messages in the display field
– The background illumination of the fascia is reduced.
– Buttons are locked.
To switch on Rest mode:
– the appliance switches to Eco function (see section
on “Energy-saving mode”),
– the interior light switches off,
– the Fast cooling function ends (if switched on).
To switch on Vacation mode:

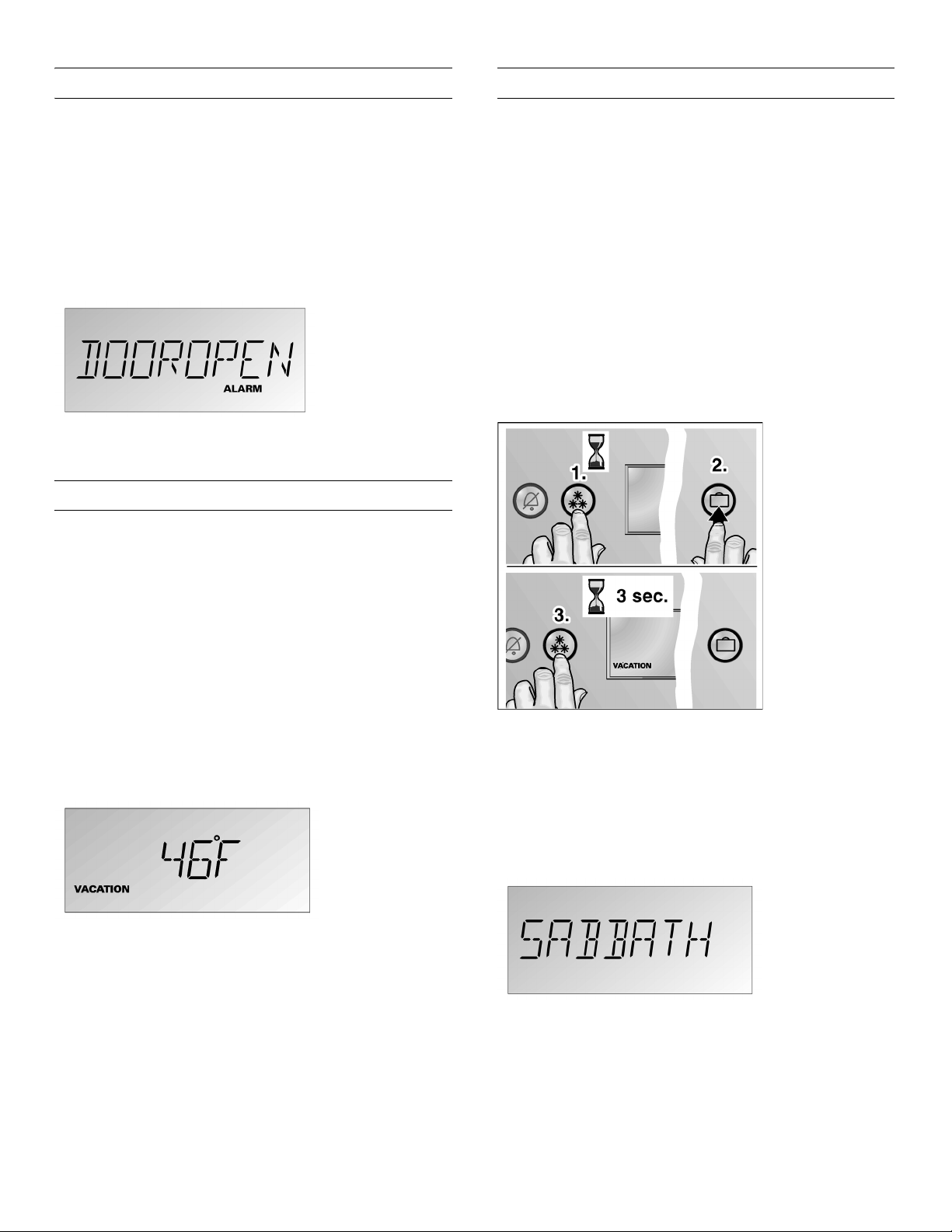

Press the VACATION button $.
VACATION symbol is displayed. Instead of the required
The
temperature, the presetting temperature is displayed.
To end Vacation mode, press the VACATION button
The previous settings and temperature values are used
again.
$.
Press and hold down the FAST COOLING button 3.
Press the VACATION button $.
Hold down the FAST COOLING button 3 for a further
3seconds.
The
VACATION symbol flashes on the display.
The background light on the display goes out.
SABBATH is displayed.
To end Rest mode, press the VACATION button
The previous settings and temperature values are used
again.
$.
17
Refrigerating
How to save energy
Arrange food as follows:
– On the shelves:
Cakes and pastries, ready meals, dairy products,
meat and sausage
– In the vegetable container:
Vegetables, lettuce, fruit
– In the temperature controlled drawer:
Fish, poultry, meat, vegetables
– In the door:
(from top to bottom):
Butter, cheese, eggs, gallons, small bottles,
large bottles, milk, juice cartons
When placing food in the appliance,
please note:
– Allow warm food and drinks to cool down outside the
appliance.
– Place food in the appliance well packed or wrapped.
Flavor and freshness will then be retained. This will also
prevent transfer of flavors and discoloration of the
plastic parts.
– Do not allow oil and grease to come into contact with
plastic parts or the door seal.
– Install the appliance in a dry, ventilated room; do not
expose to direct sunlight and do not place near a heat
source (e.g. radiator, cooker). If required, use an
insulating plate.
– Allow warm food and drinks to cool down before placing
them in the appliance.
– Defrost frozen food by placing it in the refrigerator.
The low temperature of the frozen food will refrigerate
the food in the refrigerator compartment.
– Open the appliance door as briefly as possible!
Operating noises
Quite normal noises
Grumbling – refrigerating unit is running. Fan in the
recirculating air system is running.
Bubbling, humming or gurgling noises – refrigerant is
flowing through the tubes.
Clicking – motor is switching on or off.
Noises which can easily be eliminated
The appliance is not level
Level the appliance with the aid of a spirit level.
– Store high percentage alcohol upright in sealed
containers only.
When buying food, please note:
The “purchase freshness” is important for the shelf-life of
your food. In principle the following applies: the fresher the
food is placed in the temperature controlled drawer,
the longer it will keep. When buying food, always note
the degree of freshness.
18
Use the height-adjustable feet or place something
underneath.
Drawers, baskets or storage areas wobble or stick
Check the removable parts and, if required, reinsert them.
Receptacles are touching each other
Move bottles or receptacles away from each other.
Defrosting
The appliance is defrosted automatically.
Cleaning the appliance
Cleaning the filter of
temperature controlled drawer
m
To avoid electrical shock which can cause death or
severe personal injury, disconnect power to appliance
before cleaning. After cleaning, reconnect power.
m
To avoid personal injuries or property damage, observe
the following:
– Do not clean the appliance with a steam cleaner.
– Do not let the water used for cleaning drip onto the
light or control panel.
– Do not use abrasive or acidic cleaning agents or
solvents which may damage the surfaces of the
appliance.
– Never clean shelves and containers in the
dishwasher. The parts may warp.
Switch off the appliance with the POWER button O!
Pull out the mains plug or switch off the fuse.
WARNING
WARNING
m
m
To clean the filter mats in the temperature controlled drawer:
Remove the temperature controlled drawer.
Clean the door seal with water only and dry thoroughly.
Clean the appliance with lukewarm water and a little
dishwashing liquid.
Do not let the water used for cleaning drip onto the
control panel or light.
Check the ventilation openings on the base panel.
Remove dirt with a vacuum cleaner.
After cleaning:
Reinsert the mains plug or switch on the fuse. Switch on
the appliance with the POWER button
O.
NOTE
Have your supplier inform you about special cleaning and
care information for appliance surfaces.
Wipe appliance surfaces with a damp cloth.
Then immediately wipe dry.

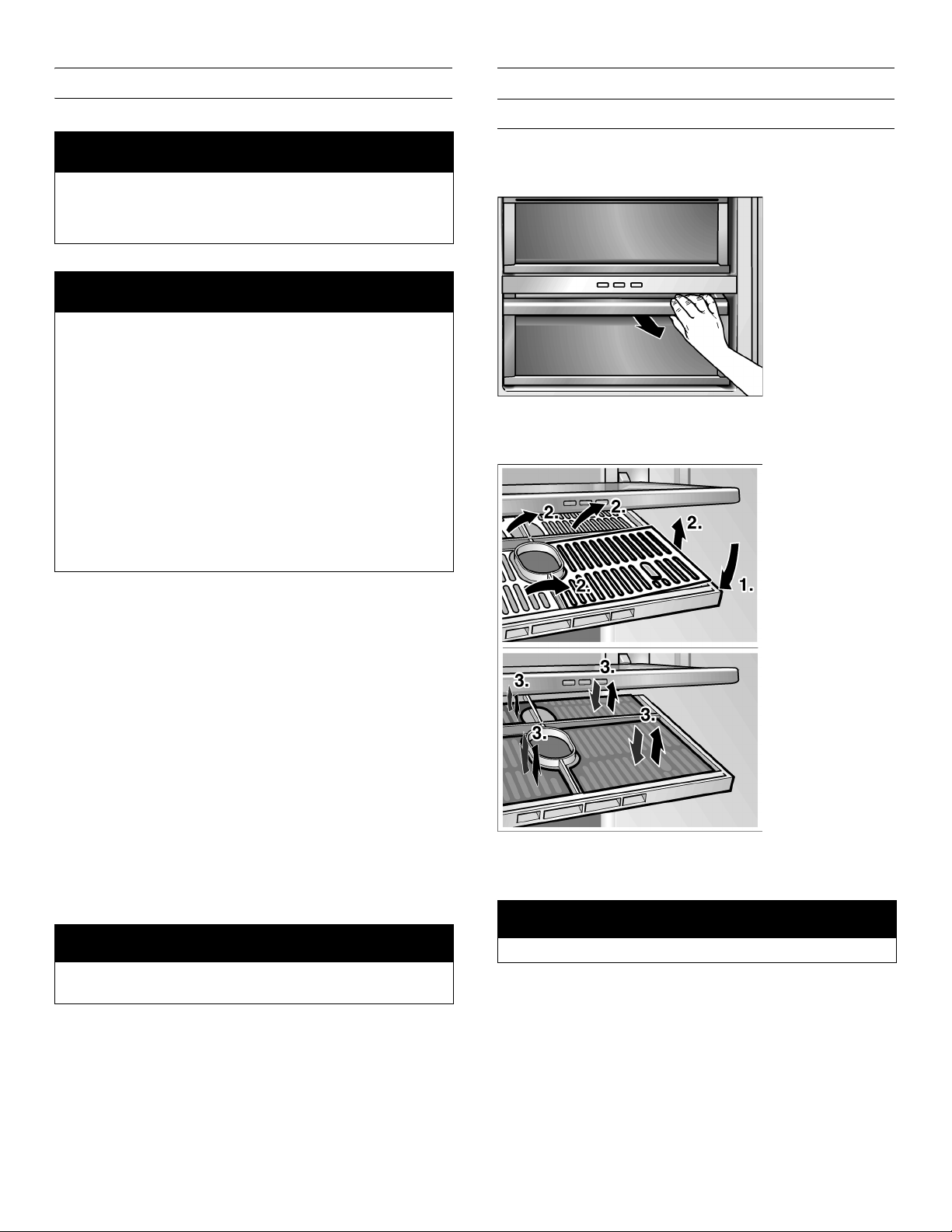

Pull down the filter holder at the front with both hands.
NOTE
Open the filter holder for cleaning only.
Remove the filter mats. Clean the filter mats in clear
water.
Insert the filter mats.
Press up the partition until it snaps into place.
Re-insert the temperature controlled drawer.
19
Odors
If the appliance is emitting unpleasant odors:
Switch off the appliance with the POWER button O!
Take all food out of the appliance.
Clean the interior.
See section on “Cleaning the appliance”.
Clean all packages.
Pack strong-smelling food in airtight containers
to prevent the build up of odors.
Switch on the appliance again with the POWER
button
Stack food in the appliance.
After 24 hours check whether the odors have been
eliminated.
Change the activated charcoal air filter. See section on
"Changing the activated charcoal air filter".
O.
Warning messages via the display
Sensor fault
Cause
A technical defect is possible.
Remedial action
Call customer service.
Low voltage
If several warning messages are displayed simultaneously,
deal with each message individually.
While a warning message is displayed, buttons cannot be
pressed.
Door alarm
Cause
An appliance door has not been closed properly or has been
open too long.
Remedial action
Close the door.
The display goes out.
Cause
The mains voltage has dropped below the permitted limit
value.
Remedial action
Buttons cannot be pressed. When the mains voltage
reaches the stipulated value again, the warning message
goes out. If the warning message is prolonged, inform your
power supply company.
20
Troubleshooting
Fault Possible cause Remedial action
Appliance has no cooling capacity.
The interior light does not function.
The display does not come on.
The refrigerating unit switches on
more and more frequently and for
longer.
The temperature in the refrigerator
compartment is too cold.
The interior light does not function. The bulb is defective. Change the bulb (see “Changing the
The appliance is giving off odors. Strong-smelling foods have not been
Power failure; the fuse has actuated;
the mains plug is not in properly.
Appliance door opened frequently. Do not open the door unnecessarily.
Large quantities of fresh food placed
in the appliance.
The ventilation openings are covered. Remove obstacles and dirt.
Temperature has been set too low. Set a warmer temperature
The light switch is sticking. Check whether it can be moved.
packed in airtight containers.
Check that the power is on. The fuse
must be switched on. Check that the
mains plug is plugged in.
Switch on Fast cooling function.
(see “Setting the temperature”).
bulb”).
Clean the appliance. Pack strongsmelling foods in airtight containers
(see “Odors”).
Changing the bulb
m
To avoid electrical shock which can cause death or
severe personal injury, disconnect power to appliance
before making repairs. After making repairs, reconnect
power.
Switch off the appliance with the POWER button O!
Pull out the mains plug or switch off the fuse.
m
Never touch a halogen bulb with bare fingers.
When inserting a glass halogen bulb, always hold with
asoft cloth.
WARNING
CAUTION
m
m
Halogen bulbs above
Halogen bulb type: 20 W/12 V/socket G4

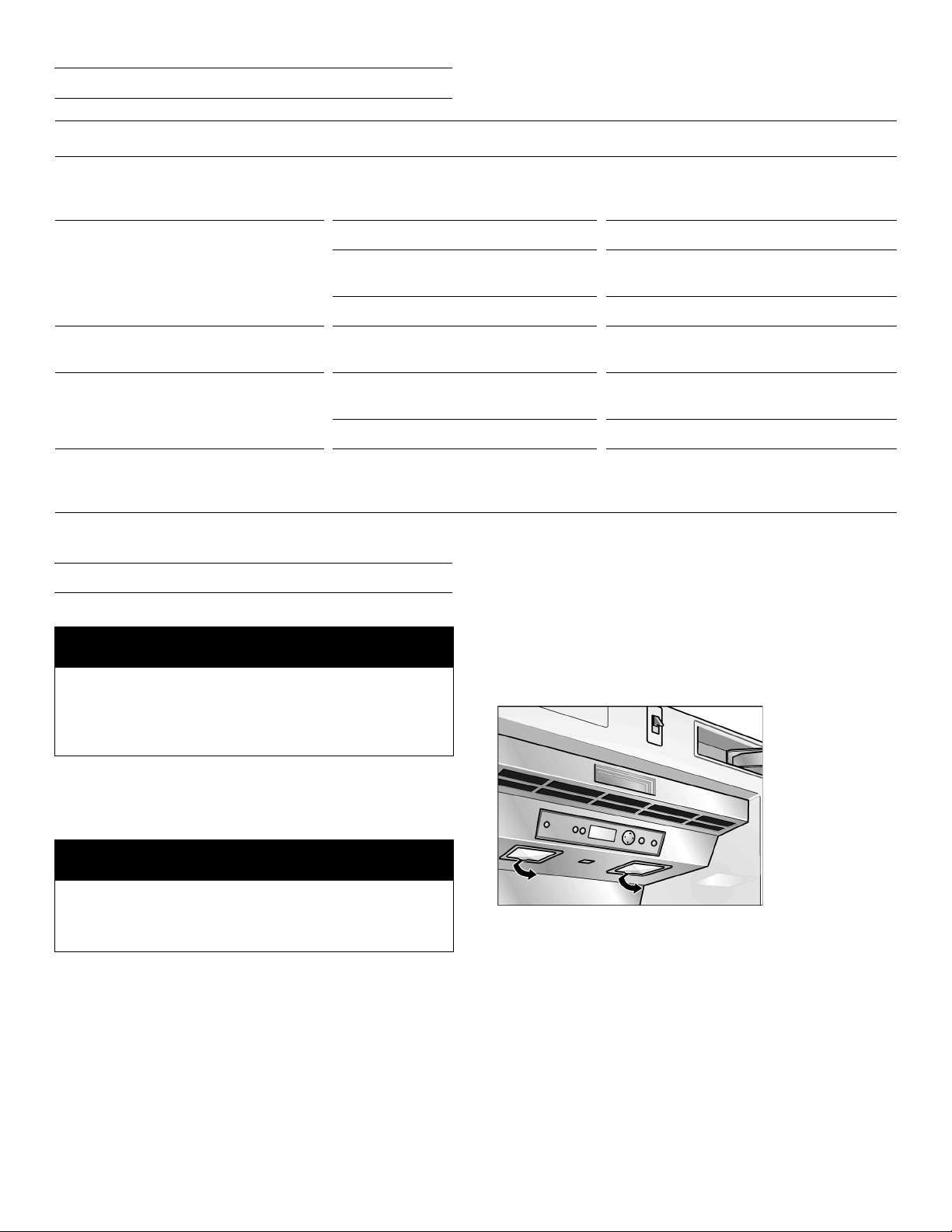

Release the cover and remove from the clip.
Pull out the defective halogen bulb.
21
Insert a new halogen bulb. Touch the halogen bulb with
a soft cloth only.
Attach the cover and connect to the clip.
Halogen bulbs at the side
Halogen bulb type: 10 W/12 V/socket G4
Insert a new halogen bulb. Touch the halogen bulb with
a soft cloth only.
Insert the disc.

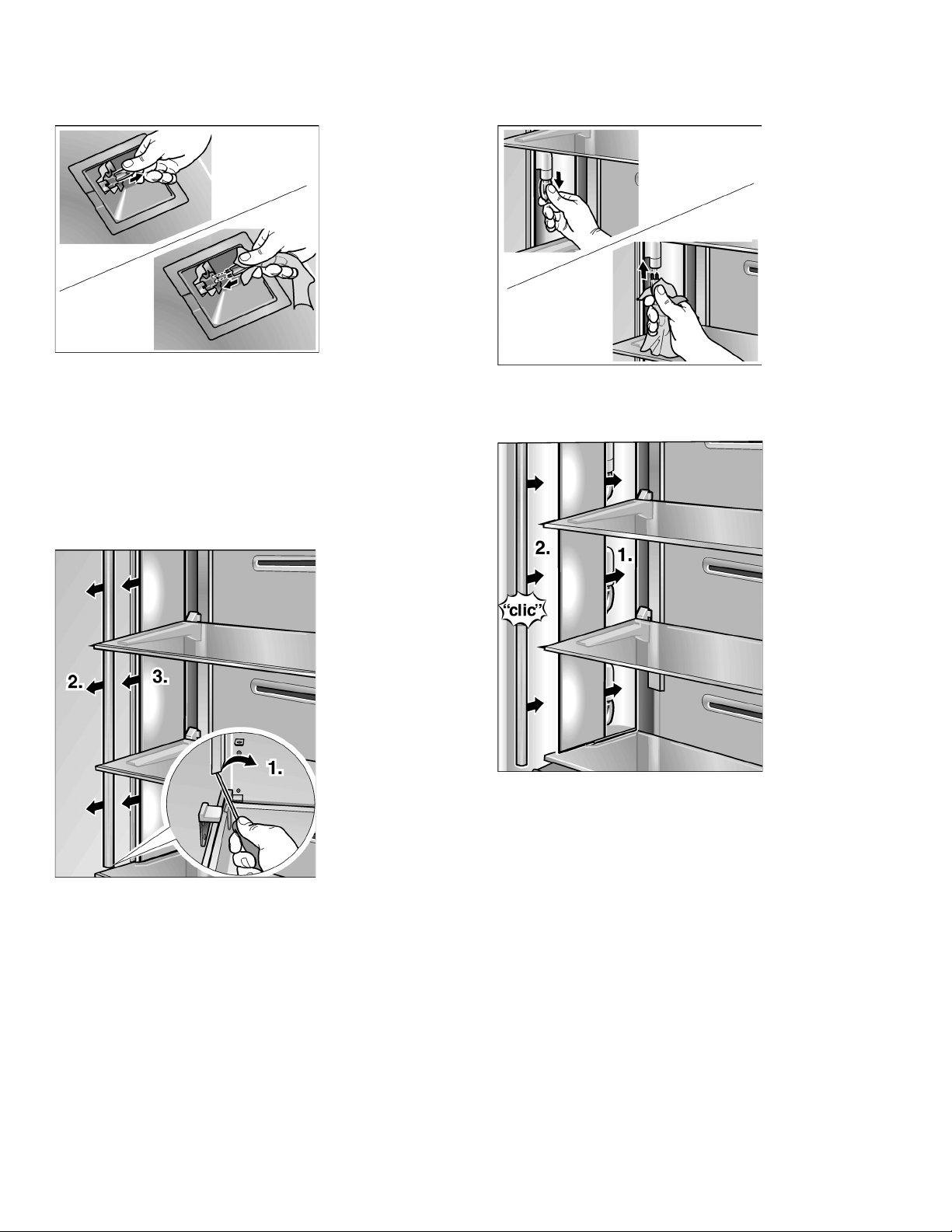

Pull out the cover rail forwards.
To loosen the cover rail use a screwdriver.
Remove the disc forwards.
Pull out the defective halogen bulb.
22
Insert the cover rail.
Halogen bulb in temperature controlled
drawer

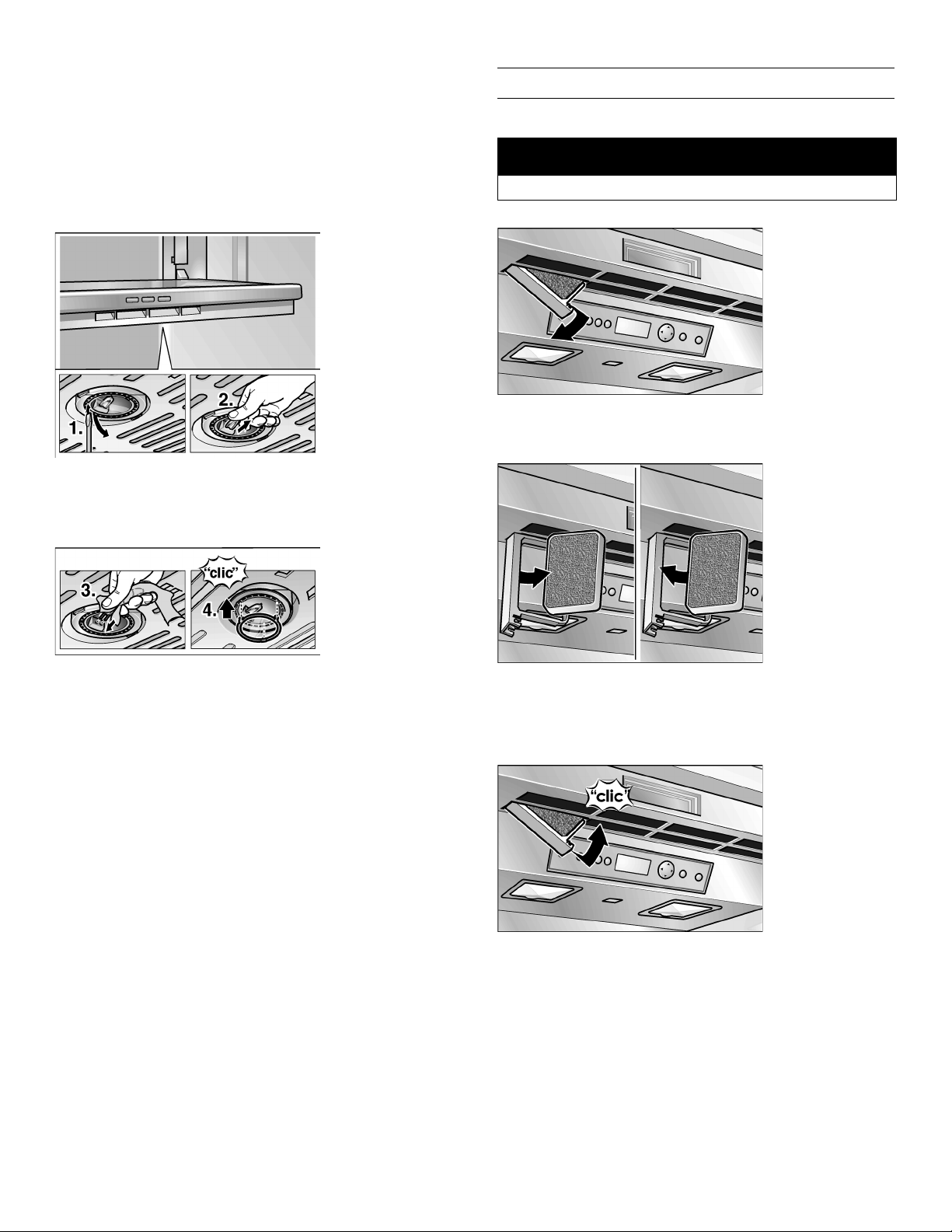

Changing the activated charcoal air filter
NOTE
Halogen bulb type: 5 W/12 V/socket G4
Release the cover and remove from the clip.
Pull out the defective halogen bulb.
Replacement filters are available from your dealer.
Open the filter holder.
Insert a new halogen bulb. Touch the halogen bulb with
a soft cloth only.
Attach the cover and connect to the clip.
Pull out used filter.
Insert a new filter.
Close the filter holder.
23
Loading...
