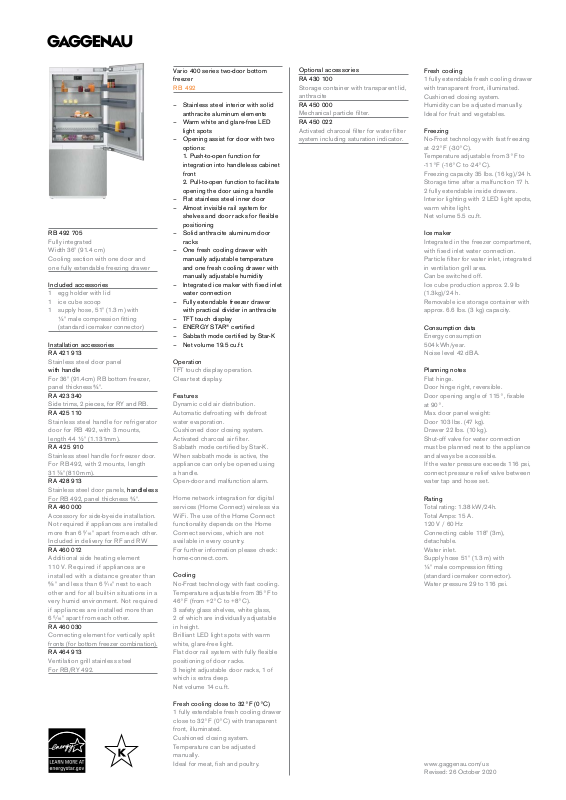

Gaggenau RB492705 Specification Sheet
RB 492 705
Fully integrated
Width 36" (91.4 cm)
Cooling section with one door and
one fully extendable freezing drawer
Included accessories
1 egg holder with lid
1 ice cube scoop
1 supply hose, 51" (1.3 m) with
¼" male compression fitting
(standard icemaker connector)
Installation accessories
RA 421 913
Stainless steel door panel
with handle
For 36" (91.4cm) RB bottom freezer,
panel thickness ¾".
RA 423 340
Side trims, 2 pieces, for RY and RB.
RA 425 110
Stainless steel handle for refrigerator
door for RB 492, with 3 mounts,
length 44 ½" (1.131mm).
R A 425 910
Stainless steel handle for freezer door.
For RB 492, with 2 mounts, length
31 ⅞" (810 mm).
RA 428 913
Stainless steel door panels, handleless
For RB 492, panel thickness ¾".
RA 460 000
Accessory for side-by-side installation.
Not required if appliances are installed
more than 6 ⁵⁄₁₆" apart from each other.
Included in delivery for RF and RW
RA 460 012
Additional side heating element
110 V. Required if appliances are
installed with a distance greater than
⅝" and less than 6 ⁵⁄₁₆" next to each
other and for all built-in situations in a
very humid environment. Not required
if appliances are installed more than
6 ⁵⁄₁₆" apart from each other.
RA 460 030
Connecting element for vertically split
fronts (for bottom freezer combination).
RA 464 913
Ventilation grill stainless steel
For RB/RY 492.
Vario 400 series two-door bottom
freezer
RB 492
– Stainless steel interior with solid
anthracite aluminum elements
– Warm white and glare-free LED
light spots
– Opening assist for door with two
options:
1. Push-to-open function for
integration into handleless cabinet
front
2. Pull-to-open function to facilitate
opening the door using a handle
– Flat stainless steel inner door
– Almost invisible rail system for
shelves and door racks for flexible
positioning
– Solid anthracite aluminum door
racks
– One fresh cooling drawer with
manually adjustable temperature
and one fresh cooling drawer with
manually adjustable humidity
– Integrated ice maker with fixed inlet
water connection
– Fully extendable freezer drawer
with practical divider in anthracite
– TFT touch display
– ENERGY STAR
®
certified
– Sabbath mode certified by Star-K
– Net volume 19.5 cu.ft.
Operation
TFT touch display operation.
Clear text display.
Features
Dynamic cold air distribution.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
Sabbath mode certified by Star-K.
When sabbath mode is active, the
appliance can only be opened using
a handle.
Open-door and malfunction alarm.
Home network integration for digital
services (Home Connect) wireless via
WiFi. The use of the Home Connect
functionality depends on the Home
Connect services, which are not
available in every country.
For further information please check:
home-connect.com.
Cooling
No-Frost technology with fast cooling.
Temperature adjustable from 35°F to
46°F (from +2°C to +8°C).
3 safety glass shelves, white glass,
2 of which are individually adjustable
in height.
Brilliant LED light spots with warm
white, glare-free light.
Flat door rail system with fully flexible
positioning of door racks.
3 height adjustable door racks, 1 of
which is extra deep.
Net volume 14 cu.ft.
Optional accessories
RA 430 100
Storage container with transparent lid,
anthracite
RA 450 000
Mechanical particle filter.
RA 450 022
Activated charcoal filter for water filter
system including saturation indicator.
Fresh cooling
1 fully extendable fresh cooling drawer
with transparent front, illuminated.
Cushioned closing system.
Humidity can be adjusted manually.
Ideal for fruit and vegetables.
Freezing
No-Frost technology with fast freezing
at -22°F (-30°C).
Temperature adjustable from 3°F to
-11°F (-16°C to -24°C).
Freezing capacity 35 lbs. (16 kg)/24 h.
Storage time after a malfunction 17 h.
2 fully extendable inside drawers.
Interior lighting with 2 LED light spots,
warm white light.
Net volume 5.5 cu.ft.
Ice maker
Integrated in the freezer compartment,
with fixed inlet water connection.
Particle filter for water inlet, integrated
in ventilation grill area.
Can be switched off.
Ice cube production approx. 2.9 lb
(1.3kg)/24 h.
Removable ice storage container with
approx. 6.6 lbs. (3 kg) capacity.
Consumption data
Energy consumption
504 kWh/year.
Noise level 42 dBA.
Planning notes
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable
at 90°.
Max. door panel weight:
Door 103 lbs. (47 kg).
Drawer 22 lbs. (10 kg).
Shut-off valve for water connection
must be planned next to the appliance
and always be accessible.
If the water pressure exceeds 116 psi,
connect pressure relief valve between
water tap and hose set.
Rating
Total rating: 1.38 kW/24h.
Total Amps: 15 A.
120 V / 60 Hz
Connecting cable 118" (3m),
detachable.
Water inlet.
Supply hose 51" (1.3 m) with
¼" male compression fitting
(standard icemaker connector).
Water pressure 29 to 116 psi.
Fresh cooling close to 32°F (0°C)
1 fully extendable fresh cooling drawer
close to 32°F (0°C) with transparent
front, illuminated.
Cushioned closing system.
Temperature can be adjusted
manually.
Ideal for meat, fish and poultry.
www.gaggenau.com/us
Revised: 26 October 2020
*
36"
(914)
353/4"
(908)
The door face dimensions are designed for a maximum gap of ⅛" (3 mm).
Numbers indicated
inside parenthesis ( ) = mm
www.gaggenau.com/us
Revised: 26 October 2020
