Instruction manual

CM 450

Fully Automatic Espresso Machine

Table of contents

Instruction manual

Intended use 3

(

Important safety information 3

Environmental protection 4

Saving energy 4 Environmentally-friendly disposal 4

Familiarising yourself with your appliance 5

Included in delivery 5 Assembly and components 6 Display and operating controls 7 Function selector positions 7 Symbols 7 Colours and display 8 Automatic door opening 8 Additional information ( and ) 8 Accessories 9

Switching the appliance on and off 9

Main switch 9 Standby screen 10 Activating the appliance 10

Home Connect 22

Setting up 22 Home Connect settings 23 Remote Start 24 Remote diagnostics 24 About data protection 24 Declaration of Conformity 24

Daily care and cleaning 25

Daily maintenance 25 Cleaning the milk system 25 Cleaning the brewing unit 27

Service programmes 28

Cleaning 28 Descaling 29 Cleaning and descaling 29

Emptying programme 30

Simple troubleshooting 31

Technical data 34

Setting up the appliance 10

Initial settings 10 Setting the water hardness 11

Water filter 11

Operation with or without a water filter 11 Inserting the water filter 12

Filling the water tank and bean container 12

Preparing beverages 13

Beverage selection 13 Preparing coffee using freshly ground beans 14 Preparing two cups at the same time 14 Preparing coffee using ground coffee 15 Preparing a coffee with milk 15 Preparing milk froth and warm milk 16 Preparing hot water 16 Setting the grinding level 17 Changing bean type 17

Individual beverages 17

Additional information on products, accessories, replacement parts and services can be found at

www.gaggenau.com and in the online shop www.gaggenau.com/zz/store

Child lock 18

Activating the child lock 18 Deactivating the child lock 18

Basic settings 19

Setting the milk container weight 21 Messages 21

Intended use

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Protect the appliance from frost, otherwise it will become damaged.

m (Important safety

information

Important safety information

Please read carefully, follow and retain the operating instructions. When passing on the appliance, enclose these instructions.

This appliance can be used by children aged from 8years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8years and supervised.

m Warning – Danger of electric shock!

▯ The appliance may only be connected to a

power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic electricity supply has been correctly installed.

Risk of electric shock!

▯ Only connect and operate the appliance in

accordance with the information on the rating plate. If the power cord of this appliance is damaged, it must be replaced with a special connection cord, which is available from customer service.

Risk of electric shock!

▯ Do not use if the power cable or appliance

is damaged. If a fault occurs, pull the mains plug or switch off the mains voltage immediately.

Risk of electric shock!

▯ To prevent hazards, the appliance may be

repaired by our customer service only.

Risk of electric shock!

▯ Never immerse the appliance or mains cord

in water.

Risk of electric shock!

▯ The plug and socket connection of the

appliance must not come into contact with liquids.

en Environmental protection

m Warning – Risk of scalding (Home

Connect)!

If an unattended remote start takes place, third parties might be scalded if they reach under the coffee dispenser during drinks dispensing. You should therefore make sure that with an unattended remote start there is no risk to other people, in particular not to children, or to property.

m Warning – Hazard due to magnetism!

The appliance contains permanent magnets which may affect electronic implants, e.g. heart pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank and brewing unit.

m Warning – Risk of harm to health!

Soiling on the appliance may be dangerous to health.Follow the cleaning instructions for the appliance.

Environmental protection

Saving energy

▯ If the appliance is not being used, switch it off.

▯ Set the interval for automatic switch-off to the

smallest value.

▯ If possible, do not interrupt coffee or milk froth

dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.

▯ Descale the appliance regularly to avoid a build-up

of limescale. Limescale residue results in higher energy consumption.

m Warning – Risk of suffocation!

Do not let children play with packaging material. Store small parts safely as they can be easily swallowed.

m Warning – Risk of burns!

▯ The milk system becomes very hot. After

use, allow it to cool down first before touching it.

Risk of burns!

▯ Some parts of the appliance become very

hot. Never touch hot appliance parts.

m Warning – Risk of injury!

▯ Improper use of this appliance may result in

injury.

Risk of injury!

▯ Do not reach into the grinding unit.

Risk of injury!

▯ Be careful not to jam your fingers when

closing the door.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your dealer about current disposal routes.

m Warning – Risk of fire!

The appliance will become hot. Ventilate the appliance adequately.Never operate the appliance in a unit with the cabinet door closed.

Familiarising yourself with your appliance

Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls are explained. You will also be informed about the accessories.

Further information about the appliance, such as how to change the opening angle of the door, can be found in the enclosed installation instructions.

Included in delivery

(For use)

Familiarising yourself with your appliance

en Familiarising yourself with your appliance

Assembly and components

Familiarising yourself with your appliance

1 Display and controls

2 Shelf, e.g. for a cup

3 Water tank with cover

4 Accessory drawer (for quick reference guide and

accessories) 5 Bean container 6 Grinding level adjustment 7 Magnetic holder (for milk hose connecting element) 8 Ground coffee drawer 9 Protective cover (for brewing unit) 10 Collecting tray 11 Rating plate 12 Holder (for milk tube) 13 Drip tray 14 Drip tray cover 15 Coffee residue container 16 Beverage dispenser and milk system, height-adjusta-

ble 17 Milk container 18 Shelf (scales) for milk container, removable

Function selector positions











Position Function

0 Zero setting @ Light 2 Beverage selection 3- 10 Memory locations for individual beverages S Service programmes/basic settings









Symbols

The following overview details the symbols that are the most used when operating the appliance.

Display and operating controls



(VSUHVVR





[

Symbol Function

I Start

Ø Stop

' Cancel ™ Confirm/save settings

C Selection arrow

! Opening the door

E WLAN on

( Call up additional information * Call up additional tips % Edit settings ‡ Save individual beverage

Quick capacity selection

2x 2beverages

0 Child lock

--------

1 Control panel These areas are touch sensitive.

Touch a symbol to select the corresponding function.

2 Display The display shows, for example,

current settings and options.

3 Rotary selector You can select the desired bever-

age and other settings using the rotary selector.

4 Function selector You can use the function selector

to call up beverages or the favour-

--------

ite drinks you have saved.

en Familiarising yourself with your appliance

Colours and display

Colours

The different colours are used to guide the user in the relevant setting situations.

Orange Initial settings

Main functions, messages

Blue Basic settings

Cleaning

White Adjustable values

Appearance

The symbols, values and displays may change, depending on the situation.

Standard Values and symbols which have just

been selected will be displayed in a larger font.

Reduced display screen

After a short while, the amount of information shown on the display will be reduced and only the most important information will remain. This function is activated in the basic settings ex works and can be deactivated.

Automatic door opening

The appliance door springs open when you touch the ! symbol and you can open it fully by using the recessed handle on the side.

Automatic door opening does not work if the child lock is activated or there is a power cut. You can open the recessed handle on the side by hand.

Additional information ( and )

You can call up additional information by touching the ( symbol.

During operation you will receive, for example, information on the number of beverages previously dispensed.

If the function selector is set to S, you will receive, for example, information about when the appliance needs to be descaled or cleaned or when the water filter needs changing. You can use this information to start up a service programme that is due soon, for example.

The ) symbol appears for important user prompts.New messages are also shown for several seconds on the display. These messages disappear automatically after a few seconds or must be confirmed with ™. A list of messages can be displayed by touching the ) symbol.The message disappears when the required action has been carried out.

If messages relating to Home Connect appear on the display, read the information in the section "Home Connect" and at the end of the section "Solving simple problems yourself".

Switching the appliance on and off

Accessories

The fully automatic espresso machine has a drawer for storing accessories such as the quick reference guide or measuring spoon inside the appliance. After opening the door, you can use the magnetic holder and the clip for the individual parts, such as the milk hose set. The holder for the milk tube is situated on the inside of the door.

The appliance includes the following accessories as standard:

Measuring spoon

For adding ground coffee. Milk hose set

For connecting the milk container.

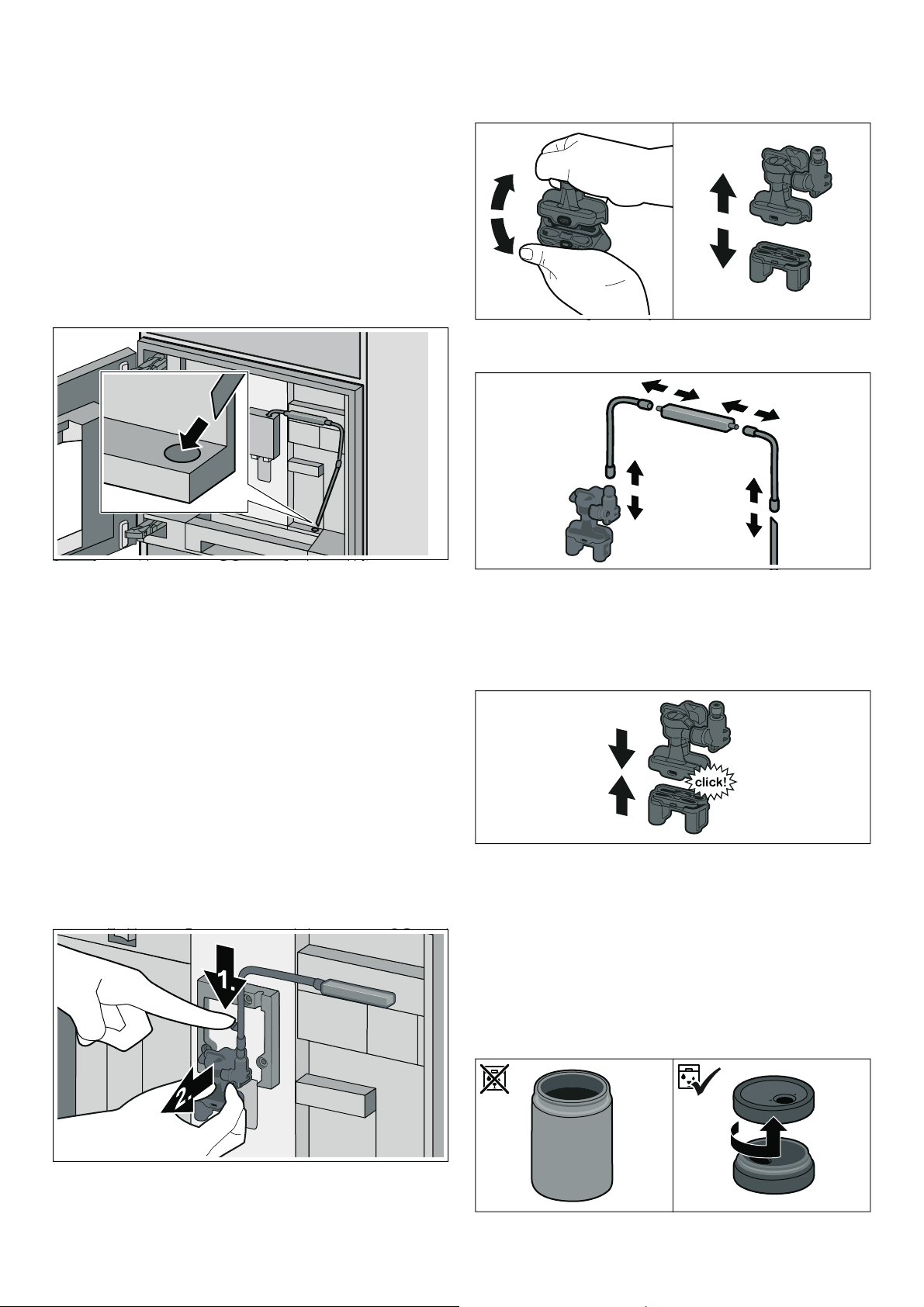

Milk tube For inserting into the milk container, milk cartons and milk bottles or for running a service programme.

Milk container Capacity 0.5litres.

The milk container has been specially designed for use with this fully automatic coffee machine.It is solely intended for use in the home and for storing milk in the refrigerator.

The following accessories can be ordered by contacting the after-sales service:

▯ Water filter (order no.: 17000705)

▯ Cleaning tablets (order no.: 00311769)

▯ Descaling tablets (order no.: 00311819)

▯ Stainless-steel milk container

(order no.: 11019259)

▯ Limit stop for 92° opening angle

(order no.: 00636455)

▯ Bean container with lid

(order no.: 11015223)

Switching the appliance on and off

Main switch

The main switch is used to switch the appliance on and off.

If the appliance is switched off at the main switch, the power supply is interrupted.

The appliance is programmed so that it switches to standby mode automatically after about 30 minutes. This timespan can be changed. ~ "Basic settings"

on page 19

The appliance rinses automatically when it is switched on at the main switch. Exception: The appliance was only switched off a few minutes beforehand.

Notes

– Do not press the main switch during operation. If

you want to manually switch off the appliance, you must first set the function selector to 0 so that it rinses automatically. Then switch off the appliance using the main switch.

– The appliance is equipped with a sensor. If a milk

container is present, this will be shown on the display when switching to energy-saving mode (function selector set to 0). If there is milk in the container, please keep in the refrigerator.

en Setting up the appliance

Standby screen

The appliance goes into standby if the function selector is turned to 0 or if the child lock is activated.

Activating the appliance

To leave hibernate mode or to activate the display when it has been switched off, turn the function selector.

You can now set the desired function. You can read about how to set functions in the respective chapters.

Notes

– If no drip tray is inserted, the appliance cannot be

switched on and no water will flow from the coffee dispenser. The message "Insert trays" appears.

– When "Standby screen = off" is selected in the

basic settings, you must turn the function selector to exit standby mode.

Setting up the appliance

Note: Only use the appliance in frost-free areas. If the appliance was transported or stored at temperatures below 0°C, you must wait for at least 3 hours before using it.

Before the appliance can be switched on and used, it must be assembled and connected according to the enclosed installation instructions.

Initial settings

Notes

– The query appears automatically when first

switched on after connection to a power outlet.

– You can change the settings at any time. ~

settings" on page 19

1 Switch on the appliance at the main switch.

The preset language appears in the display.

"Basic

'HXWVFK

6SUDFKH

2 Turn the rotary selector to select the required

display language.

3 Press ™ to confirm.

The temperature unit appears in the display.

4 Use the rotary selector to select the required

temperature unit.

5 Press ™ to confirm.

The preset capacity unit appears in the display.

6 Use the rotary selector to select the required

capacity unit.

7 Press ™ to confirm.

The preset weight unit appears in the display.

8 Use the rotary selector to select the required

weight unit.

9 Press ™ to confirm.

The display shows "Initial set-up complete".. Confirm with ™. The appliance is now ready to use.

Note: If the language is changed, the system restarts.

This takes a few seconds.

Water filter

Setting the water hardness

It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme should be run. The preset water hardness is level 4. If a water softening unit is installed in the household, select the "Softening device" setting. You can check the water hardness using the enclosed test strip or by asking your local water supplier.

1 Briefly immerse the enclosed test strip in fresh tap

water, leave it to drip and read off the result after one minute.

2 Rotate the function selector to S.

3 Use the rotary selector to select "Basic settings"

and touch the ™ symbol.

4 Use the rotary selector to select "Water hardness". 5 Touch the % symbol.

6 Using the rotary selector, set the measured water

hardness.

7 Press ™ to confirm. The setting has been saved. Touch ' to exit the basic

settings.

Water filter

Operation with or without a water filter

You can use the appliance with or without a water filter. To ensure that the descaling display of the appliance functions correctly, you must specify in the basic settings whether a water filter is used.

1 Rotate the function selector to S.

2 Select "Basic settings" using the rotary selector. 3 Touch the ™ symbol.

4 Select "Water filter" using the rotary selector. 5 Touch the % symbol.

6 Use the rotary selector to select either "Available"

(with water filter) or "Not available" (without water filter).

7 Press ™ to confirm.

The rinse program starts with the "Available" setting. Proceed according to the information on the display.

8 Touch the ' symbol to leave the Basic settings

menu.

Note: A water filter lessens limescale deposits and reduces impurities in the water. The appliance also does not need to be descaled so often. Water filters are available from retailers.

en Filling the water tank and bean container

Inserting the water filter

New water filters must always be rinsed after being fitted.

1 Rotate the function selector to S.

2 Select "Water filter change" using the rotary

selector.

3 Touch the ™ symbol.

4 Fit the water filter in the water tank and then fill the

tank with water up to the "max" mark.

Filling the water tank and bean container

Using your appliance, you can prepare coffee using freshly ground coffee beans or ground coffee. Always only add ground coffee shortly before making a drink.

~ "Preparing coffee using ground coffee" on page 15

1 Open the door.

2 Remove the water tank, rinse and fill with fresh, still,

cold water. Reinsert the water tank.

5 Remove the milk hose from the milk container and

close the door.

6 Place a 0.5-litre container under the coffee

dispenser.

7 Touch the ™ symbol.

The water first runs through the filter to rinse it and then into the container. After the rinsing process, confirm with ™ and empty the container. The appliance is again ready for use.

Rinsing the filter also activates the setting for the "Change water filter" display. When the display "Please change water filter" is shown, or at the latest after two months, the filter is no longer effective. It needs to be replaced for reasons of hygiene and so that the appliance does not experience a build-up of limescale (which could damage the appliance).

Replacement filters can be obtained from the after-sales service. ~ "Accessories" on page 9

Note: If the appliance has not been used for a long period of time (due to holidays, for example), the filter that is fitted should be rinsed before using the appliance. To do this, simply dispense a cup of hot water.

3 Pull the bean container out, remove the lid and fill

the container with beans. Replace the lid and insert the bean container again.

Note: Coffee beans that have been glazed or caramelised or that contain other sugary additives block the brewing unit. Only use pure bean mixes that are suitable for use in fully automatic espresso or coffee machines.

4 Close the door.

Preparing beverages

Beverage selection

Notes

– The integrated fan switches on each time a drink is

dispensed and switches off again after a few minutes.

– When using the appliance for the first time or when

it has not been used for a long time, the first cup of coffee will not yet have the full aroma.

– The appliance is programmed with the standard

factory settings for optimal operation.

– After starting up the appliance, a fine-pored and

firm crema will be consistently achieved after several cups have been dispensed.

– If the appliance is connected to the network (home

network), other types of drinks can be selected via the app.

„ Ristretto Concentrated espresso. Best

served in small, thick-walled cups. Preheat cups with hot water.

„ Espresso Concentrated coffee. Serve in

small, thick-walled cups. Preheat cups with hot water.

… Coffee Coffee

Americano Y espresso, is topped up with

Z hot water.

s Hot water For preparing hot drinks, e.g. tea,

or to preheat cups.

t Milk froth For preparing speciality white cof-

fees.

u Warm milk As a beverage or as an ingredient

in special coffee beverages.

w White coffee ½ coffee + ½ milk; best served in

a wide-rimmed cup.

† Latte Macchiato A specialty drink, served in a glass

featuring three layers: at the bottom hot milk, in the middle espresso, and at the top milk froth.

Flat White Espresso with frothed milk.

You may be able to select further options depending on your choice of beverage:

¦ Size Small - Medium - Large - Very large ˆ Strength Very mild - Mild - Medium - Strong -

Very strong - Extra strong etc., not available for milk froth, warm milk and hot water

p Temperature Hot - Very hot - Extra hot not availa-

ble for milk froth and warm milk Different temperatures can be selected for hot water.

Mixing ratio Setting for the proportion of milk,

only available for coffee beverages with milk.

Note: For a strong taste of coffee, also select a high coffee strength when setting a large capacity.

--------

Aroma function "Extra strong"

The longer coffee is brewed, the more bitter substances and undesired aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. Your appliance therefore has a special Aroma function for very strong coffee. After half the requested volume has been prepared, coffee is ground and brewed once more, so that only the palatable and easily digestible flavours are released.

The Aroma function "Extra strong", e.g. "Extra strong 3ˆ 2x" is only available for certain settings. The coffee is prepared in two stages with this setting. Wait until the process is fully completed.

Cappuccino Y espresso + Y milk + Y milk

v Espresso Mac-

--------

chiato

froth; best served in a cup. Espresso finished with milk froth.

en Preparing beverages

Preparing coffee using freshly ground beans

The appliance must be switched on. The water tank and bean container must be filled.

1 Turn the function selector to position 2.

2 Use the rotary selector to select the desired

beverage, e.g. coffee.

[

9 Set the temperature using the rotary selector.

+RW

10 Press ™ to confirm the settings. 11 Press I to start.

The drink is brewed and then runs into the cup.

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– Using the ‡ symbol, you can save the current

beverage: Touch the ‡ symbol, turn the function selector to a free memory location and save the entry. ~

"Individual beverages" on page 17

&RIIHH

3 Place a cup under the coffee dispenser. 4 Touch the C symbol.

5 Set the size using the rotary selector.

0HGLXP

6 Touch the C symbol.

7 Set the strength using the rotary selector.

Preparing two cups at the same time

You have the option of dispensing two beverages simultaneously:

1 Select the beverage and use the rotary selector to

choose settings such as the temperature if desired.

2 Touch the 2xsymbol.

3 Place two cups, or similar, underneath the beverage

dispenser.

4 Press I to start.

The beverage selected is brewed and then dispensed into the cups.

Note: The coffee is prepared in two stages. Wait until the process is fully completed.

8 Touch the C symbol.

0LOG

Preparing beverages

Preparing coffee using ground coffee

The appliance must be switched on and the water tank must be filled.

Important: Remove cups or glasses before opening the door as they may otherwise fall off.

1 Turn the function selector to position 2.

2 Open the door.

3 Using the measuring spoon, fill a maximum of two

level spoonfuls of ground coffee into the ground coffee drawer. Close the ground coffee drawer.

Note: Do not fill the drawer with beans or instant coffee.

4 Close the door.

5 Use the rotary selector to select the desired

beverage (beverages made from ground coffee are identified with the x symbol).

6 Place a cup under the coffee dispenser. 7 Touch the C symbol.

8 Set the quantity using the rotary selector. 9 Touch the C symbol.

10 Set the temperature using the rotary selector. 11 Confirm the settings using ™. 12 Press I to start.

The beverage is brewed and then runs into the cup. To prepare another cup, refill with ground coffee and repeat the process.

Preparing a coffee with milk

Warning – Risk of burns!

The milk system becomes very hot. After use, allow it to cool down first before touching it.

You can decant the milk into the milk container supplied or fill e.g. into a milk jug or use the milk directly from the carton. ~

on page 21

Important: Remove cups or glasses before opening the door as they may otherwise fall off.

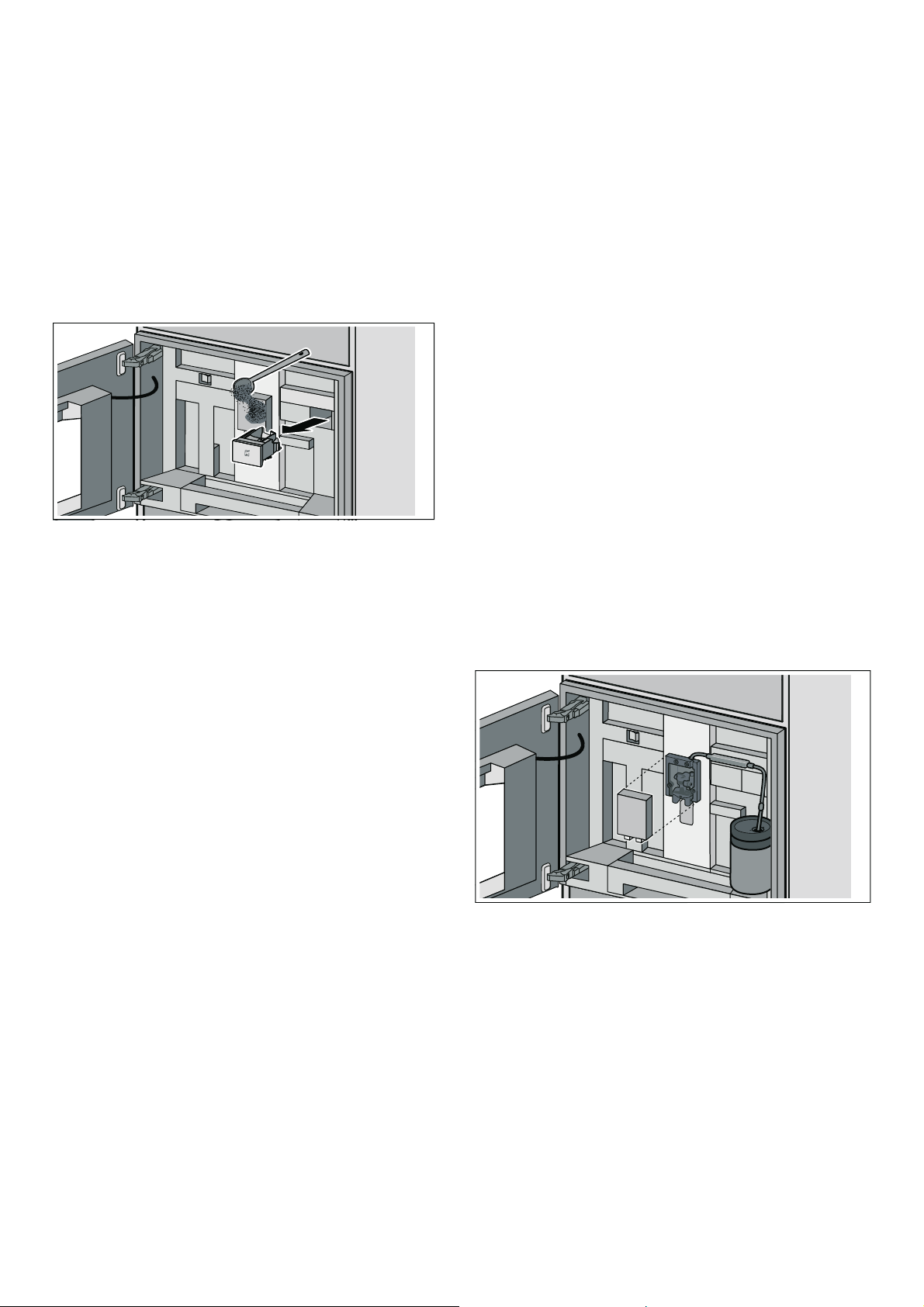

Using the milk container:

▯ Open the door.

▯ Push the beverage dispenser down completely.

▯ Remove the cover of the beverage dispenser

towards the front.

▯ Attach a milk hose from the milk system to the

beverage dispenser and feed it outwards through the opening at the top.

▯ Attach the connecting element of the milk system to

the magnetic holder (on the inside of the appliance).

▯ Place the filled milk container on the right next to

the coffee dispenser. Connect the milk tube to the milk hose and then guide the milk tube into the milk container. The end of the milk tube must be immersed in the milk.

"Setting the milk container weight"

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– If coffee is not dispensed within 90seconds, the

brewing chamber empties itself automatically to prevent an overflow.

– The Aroma function is unavailable when using

ground coffee. Similarly, it is not possible to dispense two cups at once when using ground coffee.

▯ Close the door.

Using a milk carton or other container:

▯ Open the door.

▯ Push the beverage dispenser down completely.

▯ Remove the cover of the beverage dispenser

towards the front.

▯ Feed the milk hose of the milk system outwards

through the opening at the top.

▯ Attach the magnetic holder to the appliance.

▯ Place the filled milk carton on the right next to the

coffee dispenser. Connect the milk tube to the milk hose and then guide the milk tube into the milk carton. The end of the milk tube must be immersed in the milk.

▯ Close the door.

en Preparing beverages

To prepare a drink: The appliance must be switched on. The water tank and bean container must be filled.

1 Rotate the function selector to position 2.

2 Using the rotary selector, select a coffee beverage

with milk. To select a beverage made with ground coffee, you must first fill the ground coffee drawer.

3 Place a cup or glass under the coffee dispenser. 4 Press I to start.

- or Touch the C symbol first, then set the size or strength for example, using the rotary selector. Confirm with ™.

The milk is drawn in and prepared and then the coffee is brewed.

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– Using the ‡ symbol, you can save the current

beverage: Touch the ‡ symbol, turn the function selector to a free memory location and save the entry. ~

– Dried-on milk residues are difficult to remove, so

always clean the milk system after every use.

~ "Cleaning the milk system" on page 25

"Individual beverages" on page 17

Preparing milk froth and warm milk

Warning – Risk of burns!

The milk system becomes very hot. After use, allow it to cool down first before touching it.

To prepare a drink: The appliance must be switched on.

1 Rotate the function selector to position 2. 2 Connect the milk hose. ~ "Preparing a coffee with

milk" on page 15

3 Select "Milk froth" or "Warm milk" with the rotary

selector.

4 Place a cup or glass under the coffee dispenser. 5 Touch the C symbol.

6 Set the size using the rotary selector. 7 Press ™ to confirm the settings. 8 Press I to start.

The milk is drawn in and then flows into the cup or glass.

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– Using the ‡ symbol, you can save the current

beverage: Touch the ‡ symbol, turn the function selector to a free memory location and save the entry. ~ "Individual beverages" on page 17

– Dried-on milk residues are difficult to remove, so

always clean the milk system after every use.

~ "Cleaning the milk system" on page 25

– You can also use plant-based alternatives to milk,

e.g. soya milk.

– The quality of the milk froth depends on the type of

milk or the plant-based alternative used.

Preparing hot water

Warning – Risk of burns!

The milk system becomes very hot. After use, allow it to cool down first before touching it.

The appliance must be switched on and the water tank filled.

1 Remove the milk hose from the milk container.

2 Rotate the function selector to position 2.

3 Select "Hot water" using the rotary selector.

4 Place a cup or glass under the coffee dispenser. 5 Touch the C symbol.

6 Set the size using the rotary selector. 7 Touch the C symbol.

8 Set the temperature using the rotary selector. 9 Press ™ to confirm. 10 Press I to start.

The water is heated and then flows into the cup or glass.

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– Using the ‡ symbol, you can save the current

beverage: Touch the ‡ symbol, turn the function selector to a free memory location and save the entry. ~

"Individual beverages" on page 17

Individual beverages

Setting the grinding level

Warning – Risk of injury!

Do not reach into the grinding unit.

Using the slider for the grinding level, the desired fineness of the ground coffee can be set between a fine grinding level (left) and a coarser grinding level (right).

Notes

– The new setting only becomes noticeable after the

second cup of coffee.

– Set a finer grinding level with dark-roasted beans

and a coarser grinding level with lighter beans.

– If the display shows the message "Set coarser

grinding level", the coffee beans are being ground too finely. Set a coarser grinding level. To do so, slide the slider to the right.

– Only make small changes to the grinding level

setting.

Individual beverages

You can define and save instructions for up to

8 individual drinks.

1 Turn the function selector to one of the 8memory

locations.

2 Use the C symbol to successively select the

required drink and the beverage settings and use the rotary selector to save the settings.

&DSSXFFLQR

3 Enter the name of the drink in "ABC".

Changing bean type

If you are using a new type of bean, the Empty grind function allows you to run the grinding unit until empty of your previous bean type.

The appliance must be switched on.

1 Remove the bean container and empty out the

beans.

2 Add the new beans and reinsert the bean container.

The message "Using new type of coffee beans?" appears..

3 Touch the ' symbol.

The grinding unit is then emptied of your previous bean type in two grinding stages.

Note: This message always appears when the bean container is inserted. If you do not want to empty the grinding unit, e.g. when only refilling with beans, confirm with ™.

Rotary selector

4 Press briefly: moves the cursor right

5 Press briefly: moves the cursor right

l Deletes letters

Selects letters

A new word always begins with a capital letter.

Press and hold: shifts to umlauts and special characters

Press twice: adds a line break

Press and hold: shifts to normal characters

Press twice: adds a line break

7RPV

&DSSXFFLQB

4 Save with ™. 5 Press I to start.

en Child lock

Depending on the drink selected, the beans will be ground first, next the milk prepared and the coffee then brewed.

Notes

– While the beverage is dispensed, the & symbol is

displayed. Touch this symbol to stop the beverage being prepared.

– For entering a name, Latin characters, certain

special characters and numbers are available.

– To change an existing memory location, touch the

% symbol and save a new setting.

– If a memory location which is already occupied is

selected, the settings will be overwritten.

Child lock

The appliance has a child lock to prevent children operating it accidentally.

Notes

– You must set the child lock to "Available" in Basic

settings. ~ "Basic settings" on page 19

– If there is a power failure while the child lock is

activated, it may be deactivated when power is restored.

Activating the child lock

Prerequisite:

The function selector is set to 0.

Touch the 0 symbol for at least 6 seconds.

The child lock is now activated. The 0 symbol is shown at the top of the display.

Deactivating the child lock

Prerequisite:

The function selector is set to 0.

Touch and hold the 1 symbol for at least 6 seconds.

The child lock is deactivated. You can set the appliance as normal.

Basic settings

Your appliance can be individually adjusted in the basic settings.

1 Turn the function selector to S.

2 Select "Basic settings" using the rotary selector. 3 Touch the ™ symbol.

4 Turn the rotary selector to select the required basic

setting.

Basic setting Permitted settings Explanation

Brightness Level 1, 2, 3, 4, 5*, 6, 7, 8 Sets the display brightness

Display Reduced*/Standard If the 'Reduced' setting has been selected,

Touch field colour Grey* / White Selects the colour of the symbols on the

Basic settings

5 Touch the % symbol.

6 Set the basic setting using the rotary selector. 7 Save with ™ or cancel with ' and exit the current

basic setting.

8 Turn the function selector to 0 to exit the basic

settings menu.

The changes are saved.

only the most important information will be shown on the display after a short time.

touch fields

Touch field tone Tone 1* / Tone 2/ Off Selects an audible signal for when a touch

field is touched

Touch field tone vol-

Level 1, 2, 3, 4, 5*, 6, 7, 8 Sets the volume of the touch field tone

ume

Signal volume Level 1, 2, 3, 4, 5*, 6, 7, 8 Sets the volume of the audible signal

Light settings Lighting options 1*-7 Û Light off

Ú Light on

~ Light only on when a beverage is being

dispensed

Other setting options will appear if you touch the % symbol.

Standby after 5 minutes - 3 hours Setting for the time after which the appli-

ance automatically rinses and switches to standby mode.

Water hardness 1-4*, softening device Briefly immerse the enclosed test strip in

fresh tap water, leave it to drip and read off the result after one minute. Set the measured water hardness.

Water filter Available/not available* Available: Operating the appliance with a

water filter.

Not available: Operating the appliance without a water filter.

Temperature unit °C* / °F Setting the temperature unit

Capacity unit ml/fl.oz.* Set the capacity unit

Capacity +/ 5ml to 60ml

(0.2fl.oz to 2fl.oz)

Adjust the capacity to individual cup sizes. First select the beverage and then set the capacity.

en Basic settings

Weight unit g*/oz. Set the weight unit

Milk container weight Standard*/Individual Setting for weight detection. ~ "Setting

the milk container weight" on page 21

Language German* / French / Italian / Spanish /

Portuguese / Dutch / Danish / Swedish / Norwegian / Finnish / Greek / Turkish / Russian / Polish / Czech / Slovenian / Slovakian / Arabic / Hebrew / Japanese

Select language for text display

Note:

If the language is changed, the system restarts. This takes a few seconds. The basic settings menu is also closed.

/ Korean / Thai / Chinese / English US / English

Factory settings Reset the appliance to the factory set-

tings

Confirm the question "Delete all individual settings made and reset to factory settings?" by pressing ™ or cancel by pressing '.

Note:

Individual drinks will also be deleted if the appliance is reset to factory settings.

After resetting the factory settings, the "Initial settings" menu is displayed.

Demo mode On / Off* Only for demonstration purposes. The "Off"

setting must be activated for normal operation. The setting is only possible in the first 3 minutes after switching on the appliance.

Milk container reminder

30* minutes - 6 hours Setting for the time after which the reminder

appears.

Child lock Not available*/Available Available: The child lock can be activated.

~ "Child lock" on page 18

* Factory setting

--------

Home Connect Settings for connection to the home net-

work and mobile devices.

Different setting options will be displayed depending on the connection status.

~ "Home Connect settings"

on page 23

Basic settings

Setting the milk container weight

Using the weight, the appliance detects the quantity of milk in the milk container to ensure that there is always sufficient milk to dispense e.g. Latte Macchiato. If there is too little milk in the container, a corresponding message will be displayed.

The weight of the supplied empty milk container and that of an empty Tetra Pak carton (approx. 30 g) are already saved under "Standard". The appliance automatically detects whether the milk container or a Tetra Pak carton is being used. However, you can also save the weight of your own milk container or a Tetra Pak carton (if its weight deviates from the standard value) under the "Individual" setting.

Note: The container filled with milk must not exceed the maximum weight of 2 kg.

1 Rotate the function selector to S.

2 Select "Basic settings" using the rotary selector. 3 Touch the ™ symbol.

4 Select "Milk container weight" with the rotary

selector.

5 Touch the % symbol.

6 Select "Standard" (preset milk container weight) or

"Individual" (own weight input for the milk container) using the rotary selector.

7 Press ™ to confirm.

8 With the "Standard" setting the appliance

automatically reverts to the "Basic settings" selection level or With the "Individual" setting, your own milk container can now be weighed and the weight saved.

9 Check whether the area for the milk container

behind the door is free. Confirm with ™.

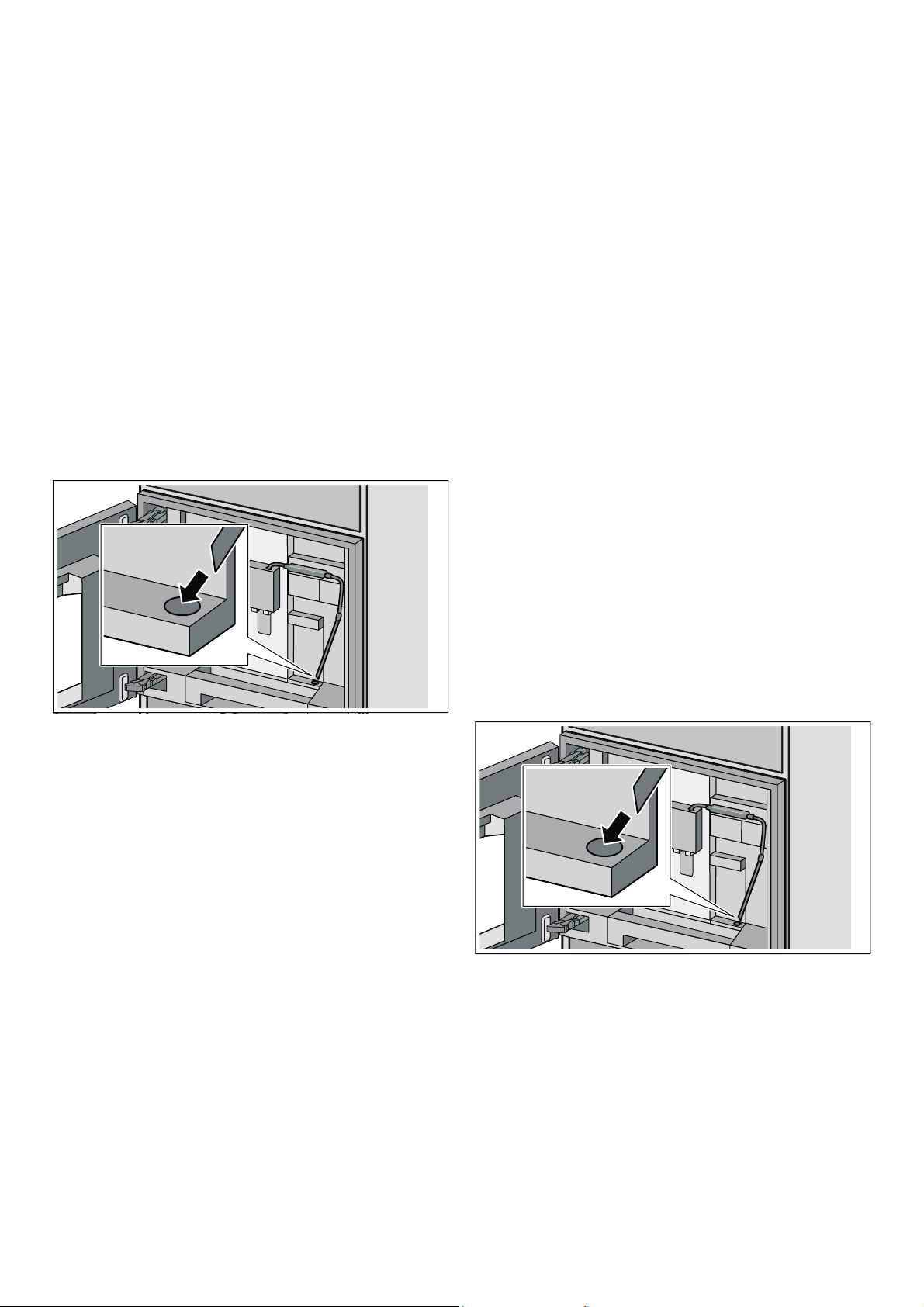

10 Place an empty container, e.g. a milk jug, in the area

and confirm with ™.

11 Close the door.

The weight of the container is determined and then displayed.

12 Press ™ to confirm.

The changes are saved.

13 Touch the ' symbol to leave the "Basic settings"

menu.

Messages

Depending on the setting in "Basic settings" or when dispensing a beverage with milk, various reminders or messages may be shown on the display:

"Reminder: Is the milk still fresh?"

"Reminder: Place milk in the refrigerator"

"Milk container connected?"

"Not enough milk for the selected beverage"

Appears after a set time.

~ "Basic settings" on page 19

Please check whether the milk in the milk container is fresh.

Appears when the appliance is switched off.

Message appears after selection of a beverage with milk. Please check and confirm.

Message appears when there is not enough milk in the milk container.

en Home Connect

Home Connect

This appliance can be networked and controlled remotely using a mobile device. The Home Connect app offers extra functions that complement the networked appliance perfectly. If the appliance is not connected to your home network, it can be operated as usual via the display.

The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com.

Notes

– Ensure that you follow the safety instructions in this

instruction manual and that you comply with these even when you are away from home and are operating the appliance via the Home Connect app. You must also follow the instructions in the Home Connect app.~

on page 3

"Important safety information"

– Operating the appliance directly from the appliance

always takes priority. It is not possible to operate the appliance using the Home Connect app during this time.

– Refer to the Home Connect documents supplied for

more information.

Installing the app

Install the Home Connect app on your mobile device (e.g. tablet PC or smartphone).

1 On your mobile device, go to the App Store (Apple

devices) or the Google Play Store (Android devices).

2 Enter the search term "Home Connect".

3 Select the Home Connect app and install it on your

mobile device.

4 Launch the app and set up Home Connect access.

The app will guide you through the registration process.

Connecting the appliance to your home network (LAN)

The appliance must be connected to your home network using a LAN cable.

The network connection will be established automatically when the appliance is connected to the mains electricity supply for the first time and put into operation.

Follow the instructions in the app.

Connecting the appliance to your home network (WLAN with WPS)

Requirements:

Setting up

To configure settings via Home Connect, you will need to have installed the Home Connect app on a mobile device.

Your appliance will also need to be connected to your home network and to the Home Connect app. You can choose between the following connection types:

▯ Connection to LAN cable or via WLAN: first set up

the app. Then connect the appliance to the home network.

Notes

– The appliance detects when a LAN cable is

connected to the appliance. The appliance should be connected to Home Connect via WLAN. Switch to WLAN in the basic settings.

– The app will guide you through the entire

registration process. In case of doubt, follow the instructions in the app.

▯ Your router must have a WPS button. You will find

information about this in the manual for your router.

▯ You need to be able to access your router.

1 In the basic settings ¯ select "Home network". 2 Touch the % symbol.

3 Turn the rotary selector to "WLAN". 4 Touch the ™ symbol to confirm.

A message about the WPS function will appear.

5 Touch the ™ symbol to continue.

6 Turn the rotary selector to "Automatic (WPS)". 7 Touch the ™ symbol to start the connection

process.

8 Press the WPS button on the home network router

within the next 2 minutes. If the display shows "Network connection successful", the connection process is complete.

9 Touch the ™ symbol to continue.

"Connect to app" appears.

10 Touch the % symbol.

"Add mobile device" appears.

11 Touch the ™ symbol to confirm.

Follow the instructions in the app.

Home Connect

Connecting the appliance to your home network (WLAN without WPS)

1 In the basic settings ¯ select "Home network". 2 Touch the % symbol.

3 Turn the rotary selector to "WLAN". 4 Touch the ™ symbol to confirm.

A message about the WPS function will appear.

5 Touch the ™ symbol to continue.

6 Turn the rotary selector to "Manual". 7 Touch the ™ symbol to start the connection

process.

Home Connect settings

Home Connect can be adapted to your specific needs at any time.

Basic setting Permitted settings Explanation

Connection type LAN/Wi-Fi You can switch between connection types (LAN cable and

Connecting Connect/disconnect Switch the network connection on or off as required (e.g. for

Connect to app Start the connection process between the app and the appli-

The appliance will set up its own "Home Connect" WLAN network to which the tablet or smartphone must be connected.

8 Follow the instructions in the app.

If the display shows "Network connection successful", the connection process is complete.

9 Touch the ™ symbol to continue.

"Connect to app" appears.

10 Touch the % symbol.

"Add mobile device" appears.

11 Touch the ™ symbol to confirm.

Follow the instructions in the app.

Note: You will find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Wi-Fi).

Follow the instructions for setting up the relevant connection type.~ "Setting up" on page 22

holiday).

Network information is retained after the appliance is switched off.After switching on the appliance, you will need to wait for a few seconds while it reconnects to the network.

In networked standby mode, the appliance requires max. 2 W.

ance.

Software update As soon as a new software version is available, a message

appears in the display. You can install the new software in the Home Connect menu Í.

Permanent remote start

Activate / deactivate Access the appliance's functions via the Home Connect app.

When activated, the dispensing of drinks can be started via the app.

When deactivated, the app will simply display the appliance's operating status.

Delete network settings

All network settings can be deleted from the appliance at any time.

Appliance information The display shows:

▯ MAC address COM module ▯ Serial number of the appliance ▯ Software version

You can view more information – such as the SSID (network name), although this depends on the connection type – by

--------

touching the arrow button.

en Home Connect

Remote Start

Remote start must be activated in order to start and operate your appliance via the Home Connect app. If remote start is deactivated, only the operating modes of the appliance can be displayed in the Home Connect app and the appliance settings configured.

m Warning – Risk of scalding (Home Connect)!

Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Note: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

Declaration of Conformity

Gaggenau Hausgeräte GmbH hereby declares that the appliance which features Home Connect is in accordance with the basic requirements and the other relevant provisions of the directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.gaggenau.com on the product page for appliance in the additional documents.

2.4GHz band: max. 100 mW 5 GHz band: max. 100mW

BE BG CZ DK DE EE IE EL ES FR HR IT CY LV LT LU

HU MT NL AT PL PT RO SI SK FI SE UK NO CH TR

5GHz Wi-Fi: for indoor use only

About data protection

When your appliance is connected for the first time to a WLAN network, which is connected to the Internet, your appliance transmits the following categories of data to the Home Connect server (initial registration):

▯ Unique appliance identification (consisting of

appliance codes as well as the MAC address of the installed WiFi communication module).

▯ Security certificate of the WiFi communication

module (to ensure a secure IT connection).

▯ The current software and hardware version of your

domestic appliance.

▯ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.

Note: Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.

Daily care and cleaning

Daily maintenance

Every time the appliance is switched on or switched to 0, it rinses automatically. Exception: the appliance was only switched off a few minutes beforehand or no coffee was dispensed before it was switched to 0.

m Warning – Danger of electric shock!

Before cleaning the appliance, switch it off using the main switch. Never immerse the appliance in water. Do not use a steam cleaner.

Caution!

Surface damage!

– Do not use any cleaning agents containing alcohol

or spirits.

– Do not use abrasive cloths or cleaning agents.

– Always remove any residue of lime, coffee, milk and

descaling solution immediately. This residue may cause corrosion to form.

– New sponge cloths may contain salts. Salts can

cause rust film on stainless steel and must therefore be washed out thoroughly before use.

Notes

– The drip tray and coffee residue container should

be emptied and cleaned every day to prevent deposits.

– Immediately remove residues from the shelf to avoid

stains.

– If the appliance has not been used for a long time

(e.g. while you are on holiday), clean the entire appliance thoroughly, including the milk system, ground coffee drawer and brewing unit before using.

1 Wipe the housing with a soft, damp cloth.

2 Remove the shelf, open the door and pull out the

drip tray to the front.

3 Remove drip tray, cover and coffee residue

container.

4 Empty, clean and dry the individual parts.

5 Rinse out the water tank with clear, fresh water.

6 Remove the ground coffee drawer, clean under

running water and dry it thoroughly.

7 Wipe out the inside of the appliance (drip tray

holder and ground coffee drawer) and the collecting tray and dry them.

8 Insert the dry parts, such as the ground coffee

drawer.

Caution!

Not all of the appliance components can be cleaned in the dishwasher.

Not dishwasher-safe:

Shelf Accessory drawer Water tank with cover Beverage dispenser cover Metal connecting element Bean container with lid Ground coffee drawer Protective cover for brewing unit Brewing unit Milk container

Dishwasher-safe:

Collecting tray Drip tray Drip tray cover

max. 60°C

Coffee residue container Milk hoses Milk tube Individual parts of the beverage dispenser Measuring spoon Individual parts of the milk container lid Shelf for the milk container

Cleaning the milk system

The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink.

Important: Clean the milk system manually on a weekly basis, or more frequently if required.

m Warning – Risk of burns!

The beverage dispenser gets very hot. After use, let it cool down first before touching it.

en Daily care and cleaning

Cleaning the milk system automatically

1 Turn the function selector to S.

2 Use the rotary selector to select "Quick rinse

programme for milk system".

3 Touch the ™ symbol.

The cleaning programme starts. The information in the display guides you through the programme.

4 Open the door.

5 Remove the milk tube from the milk container and

wipe it down. Insert the end of the milk tube into the hole in the coffee residue container.

3 Detach the milk hose and dismantle the top and

bottom sections of the beverage dispenser.

4 Separate the milk hoses, connecting element and

milk tube.

6 Close the door.

7 Place a container with a capacity of 0.5 l under the

beverage dispenser.

8 Touch the I symbol.

The programme runs for approx. 1 minute. Then empty the container.

9 Touch the ™ symbol.

The programme has finished.

Cleaning the milk system manually

Take the milk system apart to clean it:

1 Push the beverage dispenser down completely and

pull the cover forwards to remove.

2 Press the snap lever to the left of the beverage

dispenser downwards and pull the beverage dispenser straight forwards.

5 Clean the individual parts with a detergent solution

and a soft cloth.

6 Rinse all parts with clean water and dry.

7 Put the individual parts back together again (also

see quick reference guide).

8 Firmly attach the beverage dispenser straight from

the front onto the three connections.

9 Replace the cover.

Cleaning the milk container

For reasons of hygiene the milk container must be cleaned regularly. Only the individual parts of the lid are dishwasher-safe. Clean the stainless steel milk container by hand using a mild cleaning agent.

Daily care and cleaning

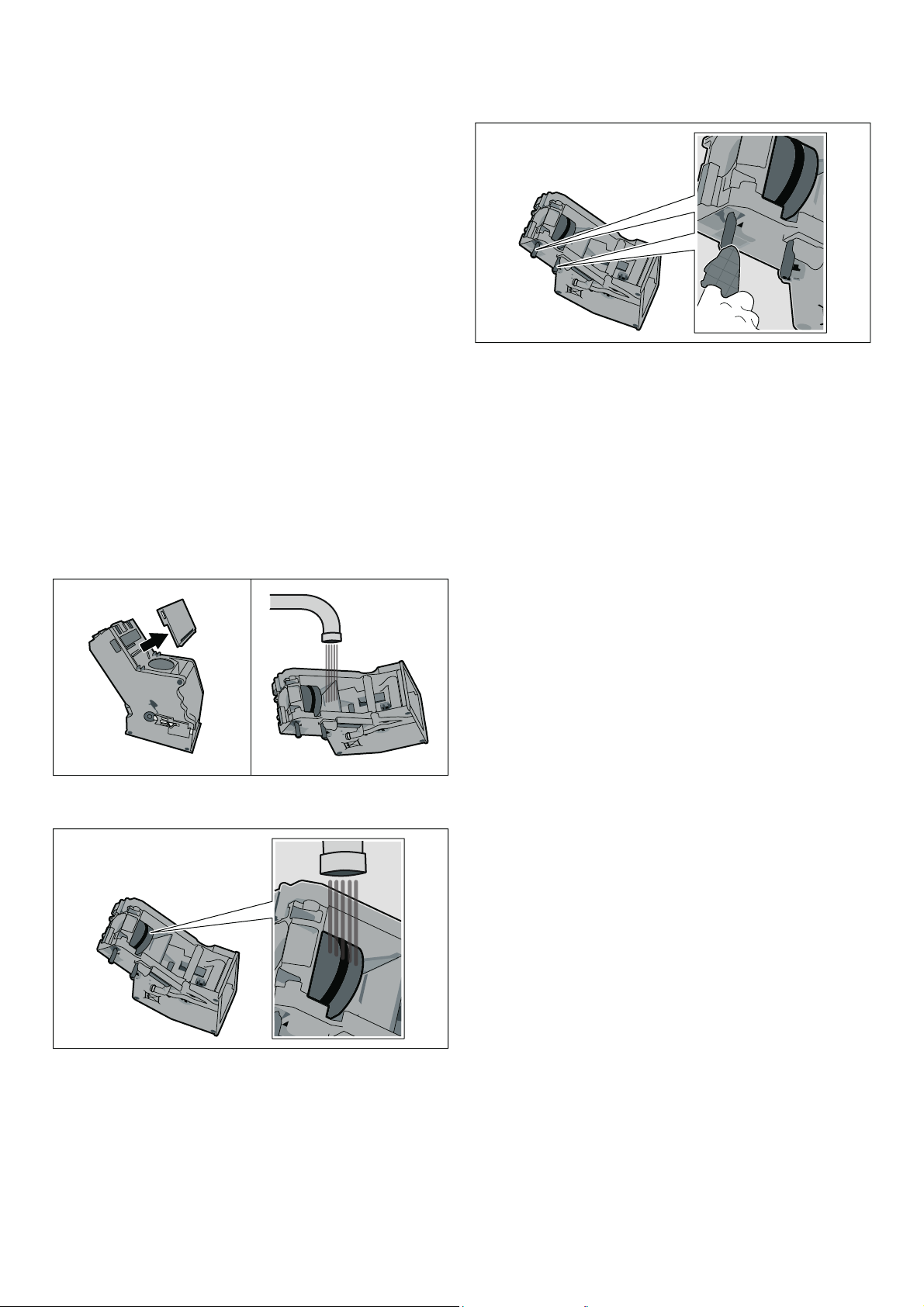

Cleaning the brewing unit

(Also see the quick reference guide)

Notes

– Regularly clean the brewing unit by hand in addition

to the automatic cleaning programme.

– Do not use washing-up liquid or other cleaning

agents to clean the brewing unit and do not put the brewing unit in the dishwasher.

1 Turn the function selector to 0.

2 Open the door.

3 Switch off the appliance using the main switch.

4 Remove the protective cover of the brewing unit.

5 Remove the coffee residue container.

6 Slide the red latch on the brewing unit all the way to

the left to ô.

7 Press the eject lever right down.

The brewing unit will be released.

8 Take hold of the brewing unit by the recessed grips

and carefully remove it.

9 Clean the brewing unit thoroughly under running

water.

11 Thoroughly clean the connecting taps on the

brewing unit.

12 Clean the interior of the appliance thoroughly,

taking care to remove any coffee residues.

13 Allow the brewing unit and the interior of the

appliance to dry.

14 Refit the cover.

15 Push the brewing unit all the way into the appliance,

pressing on the middle until it audibly clicks into place. Important: The red latch must be right over to the left to ô before inserting.

16 Press the eject lever all the way up and push the

red latch right over to the right to ó.

17 Insert the coffee residue container.

18 Replace the protective cover.

19 Close the door.

10 Remove the cover and clean the filter under running

water.

en Service programmes

Service programmes

(Also see the quick reference guide)

Every so often – the exact frequency depends on usage and water hardness – one of the following messages will appear in the display in place of the coffee selection:

▯ Please change water filter

▯ Please clean

▯ Please descale

▯ Please descale and clean

The ) warning symbol then lights up.

The water filter should be changed immediately at this point and the appliance cleaned or descaled using the appropriate programme. Otherwise the appliance may be damaged.

The service programmes can also be started at any time without any prompt from the display. Set the function selector to S and select and run the desired programme.

Notes

– Caution! Do not drink or come into contact with

cleaning or descaling materials. Keep cleaning materials and descaling tablets out of the reach of children. They may be toxic.

– Important: If the appliance is not descaled in good

time, the message "Appliance locked Descaling required urgently" will appear. Immediately perform the descaling process in accordance with the instructions. If the appliance is locked, it can only be operated again once descaling has been carried out.

– Caution! With every service programme, use

descaling and cleaning agents as described in the instructions and observe the (relevant) safety information.

– Do not drink the liquids.

– Never use citric acid, vinegar or any vinegar-based

agents to descale the appliance.

– For cleaning and descaling, only use the tablets

intended for such purposes.They have been specially developed for this appliance, and new stocks can be ordered through customer service.

~ "Accessories" on page 9

– Never insert descaling tablets or other products

into the grounds compartment.

– Never interrupt the service programme.

– Before starting a service programme, remove, clean

and reinsert the brewing unit.Rinse the milk system.

– At the end of a service programme, wipe down the

appliance using a soft, damp cloth to immediately remove any descaler residue. Such residue may cause corrosion.

– New sponge cloths may contain salts. Salts can

cause rust film on stainless steel, so cloths must always be washed out thoroughly before use.

– If one of the service programmes is interrupted, e.g.

by a power failure, proceed as follows:

1 Rinse out the water tank.

2 Pour in fresh, still water up to the "max" marking

and confirm. The programme starts and rinses the appliance.Duration: approx. 2 minutes.

3 Empty, clean and reinsert the drip tray.

– Caution! Do not drink the descale solution.

Cleaning

Duration: approx. 5 minutes

Clean the brewing unit before starting the service programme. ~ "Cleaning the brewing unit"

on page 27

1 Turn the function selector to S.

2 Select "Cleaning programme" with the rotary

selector.

3 Touch the ™ symbol.

The cleaning programme starts. The information in the display guides you through the programme.

4 Empty and reinsert the drip tray and the coffee

residue container.

5 Place a cleaning tablet in the ground coffee drawer

and close the drawer again.

6 Close the door.

7 Place a container with a capacity of 0.5 l under the

beverage dispenser.

8 Touch the I symbol.

The programme will run for approx. 5 minutes.

9 Remove the container and empty. 10 Touch the ™ symbol.

The programme has finished.

11 Touch the ™ symbol.

The appliance is ready to use.

Service programmes

Descaling

Duration: approx. 21 minutes

1 Turn the function selector to S.

2 Select "Descaling programme" using the rotary

selector.

3 Touch the ™ symbol.

The descaling programme starts. The notes in the display guide you through the programme.

4 Empty and replace the drip tray and the coffee

dregs container.

5 Remove the water filter (if there is one) and touch

the ™ symbol.

6 Pour lukewarm water into the empty water tank up

to the "calc" mark (0.5l) and then dissolve a descaling tablet in it.

7 Remove the milk tube from the milk container and

wipe it down. Insert the end of the milk tube into the hole in the coffee residue container.

8 Close the door.

9 Place a container with a capacity of 0.5 l under the

beverage dispenser.

10 Touch the I symbol.

The programme will run for approx. 19 minutes.

Note: If there is too little descaling solution in the water tank, the message "Fill water tank with water and descaler" appears. Pour lukewarm water into the empty water tank up to the "calc" mark (0.5l) and then dissolve a descaling tablet in it. Press ™ to confirm. The programme will continue.

11 Remove the container and empty.

12 When prompted by the display, rinse the water tank

and then fill it with fresh water up to the "max" mark. If a filter is used, reinsert it now.

13 Place a container under the dispenser. 14 Touch the I symbol.

The programme will run for approx. 2 minutes and rinse the appliance.

15 Remove the container and empty and reinsert the

drip tray.

16 Touch the ™ symbol.

The programme has finished.

17 Touch the ™ symbol.

The appliance is ready to use.

Cleaning and descaling

Duration: approx. 26 minutes

The cleaning and descaling programme combines the individual cleaning and descaling functions. If the two programmes are both due at around the same time, the fully automatic espresso machine automatically suggests this service programme.

Prior to starting the service programme, clean the brewing unit. ~ "Cleaning the brewing unit"

on page 27

1 Turn the function selector to S.

2 Select "Cleaning and descaling programme" using

the rotary selector.

3 Touch the ™ symbol.

The cleaning and descaling programme starts. The notes on the display guide you through the programme.

4 Empty and replace the drip tray and the coffee

dregs container.

5 Place a cleaning tablet in the ground coffee drawer

and close the drawer again.

6 Remove the water filter (if there is one) and touch

the ™ symbol.

7 Pour lukewarm water into the empty water tank up

to the "calc" mark (0.5l) and then dissolve a descaling tablet in it.

8 Remove the milk tube from the milk container and

wipe it down. Insert the end of the milk tube into the hole in the coffee residue container.

9 Close the door.

10 Place a container with a capacity of 0.5 l under the

beverage dispenser.

11 Touch the I symbol.

The programme will run for approx. 19 minutes.

12 Remove the container and empty.

en Emptying programme

13 When prompted by the display, rinse the water tank

and then fill it with fresh water up to the "max" mark. If a filter is used, reinsert it now.

14 Place a container under the dispenser. 15 Touch the I symbol.

The programme will run for approx. 7 minutes and rinse the appliance.

16 Remove the container and empty and reinsert the

drip tray.

17 Touch the ™ symbol.

The programme has finished.

18 Touch the ™ symbol.

The appliance is ready to use.

Emptying programme

The emptying programme is a service programme, which is used to remove coffee bean residue and to prevent damage caused by frost during transport and storage. The appliance must be ready for use.

1 Turn the function selector to S.

2 Select "Emptying programme" with the rotary

selector.

3 Touch the ™ symbol.

4 Empty the bean container and reinsert.

5 If present, remove the milk container and close the

door.

6 Close the door.

The emptying programme runs for approx. 2 minutes.

7 Empty and reinsert the water tank.

8 Close the door.

The emptying programme runs for approx. 2 minutes.

9 Remove the brewing unit and clean thoroughly.

10 Clean the drip tray, coffee residue container, milk

system and milk tube set thoroughly and reinsert.

11 Close the door. 12 Touch the ™ symbol.

The emptying programme has finished.

Simple troubleshooting

Problem Cause Solution

The personally selected capacity is not reached. Coffee dispensing slows to a trickle or stops completely.

The hot water is milky or tastes of milk or coffee.

The coffee has no crema. Unsuitable type of coffee. Use a type of coffee with a higher proportion

The coffee is too "acidic". The grinding level is too coarse.

The coffee is too bitter. The grinding level is too fine. The

The coffee tastes burnt. The brewing temperature is too

The coffee is too weak. Coffee strength selected is too

The quality of the milk foam varies. The quality of the milk froth

The ground coffee gets stuck in the ground coffee drawer.

The water filter does not stay in position in the water tank.

The bean container jams when inserted. There are beans in the housing. Remove beans. The coffee grounds are not compact and

are too wet.

The grinding level adjustment is stiff. Too many beans in the grinding

The grinding level is too fine. The ground coffee is too fine.

Heavy build-up of limescale in the appliance.

Adjust the grinding level to a coarser setting.Use coarser ground coffee.

Descale the appliance as described in the instructions. ~ "Service programmes"

on page 28

The brewing unit is soiled. Clean the brewing unit. ~ "Cleaning the

brewing unit" on page 27

The milk hose has not been

Remove the milk hose from the milk container.

removed. Milk or coffee residue in the bev-

Clean the beverage dispenser.

erage dispenser.

of robusta beans.

The beans are no longer freshly

Use fresh beans.

roasted. The grinding level is not suitable

Set a finer grinding level.

for the coffee beans.

Adjust the grinding level to a finer setting.Use

The ground coffee is too coarse.

finer ground coffee.

Unsuitable type of coffee. Change the type of coffee.

Adjust the grinding level to a coarser set-

ground coffee is too fine.

ting.Use coarser ground coffee.

Unsuitable type of coffee. Change the type of coffee.

Reduce the temperature. ~ "Preparing

high. The grinding level is too fine. The

ground coffee is too fine.

beverages" on page 13

Adjust the grinding level to a coarser setting.Use coarser ground coffee.

Unsuitable type of coffee. Change the type of coffee.

Use stronger coffee. ~ "Preparing

weak. Ground coffee drawer blocked

with ground coffee.

beverages" on page 13

Remove the ground coffee drawer, clean and dry it thoroughly.

Optimise the result by selecting your milk or

depends on the type of milk or the

plant-based alternative as appropriate.

plant-based alternative used. The ground coffee is sticking

together. The ground coffee drawer is

damp. The water filter is not secured cor-

rectly in place.

The grinding level is set too fine or too coarse, or not enough

Do not compact the ground coffee in the ground coffee drawer.

Remove the ground coffee drawer, clean and dry it thoroughly.

Firmly press the water filter straight down into the tank connection.

Set a coarser or finer grinding level or use 2 level measuring spoons of ground coffee.

ground coffee has been used.

Dispense a beverage made from coffee beans.

unit.

Only make any subsequent changes to the grinding level in smaller steps.

en Simple troubleshooting

Problem Cause Solution

The brewing unit cannot be inserted. Brewing unit in the wrong posi-

tion.

Insert the brewing unit as described in the instructions. ~

unit" on page 27

"Cleaning the brewing

Brewing unit is locked. Unlock brewing unit. ~ "Cleaning the

brewing unit" on page 27

The protective cover of the brewing unit cannot be properly attached.

Brewing unit is not locked. Lock the brewing unit.~ "Cleaning the

brewing unit" on page 27

There is water under the drip tray. This is from condensation. Do not insert the drip tray without the cover. Display screen "Milk container con-

nected?" despite milk container being connected.

No milk dispensed despite milk container being filled.

The milk container is empty but no message is displayed.

Display screen "Overvoltage or undervoltage".

Container is outside the range of

Position the container at the right-hand edge

the sensor. Material, e.g. milk carton, is not

detected. The milk tube is not inserted deep

enough in the milk container. The shelf (scales) for the milk con-

tainer is soiled.

Confirm the display query with "Yes" or use the supplied milk container.

Insert the milk tube down to the bottom of the milk container.

Remove shelf.Clean the shelf and the area underneath thoroughly.

Voltage too high or too low. Contact electricity provider or network opera-

tor. Have the power supply checked by an expert.

Display screen "Let appliance cool

Appliance is too hot. Switch off appliance for 30 minutes.

down". Display screen "Error: E0510". The appliance has encountered

Proceed according to the display screen.

an error.

Display screen "Fill bean container". The appliance is not grinding the coffee beans despite the bean container being full.

Display screen "Remove brewing unit and clean by hand".

Display screen "Refill with still water or remove filter".

Beans are not falling into the grinding unit (beans that are too oily may stick to the bean con-

Gently tap the bean container. Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.

tainer). Brewing unit soiled. Clean the brewing unit. Too much ground coffee in the

brewing unit. The brewing unit mechanism is

stiff.

Clean the brewing unit.Add no more than two level measuring spoons of ground coffee.

Clean the brewing unit. ~ "Cleaning the

brewing unit" on page 27

Water tank wrongly inserted. Insert water tank correctly. Carbonated water in the water

Fill the water tank with fresh tap water.

tank. Float is stuck in the water tank. Remove the tank and clean thoroughly. New water filter not rinsed

according to instructions, or water filter spent or defective.

Rinse the water filter according to the instructions and then switch on, or use a new water filter.

Air in the water filter. Immerse the water filter in water until no more

air bubbles escape, then insert the filter again.

Display screen "Clean trays and replace" despite drip tray being emptied.

Display screen "Insert trays" despite drip tray being inserted.

Drip tray is soiled and wet. Clean and dry the drip tray thoroughly. Emptying is not detected when

the appliance is switched off. Inside of appliance (tray holder) is

Remove and reinsert the drip tray when the appliance is switched on.

Clean the inside.

soiled. The coffee residue container is

Insert the coffee residue container fully.

not fully inserted.

Display screen indicates that descaling is necessary, is displayed frequently.

Water dripped onto the inner floor of the appliance when the drip tray was

The water is too hard. Insert water filter and activate according to the

instructions.~ "Water filter" on page 11

Drip tray was removed too soon. Wait a few seconds after the last drink was dis-

pensed before removing the drip tray.

removed. Display screen "Switch off appliance" Appliance is too warm. Allow the appliance to cool down.

Brewing unit soiled. Clean the brewing unit.

Simple troubleshooting

Problem Cause Solution

Display screen "Contact after-sales service".

Display screen "Communication module not detected Connection not possible".

The appliance has encountered

Please contact the hotline.

an error. Technical fault. Switch the appliance off and on at the main

switch. Home Connect is not working correctly. Go to www.home-connect.com Display screen "Connection to home net-

work interrupted". Display screen "Connection to server

Router is switched off or LAN

Switch on router or connect LAN cable.

cable not connected. Technical problem. Only operate within the home network.

interrupted". If you are unable to solve the problem, always call the hotline.

en Simple troubleshooting

Technical data

Electrical connection (voltage – frequency)

Power rating 1600W Maximum static pump pressure 19bar Maximum capacity of the water tank

(without filter) Maximum capacity of the coffee

bean container Length of the power cable 1,7m Dimensions (H x W x D) 455x 590x 444mm Weight, empty 21–22kg Type of grinder Ceramic

220–240V ~, 50/ 60Hz

2,4l

500g

*DJJHQDX+DXVJHUlWH*PE+

&DUO:HU\6WUDH 0QFKHQ *(50$1< ZZZJDJJHQDXFRP

8001079205 (000901)

*8001079205*

Gaggenau CM450102 Instructions for Use

Specifications and Main Features

Frequently Asked Questions

User Manual
