Future Retro DB User Manual

TABLE OF CONTENTS
1 Introduction
2 Precautions
3 Wiring and Specifications

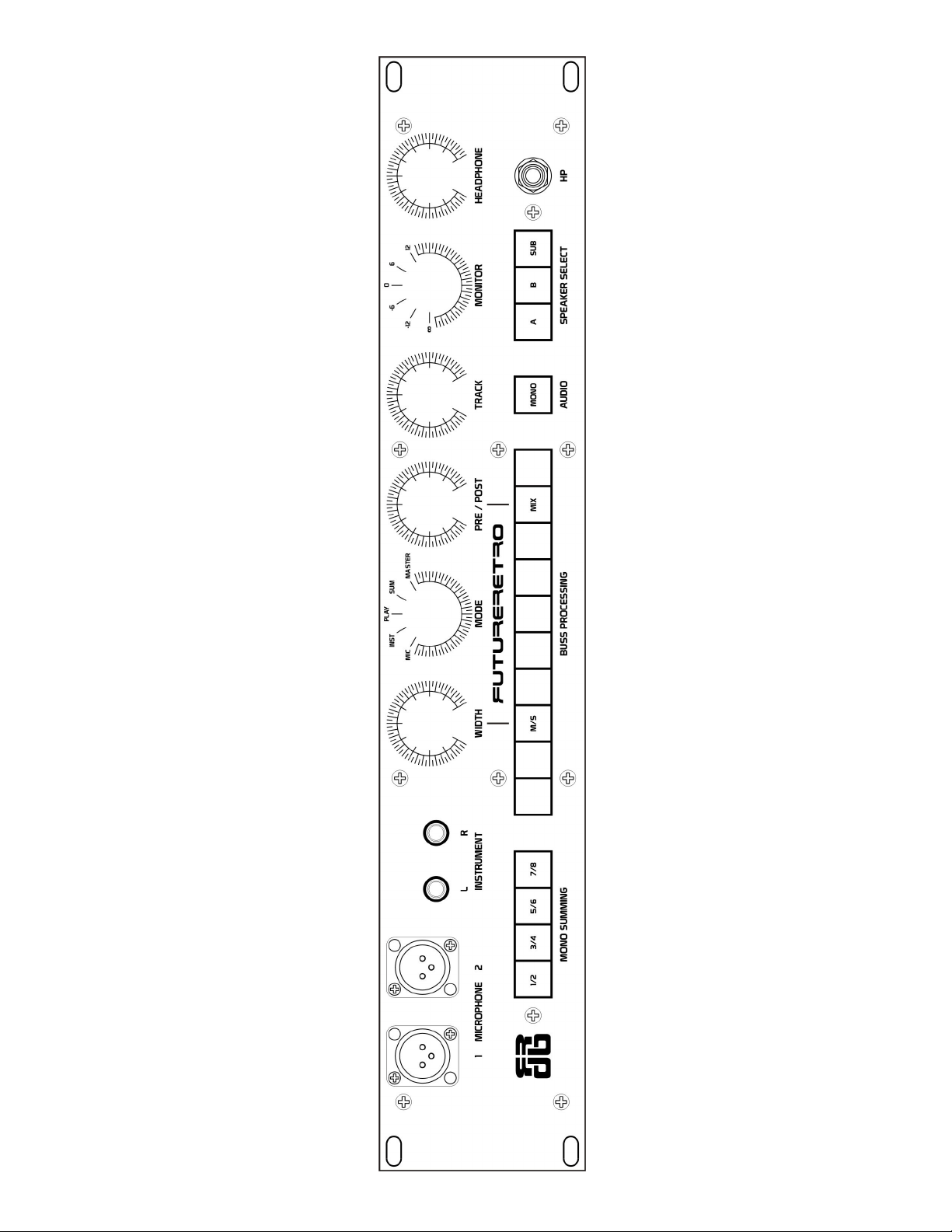

4 Front Panel Connections Diagram

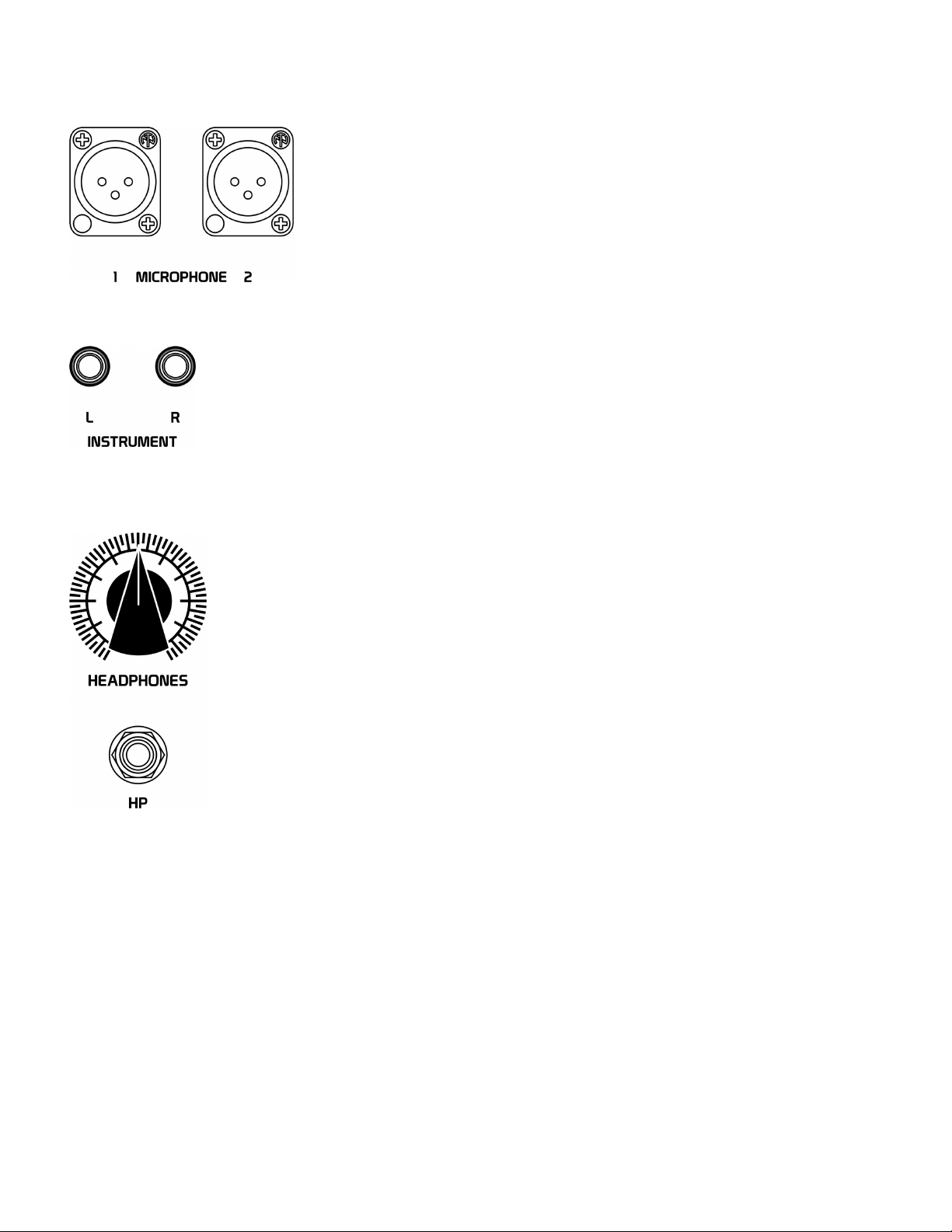

5 Front Panel Connections

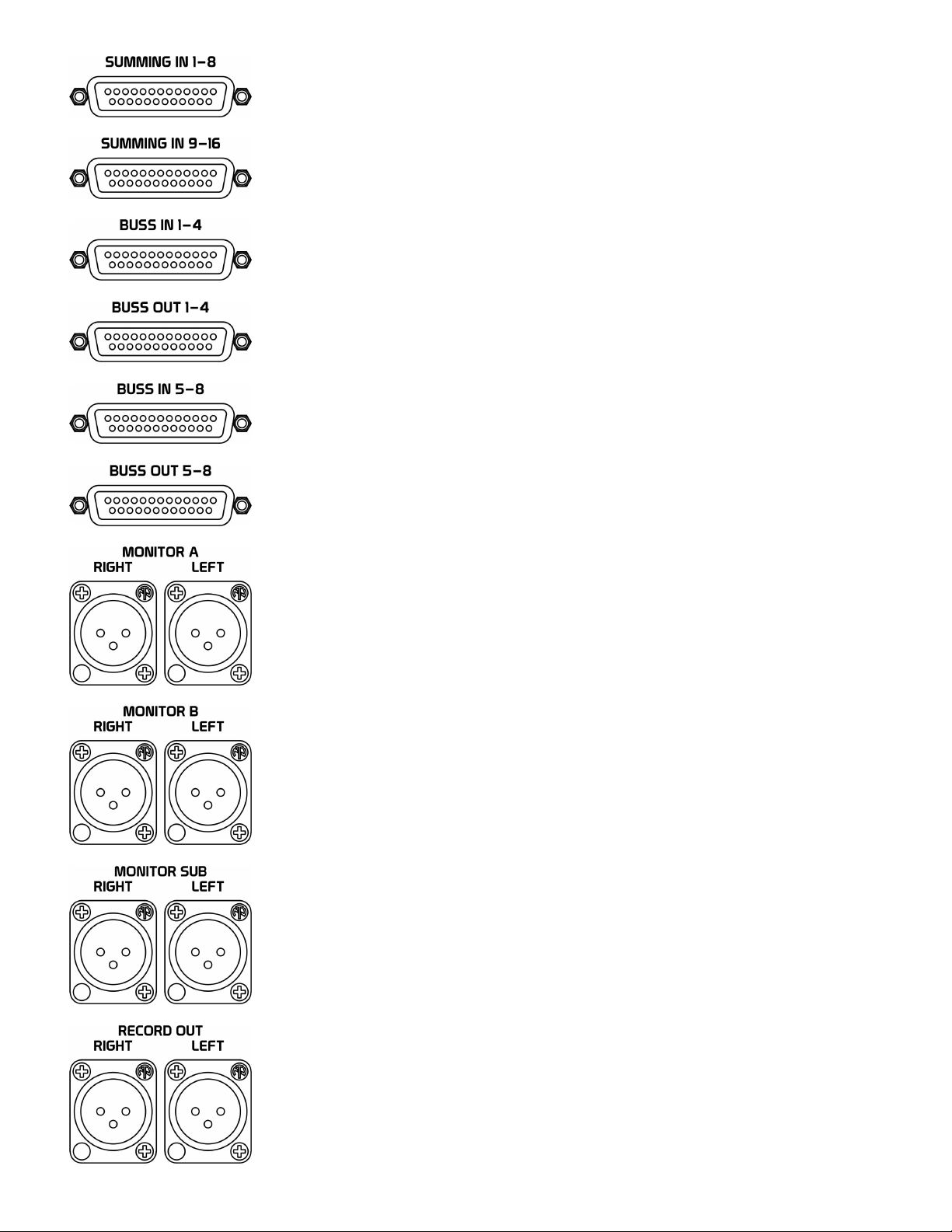

6 Rear Panel Connections Diagram
7 Rear Panel Connections

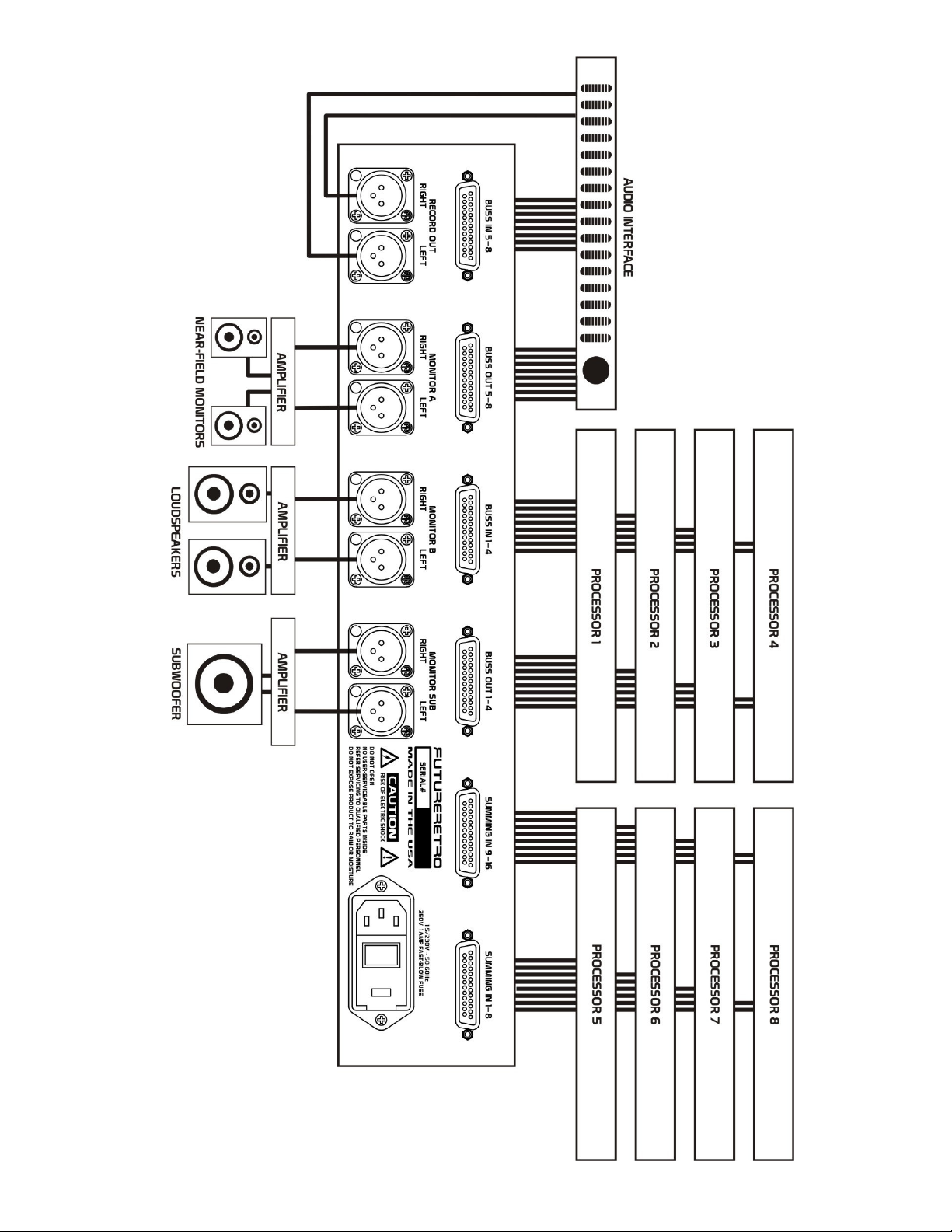

8 Setting up Your System
9 Insert Processors Example

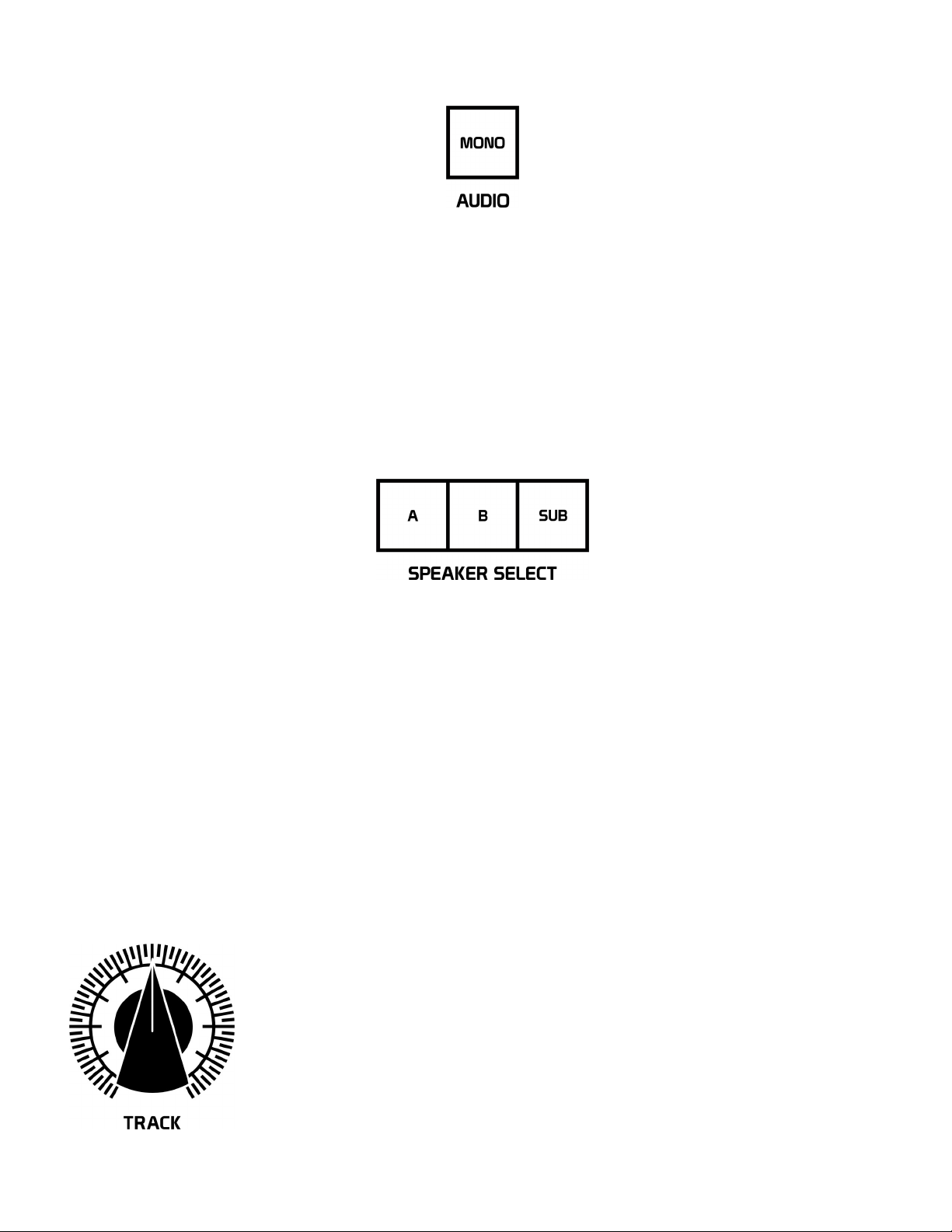

10 Audio, Speaker, Track Controls

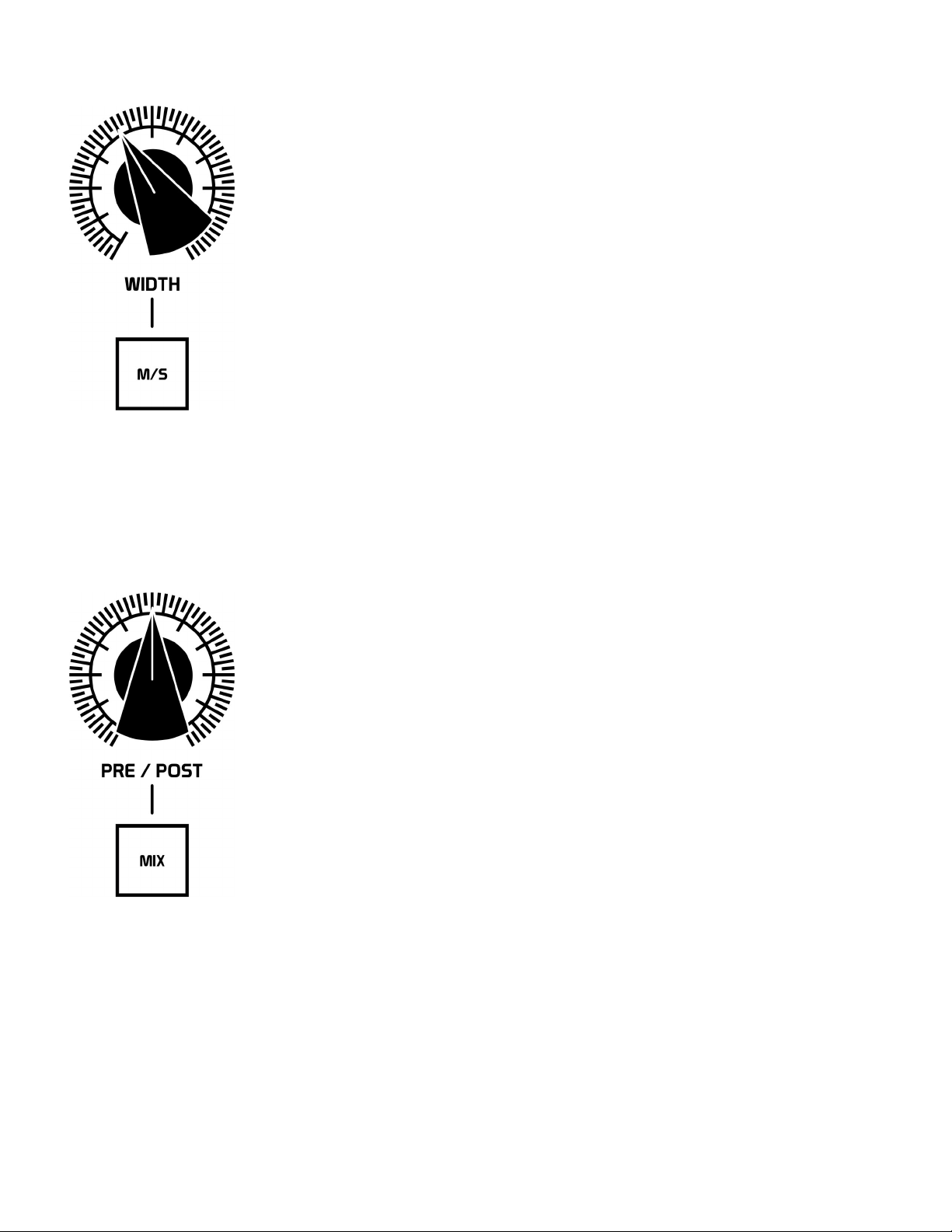

11 Mid/Side, Parallel Processing Controls

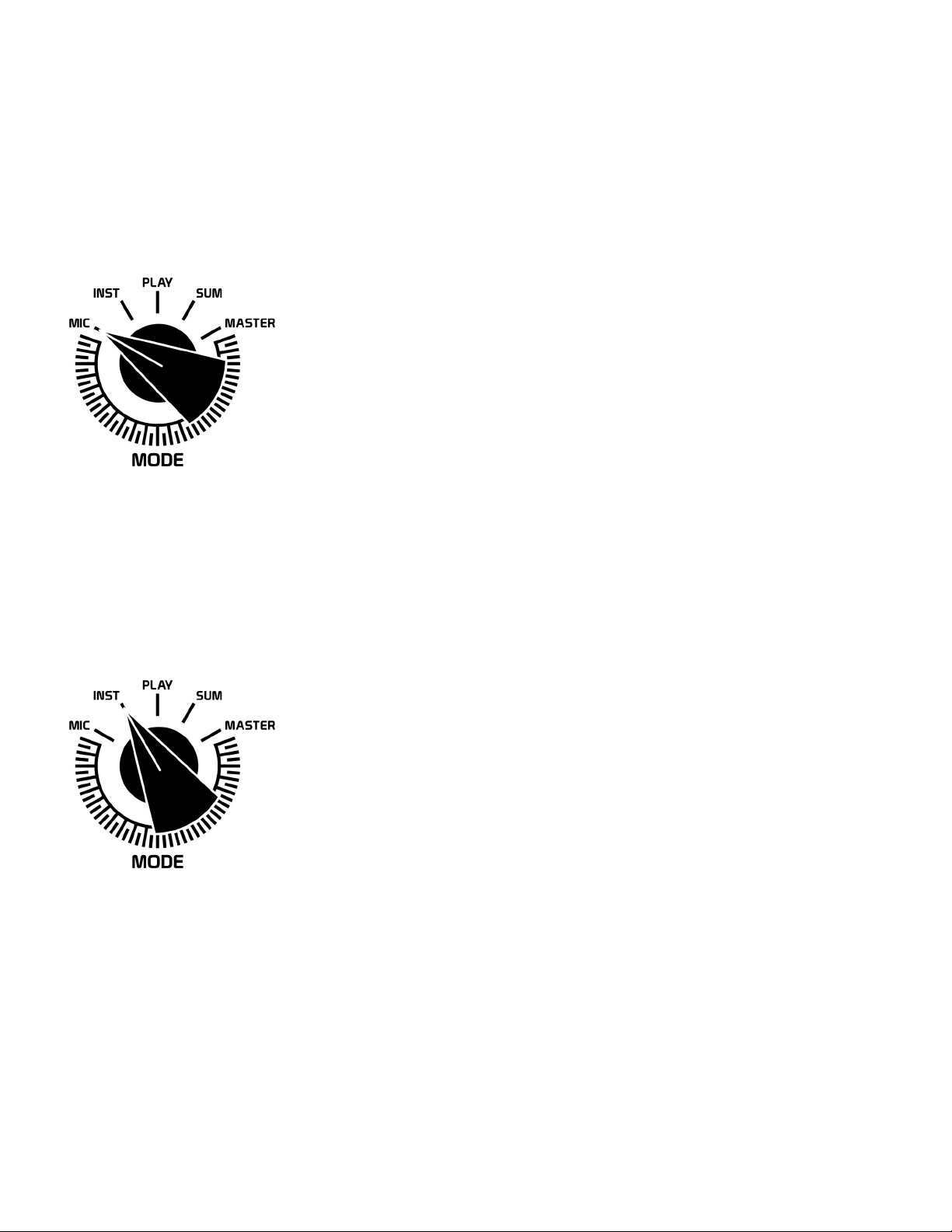

12 Tracking Instruments and Mics

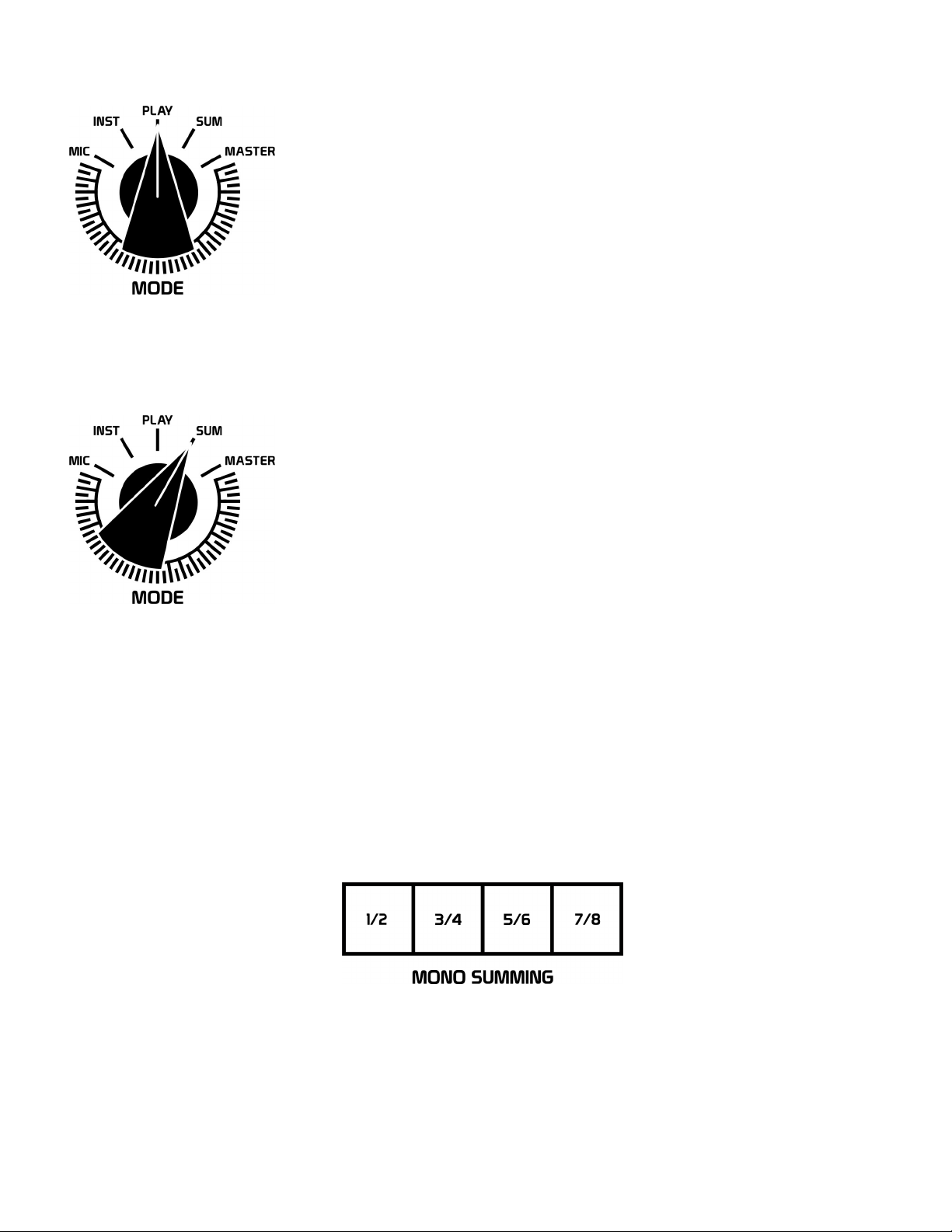

13 Playback and Summing
14 Mastering
15 Blank Patch Sheet
16 User Notes
Written by Jered Flickinger
Copyright 2012
www.future-retro.com
INTRODUCTION
Thank you for choosing the db. Please take time to read through the entire manual to gain a complete understanding of the unit’s features, as well as learn helpful procedures, precautions, and tips.
OVERVIEW
The db is designed to be the core of the modern recording artist’s studio. This multifunctional device can be used for tracking, summing, and mastering your audio tracks, as well as full control of your monitoring system.
Only the finest quality components have been used in manufacturing this device for the best possible performance. Each product is entirely hand soldered and assembled, inspected, and tested in-house to meet our high-quality standards and provide trouble-free use.
All inputs and outputs are fully balanced, and internal signal routing is 99 percent balanced for the lowest possible noise.
All summing is passive, and switching is handled by high-voltage relays, providing a color-free/noise-free audio path, with outstanding headroom.
Up to 16 channels of audio summing are provided.
You can use your preamp of choice for desired accuracy or color, or audition different preamps to get the right tone for each job.

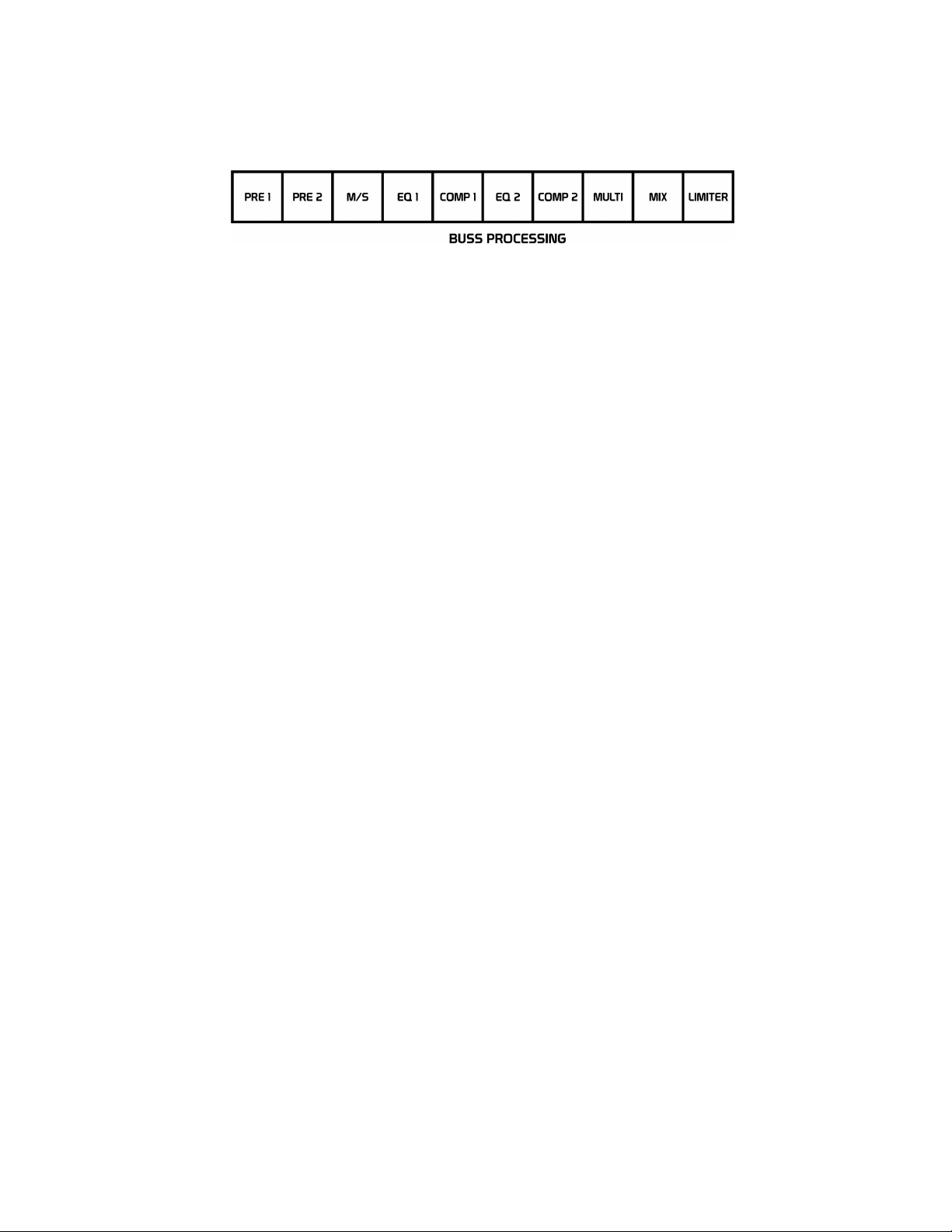

Hard bypass switching is provided for eight stereo insert channels of buss processing, allowing for quick auditioning of your favorite outboard hardware.
Mid/side processing is provided for controlling the width of your mixes and processing the mid/side signals independently.
Parallel processing is provided on the buss processing chain and can act as a quick way to A/B the pre/post signals of the buss.
Track control provides monitor level control for microphones or the instrument you are tracking.
The monitor section allows you to check your mixes quickly on any combination of three stereo monitor pairs, as well as on headphones. Mixes can be auditioned as stereo or mono audio.
Monitoring output is stepped to provide quick selection of ideal mixing levels.
Delayed monitor activation at power on/off prevents transients from harming your monitors.
The db also provides latency-free monitoring of the instrument that you are tracking, versus backing tracks playing in your digital audio workstation (DAW).
1
PRECAUTIONS
Look over the unit to make sure no damage has occurred during shipping. Never apply power to a unit that appears damaged.
Check that the red voltage indicator on the power switch is set to the proper voltage for your country.
To change the voltage selection, first make sure the power cord has been removed from the unit. Open the voltage selector/fuse cover (near the mounting screw). Gently pry the red fuse holder out of the enclosure, rotate it 180 degrees and reinsert the fuse holder. Close the fuse cover and verify that the correct voltage for your country is displayed in the window.
Use the proper pin-style IEC power cord for use in your country.
Replace the fuses only with 250V 1Amp fast-blow type.
Do not open the unit, since there are no user-serviceable parts inside. Dangerous high voltages exist within the unit even when the unit is unplugged or turned off. Refer all servicing to qualified personnel.
Never expose the db to rain or moisture. If liquids are spilled into the unit, unplug from the power mains immediately, and let the unit sit in a dry warm environment until all moisture has evaporated.
Avoid exposing the unit to smoke, or to dusty, or extreme hot and cold environments, as these things may cause premature component failure.
Clean the exterior of the db with a soft dry cloth. Never use abrasive cleaners that may harm the surface and finish of the unit.
Do not block ventilation holes in the chassis. When rackmounting the db, leave space above and below the unit for proper ventilation.
Disclaimer
All information represented in this manual is believed to be accurate at the time of publication. Any addendums to the manual and further product support may be found on the Support page of our Web site: www.future-retro.com/support.html
Product specifications may be subject to change.
Future Retro assumes no responsibility for inaccuracies, errors, omissions, nor liability for any loss or damage resulting directly or indirectly from the use, misuse, or abuse of this product.
Information in this manual may not be copied, reproduced, or distributed in any form without permission from Future Retro.
Warranty
The db comes with a 1-year warranty covering all parts and labor. Please register your product at: www.future-retro.com
2
WIRING
8 Stereo buss proc
essors (DB
-
25)
SIGNAL LEVELS:
All DB-25 connectors are for use with standard D-sub 8-channel snakes. Use high-quality audio cables whenever possible.
DB-25 wiring for SUMMING IN 1-8 connector
CHANNEL SHIELD +SIGNAL -SIGNAL
1 25 24 12 2 11 10 23
3 22 21 9
4 8 7 20 5 19 18 6 6 5 4 17 7 16 15 3 8 2 1 14
DB-25 wiring for SUMMING IN 9-16 connector
CHANNEL SHIELD +SIGNAL -SIGNAL
9 25 24 12 10 11 10 23 11 22 21 9 12 8 7 20 13 19 18 6 14 5 4 17 15 16 15 3 16 2 1 14
XLR jacks wiring:
PIN 1 = Ground PIN 2 = Positive (HOT) PIN 3 = Negative (COLD)
Instrument jacks wiring:
TIP = Positive (HOT) RING = Negative(COLD) SLEEVE = Ground
Headphone jack wiring:
TIP = Left channel RING = Right channel SLEEVE = Ground
DB-25 wiring for BUSS IN/OUT 1-4(5-8) connectors
CHANNEL
1 1(5) LEFT 25 24 12 2 1(5) RIGHT 11 10 23 3 2(6) LEFT 22 21 9 4 2(6) RIGHT 8 7 20 5 3(7) LEFT 19 18 6 6 3(7) RIGHT 5 4 17 7 4(8) LEFT 16 15 3 8 4(8) RIGHT 2 1 14
BUSS
INSERT
SHIELD +SIGNAL -SIGNAL
SPECIFICATIONS
> +28dBu
AC POWER INPUT: 115V/230V ~ 50-60Hz AC POWER CONSUMPTION: 400mA current FUSES: 250V 1Amp fast blow DIMENSIONS: 15”(L) x 19”(W) x 3.5”(H) WEIGHT: 12.5 lbs.
INPUTS
2 Microphone (XLR) 2 Instrument (1/4”) 16 Summing (DB-25)
OUTPUTS
8 Stereo buss processors (DB-25) 2 Record (XLR) 6 Monitor (XLR) 1 Headphones (1/4”)
3
