FUTEK LCM User Manual

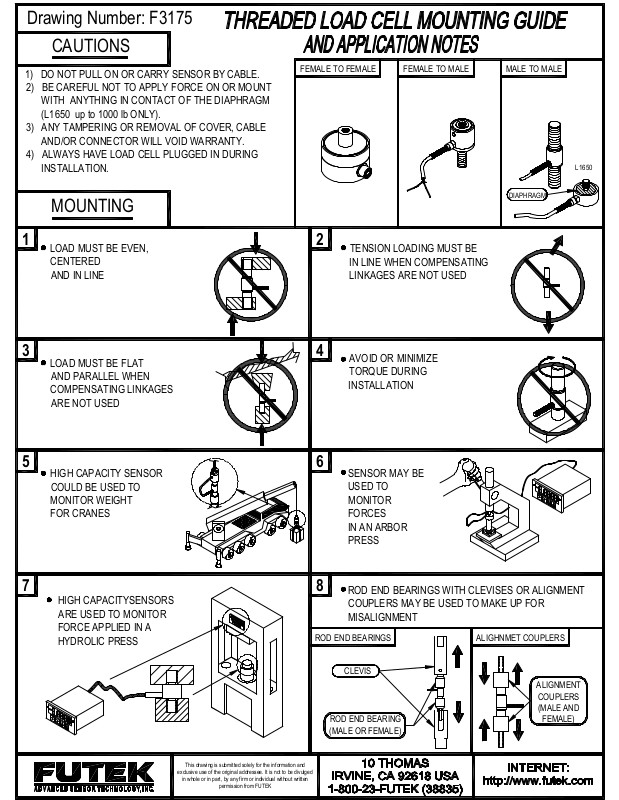

Drawing Number: F3175

CAUTIONS

1) DO NOT PULL ON OR CARRY SENSOR BY CABLE.

2) BE CAREFUL NOT TO APPLY FORCE ON OR MOUNT
WITH ANYTHING IN CONTACT OF THE DIAPHRAGM
(L1650 up to 1000 lb ONLY).

3) ANY TAMPERING OR REMOVAL OF COVER, CABLE
AND/OR CONNECTOR WILL VOID WARRANTY.

4) ALWAYS HAVE LOAD CELL PLUGGED IN DURING
INSTALLATION.

FEMALE TO FEMALE FEMALE TO MALE MALE TO MALE

MOUNTING

1 2

LOAD MUST BE EVEN,
CENTERED
AND IN LINE

3

LOAD MUST BE FLAT
AND PARALLEL WHEN
COMPENSATING LINKAGES
ARE NOT USED

L1650

DIAPHRAGM

TENSION LOADING MUST BE
IN LINE WHEN COMPENSATING
LINKAGES ARE NOT USED

4

AVOID OR MINIMIZE
TORQUE DURING
INSTALLATION

5

HIGH CAPACITY SENSOR
COULD BE USED TO
MONITOR WEIGHT
FOR CRANES

7 8

HIGH CAPACITYSENSORS

ARE USED TO MONITOR
FORCE APPLIED IN A
HYDROLIC PRESS

ROD END BEARINGS ALIGHNMET COUPLERS

6

SENSOR MAY BE
USED TO
MONITOR
FORCES
IN AN ARBOR
PRESS

ROD END BEARINGS WITH CLEVISES OR ALIGNMENT
COUPLERS MAY BE USED TO MAKE UP FOR
MISALIGNMENT

CLEVIS

ROD END BEARING
(MALE OR FEMALE)

ALIGNMENT

COUPLERS
(MALE AND

FEMALE)
