Fusion NVSW12, NVSW15 User Manual

NV SERIES

SUBWOOFER MODELS

NV– SW1 2, NV– SW15

FUSION CULTURE

There’s no point doing something if no one notices. We’ve always believed the way to make things happen is by getting noticed. From our product, to our demo cars, to our events, FUSION is about making some noise.

Now you are ready. Step out of the shadows and announce you’ve arrived in a world where the old limits are left behind. Where technology is creatively combined with the latest in product innovation. Where new levels of entertainment are delivered with outstanding performance and quality. Our development team create distinctively different products; subwoofers, ampliﬁers, speakers and peripherals that redeﬁne what can be done in car audio.

Leave the old behind and push the limits of what can be achieved in car audio. Make some noise.

For more information about FUSION Car Audio visit our website at www.fusionelectronics.com or email technical@fusionelectronics.co.nz

NV SERIES

Embrace the ultimate in power. The NV Series is the pinnacle of modern car audio. State of the art engineering ensures the most reﬁned sound available is delivered at unparalleled levels. The NV Series represents the ﬁnest work FUSION has achieved; designed and manufactured to the highest level with no compromises.

To optimise your FUSION experience, we recommend you have your FUSION product installed by an Authorised FUSION Dealer. Please read the warranty policy, keep your purchase receipt and original packaging.

If after reading this manual you still have questions regarding this product, please contact Technical Customer Services via email technical@fusionelectronics.co.nz

Rev 2.0

222

TABLE OF CONTENTS

• SUBWOOFER FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 4

• SUBWOOFER THEILE/SMALL PARAMETERS . . . . . . . . . . . . . . . . . . . . . .pg 5

• SUBWOOFER DIMENSIONS NV-SW12 . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 6

• SUBWOOFER DIMENSIONS NV-SW15 . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 7

• ENCLOSURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 8

• ENCLOSURE TEST CURVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 10

• TECH TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 12

• TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 17

RECORD YOUR PRODUCT DETAILS HERE:

MODEL NUMBER _______________________________ DATE OF PURCHASE______________________

AFFIX RECEIPT HERE

WARNING! Audio Systems can produce sound levels over 135dB. Continuous exposure to sound

pressure levels over 100dB may cause permanent hearing loss!

pressure levels over 100dB may cause permanent hearing loss! Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!

Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!

333

SUBWOOFER FEATURES

FUSION subwoofers are low frequency drivers capable of delivering extremely high bass levels from small enclosures. In order to achieve the maximum performance from your new FUSION Subwoofer, please use one of the recommended size enclosures that best suits your application. Sealed and vented enclosure sizes can be found in this manual.

BASKET

NV Series Subwoofers feature a uniquely high pressure cast aluminium basket. Development of the NV Series basket allows rigidity and style for any custom install. Finished in a protective metal silver paint and detailed with FUSION green enhancements, the basket displays impressive strength and style.

CONE ASSEMBLY

Development of the high performance pressed paper cone, creates a dynamic low bass response and high power performance. The cone is ﬁnished in a dynamic silver with NV Series super graphic, catering for style, strength and sound performance.

SPIDER

In order to keep the cone assembly balanced and linear, FUSION has used green poly cotton ﬂat spiders to reduce the mechanical distortion for better sound quality.

VOICE COIL

NV Series Subwoofers use dual 2 ohm conﬁguration. This allows a multitude of wiring combinations for your ampliﬁer system (please see wiring conﬁgurations in this manual). NV Series Subwoofers utilise high temperature, multi wound black aluminium voice coils.

EXTENDED POLE PIECE

Recognising that an increased linear magnetic ﬁeld for the subwoofer encourages a better low frequency response, FUSION has extended the internal pole piece to achieve this. The extended pole piece also decreases distortion.

MOTOR STRUCTURE

The motor structure is constructed from the highest strontium magnetic material triple stacked and capped with a diamond cut FUSION back plate, has enabled increased power handling and larger excursion. With the additional venting holes we assure consistent booming.

444

SUBWOOFER THEILE/SMALL PARAMETERS

Subwo ofer P arame ters NV-SW 12 NV-SW 15

MAX Power Rating (Watts) 2000 2500

RMS Power Rating (Watts) 1000 1100

Coil Height (Hvc) (mm) 40 40

Compliance (Cms) (uM/N) 180.8 146.18

Cone Area (Sd) 47.92 77.93

D.C.Coil Resistance (Re) 0.94 0.88

Electrical Q (Qes) 0.47 0.552

Force Factor (BL)

Free Air Resonance (Fs)

Frequency Response (Hz)

Gap Height (Hag) (mm)

Impedance (Nominal)

Inductance (Le) (mH)

Linear Excursion (X-Max Total)

Mechanical Excursion

Mechanical Q (Qms)

Moving Mass (Mms)

Sensitivity (dB)

Total Loudspeaker Q (Qts)

VAS (Litres)

VAS (CuFt)

Magnet Structure (Oz)

Total Loudspeaker Displacement (Litres)

8.53

26.38 23.62

21Hz – 500Hz

10 10

1 1

0.5 0.51

40 40

15 15

6.42

219.88 285.85

85 87

0.44 0.506

52.21 126.07

1.845 4.45

308 308

8 12

8.4

19Hz – 500Hz

6.17

555

DIMENSIONS

294mm (11–5/8")

204mm (8–1/16")

227mm (8–15/16")

333mm (13–1/8")

SUBW00FER

NV-SW12

666

DIMENSIONS

410mm (16 –1/8")

366mm (14–7/8")

219mm (8–5/8")

246mm (9–11/16")

SUBWOOFER

NV-SW15

777

ENCLOSURES

All enclosures include port and subwoofer displacement. All ports are circle aero ports unless otherwise stated.

Ported Enclosures: A ported enclosure is generally larger than a sealed enclosure

Sealed Enclosures: A sealed enclosure will be the smallest enclosure you can build. It will have a

tight low frequency response, but not as low as a ported enclosure.

OPTIMUM ENCLOSURES

PORTE D NV-SW 12 NV-SW 15

Volume (litres) 87.38 106.4

Volume (cu.ft) 3.086 3.759

Port diameter (mm / in) 101mm / 4" 101mm / 4"

Port length (mm / in) 304mm / 11-15/16" 289mm / 11-3/8"

Tuned frequency (Hz) 28 26.2

SEALE D

Volume (litres) 55.62 75.7

Volume (cu.ft) 2.043 2.68

Tuned frequency (Hz) 45 37

888

ENCLOSURE CONSTRUCTION

All enclosures should be constructed from 18mm (3/4”) Medium Density Fibre board. Enclosures should be glued and screwed, because MDF is porous. FUSION recommends sealing the internal sides with a polyurethane sealer prior to installation. To accurately cut the subwoofer hole use the unique FUSION ruler guide included inside the FUSION Subwoofer packaging.

ENCLOSURE PLACEMENT

An important factor is to place the subwoofer enclosure as far back in the vehicle as possible, so that the natural bass gain of the vehicle is utilised. If your vehicle is a hatch back, always experiment with which direction the subwoofer is facing. Facing the subwoofer towards the rear of the car, should enhance the low down bass that NV Series Subwoofers are designed to produce.

ENCLOSURE TUNING

When tuning the system it is always a good idea to try running the subwoofer out of phase (which means switching the speaker wires around) with your other speakers. Do this and listen to the system to see if the perception of bass is more from the subwoofer location or the front speaker location. Which ever way gives the better perception that the bass is coming from the front speakers, would quite safely guarantee the subwoofer is wired correctly.

CALCULATING ENCLOSURE ‘BOX’ VOLUME

Cuft:

To calculate Cuft multiply the height (A), width (B), depth (C) in inches, then divide that number by 1728.

Example: 10" high x 18" wide x 12" deep = 2160 inches³ Divide 2160/1728 = 1.25 ft³

Litres:

To calculate Litres, multiply the height (A), width (B), depth (C) in centimetres, then divide that number by 1000.

Example: 25.4cm high x 45.72cm wide x 30.48cm deep = 3539cm³ Divide 35396/1000 = 35.39 litres

999

5 10 50 100 500 1000 20

100

106

112

118

124

Amplitude Response (dB-SPL/Hz at 1 m) with 1200 watts

ENCLOSURE TEST CURVES

5 10 50 100 500 1000 20

100

106

112

118

124

Amplitude Response (dB-SPL/Hz at 1 m) with 1200 watts

SUBWOOFER

SEALED

PORTE D

NV-SW12

101010

5 10 50 100 500 1000 20

101

107

113

119

125

Amplitude Response (dB-SPL/Hz at 1 m) with 1500 watts

5 10 50 100 500 1000 20

101

107

113

119

125

Amplitude Response (dB-SPL/Hz at 1 m) with 1500 watts

SUBW00FER

SEALED

PORTE D

NV-SW15

111111

TECH TIPS

voltage

watt

amperage

curren

resistance

I W

W I

I2R

E R

W/R EI

POWER CABLE CALCULATOR

TOTAL AMPERAG E

0 – 20 14 12 12 10 10 8 8 8

20 – 35 12

35 – 50

50 – 65 8 8 6 4 4 4 4 2

65 – 85 6 6 4 4 2 2 2 0

85 – 105 6 6 4 2 2 2 2 0

105 – 125

125 – 150

The above chart shows cable gauges to be used, if no less than a 0.5 volt drop is acceptable. If aluminium wire or tinned wired is used, the gauges should be of an even larger size to compensate. Cable gauge size calculation takes into account terminal connection resistance.

0-4 FT 4-7 FT 7-10 FT 10 -13 FT 13-16 FT 16-19 FT 19-22 FT 22-28 FT

10 8 8 6 6 6 4

10 8 8 6 4 4 4 4

4 4 4 2 0 0 0 0

2 2 2 0 0 0 0 0

OHMS LAW SIMPLIFIED

121212

SUBWOOFER RULER GUIDE

1 2 3 4 6 7 8 9 11 12 13 14 16

(inch)

(mm)

Centre

1"0 cutout

15" cutout

12"

cutout

10"outside

263mm

12"outside 312mm

15"outside

389mm

 usioncr udiocom

0 10 20 30 40 60 70 80 90 110120 130 140 160170 180 190 210 220 230 240 260 270 280 290 310320 330 340 360 370 380 390

100 150 200 250 300 350 400

0 15105

Use the FUSION ruler guide to create a perfect subwoofer mounting surface.

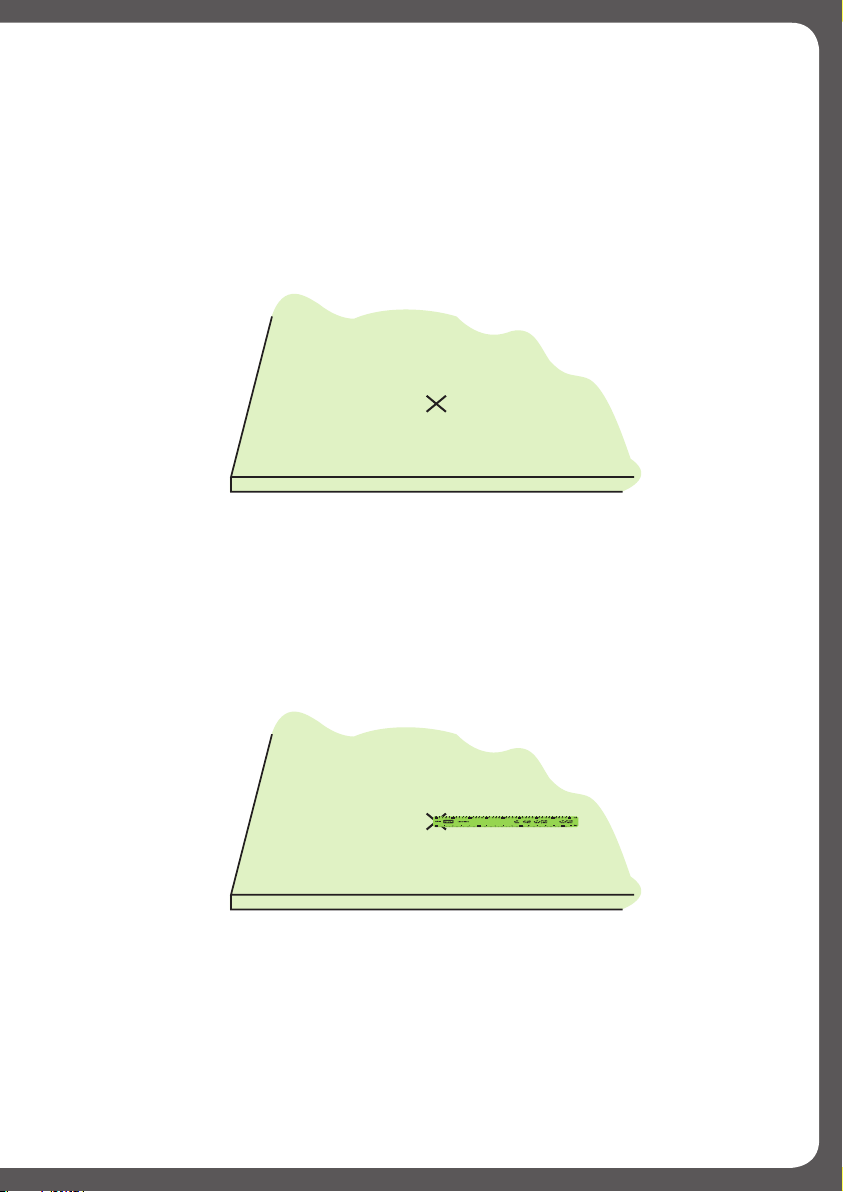

Fig. 1

1: Mark the centre position on the MDF (Medium Density Fibre) board where the subwoofer is to be mounted.

Fig. 2

2: Fix the ﬁrst hole (centre) to the marked out position on the MDF.

131313

1 2 3 4 6 7 8 9 11 12 13 14 16

(inch)

(mm)

Centre

1"0

cutout

15" cutout

12" cutout

10"outside

263mm

12"outside

312mm

15"outside

389mm

 usioncr udiocom

0 10 20 30 40 60 70 80 90 110 120130 140 160 170 180 190 210 220 230 240 260 270 280 290 310 320 330 340 360 370 380 390

100 150 200 250 300 350 400

0 15105

1 2 3 4 6 7 8 9 11 12 13 14 16

(inch)

(mm)

Centre

1"0

cutout

15"

cutout

12"

cutout

10"outside

263mm

12"outside

312mm

15"outside

389mm

www.fusioncaraudio.com

0 10 20 30 40 60 70 80 90 110 120130 140 160 170 180 190 210 220 230 240 260 270 280 290 310 320 330 340 360 370 380 390

100 150 200 250 300 350 400

0 15105

Fig. 3

3: Insert a pencil into the correct subwoofer cut out measurement. 10", 12", or 15".

Fig. 4

4: Scribe a perfect cut out diameter onto the MDF board.

Fig. 5

5: Using a jigsaw or router, cut out this measurement.

141414

SERIES AND PARALLEL SUBWOOFER WIRING FOR

1 Ohm operation

4 Ohm operation

DUAL VOICE COIL SUBS

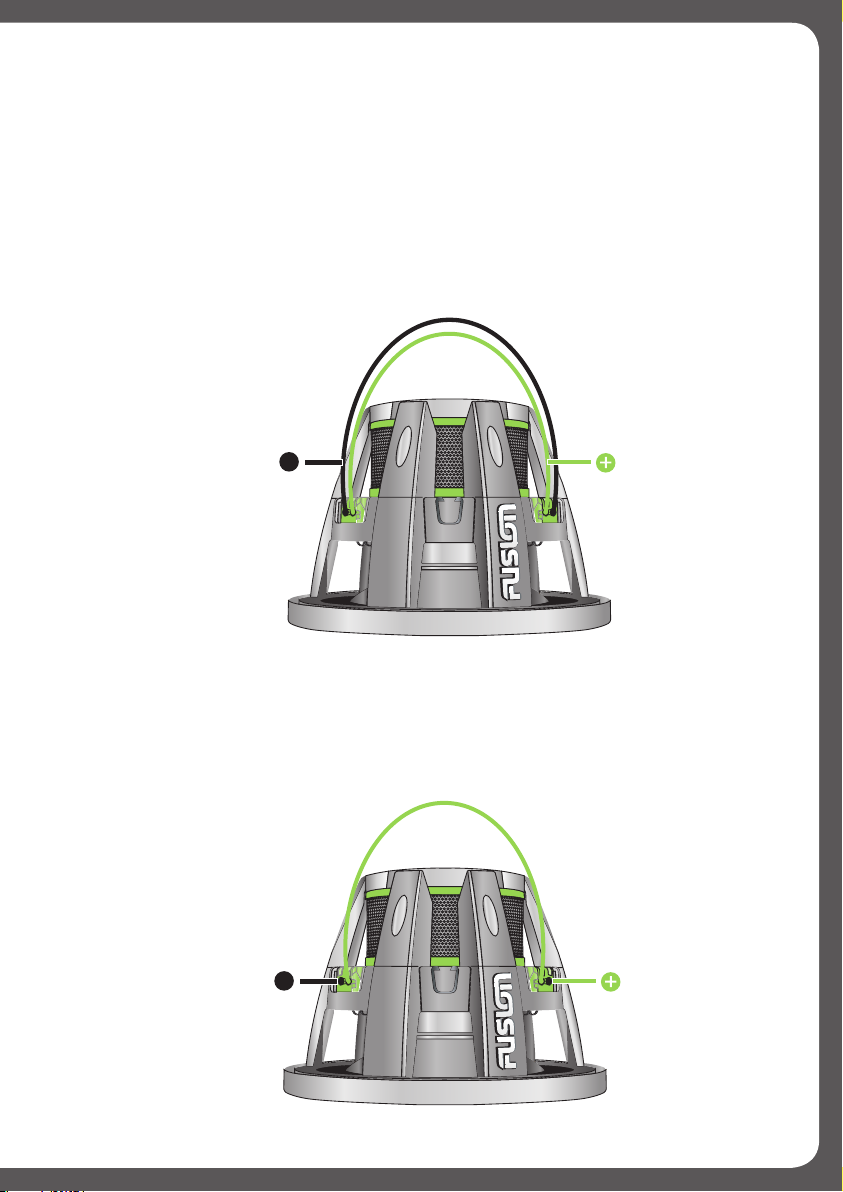

Parallel Voice Coil Wiring (1 Ohm operation)

To wire a DVC subwoofer in parallel (to get 1 Ohm), use two short pieces of speaker wire and link the positive from one coil to the positive of the second coil, and do the same for the negative as shown in ﬁg 1. Then wire the ampliﬁer to opposite sides of the subwoofer in order to equalise any connection resistance.

Fig.1

Series Voice Coil Wiring (4 Ohm operation)

To wire a DVC subwoofer in series (to get 4 Ohms), use one short piece of speaker wire and link the positive from one voice coil to the negative of the second coil as shown in ﬁg 2. Then wire the ampliﬁer to opposite sides of the subwoofer.

Fig. 2

151515

4 Ohm

+ +

–

8 Ohms

R1 + R2 = LOAD IMPED ANCE

4 Ohm

PARALLEL WIRING FORMULA FOR 2 SPEAKERS

4 Ohm

8 Ohm

2.67 Ohms

R1 x R2

R1 + R2

4 Ohms x 8 Ohms

4 Ohms + 8 Ohms

= LOAD IMPEDANC E

= = 2.67 Ohms

SERIES WIRING FORMULA FOR 2 SPEAKERS

161616

TROUBLE SHOOTING

No sound from your subwoofer: Check ampliﬁer and wiring connections.

Distorted sound: Check the connections from ampliﬁer, processor or head unit.

Subwoofer makes unusual noise in sealed enclosure: The enclosure may have leaks causing

a lack of back pressure. Remove the subwoofer and ensure the enclosure is completely sealed, use sealer and polyurethane to do this.

Ported enclosure makes an unusual noise: Possibly due to incorrect port used. The correct term is chufﬁng, and to rectify this you will need to increase the port area. The diameter will need to increase and the port length will need recalculating.

Bad smell: If you smell a burning smell, then chances are the subwoofer has been damaged. This can be due to the enclosure parameters being incorrect, too small an ampliﬁer used and the subwoofer is receiving unwanted clipped signals or the music choice has enhanced bass notes played for long periods of time. Check the enclosure volume used and ensure the subwoofer is receiving clean audio signals from the ampliﬁer.

Vehicle rattles: The best way to solve this problem is to add sound deadening material to the steel panels of your vehicle. Ensure all screws and plastic panels are afﬁxed ﬁrmly.

INSTALLATION WARNING

1: Ensure the vehicle 12 volt lead is removed before any equipment is connected.

2: Investigate the vehicle’s gas tanks, brake lines and electrical wiring locations before you

begin installation.

3: Attach the product securely to the vehicle to prevent damage in the event of an accident.

4: Ensure all wiring is protected to avoid damage or pinching of the cables.

171717

NOTES

181818

YOU CAN HELP PROTECT THE ENVIRONMENT!

Please remember to respect the local regulations:

Hand in the non-working electrical equipment

to an appropriate waste disposal center.

191919

Specifications and design are subject to change without notice.
