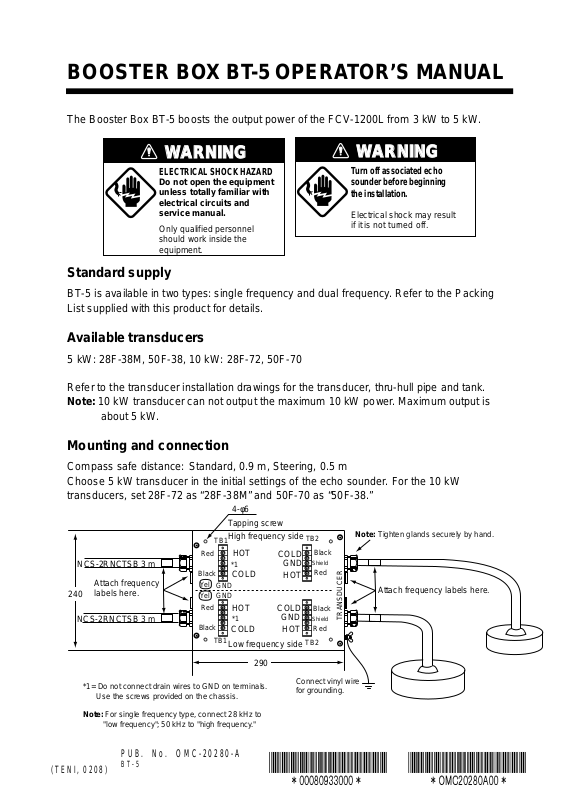

BOOSTER BOX BT-5 OPERATOR’S MANUAL
The Booster Box BT-5 boosts the output power of the FCV-1200L f r om 3 kW to 5 kW.
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Turn off associated echo
sounder before beginning
the installation.
Electrical shock may result
if it is not turned off.
Standard supply
BT-5 is available in two types: single frequency and dual frequency. Refer to the Packing
List supplied with this product for details.
Available transducers
5 kW: 28F-38M, 50F-38, 10 kW: 28F-72, 50F-70
Refer to the transducer installation drawings for the transducer, thru-hull pipe and tank.
Note: 10 kW t r ansducer can not output the maximum 10 kW power. Maximum output is
about 5 kW.
Mounting and connection
Compass safe distance: Standard, 0.9 m, Steering, 0.5 m
Choose 5 kW tr ansducer in t he initial settings of the echo sounder. For the 10 kW
transducers, set 28F-72 as “28F-38M” and 50F-70 as “50F-38.”
4-φ6
Tapping screw
High frequency side
TB1
Red
NCS-2RNCTSB 3 m
Attach frequency
labels here.
240
NCS-2RNCTSB 3 m
*1= Do not connect drain wires to GND on terminals.
Use the screws provided on the chassis.
Note: For single frequency type, connect 28 kHz to
"low frequency"; 50 kHz to "high frequency."
Black
Yel
Yel
Red
Black
GND
GND
TB1
Low frequency side
HOT
*1
COLD
HOT
*1
COLD
290
TB2
COLD
GND
HOT
COLD
GND
HOT
Black
Shield
Red
Black
Shield
Red
TB2
Connect vinyl wire
for grounding.
Note: Tighten glands securely by hand.
Attach frequency labels here.
TRANSDUCER
TENI, 0208)
PUB. No. OMC-20280-A
BT-5
SPECIFICATIONS OF BOOSTER BOX
BT-5
This equipment boosts the output of color video sounder FCV -1200L from 3 kW to 5 kW. Not only
5kW transducers , but also 10kW transducers, 28F -72 and 50F-70 can be connected to the
booster. However, output power of 10kW transducer is 5 kW or less.
1 GENERAL
1.1 Frequency 28.8/50 kHz
1.2 Output Power 5 kW
2 ENVIRONMENTAL CONDITIO N
1.1 Ambient Temperature -15°C to +55°C
1.2 Relative Humidity 95% at 40°C
1.3 Waterproof IPX2
1.4 Vibration IEC 60945
3 COATING COLOR
2.5GY5/1.5
SP - 1 E2028S01A

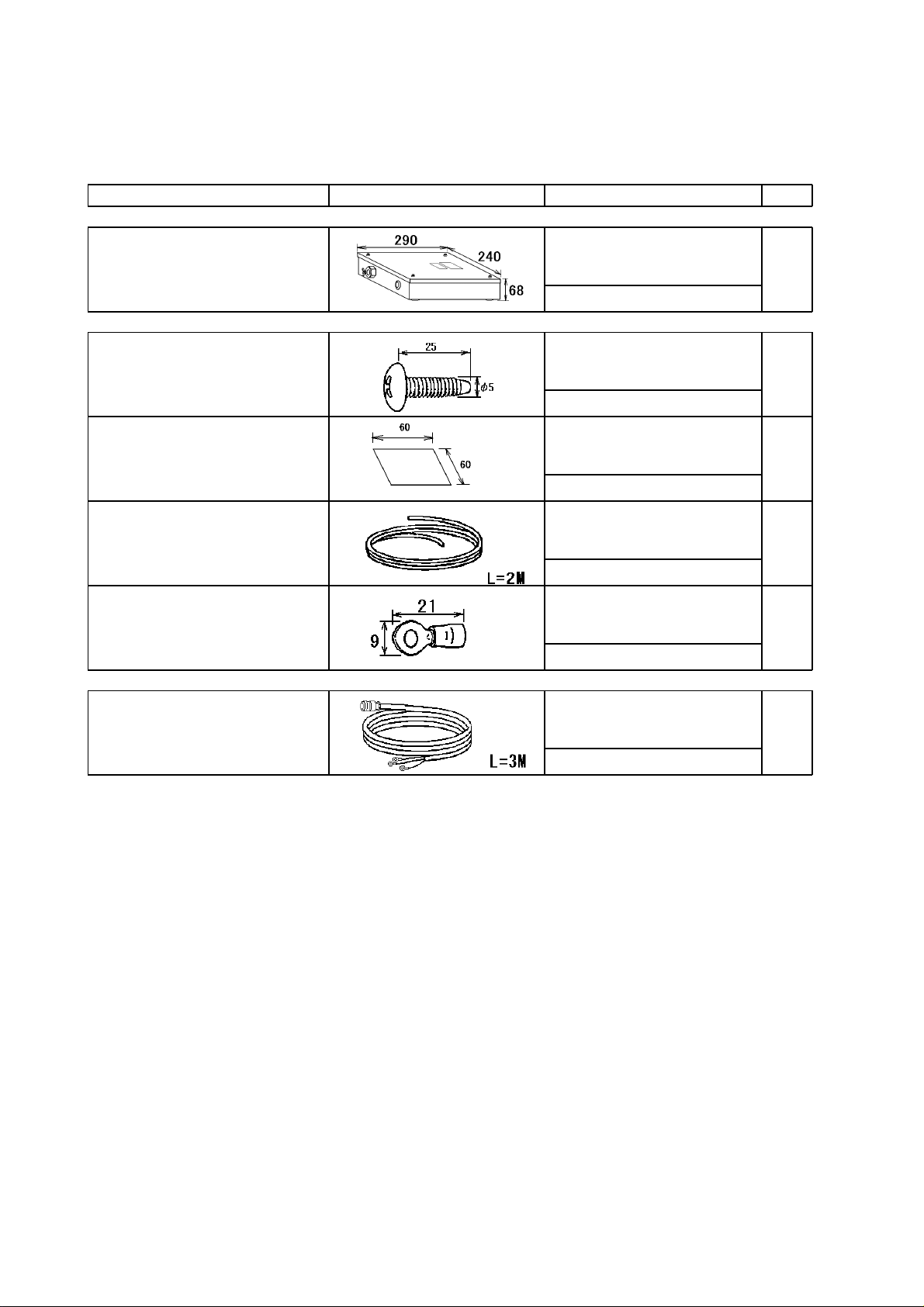

ＰＡＣＫＩＮＧ ＬＩＳＴ
C2028‑Z01‑C
A-1
ＰＡＣＫＩＮＧ ＬＩＳＴ
ＰＡＣＫＩＮＧ ＬＩＳＴＰＡＣＫＩＮＧ ＬＩＳＴ
BT-5-1
BT-5-1
BT-5-1BT-5-1
02FQ-X-9851 -3
1/1
N A M E
ユニット
ユニット UNIT
ユニットユニット
ﾌﾞｰｽﾀｰﾎﾞｯｸｽ
BOOSTER BOX
工事材料
工事材料 INSTALLATION MATERIALS
工事材料工事材料
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1種
TAPPING SCREW
周波数ﾏｰｸ
FREQUENCY LABEL
ﾋﾞﾆｰﾙ線
VINYL WIRE
圧着端子
CRIMP-ON LUG
その他工材
その他工材 OTHER INSTALLATION MATERIALS
その他工材その他工材
ｹｰﾌﾞﾙ組品
UNIT
UNITUNIT
INSTALLATION MATERIALS CP02-07201
INSTALLATION MATERIALSINSTALLATION MATERIALS
OTHER INSTALLATION MATERIALS
OTHER INSTALLATION MATERIALSOTHER INSTALLATION MATERIALS
O U T L I N E
DESCRIPTION/CODE №
BT-5-1
000-012-522
5X25 SUS304
000-802-082
02-143-1105-1
100-300-431
KIV 2.0SQ ｸﾛ *2M*
000-554-516
FV2-4 ｱｵ
000-538-118
NCS-2RNCTSB *3M*
CP02-07201
CP02-07201CP02-07201
Q'TY
1
4
2
1
10
CABLE ASSY.
1
000-146-169
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

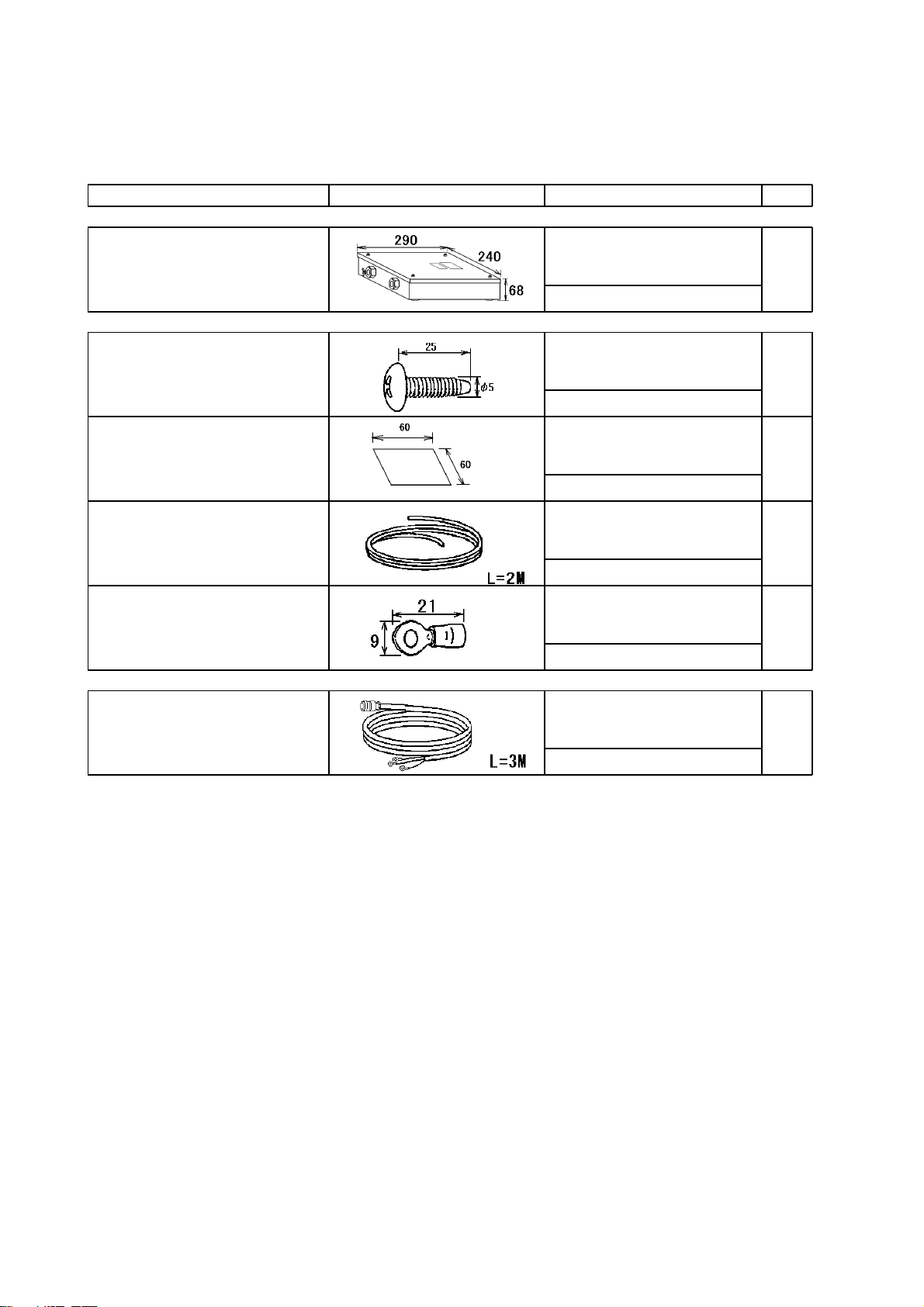

ＰＡＣＫＩＮＧ ＬＩＳＴ
C2028‑Z02‑B
A-2
ＰＡＣＫＩＮＧ ＬＩＳＴ
ＰＡＣＫＩＮＧ ＬＩＳＴＰＡＣＫＩＮＧ ＬＩＳＴ
BT-5-2
BT-5-2
BT-5-2BT-5-2
02FQ-X-9852 -2
1/1
N A M E
ユニット
ユニット UNIT
ユニットユニット
ﾌﾞｰｽﾀｰﾎﾞｯｸｽ
BOOSTER BOX
工事材料
工事材料 INSTALLATION MATERIALS
工事材料工事材料
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1種
TAPPING SCREW
周波数ﾏｰｸ
FREQUENCY LABEL
ﾋﾞﾆｰﾙ線
VINYL WIRE
圧着端子
CRIMP-ON LUG
その他工材
その他工材 OTHER INSTALLATION MATERIALS
その他工材その他工材
ｹｰﾌﾞﾙ組品
UNIT
UNITUNIT
INSTALLATION MATERIALS CP02-07211
INSTALLATION MATERIALSINSTALLATION MATERIALS
OTHER INSTALLATION MATERIALS
OTHER INSTALLATION MATERIALSOTHER INSTALLATION MATERIALS
O U T L I N E
DESCRIPTION/CODE №
BT-5-2
000-012-523
5X25 SUS304
000-802-082
02-143-1105-1
100-300-431
KIV 2.0SQ ｸﾛ *2M*
000-554-516
FV2-4 ｱｵ
000-538-118
NCS-2RNCTSB *3M*
CP02-07211
CP02-07211CP02-07211
Q'TY
1
4
2
1
15
CABLE ASSY.
2
000-146-169
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
