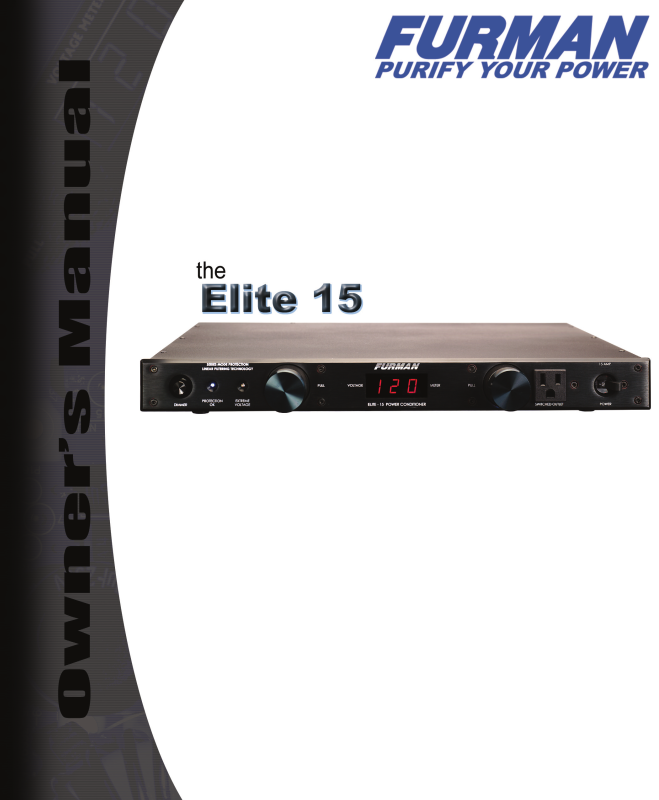

ELITE 15 OWNER’S MANUAL
ELITE 15 OWNER’S MANUAL
The Elite 15 Features
• L ine a r Fil t erin g Techn o log y for uneq uale d au d io / vid eo c l ari t y
• S eri es M u lti - Stag e Prot e ct i on P l us f o r v i rt u all y mai nten a nce -fre e AC s urge
s uppr e ssio n
• R etra cta b le L ED l amps ill u min a te a cab i net or r a ck f ull of e q uip m ent
• Z e ro gr o und cont a mina tion circ u itr y p rotec ts c riti cal digi t al c o mpo n ents
• C o mpa c t c hass i s d e sign - s i ngl e rac k sp a ce w ith r emova ble r ack moun t s
AC power is nothing new, the Elite-15’s
well as the depth and clarity in video. With
Another critical feature is our exclusive Series
without sacrifi cing itself when the offending
ELITE 15 OWNER’S MANUAL
when monitoring systems that are connected
well as noticeably improved depth and clarity.
within the warranty period should your original
•
No user-serviceable parts inside
•
Keep away from moisture and avoid
excessive humidity
•
Do not allow liquids or foreign objects to
enter the unit
•
The power supply cord or plug has been
frayed or cut.
•
Objects have fallen or liquid has spilled into
the unit.
•
The Elite-15 has been exposed to rain or
other moisture.
•
The Elite-15 does not appear to operate
normally, or exhibits a marked change
in performance.
•
The Elite-15 has been dropped, or the
enclosure damaged.
ELITE 15 OWNER’S MANUAL
Amps. The Elite-15 will operate with a10 Amp
Amps.
AC Cable Routing
Video Component AC Outlet Banks
AC Outlets” should be employed for critical
AC Outlets,” These outlets still possess
AC Voltage Meter
Your Elite-15 contains a combination precision
when the Elite-15 is fi rst turned on or off. This
Amp relay engaging or disengaging. There is
ELITE 15 OWNER’S MANUAL
AC Transient Voltage Surge
Voltage Shutdown
Amp outlet source is not a dedicated line, but
would be impossible and shuts the power
Although the Furman SMP+ circuit assures
will dim, even though AC power is present at
power without the operator manually turning
All in-line surge suppressors feature
ELITE 15 OWNER’S MANUAL
purchaser of the product is allowed fi fteen days from the
purchaser shall notify Furman in writing of the claimed
purchaser to return the product to the Furman factory or
All warranties contained herein are null and void if: the
ELITE 15 OWNER’S MANUAL
power strips, UPS’s, other surge protectors, three-to-two-
prong adapters, or extension cords. Any such installation
protect against acts of God (other than lightning) such as
product in anyway with a generator, heater, sump pump,
products or components not manufactured by Furman, or
products or components. This warranty shall be cancelable
period provided above. Furman shall not have any other
purchase or if the product was registered on-line, this is
please be sure it is adequately packed and cushioned
Amplifi er
Audio Pre-
Amplifi er
ELITE 15 OWNER’S MANUAL
AC Current Capacity:
Input - 15 Amp capacity required
Output - 15 Amps RMS (maximum, all outlets combined - continuous)
Transverse (Differential) Mode:
>40 dB from 10Khz. - 100 kHz. >80 dB from 100 Khz. – 1GHz.
(Linear attenuation curve from 0.05 – 100 ohms line impedance)
120 VAC - Series Multi-Stage Protection Plus - Non-Sacrifi cial with Zero Ground
(188 V peak clamping @ 6000V 3000A input)
Extreme Voltage Shutdown (>135 VAC)
Telco Cable / Satellite (less than .1dB insertion loss)
6 Watts for display and control circuits independent of actual load.
1 (linearly fi ltered outlet - front panel)
2 (linearly fi ltered outlets - rear panel)
4 (linearly fi ltered outlets with additional ultrasonic fi ltering for digital or video components)
2.15” H x 17” W x 14.75” D (Standard 1 RU height without feet)
11 lbs.
NRTL-C
Furman Sound, Inc.
1997 South McDowell Blvd.
Petaluma, California 94954-6919 USA
Phone: 707-763-1010 Fax: 707-763-1310
Web: www.furmansound.com
E-mail: info@furmansound.com
