Funke DSC550 4G LTE

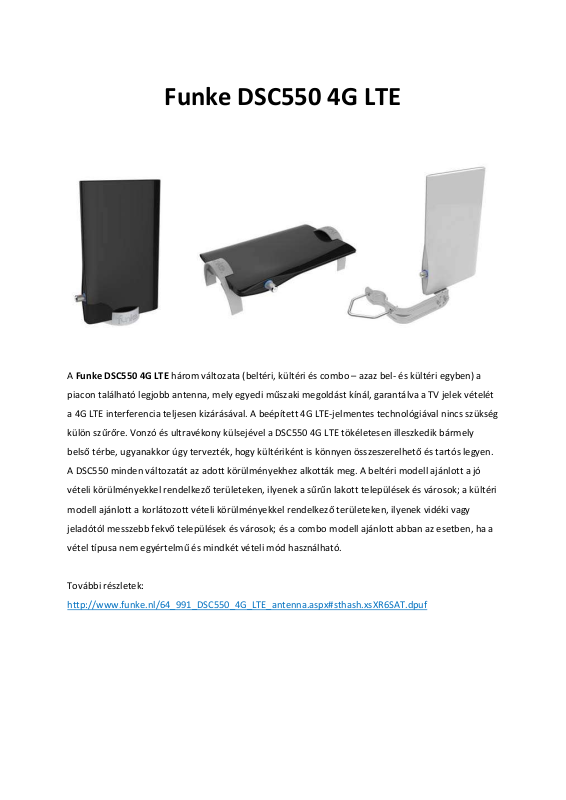

A Funke DSC550 4G LTE három változata (beltéri, kültéri és combo – azaz bel- és kültéri egyben) a
piacon található legjobb antenna, mely egyedi műszaki megoldást kínál, garantálva a TV jelek vételét
a 4G LTE interferencia teljesen kizárásával. A beépített 4G LTE-jelmentes technológiával nincs szükség
külön szűrőre. Vonzó és ultravékony külsejével a DSC550 4G LTE tökéletesen illeszkedik bármely
belső térbe, ugyanakkor úgy tervezték, hogy kültériként is könnyen összeszerelhető és tartós legyen.
vételi körülményekkel rendelkező területeken, ilyenek a sűrűn lakott települések és városok; a kültéri
modell ajánlott a korlátozott vételi körülményekkel rendelkező területeken, ilyenek vidéki vagy
jeladótól messzebb fekvő települések és városok; és a combo modell ajánlott abban az esetben, ha a
vétel típusa nem egyértelmű és mindkét vételi mód használható.
További részletek:
http://www.funke.nl/64_991_DSC550_4G_LTE_antenna.aspx#sthash.xsXR6SAT.dpuf
COMBO
DSC550 4G LTE
Active
DSC
In- & Outdoor Antenna
for Digital TV
Works perfectly in 4G LTE environment
State of the art 4G LTE technology
Popular and thinnest design
Easy installatation
HTDV compatible
The best DVB-T/T2, ISDB-T signal reception
550
4
G LTE 23 dBi
clearly the best www.funke.nl
SPECIFICATIONS
Funke DSC550 4G LTE is an indoor antenna for digital terrestrial TV unlike any other. It provides a unique technical solution that guarantees TV signal recep­tion that is free of 4G LTE interference and proven to be the best in the market. Its popular, ultra-thin design makes the DSC550 4G LTE blend perfectly into any interior and it has also been designed for easy outdoor assembly and maximal durability.
COMBO
DSC550 4G LTE
190 mm
Preferred applications
Amplier principle
Connection
Channels
Input voltage 5 ± 0,5 VDC
Input current 75 mA typ.
Colour Black / White
30
25
20
15
10
5
0
-5
-10
-15 175 275 375 475 575 675 775 875 975
Indoor & outdoor stationary reception
Low noise amplier
Female F-connector
VHF 5 - 12 (174 - 230 MHz)
UHF 21 - 60 (470 - 790 MHz)
790
124 mm
18 mm
FOR MORE INFORMATION
Funke Antennen B.V. P.O. Box 36 5280 AA Boxtel, The Netherlands
www.funke.nl
DSC 310
Digital TV

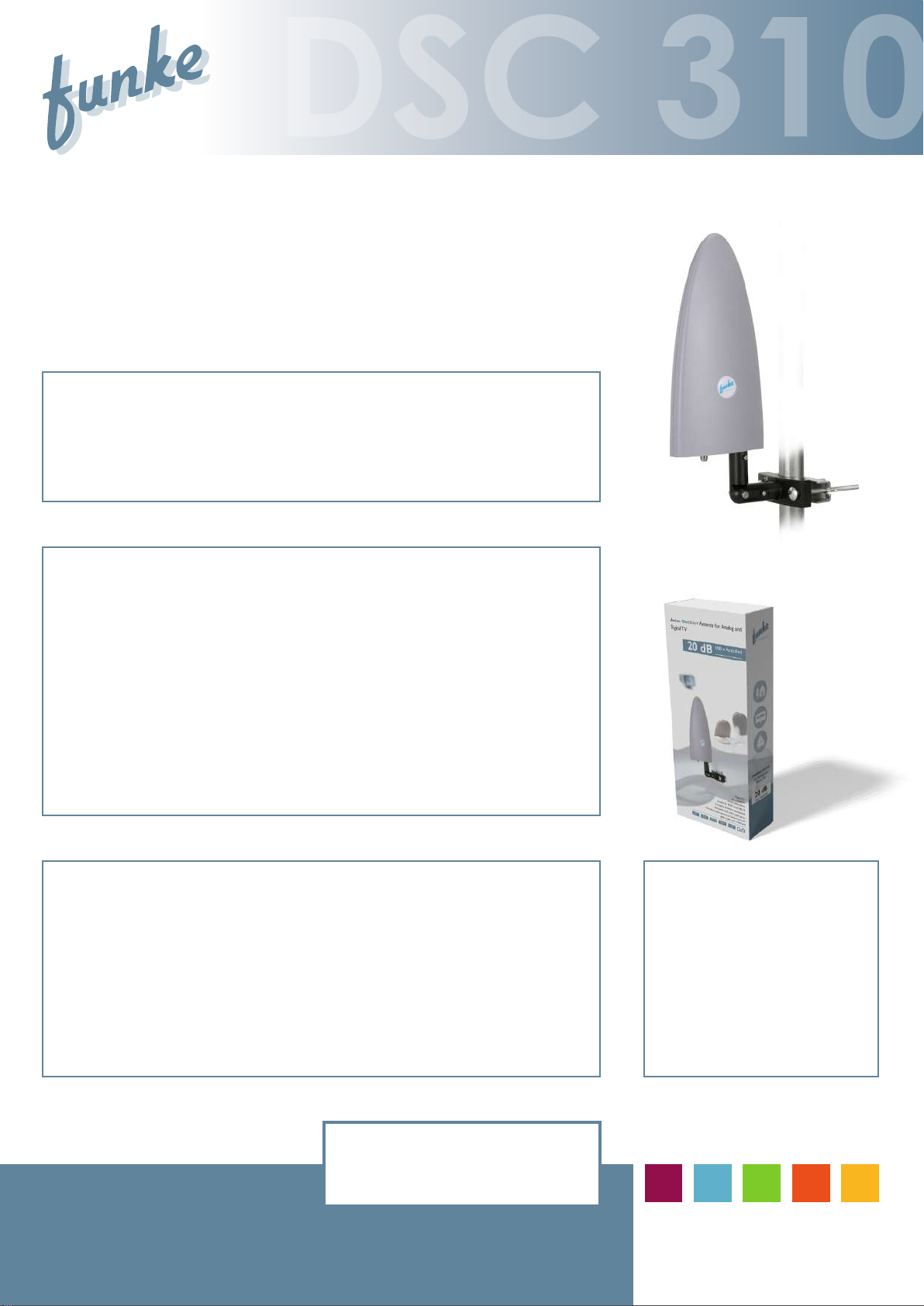

The Funke DSC 310 is a revolutionary and compact outdoor antenna for digital and analog TV reception. The DSC 310 is easily to install, maintenance free, and water and UV resistant. Like all Funke antennas, the DSC 310 can be used in a horizontal and vertical network. Special filters are used to suppress impulsive noise, GSM and DECT interference for a trouble-free and clear picture!
General specifications
Funke art. nr. 292.189202 Preferred applications Outdoor / camping / boating Amplifier principle Low noise single stage amplifier Connection F-connector
DSC 310
Outdoor
Technical specifications
Output impedance 75 Ω
Frequency range 174 – 240 MHz 470 – 862 MHz Channels (CCIR) VHF 5 – 12 UHF 21 – 69
Internal amplifier gain 14 – 18 dB typ. Antenna gain 2 - 4 dBi 10 – 17 dBi typ. Radiation pattern Slightly directive Directivity (front / back) 2 - 7 dB typ. Input voltage 5 ± 0,5 V Input current 30 mA typ. LED power indicator yellow
Physical specifications
Dimensions Antenna (l x w x h) 240 x 110 x 45 Weight Antenna 0,190 kg Colour Grey
Dimensions Package (l x w x h) 140 x 65 x 332 Weight Package 0,330 kg Outer Carton 20 Pallet 500
mm
mm
Contents
DSC 310 Wall Clamp User Manual
Clearly the Best
DSC 250
Digital TV

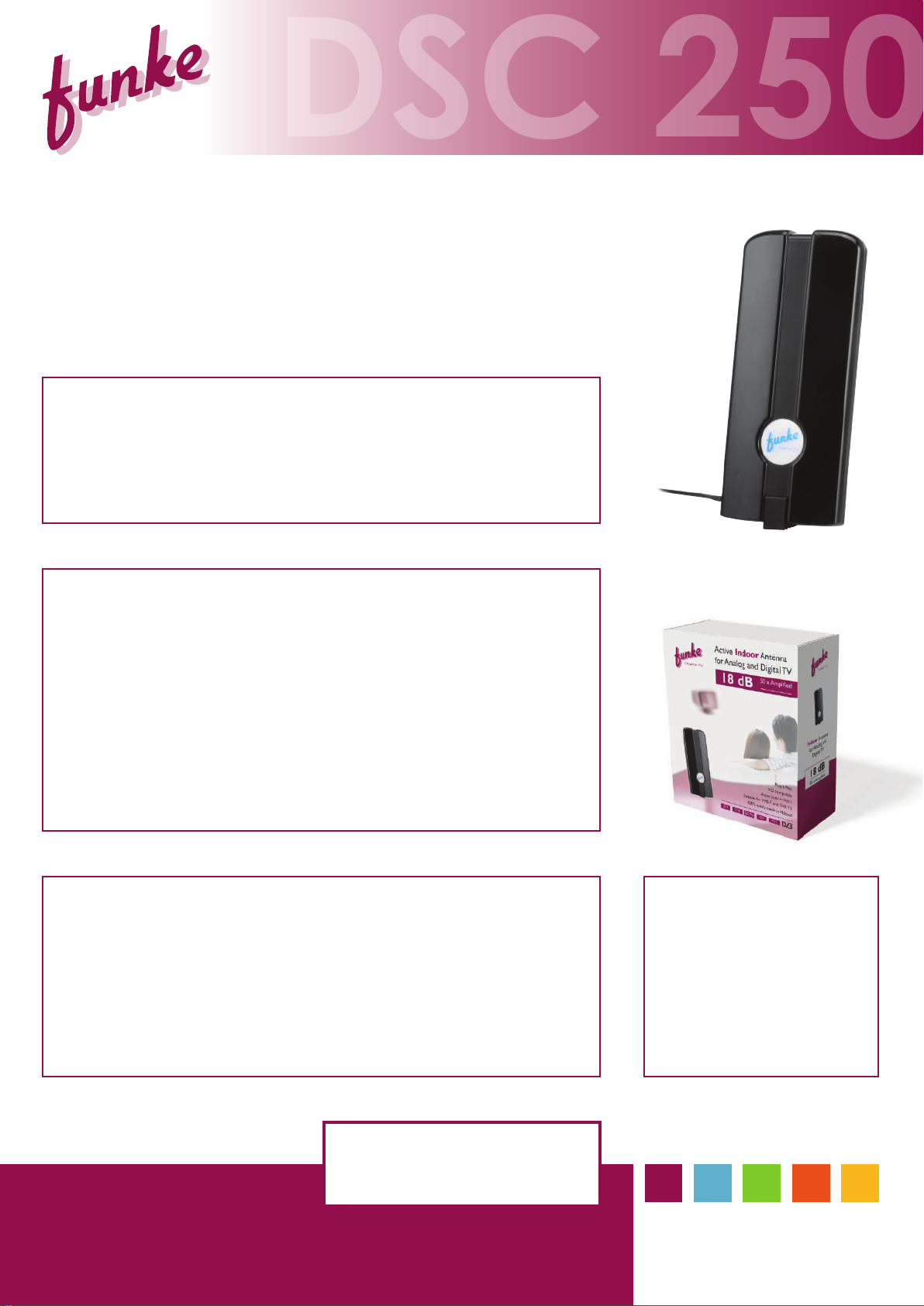

The Funke DSC 250 is a revolutionary and compact indoor antenna for digital and analog TV reception which fits in every interior. The DSC 250 is easy to install and has several filters to suppress impulsive noise and other interferences. The innovative technology, quality and state-of-the-art design make the Funke DSC 250 a modern and reliable TV partner for you!
General specifications
Funke art. nr. 292.191402 Preferred applications Indoor stationary reception Amplifier principle Low noise single stage amplifier Connection 3,5 m flexible coaxial cable with IEC-male connector
DSC 250
Indoor
Technical specifications
Output impedance 75 Ω
Frequency range 174 – 862 MHz Channels (CCIR) VHF 5 – 12 (174 - 240 MHz) UHF 21 – 69 (470 - 862 MHz) Internal amplifier gain 20 dB typ. Antenna gain VHF 3 dBi typ. UHF 17 – 22 dBi typ. Radiation pattern Omni-directive Directivity (front / back) 2 – 12 dB typ. Input voltage (remote powered) 5 ± 0,5 V Input current 30 mA typ. LED power indicator yellow
Physical specifications
Dimensions Antenna (l x w x h) 158 x 72 x 17 Weight Antenna (incl. cable) 0,135 kg Colour Black
Dimensions Package (l x w x h) 65 x 140 x 166 mm Weight Package 0,166 kg Outer Carton 40 Pallet 1000
mm
Contents
DSC 250 Cable 3,5 m User Manual
Clearly the Best

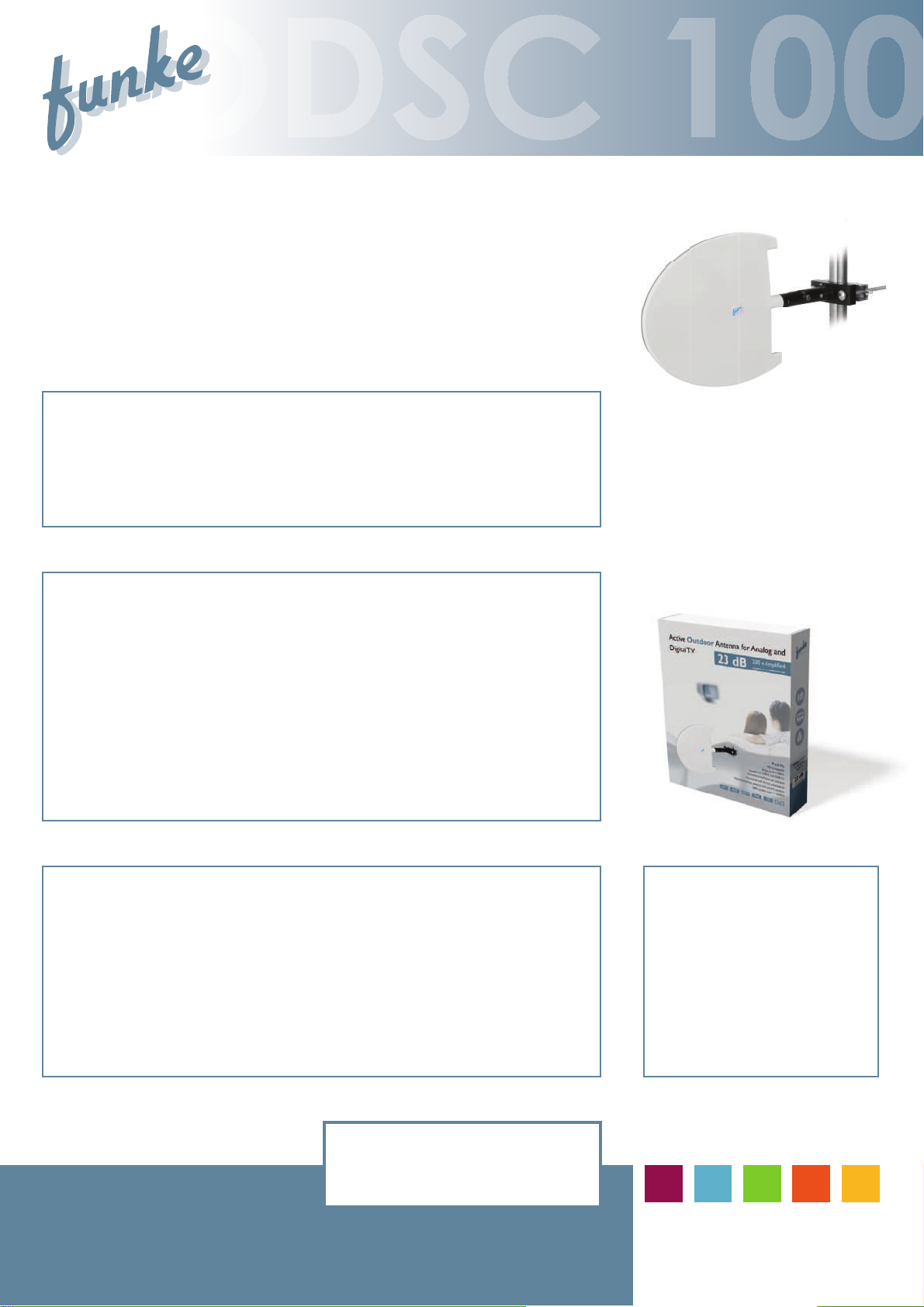

Digital TV
The ODSC 100 is an extremely effective outdoor antenna specially designed for DVB-T, but is working in today’s analog network just as well! The ODSC 100 is easily to install, maintenance free, and water and UV resistant. Like all Funke antennas, the ODSC 100 can be used in a horizontal and vertical network. Special filters are used to suppress impulsive noise, GSM and DECT interference for a trouble-free and clear picture!
Technical specifications
! "#$%#$!&'%()*+,(! ! ! -.!/
Frequency range 174 – 240 MHz 470 – 862 MHz Channels VHF 5 – 12 UHF 21 – 69
Internal amplifier gain 16 – 18 dB typ. Antenna gain UHF 17 – 23 dBi typ. Radiation pattern directive Directivity (front / back) 6 – 14 dB typ. Input voltage 5 V - 12 V Input current 25 mA - 45mA
Contents
ODSC 100 Wall Clamp Mast Clamp User Manual
Physical specifications
Dimensions Antenna (l x w x h) 237 x 223 x 25 mm Weight Antenna
0,286 kg
Colour White
Dimensions Package (l x w x h) 240 x 110 x 45 mm Weight Package 0,500 kg Outer Carton 10 Pallet 250
Clearly the Best
General specifications
Funke art. nr. 295.186604 Preferred applications DVB-T outdoor / camping / boating Amplifier principle Low noise single stage amplifier Connection F-connector
ODSC 100
Outdoor

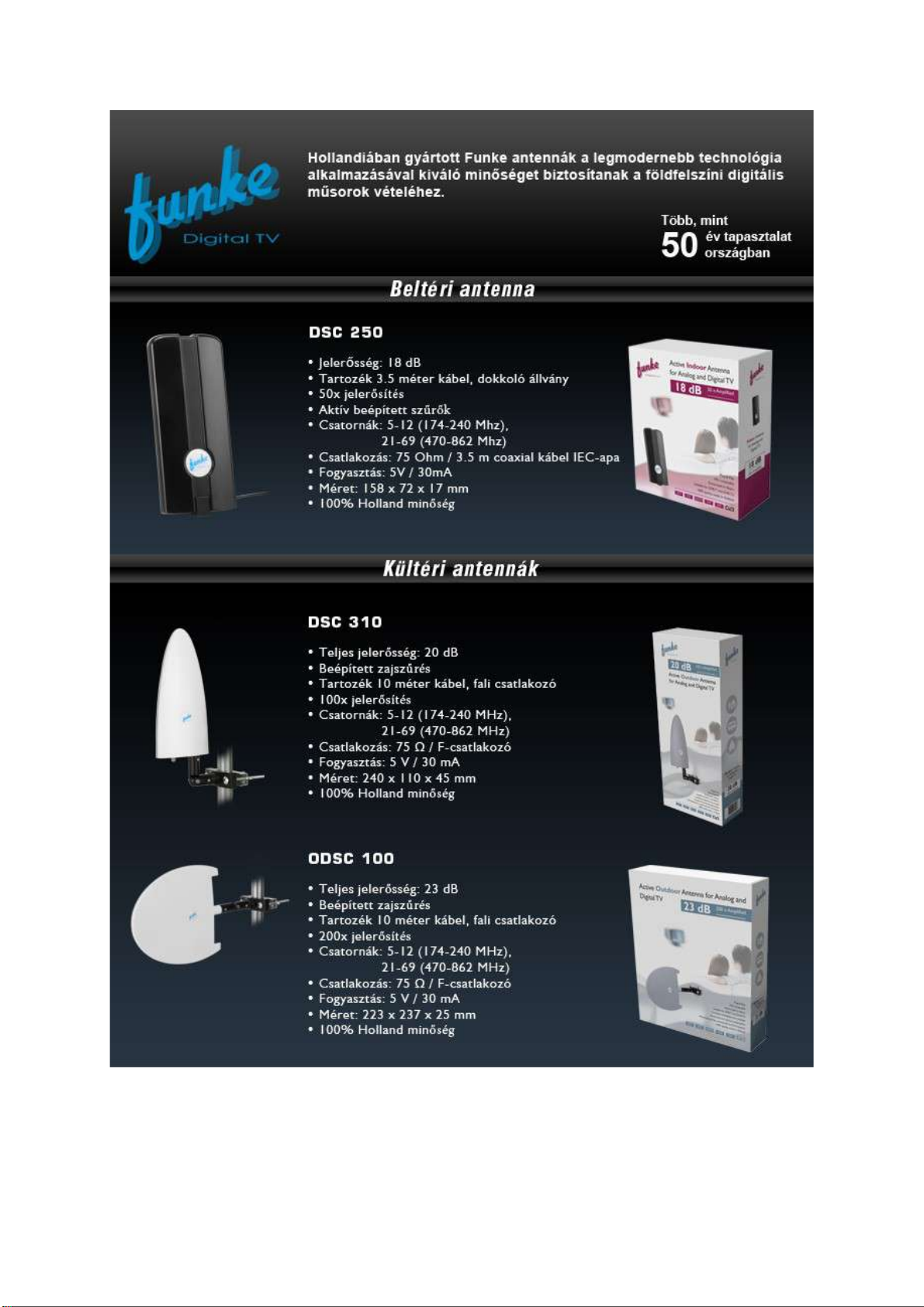

2014. október elejétől kerültek kiskereskedelmi forgalomba a Funke antennák. A lenti
Javasolt végfelhasználói árak
Beltéri: DSC-250 4.900,-
Kültéri: DSC-310 7.900,­ODSC-100 9.900,-
A z antennák az alábbi üzletekben vásárolhatóak meg:
Extrem Digital üzletek
Budapest, Mammut I.
Budapest, Pólus Center
Budapest, Móricz Zsigmond tér 15.
Budapest, Erzsébet krt. 15.
Budapest, Visegrádi u. 7/b.
Győr, Jókai u. 13-17.
Miskolc, Corvin u. 7.
Szeged, Horváth Mihály u. 8.
Debrecen, Piac u. 56.
Kecskemét, Korona u. 2.
Pécs, (napokban nyílik az üzlet)
WebShop házhozszállítással www.edigital.hu
Egyéb kiskereskedések
For Max Kft. Budapest, Wesselényi u. 23.
www.for-max.hu
HQ Video Elektronik Kft. Budapest, Kerekes u. 15.
www.hqelektronik.hu
SATEL Kft. Székesfehérvár, Palotai út 37.
www.satelco.hu
Műszaki P&P Kft. Paks, Dózsa György út 25.
ATG Media Group Kft. Budapest, Szent István út 136.
www.atgmedia.hu
TV-Elektronika Üzlet Dunaújváros, Dózsa György út 42.
kiskereskedelmi hálózatban 2 év garanciával kaphatóak.
