Funai TV-2000A Schematic

SERVICE MANUAL

20" COLOR TELEVISION

TV-2000A MK12

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and de­scribed in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to under­stand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all con­ceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service proce­dure or tool which is not recommended by Funai must first use all precau­tions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications...........................................................1-1

Important Safety Precautions...................................2-1

Standard Notes for Servicing...................................3-1

Disassembly Instructions .........................................4-1

Electrical Adjustment Instructions ............................5-1

Block Diagram..........................................................6-1

Schematic Diagram / CBA’s and Test Points ..........7-1

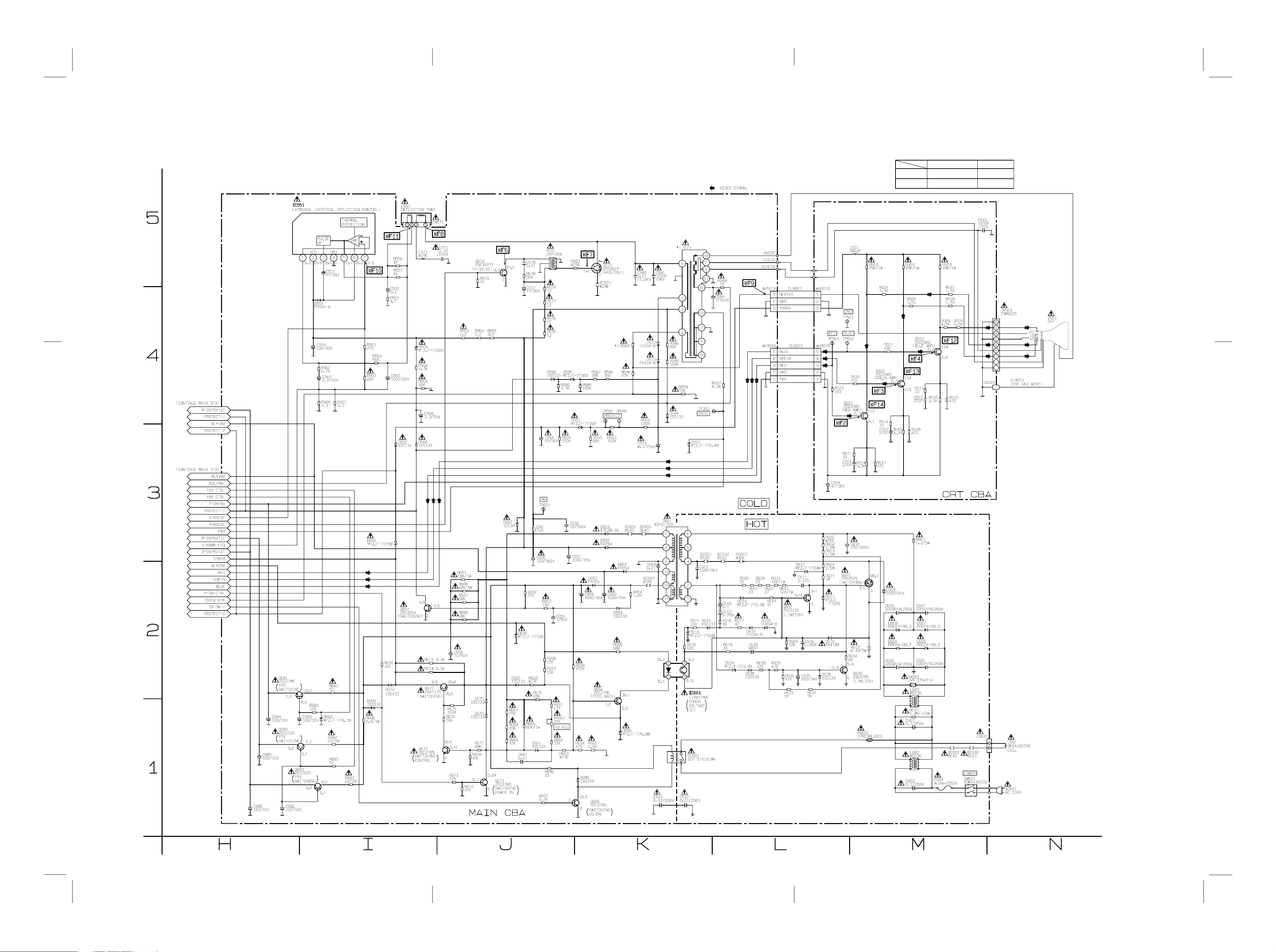

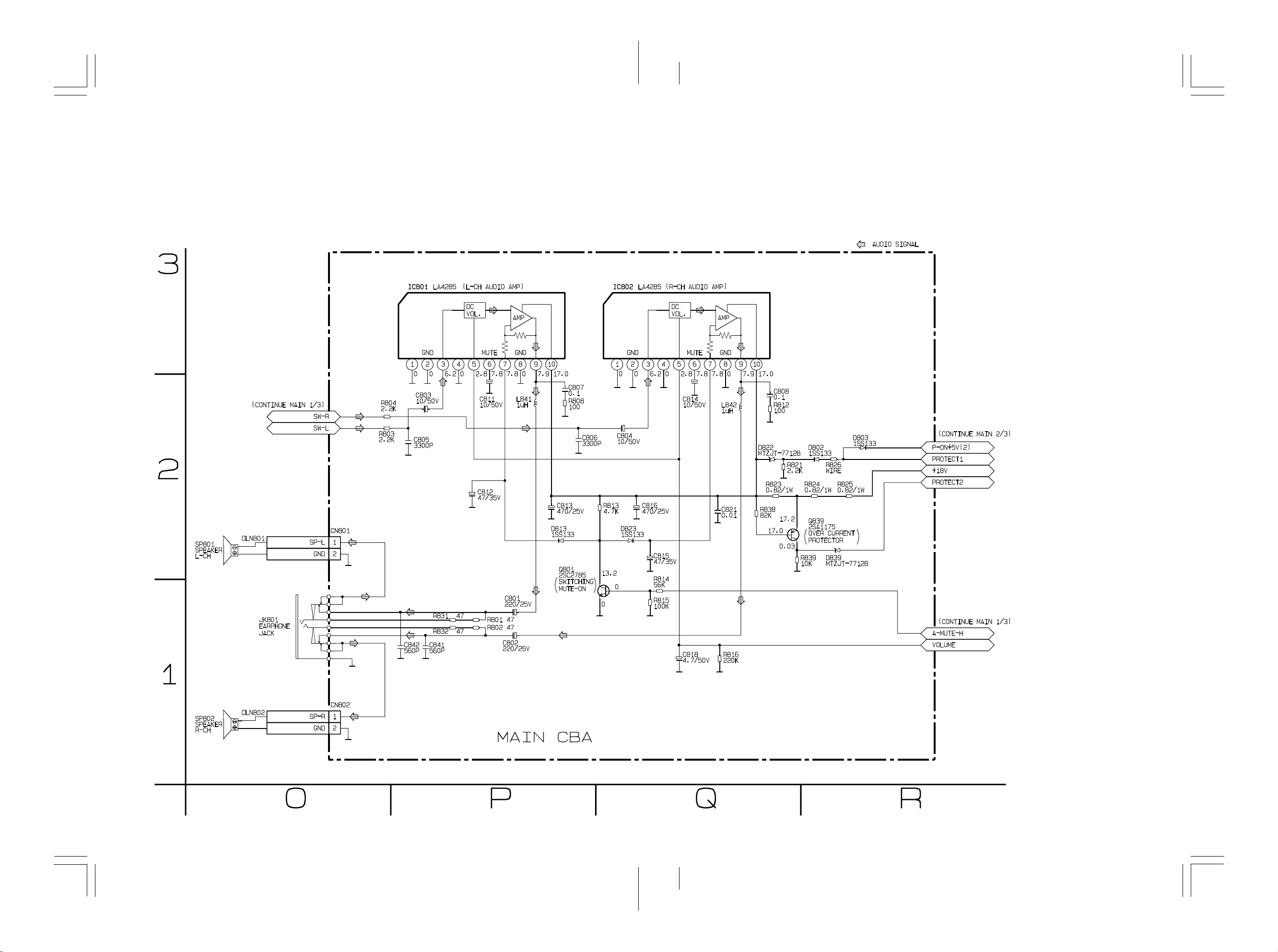

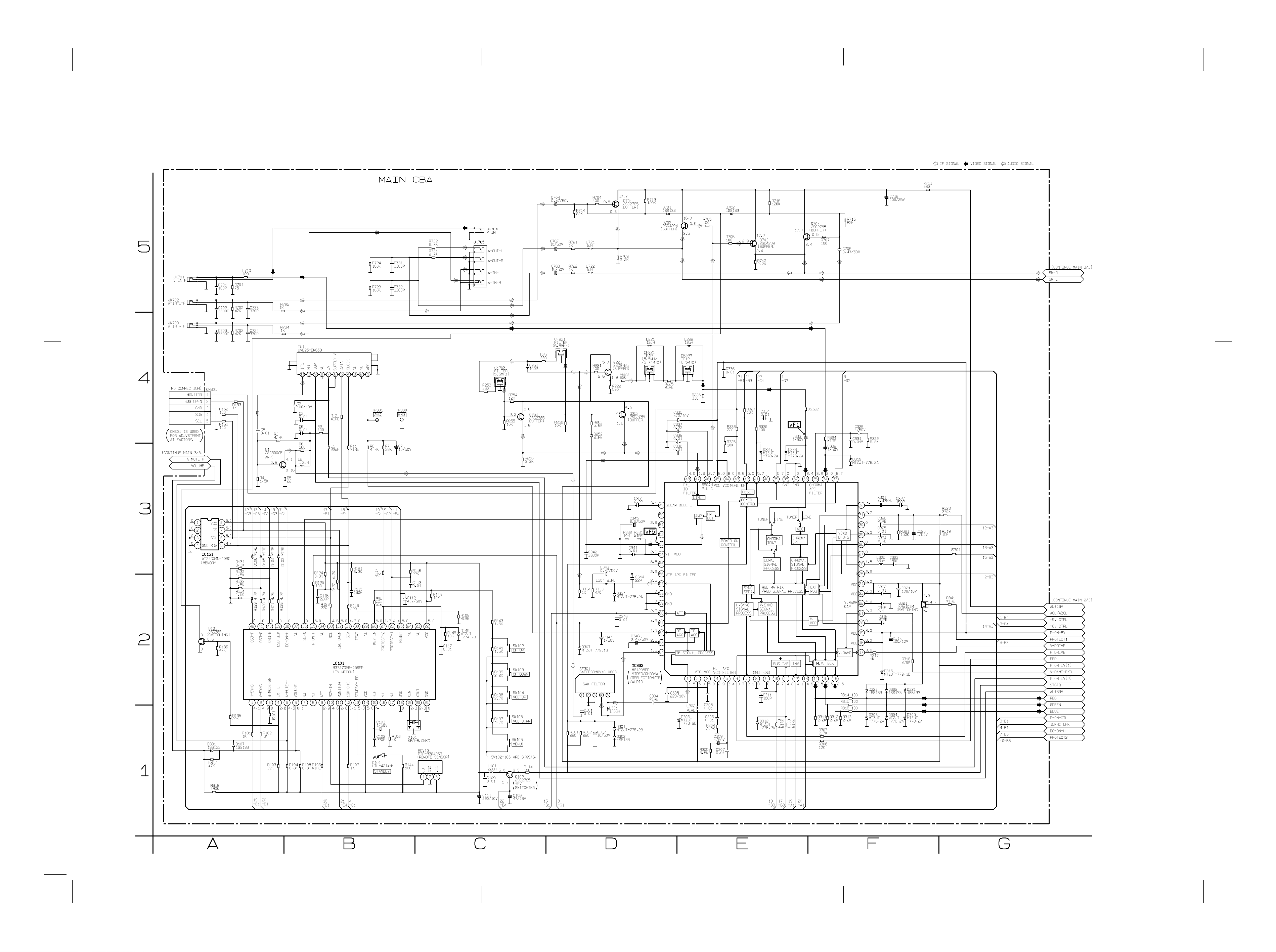

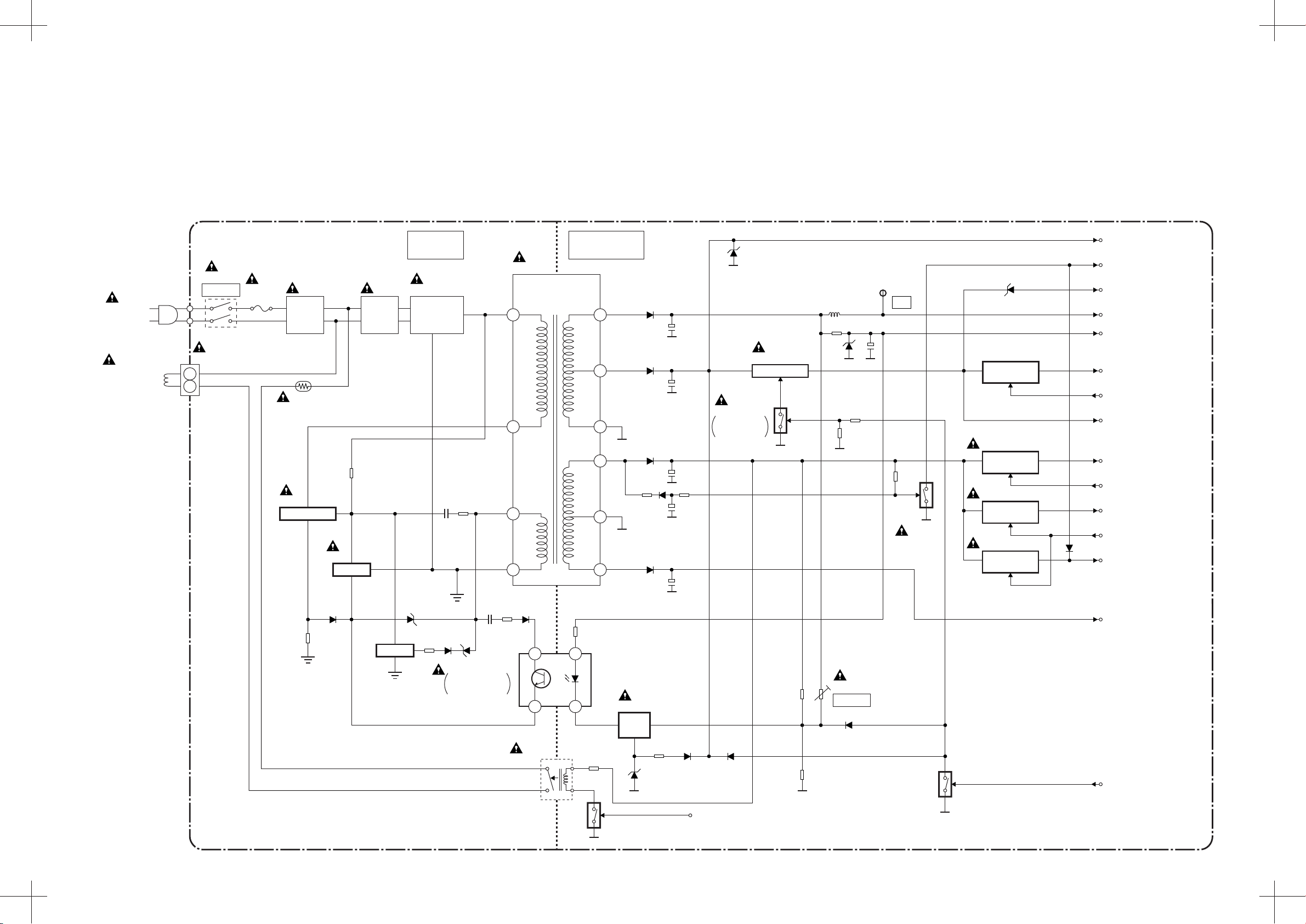

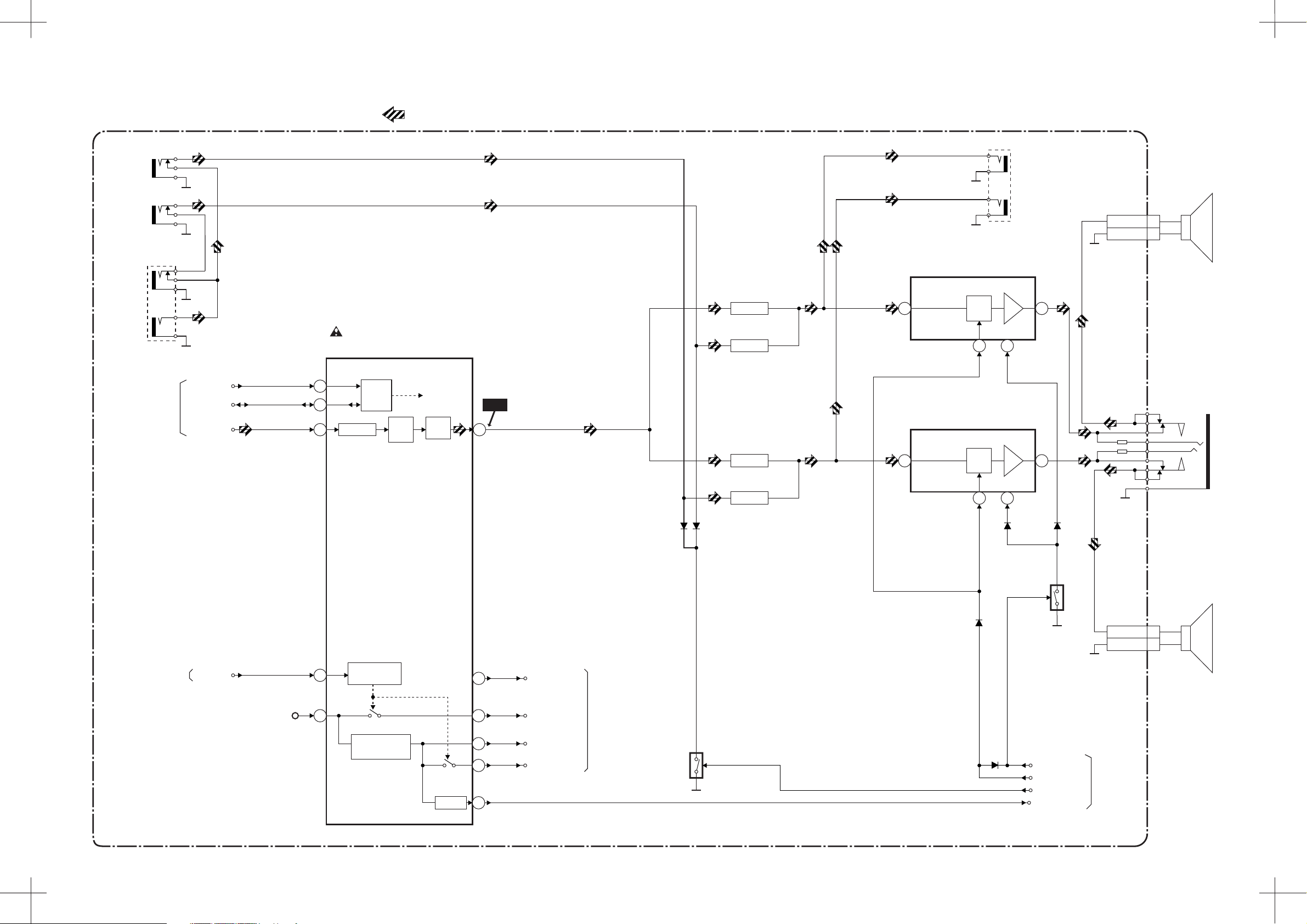

Schematic Diagram .................................................7-3

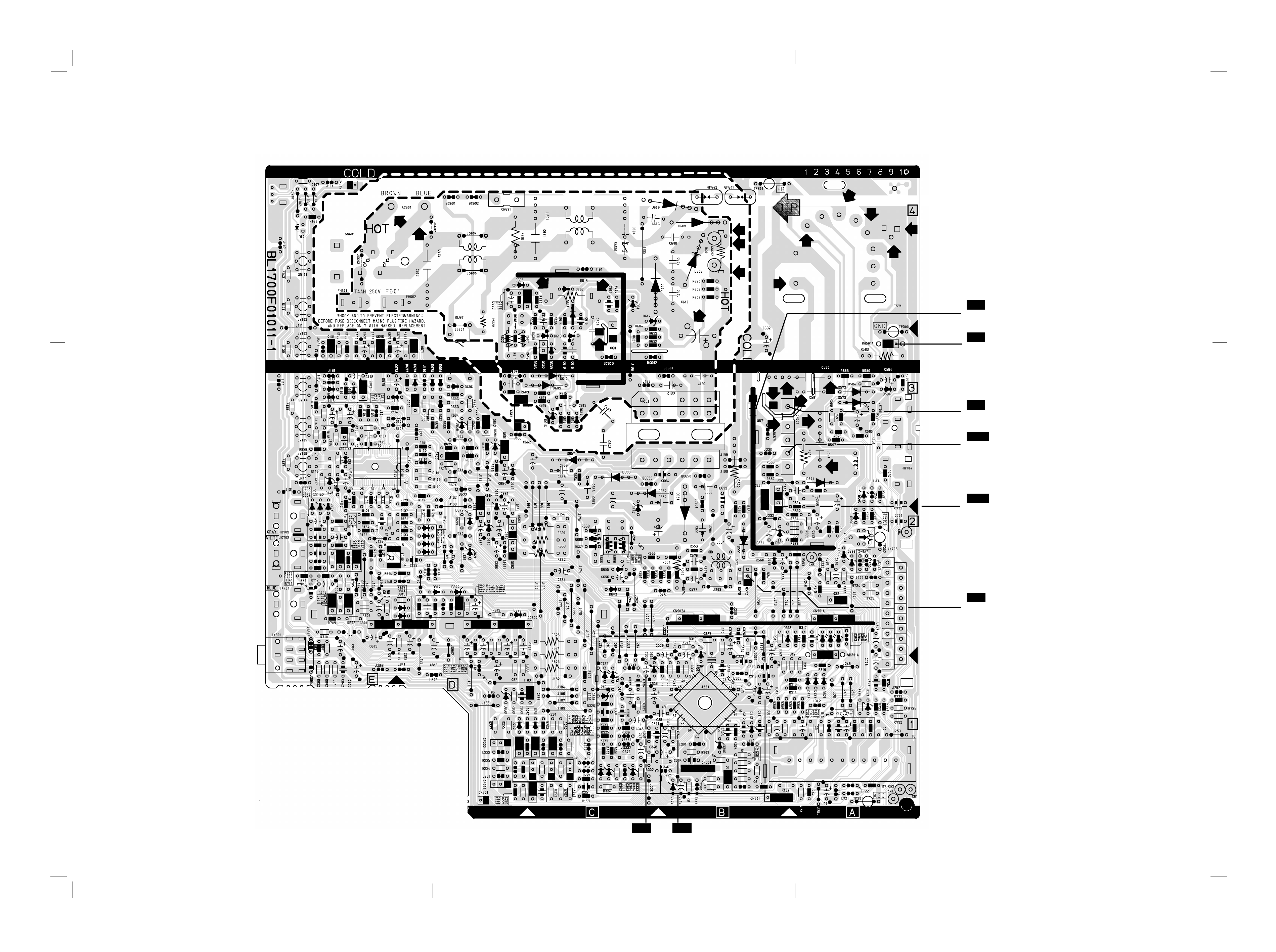

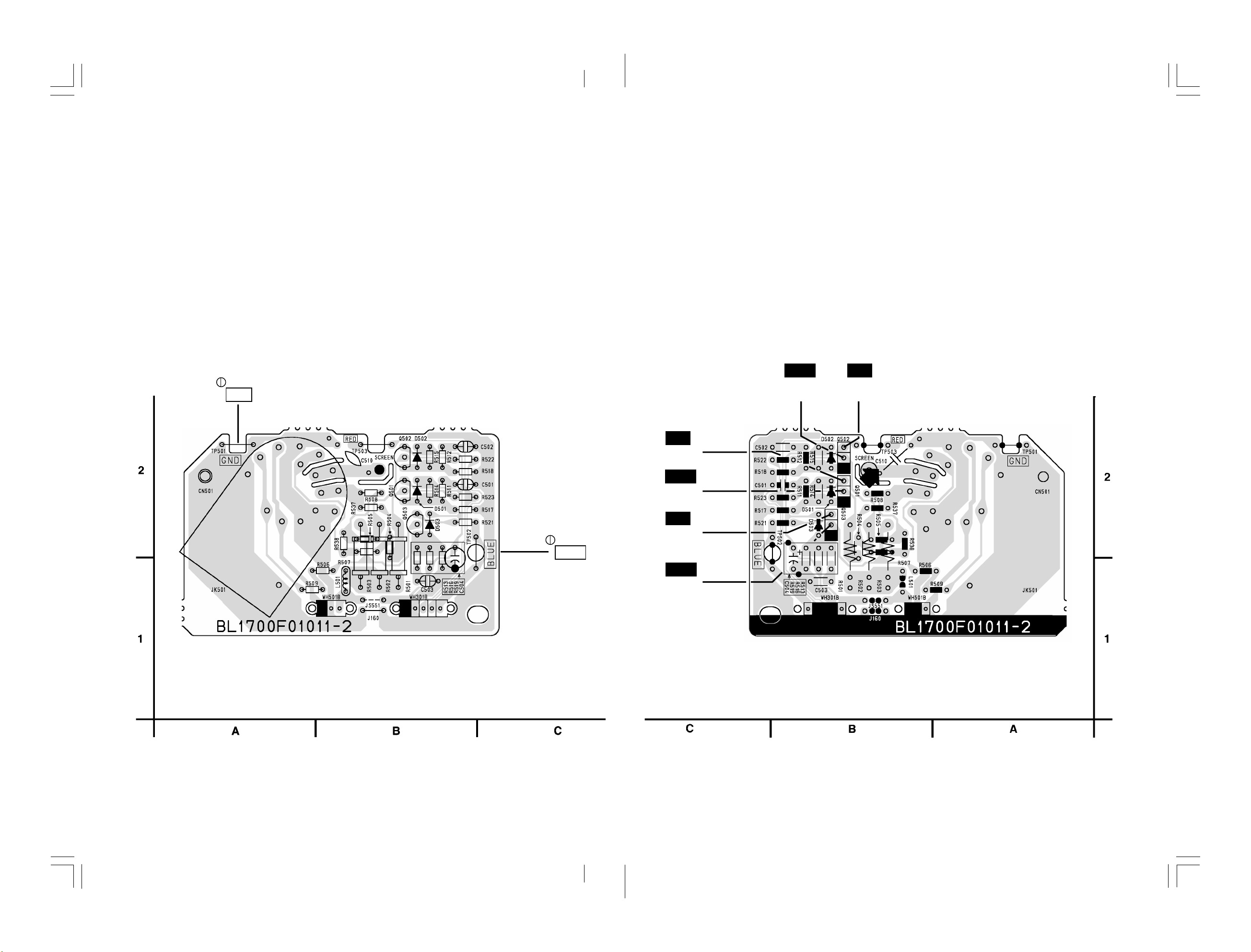

CBA Views and Test Points................................... 7-11

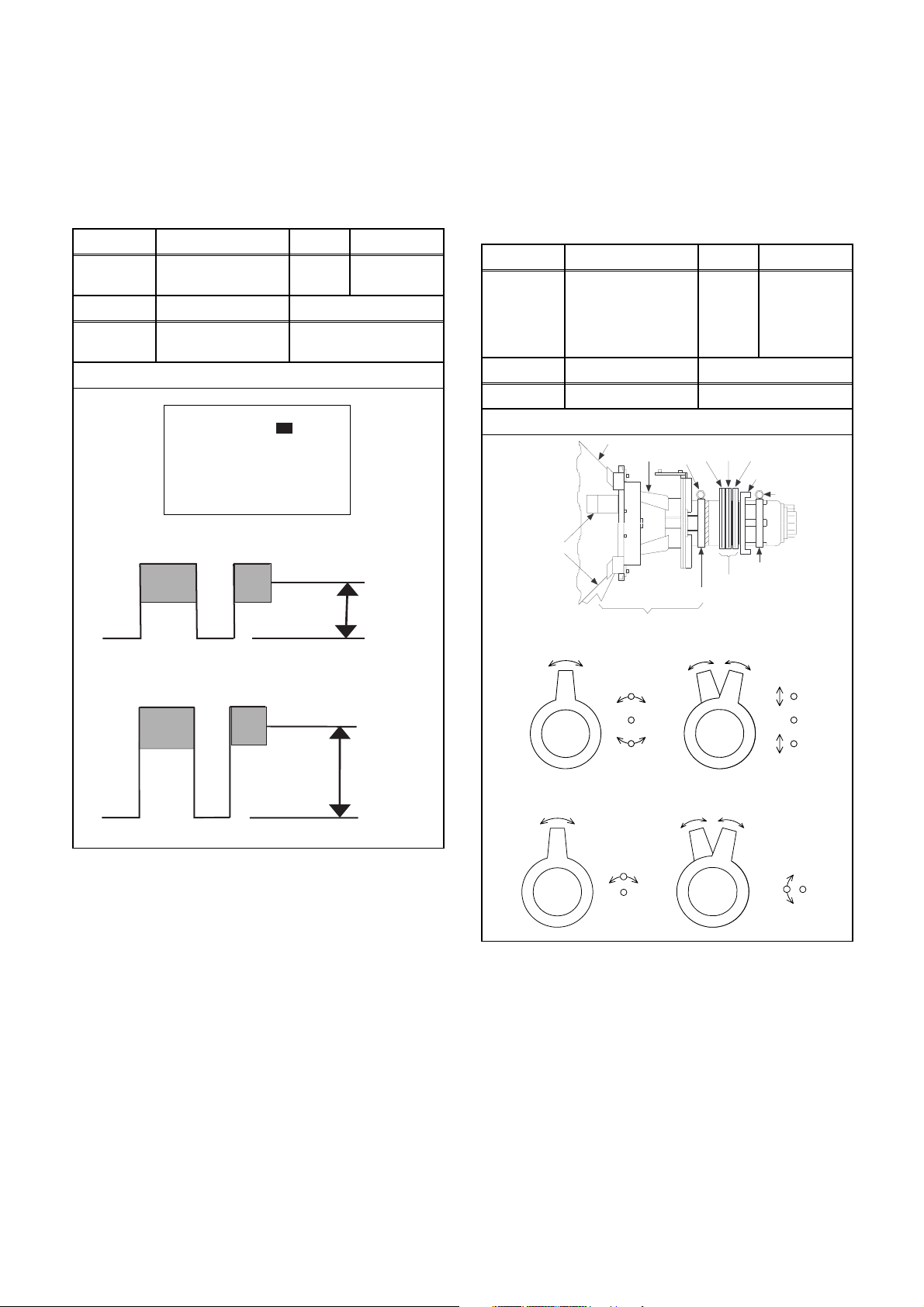

Wave Forms............................................................ 8-1

Wiring Diagram........................................................ 9-1

IC Pin Fuction........................................................ 10-1

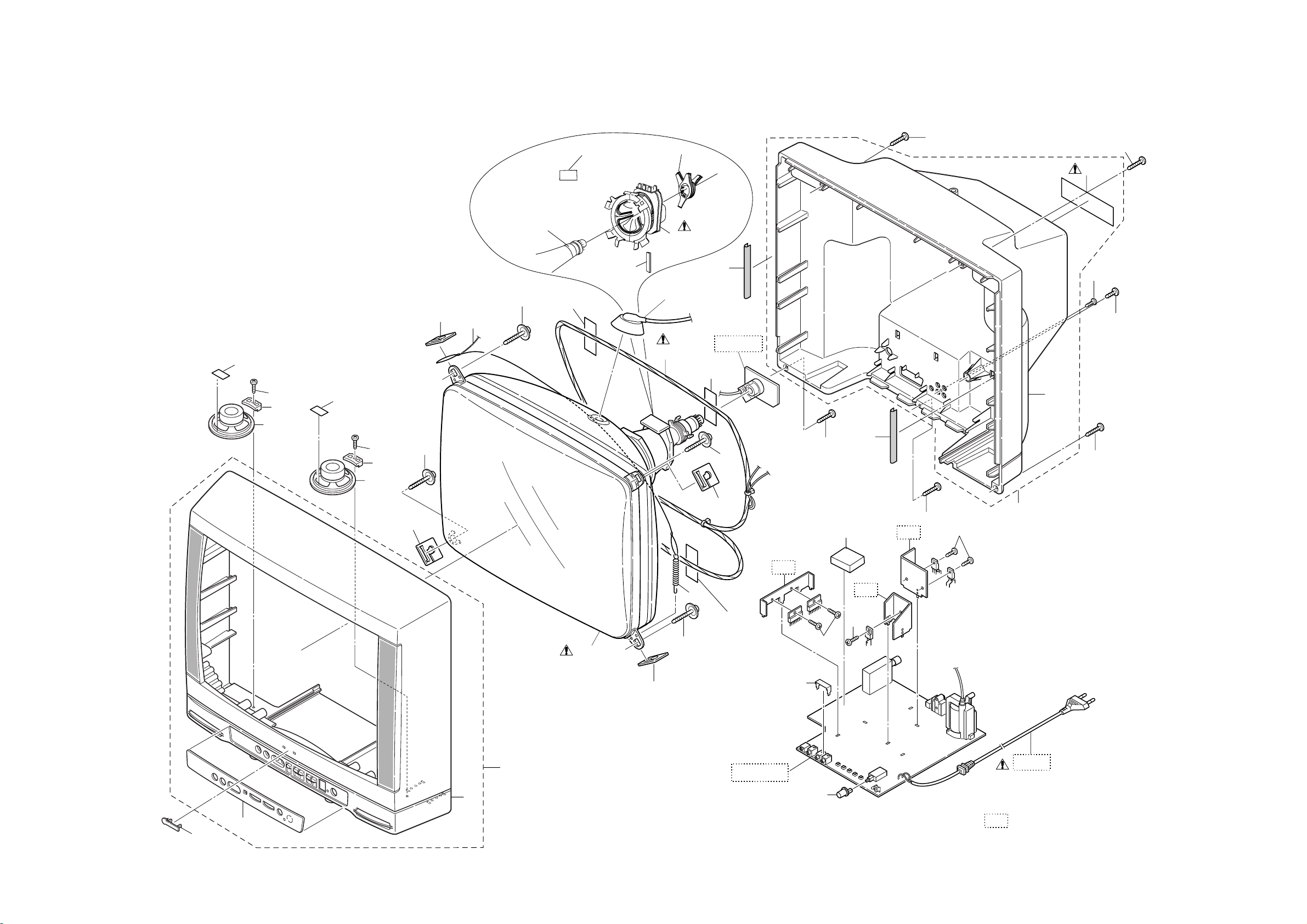

Cabinet Exploded View ..........................................11-1

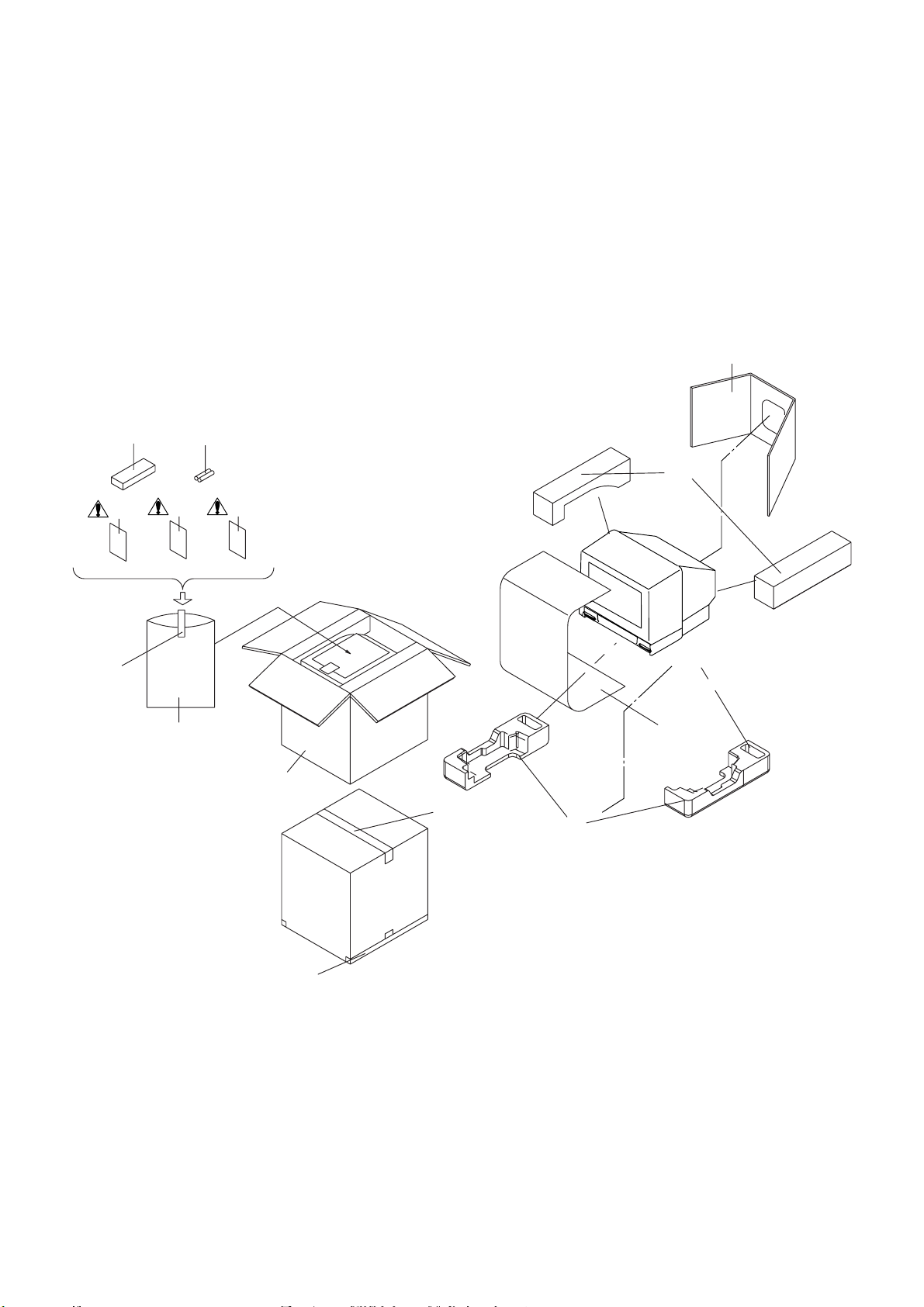

Packing Exploded View..........................................11-3

Mechanical Parts List ............................................ 12-1

Electrical Parts List................................................ 13-1

SPECIFICATIONS

< TUNER>

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture

2. Peak Picture Sens VHF

3. AFT Pull In Range
(10mV input)

ANT. Input ------------------------- 75ohm Unbal., F type
Reference Level ----------------- 20Vp-p (CRT Green Cathode)
Test Input Signal ----------------- 400Hz 30% modulation

Sound(B/G)

(D/K)

CATV

UHF

—MHz± 2.3

MHz
MHz
MHz

dBµV
dBµV
dBµV

38.0

32.5

31.5
15

15
15

< DEFLECTION>

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal

Vertical(PAL)

(NTSC)

2. Linearity Horizontal
Vertical

3. Over Scan — % 10 —

4. High Voltage — KV 26 —

KHz

Hz
Hz

%
%

15.625(PAL)

15.750(NTSC)
50
60

—
—

—
—

30
30
40

±

0.7

—
—

±

15

±

10

< VIDEO & CHROMA>

Description Condition Unit Nominal Limit

1. Misconvergence Center

2. Brightness APL 100% Ft-L 40 25

3. Color Temperature — °K 8000°K-10MPCD —

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 3 2.7

2. Audio Distortion (w/LPF) 500mW % 2 5

3. Audio Freq. Response

Note:

Nominal specifications represent the design specifications. All units should be able to approximate
these. Some will exceed and some may drop slightly below these specifications. Limit specifications
represent the absolute worst condition that still might be considered acceptable. In no case should
a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

Side

Corner

Vertical

−

3dB Hz 100~10K —

mm
mm
mm

Line
Line

—
—
—

350
400

0.4

1.5

2.1

—
—

1-1 L1700SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1.Before returning an instrument to the cus­tomer,

instrument, including, but not limited to, the following
items:

Be sure that no built-in protective devices are defec-

a.

tive and have been defeated during servicing. (1)
Protective shields are provided on this chassis to
protect both the technician and the customer. Cor­rectly replace all missing protective shields, includ­ing any removed for servicing convenience. (2)
When reinstalling the chassis and/or other assembly
in the cabinet, be sure to put back in place all
protective devices, including but not limited to, non­metallic control knobs, insulating fishpapers, adjust­ment and compartment covers/shields, and isola­tion resistor/capacitor networks.

this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who de­feat safety features or fail to perform safety
checks may be liable for any resulting dam­age.

Be sure that there are no cabinet openings through

b.

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spacing
between the picture tube and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and (3) an
improperly fitted and/or incorrectly secured cabinet
back cover.

c.Antenna Cold Check -

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmmeter
lead in turn to each tuner antenna input exposed
terminal screw and, if applicable, to the coaxial
connector. If the measured resistance is less than

1.0 megohm or greater than 5.2 megohm, an abnor­mality exists that must be corrected before the in­strument is returned to the customer. Repeat this
test with the instrument AC switch in the off position.

d.Leakage Current Hot Check -

ment completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an isola­tion transformer during this test.) Use a leakage

always make a safety check of the entire

Do not operate

With the instrument AC

With the instru-

current tester or a metering system that complies
with American National Standards Institute (ANSI)
C101.1 Leakage Current for Appliances and Under­writers Laboratories (UL) 1410, (50.7). With the
instrument AC switch first in the on position and then
in the off position, measure from a known earth
ground (metal water pipe, conduit, etc.) to all ex­posed metal parts of the instrument (antennas, han­dle brackets, metal cabinet, screw heads, metallic
overlays, control shafts, etc.), especially any ex­posed metal parts that offer an electrical return path
to the chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the instrument
power cord plug in the outlet and repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG

AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

CURRENT

TESTER

+

EARTH

GROUND

_

e.X-Radiation and High Voltage Limits -

cause the picture tube is the primary potential
source of X-radiation in solid-state TV receivers, it
is specially constructed to prohibit X-radiation emis­sions. For continued X-radiation protection, the re­placement picture tube must be the same type as
the original. Also, because the picture tube shields
and mounting hardware perform an X-radiation pro­tection function, they must be correctly in place.
High voltage must be measured each time servicing

Be-

2-1 SFTYP_01

is performed that involves B+, horizontal deflection
or high voltage. Correct operation of the X-radiation
protection circuits also must be reconfirmed each
time they are serviced. (X-radiation protection cir­cuits also may be called "horizontal disable" or "hold
down.") Read and apply the high voltage limits and,
if the chassis is so equipped, the X-radiation protec­tion circuit specifications given on instrument labels
and in the Product Safety & X-Radiation Warning
note on the service data chassis schematic. High
voltage is maintained within specified limits by close
tolerance safety-related components/adjustments
in the high-voltage circuit. If high voltage exceeds
specified limits, check each component specified on
the chassis schematic and take corrective action.

Read and comply with all caution and safety-related

2.

notes on or inside the receiver cabinet, on the re­ceiver chassis, or on the picture tube.

3.Design Alteration Warning -

to the mechanical or electrical design of this TV
receiver. Design alterations and additions, includ­ing, but not limited to circuit modifications and the
addition of items such as auxiliary audio and/or
video output connections, might alter the safety
characteristics of this receiver and create a hazard
to the user. Any design alterations or additions will
void the manufacturer’s warranty and may make
you, the servicer, responsible for personal injury or
property damage resulting therefrom.

Do not alter or add

4.Picture Tube Implosion Protection Warning

-

The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of the
same type number. Do not remove, install, or other­wise handle the picture tube in any manner without
first putting on shatterproof goggles equipped with
side shields. People not so equipped must be kept
safely away while picture tubes are handled. Keep
the picture tube away from your body. Do not handle
the picture tube by its neck. Some "in-line" picture
tubes are equipped with a permanently attached
deflection yoke; because of potential hazard, do not
try to remove such "permanently attached" yokes
from the picture tube.

5.Hot Chassis Warning -

Some TV receiver chassis are electrically con-

a.

nected directly to one conductor of the AC power
cord and may be safety-serviced without an isolation
transformer only if the AC power plug is inserted so
that the chassis is connected to the ground side of
the AC power source. To confirm that the AC power
plug is inserted correctly, with an AC voltmeter,
measure between the chassis and a known earth

ground. If a voltage reading in excess of 1.0V is
obtained, remove and reinsert the AC power plug in
the opposite polarity and again measure the voltage
potential between the chassis and a known earth
ground.

Some TV receiver chassis normally have 85V

b.

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can be
safety-serviced only with an isolation transformer
inserted in the power line between the receiver and
the AC power source, for both personnel and test
equipment protection.

Some TV receiver chassis have a secondary ground

c.

system in addition to the main chassis ground. This
secondary ground system is not isolated from the
AC power line. The two ground systems are electri­cally separated by insulation material that must not
be defeated or altered.

Observe original lead dress. Take extra care to

6.

assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts, c. the AC supply, d. high voltage,
and e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check AC
power cord for damage.

Components, parts, and/or wiring that appear to

7.

have overheated or are otherwise damaged should
be replaced with components, parts, or wiring that
meet original specifications. Additionally, determine
the cause of overheating and/or damage and, if
necessary, take corrective action to remove any
potential safety hazard.

8.Product Safety Notice -

mechanical parts have special safety-related char­acteristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identified
by a ( ! ) on schematics and in parts lists. Use of
a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The product’s safety is under review
continuously and new instructions are issued when­ever appropriate. Prior to shipment from the factory,
our products are strictly inspected to confirm they
comply with the recognized product safety and elec­trical codes of the countries in which they are to be
sold. However, in order to maintain such compli­ance, it is equally important to implement the follow­ing precautions when a set is being serviced.

Some electrical and

2-2 SFTYP_01

Precautions during Servicing

Parts identified by the ( ! ) symbol are critical for

A.

safety.
Replace only with part number specified.
In addition to safety, other parts and assemblies are

B.

specified for conformance with regulations applying
to spurious radiation. These must also be replaced
only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

Use specified internal wiring. Note especially:

C.

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads
Use specified insulating materials for hazardous live

D.

parts. Note especially:

1)Insulation Tape

2)PVC tubing

3)Spacers

4)Insulators for transistors.
When replacing AC primary side components

E.

(transformers, power cord, etc.), wrap ends of wires
securely about the terminals before soldering.

Observe that the wires do not contact heat produc-

F.

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

Check that replaced wires do not contact sharp

G.

edged or pointed parts.
When a power cord has been replaced, check that

H.

5~6 kg of force in any direction will not loosen it.
Also check areas surrounding repaired locations.

I.

Use care that foreign objects (screws, solder drop-

J.

lets, etc.) do not remain inside the set.
Crimp type wire connector

K.

The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent
shock hazards.

Replacement procedure

1)Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector (discard it).

2)Strip about 15 mm of the insulation from the ends of
the wires. If the wires are stranded, twist the strands
to avoid frayed conductors.

3)Align the lengths of the wires to be connected. Insert
the wires fully into the connector.

4)Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

When connecting or disconnecting the internal con-

L.

nectors, first, disconnect the AC plug from the AC
supply outlet.

2-3 SFTYP_01

Safety Check after Servicing

Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts
and wires have been returned to original positions.
Afterwards, perform the following tests and confirm the
specified values in order to verify compliance with safety
standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

AC Line Voltage Clearance Distance (d) (d’)

≥

110 to 240 V

This table is unofficial and for reference only. Be

Note:

sure to confirm the precise values.

3mm(d)

≥

6 mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio input and output ter­minals, microphone jacks, earphone jacks, etc.) is lower
than or equal to the specified value in the table below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

Table 2 : Leakage current ratings for selected areas

Z

1.5kΩ

Exposed Accessible Part

0.15µF

Earth Ground

B

Power Cord Plug Prongs

Fig. 1

AC Voltmeter
(High Impedance)

Fig. 2

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

110 to 240 V

This table is unofficial and for reference only. Be sure to confirm the precise values.

Note:

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

2-4 SFTYP_01

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a.The output pin of the 3 pin Regulator ICs is indicated

as shown.

Top View

Out

b.For other ICs, pin 1 and every fifth pin are indicated

as shown.

Input

In

Pin 1

c.The 1st pin of every male connector is indicated as

shown.

Bottom View

5

10

(2)Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

Caution:

1.Do not supply hot air to the chip parts around the flat
pack-IC for over 6 seconds because damage to the
chip parts may occur. Put masking tape around the
flat pack-IC to protect other parts from damage.
(Fig. S-1-2)

2.The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Pin 1

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1)Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 SFTY_08

With Soldering Iron:

(1)Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2)Lift each lead of the flat pack-IC upward one by one,

using a sharp pin or wire to which solder will not
adhere (iron wire). When heating the pins, use a fine
tip soldering iron or a hot air desoldering machine.
(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by glue.
When the flat pack-IC is removed from the CBA,
handle it gently because it may be damaged if force
is applied.

Hot Air Blower

or

Iron Wire

Soldering Iron

Sharp
Pin

Fine Tip
Soldering Iron

Fig. S-1-4

(3)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

With Iron Wire:

(1)Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting point,

as shown in Fig. S-1-5.

(3)While heating the pins using a fine tip soldering iron

or hot air blower, pull up the wire as the solder melts
so as to lift the IC leads from the CBA contact pads
as shown in Fig. S-1-5.

(4)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

To Solid
Mounting Point

CBA

Tweezers

Fig. S-1-5

Fine Tip
Soldeing Iron

Flat Pack-IC

Fig. S-1-6

3-2 SFTY_08

2. Installation

(1)Using desoldering braid, remove the solder from the

foil of each pin of the flat pack-IC on the CBA so you
can install a replacement flat pack-IC more easily.

(2)The " ● " mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

(3)Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " ● " mark.

Fig. S-1-7

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is properly
grounded to remove any static electricity that may be
charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with
proper grounding (1MΩ) on the workbench or other
surface, where the semiconductors are to be placed.
Because the static electricity charge on clothing will not
escape through the body grounding band, be careful to
avoid contacting semiconductors with your clothing.

< Incorrect >

CBA

Presolder

Flat Pack-IC

CBA

< Correct >

Grounding Band

Fig. S-1-8

1MΩ

CBA

1MΩ

Conductive Sheet or
Copper Plate

3-3 SFTY_08

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the cables
as they were.

Caution !

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN501
[3] Main CBA 3,5 CN571 3
[4] CRT 4 4(S-2), Anode Cap 4

↓↓↓ ↓ ↓

Part

Rear
Cabinet

Fig.

No

1,2

➀➁➂ ➃ ➄

Remove/*unlock/

.

release/unplug/

unclamp/desolder

5(S-1), 1(S-3)

, 1(S-4)

Note

1

2

Note :

Order of steps in procedure. When reassembling,

.

➀

follow the steps in reverse order.
These numbers are also used as the Identification
(location) No. of parts in figures.

Parts to be removed or installed.

.

➁

Fig. No. showing procedure of part location

.

➂

Identification of part to be removed, unhooked, un-

.

➃

locked, released, unplugged, unclamped, or
desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Con­nector, *=Unhook, Unlock, Release, Unplug, or
Desolder

2(S-2) = two Screws (S-2)
Refer to the following "Reference Notes in the

.

➄

Table."

Reference Notes in the Table

1.Removal of the Rear Cabinet. Remove screws
5(S-1) and (S-3) then slide the Rear Cabinet back­ward.

2.Removal of the CRT CBA. Disconnect CN501 then
pull the CRT CBA backward.

3.Removal of the Main CBA. Disconnect CN571 on
the Main CBA then slide the Main CBA backward.

Caution !

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

4.Removal of the CRT. Remove screws 4(S-2) and
Anode Cap. then slide the CRT backward.

4-1 L1700DC

S-1

AUDIO

R

L

OUT

R

VIDEO

L(MONO)

IN

S-3S-4

S-1

[1] Rear Cabinet

[3]Main CBA

ANT.IN

Front Cabinet

Control Plate

Fig. 1 Fig. 3

Control Plate

S-1

S-1

S-1

[1]Rear Cabinet

Front Cabinet

S-1

S-1

Control Plate

Degauss Holder

CRT Ground Wire

S-2

S-2

[4]CRT

Front Cabinet

Anode Cap

Degaussing Coil

[2]CRT CBA

S-2

S-2

Fig. 2

Fig. 4

4-2 L1700DC

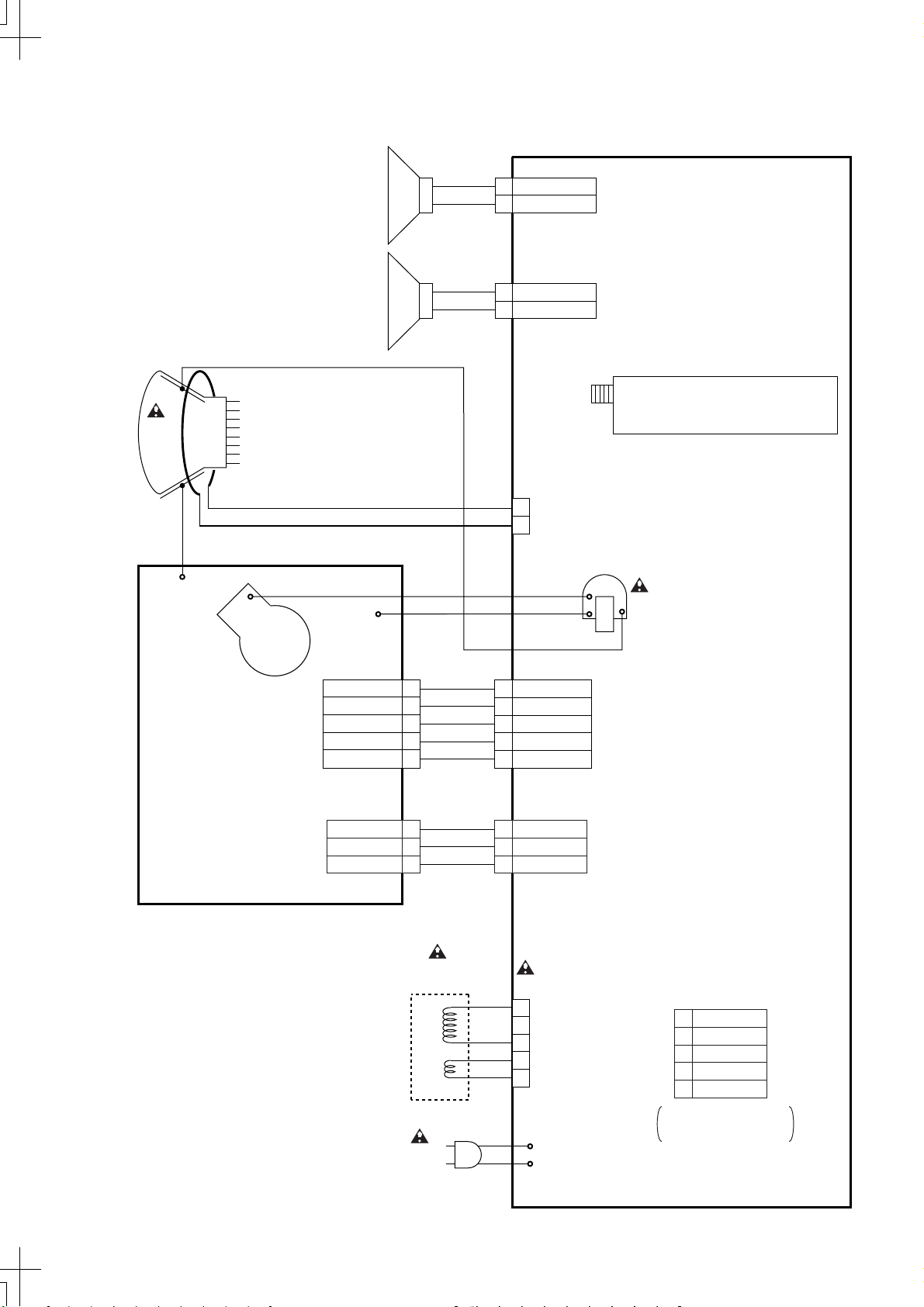

TV Cable Wiring Diagram

L691 DEGAUSSING COIL

MAIN CBA

CN802

SP802

CLN802

SP801

CLN801

CN801

AC601
AC CORD

CN691

FLYBACK TRANSFORMER

T571

CN571

WH501A

FOCUS

SCREEN

TU1
TUNER

WH301A

JK501

WH301B

WH501B

ANODE

CN501

TO CRT GROUND

4-3 L1700DC

Fig. 5

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:
"CBA" is abbreviation for "Circuit Board Assem­bly".

NOTE:

Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to perform these adjustments only
after all repairs and replacements have been com­pleted.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1.NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray
Scale, Monoscope, Multi-Burst)

2.DC Voltmeter

3.Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div,
F-Range: DC~AC-60MHz

4.Plastic Tip Driver

5. Remote control unit:Part No. N0121UD or N0134UD

6.DC power supply 13.2V/5A

How to make Service remote control unit:

1. Prepare normal remote control unit. (Part No. N0121UD
or N0134UD) Remove 3 Screws from the back lid.
(Fig. 1-1)

2.Added J1 (Jumper Wire) to the remote control CBA.
(Fig. 1-2)

SCREWS

REMOTE CONTROL UNIT

J 1

REMOTE CONTROL CBA

Fig. 1-1

Fig. 1-2

How to set up the service mode:

Service mode:

1.Use the service remote control unit.

2.Turn the power on. (Use main power on the TV unit.)

3.Press " SLEEP " button on the service remote
control unit. Version of micro computer will display
on the CRT. (Ex: 056-0.07)

4.When CPU version is 054-0.13: Check the display
on the lower left is "00" and if it is not "00", set it at
"00" according to "3-1 FRENCH, ACCESS CODE,
VIDEO TONE".

When CPU version is 200-0.07: Confirm that the
character of U ( U.S.A. model ) is indicated on the
bottom left of the CRT. If the character of C ( CAN­ADA model ) is indicated, perform "3-1 Setting for
FRENCH data Values".

1. DC 105V Adjustment

Purpose:
Symptom of Misadjustment:

the unit does not operate correctly.

Test Point Adj. Point Mode Input

Note:

1.Connect DC Volt Meter to TP601 and TP300(GND).

2. Adjust VR661 so that the voltage of TP601 becomes

To obtain correct operation.

The picture is dark and

TP601
TP300
(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +114±1.0V DC.

TP601, TP300(GND), VR661 --- Main CBA

+113±1.0V DC.

VR661 --- ---

2. Black Strech Control Adjustment

Purpose:
Symptom of Misadjustment:

pear correctly.

Note:

1.Enter the Service mode. (See page 5-1)

2.Press " 6 " button on the Service remote control unit.

3.Press " CH ▲ / ▼ " buttons on the Service remote

4.Press " 6 " button on the Service remote control unit.

5.Press " CH ▲ / ▼ " buttons on the Service remote

6.Turn the power off and on again.

To show the fine black color.

Black color will not ap-

Use Service remote control unit.

" B-S " is indicated.

control unit so that display will change " OFF ", " 0
", " 1 ", " 2 " and " 3 ". Then choose " B-S OFF ".

" B-S*2 " is indicated.

control unit so that display will change " 0", " 1 ". " 2
" and " 3 ". Then choose " B-S*2 0".

(Main power button on the TV unit.)

5-1 L1700EA

3-1. Setting for 7F, H/L STEP, TV
DELAY, SOUND SYS, BAND
SELECT, VIF FREQUENCY
and RF AMP data Values

General

1.Enter the Service mode. (See page 5-1)

2.Press " VOL ▼ " button on the Service remote
control unit. Display changes "C/D/SCM B-L",
"VCO", "7F", "H/L STEP", "TV DELAY", "SOUND
SYSTEM", "VHFL/VHFH/UHF", "VIF FREQ"and
"RF AMP" cyclically when " VOL ▼ " button is
pressed.

7F

1.Press " VOL ▼ " button on the Service remote
control unit. Then select 7F display.

2.Press " CH ▲ / ▼ " buttons on the Service remote
control unit. Then choose 7F=FF.

H/L STEP

1.Press " VOL ▼ " button on the Service remote
control unit. Then select H/L STEP display.

2.Press "1" button, you can select H-STEP(R).
Press "2" button, you can select H-STEP(B).
Press "3" button, you can select L-STEP(R).
Press "4" button, you can select L-STEP(B).
Press " CH ▲ / ▼ " button on the Service remote

control unit. Then choose:
H-STEP(R)=2
H-STEP(B)=12
L-STEP(R)=2
L-STEP(B)=8

TV DELAY

1.Press " VOL ▼ " button on the Service remote
control unit. Then select TV DELAY display.

2.Press "1" button, you can select PAL DELAY.
Press "2" button, you can select SECAM DELAY.
Press " CH ▲ / ▼ " button on the Service remote

control unit. Then choose:
PAL DELAY=2
SECAM DELAY=7

SOUND SYS

1.Press " VOL ▼ " button on the Service remote
control unit. Then select SOUND SYS display.

2.Press " CH ▲ / ▼ " buttons on the Service remote
control unit. Then choose SOUND SYS=OFF.

BAND SELECT

1.Press " VOL ▼ " button on the Service remote
control unit. Then select VHFL/VHFH/UHF ,
VHFL/VHFH, VHFH/UHF or UHF display.

2.Press " CH ▲ / ▼ " buttons on the Service remote
control unit. Then choose VHFL/VHFH/UHF.

VIF FREQUENCY

1.Press " VOL ▼ " button on the Service remote
control unit. Then select VIF FREQ display.

2.Press " CH ▲ / ▼ " buttons on the Service remote
control unit. Then choose VIF FREQ=38.

RF AMP

1.Press " VOL ▼ " button on the Service remote
control unit. Then select RF AMP display.

2.Press " CH ▲ / ▼ " buttons on the Service remote
control unit. Then choose RF AMP=OFF.

Note: C/D

at this moment.

and

data values are no need to adjust

VCO

3-2. Setting for CONTRAST,
COLOUR AND TINT
data Values

1.Enter the Service mode. (See page 5-1)

2.Press " PICTURE SELECT " button on the Service
remote control unit. Display changes " BRIGHT ", "
CONTRAST ", " COLOUR ", " TINT " cyclically when
" PICTURE SELECT " button is pressed.

Press " CH ▲ / ▼ " buttons on the Service remote
control unit so that the value of :

CONTRAST becomes 84
COLOUR becomes 52
TINT becomes 60

Note: BRIGHT

moment.

data value is no need to adjust at this

4. H fo Adjustment

Purpose:
Symptom of Misadjustment:

correct, sqew distortion will appear on the screen.

Test Point Adj. Point Mode Input

Note:

Use Service remote control unit.

1.Connect Frequency Counter to TP302 and ground.

2.Set the unit to the VIDEO mode which is located

To get correct horizontal frequency.

. If H f

TP302

Tape M. EQ. Spec.

----

before CH2 and no input is necessary. Enter the
Service mode. (See Page 5-1)

CH ▲ / ▼ button

["H-ADJ"] MODE

Frequency

Counter

TP302 --- Main CBA

adjustment is in

0

----

15.625 kHz±150Hz

5-2 L1700EA

3.Operate the unit for at least 20 minutes.

4.Press "2" button on the Service remote control unit
and select H-ADJ Mode. (By pressing "2" button the
display will change from TV AGC to H-ADJ)

5.Press " CH ▲ / ▼ " button on the Service remote
control unit so that the display will change " 0 " ~ " 7 ".
At this moment, Choose display one of them from
" 0 " ~ " 7 " when the Frequency Counter shows 15.625
kHz±150Hz or closer.

6. Turn the power off and on again. (Main Power button
on the TV unit.)

5. VCO Adjustment

Purpose:
Symptom of Misadjustment:

rectly and/or synchronization is faulty.

Test Point Adj. Point Mode Input

Note:

1. Disconnect the RF input and set the unit to Channel 4.

2.Enter the Service mode. (See Page 5-1)

3.Press " 3 " button on the Service remote control unit.

4. If the display color is changed from red to green, This

5. Turn the Power off and on again. (Main power button

To operate VCO correctly.

VCO does not work cor-

--- --- No signal

Tape M. EQ. Spec.

--- --- ---

Use service remote control unit.

The Auto VCO adjustment is started.

adjustment is done.

on the TV unit.)

6. AGC Adjustment

Purpose:
Symptom of Misadjustment:

nize correctly when RF input level is too weak and
picture distortion may occur if it is too strong.

TP301 CH ▲ / ▼ buttons RF

Notes:

Use Service remote control unit.

1.Enter the Service mode. (See Page 5-1) Then

Set AGC (Auto Gain Control) Level.

AGC does not synchro-

Test

Point

Tape M. EQ. Spec.

---

TP301 --- Main CBA

press number " 2 " button on the Service remote
control unit.

Adj. Point Mode Input

Pattern Generator

DC Volt Meter

+2.2±0.1VDC

Color Bar

62.25MHz
60dBµV

2.Receive the Color Bar signal for channel 4
(62.25MHz). (RF Input Level: 60dBµV)

3.Press " CH ▲ / ▼ " buttons so that the voltage of
TP301 becomes +2.2±0.1V DC.

4. Turn the Power off and on again. (Main power button
on the TV unit.)

7. Black Level Adjustment

Purpose:
Symptom of Misadjustment:

correct, Proper brightness can not be obtained by ad­justing the Bright ness Control.

Note:

1.Enter the Service mode. (See page 5-1).

2. Press " MENU " button on the Service remote control

3.Press " CH ▲ / ▼ " buttons on the Service remote

4.Turn the power off and on again. (Main power button

Set Sub-bright Level

If Sub-brightness is in-

TP502, TP501 (GND) --- CRT CBA

unit and select " BRT "mode. (Display changes "
BRT ", " CNT ", " CLR " and " TNT "cyclically when
MENU button is pressed).

control unit so that the value of " BRT " becomes

128.

on the TV unit.)

8. C-Trap Adjustment

Purpose:
Symptom of Misadjustment:

incorrect, stripes will appears on the screen.

Test Point Adj. Point Mode Input

Note:

Use Service remote control unit.

1.Connect Oscilloscope to TP502 and TP501 (GND).

2.Enter the Service mode. (See Page 5-1) Receive

3.Press " 0 " button on the Service remote control unit

4.Press " CH ▲ / ▼ " buttons on the Service remote

5.Turn the power off and on again. (Main power button

To get minimum leakage of the color signal carrier.

If C- Trap Adjustment is

TP502

(Blue)
TP501
(GND)

Tape M. EQ. Spec.

---- Oscilloscope ----

color bar signal from RF Input.

and select C-TRP Mode.

control unit so that the display will change " 0 ", " 1
", " 2 " and " 3 ". Choose display " 0 ", " 1 ", " 2 " or
" 3 " when B-Out (3.58MHz) value becomes
minimun on the oscilloscope reading.

on the TV unit.)

CH ▲ / ▼ buttons RF Color Bar

TP502, TP501 --- CRT CBA

5-3 L1700EA

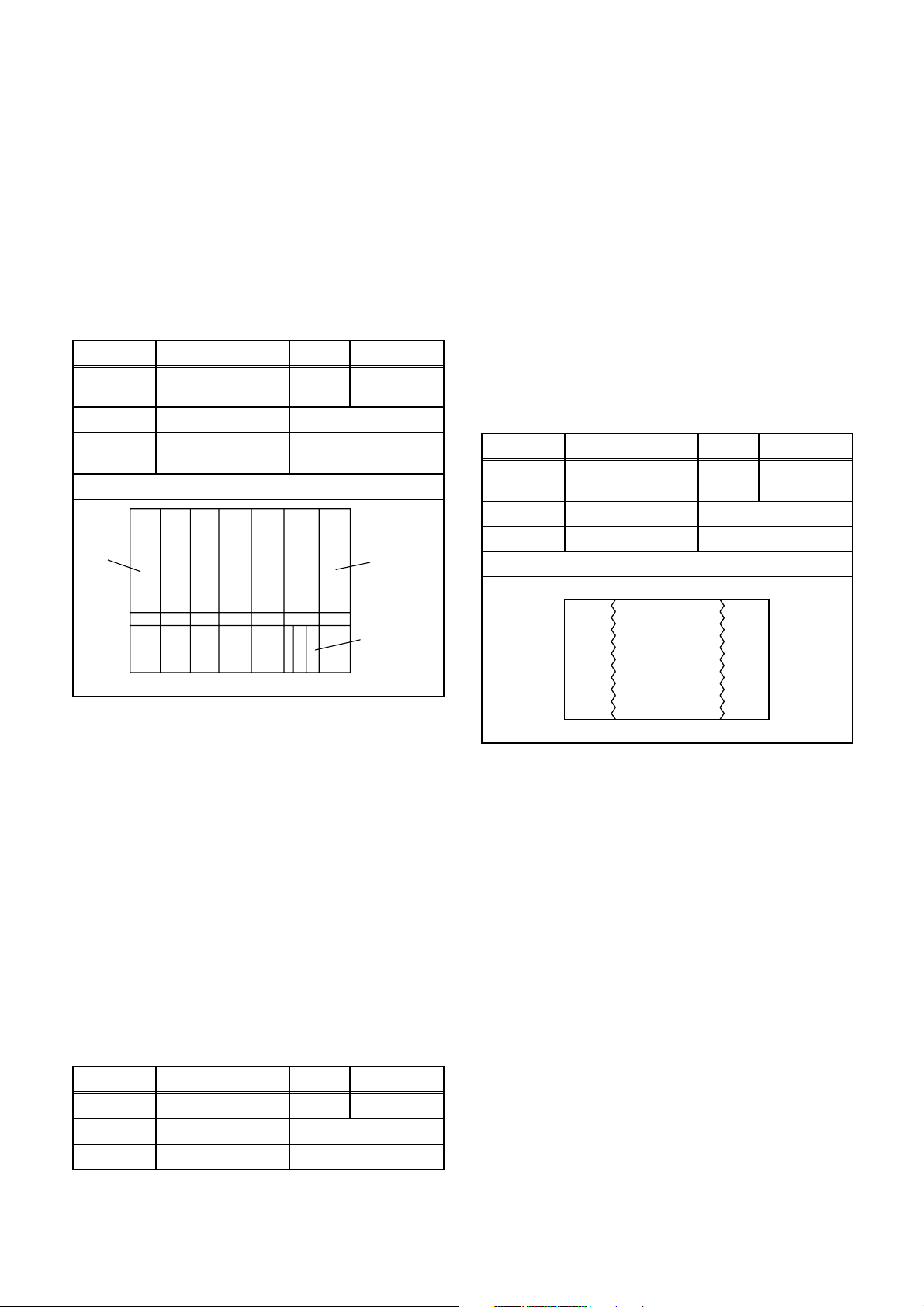

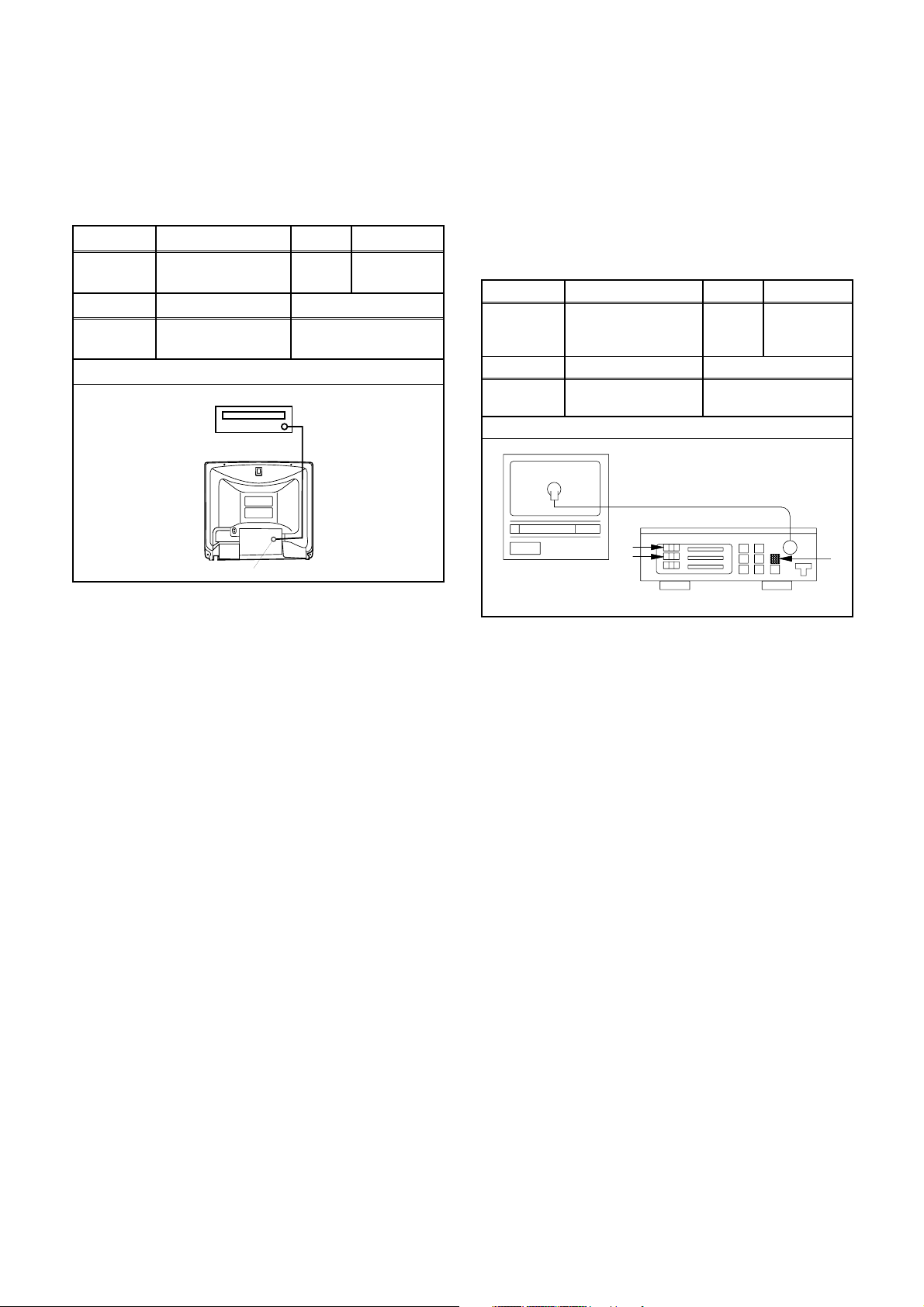

9. V. Size Adjustment

Purpose:
Symptom of Misadjustment:

size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

Note:

1.Operate the unit for at least 20 minutes.

2.Enter the Service mode. (See page 5-1)

3.Receive the Monoscope Pattern.

4. Press " 9 " button on the Service remote control unit and

5.Press " CH ▲ / ▼ " buttons on the Service remote

6.Turn the power off and on again. (Main power button

To obtain correct vertical width of screen image.

If V. Size is incorrect, vertical

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Use service remote control unit.

select " V-S "mode. (Display changes " V-S " and " V-P "
cyclically when " 9 " button is pressed).

control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

on the TV unit.)

Screen Control

CH ▲ / ▼ buttons

[ V-S ] Mode

RF Monoscope

10. V. Position Adjustment

Use Service remote control unit

Note:

1.Operate the unit for at least 20 minutes.

2.Enter the Service Mode. (See page 5-1)

3.Receive the Monoscope Pattern.

4.Press " 9 " button on the Service remote control unit
and select " V-P "mode. (Display change " V-S " and
" V-P " cyclically when " 9 " button is pressed).

5.Press " CH ▲ / ▼ " buttons on the Service remote
control unit so that the top and bottom of the
monoscope pattern will be equal of each other.

6. Turn the Power off and on again. (Main power button
on the TV unit.)

11. H. Position Adjustment

Purpose:

image.

Symptom of Misadjustment:

horizontal position of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

To obtain correct horizontal position of screen

If H. Position is incorrect,

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Screen Control

CH ▲ / ▼ buttons

[ H-P ] Mode

RF Monoscope

Purpose:

image.

Symptom of misadjustment:

vertical height of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

To obtain correct vertical width of screen

If V. Position is incorrect,

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Screen Control

CH ▲ / ▼ buttons

[ V-P ] Mode

RF Monoscope

Use Service remote control unit

Note:

1.Operate the unit for at least 20 minutes.

2.Enter the Service mode. (See page 5-1)

3.Receive the Monoscope Pattern.

4.Press " 8 " button on the remote control unit and
select " H-P "mode.

5.Press " CH ▲ / ▼ " buttons on the Service remote
control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

6. Turn the Power off and on again. (Main power button
on the TV unit.)

5-4 L1700EA

12. Cut-off Adjustment

Purpose:

screen voltage.

Symptom of Misadjustment:

dish, greenish or bluish.

Test Point Adj. Point Mode Input

To adjust the beam current of R, G, B, and

White color may be red-

---

Screen-Control

CH ▲ / ▼ buttons

RF

Raster

Tape M. EQ. Spec.

--- Pattern Generator

See Reference

Notes below.

Figure

PATTERN GENERATOR

Black

pure white if not,then attempt the Cut off adjustment
again.

13. White Balance Adjustment

Purpose:

for pure white.

Symptom of Misadjustment:

or reddish.

Test Point Adj. Point Mode Input

Screen CH ▲ / ▼ buttons RF

To mix red, green and blue beams correctly

White becomes bluish

Raster

(APL 100%)

Tape M. EQ. Spec.

Pattern Generator,

Color analyzer

See below

Figure

White

RF INPUT

Screen Control FBT --- Main CBA

Note:

Fig. 2

F.B.T= Fly Back Transformer
Use Service remote control unit

1.Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2.Input the Black Raster Signal from RF Input.

3.Enter the Service mode. (See page 5-1)

4.Press " VOL ▼ " button on the Service remote
control unit and select " C/D/SCM B-L " mode.
(Display changes " C/D/SCM B-L ", "VCO ", " 7F ",
" H/L STEP ", " TV DELAY", "SOUND SYSTEM",
"VHFL/VHFH/UHF", "VIF FREQ", "RF AMP" cycli­cally when " VOL ▼ " button is pressed.) then press
" 1 ". The display will momentarily show " CUT OFF
R " (R= Red). Now there should be a horizontal line
across the center of the picture tube. If needed
gradually turn the screen control on the flyback,
clockwise until the horizontal line appears. Adjust
the Red Cut off by pressing the " CH ▲ / ▼ " buttons.
Proceed to Step 5 when the Red Cut off adjustment
is done.

5.Press the " 2 "button. The display will momentarily
show " CUT OFF G " (G=Green). Adjust the Green
Cut off by pressing the " CH ▲ / ▼ " buttons. Proceed
to step 6 when the Green Cut off adjustment is done.

6.Press the " 3 " button. The display will momentarily
show " CUT OFF B " (B=Blue). Adjust the Blue cut
off by pressing the " CH ▲ / ▼ " buttons. When done
with steps 4, 5 and 6 the horizontal line should be

AAA

Use Service remote control unit

Note:

Color Analyzer

Fig. 3

1.Operate the unit more than 20 minutes.

2.Face the unit to east. Degauss the CRT using De­gaussing Coil.

3.Input the White Raster (APL 100%).

4.Set the color analyzer to the CHROMA mode and
after zero point calibration, bring the optical receptor
to the center on the tube surface (CRT).

5.Enter the Service mode . Press " VOL ▼ " button on
the Service remote control unit and select "
C/D/SCM B-L " mode. (Display changes " C/D/SCM
B-L ", "VCO ", " 7F ", " H/L STEP ", " TV DELAY",
"SOUND SYSTEM", "VHFL/VHFH/UHF", "VIF
FREQ", "RF AMP" cyclically when " VOL ▼ " button
is pressed.) then Press No. 8 button on the Service
remote control Unit.

6. Press No. 4 button on the service remote control unit
for Red adjustment. Press N0. 5 button on the
Service remote control unit for Blue adjustment.

7.In each color mode, Press " CH ▲ / ▼ " button to
adjust the values of color.

8.Adjusting Red and Blue color so that the tempreture
becomes 8000K (x : 300 / y : 290) ±3%.

9.At this time, Re-check that Horizontal line is white.
If not, Re-adjust Cut-off Adjustment until the Hori­zontal Line becomes pure white.

5-5 L1700EA

10.Turn off and on again to return to normal mode.
Receive APL 100% white signal and Check Chroma
temperatures become 8000K (x : 300 / y : 290) ±3%.

Confirm that Cut Off Adj. is correct after this

Note:

adjustment, and attempt Cut Off Adj. if needed.

14. Sub-Brightness Adjustment

Purpose:
Symptom of Misadjustment:

correct, proper brightness cannot be obtained by adjust­ing the Brightness Control.

To get proper brightness.

If Sub-Brightness is in-

1.Operate the unit more than 30 minutes

2.Face the unit to the East and Degauss the CRT
using Degaussing Coil.

3.Input the Monoscope Pattern.

4.Adjust the Focus Control on the FBT to obtain clear
picture.

The following 2 adjustments normally are not at­tempted in the field. Only when replacing the CRT
then adjust as a preparation.

16. Purity Adjustment

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

IQW Setup level --- 0 IRE

Note:

Use Service remote control unit

1.Enter the Service mode. (See page 5-1)
Then input IQW signal from RF Input.

2. Press " PICTURE SELECT " button on the Service
remote control unit and Select " BRIGHT " mode. (Dis­play changes " BRIGHT ", " CONTRAST ", " COLOUR
", and " TINT " cyclically when " PICTURE SELECT "
button is pressed). Press " CH ▲ / ▼ " buttons so that
the bar is just visible (See above figure).

3.Turn the power off and on again. (Main power button
on the TV unit.)

CH

▲ / ▼ buttons

PAL Pattern

Generator

Figure

RF IQW

See below

Black

This bar
just
visible

Fig. 4

15. Focus Adjustment

Purpose:
Symptom of Misadjustment:

incorrect, blurred images are shown on the display.

Set the optimum Focus.

If Focus Adjustment is

Purpose:
Symptom of Misadjustment:

ment is incorrect, large areas of color may not be
properly displayed.

Test Point Adj. Point Mode Input

GREEN

1.Set the unit facing east.

2.Operate the unit for over 30 minutes before adjust-

3.Fully degauss the unit using an external degaussing

4.Loosen the screw on the Deflection Yoke Clamper

5. Loosen the Ring Lock and adjust the Purity Magnets

6.Slowly push the Deflection Yoke toward bell of CRT

7.Tighten the clamp screw on the Deflection Yoke.

To obtain pure color.

If Color Purity Adjust-

---

Tape M. EQ. Spec.

--- Pattern Generator See below.

ing.

coil.

and pull the Deflection Yoke back away from the
screen. (See Fig. 6)

so that a red field is obtained at the center of the
screen. Tighten Ring Lock. (See Fig. 5,6)

and set it where a uniform red field is obtained.

Deflection Yoke

Purity Magnet

Figure

RED

--- Red Color

BLUE

Fig. 5

Test Point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator See below.

Focus VR (FBT) --- Main CBA FBT= Fly Back Transformer

Note:

5-6 L1700EA

17. SECAM BLACK LEVEL
Adjustment

Purpose:
Symptom of Misadjustment:

ment is incorrect, the black may not became pure.

Test Point Adj. Point Mode Input

CN301PIN

To obtain proper secam black.

If SECAM black Adjust-

No.1

CH

▲ / ▼ buttons

RF

SECAM

Gray Scale

Tape M. EQ. Spec.

---

SECAM Pattern

Generator

See below.

Figures

44

056 -007

T0
FF

B1

44

within
0±10mV

Fig. 6

Fig. 7

18. Convergence Adjustment

Purpose:

and blue beams.

Symptom of Misadjustment:

ment is incorrect, the edge of white letters may have
color edges.

Test Point Adj. Point Mode Input

To obtain proper convergence of red, green

If Convergence Adjust-

C.P. Magnet

---

(RB),

C.P. Magnet

(RB-G),

Dot Pattern

--­Crosshatch

Deflection Yoke

Tape M. EQ. Spec.

--- Pattern Generator See below.

Figures

CRT

RB-GRB

C.P. MAGNET CLAMPER

C.P. MAGNET

RING LOCK

SCREW

DY WEDGE

COIL

SCREW

DEFLECTION YOKE

PURITY

COIL CLAMPER

C.P. MAGNET (RB)

R

or

Fig. 9

R

within
40±20mV

Fig. 8

1.Enter the Service mode. (See page 5-1)

2.Press " VOL ▼ " button on the Service remote
control unit and select " C/D/SCM B-L " mode.
(Display changes " C/D/SCM B-L ", "VCO ", " 7F ",
" H/L STEP ", " TV DELAY", "SOUND SYSTEM",
"VHFL/VHFH/UHF", "VIF FREQ", "RF AMP" cycli­cally when " VOL ▼ " button is pressed.)

3.Press " 7 ". The display will momentarily show "
SECAM B-L ". Adjust the blue by pressing the " CH

/ ▼ " buttons.

▲

Adjust the blue like Fig.8.

4.Press " 6 ". The display will momentarily show "
SECAM B-L ". Adjust the blue by pressing the " CH

/ ▼ " buttons like Fig.7.

▲

G

B

G

B

Fig. 10

C.B. MAGNET (RB-G)

RB

RB

G

G

Fig. 11

1.Loosen the Ring Lock and align red with blue dots
or Crosshatch at the center of the screen by rotating
(RB) C.P. Magnets. (See Fig. 10)

2.Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet. (See Fig.

11)

3.Fix the C.P. Magnets by tightening the Ring Lock.

4.Remove the DY Wedges and slightly tilt the Deflec­tion Yoke horizontally and vertically to obtain the
best overall convergence.

5.Fix the Deflection Yoke by carefully inserting the DY
Wedges between CRT and Deflection Yoke.

5-7 L1700EA

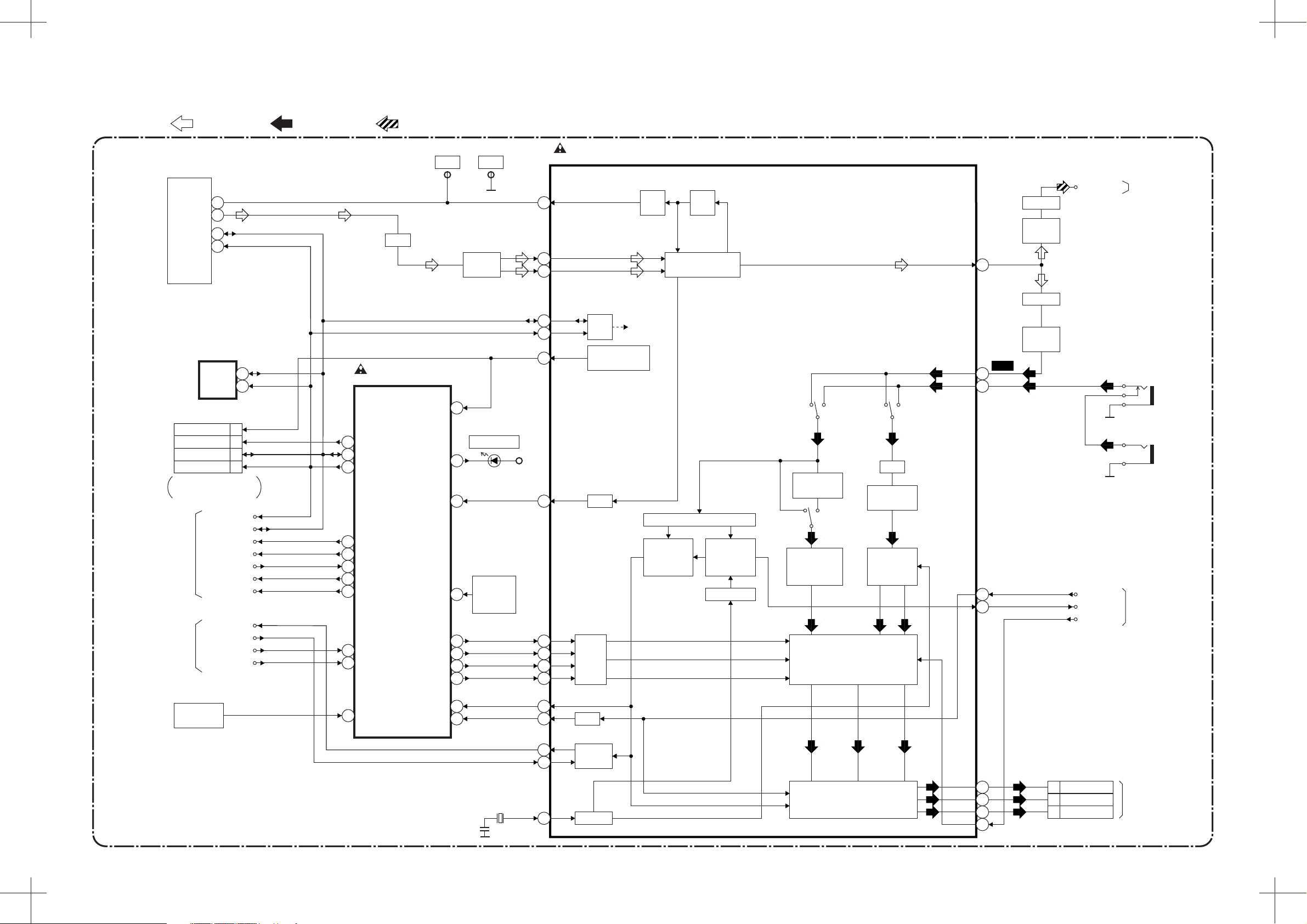

IF/Video/System Control Block Diagram

BLOCK DIAGRAMS

TU1

(NO CONNECTION)

INT.MONITOR
I2C-OPEN 2
SDA 4
SCL 5

CN301 is used for
adjustment at factory

TO AUDIO/POWER
CONTROL
BLOCK

FROM/TO
CRT/H.V. BLOCK

1

AGC

IF

11

SDA

5

SCL

4

IC151

MEMORY

SDA

SCL

CN301

P-ON-H

A-MUTE-H

VOLUME

V-DRIVE
V.RAMP F/B
PROTECT-1
PROTECT-2

1

SCL

SDA

EXT-L

VIDEO SIGNALRF/IF SIGNAL

5
6

IC101 TV MICON

I2C-OPEN

32

SDA

31

SCL

33

P-ON-H

35

A-MUTE-H

5

RESET25RESET
VOLUME

6

EXT-L

4

PROTECT1

26
27

PROTECT2

AUDIO SIGNAL

Q1

AMP

STNDBY LED 13

TP301

AGC

MONITOR

AFT 9 60

KEY-IN

OSD-R
OSD-G
OSD-B

OSD-BLK

11

28

42
41
40
39

TP300

GND

SF301
SAW

FILTER

D101
STANDBY

SW102­SW106

KEY
SWITCH

IC333 VIDEO/AUDIO/CHROMA/DEFLECTION/IF

RF
AGC

IF SIGNAL
PROCESS

BUS
CONTROL

SYNC SEPARATION

V.SYNC
SIGNAL
PROCESS

+5V

62

64

10
11

43

30
28
20
27

1

BUS
I/F

INTELLIGENT
MONITORING

AFT

RGB

EXT

EXT.

RGB

INPUT

IF
AGC

H.SYNC
SIGNAL
PROCESS

H.VCO

TUNER LINE TUNER LINE

ACC

CHROMA.
TRAP

LUMINANCE
SIGNAL
PROCESS

RGB MATRIX
/
RGB SIGNAL PROCESS

CHROMA.
BPF

CHROMA.
SIGNAL
PROCESS

57

36
34

6
7

Q251,
Q253

CF251,
CF253

Q221

CF221,
CF222

WF1

BUFFER

SOUND
BPF

BUFFER

SOUND
TRAP

TU AUDIO

FBP
H-DRIVE
ACL/ABL

TO AUDIO/POWER
CONTROL BLOCK

JK701
V-IN(FRONT)

JK704
V-IN(REAR)

FROM/TO
CRT/H.V. BLOCK

RCV101

REMOTE
SENSOR

REMOCON

10

V-SYNC

H-SYNC

2
1

X301

4.43MHz

13
12

17
21

32

INV

V.RAMP

H.V. BLK

VCXO

6-1 6-2

16
15
14
31

WH301A TO WH301B

BLUE5
GREEN4
RED3

TO
CRT/H.V. BLOCK

L1700BLIF

Audio/Power Control Block Diagram

AUDIO SIGNAL

JK702

A-IN(L)

(FRONT)

JK703

A-IN(R)

(FRONT)

JK705

A-IN(R)
(REAR)

A-IN(L)

(REAR)

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK DIAGRAM

SCL

SDA

TU AUDIO

MAIN CBA

IC333

VIDEO/AUDIO/CHROMA/DEFLECTION/IF

11

10

47

LIMITER

BUS

I/F

FM

DET

BUS
CONTROL

AF
AMP

53

WF6

Q703

BUFFER

Q704

BUFFER

Q702

BUFFER

JK705

IC802

(R-CH AUDIO AMP)

3

IC801 (L-CH AUDIO AMP)

3

DC
VOL.

5 7

DC
VOL.

A-OUT(R)

A-OUT(L)

MUTE

SP802
SPEAKER
R-CH

CN802

SP-R

1

SP-GND

9

9

2

JK801
EARPHONE
JACK

FROM IF/VIDEO/
SYSTEM CONTROL
BLOCK DIAGRAM

P-ON-H

STB+B

61

55 33

POWER ON
CONTROL

P-ON-ON

+5.7V 
REGULATOR

P-ON-ON

RESET

38 DG-ON-HDG-ON-H

41

39

42

+8V CTRL

+5V CTRL2

+5V CTRL

TO POWER SUPPLY
BLOCK DIAGRAM

Q101

Q701

BUFFER

MUTE

5 7

Q801

A-MUTE-H
VOLUME
EXT-L
RESET

SP801
SPEAKER
L-CH

CN801

SP-L 1

SP-GND 2

FROM/TO
IF/VIDEO/
SYSTEM
CONTROL
BLOCK
DIAGRAM

6-3 6-4

L1700BLA

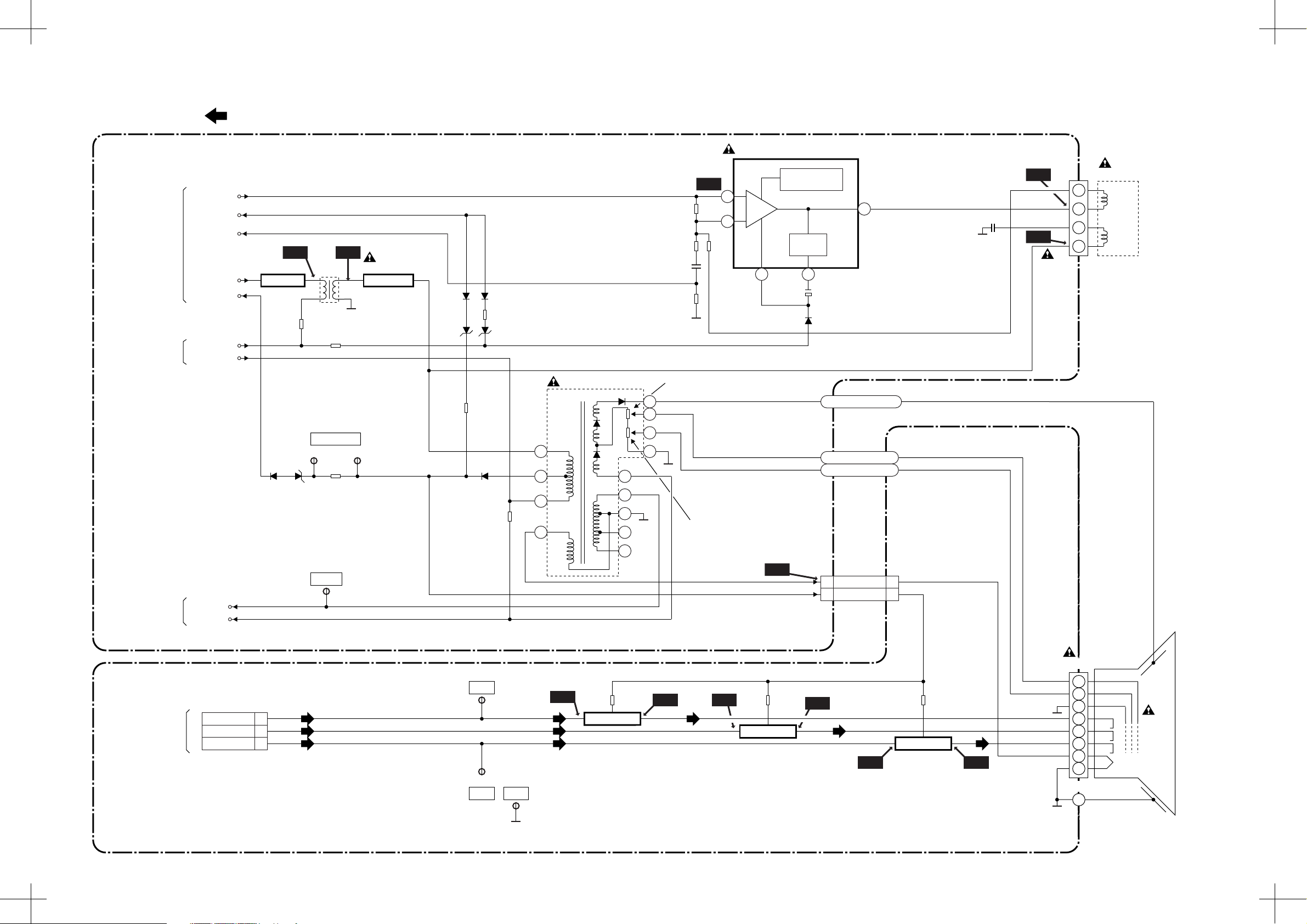

CRT/H.V. Block Diagram

VIDEO SIGNAL

V-DRIVE

PROTECT-1

V.RAMP F/B

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK

H-DRIVE

PROTECT2

MAIN CBA

WF7 WF8

Q572 Q571

H.DRIVE

T572

H.OUTPUT

WF11

IC551 V-DEFLECTION CONTROL

THERMAL
PROTECTION

7

AMP

1

PULSE
UP

6 3

5

4

3

1

L551 D.Y.

V­DRIVE

H­DRIVE

WF12

5

WF9

CN571

FROM POWER
SUPPLY BLOCK

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK

FROM/TO IF/VIDEO
/SYSTEM CONTROL
BLOCK

DEF+B

FBP

ACL/ABL

+B

RED

GREEN 4

BLUE 5

T571 F.B.T.

PROTECT

TP591 TP592

TP302
15KHz

TP503

RED

WH301BTO WH301A

3

TP501TP502

BLUE

GND

1

3

5

4

WF3

Q501

8

10

7

9

6

RED AMP

HV

F

S

11

WF15

FOCUS VR

SCREEN VR

WF4

WF10

Q502

GREEN AMP

ANODE

FOCUS
SCREEN

HEATER1 1

3 3

+180V

WF14

WH501BWH501A

Q503

BLUE AMP

WF5 WF13

JK501

7
4
8

6
11
10

9

CN501

ANODE

FOCUS
SCREEN
GND

R
G
B

HEATER

GND

V501
CRT

CRT CBA

6-5 6-6

L1700BLCRT

Power Supply Block Diagram

AC601
AC CORD

L691
DEGAUSSING

COIL

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT COLD

SW601
POWER

CN691

F601

4.0AH/250V

Q601

L602

LINE
FILTER

PS691

SWITCHING

Q602

LIMITER

L601

LINE
FILTER

D605 - D608

BRIDGE
RECTIFIER

T601

6

4

2

1

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE 4A/125V FUSE.

7

Q672

10

11

12

8

Q673

9

SWITCHING
CONTROL

SWITCHING

TP601

+B

Q651

(SWITCHING)

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

DEF +B

PROTECT1
(TO PIN26 OF IC101)

PROTECT2
(TO PIN 27 OF IC101)

+B

AL+33V

Q102

+5V
SWITCHING

Q681

+8V
SWITCHING

Q682

+5V
SWITCHING

Q683

+5V
SWITCHING

P-ON+5V

+5V CTRL2
(FROM PIN 41 OF IC333)

STB+B

P-ON+8V

+8V CTRL
(FROM PIN33 OF IC333)

P-ON+5V

+5V CTRL
(FROM PIN39 OF IC333)

P-ON+5V

Q635

LIMITER

IC601

ERROR
VOLTAGE DET

4

3

RL601

1

VR661

2

Q652

FEED
BACK

Q696
(SWITCHING)

DG-ON
(FROM PIN38 OF IC101)

+B ADJ

Q671

(SWITCHING)

6-7 6-8

AL+18V

P-ON CTRL
(FROM PIN61 OF IC333)

MAIN CBA

L1700BLP

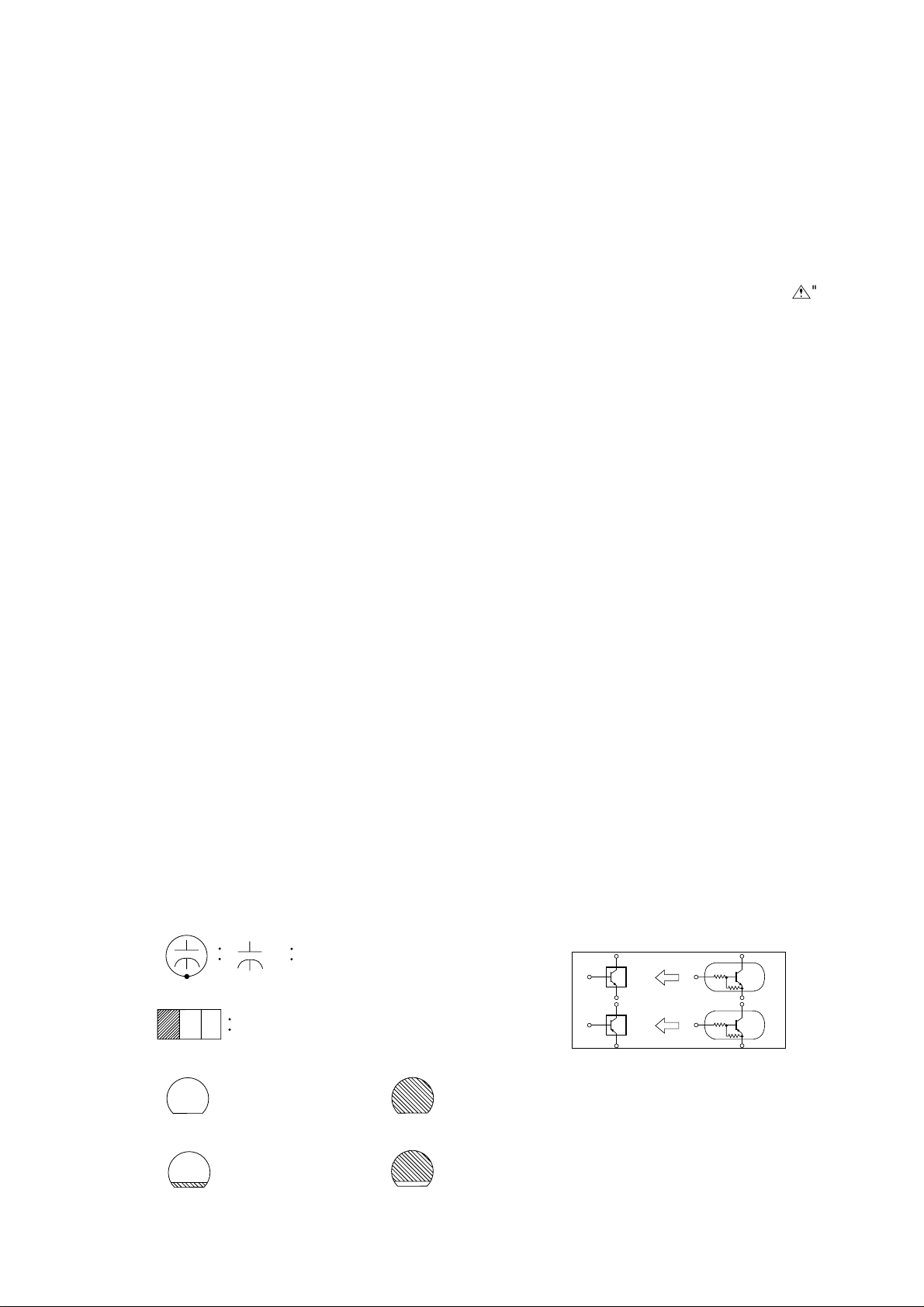

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass
unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified
in this manual and its supplements; electrical components having such features are identified by the mark " !" inthe
schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual
carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the
parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts
list, and may be slightly

different or amended since these drawings were prepared.

3

2.All resistance values are indicated in ohms (K=10

3.Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4.

All capacitance values are indicated in µF (P=10

5.All voltages are DC voltages unless otherwise specifi

, M=106).

−

6

µ

F).

Note of Capacitors:

ML --- Mylar Cap. PP --- Metalized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C SL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by thefollowing symbols.

CBA Symbols

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

NPN Digital Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

E C B

(Top View)

PNP Digital Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

E C B

7-1 SC_PAL

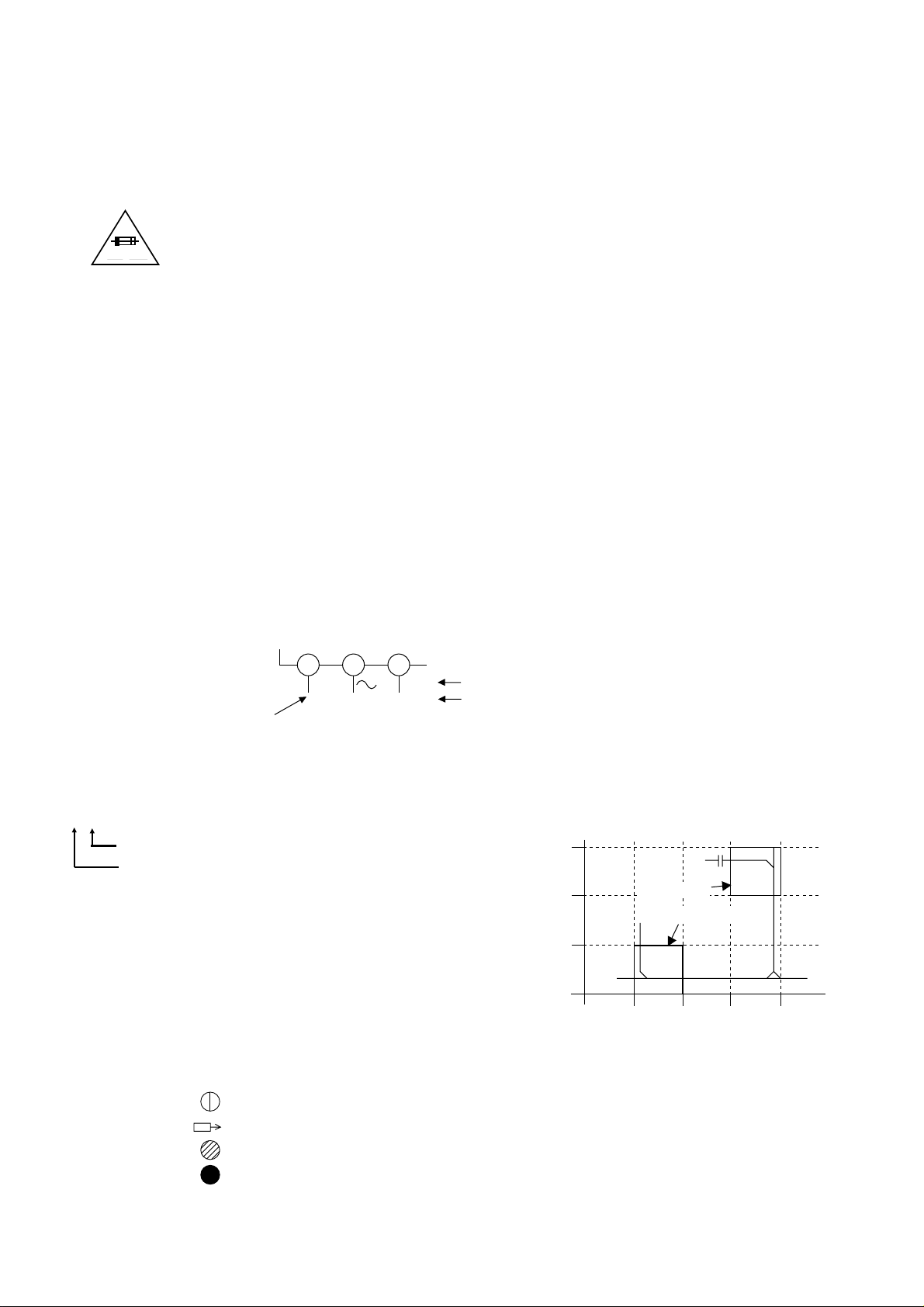

LILIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE

SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

CAUTION:

1.

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE

SAME TYPE FUSE.ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D’INCELE
N’UTILISER QUE DES FUSIBLE DE MEMO TYPE.

A V

CAUTION:

2.

RISK OF FIRE-REPLACE FUSE AS MARKED.

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power
supply circuit to fail.

Note:

3.
(1)Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2)To maintain original function and reliability of repaired units, use only original replacement parts which are listed

with their part numbers in the parts list section of the service manual.

4. Wire Connectors
(1)Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2)Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "•" is a leadless (chip) component.

6. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.

231

5.0

(3.0)

5.0
(3.0)

Power on mode

Power off mode

Unit: Volts

Voltage

Indicates that the voltage
is not consistent here.

7. How to read converged lines
1-D3
Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

7-2 SC_PAL

3

AREA D3

2

1

AREA B1

1-D3

ABCD

1-B1

Main 1/3 Schematic Diagram

L1700SCHA2.p65 01/04/10, 9:421

7-3

7-4 7-5

L1700SCM1

Main 2/3 & CRT Schematic Diagram

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

1 NOTE:

*

The flyback transformer ( T571 ) is either type A or type B.
These two types are exchangeable and can be equally used
whichever the model is. The difference between type A and
type B is shown in the table below.

T571 R583

Type A
Type B

BSC21-2602S
JF0501-2409

3.9Ω / 2W

2.2Ω / 2W

L1700SCHA2.p65 01/04/10, 9:422

7-6

7-7 7-8

L1700SCM2

Main 3/3 Schematic Diagram

7-9 7-10 L1700SCM3

CRT CBA Top View CRT CBA Bottom View

TP501
GND

TP502

BLUE

WF2

Q501
Base

WF14

Q501
Collector

WF4

Q503
Base

WF12

Q503
Collector

WF13

Q502
Collector

WF3

Q502
Base

7-11

7-12

BL1700F01011-2

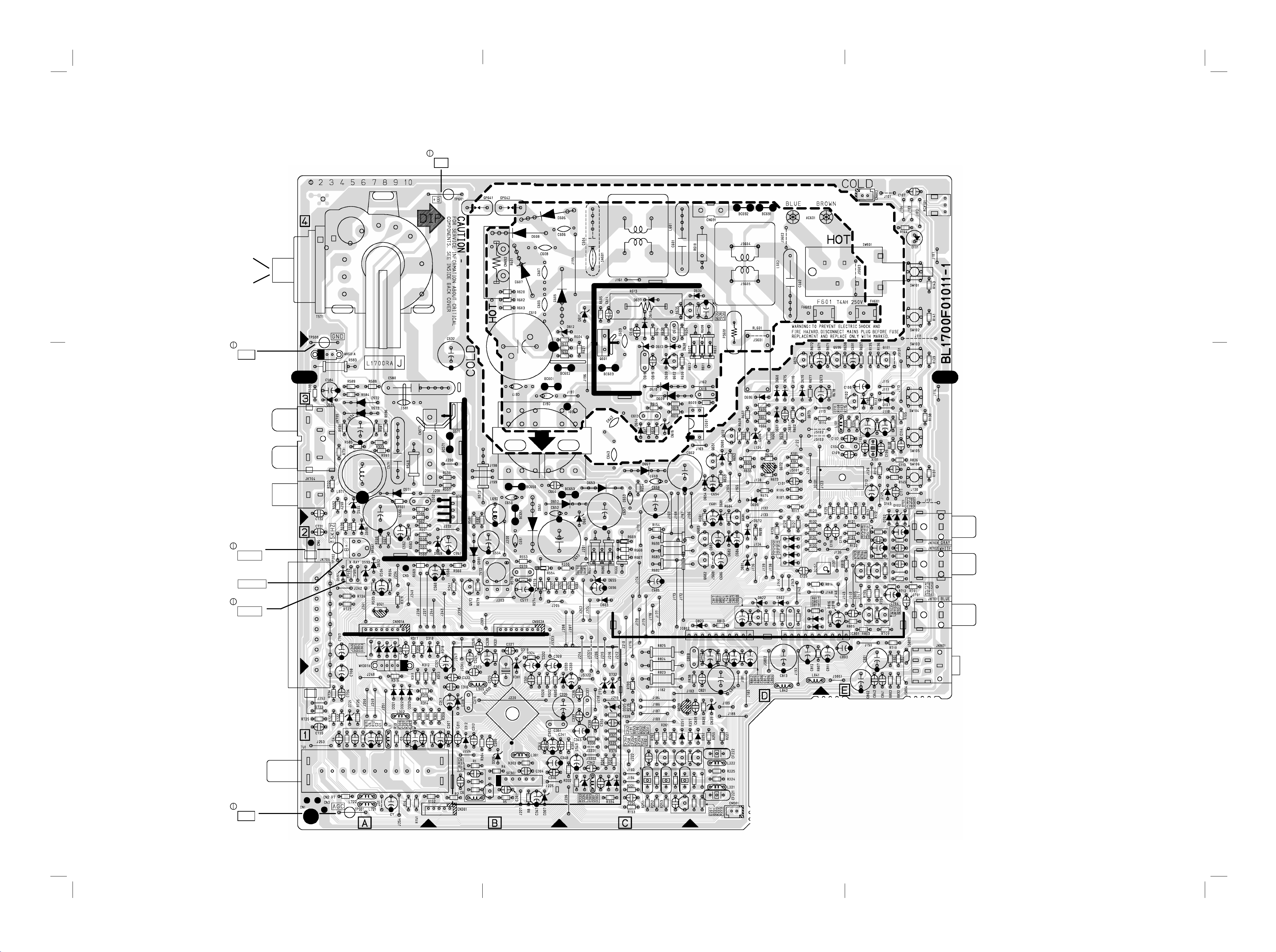

Main CBA Top View

FOCUS-VR
(UPPER SIDE)

SCREEN-VR
(LOWER SIDE)

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

TP601

+B

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

TP300

GND

TP302

15KHz

VR661

+B ADJ

TP591, TP592

X-RAY

L1700CBAA2.p65 2001/05/29, 13:321

TP301

AGC

7-13

7-14 7-15

BL1700F01011-1

Main CBA Bottom View

CAUTION !

Fixed voltage power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF7

Q571
Base

WF9

PIN 1
OF WH501A

WF8

PIN 1
OF CN571

WF11

PIN 4
OF CN571

WF10

PIN 7
OF IC551

WF6

Q572
Collector

L1700CBAA2.p65 2001/05/29, 13:322

7-16

WF1

C333
Minus Lead

WF5

PIN 53
OF IC333

7-17 7-18

BL1700F01011-1

WF1 ~ WF16 =

Waveform check points.
(Shown in Schematic Diagram.)

Waveforms to be observed at

GND

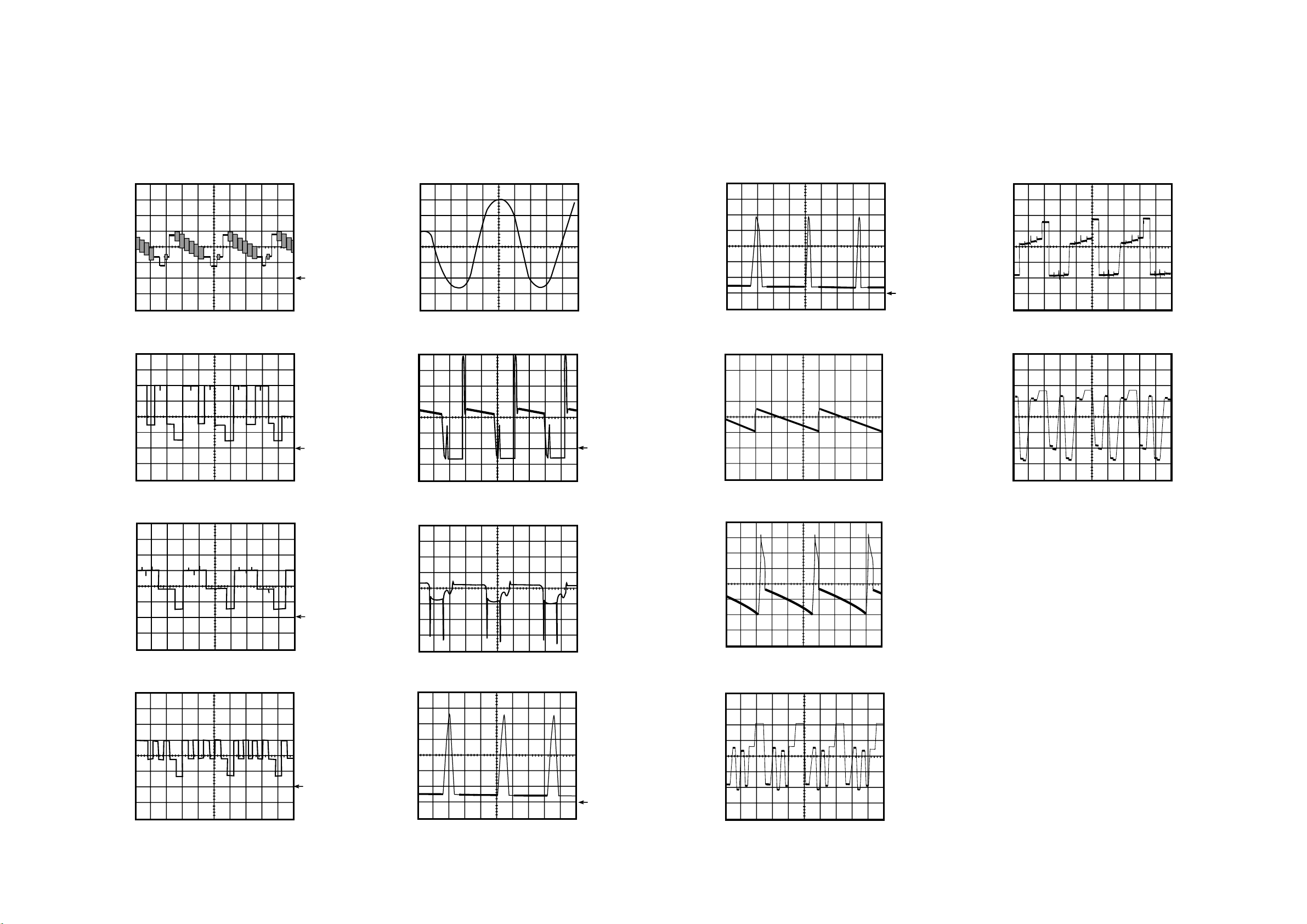

WAVEFORMS

Input:

PAL Color Bar Signal (with 1kHz Audio Signal)

INITIAL POSITION:

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

Unplug unit from AC outlet for at least 5 minutes.

GND

WF1

WF2

1DIV: 0.5V 20µsec
C 333 Minus Lead

1DIV: 2V 20µsec
Q501 Base

GND

GND

WF5

WF6

1DIV: 0.2V 0.2msec
IC 333 Pin 53

1DIV: 10V 20µsec
Q 572 Collector

GND

WF9

1DIV: 5V 20µsec
WH501A Pin 1

WF10

1DIV: 1V 5msec
IC 551 Pin 7

10 V 5 ms

WF13

WF14

1DIV: 20V 20µsec
Q 502 Collector

1DIV: 20V 20µsec
Q 501 Collector



WF3

WF4

1DIV: 2V 20µsec
Q 502 Base

1DIV: 2V 20µsec
Q 503 Base

GND

8-1

WF7

WF8

1DIV: 5V 20µsec
Q 571 Base

1DIV: 200V 20µsec
CN 571 Pin 1

GND

WF11

WF12

1DIV: 10V 5msec
CN 571 Pin 4

1DIV: 20V 20µsec
Q503 Collector

8-2

WF_PAL

V501
CRT

CLN551

GND

ANODE

WIRING DIAGRAM

CN801

SP-L

SP801
SPEAKER

L-CH

SP802
SPEAKER

R-CH

1

SP-GND2

CN802
SP-R1
SP-GND2

CN691

1
2

TU1 TUNER UNIT

MAIN CBA
BL1700F01011-1

CN1501

CRT CBA
BL1700F01011-2

FOCUS

SCREEN

WH301B

BLUE

GREEN

RED
GND

+8V

HEATER 1

GND 2

+180V 3

5
4
3
2
1

L551
D.Y.

HD

VD

AC601

CLN301

CLN501

5
4
3
2
1

WH301A
BLUE
GREEN
RED
GND
+8V

WH501AWH501B

HEATER1
GND2
+180V3

CN571

1
2
3
4
5

T571
FBT

(NO CONNECTION)

CN301

1

INT.MONITOR

2

I2C-OPEN

3

GND

4

SDA

5

SCL

CN301 IS USED FOR
ADJUSTMENT AT
FACTORY.

9-1 L1700WI

IC PIN FUNCTIONS

IC101 (TV Micro Computer)

Pin
No.

Signal

Name

1H-SYNC

2V-SYNC

3 N.U. Not Used
4 EXT-L Ext-L
5 A-MUTE Audio Mute
6 VOLUME VOLUME
7 N.U. Not Used
8 N.U. Not Used

9 AFT-IN Input For AFT
10 RCV-IN Input For Remote Control
11 MONITOR Input For INTELIGENT MONITOR
12 15K CHK Power Supply Protection

ST-BY-

13

14 ALL+5V +5V
15 HLF Filter for CCD
16 VHOLD VHOLD
17 CVIN Input for Video Signal
18 GND GND
19 XIN Input for Oscillator
20 XOUT Output for Oscillator
21 GND GND
22 ALL+5V +5V
23 N.U. Not Used
24 N.U. Not Used
25 RESET RESET
26 PROTECT-1 Power Supply Protection
27 PROTECT-2 Power Supply Protection
28 KEY-IN Key Input (Main)
29 AV-CTL Input For AV Signal
30 TEXT TEXT IC

31 SDA

32 I2C-OPEN

33 SCL

LED

Input For Horizontal Synchronize

Input For Vertical Synchronize

White Balance Adjustment

Function

Signal

Signal

STANDBY-LED

I2C-BUS Controller

Interface (Data)

Judgement

I2C-BUS Controller

Interface (Clock)

Pin
No.

Signal

Name

SPOT-

34

35 P-ON-H Output for P-ON-H
36 SIF 0 Output for SOUND SYSTEM 0
37 SIF 1 Output for SOUND SYSTEM 1
38 DG-ON Output for Removing Magnet
39 OUT Picture Shut Down Output
40 B Blue Output
41 G Green Output
42 R Red Output

KILL

Spot Countermeasure (Not Used)

Function

IC333 (IF/Video/Chrominance/Defletion)

Pin
No.

Signal

Name

1 VIF IN 2 VIF INput 2
2 VIF-VCC1 VIF-VCC 1
3 VIF-VCC2 VIF VCC 2

4

5

6 FBP-IN FBP Input
7 H-OUT H-Output

8

9

10 SDA SDA
11 SCL SCL

12

13

14 R-OUT R Output
15 G-OUT G Output
16 B-OUT B Output
17 V-OUT Vertical Out

18

19

20 B-IN OSD Blue Input

H.

VCOF/B

AF C1

FILTER

DEF

GND 1

DEF GND

2

INV.

FBP-OUT

V-PULSE

OUT

START

UP VCC 1

START

UP VCC 2

Function

H. VCO-FB

AFC Filter1

DEF GND 1

DEF GND 2

INV. FBP-OUT

V-Pulse Output

Start up VCC 1

Start up VCC 2

10-1 L1700PIN

Pin
No.

Signal

Name

V-RAMP

21

FEEDBACK

V RAMP

22

23 VC-VCC1 VC VCC 1
24 VC-VCC2 VC VCC 2
25 FSC-OUT Freq. Sub carrier Output

26

27 FAST BLK Fast Blanking Input
28 G-IN OSD Green Input

29

30 R-IN OSD Red Input
31 ACL/ABCL ACL/ABCL

32

33

34 EXT/C IN External Input

35

36 TV/Y IN TV Input

37

38

39

40 Y-SW OUT Y-SW Output

41

42

43

44 Hi Vcc 1 Hi Vcc 1
45 Hi Vcc 2 Hi Vcc 2

46

47

CAP

DDS

FILTER

DDS

DECOUPLI

NG

X-TAL

4.43

8.7V REG
OUT

CHROMA

APC

FILTER

VC

GND 1

VC

GND 2

5.7V REG
OUT

M CU

5.7V OUT

M CU
Reset

INTERI

GENT

MONITOR

SECAM

PLLC

SIF

LIMITER-

IN

Filter for CHROMA APC

Switching Reg. Control Output

Function

V Ramp Feedback

Filter for V Ramp

DDS Filter

DDS Decoupling

Chroma Osc

8.7V Output

VC GND 1

VC GND 2

5.7V Output

5.7V Output

MCU Reset Output

Interigent Monitor Out

SIF Limitter Input

Pin
No.

Signal

Name

PAL ID

48

FILTER
SECAM

49

BELL C

AUDIO

50

51

52

53

54

55

56

57

58 VIF GND 1 GND 1
59 VIF GND 2 GND 2
60 AFT OUT AFT Out

61

62

63

64 VIF IN 1 IF Input 1

OUT

AUDIO

BYPASS

EXT

AUDIO

IN

FM

DETECT

OUT

VIF VCO-

F/B

VREG.

Vcc

VIF APC

FILTER

VIF

VIDEO

OUT

P-ON

CONTROL

RF AGC

OUT

IF AGC

FILTER 1

External Audio In (Not Used)

Function

Filter for PAL ID

SECAM Bell C

Audio Output

Filter for Audio Bypass

RF Output

VIF VCO-FB

REG. Vcc Input

Filter for Video APC

Video Out

P-ON Control

RF AGC Out

Filter for IF AGC

10-2 L1700PIN

EXPLODED VIEWS

Cabinet

B-15

L-13

B-4

SP801

Details for L551
and surrounding parts

B-15

L-13

B-2

B-4

SP802

B-5

CLN551

SHINWHA
TAPE SGT-730
(WHITE)

SCOTCH

B-2

TAPE #880

SHINWHA
TAPE SGT-730
(BLACK)

V501-2

V501-1

L551

ANODE CAP
Part of Flyback
Transformer

L691

SCOTCH
TAPE #880

B-11

CRT CBA

B-2

L-8

B-11

L-8

L-8

A-4

L-10

L-9

A-2

L-8

A-6

A-3

B-5

A-1

A1X

V501

B-5

B-2

B-1

B-5

SCOTCH
TAPE #880

MAIN CBA

B-8

B-10

A-5

L-1

B-12

L-1

B-7

B-6

L-8

A2X

L-1

AC601

See Electrical PartsList

11-1

11-2

L1700CEX

Packing

Some Ref. Numbers are
not in sequence.

S6

TAPE

X3

X1

X2

X6 X7

X5

S1

FRONT

PACKING TAPE

S3

S4

S2

PACKING TAPE

11-3 L1700PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY L1700RA 0EM201439
A-1 FRONT CABINET L1700RA 0EM000510
A-3 CONTROL PLATE L1700RA 0EM201389
A2X REAR CABINET ASSEMBLY L1700RA 0EM201440
A-2 REAR CABINET L1700RA 0EM000511
A-4 ! RATING LABEL L1700RA 0EM406184

A-5 POWER KNOB L1700RA 0EM406206
A-6 BRAND BADGE L1700RA 0EM406280
AC601 ! AC CORD LA-1814-1 or

! AC CORD 9707020

B-1 TENSION SPRING B0080B0:EM40808 26WH006
B-2 CRT MOUNTING SCREW B0030U1:K42419 8A00083
B-4 SPEAKER HOLDER L1400UA 0EM406026
B-5 ! DEGAUSS HOLDER L9800UA 0EM404845
B-6 HEAT SINK(PFB)ASSEMBLY L1400UZ

B-8 HEAT SINK AUDIO (See Electrical Parts List)
B-7 HEAT SINK POWER ASSEMBLY L1700UA

B-10 JACK HOLDER L9304UZ

B-11 CLOTH L9800UA:95X15XT:0.5 0EM405041
B-12 SHIELD PLATE(A) L1700RA

B-15 CLOTH(10X30XT1.0) L9814UQ 0EM405137
L-1 B-TITE SCREW 3X8 BIND + CHROME

L-8 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180
L-9 SCREW TAPPING M4X14 DBU14140
L-10 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100
L-13 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120

S-1 CARTON L1700RA 0EM406186
S-2 STYRFOAM BOTTOM L1700RA 0EM000513
S-3 STYRFOAM TOP L1700RA 0EM000512
S-4 SET SHEET B7500UA:1000X1700 0EM402178
S-6 HOLD PAD L1400UA 0EM406207
S-7 SERIAL NO. LABEL L7770UA 0EM401639

X-1 REMOCON UNIT 130/ERC001/N0135RD N0135RD
X-2 DRY BATTERY R6P/2S or XB0M451T0001

X-3 ! OWNER'S MANUAL(E)/(S) L1700RA:ENGLISH/

X-5 POLYETHYLENE BAG F8626B5 Z325350
X-6 ! OWNER'S MANUAL(R) L1700RA:RUSSIA 0EMN01826
X-7 ! OWNER'S MANUAL(A) L1700RA:ARABIA 0EMN01827

(See Electrical Parts List)

(See Electrical Parts List)

(See Electrical Parts List)

(See Electrical Parts List)

(See Electrical Parts List)

(See Electrical Parts List)

(See Electrical Parts List)

PACKING

ACCESSORIES

DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002
DRY BATTERY R6P(AR)2PX or XB0M451HU002
DRY BATTERY R6P(AR)2P X ICI XB0M451HU003

SPANISH

0EMN01794

Ref. No. Description Part No.

DE PARTS

CLN551 CRT GND WIRE CRT GND WX1L7820-003
L691 ! DEGAUSSING COIL F-041 LLBH00ZTM041
SP801 SPEAKER S08F16-J DSD0808XQ009
SP802 SPEAKER S08F26-J DSD0808XQ008

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH L551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING CONBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE 1

L551 ! DEFLECTION YOKE KDY3MDA84X or LLBY00ZMS013
! DEFLECTION YOKE LLBY00ZSY006 or LLBY00ZSY006
! DEFLECTION YOKE CDY-M2019F LLBY00ZQS004

V501 ! CRT A48JLL90X TCRT190QS009
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE 2

L551 ! DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005
! DEFLECTION YOKE LLBY00ZSY007 LLBY00ZSY007

V501 ! CRT A48LRH93X(W) TCRT190P7002
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

12-1 L1700CA

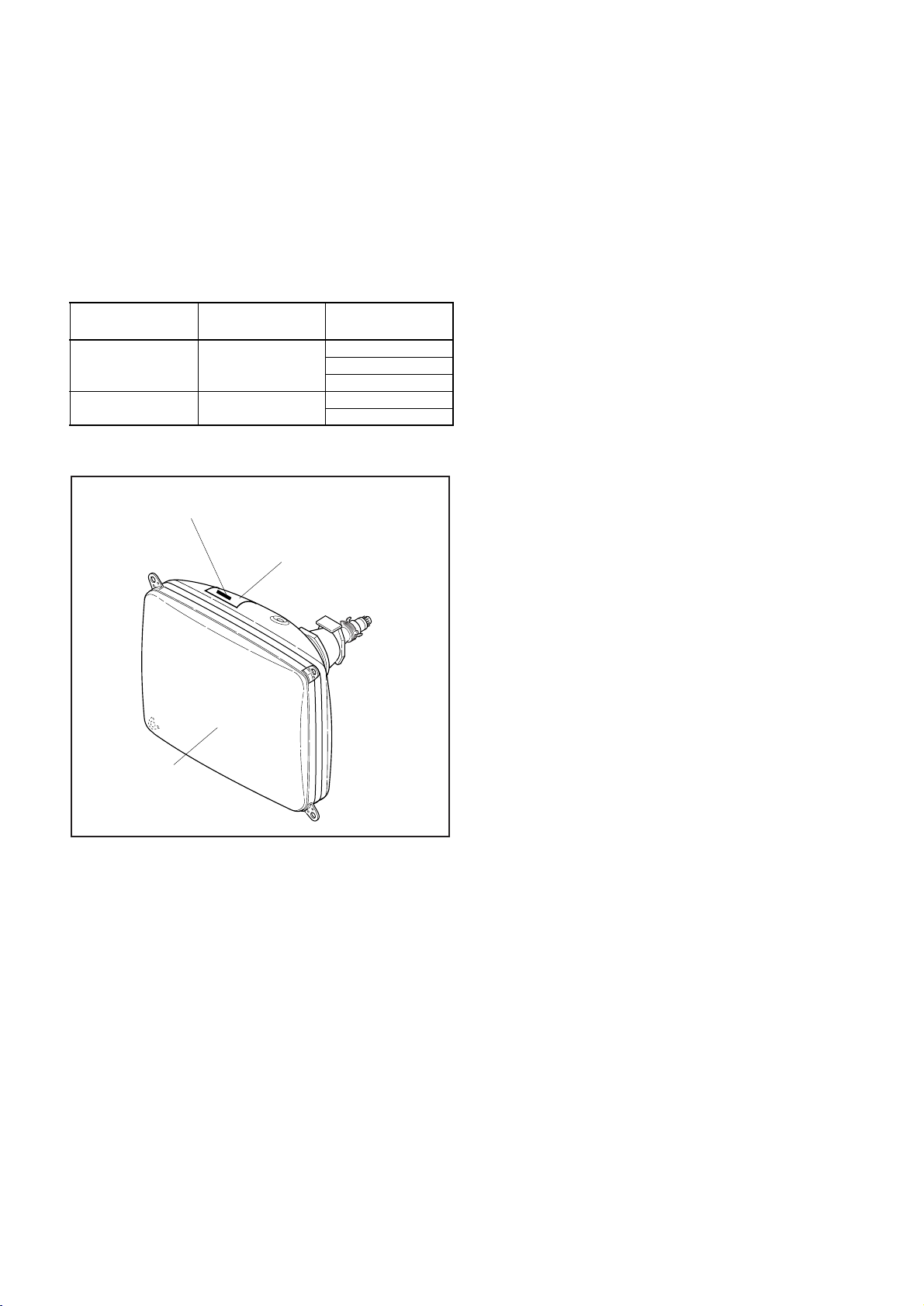

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electri­cal Adjustment Instructions.

Note2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and L551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

V501: CRT Type No. V501: CRT Part No.

CRT A48JLL90X TCRT190QS009 LLBY00ZMS013

CRT A48LRH93X(W) TCRT190P7002 LLBY00ZQS005

L551: Deflection

Yoke Part No.

LLBY00ZSY006
LLBY00ZQS004

LLBY00ZSY007

CRT Warning Label Location

CRT Type No.

CRT Warning Label

CRT

12-2 L1700CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTES:

1. Parts that not assigned part numbers (---------) are
not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA-328 CBA

Ref. No. Description Part No.

MMA-328 CBA (Main CBA+CRT CBA)
Consists of the following

Main CBA
CRT CBA

Main CBA

Ref. No. Description Part No.

Main CBA
Consists of the following

CAPACITORS

C2 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C3 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C4 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C5 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C6 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C7 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C8 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C102 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C103 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C108 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C109 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C111 ELECTROLYTIC CAP. 220µF/10V M or CE1AMASTL221

ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C112 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C113 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C115 CERAMIC CAP.(AX) B K 180pF/50V CCA1JKT0B181
C116 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C117 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C126 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C136 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

0ESA04153

------------

------------

------------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C251 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C253 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C301 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C302 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C304 PCB JUMPER D0.6-P5.0 JW5.0T
C305 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C306 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473
C307 CERAMIC CAP.(AX) B K 0.01µF/50V or CA1J103TU011

CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C308 ELECTROLYTIC CAP. 220µF/10V M or CE1AMASTL221

ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C309 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C310 CERAMIC CAP.(AX) B K 0.01µF/50V or CA1J103TU011

CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C311 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C316 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C317 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C318 PCB JUMPER D0.6-P5.0 JW5.0T
C319 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

*MYLAR CAP. 0.1µF/50V K 2250104S
C321 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C322 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C323 CERAMIC CAP.(AX) CH J 180pF/50V CA1J181TU008
C324 PCB JUMPER D0.6-P5.0 JW5.0T
C325 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C326 PCB JUMPER D0.6-P5.0 JW5.0T
C327 CERAMIC CAP.(AX) CH J 150pF/50V CA1J151TU008
C328 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C328 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C329 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C331 CERAMIC CAP.(AX) B K 0.015µF/50V CA1J153TU011
C332 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C333 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C334 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C335 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

*Mylar is a registered trademark of E.I. Du Pont de Nemours and Company.

13-1 L1700EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C336 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C337 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J or CA1J224MS029

FILM CAP.(P) 0.22µF/50V J TV or CMB1JJS00224

MYLAR CAP. 0.22µF/50V K 2250224S
C338 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C339 CERAMIC CAP.(AX) B K 0.01µF/50V or CA1J103TU011

CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C341 CERAMIC CAP.(AX) B K 0.01µF/50V or CA1J103TU011

CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C342 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C343 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C344 CERAMIC CAP.(AX) SL J 22pF/50V CCA1JJTSL220
C345 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C346 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C347 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C348 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C351 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J or CA1J224MS029

FILM CAP.(P) 0.22µF/50V J TV or CMB1JJS00224

MYLAR CAP. 0.22µF/50V K 2250224S
C551 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C552 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C554 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASTL101

ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101
C562 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C566 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102
C568 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C571 PP CAP. 0.47µF/250V J or CT2E474MS041

P.P. CAP. 0.47µF/200V J or CA2D474KF002

P.P.CAP 0.47µF/200 J CA2D474VC012
C574 ! ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASTL4R7
! ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASDL4R7
C577 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J or CA1J103MS029

FILM CAP.(P) 0.01µF/50V J TV or CMB1JJS00103

MYLAR CAP. 0.01µF/50V K 2250103S
C580 ! PP CAP. 0.01µF/1.6kV J or CT3C103MS039

! PP CAP. 0.01µF/1.6kV J or CBH3CJQ00103
! P.P.CAP 0.01µF/1.6kV J CA3C103VC011
C581 ! CERAMIC CAP. LB 1500pF/2kV or CA3D152KG004
! CERAMIC CAP. BN 1500pF/2kV or CCD3DKA0B152
! CERAMIC CAP. 1500pF/2kV CA3D152PAN04
C584 ! ELECTROLYTIC CAP. 1µF/160V M or CE2CMASTL1R0

Ref. No. Description Part No.

! ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL010
C594 ! ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
! ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C601 ! METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

! FILM CAP.(MP) 0.1µF/250V M or CT2E104DC009
! FILM CAP.(MP) 0.1µF/250V K CT2E104DC011
C602 ! METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037
! FILM CAP.(MP) 0.1µF/250V M or CT2E104DC009
! FILM CAP.(MP) 0.1µF/250V K CT2E104DC011

C605 CERAMIC CAP. B K 2200pF/500V or CCD2JKD0B222

CERAMIC CAP. 0.0022µF/250V CCD2EZA0E222

C606 CERAMIC CAP. B K 2200pF/500V or CCD2JKD0B222

CERAMIC CAP. 0.0022µF/250V CCD2EZA0E222

C607 CERAMIC CAP. B K 2200pF/500V or CCD2JKD0B222

CERAMIC CAP. 0.0022µF/250V CCD2EZA0E222

C608 CERAMIC CAP. B K 2200pF/500V or CCD2JKD0B222

CERAMIC CAP. 0.0022µF/250V CCD2EZA0E222

C609 CERAMIC CAP. LB 220pF/2kV or CA3D221KG004

CERAMIC CAP. BN J 220pF/2kV or CCD3DKA0B221
CERAMIC CAP. 220pF/2kV CA3D221PAN04

C610 ELECTROLYTIC CAP. 150µF/400V(LQ TYPE) orCA2H151NC050

ELECTROLYTIC CAP. 150µF/400V M W/F or CA2H151EA030
ELECTROLYTIC CAP. 150µF/400V or CA2H151NC027
ELECTROLYTIC CAP. 150µF/400V M CA2H151SM006

C611 FILM CAP.(P) 0.015µF/50V J or CMA1JJS00153

FILM CAP.(P) 0.015µF/50V J or CA1J153MS029
FILM CAP.(P) 0.015µF/50V J TV or CMB1JJS00153
MYLAR CAP. 0.015µF/50V K 2250153S

C612 CERAMIC CAP. LB 100pF/2kV or CA3D101KG004

CERAMIC CAP. BN J 100pF/2kV or CCD3DKA0B101
CERAMIC CAP. 100pF/2kV CA3D101PAN04

C613 FILM CAP.(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P) 0.056µF/50V J or CA1J563MS029
FILM CAP.(P) 0.056µF/50V J TV or CMB1JJS00563
MYLAR CAP. 0.056µF/50V KT 2250563S

C616 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J or CA1J683MS029
FILM CAP.(P) 0.068µF/50V J TV or CMB1JJS00683
MYLAR CAP. 0.068µF/50V K 2250683S

C618 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029
FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104
MYLAR CAP. 0.1µF/50V K 2250104S

C619 CERAMIC CAP.(AX) B K 680pF/50V CCA1JKT0B681
C632 ELECTROLYTIC CAP. 10µF/160V M or CE2CMASTL100

ELECTROLYTIC CAP. 10µF/160V M CE2CMASDL100

C635 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C642 ! CERAMIC CAP. 0.01UF F CS or CCG2HMN0F103
! SAFETY CAP. F M 0.01µF/250V CCG2EMP0F103
C643 ! CERAMIC CAP. 0.01UF F CS or CCG2HMN0F103
! SAFETY CAP. F M 0.01µF/250V CCG2EMP0F103
C654 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C655 ELECTROLYTIC CAP. 100µF/160V M CE2CMZPTL101
C656 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C657 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNTL102

13-2 L1700EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102
ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102

C658 ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) orCE1CMZNTL102

ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102
C661 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C662 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102
C664 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C681 ELECTROLYTIC CAP. 33µF/10V M or CE1AMASTL330

ELECTROLYTIC CAP. 33µF/10V M CE1AMASDL330
C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C684 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C685 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C686 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C701 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C702 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C703 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C704 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C705 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C707 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C708 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C712 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASTL101

ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101
C731 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C732 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C733 CERAMIC CAP.(AX) B K 330pF/50V CCA1JKT0B331
C734 CERAMIC CAP.(AX) B K 330pF/50V CCA1JKT0B331
C801 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTL221

ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221
C802 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTL221

ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221
C803 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C804 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C805 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C806 CERAMIC CAP.(AX) X K 3300pF/16V CDA1CKT0X332
C807 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C808 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C811 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C812 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C813 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

Ref. No. Description Part No.

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471

C814 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C815 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

C816 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471

C818 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C821 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C841 CERAMIC CAP.(AX) B K 560pF/50V CCA1JKT0B561
C842 CERAMIC CAP.(AX) B K 560pF/50V CCA1JKT0B561

CONNECTORS

CN301 CONNECTOR BASE, 5P TUC-P05P-B1 J3TUA05TG001
CN571 CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001
CONNECTOR BASE, 5P W-P3005-02 1730812

CN691 CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002

CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212

00 000 or
STRAIGHT PIN HEADER, 2P 173981-2 1770258

00 000 or
STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

J383C02UG002

DIODES

D101 LED LTL-4214M1 or NPQZLTL4214M

LED(RED)L-FORMING LT1814G-81-FL or NP4Z0LT1814G
LED L-53HT or NP4Z000L53HT
LED LAMP 333HT/F45-50K or NPWK333HTF45
LED LAMP 333HT/F45-50L or NPWL333HTF45

LED LAMP 333HT/F45-50M NPWM333HTF45
D102 ZENER DIODE MTZJT-7715B QDTB00MTZJ15
D103 PCB JUMPER D0.6-P5.0 JW5.0T
D104 PCB JUMPER D0.6-P5.0 JW5.0T
D105 PCB JUMPER D0.6-P5.0 JW5.0T
D106 PCB JUMPER D0.6-P5.0 JW5.0T
D107 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D145 ZENER DIODE MTZJT-774.7B QDTB0MTZJ4R7
D252 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
D301 ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2
D302 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D303 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D304 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D305 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D307 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1
D312 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D316 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1
D319 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D321 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D323 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

13-3 L1700EL

Ref. No. Description Part No.

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D325 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D333 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D334 ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2
D551 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D568 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D569 ! ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D572 ! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D573 ! DIODE FR104-B or NDLZ000FR104
! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D584 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D593 ! ZENER DIODE MTZJT-7736B QDTB00MTZJ36
D595 ZENER DIODE MTZJT-7736B QDTB00MTZJ36
D596 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D597 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8
D605 DIODE 1N5406 or NDLZ001N5406

DIODE RRC04-06L3 QD4Z0ERC0406
D606 DIODE 1N5406 or NDLZ001N5406

DIODE RRC04-06L3 QD4Z0ERC0406
D607 DIODE 1N5406 or NDLZ001N5406

DIODE RRC04-06L3 QD4Z0ERC0406
D608 DIODE 1N5406 or NDLZ001N5406

DIODE RRC04-06L3 QD4Z0ERC0406
D609 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D610 DIODE FR104-B or NDLZ000FR104

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D611 ! ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D612 ZENER DIODE MTZJT-7724B QDTB00MTZJ24
D613 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8
D614 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D615 SWITCHING DIODE 1N4148 T-77 QDTZ001N4148
D616 ZENER DIODE MTZJT-7724B QDTB00MTZJ24
D635 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D638 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D639 ZENER DIODE MTZJT-773.0B QDTB0MTZJ3R0
D651 FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806
D652 ! DIODE FR154 or NDLZ000FR154
! FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D653 ! DIODE FR154 or NDLZ000FR154
! FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

Ref. No. Description Part No.

D654 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D655 ZENER DIODE MTZJT-7733B QDTB00MTZJ33
D656 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8
D657 ! DIODE FR154 or NDLZ000FR154
! FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D661 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D667 DIODE 1ZC33 or QDQZ0001ZC33

ZENER DIODE RD33FB QDQZ000RD33F
D670 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D672 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D675 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D682 ZENER DIODE MTZJT-779.1B QDTB0MTZJ9R1
D691 ZENER DIODE MTZJT-7715B QDTB00MTZJ15
D692 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D699 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D701 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D702 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D721 ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1
D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D813 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D822 ZENER DIODE MTZJT-7712B QDTB00MTZJ12
D823 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D839 ZENER DIODE MTZJT-7712B QDTB00MTZJ12

ICS

13-4 L1700EL

Ref. No. Description Part No.

IC101 ! IC M3727GM8-056FP QSZAB0SMB053
IC151 IC:MEMORY AT24C04N-10SC or NSMMA0SAZ013

IC(EEPROM) M24C04-MN6 or NSMMA0SSS029
IC:MEMORY BR24C04F or QSMMA0SRM004

IC:MEMORY BR24C04F-W QSMBA0SRM004
IC333 ! IC:CHROMA/IF 1 CHIP M61208FP-61 QSZBA0RMB006
IC551 ! VERTICAL OUTPUT IC LA78040A or QSBBA0SSY003
! VERTICAL OUTPUT IC AN5522 QSZBA0SMS002
IC601 ! PHOTO COUPLER LTV817MAF or NPEALTV817MF
! PHOTO COUPLER LTV817MBF NPEBLTV817MF
IC801 IC:AF POWER AMP LA4285 QSZBA0SSY002
IC802 IC:AF POWER AMP LA4285 QSZBA0SSY002

COILS

L1 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K-5FT LLARKDSKA220
L2 INDUCTOR 1.2µH-J-26T or LLAXJATTU1R2

INDUCTOR 1.2µH-K-26T LLAXKDTKA1R2
L101 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K-5FT LLARKDSKA220
L221 INDUCTOR 12µH-J-26T or LLAXJATTU120

INDUCTOR 12µH-K-26T LLAXKDTKA120
L222 INDUCTOR 12µH-J-26T or LLAXJATTU120

INDUCTOR 12µH-K-26T LLAXKDTKA120
L301 INDUCTOR 1.5µH-J-26T or LLAXJATTU1R5

INDUCTOR 1.5µH-K-26T LLAXKDTKA1R5
L302 PCB JUMPER D0.6-P5.0 JW5.0T
L304 PCB JUMPER D0.6-P5.0 JW5.0T
L305 INDUCTOR 33µH-J-26T or LLAXJATTU330

INDUCTOR 33µH-K-26T LLAXKDTKA330
L571 PCB JUMPER D0.6-P10.0 JW10.0T
L601 ! LINE FILTER JLB2808 or LLBG00ZXB004

LINE FILTER MS036 LLBG00ZY2009
L602 ! LINE FILTER JLB2808 or LLBG00ZXB004

LINE FILTER MS036 LLBG00ZY2009
L692 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K or LLBD**DMM001

POT COIL 47µH K LLBD00DQE001
L721 INDUCTOR 1.0µH-J-26T or LLAXJATTU1R0

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0
L722 INDUCTOR 1.0µH-J-26T or LLAXJATTU1R0

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0
L841 INDUCTOR 1.0µH-J-26T or LLAXJATTU1R0

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0
L842 INDUCTOR 1.0µH-J-26T or LLAXJATTU1R0

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0

TRANSISTORS

Q1 TRANSISTOR 2SC3000E or 2SC3000EZ

TRANSISTOR 2SC3000D 2SC3000DZ
Q101 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q102 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q221 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q251 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q253 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q321 RES. BUILT-IN TRANSISTOR KRA103M NQSZ0KRA103M
Q571 ! TRANSISTOR 2SD2627LS-FEC-YB11 or QQZZ02SD2627
! TRANSISTOR 2SD2629-YB QQZZ02SD2629
Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627
Q601 MOS FET 2SK2605 QFZZ02SK2605
Q602 ! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
! TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q635 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q651 TRANSISTOR 2SC4204 or QQQZ02SC4204

TRANSISTOR 2SC4204-AA QQSZ02SC4204
Q652 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q671 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

13-5 L1700EL

Ref. No. Description Part No.

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q672 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267
TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q673 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q681 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q682 ! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
! TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q683 ! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
! TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
! TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q696 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q701 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q702 TRANSISTOR 2SC4204 or QQQZ02SC4204

TRANSISTOR 2SC4204-AA QQSZ02SC4204

Q703 TRANSISTOR 2SC4204 or QQQZ02SC4204

TRANSISTOR 2SC4204-AA QQSZ02SC4204

Q704 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q801 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198GR TO-92 or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q839 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

RESISTORS

R2 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R3 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472
R4 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152
R5 CARBON RES. 1/4W J 22 Ω or RCX4JATZ0220

CARBON RES. 1/6W J 22 Ω RCX6JATZ0220
R6 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R7 CARBON RES. 1/4W J 39kΩ or RCX4JATZ0393

CARBON RES. 1/6W J 39kΩ RCX6JATZ0393
R8 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472
R11 PCB JUMPER D0.6-P5.0 JW5.0T
R12 PCB JUMPER D0.6-P5.0 JW5.0T
R101 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R102 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R103 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223
R104 CARBON RES. 1/4W J 6.8kΩ or RCX4JATZ0682

CARBON RES. 1/6W J 6.8kΩ RCX6JATZ0682
R105 CARBON RES. 1/4W J 6.8kΩ or RCX4JATZ0682

CARBON RES. 1/6W J 6.8kΩ RCX6JATZ0682
R106 PCB JUMPER D0.6-P5.0 JW5.0T
R107 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R108 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R109 PCB JUMPER D0.6-P5.0 JW5.0T
R114 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R115 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R116 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223
R117 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R118 PCB JUMPER D0.6-P5.0 JW5.0T
R119 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R121 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332
R122 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472
R123 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

13-6 L1700EL

Ref. No. Description Part No.

R124 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R125 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R126 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R127 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R128 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R129 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R131 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R132 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R133 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R134 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R135 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223

R136 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473

R137 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R138 CARBON RES. 1/4W J 2.7kΩ or RCX4JATZ0272

CARBON RES. 1/6W J 2.7kΩ RCX6JATZ0272

R139 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

R141 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R143 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R144 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561

R145 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223

R151 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R152 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R153 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R154 PCB JUMPER D0.6-P5.0 JW5.0T
R221 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R222 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561

R223 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R225 PCB JUMPER D0.6-P5.0 JW5.0T
R226 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R251 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R253 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R254 CARBON RES. 1/4W J 12kΩ or RCX4JATZ0123

CARBON RES. 1/6W J 12kΩ RCX6JATZ0123

R255 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

Ref. No. Description Part No.

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R256 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R258 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153
R263 CARBON RES. 1/4W J 5.6kΩ or RCX4JATZ0562

CARBON RES. 1/6W J 5.6kΩ RCX6JATZ0562
R301 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R302 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R304 ZENER DIODE MTZJT-773.9B QDTB0MTZJ3R9
R305 CARBON RES. 1/4W J 6.8kΩ or RCX4JATZ0682

CARBON RES. 1/6W J 6.8kΩ RCX6JATZ0682
R306 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R307 CARBON RES. 1/4W J 2.7kΩ or RCX4JATZ0272

CARBON RES. 1/6W J 2.7kΩ RCX6JATZ0272
R308 PCB JUMPER D0.6-P5.0 JW5.0T
R309 PCB JUMPER D0.6-P5.0 JW5.0T
R310 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R311 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R312 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R313 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R314 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R315 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R316 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R317 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R318 CARBON RES. 1/4W J 270kΩ or RCX4JATZ0274

CARBON RES. 1/6W J 270kΩ RCX6JATZ0274
R319 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153
R321 CARBON RES. 1/4W J 150kΩ or RCX4JATZ0154

CARBON RES. 1/6W J 150kΩ RCX6JATZ0154
R322 CARBON RES. 1/4W J 6.8kΩ or RCX4JATZ0682

CARBON RES. 1/6W J 6.8kΩ RCX6JATZ0682
R323 CARBON RES. 1/4W J 270kΩ or RCX4JATZ0274

CARBON RES. 1/6W J 270kΩ RCX6JATZ0274
R324 PCB JUMPER D0.6-P5.0 JW5.0T
R325 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R326 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R327 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R328 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R329 CARBON RES. 1/4W J 33kΩ or RCX4JATZ0333

CARBON RES. 1/6W J 33kΩ RCX6JATZ0333
R331 PCB JUMPER D0.6-P5.0 JW5.0T
R332 CARBON RES. 1/4W J 10M Ω or RCX4JATZ0106

CARBON RES. 1/6W J 10M Ω RCX6JATZ0106
R333 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

13-7 L1700EL

Ref. No. Description Part No.

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R334 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R341 PCB JUMPER D0.6-P5.0 JW5.0T
R551 CARBON RES. 1/4W J 4.7 Ω or RCX4JATZ04R7

CARBON RES. 1/6W J 4.7 Ω RCX6JATZ04R7

R553 CARBON RES. 1/4W J 1.2 Ω or RCX4JATZ01R2

CARBON RES. 1/6W J 1.2 Ω RCX6JATZ01R2

R554 CARBON RES. 1/4W J 1.2 Ω or RCX4JATZ01R2

CARBON RES. 1/6W J 1.2 Ω RCX6JATZ01R2

R555 CARBON RES. 1/4W J 3.9 Ω or RCX4JATZ03R9

CARBON RES. 1/6W J 3.9 Ω RCX6JATZ03R9

R556 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R557 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R560 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R561 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R562 CARBON RES. 1/4W J 2.7kΩ or RCX4JATZ0272

CARBON RES. 1/6W J 2.7kΩ RCX6JATZ0272

R563 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223

R564 CARBON RES. 1/4W J 56kΩ or RCX4JATZ0563

CARBON RES. 1/6W J 56kΩ RCX6JATZ0563

R566 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3

R567 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3

R569 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103

R574 CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120

CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R575 ! CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120
! CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R576 ! CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120
! CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R577 ! CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120
! CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R578 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R579 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R581 PCB JUMPER D0.6-P5.0 JW5.0T
R583 ! FIXED METAL OXIDE FILM RES. 2W J 2.2 Ω or RN02JZQZ02R2

! FIXED METAL OXIDE FILM RES. 2W J 2.2 Ω or RN02JZPZ02R2
! METAL OXIDE FILM RES. 2W J 2.2 Ω or RN022R2ZU001
! FIXED METAL OXIDE FILM RES. 2W J 3.9 Ω or RN02JZQZ03R9
! FIXED METAL OXIDE FILM RES. 2W J 3.9 Ω or RN02JZPZ03R9
! METAL OXIDE FILM RES. 2W J 3.9 Ω RN023R9ZU001
R584 ! CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102
! CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R585 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104
R586 CARBON RES. 1/4W J 39kΩ or RCX4JATZ0393

CARBON RES. 1/6W J 39kΩ RCX6JATZ0393
R587 CARBON RES. 1/4W J 39kΩ or RCX4JATZ0393

CARBON RES. 1/6W J 39kΩ RCX6JATZ0393
R588 CARBON RES. 1/4W J 82kΩ or RCX4JATZ0823

CARBON RES. 1/6W J 82kΩ RCX6JATZ0823

Ref. No. Description Part No.

R589 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R591 CARBON RES. 1/4W J 120kΩ or RCX4JATZ0124

CARBON RES. 1/6W J 120kΩ RCX6JATZ0124

R592 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R593 CARBON RES. 1/4W J 68kΩ or RCX4JATZ0683

CARBON RES. 1/6W J 68kΩ RCX6JATZ0683

R594 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R596 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R597 CARBON RES. 1/4W J 8.2kΩ or RCX4JATZ0822

CARBON RES. 1/6W J 8.2kΩ RCX6JATZ0822
R598 ! CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473
! CARBON RES. 1/6W J 47kΩ RCX6JATZ0473
R599 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153
R601 ! CEMENT RES. 5W K 1.2 Ω or RW051R2DP005

! CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001
! CEMENT RESISTOR SQZ05S1R2J RW051R2Y4001

R602 CARBON RES. 1/4W J 1.5M Ω or RCX4JATZ0155

CARBON RES. 1/6W J 1.5M Ω RCX6JATZ0155
R603 CARBON RES. 1/4W J 1.5M Ω or RCX4JATZ0155

CARBON RES. 1/6W J 1.5M Ω RCX6JATZ0155
R604 CARBON RES. 1/4W J 1.5M Ω or RCX4JATZ0155

CARBON RES. 1/6W J 1.5M Ω RCX6JATZ0155
R606 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330
R607 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330
R608 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330
R609 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R610 CARBON RES. 1/2W J 3.3M Ω or RCX2335DP001

ANTI-SURGE RESISTOR 1/2W J 3.3M Ω RMX2335KA011
R611 METAL OXIDE FILM RES. 1W J 120 Ω or RN01121KE009

METAL OXIDE FILM RES. 1W J 120 Ω or RN01121ZU001

METAL RESISTOR 1W J 120 Ω or RN01121UB001

METAL OXIDE FILM RES. 1W J 120 Ω RN01121DP003
R612 METAL OXIDE FILM RES. 1W J 120 Ω or RN01121KE009

METAL OXIDE FILM RES. 1W J 120 Ω or RN01121ZU001

METAL RESISTOR 1W J 120 Ω or RN01121UB001

METAL OXIDE FILM RES. 1W J 120 Ω RN01121DP003
R613 ! CEMENT RES. 5W K 0.33 Ω or RW05R33DP005

! CEMENT RESISTOR 5W J 0.33 Ω or RW05R33PG001
! CEMENT RESISTOR SQZ05SR33J RW05R33Y4001

R614 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R615 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R616 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R617 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R618 CARBON RES. 1/4W J 39 Ω or RCX4JATZ0390

CARBON RES. 1/6W J 39 Ω RCX6JATZ0390
R619 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102
R620 PCB JUMPER D0.6-P5.0 JW5.0T

13-8 L1700EL

Ref. No. Description Part No.

R621 CARBON RES. 1/4W J 1M Ω or RCX4JATZ0105

CARBON RES. 1/6W J 1M Ω RCX6JATZ0105

R622 CARBON RES. 1/4W J 27 Ω or RCX4JATZ0270

CARBON RES. 1/6W J 27 Ω RCX6JATZ0270

R632 CARBON RES. 1/4W J 1M Ω or RCX4JATZ0105

CARBON RES. 1/6W J 1M Ω RCX6JATZ0105

R633 CARBON RES. 1/4W J 1M Ω or RCX4JATZ0105

CARBON RES. 1/6W J 1M Ω RCX6JATZ0105

R634 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560

R635 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R636 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473

R638 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R651 FIXED METAL OXIDE FILM RES. 1W J 18kΩ or RN01183KE007

METAL OXIDE FILM RES. 1W J 18kΩ or RN01183ZU001
METAL RESISTOR 1W J 18kΩ or RN01183UB001
METAL OXIDE FILM RES. 1W J 18kΩ RN01183DP003

R652 CARBON RES. 1/4W J 27kΩ or RCX4JATZ0273

CARBON RES. 1/6W J 27kΩ RCX6JATZ0273

R653 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R654 CARBON RES. 1/4W J 1.8kΩ or RCX4JATZ0182

CARBON RES. 1/6W J 1.8kΩ RCX6JATZ0182

R655 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R656 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R657 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R658 CARBON RES. 1/4W J 470kΩ or RCX4JATZ0474

CARBON RES. 1/6W J 470kΩ RCX6JATZ0474

R660 PCB JUMPER D0.6-P5.0 JW5.0T
R661 CARBON RES. 1/4W J 27kΩ or RCX4JATZ0273

CARBON RES. 1/6W J 27kΩ RCX6JATZ0273

R662 CARBON RES. 1/4W J 33kΩ or RCX4JATZ0333

CARBON RES. 1/6W J 33kΩ RCX6JATZ0333

R663 PCB JUMPER D0.6-P5.0 JW5.0T
R664 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R665 CARBON RES. 1/4W J 5.6kΩ or RCX4JATZ0562

CARBON RES. 1/6W J 5.6kΩ RCX6JATZ0562

R666 METAL OXIDE FILM RES. 1W J 82kΩ or RN01823KE009

METAL OXIDE FILM RES. 1W J 82kΩ or RN01823ZU001
METAL RES. 1W J 82kΩ or RN01823UB001
METAL OXIDE FILM RES. 1W J 82kΩ RN01823DP003

R667 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R668 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R669 CARBON RES. 1/4W J 15kΩ or RCX4JATZ0153

CARBON RES. 1/6W J 15kΩ RCX6JATZ0153

R670 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223

R671 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103

R672 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473

R673 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

Ref. No. Description Part No.

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332
R674 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332
R675 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104
R676 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R677 CARBON RES. 1/4W J 68kΩ or RCX4JATZ0683

CARBON RES. 1/6W J 68kΩ RCX6JATZ0683
R678 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473
R680 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R681 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R682 FIXED METAL OXIDE FILM RES. 1W J 22 Ω or RN01220KE007

METAL OXIDE FILM RES. 1W J 22 Ω or RN01220ZU001

METAL RESISTOR 1W J 22 Ω or RN01220UB001

METAL OXIDE FILM RES. 1W J 22 Ω RN01220DP003
R683 FIXED METAL OXIDE FILM RES. 1W J 22 Ω or RN01220KE007

METAL OXIDE FILM RES. 1W J 22 Ω or RN01220ZU001

METAL RESISTOR 1W J 22 Ω or RN01220UB001

METAL OXIDE FILM RES. 1W J 22 Ω RN01220DP003
R684 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R685 CARBON RES. 1/4W J 120 Ω or RCX4JATZ0121

CARBON RES. 1/6W J 120 Ω RCX6JATZ0121
R686 FIXED METAL OXIDE FILM RES. 1W J 18kΩ or RN01183KE007

METAL OXIDE FILM RES. 1W J 18kΩ or RN01183ZU001

METAL RESISTOR 1W J 18kΩ or RN01183UB001

METAL OXIDE FILM RES. 1W J 18kΩ RN01183DP003
R687 CARBON RES. 1/4W J 68kΩ or RCX4JATZ0683

CARBON RES. 1/6W J 68kΩ RCX6JATZ0683
R688 CARBON RES. 1/4W J 68kΩ or RCX4JATZ0683

CARBON RES. 1/6W J 68kΩ RCX6JATZ0683
R690 METAL OXIDE FILM RES. 1W J 5.6 Ω or RN015R6KE009

METAL OXIDE FILM RES. 1W J 5.6 Ω or RN015R6ZU001

METAL RESISTOR 1W J 5.6 Ω or RN015R6UB001

METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6DP003
R696 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R697 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222
R699 CARBON RES. 1/4W J 10kΩ or RCX4JATZ0103

CARBON RES. 1/6W J 10kΩ RCX6JATZ0103
R701 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750
R702 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473
R703 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473
R704 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R705 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R706 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R707 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R709 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

13-9 L1700EL

Ref. No. Description Part No.

R710 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R711 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R712 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

R713 CARBON RES. 1/4W J 120kΩ or RCX4JATZ0124

CARBON RES. 1/6W J 120kΩ RCX6JATZ0124

R714 CARBON RES. 1/4W J 82kΩ or RCX4JATZ0823

CARBON RES. 1/6W J 82kΩ RCX6JATZ0823

R715 CARBON RES. 1/4W J 82kΩ or RCX4JATZ0823

CARBON RES. 1/6W J 82kΩ RCX6JATZ0823

R716 CARBON RES. 1/4W J 120kΩ or RCX4JATZ0124

CARBON RES. 1/6W J 120kΩ RCX6JATZ0124

R721 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R722 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R723 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R724 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R725 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R726 CARBON RES. 1/4W J 8.2kΩ or RCX4JATZ0822

CARBON RES. 1/6W J 8.2kΩ RCX6JATZ0822

R731 CARBON RES. 1/4W J 2.7kΩ or RCX4JATZ0272

CARBON RES. 1/6W J 2.7kΩ RCX6JATZ0272

R732 CARBON RES. 1/4W J 2.7kΩ or RCX4JATZ0272

CARBON RES. 1/6W J 2.7kΩ RCX6JATZ0272

R734 CARBON RES. 1/4W J 1kΩ or RCX4JATZ0102

CARBON RES. 1/6W J 1kΩ RCX6JATZ0102

R801 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470

R802 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470

R803 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

R804 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

R808 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R812 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R813 CARBON RES. 1/4W J 4.7kΩ or RCX4JATZ0472

CARBON RES. 1/6W J 4.7kΩ RCX6JATZ0472

R814 CARBON RES. 1/4W J 56kΩ or RCX4JATZ0563

CARBON RES. 1/6W J 56kΩ RCX6JATZ0563

R815 CARBON RES. 1/4W J 100kΩ or RCX4JATZ0104

CARBON RES. 1/6W J 100kΩ RCX6JATZ0104

R816 CARBON RES. 1/4W J 220kΩ or RCX4JATZ0224

CARBON RES. 1/6W J 220kΩ RCX6JATZ0224

R817 CARBON RES. 1/4W J 47kΩ or RCX4JATZ0473

CARBON RES. 1/6W J 47kΩ RCX6JATZ0473

R819 CARBON RES. 1/4W J 180kΩ or RCX4JATZ0184

CARBON RES. 1/6W J 180kΩ RCX6JATZ0184

R821 CARBON RES. 1/4W J 2.2kΩ or RCX4JATZ0222

CARBON RES. 1/6W J 2.2kΩ RCX6JATZ0222

R823 METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82KE009

METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82ZU001
METAL RES. 1W J 0.82 Ω or RN01R82UB001

Ref. No. Description Part No.

METAL OXIDE FILM RES. 1W J 0.82 Ω RN01R82DP003
R824 METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82KE009

METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82ZU001

METAL RES. 1W J 0.82 Ω or RN01R82UB001

METAL OXIDE FILM RES. 1W J 0.82 Ω RN01R82DP003
R825 METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82KE009

METAL OXIDE FILM RES. 1W J 0.82 Ω or RN01R82ZU001

METAL RES. 1W J 0.82 Ω or RN01R82UB001

METAL OXIDE FILM RES. 1W J 0.82 Ω RN01R82DP003
R826 PCB JUMPER D0.6-P5.0 JW5.0T
R831 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R832 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R838 CARBON RES. 1/4W J 82kΩ or RCX4JATZ0823

CARBON RES. 1/6W J 82kΩ RCX6JATZ0823
R839 CARBON RES. 1/4W J 22kΩ or RCX4JATZ0223

CARBON RES. 1/6W J 22kΩ RCX6JATZ0223

SWITCHES

SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW601 ! POWER SWITCH SDKEA30100 SPP0A5ZAL001

MISCELLANEOUS

AC601 ! AC CORD LA-1814-1 or WAE0172LW001
! AC CORD 9707020 WAE0172AS001

B-6 HEAT SINK(PFB)ASSEMBLY L1400UZ 0EM406029
B-7 HEAT SINK POWER ASSEMBLY L1700UA 0EM406329
B-8 HEAT SINK AUDIO 0EM406330
B-10 JACK HOLDER L9304UZ 0EM404325
B-12 SHIELD PLATE(A) L1700RA 0EM406525
BC571 PCB JUMPER D0.6-P5.0 JW5.0T
BC601 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC603 PCB JUMPER D0.6-P5.0 JW5.0T
BC650 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC651 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC653 PCB JUMPER D0.6-P5.0 JW5.0T
BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
CF221 CERAMIC TRAP 5.5MHz/5.74MHz FBE575PMR001
CF222 6.5M TRAP TPSRA6M50B00-B0 FBE655PMR006
CF251 6.5M FILTER SFSRA6M50CF00-B0 FBB655PMR006
CF253 5.5M FILTER SFSRA5M50CF00-B0 FBB555PMR006
CLN301 WIRE ASSEMBLY L=410 5P WX1L1040-101
F601 ! FUSE T4.0AH/250V PAGC20BAG402
FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

13-10 L1700EL

Ref. No. Description Part No.

HOLDER, FUSE CNT41-0014 1790424

FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424
JK701 RCA JACK 1P(BLUE) (SW) AV1-09S-7 JYRL010RP013
JK702 RCA JACK 1P(WHITE)WITH SWITCH AV1-

JK703 RCA JACK 1P(GRAY) (SW)AV 1-09S-6 JYRL010RP012
JK704 RCA JACK 1P YELLOW (H=8) MTJ-032-03B-

JK705 RCA JACK 4P(SW) MTJ-034-22DB-09PBSN JYRL040LY006
JK801 HEADPHONE JACK MSJ-035-10A B JYSL020LY002
L-1 B-TITE SCREW 3X8 BIND + CHROME or GBMB3080

PS691 ! THERMISTOR ZPB53BL200C or 5790117

! THERMISTOR ZPB58BL200A or QNWZ58BL200A
! THERMISTOR PA2A5200C270Y00 QN4ZPA2A5200

RCV101 REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034
RL601 ! POWER RELAY SDT-S-112LMR or MRNDC12QN014
! POWER RELAY RPEF-12-901 MRNDC12KB002
SF301 SAW FILTER SAFGP38M0VXCL0B03 FBB386PMR006
T571 ! FLYBACK TRANSFORMER JF0501-2409 or LTF00CPXB021
! FLYBACK TRANS BSC21-2602S LTF00CPS2027
T572 H0RIZONTAL DRIVE TRANS LP2-004 LTH00CPA5004
T601 ! SWITCHING TRANS KD-01709 or LTT00EPKT074
! SWITCHING TRANS SA-01017 LTT00EPSA102
TP300 PCB JUMPER D0.6-P10.0 JW10.0T
TP301 PCB JUMPER D0.6-P10.0 JW10.0T
TP302 PCB JUMPER D0.6-P10.0 JW10.0T
TP591 PCB JUMPER D0.6-P5.0 JW5.0T
TP592 PCB JUMPER D0.6-P5.0 JW5.0T
TP601 PCB JUMPER D0.6-P12.5 JW12.5T
TU1 TUNER UNIT UVE25-EW65D UTUNPSDMM003
VR661 CARBON P.O.T. 10kΩ B or VRCB103KA011

X101 CERAMIC RESONATOR KBR-8.0MKC or FY0805PKC002

X301 X'TAL 4.433619MHz FXC445LNL002

09S-4

02PBSN

B-TITE SCREW 3X8 BIND + CHROME or GBMB3080

B-TITE SCREW 3X8 BIND + CHROME GBMB3080

CARBON P.O.T. 10kΩ B VRCB103HH014

CERAMIC RESONATOR CSTS0800MG03 or FYL805PMR001

CERAMIC RESONATOR ZTT 8.00MHz or FY0805PLN001

CERAMIC RESONATOR FCR8.0MC FY0805PTE001

JYRL010RP010

JXRL010LY020

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C501 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271
C502 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271
C503 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271
C504 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C510 CERAMIC CAP. B K 1000pF/2kV or CCD3DKD0B102

CERAMIC CAP. B K 1000pF/2kV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2kV CA3D102MR030

CONNECTOR

CN501 PIN CONNECTOR 005P-5100 JTEA001TG001

COIL

L501 INDUCTOR 180µH-J-5FT or LLARJCSTU181

INDUCTOR 180µH-K-5FT LLARKDSKA181

------------

Ref. No. Description Part No.

TRANSISTORS

Q501 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR 2SC2271(D)-AEMP or 2SC2271DZ
TRANSISTOR 2SC2271(E)-AE QQSE02SC2271

Q502 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR 2SC2271(D)-AEMP or 2SC2271DZ
TRANSISTOR 2SC2271(E)-AE QQSE02SC2271

Q503 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR 2SC2271(D)-AEMP or 2SC2271DZ
TRANSISTOR 2SC2271(E)-AE QQSE02SC2271

RESISTORS

R501 ! FIXED METAL OXIDE FILM RES. 1W J 15kΩ or RN01153KE007
! METAL OXIDE FILM RES. 1W J 15kΩ or RN01153ZU001
! METAL RESISTOR 1W J 15kΩ or RN01153UB001
! METAL OXIDE FILM RES. 1W J 15kΩ RN01153DP003
R502 ! FIXED METAL OXIDE FILM RES. 1W J 15kΩ or RN01153KE007
! METAL OXIDE FILM RES. 1W J 15kΩ or RN01153ZU001
! METAL RESISTOR 1W J 15kΩ or RN01153UB001
! METAL OXIDE FILM RES. 1W J 15kΩ RN01153DP003
R503 ! FIXED METAL OXIDE FILM RES. 1W J 15kΩ or RN01153KE007
! METAL OXIDE FILM RES. 1W J 15kΩ or RN01153ZU001
! METAL RESISTOR 1W J 15kΩ or RN01153UB001
! METAL OXIDE FILM RES. 1W J 15kΩ RN01153DP003

R504 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R505 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R506 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R509 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152

R511 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330

R512 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330

R513 CARBON RES. 1/4W J 33 Ω or RCX4JATZ0330

CARBON RES. 1/6W J 33 Ω RCX6JATZ0330

R514 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R515 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R516 CARBON RES. 1/4W J 3.3kΩ or RCX4JATZ0332

CARBON RES. 1/6W J 3.3kΩ RCX6JATZ0332

R517 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R518 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R519 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R521 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R522 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R523 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

13-11 L1700EL

Ref. No. Description Part No.

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R537 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152
R538 CARBON RES. 1/4W J 1.5kΩ or RCX4JATZ0152

CARBON RES. 1/6W J 1.5kΩ RCX6JATZ0152
R539 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100

MISCELLANEOUS

CLN501 PARALLEL WIRE 3P WX1L1114-101
JK501 ! CRT SOCKET ISMS02S JSCC220PK003
TP501 PCB JUMPER D0.6-P7.5 JW7.5T
TP502 PCB JUMPER D0.6-P7.5 JW7.5T
TP503 PCB JUMPER D0.6-P7.5 JW7.5T

13-12 L1700EL

TV-2000A MK12 L1700RA

Printed in Japan

2001-04-02 HO
