Owner's Manual

TB110MW9

DTV Digital to Analog Converter (Set Top Box)

THANK YOU FOR CHOOSING MAGNAVOX.

NEED HELP FAST?

READ YOUR OWNER'S MANUAL FIRST FOR QUICK TIPS

THAT MAKE USING YOUR MAGNAVOX PRODUCT MORE ENJOYABLE.

IF YOU HAVE READ YOUR INSTRUCTIONS AND STILL NEED ASSISTANCE,

YOU MAY ACCESS OUR ONLINE HELP AT WWW.MAGNAVOX.COM/SUPPORT

OR WWW.FUNAISERVICE.COM/

OR CALL 1-800-605-8610 WHILE WITH YOUR PRODUCT

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

© 2010 Funai Electric Co., Ltd.

Before Using

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the bottom of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

Important Safeguards

1. Read instructions All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as

the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments - Do not use attachments not recommended by this product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table.

This product may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with this

product. Any mounting of the appliance

should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

AMEUBLES - Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes,

déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9.Ventilation - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of this product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing this product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase

or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For this products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This product is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding - If an outside antenna or cable system is connected to this product, be

sure the antenna or cable system is grounded so as to provide some protection against voltage

surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of grounding

2

EN

FIGURE A



EXAMPLE OF ANTENNA GROUNDING AS PER

ANTENNA LEAD

NATIONAL ELECTRICAL CODE



IN WIRE

ANTENNA GROUND CLAMP DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC SERVICE



EQUIPMENT





GROUNDING

NEC - NATIONAL

CONDUCTORS

ELECTRICAL CODE

(NEC SECTION 810-21)

POWER SERVICE GROUNDING ELECTRODE

GROUND CLAMPS



SYSTEM (NEC ART 250, PART H)



conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning - For added protection for this product receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to this product due to lightning and power-line surges.

15.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on this product.

18.Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into this product.

c.If this product has been exposed to rain or water.

d.If this product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation.

e.If this product has been dropped or damaged in any way.

f.When this product exhibits a distinct change in performance-this indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform routine safety checks to determine that this product is in proper operating condition.

22. Heat - This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

The serial number of this product may be found on the bottom of the unit. You should record the number and other vital information here and retain this book as a permanent record. Serial numbers are not kept on file.

Date of Purchase





Dealer Phone No.



Dealer Purchase from



Model No.



Dealer Address





Serial No.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY



INSERT.





ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

3

gUsin Before

EN

Before Using

Precautions

Location

For safe operation and satisfactory performance of this product, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the product. Do not place the product on a carpet because this will block the ventilation holes. Install the product in a horizontal position. Avoid locations subject to strong vibration.

Do not place this product near strong magnetic fields.

Avoid moving this product to locations where temperature differences are extreme.

Avoid the Hazards of Electrical

Shock and Fire

Do not handle the power cord with wet hands. Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If by accident, water is spilled on your the product, unplug the power cord immediately and take the product to our Authorized Service Center for servicing.

Do not place anything directly on top of the product.

Important Copyright Information

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use or other acts which infringe upon the rights of copyright owners.

FCC WARNING - This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

A Note about Recycling

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

4

EN

T a b l e o f C o n t e n t s

Before Using



Advanced Operation





Important Safeguards

2

Autoscan (Receiving Channels)

18

Precautions

4

Adding/Deleting Channels

18

Overview

6

Adjusting Antenna

20

Information on Digital Broadcasting

7

Selecting Display Mode

20

Accessories

7

Setting the Time Zone and D.S.T





Installing Batteries

7

(Daylight Saving Time)

21

Location of Controls

8

V-chip Options

22

Connections



Closed Caption Options

25



Auto Power Down

26

Connecting to a TV without A/V Jacks

10

Viewing Analog TV

27

Connecting to a TV with A/V Jacks

10

Others





Connecting to a Cable Box (Optional)

11





Connecting to Other Devices

12

Troubleshooting

30

Initial Setup (Setup Wizard)



Specifications

31











Initial Setup

13

Warranty

Back Cover

Basic Operation











Selecting Channels on the STB

15

































© 2010 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, dissemin ated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the exppress prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or a ny revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

5

gUsin Before

EN

Before Using

Overview

CONNECTION

A Connecting to

a TV without A/V jacks

Conexión a un TV sin tomas de A/V

B Connecting to

a TV with A/V jacks

TV without

A/V jacks





SET TOP BOX



P10







TV with



P10

A/V jacks

SET TOP BOX



Conexión a un TV con tomas de A/V

C Connecting to

a Cable Box

Cable Box

TV with

SET TOP BOX

P11

A/V jacks

Conexión a una caja de cable

D Connecting to

Other Devices

Conexión a otros dispositivos

DVD or VCR

TV with

SET TOP BOX

P12

A/V jacks

1. Language for TV screen

Idioma para la pantalla

2. Connection for audio output

Conexión para salida de audio

3. Time zone

Husos horarios

4. Daylight savings time (D.S.T)

Hora de verano (D.S.T)

5. Display mode

modo de indicaciones

6. Channel scanning

Búsqueda de canales

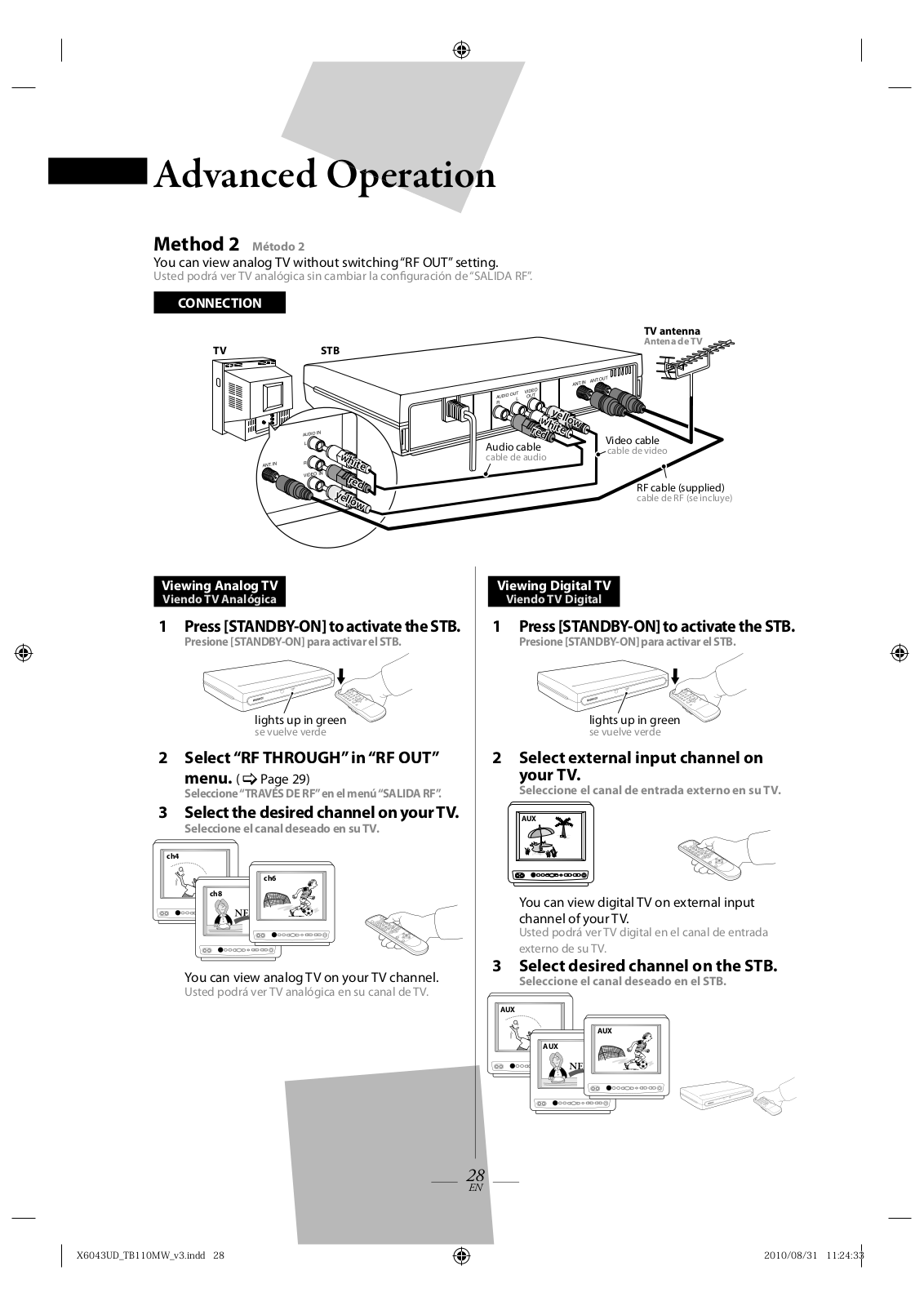

Viewing Analog TV

Viendo TV Analógica

6

P14

P27

EN

Information on Digital Broadcasting

Receives

ATSC

ATSC





Digital

Digital terrestrial

terrestrial signals

antenna

STB (Set Top Box)



converts the ATSC signal



to analog signal



TV



This STB makes it possible to view the digital TV programs on your analog TV by converting the digital signal to the analog signal. You can use most features provided by the digital broadcast, except that the resolution of the image is always output in 480i (standard resolution).

Accessories

Check the following accessories when unpacking the STB:

Remote control:

Owner’s manual:

AA battery (1.5V) x 2

RF cable:

NA386UD (x1)

1VMN25977 (x1)



WPZ0901TM002 /







WPZ0901TM005 (x1)

Installing Batteries

Instalación de pilas

1 Unsnap the battery cover from the

2 Install two AA batteries making

3

Snap the battery



back of the remote control.

sure the polarity (+ / - ) is correct.













cover back.



Abra la cubierta de pilas de la parte

Instale dos pilas AA asegurándose que

Cierre la cubierta de

trasera del mando a distancia.

la polaridad (+ / - ) sea la correcta.

pilas.

NOTE:

When replacing batteries, replace them in pairs.

Cuando cambie las pilas, hágalo por pares.

CAUTION:

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías alcalinas, estándar (zinc-carbono) o recargables (ni-cad, ni-mh, etc.).

Do not mix new and old batteries together.

No mezcle pilas nuevas con antiguas.

Do not recharge, short-circuit, heat, burn or disassemble batteries.

No recargue, caliente, queme o desarme baterías ni provoque un corto circuito con ellas.

Remove batteries from battery compartment that is not going to be used for a month or more.

Quite las pilas del compartimento de pilas si no se va a utilizar durante un mes o más.

7

gUsin Before

EN

Before Using

Location of Controls

Ubicación del control

Remote Control

Mando a distancia



1

STANDBY-ON button: Turns STB on and off.





Conecta y desconecta el STB.



2

Number buttons

1

3

OK button

4

SETUP button: Displays “SETUP” menu.



7

Switches “RF OUT” setting by holding this button

2

8

down over 3 seconds.

Despliega el menú “AJUSTE”.





Cambia la configuración de “SALIDA RF” al mantenerse





presionado durante 3 segundos.

3

9

5

ALT. CH: Returns to the last selected channel.

4

10



Regresa al último canal seleccionado.

6

AUDIO button: Selects alternative audio





5

11



languages (if available).



Selecciona idiomas de audio alternativos (si existen).

6

12

7

. (Confirm) button: Press to confirm the channel

13



selection made by [the Number buttons]







Presione para confirmar la selección del canal, hecha







con [los botones de Números].





8

DISPLAY button: Displays the channel banner.







Despliega el banner del canal.

9 RETURN button: Returns to the previous menu screen.

Regresa a la pantalla de menú anterior.

10 Navigation buttons K / L / s / B

11 EPG button: Displays the Electronic Program Guide.

Despliega la Guía Electrónica de Programas.

12 CH K / Lbuttons

13 STILL button: Freezes the image on the TV screen.

Congela la imagen de la pantalla del TV.

To operate this STB with a universal remote, check the instruction manual for remote and find Magnavox brand STB code. If you do not find the code or the code does not work, try to use Sylvania brand STB code instead.

8

EN
