OWNER’S

As an ENERGY STAR

Partner, our company has determined that this product meets the E

NERGY STAR guidelines for

energy efficiency. E

NERGY STAR is

a U.S. registered mark.

EARPHONE

OTR

REC

POWER

AUDIO

REC

VIDEO

VOLUME CHANNEL

REW F.FWD

PLAY

STOP EJECT

MANUAL

9-INCH COLOR TV/VCR

SSC092

This Owner’s Manual is made of

recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional assistance for set-up or operating

after reading owner’s manual, please call

TOLL FREE : 1-800-968-3429.

Please read before using this equipment

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

PORTABLE CART WARNING

S3126A

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-Unplug TV/VCR from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by the TV/VCR manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/VCR near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/VCR may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/VCR. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/VCR on a bed, sofa, rug, or other similar surface. This TV/VCR should never be placed near or over a radiator or heat register. This TV/VCR should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV/VCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/VCRs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/VCR is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

- 2 - EN

9J27

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELE CTRICAL CODE

GROUND

CLAMP

ANTENNA

LEAD IN WIRE

ANTENNA

DISCHARGE UNI T (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDI NG ELECTRODE SYSTEM (NEC ART 250, PART H)

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/VCR due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/VCR through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/VCR.

18.Servicing-Do not attempt to service this TV/VCR yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/VCR from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

TV/VCR.

c. If the TV/VCR has been exposed to rain or water. d. If the TV/VCR does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/VCR to its normal operation.

e. If the TV/VCR has been dropped or damaged in any way. f. When the TV/VCR exhibits a distinct change in perfor-

mance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Upon completion of any service or repairs to this TV/VCR, ask the service technician to perform routine safety checks to determine that the TV/VCR is in proper operating condition.

22.Heat-This TV/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

- 3 - EN

9J27

PRECAUTIONS

LOCATION

For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away

•

from sources of intense heat. Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper

•

heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the TV/VCR near strong magnetic fields.

•

Avoid moving TV/VCR to locations where temper-

•

ature differences are extreme.

AV OID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting

•

it from an AC wall outlet. Grasp it by the plug. If, by accident, water is spilled on your unit, unplug

•

the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the

•

TV/VCR cassette holder. Do not place anything directly on top of the unit.

•

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a tape is played in a TV/VCR which has moisture, it may damage the tape and TV/VCR. Therefore when the condensation occurs inside the unit, turn the POWER button on and allow at least 2 hours for the unit to dry out.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

The serial number of this product may be found on the back of the unit. No other TV/VCR has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

- 4 - EN

9J27

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

C SUPPLIED ACCESSORIES . . . . . . . . . . . . . . .6

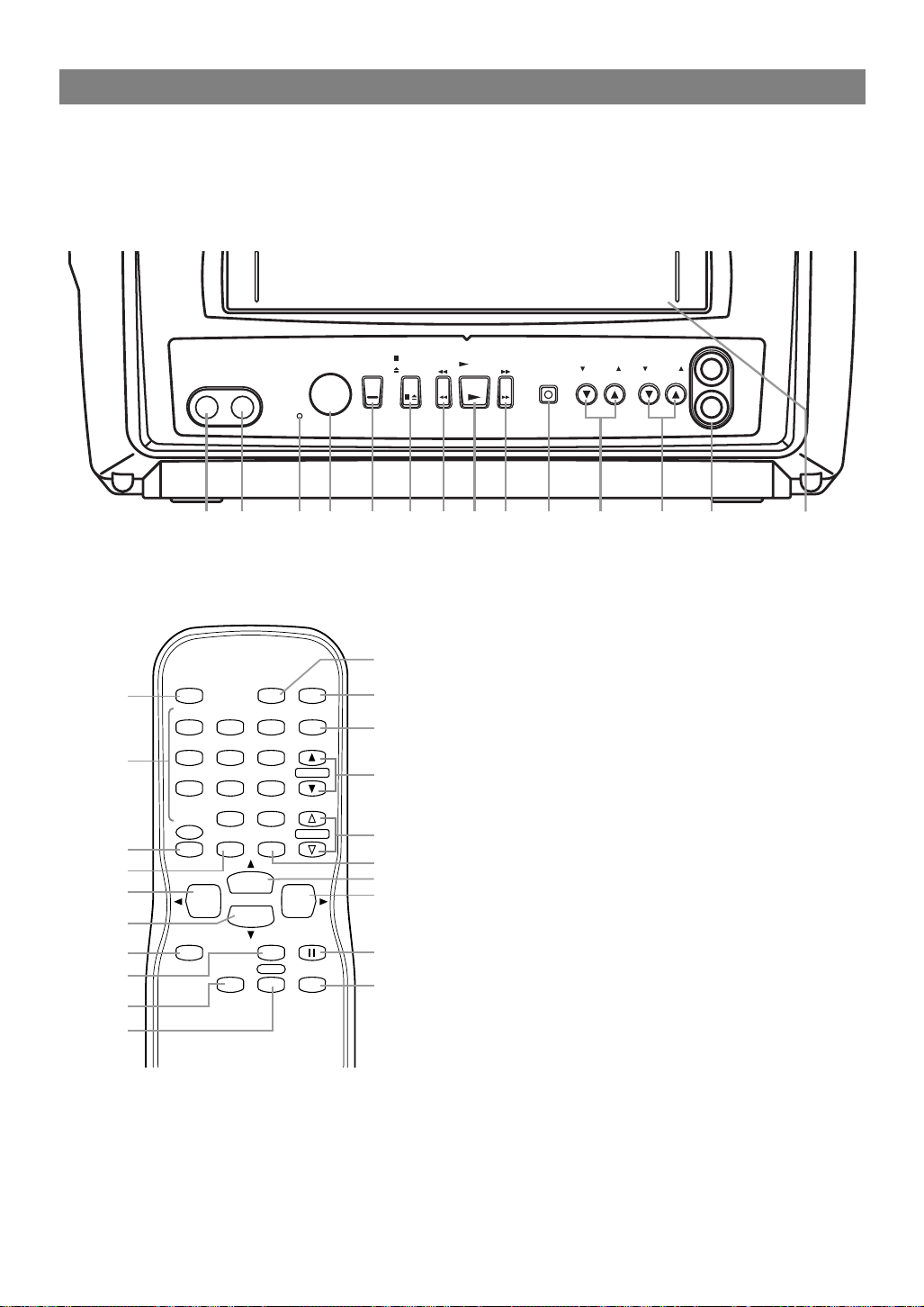

C OPERATING CONTROLS AND FUNCTIONS 7

C PREPARATION FOR USE . . . . . . . . . . . . . . . .9

C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . . .11

CHANNEL SET UP FOR THE FIRST TIME . .11

CLOCK SET UP (AUTO / MANUAL) . . . . . .12

CHANNEL SET UPAGAIN . . . . . . . . . . . . . .13

DELETING (OR ADDING) CHANNEL . . . . .13

SELECTING THE LANGUAGE . . . . . . . . . . .14

DAYLIGHT-SAVING TIME . . . . . . . . . . . . . .14

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .15

WATCHING A TV PROGRAM . . . . . . . . . . . .15

GAME MODE . . . . . . . . . . . . . . . . . . . . . . . . .15

DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .15

PICTURE CONTROL . . . . . . . . . . . . . . . . . . .15

FM MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

C PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . .16

NORMAL PLAYBACK . . . . . . . . . . . . . . . . . .16

AUTO REPEAT PLAYBACK . . . . . . . . . . . . .16

SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

STILL PICTURE . . . . . . . . . . . . . . . . . . . . . . .17

NOISE CANCEL (in the Still mode) . . . . . . . .18

VERTICAL HOLD CONTROL . . . . . . . . . . . .18

TRACKING ADJUSTMENT . . . . . . . . . . . . . .18

RENTAL PLAYBACK . . . . . . . . . . . . . . . . . . .18

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .18

NORMAL RECORDING . . . . . . . . . . . . . . . . .19

SKIPPING UNWANTED SCENES DURING

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .19

OTR (One Touch Recording) . . . . . . . . . . . . . .19

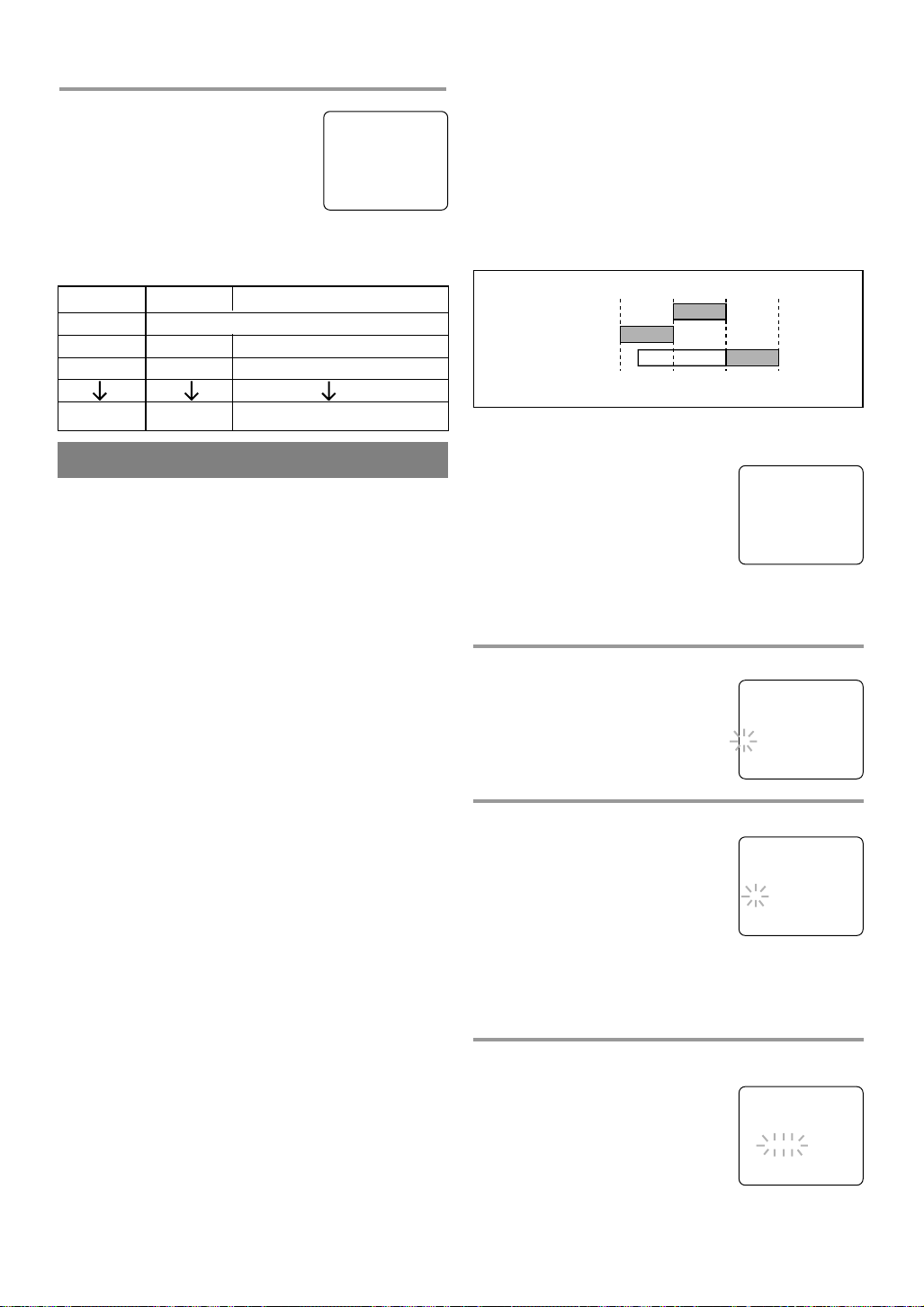

TIMER RECORDING . . . . . . . . . . . . . . . . . . .20

HINTS FOR AUTOMATIC TIMER

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .22

AUTO RETURN . . . . . . . . . . . . . . . . . . . . . . .22

WAKE UP TIMER . . . . . . . . . . . . . . . . . . . . . .22

SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .23

C COPYING AVIDEO TAPE . . . . . . . . . . . . . . .23

C ON SCREEN DISPLAY . . . . . . . . . . . . . . . . .24

C SPECIAL FEATURES . . . . . . . . . . . . . . . . . .24

REAL TIME TAPE COUNTER . . . . . . . . . . . .24

AUTO REWIND-EJECT . . . . . . . . . . . . . . . . .24

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .24

C TROUBLESHOOTING GUIDE . . . . . . . . . . .25

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .26

C CABLE CHANNEL DESIGNATIONS . . . . . .26

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

INDICE

CONTROLES DE OPERACIÓN Y

SUS FUNCIONES . . . . . . . . . . . . . . . . . . . . . . . .27

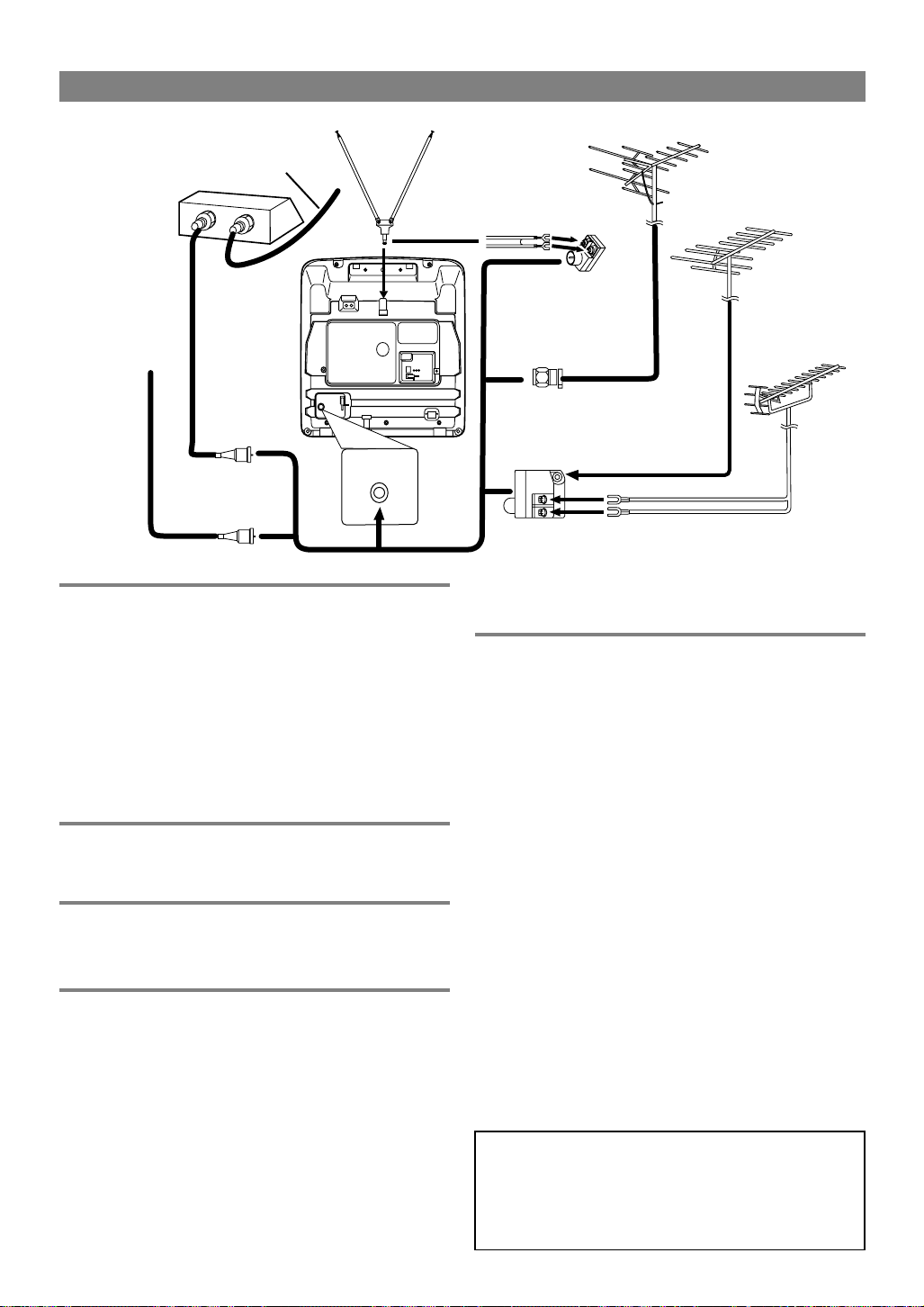

CONEXIONES DE ANTENA/CABLE . . . . . . . .29

INSTALACIÓN DE LAS PILAS . . . . . . . . . . . . .30

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

MODO DE ENTRADA EXTERNA . . . . . . . . . . .30

PREPARACIÓN DE CANALES POR

PRIMERA VEZ . . . . . . . . . . . . . . . . . . . . . . . . . .31

AJUSTE DEL RELOJ . . . . . . . . . . . . . . . . . . . . .31

- 5 - EN

9J27

FEATURES

Infrared remote control

•

Bilingual on screen menu display selectable in

•

English or Spanish Real time counter–This shows the elapsed recording or

•

playback time in hours, minutes, and seconds. The “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

181 channel capability PLL frequency synthesizer

•

tuner with direct station call–

essary to view scrambled cable channels.)

Auto Clock Setting–Allows you to set the clock function

•

from a PBS broadcast station.

Game mode–Automatically sets external input mode and

•

allows TV/VCR display to be suitable for use with TV games.

Auto power on and off system–Automatically turns on

•

the TV/VCR when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.

Auto rewind when the end of a tape is reached–This

•

function doesn’t occur when using timer recording.

2 Step picture search operation–You can view a video

•

program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode only high speed.

Three different playback tape speeds : SP/LP/SLP

•

Two different recording tape speeds : SP/SLP

•

Auto Head Cleaner–Automatically cleans video heads as

•

you insert or remove a cassette.

Zero Return–The tape returns to counter of 0:00:00 by

•

rewinding or fast forwarding.

(A converter may be nec-

Still–“Freeze” the picture at any time, for close viewing

•

of a particular scene. Only tapes recorded in SLP mode will show a fairly clear picture.

Digital Auto Tracking (DTR)–Automatically adjusts the

•

tracking for each tape you play.

Rental play mode–Improves playback picture quality

•

from worn tapes, such as rental tapes.

Auto repeat–Allows you to repeat the playing of a tape

•

indefinitely without pressing the PLAY button.

Time search–Let you set the TV/VCR to advance the

•

tape by entering the desired playback time you want to skip.

OTR (One Touch Recording)–Instant timed recording

•

from 30 to 480 minutes is possible at the push of the REC/OTR button.

1 Year, 8 events (including Daily and Weekly Timer

•

Recording)–The built-in timer allows you to record up

to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be made once a week up to the end of the tape.

Auto return–After timer recording is finished, the

•

TV/VCR can return to the beginning of the recording.

Wake up/Sleep timer–Allows you to have the TV/VCR

•

automatically turn on or off at a desired time.

Timer Program Extension–Allow you to shift the time

•

schedule for automatic timer recording.

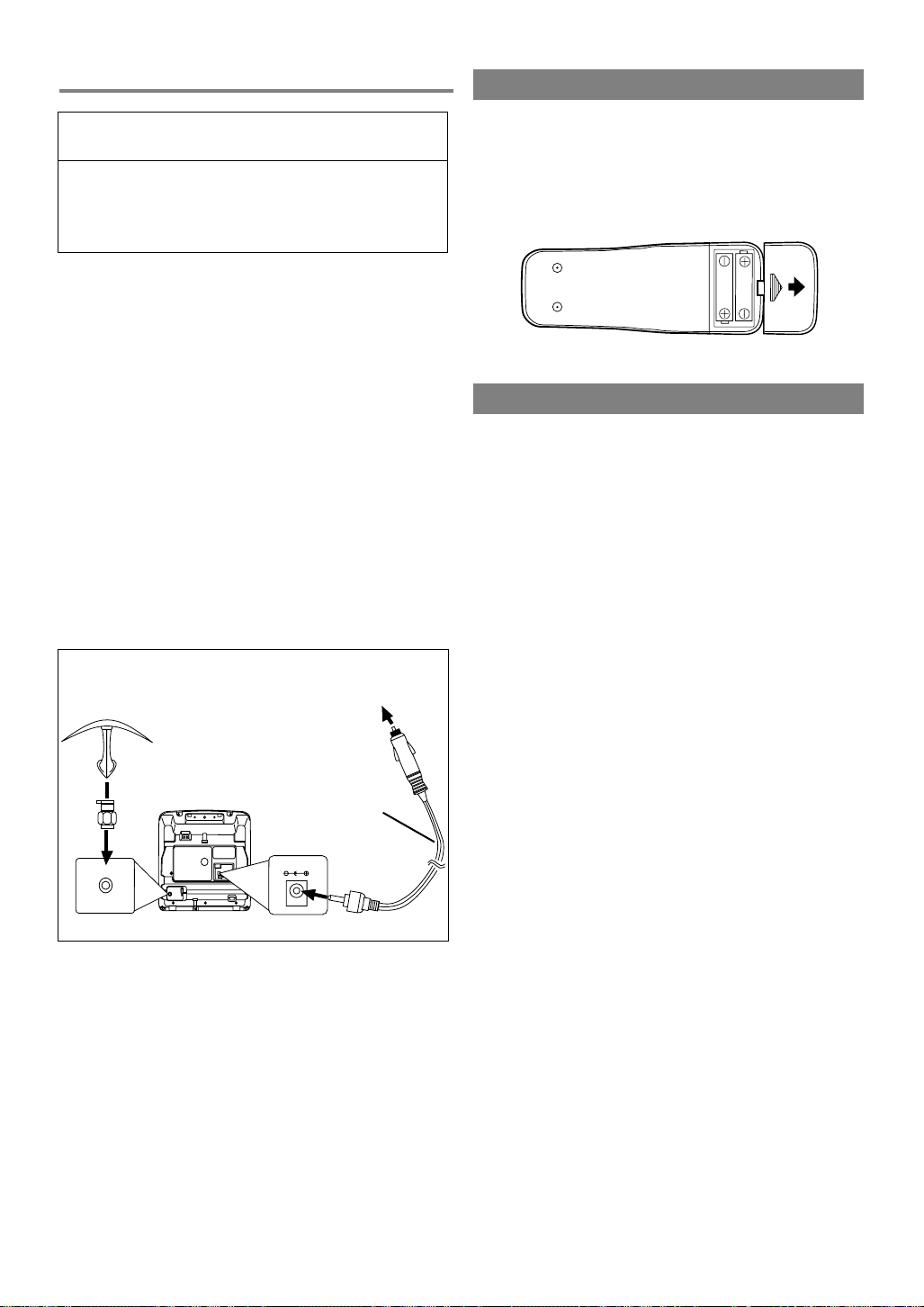

Two- way power–Allows you to power the TV/VCR

•

with standard household AC or your vehicle’s battery, using the supplied car-battery cord.

FM MODE–Allow you to listen to the FM radio.

•

SUPPLIED ACCESSORIES

Remote Control Unit

PA RT NO. (NE108UD)

If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-

•

968-3429. Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators

•

(Splitter). Contact your local electronics store for these items. We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

•

a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

Dipole Antenna

(300ohm-75ohm)

(1813641 or 1780258 or

UCPGANTPK004)

2 AA Batteries

(0EMN00723 or

0EMN01183)

- 6 - EN

Car Battery CordMatching Adapter

WPZ0202GA004

AC Cord

WPV0182LW001/WPV0182HHH01

9J27

OPERATING CONTROLS AND FUNCTIONS

EARPHONE

OTR

REC

POWER

AUDIO

REC

VIDEO

VOLUME CHANNEL

REW F.FWD

PLAY

STOP EJECT

1 92 3 4 5 6 7 8 12 1310 11 14

POWER

WAKE-UP

/SLEEP

123

456

789

+100

TV/FM

CHANNEL

RETURN

REW

PLAY

STOP

F.FWD

GAME

RECORD

PAUSE/STILL

SPEED

TIME SEARCH

CHANNEL

T-PROG.

CLEAR

COUNTER

RESET

DISPLAY MUTE

VOLUME

10 18

19 20

22 21

- TV/VCR FRONT PANEL -

- REMOTE CONTROL -

1 AUDIO input jack– Connect to the audio output

2 VIDEO input jack– Connect to the video output

4 Remote Sensor Window– Receives the infrared

jack of your audio equipment, video camera or another VCR.

jack of your video camera or another VCR.

RECORD indicator– Flashes during recording.

Lights up in the Stand-by mode for Timer Recording.

signals from the remote control.

- 7 - EN

POWER button– Press to turn TV/VCR on and off.

Press to activate timer recording.

6 STOP button– Press to stop the tape motion.

EJECT button– Press in the Stop mode to remove

tape from TV/VCR.

L button–

Press to select setting modes from the on screen

•

menu. Press to enter digits when setting program.

•

(for example: setting clock or timer program)

REW button– Press to rewind the tape, or to view

the picture rapidly in reverse during playback mode. (Rewind Search)

s button–

Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

8 PLAY button– Press to begin playback.

K button–

Press to select setting modes from the on screen

•

menu. Press to enter digits when setting program.

•

(for example: setting clock or timer program)

F.FWD button– Press to rapidly advance the tape,

or to view the picture rapidly in forward during playback mode. (Forward Search)

button–

When setting program (for example: setting clock

•

or timer program), press to determine your selection and proceed to the next step you want to input.

Press to determine setting modes from on screen

•

menu. Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

9J27

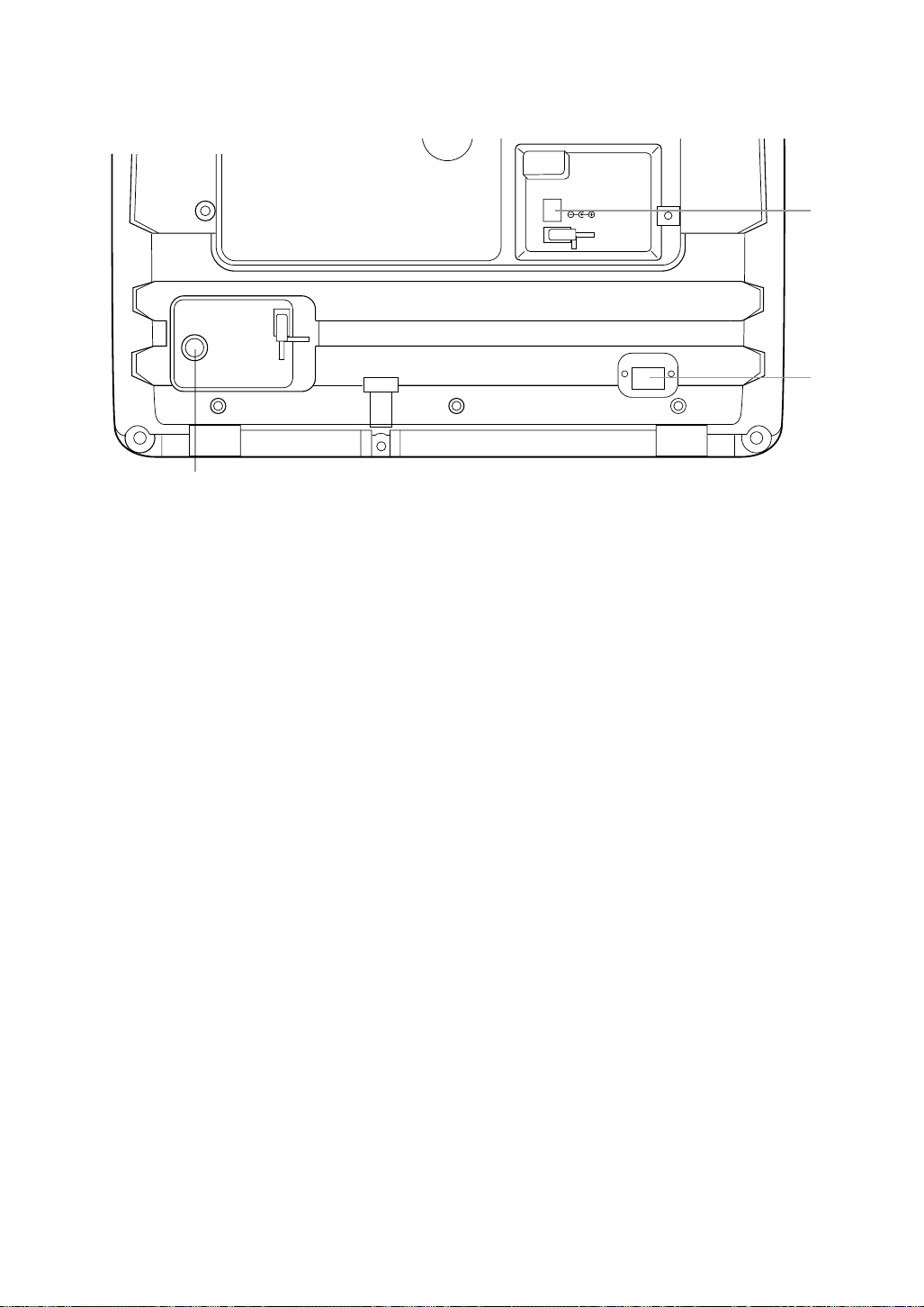

- REAR VIEW -

ANT

DC 13.2V

AC 120V

10 REC button– Press for manual recording.

OTR button– Activates One Touch Recording.

(only on the TV/VCR)

VOLUME XX/ YYbuttons– Adjust the volume

level.

CHANNEL K / L buttons– Press to select the

desired channels for viewing or recording. You may display the main menu on the TV screen

by pressing repeatedly this button on the TV/VCR.

TRACKING function– Press to minimize video

‘noise’ (lines or dots on screen) during playback mode. (See page 18.)

EARPHONE jacks– Connect to earphones (not

supplied). The size of jack is 1/8” monaural (3.5mm).

Jack1: For personal listening. Jack2:Sound comes out from both the earphone

and the speakers.

Jack1&2:For personal listening for two (No sound

comes out from the speakers).

Cassette compartment

15 Number buttons– Press to select desired channels

for viewing or recording. To select channels from 1 to 9, first press the 0 button and then 1 to 9.

+100 button– When selecting cable channels

which are higher than 99, press this button first, then press the last two digits. (To select channel 125, first press the “+100” button then press “2” and “5”.)

MENU button– Press to display the main menu on

the TV screen.

DISPLAY button– Display the counter or the cur-

rent channel number and current time on the TV screen. (See page 24.)

SPEED button– Press to choose the desired

recording speed:SP/SLP.

T-PROG. CLEAR button– Press to cancel a setting

of timer program. (See page 22.)

COUNTER RESET button– Press to reset counter

to 0:00:00.

GAME button– Sets the game mode and external

input mode at the same time. (See page 15.)

TIME SEARCH button– Press to activate Time

Search mode.

PAUSE/STILL button– Press to temporarily stop

the tape during the recording or to view a still picture during playback.

MUTE button– Mutes the sound. Press it again to

resume sound.

CHANNEL RETURN button– Press to go back to

the previously viewed channel. For example, pressing this button once will change channel display from 3 (present channel) to 10 (previously viewed channel), and pressing it a second time will return from 10 to 3.

WAKE-UP/SLEEP button– Set the Wake up or

Sleep Timer. (See page 22 and 23.)

TV/FM button– Set the FM mode (see page 16)

ANT. terminal– Connect to an antenna or cable

system.

DC 13.2V jack– Connect to the Car Battery Cord.

AC 120V jack– Connect to the AC cord.

- 8 - EN

9J27

ANT.

OUT

ANT

DC 13.2V

AC 120V

PREPARATION FOR USE

From Cable System or

Satellite Box or Cable Box (Not supplied)

From Cable System

Satellite Dish

75-ohm Coaxial Cable (Not supplied)

Flat twin-lead cable

ANTENNA/CABLE

CONNECTIONS

DIPOLE ANTENNA HOOK UP

1. Push the stem of the Dipole Antenna (accessory) into the hole for antenna at the back of TV/VCR.

2. Connect the flat twin-lead cable from the Dipole Antenna to the 300/75 ohm Matching Adapter (accessory).

3. Plug the Matching Adapter to ANT terminal of TV/VCR as shown in drawing.

For the best reception, extend the Dipole Antenna and adjust its length and position. (Avoid handling the top section when making adjustments.)

NOTE: If it is difficult to get good reception with the indoor antenna, the use of an outdoor antenna is recommended. Before an outdoor antenna is connected to the set, the indoor antenna should be disconnected.

Dipole Antenna (Supplied)

VHF/UHF Combiner

(Not supplied)

VHF/UHF Antenna (Not supplied)

VHF Antenna (Not supplied)

UHF Antenna (Not supplied)

Flat twin-lead cable

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/VCR without a converter box.

By using this connection you can:

1) Use the TV/VCR remote to select channels.

2) Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This unit will ONL same channel.

Y record and view the

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Antenna/Cable Connections Continued on the Next Page.

- 9 - EN

9J27

ANT.

DC13.2V

AC 120V

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown in drawing.

By using this connection you can also record scrambled channels. However, channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/VCR Remote Control. Unattended timer recording is limited to one channel at a time.

TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL

1. Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2.Select the channel to record from your Cable

Converter Box or Satellite Box.

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

MOBILE CONNECTION

WARNING:The driver should never watch the TV/VCR while operating a motor vehicle.

CAUTION: If you use the TV/VCR with the vehicle’s engine off, recharge the vehicle’s battery after about every 4 hours of use to prevent it from running down. After you finish using the TV/VCR be sure you unplug the car-battery cord from the cigarette-lighter socket.

1) The supplied indoor antenna is adequate when your vehicle is stationary. For best reception on the road, use a high-quality VHF/UHF mobile TV antenna.

2) Attach the car battery cord to the DC13.2V (12V) connector on the back of the TV/VCR. Then, connect the other end to your vehicle’s cigarettelighter socket.

NOTES:

Be sure your vehicle has a 13.2-volt (12-volt), neg-

•

ative-ground electrical system. Be sure you use only the supplied car battery cord.

•

Using another cord could damage the TV/VCR. Be sure the socket is free of ashes and other debris.

•

Be sure to push the car battery cord’s plug com-

•

pletely into the cigarette-lighter socket. Always unplug the car battery from the cigarette-

•

lighter socket before you unplug it from the TV/VCR.

You must disconnect the car battery cord from the

•

TV/VCR before you can use the AC power. Be sure to replace the fuse with only the same

•

type, 5A, 250V.

EXTERNAL INPUT MODE

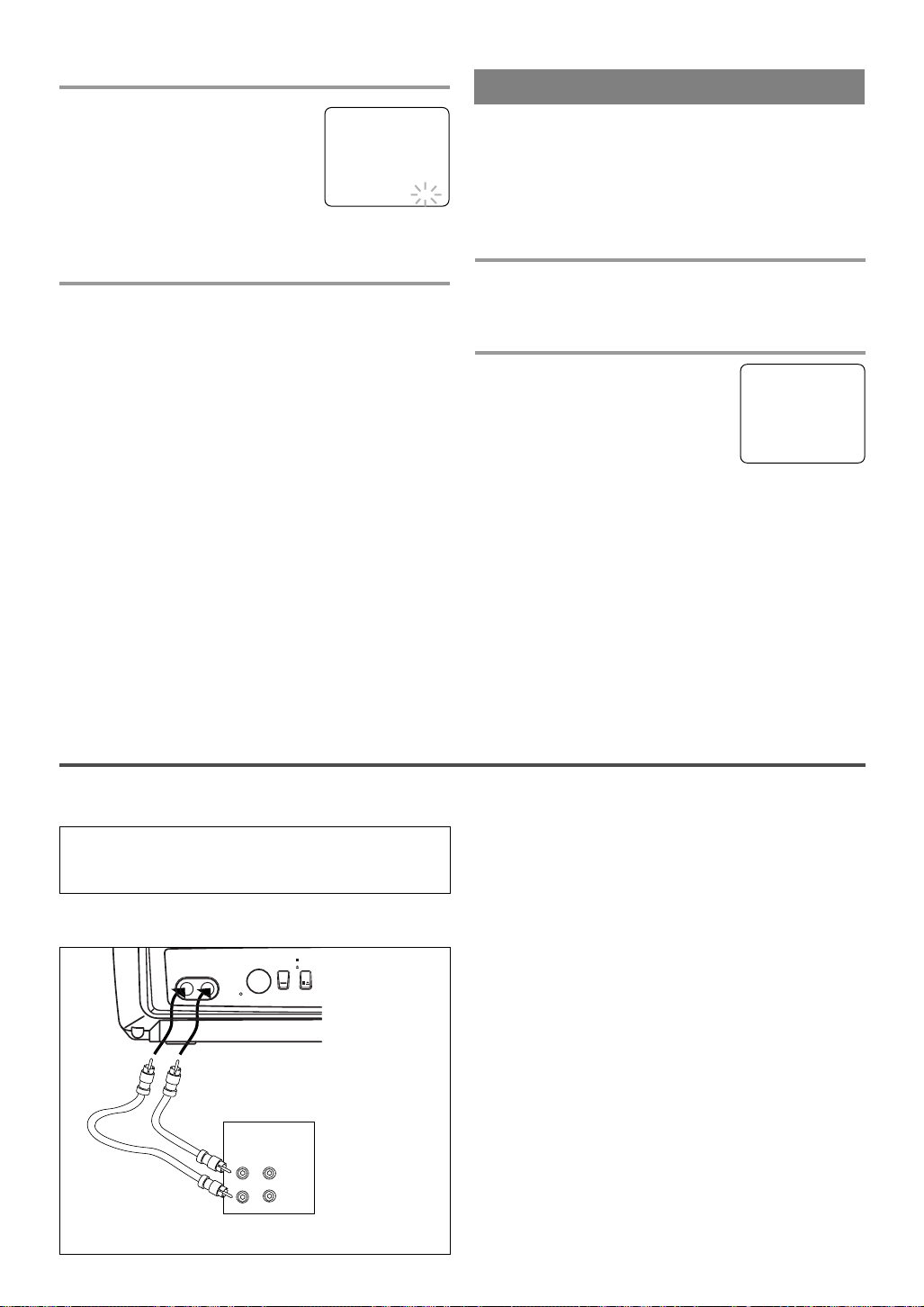

When using an external input signal (another VCR or video camera), connect the player’s audio/video output cables to the AUDIO IN/ VIDEO IN jacks of your TV/VCR. Then press the CHANNEL K or L button until “AUX” appears on the screen.

To the vehicle's cigarette-lighter socket

VHF/UHF Combination Mobile Antenna (Not supplied)

Car battery cord (Supplied)

AUX

- 10 - EN

9J27

+ 22 hidden pages
