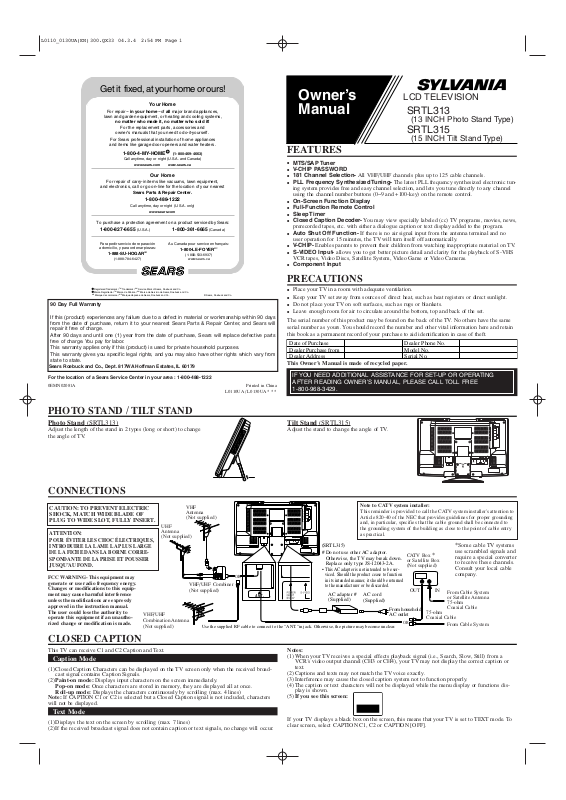

Funai SRTL315 User Manual

Owner’s

Registered Trademark / TM Trademark /

Service Mark of Sears, Roebuck and Co.

Marca Registrada /

Marca de Fábrica / SM Marca de Servicio de Sears, Roebuck and Co.

Marque de commerce / MD Marque déposée de Sears, Roebuck and Co. © Sears, Roebuck and Co.

Get it fixed, at your home or ours!

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER

(1-800-533-6937)

www.sears.ca

Your Home

For repair- in your home -of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME

(1-800-469-4663)

Call anytime, day or night

(U.S.A. and Canada)

www.sears.com www.sears.ca

LCD TELEVISION

90 Day Full Warranty

If this (product) experiences any failure due to a defect in material or workmanship within 90 days from the date of purchase, return it to your nearest Sears Parts & Repair Center, and Sears will repair it free of charge.

After 90 days and until one (1) year from the date of purchase, Sears will replace defective parts free of charge. You pay for labor.

This warranty applies only if this (product) is used for private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179

For the location of a Sears Service Center in your area : 1-800-488-1222

0EMN02081A Printed in China

L0110UA / L0130UA * * *

Manual

SRTL313

(13 INCH Photo Stand Type)

SRTL315

(15 INCH Tilt Stand Type)

FEATURES

●

MTS/SAP Tuner

● V-CHIP PASSWORD

● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun-

ing system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0~9 and +100-key) on the remote control.

● On-Screen Function Display

● Full-Function Remote Control

● Sleep Timer

● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

● Auto Shut Off Function- If there is no air signal input from the antenna terminal and no

user operation for 15 minutes, the TV will turn itself off automatically.

● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

● S-VIDEO Input- allows you to get better picture detail and clarity for the playback of S-VHS

VCR tapes, Video Discs, Satellite System, Video Game or Video Cameras.

● Component Input

PRECAUTIONS

● Place your TV in a room with adequate ventilation.

● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

● Do not place your TV on soft surfaces, such as rugs or blankets.

● Leave enough room for air to circulate around the bottom, top and back of the set.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase Dealer Purchase from Dealer Address

This Owner’s Manual is made of recycled paper.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-968-3429.

Dealer Phone No. Model No. Serial No.

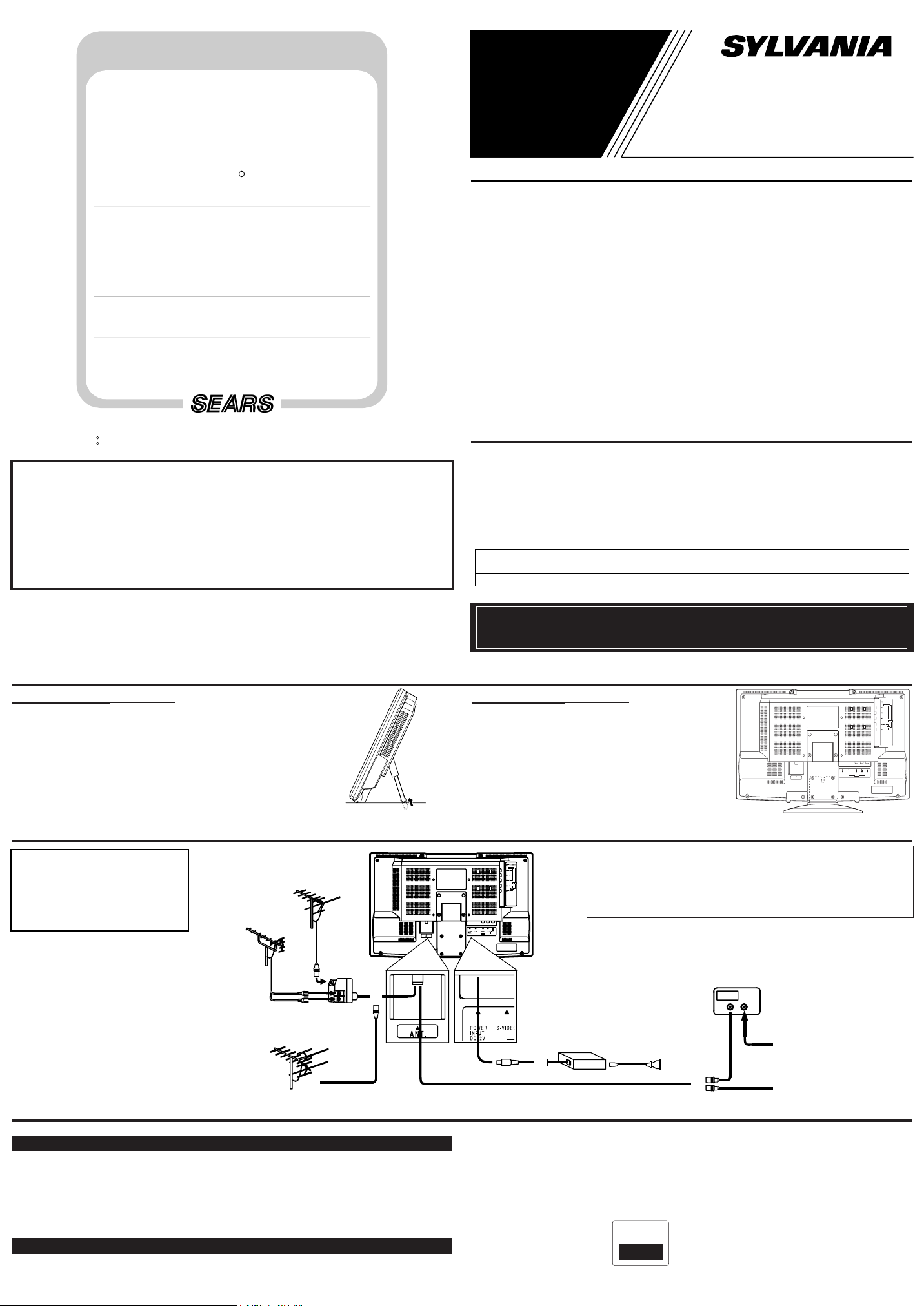

PHOTO STAND / TILT STAND

Photo Stand (SR

Adjust the length of the stand in 2 types (long or short) to change the angle of TV.

TL313)

CONNECTIONS

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

UHF

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

CLOSED CAPTION

This TV can receive C1 and C2 Caption and Text.

Caption Mode

(1)Closed Caption Characters can be displayed on the TV screen only when the received broad-

cast signal contains Caption Signals. Paint-on mode: Displays input characters on the screen immediately.

(2)

Pop-on mode: Once characters are stored in memory, they are displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If CAPTION C1 or C2 is selected but a Closed Caption signal is not included, characters

will not be displayed.

Antenna (Not supplied)

VHF/UHF Combination Antenna (Not supplied)

Text Mode

(1)Displays the text on the screen by scrolling (max. 7 lines) (2)If the received broadcast signal does not contain caption or text signals, no change will occur.

VHF Antenna (Not supplied)

VHF/UHF Combiner (Not supplied)

Use the supplied RF cable to connect to the “ANT.”in jack. Otherwise, the picture may become unclear.

ilt Stand

Adjust the stand to change the angle of TV.

(SR

TL315)

HEAD PHONE

COMPONENT

AV-IN2

AUDIO

POWER

S-VIDEO

VODEO AUDIORL INPUT DC12V

ANT.

AV-IN1

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

(SRTL315) # Do not use other AC adaptor.

Otherwise, the TV may break down. Replace only type JS-12043-2A.

This AC adapter is not intended to be ser-

• viced. Should the product cease to function

CATV Box or Satellite Box (Not supplied)

*Some cable TV systems

use scrambled signals and require a special converter to receive these channels. Consult your local cable company.

in its intended manner, it should be returned to the manufacturer or be discarded.

AC adapter # (Supplied)

AC cord (Supplied)

From household AC outlet

OUT IN

From Cable System or Satellite Antenna 75-ohm

75-ohm Coaxial Cable

Coaxial Cable

From Cable System

Notes:

(1)When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a

VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or

text. (2)Captions and texts may not match the TV voice exactly. (3)Interference may cause the closed caption system not to function properly. (4)The caption or text characters will not be displayed while the menu display or functions dis-

play is shown. (5)If you see this screen:

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To clear screen, select CAPTION C1, C2 or CAPTION [OFF].

HEAD PHONE

COMPONENT

POWER INPUT DC12V

S-VIDEO

ANT.

AV-IN1

VIDEO AUDIO RL

AV-IN2

AUDIO

14 15

WARNING:

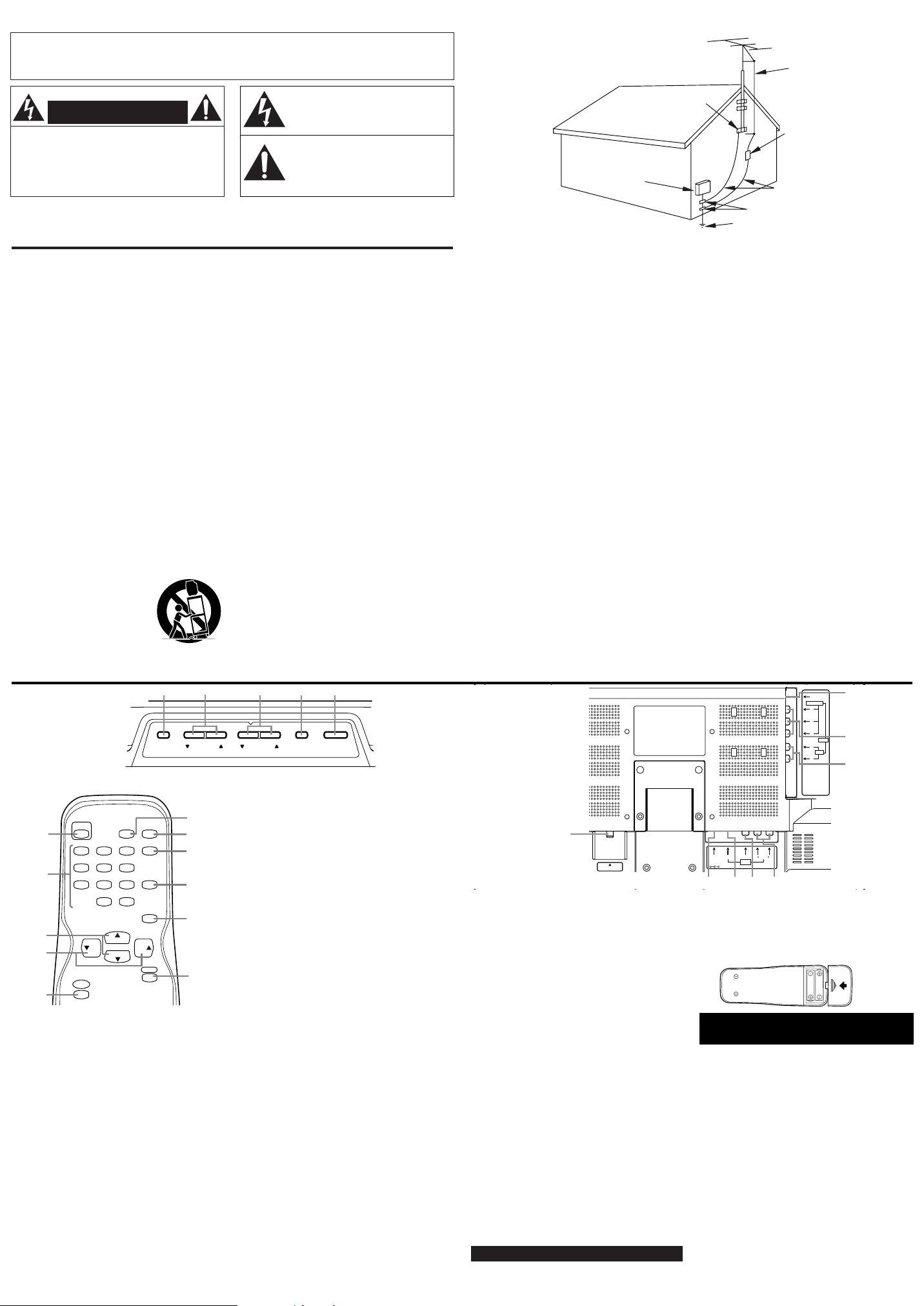

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS (NEC SECTION 810-21)

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

SELECTINPUT

POWERCHANNLLVOLUMEMENU

PWR

123

456

789

0 +100

DISPLAY

VOL

SLEEP

CHANNEL

RETURN

INPUT

SELECT

MUTE

GAME

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

CAUTION

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions should be followed.

5. Cleaning-Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories-Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

S3126A

AMEUBLES- Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to .

10. Power Sources-This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization-This TV is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

12. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14. Lightning-For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

15. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18. Servicing-Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service-Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV.

c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in perfor-

mance-this indicates a need for service.

20. Replacement Parts-When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21. Safety Check-Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22. Heat-This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

OPERATING CONTROLS AND FUNCTIONS

- TOP PANEL -

- REMOTE CONTROL -

1. MENU button- Press to display the menu

on the TV screen.

2. VOLUME (VOL) ▲/▼ buttons- Press to

control the volume level. Press to determine the setting mode from the menu on the TV screen. (only the VOL ▲ button) Press to select or adjust from a particular menu. (for example: Language Selection, Channel Presetting, Closed Caption Selection, Picture Adjustment, V-CHIP Set Up)

3. CHANNEL (CH) ▲/▼ buttons- Press to

select memorized channel. NOTE:You MUST PRESET channels BEFORE using CHANNEL (See CHANNEL PRESETTING.) Press to select the setting mode from the menu on the TV screen. Press to select item you want to adjust in the picture control mode.

▲/▼ button.

INPUT SELECT button- Press to select TV or the external input (VIDEO1 or VIDEO2) mode. (See USING AUDIO/VIDEO INPUT JACKS.)

5. POWER (PWR) button- Press to turn the

TV ON and OFF.

6. CHANNEL NUMBER button- Press two

digits to directly access the desired channel. Remember to press a "0" before a single digit channel. +100 button- Press to select cable channels higher than 99.

MUTE button- Press the MUTE button to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) ▲ or ▼ button to restore sound.

8. CHANNEL RETURN button- Press this

button to go back to the previously viewed channel. For example, pressing the CHANNEL RETURN button once will change channel display from CH 3 (present channel) to CH 10 (previously viewed channel), and pressing it a second time will return from CH 10 to CH 3.

9. DISPLAY button- Press to display the

channel number on the screen. If you press it again, the channel number will disappear.

10.SLEEP button- Press the SLEEP button to

display the sleep timer and start the function. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)

11. GAME button- Press to set the Game

mode and external input mode at the same time. To exit, press the INPUT SELECT button. (Use VIDEO1 input jacks.) ANT(enna). in jack- Connect to an anten-

12. na, cable system, or satellite system.

- REAR PANEL -

13.

POWER INPUT jack- Connect to an AC adapter (supplied).

14.S-VIDEO input jack- Connect to the S-

VIDEO output jack of a video camera or VCR using the S-VIDEO cable (not supplied). NOTE: The S-VIDEO jack is given priority over the VIDEO jack.

15.VIDEO in jack- Connect to the video out-

put jack of a video camera or VCR.

16.AUDIO L/R in jacks- Connect to the

left/right channel audio output jacks of a video camera or VCR. NOTE: The AUDIO L (in) jack is for mono input. The sound is heard from both speakers. Use this jack for monaural audio equipment to be hooked up.

17.COMPONENT (Y/Pb/Pr) video in jacks-

Connect to the component video out jacks of a DVD.

18.

HEADPHONE jack- Connect headphone (not supplied) for personal listening. NOTE: Do not connect earphones that have an L-shaped plug. The plug may interfere with the cabinet.

INSTALLING THE BATTERIES

1) Slide the battery compartment cover back on the remote unit.

2) Insert 2 "AA" penlight batteries into battery

compartment in the direction as indicated by the polarity (+ / -) markings. Batteries installed with incorrect polarity may damage the remote unit.

3) Replace the cover.

USING AUDIO/VIDEO INPUT JACKS

When you use the AUDIO/VIDEO input jacks, select “VIDEO1” or “VIDEO2” mode by pressing the INPUT SELECT button on the remote control.

•To use the jacks at the underneath of the TV, select “VIDEO1”.

•To use the jacks at the side of the TV, select “VIDEO2”.

NOTES:

•You may also set the Game mode and external input mode at the same time by pressing the GAME button on the remote control. "GAME" appears on the TV screen. In this case, connect the external source to the AUDIO/VIDEO jacks at the underneath of the TV. (Use VIDEO1 input jacks.) (See PICTURE ADJUSTMENT.)

•When you use the S-VIDEO connection, S-VIDEO jack is given priority over the VIDEO jack.

PREPARATION FOR USE

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [ C1] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [ C2] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [ T1] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [ T2] TV SOUND [MAIN]

BRIGHT

CONTRAST

COLOR

TINT

SHARPNESS

to increase brightness to increase contrast to brilliant

to green

to clear

to decrease brightness to decrease contrast to pale

to purple

to soft

VOL(ume)

[-]

SHARPNESS

[+]

[-]

CONTRAST

[+] [-]

COLOR

[+] [-]

TINT

[+]

[-]

BRIGHT

[+]

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the procedure below.

1) Connect the power cord to a standard AC outlet. Note: If some digits appear in the corner of the screen, press the POWER button without unplugging the power cord.

2) Press the POWER button to turn on the TV.

3) Press the MENU button so that the menu display appears on the TV screen.

4) Press the CH(annel)

▲ or ▼ button to point to "[ENG]".

5) Select "ENG"(English), "ESP"(Spanish) or "FRA"(French) by using the VOL(ume)

▲ or ▼ button.

6) Press the MENU button to exit the menu.

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

CHANNEL PRESETTING

NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button.

To preset a channel or to change a preset channel, follow the procedure below.

1) Press the POWER button to turn on the TV.

2) Press the MENU button so that the menu display appears on the TV screen.

3) Press the CH(annel) Then, press the VOL(ume)

4) Press the CH(annel) Then, press the VOL(ume)

▲ or ▼ button to point to "CHANNEL SET".

▲ button.

▲ or ▼ button to point to "AUTO MEMO".

▲ button.

The tuner scans and memorizes all active channels in your area.

● The TV distinguishes between standard TV channels and cable (CATV)

channels.

● When AUTO MEMO action is completed, the lowest memorized channel reappears on the

screen.

● When you press the CH(annel) ▲ or ▼ button after selecting AUTO MEMO,

the tuner will stop at the memorized channels only.

● The TV may memorize TV channels as CATV channels if the reception conditions are poor. If

this happens, try the AUTO MEMO action again when reception conditions are better.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV

screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".

Then, press the VOL(ume)

▲ button.

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

ADD/DELETE AUTO MEMO

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

3) Press the VOL(ume) ▲ button so that "ADD/DELETE" is selected.

4) Use the CH(annel)

▲ or ▼ button to select the channel you wish to put

into memory or to erase from memory.

ADD/DELETE AUTO MEMO

Note: The display will return to the normal screen automatically in about 10 seconds. Perform "ADD/DELETE" function while this display appears on the screen.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number in LIGHT BLUE if you wish to add the channel into memory.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

MTS (Multi-Channel Television Sound) System

You can listen to a program in MTS stereo by following the steps below.

Typ e of

broadcast

Regular

Stereo

broadcast

SAP

Selection

MAIN

-None-

STEREO

MAIN

SAP

MONO

-None- -None-

MONO

MAIN

SAP

STEREO

SAP

To show the status, press the DISPLAY button on the remote control.

SAP: Second Audio Program, which means your program, can also be received in a second language or sometimes a radio station.

[To Select STEREO, MONO or SAP in Stereo broadcast]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel)

3) Press the VOL(ume)

▲ or ▼ button to point to "TV SOUND".

▲ or ▼ button to select your desired stereo mode. ([MAIN], [MONO] or

[SAP])

: Press the VOL(ume) ▲ or ▼ button.


Selection

CHANNEL SET

Typ e of

[ENG] / ESP / FRA

broadcast

V-CHIP SET UP

Regular

CAPTION [OFF] TV SOUND [MAIN]

Stereo

broadcast

SAP

MAIN

-None-

STEREO

MAIN


MONO

CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP

-None- -None-

CAPTION [ C1] TV SOUND [MONO]

MONO

MAIN

SAP

STEREO

SAP

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [ C2] TV SOUND [SAP]

RESUME FUNCTION

If the power fails or is disconnected while the TV is powered on, the TV will turn on automatically when the power resumes.

OPERATIONS

WATCHING A TV PROGRAM

1) Press the POWER button to turn on the TV.

2) Select the desired channel with the CH(annel)

3) Adjust the volume to the desired listening level using the VOL(ume)

4) Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SETTING THE SLEEP TIMER

The sleep timer function allows you to have the POWER automatically turn off after a set time period.

1) Press the POWER button to turn on the TV and press the SLEEP button

on the remote control .

2) You may change the sleep time by pressing the SLEEP

button on the remote control repeatedly. The timer can be set up to 90 minutes, 10 minutes each time the SLEEP button is pushed. (The timer display counts up and sleep timer will be displayed on the screen when you press the SLEEP button on remote control.) Note: When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.

CLOSED CAPTION SELECTION

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

: Press the VOL(ume)

▲ or ▼ button.

SLEEP 10

To cancel the sleep timer:

Press the SLEEP button repeatedly until "SLEEP 0" is displayed.

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel)

▲ or ▼ button to point

to "CAPTION".

3) Press the VOL(ume)

▲ or ▼ button to select

the mode you wish.

4) When done, press the MENU button to exit the menu.

PICTURE ADJUSTMENT

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the VOL(ume)

TURE" is selected.

3) Press the CH(annel) “MANUAL”. Then, press the VOL(ume) button.

4) Select the feature you wish to adjust with the CH(annel) ▲ or ▼ button and adjust it with the VOL(ume)

: Press the CH(annel) ▲ or ▼ button.

Note:

●

In the above steps, the picture adjustment display will disappear from the TV screen automatically after about 10 seconds if you do not press any buttons. Press the MENU and VOL(ume) ▲ button so that "PICTURE" is selected. Then, press the CH(annel) ▲ or ▼ button repeatedly until the display returns to the screen.

[USING THE GAME BUTTON]

You can set the Game mode and external input mode at the same time by pressing the GAME button on the remote control. “GAME” appears on the TV screen.

●

To exit the Game mode and external input mode, press the GAME button on the remote control again.

●

To cancel the Game mode only, adjust the picture control. In this case, “VIDEO1” instead of “GAME” appears on the TV screen.

●

If you press the GAME button when the TV is off, the TV turns on and will be in the Game mode and external input mode automatically.

▲ button so that "PIC-

▲ or ▼ button to select

▲

▲ or ▼ button.

+ 6 hidden pages
