Owner’s Manual

FEATURES

●

Flat Screen Picture Tube

●

181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

●

PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tuning system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0~9 and +100-key) on the remote control.

●

On-Screen Function Display

●

MTS/SAP Tuner

●

Sleep Timer

●

Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

●

Auto Shut Off Function- If there is no signal input from the antenna terminal and no user operation for 15 minutes, the TV will turn itself off automatically.

●

V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

●

S-VIDEO Input- Allows you to get better picture detail and clarity.

●

Front AV Input- Front Composite AV Input

●

Rear Audio Input- Rear S-Video AV Input

PRECAUTIONS

●

Place your TV in a room with adequate ventilation.

●

Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

●

Do not place your TV on soft surfaces, such as rugs or blankets.

●

Leave enough room for air to circulate around the bottom, top and back of the set.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase Dealer Purchase from Dealer Address

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-968-3429.

20 INCH COLOR TELEVISION

SRT2420P

Dealer Phone No. Model No. Serial No.

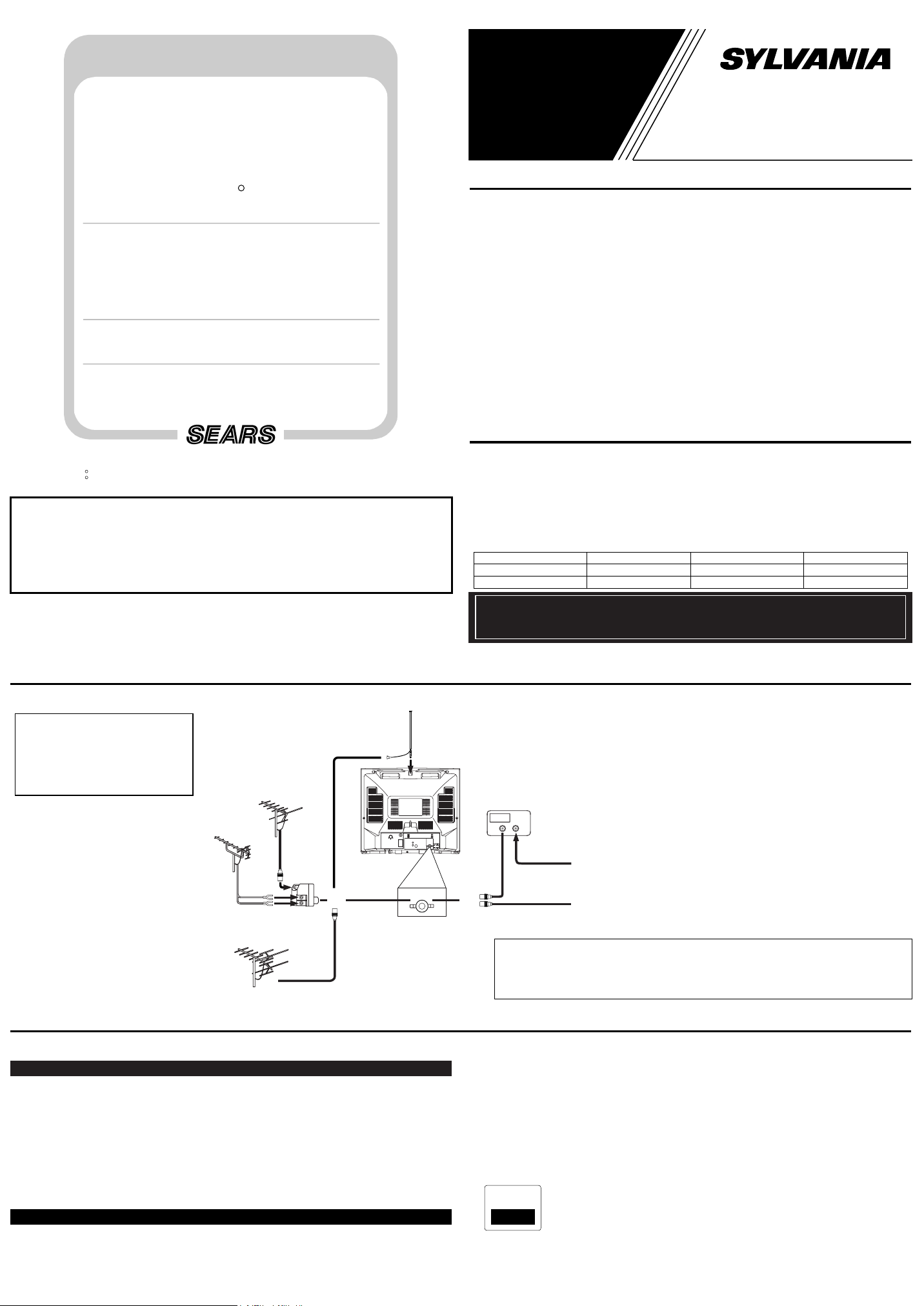

ANTENNA/CABLE CONNECTIONS

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

VHF Antenna

MISE EN GARDE: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CLOSED CAPTION

UHF Antenna (Not supplied)

VHF/UHF Combination Antenna (Not supplied)

(Not supplied)

VHF/UHF Combiner (Not supplied)

UHF/VHF Rod Antenna (Not supplied)

ANT. IN

Some cable TV systems use scram-

bled signals and require a special converter to receive these channels. Consult your local cable company.

CATV Box or Satellite Box (Not supplied)

OUT

75-ohm Coaxial Cable

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 82040 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

From Cable System or Satellite Antenna 75-ohm Coaxial Cable

From Cable System

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This TV can receive C1 and C2 Caption and Text.

CAPTION MODE

1) Closed Caption Characters can be displayed on the TV screen only when the received broadcast signal contains Caption Signals.

2) Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If CAPTION C1 or C2 is selected but a Closed Caption signal is not included, characters

will not be displayed.

TEXT MODE

1) Displays the text on the screen by scrolling (max. 7 lines)

2) If the received broadcast signal does not contain caption or text signals, no change will occur.

Notes:

1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or text.

2) Captions and texts may not match the TV voice exactly.

3) Interference may cause the closed caption system not to function properly.

4) The caption or text characters will not be displayed while the menu display or functions display is shown.

5) If you see this screen:

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To clear screen, select CAPTION C1, C2 or CAPTION [OFF].

WARNING

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS (NEC SECTION 810-21)

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

MENU POWERVOLUME CHANNEL

L - AUDIO - RVIDEO HEADPHONE

45 67 8123

1817

AUDIO

S-VIDEO

ANT.IN

PWR

123

456

789

0 +100

DISPLAY

VOL

SLEEP

CHANNEL

RETURN

MUTE

GAME

INPUT

SELECT

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

CAUTION

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions should be followed.

5. Cleaning-Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories-Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

S3126A

AMEUBLES- Cet appareil ne doit être placé que sur un

meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. Power Sources-This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization-This TV is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

12. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPANo. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14. Lightning-For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

15. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18. Servicing-Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service-Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV.

c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in perfor-

mance-this indicates a need for service.

20. Replacement Parts-When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21. Safety Check-Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22. Heat-This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

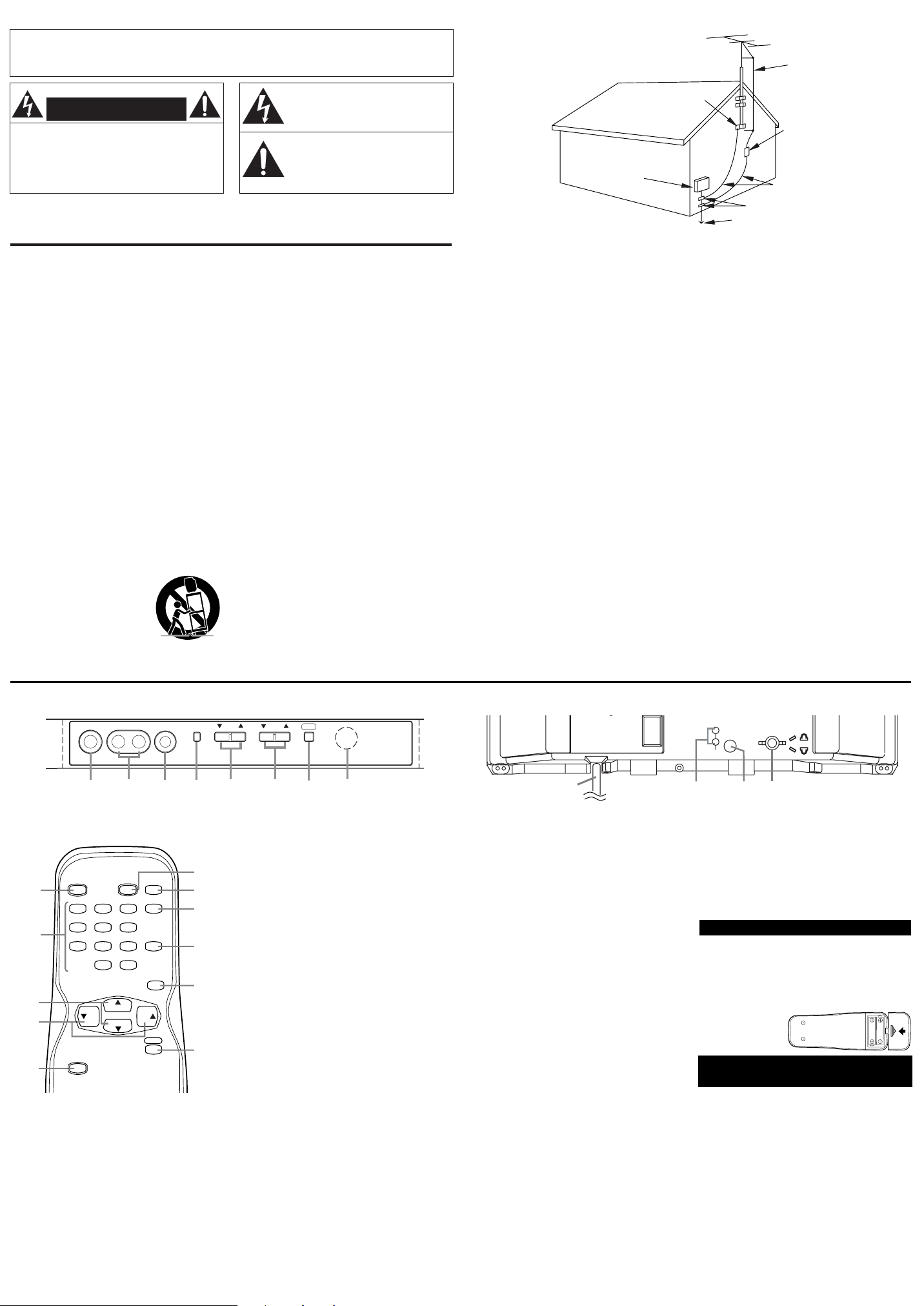

OPERATING CONTROLS AND FUNCTIONS

- FRONT PANEL - - REAR PANEL -

- REMOTE CONTROL -

1. VIDEO (IN) jack (for VIDEO2)- Connect

to the video output jack of a video camera, VCR, or video game.

2. AUDIO L/R IN jacks (for VIDEO2)-

Connect to the left/right channel audio output jacks of a video camera, VCR, or video game. Note: The AUDIO L (IN) jack is for mono input. The sound is heard from both speakers. Use this jack for monaural audio equipment to be hooked up.

3. HEADPHONE jack- To connect headphone

(not supplied) for personal listening.

4. MENU button- Press to display the menu

on the TV screen.

5. VOLUME (VOL) ▲/▼ buttons- Press to

control the volume level. Press to determine the setting mode from the menu on the TV screen. (only the VOL ▲ button) Press to select or adjust from a particular menu. (for example: Language Selection, Channel Presetting, Closed Caption Selection, Picture Adjustment, V-CHIP Set Up)

6. CHANNEL (CH) ▲/▼ buttons- Press to

select memorized channel. Press to select the setting mode from the menu on the TV screen. Press to select item you want to adjust in the picture control mode.

7. POWER (PWR) button- Press to turn the

TV ON and OFF.

8. Infrared Sensor Window- Receives the

infrared control signals from the remote control unit.

9. MUTE button- Press the MUTE button to

turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) ▲ or ▼ button to restore sound.

10.INPUT SELECT button- Press to select

TV or the external input (VIDEO1 or VIDEO2) mode. (See USING AUDIO/VIDEO INPUT JACKS.)

11. CHANNEL RETURN button- Press this

button to go back to the previously viewed

channel. For example, pressing the CHANNEL RETURN button once will change channel display from CH 3 (present channel) to CH 10 (previously viewed channel), and pressing it a second time will return from CH 10 to CH 3.

12.DISPLAY button- Press to display the

channel number on the screen. If you press it again, the channel number will disappear.

13.SLEEP button- Press the SLEEP button to

display the time and to start the timer. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)

14.GAME button- Press to set the Game

mode. To exit, press the INPUT SELECT button. (See USING AUDIO/VIDEO INPUT JACKS and PICTURE ADJUSTMENT.)

15.CHANNEL NUMBER buttons- Press two

digits to directly access the desired channel. Remember to press a "0" before a single digit channel. +100 button- Press to select cable channels higher than 99.

16.AC cord- Connect to a standard AC outlet

(120V/60Hz). Note: Unwrap the AC cord completely from the backcover before plugging the cord into an AC outlet.

17.S-VIDEO input jack (for VIDEO1)-

Connect to the S-VIDEO output jack of a video camera, VCR, video game system using the S-VIDEO cable (not supplied).

18.ANT(enna). IN jack- Connect to an anten-

na, cable system, or satellite system.

19.AUDIO L/R IN jacks (for VIDEO1)-

Connect to the left/right channel audio output jacks of a video camera, VCR, or video game.

INSTALLING THE BATTERIES

1) Slide the battery compartment cover back

on the remote unit.

2) Insert 2 "AA" penlight batteries into battery

compartment in the direction as indicated by the polarity (+ / -) markings. Batteries installed with incorrect polarity may damage the remote unit.

3) Replace the cover.

USING AUDIO/VIDEO INPUT JACKS

When you use the AUDIO/VIDEO input jacks, select “VIDEO1” or “VIDEO2” mode by pressing the INPUT SELECT button on the remote control.

•To use the jacks on the back of the TV, select

“VIDEO1”.

•To use the jacks on the front of the TV,

select “VIDEO2”.

Note:

•You may also set the Game mode and front

A/V input at the same time by pressing the GAME button on the remote control. "GAME" appears on the TV screen and the TV input switches to the front A/V input. (See PICTURE ADJUSTMENT.)

PREPARATION FOR USE

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the procedure below.

1) Connect the power cord to a standard AC outlet.

Note: If some digits appear in the corner of the screen, press the POWER button without unplugging the power cord.

2) Press the POWER button to turn on the TV.

3) Press the MENU button so that the menu display appears on the TV screen.

4) Press the CH(annel) ▲ or ▼ button to point to "[ENGLISH]".

5) Select "ENGLISH" or "ESPAÑOL"=Spanish by using the VOL(ume) ▲ or ▼ button.

6) Press the MENU button to exit the menu.

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

CHANNEL PRESETTING

To preset a channel or to change a preset channel, follow the procedure below.

1) Press the POWER button to turn on the TV.

2) Press the MENU button so that the menu display appears on the TV screen.

3) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET". Then, press the VOL(ume) ▲ button.

4) Press the CH(annel) ▲ or ▼ button to point to "AUTO PRESET CH". Then, press the VOL(ume) ▲ button. The tuner scans and memorizes all active channels in your area.

● The TV distinguishes between standard TV channels and cable (CATV)

channels.

● When AUTO PRESET CH action is completed, the lowest memorized

channel reappears on the screen.

● When you press the CH(annel) ▲ or ▼ button after selecting “AUTO PRESET CH”,

the tuner will stop at the memorized channels only.

● The TV may recognize TV channels to be CATV channels by receiving conditions. In this case,

try AUTO PRESET CH action again after checking antenna connections.

● When AUTO PRESET CH is activated where there is no TV signal input, "NO TV SIGNALS"

will appear on the display after the completion of the channel scanning.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".

Then, press the VOL(ume) ▲ button.

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

ADD/DELETE AUTO PRESET CH

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

3) Press the VOL(ume) ▲ button so that "ADD/DELETE" is selected.

4) Use the CH(annel) ▲ or ▼ button to select the channel you wish to put into memory or to erase from memory.

ADD/DELETE AUTO PRESET CH

Note: The display will return to the normal screen automatically in about 10 seconds. Perform "ADD/DELETE" function while this display appears on the screen.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number in LIGHT BLUE if you wish to add the channel into memory.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

MTS (Multi-Channel Television Sound) System

You can listen to a program in MTS stereo by following the steps below.

Type of

broadcast

Regular

Stereo

broadcast

SAP

Selection

MAIN

-None-

STEREO

MAIN

MONO

-None- -None-

MONO

MAIN

SAP

STEREO

SAP

To show the status, press the DISPLAY button on the remote control.

SAP: Second Audio Program, which means your program, can also be received in a second language or sometimes a radio station.

[To Select STEREO, MONO or SAP in Stereo broadcast]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "TV SOUND".

3) Press the VOL(ume) ▲ or ▼ button to select your desired stereo mode. ([MAIN], [MONO] or [SAP].)

: Press the VOL(ume) ▲ or ▼ button.


Selection

CHANNEL SET

Type of

[ENGLISH] ESPAÑOL

broadcast

V-CHIP SET UP

Regular

CAPTION [OFF] TV SOUND [MAIN]

Stereo

broadcast

SAP

MAIN

-None-

STEREO

MAIN

PICTURE CHANNEL SET

MONO

[ENGLISH] ESPAÑOL V-CHIP SET UP

-None- -None-

CAPTION [OFF] TV SOUND [MONO]

MONO

MAIN

SAP

STEREO

SAP

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [OFF] TV SOUND [SAP]

RESUME FUNCTION

If the power fails or is disconnected while the TV is powered on, the TV will turn on automatically when the power resumes.

OPERATIONS

WATCHING A TV PROGRAM

1) Press the POWER button to turn on the TV.

2) Select the desired channel with the CH(annel) ▲ or ▼ button.

3) Adjust the volume to the desired listening level using the VOL(ume) ▲ or ▼ button.

4) Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SETTING THE SLEEP TIMER

The sleep timer function allows you to have the power automatically turn off after a set time period.

1) Press the POWER button to turn on the TV and press the SLEEP button on the remote control.

2) You may change the sleep time by pressing the SLEEP button on the remote control repeatedly. The timer can be set up to 90 minutes, 10 minutes each time the SLEEP button is pushed. (The timer display counts up and sleep time will be displayed on the screen when you press the SLEEP button on remote control.) Note: When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.

To cancel the sleep timer:

Press the SLEEP button repeatedly until "SLEEP 0" is displayed.

CLOSED CAPTION SELECTION

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CAPTION".

3) Press the VOL(ume) ▲ or ▼ button to select the mode you wish.

4) When done, press the MENU button to exit the menu.

: Press the VOL(ume) ▲ or ▼ button.

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [ C1] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [ C2] TV SOUND [MAIN]

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [ T1] TV SOUND [MAIN]

SLEEP 10

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL V-CHIP SET UP CAPTION [ T2] TV SOUND [MAIN]

GAME MODE

Set to the most suitable position for playback of video games.

[+] : ON [-] : OFF

BRIGHT

Adjust until the darkest parts of the picture are as bright as you prefer.

[+] : increase brightness [-] : decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[+] : increase contrast [ -] : decrease contrast

COLOR

Adjust to be brilliant or pale color.

[+] : be brilliant color [ -] : be pale color

TINT

Adjust to obtain natural skin tones.

[+] : greenish tone [ -] : reddish tone

SHARPNESS

Adjust to detail in the picture.

[+]:increase sharpness [-]:decrease sharpness

Notes:

●

“+” is achieved by pressing the VOL(ume) ▲ button and “-” by pressing the VOL(ume)▼ button.

●

In the above steps, the picture adjustment display will disappear from the TV screen automatically after about 10 seconds if you

Press the CH(annel) ▲ or ▼ button.

[-] OFF ON

GAME MODE

[+]

[-]

BRIGHT

[+]

[-]

CONTRAST

do not press any buttons. Press the MENU and VOL(ume) ▲ button so that "PICTURE" is selected. Then, press the CH(annel) ▲ or ▼ button repeatedly until the display returns to the screen.

●

If you adjust any picture control after you set the Game mode to [ON], the Game mode is set to [OFF] automatically.

[USING THE GAME BUTTON]

You may also set the Game mode and select the front A/V input at the same time by pressing the GAME button on the remote control. “GAME” appears on the TV screen.

●

To exit the Game mode and front A/V input, press the INPUT SELECT button on the remote control.

●

To cancel the Game mode only, adjust the picture control. The GAME mode will be set to [OFF] automatically as explained in the previous section. In this case, “VIDEO” (external input mode) instead of “GAME” appears on the TV screen.

●

If you press the GAME button when the TV is off, the TV turns on and will be in the Game mode and will select front A/V input mode automatically.

[+] [-]

COLOR

[+] [-]

TINT

[+]

[-]

SHARPNESS

[+]

PICTURE ADJUSTMENT

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the VOL(ume) ▲ button so that "PICTURE" is selected.

3) Select the feature you wish to adjust with the CH(annel) ▲ or ▼ button and adjust it with the VOL(ume) ▲ or ▼ button.

V-CHIP SET UP

V- CHIP enables parents to prevent their children from watching inappropriate material on TV. V- CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets or exceeds the limitations you select. In this case, "PROTECTED PROGRAM by ..." message appears on the TV screen. To block certain ratings, follow the steps in the next page.

●

Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).

●

You cannot access the menu when the "PROTECTED PROGRAM by ..." message appears. In this case, change to an unblocked channel, then press the MENU button.

+ 6 hidden pages
