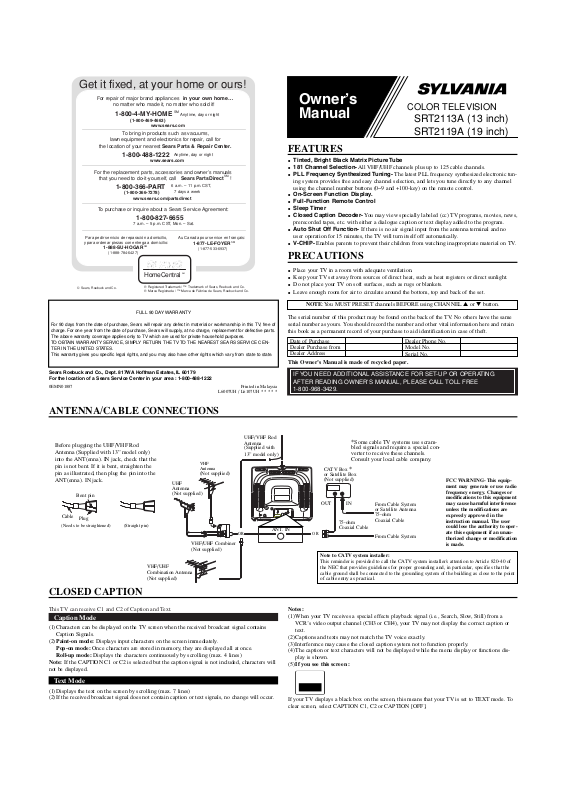

Funai SRT2113A User Manual

This TV can receive C1 and C2 of Caption and Text.

Caption Mode

(1)Characters can be displayed on the TV screen when the received broadcast signal contains

Caption Signals.

(2)Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will

not be displayed.

Text Mode

(1)Displays the text on the screen by scrolling (max. 7 lines) (2)If the received broadcast signal does not contain caption or text signals, no change will occur.

Notes:

(1)When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a

VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or

text. (2)Captions and texts may not match the TV voice exactly. (3)Interference may cause the closed caption system not to function properly. (4)The caption or text characters will not be displayed while the menu display or functions dis-

play is shown. (5)If you see this screen :

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To clear screen, select CAPTION C1, C2 or CAPTION [OFF].

ANTENNA/CABLE CONNECTIONS

PRECAUTIONS

● Place your TV in a room with adequate ventilation.

● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

● Do not place your TV on soft surfaces, such as rugs or blankets.

● Leave enough room for air to circulate around the bottom, top and back of the set.

FEATURES

● Tinted, Bright Black Matrix Picture Tube

● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun-

ing system provides free and easy channel selection, and lets you tune directly to any channel using the channel number buttons (0~9 and +100-key) on the remote control.

● On-Screen Function Display.

● Full-Function Remote Control

● Sleep Timer

● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

● Auto Shut Off Function- If there is no air signal input from the antenna terminal and no

user operation for 15 minutes, the TV will turn itself off automatically.

● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

Date of Purchase Dealer Purchase from Dealer Address

Dealer Phone No. Model No. Serial No.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

ANT.IN

CLOSED CAPTION

UHF Antenna (Not supplied)

VHF Antenna

(Not supplied)

VHF/UHF Combiner (Not supplied)

VHF/UHF Combination Antenna (Not supplied)

UHF/VHF Rod Antenna (Supplied with

13” model only)

ANT. IN

OUT IN

75-ohm Coaxial Cable

From Cable System

From Cable System or Satellite Antenna 75-ohm Coaxial Cable

CATV Box

or Satellite Box (Not supplied)

*Some cable TV systems use scram-

bled signals and require a special converter to receive these channels. Consult your local cable company.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-968-3429.

Owner’s Manual

0EMN01887 Printed in Malaysia

L6007UH / L6107UH * * * * *

This Owner’s Manual is made of recycled paper.

COLOR TELEVISION

SRT2113A (13 inch) SRT2119A (19 inch)

Before plugging the UHF/VHF Rod Antenna (Supplied with 13” model only) into the ANT(enna). IN jack, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT(enna). IN jack.

Bent pin

Cable

Plug

(Needs to be straightened) (Straight pin)

NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, Sears will repair any defect in material or workmanship in this TV, free of charge. For one year from the date of purchase, Sears will supply, at no charge, replacement for defective parts.

The above warranty coverage applies only to TV which are used for private household purposes. TO OBTAIN WARRANTY SERVICE, SIMPLY RETURN THE TV TO THE NEAREST SEARS SERVICE CEN-

TER IN THE UNITED STATES. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179 For the location of a Sears Service Center in your area : 1-800-488-1222

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home…

no matter who made it, no matter who sold it!

1-800-4-MY-HOME

Anytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222

Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner’s manuals

that you need to do-it-yourself, call

Sears PartsDirect

1-800-366-PART

6 a.m. – 11 p.m. CST,

(1-800-366-7278)

7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. – 5 p.m. CST, Mon. – Sat.

Para pedir servicio de reparación a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en français:

1-877-LE-FOYER

(1-877-533-6937)

® Registered Trademark / ™ Trademark of Sears, Roebuck and Co.

® Marca Registrada / ™ Marca de Fábrica de Sears, Roebuck and Co.

HomeCentral

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions should be followed.

5. Cleaning-Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories-Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

AMEUBLES- Cet appareil ne doit

être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to .

10. Power Sources-This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization-This TV is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or

PORTABLE CART WARNING

S3126A

pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPANo. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14. Lightning-For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

15. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18. Servicing-Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service-Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV.

c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in perfor-

mance-this indicates a need for service.

20. Replacement Parts-When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21. Safety Check-Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22. Heat-This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS (NEC SECTION 810-21)

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

OPERATING CONTROLS AND FUNCTIONS

- FRONT PANEL -

- REAR PANEL -

1. VIDEO (in) jack- Connect to the video output jack of a video camera or VCR.

2. AUDIO (in) jack- Connect to the audio output jack of a video camera or VCR.

3. EARPHONE jack- To connect earphone (not supplied) for personal listening.

4. MENU button- Press to display the menu on the TV screen.

5. VOLUME ▲/▼ buttons- Press to control the volume level. Press to determine a setting mode from the menu on the TV screen. (only the VOL ▲ button) Press to select or adjust from a particular menu. (for example: Language Selection, Channel Presetting, Closed Caption Selection, Picture Adjustment, V-CHIP Set Up)

6. CHANNEL ▲/▼ buttons- Press to select memorized channel. NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button. (See CHANNEL PRESETTING) Press to select a setting mode from the menu on the TV screen. Press to select item you want to adjust in the picture control mode.

7. POWER button- Press to turn the TV ON and OFF.

8. Infrared Sensor Window- Receives the infrared control signals from the remote control unit.

9. CHANNEL NUMBER button- Press two digits to directly access the desired channel. Remember to press a "0" before a single digit channel. +100 button- Press to select cable channels which are equal or greater than number

100.

10.MUTE button- Press the MUTE button to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) ▲ or ▼ button to restore sound.

11. CHANNEL RETURN button- Press this button to go back to the previously viewed channel. For example, pressing the CHANNEL RETURN button once will change channel display from CH 3 (present channel) to CH 10 (previously viewed channel), and pressing it a second time will return from CH 10 to CH 3.

12.DISPLAY button- Press to display the channel number on the screen. If you press it again, the channel number will disappear.

13.SLEEP button- Press the SLEEP button to display the sleep timer and start the function. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)

- REMOTE CONTROL -

VIDEO VOLUME POWERCHANNELMENUEARPHONEAUDIO

12 34 5 6 7 8

ANT.IN

16 15

PWR

123

456

789

0 +100

DISPLAY

VOL

SLEEP

CHANNEL

RETURN

MUTE

GAME

This manual covers 13" and 19". The operation of the two models are exactly the same except the appearance. 19" model is illustrated in this manual.

14.GAME button- Press to set the Game mode and external input mode at the same time. Press the GAME button again to exit this mode.

15.ANT(enna). IN jack- Connect to an anten- na, cable system, or satellite system.

16.AC cord- Connect to the standard AC out- let (120V/60Hz). NOTE: Remove the AC cord from the hook to avoid breaking the wire before you connect to a standard AC outlet.

INSTALLING THE BATTERIES

Slide the battery compartment cover back on the remote unit.

Insert 2 "AA" penlight batteries into battery compartment in the direction as indicated by the polarity (+ / -) markings. Batteries installed with incorrect polarity may damage the remote unit.

Replace the cover.

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

LANGUAGE SELECTION

If you want to change the language of the onscreen menu, follow the procedure below.

1) Connect the power cord to a standard AC outlet.

2) Press the POWER button to turn on the TV.

3) Press the MENU button so that the menu display appears on the TV screen.

4) Press the CH(annel) ▲ or ▼ button to point to "[ENGLISH]".

5) Select "ENGLISH" or "ESPAÑOL" = Spanish by using the VOL(ume) ▲ or ▼ button.

6) Press the MENU button to exit the menu.

CHANNEL PRESETTING

NOTE:You MUST PRESET channels

BEFORE using CHANNEL ▲ or ▼ button.

To preset a channel or to change a preset chan-

nel, follow the procedure below.

1) Press the POWER button to turn on the TV.

2) Press the MENU button so that the menu display appears on the TV screen.

3) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET". Then, press the VOL(ume) ▲ button.

4) Press the CH(annel) ▲ or ▼ button to point to "AUTO MEMO". Then, press the

VOL(ume) ▲ button. The tuner scans and memorizes all active channels in your area.

● The TV distinguishes

between standard TV channels and cable (CATV) channels.

● When AUTO MEMO action is completed,

the lowest memorized channel reappears on the screen.

● When you press the CH(annel) ▲ or ▼ but-

ton after selecting AUTO MEMO, the tuner will stop at the memorized channels only.

● The TV may detect TV channels as CATV

channels if the receiving conditions are poor. In this case, try AUTO MEMO action again when receiving conditions are better.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET". Then, press the VOL(ume) ▲ button.

3) Press the VOL(ume) ▲ button so that "ADD/DELETE" is selected.

4) Use the CH(annel) ▲ or ▼ button to select the channel you wish to put into memory or to erase from memory. Note: The display will return to a normal screen in about 10 seconds. Perform "ADD/DELETE" function while this display appears on the screen.

● Press the VOL(ume) ▲ or ▼ button to light

up the channel number in LIGHT BLUE if you wish to add the channel into memory.

● Press the VOL(ume) ▲ or ▼ button to light

up the channel number in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

RESUME FUNCTION

If the power fails or is disconnected while the TV is powered on, the TV will turn on automatically when the power resumes.

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [OFF]

ADD/DELETE AUTO MEMO

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [OFF]

OPERATIONS (continued)

GAME MODE

Set to the most suitable position for TV GAME.

[+] : ON [-] : OFF

BRIGHT

Adjust until the whitest parts of the picture are as bright as you prefer.

[+] : increase brightness [-] : decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[+] : increase contrast [-] : decrease contrast

COLOR

Adjust to be brilliant or pale color.

[+] : be brilliant color [-] : be pale color

TINT

Adjust to obtain natural skin tones.

[+] : greenish tone [-] : reddish tone

SHARPNESS

Adjust the sharpness.

[+] : soft [-] : normal

Notes:

● In the above steps, the picture adjustment

display will disappear from the TV screen

automatically after about 10 seconds if you do not press any buttons, even though you may not be finished. Press the MENU and VOL(ume) ▲ button so that "PICTURE" is selected. Then, press the CH(annel) ▲ or ▼ button repeatedly until the display returns to the screen.

● If you adjust the other Picture control after

you set the Game mode to [ON], the Game mode is set to [OFF] automatically.

[USING THE GAME BUTTON]

You may also set the Game mode and external input mode at the same time by pressing the GAME button on the remote control. “GAME” appears on the TV screen.

● To exit the Game mode and external input

mode, press the GAME button on the remote control again.

● To cancel the Game mode only, adjust the

picture control. In this case, “VIDEO” instead of “GAME” appears on the TV screen.

● If you press the GAME button when the TV

is off, the TV turns on and will be in the Game mode and external input mode automatically.

[-]

GAME MODE

[+]

OFF ON

[-]

BRIGHT

[+]

[-]

CONTRAST

[+][-]

COLOR

[+]

[-]

TINT

[+]

[-]

SHAPNESS

[+]

NORMAL SOFT

: Press the CH(annel) ▲ or ▼ button.

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [OFF]

WATCHING A TV PROGRAM

1) Press the POWER button to turn on the TV.

2) Select the desired channel with the CH(annel) ▲ or ▼ button.

3) Adjust the volume to the desired listening level using the VOL(ume) ▲ or ▼ button.

4) Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SETTING THE SLEEP TIMER

The sleep timer function enables you to shut off the power without pressing the POWER button after a desired time period.

1) Press the POWER button to turn on the TV and press the SLEEP button on the remote control .

2) You may change the sleep time by pressing the SLEEP button on the remote control repeatedly. The timer can be set up to 90 minutes, 10 minutes each time the SLEEP button is pushed. (The timer display counts up and sleep timer will be displayed on the screen when you press the SLEEP button on remote control.) Note: When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.

CLOSED CAPTION SELECTION

You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CAPTION".

3) Press the VOL(ume) ▲ or ▼ button to select the mode you wish.

4) When done, press the MENU button to exit the menu.

PREPARATION FOR USE

OPERATIONS

SLEEP 10

To cancel the sleep timer:

Press the SLEEP button repeatedly until "SLEEP 0" is displayed.

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [OFF]

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [ C1]

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [ C2]

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [ T1]

PICTURE CHANNEL SET [ENGLISH]ESPAÑOL V-CHIP SET UP CAPTION [ T2]

: Press the VOL(ume) ▲ or ▼ button.

V-CHIP SET UP

V-CHIP enables parents to prevent their children from watching inappropriate material on TV. V-CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets the limitations you select. In this case, "PROTECTED PROGRAM by ..." message appears on the TV screen. You can watch the protected program by entering access code (default 0000). To block certain ratings, follow the steps below.

● Programming may be rated by the Motion

Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).

● You cannot access the menu when the

"PROTECTED PROGRAM by ..." message appears. In this case, change to the unblocked channel, then press the MENU button.

[MPAA RATING SET UP]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "V-CHIP SET UP". Then, press the VOL(ume) ▲ button.

3) Use the number buttons to enter 4-digit access code. The default access code is

0000. If you have not set up your personal

access code, you should use 0000.

4) Press the CH(annel) ▲ or ▼ button to point to "MPAA RATING". Then, press the VOL(ume) ▲ button.

5) Press the CH(annel) ▲ or ▼ button to point to your desired item. Then, press the VOL(ume) ▲ button to select [BLOCK] or [VIEW].

● When you select the rating category and turn

it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

● When you turn "G" to [BLOCK] or [VIEW],

the all ratings will turn to [BLOCK] or [VIEW] automatically.

● When you turn "X" to [VIEW], then all rat-

ings will turn to [VIEW] automatically.

6) Press the MENU button to exit the menu.

[TV RATING SET UP]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "V-CHIP SET UP". Then, press the VOL(ume) ▲ button.

3) Use the number buttons to enter 4-digit access code. The default access code is 0000. If you have not

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL

B V-CHIP SET UP

CAPTION [OFF]

TV RATING

B MPAA RATING

CHANGE CODE

ACCESS CODE

- - - -

B G [VIEW]

PG [VIEW] PG-13 [VIEW] R [VIEW] NC-17 [VIEW] X [VIEW]

• G: General Audience

• PG: Parental Guidance suggested.

• PG-13: Unsuitable for children under 13

• R: Restricted; under 17 requires accompanying parent or adult guardian

• NC-17: No one under 17 admitted

• X: Mature audience only

PICTURE CHANNEL SET [ENGLISH] ESPAÑOL

B V-CHIP SET UP

CAPTION [OFF]

ACCESS CODE

- - - -

PICTURE ADJUSTMENT

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the VOL(ume) ▲ button so that "PICTURE" is selected.

3) Select the feature you wish to adjust with the CH(annel) ▲ or ▼ button and adjust it with the VOL(ume) ▲ or ▼ button.

● "+" is achieved by pressing the VOL(ume)

▲ button and "-" by pressing the VOL(ume) ▼ button.

+ 6 hidden pages
