Funai PY90DG User Manual

Owner’s Manual

Recordable disc

• We strongly recommend for good recording quality: TDK DVD+R 4x/8x/16x, SONY DVD+R 4x/8x/16x, MAXELL DVD+R 4x/8x/16x, SONY DVD+RW 4x, MAXELL DVD-R 8x/16x, MAXELL DVD-RW 4x

• Discs that have been tested and are proven to be compatible with this recorder: VERBATIM DVD+R 8x, VERBATIM DVD+RW 4x, VERBATIM DVD-R 8x, VERBATIM DVD-RW 2x, MAXELL DVD-R 16x, JVC DVD-RW 4x

DVD Recorder

INSTRUCCIONES EN ESPAÑOL INCLUIDAS

Please read before using this equipment.

If you need additional operating assistance after reading this owner’s manual or

to order replacement accessories, please call

or visit our web site at http://www.funai-corp.com

PY90DG

Recording Playing discs EditingBefore you start Connections Getting started

TOLL FREE : 1-800-789-4230

Connection to a TV (

If your TV has AUDIO/VIDEO input jacks, see the section “Connections” on pages 13–15. If not, it is still possible to connect this unit to your TV by using a STEREO AUDIO/VIDEO RF modulator (commercially available). In this case, follow the instructions below.

1) The antenna input jack of your TV may have been already occupied. If so, disconnect the RF cable from your TV, and then connect the RF cable to the ANTENNA IN jack of this unit.

2) Connect the ANTENNA OUT jack of this unit to your RF modulator (usually marked “ANT IN”) by the RF cable.

3) Connect your RF modulator to your TV by another RF cable.

Connect the AUDIO/VIDEO output jacks of this unit to the AUDIO/VIDEO input jacks of your RF modulator by audio and video cables.

5) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If your RF modulator has a Modulator/Antenna switch, set it according to your RF modulator’s manual.

6) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.

For more details, follow the instructions supplied with the RF modulator.

Cable

Antenna

TV signal

STEREO AUDIO/VIDEO RF Modulator

(commercially available)

Before you use this unit, you need to complete connections.)

(Back of This Unit)

COMPONENT

VIDEO IN

OUT

ANTENNA

RF cable

(supplied)

AC 120V

AUDIO IN

(E1)

ANT IN

VIDEO OUTPUT

S-VIDEO

OUT

PB/C

PR/C

AUDIO OUT

Set channel 3 or 4.

TO TVCHANNEL VIDEO INAUDIO IN

VIDEO OUT

RL34

Audio/Video cables (supplied)

Antenna in jack

RF cable

(commercially available)

Turn on your TV and select channel 3 or 4.

(Back of TV)

Note

• The quality of picture may become poor if this unit is connected to

an RF modulator.

Changing the

Setup menu

Others Español

To record a program easily, refer to “Easy DVD recording” on pages 16-17 after connections are completed. (You CANNOT record on any copyright protected DVD disc with this unit.)

E7A02UD_PY90DG_p1-37.indd.indd 1E7A02UD_PY90DG_p1-37.indd.indd 1 2006/04/24 18:43:432006/04/24 18:43:43

Before you start

Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol,

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modi-

fications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

The caution marking is located on the rear of the cabinet.

within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

• You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use: Read carefully the information located at the back of this unit and enter below the Model No. and Serial No. Retain this information for future reference. Model No. _____________________ Serial No. _____________________

E7A02UD_PY90DG_p1-37.indd.indd 2E7A02UD_PY90DG_p1-37.indd.indd 2 2006/04/24 18:43:432006/04/24 18:43:43

Before you start

Precautions (cont’d)

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted

service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture- Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/

NFPA No. 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

S2898A

14. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind into this product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the

product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in

performance this indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22. Heat - This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FIGURE A

GROUND CLAMP

ANTENNA LEAD WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

Before you start

Connections

Recording Playing discs EditingGetting started

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 3E7A02UD_PY90DG_p1-37.indd.indd 3 2006/04/24 18:43:442006/04/24 18:43:44

Before you start

Precautions (cont’d)

Installation Location

For safety and optimum performance of this unit:

• Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

• Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Notice for progressive scan output

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD recorder, please contact our customer service center.

Supplied Accessory

• Remote control (NB086UD) with two AA batteries

• RF cable (

WPZ0901CAB01

or WPZ0901TM002

• Audio/Video cables (WPZ0102TM015

)

or WPZ0102LTE01)

• Owner’s Manual (1VMN23004)

Owner's Manual

• Quick Guide (1VMN23005)

E7A02UD_PY90DG_p1-37.indd.indd 4E7A02UD_PY90DG_p1-37.indd.indd 4 2006/04/24 18:43:442006/04/24 18:43:44

Before you start

Precautions (cont’d)

Maintenance

SERVICING

• Please refer to relevant topics on “Troubleshooting” on pages 71-74 before returning the product.

• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no userserviceable parts inside. Turn off, unplug the power plug and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a circular motion.

• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

CLEANING THE DISC LENS

• If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

Before you start

Connections

Recording Playing discs EditingGetting started

DISC HANDLING

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.

IR SIGNAL CHECK

If the remote control does not work properly, you can test if the remote control sends out the infrared signal with AM radio or a digital camera (including built-in camera of cellular phone). It will help to define the cause of malfunction.

• With an AM radio: Tune an AM radio to a band with no broadcasting. Press a button on remote control toward the radio. Sound will be fluttering when you press any key and the radio receives the signal. This means the remote control unit is working.

• With a digital camera (including built-in camera of cellular phone): Direct a digital camera to remote control, press and hold a button on remote control. If infrared light appears through digital camera, the remote is working.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Dolby Digital Recording

“Dolby® Digital Recording enables consumers to record high-quality video with stereo sound on recordable DVD discs. The technology, when utilized instead of PCM recording, also saves recordable disc space, allowing for higher video resolution or extended recording time on each DVD. DVDs created using Dolby Digital Recording will play back on all DVD-Video players.”

Note: This is true when the players are compatible with actual recordable DVD discs.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 5E7A02UD_PY90DG_p1-37.indd.indd 5 2006/04/24 18:43:442006/04/24 18:43:44

Before you start

Table of contents

Before you start . . . . . . . . . . . . . . . . . . . 2

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . 3

Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Symbols used in this Owner’s Manual . . . . . . . . . 7

Functional overview. . . . . . . . . . . . . . . . . . . . . . . . 8

Installing batteries in the remote control . . . . . . . 11

Using a remote control . . . . . . . . . . . . . . . . . . . . 11

DISPLAY menu. . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setup menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connections . . . . . . . . . . . . . . . . . . . . . 13

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . 13

Connection to a cable box or satellite box . . . . 14

Connection to an Audio System. . . . . . . . . . . . . 15

Getting started . . . . . . . . . . . . . . . . . . . 16

Easy DVD recording. . . . . . . . . . . . . . . . . . . . . . . 16

Initial setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Channel setting . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Getting channels automatically . . . . . . . . . . . . . . 18

Adding/deleting channels . . . . . . . . . . . . . . . . . . 19

Selecting the TV stereo or SAP . . . . . . . . . . . . . 20

Setting the clock. . . . . . . . . . . . . . . . . . . . . . . . . . 21

Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . 21

Manual Clock Setting . . . . . . . . . . . . . . . . . . . . . 22

Setting the Daylight Saving Time . . . . . . . . . . . . 23

Selecting the TV aspect ratio . . . . . . . . . . . . . . . 23

Recording . . . . . . . . . . . . . . . . . . . . . . . 24

Information on DVD recording . . . . . . . . . . . . . . 24

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recordable disc . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recording mode . . . . . . . . . . . . . . . . . . . . . . . . . 24

Making discs playable in other DVD player

(Finalize/Make Edits Compatible) . . . . . . . . . . . . 25

Before recording . . . . . . . . . . . . . . . . . . . . . . . . . 26

Replacing disc menu. . . . . . . . . . . . . . . . . . . . . . 26

Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . 26

Basic recording . . . . . . . . . . . . . . . . . . . . . . . . . . 27

One-touch Timer Recording . . . . . . . . . . . . . . . . 28

Timer Recording. . . . . . . . . . . . . . . . . . . . . . . . . . 29

Hints for Timer Recording. . . . . . . . . . . . . . . . . . 31

Overwriting an existing title . . . . . . . . . . . . . . . . 32

Overwriting from the beginning of the title . . . . . 32

Overwriting in the middle of the title . . . . . . . . . . 32

Hints for Overwriting . . . . . . . . . . . . . . . . . . . . . . 33

Settings for an external source . . . . . . . . . . . . . 34

Connection to an external source . . . . . . . . . . . . 34

Recording from an external source. . . . . . . . . . . 35

Setting a disc to protect . . . . . . . . . . . . . . . . . . . 35

Playing the discs in other DVD players . . . . . . . 36

Finalizing a disc . . . . . . . . . . . . . . . . . . . . . . . . . 36

Auto finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Playing discs . . . . . . . . . . . . . . . . . . . . 38

Information on DVD play . . . . . . . . . . . . . . . . . . . 38

Guide to displays . . . . . . . . . . . . . . . . . . . . . . . . 38

Basic playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Playing MP3/WMA disc. . . . . . . . . . . . . . . . . . . . 40

Playing discs using the disc menu . . . . . . . . . . . 41

Playing discs using the title menu . . . . . . . . . . . 41

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Special playback . . . . . . . . . . . . . . . . . . . . . . . . . 42

Resume play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Fast forward / Fast reverse. . . . . . . . . . . . . . . . . 42

Skipping TV commercials during play. . . . . . . . . 42

Rapid play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Step by step playback. . . . . . . . . . . . . . . . . . . . . 43

Slow forward / Slow reverse play . . . . . . . . . . . . 43

Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Title/Chapter search . . . . . . . . . . . . . . . . . . . . . . 45

Track search . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Time search . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Repeat/Random/Program playback . . . . . . . . . . 47

Repeat playback . . . . . . . . . . . . . . . . . . . . . . . . . 47

Random playback . . . . . . . . . . . . . . . . . . . . . . . . 47

Program playback . . . . . . . . . . . . . . . . . . . . . . . . 48

Selecting the format of audio and video . . . . . . 48

Switching subtitles . . . . . . . . . . . . . . . . . . . . . . . 48

Switching audio soundtrack . . . . . . . . . . . . . . . . 49

Switching virtual surround system . . . . . . . . . . . 49

Switching camera angles . . . . . . . . . . . . . . . . . . 50

Reducing block noise . . . . . . . . . . . . . . . . . . . . . 50

Editing . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Information on disc editing. . . . . . . . . . . . . . . . . 51

Guide to a title list . . . . . . . . . . . . . . . . . . . . . . . . 51

Editing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Editing discs (Setup menu). . . . . . . . . . . . . . . . . 51

Editing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Putting names on titles . . . . . . . . . . . . . . . . . . . . 53

Setting chapter marks . . . . . . . . . . . . . . . . . . . . . 54

Clearing chapter marks. . . . . . . . . . . . . . . . . . . . 54

Hiding chapters . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Setting pictures for thumbnails . . . . . . . . . . . . . . 57

Dividing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Editing discs (Setup menu). . . . . . . . . . . . . . . . . 59

Putting name on disc . . . . . . . . . . . . . . . . . . . . . 59

Setting or releasing disc protect . . . . . . . . . . . . . 60

Erasing disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Making edits compatible . . . . . . . . . . . . . . . . . . . 62

Changing the Setup menu. . . . . . . . . . 63

Tour of the Setup menu. . . . . . . . . . . . . . . . . . . . 63

Language setting . . . . . . . . . . . . . . . . . . . . . . . . . 64

Display setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Audio setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Video setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Settings for Parental lock level. . . . . . . . . . . . . . 69

Settings for PBC (Playback Control) . . . . . . . . . 70

Others . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Language code . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Frequently Asked Questions. . . . . . . . . . . . . . . . 75

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Español . . . . . . . . . . . . . . . . . . . . . . . . . 77

Limited Warranty . . . . . . . . . Back Cover

E7A02UD_PY90DG_p1-37.indd.indd 6E7A02UD_PY90DG_p1-37.indd.indd 6 2006/04/24 18:43:442006/04/24 18:43:44

Before you start

DVD-V

DVD-

Video CD

DVD-R

DVD-

DVD+R

DVD+

DVD-R

MP3

DVD+R

WMA

Features

This DVD unit not only plays DVDs and CDs but also offers features for you to record to DVD discs and edit them after that. The following features are offered with this unit.

Before you start

Recording

This unit is compatible with DVD+RW/DVD-RW, which is rewritable repeatedly and DVD+R/DVDR, which is available for recording once. You can choose either one for your convenience. Even if you choose DVD-RW/DVD-R discs, these discs will automatically be recorded in the DVD+VR mode.

Up to 8 program recording:

You can program the unit to record up to 8 programs, with in a month in advance. Daily or weekly program recordings are also available.

One-touch Timer Recording:

You can easily set a recording time as you prefer. Every time [RECORD] or [REC] is pressed during recording, the recording time will be increased by 30 minutes up to 6 hours. The recording automatically stops when the recording time you set is reached.

Automatic Chapter mark setting:

Chapter marks will be put on recordings as you set in the Setup menu before attempting to record.

Automatic Title list making:

The unit makes title list with the index automatically.

Left channel stereo recording:

Setting pictures for thumbnails:

You can change pictures for thumbnails.

Dividing titles (DVD+RW/DVD-RW only):

You can divide a title into two or more.

Putting name on disc:

You can put your favorite disc name.

Compatibility Available for playing discs on a regular DVD

player:

Recorded discs can be played on regular DVD players, including computer DVD drives compatible with DVD-Video playback. You will need to finalize the discs recorded on DVD+R/DVD-RW/DVD-R discs to play in other DVD players.

Others Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional television signals.

Connections

Recording Playing discs EditingGetting started

This unit can record the sound of the Left channel monaural input as Left and Right channels automati-

Symbols used in this Owner’s Manual

cally (the input from the EXT2 only).

To specify for what disc type each function is, we put the

Play Theater surround sound in your home:

When connecting the unit to an amplifier or a decoder which is compatible with Dolby Digital, you are allowed to experience the theater surround sound from discs with surround sound system.

Quick search for what you want to watch:

You can easily find the part you want to watch using the search function. Search for a desired point on a disc by title, chapter or time.

Virtual Surround System:

You can enjoy stereophonic space through your exciting 2 channel stereo system.

Playing back on MP3/WMA disc:

You can enjoy MP3/WMA files which are recorded on CD-R/RW.

Editing Deleting titles:

You can delete titles which you do not need anymore.

Putting names on titles:

You can put your favorite names on titles.

Setting / Clearing chapter marks:

You can set / clear chapter marks on titles.

following symbols at the beginning of each item to operate. *DVD-RW (VR mode) disc is not played in this unit.

Symbol Description

DVD-V

DVD +

DVD+R

DVD-RW

DVD-

+VR

DVD-R

Video

DVD-

Video

DVD-R

WMA

MP3

Refers to DVD-Video discs

Refers

to DVD+RW

discs

Refers to DVD+R discs

Refers to DVD+R DL discs

+VR

Refers to DVD-RW discs recorded

with +VR mode Refers to DVD-R discs recorded

with +VR mode Refers

RWDVD-RW

to DVD-RW discs

(Video mode, Finalized) Refers

to DVD-R discs

(Video mode, Finalized)

Refers to Audio CDs

Refers to CD-R/RW discs with WMA files

Refers to CD-R/RW discs with MP3 files

Setup menu

Others Español

Changing the

Hiding unwanted chapters:

To keep others from playing back some chapters

Video CD

Refers to Video CDs

without permission, you can hide chapters.

E7A02UD_PY90DG_p1-37.indd.indd 7E7A02UD_PY90DG_p1-37.indd.indd 7 2006/04/24 18:43:452006/04/24 18:43:45

Before you start

Functional overview

Front Panel

2* 3 4

*The unit can also

be turned on by pressing this button.

1. Disc tray

Place a disc when opening the disc tray.

2. OPEN/CLOSE A button*

Press to open or close the disc tray.

3. CHANNEL L / K buttons

Press to change the channel up and down.

4. PREV H button

During playback, press to return to the beginning

of the current chapter or track. During playback, press and hold for 1.5 seconds to fast reverse.

Or when playback is paused, press to play

reverse step by step.

When playback is paused, press and hold for 1.5

seconds to play slow reverse.

5. NEXT G button

During playback, press to skip to the next chapter

or track.

During playback,

press and hold for 1.5 seconds to

fast forward.

Or when playback is paused, press to play for-

ward step by step.

When playback is paused, press and hold for 1.5

seconds to play slow forward.

6. STOP C button

Press to stop playback or recording.

7. PLAY B button*

Press to start or resume play.

8. STANDBY-ON button

Press to turn the unit on and off. If timer programmings have been set, press to

set the unit in timer-standby mode.

9. AUDIO input jacks (EXT2)

Use to connect external equipment with a stand-

ard audio cable.

10. VIDEO input jack (EXT2)

Use to connect external equipment with a stand-

ard video cable.

11. S-VIDEO input jack (EXT2)

Use to connect the S-Video output of external

equipment with an S-Video cable.

12. RECORD button

Press once to start a recording. Press repeatedly

to start the One-touch Timer Recording.

13. REC MODE button

Press to switch the recording speed.

14. Remote control sensor

Receive signals from your remote control so that

you can control the unit from a distance.

23 4

OUT

ANTENNA

AUDIO IN

(E1)

VIDEO IN

COMPONENT

VIDEO OUTPUT

S-VIDEO

VIDEO OUT

OUT

PB/C

PR/C

AUDIO OUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

5678910

COMPONENT VIDEO OUTPUT jacks

Use to connect a TV monitor with component

video inputs with a component video cable.

8. S-VIDEO OUT jack

Use to connect the S-Video input of a TV moni-

tor, AV receiver or other equipment with an SVideo cable.

9. S-VIDEO IN jack (EXT1)

Use to connect the S-Video output of external

equipment with an S-Video cable.

10. AUDIO IN jacks (EXT1)

Use to connect external equipment with a stand-

ard audio cable.

11. ANTENNA OUT jack

Use to connect an antenna cable to pass the sig-

nal from the TV ANTENNA IN to your TV monitor.

Rear Panel

1. ANTENNA IN jack

Use to connect an antenna.

2. VIDEO IN jack (EXT1)

Use to connect external equipment with a stand-

ard video cable.

3. VIDEO OUT jack

Use to connect a TV monitor, AV receiver or

other equipment with a standard video cable.

4. AC Power Cord

Connect to a standard AC outlet to supply power

to this unit.

5. COAXIAL DIGITAL AUDIO OUTPUT jack

Use to connect an AV receiver, Dolby Digital

decoder or other equipment with a coaxial digital input jack with a digital coaxial cable.

6. AUDIO OUT jacks

Use to connect a TV monitor, AV receiver or

other equipment with a standard audio cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

• This unit does not have the RF modulator.

7* 8

11109

E7A02UD_PY90DG_p1-37.indd.indd 8E7A02UD_PY90DG_p1-37.indd.indd 8 2006/04/24 18:43:452006/04/24 18:43:45

Front Panel Display Guide

Before you start

Functional overview (cont’d)

Before you start

1 5

1. Current Status of the unit

:Appears when disc

playback is paused.

:Appears when playing a

disc.

:Appears when the timer

programming has been set and is proceeding. Flashes when all Timer Recordings have been finished, or when a program cannot be performed by some reason.

:Appears during recording

process.

:Appears during repeat

play.

2. Disc type

:Appears when an Audio

CD / MP3 / WMA is inserted in the disc tray.

:Appears when a Video

CD is inserted in the disc tray.

:Appears when a DVD

disc is inserted in the disc tray.

:Appears when a DVD+R

/ DVD-R disc is inserted in the disc tray.

:Appears when a

DVD+RW / DVD-RW disc is inserted in the disc tray.

Connections

3. Title / Track and Chapter mark

:Appears when indicating a

title/track number.

:Appears when indicating a

chapter number.

4. Displays the following

• Playing time

• Current title / chapter / track number

• Recording time/ remaining time

• Clock

• Channel number

• OTR (One-touch Timer Recording) remaining time

:Appears in the afternoon

with the clock displaying.

:Appears when the

progressive scan system is activated.

Recording Playing discs EditingGetting started

Display message

Changing the

Appears when the unit is turned on.

Appears when the unit is turned off.

Appears when the disc tray is opening.

Appears when the disc tray is closing.

Appears when a disc is loaded on the disc tray.

Appears when data is being recorded on a disc.

Setup menu

Others Español

Appears when the PBC function is activated. (Video CD playback only. Refer to page 70.)

E7A02UD_PY90DG_p1-37.indd.indd 9E7A02UD_PY90DG_p1-37.indd.indd 9 2006/04/24 18:43:462006/04/24 18:43:46

Functional overview (cont’d)

Remote Control

STANDBY-ON

4 5

7 8

9 10 11

(*) The unit can also be

turned on by pressing this button.

1. ZOOM button

During playback, press to

enlarge the picture on the screen.

2. STANDBY-ON button

Press to turn the unit on and off. If timer programmings have

been set, press to set the unit in timer-standby mode.

3. Number/Character buttons

Press to select channel numbers. Press to select a title/chapter/

track on display.

Press to enter values for the

settings in the Setup menu.

Or press to enter title names.

4. DISPLAY button

Press to display the Display

menu on or off.

5. TITLE button

Press to display the Title list.

6. DISC MENU button

Press to display the Disc menu.

7. Cursor K / L / { / B buttons

Press to select items or settings.

.@/: ABC DEF

GHI

PQRS

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

Before you start

OPEN/CLOSE

TIMER

ZOOM

PROG.

JKL

TUV

SPACE

DISC MENU

REV

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

8. REV E button

During playback, press to fast

reverse.

Or when playback is paused,

press to play slow reverse.

9. REC MODE button

Press to switch the recording

mode.

10. RAPID PLAY button

During playback, press to

playback in a slightly faster/ slower mode with keeping the audio quality.

11. REC button

Press once to start a recording. Press repeatedly to start the One-Touch Timer Recording.

12. PREV H button

During playback, press to return to the beginning of the current chapter or track. Or when playback is paused, press to play reverse step by step.

13. TIMER PROG. button

Press to display the Timer

14*

16 17

21* 22

25 26

programming list.

14. OPEN/CLOSE A button*

Press to open or close the

disc tray.

15. CH K / L buttons

Press to change the channel

up and down.

16. REPEAT button

Press to display the Repeat

menu.

17. SETUP button

Press to display the Setup

menu.

During DVD playback, press

and hold for more than 3 seconds to switch the progressive scanning mode to the interlace mode.

18. CLEAR button

Press to clear the password

once entered or to cancel the programming for CD or to clear the selecting marker number in the Edit menu or to clear the program once entered in the Timer Programming list, etc.

19. OK button

Press to confirm or select

menu items.

20. RETURN

button

Press to return to the previ-

ously displayed menu screen.

21. PLAY B button*

Press to start or resume play.

22. FWD D button

During playback, press to play

fast forward.

Or when playback is paused,

press to play slow forward.

23. NEXT G button

During playback, press to skip to

the next chapter or track.

Or when playback is paused,

press to play forward step by step.

24. PAUSE F button

Press to pause play or record-

ing.

25. CM SKIP button

During playback, press to skip

30 seconds.

26. STOP C button

Press to stop playback or

recording.

Press to exit from the Title list.

E7A02UD_PY90DG_p1-37.indd.indd 10E7A02UD_PY90DG_p1-37.indd.indd 10 2006/04/24 18:43:472006/04/24 18:43:47

Before you start

Functional overview (cont’d)

Before you start

Installing batteries in the remote control

Install two “AA” size batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

Note:

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.

• Do not use different kinds of batteries together, although they may look similar, different batteries may have different voltages.

• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.

• Remove batteries from equipment that is not going to be used for a month or more.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

• Do not recharge, short-circuit, heat, burn or disassemble batteries.

Using a remote control

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote control and the remote sensor on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the remote sensor of the unit.

• Remote control for different devices can interfere with each other. Avoid using remote control for other equipment located close to the unit.

• Replace the batteries when you notice a fall off in the operating range of the remote control.

• The maximum operable ranges from the unit are as follows.

- Line of sight: approx. 23 feet (7m)

- Either side of the center:

approx. 16 feet (5m) within 30°

- Above: approx. 16 feet (5m) within 15°

- Below: approx. 10 feet (3m) within 30°

Within about 23 feet (7m)

30°

Remote control

30°

Connections

Recording Playing discs EditingGetting started

Guide to Displays on screen menu

This unit uses the following on screen menu for most operations: Setup menu and Title list, and Display menu. They allow you to change the playing status of the disc during playback. The Display menu also gives you information on the status of the disc.

DISPLAY menu

Press [DISPLAY] to call up the Display menu. This menu will give you the information on the playing disc. Some operations are available while disc is playing.

1 1 0:00:00

DVD+RW

CH 2

5 252

HQ(1Hr) 1:01

1. Indicates a disc type and a

format mode (Format mode is displayed with DVD-RW/DVD-R (Video mode) disc inserted).

NOTE: In some descriptions on

this manual, only one disc type is indicated as an example.

2. Indicates a channel number.

3. Indicates a recording mode and

possible recording time left.

4. Indicates a title number, chapter

number and the time lapse of disc play.

5. Each icon means:

: Search

: Audio

: Subtitle

: Angle

: Repeat

: Marker

: Noise Reduction

: Zoom

: Surround

6. Indicates current disc status.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 11E7A02UD_PY90DG_p1-37.indd.indd 11 2006/04/24 18:43:482006/04/24 18:43:48

Before you start

Functional overview (cont’d)

Setup menus

Press [SETUP] to display the Setup menu. Then using [K / L], select a menu and press [OK] to display the menu. These menus provide entries to all main functions of the unit.

Setup

Required Settings

Playback

Display

Recording

Clock

Channel

Disc Edit

1. Required Settings:

To set up the required

settings.

2. Playback:

To set up the unit to play

discs as you prefer.

3. Display:

To set up the OSD screen

and the front display of the unit as you prefer.

4. Recording:

To set up the unit to record

to discs as you prefer.

5. Clock:

To set up the clock of the

unit as you need.

6. Channel:

To adjust the channel setting

of the unit as you prefer.

7. Disc Edit / CD Playback Mode:

“Disc Edit” is only available

with disc recorded in this unit. (DVD+VR mode)

“CD Playback Mode” is

available only when an Audio CD disc, a Video CD or a CD-R/RW disc with MP3/ WMA files is inserted into the unit.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Make Edits Compatible

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Finalize

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Finalize

CD Playback Mode

Random Play

455

Program Play

PBC (Video CD only) ON

1. Edit Disc Name:

Allows you to rename the

disc formatted with DVD+VR.

2. Disc Protect :

Allows you to protect a disc

from accidental editing or recording.

3. Erase Disc (DVD+RW/DVDRW only):

Allows you to erase all

contents in the disc and format it.

4. Make Edits Compatible (DVD+RW only):

Allows you to make edits

possible to play discs in other units after editing titles.

Finalize (DVD+R/DVD-R/

DVD-RW only):

Allows you to finalize a disc

containing recorded titles.

5. Random Play:

Allows you to activate the

random playback feature.

6. Program Play (Audio CD/ Video CD only):

Allows you to activate the

programmed playback feature.

7. PBC (Video CD only)

Allows you to select images

or information on the menu screen by activating PBC (Playback control) function.

E7A02UD_PY90DG_p1-37.indd.indd 12E7A02UD_PY90DG_p1-37.indd.indd 12 2006/04/24 18:43:482006/04/24 18:43:48

Connections

Connection to a TV

Cable

TV signal

Antenna

(Back of TV)

Cable

TV signal

Disconnect

Make one of the following connections, depending on the capabilities of your existing equipment.

Basic Audio

Connect

Antenna

(Back of TV)

AUDIO INVIDEO

PCM / BITSTREAM

COAXIAL

Connect

Audio cable

(supplied)

Plug in the AC power cord of this unit.

Connect

RF cable

(supplied)

OUT

AUDIO IN

ANTENNA

VIDEO IN

(E1)

Connect Video

cable

(supplied)

COMPONENT

VIDEO OUTPUT

S-VIDEO

VIDEO OUT

OUT

DIGITAL AUDIO OUTPUT

PB/C

PR/C

AUDIO OUT

(Back of this unit)

Method 1 Method 2

Better picture Best picture

S-VIDEO IN

COMPONENT

VIDEO IN

B/CB

R/CR

Recording Playing discs EditingBefore you start Connections Getting started

Audio cable

(supplied)

S-Video cable

(commercially available)

Component Video cable

(commercially available)

This unit

VIDEO OUT

COAXIAL

AUDIO OUT

VIDEO OUT

COMPONENT

VIDEO IN

VIDEO OUTPUT

S-VIDEO

OUT

AUDIO IN

ANTENNA

PB/C

PR/C

(E1)

AUDIO OUT

S-VIDEO

OUT

S-VIDEO OUT COMPONENT VIDEO OUT

COMPONENT

VIDEO OUTPUT

PB/C

PR/C

After you have completed connections

• Switch the input selector on your TV to an appropriate external input channel (usually near channel 0). Press a button on the TV’s original remote control that selects an external input channel until the DVD recorder’s picture appears. Check your TV owner’s manual for details.

Input Mode Names for Common TV Brands

Admiral

Curtis Mathis

Hitachi

JVC

Kenwood

AUX

LINE1, LINE2, 00, 90, 91, 92, 93

INPUT, TV/VCR, 00, 90, 91, 92, 93

INPUT, AUX

VIDEO, VIDEO1, VIDEO2, VIDEO3

AUX

LXI-Series

Magnavox

Panasonic

RCA

Samsung

Sanyo

AUX CHANNEL

TV/VIDEO

INPUT, TV/VCR, 00, 90, 91, 92, 93

TV/VIDEO

VIDEO

Sharp

Sony

Toshiba

Zenith

VIDEO1, VIDEO2, VIDEO3

TV/GAME

Note

• Connect this unit directly to the TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy protection system.

• When Progressive Scan mode is selected, no video signal will be output from the VIDEO OUT or

S-VIDEO OUT jack.

Changing the

Setup menu

Others Español

To set progressive scan mode, refer to page 68

• This unit is compatible with the Progressive Scan System. The feature provides you with the higher definition images than the traditional output system does. To utilize this feature, you must set Progressive Scan mode to “ON”.

E7A02UD_PY90DG_p1-37.indd.indd 13E7A02UD_PY90DG_p1-37.indd.indd 13 2006/04/24 18:43:492006/04/24 18:43:49

Connections

Connection to a cable box or satellite box

(Back of TV)

AUDIO INVIDEO

Audio

cable

(supplied)

Cable

TV signal

RF cable

(Commercially

(Cable box or

Satellite box)

OUT

available)

RF cable

(supplied)

Connect

OUT

ANTENNA

AUDIO IN

(E1)

VIDEO IN

COMPONENT

VIDEO OUTPUT

S-VIDEO

Connect Connect

Video

cable

(supplied)

VIDEO OUT

OUT

PB/C

PR/C

AUDIO OUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

(Back of this unit)

With this setup:

• You can record any unscrambled channel by selecting the channel on the cable box or satellite box. Be sure that the cable box or satellite box is turned on.

• You cannot record one channel while watching another channel.

Note to the Cable TV System Installer :

This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

E7A02UD_PY90DG_p1-37.indd.indd 14E7A02UD_PY90DG_p1-37.indd.indd 14 2006/04/24 18:43:492006/04/24 18:43:49

Connections

Connection to an Audio System

• When you change the connections, all devices should be turned off.

• Refer to the operation manual accompanying external devices for more information.

AUDIO

This unit

Method 1

Stereo system

Audio cable (supplied)

Analog audio input jacks

VIDEO OUT

AUDIO OUT

Method 2

Dolby Digital decoder, MD deck or DAT deck

COAXIAL

Audio Coaxial Digital cable (commercially available)

DIGITAL AUDIO OUTPUT

DIGITAL AUDIO OUT

COAXIAL

Setting

Connection

If output is Dolby Digital encoded audio, connect to a Dolby Digital decoder.

Unless connected to a Dolby Digital decoder.

Connecting to an MD deck or DAT deck.

Digital audio input jack

PCM / BITSTREAM

Setup >Playback >Disc Audio >Digital Out >

PCM Dolby Digital

Stream

PCM

Recording Playing discs EditingBefore you start Connections Getting started

Note

• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

* To complete these settings, refer to pages 66-67.

Note

• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound by an MD or DAT deck.

• By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital Multichannel surround sound as heard in the movie theaters.

• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 15E7A02UD_PY90DG_p1-37.indd.indd 15 2006/04/24 18:43:492006/04/24 18:43:49

Getting started

Easy DVD recording

The following will help you to understand easily how to record to DVD discs.

Note:

Make sure batteries are in the remote control and you have connected this unit with the TV correctly.

Step 1: Choose a disc type.

There are several types of recordable DVD discs to choose from.

This unit can record on the following type of discs.

For example, when you want to record repeatedly on the same disc, select the rewritable DVD+RW/DVD-RW type disc.

When you want to save recordings without any alteration, a non-rewritable DVD+R/DVD-R can be your choice.

Step 3:

Insert a blank disc.

ZOOM

OPEN/CLOSE TIMER PROG.

JKL

MNO

TUV

WXYZ

To open

REPEAT

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

Step 2: Turn on the

unit.

Remote Control

ZOOM

JKL

OPEN/CLOSE TIMER PROG.

MNO

STANDBY-ON

.@/: ABC DEF

GHI

Select the input to which the unit is connected on your TV.

Step 4: Select the

recording mode.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

REC

CM SKIP

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

ZOOM

OPEN/CLOSE TIMER PROG.

JKL

MNO

TUV

WXYZ

REPEAT

To close

Formatting 90%

HQ (1Hr) 0:58

DVD+RW/DVD-RW only

This operation may take a while to be recognized.

E7A02UD_PY90DG_p1-37.indd.indd 16E7A02UD_PY90DG_p1-37.indd.indd 16 2006/04/24 18:43:502006/04/24 18:43:50

Getting started

Easy DVD recording (cont’d)

Step 5: Select the

desired channel.

ZOOM

SPACE

OPEN/CLOSE

TIMER

PROG.

JKL

MNO

WXYZ

CLEAR

MNO

WXYZ

REPEAT

SETUP

REPEAT

CH 12

TUV

JKL

TUV

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

DISPLAY

.@/: ABC DEF

GHI

PQRS

Step 6: Record

on DVD disc.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

REC

CM SKIP

Step 7: Stop the

recording.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

REC

Writing to Disc 90%

This operation may take a while to be completed.

CM SKIP

1 SP (2Hr)

NOV/21/06 11:00AM NOV/21/06 0:20:44

EMPTY TITLE 1:41:17

CH12 SP

SP (2Hr)

Connections Getting started

Recording Playing discs EditingBefore you start

Hint 1: Play the recorded contents

Start Rec. Stop/Start Stop Rec

You can select the title you want to play from a displayed title list, and immediately start to play. Recorded contents are easily accessible, with simple procedure of choosing a title on in the menu screen.

Title 1 Title 2

What are titles and chapters?

The contents of the DVD disc are generally divided into titles. Titles may be further divided into chapters.

Chapter 1 Chapter 1Chapter 2 Chapter 3 Chapter 2

Hint 2: Edit the recorded disc

You will find editing discs is easy. This unit offers convenient edit functions to discs formatted with DVD+VR mode.

You can edit the following from a title list or setup menu.

• Deleting titles

• Putting names on titles

• Setting / clearing chapter marks

• Hiding chapters

• Setting pictures for thumbnails

• Dividing a title (DVD+RW/DVD-RW only)

• Putting name on disc

Finalizing a Disc

• This will allow DVD+R/DVD-RW/DVD-R discs recorded on this unit to be played back on a different DVD

player — without finalization it will not be playable on other units.

•

After finalizing a disc, you cannot edit contents on that disc.

• DVD+RW discs is not required to finalize but to “Make Edits Compatible” to play on other units after editing. You can edit the disc after “Make Edits Compatible”.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 17E7A02UD_PY90DG_p1-37.indd.indd 17 2006/04/24 18:43:502006/04/24 18:43:50

Getting started

Initial setting

Turn on this unit for the first time, you need to follow these steps.

Press [STANDBY-ON].

Turn the TV on. Select the input to which the unit is connected.

Refer to the table on page 13.

TV's original

remote control

TV / VIDEO

*This button can be labeled as INPUT , AUX , etc.

“Initial Setup” will automatically appear.

Initial Setup

English

Français

Español

Using [K / L], select your desired language on screen menu. Then press

[OK] to set

language.

“Channel Preset” will automatically appear.

Initial Setup

Channel Preset

Press [OK] to start Channel Preset.

The unit will start getting channels available in your area.

CH 1

Auto Presetting Now

After channel setting is finished, “Clock Setting” will appear. Then press [OK].

Initial Setup

Clock Setting

3 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

If you have changed antenna connection, we recommend that you program available channels in your area with the following procedures.

Getting channels automatically

Press [SETUP].

Follow to step 3 in “Manual Clock Setting” on page 22.

•

If a Public Broadcasting Station (PBS) is available in your area, follow Clock Setting

”

on page 21.

“

Auto

Channel setting

Using [K / L], select “Channel”. Press [OK].

Channel menu will appear.

Using [K / L], select “Auto Channel Preset”. Press [OK].

The unit will start getting channels available in your area.

Press [SETUP] to exit.

• You can select only the channels memorized in this

unit by using [CH K / L] or the

Number buttons.

2 3

STANDBY-ON

ZOOM

.@/: ABC DEF

JKL

GHI

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

OPEN/CLOSE

REPEAT

SETUP

1 4

E7A02UD_PY90DG_p1-37.indd.indd 18E7A02UD_PY90DG_p1-37.indd.indd 18 2006/04/24 18:43:512006/04/24 18:43:51

Getting started

Channel setting (cont’d)

To select a channel

You can select a channel by directly entering channel using the Number buttons on the remote control. Notes for using the Number buttons:

• When selecting cable channels which are higher than 99, enter channel numbers as a three-digit

number.(For example: 117, press [1], [1], [7])

• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

• You can select the line input mode (“E1” or “E2”). To select “E1” by pressing [0], [0], [1]. To select “E2” by pressing [0], [0], [2]. Details are on page 35.

Note

• If the auto channel presetting is cancelled during presetting, some channels not yet preset may not be

received.

• The selection will depend on how you receive the TV channels.

To cancel the auto channel presetting during scanning: Press [RETURN

Adding/deleting channels

The channels you no longer receive or seldom watch can be deleted from the memory. You also may add channels into memory.

Press [SETUP].

] or [SETUP] to cancel.

Select the channel number to add or delete.

Press [{] or [CH L] to move to a lower channel number. Press [B] or [CH K] to move to a higher channel number. Press the Number buttons to

select a channel number directly.

Manual Channel Preset

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

OPEN/CLOSE

REPEAT

SETUP

Using [K / L], select “Channel”. Press [OK].

Channel menu will appear.

Using [K / L], select “Manual Channel Preset”. Press [OK].

Manual Channel Preset menu will appear.

Manual Channel Preset

CH 2

Add Delete

Using [K / L], select “Add” or “Delete”. Press [OK].

The channel number will be added or deleted from the channel memory. Then the next channel number will appear so that you can continue adding or deleting

channels.

CH 7

Add Delete

2 3 4 5

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Connections Getting started

Recording Playing discs EditingBefore you start

1 6

Changing the

Setup menu

Others Español

Press [SETUP] to exit.

Note

• [CH K / L] works on the

memorized channel in this unit.

• [{ / B] works on all of

channel numbers.

E7A02UD_PY90DG_p1-37.indd.indd 19E7A02UD_PY90DG_p1-37.indd.indd 19 2006/04/24 18:43:512006/04/24 18:43:51

Selecting the TV stereo or SAP

You can select a sound channel to output from TV. “Stereo” has been selected as the default.

Press [SETUP].

Using [K / L], select “Required Settings”. Press [OK].

Required Settings menu will appear.

Getting started

Using [K / L], select “TV Audio Select”. Press [OK].

Option window will appear.

TV Audio Select

Stereo

SAP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

OPEN/CLOSE

REPEAT

SETUP

1 5

Using [K / L], select “Stereo” or “SAP”. Press [OK].

Stereo:

Outputs main-audio.

SAP (Secondary Audio Program):

Outputs sub-audio.

Press [SETUP] to exit.

Notes on TV channel audio

• When you record a TV program available in second audio or

stereo, you have to select either Stereo or SAP in the Channel Preset screen beforehand. Refer to the following table to check an

appropriate setting.

3 4

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Selected

audio

Broadcast

audio

Disc

recording

Audio

output

Stereo STEREO+SAP STEREO STEREO

STEREO STEREO STEREO

MONO+SAP MONO MONO

MONO MONO MONO

SAP STEREO+SAP SAP SAP

STEREO STEREO STEREO

MONO+SAP SAP SAP

MONO MONO MONO

• You can only play the disc in second audio if a TV program is

available in second audio and you set “ TV Audio Select ” to “ SAP ”.

E7A02UD_PY90DG_p1-37.indd.indd 20E7A02UD_PY90DG_p1-37.indd.indd 20 2006/04/24 18:43:512006/04/24 18:43:51

Set the clock before you try the Timer Programming. If a Public Broadcasting Station (PBS) is available in your area, follow “Auto Clock Setting” below. If not, follow

“Manual Clock Setting” on page 22.

Auto Clock Setting

Make sure

• The antenna/Cable TV connections are correct.

• If this unit is connected to a Cable Box or Satellite Box, select the local PBS station on them to set the clock automatically.

Press [SETUP].

Getting started

Setting the clock

• If you do not know your PBS channel number:

Using [K / L], select “Auto”.

Press [OK].

The setting will be activated.

• If you know your PBS channel

number:

Using [K / L], select

“Manual”. Press [OK].

Auto Clock Setting - Manual

Set Channel No.

CH 1

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

Connections Getting started

6 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

2 3 4

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Recording Playing discs EditingBefore you start

Using [K / L], select “Clock”. Press [OK].

Clock menu will appear.

Using [K / L], select “Auto Clock Setting”. Press [OK].

Option window will appear.

Auto Clock Setting

OFF Auto Manual

Using the Number buttons or [K / L], enter your PBS channel number. Press [OK].

The setting will be activated.

• If you want to set the clock manually and cancel the Auto Clock Setting function: Using [K / L], select “OFF” in “Auto Clock Setting”. Press [OK].

The Auto Clock Setting function will be canceled.

Press [SETUP] to exit.

Press [STANDBY-ON] to turn off the unit.

This unit will search for the time only when the power is off. Leave it off for several minutes to give this unit time to set the clock.

Changing the

Setup menu

Others Español

Note

• The clock may set itself automatically after you connect the antenna/cable signal to this unit and plug in the power cord.

E7A02UD_PY90DG_p1-37.indd.indd 21E7A02UD_PY90DG_p1-37.indd.indd 21 2006/04/24 18:43:522006/04/24 18:43:52

Manual Clock Setting

Press [SETUP].

Using [K / L], select “Clock”. Press [OK].

Using [K / L], select “Clock Setting”. Press [OK].

Clock Setting menu will appear.

Clock Setting

---- / -- / ---- ( ---- )

-- : -- --

Getting started

Setting the clock (cont’d)

Using [K / L], enter the date (month / day / year). Press [{ / B] to move the cursor.

Clock Setting

JAN / 01 / 2006 ( SUN )

12: 00 AM

Using [K / L], enter the time (hour / minute). Press [{ / B].

A cursor will move to AM.

Clock Setting

2 3 4 5 6

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

1 7

Press [OK] again.

Default date will appear.

JAN/ 01 / 2006 ( SUN )

12: 00 AM

Press [K / L] to select “AM” or “PM”. Press [OK].

Clock menu will appear, then the settings will be activated. Although seconds are not displayed, they begin counting from zero.

Press [SETUP] to exit, if Clock menu appears.

Note

•

Your clock setting will be lost if

either there is a power failure or this unit has been unplugged for more than 30 seconds when you set the clock manually.

E7A02UD_PY90DG_p1-37.indd.indd 22E7A02UD_PY90DG_p1-37.indd.indd 22 2006/04/24 18:43:522006/04/24 18:43:52

Setting the Daylight Saving Time

When “Daylight Saving Time” is ON, the unit clock will automatically move forward one hour on the first Sunday in April and move back one hour on the last Sunday in October. “ON” has been selected as the default.

Press [SETUP].

Using [K / L], select “Clock”. Press [OK].

Clock menu will appear.

Getting started

Setting the clock (cont’d)

Using [K / L], select “Daylight Saving Time”. Press [OK].

Option window will appear.

Daylight Saving Time

ON OFF

Using [K / L], select “ON” or “OFF”. Press [OK].

Select “ON” when currently utilizing the daylight saving time.

Press [SETUP] to exit.

2 3 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections Getting started

1 5

Recording Playing discs EditingBefore you start

Selecting the TV aspect ratio

You can select the TV aspect ratio to match the formats of what you are playing with the unit and your TV screen (4:3 standard or 16:9 widescreen TV). “4:3 Letter Box” has been selected

as the default.

Press [SETUP].

Using [K / L], select “Required Settings”. Press [OK].

Required Settings menu will appear.

Using [K / L], select “TV Aspect”. Press [OK].

Option window will appear.

TV Aspect

4:3 Letter Box

4:3 Pan & Scan

16:9 Wide

Refer to the Note on this page.

Using [K / L], select a desired option. Press [OK].

Press [SETUP] to exit.

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

SETUP

2 3 4

Note

If you have a standard TV:

Select “4:3 Letter Box”, so that

If you have a widescreen TV:

Select “16:9 Wide”.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

black bars appear on the top and bottom of the screen when playing wide-screen picture and all that. Select “4:3 Pan & Scan” for a full height picture with both sides trimmed when playing wide-screen picture and all that.

1 5

Setup menu

Others Español

Changing the

E7A02UD_PY90DG_p1-37.indd.indd 23E7A02UD_PY90DG_p1-37.indd.indd 23 2006/04/24 18:43:522006/04/24 18:43:52

Recording

Information on DVD recording

Information

This unit can record to DVD+RW, DVD-RW, DVD+R and DVD-R discs. DVD+R/DVD-R discs can only be recorded to once. DVD+RW/DVD-RW discs can be recorded to and erased many times. This unit will record DVD+VR mode automatically. DVD-RW/DVD-R disc will be recorded in the DVD+VR mode automatically in this unit.

Logo

DVD+RW

DVD+R

DVD-RW

8cm/12cm, single-sided, single layer disc Approx. max. recording time (SLP mode): 360 minutes (4.7GB) (for 12cm) 108 minutes (1.4GB) (for 8cm)

Attributes

Recording mode

You can select a recording mode among 6 options, and the recording time will depend on the recording mode you select as follows.

Disc Size

8cm Disc

12cm Disc

Recording mode

SP (2Hr)

SPP

LP (3Hr)

EP (4Hr)

SLP (6Hr)

SP (2Hr)

SPP

LP (3Hr)

EP (4Hr)

SLP (6Hr)

• The recording time are estimates and actual recording time may differ.

• The audio and video quality is getting poorer as the Recording time becomes longer.

• Each time [REC MODE] is pressed, recording mode and its allowed recording time will be displayed.

(1Hr)

(2.5Hr)

(1Hr)

(2.5Hr)

Recording time

18 min

36 min

45 min

54 min

72 min

108 min

60 min

120 min

150 min

180 min

240 min

360 min

Video/Sound Quality

(good)

(poor)

(good)

(poor)

DVD-R

Recordable disc

• DVD+R 1x-16x, DVD+RW 1x-4x, DVD-R 8x/16x, and DVD-RW 4x discs can be used in this recorder.

• We strongly recommend for good recording quality: TDK DVD+R 4x/8x/16x, SONY DVD+R 4x/8x/16x, MAXELL DVD+R 4x/8x/16x, SONY DVD+RW 4x, MAXELL DVD-R 8x/16x, MAXELL DVD-RW 4x

• Discs that have been tested and are proven to be compatible with this recorder:

VERBATIM DVD+R 8x VERBATIM DVD+RW 4x VERBATIM DVD-R 8x VERBATIM DVD-RW 2x

MAXELL DVD-R 16x JVC DVD-RW 4x

• You can play DVD+RW in most DVD players without finalizing. To play discs other than DVD+RW in other DVD players, you will need to finalize.

Note

• This recorder cannot record CD-R or CD-RW discs.

• DVD+R/RW, DVD-R/RW and CD-R/RW discs recorded on a personal computer or a DVD or CD recorder may not play if the disc is damaged or dirty or if there is dirt of condensation on the player’s lens.

• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

• DVD-R/RW discs recorded in Video mode cannot be recorded additionally using the unit.

• Since the recording is made by the variable bit rate (VBR) method, depending on the picture you are recording, the actual remaining time for recording may be a little shorter than the remaining time displayed on the OSD.

• You cannot record copy-protected video using this unit. (Copy-protected video includes DVDVideo discs and some satellite broadcasts.)

• You cannot record videos that includes “copyonce only” signal.

E7A02UD_PY90DG_p1-37.indd.indd 24E7A02UD_PY90DG_p1-37.indd.indd 24 2006/04/24 18:43:522006/04/24 18:43:52

Recording

Information on DVD recording (cont’d)

Making discs playable in other DVD player (Finalize/Make Edits Compatible)

After recording on DVD+R/DVD-R/DVD-RW, you must finalize the disc in order to play on other units. (Refer to page 36.) There is no need to finalize DVD+RW discs but to “Make Edits Compatible” (refer to page 62) for playing on other units after editing.

Connections RecordingGetting started

DVD+RW

Editing titles

DVD-RW/DVD-R

Make Edits Compatible*

Finalizing*

DVD+R

Playable

This Unit DVD player

Not Playable

Not finalized Not performing Make Edits Compatible after editing titles

*You cannot finalize or Make Edits Compatible in other DVD recorders.

• Once DVD+R/DVD-R/DVD-RW discs are finalized, you cannot record additionally or edit.

• You cannot record additionally or edit on finalized DVD-RW discs unless the DVD-RW discs are performed “Undo Finalize”.

Playing discs EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 25E7A02UD_PY90DG_p1-37.indd.indd 25 2006/04/24 18:43:532006/04/24 18:43:53

Replacing disc menu

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

+VR

DVD +

DVD -RW

DVD -

It can be used to prohibit recording additionally or to replace the title list after recording when inserting the disc includes titles and a different type of title list recorded by other units. “OFF” has been selected as the default.

Press [SETUP].

Using [K / L], select “Recording”. Press [OK].

Recording menu will appear.

Using [K / L], select “Replace Disc Menu”. Press [OK].

Recording

Before recording

+VR

DVD -R

Option window will appear.

Replace Disc Menu

OFF

Using [K / L], select “ON” or “OFF”. Press [OK].

ON: Replacing the title list OFF: Prohibiting additional record

Press [SETUP] to exit.

2 3 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

1 5

Setting for Auto Chapter

+VR

DVD +

DVD -RW

DVD -

You can set a specified time for chapter marks.

Press [SETUP].

Using [K / L], select “Recording”. Press [OK].

Using [K / L], select “Auto Chapter”. Press [OK].

Option window will appear.

Auto Chapter

OFF 5 minutes 10 minutes 15 minutes 30 minutes 60 minutes

+VR

DVD -R

Using [K / L], select a desired time option. Press [OK].

Press [SETUP] to exit.

.@/: ABC DEF

JKL

TUV

SPACE

DISC MENU

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

GHI

PQRS

DISPLAY

TITLE

2 3 4

• The interval for auto chapter

• A blank chapter may be

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

marks may slightly deviate from the one you specified on the Auto chapter screen.

created depending on the remaining time of the disc.

1 5

E7A02UD_PY90DG_p1-37.indd.indd 26E7A02UD_PY90DG_p1-37.indd.indd 26 2006/04/24 18:43:532006/04/24 18:43:53

DVD+

DVD +RDVD+RDVD +R

DVD-

+VR

DVD-R

DVD +

DVD -RW

DVD -

Follow the steps below to record TV programs.

Press [STANDBY-ON].

Turn the TV on and be sure to select the input to which the unit is connected.

Press [OPEN/CLOSE A].

The disc tray will open.

Insert your disc with its label facing up. Align the disc to the disc tray guide.

Recording

Basic recording

+VR

DVD -R

Press [REC] to start recording.

“I” mark will be displayed for 5 seconds.

Press [PAUSE F] to pause recording. Press [PAUSE F] or

[REC] again to restart recording.

Press [STOP C] to stop recording.

The recorded title will be on the displayed title list. (Refer to “Guide to a title list” on page 51.)

Writing to Disc 90%

1 6

5 7

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections RecordingGetting started

4 6

7 8

disc tray guide

Press [OPEN/CLOSE A] to close the disc tray.

• When inserting a brand-new DVD+RW/DVD-RW disc, the unit automatically starts to format.

•

If titles have been recorded on the disc, the title list is displayed. Press

[STOP C] to exit the title list.

This operation may take a while to be completed.

Using [REC MODE], select a recording mode.

Refer to “Recording mode” on page 24.

HQ (1Hr) 0:58

Using [CH K / L] or the Number buttons, select a desired channel to record.

CH 12

1 SP (2Hr)

NOV/21/06 11:00AM NOV/21/06 0:20:44

EMPTY TITLE 1:41:17

•

Press [STOP C] to exit the title list.

CH12 SP

SP (2Hr)

Note

• Recording starts immediately and continues until the disc is full or you stop recording.

• When the unit clock has not been set, the space for a date and time of title names will be blank.

• When you record a TV program which has Stereo and SAP audio, you have to select the TV channel audio (Stereo or SAP) beforehand. Only the selected channel audio will be recorded. Refer to “Selecting the TV stereo or SAP” on page 20 for more details.

• You cannot change the recording mode during the REC pause mode.

• You can change a channel during the REC pause mode.

Playing discs EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 27E7A02UD_PY90DG_p1-37.indd.indd 27 2006/04/24 18:43:532006/04/24 18:43:53

One-touch Timer Recording

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

+VR

DVD +

DVD -RW

DVD -

This is a simple way to set the recording time in blocks of 30 minutes. Check that the disc you are recording onto has enough space for the time you set. When the recording finishes the recorder automatically goes into standby mode.

Turn on the unit and load a recordable disc.

Make sure that the TV input is set on the unit.

This operation may take a while to be recognized.

Using [REC MODE], select a recording mode.

Refer to “Recording mode” on page 24.

Using [CH K / L] or the Number buttons, select a desired channel to record.

Recording

+VR

DVD -R

Press [REC] repeatedly to select desired recording time.

Recording times appear on the TV screen (30 minutes to 6 hours). Recording will start.

0:30

(Normal Recording)

6:00 5:30

When the unit reaches the specified time, it will be turned off automatically.

To change the recording length during the One-touch Timer Recording, press [REC] repeatedly until the desired length appear.

1:00

1 3

2 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

1 3

To cancel the One-touch Timer Recording within the specified time, press [STOP C] .

This operation may take a while to be completed.

Note

• Press [DISPLAY] to see the remaining recording time on the TV screen during a Onetouch Timer Recording.

• You cannot pause a Onetouch Timer Recording.

• Unlike a Timer Recording, you can perform the following operations during the One-touch Timer Recording.

-Turning the power off.

-Using [REC] and

[STOP C].

• The unit will be turned off automatically under the following conditions.

1) No space remained on the disc.

2) When a power failure occurs.

E7A02UD_PY90DG_p1-37.indd.indd 28E7A02UD_PY90DG_p1-37.indd.indd 28 2006/04/24 18:43:542006/04/24 18:43:54

DVD+

DVD +RDVD+RDVD +R

DVD-

+VR

DVD-R

DVD +

DVD -RW

DVD -

You can program the unit to record up to 8 programs within a month in advance. Daily or weekly program recordings are also available.

• Be sure to set the clock before setting a timer programming.

• Insert a recordable disc.

Press [TIMER PROG.].

Timer Programming list will appear.

Timer Programming

Date Start End CH Mode

1. ---

2. ---

3. ---

Using [K / L], select a program number. Press [OK].

Using [K / L], enter the Date. Press [B].

Timer Programming

Date Start End CH Mode

1. JAN/01 --:-- --:-- E1

2. ---

3. ---

When pressing [L] at the current date, the Date will change as follows.

Recording

Timer Recording

+VR

DVD -R

Using [K / L], select the CH number to record. Press [B].

Timer Programming

Date Start End CH Mode

1. JAN/01 12:57AM 1:57AM CH 8

2. ---

To record from external input, select E1 or E2.

Using [K / L], select a recording mode.

Timer Programming

Date Start End CH Mode

1. JAN/01 12:57AM 1:57AM CH 8 HQ

2. ---

Refer to “Recording mode” on page 24.

When “Auto” is selected as a recording mode, the unit determines how much time is available on the disc and record in the appropriate recording mode to complete recording the program.

Timer Programming

Date Start End CH Mode

1. JAN/01 12:57AM 1:57AM CH 8 Auto

2. ---

2 3 4 5 6 7

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections RecordingGetting started

1 7

Playing discs EditingBefore you start

e.g. January 1st

JAN/01

Daily

MON-SAT

MON-FRI

SAT

FRI

SUN

JAN/31

Using [K / L], enter the Start and End time. Press [B].

Timer Programming

Date Start End CH Mode

1. JAN/01 12:57AM --:-- E1

2. ---

3. ---

Press [OK] when all items are entered.

Your program setting will be stored.

• To set another program, repeat steps 2 to 7.

• To exit, press [TIMER PROG.] or [SETUP].

• When two or more programs are overlapped, “Overlap” and the overlapped program number will appear.

Press [STANDBY-ON] to set a Timer Programming.

indicator will appear on the front

panel display.

Note

• If you have not set the clock yet:

A manual clock setting menu

will appear instead of the Timer Programming list at step 1. Continue with the step 3 in “Manual Clock Setting” on page 22 before setting a timer programming.

• Press [s / B] to move the cursor to the left and the right in the timer programming menu.

• After step 8, the recording will start immediately after the

Changing the

Setup menu

Others Español

recording time you set.

E7A02UD_PY90DG_p1-37.indd.indd 29E7A02UD_PY90DG_p1-37.indd.indd 29 2006/04/24 18:43:542006/04/24 18:43:54

Recording

Timer Recording (cont’d)

Checking, canceling, or correcting the timer programming information

Press [STANDBY-ON].

indicator will disappear from the

front panel display.

Press [TIMER PROG.].

Timer Programming

Date Start End CH Mode

1. JAN/01 12:57AM 1:57AM CH 8 HQ

2. ---

Timer Programming list will appear.

To clear the timer programming: Using [K / L], select the program. Press [CLEAR].

To correct the timer programming: Using [K / L], select your desired program. Press [OK]. Next, correct the timer programming by using [K / L / { / B]. Finally, press [OK] again.

Press [TIMER PROG.] to exit.

Check the information on the list you will need.

Press [STANDBY-ON] to return to the timer standby mode.

1 6

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

2 5

Note

• Press [TIMER PROG.] to

To stop the Timer Recording in process

Press [STOP C] on the front panel of the unit. [STOP C] on the remote control is not effective.

If the timer program did not complete correctly, the error number appears in the Timer Programming list.

Timer Programming

Date Start End CH Mode

JAN/01 12:57AM 1:57AM CH 8 E22

2. ---

3. ---

4. ---

5. ---

6. ---

7. ---

8. ---

Press [CLEAR] to erase the selected program.

Each error number means:

E1-22 E37-39

E24 Unrecordable disc E42 No disc when recording

E25-26 Copy prohibited program E43 Already 49 titles recorded

E29 Disc protected E44 Already 254 chapters

E30 Disc full E45 Copy prohibited program

E35 PCA full E46 It is impossible to record

E36 Already finalized Video

E40 Some portion has not

Recording error other than below

format disc

been recorded because of program overlapping. Recording did not start at the start time.

• E23,E27,E28,E31,E32,E33 and E34 are not displayed.

• A program with the error number is grayed and asterisked in the Timer Programming list.

• Once the Timer Programming list with error line(s) is displayed, or after canceling and setting again the timer standby mode, the program line(s) with error will be cleared.

check the timer programming in process.

When the Timer Recording is

proceeding, that program will be highlighted with red. In this case, you cannot select any other program.

E41 Power failed

recorded

additionally on a disc recorded by other units when setting Replace Disc Menu to OFF.

E7A02UD_PY90DG_p1-37.indd.indd 30E7A02UD_PY90DG_p1-37.indd.indd 30 2006/04/24 18:43:552006/04/24 18:43:55

Recording

Timer Recording (cont’d)

Hints for Timer Recording

• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer programming will be lost.

• If a disc is not on the tray, the cases, the

indicator will be on momentarily around the start point as the unit attempts to record. Please

insert a recordable disc.

•

When all the Timer Recording is completed, [STANDBY-ON] first, then select the recorded title and press [PLAY B] or [OPEN/CLOSE A].

• During Timer Recording or timer standby mode (the indicator will be on), any operations on the unit will not be available. To make these operations available, cancel the Timer Recording or timer standby mode first (the

indicator will be off).

• To cancel the timer standby mode, press [STANDBY-ON].

• When the Start and the End time are the same, the length of the recording will be set for 24 hours. When the disc reaches at the end during the recording, the unit turns itself off.

• When the programmed Start and End time are earlier than the current time, the setting will not be accepted and be cleared for redoing.

• If the Start time is earlier and the End time is later than the current time, the recording will start right after you turn the power off.

The priority of overlapped settings

This unit records the programs according to priority if the timer programmings are overlapped. The timer programming set previously has priority. A Timer Recording of lower priority will be canceled, start from the middle or stop on the way. Check the overlapped timer programmings and change the priority if necessary.

A programming set previously has priority When the starting time is the same:

A program set previously (PROG. A) has priority.

PROG. A

PROG. B

Actual recording

The first 30 seconds (at the longest) will be cut off.

When the recording time is partially overlapped:

PROG. A will start after PROG. B is complete to be recorded.

PROG. A

PROG. B Actual

recording

The first 30 seconds (at the longest) will be cut off.

PROG. A

PROG.B PROG.A

indicator flashes and Timer Recording cannot be performed. In some

the

indicator flashes. To play or eject the recorded disc, press

When some programming have been made at the end time of the programming currently being recorded:

A program set previously (PROG. B) has priority.

PROG. A

PROG. B

PROG. C

PROG. B

Actual recording

The first 30 seconds (at the longest) will be cut off.

When the recording time is entirely overlapped:

PROG.A will not be recorded.

PROG. A

PROG. B Actual

recording

PROG. A

PROG. B

Connections RecordingGetting started

Playing discs EditingBefore you start

Changing the

Setup menu

Note for DVD recording

• When the recording time of two programs are overlapped, or the End time of a program and the Start time of another program is the same, the first 30 seconds (at the longest) of the subsequent program will be cut off.

• If the cut-off portion comes up to one minute or more, this program will be displayed with error number E40 in the timer programming list.

E7A02UD_PY90DG_p1-37.indd.indd 31E7A02UD_PY90DG_p1-37.indd.indd 31 2006/04/24 18:43:552006/04/24 18:43:55

When the End time of the programming currently being recorded and the Start time of the subsequent program are same:

If PROG. A is a DVD recording program, the beginning of the PROG. B may be cut off.

PROG. A

PROG. B Actual

recording

The first 30 seconds (at the longest) will be cut off.

PROG. BPROG. A

Others Español

Recording

DVD+

DVD-

DVD+

DVD-

Overwriting an existing title

Overwriting from the beginning of the title

+VR

DVD -RW

DVD -

DVD +

You can overwrite the existing title from the beginning.

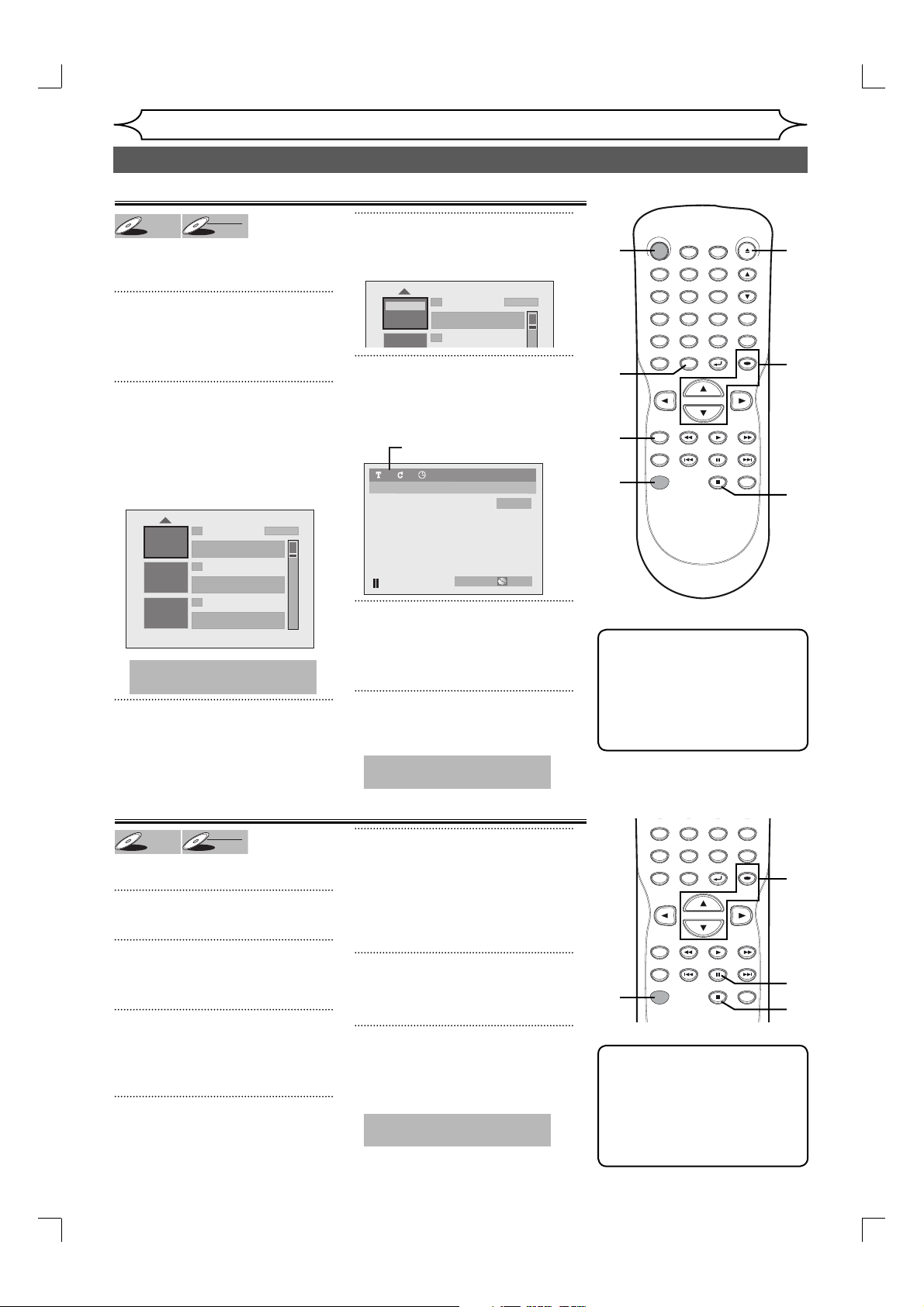

Press [STANDBY-ON].

Make sure that the TV input is set on the unit.

Using [K / L], select a title to be overwritten. Press [OK].

1 SP (2Hr)

Play

Edit

NOV/21/06 11:00AM

Overwrite

NOV/21/06 0:20:44

Load the disc that includes a title to be overwritten.

Title list will appear. If the title list does not appear, press [DISC MENU].

1 SP (2Hr)

NOV/21/06 11:00AM NOV/21/06 0:20:44

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

CH12 SP

AM CH13 EP

This operation may take a while to be recognized.

Using [REC MODE], select a recording mode.

Refer to “Recording mode” on page 24.

Using [K / L], select “Overwrite”. Press [OK].

Channel can be changed.

Selected title number to be overwritten

1 1 0:00:00

SP(2Hr) 2:00

Press [REC].

Overwriting recording starts. The elapsed-time counter starts running.

Press [STOP C] to stop recording.

Title name is also overwritten.

This operation may take a while to be recognized.

CH12 SP

DVD+RW

CH 12

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

PLAY

FWD

RAPID PLAY

REC

PAUSE

STOP

CM SKIP

Note

• Remaining time, which is displayed on the bottom right corner of the screen during overwriting, indicates the remaining time at the time of

starting overwriting.

4 5

Overwriting in the middle of the title

+VR

DVD -RW

DVD -

DVD +

You can overwrite the existing title from the selected position.

Proceed to steps 1 to 2 above.

Press [REC].

“F ” mark, Display menu, CH, and the time lapse will be displayed as stated above.

Channel can be changed.

Using [K / L], select a title to be overwritten. Press [OK].

Using [K / L], select “Play”. Press [OK].

Playback will start.

Press [PAUSE F] at the point from which you want to start overwriting.

E7A02UD_PY90DG_p1-37.indd.indd 32E7A02UD_PY90DG_p1-37.indd.indd 32 2006/04/24 18:43:552006/04/24 18:43:55

Press [REC] again.

Overwriting recording starts.

Press [STOP C] to stop recording.

Title name is not overwritten.

This operation may take a while to be recognized.

5 6

• Recording mode of the

PQRS

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

TUV

SPACE

DISC MENU

REV

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

Note

overwriting title is the same as that of the original (overwritten) title when overwriting in the middle of

the title.

2 3

4 7

Recording

Overwriting an existing title (cont’d)

Hints for Overwriting

When an existing title is overwritten, the title name may be changed according to the overwriting situations. Before overwriting, read the following cases and Note.

When overwriting title is shorter than the existing title:

(Overwriting from the beginning of the title)

Overwriting Title (A)

Existing Title (B)

After overwriting

When overwriting title is longer than the existing title:

(Overwriting from the beginning of the title)

Overwriting Title (A)

Existing Title (B)

After overwriting

Title name: A

Title name: B

PROG. A

Title name: A

30 - 180 seconds will be cut off.

Title name: A

Title name: B

PROG. A

Title name: A

Title name: B

Connections RecordingGetting started

Playing discs EditingBefore you start

Overwriting Title (A)

Existing Title (B)

Existing Title (C)

After overwriting

When overwriting in the middle of the title:

Overwriting Title (A)

Existing Title (B)

After overwriting

Title name: A

Title name: B

PROG. A

Title name: A

30 - 180 seconds will be cut off.

Title name: A

Title name: B Title name: B

Title name: A

30 - 180 seconds will be cut off.

Title name: C

Note

• When a title name is overwritten, its thumbnail is also overwritten.

• When existing title is longer than the overwriting title, overwriting title is divided into 2 titles. If this is the case, there may be an unrecorded portion between titles.

• A chapter mark is put between titles when overwriting in the middle of the title.

• “Auto Chapter” interval time is reset at the overwriting start point.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 33E7A02UD_PY90DG_p1-37.indd.indd 33 2006/04/24 18:43:552006/04/24 18:43:55

Recording

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

Settings for an external source

Connection to an external source

DVD +

+VR

DVD -RW

DVD -

+VR

DVD -R

Connect the external source properly to the unit by using input jacks either EXT2 (Front) or EXT1 (Rear). When connecting an external equipment of monaural output to this unit, use AUDIO L jack of EXT2 (Front). Use commercially available S-Video or Video cable and an Audio cable for this connection.

Another source (VCR camcorder etc.)

Audio

cable

OUTPUT

VIDEO S -VIDEOAUDIO

Video cable

S-Video cable

S-Video

cable

OUTPUT

VIDEOS- VIDEO AUDIO

Video

cable

Audio cable

VIDEO IN

S-VIDEO

To EXT 2 IN To EXT 1 IN

Front of this unit

COMPONENT

VIDEO IN

VIDEO OUTPUT

S-VIDEO

OUT

ANTENNA

AUDIO IN

(E1)

1. Press [SETUP].

PB/C

PR/C

AUDIO IN

VIDEO OUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

AUDIO OUT

Rear of this unit

2. Using [K / L], select “Required Settings”. Press [OK].

3. Using [K / L], select “Video Input”. Press [OK].

Video Input

E1 (Rear) Video In

E2 (Front) Video In

4. Using [K / L], select “E2 (Front)”. Press [OK].

Video Input - E2 (Front)

Video In

S-Video In

5. Using [K / L], select the input jack type to connect. Press [OK].

If you want to use VIDEO input (Composite) jack,

select “Video In”.

If you want to use S-VIDEO input jack, select “S-

Video In”.

Video Input

E1 (Rear) Video In

E2 (Front) S-Video In

4. Using [K / L], select “E1 (Rear)”. Press [OK].

Video Input - E1 (Rear)

Video In

S-Video In

5. Using [K / L], select the input jack type to connect. Press [OK].

If you want to use VIDEO IN (Composite) jack,

select “Video In”.

If you want to use S-VIDEO IN jack, select “S-

Video In”.

Video Input

E1 (Rear) S-Video In

E2 (Front) Video In

6. Press [SETUP] to exit.

E7A02UD_PY90DG_p1-37.indd.indd 34E7A02UD_PY90DG_p1-37.indd.indd 34 2006/04/24 18:43:562006/04/24 18:43:56

6. Press [SETUP] to exit.

Recording

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

DVD+

DVD +RDVD+RDVD +R

DVD-

DVD-R

Settings for an external source (cont’d)

Recording from an external source

DVD +

+VR

DVD -RW

DVD -

+VR

DVD -R

Before recording from an external source, see the instructions for the connection on page 34.

1. Turn the TV and this unit on, and be sure to select the input of the TV to which the unit is connected.

Refer to the table on page 13.

2. Press [OPEN/CLOSE A] to open the disc tray. Place the disc to record properly.

3. Press [OPEN/CLOSE A] to close the disc tray. This operation may take a while to be recognized.

4. Select the input of the unit which the external equipment is connected. (E2 or E1)

• To use the input jacks on the back of this unit, select “E1 (Rear)” position by pressing [0], [0], [1] with the Number buttons on the remote control.

• To use the input jacks on the front of this unit, select “E2 (Front)” position by pressing [0], [0], [2] with the Number buttons on the remote control.

5. Select a recording mode by pressing [REC MODE].

(1Hr)

(2Hr) (2.5Hr)

SPP

Refer to “Recording mode” on page 24.

6. Press [RECORD] on the unit to start recording.

LPEPSLP

(3Hr)(4Hr)(6Hr)

7. Press “Play” on the external source to record from.

8. Press [STOP C] on the unit to stop recording.

1 4

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

832

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections RecordingGetting started

Playing discs EditingBefore you start

This operation may take a while to be completed.

Setting a disc to protect

+VR

DVD +

DVD -RW

DVD -

To prevent accidental recording, editing or erasing the titles, you can protect them from the Setting menu.

+VR

DVD -R

Confirmation window will appear.

Disc Protect OFF ON

Yes No

Press [SETUP].

Using [K / L], select “Disc Edit”. Press [OK].

Disc menu will appear.

Using [K / L], select “Disc Protect OFF

ON”. Press [OK].

Using [K / L], select “Yes”. Press [OK].

A disc will be protected.

This operation may take a while to be completed.

DISPLAY

TITLE

REC MODE

CLEAR

SPACE

RETURN

DISC MENU

REV PLAY FWD

SETUP

Note

To cancel the disc protect:

• When you insert a disc protected with this unit,

“Disc Protect ON OFF” will

appear instead of “OFF

Disc Protect ON OFF

Yes No

To release the protect for the

disc, select “Disc Protect

OFF” at step 3, then

select “Yes”.

ON”.

1 2

3 4

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 35E7A02UD_PY90DG_p1-37.indd.indd 35 2006/04/24 18:43:572006/04/24 18:43:57

DVD+R

DVD-

DVD-R

Finalizing a disc

Recording

Playing the discs in other DVD players

DVD +R

+VR

DVD -RW

DVD -

+VR

DVD -R

You will need to finalize discs to play in other DVD players. Finalizing may take several minutes up to an hour. A shorter recording period on the disc will require a longer time period for finalization. Do not unplug the power cord during finalization. Details are on page 25.

Press [SETUP].

Using [K / L], select “Disc Edit”. Press [OK].

Disc menu will appear.

Using [K / L], select “Finalize”. Press [OK].

Confirmation window will appear.

Finalize

Yes No

To cancel finalizing...

(DVD-RW only)

• To cancel finalizing at step 4,

press [STOP C], select “Yes” with [{ / B], then press [OK]. Finalizing is cancelled and the unit will be in stop mode.

Do you want to cancel ?

Yes No

Finalizing 5%

• If appears when pressing

[STOP C], you cannot cancel finalizing because the finalizing has been in certain progress.

• When selecting “No” and

press [OK] or [RETURN finalizing will be continued.

• You cannot cancel finalizing the DVD+R/DVD-R disc once it has started.

This operation may take a while to be completed.

] ,

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

1 2

3 4

Using [K / L], select “Yes”. Press [OK].

Finalizing will start.

Finalizing 90%

Finalizing is completed.

Finalizing 100%

Note

• Once you have finalized a disc recorded on DVD+R/ DVD-R, you cannot edit or record anything on that disc.

• There is no need to finalize

DVD+RW discs.

• When you insert a DVD-RW disc finalized with this unit, “Undo Finalize” will appear instead of “Finalize”.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Undo Finalize

To release the finalizing for the disc, select “Undo Finalize” at step 3.

* DO NOT power off during

finalization, this will result in malfunction.

E7A02UD_PY90DG_p1-37.indd.indd 36E7A02UD_PY90DG_p1-37.indd.indd 36 2006/04/24 18:43:582006/04/24 18:43:58

DVD+R

DVD-

DVD-R

Playing the discs in other DVD players (cont’d)

Auto finalizing

+VR

DVD -RW

DVD -

DVD +R

You can finalize discs automatically using Auto Finalize function. You can use this function to finalize discs after finishing all Timer Recordings and at the end of the disc space.

+VR

DVD -R

Press [SETUP].

Using [K / L], select “Recording”. Press [OK].

Recording menu will appear.

Using [K / L], select “Auto Finalize”. Press [OK].

Auto Finalize menu will appear.

Auto Finalize

Disc Full OFF

End of Timer Rec OFF

Recording

Using [K / L], select “Disc Full” or “End of Timer Rec”. Press [OK].

Option window will appear.

Auto Finalize - Disc Full

ON OFF

Auto Finalize - End of Timer Rec

OFF

Using [K / L], select “ON”. Press [OK].

Your setting will be activated.

Press [SETUP] to exit.

2 3 4 5

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections RecordingGetting started

1 6

Playing discs EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p1-37.indd.indd 37E7A02UD_PY90DG_p1-37.indd.indd 37 2006/04/24 18:43:582006/04/24 18:43:58

Playing discs

Information on DVD play

Before you play DVD discs, read the following information.

Playable discs

This unit is compatible to play the following discs. To play a DVD, make sure that it meets the requirements for Region Codes and Color Systems as described below. Discs that have the following logos will play on the unit. Other disc types are not guaranteed to play.

LogoDisc

DVD-VIDEO

DVD +RW

DVD +R

DVD+R Double Layer

DVD -RW (VIDEO mode, Finalized)

DVD-R (VIDEO mode, Finalized)

CD-DA (AUDIO CD)

Video CD

CD-RW (CD-DA FORMAT, WMA/MP3 files)

CD-R (CD-DA FORMAT, WMA/MP3 files)

is a trademark of DVD Format/Logo Licensing Corporation.

in the NTSC system. You cannot play DVDs recorded in other color system .

Region codes

This unit has been designed to play DVD discs with Region One (1). DVDs must be labeled for ALL regions or for Region 1 in order to play on the unit. You cannot play DVDs that are labeled for other regions. Look for the symbols on the right on your DVDs. If these region symbols do not appear on your DVD, you cannot play the DVD in this unit.

The number inside the globe refers to region of the world. A DVD labeled for a specific region can only play on the unit with the same region code.

PBC (Playback Control) for Video CD

This unit conforms to ver.1.1 and ver. 2.0 of Video CD standard with PBC function. Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD. Ver.2.0 (with PBC function): While using a Video CD with PBC function, “PBC” appears on the screen. NOTE: When playing Video CDs with PBC function, some operations (e.g., track search and repeat tracks) cannot be performed. Cancel PBC function temporarily to perform those operations (refer to page 70).

You can play interactive software using menu screens. Refer to instructions in the Video CD.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Hint for DVD playback

The contents of DVD disc are generally divided into titles. Titles may be further subdivided into chapters.

Start Rec. Stop/Start Stop Rec.

Color systems

DVDs are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada). This unit uses NTSC, so DVDs you play must be recorded

Title 1 Title 2

Chapter 1 Chapter 1Chapter 2 Chapter 3 Chapter 2

Guide to displays

Press [DISPLAY] to call up the Display menu. This menu will give you the information on the playing disc. Some operations are available while disc is playing.

1 1 0:00:00

DVD+RW

CH 2

1. Indicates a disc type and a

format mode. (Format mode is displayed with DVD-RW/DVD-R (Video mode) discs inserted.)

NOTE: In some descriptions on

this manual, only one disc type is indicated as an example.

2. Indicates a channel number.

3. Indicates a recording mode and

5 252

possible recording time left.

4. Indicates a title number, chapter number and the time lapse of

HQ(1Hr) 1:01

E7A02UD_PY90DG_p38-80.indd 38E7A02UD_PY90DG_p38-80.indd 38 2006/04/24 18:44:462006/04/24 18:44:46

disc play.

5. Each icon means:

: Search : Audio : Subtitle : Angle : Repeat : Marker : Noise Reduction : Zoom : Surround

6. Indicates current disc status.

DVD+

DVD+R

DVD-

DVD-R

Playback

+VR

DVD +

DVD +R

DVD -RW

DVD -

Press [STANDBY-ON ].

Turn the TV on and be sure to select the input to which the unit is connected.

Press [OPEN/CLOSE A] .

The disc tray will open.

Insert your disc with its label facing up. Align the disc to the disc tray guide.

disc tray guide

Press [OPEN/CLOSE A] to close the disc tray.

This operation may take a while to be recognized.

Title list will appear automatically.

1 SP (2Hr)

NOV/21/06 11:00AM NOV/21/06 0:20:44

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

CH12 SP

AM CH13 EP

If you want to return to the playback while you are stopping temporarily, press [TITLE] to resume play. To exit the title list, press

[STOP C].

Using [K / L], select a desired title. Press [OK].

Playing discs

Basic playback

+VR

DVD -R

Pop-up window will appear.

1 SP (2Hr)

Play

Edit

NOV/21/06 11:00AM

Overwrite

NOV/21/06 0:20:44

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

If you want to see Disc information, press [{ ] when the first page of the title list is displayed or press [ K ] when the first title is selected but “Play”, “Edit” or “Overwrite” is not highlighted.

When inserting <DVD+RW> disc.

No Disc Name

Disc DVD+RW

Total Titles 3

Disc Space Used 0:30:48

Disc Protect OFF

Make Edits Compatible Needed

When inserting <DVD+R/DVD-RW/DVD-R> disc.

No Disc Name

Disc DVD+R

Total Titles 5

Disc Space Used 1:30:48

Disc Protect OFF

Finalize Finalized

CH12 SP

AM CH13 EP

Using [K / L], select “Play”. Press [OK].

Playback will start.

Press [STOP C] to stop playback. To eject the disc, press [OPEN/ CLOSE A] to open the disc tray,

then remove the disc before turning the unit off.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

4 5

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

[{] to

RAPID PLAY

REC

1. Disc name (Default “No Disc Name”)

2. Disc Type (DVD+RW/DVD+R/DVD-RW/ DVD-R)

3. Total number of title (include “Empty Title”)

4. Total time of recorded disc space

5. Status of disc protection (“ON” is protected disc.)

6. Making edits compatible/ Finalize

• When DVD+RW disc is inserted: If edit for which “Make Edits Compatible” is necessary is done, “Needed” is displayed. “Not Needed” is not necessary.

• When DVD+R, DVD-RW or DVD-R disc is inserted: If “Finalize” is done, “Finalized” is displayed. Otherwise, “Unfinalized” is displayed.

Note

• Some discs may start playback automatically.

• You can also start playback by pressing [PLAY B] instead of [OK] at step 5.

• Press [B next page, and press display the previous page.

] to display the

Connections Getting started

4 7

Recording Playing discs

EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 39E7A02UD_PY90DG_p38-80.indd 39 2006/04/24 18:44:462006/04/24 18:44:46

DVD -V

DVD-V

DVD-R

DVD-

Video CD

MP3

WMA

DVD -VDVD -V

DVD -V

Video

DVD -R

Video

DVD -

RWDVD- RW

Press [STANDBY-ON].

Turn the TV on and be sure to select the input to which the unit is connected.

Press [OPEN/CLOSE A] to open the disc tray.

The disc tray will open.

Insert your disc with its label facing up. Align the disc to the disc tray guide.

Playing MP3/WMA disc

MP3

WMA

Playing discs

Basic playback (cont’d)

Video CD

Press [PLAY B] to start playback.

Playback will start.

If you are playing a DVD-Video disc or Video CD with PBC function, a menu may appear. Refer to page 41 for details about a disc menu. If you are playing a finalized DVDR/DVD-RW disc, a title list will appear.

Press [STOP C] to stop playback.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

Note

• Some discs may start playback automatically.

• You can select images or information on the menu screen by activating PBC (Playback control) function (page 70).

In stop mode, press [TITLE] to call up the MP3/WMA menu.

File List

DISC NAME

FOLDER NAME 1 FOLDER NAME 2 FOLDER NAME 3 FOLDER NAME 4 FOLDER NAME 5 FOLDER NAME 6

1 FILE NAME 1

2 FILE NAME 2

1/2

• To exit the menu, press [TITLE] again.

Press [K / L] to select a desired folder (group) or track. Press [OK].

When selecting track:

Playback will start.

When selecting the folder:

The files in folder will appear. Press [K / L] to select the track or folder you want, then press [OK].

• Press [PLAY B], [OK] or [B] to move to the lower hierarchies.

• Press [s] or [RETURN previous hierarchy.

] to the

Hints for MP3/WMA files:

• Folders are known as Groups, files are known as Tracks.

• Folders are accompanied by icon.

• MP3 files are accompanied by

icon.

Reproduction will start from the

selected track and go to the next one in turn.

• WMA files are accompanied

icon. When pressing [DISPLAY] repeatedly during WMA playback, display menu, artist name, or title name will be displayed on the TV screen in order.

• The system can recognize up to 255 groups (or folders) and up to 999 tracks.

• The name of group and track can be displayed in up to 29 characters. Unrecognizable characters will be replaced with asterisks.

• If there are no files in the folder, “No Files” will be displayed.

We recommends the files recorded under the following circumstances is played back:

• Sampling frequency: 44.1kHz or 48kHz.

• Constant bit rate: 112kbps 320kbps.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

PQRS

DISPLAY

TITLE

JKL

TUV

SPACE

DISC MENU

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

1 2

REC MODE

REV

PLAY

RAPID PLAY

PAUSE

REC

Note

• The audio source of MP3/ WMA files cannot be recorded as digital sound by an MD or DAT deck.

• Files whose extension is other than “.mp3(MP3)” or “.wma(WMA)” will not be listed in the MP3/WMA menu.

• Some unplayable folders or tracks may be listed in the MP3/WMA menu due to the recording status.

STOP

CM SKIP

FWD

E7A02UD_PY90DG_p38-80.indd 40E7A02UD_PY90DG_p38-80.indd 40 2006/04/24 18:44:472006/04/24 18:44:47

Playing discs

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

MP3

WMA

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

DVD-V

Basic playback (cont’d)

Playing discs using the disc menu

DVD -V

DVD -VDVD -V

DVD -V

A DVD disc contains a disc menu that describes the contents or allows you to customize the playback. For example, the menu may offer choices for subtitle languages, special features, or chapter selection. Sometimes these are displayed automatically when you start playback, otherwise only appear when you press [DISC MENU].

Press [DISC MENU].

Disc menu will appear. If the feature is not available, may appear on the TV screen.

Using [K / L / { / B], select an item. Press [OK] to confirm.

Continue this step to set up all the features you want or to start playing the disc from the menu.

DISC MENU button:

Displays a DVD disc menu which varies with the disc and may be the same as the ‘Title list.’

Cursor K / L / { / B buttons:

Moves the cursor around screen.

OK button:

Selects the currently highlighted menu option.

Number buttons:

Selects a numbered menu option (some discs only). (Press [OK] later.)

Press [DISC MENU] to exit the disc menu.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

1 2

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

RAPID PLAY

REC

Note

• Menus vary among discs. Refer to the information accompanying the disc for details.

Connections Getting started

Recording Playing discs

Playing discs using the title menu

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

Some DVDs have a title menu, which lists the titles available on them. It helps you to start playback at a specific title.

DVD +R

Cursor K / L / { / B buttons:

Moves the cursor around screen.

OK button:

Selects the currently highlighted

DVD -RW

DVD -

menu option.

Press [TITLE].

The title menu will appear. If the feature is not available, may appear on the TV screen.

Number buttons:

Selects a numbered menu option (some discs only). (Press [OK] later.)

Press [TITLE] to exit the title

Using [K / L / { / B], select a title to play. Press [OK].

Play will begin at the title you selected.

TITLE button:

Displays the ‘Title menu’ of a DVD disc which varies with the disc.

menu.

For Video CDs:

When “PBC (Video CD only)” in the CD Playback Mode menu is “ON” and the display menu is not displayed, the Video CD main menu will appear when inserting a disc or press [RETURN

Pause

DVD -RW

DVD -

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

During playback, press [PAUSE F].

Play will pause and sound will be muted.

DVD +R

Video CD

Press [PLAY B] to resume play.

+VR

MP3

DVD -R

] during playback.

DVD -R

WMA

+VR

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

JKL

GHI

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

1 2

Note

• [TITLE] will not always be active with all DVDs.

• Menus vary among discs. Refer to the information accompanying the disc for details.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

REC

Note

• On DVDs, set “Still Mode” to “Field” in the Setup menu if pictures in the pause mode are blurred. (Refer to Page 68.)

CM SKIP

EditingBefore you start

Changing the

Setup menu

Others Español

2 1

E7A02UD_PY90DG_p38-80.indd 41E7A02UD_PY90DG_p38-80.indd 41 2006/04/24 18:44:472006/04/24 18:44:47

Playing discs

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

MP3

WMA

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

MP3

WMA

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Special playback

Resume play

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

You can resume play from where you stopped playing the disc last.

During playback, press [STOP C].

The resume message will appear.

Resume ON

Press [PLAY B].

DVD +R

Video CD

+VR

DVD -RW

DVD -

MP3

In a few seconds, play will resume from the point at which it stopped last. You can resume play at the same point even if you turn off the unit.

To cancel the resume play and start playing the disc from the beginning, press [STOP C] the second time while the play is stopped.

+VR

DVD -R

WMA

Fast forward / Fast reverse

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

Video CD

+VR

DVD -RW

DVD -

MP3

+VR

DVD -R

WMA

During playback, press [FWD D] or [REV E].

Every time you press [FWD D] or [REV E], approximate speed will be changed as follows. Fast forward or fast reverse playback across titles (for DVD discs) or tracks (for MP3/WMA) is not possible.

Normal

x20

For Video CDs, approximate forward/reverse speeds are x2, x8, x16. For Audio CDs and MP3/WMA files, approximate speed is fixed at x8 with sound. To return to the normal play, press [PLAY B].

speed

playback

x2 x20x5 x40x40

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

• For MP3/WMA files, playback will resume from the beginning of the track at which playback was stopped.

• Some Video CDs with the PBC function resume playback from the beginning of the track.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

• Forward/reverse speed will be indicated with icons as follows.

Forward (Approx. Speed) x2: x20: x40: Reverse (Approx. Speed) x5: x20: x40:

1 2

Skipping TV commercials during play

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

You can skip TV commercials by pressing [CM SKIP], so that you can enjoy the recorded programs

DVD +R

You can press up to 6 times (180 seconds). e.g. Press [CM SKIP] once.

+VR

DVD -RW

DVD -

+VR

DVD -R

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

without interrupting.

CM Skip 30 sec.

During playback, press [CM SKIP].

Normal play will start at 30 seconds ahead from the point you press [CM SKIP]. Every time you press [CM SKIP], the searching point will be extended by 30 seconds ahead.

E7A02UD_PY90DG_p38-80.indd 42E7A02UD_PY90DG_p38-80.indd 42 2006/04/24 18:44:482006/04/24 18:44:48

(forwarding 30 seconds)

Playback will restart automatically.

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Playing discs

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

Special playback (cont’d)

Rapid play

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

Rapid Play function is available only during playback.

Available only on discs recorded in the Dolby Digital format, Rapid Play plays back in a slightly faster/slower speed while keeping the sound quality just as normal playback.

During playback, press [RAPID PLAY].

DVD +R

B :

+VR

DVD -RW

DVD -

Press [RAPID PLAY] once during playback. Plays back approximately at 0.8 times of normal playback.

Press [RAPID PLAY] twice during playback. Plays back approximately at 1.3 times of normal playback.

Press [RAPID PLAY] three times to play back in normal speed. No effects.

+VR

DVD -R

Press [PLAY B] to continue the normal playback.

Step by step playback

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

Video CD

DVD +

During playback, press [PAUSE F].

Play will pause and sound will be muted.

DVD +R

+VR

DVD -RW

DVD -

To play step by step backward:

Press [PREV H] repeatedly. Every time you press the button, the play will go backward by one frame.

• Press and hold [PREV H] / [NEXT G] to

reverse/ advance continuously.

+VR

DVD -R

Press [NEXT G] repeatedly.

The play will advance one frame (or step) at a time when you press

[NEXT G] with the sound muted.

Slow forward / Slow reverse play

DVD +

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

Video CD

Press [PLAY B] to continue the normal playback.

DVD +R

+VR

DVD -RW

DVD -

+VR

DVD -R

During playback, press [PAUSE F]. Then press [FWD D] or [REV E].

Every time you press [FWD D] or [REV E], approximate speed will be changed as follows. (The sound will remain muted.)

x1/8

To return to the normal play, press [PLAY B].

Pause

x1/16 x1/8x1/16 x1/3x1/4

PQRS

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

TUV

SPACE

DISC MENU

REV

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

Note

• Audio (language) setting cannot be changed while using this mode.

• This feature may not work at some point in a disc.

• Audio is PCM during Rapid play mode.

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

SPACE

DISC MENU

REV

CLEAR

RETURN

PLAY

PAUSE

STOP

SETUP

FWD

CM SKIP

Note

• Only step by step forward playback is available for playing back Video CDs.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

• Forward/reverse speed will be indicated with icons as follows.

Forward (Approx. Speed) x1/16: x1/8: x1/3: Reverse (Approx. Speed) x1/16: x1/8: x1/4:

• Only slow forward playback is available for playing back Video CDs.

Connections Getting started

Recording Playing discs

3 1

EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 43E7A02UD_PY90DG_p38-80.indd 43 2006/04/24 18:44:502006/04/24 18:44:50

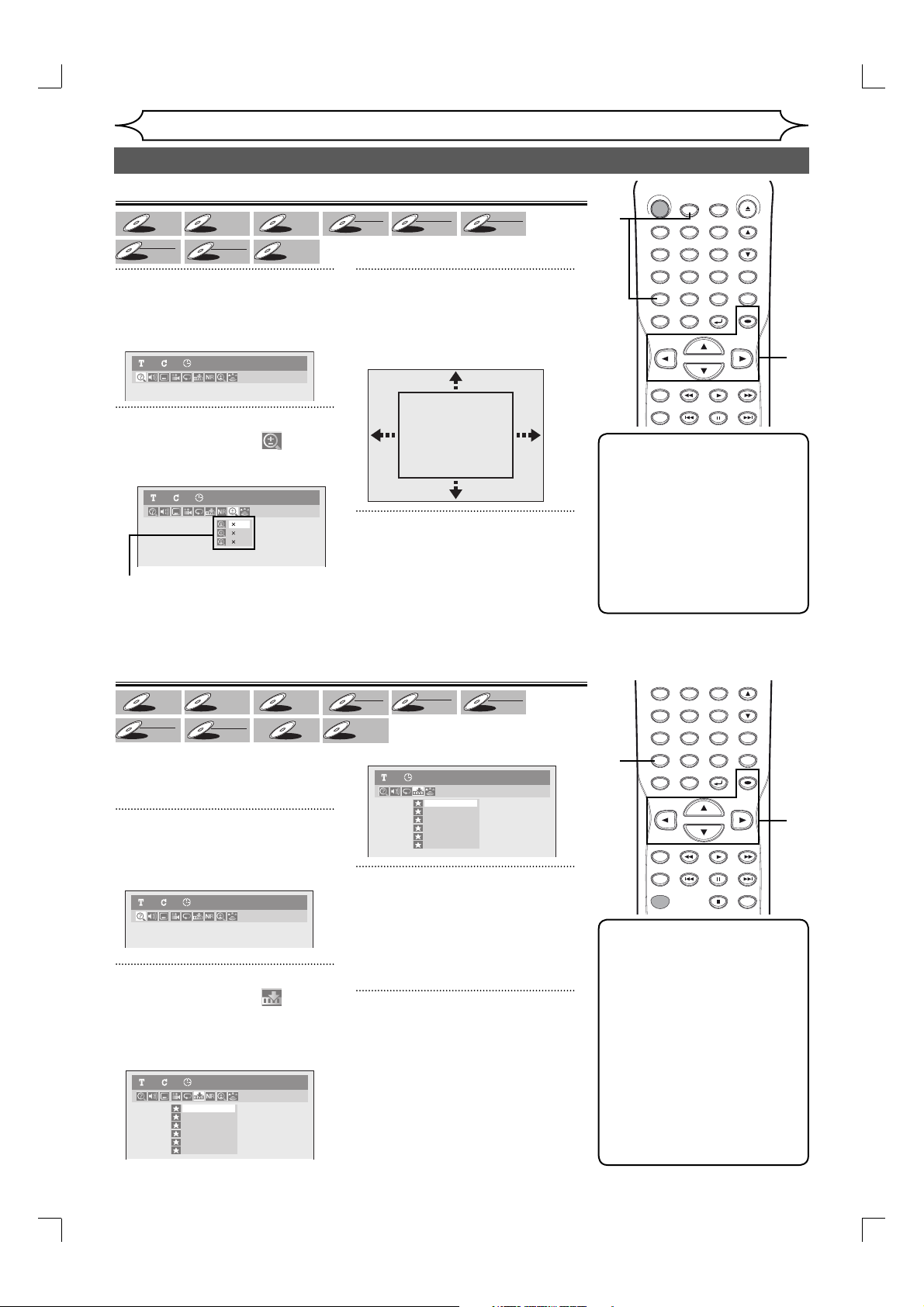

Zoom

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

Video CD

DVD +

During playback, press [DISPLAY] or [ZOOM].

Display menu will appear.

DVD-Video1 1 0:00:00

Using [{ / B], select . Press [OK].

Zoom menu will appear.

DVD-Video1 1 0:00:00

1.2

1.5

2.0

There are four options (x1.0, x1.2, x1.5 and x2.0), these are displayed excluding the current

zoom rate.

Playing discs

Special playback (cont’d)

DVD +R

+VR

DVD -RW

DVD -

+VR

DVD -R

Using [K / L], select a desired zoom factor to zoom. Press [OK].

The zoom area will be displayed.

Using [K / L / { / B], select a desired zoom position. Press [OK].

The zoom play will start.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

REPEAT

SETUP

FWD

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

Note

• When selecting a smaller factor than the current one, the zoom area will not be displayed.

• To exit the zoom menu, press [DISPLAY] or [ZOOM] again at step 1.

• To cancel the zoom function, select “x1.0” using [K / L],

then press [OK].

2 3

Marker Setup

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

This feature allows you to assign a specific point on a disc to be called back later.

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

Using [{ / B], select . Press [OK].

Marker setup menu will appear.

When inserting <DVD-Video> disc.

DVD-Video1 1 0:00:00

---

DVD +R

Video CD

+VR

DVD -RW

DVD -

+VR

DVD -R

When inserting <Audio CD> disc.

Audio CD1 0:00:00

---

Using [K / L], select a desired marker number. When it reaches the desired point, press [OK].

The title (track) number and the time will be displayed.

To return to the marker later: Using [K / L], select the desired marker number. Press [OK].

.@/: ABC DEF

JKL

TUV

SPACE

DISC MENU

REV

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

GHI

PQRS

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

Note

• To clear a marker, select the marker number to be cleared, then press [CLEAR].

• All markers will be erased when you operate these operations listed below.

– Opening the disc tray – Turning off the power – Recording to a recordable

disc

• You can mark up to 6 points.

• Marker Setup is not available when you play the Video CD with PBC function.

2 3

E7A02UD_PY90DG_p38-80.indd 44E7A02UD_PY90DG_p38-80.indd 44 2006/04/24 18:44:512006/04/24 18:44:51

Playing discs

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Title/Chapter search

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

Using [PREV H] / [NEXT G]

DVD +R

+VR

DVD -RW

DVD -

+VR

DVD -R

During playback, press [NEXT G] to skip the current title or chapter and move to the next.

The title or chapter will move forward by one at a time.

• If there is no chapter in one title, the current title will be skipped.

To go back to the beginning of the current title or chapter, press [PREV H]. Press it repeatedly to go to the previous title or chapter. The title or chapter will move backward one title at a time.

Using [DISPLAY]

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

FWD

CM SKIP

OPEN/CLOSE

REPEAT

SETUP

Connections Getting started

Recording Playing discs

Using [{ / B], select . Press [OK].

The number next to

Title: Using [K / L] or the Number buttons, enter a desired title number to search. Press [OK].

Title search will start.

Chapter: Press [B] to move to the number next to Using [K / L] or the Number buttons, enter a desired chapter number to search. Press [OK].

Chapter search will start.

Note

• In search mode display, total numbers of each search contents (title/chapter/time) are shown as a denominator.

will be highlighted.

Total number of titles

for chapter.

001/028 00:00:00/02:18:3301 /01

Total number of chapters

Total time of the disc

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

EditingBefore you start

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 45E7A02UD_PY90DG_p38-80.indd 45 2006/04/24 18:44:522006/04/24 18:44:52

Track search

Video CD

MP3

WMA

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

Playing discs

Search (cont’d)

Video CD

MP3

WMA

Using [PREV H] / [NEXT G]

During playback, press [NEXT G] to skip the current track and move to the next.

The track will move forward one at a time. To go back to the beginning of the current track, press [PREV H]. Press it repeatedly to go to the previous track. The track will move backward one at a time.

Using [DISPLAY]

During playback, press [DISPLAY].

Display menu will appear.

When inserting <Audio CD> disc. When inserting <MP3/WMA files>.

MP31 0:00:00Audio CD1 0:00:00

Using [{ / B], select . Press [OK].

The number next to

will be highlighted.

Using [K / L] or the Number buttons, enter a desired track number to search. Press [OK].

Track search will start.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

CM SKIP

OPEN/CLOSE

REPEAT

SETUP

REC

STANDBY-ON

ZOOM

.@/: ABC DEF

JKL

GHI

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

Note

• During CD playback you can enter a track number directly using the Number buttons for track search without displaying the menu.

• Track search is not available when you play the Video CD with PBC function.

2 3

Time search

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

During playback, press [DISPLAY].

Display menu will appear.

When inserting <DVD-Video> disc.

DVD-Video1 1 0:00:00

DVD +R

Video CD

Using [{ / B], select . Press [OK].

The number next to highlighted. To move to the number next to , press [B].

+VR

DVD -RW

DVD -

When time search is not available,

and time counter are not

displayed.

When inserting <Audio CD> disc.

Audio CD1 0:00:00

Using [K / L] or the Number buttons, enter a desired time to search. Press [OK].

Time search will start.

E7A02UD_PY90DG_p38-80.indd 46E7A02UD_PY90DG_p38-80.indd 46 2006/04/24 18:44:522006/04/24 18:44:52

+VR

DVD -R

will be

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

JKL

GHI

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

Note

•

Time search function is available

only in the same track or title.

• Time search is not available when you play the Video CD with PBC function.

2 3

Repeat/Random/Program playback

Video CD

MP3

WMA

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

MP3

WMA

Repeat playback

DVD +

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

During playback, press [DISPLAY] or [REPEAT].

Display menu will appear.

DVD-Video1 1 0:00:00

Using [{ / B], select . Press [OK].

Repeat menu will appear.

When inserting <DVD-Video> disc.

DVD-Video1 1 0:00:00

OFF Title Chapter A - B

When inserting <Audio CD, Video CD> disc.

Audio CD1 0:00:00

OFF Track All A-B

When inserting <MP3/WMA files>.

MP31 0:00:00

OFF Track All Group

Random playback

With this function, you can play a disc randomly instead of playing in the original order.

Video CD

MP3

Press [SETUP].

Using [K / L], select “CD Playback Mode”. Press [OK].

CD Playback Mode menu will appear.

Playing discs

DVD +R

Video CD

+VR

DVD -RW

DVD -

MP3

+VR

DVD -R

WMA

Using [K / L], select a desired option to repeat. Press [OK].

The selected repeat play will start.

Title:

The current title will be played repeatedly. (DVD only)

Chapter:

The current chapter will be played repeatedly. (DVD only)

All:

The current disc will be played repeatedly. (CD, MP3/WMA, Video CD)

A-B:

The A-B point will be played repeatedly. When pressing [OK] while A-B is highlighted, A-B repeat is set. Press [OK] again to decide the starting point (A). Press [OK] after setting point A to select the ending point (B).

Track:

The current track will be played repeatedly. (CD, MP3/WMA, Video CD)

Group:

The current group will be played repeatedly. (MP3/WMA only)

WMA

Using [K / L], select “Random Play”. Press [OK].

Random playback will start.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

Note

• The A-B Repeat playback can only be set with in the current title (for DVDs), or current track (for Audio CDs).

• To cancel the repeat playback, select “OFF” at the step 2. The repeat setting will also be cancelled when you stop playback.

• You cannot select “Group” during the random playback of MP3/WMA files.

• Repeat playback is not available when you play the Video CD with PBC function.

PQRS

TUV

WXYZ

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

REPEAT

SETUP

Note

•

To cancel random playback,

press [STOP C] twice during random playback. “Play mode OFF” appears on the TV screen.

•

For Video CDs with PBC

function, the PBC setting will be switched to off automatically when you start random playback.

Connections Getting started

2 3

Recording Playing discs

EditingBefore you start

Changing the

Setup menu

1 2

Others Español

E7A02UD_PY90DG_p38-80.indd 47E7A02UD_PY90DG_p38-80.indd 47 2006/04/24 18:44:532006/04/24 18:44:53

Playing discs

DVD-V

Video CD

Repeat/Random/Program playback (cont’d)

Program playback

You can program the disc to play in your desired order.

Video CD

Press [SETUP].

Using [K / L], select “CD Playback Mode”. Press [OK].

CD Playback Mode menu will appear.

Using [K / L], select “Program Play”. Press [OK].

Program play list will appear.

Program Play

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

0:00:00Total

Using [K / L], select a desired track. Press [OK] or [B].

A cursor will move to next.

Program Play

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

0:06:11Total

Press [PLAY B] to start program playback.

Program playback will start.

PQRS

DISPLAY

TITLE

TUV

SPACE

DISC MENU

WXYZ

CLEAR

RETURN

REPEAT

SETUP

2 3 4

• To erase tracks you selected,

• You can make program

• To cancel program playback,

• You may also select a desired

• For Video CDs with PBC

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

Note

press [CLEAR].

settings up to 50.

press [STOP C] twice during program playback. “Play mode OFF” appears on the TV screen.

track using the Number buttons at step 4.

function, the PBC setting will be switched to off automatically when you start program playback.

Selecting the format of audio and video

You can select the format of audio and video as you prefer depending on the contents of the disc you are playing.

Switching subtitles

DVD -V

DVD -VDVD -V

DVD -V

Many DVD-Video discs have subtitles in one or more languages – the case usually tells you which subtitle languages are available. You can switch subtitle languages anytime during playback.

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

Using [{ / B], select . Press [OK].

Subtitle menu will appear.

DVD-Video1 1 0:00:00

OFF

1.English

2.French

Using [K / L], select a desired subtitle language. Press [OK].

Subtitle will be displayed in the selected language. When selecting “OFF”, subtitle will disappear.

PQRS

DISPLAY

TITLE

TUV

SPACE

DISC MENU

WXYZ

CLEAR

RETURN

REPEAT

SETUP

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

RAPID PLAY

REC

Note

• Some discs will only allow you to change the subtitle from the disc menu. Press

[TITLE] or [DISC MENU] to

display the disc menu.

• If a 4-digit language code appears in the subtitle menu at step 2, refer to the Language code on page 74.

E7A02UD_PY90DG_p38-80.indd 48E7A02UD_PY90DG_p38-80.indd 48 2006/04/24 18:44:542006/04/24 18:44:54

Selecting the format of audio and video (cont’d)

DVD-V

Video CD

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

MP3

WMA

Switching audio soundtrack

Playing discs

DVD -V

DVD -VDVD -V

DVD -V

Video CD

When playing a DVD-Video disc recorded with two or more soundtracks (these are often in different languages), you can switch them during playback. When playing Video CDs or Audio CDs, you can switch between stereo, just the left channel or just the right channel.

During playback, press [DISPLAY].

Display menu will appear.

Using [{ / B], select . Press [OK].

Audio menu will appear.

When inserting <DVD-Video> disc.

DVD-Video 1 1 0:00:00

1.Dolby Digital 5.1ch English

2.Dolby Digital 2ch French

When inserting <Audio CD> disc.

Audio CD1 0:00:00

1.L/R

2.L

3.R

Using [K / L], select a desired audio soundtrack or audio channel. Press [OK].

When inserting <DVD-Video> disc. Audio soundtrack will switch.

When inserting <Video CDs/Audio CDs> disc.

Audio channel will switch.

Using [K / L], select a desired audio channel. Press [OK].

Audio channel will switch.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

RAPID PLAY

Note

• Some discs will only allow you to change the soundtrack from the disc menu. Press [TITLE] or [DISC MENU] to display the disc menu.

• This unit CANNOT record in both stereo and SAP (Secondary Audio Program) at the same time.

REC

Connections Getting started

Recording Playing discs

Switching virtual surround system

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

DVD +

You can enjoy stereophonic virtual

DVD +R

Video CD

When inserting <DVD+RW> disc.

DVD -RW

DVD -

space through your exciting 2 channel stereo system.

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

When inserting <Audio CD/MP3/WMA files>.

Using [{ / B], select . Press [OK].

Virtual Surround menu will appear.

When inserting <DVD-Video> disc.

DVD-Video1 1 0:00:00

OFF Type 1 Type 2

Using [K / L], to select “OFF”, “Type 1” or “Type 2”, then

press [OK].

• OFF: no effect

• Type1: natural effect

• Type2: emphasized effect

+VR

MP3

OFF Type 1 Type 2

+VR

DVD -R

WMA

OFF Type 1 Type 2

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

DVD+RW1 1 0:00:00

PQRS

DISPLAY

TITLE

TUV

SPACE

DISC MENU

OPEN/CLOSE TIMER PROG.

EditingBefore you start

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

Changing the

Setup menu

Audio CD1 1 0:00:00

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

• Select Virtual Surround to “OFF” in case sound is distorted.

• The setting will be kept “OFF” when the unit is turned off.

Others Español

E7A02UD_PY90DG_p38-80.indd 49E7A02UD_PY90DG_p38-80.indd 49 2006/04/24 18:44:542006/04/24 18:44:54

Selecting the format of audio and video (cont’d)

DVD-V

DVD+

DVD+R

DVD-

DVD-R

DVD-

DVD-R

Video CD

DVD-V

Switching camera angles

Playing discs

DVD -V

DVD -VDVD -V

DVD -V

Some DVD-Video discs feature scenes shot from two or more angles, check the case for details: it should be marked with Angle icon if it contains multi-angle

scenes.

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

Angle icon appears when a switching camera angle is available.

Reducing block noise

DVD +

DVD -V

DVD -VDVD -V

DVD -V

Video

DVD -

RWDVD- RW

DVD +

Video

DVD -R

DVD +R

Video CD

During playback, press [DISPLAY].

Display menu will appear.

DVD-Video1 1 0:00:00

Using [{ / B], select . Press [OK].

Angle will switch each time you press [OK].

DVD +R

+VR

DVD -RW

DVD -

+VR

DVD -R

Using [K / L], select a desired option. Press [OK].

Your setting will be activated.

This function reduces noise in the playback picture. When playing back discs recorded in long time mode such as EP or SLP mode, select “Type 1” or “Type 2”. (“Type 2” is more effective.) When playing back discs with a few noises such as DVD-Video discs, select “OFF”.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

Note

Angle icon does not appear on the screen if you have selected

Angle as “OFF” in the Display setting. Refer to pages 65-66.

OPEN/CLOSE

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

RAPID PLAY

REC

Using [{ / B], select . Press [OK].

Noise Reduction menu will appear.

DVD-Video1 1 0:00:00

OFF Type 1 Type 2

E7A02UD_PY90DG_p38-80.indd 50E7A02UD_PY90DG_p38-80.indd 50 2006/04/24 18:44:552006/04/24 18:44:55

Editing

Information on disc editing

Before you start

Guide to a title list

Title list allows you to check the titles recorded on the disc easily. You can choose a title to play from this list and easily edit the titles as you prefer.

Press [TITLE].

NOV/21/06 11:00AM NOV/21/06 0:20:44

Play

Edit

NOV/22/06 11:35

Overwrite

NOV/22/06 0:10:33

NOV/24/06 10:05 NOV/24/06 0:20:11

Edit

NOV/22/05 11:00AM CH12 EP

AM CH13 EP

AM CH10 EP

SP (2Hr)

CH12 SP

Title Delete

Edit Title Name

Chapter Mark

Current Chapter

Index Picture

Title Dividing

0:00:59

Editing discs

You can edit discs for the following items. Be sure that once you edit titles, they will not remain as original.

• Deleting titles (Refer to page 52)

• Putting names on titles (Refer to page 53)

• Setting chapter marks (Refer to page 54)

• Clearing chapter marks (Refer to pages 54-55)

• Hiding chapters (Refer to page 56)

• Setting pictures for thumbnails (Refer to page 57)

• Dividing a title (DVD+RW/DVD-RW only) (Refer to page 58)

Note

• When selecting “Edit” on Pop-up menu of the title list and edit the title, the title list is displayed after writing the edited contents onto the disc. Press

[STOP C] to exit the title list.

Editing discs (Setup menu)

• Putting name on disc (Refer to page 59)

• Setting or releasing disc protect (Refer to pages 60-61)

• Erasing disc (Refer to page 62)

• Making edits compatible (Refer to page 62)

Connections Getting started

Recording

Playing discs Editing

1. Titles recorded on the disc can be selected to edit by pressing [OK] with the cursor on the title.

Using [K / L], select “Edit”. Press

[OK].

2. The arrow icon, which means the title list includes a next or a previous page. Press [K / L] by following direction of the icon. You can also use [{ / B] to go to the next/previous page.

3. The portion bar, which indicates the position of the disc.

4. The menus in here for editing as you prefer. The available menus depend on the disc type and the format type. An item which is not available is grayed.

5. The details of the title, which can be changed to the title name you will edit.

6. Time status bar of the title.

Time status will be held even after exiting the edit

mode, and you can resume playback from that point.

7. The selected title thumbnail from the title list.

8. Playback status of the current title.

Note

• The portion bar in the right side of the title list may not indicate the precise position in the disc.

• The portion bar may not indicate the position for the titles of which recording time is short.

• Once a disc is finalized, editing the disc or recording to the disc will not be available.

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 51E7A02UD_PY90DG_p38-80.indd 51 2006/04/24 18:44:552006/04/24 18:44:55

Deleting titles

DVD+

DVD+R

DVD-

DVD-R

DVD +

DVD +R

DVD -RW

DVD -

DVD -R

+VR

You can delete titles which you do not need anymore. Be advised that the titles once deleted cannot be brought back to the disc. When the last title, which is recorded in the disc, in the title list is deleted, the disc space to record on will be increased. For DVD+R and DVD-R disc, the disc space to record on will not be changed.

Press [TITLE].

Title list will appear.

When inserting <DVD+RW/DVD-RW> disc.

NOV/21/06 11:00AM NOV/21/06 0:20:44

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

SP (2Hr)

CH12 SP

AM CH13 EP

Using [K / L], select a desired title. Press [OK].

Pop-up window will appear.

Play

Edit

Overwrite

NOV/21/06 11:00AM NOV/21/06 0:20:44

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

SP (2Hr)

CH12 SP

AM CH13 EP

Editing

Editing discs

+VR

Using [K / L], select “Title Delete”. Press [OK].

Confirmation window will appear.

Title Delete

Yes

NOV/22/05 11:00AM CH12 EP

0:00:59

Using [K / L], select “Yes”. Press [OK].

After that, “Are you sure?” will appear, select “Yes” and then press [OK]. Title will be deleted. Data will be written onto the disc momentarily.

Writing to Disc 90%

Title list will appear.

When inserting <DVD+RW/DVD-RW> disc.

EMPTY TITLE 0:20:44 SP(2Hr)

NOV/22/06 11:35 NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

SP (2Hr)

AM CH13 EP

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

Note

• Deleted part of the titles in the portion bar changes in color.

4 5

Using [K / L], select “Edit”. Press [OK].

Edit menu will appear.

Edit

Title Delete

Edit Title Name

Chapter Mark

Current Chapter

Index Picture

Title Dividing

NOV/22/05 11:00AM CH12 EP

E7A02UD_PY90DG_p38-80.indd 52E7A02UD_PY90DG_p38-80.indd 52 2006/04/24 18:44:562006/04/24 18:44:56

0:00:59

When inserting <DVD+R/DVD-R> disc.

NOV/22/06 11:35AM NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

CH13 EP

This operation may take a while to be completed.

SP (2Hr)

Putting names on titles

Press

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

<space>

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

! ” # $ % & ’ ( ) *

+ , - . / : ; < = >

? @ [ ] ^ _ { | }

ABC

abc

Select

@ ! ?

123

Press

, character set will be changed to the “ @

” mode automatically.

Press

, character set will be changed to the

previous input

mode

automatically.

[

Step1]:

[

Step2

]

: Follow the list below, press the Number buttons repeatedly until the

desired letter appears.

Select a desired character set using [K/L], then press [OK].

[

Guide to edit title name

]

A B C

a b c 1 2 3

@ ! ?

• To delete letters, press [CLEAR] repeatedly. Holding [CLEAR] to delete all letters.

• Press

[s / B]

to move the cursor to the left and right.

• You can enter up to 30 letters.

(*1) (*1)

(*2)

e.g. character set : A B C

A B C A

...

press

Note:

Undefined letters in a title name are shown by “*”. If you delete them, adjoining letters letters may change to “*” or other.

2 9

DVD+

DVD+R

DVD-

DVD-R

+VR

DVD +

DVD -R

+VR

DVD +R

DVD -RW

DVD -

You can put title names on the titles and change the names from this menu. The names you put on the titles will be displayed on a title list.

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Edit Title Name”. Press [OK].

A window for entering a title name will appear.

Edit Title Name

A B C

abc

123

@! ?

Editing

Editing discs (cont’d)

Using [K / L], select “Yes”. Press [OK].

The name you entered will be activated for the title.

Edit Title Name

Yes

MY FAVORITE

0:00:59

After this operation is completed, press [RETURN

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

] to exit.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Before you start

Connections Getting started

2 3 4

Recording

Playing discs Editing

NOV/22/05 11:00AM CH12 EP

0:00:59

To enter a title name, follow the steps of “Guide to edit title name” on this page.

character set

Edit Title Name

ABC

abc

123

@! ?

area for entering title names

When you finish entering a title name, press [OK]. Confirmation window will appear.

E7A02UD_PY90DG_p38-80.indd 53E7A02UD_PY90DG_p38-80.indd 53 2006/04/24 18:44:562006/04/24 18:44:56

0:00:59

Setup menu

Others Español

Changing the

Editing

DVD+

DVD+R

DVD-

DVD-R

DVD+

DVD+R

DVD-

DVD-R

Editing discs (cont’d)

Setting chapter marks

+VR

DVD +

DVD +R

DVD -RW

DVD -

You can put chapter marks in each title. Once a chapter is marked, you can use it for the chapter search feature.

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Chapter Mark”. Press [OK].

Option window will appear.

Chapter Mark

Add

Delete

Chapter 2/ 2

NOV/22/05 11:00AM CH12 EP

Delete All

0:00:59

Press [PLAY B] and then [PAUSE F] to decide the point at which you will create a new chapter mark.

Clearing chapter marks

+VR

DVD +

DVD +R

DVD -RW

DVD -

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Chapter Mark”. Press [OK].

Option window will appear.

Using [PREV H] / [NEXT G], select a chapter mark to be deleted.

+VR

DVD -R

• It is convenient to use

[PREV H],[NEXT G], [REV E] and [FWD D] for

finding the point at which a new chapter mark is to be added.

Using [K / L], select “Add”. Press [OK].

Confirmation window will appear.

Chapter Mark - Add

Yes

Chapter 2/ 2

NOV/22/05 11:00AM CH12 EP

0:00:59

Using [K / L], select “Yes”. Press [OK].

A new chapter mark will be added.

Press [RETURN ] twice to exit.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

+VR

DVD -R

Using [K / L], select “Delete”. Press [OK].

Confirmation window will appear.

Chapter Mark - Delete

Yes

Chapter 2/ 2

NOV/22/05 11:00AM CH12 EP

0:00:59

Using [K / L], select “Yes”. Press [OK].

The selected chapter mark will be deleted.

GHI

PQRS

DISPLAY

TITLE

JKL

TUV

SPACE

DISC MENU

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

Note

• When the number of chapter marks in a title is 49 and the number of chapter marks in a disc is 254, chapter marks cannot be added.

• Besides the above-mentioned, it is not likely to be able to add according to recorded time and number of chapters.

• Remaining time of the disc may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.

GHI

PQRS

DISPLAY

TITLE

REC MODE

RAPID PLAY

REC

Note

• Remaining time of the disc

may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.

Instructions continue on the next page.

JKL

TUV

SPACE

DISC MENU

REV

STOP

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

CM SKIP

REPEAT

SETUP

FWD

CM SKIP

2 4 5

E7A02UD_PY90DG_p38-80.indd 54E7A02UD_PY90DG_p38-80.indd 54 2006/04/24 18:44:572006/04/24 18:44:57

Editing

Editing discs (cont’d)

Before you start

Clearing chapter marks (cont’d)

Press [RETURN ] twice to exit.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

To delete all chapter marks:

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Yes”. Press [OK].

All chapter marks will be deleted.

Using [K / L], select “Chapter Mark”. Press [OK].

Option window will appear as illustrated on page 54.

Using [K / L], select “Delete All”. Press [OK].

Confirmation window will appear.

Chapter Mark - Delete All

Yes

Chapter 2/ 2

NOV/22/05 11:00AM CH12 EP

0:00:59

Press [RETURN ] twice to exit.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

Using [K / L], select “Yes”. Press [OK].

Final confirmation window will appear.

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Connections Getting started

Recording

Playing discs Editing

3 4 5

Changing the

Setup menu

Chapter Mark - Delete All

Chapter 2/ 2

Are you sure?

Yes

Note

Others Español

• Remaining time of the disc

NOV/22/05 11:00AM CH12 EP

0:00:59

may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.

E7A02UD_PY90DG_p38-80.indd 55E7A02UD_PY90DG_p38-80.indd 55 2006/04/24 18:44:582006/04/24 18:44:58

Hiding chapters

DVD+

DVD+R

DVD-

DVD-R

+VR

DVD +

DVD +R

DVD -RW

DVD -

You can hide chapters from the title list.

Hidden chapters are skipped during playback.

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L]], select “Current Chapter”. Press [OK].

Option window will appear.

Current Chapter

Visible

Hidden

Chapter 2/ 2 Visible

NOV/22/05 11:00AM CH12 EP

0:00:59

Editing

Editing discs (cont’d)

+VR

DVD -R

After this operation is completed, press [RETURN to exit.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

If you want to return “Visible”, select the chapter to be shown. Then using [K / L],, select “Visible” at the step 2 on this page.

Data will be written onto the disc momentarily. After that title list is displayed.

] twice

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

2 4

Using [PREV H] / [NEXT G], [PLAY B] and [PAUSE F], decide the chapter to be hidden.

Using [K / L],, select “Hidden”. Press [OK].

“Hidden” is displayed in the middle of the preview screen on Current chapter window. “Hidden” is also displayed on the lower right corner of the preview screen on Edit menu option window other than Current chapter window.

Note

• When you make all chapters in the title to “Hidden”, “Hidden” is displayed in a thumbnail of the title list.

Hidden

NOV/21/06 12:20 NOV/21/06 0:20:44

NOV/22/06 11:35AM NOV/22/06 0:10:33

EMPTY TITLE 1:37:52 SP(2Hr)

SP (2Hr)

AM CH12 SP

CH13 EP

E7A02UD_PY90DG_p38-80.indd 56E7A02UD_PY90DG_p38-80.indd 56 2006/04/24 18:44:582006/04/24 18:44:58

Editing discs (cont’d)

DVD+

DVD+R

DVD-

DVD-R

Setting pictures for thumbnails

+VR

DVD +

DVD +R

DVD -RW

DVD -

You can set a picture to each title for a thumbnail. It helps you to remember the contents of the title you are playing. The beginning picture has been selected as the default.

+VR

DVD -R

Using [K / L], select “Yes”. Press [OK].

A picture for thumbnail will be set.

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Index Picture”.Press [OK].

Press [RETURN ] to exit.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

Editing

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Before you start

Connections Getting started

2 3 4

Press [PLAY B] and then [PAUSE F] to decide the picture to be set as the thumbnail.

• It is convenient to use

[PREV H], [NEXT G], [REV E] and [FWD D] for

finding the thumbnail picture.

Press [OK].

Confirmation window will appear.

Index Picture

Yes

NOV/22/05 11:00AM CH12 EP

0:00:59

Recording

Playing discs Editing

Changing the

Setup menu

Others Español

Note

• If the selected picture for a thumbnail is overwritten a default picture will be selected.

E7A02UD_PY90DG_p38-80.indd 57E7A02UD_PY90DG_p38-80.indd 57 2006/04/24 18:44:582006/04/24 18:44:58

Dividing a title

DVD+

DVD-

+VR

DVD -RW

DVD -

DVD +

You can divide one title into two new titles.

Follow steps 1 to 3 on page 52 to display the Edit menu.

Using [K / L], select “Title Dividing”. Press [OK].

Press [PLAY B] and then [PAUSE F] to decide the point at which you will divide the title.

• It is convenient to use

[PREV H],[NEXT G], [REV E] and [FWD D] for

finding the point to be divided.

Press [OK].

Confirmation window will appear.

Title Dividing

Yes

Editing

Editing discs (cont’d)

Using [K / L], select “Yes”. Press [OK].

The title will be divided into two new titles. Both title names are identical, and index pictures are reset to the first scene at this point.

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

2 3 4

NOV/22/05 11:00AM CH12 EP

0:00:59

Note

• You cannot divide a title of the disc on which the number of recording title comes up to the maximum (49), and the number of recording chapter comes up to the maximum (254).

E7A02UD_PY90DG_p38-80.indd 58E7A02UD_PY90DG_p38-80.indd 58 2006/04/24 18:44:582006/04/24 18:44:58

Putting name on disc

DVD+

DVD+R

DVD-

DVD-R

+VR

DVD +

DVD +R

DVD -RW

DVD -

You can put title names on the titles and change the names from this menu.

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “Disc Edit”. Press [OK].

Disc Edit menu will appear.

When inserting <DVD+RW> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Make Edits Compatible

Editing

Editing discs (Setup menu)

+VR

DVD -R

Using [K / L], select “Edit Disc Name”. Press [OK].

A window for entering a title name will appear.

Edit Disc Name

A B C

No Disc Name

Disc DVD+RW

Total Titles 3

Disc Space Used 0:30:48

Disc Protect OFF

Make Edits Compatible Needed

abc

123

@! ?

0:00:00

To enter a disc name, follow the steps of “Guide to edit title name” on page 53.

When you finish entering a title name, press [OK]. Confirmation window will appear.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

FWD

CM SKIP

Before you start

Connections Getting started

1 2

3 4 5

Recording

Playing discs Editing

When inserting <DVD+R/DVD-R> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Finalize

When inserting <DVD-RW> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc Finalize

Edit Disc Name

Yes

No Disc Name

Disc DVD+RW

Total Titles 3

Disc Space Used 0:30:48

Disc Protect OFF

Make Edits Compatible Needed

MY FAVORITE DISC

0:00:00

Using [K / L], select “Yes”. Press [OK].

The name you entered will be activated for the title. Data will be written onto the disc momentarily.

This operation may take a while to be completed.

Note

• You cannot select “Disc Edit” when finalized DVD disc is inserted (DVD+R/DVD-R).

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 59E7A02UD_PY90DG_p38-80.indd 59 2006/04/24 18:44:582006/04/24 18:44:58

Editing discs (Setup menu) (cont’d)

DVD+

DVD+R

DVD-

DVD-R

Setting or releasing disc protect

+VR

DVD +

DVD +R

DVD -RW

DVD -

To prevent accidental editing, or erasing the titles, you can protect them.

Follow steps 1 to 2 on page 59 to display the Disc Edit menu.

When inserting <DVD+RW> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Make Edits Compatible

+VR

DVD -R

Using [K / L]], select “Disc Protect OFF

Confirmation window will appear.

Yes

Using [K / L], select “Yes”. Press [OK].

When inserting <DVD+R/DVD-R> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Finalize

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

Editing

ON”. Press [OK].

Disc Protect OFF ON

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

REPEAT

SETUP

2 3

FWD

CM SKIP

When inserting <DVD-RW> disc.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc Finalize

Instructions continue on the next page.

E7A02UD_PY90DG_p38-80.indd 60E7A02UD_PY90DG_p38-80.indd 60 2006/04/24 18:44:592006/04/24 18:44:59

Editing

Editing discs (Setup menu) (cont’d)

Setting or releasing disc protect (cont’d)

Before you start

Releasing disc from protect

Follow steps 1 to 2 on page 59 to display the Disc Edit menu.

When inserting <DVD+RW> disc.

Disc Edit

Edit Disc Name

Disc Protect ON OFF

Erase Disc

Make Edits Compatible

When inserting <DVD+R/DVD-R> disc.

Disc Edit

Edit Disc Name

Disc Protect ON OFF

Finalize

Using [K / L]], select “Disc Protect ON

OFF”. Press [OK].

Confirmation window will appear.

Disc Protect ON OFF

Yes

Using [K / L], select “Yes”. Press [OK].

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

OPEN/CLOSE

Connections Getting started

REPEAT

SETUP

2 3

FWD

CM SKIP

Recording

Playing discs Editing

When inserting <DVD-RW> disc.

Disc Edit

Edit Disc Name

Disc Protect ON OFF

Erase Disc Finalize

Changing the

Setup menu

Others Español

E7A02UD_PY90DG_p38-80.indd 61E7A02UD_PY90DG_p38-80.indd 61 2006/04/24 18:44:592006/04/24 18:44:59

Editing discs (Setup menu) (cont’d)

DVD+

DVD-

DVD+

Erasing disc

+VR

DVD -RW

DVD -

DVD +

You can erase all titles on a disc. If you want to record on DVD-RW formatted with other than DVD+VR mode, erase all contents on the disc it will be recorded to DVD+VR automatically.

Press [STOP C] if you are playing a disc.

Video

DVD -

RWDVD- RW

Follow steps 1 to 2 on page 59 to display the Disc Edit menu.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Make Edits Compatible

Editing

Using [K / L]], select “Erase Disc”. Press [OK].

Confirmation window will appear.

Erase Disc

Yes

When you press “Yes”, all the

contents in the disc will be erased.

Are you sure to erase the disc?

Using [K / L], select “Yes”. Press [OK].

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

Note

• When you press “Yes”, all contents of the disc will be erased.

• When a disc is erased all of the contents will be lost. (Its format will be changed to DVD+VR mode.)

• If you want to cancel erasing the disc at step 2, select “No”.

2 3

Making edits compatible

DVD +

You will need to select “Make Edits Compatible” to play in other DVD players.

Press [STOP C] if you are playing a disc.

Follow steps 1 to 2 on page 59 to display the Disc Edit menu.

Disc Edit

Edit Disc Name

Disc Protect OFF ON

Erase Disc

Make Edits Compatible

Using [K / L]], select “Make Edits Compatible”. Press [OK].

Confirmation window will appear.

Make Edits Compatible

Yes

Using [K / L], select “Yes”. Press [OK].

Data will be written onto the disc momentarily.

This operation may take a while to be completed.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV

RAPID PLAY

REC

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

PLAY

PAUSE

STOP

REPEAT

SETUP

FWD

CM SKIP

Note

• If “Make Edits Compatible” is not selectable in “Disc Edit” menu, you do not need to perform “Make Edits Compatible” to play in other DVD players.

2 3

E7A02UD_PY90DG_p38-80.indd 62E7A02UD_PY90DG_p38-80.indd 62 2006/04/24 18:45:002006/04/24 18:45:00

Changing the Setup menu

Tour of the Setup menu

The following table is the contents which you can set and the default settings. Refer to the following table for useful operation.

Setup

1.Language setting Pages 64-65

2.Display setting Pages 65-66

3.Audio setting Pages 66-67

4.Video setting

Page 68

Items (highlight is the default) Contents

Disc Menu Language

English

French Spanish

Audio Language

Original

English French

Subtitle Language

OFF English French

OSD Language

English Français

Español

Angle Icon

OFF

Screen Saver OFF

5 minutes

10 minutes

FL Dimmer Auto

Bright

Dark

Digital Out PCM

96kHz

Dolby Digital PCM

Dynamic Range Control

ON OFF

Progressive Scan ON

OFF

Still Mode

Auto Field Frame

48kHz

Stream

Set the language for disc menu.

Set the language for audio.

Set the language for subtitle.

Set the language for OSD (On Screen Display).

Display or undisplay multi-angle icon if DVD in playback mode contains multi-angle scenes.

Set the time to work the screen saver on the screen.

Set the brightness of the front panel display.

Set whether the sound recorded in 96kHz will be down sampled in 48kHz.

Set the type of sound signal which outputs from the digital audio output jack.

Compressing the range of sound volume.

Set to the progressive scan mode (set to “ON”) or to the interlace

scan mode (set to “OFF”).

Set the type of still image in pausing playback.

Before you start Others Español

Connections Getting started

Recording

Playing discs

Editing

Changing the

Setup menu

5.Parental setting Pages 69-70

Parental Lock

(Change password)

All

level 8 to 1

Enter the current

Set the parental level of your DVD discs.

Set and change the password.

four-digit password

6.PBC setting Page 70

PBC (Video CD only)

OFF

Set the Playback Control. (Video CD only)

Note

•

If you change the setting in the Setup menu, the information of contents stays on even when the power is switched off.

• An item which is not currently available is grayed in the Setup menus.

E7A02UD_PY90DG_p38-80.indd 63E7A02UD_PY90DG_p38-80.indd 63 2006/04/24 18:45:002006/04/24 18:45:00

Changing the Setup menu

Language setting

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “Playback”. Press [OK].

Playback menu will appear.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

OPEN/CLOSE

REPEAT

SETUP

Using [K / L], select “Language”. Press [OK].

Language menu will appear.

Using [K / L], desired item. Press [OK].

Disc Menu Language (Default : English)

Set the language for Disc Menu.

Language

Disc Menu English

Audio Original

Subtitle OFF

Audio Language (Default : Original)

Set the Audio language.

Language

Disc Menu English

Audio Original

Subtitle OFF

Language - Disc Menu

English

French

Spanish

Other

Language - Audio

Original

English

French

Spanish

Other

2 3

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

REC

STOP

CM SKIP

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

• When Original is selected, the audio language will be in the disc’s default language.

Subtitle Language (Default : OFF)

Set the Subtitle language.

Language

Disc Menu English

Audio Original

Subtitle OFF

E7A02UD_PY90DG_p38-80.indd 64E7A02UD_PY90DG_p38-80.indd 64 2006/04/24 18:45:002006/04/24 18:45:00

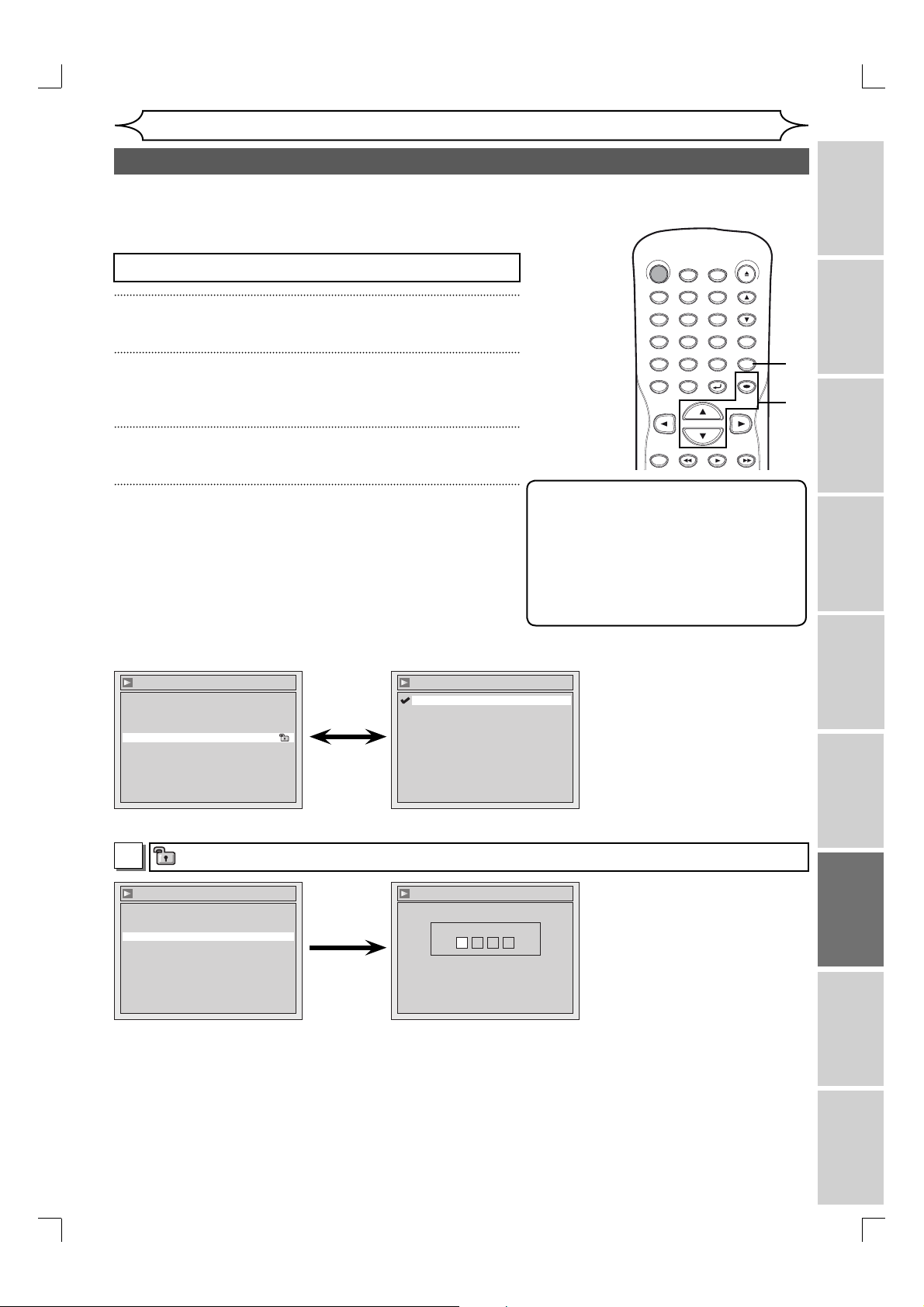

Language - Subtitle

OFF

English

French

Spanish

Other

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

Changing the Setup menu

Language setting (cont’d)

If “Other” is selected, press 4-digit code using the Number buttons.

Language - Subtitle

• When you finish entering

Code Input

----

the code, press [OK]. Refer to the language code table on page 74.

Press [SETUP] to exit.

Note

• Only the languages supported

by the disc can be selected.

• Audio Language setting may

not be available to some discs.

• You can change or switch off

the subtitles on a DVD disc also from the disc menu if it is available.

• Press [CLEAR] or [s] to erase

numbers entered incorrectly.

PQRS

TUV

WXYZ

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

REPEAT

SETUP

Before you start Others Español

Connections Getting started

Display setting

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “Display”. Press [OK].

Display menu will appear.

Using [K / L], select a desired item. Press [OK].

OSD Language (Default : English)

Set the language for the On Screen display.

Display

OSD Language English

Angle Icon ON

Screen Saver

FL Dimmer

10 minutes

Bright

OSD Language

English

Français

Español

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

REC MODE

REV PLAY FWD

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

Recording

Playing discs

1 2

Editing

Setup menu

Changing the

Angle Icon (Default : ON)

Set to “ON” to show the Angle Icon during the playback.

Display

OSD Language English

Angle Icon ON

Screen Saver

FL Dimmer

10 minutes

Bright

Angle Icon

OFF

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

Instructions continue on the next page.

E7A02UD_PY90DG_p38-80.indd 65E7A02UD_PY90DG_p38-80.indd 65 2006/04/24 18:45:012006/04/24 18:45:01

Changing the Setup menu

Display setting (cont’d)

Screen Saver (Default : 10 minutes)

Set the time to work the screen saver function on the screen.

Display

OSD Language English

Angle Icon ON

Screen Saver

FL Dimmer

10 minutes

Bright

FL Dimmer (Default : Bright)

Set the brightness of front panel display. You can choose one among “Auto”, “Bright” and “Dark”.

Display

OSD Language English

Angle Icon ON

Screen Saver

FL Dimmer

10 minutes

Bright

Screen Saver

OFF

5 minutes

10 minutes

15 minutes

30 minutes

FL Dimmer

Auto

Bright

Dark

Press [SETUP] to exit.

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

• If “Auto” is selected, the display is shown brighter when the power is on, darker when the power is off.

PQRS

TUV

WXYZ

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

REPEAT

SETUP

Audio setting

Choose the appropriate Audio settings for your external equipment.

It will only affect a disc playback.

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “Playback”. Press [OK].

Playback menu will appear.

Using [K / L], select “Disc Audio”. Press [OK].

Digital Out

Set the digital audio output.

Disc Audio

Digital Out

Dynamic Range Control ON

Digital Out

PCM 48kHz

Dolby Digital Stream

GHI

PQRS

DISPLAY

TITLE

REC MODE

MNO

JKL

WXYZ

TUV

SPACE

CLEAR

RETURN

DISC MENU

REV PLAY FWD

REPEAT

SETUP

Note

• Dynamic Range Control function is available only on the discs which are recorded in the Dolby Digital format.

• Using [K / L], select a setting. Press [OK].

Option window will appear.

Proceed to step A or B.

1 2

E7A02UD_PY90DG_p38-80.indd 66E7A02UD_PY90DG_p38-80.indd 66 2006/04/24 18:45:022006/04/24 18:45:02

Changing the Setup menu

Audio setting (cont’d)

Settings for PCM (Default : 48kHz)

Digital Out - PCM

48kHz

96kHz

Settings for Dolby Digital (Default : Stream)

Digital Out - Dolby Digital

PCM

Stream

• Using [K / L], select a setting. Press [OK].

Your setting will be activated. 48kHz :If your amplifier/decoder is NOT

compatible with 96kHz PCM, select “48kHz”. 96kHz sound will be output in 48kHz.

96kHz :If your amplifier/decoder is compatible

with 96kHz PCM, select “96kHz”. 96kHz sound will be output.

• Using [K / L], select a setting. Press [OK].

Your setting will be activated. PCM :Convert the Dolby Digital into PCM (2 channel). When your amplifier/decoder is NOT compatible with Dolby Digital, set

to “PCM”. Stream :Outputs Dolby Digital signals When your amplifier/decoder is compatible with Dolby Digital, set to

“Stream”.

Note

When playing disc with copyright protection

• Even if you select “96kHz”, the sound will be down sampled at 48kHz.

Before you start Others Español

Connections Getting started

Recording

Dynamic Range Control (Default : ON)

Set to “ON” to compress the range between soft and loud sounds.

Disc Audio

Digital Out

Dynamic Range Control ON

Dynamic Range Control

OFF

Press [SETUP] to exit.

• Using [K / L], select a setting. Press [OK].

Your setting will be activated.

PQRS

TUV

WXYZ

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

REPEAT

SETUP

Playing discs

Editing

Changing the

Setup menu

E7A02UD_PY90DG_p38-80.indd 67E7A02UD_PY90DG_p38-80.indd 67 2006/04/24 18:45:032006/04/24 18:45:03

Changing the Setup menu

Video setting

Progressive Scan (Default : OFF)

This unit is compatible with the Progressive Scan System. The feature provides you with the higher definition images than the traditional output system does. To utilize this feature, you must set Progressive Scan mode to “ON”.

Press [SETUP].

Using [K / L], select “Playback”. Press [OK].

Using [K / L], select “Video”. Press [OK].

Using [K / L], select “Progressive Scan”. Press [OK].

Using [K / L], select “ON”. Press [OK].

Confirmation window will appear.

Video - Progressive Scan

Activating progressive scan: Check your TV has progressive scan and connect with component video cable.

NOTE: If there is no picture or picture is distorted after selecting “Yes”, Wait about 15 seconds for auto recovery.

Activate?

Yes

Using [{ / B], select “Yes”. Press [OK].

Using [K / L], select “Yes” within 15 seconds. Press [OK].

Your setting will be activated.

Press [SETUP] to exit.

.@/: ABC DEF

JKL

TUV

SPACE

DISC MENU

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

GHI

PQRS

DISPLAY

TITLE

REC MODE

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

3 4

RAPID PLAY

REC

5 6 7

Note

•

If your TV is compatible with Progressive

Scan (525p / 480p), you must use the Component video cable (commercially available) to connect this unit to the TV. (See Method 2 on page 13.) If not, use the video cable and set the Progressive Scan to “OFF” or press and hold [SETUP] for more than 3 seconds during DVD playback.

• When selecting “No” or not pressing any keys on the unit or remote control within 15 seconds remains to be “OFF” (interlace scan).

at step 7, Progressive Scan

Still Mode (Default : Auto)

Select “Auto” usually.

Press [STOP C] if you are playing a disc.

Proceed to steps 1 to 3 above.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

Using [K / L], select “Still Mode”. Press [OK].

REC MODE

REV PLAY FWD

Using [K / L], select a setting. Press [OK].

Your setting will be activated.

Auto:

Optimum resolution setting (Field or Frame) will be selected. Field: Images in the still mode will be stabilized. Frame: Images in the still mode will be highly defined.

Note

• Frame is 1 completed video image made

Press [SETUP] to exit.

E7A02UD_PY90DG_p38-80.indd 68E7A02UD_PY90DG_p38-80.indd 68 2006/04/24 18:45:032006/04/24 18:45:03

up of 2 fields (There are 30 frame per second of NTSC video).

2 3

Changing the Setup menu

Settings for Parental lock level

Some DVD-Video discs feature a Parental Lock level. Playback will stop if the ratings exceed the levels you set, it will require you to enter a password before the disc will playback. This feature prevents your children from viewing inappropriate material.

OPEN/CLOSE TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

REPEAT

SETUP

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “Playback”. Press [OK].

Playback menu will appear.

STANDBY-ON

ZOOM

.@/: ABC DEF

GHI

JKL

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

Before you start Others Español

Connections Getting started

1 2

Using [K / L], select “Parental Lock”. Press [OK].

Using [K / L], select the desired level. Press [OK].

Parental Lock (Default : All)

Set the Parental Lock level.

Playback

Audio

Video

Language

Parental Lock All

A password has not been set yet.

Parental Lock

All

REC MODE

REV PLAY FWD

Note

• Parental lock function may not be available to some discs.

• With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

• Record the password in case you forget it.

• Using [K / L], change the parental level. Press [OK].

Option window will appear

Proceed to step A or B.

3 4

Recording

Playing discs

Editing

Setup menu

Changing the

Parental Lock

Change password?

Yes

• Using [K / L], select “Yes”. Press [OK].

• If you select “No”, proceed to step 5.

Yes

Parental Lock

Password Input

----

• Using the Number buttons, enter a new password. Press [OK].

Your setting will be activated.

Instructions continue on the next page.

E7A02UD_PY90DG_p38-80.indd 69E7A02UD_PY90DG_p38-80.indd 69 2006/04/24 18:45:032006/04/24 18:45:03

Changing the Setup menu

Settings for Parental lock level (cont’d)

A password has been set already.

Parental Lock

Password Input

****

• Using the Number buttons, enter the current password.

Press [SETUP] to exit.

Note

• Press [CLEAR] to erase numbers entered incorrectly.

• When you forget the password or you want to clear all settings in Parental lock, enter 4,7,3,7 using the Number buttons in Password Input window. Password will be cleared and parental levels will be set to “All”.

Parental Lock

Change password?

Yes

• Using[K / L], select “Yes”. Press [OK].

• If you select “No”, proceed to step 5.

Parental Lock

Yes

Password Input

----

• Using the Number buttons, enter a new password. Press [OK].

Your setting will be activated.

STANDBY-ON

ZOOM

.@/: ABC DEF

JKL

GHI

PQRS

TUV

DISPLAY

SPACE

TITLE

DISC MENU

TIMER PROG.

MNO

WXYZ

CLEAR

RETURN

OPEN/CLOSE

REPEAT

SETUP

Settings for PBC (Playback Control)

PBC (Video CD only) (Default : ON)

You can select images or information on the menu screen by activating PBC (Playback Control) function of Video CD.

Press [STOP C] if you are playing a disc.

Press [SETUP].

Using [K / L], select “CD Playback Mode”. Press [OK].

CD Playback menu will appear.

Using [K / L], select “PBC (Video CD only)”. Press [OK].

Using [K / L], select “ON” or “OFF”. Press [OK].

Your setting will be activated.

CD Playback Mode

Random Play

Program Play

PBC (Video CD only) ON

PBC (Video CD only)

OFF

Note

• When playing Video CDs with PBC function, some operations (e.g. select and track repeat) cannot be performed. Select PBC function “OFF” to perform those operations.

• PBC setting turns to “ON” when loading Video CDs with PBC function, thus, even after setting PBC to “OFF” and ejecting the Video CD then reloading the Video CD, this setting turns to “ON” automatically.

E7A02UD_PY90DG_p38-80.indd 70E7A02UD_PY90DG_p38-80.indd 70 2006/04/24 18:45:032006/04/24 18:45:03

Others

Troubleshooting

Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

Symptom Remedy

Power

The power does not turn on.


There is no picture.

Picture noise appears.

TV program reception does not fill the screen.

TV program pictures are distorted. • Adjust TV antenna.

TV channels cannot be changed. • Switch the input to TV.

Playback picture is distorted. • Keep the equipment which may cause electrical

The playback picture or TV program from the equipment connected through the unit is distorted.

Sound

There is no sound.

Sound is noisy. • The disc is dirty or flawed. No DTS sound is output. • This unit is not compatible with DTS sound.

Remote control

The remote control does not function.

• Check that the AC power cord is connected securely.

• (In case of power failure) Check the breaker.

• Re-connect the connecting cords securely.

• Check if the connecting cords are damaged.

• If Setup menu appears on the TV screen, press [RETURN ] to exit.

• Check the connection to your TV (page 13).

• Check if the Progressive Scan mode is set correctly according to your TV (page 68).

• Switch the input selector on your TV (such as to “EXT1”) so that the signal from the unit appears on the TV screen.

• The disc is dirty or flawed.

• If the picture output signal from the unit passes through your VCR to get to your TV, or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience this problem even when you connect the unit directly to your TV, try connecting the unit to your TV's S-VIDEO input.

•

Try to set the channels with “Auto Channel Preset” or “Manual Channel Preset” in the Setup menu (pages 18-19

• Select a channel of any TV program using [CH K / L].

• Adjust the picture (see the TV’s instruction manual).

• Place the unit and TV farther apart.

•

Place the TV and any bunched antenna cables farther

• Connect the antenna cable correctly (page 13).

disturbances, such as a cellular phone, away.

• If the playback picture output from a DVD player, VCR or tuner goes through the unit before reaching your TV, the copy-protection signal applied to some programs could affect picture quality. Disconnect the playback equipment in question and connect it directly to your TV.

• The disc is dirty or flawed.

• Re-connect all connections securely.

• Check if the connecting cord is damaged.

• Check the connections to the amplifier input.

• The input source setting on the amplifier is incorrect. The recorder is in pause mode or in Slow-motion Play mode.

•

• The recorder is in fast forward or fast reverse mode.

•

If the audio signal does not come through the DIGITAL AUDIO OUTPUT (COAXIAL) jack, check the Audio settings (pages 66-67).

• Batteries are weak.

• There are obstacles between the remote control and the unit.

• The remote control is far from the unit.

• There are no batteries in the remote control.

• Turn on the unit. The remote control is not pointed at the remote sensor on the unit.

•

apart.

Before you start Español

Connections Getting started

Recording

Playing discs

Editing

Changing the

Setup menu

Others

• If above remedies do not solve the problem, please call the Authorized Service Center for help.

E7A02UD_PY90DG_p38-80.indd 71E7A02UD_PY90DG_p38-80.indd 71 2006/04/24 18:45:042006/04/24 18:45:04

Others

Troubleshooting (cont’d)

Symptom Remedy

Playback

The disc does not play.

Playback image freezes for a second. • During the playback of two layered disc, picture may

The disc does not start playback from the beginning.

The unit starts playing from the disc automatically.

Some functions such as Stop, Search, or Slow-motion Play cannot be performed.

The language for the sound track cannot be changed.

The subtitle language cannot be changed or turned off.

The angles cannot be changed. •

Recording/Timer Recording/Editing

The channel cannot be changed from the channel you are recording.

Recording does not start immediately after you press [RECORD] or [REC].

Nothing was recorded even though you set the timer setting correctly.

Recording does not stop immediately after you press [STOP C].

Timer Recording is not complete or did not start from the beginning.

• No disc is inserted.

• A blank disc is inserted.

• The disc is upside down. Insert the disc with the labeled side facing up.

• The disc is not correctly inserted. The unit cannot play certain discs (such as a CD-ROM)

• (page 38).

• The region code on the DVD-Video does not match the unit (page 38).

• Moisture has condensed inside the unit. Remove the disc and leave the unit turned on for about two hours until the moisture evaporates (page 4).

• If the disc was recorded on another recorder, the unit cannot play the disc if it was not finalized.

freeze for a moment when the 1st layer switches to the 2nd layer. This is not a malfunction.

Resume play was activated (page 42). Press [STOP C] twice.

•

You have inserted a disc whose Title menu or DVD menu automatically appears on the TV screen when it is first

• The DVD-Video features an auto playback function.

•

Depending on the disc, you may not be able to do some of the operations. See the instruction manual supplied with the disc.

• Multilingual tracks are not recorded being played.

• The DVD-Video prohibits the changing of the language for the sound track.

• Try changing the language using the DVD-Video’s menu.

• Multilingual subtitle are not recorded on the DVD-Video.

• The DVD-Video prohibits changing of the subtitles.

• Try changing the subtitle using the DVD-Video’s menu.

Multi-angles are not recorded on the DVD-Video being played.

• The angle-change operation is whenever possible as long as the disc contains a multi-angle portion. Actual change will be performed when the portion has come up.

• The DVD-Video prohibits changing angles.

• Try changing the angle using the DVD-Video's menu.

• Set the TV’s input to “TV.”

•

A brand-new DVD+RW or DVD-RW has been inserted. It takes a while for the unit to automatically format a DVD+RW/-RW.

• There was a power failure during recording.

• The unit’s internal clock stopped due to a power failure that lasted for more than 30 seconds. Reset the clock (pages 21- 23).

• Disconnect the AC power cord from the AC outlet, and connect it again.

• The program contains copy protection signals that restricts copying.

• The timer setting overlapped with another setting that has priority.

• It will take a few seconds for the unit to input disc data before recording can stop.

• The timer setting overlapped with another setting that has priority (page 31).

• Disc space was not enough.

insert.

E7A02UD_PY90DG_p38-80.indd 72E7A02UD_PY90DG_p38-80.indd 72 2006/04/24 18:45:042006/04/24 18:45:04

Others

Troubleshooting (cont’d)

Symptom Remedy

Others

The unit does not operate properly. • When static electricity, etc., causes the unit to operate

abnormally, unplug the unit and then plug it in again.

The disc tray does not open when you press [OPEN/CLOSE A].

• It may take a few seconds for the disc tray to open after you have recorded or edited a disc.

• This is because the unit is adding disc data to the disc.

“Repairing” appears on the TV screen.

• If there is a power failure or unplugging during recording, finalizing, formatting or editing (even after “Repairing”

Repairing

disappears), a Repairing process will begin automatically just after turning the unit on again.

It may take several minutes up to about four hours. In a case you intend to cancel the Repairing process.

Do you want to cancel a repairing process ? When selecting “Yes”, the disc may not be usable.

Yes No

Repairing

Disc Error

--- Please eject the disc. --- Playback feature may not be

available on this Disc.

Region Error

--- Please eject the disc. --- Playback is not authorized in your

region.

• Unplayable disc is inserted in the unit.

• The disc is upside down.

• Playback is not authorized in the region of the DVD-Video disc which you inserted in the unit.

• If you intend to cancel the Repairing process, press [OPEN/CLOSE A] on the front panel, then select “Yes” and press [OK]. After that, press [OPEN/CLOSE A] to take out the disc. The disc canceled the Repairing

process MAY NOT work.

CauseError message Solution

•

Insert the standardized disc

which bear the marks on page 38.

• Insert the disc with the labeled side facing up.

• Insert the DVD-Video disc with region codes 1 or ALL.

Before you start Español

Connections Getting started

Recording

Playing discs

Parental Lock On

The current selected parental level prohibits playback.

Recording Error

This program is not allowed to be recorded.

Recording Error

This program is not recordable in +VR mode.

Recording Error

Can not record on this disc.

Recording Error

This disc is protected and not recordable.

Recording Error

Disc is full. (No area for new recording)

Recording Error

You cannot record more than 49 titles on one disc.

(The maximum is 49)

• The current selected parental level in the SETUP Menu prohibits playback.

• The recording function encountered the copy prohibited program.

• You are trying to record the copy once program.

• You are trying to record onto the disc which is unrecordable, or the disc status is unable to record.

• The disc is dirty.

• The disc is damaged.

• You are trying to record on to the protected disc which is set in the Disc Edit menu.

• You are trying to record onto the disc which has no space for recording.

You are trying to record onto the disc on which the number of recording titles comes up to the maximum (49).

• Check the “Parental Lock” setting (pages 69-70).

• You cannot record copy prohibited programs.

• You cannot record the copy once program.

• Insert the recordable disc, and ensure the disc status satisfies the recording requirements (page 24).

•

Clean the disc with a cleaning cloth

• Replace the disc.

Release the disc protect setting

• in the Disc Edit menu (page 35).

• Insert the recordable disc with enough recording space.

Delete unnecessary titles (page 52).

Editing

Changing the

Setup menu

Others

E7A02UD_PY90DG_p38-80.indd Sec2:73E7A02UD_PY90DG_p38-80.indd Sec2:73 2006/04/24 18:45:042006/04/24 18:45:04

Recording Error

You cannot record more than 254 chapters on one disc.

(The maximum is 254)

Recording Error

You cannot record on this disc as Control Information is full.

Recording Error

You cannot record on this disc as Power Calibration Area is full.

Others

Troubleshooting (cont’d)

CauseError message Solution

You are trying to record onto the VR mode DVD-RW disc on which the number of recording chapters comes up to the maximum (254).

This disc has no space to write the Control Information when recording or deleting contents.

When editing has been repeatedly performed, the control Information area may come up to be full even the recording area has enough space.

When recordings are performed repeatedly onto an unstable disc, this area may come up to be full.

Every time you insert a disc for recording, the disc's working area will be taken up. And if you repeat this frequently, it will be used up sooner and you may not be able to record full 49 titles.

Delete unnecessary chapter marks (page 54-55).

Delete unnecessary titles (page 52).

Insert a new disc.

Recording Error

This disc is already finalized.

Recording Error

The disc has a different menu layout. (Set “Replace Disc Menu” to ON to rewrite the menu.)

You are trying to record onto the disc already finalized.

You are trying to record onto the +VR formatting disc that had been recorded by the other recorder.

Release the finalizing for this disc (page 36).

Set “Replace Disc Menu” to “ON” to rewrite the menu, after that you will record to disc (page 26).

* If you are still having trouble with the unit after checking “Troubleshooting”, write down the error code and the

error description for calling our help line mentioned on the front page to locate an Authorized Service Center.

Language code

Language Code Language Code Language CodeLanguage Code

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851 Cambodian 5759 Catalan 4947 Chinese 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish 5047 Dutch 6058 English 5160 Esperanto 5161 Estonian 5166 Faroese 5261 Fiji 5256 Finnish 5255

French 5264 Frisian 5271 Galician 5358 Georgian 5747 German 5051 Greek 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian 5467 Icelandic 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish 5347 Italian 5566 Japanese 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean 5761 Kurdish 5767 Laothian 5861 Latin 5847 Latvian; Lettish 5868 Lingala 5860

Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian 6061 Occitan 6149 Oriya 6164 Oromo (Afan) 6159 Panjabi 6247 Pashto; Pushto 6265 Persian 5247 Polish 6258 Portuguese 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian 6461 Russian 6467 Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560

Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish 5165 Sundanese 6567 Swahili 6569 Swedish 6568 Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish 6664 Turkmen 6657 Twi 6669 Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267

E7A02UD_PY90DG_p38-80.indd Sec2:74E7A02UD_PY90DG_p38-80.indd Sec2:74 2006/04/24 18:45:052006/04/24 18:45:05

Analog audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also Digital audio.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the screen is almost square); widescreen models are 16:9 (the screen is almost twice as wide as it is high).

Chapter

Just as a book is split up into several chapters, a title on a DVD disc is usually divided into chapters. See also Title.

Component video output

Each signal of luminance (Y) and component (P independent to output so that you can experience picture color as it is. Also, due to compatibility with progressive video (525p/480p), you can experience higher-density picture than that in interlace (525i/480i).

B/CB, PR/CR) is

Digital audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals (44,100 times a second for CD audio) by an analog-todigital converter, generating a stream of numbers. On playback, a digital-to-analog converter generates an analog signal based on these numbers. See also Sampling frequency and Analog audio.

Others

Glossary

Dolby Digital

The system to compress digital sound developed by Dolby Laboratories. It offers you sound of stereo(2ch) or Multi-channel audio.

Finalize

To make DVD discs, which have been recorded on, possible to play in DVD players. With this unit, it is possible to finalize DVD-R/DVD+R/ DVD-RW discs.

MP3 (MPEG Audio Layer 3)

MP3 is a method of compressing files. You can copy MP3 files on CD-R/RW discs from the computer and play the files on this unit.

PBC (Playback Control) (Video CD only)

This function enables you to play back interactive software using a menu screen. See also Video CD.

PCM (Pulse Code Modulation)

The most common system of encoding digital audio, found on CDs and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital and MPEG audio to PCM. See also Digital audio.

Progressive Scan (525p/480p)

A type of display that does not split each frame into fields, and instead scans directly through all the scanlines of each frame in order. Progressive Scan provides less flickering and higher image resolution than traditional (525i/480i) TV signals. Refer to page 68 for instructions on selective Progressive Scan mode.

Regions code

Regions associate discs and players with particular areas of the world. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling frequency

The rate which sound is measured by a specified interval to turn into digital audio data. The numbers of sampling in one second defines as sampling frequency. The higher the rate, the better the sound quality as possible as it is.

SAP

(Secondary Audio Program)

Sub-audio channel which is delivered separately from mainaudio channel. This audio channel is used as an alternate in bilingual broadcasting.

S-Video output

It delivers independently each signal of color(C) and luminance(Y) to TV as video signals, so that higher-quality picture will be gained.

Title (DVD only)

A collection of chapters on DVD disc. See also chapter.

Track

Audio CDs use tracks to divide up the content of a disc. The DVD equivalent is called a chapter. See also Chapter.

Video CD

The contents of a Video CD. When playing back a Video CD with the PBC function, the title menu will appear automatically.

Before you start Español

Connections Getting started

Recording

Playing discs

Editing

Changing the

Setup menu

Frequently Asked Questions

Others

–– Can I record to CD-R/RW? No, this unit records only DVDs.

–– Can I play DVD-Video that is bought in another country? Possible when the region code of the disc is 1 and All.

–– Is this unit JPEG compatible? No.

–– Can I connect the unit to my PC? No, you cannot control the unit by PCs.

E7A02UD_PY90DG_p38-80.indd Sec2:75E7A02UD_PY90DG_p38-80.indd Sec2:75 2006/04/24 18:45:052006/04/24 18:45:05

General

System Power requirements Power consumption Weight Dimensions (width x height x depth) Operating temperature Operating humidity TV format

Recording

Recording format Recordable discs

Video recording format

Sampling frequency Compression format

Audio recording format

Sampling frequency Compression format

Tuner

Receivable channels

VHF UHF CATV

Input/Output

VHF/UHF antenna input/output terminal

Video input

Input level Jacks

Video output

Output level Jack

S-Video input

Y (Iuminance) - Input level C (color) - Input level Jacks

S-Video output

Y (Iuminance) - Output level C (color) - Output level Jack

Component video output

Output level Jacks

Audio input

During audio input Jacks

Audio output

During audio output Jacks

Digital audio output

Output level Jack

Others

Specifications

DVD-Video, DVD+R/RW, DVD-R/RW, CD-DA, CD-R/RW AC120 V, 60 Hz 20 W (standby: 1.6 W)

5.06 lbs ( 2.3 kg ) 17 3/16" x 2 5/8" x 9 5/8" (435 x 66 x 244 mm) 41F° to 104F° (5°C to 40°C) Less than 80% (no condensation) NTSC

Video Recording format DVD+Rewritable, DVD+Recordable DVD

Rewritable, DVD-Recordable (+VR mode only)

13.5MHz MPEG

48kHz Dolby Digital

2-13ch 14-69ch C1-C125ch

VHF/UHF set 75Ω Input 1 (rear), 2 (front)

1 Vp-p (75Ω) RCA jack

Output 1 (rear) 1 Vp-p (75Ω) RCA jack

Input 1 (rear), 2 (front) 1 Vp-p (75Ω) 286 mVp-p (75Ω) 4 pin mini DIN

Output 1 (rear) 1 Vp-p (75Ω) 286 mVp-p (75Ω) 4 pin mini DIN

Output 1 (rear) Y: 1.0 Vp-p (75Ω), P RCA jacks

Input 1 (rear), 2 (front) L/R 2V rms (Input impedance: more than 22kΩ) RCA jacks

Output 1 L/R (rear) 2V rms (Output impedance: less than 1kΩ) RCA jacks

Output 1 (rear) COAXIAL 500 mVp-p (75Ω) RCA jack

B/CB

, PR/CR: 0.7 Vp-p (75Ω)

Note: The specifications and design of this product are subject to change without notice.

E7A02UD_PY90DG_p38-80.indd Sec2:76E7A02UD_PY90DG_p38-80.indd Sec2:76 2006/04/24 18:45:052006/04/24 18:45:05

Español

Fácil grabación de DVD

Estas instrucciones le ayudarán a entender fácilmente cómo grabar discos DVD.

Nota:

Asegúrese que las pilas están en el mando a distancia y que ha conectado correctamente esta unidad y el TV.

Before you start

Connections Getting started

Paso 1: Elija un tipo de disco.

Puede elegir entre distintos tipos de discos DVD grabables.

Este grabador de DVD puede grabar los siguientes tipos de discos.

Por ejemplo, cuando desea grabar repetidamente en el mismo disco, seleccione el disco de tipo regrabable DVD+RW/DVD-RW. Cuando desea guardar grabaciones sin alterarlos, un DVD no regrabable DVD+R/DVD-R puede ser más conveniente.

Paso 3: Coloque un disco en blanco.

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

ZOOM

JKL

TUV

OPEN/CLOSE TIMER PROG.

Para abrir

MNO

WXYZ

REPEAT

Paso 2: Encienda

la unidad.

Mando a distanci

ZOOM

JKL

OPEN/CLOSE TIMER PROG.

MNO

STANDBY-ON

.@/: ABC DEF

GHI

Recording

Seleccione la entrada a la que se conectará la unidad en su TV.

Playing discs

Paso 4: Seleccione la

velocidad de grabación.

Editing

REC MODE

REV

PLAY

FWD

RAPID PLAY

REC

PAUSE

STOP

CM SKIP

Changing the

Setup menu

Cargando

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

ZOOM

OPEN/CLOSE

TIMER

PROG.

Para cerrar

JKL

MNO

WXYZ

REPEAT

Formateando 90%

HQ (1Hr) 0:58

Others Español

TUV

DVD+RW/DVD-RW solamente

Esta operación puede demorar en reconocerse.

E7A02UD_PY90DG_p38-80.indd Sec2:77E7A02UD_PY90DG_p38-80.indd Sec2:77 2006/04/24 18:45:052006/04/24 18:45:05

Español

Fácil grabación de DVD (cont.)

Paso 5: Eleccione

el canal des eado.

ZOOM

SPACE

OPEN/CLOSE TIMER PROG.

JKL

MNO

WXYZ

CLEAR

MNO

WXYZ

REPEAT

SETUP

REPEAT

CH 12

TUV

JKL

TUV

STANDBY-ON

.@/: ABC DEF

GHI

PQRS

DISPLAY

GHI

PQRS

Paso 6: Grabe en

discos DVD.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUS E

STOP

REC

CM SKIP

Paso 7: Pare la

grabación.

REC MODE

REV

PLAY

FWD

RAPID PLAY

PAUSE

STOP

REC

Escrit de datos 90%

NOV/21/06 11:00AM NOV/21/06 0:20:44

EMPTY TITLE 1:41:17

Esta operación puede demorar en completarse.

CM SKIP

1 SP (2Hr)

CH12 SP

SP (2Hr)

Sugerencia 1: Reproduzca el contenido grabado

Puede seleccionar el título que desea reproducir de un menú indicado y empiece a reproducir inmediatamente. El contenido grabado se puede acceder fácilmente con un simple procedimiento de elegir un título en la

pantalla del menú.

¿Qué son títulos y capítulos?

El contenido de un disco DVD se divide generalmente en títulos. Los títulos pueden dividirse a su vez en capítulos.

Comience la grabación

Pare/Comience

Título 1 Título 2

Capítulo 1 Capítulo1Capítulo 2 Capítulo 3 Capítulo 2

Pare la grabación

Sugerencia 2: Edite el disco grabado

La edición de discos es fácil. Esta unidad ofrece convenientes funciones de edición para discos formateados en el modo DVD+VR.

Puede editar lo siguiente desde el menú del título o el menú de ajuste.

• Borrado de títulos

• Poniendo nombres en títulos

• Seleccionando/borrando marcas de capítulos

• Ocultando capítulos

• Seleccionando imágenes para índices

• División de un título (DVD+RW/DVD-RW solamente)

• Poniendo un nombre en disco

Finalización de un disco

• Esto permitirá que un disco DVD+R/DVD-RW/DVD-R que se grabe en nuestra unidad pueda ser reproducido en un reproductor DVD diferente. Un disco sin finalizar no se podrá reproducir en otro reproductor.

•

Después de finalizar un disco, no puede editar los contenidos en ese disco.

• Los discos DVD+RW no requieren finalización, pero sí “Compatibilizar edic.” para reproducirse en otras unidades después de ediciones. Puede editar el disco después de “Compatibilizar edic.” .

E7A02UD_PY90DG_p38-80.indd Sec2:78E7A02UD_PY90DG_p38-80.indd Sec2:78 2006/04/24 18:45:062006/04/24 18:45:06

MEMO

E7A02UD_PY90DG_p38-80.indd Sec2:79E7A02UD_PY90DG_p38-80.indd Sec2:79 2006/04/24 18:45:062006/04/24 18:45:06

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year

from the date of original retail purchase. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from

the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.

This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP, or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EX OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquires, please contact us at:

FUNAI CORPORATION

Customer Service

Tel :1-800-789-4230

http://www.funai-corp.com

19900 Van Ness Avenue, Torrance, CA 90501

Printed in China

1VMN23004 / E7A02UD ★★★★★

E7A02UD_PY90DG_p38-80.indd Sec1:80E7A02UD_PY90DG_p38-80.indd Sec1:80 2006/04/24 18:45:062006/04/24 18:45:06

This unit can record to the following disc types.

IThis unit automatically records in +VR mode.

IDVD-R/DVD+R discs can only be recorded to once. DVD+RW/DVD-RW discs can be recorded to and erased

many times.

IDiscs that have been tested and are proven to be compatible with this recorder:

VERBATIM DVD+R 8x, VERBATIM DVD+RW 4x

VERBATIM DVD-R 8x, VERBATIM DVD-RW 2x, MAXELL DVD-R 16x, JVC DVD-RW 4x

IWe strongly recommend for good recording quality:

TDK DVD+R 4x/8x/16x, SONY DVD+R 4x/8x/16x, MAXELL DVD+R 4x/8x/16x, SONY DVD+RW 4x,

MAXELL DVD-R 8x/16x, MAXELL DVD-RW 4x

Connections

2 Setup

Follow to the back side of this sheet.

STANDBY-ON

.@/: ABC DEF

GHI

OPEN/CLOSE

ZOOM

TIMER

PROG.

PQRS

JKL

TUV

MNO

WXYZ

REPEAT

This unit is compatible to play the following discs.

The number inside the globe refers to region of the world.

This unit can play DVDs that are labeled for ALL regions or for Region 1.

PY90DG

2 – 1 Watching on TV

2 – 2 Initial Setup

Press [STANDBY-ON] to

turn the unit on.

1. Switch the input selector on your TV to an

appropriate external input channel

(usually near channel 0).

2. Press a button on the TV’s original remote control

(see the table below) to select an external input

channel until the DVD recorder’s picture appears.

DVD Recorder

Playable discs

Region codes

Recordable discs

I Both A/V and RF cables must be connected to the TV for operation.

I See front page of the Owner's Manual for the connection with the RF modulator.

Set up the following items when turning on the unit for the first time.

Press [OK] to Clock Setting.

Using [

], enter the date

(month / day / year).

Press

[

{

]

to move the cursor.

Press [OK].

TV Program will automatically

appear. (usually near channel 0)

ANTENNA

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

(E1)

OUT

S-VIDEO

COMPONENT

VIDEO OUTPUT

DIGITAL AUDIO OUTPUT

PCM / BITSTREAM

COAXIAL

AUDIO INVIDEO

RF cable (supplied)

RF cable (not supplied)

Video

cable

(supplied)

Audio

cable

(supplied)

(Back of TV)

Cable

TV signal

Connect

Connect Connect

Antenna

(Back of this unit)

OUT

(Cable box or

Satellite box)

Remote Control

Initial Setup

Français

Español

English

Initial Setup

Channel Preset

Auto Presetting Now

CH 1

Using [ K / L], select your desired

language and press [OK].

Press [OK] to Channel Preset.

Then the unit will start getting available channels in your area.

---- / -- / ---- ( ---- )

-- : ----

Initial Setup

JAN / 01 / 2006 ( SUN )

12: 00 AM

Initial Setup

Press [OK] again.

Initial Setup

Clock Setting

TV/VIDEO

INPUT, TV/VCR, 00, 90,

91, 92, 93

TV/VIDEO

Panasonic

RCA

Samsung

AUX

LINE1, LINE2, 00, 90,

91, 92, 93

INPUT, TV/VCR, 00, 90,

Admiral

Curtis MathisGEHitachi

Input Mode Names for Common TV Brands

VIDEO00VIDEO1, VIDEO2, VIDEO3

Sanyo

Sharp

91, 92, 93

INPUT, AUX

VIDEO, VIDEO1, VIDEO2,

JVC

VIDEO3

Sony

AUX

Kenwood

TV/GAME

Toshiba

Zenith

AUX CHANNEL

LXI-Series

Magnavox

Logo

DVD-R

Disc

Logo

CD-DA (AUDIO CD)

(VIDEO mode, Finalized)

Video CD

CD-RW

Attributes

108 minutes (1.4GB) (for 8cm)

Approx. max. recording time (SLP mode):

8cm/12cm, single-sided, single layer disc

360 minutes (4.7GB) (for 12cm)

(CD-DA FORMAT, MP 3/ W M A f i l es )

CD-R

(CD-DA FORMAT, MP3/WMA files)

Logo

DVD-RW

DVD-R

Attributes

is a trademark of DVD Format/Logo Licensing Corporation.

360 minutes (4.7GB) (for 12cm)

108 minutes (1.4GB) (for 8cm)

Approx. max. recording time (SLP mode):

8cm/12cm, single-sided, single layer disc

DVD -RW

Disc

DVD-VIDEO

DVD+RW

DVD+R

DVD+R Double Layer

(VIDEO mode, Finalized)

Logo

DVD+RW

DVD+R

E7A02UD_QG_EN.indd 1E7A02UD_QG_EN.indd 1 2006/04/24 19:04:532006/04/24 19:04:53

Press repeatedly to select desired recording time.

3 – 2 Timer Recording

After all recordings, finalize your disc!

Finalize DVD-RW/-R/+R discs after recording.

Make edits compatible on DVD+RW discs after editing.

Select the recording

mode.

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Record!

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUS E

STOP

FWD

CM SKIP

Select the desired

channel.

.@/: ABC DEF

GHI

JKL

MNO

Stop the recording.

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

Press [TIMER PROG.].

STANDBY-ON

.@/: ABC DEF

GHI

OPEN/CLOSE

ZOOM

TIMER

PROG.

PQRS

JKL

TUV

MNO

WXYZ

REPEAT

• You can set up to 8 programs (once, daily or weekly).

• Be sure to set the clock before starting a timer programming.

Timer Programming list appears.

Select any blank line with [ K / L] and press [OK].

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

SETUP

Timer Programming

2. ---

3. ---

4. ---

5. ---

6. ---

7 ---

1. ---

Date Start End CH Mode

1VMN23005 / E7A02UD ★★★★★

Recording times appear on the TV screen

(30 minutes to 6 hours).

Recording will start.

When the unit reaches the specified time,

the unit will be turned off automatically.

How to select the recording mode:

Recording

mode

(1Hr)

SP (2Hr)

SPP

(2.5Hr)

LP (3Hr)

EP (4Hr)

SLP (6Hr)

Recording

time

18 min

36 min

45 min

54 min

72 min

108 min

Video/Sound

Quality

Disc Size

8cm Disc

(1Hr)

SP (2Hr)

SPP

(2.5Hr)

LP (3Hr)

EP (4Hr)

SLP (6Hr)

60 min

120 min

150 min

180 min

240 min

360 min

12cm Disc

(poor)

(good)

3 – 1 Easy Recording

3 DVD Recording

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUSE

STOP

FWD

CM SKIP

0:30

.@/: ABC DEF

GHI

PQRS

DISPLAY

JKL

TUV

SPACE

MNO

WXYZ

CLEAR

REPEAT

SETUP

OK!

Turn off the unit to set

the Timer Standby mode.

STANDBY-ON

.@/: ABC DEF

GHI

OPEN/CLOSE

ZOOM

TIMER

PROG.

JKL

MNO

REC STOP CM SKIP

Timer Programming

2. ---

3. ---

4. ---

5. ---

6. ---

7 ---

1. ---

Date Start End CH Mode

Set the date.

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 --:-- --:-- E1

Date Start End CH Mode

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 12:57AM --:-- E1

Date Start End CH Mode

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 12:57AM 1:57AM CH 8

Date Start End CH Mode

Timer Programming

2. ---

3. ---

4. ---

1. JAN/01 12:57AM 1:57AM CH 8 HQ

Date Start End CH Mode

Set start and end time.

Select the channel

number to record.

Select the recording

mode.

4 Playback

DISPLAY

TITLE

SPACE

DISC MENU

CLEAR

RETURN

SETUP

Timer Recording is now set.

indicator will be on the front

panel display.

disc tray

guide

REC MODE

RAPID PLAY

REC

REV

PLAY

PAUS E

STOP

FWD

CM SKIP

STANDBY-ON

.@/: ABC DEF

GHI

OPEN/CLOSE

ZOOM

TIMER

PROG.

PQRS

JKL

TUV

MNO

WXYZ

REPEAT

Open the disc tray. Insert a disc.

Play!

Stop playing.

If the title menu appears, using [

], select a title and press [OK].

(Then select “Play” with [

] when playing titles recorded by this unit. )

1:00

0:30

6:00 5:30

(Normal Recording)

Make Edits Compatible*

Editing titles

DVD+RW

Playable

Finalizing*

DVD+R

DVD-RW/DVD-R

Not Playable

Not finalized

This Unit DVD player

Not performing Make Edits Compatible after editing titles

*You cannot finalize or Make Edits Compatible in other DVD recorders.

E7A02UD_QG_EN.indd 2E7A02UD_QG_EN.indd 2 2006/04/24 19:04:552006/04/24 19:04:55

Funai PY90DG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
