Funai DVP-6200, DVP-6201 Service manual

SERVICE MANUAL

DVD PLAYER

DVP-6200/DVP-6201

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

How to Initialize the DVD Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.

“WMA” (Windows Media Audio) is a new audio code developed by
Microsoft

Manufactured under license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby Laboratories.

®

in the United States of America.

SPECIFICATIONS

Item Conditions Unit Nominal Limit

1. Video Output 75 Ω load Vpp 1.0 ± 0.1

2. Optical Digital Out dBm -18

3. Audio (PCM)

3-1. Output Level 1 kHz, 0 dB, 47k Ω load Vrms 2.0

3-2. S/N 47k Ω load dB 90

3-3. Freq. Response

DVD fs = 48 kHz ± 0.5 dB, 47k Ω load Hz 20 ~ 22 k

CD fs = 44.1 kHz ± 0.5 dB, 47k Ω load Hz 20 ~ 20 k

3-4. THD+N

DVD 1 kHz, 0 dB, 47k Ω load % 0.01

CD 1 kHz, 0 dB, 47k Ω load % 0.01

Notes:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply: 200 - 240 V, 50 Hz

3. Ambient Temperature: 5 °C - 40 °C

1-1-1 E61J3SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mechanism
Assembly

Laser Beam Radiation

Laser Pickup

Turntable

CAUTION- CLASS

-

TION WHEN OPEN. DO NOT VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS

1M

LASER RADIA

-

Location: Top of DVD mechanism.

1-2-1 E6P_LASER

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not evi­dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continu­ously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor­tant to implement the following precautions when a set
is being serviced.

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1)Insulation tape

2)PVC tubing

3)Spacers

4)Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre­vent shock hazards.
Replacement procedure

1)Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo­sure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC outlet.

1-3-1 E6182ISP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts, and wires have been returned to their original
positions. Afterwards, do the following tests and con­firm the specified values to verify compliance with
safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

200 to 240 V

≥ 3 mm(d)

≥ 6 mm(d’)

Chassis or Secondary Conductor

Primary Circuit

d' d

Fig. 1

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi­nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

200 to 240 V

2kΩ RES.

Connected in

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

Exposed Accessible Part

Z

One side of

B

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

AC Voltmeter
(High Impedance)

Fig. 2

RF or

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

1-3-2 E6182ISP

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

1-4-1 DVDP_SN

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 DVDP_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 DVDP_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-4-4 DVDP_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

[1] Top Cover

[2] Tray Panel

[3] Front Unit

[7] Rear Panel

[8] DVD Main CBA Unit

[4] LED CBA

[5] Function CBA

[6] Front Assembly

Note:

(1) Identification (location) No. of parts in the figures

(2) Name of the part

(3) Figure Number for reference

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to “Reference Notes.”

[9] DVD Mechanism

[10] AV CBA

[11] Loader Base

[12] Main PCB Holder

2. Disassembly Method

ID/

Loc.

No.

[1] Top Cover D1 5(S-1) ---

[2] Tray Panel D2 *2(L-1) 1

[3] Front Unit D2

[4] LED CBA D3 2(S-2) ---

[5]

Part

Function
CBA

Fig.

No.

*2(L-2), *2(L-3),
*3(L-4), *CN2001,
*CN2004

D3 3(S-3) ---

Removal

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder

Note

1

About tightening screws

When tightening screws, tighten them with the
following torque.

Screws Torque

(S-1), (S-2), (S-3), (S-4),
(S-5), (S-6), (S-7A), (S-8),
(S-9), (S-10), (S-11),
(S-12)

(S-7B) 0.38 ± 0.04 N·m

0.45 ± 0.05 N·m

Front

[6]

Assembly

[7] Rear Panel D4 7(S-4), (S-5), (S-6) ---

DVD Main

[8]

CBA Unit

DVD

[9]

MechanismD5D6

[10] AV CBA D7 4(S-9), (S-10) ---

Loader

[11]

Base

Main PCB

[12]

Holder

↓

(1)

↓

(2)

D3 ---------- ---

2(S-7A), (S-7B),

D5

*CN201, *CN301,
*CN401, *CN601

4(S-8)

D8 4(S-11) ---

D8 (S-12) ---

↓

(3)

↓

(4)

(5)

2

2
3

↓

1-5-1 E61J3DC

Reference Notes

1. CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and
(L-4) are fragile. Be careful not to break them.

1) Connect the wall plug to an AC outlet and press

the [OPEN/CLOSE] button to open the tray.

2) Remove the Tray Panel by releasing two

locking tabs (L-1).

3) Press the [OPEN/CLOSE] button again to

close the tray.

4) Press the [STANDBY-ON] button to turn the

power off.

5) Unplug an AC cord.

6) Release two Locking Tabs (L-2), then release

two Locking Tabs (L-3).

7) Release three Locking Tabs (L-4).

8) Disconnect connector CN2001 and CN2004,

then remove the Front Unit.

2. CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.

1) Short the three short lands of FPC cable with

solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroyed. (Fig. D5)

2) Disconnect Connectors (CN301), (CN401) and

(CN601). Remove two screws (S-7A) and one
screw (S-7B), and lift the DVD Main CBA Unit.
(Fig. D5)

3. CAUTION 3: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D5)

(L-1)

(L-3)

(L-2)

(L-4)

[4] LED CBA

(S-3)

[6] Front Assembly

[2] Tray Panel

(L-1)

(L-2)

[3] Front Unit

(S-2)

[5] Function CBA

CN2004

CN2001

(L-3)

Fig. D2

(S-3)

Fig. D3

[1] Top Cover

(S-1)

(S-1)

(S-1)

Fig. D1

[7] Rear Panel

(S-6)

(S-4)

(S-5)

(S-4)

Fig. D4

1-5-2 E61J3DC

[8] DVD Main CBA Unit

(S-7A)

(S-7B)

CN201

A

Short the three short lands by soldering.
(Either of two places.)

CN301

CN401

CN601

(S-11)

(S-10)

(S-9)

(S-9)

[10] AV CBA

Fig. D7

(S-11)

[11] Loader Base

FPC
Cable

(S-8)

[12] Main
PCB
Holder

(S-12)

View for A

Fig. D5

(S-8)

Fig. D8

[9] DVD
Mechanism

Fig. D6

1-5-3 E61J3DC

3. How to Eject Manually

1. Remove the Top Cover.

2. Rotate the roulette in the direction of the arrow as shown below.

Rotate this roulette in
the direction of the arrow

A

View for A

1-5-4 E61J3DC

HOW TO INITIALIZE THE DVD PLAYER

To put the program back at the factory-default,
initialize the DVD player as the following procedure.

1. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. a

"

" differ depending on the models.

*******

2. Press [CLEAR/C.RESET] button on the remote
control unit.
Fig. b appears on the screen.

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. b

When “OK” appears on the screen, the factory
default will be set.

3. To exit this mode, press [STANDBY-ON] button.

1-6-1 E61J3INT

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: POWER

Fig. a Version Up Mode Screen

Fig. b VFD in Version Up Mode

The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.

"

" differ depending on the models.

*******

(*1)

F/W Version Up Mode Model No : *******

VERSION : ************.ab6
Reading...

VERSION : *.**

5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum in (*2) of Fig. e appears on the VFD
(Fig. f).

"

" differ depending on the models.

*******

(*2)

F/W Version Up Mode

VERSION : ************.ab6
Completed

SUM : 7ABC

Model No : *******
VERSION : *.**

Fig. e Completed Program Mode Screen

Fig. f VFD upon Finishing the Programming Mode (Example)

At this time, no button is available.

6. Remove the disc on the tray.

7. Unplug the AC cord from the AC outlet. Then plug
it again.

8. Turn the power on by pressing the
[STANDBY-ON] button and the tray will close.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

Fig. c Programming Mode Screen

Fig. d VFD in Programming Mode (Example)

The appearance shown in (*1) of Fig. c is
described as follows:

No. Appearance State

1 Reading... Sending files into the memory

2 Erasing... Erasing previous version data

3 Programming... Writing new version data

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. g

10. Press [CLEAR/C.RESET] button on the remote
control unit.
Fig. h appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.

11. To exit this mode, press [STANDBY-ON] button.

1-7-1 E61J3FW

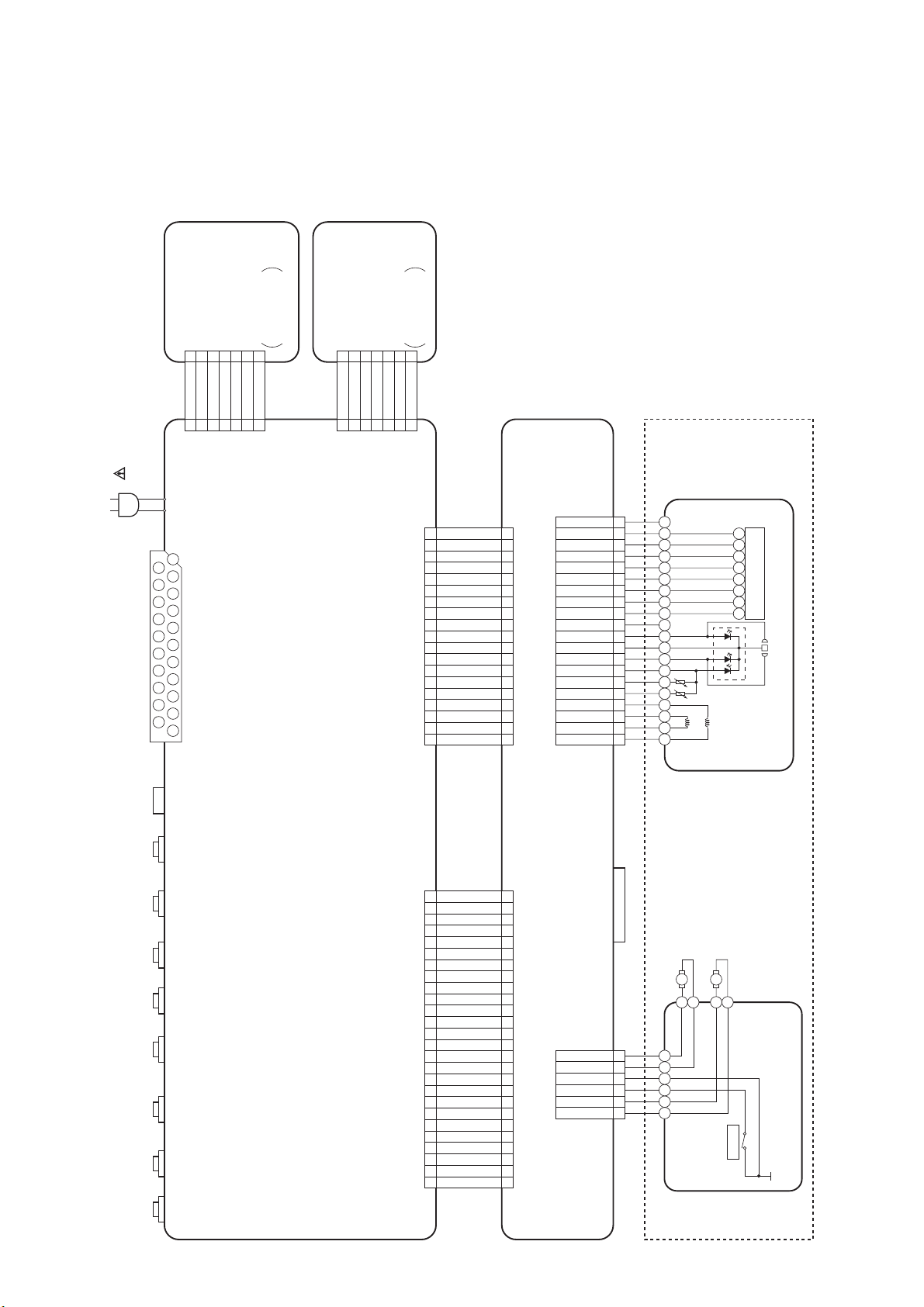

BLOCK DIAGRAMS

System Control / Servo Block Diagram

TO POWER

SUPPLY

BLOCK

FL2002

DIAGRAM

FIP

SEGMENT

GRID

~

789

23

17

~

7G

1G

a/KEY-1

12

10

11

e

f/KEY-6

c/KEY-3

b/KEY-2

d/KEY-4

131416

g

h

+5V

INV-POWCON

i

Q2089

LED CBA

D2181

STANDBY

3

CN2104

STANDBY-LED

3

CN2004

KEY-2 5

K2 66HDMI-LED 7

5

+5V

POWER

SW2102

7

Q2086

D2186 HDMI

KEY

MATRIX

FUNCTION CBA

KEY-1 6

KEY-3 5

K2 2

KEY-2 4

KEY-4 7

K1 3

KEY-6 1

8

7

4

6

9

5

3

CN2001 CN2103

3

4

K1

K2

RM2002

SENSOR

REMOTE

AV CBA

IC2001

IC101

(MICRO CONTROLLER)

(FRONT PANEL CONTROL)

FP-STB

FP-DOUT

FP-CLK

FP-DIN

2

1

27

28

CN1001

FP-STB 23

FP-DOUT 24

FP-CLK 21

23

24

73

253

FP-STB

FP-DOUT

21

75

FP-CLK

IC202

(OP AMP)

HDMI 26

REMOTE 25

26

25

5HDMI

71

REMOTE

FG-IN

SP-ROT

SL-ADS

139

140

1

7

6

2

5

3

SL-AMP

87

85

8

14

9

13

12

10

+3.3V

TRAY-IN

89

DVD MAIN CBA UNIT

FP-DIN 22

22

CN401

74

FP-DIN

ADAC-MD

AUDIO-MUTE

ASPECT14

I/P-SW11

77

78 ADAC-MC

72

70 ADAC-ML

IC461

+3.3V

RESET84

RESET

2 1

VREF

(SERVO DRIVE)

IC301

FOCUS DRIVE

FD-OFST

145

142

26

27

-

+

-

+

FOCUS

ACTUATOR

DRIVE

15

16

TRACKING

TD-OFST

144

141

24

25

-

+

-

+

TRACKING

ACTUATOR

DRIVE

14

13

DRIVE

312

SPDL

90

-

+

-

+

SPINDLE

MOTOR

DRIVE

12

11

SLD

91

645

23

-

+

SLED

MOTOR

DRIVE

17

18

ASPECT

I/P-SW

TO VIDEO-2

BLOCK DIAGRAM

AUDIO-MUTE

ADAC-MC

ADAC-MD

TO AUDIO

BLOCK DIAGRAM

ADAC-ML

FS(+)

FS(-)

TS(+)

TS(-)

TO DIGITAL SIGNAL

PROCESS BLOCK

DIAGRAM

1-8-1

3SP(+)

4SP(-)

5TRAY-IN

6GND

7SL(-)

SLED

MOTOR

8SL(+)

M

CN301

DRIVE CBA

TRAY-IN

M

SPINDLE

MOTOR

E61J3BLS

Digital Signal Process Block Diagram

TO VIDEO-1

BLOCK

TO VIDEO-1

BLOCK

DIAGRAM

TO AUDIO

BLOCK

DIAGRAM

DIAGRAM

TO VIDEO-2

BLOCK

DIAGRAM

TO VIDEO-1

BLOCK

DIAGRAM

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL

DATA

SPDIF

RAM

DSP

PCM-BCK

PCM-DATA

PCM-LRCLK

INST.

ROM

DECODER

STREAM

I/F

PCM-SCLK

DATA

RAM

INST.

I/O

PROCESSOR

SPDIF

PCM-DATA

173

ROM

PCM-BCK

PCM-LRCLK

169

168

PCM-SCLK

167

166

I/P-SW2

CLOCK-PULSE

12

186

I/P-SW2

CLOCK-PULSE

AUDIO

I/F

SERIAL

UMAC

VIDEO-Pr/R

VIDEO-Y/G

149

Y/G

Pr/R

D/A

GENERAL

I/O

INTERRUPT

CPU

I/F

READ

MEMORY

147

D/A

CONTROLLER

VIDEO-Y(I)

VIDEO-Pb/B

148

Y(I)

Pb/B

D/A

NTSC/PAL

ENCODER

TIMER

WATCH DOG

TIMER

156

D/A

VIDEO-C

C

REMOTE

CONTROL

157

D/A

VIDEO

I/F

YC(0-7)

~

176

183

32BIT CPU

BCU

I2C-SDA

66

I2C-SDA

I2C-SCL

67

I2C-SCL

DATA

RAM

INST

RAM

DEBUG

IC103 (FLASH ROM)

1

FADR (0-20)

FDQ (0-15)

~

101625

~

48

FADR (0-20)

~

293638

FDQ (0-15)

~

45

IC101 (MICRO CONTROLLER)

222629

IC501 (SDRAM)

230

~~

DECODER

I/F

ECC

EXTERNAL

MEMORY

I/F

SDRAM

198

~~

2

SDRAM DATA(0-15)

~

SDRAM DATA(0-15)

134253

SDRAM ADDRESS(0-11)

~

247

SDRAM ADDRESS(0-11)

35

217

117

118

DMA

116

DVD/CD

RF

SIGNAL

115

133

CN201

C16

FORMATTER

PROCESS

CIRCUIT

134

A17

D18

131

CPU

I/F

BCU

FS(+)

CN201

FS(+) 2

X101

27MHz

OSC

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

FS(-)

TS(-)

TS(+)

FS(-) 3

TS(+) 1

DVD MAIN CBA UNIT

TS(-) 4

PICK-UP

UNIT

163 162

27MHz

WATCH DOG

5

9

GND(LD)

GND(CD-PD)

TIMER

INTERRUPT

1 3

TIMER

CONTROLLER

CD/DVD

86

6

IC201

4

CD DVD

32BIT

CPU

INST.

ROM

DATA

RAM

126

124

125

AMP

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

123

Q251,Q252

6

PD-MONI 7

GND(DVD-PD)

132

129

130

F12

B15

E14

CD/DVD 19

DETECTOR

CLOCK

(SW)

FS

TS

1-8-2

E61J3BLD

Video-1 Block Diagram

TO VIDEO-2

BLOCK

DIAGRAM

VIDEO-Pb/B

VIDEO-Pr/R

VIDEO SIGNAL DATA(AUDIO) SIGNAL

VIDEO-Y/G

ICF04

(3.3V<-->5V CONVERTER)

+3.3V

T.M.D.S DATA2+

T.M.D.S DATA1-

T.M.D.S DATA1+

T.M.D.S DATA0-

T.M.D.S DATA0+

T.M.D.S CLOCK+

9

7

10

TRANSMITTER

XOR

T.M.D.S CLOCK-

12

26

MASK

AUDIO

DATA

CAPTURE

BLOCK

T.M.D.S DATA2-

HOT PLUG

DETECT

DDC DATA

DDC CLOCK

316

QF01

18

6

71

2

HPD

5

3

1920

I2C SLAVE

CNF01

HDMI-CONNECTOR

19

REGISTERS

AND

CONFIGURATION

HDCP

KEYS

EEPROM

16

15

4

35363233293027

PANEL

LINK

HDCP

ENCRYPTION

ENGINE

VIDEO

DATA

CAPTURE

BLOCK

DVD MAIN CBA UNIT

4

VIDEO-Y/G

ICF05 (OUTPUT SELECT)

3

15

VIDEO-Pb/B

1

14

VIDEO-Pr/R

13

SW CTL

R(0-7)

I2C-SCL

I2C-SDA

ICF09 (HDMI INTERFACE)

43

44

49

56~57

R(0-7)

R(0-7)

45

46

136

137

140

R(0-7)

I2C-SCL

I2C-SDA

NOISE REDUCER,

DEINTERLACER,FRAME

RATE CONVERTER AND

10 11

QF02

9

ICF01 (DIGITAL VIDEO CONVERTER)

SDRAM INTERFACE

SDRAM ADDRESS(0-10)

~

91

50

103

SDRAM DATA(0-31)

~

87

145~148

OUTPUT

PROCESSOR WITH

SYNC GENERATION

AND DIGTAL ANALOG

CLOCK

GENERATION

PLLS

58~61

CONVERTERS

G(0-7)

G(0-7)

G(0-7)

~

G(0-7)

VERTICAL

AND

~

65

155

HORIZONTAL

67

SCALERS

INPUT PROCESOR

196

199

~

68

126

VERTICAL

WITH AUTO SYNC

AND AUTO ADJUST

YC(0-7)

~

127

205

70

AND

B(0-7)

75

B(0-7)

B(0-7)

130

B(0-7)

HORIZONTAL

~

1

79

~

118

135

H-SYNC

ENHANCERS

CLOCK-PULSE

195

2

119

V-SYNC

66

80

122

125

VCLK

HDMI-DE

XTAL-IN

191

5

101112

6

VIDEO-Pr/R

VIDEO-Y/G

VIDEO-Pb/B

TO DIGITAL

SIGNAL

PROCESS

I/P-SW2

BLOCK

DIAGRAM

I2C-SCL

TO DIGITAL

I2C-SDA

SIGNAL

PROCESS

BLOCK

DIAGRAM

242760

ICF02 (SDRAM)

1-8-3

~~

66

SDRAM

2

SDRAM DATA(0-31)

~~~

1331567485

SDRAM ADDRESS(0-10)

YC(0-7)

YC(0-7)

TO DIGITAL

SIGNAL

PROCESS

CLOCK-PULSE

BLOCK

DIAGRAM

3

5

(FLIP FLOP)

F/F

ICF06

1

2

SPDIF

PCM-DATA

PCM-LRCLK

PCM-BCK

PCM-SCLK

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

E61J3BLV1

Video-2 Block Diagram

JK1401

VIDEO SIGNAL

S-VIDEO OUT

2

1

3 4

YC

WF3

5

6

7

DRIVER

DRIVER

VIDEO OUT

JK1404

(COMPOSITE)

VIDEO-Y

OUT

18

VIDEO-Cb/Pb

OUT

VIDEO-Cr/Pr

15

13

OUT

VIDEO OUT

(COMPOSITE)

19

JK1405

VIDEO-G

VIDEO-B

11715

15

18

ASPECT

VIDEO-R

8

I/P-SW

16

13

2dB

AMP

LPF DRIVER

4dB

AMP

IC1401 (VIDEO DRIVER)

3

2dB

AMP

WF2

2dB

4dB

LPF

1

AMP

AMP

2dB

AMP

LPF DRIVER

4dB

AMP

IC1405 (VIDEO DRIVER)

6

WF1

2dB

AMP

LPF DRIVER

4dB

AMP

9

2dB

AMP

LPF DRIVER

4dB

AMP

11

Q1501

2dB

AMP

2dB

AMP

2dB

AMP

SWITCHING

LPF DRIVER

LPF DRIVER

LPF DRIVER

4dB

AMP

4dB

MUTE10

4dB

AMP

IC1402 (VIDEO DRIVER)

6

AMP

MUTE

9

11

10

Q1502

Q1521,Q1522

SWITCHING

88VIDEO-Y/G

66VIDEO-Pb/B

CN601 CN1601

VIDEO-Y/G

VIDEO-Pb/B

44VIDEO-Pr/R

VIDEO-Pr/R

22I/P-SW

CN601 CN1601

I/P-SW

33ASPECT

ASPECT

11VIDEO-Y(I)

CN601 CN1601

VIDEO-Y(I)

VIDEO-C

10 10VIDEO-C

DVD MAIN CBA UNIT AV CBA

TO VIDEO-1

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

BLOCK DIAGRAM

1-8-4

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

E61J3BLV2

Audio Block Diagram

AUDIO SIGNALDATA(AUDIO) SIGNAL

DIGITAL

IC1204

AUDIO OUT

(OPTICAL)

DIGITAL

JK1202

AUDIO OUT

(COAXIAL)

AUDIO(L)-

JK1404

OUT

AUDIO(R)-

OUT

AUDIO(L)-

JK1405

OUT

AUDIO(R)-

OUT

3

1

AMP

Q1351

15

L-CH

LPF+AMP

(AMP)

IC1201

WF4

WF6

14

R-CH

LPF+AMP

1

3

18

SPDIF

18

CN601 CN1601

2

13 13AUDIO(L)

15 15AUDIO(R)

14 14AUDIO(R)-MUTE

16

675

WF5

+5V

Q1202

Q1204

Q1201

+3.3V

IC601 (AUDIO DAC)

DAC

ENHANCED

MULTI-LEVEL

4X/8X

DIGITAL FILTER

OVERSAMPLING

AUDIO

SERIAL

768

PCM-BCK

SPDIF

PCM-DATA

TO

DIGITAL

SIGNAL

PROCESS

DAC

MODULATOR

DELTA-SIGMA

/FUNCTION

CONTROLLER

PORT

PCM-LRCLK

BLOCK

DIAGRAM

1-8-5

ZERO DETECT

432

ADAC-MD

TO

SYSTEM

PORT

SERIAL

CONTROL

ADAC-MC

ADAC-ML

CONTROL

/SERVO

BLOCK

5

MANAGER

SYSTEM CLOCK

DIAGRAM

PCM-SCLK

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

AUDIO-MUTE

TO

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

DVD MAIN CBA UNIT AV CBA

E61J3BLA

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

EV+1.2V

TO CN401

4,5

CN1001

EV+3.3V

6,7,8

11,12 EV+11V

P-ON+5V

P-ON+3.3V20PWRCON

10

1,2,9

PULSE

3

-FL

Q1013

D1003

RECTIFIER

11

F1

P-ON+11V

F2

2

+1.2V

IC1003

3

3

SCHOTTKY

D1006

12

EV+5V

EV+3.3V

Q1014

1

REG.

BARRIER

D1008

P-ON+5V

SCHOTTKY

BARRIER

131514

Q1002

Q1020

D1030

RECTIFIER

Q1011

Q1004

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

Q1016

Q1015

Q1005

D1016

RECTIFIER

16

17

18

INV-POWCON

1

Q1021

2

312

REG

IC1006

(SHUNT REGULATOR)

T1001

2

BRIDGE

RECTIFIER

D1001, D1002

D1004, D1005

LINE

FILTER

L1001

F1001

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

T1.6A L 250V

AC1001

AC CORD

4

Q1001

SWITCHING

Q1003

CONTROL

SWITCHING

4

IC1001

ERROR

7

6

VOLTAGE DET

3

AV CBA

LATCH

Q1008

HOT

1-8-6

E61J3BLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two
digits are not shown for each component. In each
block of the diagram, there is a note such as
shown below to indicate these abbreviated two
digits.

3

, M = 106).

-6

µF).

1-9-1 E6P_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE
FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:

2

1

(Unit: Volt)

The same voltage for
both PLAY & STOP modes

5.0

3

5.0
(2.5)

Indicates that the voltage
is not consistent here.

PLAY mode
STOP mode

5. How to read converged lines

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

3

AREA D3

2

1

ABCD

AREA B1

1-D3

1-B1

1-9-2 E6P_SC

DVD Main 1/5 Schematic Diagram

1-9-3

E61J3SCD1

DVD Main 2/5 Schematic Diagram

1-9-4

E61J3SCD2

IC101 Voltage Chart

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 0 0 193 ----- ----- 225 1.9 1.9

130 2.3 2.3 162 1.7 1.7 194 ----- ----- 226 0 0

131 2.3 2.3 163 1.7 1.7 195 ----- ----- 227 3.2 3.2

132 2.4 2.3 164 0 0 196 0 0 228 3.3 3.3

133 2.4 2.4 165 1.3 1.3 197 3.5 3.5 229 3.0 3.0

134 2.4 2.4 166 3.2 3.2 198 ~ ~ 230 ~ ~

135 2.3 2.3 167 3.2 3.2 199 ~ ~ 231 1.6 1.6

136 2.3 2.3 168 0 0 200 ~ ~ 232 ~ ~

137 2.3 2.3 169 0 0 201 ~ ~ 233 0 0

138 2.3 2.3 170 ----- ----- 202 ~ ~ 234 1.3 1.3

139 2.1 1.7 171 ----- ----- 203 ~ ~ 235 1.4 1.4

140 1.7 1.7 172 ----- ----- 204 3.5 3.5 236 ~ ~

141 1.7 1.7 173 3.2 3.2 205 0 0 237 ~ ~

142 1.7 1.7 174 0 0 206 ~ ~ 238 0 0

143 0 0 175 3.5 3.5 207 ~ ~ 239 3.5 3.5

144 1.7 1.7 176 1.3 1.3 208 ~ ~ 240 ~ ~

145 1.7 1.7 177 1.3 1.3 209 ~ ~ 241 ~ ~

146 3.5 3.5 178 1.3 1.3 210 ~ ~ 242 ~ ~

147 0.7 0.7 179 1.5 1.5 211 ~ ~ 243 ~ ~

148 0.7 0.7 180 1.0 1.0 212 ~ ~ 244 ~ ~

149 0.8 0.8 181 1.0 1.0 213 ~ ~ 245 ~ ~

150 3.5 3.5 182 1.0 1.0 214 3.5 3.5 246 ~ ~

151 2.2 2.2 183 1.0 1.0 215 0 0 247 ~ ~

152 1.4 1.3 184 3.5 3.5 216 ~ ~ 248 0 0

153 1.4 1.3 185 0 0 217 ~ ~ 249 3.5 3.5

154 2.2 2.2 186 1.5 1.5 218 1.3 1.3 250 ----- -----

155 0 0 187 3.3 3.3 219 2.4 2.1 251 ----- -----

156 0.6 0.6 188 3.3 3.3 220 2.4 2.1 252 3.4 3.4

157 0.9 0.9 189 ----- ----- 221 3.3 3.3 253 2.8 2.8

158 3.5 3.5 190 ----- ----- 222 0 0 254 ----- -----

159 0 0 191 ----- ----- 223 1.6 1.6 255 3.4 3.4

160 3.5 3.5 192 ----- ----- 224 3.5 3.5 256 3.4 3.4

~ : Voltage is not consistent ----- : Not used Unit : Volts

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 ----- ----- 33 ~ ~ 65 ~ ~ 97 ----- -----

2 0 0 34 0 0 66 3.4 3.4 98 ----- -----

3 3.5 3.5 35 3.5 3.5 67 3.4 3.4 99 ----- -----

4 ----- ----- 36 ~ ~ 68 0 0 100 ----- -----

5 0 0 37 ~ ~ 69 3.5 3.5 101 ----- -----

6 ----- ----- 38 ~ ~ 70 3.6 3.4 102 3.5 3.5

7 ----- ----- 39 ~ ~ 71 3.2 3.2 103 0.9 0.8

8 3.5 3.5 40 ~ ~ 72 3.5 0.1 104 0 0

9 0 0 41 ~ ~ 73 3.5 3.5 105 2.4 2.4

10 ----- ----- 42 ~ ~ 74 3.4 3.4 106 1.9 1.9

11 3.4 3.4 43 ~ ~ 75 3.4 3.4 107 0.4 0.3

12 3.5 3.5 44 0 0 76 ----- ----- 108 0 0

13 0.1 0.1 45 1.3 1.3 77 3.5 3.5 109 1.7 1.7

14 1.6 1.6 46 ~ ~ 78 3.4 3.4 110 3.5 3.5

15 ----- ----- 47 ~ ~ 79 2.2 2.2 111 ----- -----

16 0 0 48 ~ ~ 80 ----- ----- 112 ----- -----

17 3.5 3.5 49 ~ ~ 81 ----- ----- 113 1.9 1.9

18 ~ ~ 50 ~ ~ 82 0 0 114 1.9 1.9

19 2.4 2.8 51 ~ ~ 83 1.3 1.3 115 1.7 1.7

20 2.4 2.8 52 0 0 84 3.3 3.3 116 1.7 1.7

21 0 0 53 3.5 3.5 85 1.4 2.7 117 1.7 1.7

22 1.3 1.3 54 ~ ~ 86 0.1 0.1 118 1.7 1.7

23 ~ ~ 55 3.4 3.4 87 0 0 119 3.5 3.5

24 ~ ~ 56 ~ ~ 88 3.4 0 120 2.0 2.0

25 ~ ~ 57 ~ ~ 89 3.4 3.5 121 1.5 1.5

26 ~ ~ 58 ~ ~ 90 2.3 1.8 122 0 0

27 ~ ~ 59 ~ ~ 91 1.7 1.8 123 0.3 0.1

28 ~ ~ 60 ~ ~ 92 0 0 124 1.1 0

29 ~ ~ 61 ~ ~ 93 3.5 3.5 125 0.3 0.1

30 ~ ~

31 ~ ~

32 ~ ~

62

63
64

~ ~ 94 ----- ----- 126 0.1 0.1

~ ~ 95 ----- ----- 127 2.3 2.3

~ ~ 96 ----- ----- 128 1.7 1.7

1-9-5

DVD Main 3/5 Schematic Diagram

1-9-6 E61J3SCD3

DVD Main 4/5 Schematic Diagram

1-9-7

E61J3SCD4

DVD Main 5/5 Schematic Diagram

1-9-8

E61J3SCD5

AV 1/3 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

1-9-9

E61J3SCAV1

AV 2/3 Schematic Diagram

1-9-10

E61J3SCAV2

7G 6G 5G 4G 3G 2G 1G

a

b

c

d

e

f

g

c

d

e

ff

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

h

ii

a

b

a

b

a

b

a

b

a

b

FL2002 MATRIX CHART

REPEAT

TITLE

GROUP

VCR

CHP

REC

SACD

TRK

ALL

B

PSCAN

DVD

P

M

HD

V

CD

A

A

AV 3/3, Function & LED Schematic Diagram

7G

6G

5G 4G 3G 2G 1G

REPEAT

B

A
ALL

f

TITLE

i

i

VCR

GROUP

CHP

REC
TRK

c

a

b

d

ef

g

SACD

PSCAN

DVD

A

PM

HDVCD

1-9-11 E61J3SCAV3

AV CBA Top View

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

1-9-12

BE6182F01014A

AV CBA Bottom View

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

WF3

C1402
PLUS LEAD

WF1

PIN 8 OF
CN1601

WF2

PIN 10 OF
CN1601

WF4

PIN 13 OF
CN1601

WF5

PIN 15 OF
CN1601

WF6

PIN 18 OF
CN1601

1-9-13

BE6182F01014A

FUNCTION CBA Top View

FUNCTION CBA Bottom View

1-9-14

BE6182F01014D

LED CBA Top View

LED CBA Bottom View

1-9-15

BE6182F01014E

WAVEFORMS

WF1

Pin 8 of CN1601

WF2

Pin 10 of CN1601

WF5

Pin 15 of CN1601

20µs0.1VVIDEO-Y

AUDIO(R) 1V 0.5ms

WF6

Pin 18 of CN1601

VIDEO-C 0.1V 20µs

WF3

C1402 PLUS LEAD

VIDEO-CVBS 0.5V 20µs

WF4

Pin 13 of CN1601

SPDIF 1V 0.1µs

NOTE:

Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

AUDIO(L) 1V 0.5ms

1-10-1

E6PWF

WIRING DIAGRAM

AC CORD

RGB OUT

CN2001 CN2103

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FUNCTION CBA

KEY-6 13K2 24K1 35KEY-2 46KEY-3 57KEY-1 68KEY-4 7

CN2103 is soldered

directly to the PCB.

9

CN2104

EV+5V 11NU 22STANDBY-LED 33GND 44KEY-2 55K2 6

CN2004

LED CBA

CN2104 is soldered

directly to the PCB.

HDMI-LED 7

6

7

VIDEO-Y(I) 11
I/P-SW 22
ASPECT 33
VIDEO-Pr/R 44
GND 55
VIDEO-Pb/B 66
GND 77
VIDEO-Y/G 88
GND 99
VIDEO-C 1010
AUDIO-GND 1111

CN1601

AUDIO-GND 1212
AUDIO(L) 1313
AUDIO(R)-MUTE
AUDIO(R) 1515
AUDIO+5V 1616
AUDIO+5V 1717
SPDIF 1818
AUDIO(L)-MUTE(NU)

P-ON+5V 20

CD/DVD 19

D 18
A 17
C 16
B

15

E 14

VREF 13

F 12

GND 11

CD-LD 10

CN201CN301

CN601

1414

1919

GND(LD) 9

DVD-LD 8

PD-MONI 7

GND(DVD-PD)

GND(CD-PD) 5

TS(-) 4

FS(-) 3
FS(+) 2
TS(+) 1

6

4

DETECTOR

7 9 11 2 3 6 5

PICK UP UNIT

FS

TS

S-VIDEO

OUT

DIGITAL

AUDIO OUT

(OPTICAL)

DIGITAL

AUDIO OUT

(COAXIAL)

AUDIO(R)-

OUT

AUDIO(L)-

OUT

VIDEO OUT

(COMPOSITE)

VIDEO-Cr/Pr

OUT

VIDEO-Cb/Pb

OUT

VIDEO-Y

OUT

AV CBA

P-ON+3.3V 11
P-ON+3.3V 22

3

PULSE 3
EV+1.2V 4

4
5

EV+1.2V 5
EV+3.3V 6

6

EV+3.3V 7

7
8

EV+3.3V 8
P-ON+3.3V 9

9

P-ON+5V 10

10
11

EV+11V 11
EV+11V 12

12

GND 13

13

GND 14

14

CN1001

GND 15

15
16

GND 16
GND 17

17

GND 18

18

GND 19

19

(CN1001 is soldered directly to the PCB.) (CN1601 is soldered directly to the PCB.)

PWRCON 20

20

FP-CLK 21

21

FP-DIN 22

22

FP-STB 23

23

FP-DOUT 24

24

REMOTE

25

HDMI

26

26

CN401

25

DVD MAIN CBA UNIT

SL(+) 8

SL(-) 7

GND 6

TRAY-IN 5

SP(-) 4
SP(+) 3

HDMI-CONNECTOR

SLED

MOTOR

M

SPINDLE

MOTOR

M

TRAY-IN

DVD MECHANISM

DRIVE CBA

1-11-1

E61J3WI

IC PIN FUNCTION DESCRIPTIONS

IC2001 [ PT6313-S-TP(L) ]

Pin

In/Out

No.

1 In FP-CLK

2 In FP-STB

3 In K1

4 In K2

5 - VSS

6 - VDD

7 Out a / KEY-1

8 Out b / KEY-2

9 Out c / KEY-3

10 Out d / KEY-4

11 Out e

12 In f / KEY-6

Signal

Name

Name Function

Clock Input

Serial Interface Strobe

Key Data 1 Input

Key Data 2 Input

GND

Power Supply

Segment Output / Key
Source-1

Segment Output / Key
Source-2

Segment Output / Key
Source-3

Segment Output/ Key
Source-4

Segment Output

Segment Output/ Key
Source-6

13 In g

14 Out h

15 - VEE

16 Out i

17

18 6G

19 5G

20 4G

Out

21 3G

22 2G

23 1G

24 - VDD

25 - VSS

26 In OSC

27 Out FP-DOUT

28 IN FP-DIN Serial Data Input

7G

Segment Output

Segment Output

Pull Down Level

Segment Output

Grid Output

Power Supply

GND

Oscillator Input

Serial Data Output

1-12-1 E61J3PIN

LEAD IDENTIFICATIONS

E C B

RC4580IP
MM1636XWRE

8

2SA1015-Y(TE2 F T)
2SA1015-Y(TPE2)
2SC2120-Y(TE2 F T)
KTA1266(Y)
KTA1266-Y-AT/P
KTC3203-Y-AT/P
KTC3205-Y-AT/P
KRC103M-AT/P

E C B

PT6313-S-TP(L)
SC16313G

5

28

15

0C-0805T*002

2SC1815-GR(TE2 F T)
2SC1815-GR(TPE2)
2SC1815-Y(TE2 F T)
KTA1267Y-AT/P
KTC3199(GR,Y)
KTC3199-(GR,Y)-AT/P
KRA110M-AT/P

FAN431AZXA
KIA431-AT

1

4

EL817B
EL817C
LTV-817B-F
LTV-817C-F
PS2561A-1(W)

A

K

LD1117V
UZ1086-ADJ

1: GND
2: Vout
3: Vin

123

1

14

1: A

C

2: K
3: E

E

4: C

KTD882

MM1622XJBEG

24

1

BCE

123

13

12

2SK3566

G D S

1: R
2: A
3: K

K A R

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source

1-13-1 E61J3LE

Cabinet

EXPLODED VIEWS

2L011

A2

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

2L021

2L021

2L021

1B1

2L021

2L011

2L105

DVD Main CBA Unit

2L102

2L105

2L102

B'

2L107

2L011

A16

2L011

2L011

2L106

JK1405

JK1401

JK1404

JK1202

IC1204

F1001

2L106

AV C BA

A'

2B5

2L101

Function CBA

LED CBA

2B25

A1X

A13

2L052

B

2L052

A17

2B3

A22

AC1001

2L071

2L041

2L043

2L041

2B4

A13

A

A15

1-14-1 E61J3CEX

Packing

Comparison Chart of
Models and Marks

Model Mark

DVP-6200
DVP-6201

A
B

X1

X10A

X10B

X10C

X10D

X10E

X10F

X10G

X10H

[A]

Unit

X10

S2

[B]

X6

X7

X5

X2

X4

S4

[B]

S8

Pack the UK plug in a
shoe bag (S8) and put it
into the pad.

S2

S1

A22

1-14-2 E61J3PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Comparison Chart of Models and Marks

Model Mark

DVP-6200 A

DVP-6201 B

Ref. No. Mark Description Part No.

A1X FRONT ASSEMBLY E61J3ED 1VM321639

A2 DOOR PANEL ASSEMBLY E61J0UD 1VM422374

A13 FOOT K7010UA 0VM403657A

A15 CHASSIS E6180UD 1VM120073

A16 TOP COVER(SILVER) E61M4ED 1VM320706

A17 A REAR PANEL E61J3ED 1VM221422

A17 B REAR PANEL E61J4BD 1VM221502

A22 BARCODE LABEL UNFIGURE E9704ED ----------

A22 A BAR CODE LABEL E61J3ED ----------

A22 B BAR CODE LABEL E61J34BD ----------

1B1 DVD MECHA E6160(FG LESS)

2B3 MAIN PCB HOLDER E61M5UD 1VM321024

2B4 LOADER BASE E61M0UD 1VM120090

2B25 DUMP SPACER E61J0UD 1VM422578

2L011 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050

2L021 SCREW P-TIGHT 3X12 BIND HEAD+ or GBMP3120

2L041 SCREW B-TIGHT D3X8 BIND HEAD +

2L043 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050

2L052 P-TIGHT SCREW 3X8 BIND + or GBMP3080

2L071 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050

2L101 SCREW C-TIGHT M3X6 BIND HEAD or GBMC3060

2L102 SCREW C-TIGHT M3X6 BIND HEAD or GBMC3060

2L105 P-TIGHT SCREW 3X8 BIND + or GBMP3080

2L106 SCREW C-TIGHT M3X6 BIND HEAD or GBMC3060

2L107 P-TIGHT SCREW 3X8 BIND + or GBMP3080

N79F0JVM

SCREW P-TIGHT M3*12 BIND+ GBJP3120

BLK or

SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080

SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080

SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060

SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060

SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080

SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060

SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080

PACKING

S1 A GIFT BOX CARTON E61J3ED 1VM321875

S1 B GIFT BOX CARTON E61J4BD 1VM321937

S2 SIDE PAD E61J0UD 1VM120473

S4 SET BAG E7708UA 0DM400731D

S8 B SHOE BAG(RECYCLMARK) E5795ED 0VM416082

ACCESSORIES

X1 REMOTE CONTROL UNIT NB066ED NB066ED

X2 DRY BATTERY R6P/2S or XB0M451T0001

DRY BATTERY R6UW/2S or XB0M311MS001

DRY BATTERY ES-GR6M-C XB0M571GLP01

X4 ACCESSORY BAG E5795ED 0VM416059

X5 AV CORD TSCKA-Y/RW100 or WPZ0102TM015

AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01

N79F0JVM

GBKB3080

Ref. No. Mark Description Part No.

X6 B QUICK GUIDE E61J4BD 1VMN21678

X7 HDMI CABLE DC1P019ST30200B WPZ0202NB001

X10! B OWNERS MANUAL E61J4BD 1VMN21677

X10A! A OWNERS MANUAL(GE) E61J3ED 1VMN21692

X10B! A OWNERS MANUAL (EN) E61J3ED 1VMN21693

X10C! A OWNERS MANUAL(IT) E61J3ED 1VMN21772

X10D! A OWNERS MANUAL(GR) E61J3ED 1VMN21773

X10E! A OWNERS MANUAL(SL) E61J3ED 1VMN21774

X10F! A OWNERS MANUAL(CZ) E61J3ED 1VMN21775

X10G! A OWNERS MANUAL(HU) E61J3ED 1VMN21776

X10H! A OWNERS MANUAL(PL) E61J3ED 1VMN21777

20051021 1-15-1 E61J3CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, Read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

DVP-6200 A

DVP-6201 B

DVD MAIN CBA UNIT

Ref. No. Mark Description Part No.

ABDVD MAIN CBA UNIT

DVD MAIN CBA UNIT

N79G2JEP
N79G3JBP

AV A SSEMBLY

Ref. No. Mark Description Part No.

ABAV ASSEMBLY

AV ASSEMBLY
Consists of the following:

AV C BA
FUNCTION CBA
LED CBA

AV CBA

Ref. No. Mark Description Part No.

AV C BA
Consists of the following:

CAPACITORS

C1001! METALIZED FILM CAP. 0.047µF/250V K orCT2E473DC011

! METALIZED FILM CAP. 0.047µF/250V M CT2E473MS037

C1003 FILM CAP. 0.01µF/630V J CBP2KJP00103
C1004 ELECTROLYTIC CAP. 33µF/400V M or CA2H330S6021

ELECTROLYTIC CAP. 33µF/400V M(L.Z) orCE2HMZATH330

ELECTROLYTIC CAP. 33µF/400V
M(105°C)

C1005 CERAMIC CAP. SL K 56pF/1KV CCD3AKPSL560

C1006! SAFETY CAP. 2200pF/250V or CA2E222MR049

! SAFETY CAP. 2200pF/250V CCN2EMP0E222
C1007 ELECTROLYTIC CAP. 3300µF/6.3V or CE0KMASDL332

ELECTROLYTIC CAP. 3300µF/6.3V M CE0KMASTL332

C1009 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTM102

C1013 CERAMIC CAP.(AX) B K 3300pF/50V CA1J332TU011
C1014 ELECTROLYTIC CAP. 2200µF/6.3V or CE0KMASDL222

ALUMINUM ELECTROLYTIC CAP
2200µF/6.3V M

C1017 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103

1VSA13208
1VSA13222

----------

----------

----------

----------

CA2H330NC162

CE0KMASTM222

Ref. No. Mark Description Part No.

C1018 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTM101

C1021 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C1029 CERAMIC CAP.(AX) B K 3300pF/50V CA1J332TU011
C1032 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C1033 FILM CAP.(P) 0.022µF/50V J or CA1J223MS029

C1034 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

C1035 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMASDL102

C1036 CHIP CERAMIC CAP.(1608) B K 5600pF/

C1037 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1038 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1047 FILM CAP.(P) 0.0022µF/100V J or CA2A222MS029

C1048 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

C1049 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1050 ELECTROLYTIC CAP. 3300µF/6.3V or CE0KMASDL332

C1201 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

C1202 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

C1205 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221

C1206 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221

C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/

C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/

C1221 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

C1222 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

C1223 CHIP CERAMIC CAP.(1608) CH J

C1224 CHIP CERAMIC CAP.(1608) CH J

C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1247 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

C1249 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

C1351 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C1352 ELECTROLYTIC CAP. 47µF/6.3V M or CE0KMASDL470

C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/

C1361 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1362 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1394 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

C1395 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

50V

FILM CAP.(P) 0.022µF/50V J CMA1JJS00223

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTM102

ALUMINUM ELECTROLYTIC CAP
1000µF/16V M

50V

50V

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTM471

50V

FILM CAP.(P) 0.0022µF/100V J CMA2AJS00222

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTM221

50V

ELECTROLYTIC CAP. 3300µF/6.3V M CE0KMASTL332

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100

50V

50V

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100

1000pF/50V

1000pF/50V

50V

50V

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTM471

ALUMINUM ELECTROLYTIC CAP 47µF/
16V M

25V

ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASTM470

50V

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

50V

ALUMINUM ELECTROLYTIC CAP 47µF/
10V M

CHD1JK30B103

CE1CMASTM102

CHD1JK30B562

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JJ3CH470

CHD1JJ3CH470

CHD1JJ3CH102

CHD1JJ3CH102

CHD1JZ30F104

CHD1JZ30F104

CE1CMASTM470

CHD1EK30B104

CHD1JJ3CH101

CHD1JZ30F104

CE1AMASTM470

20051021 1-16-1 E61J3EL

Ref. No. Mark Description Part No.

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTM102

C1402 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTM471

C1403 CHIP CERAMIC CAP.(1608) B K 0.33µF/

C1421 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C1441 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C1442 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1443 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

C1446 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

C1461 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C1462 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1463 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1481 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C1482 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1483 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

C1522 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

C1524 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

C1531 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C1532 ELECTROLYTIC CAP. 22µF/10V M or CE1AMASDL220

C1533 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1534 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1535 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C1536 ELECTROLYTIC CAP. 22µF/10V M or CE1AMASDL220

C1537 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1538 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1539 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C1540 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C1541 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

C1542 CHIP CERAMIC CAP.(1608) B K 1000pF/

C1549 ELECTROLYTIC CAP. 22µF/10V M or CE1AMASDL220

C2001 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

C2002 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

C2003 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C2004 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C2034 CHIP CERAMIC CAP.(1608) CH J

C2035 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C2041 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

C2087 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

10V

50V

25V

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTM102

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTM471

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTM221

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTM101

50V

ELECTROLYTIC CAP. 22µF/10V M CE1AMASTM220

50V

50V

50V

ELECTROLYTIC CAP. 22µF/10V M CE1AMASTM220

50V

50V

50V

50V

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTM010

50V

ELECTROLYTIC CAP. 22µF/10V M CE1AMASTM220

ELECTROLYTIC CAP 22µF/50V M C E1JMASTM220

ELECTROLYTIC CAP 22µF/50V M C E1JMASTM220

50V

50V

1000pF/50V

50V

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTM101

50V

CHD1AK30B334

CHD1JK30B103

CHD1EK30B104

CHD1JK30B103

CHD1JZ30F104

CHD1JZ30F104

CHD1JK30B103

CHD1JZ30F104

CHD1JZ30F104

CHD1JZ30F104

CHD1JK30B103

CHD1JK30B102

CHD1JZ30F104

CHD1JZ30F104

CHD1JJ3CH102

CHD1JZ30F104

CHD1JZ30F104

Ref. No. Mark Description Part No.

CONNECTORS

CN1001 26P FFC AV PCB TO MAIN WX1E61E0-002

CN1601 FFC CABLE 19P AV PCB TO MAIN WX1E6182-001

CN2001 FMN CONNECTOR TOP 7P 07FMN-

CN2004 FMN CONNECTOR TOP 7P 07FMN-

BTK-A(LF)(SN)

BTK-A(LF)(SN)

JCFNG07JG019

JCFNG07JG019

DIODES

D1001 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1002 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1003 RECTIFIER DIODE BA157 or NDQZ000BA157

RECTIFIER DIODE BA157 NDWZ000BA157

D1004 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1005 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1006 SCHOTTKY BARRIER DIODE SB240-B/PNDWZ000SB240

D1008 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D1011 RECTIFIER DIODE BA159 or NDQZ000BA159

RECTIFIER DIODE BA159 NDWZ000BA159

D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1016 RECTIFIER DIODE BA157 or NDQZ000BA157

RECTIFIER DIODE BA157 NDWZ000BA157

D1017 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT-7718B QDTB00MTZJ18

D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1022 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1025 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1030 RECTIFIER DIODE FR202-B/P NDQZ000FR202

D1046 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D1047 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS

ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6

D1048 ZENER DIODE DZ-15BSAT265 or NDTA00DZ15BS

ZENER DIODE MTZJT-7715A QDTA00MTZJ15

D1051 ZENER DIODE DZ-6.8BSBT265 or NDTB0DZ6R8BS

ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

D1053 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140

D1054 PCB JUMPER D0.6-P10.0 JW10.0T

D1055 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1058 PCB JUMPER D0.6-P10.0 JW10.0T

D1059 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1075 PCB JUMPER D0.6-P10.0 JW10.0T

D1201 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1202 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1203 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1204 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D1501 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1502 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

20051021 1-16-2 E61J3EL

Ref. No. Mark Description Part No.

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1503 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1504 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1505 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1506 ZENER DIODE DZ-13BSBT265 or NDTB00DZ13BS

ZENER DIODE MTZJT-7713B QDTB00MTZJ13

D1507 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1508 PCB JUMPER D0.6-P5.0 JW5.0T

D2041 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2042 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2043 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2044 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2082 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2086 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D2087 PCB JUMPER D0.6-P5.0 JW5.0T

ICS

IC1001

!

! PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F

! PHOTOCOUPLER PS2561A-1(W) or QPEWPS2561A1

! PHOTOCOUPLER EL817B or NPEB000EL817

! PHOTOCOUPLER EL817C NPEC000EL817

IC1003 VOLTAGE REGULATOR UZ1086L-ADJ or NSZBA0SUTC02

IC1006 IC SHUNT REGULATOR KIA431-AT or NSZLA0TJY001

IC1201 IC OP AMP RC4580IP NSZBA0STY173

IC1204 FIBER OPTIC TRANS.MODULE 0C-

IC1401 DRIVER FOR DVD MM1636XWRE QSZBA0TMM108

IC1402 DRIVER FOR DVD MM1622XJBEG QSZBA0TMM149

IC1405 DRIVER FOR DVD MM1622XJBEG QSZBA0TMM149

IC2001 VFD DRIVER/CONTROLLER IC PT6313-

PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

IC LD1117V or NSZBA0SSS046

VOLTAGE REGULATOR UZ1086-ADJ NSZBA0SUTC01

VOLTAGE REGULATOR FAN431AZXA NSZBA0TF3102

0805T*002

S-TP(L) or

VFD DRIVER IC SC16313G NSZBA0T0S005

JWHHA00JD002

NSZBA0TG2007

COILS

L1001! LINE FILTER 56MH TLF14CB5630R2 or LLBG00ZTU022

! LINE FILTER 50MH LF-4D-E503(PB

L1007 CHOKE COIL ELC10D220EM LLC220KMS003
L1008 CHOKE COIL 47µH or LLBD00PKV022

L1009 CHOKE COIL 47µH or LLBD00PKV022

L1010 PCB JUMPER D0.6-P5.0 JW5.0T
L1350 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1351 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1401 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1405 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1421 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1441 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1442 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1461 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1462 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

FREE)

RADIAL TYPE CHOKE COIL CW68­470K-841040NP or

CHOKE COIL 47µH-K LLBD00PKT001

RADIAL TYPE CHOKE COIL CW68­470K-841040NP or

CHOKE COIL 47µH-K LLBD00PKT001

LLBG00ZKQ014

LLBD00PKV023

LLBD00PKV023

Ref. No. Mark Description Part No.

L1470 PCB JUMPER D0.6-P5.0 JW5.0T
L1481 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1482 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1492 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

L1521 PCB JUMPER D0.6-P5.0 JW5.0T
L1522 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

L2001 PCB JUMPER D0.6-P5.0 JW5.0T
L2031 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

TRANSISTORS

Q1001 FET 2SK3566 QFWZ02SK3566

Q1002 TRANSISTOR KTA1267-Y-AT/P or NQSYKTA1267P

TRANSISTOR 2SA1015-Y(TE2 F T) QQSY2SA1015F

Q1003 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1004 TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P

Q1005 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) QQSY2SC1815F

Q1008 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1011 TRANSISTOR KTD882 NQQY00KTD882

Q1013 TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P

Q1014 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1015 TRANSISTOR KRA110M-AT/P NQSZKRA110MP

Q1016 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1020 TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q1021 TRANSISTOR KRA110M-AT/P NQSZKRA110MP

Q1201 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1202 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1204 TRANSISTOR KTA1266-Y-AT/P or NQSYKTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR KTA1266(Y) or NQSY0KTA1266

TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015

Q1351 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1352 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1501 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP

Q1502 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1521 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) QQSY2SC1815F

Q1522 TRANSISTOR KTA1266-Y-AT/P or NQSYKTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR KTA1266(Y) or NQSY0KTA1266

20051021 1-16-3 E61J3EL

Ref. No. Mark Description Part No.

TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015

Q2086 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q2089 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R1002 PCB JUMPER D0.6-P5.0 JW5.0T
R1004 METAL OXIDE FILM RES. 1W J 330k Ω or RN01334DP020

METAL OXIDE FILM RES. 1W J 330k Ω RN01334KE009
R1005 CARBON RES. 1/4W J 1.8M Ω RCX4JATZ0185
R1006 CARBON RES. 1/4W J 1.8M Ω RCX4JATZ0185
R1008 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1010 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R1011 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7DP003

METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7KE009
R1015 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R1016 CARBON RES. 1/6W J 22k Ω or RCX6JATZ0223

CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R1019 CHIP RES. 1/16W F 680 Ω or RRXGFR5Z0681

CHIP RES.(1608) 1/10W F 680 Ω RRXAFR5H0681
R1020 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182
R1021 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182
R1022 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821
R1023 CHIP RES. 1/16W F 2.2k Ω or RRXGFR5Z0222

CHIP RES.(1608) 1/10W F 2.2k Ω RRXAFR5H0222
R1025 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1029 CARBON RES. 1/6W J 82k Ω or RCX6JATZ0823

CARBON RES. 1/4W J 82k Ω RCX4JATZ0823
R1032 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1034 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R1035 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1036 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1037 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1038 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1039 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7DP003

METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7KE009
R1044 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1050 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1051 CHIP RES. 1/10W J 3.6k Ω RRXAJR5Z0362
R1059 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1061 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R1062 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R1065 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224
R1067 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1068 CHIP RES. 1/10W J 1.2k Ω RRXAJR5Z0122
R1069 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R1072 CHIP RES. 1/10W J 680 Ω RRXAJR5Z0681
R1073 METAL OXIDE FILM RES. 3W J 33 Ω or RN03330ZU001

METAL OXIDE FILM RES. 3W J 33 Ω or RN03330DP005

METAL OXIDE FILM RES. 3W J 33 Ω RN03330KE009

R1074 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140
R1075 CHIP RES. 1/16W F 10 Ω or RRXGFR5Z0100

CHIP RES.(1608) 1/10W F 10 Ω RRXAFR5H0100
R1076 CHIP RES. 1/16W F 1k Ω or RRXGFR5Z0102

CHIP RES.(1608) 1/10W F 1k Ω RRXAFR5H0102
R1077 CHIP RES. 1/10W J 36k Ω RRXAJR5Z0363
R1078 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

R1079 PCB JUMPER D0.6-P5.0 JW5.0T
R1080 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

Ref. No. Mark Description Part No.

R1081 CHIP RES. 1/16W F 270 Ω or RRXGFR5Z0271

CHIP RES.(1608) 1/10W F 270 Ω RRXAFR5H0271
R1083 CARBON RES. 1/4W J 5.6 Ω RCX4JATZ05R6
R1084 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1085 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R1096 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R1098 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1205 CHIP RES. 1/16W F 20k Ω or RRXGFR5Z0203

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5H0203
R1206 CHIP RES. 1/16W F 20k Ω or RRXGFR5Z0203

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5H0203
R1207 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES. 1/16W F 30k Ω or RRXGFR5Z0303

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5H0303
R1210 CHIP RES. 1/16W F 30k Ω or RRXGFR5Z0303

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5H0303
R1221 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1227 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1240 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100
R1256 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1257 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1351 CHIP RES. 1/10W J 2k Ω RRXAJR5Z0202
R1352 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1353 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1355 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1356 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1392 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1396 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1397 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1402 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1403 CHIP RES. 1/16W F 160 Ω or RRXGFR5Z0161

CHIP RES.(1608) 1/10W F 160 Ω RRXAFR5H0161
R1405 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1421 CHIP RES. 1/16W F 160 Ω or RRXGFR5Z0161

CHIP RES.(1608) 1/10W F 160 Ω RRXAFR5H0161
R1422 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1441 CHIP RES. 1/16W F 160 Ω or RRXGFR5Z0161

CHIP RES.(1608) 1/10W F 160 Ω RRXAFR5H0161
R1442 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1443 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1451 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1461 CHIP RES. 1/16W F 160 Ω or RRXGFR5Z0161

CHIP RES.(1608) 1/10W F 160 Ω RRXAFR5H0161
R1462 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1463 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1481 CHIP RES. 1/16W F 160 Ω or RRXGFR5Z0161

CHIP RES.(1608) 1/10W F 160 Ω RRXAFR5H0161
R1482 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1483 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1492 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1522 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R1523 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1524 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1525 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822
R1526 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1558 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1559 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R2001 CARBON RES. 1/6W J 10 Ω or RCX6JATZ0100

20051021 1-16-4 E61J3EL

Ref. No. Mark Description Part No.

CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R2002 CHIP RES. 1/10W J 68k Ω RRXAJR5Z0683
R2012 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2013 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2014 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2015 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2016 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2031 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R2032 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2033 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R2041 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2042 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2043 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2044 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2086 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R2088 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2090 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

MISCELLANEOUS

2B5 HOLDER F.I.P. E5900UD 0VM416070

AC1001!A AC CORD PE8B2CG980A-057 WAE0172LW006

AC1001!B AC CORD PE8G2V59G0A-059 WAB0172LW002

F1001! FUSE T1.6AL/250V PAGC20BW3162

FL2002 V.F.D. 7-BT-298NYM TVFD150FT014

FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
J2642 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103

JK1202 RCA JACK(BLACK) MSP-251V-01 NI FE LFJXRL010LY125

LED CBA

Ref. No. Mark Description Part No.

LED CBA
Consists of the following:

CONNECTOR

CN2104 FFC CABLE 7P AV PCB TO IND PCB WX1E61M2-003

DIODES

D2181 LED(RED) 204HD/E NPQZ00204HDE

D2186 LED(GREEN) 204-10GD/S957 NPQZ10GDS957

RESISTORS

R2185 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R2186 CARBON RES. 1/6W J 360 Ω or RCX6JATZ0361

CARBON RES. 1/4W J 360 Ω RCX4JATZ0361

SWITCHES

SW2102 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

----------

JK1401 S TYPE JACK MDC-050V-2.4 LF(B110 or JXEL040LY003

S TYPE JACK DIN-425-01 JXEL040YUQ01

JK1404 RCA JACK MSD-246V-65 NI FE LF or JXRL060LY131

RCA JACK MSP-246V34-65NI-FELF JXRL060LY082

JK1405 21P RGB JACK AJ-2050*040 JXGL210JD002

RM2002 REMOTE RECEIVER PIC-37042LU USESJRSKK033

T1001! SWITCHING TRANS 5702 LTT00EPKT167

FUNCTION CBA

Ref. No. Mark Description Part No.

FUNCTION CBA

Consists of the following:

CONNECTOR

CN2103 FFC CABLE 7P AV PCB TO FNT PCB WX1E61M2-001

SWITCHES

SW2184 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2186 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2187 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2188 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2189 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2190 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

SW2195 TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKQSAB SST0101AL038

----------

20051021 1-16-5 E61J3EL

DVP-6200/DVP-6201

E61J3ED/4BD

2005-11-18
