OWNER’S

MANUAL

DVD PLAYER with VIDEO CASSETTE RECORDER

DVC860D

ReWritable Recordable













POWER



OPEN/CLOSE





















CHANNEL

STOP/EJECT













PLAY



DVD



VCR

VIDEO

L AUDIOR









OUTPUT









DVD

DVD

VCR TIMER REC REC







STOP

PLAY



REW

F.FWD





INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional assistance for set-upor operating

after reading owner’s manual, please call TOLL FREE : 1-800-968-3429 or visit our web site at http://www.funai-corp.com

Please read before using this equipment.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

– 2 –

EN

1L25

IMPORTANT SAFEGUARDS

1.Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2.Retain InstructionsThe safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol clean-

ers. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7.Water and MoistureDo not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories - Do not place this video

product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video

product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10.Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This video product is equipped with a polarized alternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper ground-

ing of the mast and supporting structure, grounding of the lead-inwire to an antenna discharge unit, size of grounding conductors, location ofantenna-dischargeunit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

ANTENNA

LEAD

AS PER NATIONAL ELECTRICAL CODE

WIRE

GROUND



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT

GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMP

NEC – NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S2898A

ELECTRODE SYSTEM



(NEC ART 250, PART H)

14.Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-linesurges.

15.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-outparts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

18.Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the video product.

c.If the video product has been exposed to rain or water.

d.If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e.If the video product has been dropped or damaged in any way.

f.When the video product exhibits a distinct change in performance this indicates a need for service.

20.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21.Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

22.Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

– 3 –

EN

1L25

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of all materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the DVD/VCR COMBINATION UNIT. This serial number is unique to your machine. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

ABOUT COPYRIGHT

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SUPPLIED ACCESSORIES

Remote control

Two AA batteries

A/V cables

RF Cable

(NA209UD)

(approx. 3 feet (100 cm)

WPZ0901TM002

(NA259UD)

long) (WPZ0102TM015)



SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

VCR

: Description refers to playback of video cassette tapes.

DVD-V

:Description refers to playback of DVD video discs.

CD

:Description refers to playback of audio CDs.

MP3

: Description refers to playback of MP3 discs.

QUICK

: Description refers to the items to be set in the QUICK mode.

– 4 –

EN

1L25

TABLE OF CONTENTS

LASER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . 3

ABOUT COPYRIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . 4 SYMBOLS USED IN THIS MANUAL. . . . . . . . . . . . . . . . . . 4

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PLAYABLE DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 DISC TYPES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

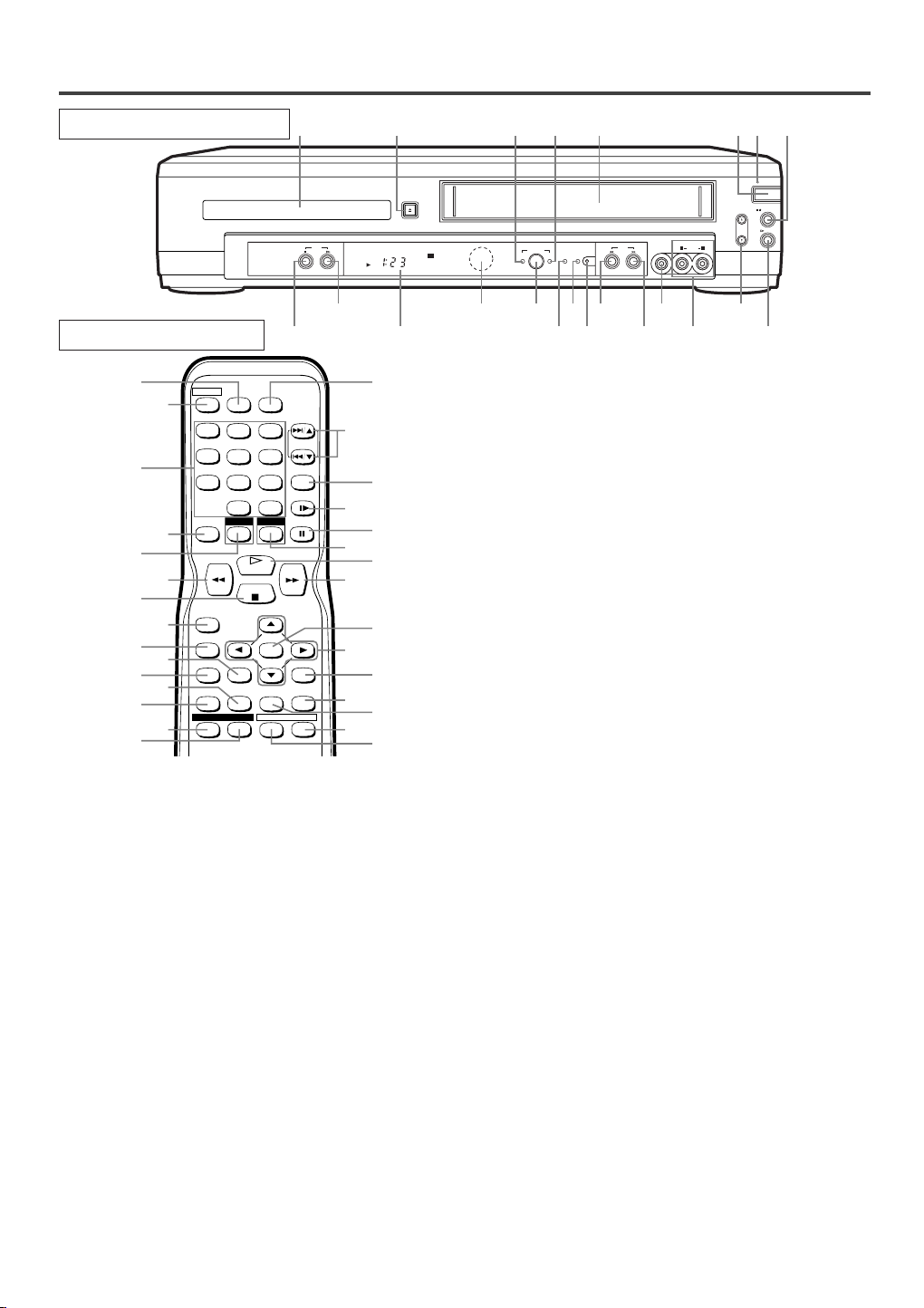

OPERATING CONTROLS AND FUNCTIONS. . . . . . . . . . . 8

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 DISPLAYS DURING OPERATION . . . . . . . . . . . . . . . . . . . 11 LOADING THE BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . 11

VCR/DVD SWITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . 12HOOKUPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CONNECTING TO A TV WITHOUT A/V TERMINALS . . . 13 CONNECTING TO A TV WITH A/V TERMINALS. . . . . . . 13 CONNECTING TO A TV THAT HAS AN S-VIDEOINPUT JACK OR COMPONENT VIDEO IN JACKS. . . . . . . . . . . . 14 CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 CONNECTING TO A RECEIVER WITH

DOLBY DIGITAL DECODER . . . . . . . . . . . . . . . . . . . . . . . 15 CONNECTING TO AN ANALOG AUDIO SYSTEM. . . . . . 15

SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

AUTOMATIC CHANNEL SET UP. . . . . . . . . . . . . . . . . . . . 16 TO CHANGE THE ON-SCREENLANGUAGE . . . . . . . . . . 17 CLOCK SET UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

PLAYBACK FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

NORMAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 AUTO REPEAT PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . 18 SEARCH FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

RECORDING FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . 19

NORMAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 OTR (One Touch Recording) . . . . . . . . . . . . . . . . . . . . . . . . . 19 TIMER RECORDING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 HINTS FOR TIMER RECORDING . . . . . . . . . . . . . . . . . . . 20

SPECIAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

COPYING A VIDEO TAPE. . . . . . . . . . . . . . . . . . . . . . . . . . 21 MTS (Multi-ChannelTelevision Sound) SYSTEM . . . . . . . . 21 AUTO REWIND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 REAL TIME TAPE COUNTER. . . . . . . . . . . . . . . . . . . . . . . 22

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 GENERAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 DISC MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 STEP BY STEP PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . 23 RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 FAST FORWARD / REVERSE SEARCH . . . . . . . . . . . . . . . 23 SLOW FORWARD / SLOW REVERSE . . . . . . . . . . . . . . . . 23 ZOOM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 TRACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 TITLE / CHAPTER SEARCH. . . . . . . . . . . . . . . . . . . . . . . . 24 TIME SEARCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 ON-SCREENINFORMATION . . . . . . . . . . . . . . . . . . . . . . . 26 TRACK SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 STEREO SOUND MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 CHANGING THEON-SCREENDISPLAY . . . . . . . . . . . . . 28 PARENTAL CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 MARKER SETUP SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . 29

DVD SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

AUDIO SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 BLACK LEVEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . 30 VIRTUAL SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 DISPLAY SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 LANGUAGE SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . 32MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INDICE

CONTROLES DEL FUNCIONAMIENTO Y SUS FUNCIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35CAMBIO DE VCR/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38CONEXIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

DVD/VCR A CONEXIÓN DE TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CANAL DE SALIDA DE RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CONECTANDO A UN TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CONECTANDO A UN TV QUE TIENE TOMA DE ENTRADA DE S-VÍDEOo TOMAS DE ENTRADA DE VÍDEO COMPONENTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CONECTANDO A UN AMPLIFICADOR EQUIPADO CON TOMAS DE ENTRADA DIGITAL, TALES COMO PLATINA MD O PLATINA DAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CONECTANDO A UN DESCODIFICADOR DIGITAL DOLBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CONECTANDO A UN AUDIO ANALÓGICO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

PREPARACIÓN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

PREPARACIÓN DE CANAL AUTOMÁTICA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 PREPARACIÓN DE RELOJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

REPRODUCCIÓN DE UN DISCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

REPRODUCIENDO UN DVD, VIDEO O UN CD AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

– 5 –

EN

1L25

FEATURES

DVD Mode

¡Dolby Digital sound

This DVD/VCR COMBINATION UNIT can output a Dolby Digital audio signal.

¡Still/fast/slow/step playback

¡Random playback for audio CD and MP3

¡Program playback for audio CD and MP3

¡DVD menus in a desired language

¡Screen saver/Autopower-offfunctions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 30 minutes, the power automatically turns off.

¡Subtitles in a desired language

¡Selecting a camera angle

¡Choices for audio language and sound mode

¡Parental lock

¡Automatic detection of discs

This player automatically detects if the loaded disc is DVD, audio CD or MP3 on disc.

¡Playback MP3 disc

¡Direct Search

¡On-screendisplay

Information about the current operation can be displayed on the TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Zoom

¡Marker

The part designated by user can be called back.

¡Resume Play

¡Virtual Surround Sound

¡Component Video Out Jacks

Jacks located on the back of the DVD/VCR COMBINATION UNIT which are used to send high-qualityvideo to a TV via Component Video In Jacks.

¡Bit rate indication

¡DRC (Dynamic range control)

You can control the range of sound volume.

¡Black Level Setting

VCR Mode

Hardware specifications

¡Auto Head Cleaner

¡4 Head HiFi Stereo

¡Trilingualon-screenmenu display selectable in

English, French, or Spanish

¡181 channel capability PLL frequency synthesizer tuner with direct station call

(A cable converter box may be necessary to view scrambled cable channels.)

Automatic functions

¡Auto power on system

Automatically turns the VCR on when you insert the cassette.

¡Digital Auto Tracking (DTR)

Playback

¡Auto Repeat

¡2 Step Picture Search Operation

¡Index Search

¡Time Search

Recording

¡1 Year, 8 events (including Daily and Weekly Timer

Recording)

¡OTR (One Touch Recording)

PRECAUTIONS

INSTALLATION LOCATION

For safety and optimum performance of your DVD/VCR COMBINATION UNIT:

Install the DVD/VCR COMBINATION UNIT in a horizontal and stable position. Do not place anything directly on top of the DVD/VCR COMBINATION UNIT. Do not place the DVD/VCR COMBINATION UNIT directly on top of the TV.

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the DVD/VCR COMBINATION UNIT. Avoid locations subject to strong vibration or strong magnetic fields.

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on your DVD/VCR COMBINATION UNIT, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the DVD/VCR COMBINATION UNIT cassette holder.

MOISTURE CONDENSATION WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the DVD/VCR COMBINATION UNIT at least for 2 hours until its inside is dry.

– 6 –

EN

1L25

ABOUT THE DISCS

PLAYABLE DISCS

DISC TYPES

The following discs can be played back on this DVD/VCR COMBINATION UNIT.

¡DVD video

¡DVD-R/RW*

¡DVD+R/RW*

¡Audio CD

¡CD-R/RW*

¡MP3*

*Depending on the types or the writing method of the medium some discs can not be played.

Some DVD-R/RW,DVD+R/RW, orCD-R/RWdiscs made on personal computers, or on DVD recorders may not be played back properly due to factors such as scratches, dirt or special properties of the disc.

Discs made on personal computers may not be played back properly due to different environments or the settings of the application you use. We recommend always to use the standardized, properly formatted discs. (Please contact the sales agency for more detail).

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

¡Some discs include region codes as shown below.

¡The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on DVD/VCR COMBINATION UNIT with the same region code.

The following discs cannot be played back on this DVD/VCR COMBINATION UNIT.

¡DVD with region codes other than 1 or ALL.

¡DVD-ROM

¡DVD-RAM(Never play back, otherwise malfunction may result.)

¡CD-ROM

¡VSD

¡CDV (Only plays back the audio part.)

¡CD-G(Only plays back the sound.)

¡CD-I(Never play back, otherwise malfunction may result.)

¡SACD

¡Photo CD (Never play back, otherwise malfunction may result.)

¡Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications.

[DVD]

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected does not run as desired, refer to the manual accompanying the disc.

Example

Title 1

Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 4

Chapter 1 Chapter 2

[AUDIO CD]

Data on an audio CD is divided into sections called “tracks”, each of which is given a track number.

Example

Track 1

Track 2

Track 3

Track 4

Track 5

Track 6

[MP3]

Data on an MP3 is divided into sections called "groups", and then into subsections called "tracks", each of which is given a group or track number.

Example

Group 1

Group 2

Track 1 Track 2 Track 3 Track 4

Track 1 Track 2

– 7 –

EN

1L25

OPERATING CONTROLS AND FUNCTIONS

FRONT PANEL 1

2

3 4 5

6 7 8













POWER



OPEN/CLOSE





















CHANNEL

STOP/EJECT













PLAY

DVD

VCR

VIDEO

L

AUDIO

R





OUTPUT













DVD

DVD

VCR TIMER REC REC



STOP

PLAY



REW

F.FWD



21

19

18

16 14

12



10

22

20





17 15

13

11

9

REMOTE CONTROL

















7.

POWER Light



















This light appears when the power is on.



23











52

8.

STOP/EJECT Button (VCR)



24

POWER

SPEED

AUDIO









EJECT Button





























Press to remove the tape from the VCR.





1

2

3



51





STOP Button











SKIP/CH.







Press to stop the tape motion.



25

4

5

6







9.

PLAY Button(VCR) [page 18]









VCR/TV







7

8

9



50



Press to begin playback.









10.











SLOW

49



CHANNEL Buttons [page 16]







0

+10







In VCR mode, press to change TV channels on the



26

DISPLAY

DVD

VCR

PAUSE



48



VCR; press to adjust the tracking during normal or slow











47



motion playback; press to remove vertical jitter in a Still



27























46



picture.

















28



PLAY



45

11.

AUDIO In Jacks [page 21]

















STOP







Connect audio cables coming from the audio out jacks



29



























of a camcorder, another VCR, or an audio source here.





RECORD















30









44

12.

VIDEO In Jack [page 21]















31

MENU







43





Connect a video cable coming from the video out jack







ENTER







of a camcorder, another VCR, or a video source (laser



32

SETUP

TITLE



RETURN



42



disc player, camcorder, etc.) here.



33











13.



34

MODE

ZOOM

SEARCH

CLEAR/





F.FWD Button (VCR) [page 18]







MODE

C.RESET

41





Press to rapidly advance the tape, or view the picture



35









40





36

SUBTITLE ANGLE REPEAT

A-B

39



rapidly in forward during playback. (Forward Search).













14.

REW Button (VCR) [page 18]



37

T-SET









38



Press to rewind the tape, or to view the picture rapidly

































in reverse during the playback mode (Rewind Search).

1.

Disc loading tray











15.

REC/OTR Button [page 19]

2.

OPEN/CLOSE Button [page 22]







Press once to start a recording. Press repeatedly to start



Press to insert discs into or remove them from the tray.



a One-TouchRecording.

3.

DVD OUTPUT Light (Green) [page 12]



16.

REC Light [page 19]



This light appears when the DVD output mode is select-



Lights up during recording.



ed. You can only watch DVDs when the green DVD

17.

TIMER REC Light [page 20]



OUTPUT light is on. To make the green DVD OUT-



This light appears when the DVD/VCR is in standby



PUT light come on, press DVD on the remote control or



mode for a timer recording or during a One-Touch



OUTPUT on the front panel.









Recording. It flashes if T-SETis pressed for a timer

4.

VCR OUTPUT Light (Green) [page 12]





recording, but there is no tape in the DVD/VCR. It



This light appears when the VCR output mode is select-



flashes when all timer recordings or One-Touch



ed. You can only watch tapes when the green VCR



Recordings are finished.



OUTPUT light is on. To make the green VCR OUTPUT







light come on, VCR on the remote control or OUTPUT







on the front panel.















5.CASSETTE COMPARTMENT

6.POWER Button [page 16]

Press to turn the power on and off.

– 8 –

EN

1L25

18.OUTPUT Button [page 12]

Press to select DVD mode or VCR mode.

You can switch the output mode either by pressing OUTPUT on the front panel, or by pressing DVD or VCR on the remote control. However, if you press

OUTPUT on the front panel first, you need to reselect the corresponding mode by pressing DVD or VCR on the remote control.

19.Remote Sensor Window

20.Display

21.PLAY Button (DVD) [page 22]

Press to begin playback.

22.STOP Button (DVD) [page 22]

Stops operation of the disc.

23.SPEED Button [page 19]

Press to select the VCR’s recording speed (SP or SLP)

24.POWER Button

Press to turn the power on and off.

25.Number Buttons

DVD mode [page 24]

Press to select numbered items in a menu.

+10

Use this button to enter number 10 and above.

VCR mode [page 16]

Press to select TV channels on the VCR.

To select channels, enter channel numbers as a twodigit number for the quickest results. For example, to select channel 6, press 0 then 6.

26.DISPLAY Button

DVD mode [page 28]

Press to access or remove the display screen during DVD or Audio CD playback.

VCR mode [page 21]

Press to access or remove the VCR’s on-screenstatus display.

27.DVD Button [page 12]

Press to select DVD mode for the remote control.

You can switch the OUTPUT mode either by pressing OUTPUT on the front panel, or by pressing DVD or

VCR on the remote control. However, if you press

OUTPUT on the front panel first, you need to reselect the corresponding mode by pressing DVD or VCR on the remote control.

28.h Button

DVD mode [page 23]

Press to view the DVD picture in fast reverse motion. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the reverse speed of slow motion.

VCR mode [page 18]

Press to rewind the tape, or to view the picture rapidly in reverse during the playback mode (Rewind Search).

29.STOP Button

DVD mode

Press to stop the disc motion.

VCR mode

Press to stop the tape motion.

30.RECORD Button [page 19]

Press once to start a recording.

31.MENU Button

DVD mode [page 23]

Press to display the menu of the Disc.

VCR mode [page 17]

Press to access the VCR menu.

32.TITLE Button [page 23]

33.SETUP Button [pages 28-31]

Press to enter DVD player setup mode.

34.ZOOM Button [page 24]

Enlarges part of a DVD-reproducedimage.

35.MODE Button [pages 26, 27, and 30]

Activates program playback or random playback mode when playing CDs or MP3. Sets Black level and virtual surround.

36.SUBTITLE Button [page 27]

Press to select the desired subtitle language.

36.T-SETButton [page 20]

Press to put the VCR into standby mode for a timer recording.

37.ANGLE Button [page 27]

Press to change the camera angle to see the sequence being played back from a different angle.

38.REPEAT Button [page 25]

Repeats playback of the current disc, title, chapter or track.

39.A-BREPEAT Button [page 25]

Repeats playback of a selected section.

40.SEARCH MODE Button

DVD mode [page 24]

Press to access or remove the Search display, which allows you to go directly to a specific Title/Chapter/Track/Time.

VCR mode [page 18]

Press to perform a Time Search or an Index Search.

41.CLEAR/C.RESET Button

DVD mode [pages 24, 25]

Press to reset the setting.

VCR mode [page 18]

Press to reset the counter. Press to exit from the MENU screen.

42.RETURN Button [page 30]

DVD mode

Returns to the previous operation.

43.Arrow Buttons

Use when making settings while watching the display on a TV screen.

VCR mode [page 16] p/oButtons

Press to enter digits when setting program (For example: setting clock or timer program). Press to select the setting modes from the on screen menu.

BButton

When setting program (For example: setting clock or timer program), press to determine your selection and proceed to the next step you want to input. Press to determine the setting modes from the on screen menu. Press to add or delete channel numbers during channel preset.

sButton

Press to cancel a setting of timer program. Press to correct digits when setting program (For example: setting clock or timer program). Press to add or delete channel numbers during channel preset.

44.ENTER Button

DVD mode [page 22]

Press to accept a setting.

– 9 –

EN

1L25

45.g Button

DVD mode [page 23]

Press to fast forward the Disc. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the forward speed of slow motion.

VCR mode [page 18]

Press to rapidly advance the tape, or view the picture rapidly in forward during playback (Forward Search).

46.PLAY Button

DVD mode

Press to begin playback.

VCR mode

Press to begin playback.

47.VCR Button [page 12]

Press to select VCR mode for the remote control.

You can switch the OUTPUT mode either by pressing OUTPUT on the front panel, or by pressing DVD or VCR on the remote control. However, if you press

OUTPUT on the front panel first, you need to reselect the corresponding mode by pressing DVD or VCR on the remote control.

48.PAUSE Button

DVD mode [page 22]

Press to pause Disc playback. Press repeatedly to advance the DVD picture step by step (or one frame at a time).

VCR mode [page 19]

While recording, press to temporarily stop the recording (pause). Press a second time to resume normal recording. You can not pause a One-TouchRecording. Or, press during tape playback to freeze the picture. Press to advance the picture one frame at a time during still mode.

49.SLOW Button [page 18]

During tape playback, press to view the video tape in slow motion. Press again to resume normal playback. This button does not affect DVD playback.

50.VCR/TV Button [page 19]

Use to select VCR or TV position.

VCR Position

To view playback, to monitor video recordings or to watch TV using the VCR tuner.

TV Position

To watch TV or to view one program while recording another.

51.SKIP/CH. Buttons

DVD mode

Press to skip Chapters or Tracks.

VCR mode

Press to change TV channels on the VCR.

52.AUDIO Button [page 27]

Press to select a desired audio language or sound mode.

Notes

¡To use the remote control to operate the DVD/VCR COMBINATION UNIT and its features, press DVD on the remote control before pressing other DVD’s operation buttons. Verify that the green DVD OUTPUT Light is on.

¡To use the remote control to operate the VCR and its features, press VCR on the remote control before pressing other VCR’s operation buttons. Verify that the green VCR OUTPUT Light is on.

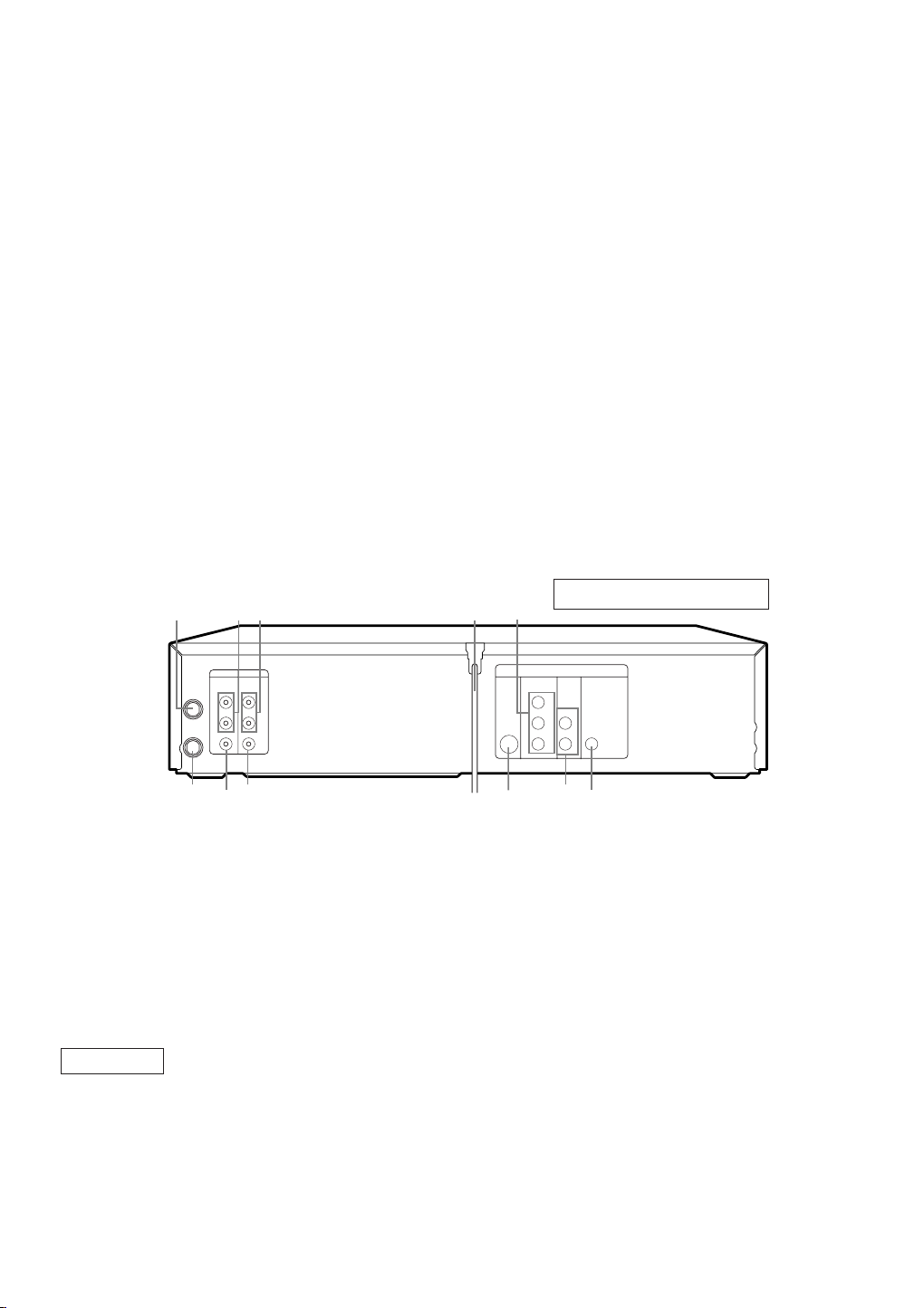

REAR VIEW

53

54 55

56

57

DVD/VCR VCR

AUDIO OUT AUDIO IN

ANT-IN

L L

R R

ANT-OUTVIDEO OUT VIDEO IN

6665 61

53.ANT-IN(Antenna In) Jack

Connect your antenna, Cable Box, or Satellite decoder box.

54.DVD/VCR AUDIO OUT Jacks

Connect the supplied audio cables here and to the Audio In jacks of a television or other audio equipment.

55.AUDIO IN Jacks

Connect audio cables coming from the audio out jacks of a camcorder, another VCR, or an audio source here.

DVD



S-VIDEOCOMPONENT

AUDIO

DIGITAL

OUT VIDEO OUT

OUT

AUDIO OUT

Y





Cb

L







COAXIAL

Cr

R



60 59 58

56.AC Power Cord

Connect to a standard AC outlet to supply power to the DVD/VCR COMBINATION UNIT.

DVD Playback only

57.COMPONENT VIDEO OUT Jacks

Connect optional component video cables here and to the component Video In jacks of a television.

58.COAXIAL Jack

Connect an optional coaxial digital audio cable here and to the Coaxial Digital Audio In jack of a decoder or audio receiver.

– 10 –

EN

1L25

59.DVD ANALOG AUDIO OUT Jacks

Connect the supplied audio cables here and to the Audio In jacks of a television or other audio equipment (DVD only).

60.S-VIDEOOUT Jack

Connect an optional S-Videocable here and to the S- Video In jack of a television. (DVD only)

61.VIDEO IN Jack

Connect a cable coming from the video out jack of a camcorder, another VCR, or an audio-visualsource (laser disc player, video disc player, etc.) here.

62.DVD/VCR VIDEO OUT Jack

Connect the yellow video cable (supplied) here and to the TV’s Video In jack.

63.ANT-OUT(Antenna Out) Jack

Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN Jack on your TV.

Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the player.

DISPLAY

DVD

Stays on when the A-Brepeat function is on.

Stays on when the repeat function is on.

Stays on when repeat title function is on.

Lights up when the inserted disc comes to a pause.

Stays on when the inserted disc is being played back.

Lights up when a DVD is inserted into the tray.

Stays on when repeat track function is on.

Stays on when repeat chapter function is on.

Lights up when a CD is inserted into the tray.

Displays how long a current title

or track has been played back. When a chapter or track has switched, the number of the a title, chapter or track is displayed.

VCR

Stays on during playback when the repeat function is on.

Lights up when the playback is in a still or in a slow mode.

Works as a clock, or a tape counter. Stays on when the inserted Also displays a channel number, cassette is being played back. and remaining time for OTR

DISPLAYS DURING OPERATION

No disc inserted or playing

DVD menu

Tray open

Tray closed

Loading the Disc

LOADING THE BATTERIES

1. Open the battery compartment cover.

2. Insert two AA batteries, with each one oriented correctly.

3. Close the cover.

Notes

¡Do not mix alkaline and manganese batteries.¡Do not mix old and new batteries.

– 11 –

EN

1L25

VCR/DVD SWITCHING

Because this product is a combination of a VCR and DVD player, you must first select which component you wish to operate with the OUTPUT BUTTON.

VCR MODE

DVD MODE

Press VCR on the remote control. (Verify that the VCR OUTPUT Light is lit.)

Notes

Press DVD on the remote control. (Verify that the DVD OUTPUT Light is lit.)

¡Pressing only OUTPUT on the front panel does not switch the mode of the remote control. You always need to select the correct mode on the remote control too.

POWER

CHANNEL STOP/EJECT

POWER SPEED AUDIO

PLAY



DVD





VCR

VIDEO

L AUDIOR





OUTPUT







DVD

DVD

VCR TIMER REC REC







STOP

PLAY



REW



F.FWD



DVD button

DVD OUTPUT Light

VCR button

OUTPUT

DVD

VCR TI

VCR OUTPUT Light

1

2

3





SKIP/CH.

4

5

6





VCR/TV

7

8

9





SLOW



0

+10

DISPLAY

DVD

VCR PAUSE

PLAY

STOP

RECORD

MENU

ENTER

OUTPUT button

SETUP

TITLE



RETURN

MODE

ZOOM

SEARCH

CLEAR/

MODE

C.RESET





SUBTITLE ANGLE REPEAT A-B

T-SET

– 12 –

EN

1L25

HOOKUPS

CAUTION:

¡Be sure to turn off the DVD/VCR COMBINATION UNIT and equipment to be connected.¡Read through the operation manual for the equipment to be connected.

¡Be sure that the colors of the jacks and plugs match up when using VIDEO/AUDIO cables.

¡Be sure to keep the DVD/VCR COMBINATION UNIT connection cables separate from the TV antenna cable when you install the DVD/VCR COMBINATION UNIT, because it may cause electrical interference when you are watching television programs.

CONNECTING TO A TV WITHOUT A/V TERMINALS

1.Disconnect the AC power cord of the TV from the AC outlet.

2.Disconnect the antenna or cable from the TV.

3.Connect the antenna or cable to the ANT-INjack of the DVD/VCR COMBINATION UNIT.

4.Connect the DVD/VCR COMBINATION UNIT to the TV using the RF cable.

5.Plug the AC power cords of the DVD/VCR COMBINATION UNIT and TV into the AC outlets.

[VHF/UHF

[Indoor antenna]

combination antenna]



OR

[Cable box or satellite box] OR

From Cable or

IN

OUT





Satellite Company





[Back of the DVD/VCR]





[Back of the





UHF/VHF combination TV]

DVD/VCR

VCR

RF cable

ANT-IN



(supplied)

AUDIO OUT AUDIO IN



L

L

UHF/VHF

R

R



ANT-OUT VIDEO OUT

VIDEO IN



RF OUTPUT CHANNEL for DVD/VCR

1.Connect the DVD/VCR COMBINATION UNIT to a TV using RF cable (see above steps).

2.Select channel 3 on your TV.

3.Press PLAY.

¡If noise appears, change the RF output channel of the DVD/VCR COMBINATION UNIT to channel 4 by pressing PLAY on the VCR for 3 seconds during playback.

¡There is case that the RF output channel does not change by situation (For example, when you adjust tracking using CHANNEL() ).

In this case, stop the playback, and start the playback again. After that, press PLAY on the VCR for 3 seconds.

¡If there is a power failure or the DVD/VCR COMBINATION UNIT is unplugged for more than 30 seconds, the RF output channel setting will return to CH3.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

CONNECTING TO A TV WITH A/V TERMINALS



DVD/VCR

VCR





DVD



Antenna/Cable signal

AUDIO OUT

AUDIO IN



S-VIDEOCOMPONENT AUDIO

DIGITAL

ANT-IN





OUT

VIDEO OUT

OUT

AUDIO OUT



L



L



Y





A/V-compatibleor

ANT-OUT VIDEO OUT

VIDEO IN

R



Cb

L

COAXIAL



R







wide screen TV









Cr

R



To ANT. IN















of TV















To VIDEO INPUT jack

To VIDEO OUT jack









To Right (red) and Left (white)







[Fig. 1]

To AUDIO INPUT jacks To AUDIO OUT jacks







Notes

¡Connect the DVD/VCR COMBINATION UNIT directly to a TV. If the A/V cables are connected into a VCR first, picture may be distorted due to the copy protection system.

– 13 –

EN

1L25

CONNECTING TO A TV THAT HAS AN S-VIDEOINPUT JACK OR

COMPONENT VIDEO IN JACKS

FOR TVs WITH S-VIDEOINPUT JACK

Use an S-Videocable (commercially available) in place of the yellow video cable to enjoy higher quality pictures.

The S-Videoconnection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION UNIT. Therefore, in order to use the VCR features or view TV channels on the DVD/VCR COMBINATION UNIT, you still need to either connect the RF cable between theANT-OUTjack of the DVD/VCR COMBINATION UNIT and the TV’s Antenna In jack, or connect the yellow video cable as described earlier (Fig.1). To connect the supplied RF cable, see page 13.

A/V-compatibleor wide screen TV

DVD/VCR

VCR

DVD



AUDIO OUT

AUDIO IN

S-VIDEOCOMPONENT AUDIO

DIGITAL





OUT VIDEO OUT OUT

AUDIO OUT

ANT-IN









L

L

Y





R

R

Cb

L



ANT-OUTVIDEO OUT

VIDEO IN



COAXIAL













Cr

R



To S-VIDEOINPUT jack

To S-VIDEOOUT jack





To Right (red) and Left (white)





[Fig. 2]

To AUDIO INPUT jacks

To AUDIO OUT jacks

FOR TVs WITH COMPONENT VIDEO IN JACKS

Use a component video cable (commercially available) in place of the yellow DVD/VCR video cable and S- VIDEO jack to enjoy higher quality pictures.

The component video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION UNIT. Therefore, in order to use the VCR features or view TV channels at the DVD/VCR COMBINATION UNIT, you still need to either connect the RF coaxial cable between the ANT-OUTjack of the DVD/VCR COMBINATION UNIT and the TV’s Antenna In jack, or connect the yellow VCR video cable as described earlier (Fig. 1). To connect the supplied RF cable, see page 13.

A/V-compatibleor

wide screen TV

To Right (red) and Left (white)

To Right (red) and Left (white)

AUDIO INPUT jacks

AUDIO OUTPUT jacks



DVD/VCR

VCR



DVD





AUDIO OUT

AUDIO IN

S-VIDEOCOMPONENT

AUDIO

DIGITAL







OUT

VIDEO OUT

OUT

AUDIO OUT

ANT-IN

L

L













Y







R

R



Cb

L



ANT-OUT

VIDEO OUT

VIDEO IN







COAXIAL









Cr

R



To COMPONENT VIDEO

To COMPONENT VIDEO

[Fig. 3]

INPUT jacks

OUT jacks

CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK

Use an audio coaxial digital cable (commercially available) for the audio connections. Connecting to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.

(Stereo Receiver)

DVD/VCR

VCR

OUT

VIDEO OUT

DVD

AUDIO OUT



AUDIO OUT

AUDIO IN

OUT





S-VIDEOCOMPONENT AUDIO

DIGITAL



Amplifier equipped with digital

ANT-IN













L

L



Y







input jacks, MD deck,

R

R



Cb

L





DAT deck, etc.

ANT-OUTVIDEO OUT

VIDEO IN







COAXIAL



















Cr

R







To COAXIAL DIGITAL AUDIO INPUT jack



To COAXIAL DIGITAL

[Fig. 4]





AUDIO OUT jack

Notes

¡The audio source on a disc in the 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or DAT deck.

¡Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a DVD disc using incorrect settings may generate noise distortion, and may also damage the speakers. (See page 29 to set DOLBY DIGITAL to OFF.)

– 14 –

EN

1L25

CONNECTING TO A RECEIVER WITH DOLBY DIGITAL DECODER

If using this DVD/VCR COMBINATION UNIT to play a DVD disc in 5.1 channel Dolby Digital surround, the DVD/VCR COMBINATION UNIT outputs a Dolby Digital data stream from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the DVD/VCR COMBINATION UNIT up to a Dolby Digital receiver, you can enjoy a more convincing, realistic ambience with powerful and high-qualitysurround sound as heard in movie theaters. Use an audio coaxial digital cable (commercially available) for the audio connections.

DVD/VCR

VCR

DVD



AUDIO OUT

AUDIO IN

S-VIDEOCOMPONENT

DVD

DIGITAL





OUT VIDEO OUT

AUDIO OUT

AUDIO OUT

ANT-IN









L

L

Y





R

R

Cb

L



ANT-OUT VIDEO OUT

VIDEO IN





COAXIAL











Cr

R



Center speaker

Front speaker



Front speaker

To COAXIAL DIGITAL

(left)

(right)

AUDIO OUT jack





Receiver with





Dolby Digital Decoder

To COAXIAL DIGITAL



AUDIO INPUT jack

Surround

Surround

Subwoofer

speaker

speaker



(left)

(right)



[Fig. 5]

¡If the output is Dolby Digital audio, connect to a Dolby Digital decoder, and set Dolby Digital to ON for audio output in the setup mode.

¡Unless connected to a Dolby Digital receiver, set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-Dsymbol are trademarks of Dolby Laboratories.

CONNECTING TO AN ANALOG AUDIO SYSTEM

DVD/VCR

VCR

ANT-IN AUDIO OUT

AUDIO IN To AUDIO OUT jacks

L



R



ANT-OUT VIDEO OUT

VIDEO IN

Stereo system

To Right (red) and Left (white) AUDIO INPUT jacks

or

To ANALOG AUDIO INPUT jacks

DVD

S-VIDEOCOMPONENT

DVD

DIGITAL

OUT VIDEO OUT

AUDIO OUT

AUDIO OUT

Y





Cb









COAXIAL

Cr





To Right (red) and Left (white)

[Fig. 6]

ANALOG AUDIO OUT jacks



Notes

¡Be sure to turn off the power to all components in the system before connecting another component.¡Refer to the Owner's Manuals for stereo systems and any other components to be connected to the DVD/VCR

COMBINATION UNIT.

– 15 –

EN

1L25

SETUP

AUTOMATIC CHANNEL SET UP

VCR

You can automatically program the tuner to scan only the channels you receive in your area.

¡Channel memory programming is NOT needed when you connect the VCR to a cable box or a satellite box as in "CONNECTING TO A TV WITHOUT A/V TERMINALS" on page 13. In this case, select channel 3 on your TV. Then, the channel you want to record or view may be selected at the cable box or satellite box.

¡If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 seconds during playback. Then select the same channel (CH4) on your TV.

¡Follow the steps below once. Repeat only if there is a power failure or if the VCR is unplugged for more than 30 seconds. (In these cases, the programmed channels are erased.)

¡You must follow the steps below before attempting to play or record a video tape. If you want to play or record a video tape BEFORE programming the tuner, you can cancel it by pressing CLEAR/C.RESET.

1You need to connect the antenna or cable to the VCR first. Then, connect the DVD /VCR power plug to a standard AC outlet.

2Turn on the TV and set the TV to channel 3.

¡If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 seconds during playback. Then select the same channel (CH4) on your TV. (See “RF OUTPUT CHANNEL” on page 13 for the detail.)

3Turn on the VCR by pressing POWER. the POWER light will come on.

4Select the On Screen Language (“ENGLISH”, “FRANCAIS” or

“ESPAÑOL”) by pressing K orL. Then, pressB.

5Begin channel preset by pressing Bonce.

The tuner scans and memorizes all active channels in your area.

CH 01

¡The VCR distinguishes between

AUTO SET UP

standard TV channels and cable channels.

6After scanning, the tuner stops on the lowest memorized channel. The TV screen returns to TV mode.

¡If “AUTO SET UP” appears on the TV screen again, check the cable connections. PressBonce again and the VCR will begin preset again.

TO SELECT A DESIRED CHANNEL

You can select the desired channel by using CHANNEL (o/p) or by directly pressing Number on the remote control.

Note for using the Number:

¡When selecting cable channels which are higher than 99, enter channel numbers as athree-digitnumber.(For example: 117, press 1,1,7)

¡You must precedesingle-digitchannel numbers with a zero (For example: 02, 03, 04 and so on).

TO PRESET THE CHANNELS AGAIN

1Press MENU until the main menu appears. (If you have already set the clock, you only have to press it once. If not, you have to press it twice).

2Select “CHANNEL SET UP” by pressing K orL. Then, pressB.

3Select “AUTO SET UP” by pressing K orL. Then, pressB.

¡After scanning, the tuner stops on the lowest memorized channel.

– 16 –

EN

1L25

TO ADD/DELETE CHANNELS

When scanning, some channels may be skipped due to a weak signal. In such cases, you can add the channels to the VCR memory manually.

1 Press MENU until the main menu appears.

(If you have already set the

- MENU -



clock, you only have to

TIMER PROGRAMMING

AUTO REPEAT

[OFF]



CHANNEL SET UP



press it once. If not you

CLOCK SET



AUDIO OUT





LANGUAGE SELECT

have to press it twice).

TV STEREO

[ON]

SAP







2Select "CHANNEL SET UP" by pressing K orL. Then, pressB.

CLOCK SET UP

VCR

1 Select main menu by pressing MENU.

¡If the clock is not set, the CLOCK SET menu appears first. In this case, follow step [3].

2Select "CLOCK SET" by pressing K orL. Then, pressB.

3Set the clock.

3Select "MANUAL SET UP" by pressing K orL. Then, pressB.

4Enter the desired channel number by pressing K orL.

5Add or Delete it from memory by pressing B ors so that "ADD" or "DELETE" flashes on the TV screen accordingly.

6Exit the Preset mode by pressing CLEAR/C.RESET.

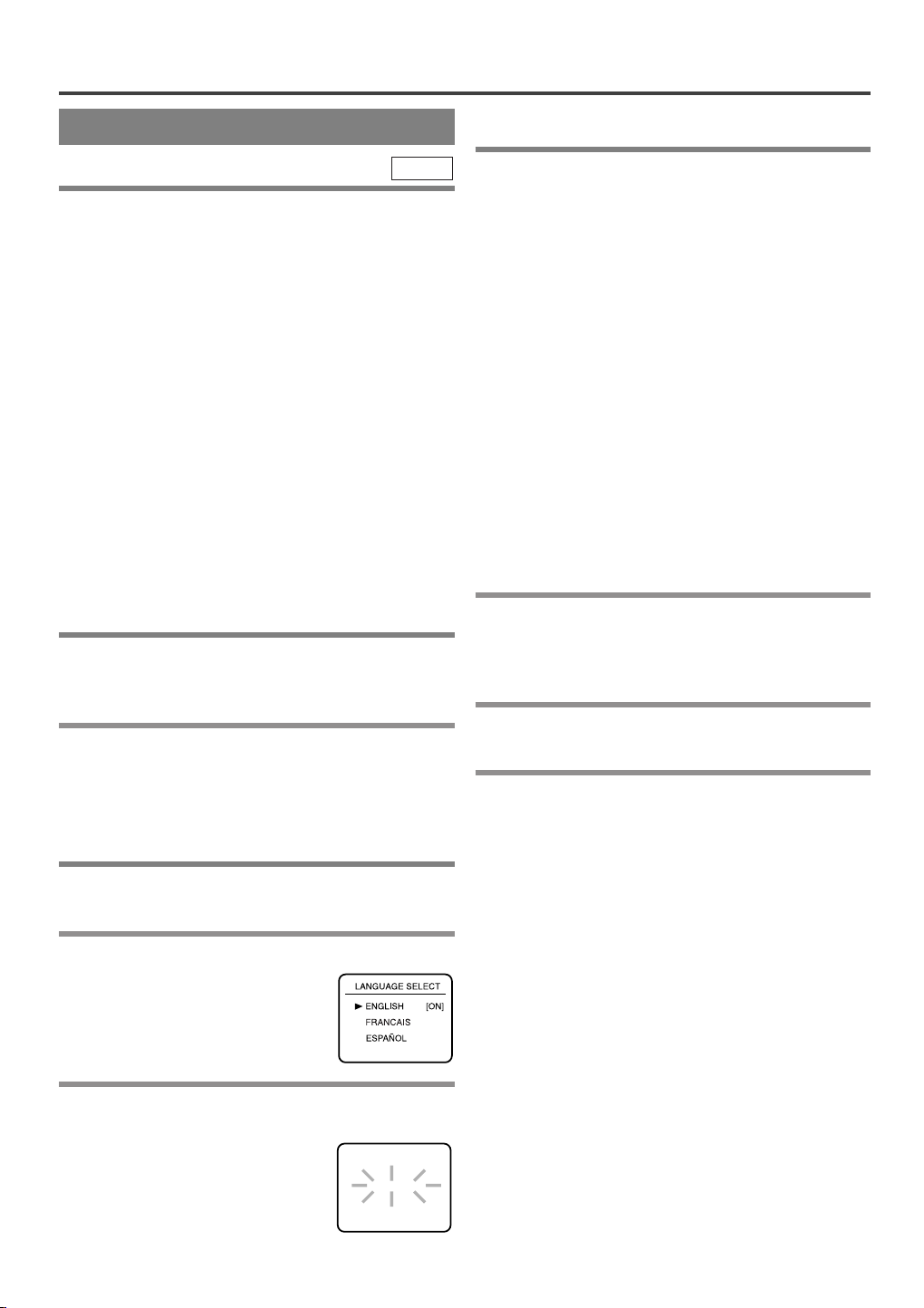

TO CHANGE THE ON-SCREEN

LANGUAGE

VCR

1Press MENU twice to call up the main menu. (If you have already set the clock, you only have to press it once).

2Select "LANGUAGE SELECT" by pressing K orL. Then, pressB.

3Select "ENGLISH", "FRANCAIS" or "ESPAÑOL" by pressing K orL. Then, press

CLEAR/C.RESET.

¡If you accidentally select Spanish or French and need English: Press MENU and choose SELEC. IDIOMA, or SELECTION LANGUE. PressB, and select ENGLISH by pressingKor L.

Finally, press CLEAR/C.RESET.

1) Set the month

Press K or L repeatedly.

Then, press B.

2) Set the day

Press K or L repeatedly.

Then, press B.

3) Set the year

Press K or L repeatedly. Then, press B.

The day of the week will appear automatically.

4) Set the hour

Press K or L repeatedly. Then, press B.

5) Set the minute

Press K or L repeatedly. Then, press B.

6) Set AM or PM

Press K or L repeatedly.

CLOCK SET

MONTH

DAY

YEAR

03

/ 17 MON

2003

HOUR



MINUTE

AM/PM

05

:

40

PM AM







PM

¡To go back one step, presss.

4Start the clock by pressing CLEAR/C.RESET or B.

– 17 –

EN

1L25

INDEX SEARCH 03

PLAYBACK FUNCTION

NORMAL PLAYBACK

VCR

1 Insert a prerecorded tape. The VCR will turn

on.

¡If the safety tab has been removed, the VCR will start playback automatically.

2Turn on the TV and set the TV to channel 3.

¡If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 seconds during playback. Then select the same channel (CH4) on your TV. (See “RF OUTPUT CHANNEL” on page 13 for the detail.)

3Begin playback by pressing PLAY.

¡Tracking adjustment will be done automatically (Digital Tracking function) when you start playback. To adjust the tracking manually, press SKIP/CH. on the remote or CHANNEL (o/p) on the VCR.

¡When a tape has reached the end, the VCR will rewind the tape to the beginning, and eject the tape.

4 To stop playback, press STOP.

¡If no corresponding symbols appear on the display when you press buttons such as PLAY, RECORD,D orE, that means no cassette tape is in the VCR. Please insert a tape.

Counter Reset

¡You can reset the counter by pressing CLEAR/C.RESET on the remote control twice.

STILL/SLOW

You can freeze the picture on TV screen by pressing PAUSE during playback.

¡You can advance the picture one frame at a time by pressing PAUSE during the Still mode.

¡You cannot manually adjust the tracking of a still picture. However, if the picture begins to vibrate vertically during the still mode, you can stabilize the picture by pressing CHANNEL (o/p).

¡If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if so equipped.

¡You can watch in the slow motion by pressing SLOW during playback or the still mode.

¡If a noise bar appears on the TV screen, you can reduce it by pressing CHANNEL (o/p).

¡After the VCR has been in Still/Slow mode for 5 minutes, it will stop automatically to protect the tape and the video head from damage.

¡To return to playback, press PLAY.

AUTO REPEAT PLAYBACK

VCR

This feature allows you to play a tape over and over.

1 Select main menu by pressing MENU.

2Select "AUTO REPEAT" by pressing K orL.

3Begin auto repeat playback by pressing B so that ON appears next to "AUTO

REPEAT".

¡If theon-screenmenu still remains, CLEAR/C.RESET to exit the menu.

¡To cancel the Auto repeat mode, pressB at step [3] so that OFF appears next to "AUTO REPEAT".

SEARCH FUNCTIONS

VCR

PICTURE SEARCH

If you want to skip or repeat a scene during playback, press D orE.

¡Press it again and the VCR will now search at super high speed. (in the LP/SLP modes only).

INDEX SEARCH

An index mark will be assigned at the beginning of each recording you made. You may skip to a specific marked point by following the steps below.

1Press SEARCH MODE so that the Index Search menu appears.

2Enter the number of recordings you wish to

skip by pressing K orL within 30 seconds.

3 PressB or{ to start index search.

¡If you want to go in the forward direction, pressB.¡If you want to go in the reverse direction, press{.¡If you want to stop search function, press STOP.

¡After index search, the VCR will play the tape automatically.

TIME SEARCH

This feature allows you to go to a specific point on a tape by entering the exact amount of time you wish to skip in order to reach the point.

1Press SEARCH-MODEso that the Time Search menu appears.

2 Enter your desired time to

TIME SEARCH

skip by pressing K orL

2 : 50



within 30 seconds.



3 PressB or{ to start time search.

¡If you want to go in the forward direction, pressB.¡If you want to go in the reverse direction, press{.¡If you want to stop search function, press STOP.

¡After time search, the VCR will play the tape automatically.

– 18 –

EN

1L25

Record safety tab

RECORDING FUNCTION

VCR

It may be UNLAWFUL to record copyrighted material without the consent of the copyright owner.

Accidental Erasure Prevention

To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with cellophane tape.

Before recording, make sure:

¡The desired channel is selected by pressing Number on the remote control or CHANNEL (o/p). (If you connected the VCR to a cable box or satellite box as in "CONNECTING TO A TV WITHOUT A/V TERMINALS" on page 13, select channel 3 on your TV, and select the specific INPUT channel assigned by your cable box or your satellite box on the DVD/VCR COMBINATION UNIT. Then, select the channel you want to record with the cable box or the satellite box. In this case, you can ONLY record and view the SAME channel.)

¡If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 seconds during playback. Then select the same channel (CH4) on your TV.

¡There is a tape with a safety tab in the VCR.

¡The desired recording speed is selected in SP (standard play) or SLP (super long play) mode by pressing SPEED on the remote control.



Tape Speed



Recording/Playback Time



Type of tape

T60



T120

T160



SP mode

1 hour



2 hours

2-2/3hours



SLP mode

3 hours



6 hours

8 hours

Note

¡You can not copy a DVD to a videotape.

NORMAL RECORDING

VCR

1Begin the recording by pressing RECORD. The REC Light comes on.

¡To temporarily stop recording or to resume it, press PAUSE. After the VCR has been in Pause mode for 5 minutes, it will stop automatically to protect the tape and the video head from damage.

2 Press STOP when the recording is completed.

Note

¡When you wish to watch another program while recording, select desired channel on your TV. If noise appears press VCR/TV.

¡This is not possible when using a cable box or satellite box.

OTR (One Touch Recording)

VCR

This feature allows you to set the recording length simply by pressing REC/OTR on the VCR.

1Press REC/OTR to begin OTR. The TIMER REC light comes on. Change the recording length by pressing REC/OTR repeatedly.

REC

OTR(0:30)

OTR(1:00).....

(Normal recording)





OTR(8:00) OTR(7:30)

¡If a tape ends during OTR, the VCR will stop, eject the tape, and switch to the DVD mode automatically as the TIMER REC light blinks. (If the DVD power is off, the VCR will become STANDBY status).

¡When OTR is finished , the VCR turns off automatically. To use the VCR again, pressT-SETon the remote, or STOP/EJECT on the DVD/VCR COMBINATION UNIT.

TIMER RECORDING

VCR

You may set the VCR to start recording while you are away. You can set eight programs to record on specific days, daily or weekly within 1 year period.

If you have not yet set the clock, "CLOCK SET" appears. If so, follow the steps [3] and [4] in "CLOCK SET UP" section on page 17. Then, set the timer recording.

1Insert a tape with its safety tab into the DVD/VCR COMBINATION UNIT.

2Select main menu by pressing MENU.



3 Select "TIMER PROGRAM-















TIMER PROGRAMMING





PROG

12345678





MING" by pressing K orL.









DATE



-





Then, press B. The set up



START TIME









END

TIME









CHANNEL







screen is displayed.



REC SPEED

































4 Set the timer.











¡To go back one step, presss.























1) Set the program number (1-8)

PROGRAM NUMBER

4





DATE



- - /- -





Program number which is not set up

START TIME - - :- -

- -



END

TIME - - :- -

- -



CHANNEL

- -













REC SPEED

- -



flashes. Press K or L repeatedly for the desired program number. Then, press B.

– 19 –

EN

1L25

PROGRAM NUMBER 4
ONCE DAILY WEEKLY
ONE TIME PROGRAM
PROGRAM NUMBER 4 DATE - - / - - START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
ONE TIME PROGRAM
PROGRAM NUMBER 4 DATE 05 /12 MON START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -

2) Set the frequency of the recording

For once: Press K or L to point to "ONCE".

For daily (Monday~Friday): Press K or L to point to "DAILY".

For weekly: Press K or L to point to "WEEKLY".

Then, press B.

3) Set the date

First, press K or L for the month.

Then, press B. Next, press K or

L for the day. Then, press B.

4) Set the start time

First, press K or L for the hour. Then, press B. Next, press K or L

for the minute. Then, press B. And

then, press K or L for AM or PM. Then, press B.

5) Set the end time



ONE TIME PROGRAM





PROGRAM NUMBER 4

Follow the instructions of

DATE

05 /12 MON

START TIME 07: 30 PM

"Set the start time" to set

END TIME - - :- - - -

CHANNEL

- -

REC SPEED

- -

the end time.

6) Set the channel number

Press K or L repeatedly for the desired channel number. Then, press B.

ONE TIME PROGRAM PROGRAM NUMBER 4

DATE

05 /12 MON

START TIME 07: 30 PM

END TIME 08: 30 PM

CHANNEL

- -

REC SPEED

- -

If you connected the DVD/VCR COMBINATION UNIT to a cable box or satellite box as in "DVD/VCR TO TV

CONNECTION" on page 13, select the DVD/VCR to channel 3 or 4 the same channel as RF output channel of the DVD/VCR. Then, select the channel you want to record with the cable box or satellite box.

Leave the cable box or satellite box on for timer recording.

7) Set the tape speed



ONE TIME PROGRAM





PROGRAM NUMBER 4

Press K or L repeatedly for the

DATE

05 /12 MON

START TIME 07: 30 PM

desired tape speed. Then, press B.

END TIME 08: 30 PM

CHANNEL

16

REC SPEED SP

SP

SLP

¡If a tape ends during TIMER RECORDING, the VCR will stop, eject the tape, and switch to the DVD mode automatically as the TIMER REC light blinks. (If the DVD power is off, the VCR will become STANDBY status).

¡If a tape is not in the VCR or does not have a safety tab, the TIMER REC light flashes and timer recording will not operate. Please insert a recordable tape.

¡When all timer recordings are finished, the TIMER REC light will flash. To use the VCR again as usual, pressT-SETto disable the flashing TIMER REC light, then press VCR/TV to select the VCR position. Select either VCR or DVD mode, then continue with the other features as described in this manual.

¡When timer recordings are set, the TIMER REC light will come on. To use the VCR as usual until the time for the recording, pressT-SETso that TIMER REC light disappears. Press VCR/TV to choose the VCR position. Select either VCR or DVD mode, then continue with the other features as described in this manual.

If you want to use the DVD player during a VCR timer recording or while the TIMER REC light is on or flashes.

¡You can use the DVD player while the TIMER REC light is on or flashes, or during a timer recording. Press POWER to turn on the DVD. Press DVD on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual. You don’t have to set the TIMER off to use the DVD only.

TO STOP AN AUTOMATIC TIMER PROGRAM ALREADY STARTED

Press STOP/EJECT on the DVD /VCR COMBINATION UNIT.

TO CHECK, CORRECT, OR CANCEL AN AUTOMATIC TIMER PROGRAM

1 PressT-SET.

¡If the DVD output mode is selected, you have to switch it to the VCR mode by pressing the VCR on the remote control or the OUTPUT on the VCR.







2

Select main menu by pressing MENU.

5 To set another program, repeat step [4]. To





3

Select "TIMER PROGRAMMING" by press-

exit, press CLEAR/C.RESET.



ing K orL. Then, pressB.

















6 PressT-SETto set the timer.





4

Select the program number you want to

¡The TIMER REC light on the DVD/VCR COMBI-



check by pressing K orL.

NATION UNIT comes on. TIMER RECORDING



¡The details of the selected program appears on the

WILL NOT BE ACTIVATED UNLESS YOU

TV screen.

PRESS T-SET.

¡Go to the digit you want to change by pressingBor













s. Then, enter correct numbers by pressingoorp.

HINTS FOR TIMER





¡You may cancel the entire program by pressings

RECORDING





while the program number flashes.



















VCR



5

Press CLEAR/C.RESET to exit.













¡If there is a power failure or the VCR is unplugged







for more than 30 seconds, the clock setting and all

6

Press T-SETto return to timerstand-bymode.

timer settings will be lost.







– 20 –

EN

1L25

SPECIAL FEATURES

COPYING A VIDEO TAPE

VCR

You can make copies of video tapes made by friends or relatives for your enjoyment.

You can not copy a DVD to a videotape.

Warning:

Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect the recording VCR (this unit), the playing VCR (another source) and your TV using the following diagram.

¡You can use the AUDIO/VIDEO input jacks on the front panel of the DVD/VCR instead of using the jacks on the back.

[Recording VCR]

(this unit)

DVD/VCR

VCR



DVD



AUDIO OUT



S-VIDEOCOMPONENT AUDIO

DIGITAL

ANT-IN



OUT VIDEO OUT

OUT

AUDIO OUT

L



Y





R



Cb

L



ANT-OUTVIDEO OUT







COAXIAL



VIDEO IN

Cr

R



RF

(supplied) cables supplied)

[TV (Use for

OUT

IN

LEFT

AUDIO

RIGHT

VIDEO



ANT in

[Playing VCR]

(another source)



TO MONITOR THE RECORDING

1Turn on the TV and set the TV to channel 3.

¡If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 seconds during playback. Then select the same channel (CH4) on your TV. (See “RF OUTPUT CHANNEL” on page 13 for the detail).

2Press VCR/TV on the recording VCR.

MTS (Multi-ChannelTelevision

Sound) SYSTEM

VCR

When you play a VHS tape, or receive a broadcast on

the VCR’s tuner, the current sta-



12:00AM







STOP









tus will appear when you press



CH 32



1)*



STEREO



DISPLAY on the remote control.



SAP















When you record a MTS broad-













cast signal, you need to set it to











2)*

SP

0:00:00 HIFI





MTS mode.



























1)* Press MENU and select "TV STEREO" or "SAP" by pressingK orL. Then, pressB to select mode. To exit, press

CLEAR/C.RESET.

¡Although a program may be broadcast in both stereo and sub audio, you must select the Recording mode to TV STEREO or SAP before you record a broadcast.

1Insert a pre-recordedtape into the playing VCR.

2Insert a tape with a safety tab into the recording VCR.

3Press SPEED on the recording VCR to select the desired recording speed (SP/SLP).

4Select the “L1” or “L2”position on the recording VCR.

¡When you use the A/V input jacks on the back of the DVD/VCR, select "L1" position by pressing [0], [0], [1] on the remote control or the CHANNEL buttons (o/p).

¡When you use the A/V input jacks on the front of the DVD/VCR, select "L2" position by pressing [0], [0], [2] on the remote control or the CHANNEL buttons (o/p).

5Press REC/OTR on the recording VCR.

6Begin playback of the tape in the playing VCR.

¡For best results during dubbing, use the VCR’s front panel controls whenever possible. The remote control might affect the playing VCR’s operation.

¡Always usevideo-qualityshielded cables withRCA-typeconnectors. Standard audio cables are not recommended.

¡You can use a video disc player, satellite receiver, or other audio/video component with A/V outputs in place of the playing VCR.

– 21

2)* Press MENU and select "AUDIO OUT" by pressingK orL. Then, pressB. Next, select "HIFI" or "MONO" by pressingK orL. To exit, press CLEAR/C.RESET.

¡While the VCR is set in HIFI stereo mode, HIFI appears on the TV screen. While the VCR is set in monaural (MONO) mode, HIFI disappears from the TV screen.

MTS RECORDING/MONITOR MODE

Type of

Display on the

STEREO/SAP

Hi-Fiaudio track

Normal audio

broadcast

TV screen

Selection

(2-channel)

track

Regular

-None-

-Invalid-

L-channel

R-channel



(monaural audio)

Mono

Mono

Mono

















Stereo

STEREO

-Invalid-

L

R

L+R

broadcast











Bilingual

SAP

TV STEREO*

Main audio

Main audio

Main audio





program

program

program

broadcast



SAP*

Sub audio

Sub audio

Sub audio











program

program

program

Stereo &

STEREO

TV STEREO*

L

R

L+R

Bilingual

SAP

SAP*

Sub audio

Sub audio

Sub audio

broadcast





program

program

program

*

EN

1L25

AUTO REWIND

REAL TIME TAPE COUNTER

When a tape reaches the end during recording, playback, or fast-forward,the tape will automatically rewind to the beginning. After rewinding finishes, the VCR will eject the tape and switch itself off.

¡The VCR will not rewind the tape automatically during timer recording or One Touch Recording.

¡This shows the elapsed recording or playback time in hours, minutes, and seconds. (The displayed time will not change during blank portions of the tape.)

¡The indication will appear when the tape is rewound further than “0:00:00” on the tape counter.

PLAYING A DISC

BASIC PLAYBACK

DVD-VCD

Getting started

¡Turn on the power of the TV, amplifier and any other components which are connected to the DVD.

¡Make sure the TV and audio receiver (commercially available) are set to the correct channel.

¡Select DVD mode by pressing DVD on the remote control or output on the front panel.

1 Press POWER.

¡“Load” will appear briefly on the display panel.

2Press OPEN/CLOSE to open disc loading tray.

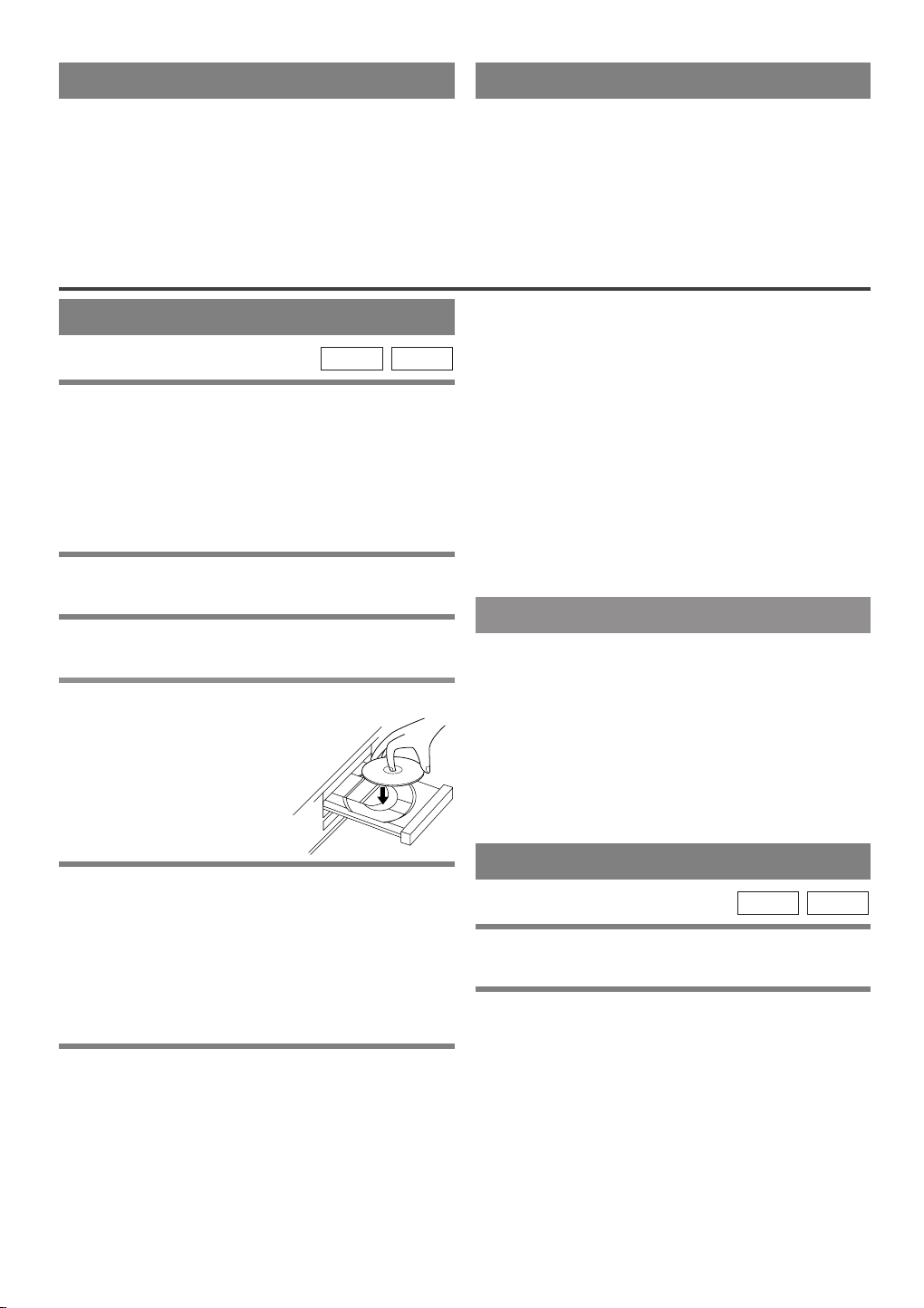

3Place the chosen disc in the tray, with the label facing up.

Notes

¡A “prohibited icon” may appear at thetop-righton the TV screen during operation, warning that a prohibited operation has been encountered by the DVD or the disc.

¡With DVDs that use titles for playback program signals, playback may start from the second title, or it may skip these titles.

¡During the playback of a two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

GENERAL FEATURES

DVD may contain menus to navigate the disc and access special features. Press the appropriate Number buttons or use Arrow (L/K/s/B) to highlight your selection in the DVD main menu and press ENTER to confirm.

Note

¡Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.





PAUSE

4 Press PLAY.









¡The tray will close automatically, and playback will



DVD-V



CD

then start from the first chapter or track of the disc.

















If the playback does not start automatically, press

1 During playback, press PAUSE.

PLAY.

¡Playback will pause and sound will be muted.

¡When you playback the DVD which a title menu is









recorded, it may appear on the screen. In this case,

2 To continue playback, press PLAY.

refer to “TITLE MENU” on page 23.





















5 Press STOP to stop playback.









– 22 –

EN

1L25

DISC MENU

RESUME

DVD-V

1 Press MENU.

¡The DVD main menu will appear.

2If the feature is not available, symbol may appear on the TV screen.

3If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

4Press Arrow (L/K/s/B) to select an item, and ENTER to confirm selection.

TITLE MENU

DVD-V

1 Press TITLE.

¡The title menu will appear.

2If the feature is not available, symbol may appear on the TV screen.

3Press Arrow (L/K/s/B) to select an item, and ENTER to confirm selection.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVD-Vs

¡Press MENU to call up the DVD menu.¡Press TITLE to call up the title menu.

Note

¡Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

STEP BY STEP PLAYBACK

DVD-V

1 During playback, press PAUSE.

¡Playback will pause and sound will be muted.

2The disc goes forward by one frame each time PAUSE is pressed.

3To exit step by step playback, press PLAY.

DVD-VCD

1 During playback, press STOP.

¡Resume message will appear on the TV screen.

2 Press PLAY, playback will resume from the point at which playback was stopped.

¡To cancel resume, press STOP twice.

FAST FORWARD/REVERSE

SEARCH

DVD-VCDMP3

1During playback, press g orh repeatedly to select the required forward or

reverse speed: x2, x8, x50, x100.

¡For audio CDs, the speed is fixed at×16.¡For MP3, the speed is fixed at×8.

2 To return to normal playback, press PLAY.

SLOW FORWARD /

SLOW REVERSE

DVD-V

1During playback, press PAUSE.

2Press g orh.

3Press g orh repeatedly to select the required speed: 1/16, 1/8, 1/2 of the normal playback.

4To return to normal playback, press PLAY.

– 23 –

EN

1L25

ZOOM

DVD-V

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1Press ZOOM during playback.

¡Playback will continue.

2Press ZOOM repeatedly to select the required zoom factor: x2, x4 or OFF.

3Use the Arrow (K/ L/ s/ B) to move the zoomed picture across the screen.

4To exit zoom mode, press ZOOM to OFF.

Notes

¡Zooming function does not work while disc menu is shown.

¡x4 zoom is not available on some discs.

TRACK

CD

There are three ways to begin playback on an Audio CD at a specific Track.

Using the Number buttons

1 Press the Number buttons to enter the desired Track number.

¡Playback will start at the selected track.

¡For single digit tracks(1-9),press a single number (eg. track 3, press 3).

¡To play track 26, press +10, 2, 6 on the Number buttons.

Using SEARCH MODE

1 Press SEARCH MODE.

¡The track search display appears.

2Within 30 seconds, select a desired track number using the Number buttons.

¡For single digits press 0 first.¡Playback will start at the selected track.

Using SKIP H G

During playback, press SKIP G to move the next track. Press it repeatedly to skip subsequent tracks. Press SKIPH to go back to beginning of the current track. Press it repeatedly to go to the previous tracks.¡Track number will appear briefly on the DVD/VCR

COMBINATION UNIT display panel.

¡If SKIP is pressed while the playback is paused, the playback will be paused again after skipping to the next track.

Note

¡SKIPH G are not available when playback is stopped.

TITLE / CHAPTER SEARCH

DVD-V

1Press SEARCH MODE once for the Chapter search, twice for the Title search during

playback.

/2

2Enter the desired chapter/title number using the Number buttons.

¡Playback will start at the selected Chapter or Track.

¡Press CLEAR to erase the incorrect input.

¡For single digits press 0 first.

TIME SEARCH

DVD-VCD

1During playback, press SEARCH MODE three times (CD: twice) to display the Time Search on the TV screen.

2Within 30 seconds, enter a desired disc

time using the Number buttons.

¡Playback will start at the specified time.

¡Press CLEAR to erase the incorrect input.

– 24 –

EN

1L25

REPEAT

PROGRAM

REPEAT is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate the repeat function, press REPEAT during playback.

¡The repeat mode changes as described below every time you press the button.

CHAPTER

TITLE

OFF

(current chapterrepeat)

(current titlerepeat)

(repeat off)

Notes





¡Repeat Title/Chapter is not available with some scenes.

¡The REPEAT setting will be cleared when moving to other title or chapter.

REPEAT TRACK

CD

To activate the repeat function, press REPEAT during playback.

¡The repeat mode changes as described below every time you press the button.

TRACK

ALL

OFF

(current trackrepeat)

(entire discrepeat)

(repeat off)

Notes





¡Track Repeat setting will be cleared when moving to other track.

¡Repeat playback does not function during repeat A- B playback.

REPEAT A-B

DVD-VCD

CD

You may determine the order in which tracks will play.

1In stop mode, press MODE.

¡The PROGRAM screen will appear.

2Press orto select a track, then press

ENTER.



¡Press CLEAR to erase the



CD [AUDIO]

TOTAL 0:03:30

most recently entered pro-



gram.



3 Press PLAY to play the programmed tracks.

Notes

¡While the program is being played back, the STOP works as follows.

¡Press STOP once and then PLAY again, playback will restart from the point where STOP was pressed. (Program continued)

¡Press STOP twice and then PLAY again, playback will restart from the track in the usual way. (Program cleared)

¡Up to 99 programs can be entered.

¡If you like to repeat the current track in the program, press REPEAT repeatedly untilTRACK appears during playback. If you like to repeat the entire program press REPEAT repeatedly untilALL appears during playback.

1 Press REPEATA-Bat your chosen starting point.

¡A- appears briefly on the TV screen.

2 Press REPEATA-Bagain at your chosen end point.

¡A-Bappears briefly on the TV screen, and the repeat sequence begins.

3 To exit the sequence, press REPEATA-B.



Notes



¡The repeatA-Bsection can only be set within the



current title (for DVDs), or current track (for audio



CDs).



¡RepeatA-Bis not available with some scenes in



DVD.



¡To cancel the A point which was set, press CLEAR.



¡RepeatA-Bplayback does not function during title,



chapter, track or all repeat playback.



– 25 –

EN

1L25

RANDOM PLAYBACK

CD

This shuffles the playing order of tracks instead of playback in the sequence.

1 In stop mode, press MODE twice.

¡RANDOM screen

appears. RANDOM

CD [AUDIO]

TOTAL 0:45:55

RANDOM PROGRAM --noindication--

PLAY

2 Press PLAY to start random playback.

Note

¡If you like to repeat the current track in the random selection, press REPEAT repeatedly untilTRACK appears during playback. If you like to repeat the entire random selection press REPEAT

repeatedly until ALL appears during playback.

MP3 PLAYBACK

MP3

When a CD with MP3 files is inserted in the DVD/VCR, the MP3 menu will appear on the TV screen, and number of tracks is displayed on the front panel.

1 In stop mode, press Arrow (K/L) to select the desired group track.

¡If a group is selected,

press B or ENTER to go on to the track selection screen. Press Arrow (K/L)

to choose a track, then

press B or ENTER.¡If a track is selected, press

B or ENTER to start playing tracks. Starting from the one you’ve just chosen the subsequent tracks will be played.

¡Choose FIRST PLAY to start playback from the beginning of the listed tracks.

¡Press TITLE to return to the first item.

2 Press STOP to stop playback.

Notes

¡Folders are known as Groups; files are known as Tracks.

¡MP3 files are accompanied by3 icon.¡Maximum of 255 folders can be recognized.¡Maximum of 256 files can be recognized.¡Up to 8 hierarchies can be created.

This player recommends the use of files recorded at the below specifications:

¡Sampling frequency: 44.1kHz or 48kHz¡Constant bit rate: 112kbps ~ 320kbps.

ON-SCREENINFORMATION

MP3

You can check the MP3 files during playback.

1 Press DISPLAY.

¡The name of the file currently in play will be displayed.

2Press DISPLAY again to show the track number, the repeat status, and the playback status at the top of the screen.

¡will be displayed when repeat play has been selected.

T - indicates Track repeat

G - indicates Group (folder) repeat

A - indicates Disc repeat

3 Press DISPLAY again to exit.

TRACK SELECTION

MP3

1Press SEARCH MODE during playback.

¡The FILE LIST will appear.

2Select a desired track using Arrow

(K/L/s/B).

¡PressB when you want to go to the next hierarchy.¡Presss when you want to go back to the previous

hierarchy.

3 Press PLAY to start playing.

Notes

¡Press SEARCH MODE to exit.

¡Some selections may take a while to be recognized.

– 26 –

EN

1L25

RANDOM PLAYBACK

SUBTITLE LANGUAGE

MP3

DVD-V

1Press MODE twice while playback is stopped.

2Press PLAY to play the tracks in random order.

PROGRAM

MP3

This feature allows you to program a mp3 disc to play in a desired sequence.

1Press MODE during playback is stopped.

¡The PROGRAM screen will appear.

2Press Arrow (K/L) to select a track, then

press ENTER, to save it in a program.

¡Press CLEAR to erase the incorrect input.

3 Press PLAY to start programmed playback.

AUDIO LANGUAGE

DVD-V

The DVD/VCR allows you to select a language during DVD disc (if multi language available) playback.

1Press AUDIO during playback.

2Press AUDIO repeatedly to select your desired language.

STEREO SOUND MODE

CD

1 Press AUDIO repeatedly during playback to select between STEREO,L-CHorR-CH.

¡STEREO - both right and left channels are active (stereo)

L-CH- only left channel is activeR-CH- only right channel is active

Note

¡If the Virtual Surround setting is ON, the sound mode will be fixed to STEREO, and can not be changed.

The DVD allows you to select a language for subtitles during DVD disc (if available) playback.

1Press SUBTITLE during playback.

2Press SUBTITLE repeatedly to select your

desired subtitle language.

¡The subtitle language will be displayed on the display bar at the top of the screen.

3 To turn off subtitles, press SUBTITLE repeatedly until OFF appears.

Notes

¡Pressing AUDIO may not work on some DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu).

¡Some discs allow audio language setting/subtitle language setting on the disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)

¡If the desired language is not shown after pressing SUBTITLE several times, the disc does not have subtitles in that language.

¡If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Subtitle language setting. If you choose any other languages,‘---’will be displayed instead. (Refer to page 31.)

CAMERA ANGLE

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the ( ) icon appears on the screen.

1 Press ANGLE during playback.

¡The selected angle will be displayed on the display bar at the top of the screen.

2Press ANGLE repeatedly to select your desired angle.

– 27 –

EN

1L25

CHANGING THE ON-SCREEN

DISPLAY

DVD-VCD

You can check the information about the current disc by pressing DISPLAY on the remote control.

For DVD-Vs

1 Press DISPLAY during playback to show current Chapter.

¡The elapsed and remaining



playing time of the current

9/49 0:00:00 -0:00:00

chapter will be displayed.



2Press DISPLAY again to show current Title.

¡The elapsed and remaining playing time of the current title will be displayed.

3Press DISPLAY third time.

¡The BIT RATE and the current repeat setting will be displayed.

¡If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is playing. L1: Layer 1 is playing).

4Press DISPLAY the fourth time to remove the display.

For audio CDs

1 Press DISPLAY during playback, the current Track will be displayed on the TV screen.

¡The elapsed and remaining playing time of the current track will be displayed.

2 Press DISPLAY again to show current Total Track.

¡The elapsed and remaining playing time of the current total track will be displayed.

3Press DISPLAY third time to remove the display.

PARENTAL CONTROL

DVD-V

Parental Control limits the disc viewing that exceed your settings. (with a password or playback will stop.) This feature allows you to prevent discs with alternative scenes from being played by your children.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc’s ratings exceed the level you set.

1Press SETUP in STOP mode.

2Press B to select CUSTOM, then press

ENTER.

3Press Arrow (s/B) to select PARENTAL, then press ENTER.

PARENTAL

PARENTAL LEVEL ALL

4Enter your four-digitpassword then press ENTER.

5Press Arrow (K/L) to select PARENTAL

LEVEL, then press ENTER.

6Press Arrow (K/L) to select the desired level.

7Press SETUP to exit

Notes

¡When doing this for the first time, enter any 4 digits. (except for 4737) That number will be used as the password. (in the event you forget the password, see below.)

¡To change the password, press Arrow (K/L) to select CHANGE at step 5, then press ENTER. Enter thefour-digitpass-word,then press ENTER.

¡With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

¡Record the password in case you forget it.

IF YOU FORGET THE PASSWORD

1 Press 4, 7, 3, 7 at step 4. Then enter your new password.

¡Password will be cleared and parental level will be set to ALL.

2 Proceed the above Steps5-7again.

– 28 –

EN

1L25

CONTROL LEVELS

¡ALL

All parental lock is cancelled.

¡Level 8

DVD software of any grade (adult/general/children) can be played back.

¡Levels 7 to 2

Only DVD software intended for general use and children can be played back.

¡Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

MARKER SETUP SCREEN

DVD-VCD

Use markers to memorise your favorite places on a disc.

1 Press SEARCH MODE four times (CD: three times) during playback.

¡The display screen and Markers will appear on the TV screen.

2Press Arrow (s/B) to select 1, 2, 3, 4, 5, 6,

7, 8, 9, or 10 and ensure that “- :-- :--”appears in the display.

3When reaches the desired point, press ENTER.

¡The Title or Track and elapsed playing time will appear in the TV screen.

4To return to the Marker later, press SEARCH MODE four times (CD: three times) during playback and Arrow (s/B) to choose the

desired marker, then press ENTER.

Notes

¡Opening the disc tray or turning off the power or select AC at step 2 and press ENTER will erase all Markers.

¡To clear a marker, using Arrow (s/B), position the cursor on to the marker number to be cleared and press CLEAR.

¡You can mark up to 10 points.

5 Press SEARCH MODE or RETURN to exit.

DVD SETUP

AUDIO SETTING

Choose the appropriate Audio settings for your equipment as it only affect during the playback of DVD discs.

1Press SETUP in STOP mode.

2Press B to select CUSTOM, then press

ENTER.

¡CUSTOM mode will appear.

3Press Arrow (s/B) to select AUDIO, then press ENTER to confirm.

AUDIO



DRC

OFF

DOLBY DIGITAL

ON

DOWN SAMPLING

ON

DOLBY DIGITAL: QUICK

Set to On when the unit is connected to a Dolby Digital Receiver.

(ON: Outputs a Dolby Digital Signal)

(OFF: Convert the Dolby Digital to PCM (2channel)) ¡The default setting is ON.

DOWN SAMPLING:

¡Set to ON when outputting in 48 kHz.¡The default setting is ON.

When playing disc with copyright Protection

¡If you select OFF, copyright protection will be activated and sound will be down sampled at 48kHz.

5 Press SETUP to exit.

4 Press Arrow (K/L) to select the below items, then press ENTER.

DRC (Dynamic Range Control):

¡To compress the range of soft to loud sounds.¡The default setting is OFF.

– 29 –

EN

1L25

BLACK LEVEL SETTING

DISPLAY SETTING

DVD-V

DVD-V

Adjust the Black Level Settings to make the black parts of the picture as bright as you preferred.

1 Press MODE during playback.

ON

2Press ENTER to switch ON/OFF.

ON: Makes the dark parts brighter.

OFF: Shows the original picture as recorded.

3Press MODE twice or RETURN to exit.

VIRTUAL SURROUND

DVD-VCDMP3

You can enjoy stereophonic visual space on your existing stereo system.

1Press MODE twice (CD/MP3: once) during playback.

OFF

2Press ENTER to set it 1 (Natural effect) or 2 (Emphasized effect) or OFF.

3Press MODE or RETURN to exit.

Note (for CD play only)

¡Virtual Surround will not be effective if the sound mode is set to something other than STEREO.

You can change certain aspects of the DVD display screens and on-screenmessages.

1Press SETUP in STOP mode.

2Press B to select CUSTOM, then press

ENTER.

¡CUSTOM mode will appear.

3Press Arrow (s/B) to select DISPLAY, then press ENTER to confirm.

DISPLAY



TV ASPECT

4:3 LETTER BOX

ANGLE ICON

ON

AUTO POWER OFF ON

4 Press Arrow (K/L) to select the below items, then press ENTER.

TV ASPECT: QUICK

¡Press Arrow (K/L) for an item selection, then press ENTER.

¡Select 4:3 LETTER BOX for a black bars appears on top and bottom of the screen.

¡Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.

¡Select 16:9 WIDE if awide-screenTV is connected to the DVD/VCR.

¡The default setting is 4:3 LETTER BOX.

ANGLE ICON:

¡Press ENTER repeatedly to turn Angle icon ON or OFF.

¡The default setting is ON.

AUTO POWER OFF:

¡Press ENTER repeatedly to turn Auto Power off ON or OFF.

¡The default setting is ON and it will turn the DVD/VCR to off automatically after 35 minutes of no use.

5 Press SETUP to exit.

Notes

¡Be sure to press SETUP, or the setting will not work.

– 30 –

EN

1L25

LANGUAGE SETTING

DVD-V

Language options are not available with some discs.

1Press SETUP in STOP mode.

2Press B to select CUSTOM, then press

ENTER.

¡CUSTOM mode will appear.

3Press Arrow (s/B) to select LANGUAGE, then press ENTER to confirm.

LANGUAGE



AUDIO

ORIGINAL

SUBTITLE

OFF

DISC MENU

ENGLISH

PLAYER MENU

ENGLISH

AUDIO:

¡Sets the audio language.

SUBTITLE:

¡Sets the subtitle language.

DISC MENU:

¡Sets the language for DVD menu.

PLAYER MENU: QUICK

¡Sets the language for theOn-screendisplay.

5Press Arrow (K/L) to select a setting, then press ENTER.

¡If OTHER is selected on the AUDIO, SUBTITLE or DISC MENU screen, pressfour-digitnumber to enter the code for the desired language. (Refer to the language code list below.)

¡Only the languages supported by the disc can be selected.

6 Press SETUP to exit.

Note

4 Press Arrow (K/L) to select the next items, then press ENTER.

¡If you want to return to LANGUAGE SETTING MENU, press Arrow(s).

Language

Code

Language

Code

A-B



Frisian

5271

Abkhazian

4748

Galician

5358

Afar

4747

Georgian

5747

Afrikaans

4752

German [GER]

5051

Albanian

6563

Greek [GRE]

5158

Amharic

4759

Greenlandic

5758

Arabic

4764

Guarani

5360

Armenian

5471

Gujarati

5367

Assamese

4765

Hausa

5447

Aymara

4771

Hebrew

5569

Azerbaijani

4772

Hindi

5455

Bashkir

4847

Hungarian [HUN]

5467

Basque

5167

I-K



Bengali;Bangla

4860

Icelandic [ICE]

5565

Bhutani

5072

Indonesian

5560

Bihari

4854

Interlingua

5547

Bislama

4855

Interlingue

5551

Breton

4864

Inupiak

5557

Bulgarian

4853

Irish [IRI]

5347

Burmese

5971

Italian [ITA]

5566

Byelorussian

4851

Japanese [JPN]

5647

C-E



Javanese

5669

Cambodian

5759

Kannada

5760

Catalan

4947

Kashmiri

5765

Chinese [CHI]

7254

Kazakh

5757

Corsican

4961

Kinyarwanda

6469

Croatian

5464

Kirghiz

5771

Czech

4965

Kirundi

6460

Danish [DAN]

5047

Korean [KOR]

5761

Dutch [DUT]

6058

Kurdish

5767

English [ENG]

5160

L-N



Esperanto

5161

Laothian

5861

Estonian

5166

Latin

5847

F-H



Latvian;Lettish

5868

Faroese

5261

Lingala

5860

Fiji

5256

Lithuanian

5866

Finnish [FIN]

5255

Macedonian

5957

French [FRE]

5264

Malagasy

5953

¡Language Setting for Audio and Subtitle is not avail able with some discs. Then use the AUDIO and the SUBTITLE button. Details are on page 27.

Language

Code

Language

Code

Malay

5965

Somali

6561

Malayalam

5958

Spanish [SPA]

5165

Maltese

5966

Sundanese

6567

Maori

5955

Swahili

6569

Marathi

5964

Swedish [SWE]

6568

Moldavian

5961

T



Mongolian

5960

Tagalog

6658

Nauru

6047

Tajik

6653

Nepali

6051

Tamil

6647

Norwegian [NOR]

6061

Tatar

6666

O-R



Telugu

6651

Occitan

6149

Thai

6654

Oriya

6164

Tibetan

4861

Oromo(Afan)

6159

Tigrinya

6655

Panjabi

6247

Tonga

6661

Pashto;Pushto

6265

Tsonga

6665

Persian

5247

Turkish [TUR]

6664

Polish

6258

Turkmen

6657

Portuguese [POR]

6266

Twi

6669

Quechua

6367

U-Z



Rhaeto-Romance

6459

Ukrainian

6757

Romanian [RUM]

6461

Urdu

6764

Russian [RUS]

6467

Uzbek

6772

S



Vietnamese

6855

Samoan

6559

Volapuk

6861

Sangho

6553

Welsh

4971

Sanskrit

6547

Wolof

6961

Scots Gaelic

5350

Xhosa

7054

Serbian

6564

Yiddish

5655

Serbo-Croatian

6554

Yoruba

7161

Sesotho

6566

Zulu

7267

Setswana

6660





Shona

6560





Sindhi

6550





Singhalese

6555





Siswat

6565





Slovak

6557





Slovenian

6558





If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 27. If you choose any other languages, ‘---’will be displayed instead. (3 letter language code is written in bracket.)

– 31 –

EN

1L25

TROUBLESHOOTING GUIDE

If the DVD/VCR COMBINATION UNIT does not perform properly when operated as instructed in this Owner's Manual, check the player consulting the following checklist.



D



PROBLEM

CORRECTIVE ACTION



V



No power.

• Make sure the power plug is connected to an AC outlet.



D





• Make sure the power is turned on.





The player does not respond to. • Check if the power plug is connected to an AC outlet.







V



the remote control.

• Check the batteries in the remote control.



C





• Aim the remote control directly at the remote sensor. If necessary, remove all the







obstacles between the sensor and the remote.



R











• You have to be within 23 feet of the player.

















• Check if the correct mode is selected. If not switch the mode by pressing DVD or









VCR ,whichever you need, on the remote control.









• Check if a cassette tape is in the VCR.







Timer recording is impossible.

• Make sure the timer recording is set correctly.



V







• Make sure the power is off.



C





• Make sure the VCR clock is set correctly.

RCannot go into Record mode. • Make sure the tape has a safety tab. If needed, cover the hole with cellophane tape.

Put he player in VCR mode. Press VCR on the remote control so that the green VCR OUTPUT light is lit.







Playback picture is partially noisy

• Adjust tracking control for a better picture by pressing CHANNEL

(

)

on the









DVD/VCR COMBINATION UNIT.











Cannot view a tape but the

• Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING” .











audio is OK.

• Make sure the VCR is not in the Menu mode.











No, or poor, playback picture.

• Change the RF output channel to CH4. Then select the same channel on the TV.









• Fine tune your TV.











TV programs cannot be seen

Re-checkthe ANT. IN and ANT. OUT connections. See page 13.











normally.

• Press VCR/TV.













• Press VCR on the remote control to put it in the VCR mode. Check if the green VCR









OUTPUT light is lit. Then, set it to the TV position by pressing VCR/TV.











Video or color fades in and out

• You cannot copy a copyrighted video tape. You are experiencing copy guard protection.







when making a copy of a video tape.















Cannot remove the tape.

• Check if the player is in the VCR mode. If not, press VCR on the remote control to switch









the mode.











No picture.

• Connect the video cables firmly.







D







V





• Insert a correct video disc that plays on this player.











• Press DVD on the remote control. Check if the DVD OUTPUT Light is lit. Then try other



D











DVD feature.











Disc cannot be played.

• Insert the disc.













• Clean the disc.













• Place the disc correctly, with the label side up.













• Cancel the parental lock or change the control level.











No sound.

• Connect the audio cables firmly.













• Turn the power of the audio component on.













• Correct the audio output settings.













• Correct the input settings on the audio component.











No DTS audio is output.

• This player does not support DTS audio. This is not a malfunction.











Distorted picture.

• Connect the player directly to the TV.













• There are some cases where pictures may be slightly distorted, which are not a sign of a mal-









function.













• Although pictures may stop for a moment, this is not a malfunction.











Audio or subtitle language

• The selected language is not available for audio or subtitles on the DVD.











does not match the set up

This is not a malfunction











The camera angle cannot be

• The DVD does not contain sequences recorded from different camera angles.







changed

This is not a malfunction











Audio or subtitle language

• The DVD does not contain audio source or subtitles in the selected language.







cannot be changed

This is not a malfunction.











“Prohibited icon” appears on the • That operation is prohibited by the player or the disc.











screen, prohibiting an operation

This is not a malfunction.





Notes

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for details on correct operations.

¡Playback from a desired track and random playback are not available during program playback.

– 32 –

EN

1L25

MAINTENANCE

SERVICING

¡Should your DVD/VCR COMBINATION UNIT become inoperative, do not try to correct the problem by yourself. There are nouser-serviceableparts inside. Turn off, unplug the power cord, and please call our help line at1-800-968-3429to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

¡Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

CLEANING THE DISC LENS

¡If the player still does not perform properly when it is operated while referring to the relevant sections and to “TROUBLESHOOTING GUIDE” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

¡Use discs which have the following logos on them. (Optical audio digital discs.)

Recordable ReWritable

¡Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

¡Always store the disc in its protective case when it is not used.

AUTO HEAD CLEANING

¡Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.

¡Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your DVD/VCR COMBINATION UNIT may need to be cleaned.

1.Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2.If a Video Head Cleaner does not solve the problem, please call our help line at 1-800-968-3429to locate an Authorized Service Center.

NOTES:

¡Remember to read the instructions included with the video head cleaner before use.

• Clean video heads only when problems occur.

Make your contribution to the environment!!!

Used up batteries do not belong in the dust bin.

You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

– 33 –

EN

1L25



SPECIFICATIONS

Product type:

DVD player with Video Cassette Recorder

Discs:

DVD video



Audio CD



Video Cassette tape

Converter output:

VHF Channel 3 or 4.

Power source:

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption:

24 W (standby: 7.0 W)

Operating temperature:

5°C to 40°C

Dimensions:

W 17-1/8”(435 mm)



H 4” (99 mm)



D 8-7/10”(218 mm)

Weight:

8.8 lbs (3.7 kg)

¡Designs and specifications are subject to change without notice.

¡If there is a discrepancy between languages, the default language will be English.

– 34 –

EN

1L25

CONTROLES DEL FUNCIONAMIENTO Y SUS FUNCIONES

PANEL DELANTERO 1

2

3

4

5



6 7

8















POWER





OPEN/CLOSE



























CHANNEL

STOP/EJECT

















PLAY





DVD



OUTPUT

VCR

VIDEO

L AUDIOR







DVD

DVD

VCR TIMER REC REC



STOP

PLAY



REW

F.FWD

























21



19

18

16 14

12







10

PANEL REMOTO



22



20





17 15

13 11



9





























9.

Botón PLAY (VCR)





23























52



Presione para comenzar reproducción.





POWER



SPEED

AUDIO







10.

Botones CHANNEL





24























































En el modo VCR, presione para cambiar canales TV en

























51











1



2



3











el DVD/VCR; presione para ajustar el seguimiento





















SKIP/CH.







durante reproducción de movimiento normal o lento;



25



4



5



6













presione para remover fluctuaciones verticales en una



















VCR/TV



50









7



8



9









11.

imagen fija.































SLOW

49



Tomas AUDIO IN













0



+10











Conecte aquí cables de audio procedentes de las tomas















































26

DISPLAY

DVD



VCR



PAUSE



48

























47



de salida de audio de un camcorder, otro VCR o una



27





















46



fuente de audio.

















































28







PLAY





45

12.

Toma VIDEO IN



















STOP









Conecte aquí un cable de videó procedente de la toma



29



















RECORD





















de salida de videó de un camcorder, otro VCR o una



30

















44



fuente de videó (reproductor de discos láser,





























31



MENU















43





camcorder, etc.).























ENTER







13.

Botón F.FWD (VCR)





32



SETUP

TITLE







RETURN

















42



Presione para avanzar rápidamente la cinta o ver la



33



MODE

ZOOM

MODE

C.RESET







34









imagen rápidamente en avance durante reproducción.















SEARCH

CLEAR/

41





















35





















40



(Búsqueda en Avance).





37 36

SUBTITLE ANGLE



REPEAT

A-B

39

14.

Botón REW (VCR)

































T-SET















38



Presione para rebobinar la cinta o para ver la imagen

1. Bandeja de carga del disco







rápidamente en inversión durante el modo de







reproducción.(Búsqueda en Rebobinado).

2.

Botón OPEN/CLOSE































15.

Botón REC/OTR













Presione para insertar discos en o removerlos de la















Presione una vez para iniciar una grabación. Presione



bandeja de disco.











































repetidamente para iniciar un Grabación de Un-Toque.

3. Luz DVD OUTPUT (verde)









16.

Luz REC













Esta luz aparece cuando el DVD/VCR está en modo















Se enciende durante la grabación.





DVD. Usted sólo puede mirar DVDs cuando la Luz







17.

Luz TIMER REC













DVD OUTPUT verde está encendida. Para hacer que



Esta luz brilla cuando el DVD/VCR está en el modo



la Luz DVD OUTPUT verde se encienda, presione el







espera o apagada para una grabación con temporizador



Botón DVD en el control remoto o el Botón OUTPUT







o durante una grabación de Un-Toque,Parpadea si se



en el panel delantero.



































presiona Botón T-SETpara una grabación con

4. Luz VCR OUTPUT (Verde)





















temporizador, pero no hay cinta en el DVD/VCR.



Esta luz aparece cuando el DVD/VCR está en el modo







Parpadea cuando todas las grabaciones con



VCR. Usted puede sólo mirar cintas cuando la Luz







temporizador o grabaciones de Un-Toquehan



VCR OUTPUT verde está encendida. Para hacer que la







terminado.













Luz VCR OUTPUT verde se encienda, presione el















18.

Botón OUTPUT













Botón VCR en el control remoto o el Botón OUTPUT



Presione para seleccionar el modo DVD o el modo



en el panel delantero.



































VCR.













5.

CASSETTE COMPARTMENT

























Usted puede cambiar el modo de salida ya

6.

Botón POWER









































presionando el Botón OUTPUT en el panel delantero



Presione para conectar y desconectar la alimentación.







o ya presionando el Botón DVD o VCR en el control

7.

Luz POWER





















































remoto. Sin embargo, si usted presiona el Botón



Se enciende cuando la alimentación está conectada.



8.



OUTPUT en el panel delantero primero, usted

Botón STOP/EJECT (VCR)







necesita volver a seleccionar el modo



Botón de expulsión



































correspondiente presionando el Botón DVD o el



Púlselo para sacar el videocasete de la











Botón VCR en el control remoto.



videograbadora.



















19.

Ventanilla de Sensor Remoto





Botón Stop



















20.

Visualización













Presione detener el movimiento de la cinta.























































– 35 –













SP

1L25

21.Botón PLAY (DVD)

Comienza la reproducción del contenido del disco.

22.Botón STOP (DVD)

Detiene la operación del disco.

23.Botón SPEED

Presiona para seleccionar la velocidad de grabación de VCR (SP o SLP)

24.Botón POWER

Presione para conectar y desconectar la alimentación.

25.Botones numéricos Modo DVD

Presiónelos para seleccionar elementos numerados en un menú.

+10

Use este botón para ingresar números inguales o mayores que 10.

Modo VCR

Presione para seleccionar canales de TV en el DVD/VCR. Para seleccionar canales, entre números de canal como un número de dos dígitos para los resultados más rápidos. Por ejemplo, para seleccionar canal 6, presione 0.6.

26.Botón DISPLAY Modo DVD

Presione para tener acceso o remover la pantalla de visualización durante reproducción DVD o CD de audio.

Modo VCR

Presione para tener acceso o remover visualización de estado en pantalla de VCR.

27.Botón DVD

Presione antes de utilizar el control remote para funciones DVD.

Usted puede cambiar el modo OUTPUT presionando OUTPUT en el panel delantero o presionando DVD o VCR en el control remoto.Sin embargo, si usted presiona primero OUTPUT en el panel delantero, necesitará volver a seleccionar el modo correspondiente presionando DVD o VCR en el control remoto.

28.Botón h Modo DVD

Presiónelo para ver la imagen de un DVD en retroceso rápido. Presione PAUSE y luego presione este botón para iniciar la reproducción a cámara lenta. Presione repetidamente este botón para cambiar la velocidad de retroceso de la reproducción a cámara lenta.

Modo VCR

Presione para rebobinar la cinta o para ver la imagen rápidamente en inversión durante el modo de reproducción.(Búsqueda en Rebobinado).

29.Botón Stop Modo DVD

Presiónelo para detener el disco.

Modo VCR

Presiónelo para detener la cinta.

30.Botón RECORD

Presione para iniciar una grabación.

31.Botón MENU Modo DVD

Presione para visualizar el menú del Disco.

Modo VCR

Presione para tener acceso al menú VCR.

32.Botón TITLE

33.Botón SETUP

Presiónelo para entrar en el modo de preparación del reproductor DVD.

34.Botón ZOOM

Amplía parte de una imagen reproducida-DVD.

35.Botón MODE

Activa modo de reproducción de programa o reproducción aleatoria cuando se reproducen CDs o MP3. Ajusta Nivel de negro SONIDO VIRTUAL SURROUND.

36.Botón SUBTITLE

Presione para seleccionar un idioma de subtítulo deseado.

37.Botón ANGLE

Presione para cambiar el ángulo de cámara para ver la secuencia que se está reproduciendo desde un ángulo diferente.

38.Botón REPEAT

Repite la reproducción del disco, título, capítulo o pista actual.

39.Botón A-BREPEAT

Repite la reproducción de una sección seleccionada.

40.Botón SEARCH MODE Modo DVD

Presione para tener acceso o remover la indicación de búsqueda, que le permite ir directamente a un Título/Capítulo/Pista/Tiempo especificado.

Modo VCR

Presione para avanzar o rebobinar rápidamente la cinta a una longitud específica de tiempo.

41.Botón CLEAR/C.RESET Modo DVD

Presione para reponer el ajuste.

Modo VCR

Presione para reponer el contador. Presione para salir de la pantalla menu.

42.Botón RETURN Modo DVD

Vuelve a la operación previa.

43.Botones de flecha

Utilice cuando haga ajustes mientras mira la indicación en una pantalla de TV.

Modo VCR [página 16] Botonesp/o

Presiónelos para ingresar dígitos cuando establezca un programa (por ejemplo: puesta en hora del reloj o programación de temporizador). Presiónelos para seleccionar los modos de ajuste desde el menú de la pantalla.

Botón B

Cuando programa (por ejemplo: puesta en hora del reloj o programación de temporizador), presiónelo para determinar su selección y pasar al siguiente paso que desee introducir. Presiónelo para determinar los modos de ajuste desde el menú de la pantalla. Presiónelo para añadir o borrar números de canales durante el preajuste de canales.

Botón {

Presiónelo para cancelar un ajuste de programa de temporizador. Presiónelo para corregir dígitos cuando se programa (por ejemplo: puesta en hora del reloj o programación de temporizador). Presiónelo para añadir o borrar números de canales durante el preajuste de canales.

44.Botón ENTER

Presione para aceptar un ajuste.

45.Botón g Modo DVD

Presione para avanzar rápidamente el Disco. Presione el Botón PAUSE, luego presione el Botón FWD iniciar a reproducción en movimiento lento. Presione el Botón FWD repetidamente para cambiar la velocidad de avance del movimiento lento.

– 36 –

SP

1L25

Modo VCR

Presione para avanzar rápidamente la cinta o ver la imagen rápidamente en avance durante reproducción. (Búsqueda en Avance).

46.Botón PLAY Modo DVD

Presiónelo para iniciar la reproducción.

Modo VCR

Presiónelo para iniciar la reproducción.

.47. Botón VCR

Presione antes de utilizar el control remoto para funciones de VCR.

Usted puede cambiar el modo OUTPUT presionando OUTPUT en el panel delantero o presionando DVD o VCR en el control remoto.Sin embargo, si usted presiona primero OUTPUT en el panel delantero, necesitará volver a seleccionar el modo correspondiente presionando DVD o VCR en el control remoto.

48.Botón PAUSE Modo DVD

Presione para pausar la reproducción de Disco. Presione repetidamente para avanzar la imagen DVD paso a paso (o un fotograma cada vez).

Modo VCR

Mientras graba, presione para detener provisionalmente la grabación (pausa). Presione por segunda vez para reanudar la grabación normal. Usted no puede pausar Grabación de Un-Toque.O, presione durante la reproducción de cinta para congelar la imagen.

53

54 55

49.Botón SLOW

Durante la reproducción de cinta, presione mirar la cinta de videó a movimiento lento. Presione de nuevo para reanudar la reproducción normal. Este Botón no afecta la reproducción DVD.

50.Botón VCR/TV

Utilice para seleccionar la posición VCR o TV.

Posición VCR

Para ver la reproducción, monitorear las grabaciones de vídeo o ver un programa de TV utilizando el sintonizador de la VCR.

Posición TV

Para ver un programa de TV o para ver un programa mientras se graba otro.

Posición de TV

Utilice para mirar TV (cambiando canales en el TV) o para mirar un programa mientras graba otro.

51.Botones SKIP/CH Modo DVD

Presione para saltar Capítulos o Pistas.

Modo VCR

Presione para cambiar canales de TV en la DVD/VCR.

52.Botón AUDIO

Presione para seleccionar un idioma de audio deseado o modo de sonido.

VISIÓN TRASERA

56 57

DVD/VCR

VCR

DVD



AUDIO OUT

AUDIO IN

S-VIDEOCOMPONENT

AUDIO

DIGITAL





OUT VIDEO OUT

OUT

AUDIO OUT

ANT-IN

L







L

Y





R

R

Cb

L



ANT-OUTVIDEO OUT

VIDEO IN





COAXIAL











Cr

R



6665 61

53.Toma ANTI-IN(Entrada de Antena)

Conecte su antena, caja de cable o caja de descodificador de satélite.

54.Tomas DVD/VCR AUDIO OUT

Conecte aquí los cables de audio provistos y a las tomas de entrada de audio de un televisor u otro equipo de audio.

55.Tomas AUDIO IN

Conecte aquí los cables de audio procedentes de las tomas de salida de audio de un camcorder, otra VCR o una fuente de audio.

56.Cordón de Alimentación AC

Conecte a una toma de corriente AC estándar para suministrar corriente al DVD/VCR.

Sólo DVD

57.Tomas COMPONENT VIDEO OUT

Conecte aquí los cables de videó componente opcionales y a las tomas de entrada de Videó componente de un televisor.

58.Toma COAXIAL

Conecte aquí un cable de audio digital coaxial opcional y a la toma de entrada de audio digital coaxial de un descodificador o receptor de audio.

Notas

6059 58

59.Tomas DVD ANALOG AUDIO OUT

Conecte aquí los cables de audio provistos y a las tomas de entrada de audio de un televisor u otro equipo de audio (sólo DVD).

60.Toma S-VIDEOOUT

Conecte aquí un cable de S-Videóopcional y a la toma de entrada deS-Videóde un televisor. (sólo DVD)

61.Toma VIDEO IN

Conecte un cable procedente de la toma de salida de videó de un camcorder, otra VCR o una fuente de audio-visual(reproductor de disco láser, reproductor de disco de videó, etc.) aquí.

62.Toma DVD/VCR VIDEO OUT

Conecte aquí el cable de videó amarillo (provisto) y a la toma de entrada de Videó de TV.

63.Toma ANT-OUT(Salida de Antena)

Utilice el cable coaxial RF provisto para conectar esta toma a la Toma ANTENNA IN en su TV. Caja de cable o Sistema de Radiodifusión Directa.

¡La tomaS-VIDEOOUT, toma COAXIAL, toma OPTICAL y tomas COMPONENT VIDEO OUT son sólo útiles en el modo DVD.

– 37 –

SP

1L25

CAMBIO DE VCR/DVD

Debido a que este producto es una combinación de videograbadora y reproductor de DVD, debe seleccionar primero el equipo que desea hacer funcionar con el botón OUTPUT.

MODO VCR

Presione el Botón VCR en el control remoto. (Verifique que la Luz VCR OUTPUT está enendida.)

Notas

MODO DVD

Presione el Botón DVD en el control remoto. (Verifique que la Luz DVD OUTPUT está encendida)

¡Presionando sólo el Botón OUTPUT en el panel delantero no cambia el modo del control remote. Usted siempre necesita seleccionar el modo correcto en el control remote, también.

POWER

CHANNEL STOP/EJECT

POWER SPEED AUDIO

PLAY



DVD





VCR

VIDEO

L AUDIOR





OUTPUT







DVD

DVD

VCR TIMER REC REC







STOP

PLAY



REW



F.FWD



Botón DVD

Luz DVD OUTPUT

Botón VCR

OUTPUT

DVD

VCR TI

Luz VCR OUTPUT

1 2 3

SKIP/CH.

4 5 6

VCR/TV

7 8 9

SLOW

0 +10

DISPLAY DVD VCR PAUSE

PLAY

STOP

RECORD

MENU

ENTER

Botón OUTPUT

SETUP

TITLE



RETURN

MODE

ZOOM

SEARCH

CLEAR/

MODE

C.RESET





SUBTITLE ANGLE REPEAT A-B

T-SET

– 38 –

SP

1L25

CONEXIONES

CONEXION A UN TV SIN TERMINALES A/V

1.Desconecte el cordón de alimentación AC del toma de corriente AC.

2.Desconecte la antena o cable del TV.

3.Conecte la antena o cable a la toma ANT.IN del DVD/VCR.

4.Conecte el DVD/VCR al TV utilizando el cable coaxial RF.

5.Enchufe los cordones de alimentación CA del DVD/VCR y TV dentro de las tomas de corriente AC.

CANAL DE SALIDA RF para DVD/VCR

1.Conecte el DVD/VCR a un TV utilizando un cable RF (consulte CONEXION A UN TV SIN TERMINALES A/V.)

2.Seleccione el canal 3 en su TV.

3.Presione PLAY.

Si hay ruido cambie el canal de salida RF de la UNIDAD COMBINADA DVD/VCR al canal 4 presionando PLAY en la videograbadora durante 3 segundos durante la reproducción.

CONEXION A UN TV CON TERMINALES A/V

Por favor, vea la [Fig.1] en la página 13 para detalles.

CONECTANDO A UN TV QUE TIENE TOMA DE ENTRADA DE S- VÍDEO o TOMAS DE ENTRADA DE VÍDEO COMPONENTE

Por favor, vea la [Fig. 2] en la página 14 para detalles.

CONEXION A UN AMPLIFICADOR ESTERO EQUIPADO CON TOMAS DE ENTRADA DIGITAL COMO UNA PLATINA DE MINIDISCOS O UNA PLATINA DE CINTAS AUDIODIGITALES

Por favor, vea la [Fig. 4] en la página 14 para detalles.

CONEXION A UN RECEPTOR CON DESCODIFICADOR DIGITAL DOLBY

Por favor, vea la [Fig. 5] en la página 15 para detalles.

CONEXION A UN SISTEMA DE AUDIO ANALOGICO

Por favor vea la [Fig. 6] en la página 15 para detalles.

PREPARACIÓN

PREPARACIÓN DE CANAL AUTOMÁTICA

1Conecte el TV y ponga el TV en el canal 3 ó 4.

2Conecte el DVD/VCR presionando POWER. Ambas Luces POWER y VCR/TV se encenderán.

3Seleccione el Idioma en la pantalla (“INGLÉS”, “FRANCÉS” o “ESPAÑOL”) presionando K oL. Luego, presioneB.

VCR

4Inicie canal preajustado presionando B una vez. El sintonizador explora y memoriza todos los canales activos de su área.

5Después de explorar, el sintonizador de detiene en el canal memorizado más bajo. La pantalla de TV retorna al modo TV.

– 39 –

SP

1L25

PREPARACIÓN DE RELOJ

VCR

Ajuste el reloj con precisión para grabación con temporizador automática adecuada. Le sugerimos que usted utilice un TV o estación de radio como su fuente de tiempos.

1Presione MENU dos veces para llamar el menú principal. (Si usted ha ajustado ya el reloj, usted sólo tiene que presionarlo una vez).

¡Si el reloj no está ajustado, aparece primero el menú CLOCK SET. En este caso, siga el paso [3].

2Seleccione “CLOCK SET” presionando KoL. Luego, presioneB

3Ajuste el reloj.

¡Para retroceder un paso, presione{

4Ponga en marcha el reloj presionando CLEAR/C.RESET o B.

1)Ajuste el mes

Presione oo prepetidamente

Luego, presione B.

2) Ajuste el día

Presione oo prepetidamente

Luego, presione B.

3) Ajuste el año

Presione oo prepetidamente Luego, presione B.

El día de la semana aparecerá automáticamente.

4) Ajuste la hora

Presione oo prepetidamente

Luego, presione B.

5) Ajuste el minuto

Presione oo prepetidamente

Luego, presione B.

6) Ajuste el AM o PM AJUSTE DE RELOJ

Presione oo prepetidamente.

MES

DIA

AÑO



03

/ 17 LUN

2003



HORA

MINUTO

AM/PM



05

: 40

PM AM







PM

REPRODUCCIÓN DE UN DISCO

REPRODUCIENDO UN DVD, VIDEO O UN CD AUDIO

DVD CD

Para empezar

Conecte la alimentación del TV, amplificador y cualquier otro componente que se encuentre conectado al DVD/VCR. (Cambie el sistema de entrada para que se adapte DVD/VCR y compruebe que el volumen de sonido sea correcto).

1 Presione el Botón POWER.

¡“Load” aparecerá brevemente en el panel de visualización.

Compruebe que la Luz DVD OUTPUT está encendida. Si no, presione el Botón DVD en el control remote para cambiar el modo DVD/VCR.

2 Presione el Botón OPEN/CLOSE.

¡La bandeja de carga del disco se abrirá.

3 Ponga un disco en la bandeja.

¡Asegúrese de que el disco está asentado correctamente, con el lado de la etiqueta arriba.

4 Presione el Botón PLAY.

¡La bandeja se cerrará automáticamente, y la reproducción empezará luego desde el primer capítulo o pista del disco. Usted necesita presionar el Botón PLAY sólo cuando la bandeja se ha cerrado presionando el Botón OPEN/CLOSE.

5Presione el Botón STOP para detener la reproducción.

– 40 –

SP

1L25

MEMO

– 41 –

EN

1L25

MEMO

– 42 –

EN

1L25

MEMO

– 43 –

EN

1L25

LIMITED WARRANTY

FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-INTO FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest SYLVANIA Authorized Service Center or for general service procedure, please call 1-800-968-3429or write to the following:

FUNAI CORPORATION, INC.

Customer Service

100 North Street; Teterboro, NJ 07608

Tel :1-800-968-3429http://www.funai-corp.com

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Printed in China

0VMN03452



H9400UD
