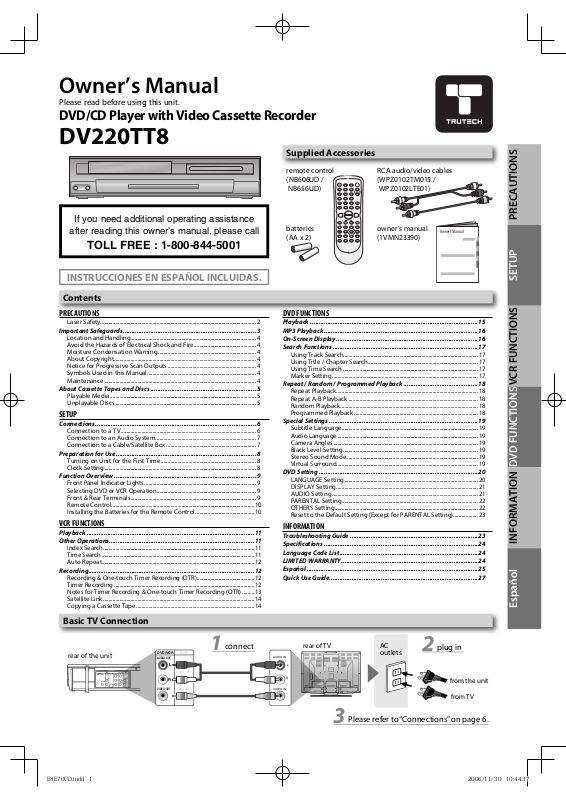

Owner’s Manual

Please read before using this unit.

DVD/CD Player with Video Cassette Recorder

DV220TT8

Supplied Accessories

If you need additional operating assistance after reading this owner’s manual, please call

TOLL FREE : 1-800-844-5001

remote control

RCA audio/video cables

(NB606UD /

(WPZ0102TM015 /

NB656UD)

WPZ0102LTE01)

batteries

owner’s manual Owner’s Manual

(AA x 2)

(1VMN23390)

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Contents



PRECAUTIONS



Laser Safety.................................................................................................................

2

Important Safeguards.............................................................................

3

Location and Handling...........................................................................................

4

Avoid the Hazards of Electrical Shock and Fire.............................................

4

Moisture Condensation Warning .......................................................................

4

About Copyright.......................................................................................................

4

Notice for Progressive Scan Outputs ................................................................

4

Symbols Used in this Manual...............................................................................

4

Maintenance ..............................................................................................................

4

About Cassette Tapes and Discs .............................................................

5

Playable Media ..........................................................................................................

5

Unplayable Discs ......................................................................................................

5

SETUP



Connections.............................................................................................

6

Connection to a TV ..................................................................................................

6

Connection to an Audio System.........................................................................

7

Connection to a Cable/Satellite Box .................................................................

7

Preparation for Use .................................................................................

8

Turning on Unit for the First Time .....................................................................

8

Clock Setting..............................................................................................................

8

Function Overview ..................................................................................

9

Front Panel Indicator Lights.................................................................................

9

Selecting DVD or VCR Operation........................................................................

9

Front & Rear Terminals...........................................................................................

9

Remote Control........................................................................................................

10

Installing the Batteries for the Remote Control...........................................

10

DVD FUNCTIONS



Playback .................................................................................................

15

MP3 Playback .........................................................................................

16

On-ScreenDisplay ..................................................................................

16

Search Functions ....................................................................................

17

Using Track Search..................................................................................................

17

Using Title / Chapter Search................................................................................

17

Using Time Search ..................................................................................................

17

Marker Setting..........................................................................................................

17

Repeat / Random / Programmed Playback ...........................................

18

Repeat Playback.......................................................................................................

18

Repeat A-BPlayback ..............................................................................................

18

Random Playback....................................................................................................

18

Programmed Playback ..........................................................................................

18

Special Settings ......................................................................................

19

Subtitle Language...................................................................................................

19

Audio Language ......................................................................................................

19

Camera Angles .........................................................................................................

19

Black Level Setting..................................................................................................

19

Stereo Sound Mode................................................................................................

19

Virtual Surround.......................................................................................................

19

DVD Setting ............................................................................................

20

LANGUAGE Setting.................................................................................................

20

DISPLAY Setting.......................................................................................................

21

AUDIO Setting ..........................................................................................................

21

PARENTAL Setting...................................................................................................

22

OTHERS Setting........................................................................................................

22

Reset to the Default Setting (Except for PARENTAL Setting)..................

23

VCR FUNCTIONS



Playback .................................................................................................

11

Other Operations....................................................................................

11

Index Search..............................................................................................................

11

Time Search...............................................................................................................

11

Auto Repeat...............................................................................................................

12

Recording................................................................................................

12

Recording & One-touchTimer Recording (OTR)..........................................

12

Timer Recording ......................................................................................................

12

Notes for Timer Recording & One-touchTimer Recording (OTR) .........

13

Satellite Link..............................................................................................................

14

Copying a Cassette Tape ......................................................................................

14

INFORMATION



Troubleshooting Guide ..........................................................................

23

Specifications .........................................................................................

24

Language Code List ................................................................................

24

LIMITED WARRANTY...............................................................................

24

Español ...................................................................................................

25

Quick Use Guide......................................................................................

27

Basic TV Connection







































1

connect







rear of TV

AC

2

plug in

rear of the unit











DVD/VCR



VCR









AUDIO IN

outlets







































AUDIO OUT









































































































L























L







































































DVD







DVD/VCR

VCR







AUDIO OUT





























DIGITAL

AUDIO

S-VIDEO













































AUDIO OUT

OUT

OUT

Y



L



















































































R

















L



PC /









R



























from the unit









R



















































C

/

R











































COAXIAL





P



































































VIDEO OUT



VIDEO OUT











VIDEO IN





from TV































































































































































































3Please refer to “Connections” on page 6.



















































Español INFORMATIONDVD FUNCTIONS VCR FUNCTIONSSETUP PRECAUTIONS

PRECAUTIONS

PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

Laser Safety

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING - This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

Used up batteries do not belong in the dust bin.

You can dispose of them at a collection point for used up batteries or special wastes. Contact your council for details.

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Model No. and the Serial No. Retain this information for future reference.

Model No. ________________________

Serial No. ________________________

– 2 –

EN

PORTABLE CART WARNING (Symbol provided by RETAC)
S3125A

Important Safeguards

1.Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2.Retain InstructionsThe safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7.Water and MoistureDo not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this video product on an unstable cart, stand, tripod,

bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufac-

turer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered.

The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-ininstallation such

as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10.Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This video product is equipped with a polarized alternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the video product due to lightning and power-linesurges.

14.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15.Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16.Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-outparts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

17.Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18.Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the video product.

c.If the video product has been exposed to rain or water.

d.If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e.If the video product has been dropped or damaged in any way.

f.When the video product exhibits a distinct change in performance this indicates a need for service.

19.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

20.Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform

safety checks to determine that the video product is in proper operating condition.

21.Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PRECAUTIONS

– 3 –

EN

PRECAUTIONS

Location and Handling

Do not stand this unit up vertically. Install this unit in a horizontal and stable position. Do not place anything directly on top of this unit. Do not place this unit directly on top of the TV.

Depending on the TV, noise or disturbance of the picture and/or sound may be generated if this unit is placed too close to your TV. In this case, please ensure enough space between your TV and this unit.

Do not cover or place this unit in enclosed spaces to prevent excessive temperature build up.

Do not place this unit in direct sunlight, or near heat sources.

Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

Keep this unit away from strong magnetic objects.

Do not place any object containing water or other liquids on this unit. In the event that liquid should enter the cabinet, unplug this unit immediately and contact the retailer or an authorized service center immediately.

Do not remove this unit cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center.

Be sure to remove disc and cassette tape and unplug the AC power cord from the output before carrying this unit.

Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC outlet. Grasp it by the plug.

If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our authorized service center for servicing.

Do not put your fingers or objects into the unit cassette holder.

Moisture Condensation Warning

Moisture may form inside this unit under the following conditions:

Immediately after a heater is turned on.

In a steamy or humid room.

When this unit is suddenly moved from a cold to warm environment.

If moisture forms inside this unit, it may not operate properly or damage the cassette tape. In such case, do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

Symbols Used in this Manual

The following symbols appear in some headings in this manual. : Description refers to video cassette tapes.

: Description refers toDVD-video.

: Description refers to audio CD.

: Description refers toCD-RW/-Rwith MP3 files.

Maintenance

Servicing

Please refer to relevant topics on the “Troubleshooting Guide” on page 23 before returning the product.

If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceableparts inside. Turn off, unplug the power plug, and please call our toll free customer support line found on the cover of this manual to locate an authorized service center.

Cleaning the Cabinet

Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

Cleaning Discs

When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a

circular motion.

Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

Cleaning the Disc Lens

If this unit continues to perform improperly even after you have referred to the relevant sections and to the

“Troubleshooting Guide” in this manual, the laser optical pickup unit may be dirty. Consult your dealer or an authorized service center for inspection and cleaning of the laser optical pickup unit.

Disc Handling

When you handle a disc, hold it by its edge and try not to touch the surface of the disc.

Always store the disc in its protective case when not in use.

Auto Head Cleaning

Automatically cleans video heads as you insert or remove a cassette tape, so you can see a clear picture.

Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn cassette tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.

1.Please visit your local audio/video store and purchase a good quality VHS video head cleaner.

2.If a Video head cleaner does not solve the problem, please call our toll free customer support line found on the cover of this manual to locate an authorized service center.

Note:

Remember to read the instructions along with the video head cleaner before use.

Clean video heads only when problems occur.

Manufactured under license from Dolby Laboratories. “Dolby” and the

double-Dsymbol are trademarks of Dolby Laboratories.

– 4 –

EN

About Cassette Tapes and Discs

Playable Media

Type of

Mark (logo)

Region code

Recorded

Media size



Tape speed and disc types









media

signals























































































cassette



















tape width

SP: 1-5/16inch/sec. (33.40 mm/sec.)

















analog video

1/2 inches

tape

















SLP: 7/16 inch/sec. (11.12 mm/sec.)



















(12.65mm)

































































































DVD-video













or























*1, 2, 3, 5, 9





























































































5 inches



















DVD-RW



















e.g.)

































(12 cm)

title 1



title 2

DVD-R

















digital video























or



















*1, 3, 4, 5, 6,

















(MPEG2)



chapter 1

chapter 2

chapter 3

chapter 4



chapter 1

chapter 2

8, 9, 10



















3 inches





































(8 cm)

























































DVD+RW

DVD+R

*1, 3, 4, 5, 7, 8, 9

audio CD





audio CD































*3, 5, 9





















e.g.)













































digital audio

5 inches



track 1



track 2



track 3



track 4



track 5



track 6

































































































































(12 cm)

































CD-RW

















or

or













































MP3

3 inches

MP3

e.g.)

























































CD-R







(8 cm)



folder 1







folder 2

*3, 4, 5, 8, 9























file 1





file 2





file 3





file 4



file 5





file 6

































































































































































































































































is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-videodoes not operate as described in this manual due to the intentions of the disc’s producers.

*3: Scratched or stained discs may not be played back.

*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*6: You may play back the unfinalized DVD-RW/-Rrecorded in the video format on our brand’s DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.

*7: Only discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all (the picture or sound may not be smooth, etc.).

*8: If the recorded portion of the disc is too small (less than 2-3/16inches (55 mm) across), it may not play back properly. *9: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

*10: Discs recorded in the VR (video recording) format cannot be played back.

Unplayable Discs

NEVER play the following discs as malfunction may result!

DVD-RAM,DVD-audio,CD-i,photo CD, video CD, DVD with region codes other than 1 or ALL,DTS-CD,DVD-ROMfor personal computers,CD-ROMfor personal computers

On the following disc, the sound MAY NOT be heard.

super audio CD

Note:

• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered.

Any other discs without compatibility indications

– 5 –

PRECAUTIONS

EN

SETUP

SETUP

Connections

Connection to a TV

Please refer to “Basic TV Connection” on the front page before you use this unit.



VCR and Basic DVD Connection

Available for DVD only









DVD’s picture quality







analog audio

standard picture

good picture

better picture

TV

AUDIO IN

VIDEO IN

S-VIDEOIN

COMPONENT

COMPONENT

VIDEO IN

VIDEO IN



L





Y

Y



R





CB

PB





and

or

or

or









CR

PR



RCA audio cable

RCA video cable

S-videocable

component video cable

This unit

DVD

DVD/VCR

VCR

DVD/VCR

VCR

AUDIO

AUDIO OUT







OUT

L















L

R















R





VIDEO OUT













or







AUDIO OUT

VIDEO OUT



DVD





DIGITAL

AUDIO

S-VIDEO

COMPONENT

VIDEO OUT

AUDIO OUT

OUT

OUT



COAXIAL







S-VIDEOOUT

DVD

DIGITAL

AUDIO

S-VIDEO

COMPONENT

VIDEO OUT

AUDIO OUT

OUT

OUT









Y







CB/

COAXIAL





PB







CR/







PR

COMPONENT

VIDEO OUT

Note:

Connect this unit directly to your TV. If an RCA audio/video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

DIGITAL AUDIO OUT (COAXIAL), DVD AUDIO OUT, S-VIDEOOUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

If your TV is compatible with 525 progressive scanning and you want to enjoy that high quality picture;

You must select the connection COMPONENT VIDEO OUT above and progressive scanning mode. To set the mode, set “PROGRESSIVE” to “ON” in “DISPLAY” menu, so that the PROGRESSIVE SCAN indicator on this unit lights up. Refer to pages 20-21for more details.

When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and S-VIDEOOUT jacks will be distorted or not be output at all.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode and set “PROGRESSIVE” to “OFF” either in “DISPLAY” menu or by pressing and holding [PLAY B] on the front of the unit for more than 5 seconds, so that the PROGRESSIVE SCAN indicator on this unit turns off.

After connecting to your TV:

You will need to switch to video input on your TV. This is usually marked TV/VIDEO, INPUT or AUX.

Please refer to your TV’s owner’s manual for details.

Input modes for common TV brands:

Listed below are inputs for common brand name TV’s.

Admiral:

AUX

Panasonic:

TV/VIDEO

Curtis Mathis:

LINE1, LINE2, 00, 90, 91, 92, 93

RCA:

INPUT, TV/VCR, 00, 90, 91, 92, 93

GE:

INPUT, TV/VCR, 00, 90, 91, 92, 93

Samsung:

TV/VIDEO

Hitachi:

INPUT, AUX

Sanyo:

VIDEO

JVC:

VIDEO, VIDEO1, VIDEO2, VIDEO3

Sharp:

00

Kenwood:

AUX

Sony:

VIDEO1, VIDEO2, VIDEO3

LXI-Series:

00

Toshiba:

TV/GAME

Magnavox:

AUX CHANNEL

Zenith:

00









– 6 –

EN

Connection to an Audio System

Playing 2 Channel Analog Audio





Playing Multi Channel Digital Audio



















































































stereo system















Dolby Digital decoder,











Audio



















MD deck or DAT deck













































analog audio







































L

R





COAXIAL

digital audio











































input jacks















input jack























































































































































































































RCA audio cable









digital audio coaxial cable



















































































DVD

















































































































































































































DVD



























DVD/VCR



VCR





This unit





















OUT

















































AUDIO OUT



OUT

OUT







AUDIO



























AUDIO OUT

























DIGITAL





AUDIO

S-VIDEO

COMPONENT

























































VIDEO OUT





L



























L

















































































































R

























































































































R























































COAXIAL



























or

















































































































AUDIO OUT















DIGITAL AUDIO OUT

































































































































Connection



Setting

SETUP > QUICK >



























































DOLBY DIGITAL

















































Connecting to a Dolby Digital decoder





BITSTREAM

















































for Dolby Digital audio output.























































































































































































Connecting to other device (an MD deck























































or DAT deck etc.) without Dolby Digital





PCM

















































decoder.



















































































































































* To complete these settings, refer to pages 20-21.































































































































Note:









































































• The audio source on a disc in a Dolby Digital multi channel surround

















































format cannot be recorded as digital sound by an MD or DAT deck.

















































• By hooking this unit up to a Dolby Digital decoder, you can enjoy

















































high-qualityDolby Digital multi channel surround sound as heard in the

















































movie theaters.





























































• Playing back a DVD using incorrect settings may generate noise distor-

















































tion and may also damage the speakers.

















































































Connection to a Cable/Satellite Box

rear of TV

AUDIO IN

L

R

VIDEO IN











external tuner

rear of the unit

(cable/satellite box)

















DVD

DVD/VCR VCR







DIGITAL

AUDIO S-VIDEO





AUDIO OUT

OUT

OUT



YL



L







C / R

R

L1

COAXIAL

P





R







C /







P







DVD/VCR

VCR





AUDIO OUT



AUDIO OUT

RCA audio cable

L



L





AUDIO IN

RCA audio cable



R



R

VIDEO OUT

VIDEO IN

VIDEO OUT

RCA video cable

RCA video cable

Using the unit with a cable/satellite box

Special note when connected to a cable/satellite box:

1.

Connect an RCA audio and video cables to the audio and

Only the active channel on your cable/satellite box may be



video output jacks of your cable/satellite box and to the audio

viewed or recorded when connected to this unit.



and video input jacks at the rear of the unit.

Do not change channels during a recording.

2.

Press [INPUT SELECT] on your remote control until “L1” is

You cannot record on channel while viewing another.



displayed on your TV.



Note:

Your cable/satellite box can be accessed only by connecting it to L1 (rear panel jacks) of the unit. Even if the unit is turned off, the signal from the external tuner is output to the TV through the unit.

L1: Rear panel terminals

L2: Front panel terminals

Refer to “Front & Rear Terminals” on page 9 for more information.

– 7 –

SETUP

EN

SETUP

Preparation for Use

Turning on Unit for the First Time



VCR

Please note: most instructions in this man-





ual refer to remote control use.



1

Be sure your TV’s input is set to VIDEO. (Name may







vary with TV manufacturer. See your TV manual for







details.)







2

Select your on-screenlanguage.

LANGUAGE SELECT



Then press [B] to continue.

B ENGLISH

[ON]



POWER



FRANCAIS







ESPAÑOL















or





3

When “CLOCK SET” menu appears,

CLOCK SET





go to step 2 in “Clock Setting” on this page.

MONTH DAY

YEAR







1 0 / – –

– – – –





or

HOUR MINUTE

AM/PM





– :– –

– –

To Change the Selected On-screenLanguage

1

Press [SETUP] until the main menu appears.

- M E N U -

























B TIMER PROGRAMMING



SETUP

SATELLITE LINK







AUTO REPEAT

[OFF]









CLOCK SET













LANGUAGE SELECT













2

Select “LANGUAGE SELECT”.

TIMER PROGRAMMING









- M E N U -







Then press [B] to go to next step.

SATELLITE LINK













AUTO REPEAT

[OFF]









CLOCK SET













B LANGUAGE SELECT



or

































3

Select “ENGLISH”, “FRANCAIS” or

LANGUAGE SELECT





“ESPAÑOL”. Then press [CLEAR/C.RESET].

B ENGLISH

[ON]







CLEAR/

FRANCAIS











ESPAÑOL











C. RESET





or

Note:

If you accidentally select Spanish or French and need English:

Press [SETUP] and choose “SELEC. IDIOMA” or “SELECTION LANGUE”. Press[B] and select “ENGLISH”. Finally, press[CLEAR/C.RESET].

Clock Setting

VCR

1

Press [SETUP] and select “CLOCK SET”.

- M E N U -



Then press [B] to go to next step.

TIMER PROGRAMMING





SATELLITE LINK





AUTO REPEAT [OFF]



SETUP

B CLOCK SET





LANGUAGE SELECT

or

If the clock is not set, the “CLOCK SET” menu appears when you press [SETUP]. In this case, go to step 2.

2

Select the current month.

MONTH



DAY



YEAR















CLOCK SET







Then press [B] to go to next step.

1 0

/

- -



- - - -













HOUR



MINUTE

AM/PM



or







- -

:

- -



- -













































3

Select the current day.

MONTH



DAY



YEAR















CLOCK SET







Then press [B] to go to next step.

1 0

/

0 2



- - - -













HOUR



MINUTE

AM/PM



or





- -

:

- -



- -











































4

Select the current year.

MONTH



DAY



YEAR















CLOCK SET







Then press [B] to go to next step.

1 0

/

0 2

TUE

2 0 0 7













HOUR



MINUTE

AM/PM



or





- -

:

- -



- -











































5

Select the current hour.

MONTH



DAY



YEAR















CLOCK SET







Then press [B] to go to next step.

1 0

/

0 2

TUE

2 0 0 7













HOUR



MINUTE

AM/PM



or





0 5

:

- -



- -











































6

Select the current minute.

MONTH



DAY



YEAR















CLOCK SET







Then press [B] to go to next step.

1 0

/

0 2

TUE

2 0 0 7













HOUR



MINUTE

AM/PM



or





0 5

:

4 0



- -









































7

Select “AM” or “PM”.





CLOCK SET





MONTH



DAY



YEAR











1 0

/

0 2

TUE

2 0 0 7





or

HOUR



MINUTE

AM/PM











0 5

:

4 0



P M AM



















B PM























8

Press [SETUP] to exit the “CLOCK SET” menu.















SETUP













Note:

To go back, press [s] during steps 2 to 7.

Clock setting will be lost after a power failure, or this unit has been unplugged for more than 30 seconds.

– 8 –

EN

Function Overview















Front Panel Indicator Lights

















Lights up when the progressive scan system is activated.





Lights up when the inserted disc

Lights up during a recording or one-touchtimer









is being played back.

Lights up when this unit





Blinks when an unplayable disc

recording (OTR). Blinks when a recording is paused.

is in the DVD mode.





is inserted.



POWER





OPEN/CLOSE









VIDEO

AUDIO

REC

TIMER REC

VCR

DVD

P-SCAN

PLAY



















REW F.FWD STOP/EJECT PLAY

REC/OTR



TRACKING

OUTPUT

REV/SKIP STOP

PLAY

SKIP/FWD

Lights up when the unit is turned on.





Lights up when this unit is in the VCR mode.

Lights up when the timer recording or one-touchtimer recording (OTR) has been set.

Selecting DVD or VCR Operation

You must first select either DVD or VCR operation.

VCR MODE

Press [VCR] on the remote control. (The VCR OUTPUT light will illuminate.)

DVD MODE

Press [DVD] on the remote control. (The DVD OUTPUT light will illuminate.)

VCR DVD

OUTPUT

VCR button

DVD button

DVD OUTPUT light VCR OUTPUT light OUTPUT button

POWER

OPEN/CLOSE

SPEED

T-SET

1

2

3









TRACKING

4

5

6



7

8

9



CLEAR/





INPUT

C. RESET





SELECT



0

+10



DISPLAY

VCR

DVD

MODE





PLAY







STOP



REC/OTR



SKIP

PAUSE

TOP MENU

SEARCH



AUDIO

MODE



MENU



ENTER



SETUP

ZOOM



RETURN

SUBTITLE ANGLE REPEAT

A-B

Front & Rear Terminals

rear panel

1





2

3

front panel





DVD



DVD/VCR

VCR





DIGITAL

AUDIO S-VIDEO

COMPONENT

AUDIO OUT



L1



VIDEO OUT

L





AUDIO OUT

OUT OUT

Y













LAUDIO IN

CB/

R











PB



L2



REC

TIMER REC







COAXIAL

VIDEO OUT

VIDEO IN

VIDEO

AUDIO



CR/







R









PR









REW F.FWD STOP/EJECT PLAY REC/OTR



8

7

6

5

4

4

3

1: DVD AUDIO OUT* (analog) jacks

Connect an audio cable from here to the audio input jack of your television or audio device.

2: DVD/VCR AUDIO OUT jacks

Connect an audio cable from here to the audio input jack of your television or audio device. Standard connection for DVD/VCR use.

3: VCR AUDIO IN jack

Connect a monaural audio cable from the audio output jack of your camcorder, VCR, etc. to here. After making the connection, press [INPUT SELECT] on the remote control. Select “L1” to activate the rear AUDIO IN jack, or “L2” to activate the front.

4: VCR VIDEO IN jack

Connect a video cable from the video output jack of your camcorder, VCR, etc. to here. After making the connection, press [INPUT SELECT] on the remote control. Select “L1” to activate the rear VIDEO IN jack, or “L2” to activate the front.

5: DVD/VCR VIDEO OUT jack

Connect a video cable from here to the VIDEO input jack of your television or audio device. Standard connection for DVD/VCR use.

6: COMPONENT VIDEO OUT* jacks

Connect component video cables from here to the component video input jacks of your television.

7: S-VIDEOOUT* jack

Connect an S-videocable from here to theS-videoinput jack of your television.

8: DIGITAL AUDIO OUT COAXIAL* jack

Connect a digital audio coaxial cable from here to the digital audio input jack of your digital audio receiver.

*For enhanced DVD viewing. DVD/VCR video and audio connection required to view cassette tapes.

Note:

Audio and video cables are included for both VCR and DVD viewing. You can enhance your DVD picture and sound quality with an S-videocable, component video cables, or a digital audio coaxial cable.Please purchase the necessary cables at your local store. (Refer to pages6-7.)

– 9 –

SETUP

EN

SETUP

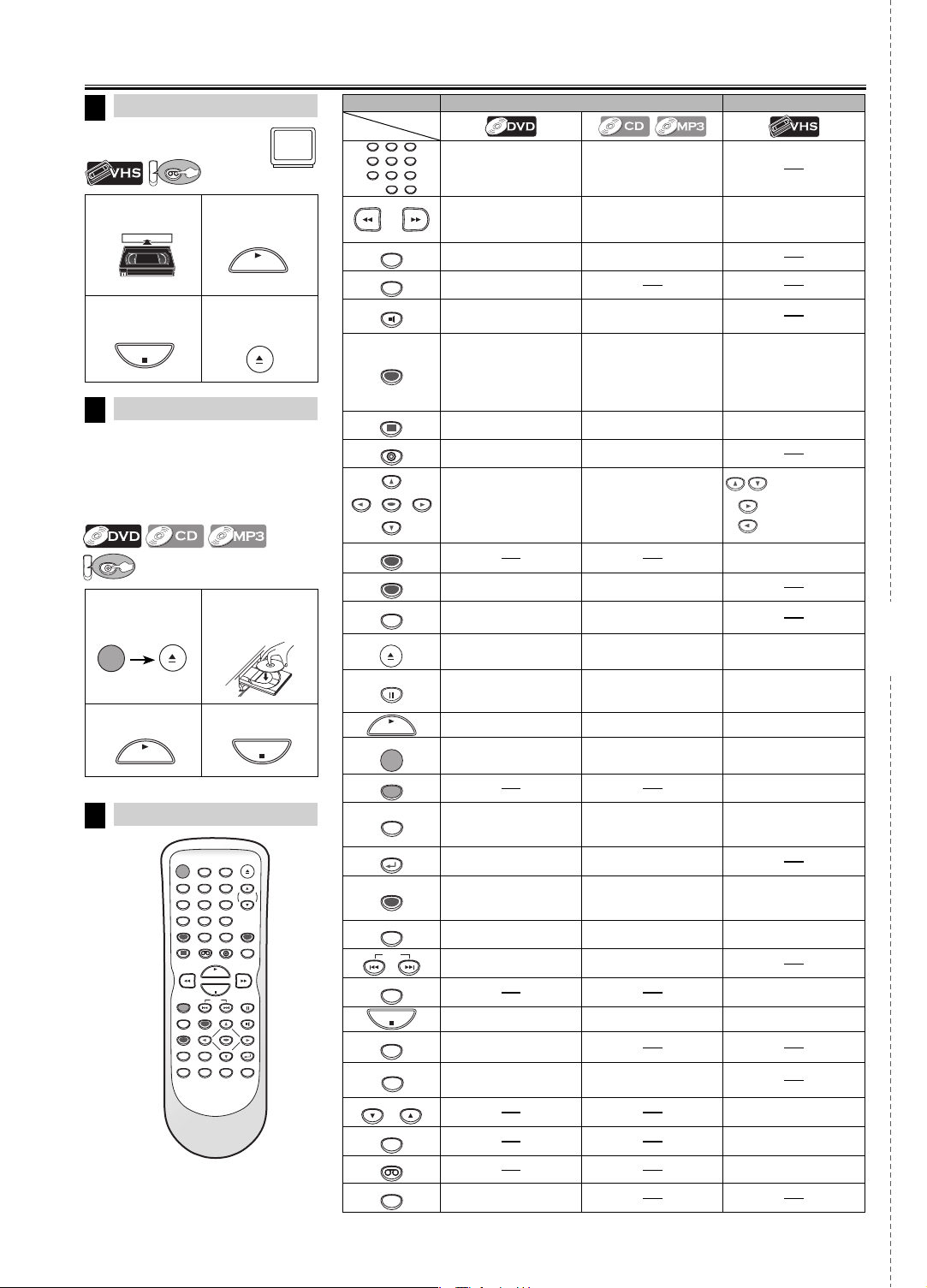

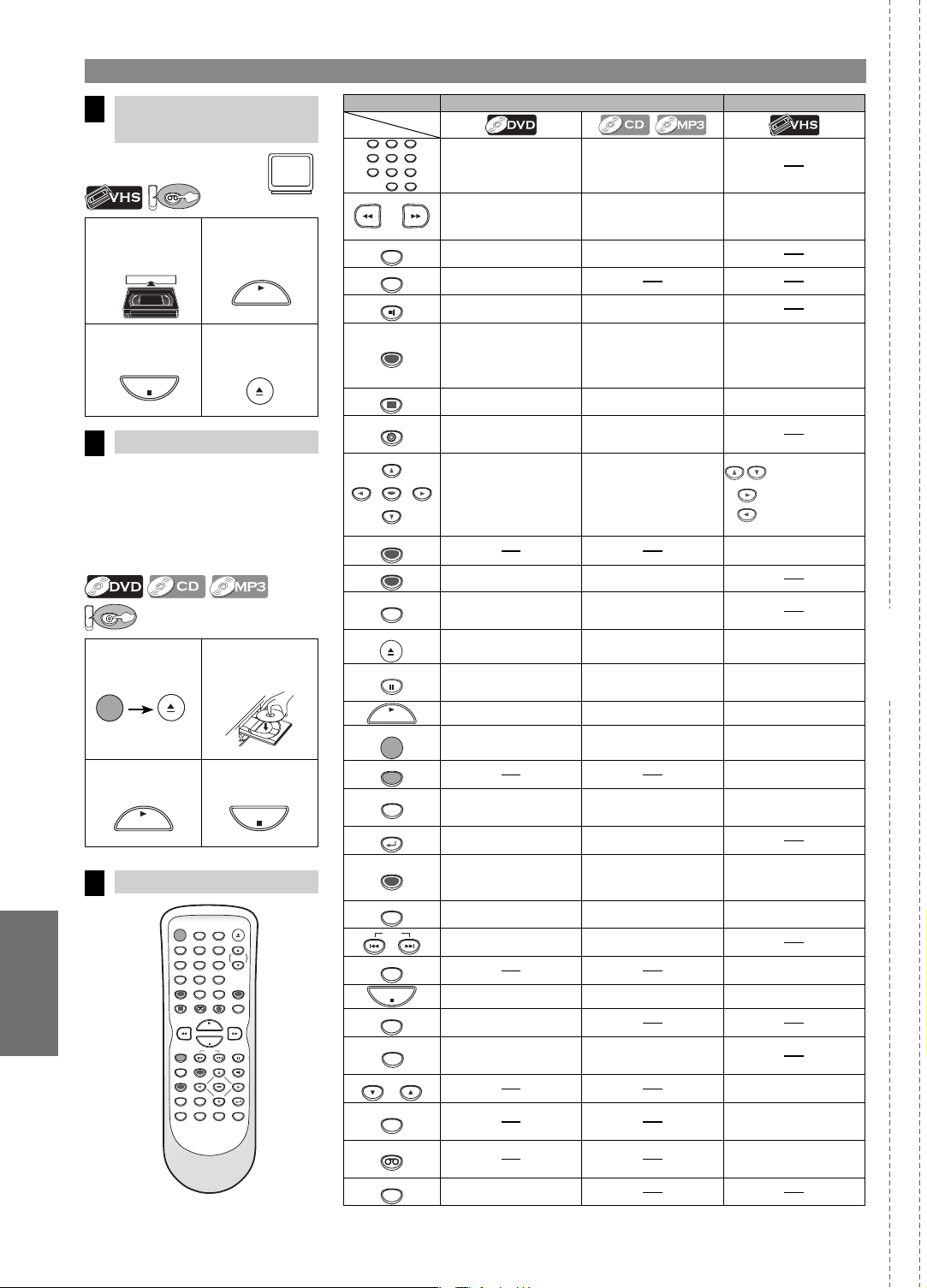

Remote Control

POWER

OPEN/CLOSE

SPEED

T-SET

1

2

3









TRACKING

4

5

6



7

8

9



CLEAR/





INPUT

C. RESET





SELECT



0

+10



DISPLAY

VCR

DVD

MODE





PLAY





STOP



REC/OTR



SKIP

PAUSE

TOP MENU

SEARCH



AUDIO

MODE



MENU



ENTER



SETUP

ZOOM



RETURN

SUBTITLE

ANGLE

REPEAT

A-B

Installing the Batteries for the Remote Control

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

1

2

3

Keep in mind the following when using the remote control:

Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.

The maximum operable ranges from the unit are as follows.

-Line of sight: approx. 23 feet (7m)

-Either side of center:

approx. 16 feet (5m) within

30°

- Above: approx. 16 feet (5m) within

15°

- Below: approx. 10 feet (3m) within

30°

Note:

Do not mix alkaline and manganese batteries.

Do not mix old and new batteries.

If you turn off this unit, [OPEN/CLOSE A] on the remote control is not available.

Be sure to use [OPEN/CLOSE A] or

[STOP/EJECT CA]on the unit.

DVD mode

VCR mode

Media

Button











(Alphabetical order)









1

2

3







4

5

6

• To select chapter or title

• To select track or file directly.











7

8

9

directly.









0

+10













• To search forward/backward



• To forward/backward a tape.







through a disc.

• To search forward/backward







• To begin slow forward







• To begin slow forward/reverse

through a disc.







playback in the pause mode.







playback in the pause mode.













A-B



• To repeat between your chosen • To repeat between your

















point of A and B.

chosen point of A and B. (CD)



ANGLE



• To select camera angles on a





















disc.





AUDIO



• To select audio languages on a

• To select “STEREO”, “L-ch”or

















disc.

“R-ch”.(CD)











• To clear the markers. (CD)









• To clear the markers.

• To remove status number in



C. RESET



• To clear numbers entered

program input.



CLEAR/







• To exit the VCR menu.







incorrectly.

• To clear numbers entered







• To reset the tape counter.







• To cancel the point for A-B

incorrectly.















repeat.

• To cancel the point for A-B











repeat. (CD)



DISPLAY



• To display the current disc

• To display the current disc

• To display the current time,













mode.

mode.

tape counter, and L1 or L2.

DVD



• To select DVD output mode.

• To select the DVD output mode.

















• To activate DVD mode.

• To activate DVD mode.













• To select an item on











the VCR menu.

ENTER



• To move the cursor and deter-

• To move the cursor and deter-

• To advance to the







next VCR menu.







mine its position.

mine its position.







• To go back one step





















during clock and











timer programming.

INPUT









SELECT







• To select input “L1” or “L2”.











MENU



• To call up the disc menu on a

• To call up the file list. (MP3)

















disc.













MODE



• To set black level on/off.

• To arrange the playing order or









play randomly.









• To set virtual surround on/off.









• To set virtual surround on/off.













OPEN/CLOSE





• To eject the cassette tape from







• To open or close the disc tray.

• To open or close the disc tray.







the cassette compartment.











PAUSE



• To pause disc playback.



• To pause tape playback or





recording.







• To advance playback one frame • To pause disc playback.







• To advance playback one frame







at a time.











at a time.











PLAY



• To begin disc playback.

• To begin disc playback.

• To begin tape playback.

POWER















• To turn the unit on/off.

• To turn the unit on/off.

• To turn the unit on/off.

REC/OTR







• To start recording or one-touch





















timer recording (OTR).

REPEAT





• To play back a track or disc





• To play back a chapter or title

repeatedly. (CD)

• To select the repeat mode on/







repeatedly.

• To play back a file, folder or

off.









disc repeatedly. (MP3)



RETURN



• To return to the previous

• To return to the previous

















operation in menu.

operation in menu.



MODE



• To search chapter, title or time.

• To search track.

• To call up the index or time

SEARCH















• To set or search the markers.

• To search time. (CD)

search menu.







• To set or search the markers. (CD)











SETUP



• To call up the DVD menu.

• To call up the DVD menu.

• To call up the VCR menu.







SKIP



• To skip chapters or titles.

• To skip tracks or files.











SPEED







• To select the recording speed.











STOP



• To stop playback.

• To stop playback.

• To stop playback or recording.







SUBTITLE



• To select subtitles on a disc.















TOP MENU

• To call up the top menu on a

• To return to the top file of the









highest hierarchy in the pro-









disc.









gram and file list. (MP3)













TRACKING

TRACKING





• To adjust the tracking manually





















during playback.

T-SET







• To put the VCR into standby





















mode for a timer recording.

VCR







• To select the VCR output mode.





















• To activate VCR mode.

ZOOM



• To magnify part of a picture.





















(2x/4x)





– 10 –

EN

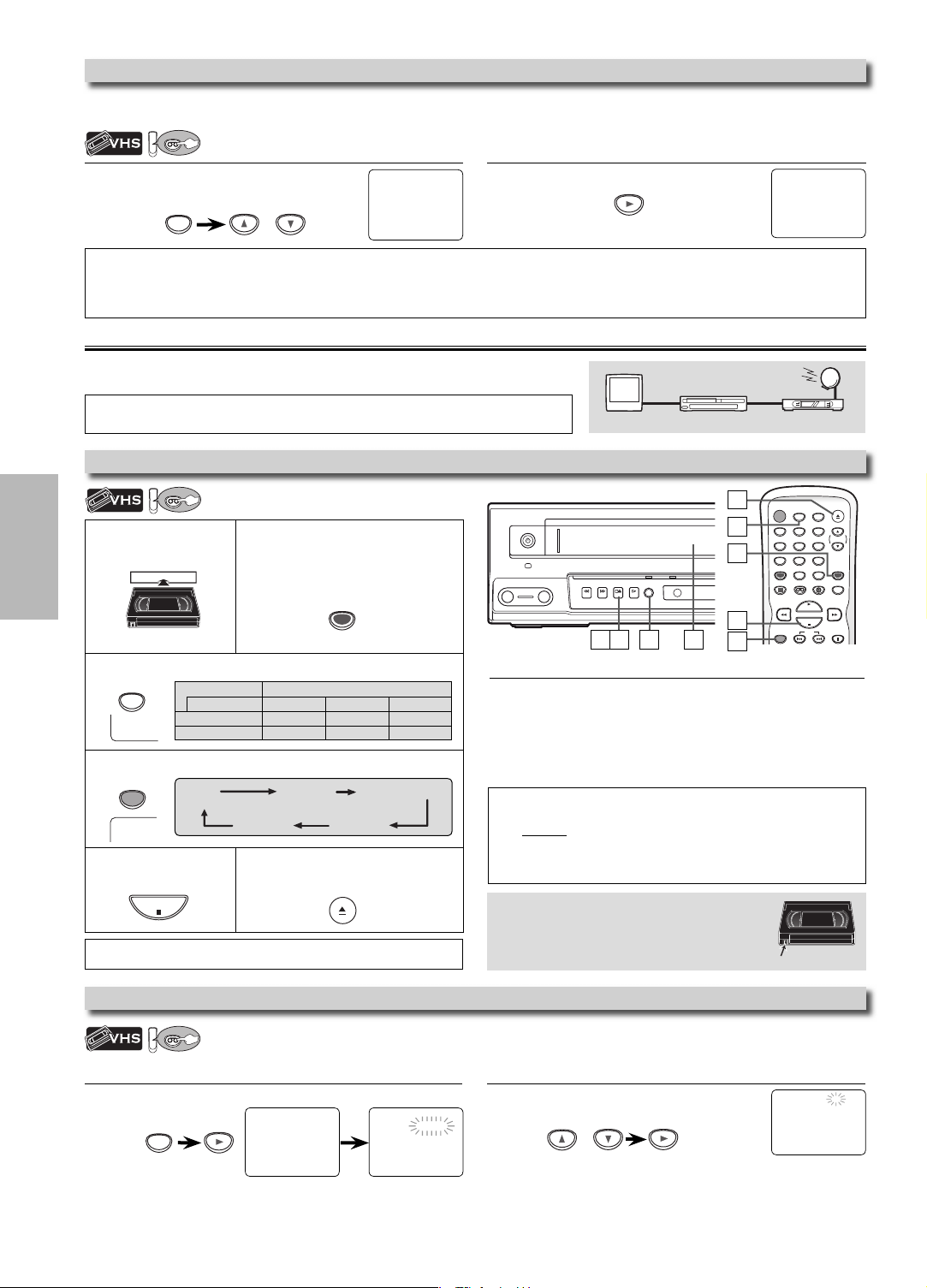

VCR FUNCTIONS

Playback

Before: Turn on the TV.

VCR

POWER

OPEN/CLOSE

SPEED

T-SET

1 Insert a cassette tape

2 To start playback

1

2

3

into this unit.







TRACKING





4

5

6



PLAY

7

8

9



CLEAR/



INPUT





C. RESET



SELECT







0

+10

3 To stop playback

4 To eject the cassette tape

DISPLAY

VCR

DVD MODE

2







OPEN/CLOSE



PLAY

STOP























STOP

4

POWER

VIDEO AUDIO

3

1

REC

REW F.FWD STOP/EJECT PLAY REC/OTR

4 32

Note:

When a cassette tape without a record tab is inserted, the unit will start playback automatically.

Tracking will be auto-

TIME

matically adjusted upon



playback. To adjust the



tracking manually, press



[TRACKING K/L]



during playback.

Other Operations

To cue or review picture during playback (picture search)

Use [g] or[h] ([ F.FWD g] or[REW h] on this unit).

Press it again and the unit will search in super high speed. (in the SLP mode only)

To freeze the picture on TV screen during playback (still mode)

Press [PAUSE F]. Each time you press the button, the picture will be forwarded by one frame.

If the picture begins to vibrate vertically in the still mode, stabilize the picture by using [TRACKING K/ L].

If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV if equipped.

To reset the cassette tape counter (counter reset)

Press [DISPLAY] to display the cassette tape counter on the TV. Press [CLEAR/C.RESET] to reset the counter to “0:00:00”.

To play back in slow motion (slow mode)

Press [PAUSE F] during playback, then press[g] ([ F.FWD g] on this unit).

If you want to change speed in slow mode, press [g] or[h] ([ F.FWD g] or[REW h] on this unit), slow speed will be more fast and slow mode.

If the noise bars appear on the TV screen, you can reduce it by using

[TRACKING K/L].

To rewind the cassette tape automatically (auto rewind)

When a cassette tape reaches its end during playback, fastforward or recording (except timer recording and one-touchtimer recording), the cassette tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the cassette tape.

Note:

To prevent damage to the cassette tape, still or slow mode will automatically stop after 5 minutes.

To return to playback from the picture search, still or slow mode, press

[PLAY B].

Index Search

To search by index mark. The index mark will be made automatically at the beginning of each recording.

VCR

• Insert a cassette tape into this unit.

1

Press [SEARCH MODE]once.



INDEX SEARCH



SEARCH







MODE





– –

















2

To select index mark



INDEX SEARCH











0 3



01 ~ 20



or

beginning of

current program

end of the



the contents





contents















Pro.1

Pro.2

Pro.3

Pro.4 Pro.5





02

01

01

02

03











index mark

3

To rewind





ss





To fast forward



















BB



4

When index mark is reached,



PLAY B







playback automatically begins.











Note:

The time gap between index marks should be more than 1 minute for SP mode, 2 minutes for LP mode and 3 minutes for SLP mode.

Time Search

To search by length of time.

VCR

• Insert a cassette tape into this unit.

1

Press [SEARCH MODE]twice.

TIME SEARCH

SEARCH



MODE

– :– –





2

Select the desired length of time

TIME SEARCH



for fast forwarding or rewinding.

2 : 5 0







or

0:01~ 9:59







(1 minute~9 hours and 59 minutes)

3

To rewind

ss



To fast forward

BB





4

When selected length of time is





reached, playback will start

PLAY B

automatically.

Note for Index Search & Time Search:

These functions are not available during recording.

Press [STOP C] to stop the search.

If a cassette tape ends during a search, your search will be canceled and the cassette tape will rewind to the beginning.

– 11 –

VCR FUNCTIONS

EN

FUNCTIONS VCR

Auto Repeat

When “AUTO REPEAT“ is set to “ON“, the cassette tape will automatically rewind and start over when it reaches the end. This will continue until auto repeat function is turned off.

VCR

1 Press[SETUP], and choose “AUTO REPEAT”.

TIMER PROGRAMMING

2

Press [B] to “AUTO REPEAT” to set “ON” or “OFF”.TIMER PROGRAMMING



- M E N U -



- M E N U -



SATELLITE LINK



SATELLITE LINK



B AUTO REPEAT [OFF]



B AUTO REPEAT [ON]

SETUP

CLOCK SET



CLOCK SET

LANGUAGE SELECT



LANGUAGE SELECT

or

Press [SETUP] to exit.

Note:

The auto repeat function can also be set “ON” or “OFF” by pressing [REPEAT] on the remote control.

To cancel auto repeat function, follow step 1 above. Then, press [B] so that “OFF” appears beside “AUTO REPEAT”. Press[SETUP] to exit.

The auto repeat playback will start automatically if you select “AUTO REPEAT” to “ON” in the stop mode.

Recording

This unit has no tuner system so cannot receive TV broadcasts without external tuner or such devices.

Note:

TV

this unit

external tuner

• You can also set to external tuner. Refer to “Satellite Link” on page 14.

Recording & One-touchTimer Recording (OTR)

VCR

1

Insert a recordable

2

Press [INPUT SELECT] until “L1” or



cassette tape.





“L2” is displayed on the TV screen.













Select “L1” to activate rear input jacks.













Select “L2” to activate front input jacks.



















INPUT





















SELECT











































































See note on the right.

































3

Press [SPEED] to select the desired tape speed.

































SPEED



Tape speed

Recording / playback time











Type of tape

T60







T120

T160







SP



SP mode



1hour





2hours

2-2/3hours









SLP mode



3hours





6hours

8hours

















































4

Press [REC/OTR] until desired recording time is selected.



REC/OTR

REC



OTR (0:30)







OTR (1:00).....

























(normal recording)















REC



OTR (8:00)





OTR (7:30)



































































5

Press [STOP C] to

6

Press [OPEN/CLOSE A] to eject the



stop recording.



recorded cassette tape.



















OPEN/CLOSE









STOP



















































































You CANNOT dub a DVD to a video cassette tape.









6

POWER







3









2

VIDEO AUDIO



REC

TIMER REC











REW F.FWD STOP/EJECT PLAY REC/OTR





5

6

4

1

5

4

To stop recording temporarily (Pause mode)

POWER

OPEN/CLOSE

SPEED

T-SET

1

2

3









TRACKING

4

5

6



7

8

9



CLEAR/





INPUT

C. RESET





SELECT



0

+10



DISPLAY

VCR

DVD

MODE





PLAY







STOP



REC/OTR



SKIP

PAUSE

Press [PAUSE F].

During the recording in pause mode, 5 C marks appear on the TV screen. Each C mark represents 1 minute.

Press it again to resume recording.

Pause mode will be automatically canceled after 5 minutes to prevent damage to the cassette tape and the video head.

Note:

Do not change the external tuner’s channel while you are recording. You CANNOT watch one channel and record another at the same time.

Connect your external tuner to the L1 (rear panel) jacks of the unit. Connect camcorders and other such devices to the L2 (front panel) jacks. Refer to page 7, 9.

Accidental Erasure Prevention

To prevent accidental recording, remove eraseprotection tab of the cassette tape. To record

on it later, cover the hole with adhesive tape.

erase-protectiontab

Timer Recording

VCR

• Insert a recordable cassette tape.

Make sure to turn on the external tuner.

1 Press[SETUP]. Select “TIMER PROGRAMMING”.



2

Select an empty program number.



- M E N U -

TIMER PROGRAMMING

Then press [B] to go to next step.

SETUP

B TIMER PROGRAMMING

PROG

12345678





SATELLITE LINK

DATE



or



AUTO REPEAT [OFF]





START

TIME



CLOCK SET



LANGUAGE SELECT

END

TIME



L1/L2

REC SPEED

Available program number flashes.

– 12 –

PROGRAM NUMBER 1



DATE



– /– –



START

TIME

– :– –

– –

END

TIME

– :– –

– –

L1/L2



– –



REC

SPEED

– –



EN

3

Select “ONCE”, “DAILY” (Mon-Fri),or “WEEKLY”.

PROGRAM NUMBER 1

9

Select recording speed.

ONE TIME PROGRAM













Then press [B] to go to next step.

B ONCE

Then press [CLEAR/C.RESET].

PROGRAM NUMBER 1







DATE



1 0

/ 2 3 TUE









DAILY









START

TIME

0 7

: 3 0

PM









WEEKLY







CLEAR/

END

TIME

0 8

: 3 0

PM



or













C. RESET

L1/L2



L1















or





REC

SPEED

SP























B

SP





SLP

4

Select the desired date.









Then press [B] to go to next step.





















or

ONE TIME PROGRAM





PROGRAM NUMBER 1

















DATE

1 0 / 2 3 TUE









START

TIME

– :– –

– –







END

TIME

– :– –

– –







L1/L2



– –









REC

SPEED

– –



or

You can program the unit to record up to 8 programs, within a year in advance.

5

Select the desired starting time (hour).













Then press [B] to go to next step.





























ONE TIME PROGRAM





or

PROGRAM NUMBER

1





















DATE



1 0

/ 2 3 TUE



















START

TIME

0 7

: 3 0

– –



















END

TIME

– :– –

– –



















L1/L2



– –















































REC

SPEED

– –







or











































6

Select “AM” or “PM”.

ONE TIME PROGRAM



Then press [B] to go to next step.

DATE



1 0

/ 2 3 TUE

















PROGRAM NUMBER

1





















START

TIME

0 7

: 3 0

PM



















END

TIME

– :– –

– –



or











L1/L2



– –

















REC

SPEED

– –



AM



















































B PM





















7

Repeat the procedure in steps 5 and 6 to set the ending time.





















































8

Select “L1” or “L2”.

PROGRAM NUMBER

1





















ONE TIME PROGRAM





Then press [B] to go to next step.

DATE



1 0

/ 2 3 TUE



















START

TIME

0 7

: 3 0

PM



















END

TIME

0 8

: 3 0

PM



or













L1/L2



L1















REC

SPEED

– –





To set another program after step 9, press [B]. Then continue with step 2.

10 Press[T-SET] to set the timer standby mode.

T-SET

indicator on this unit lights up and the unit goes to the DVD mode.

Note:

To go back one step, press [s] during steps 3 to 9.

Select “L1” to activate rear input jacks. Select “L2” to activate front input jacks.

To check, correct or cancel a timer program

1)Press [T-SET] then,[VCR] on the remote control.

2)Press [SETUP] to call up the main menu.

3)Select “TIMER PROGRAMMING” by using [K/ L], then press

[B].

4)Select the program number which you want to check by using [K/ L]. The details of the program you selected will appear on the TV screen.

Go to the digit you want to change by using [s/ B]. Then, enter correct numbers by using[K/ L].

You may cancel the entire program by pressing [s] while the program number blinks.

5)Press [CLEAR/C.RESET]to exit.

6)Press [T-SET] to return to the timer standby mode.

To cancel a timer recording in progress

Press [STOP/EJECT CA] on the unit.

Notes for Timer Recording & One-touchTimer Recording (OTR)

If a cassette tape is not in the unit or does not have the erase-protectiontab,indicator on this unit blinks and timer recording cannot be performed. Please insert a recordable cassette tape.

When timer recordings are set, indicator on this unit lights up. To use the VCR as usual until the time for the recording, press[T-SET] so thatindicator lights off.

After an one-touchtimer recording or a timer recording has been set, this unit operates as follows:

If a cassette tape runs out before an one-touchtimer recording or a timer recording is finished, the unit ejects the cassette tape. Press[T-SET] on the remote control or[STOP/EJECT CA] on the unit, then press[VCR] to activate the VCR function again.

Once the unit turns to the timer standby mode, no VCR functions are available until [T-SET] is pressed.

To cancel the timer standby mode, press [T-SET] on the remote control or[STOP/EJECT CA] on the unit, then press[VCR] to activate the VCR function again.

When an one-touchtimer recording or a timer recording is completed...

If auto power off for DVD has been activated and there are timer recordings on standby, the unit turns off automatically, and indicator on this unit lights to indicate the unit is in the timer standby mode.

indicator on this unit flashes if there are no more timer recordings on standby.

If auto power off for DVD has NOT been activated, the unit goes to the DVD mode and all the VCR functions will be unavailable. All the DVD functions are available duringone-touchtimer recording, timer standby mode and timer recording.

Press [STOP/EJECT CA] on this unit or[T-SET] on the remote control to use the VCR when the unit is turned off.

Press [OUTPUT] on this unit or[VCR] on the remote control to use the VCR when the unit is turned on. In case timer recording is in standby mode, press[STOP/EJECT CA] on this unit or[T-SET] on the remote control, and then press[OUTPUT] on this unit or

[VCR] on the remote control.

If you want to use the DVD player during a timer recording or while indicator on this unit is on or blinking.

Press [POWER] to turn on the unit. Press[DVD ] on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual.

Note for timer recording:

If there is a power failure or the unit is unplugged for more than 30 seconds, clock setting and all timer programs will be lost.

13 –

VCR FUNCTIONS

EN

FUNCTIONS VCR

Satellite Link

You can set the unit to start recording whenever it detects a video signal from the external tuner.

Preparing for the Satellite Link Timer Recording:

Preparation on the tuner

Satellite link accepts only the connection from L1 (rear) with the external tuner. (The connection from L2 cannot read any signals from the cable/satellite box.)

The external tuner should be equipped with some kind of timer function. Using timer function of the tuner, set it to output audio/video signals when it comes to the time you want to start recording, and stop output audio/video signals when it comes to the time you want to finish recording. Refer to the tuner’s manual on how to set the timer.

Make sure to turn off the tuner when you finish setting.

VCR

1

Press [SPEED] to select the desired tape speed.









SPEED



Tape speed

Recording / playback time









Type of tape

T60



T120

T160





SP



SP mode

1hour



2hours

2-2/3hours







SLP mode

3hours



6hours

8hours































2

In stop mode, press [SETUP].

















SETUP











Preparation on this unit









L1









external tuner



DVD



DVD/VCR

VCR

DIGITAL

AUDIO

S-VIDEO

AUDIO OUT



AUDIO OUT

OUT

OUT

L







Y





L

C /



AUDIO IN





R



COAXIAL



P





R



VIDEO OUT

VIDEO IN

C /

P

RCA audio/video cables

5

Set the desired start minutes.

SATELLITE LINK



If you wish to go back to the left, press [s].























0 1

: 0 0

PM



or

















6

Press [B] to set satellite link standby mode.

SATELLITE LINK





0 1

: 3 0

PM











[ON]





3

Select “SATELLITE LINK”.

TIMER PROGRAMMING









- M E N U -







Then press [B] to go to next step.

B SATELLITE LINK









AUTO REPEAT

[OFF]









CLOCK SET







or





LANGUAGE SELECT

























4

Set the desired start hour.

SATELLITE LINK





Then press [B] to go to next step.















1 2 : 0 0

AM

or

The hour can be selected from 1-12with AM or PM.

When the external tuner signal is stopped, recording will be stopped.

indicator on this unit lights up and the unit goes to the DVD mode. If you do not use DVD function, turn off the unit.

Satellite unit must be turned on for VCR satellite link to start.

If cable/satellite box is not set to output signals, satellite link will remain in standby mode.

To cancel the satellite link function in standby mode:

Press [T-SET] on the remote control or[STOP/EJECT CA] on this unit.

To cancel the satellite link function while the satellite link recording is in progress:

Press [STOP/EJECT CA] on this unit.

Note:

If you have not set the clock, “CLOCK SET” menu will appear at step 2. Refer to “Clock Setting” on page 8.

You cannot set the ending time for the satellite link timer recording on this unit.

Recording picture will be distorted if the copy protection signal is being detected during satellite link timer recording.

When a regular timer recording and the satellite link timer recording are overlapped, those recordings are recorded as illustrated below.

e.g.) In case of the satellite link timer recording is overlapped



e.g.) In case of the timer recording is programmed in the middle



e.g.) In case of the timer recording is overlapped on the existing

on the existing timer recording.



of the satellite link timer recording



satellite link timer recording.

timer recording













timer recording













timer recording



















































satellite link













satellite link













satellite link

































































































recording result













recording result













recording result





























































































Copying a Cassette Tape

Warning: Unauthorized recordings of copyrighted cassette tapes may be an infringement of copyright laws.

1)Insert a pre-recordedcassette tape into another external device for playback.

2)Insert a recordable cassette tape into this unit for recording.

3)Press [SPEED] on the remote control to select recording speed (SP or SLP).

4)Press [INPUT SELECT] on the remote control to select L1 or L2. Choose L1 if device is connected to rear input jacks, or L2 if connected to the front. Refer toFront & Rear Terminalson page 9 for more details.

5)Press [REC/OTR] on the unit.

6)Press “PLAY” button on the external device.

7)To stop recording, press [STOP/EJECT CA] on this unit, then stop playback of the external device.

output jacks of





rear of the unit

external device

L1







AUDIO OUT

RCA audio/video





or

L

VCR

L



DVD/VCR





AUDIO OUT



R

cables



AUDIO IN

VIDEO OUT

VIDEO OUT

VIDEO IN





R



You can use a video disc player, cable/satellite box or other audio/video component with audio/video output jacks.

Note:

For best results during dubbing, use buttons on this unit whenever possible. The remote control might affect another device’s operation.

Always use video-qualityshielded cables withRCA-typeconnectors. Standard audio cables are not recommended.

L2 input jacks are on the front of this unit.

– 14 –

EN

Resume ON
Press 'PLAY' to play from here. To play the beginning,
press 'STOP' first and then 'PLAY'.
e.g.) DVD

DVD FUNCTIONS

Playback

Before:

Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver are set to the correct channel.







DVD

(



on page 16)



1



2

Insert a disc with







label facing up.



POWER

OPEN/CLOSE



3

To start playback 4

To stop playback





PLAY

STOP









POWER

SPEED

OPEN/CLOSE

















T-SET













1







POWER



OPEN/CLOSE







1

2

3



















TRACKING















4

5

6















7

8

9















CLEAR/



INPUT



REC TIMER REC

VCR

DVD

P-SCAN

PLAY



C. RESET



SELECT

VIDEO

AUDIO













0

+10















DISPLAY

VCR

DVD MODE



REW F.FWD STOP/EJECT PLAY REC/OTR

TRACKING

OUTPUT

REV/SKIP STOP

PLAY SK

3





PLAY













4



STOP

1

Lights up when power is on.

1 2



4

3









Note:

When you play a CD-RW/-Rwith MP3 files, details on page 16.

” may appear at thetop-righton the TV screen when the operation is prohibited by the disc or this unit.

Some DVD may start playback from title 2 or 3 due to specific programs.

During the playback of a 2-layereddisc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

You can change the on-screenlanguage for DVD function in “PLAYER MENU”. Refer to page 20.

Disc Menu

DVD

Some discs contain menus which describes the contents of the disc or allow you to customize DVD playback, or title menu which lists the titles available on the DVD.

Press [MENU] to call up the disc menu or press[TOP MENU] to call up the title menu. Use[K/ L/ s/ B] to select an item, then press[ENTER] (or[PLAY B]).

Note:

Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for details.

Fast Forward / Reverse Search

DVD

E 1

Press [g] or[h] repeatedly during playback to select the required forward or reverse speed.

To use [SKIP H/ REV], [GSKIP / FWD] on this unit

Pressing and holding [SKIP H/ REV] or[GSKIP / FWD] on this unit will also change forward or reverse playback speed.

To continue playback, press [PLAY B].

Note:

For DVD, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x), 5(100x).

For audio CD and MP3, approximate speed is 1(2x), 2(8x), 3(30x).

Resume Playback

DVD

Press [STOP C] during playback. Resume message will appear on the TV screen.

Press [PLAY B]. Playback will resume from the point at which playback was stopped.

Note:

To cancel resume, press [STOP C] one more time in the stop mode.

For MP3, playback will resume from the beginning of the file at which playback was stopped.

The resume information will be kept when the unit is turned off.

Paused and Step-by-StepPlayback

DVD

Press [PAUSE F] during playback.

To continue playback, press [PLAY B].

DVD

The disc goes forward by one frame each time [PAUSE F] is pressed in the pause mode.

To continue playback, press [PLAY B].

Note:

For DVD, set “STILL MODE” to “FIELD” in “DISPLAY” menu if pictures in the pause mode are blurred. Refer to pages 20-21.

Slow Forward / Reverse Search

DVD

1

Press [g] or[h] repeatedly in the pause mode to select the required forward or reverse speed.

To use [SKIP H/ REV], [GSKIP / FWD] on this unit

Pressing and holding [SKIP H/ REV] or[GSKIP / FWD] on this unit in the pause mode will also change forward or reverse playback speed.

To continue playback, press [PLAY B].

Note:

Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16x), 2(1/8x), 3(1/2x).

Set “STILL MODE” to “FIELD” in “DISPLAY” menu if pictures in the slow playback mode are blurred. Refer to pages 20-21.

Zoom

DVD

1)Press [ZOOM] during playback.

2)Press [ZOOM] repeatedly to select the required zoom factor:

2x, 4x or off.

x2

x4

3)Press [K/ L/ s/ B] to slide the zoomed picture across the TV screen.

To use [SKIP H/ REV], [GSKIP / FWD] on this unit

Note:



• Zoom function does not work while the disc menu is displayed.

DVD

• 4x zoom is not available on some discs.



• The picture may be distorted when you press [PAUSE k] or[h]



Press once to skip chapters, tracks or titles to a desired point.

repeatedly in the zoom mode.



• In the zoom mode, it automatically changes

2x (4x) to the zoomed



position guide.



– 15 –

DVD FUNCTIONS

EN

FUNCTIONS DVD

MP3 Playback

MP3 is a method of compressing files. You can copy MP3 files on CD-RW/-Rfrom the computer and play back the files on this unit.

DVD

Insert a CD-RW/-Rwith MP3 files, the file list will automatically appear on the TV screen. Press[MENU] when you want to call up the file list again whileCD-RW/-Rwith MP3 files is already inserted.

1

When selecting the folder:

FILE LIST

DISC NAME











FOLDER









3

MP3













ENTER





folder name 1













folder name 3















folder name 2





PLAY

or







folder name 4









3

file name 1











3

file name 3













3

file name 2











ENTER



1/

2





















PLAY



folder name 1



Press [B] when you want to go to the next hierarchy.

Press [s] when you want to go back to the previous hierarchy (except for the top hierarchy).

2 Press[STOP C] once to stop MP3

playback temporarily.

STOP

Refer to “Resume Playback” on page 15.

On-ScreenDisplay

Note:

Depending on some sections, it may take a while to be recognized.

Press [TOP MENU] to return to the first item.

Folders and MP3 files are displayed respectively as and3 .

A maximum of 255 folders or 999 files may be recognized on one disc.

Up to 8 hierarchies can be recognized in one folder. File in the 9th or deeper hierarchies cannot be played back.

This unit recommends files recorded under the following circumstances:

Sampling frequency: 44.1kHz or 48kHz

Constant bit rate: 32kbps ~ 320kbps

For MP3 file recorded in VBR (variable bit rate), the unit may not display the actual elapsed time.

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

DVD

DVD





DISPLAY



appears only in a case multi-





DISPLAY











angle is available on the DVD.























current playback status









current playback status







1







1

4/12

0:03:21 - 0:02:15

T















11/16

0:00:00 - 0:03:30









remaining time of the current track









remaining time of the current





















elapsed time of the current track









chapter

























current track number / total tracks









elapsed time of the current





DISPLAY











































chapter









ALL:































CH(Chapter):

2

4/12

0:13:45 - 0:45:40

current track number / total tracks









current chapter number /

T















current repeat setting, if active





DISPLAY



total chapters





















T:

Track repeat





































A:

All Tracks repeat

2

1/3

0:00:00 - 1:23:45











A

B: A-Brepeat







remaining time of the current title







remaining time of the entire disc





























elapsed time of the entire disc









elapsed time of the current title





DISPLAY











































TT(Title):

3













DISPLAY



current title number / total titles

















layer numbers, appears only when

Note:







3







playing a two-layereddisc.

• When you are playing a disc in program or random mode,



T

L1

L0:

Layer 0 is playing

PROGRAM” (or “

RANDOM”) will be displayed instead of 2 .















L1:

Layer 1 is playing











DISPLAY

4

current repeat setting, appears only when the repeat setting is active.

C: Chapter repeat

T: Title repeat AB:A-Brepeat

bit rate: the amount of audio and video data currently being read

DVD

DISPLAY

current playback status

1

TRACK 01







































the name of the file currently in



















































DISPLAY



















play will be displayed.





























































































































TR(Track):







































2









0:01:15













T







current track number / total tracks







































current repeat setting, if active







































T:

Track repeat













































































G:

Group (folder) repeat







































A:

Disc repeat







































elapsed playing time of the













DISPLAY

















































current track



























































































































3





















































PROGRAM



















or



RANDOM



























































































(Only when you are playing a disc in program or random mode.)

DISPLAY

4

– 16 –

EN

Search Functions

Search function does not work during programmed or random playback.

Using Track Search







DVD

1

Press [SEARCH MODE].





SEARCH







MODE

/29







2

Select track number by using [the Number buttons] within 30 seconds.



1

2

3



4

5

6







/29



7

8

9

0+10

For the disc with less than 10 tracks, press the track number directly.

For discs with more than 10 but less than 99 tracks, to play back singledigit track, press [0] first, then the track number (e.g., for track 3, press[0], [3]). To play back adouble-digittrack, press the track number.

For discs with more than 100 tracks, to play back a single or a doubledigit track, press [0] first, then the track number (e.g., for track 3, press[0], [0], [3], and for track 26, press[0], [2], [6]). To play back atriple-digittrack, press the track number.

Using Time Search

DVD

1

Press [SEARCH MODE] repeatedly until the time search menu

appears.

























SEARCH

TOTAL

1:29:00







MODE













PLAY









2

Select a desired disc time by using [the Number buttons] within 30

seconds.





















1

2

3







4

5

6

TOTAL

1:29:00







7 8 9

0+10

Note:

When there is no need to enter a number, “0” appears automatically. For example, “0: 0_: _ _” appears in the time search menu if the total time of the title or track is less than 10 minutes.

Press [CLEAR/C.RESET] to erase the incorrect input at step 2.

For audio CD, time search is not available for programmed and random playback.

Using [SKIP H,G]

1 Press[SKIP H, G] during playback.



Current Track

SKIP

(TR)

TR 1 TR 2 TR 3 TR 4

PLAY

SKIP

SKIP

Note:

[+10] can also bring the track search display, except for the disc with less than 10 tracks. For such a disc, track search can be performed by just pressing the track number.

For audio CD and MP3, track search is not available for programmed and random playback.

Using Title / Chapter Search





DVD



1

Press [SEARCH MODE] once for the chapter search.



Press [SEARCH MODE] twice for the title search.







SEARCH







MODE



PLAY



/12







2

Select title/chapter number by using [the Number buttons]



within 30 seconds.



1

2

3



4

5

6







/12



7

8

9





0

+10

Marker Setting

DVD

This function allows you to assign a specific point on a disc to be called back later.

To set a marker

1

Press [SEARCH MODE] repeatedly until marker search menu

appears.





SEARCH



MODE



PLAY

2

Select a marker.





or

3

Press [ENTER].

ENTER



To return to the marker later

1

Press [SEARCH MODE] repeatedly until marker search menu

appears.





SEARCH



MODE

2

Select the marker.





or

Using [SKIP H,G]

1 Press[SKIP H, G] during playback.



Current Chapter



(CH)

SKIP

CH 1 CH 2 CH 3 CH 4

SKIP

SKIP

PLAY

or



3

Press [ENTER] at the desired marker.











ENTER



















To exit the marker search menu

1

Press [RETURN ].

RETURN









Current Title

Note:











(TT)















TT 1

TT2

TT3

TT4









• Marker search menu will disappear in about 30 seconds when there is













no output.

SKIP









SKIP

















(If the disc has no chapters)

• To clear a marker, select the marker to be cleared at step 2 in the

section “To set a marker” or “To return to the marker later” and then























Note:













press [CLEAR/C.RESET].













• Opening the disc tray or turning off the power will erase all markers.

• Depending on the disc being played back, this function can also be

• Selecting “AC” at step 2 in the section “To set a marker” or “To return to

performed by directly entering the desired chapter number with

the marker later” will also erase all markers.

[the Number buttons]. Refer to the manual accompanying the disc.



– 17 –

DVD FUNCTIONS

EN

FUNCTIONS DVD

Repeat / Random / Programmed Playback

Repeat Playback

Random Playback

DVD

DVD

You can repeat playback chapters, titles or tracks on a disc. Repeat function is available only during playback.

1 Press[REPEAT] during playback.

REPEAT PLAY

e.g.) DVD

Each time you press [REPEAT], repeat function changes as example below.

OFF

(repeat off)

CHAPTER

(current chapterrepeat)

TITLE

(current titlerepeat)

OFF

(repeat off)

TRACK

(current trackrepeat)

This function shuffles the playing order of tracks instead of playback in sequence.

1

Press [MODE] twice.

RANDOM











CD-DA

TOTAL 0:45:55



MODE



--noindication--







RANDOM PROGRAM



STOP









PLAY







e.g.) CD

2 Press[PLAY B] to start random playback.







PLAY





Note:

To repeat the current track in the random mode, press [REPEAT] repeatedly until “TRACK” appears during playback.

To repeat the entire random selections, press [REPEAT] repeatedly until “ALL” appears during playback.

During random playback, you cannot go back to the previous track.

ALL

(entire discrepeat)

OFF

(repeat off)

TRACK

(current filerepeat)

GROUP

(current folderrepeat)

ALL

(entire discrepeat)

Note:

Repeat setting (except “ALL”) will be cleared when moving to another title, chapter, track/file or folder.

This function is not available with some discs or during repeat A-Bplayback.

Repeat A-BPlayback

DVD

You can repeat playback between A and B on a disc. Repeat function is available only during playback.

1 Press[A-B] at your desired starting point (A).

A-B

A-



PLAY



Programmed Playback

DVD

You may determine the order in which tracks will play back.

1

Press [MODE] once.

CD-DA

TOTAL 0:00:00



MODE









STOP











e.g.) CD

2

Using [K/ L] to select desired track.









Press [ENTER].

CD-DA

TOTAL 1:03:30







1

3:30







5

5:10



ENTER



10

4:20





11

3:00





17

4:10







12

3:20



or



22

2:50







2/3

Up to 99 tracks can be programmed.

If eight or more tracks were in a program, use [SKIP H, G] to see all the tracks.

While an MP3 folder is open:

–Press[B] when you want to go to the next hierarchy.–Press[s] when you want to go back to the previous

hierarchy (except for the top hierarchy).

3 Press[PLAY B] to start programmed playback.

PLAY

2 Press[A-B] at your desired ending point (B).

A-B

A-B

• Point B should be in the same title or track as point A.

Note:

To exit the sequence, press [A-B] so that “OFF” appears.

To cancel point A, press [CLEAR/C.RESET] at step 1.

This function is not available in the other repeat modes.

Note:

Press [CLEAR/C.RESET] at step 2 to erase the most recently entered track.

To erase all programmed tracks at once, select “ALL CLEAR’’ and press [ENTER] at step 2.

While a program is being played back, [STOP C] works as follows;

-Press [STOP C] and[PLAY B] next, so that the programmed playback restarts. (CD playback restarts from the current point. MP3 playback restarts from the beginning of the current file.)

-Press [STOP C] twice and[PLAY B] next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc tray is open or power is turned off.)

To repeat the current track in the program, press [REPEAT] repeatedly until “TRACK’’ appears during playback.

To repeat the entire program, press [REPEAT] repeatedly until

ALL’’ appears during playback.

– 18 –

EN

Special Settings

Subtitle Language

DVD

This unit allows you to select a subtitle language (if available) during DVD playback.

1

Press [SUBTITLE] during playback.





SUBTITLE

1.ENG/6

PLAY

Each time you press [SUBTITLE], subtitle language changes as example below.



OFF

(no subtitles)



ENG

(English subtitles)



FRE

(French subtitles)



...



To cancel subtitle



1

Press [SUBTITLE] during playback.





1.ENG/6



SUBTITLE







PLAY



2 Press[s/ B] to set subtitle to “OFF”.



or

OFF





Note:

If your language is not shown after pressing [SUBTITLE] several times, the disc may not have that language. However, some discs have the subtitle language setting on the disc menu. (Operation varies depending on the discs, so refer to the manual along with the disc.)

When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.

If you choose a language that has a 3-letterlanguage code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages,‘---’will be displayed instead. Refer to page 24.

Some discs will only allow you to change the subtitle from the disc menu. Refer to the manual accompanying the discs for details.

Audio Language

DVD

This unit allows you to select an audio language (if multiple languages are available)during DVD playback.

1 Press[AUDIO ] to change audio language.

AUDIO

1.ENG Dolby D 3/2.1ch 48k/3



PLAY



Each time you press [AUDIO

], the audio language changes as

example below.













ENG

(English audio)





















SPA

(Spanish audio)































Camera Angles

DVD

Some DVD may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if appears on the TV screen.

If the “ANGLE ICON” is set to “OFF” in “OTHERS” menu, will not appear. Refer to pages20-22.

1 Press[ANGLE] during playback.

1 / 8

ANGLE PLAY

Each time you press [ANGLE] or[s/ B], camera angle changes.

Black Level Setting



DVD

Adjust the black level to make the dark





areas of the TV picture brighter.

1

Press [MODE] during playback.



ON





MODE













PLAY







2

Press [ENTER] to

ENTER



OFF











adjust the black level.







ON: makes the dark areas brighter.





3

OFF: shows the original picture as recorded.



Press [RETURN

] to exit.

RETURN







Stereo Sound Mode







DVD

This unit allows you to select a sound mode





during CD playback.



1

Press [AUDIO ] during CD playback.



STEREO





AUDIO













PLAY







Each time you press [AUDIO], sound mode changes as example below.

STEREO

(right and left channels are active)

L-ch

(left channel is active)

R-ch

(right channel is active)

Virtual Surround

DVD

You can enjoy virtual surround sound on your existing 2 channel stereo system.

1

Press [MODE] twice (once for CD and MP3) during playback.







MODE

OFF



PLAY













FRE

(French audio)

2

Press [ENTER] for the desired effect.

























1: natural effect



ENTER

1



















...











2: emphasized effect

















OFF: no effects (original sound)











































Note:





















3

Press [RETURN





] to exit.

RETURN









• If your language is not shown after pressing [AUDIO ] several times,























the disc may not have that language. However, some discs allow audio

Note:







language setting on the disc menu. (Operation varies depending on the







disc, so refer to the manual along with the disc.)

• For audio CD, virtual surround will not be effective if the sound mode is

• When “OFF” appears on the TV screen, it means audio language is not

set to something other than “STEREO”. Refer to “Stereo Sound Mode”.

available.









• For DVD when playing back 96kHz with virtual surround function, the

• Some discs will only allow you to change the audio setting from the

sound will be down sampled to 48kHz.



disc menu. Refer to the manual accompanying the discs for details.















– 19 –

DVD FUNCTIONS

EN

FUNCTIONS DVD

DVD

DVD Setting

QUICK Menu

You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” from “QUICK” menu quickly.

1 Press[SETUP] in the stop mode.

2 Select the desired item.



SETUP

or







STOP











SETUP

QUICK



SETUP menu

ENTER





P20 A Step 5

PLAYER MENU



ENGLISH

Confirm that “QUICK” is selected.





TV ASPECT



4:3 LETTER BOX

P21 B Step 5





SETUP

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM





P21 C Step 5

QUICK





ENTER







CUSTOM









INITIALIZE









Refer to the sections “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” section on page 20 or 21.

CUSTOM Menu

You can change the settings of the unit.

QUICK on pages20-21indicates DVD setting menus also accessible from “QUICK” menu.

1 Press[SETUP] in the stop mode.

2 Select “CUSTOM”.

3 Select the desired item.

SETUP





ENTER

STOP

or

or







SETUP menu

ENTER

SETUP

CUSTOM



SETUP

SETUP

LANGUAGE













DISPLAY



QUICK

QUICK

AUDIO



CUSTOM

CUSTOM

PARENTAL



INITIALIZE

INITIALIZE

OTHERS





LANGUAGE menu



DISPLAY menu



AUDIO menu





PARENTAL menu



OTHERS menu



SETUP







































SETUP





















LANGUAGE









SETUP

DISPLAY







SETUP

AUDIO







PARENTAL







SETUP

OTHERS













































PASSWORD

















AUDIO



ORIGINAL







TV ASPECT

4:3 LETTER BOX







DRC

ON







Please enter a 4-digitpassword.







ANGLE ICON

ON





SUBTITLE



OFF







STILL MODE

AUTO







DOWN SAMPLING

ON























AUTO POWER OFF ON





DISC MENU



ENGLISH







PROGRESSIVE OFF







DOLBY DIGITAL

BITSTREAM

































PLAYER MENU



ENGLISH



























































































































page 20



A



page 21



B



page 21



C























A LANGUAGE Setting

Follow steps 1 to 3 in the “CUSTOM Menu” section above.

4 Select the desired item.



5 Select the desired language.



or

ENTER

or











LANGUAGE menu



AUDIO: *1 *2







(Default: ORIGINAL)

SETUP

LANGUAGE



Sets the audio language.

AUDIO

ORIGINAL





SUBTITLE

OFF



SUBTITLE: *1*2

DISC MENU

ENGLISH





(Default: OFF)

PLAYER MENU

ENGLISH









Sets the subtitle language.











DISC MENU: *1

Note:





(Default: ENGLISH)

• In “QUICK” menu, “PLAYER





Sets the language for DVD





menu.

MENU”, “TV ASPECT”, “PROGRES-















SIVE” or “DOLBY DIGITAL” are





PLAYER MENU:







QUICK



available. “QUICK “ menu consists





(Default: ENGLISH)

of the setting menu frequently





Sets the language for the

used, and they are accompanied





on-screendisplay.

with

QUICK

. You can make all











settings in “CUSTOM” menu.



























AUDIO

ORIGINAL

ENGLISH

FRENCH

SUBTITLE

OFF

ENGLISH

FRENCH

DISC MENU

ENGLISH

FRENCH

SPANISH

PLAYER MENU

ENGLISH

FRANÇAIS

ESPAÑOL

– 20 –

page 22



D



page 22



E















ENTER 6 To exit the menu

SETUP

Note:

*1

Language options are not available with some discs.

If “OTHER” is selected on “AUDIO”, “SUBTITLE” or “DISC MENU” screen, press 4-digitnumber to enter the code for the desired language. Refer to the “Language Code List” on page 24.

Only the languages supported by the disc can be selected.

*2

“LANGUAGE” setting for “AUDIO” and “SUBTITLE” are not available with some discs. Then use [AUDIO ] and[SUBTITLE]. Refer to page 19.

EN

SELECT: K / L
Confirm again to use progressive scan. If Picture is good, select ‘YES’.
SELECT: K / L
Activate Progressive?
4:3 LETTER BOX AUTO
ON
Before proceeding…
1. Make sure your TV has progressive scan.
2. Connect with component video cable
NOTE: If there is no picture or picture is distorted after selecting ‘YES’,
wait about 15 seconds for auto recovery.
SET:ENTER
NO
YES
SET:ENTER
NO
YES
FIELD
AUTO
TV ASPECT
4:3 LETTER BOX 4:3 PAN & SCAN 16:9 WIDE
STILL MODE

B DISPLAY Setting

You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 20.

4 Select the desired item.





or

DISPLAY menu

SETUP

DISPLAY

TV ASPECT



4:3 LETTER BOX

STILL MODE



AUTO

PROGRESSIVE

OFF

Note:

PROGRESSIVE:

You can set “PROGRESSIVE” to “OFF” in “DISPLAY” menu or press and hold [PLAY B] on this unit for more than 5 seconds during playback until the PROGRESSIVE SCAN indicator on this unit turns off.

When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and S-VIDEOOUT jacks will be distorted or not be output at all.

Note:

In “QUICK” menu, “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” are available. “QUICK” menu consists of the setting menu frequently used, and they are accompanied with QUICK . You can make all settings in “CUSTOM” menu.

5

TV ASPECT: QUICK (Default: 4:3 LETTER BOX)

See note on the right.

TV ASPECT

4:3 LETTER BOX





STILL MODE

AUTO

PROGRESSIVE

OFF







ENTER











STILL MODE: (Default: AUTO)

See note on the right.

TV ASPECT

4:3 LETTER BOX





STILL MODE

AUTO











PROGRESSIVE

OFF

FRAME







ENTER



















PROGRESSIVE: QUICK (Default: OFF)

See note on the left.

TV ASPECT

4:3 LETTER BOX

STILL MODE

AUTO

PROGRESSIVE

OFF













ENTER









If there is no picture or you do not press any buttons for 15 seconds, “PROGRESSIVE” will switch to “OFF” and it will exit the “SETUP” menu.

Select the desired

setting.

ENTER

or

Select the desired setting.

ENTER

or

SETUP

Select “Yes”.

or

ENTER

Select “Yes”.

or

6 To exit “TV ASPECT” or “STILL MODE” menu

SETUP

To complete “PROGRESSIVE” setting

ENTER

Note:

TV ASPECT:

Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the TV screen.

Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.

Select “16:9 WIDE” if a widescreen TV is

connected to this unit.

STILL MODE:

Select “AUTO” usually.

If you select “AUTO”, it automatically selects the best resolution setting (“FRAME” or “FIELD”) based on the data characteristics of the pictures. (default)

If you select “FIELD”, the picture in the still mode will be stabilized.

If you select “FRAME”, the picture in the still mode will be highly defined.

An individual picture on the TV screen is called a “frame”, which consists of two separate images called as “field”.

Some pictures may be blurred if you select “AUTO” in the still mode due to their data characteristics.

C AUDIO Setting

Choose the appropriate audio setting for your device. It only affects during the playback of DVD discs. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 20.

4 Select the desired item.

5













DRC (Dynamic Range Control):









(Default: ON)













Set to “ON” to compress the range between soft and loud sounds.



or



DRC

ON



OFF















DOWN SAMPLING

ON



ON







DOLBY DIGITAL

BITSTREAM

ENTER

BITSTREAM

AUDIO menu



DOWN SAMPLING:





SETUP

AUDIO





(Default: ON)



















DRC



ON

Set to “ON” when outputting in 48kHz.

DOWN SAMPLING

ON

Set to “OFF” when outputting the original sound.

DOLBY DIGITAL

BITSTREAM















DRC

ON



ON







DOWN SAMPLING

ON



OFF







DOLBY DIGITAL

BITSTREAM

ENTER

BITSTREAM











DOLBY DIGITAL:

QUICK

















Note:





(Default: BITSTREAM)















• In “QUICK” menu, “PLAYER





Set to “BITSTREAM” when the unit is connected to a Dolby Digital decoder.

MENU”, “TV ASPECT”,





• BITSTREAM: outputs Dolby Digital signals.

“PROGRESSIVE” or “DOLBY





• PCM: converts the Dolby Digital into PCM (2 channel).

DIGITAL” are available. “QUICK”







DRC

ON









ON





menu consists of the setting























DOWN SAMPLING

ON









ON





menu frequently used, and they























DOLBY DIGITAL

BITSTREAM









PCM

















are accompanied with

QUICK

.









































ENTER



You can make all settings in





























“CUSTOM” menu.

























































































6 To exit the menu

SETUP

Note:

DRC:

This function is available only on the discs which are recorded in the Dolby Digital format.

DOWN SAMPLING:

When playing back a 96kHz disc with the copyright protection, or when virtual surround is set to “1” or “2”, the sound will be down sampled at 48kHz even if the “DOWN SAMPLING” is set to “OFF”.

This function is available only on digital outputting of a disc recorded in 96kHz.

– 21 –

DVD FUNCTIONS

EN

FUNCTIONS DVD

D PARENTAL Setting

Parental setting prevents your children for viewing inappropriate materials. (password protected)

Parental Levels

Parental level allows you to set the rating levels of your DVD software. Playback will stop if the ratings exceed the levels you set. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 20.

4 Enter your desired4-digit

5 Select “PARENTAL

6 Select the desired level.

7 To exit the menu

password (expect for 4737).

LEVEL”.























SETUP

1

2

3

or





or



4

5

6

ENTER



ENTER



ENTER











7

8

9

PARENTAL LEVEL

ALL

PARENTAL LEVEL









PASSWORD CHANGE



ALL





0

+10





8

[ADULT]













7

[NC-17]













6

[R]



PARENTAL menu

































CONTROL LEVELS





SETUP

PARENTAL



• ALL:

all parental locks are canceled.



























PASSWORD











• Level 8:

DVD software of any grades (adult/general/children) can be played back.





Please enter a 4-digitpassword.





























• Levels 7 to 2:

only DVD software intended for general use and children can be played back.























• Level 1:

only DVD software intended for children can be played back, with those intend-













































TIPS FOR LEVELS

ed for adult and general use prohibited.





































or

























• 8 [ADULT]:

DVD software of any grades (adult/general/children) can be played back.























• 7 [NC-17]:

no one under 17 admitted

If you have set a password

• 6 [R]: restricted;

under 17 requires accompanying parent or adult guardian

already, enter the current 4-digit

• 5 [PGR]:

parental guidance recommended

password.











• 4 [PG13]:

unsuitable for children under 13























• 3 [PG]:

parental guidance suggested



SETUP

















PARENTAL



• 2 [G]:

general audience

















































PASSWORD











• 1 [KID SAFE]:

suitable for children





Enter current password.









Note:

Some DVD-videomay not respond to “PARENTAL“ setting. Make sure this function works with yourDVD-video.

To Change the Password for Parental Controls

You can change your password for parental controls. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 20.

4 Enter current4-digitpassword.

5 Select “PASSWORD



6 Enter your new



7 To exit the menu







CHANGE”.





4-digitpassword (except

SETUP













for 4737).























1

2

3

or





















ENTER

1

2

3

ENTER

4

5

6















7

8

9







4

5

6

Note:

















0

+10

PARENTAL LEVEL

ALL



7

8

9

• Record the password in

















PASSWORD CHANGE







0

+10

case you forget it.

































PARENTAL menu













• If you forget the

SETUP

PARENTAL







SETUP

PARENTAL

password, press [4],







PASSWORD





[7], [3], [7] at step 4,

PASSWORD

























Please enter a 4-digitpassword.

then enter your new

Enter current password.





























password. Password will





































be cleared and parental



















levels will be set to “ALL”.

E OTHERS Setting

You can change the other functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 20.

4 Select the desired item.

5









ANGLE ICON:







(Default: ON)







Set to “ON” to display

when multiple camera angles are



or

available during DVD playback.





ANGLE ICON

ON

OFF





AUTO POWER OFF ON

ON

OTHERS menu



ENTER









SETUP

OTHERS







ANGLE ICON

ON

AUTO POWER OFF:



AUTO POWER OFF ON

(Default: ON)













Set to “ON” to turn this unit off automatically after 30 minutes of





no use.





ANGLE ICON

ON



ON

AUTO POWER OFF

ON



OFF

ENTER

– 22 –

6 To exit the menu

SETUP

EN

Reset to the Default Setting (Except for PARENTAL Setting)

1 Press[SETUP] in the

2 Select “INITIALIZE”.

3 Select “YES”.



4 To exit the menu

stop mode.











SETUP



ENTER



ENTER

SETUP

STOP

or

or



SETUP menu







twice.Press

Note:

SETUP

SETUP

SETUP

INITIALIZE

QUICK

QUICK

Initialize?





• When you do not wish





to initialize, select

CUSTOM

CUSTOM

NO





INITIALIZE

INITIALIZE

YES





“NO” at step 3.











INFORMATION

Troubleshooting Guide

If this unit does not perform properly when operated as instructed in this manual. Refer to the following:



Problem

Corrective action



No power.

• Make sure the power plug is connected to an AC outlet.





• Make sure the power is turned on.

DVD

This unit does not respond to the

• Check if the power plug is connected to an AC outlet.





remote control.

• Check the batteries in the remote control.

/



• Aim the remote control directly at the infrared sensor window. If necessary, remove all the obstacles between the sensor and the remote control.



• You have to be within 23 feet (7m) of this unit.

VCR





• Check if a cassette tape is in this unit.



• Tune your radio to an empty AM station so that you hear a lot of static. Turn up the volume, then if you hear some signal sound from





the radio in response to your pressing buttons on the remote control, the remote control is working.





• Press and hold any button on remote control toward a digital camera. The remote control is working if you confirm infrared light





through the digital camera.









Poor picture or noise.

• Interference signal may be received. Change the position and direction of the unit.



Cannot record a TV program.

• This unit does not have a tuner to receive TV broadcasting.

You must connect this unit to TV with audio/video output jacks or an external tuner to record TV programs. Refer to “Recording & One -touchTimer Recording (OTR)” on page 12 and “Satellite Link” on page 14.

Timer recording is impossible.

• Make sure the timer program is set correctly.

Make sure indicator on this unit lights up. If not, press[T-SET].

Make sure the VCR clock is set correctly.

VCR

Cannot go into record mode.

• Make sure the cassette tape has a record tab. If needed, cover the hole with adhesive tape.



• Activate this unit in VCR mode. Press [VCR

] on the remote control so that the VCR OUTPUT light will illuminate.

Playback picture is partially noisy.

• Adjust tracking control for a better picture by pressing [TRACKING L/ K]]on the unit or[TRACKING K/ L] on the remote control.



Cannot view a picture but the

• Head cleaning may be necessary. Refer to “Auto Head Cleaning”.



audio is OK.

• Make sure the VCR is not in the VCR menu mode.















No or poor, playback picture.

• Fine tune your TV.







Video or color fades in and out when

• You cannot copy a copyrighted cassette tape.







making a copy of a cassette tape.









Cannot remove the cassette tape.

• Check if this unit is in the VCR mode. If not, press [VCR

] on the remote control to switch the mode.













No picture.

• Connect the video cable firmly.









• Insert a correct video disc that can be played back on this unit.

• Press [DVD ] on the remote control. Check if the DVD OUTPUT light will illuminate. Then try other DVD features.

Set “PROGRESSIVE” correctly in “DISPLAY” menu. Turn it on only if your TV has progressive scan and you are using the component video connections between the unit and the TV. Disable progressive scan for all other connections. Refer to page 6.

Disc cannot be played back.

• Insert the disc.

Clean the disc.

Place the disc correctly with the label side up.

Cancel the parental lock or change the control levels.

Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.



No sound.

• Connect the audio cables firmly.





• Turn on the power of the audio component.





• Correct the audio output settings.

DVD



• Correct the input settings on the audio component.

No DTS audio is output.

• This unit does not support DTS audio.







-Thisis not a malfunction.









Distorted picture.

• Connect this unit directly to the TV.

There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction.

Although pictures may stop for a moment, this is not a malfunction. Refer to page 15.

Check if the progressive mode is set correctly according to your TV. Refer to pages 20-21.

Audio or subtitle language does

• The selected language is not available for audio or subtitles on the DVD.

not match the setting.

-Thisis not a malfunction.

The camera angle cannot be

• The DVD does not contain sequences recorded from different camera angles.

changed.

-Thisis not a malfunction.

Audio or subtitle language

• The DVD does not contain audio source or subtitles in the selected language.

cannot be changed.

-Thisis not a malfunction.



” appears on the TV screen,

• That operation is prohibited by this unit or the disc.





prohibiting an operation.

-Thisis not a malfunction.

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for details on correct operations.

Playback from a desired track and random playback are not available during programmed playback.

Some functions are prohibited on some discs.

– 23 –

INFORMATION

EN

INFORMATION

Specifications

Video heads :

4-heads

Output signal format :

NTSC color

Power source :

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption :

21W (standby : 3.8W)

Operating temperature :

41°F (5°C) to 104°F (40°C)

Dimensions :

W

: 17 3/16”

(435mm)

H

: 3

3/4”

(94mm)

D

: 9

3/16”

(233mm)

Weight :

Approx 5.8lbs (2.6kg)

Designs and specifications are subject to change without notice.

If there is a discrepancy between languages, the default language will be English.

Language Code List

Language

Code

Language

Code

Language

Code

Language

Code

A-B





French [FRE]

5264



Macedonian

5957



Siswat

6565

Abkhazian

4748



Frisian

5271



Malagasy

5953



Slovak [SLO]

6557

Afar

4747



Galician

5358



Malay

5965



Slovenian

6558

Afrikaans

4752



Georgian

5747



Malayalam

5958



Somali

6561

Albanian

6563



German [GER]

5051



Maltese

5966



Spanish [SPA]

5165

Amharic

4759



Greek [GRE]

5158



Maori

5955



Sundanese

6567

Arabic

4764



Greenlandic

5758



Marathi

5964



Swahili

6569

Armenian

5471



Guarani

5360



Moldavian

5961



Swedish [SWE]

6568

Assamese

4765



Gujarati

5367



Mongolian

5960





T

Aymara

4771



Hausa

5447



Nauru

6047



Tagalog

6658

Azerbaijani

4772



Hebrew

5569



Nepali

6051



Tajik

6653

Bashkir

4847



Hindi

5455



Norwegian [NOR]

6061



Tamil

6647

Basque

5167



Hungarian [HUN]

5467



O-R





Tatar

6666

Bengali;Bangla

4860



I-K





Occitan

6149



Telugu

6651

Bhutani

5072



Icelandic [ICE]

5565



Oriya

6164



Thai

6654

Bihari

4854



Indonesian

5560



Oromo(Afan)

6159



Tibetan

4861

Bislama

4855



Interlingua

5547



Panjabi

6247



Tigrinya

6655

Breton

4864



Interlingue

5551



Pashto;Pushto

6265



Tonga

6661

Bulgarian [BUL]

4853



Inupiak

5557



Persian

5247



Tsonga

6665

Burmese

5971



Irish [IRI]

5347



Polish [POL]

6258



Turkish [TUR]

6664

Byelorussian

4851



Italian [ITA]

5566



Portuguese [POR]

6266



Turkmen

6657

C-E





Japanese [JPN]

5647



Quechua

6367



Twi

6669

Cambodian

5759



Javanese

5669



Rhaeto-Romance

6459





U-Z

Catalan

4947



Kannada

5760



Romanian [RUM]

6461



Ukrainian

6757

Chinese [CHI]

7254



Kashmiri

5765



Russian [RUS]

6467



Urdu

6764

Corsican

4961



Kazakh

5757



S





Uzbek

6772

Croatian

5464



Kinyarwanda

6469



Samoan

6559



Vietnamese

6855

Czech [CZE]

4965



Kirghiz

5771



Sangho

6553



Volapuk

6861

Danish [DAN]

5047



Kirundi

6460



Sanskrit

6547



Welsh

4971

Dutch [DUT]

6058



Korean [KOR]

5761



Scots Gaelic

5350



Wolof

6961

English [ENG]

5160



Kurdish

5767



Serbian

6564



Xhosa

7054

Esperanto

5161



L-N





Serbo-Croatian

6554



Yiddish

5655

Estonian

5166



Laothian

5861



Sesotho

6566



Yoruba

7161

F-H





Latin

5847



Setswana

6660



Zulu

7267

Faroese

5261



Latvian;Lettish

5868



Shona

6560







Fiji

5256



Lingala

5860



Sindhi

6550







Finnish [FIN]

5255



Lithuanian

5866



Singhalese

6555







If you choose a Language that has a 3-letterlanguage code, the code will be displayed every time you change the audio or subtitle language setting on page 19. If you choose any other languages,‘---’will be displayed instead.(3-letterlanguage code is written in bracket.)

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.

This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU

OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-INTO AN AUTHORIZED SERVICE CENTER.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:

FUNAI CORPORATION

Customer Service

Tel :1-800-844-5001

19900 Van Ness Avenue, Torrance, CA 90501

– 24 –

EN

Español

1

Conexiones









5

Ajuste del reloj









Consulte la “Basic TV Connection” en la página delantera antes

VCR



















de utilizar esta unidad.



































1

Pulse [SETUP] para seleccionar “AJUSTE DE RELOJ”.







2













A continuación, pulse [B] para ir al siguiente paso.







Instalación de las pilas del control remoto











- M E N U -





1













SETUP

PROGRAMAR







2



3





o

CONEXIÓN SATÉLITAL











AUTOREPETIR

[OFF]













B AJUSTE DE RELOJ



















SELEC. IDIOMA



















• Si no se ha ajustado el reloj, aparece la pantalla “AJUSTE DE



















RELOJ” cuando pulse [SETUP]. En este caso, vaya al paso 2.



3

Conmutación VCR/DVD







2

Seleccione el mes actual.















A continuación, pulse [B] para ir al siguiente paso.









































AJUSTE DE RELOJ



















MES



DIA

AÑO









POWER

SPEED

T-SET

OPEN/CLOSE



1 0

/ - -

- - - -













o

































1

2

3





HORA

MINUTO

AM/PM









4

5

6

TRACKING



- -

:

- -

- -





























7

8

9





















CLEAR/





INPUT



















C. RESET





SELECT

















Botón VCR



0

+10



















DISPLAY

VCR

DVD

MODE























3

Seleccione el dia actual.















Botón DVD





PLAY















Luz DVD OUTPUT



STOP



A continuación, pulse [B] para ir al siguiente paso.













REC/OTR



SKIP

PAUSE













VCR

DVD

Luz VCR OUTPUT



























AJUSTE DE RELOJ









SEARCH



AUDIO











TOP MENU MODE













Botón OUTPUT

MENU



ENTER





MES



DIA

AÑO









SETUP

ZOOM



RETURN

o

1 0

/ 0 2

- - - -





OUTPUT











































SUBTITLE ANGLE

REPEAT

A-B



HORA

MINUTO

AM/PM





































- -

:

- -

- -

4

Seleccione el año actual.

A continuación, pulse [B] para ir al siguiente paso.

MODO VCR

AJUSTE DE RELOJ



Pulse [VCR] en el control remoto. (Compruebe que está encendida la luz VCR OUTPUT.)

MODO DVD

Pulse [DVD ] en el control remoto. (Compruebe que está encendida la luz DVD OUTPUT.)

4

Activación de la unidad por primera vez





VCR







1

Asegúrese de que la entrada de su TV esté en VIDEO









(El nombre puede cambiar según el fabricante del TV.









Consulte el manual de su TV para conocer más detalles.)





2

Seleccione su idioma la primera vez que encienda esta unidad.





A continuación, pulse [B] para ir al siguiente paso.













SELEC. IDIOMA



POWER

ENGLISH











o

FRANCAIS





B ESPAÑOL

[ON]





3

Cuando “AJUSTE DE RELOJ” aparesca,









avance al segundo paso de “Ajuste del reloj”

AJUSTE DE RELOJ



en esta pagina.

1 0

/ - -

- - - -





MES

DIA

AÑO



o

HORA

MINUTO

AM/PM



- -

: - -

- -

MES

DIA

AÑO

1 0

/ 0 2

2 0 0 7

o

HORA

MINUTO

AM/PM

- - :

- -

- -

5

Seleccione la hora actual.













A continuación, pulse [B] para ir al siguiente paso.































AJUSTE DE RELOJ











MES



DIA



AÑO









1 0

/

0 2

MAR

2 0 0 7





o





HORA

MINUTO

AM/PM





















0 5

:

- -



- -























6

Seleccione los minutos actuales.













A continuación, pulse [B] para ir al siguiente paso.































AJUSTE DE RELOJ











MES



DIA



AÑO



o





1 0

/

0 2

MAR

2 0 0 7









HORA

MINUTO

AM/PM





















0 5

:

4 0



- -























7

Seleccione “AM” o “PM”.

AJUSTE DE RELOJ











MES



DIA



AÑO









1 0

/

0 2

MAR

2 0 0 7





o

HORA

MINUTO

AM/PM









0 5

:

4 0



P M AM

















B PM

8

Presione [SETUP] para salir del menú “AJUSTE DE RELOJ”.





SETUP

– 25 –

Españoll

ES

Españoll

6

Reproducción de la



grabadora de vídeo

Antes:





Encienda el televisor.







VCR





1

Inserte un casete

2

Para empezar la



de vídeo en esta



reproducción



unidad.











PLAY

3

Para parar la

4

Para expulsar



reproducción











OPEN/CLOSE



STOP





7

Reproducción de DVD/CD

Antes:

Encienda el televisor, amplificador y otros equipos que puedan estar conectados a esta unidad. Asegúrese que el televisor y el sintoamplificador de audio están en el canal correcto.

DVD

1

2

Ponga un disco











con la etiqueta

POWER



OPEN/CLOSE

hacia arriba.

















3

Para empezar la



4

Para parar la



reproducción





reproducción



PLAY





STOP









8

Control remoto



POWER

SPEED

T-SET

OPEN/CLOSE









1

2

3











TRACKING



4

5

6





7

8

9





CLEAR/





INPUT



C. RESET





SELECT





0

+10





DISPLAY

VCR

DVD

MODE







PLAY







STOP





REC/OTR



SKIP

PAUSE



TOP MENU

SEARCH



AUDIO



MODE





MENU



ENTER





SETUP

ZOOM



RETURN



SUBTITLE

ANGLE

REPEAT

A-B

Español





















Modo DVD

Modo de grabadora de video



































Botón







Soporte















































(Orden alfavético)























1





2





3



















4





5





6

• Para seleccionar directamente el

• Para seleccionar directamente la





























7





8





9

capítulo o el título.

canción.













0





+10





































































• Para buscar en avance/







• Para el avance/retroceso de una

















retroceso en un disco.

• Para buscar en avance/

cinta.

















• Para empezar la reproducción en

• Para empezar la reproducción en

















avance/retroceso lento durante el

retroceso en un disco.

avance lento durante el modo de

















modo de pausa.







pausa.





A-B





• Para repetir entre los puntos A y

• Para repetir entre los puntos A y













































B elegidos.

B elegidos. (CD)











































ANGLE





• Para seleccionar los ángulos de la

























































cámara en un disco.

















































AUDIO





• Para seleccionar el idioma de

• Para seleccionar “ESTÉREO”,













































audio en un disco.

“L-ch”o“R-ch”.(CD)































































• Para borrar los marcadores. (CD)























• Para borrar los marcadores.

• Para eliminar el Nº de estado en

• Para salir del menú de la



CLEAR/





• Para borrar los números

la entrada de programa.



C. RESET





















mal entrados.

• Para borrar los números

grabadora de vídeo.

















• Para borrar el punto para la

mal entrados.

• Para reponer el contador de cinta.

















repetición A-B.

• Para borrar el punto para la





























repetición A-B.(CD)









DISPLAY





• Para indicar el modo de disco

• Para indicar el modo de disco

• Para indicar la hora actual, conta-

































actual.

actual.

dor de cinta y L1 o L2.























































DVD





• Para seleccionar el modo de

• Para seleccionar el modo de















salida de DVD.























salida de DVD.























• Para activar el mando a























• Para activar el modo DVD.























distancia en el modo DVD.































































• Para seleccionar un





























ítem en el menú de la



ENTER

















grabadora de vídeo.







• Para mover el cursor y

• Para mover el cursor y

• Para avanzar al

















siguiente menú de la

















determinar su posición.

determinar su posición.

















grabadora de vídeo.

























































• Para volver un paso





























durante el ajuste del





























reloj y temporizador.





INPUT

























SELECT

















• Para seleccionar L1 o L2.

































































MENU





• Para llamar el menu en un disco.

• Para llamar la lista de archivo.









































































(MP3)









MODE





• Para activar/desactivar el nivel del

• Para disponer el orden de reproduc-













negro.

ción o la reproducción aleatoria.













































• Para activar/desactivar el ambien-

• Para activar/desactivar el envol-























tal virtual.

vente virtual.







OPEN/CLOSE

• Para abrir o cerrar la bandeja del

• Para abrir o cerrar la bandeja del

• Para expulsar la cinta de casete

































disco.

disco.

del compartimiento del casete.





































PAUSE





• Para hacer una pausa de repro-

• Para hacer una pausa en la repro-

• Para hacer una pausa de la







ducción del disco.

reproducción o grabación de la cinta.

































• Para avanzar la reproducción un

ducción del disco.

• Para avanzar la reproducción un

















cuadro a la vez.







cuadro a la vez.





PLAY





• Para empezar la reproducción del

• Para empezar la reproducción del

• Para empezar la reproducción de









disco.

disco.

la cinta.



POWER





• Para encender o apagar la uni-

• Para encender o apagar la uni-

• Para encender o apagar la uni-

































dad.

dad.

dad.





































REC/OTR

















• Para empezar una grabaciòn o

























































una grabaciòn de un toque.





































REPEAT











• Para reproducir repetidamente













• Para reproducir repetidamente

una canción o disco. (CD)

• Para activar/desactivar el modo

































un capítulo o título.

• Para reproducir repetidamente una

de repetición.























canción, grupo o disco. (MP3)









RETURN





• Para volver a la operación previa

• Para volver a la operación previa













































en el menú.

en el menú.











































SEARCH





• Para buscar un capítulo, título u

• Para buscar una canción.

• Para llamar el menú de búsqueda





MODE





hora.

• Para buscar el tiempo. (CD)

































• Para colocar o buscar los

• Para colocar o buscar los

de índice u hora.

















marcadores.

marcadores. (CD)











































SETUP





• Para llamar el menú de

• Para llamar el menú de

• Para llamar el menú de la graba-

































programación de DVD.

programación de DVD.

dora de vídeo.







































SKIP







• Para saltar capítulos o titulo.

• Para saltar canciones.







































































































SPEED

















• Para seleccionar la velocidad de

























































grabación.







































STOP





• Para parar la reproducción.

• Para parar la reproducción.

• Para parar la reproducción o gra-

















bación.































SUBTITLE





• Para seleccionar subtítulos en un

























































disco.

















































TOP MENU







• Para volver al archivo superior









• Para llamar el menú superior en

de la jerarquía más alta en el













































un disco.

programa y en la lista de archivo.





























(MP3)







TRACKING



TRACKING













• Para ajustar manualmente





























elseguimiento durante la repro-

























































ducción.





T-SET

















• Para poner la grabadora de vídeo





























en el modo de espera para una

























































grabación con temporizador.







































VCR

















• Para seleccionar el modo de salida





















de la grabadora de vídeo.

























































• Para activar el modo de la graba-





























dora de vídeo.



ZOOM





• Para ampliar parte de la

























































imagen. (2x/4x)















































– 26 –

corte aquí

ES

corte aquí

Quick Use Guide

1 Connections

Please refer to “Basic TV Connection” on the front page before you use this unit.

2 Installing the Batteries for the Remote Control

1 2 3

3

VCR/DVD Switching

















POWER

SPEED

T-SET

OPEN/CLOSE





















1

2

3

















TRACKING









4

5

6











7

8

9











CLEAR/





INPUT









C. RESET





SELECT







VCR button



0

+10









DISPLAY

VCR

DVD

MODE







DVD button





















PLAY









DVD OUTPUT light



STOP





VCR

DVD

REC/OTR



SKIP

PAUSE



VCR OUTPUT light















TOP MENU

MODE



AUDIO











SEARCH











OUTPUT button

MENU



ENTER







OUTPUT



SETUP

ZOOM



RETURN























SUBTITLE

ANGLE

REPEAT

A-B

VCR MODE

Press [VCR ] on the remote control. (The VCR OUTPUT light illuminates.)

DVD MODE

Press [DVD ] on the remote control. (The DVD OUTPUT light illuminates.)

4

Turning on Unit for the First Time









VCR









1

Be sure your TV’s input is set to VIDEO. (Name may











vary with TV manufacturer. See your TV manual for











details.)









2

Press [K/ L] to select youron-screenlanguage.











Then press [B] to continue.

LANGUAGE SELECT







POWER

B ENGLISH

[ON]





FRANCAIS





or

ESPAÑOL



3

When “CLOCK SET” menu appears,





CLOCK SET





go to step 2 in “Clock Setting” on this page.

MONTH

/

DAY

YEAR





1 0

- -

- - - -





HOUR



MINUTE

AM/PM





- -

:

- -

- -

or

5

Clock Setting





VCR



1

Press [SETUP] and select “CLOCK SET“.

- M E N U -



Then press [B] to go to next step.

TIMER PROGRAMMING





SATELLITE LINK



SETUP

AUTO REPEAT [OFF]



B CLOCK SET





LANGUAGE SELECT

or

If the clock is not set, “CLOCK SET” menu appears when you press [SETUP]. In this case, go to step 2.

2

Select the current month.





CLOCK SET







Then press [B] to go to next step.

MONTH



DAY



YEAR











1 0

/

- -



- - - -













HOUR



MINUTE

AM/PM



or







- -

:

- -



- -











































3

Select the current day.





CLOCK SET





Then press [B] to go to next step.

MONTH



DAY



YEAR

















1 0

/

0 2



- - - -





or





HOUR



MINUTE

AM/PM







- -

:

- -



- -























4

Select the current year.





CLOCK SET





Then press [B] to go to next step.

MONTH



DAY



YEAR

















1 0

/

0 2

TUE

2 0 0 7





or





HOUR



MINUTE

AM/PM







- -

:

- -



- -























5

Select the current hour.





CLOCK SET







Then press [B] to go to next step.

MONTH



DAY



YEAR











1 0

/

0 2

TUE

2 0 0 7





or





HOUR



MINUTE

AM/PM







0 5

:

- -



- -































6

Select the current minute.





CLOCK SET





Then press [B] to go to next step.

MONTH



DAY



YEAR











1 0

/

0 2

TUE

2 0 0 7





or





HOUR



MINUTE

AM/PM







0 5

:

4 0



- -





























7

Select “AM” or “PM”.





CLOCK SET













MONTH



DAY



YEAR

























1 0

/

0 2

TUE

2 0 0 7





or

HOUR

:

MINUTE

AM/PM











0 5

4 0



P M AM



















B PM























8

Press [SETUP] to exit the “CLOCK SET” menu.















SETUP













– 27 –

EN

Quick Use Guide

6

VCR Playback



Before:





Turn on the TV.







VCR





1

Insert a cassette

2

To start playback



tape into this unit.











PLAY

3

To stop playback

4

To eject the







cassette tape







OPEN/CLOSE



STOP





7 DVD/CD Playback

Before:

Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver are set to the correct channel.

DVD

1





2

Insert a disc with









label facing up.

POWER

OPEN/CLOSE







3

To start playback

4

To stop playback





PLAY





STOP











8

Remote Control





POWER

SPEED

T-SET

OPEN/CLOSE













1

2

3













TRACKING





4

5

6







7

8

9







CLEAR/





INPUT





C. RESET





SELECT







0

+10







DISPLAY

VCR

DVD

MODE







PLAY









STOP







REC/OTR

SKIP

PAUSE





TOP MENU

SEARCH



AUDIO





MODE







MENU



ENTER







SETUP

ZOOM



RETURN





SUBTITLE

ANGLE

REPEAT

A-B

DVD mode

VCR mode

Media

Button











(Alphabetical order)









1

2

3







4

5

6

• To select chapter or title

• To select track or file directly.











7

8

9

directly.









0

+10













• To search forward/backward



• To forward/backward a tape.







through a disc.

• To search forward/backward







• To begin slow forward







• To begin slow forward/reverse

through a disc.







playback in the pause mode.







playback in the pause mode.













A-B



• To repeat between your chosen • To repeat between your

















point of A and B.

chosen point of A and B. (CD)



ANGLE



• To select camera angles on a





















disc.





AUDIO



• To select audio languages on a

• To select “STEREO”, “L-ch”or

















disc.

“R-ch”.(CD)









• To clear the markers.

• To clear the markers. (CD)



C. RESET



• To remove status number in





• To clear numbers entered

program input.



CLEAR/







• To exit the VCR menu.







incorrectly.

• To clear numbers entered







• To reset the tape counter.







• To cancel the point for A-B

incorrectly.















repeat.

• To cancel the point for A-B











repeat. (CD)



DISPLAY



• To display the current disc

• To display the current disc

• To display the current time,













mode.

mode.

tape counter, and L1 or L2.

DVD



• To select DVD output mode.

• To select the DVD output mode.

















• To activate DVD mode.

• To activate DVD mode.













• To select an item on











the VCR menu.

ENTER



• To move the cursor and deter-

• To move the cursor and deter-

• To advance to the







next VCR menu.







mine its position.

mine its position.







• To go back one step





















during clock and











timer programming.

INPUT









SELECT







• To select input L1 or L2.











MENU



• To call up the disc menu on a

• To call up the file list. (MP3)

















disc.













MODE



• To set black level on/off.

• To arrange the playing order or









play randomly.









• To set virtual surround on/off.









• To set virtual surround on/off.













OPEN/CLOSE





• To eject the cassette tape from







• To open or close the disc tray.

• To open or close the disc tray.







the cassette compartment.











PAUSE



• To pause disc playback.



• To pause tape playback or





recording.







• To advance playback one frame • To pause disc playback.







• To advance playback one frame







at a time.











at a time.











PLAY



• To begin disc playback.

• To begin disc playback.

• To begin tape playback.

POWER















• To turn the unit on/off.

• To turn the unit on/off.

• To turn the unit on/off.

REC/OTR







• To start recording or one-touch





















timer recording.

REPEAT





• To play back a track or disc





• To play back a chapter or title

repeatedly. (CD)

• To select the repeat mode on/







repeatedly.

• To play back a file, folder or

off.









disc repeatedly. (MP3)



RETURN



• To return to the previous

• To return to the previous

















operation in menu.

operation in menu.



MODE



• To search chapter, title or time.

• To search track or file.

• To call up the index or time

SEARCH















• To set or search the markers.

• To search time. (CD)

search menu.







• To set or search the markers. (CD)

SETUP



• To call up the DVD menu.

• To call up the DVD menu.

• To call up the VCR menu.







SKIP



• To skip chapters or titles.

• To skip tracks or files.











SPEED







• To select the recording speed.











STOP



• To stop playback.

• To stop playback.

• To stop playback or recording.







SUBTITLE



• To select subtitles on a disc.















TOP MENU

• To call up the top menu on a

• To return to the top file of the









highest hierarchy in the pro-









disc.









gram and file list. (MP3)













TRACKING

TRACKING





• To adjust the tracking manually





















during playback.

T-SET







• To put the VCR into standby





















mode for a timer recording.

VCR







• To select the VCR output mode.





















• To activate VCR mode.

ZOOM



• To magnify part of a picture.





















(2x/4x)





Printed in China

E8E70UD



1VMN23390

cut here
