SERVICE MANUAL

27" COLOR LCD TELEVISION

LCD-A2706/LCD-B2706/

LCD-C2706/LCD-D2706

27″ COLOR LCD TELEVISION

LCD-A2706/LCD-B2706/

LCD-C2706/LCD-D2706

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER >

ANT. Input -----------------------75 ohm Unbal., F type Reference Level ---------------20 Vp-p (LCD Green Cathode) Test Input Signal---------------400 Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq.

2. Color Killer Sens.

3. AFT Pull In Range (10 mV input) --- MHz ±2.4 ±2.1


Sound

CH-2 CH-10 CH-55

MHz MHz

dBµV dBµV dBµV

45.75

41.25

17 17 17

---

23 23 23

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Brightness cd/m

3. Response Time (tr+tf) --- msec 25 ---

4. Support Color --- - 16.7 mil. (8 bit) ---

5. Viewing Angle

Horizontal

Ver ti ca l

Horizontal

Ver ti ca l

pixels pixels

° °

1280× 3

720

550 ---

-85 to 85

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution

Horizontal

Ver ti ca l

--x y

Horizontal

Ver ti ca l

% %

°K

line line

5 5

12000

0.272

0.278

400 350

---

--±0.03 ±0.03

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 5.0/5.0 4.5/4.5

2. Audio Distortion 500mW: Lch/Rch % 1.0/1.0 4.0/4.0

3. Audio Freq. Response

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

6dB: Lch

6dB: Rch

Hz Hz

100 to 10 k 100 to 10 k

---

1-1 L5820SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the LCD module and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 230 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American

National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this LCD TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

CURRENT

TESTER

EARTH GROUND

2-1 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVP_ISP

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

M. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

230 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

≥ 3mm(d)

≥ 6 mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Chassis or Secondary Conductor

Primary Circuit

d' d

Exposed Accessible Part

AC Voltmeter (High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

230 V

50kΩ RES.

Connected in

parallel

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

Fig. 2

RF or

2-4 LTVP_ISP

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

3-1 TVP_SN

Machine

Flat Pack-IC

Fig. S-1-2

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid Mounting Point

CBA

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Tweezers

Fig. S-1-6

3-2 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-3 TVP_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] Stand Base Plate

[2] Stand Hinge

[16] Speaker (R)

[17] Speaker (L)

[7] Jack Holder(D)

[9] Shield Box

[11] Digital Main CBA Unit

[3] Stand Cover

[4] Rear Cabinet

[6] Chassis Bracket

[8] Jack Holder(A)

[10] Main CBA

[12] PCB Holder

[13] Panel Holder

[14] LCD Module

[18] Front Cabinet

[5] Function CBA

[15] LED CBA

2. Disassembly Method

Removal

Step/

Loc.

No.

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Part

Stand Base Plate

Stand Hinge

Stand Cover

Rear Cabinet

Function CBA

Chassis Bracket

Jack Holder(D)

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1), 6(S-2), 5(S-3) ---

D1 --------------- ---

D1 12(S-4), 4(S-5) ---

D1D53(S-6), *CN10, *CN11,

*CN11B

D2 12(S-7) ---

D2 (S-8) ---

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Jack

[8]

Holder(A)

D2 5(S-9) ---

[9] Shield Box D2 4(S-10) ---

6(S-11), *CN54,

[10] Main CBA

*CN101A, *CN102A,

*CN103A, *CN104A,

---

*CN701, *CN702

Digital Main

[11]

CBA UnitD3D5

4(S-12), *CN111, *CN400

---

[12] PCB Holder D3 --------------- ---

Panel

[13]

[14]

Holder

LCD Module

D4 6(S-13), 4(S-14) ---

D4 --------------- ---

[15] LED CBA D4 (S-15) ---

Speaker

[16]

(R)

D4 4(S-16) ---

[17] Speaker (L) D4 4(S-17) ---

Front

[18]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. N = Nut, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta b le . "

4-1 L5820DC

S-4

[5] Function CBA

[4] Rear Cabinet

[3] Stand Cover

[2] Stand Hinge

[1] Stand Base Plate

S-4

S-6

S-4

S-1

S-5

S-4

S-2

S-3

S-2

S-3

S-2

Fig. D1

4-2 L5820DC

[9] Shield Box

[8] Jack Holder(A)

S-9

S-10

S-8

[7] Jack Holder(D)

S-10

[6] Chassis Bracket

S-7

Fig. D2

[11] Digital Main CBA Unit

S-12

[12] PCB Holder

[10] Main CBA

S-11

S-12

Fig. D3

4-3 L5820DC

[16] Speaker (R)

[18] Front Cabinet

S-15

[15] LED CBA

[17] Speaker (L)

S-17

[14] LCD Module

S-16

S-14

S-13

S-14

[13] Panel Holder

S-13

[13] Panel Holder

S-13

S-14

S-13

S-14

S-13

Fig. D4

4-4 L5820DC

TV Cable Wiring Diagram

Function CBA

CN10

To LCD Module

To Speaker

CN11

CN11B

To LCD Module

CN11A

CN111

LED CBA

CN54B

CN400

Digital Main CBA Unit

CN101B

CN102B

CN103B

CN104B

CN101A

CN102A

CN103A

CN104A

CN54

Main CBA

CN701

CN702

Fig. D5

4-5 L5820DC

HOW TO INITIALIZE THE LCD TELEVISION

To put the program back at the factory-default, initialize the LCD television as the following procedure.

How to initialize the LCD television:

1. Turn the power off.

2. To enter the service mode, while pressing [SETUP] button, press [STANDBY-ON] button on the TV unit.

- To cancel the service mode, press [STANDBY-

ON] button on the remote control.

3. To initialize the LCD television, press “DISPLAY” button on the remote control unit.

4. Confirm "FF" indication on the upper left of the screen.

5-1 L5820INT

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assem-

bly.”

NOTE:

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. Pattern Generator

3. Color Analyzer

How to Set up the Service mode:

1. Turn the power off.

2. While pressing [SETUP] button, press [STANDBYON] button on the TV unit

- To cancel the service mode, press [STANDBY-ON] button on the TV unit.

1. Initial Setting

General

Enter the Service mode.

Set the each initial data as shown on table 1 below.

Table 1: Initial Data

BUTTON

ITEM

D1-BRT D1-CNT 128 D1-CLR-R 128 D1-CLR-B 128 D1-TNT 128 D1-SHR 70 D2-BRT D2-CNT 128 D2-CLR-R 128 D2-CLR-B 128 D2-TNT 128 D2-SHR 70 D3-BRT D3-CNT 120 D3-CLR-R 128 D3-CLR-B 128 D3-TNT 128 D3-SHR 27 D4-BRT D4-CNT 123 D4-CLR-R 128 D4-CLR-B 128 D4-TNT 128 D4-SHR 27 BRT CNT 160 CLR-R 128 CLR-B 128 TNT 128 SHR 45 S-BRT S-CNT 160 S-CLR-R 128 S-CLR-B 128 S-TNT 128 S-SHR 45 C-BRT C-CNT 128 C-CLR-R 128 C-CLR-B 128 C-TNT 128 C-SHR 70

(on the remote

control)

MENU → 1

MENU → 2

MENU → 3

MENU → 4

MENU → 5

MENU → 6

MENU → 7

DATA

VALUE

128

6-1 L5820EA

DT-BRT

ITEM

BUTTON

(on the remote

control)

DATA

VALUE

128 DT-CNT 160 DT-CLR-R 128 DT-CLR-B 128

MENU → 8

DT-TNT 128 DT-SHR 45 BRIGHT 0 255 NORMAL 0 176 DARK 0 112 7F LAST POWER ON NCM ON

VOL. p

XV100 OFF *COR 1(C/D/S 1) VOL. p → 1 125 COG 1(C/D/S 1) VOL. p → 2 128 *COB 1(C/D/S 1) VOL. p → 3 128 *DR 1(C/D/S 1) VOL. p → 4 131 DG 1(C/D/S 1) VOL. p → 5 128 *DB 1(C/D/S 1) VOL. p → 6 142 SBR 1(C/D/S 1) VOL. p → 763 SBB 1(C/D/S 1) VOL. p → 963 *COR 2(C/D/S 2) VOL. p → 1 108 COG 2(C/D/S 2) VOL. p → 2 110 *COB 2(C/D/S 2) VOL. p → 395 *DR 2(C/D/S 2) VOL. p → 4 118 DG 2(C/D/S 2) VOL. p → 5 115 *DB 2(C/D/S 2) VOL. p → 6 134 SBR 2(C/D/S 2) VOL. p → 763 SBB 2(C/D/S 2) VOL. p → 963 *COR 3(C/D/S 3) VOL. p → 1 125 COG 3(C/D/S 3) VOL. p → 2 128 *COB 3(C/D/S 3) VOL. p → 3 128 *DR 3(C/D/S 3) VOL. p → 4 131 DG 3(C/D/S 3) VOL. p → 5 128 *DB 3(C/D/S 3) VOL. p → 6 142 SBR 3(C/D/S 3) VOL. p → 763 SBB 3(C/D/S 3) VOL. p → 963

2. Purity Check Mode

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service remote control unit, the display changes as follows.

Purity Check Mode

Red mode

[7] button

Green mode

[7] button

Blue mode

[7] button

White mode

Note:

When entering this mode, the default setting is White mode.

NOTE: * These data value will be changed by the White

Balance Adjustment.

6-2 L5820EA

3. Auto Calibration

Purpose: To bring the color adjustment of each

component into standard alignment.

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

Symptom of Misadjustment: If this adjustment is

incorrect, component signals do not reproduce the corresponding color.

Gain Adjustment

1. Input white raster signal (5%=5 IRE, 100%=100 IRE) from Component jack.

INPUT SIGNAL

5%=5IRE

2. Enter the service mode.

3. To enter the Auto Calibration adjustment mode, press [5] button on the service remote control unit.

4. To start auto adjustment, press [CH o] button on the service remote control unit.

- In the auto adjustment mode, “Please Wait”

appears on the screen.

- Upon completion, “OK” and appears on the

screen.

- If the auto adjustment failure, “ NG” appears on

the screen.

100%=100IRE

4. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

[CVBS]

C/D/S 1

Screen

Pattern Generator,

Color analyzer

VOL. p buttons

M. EQ. Spec.

[YUV]

C/D/S 2

[RGB]

C/D/S 3

(APL 70%)

(APL 25%)

Figure

It carries out in a darkroom.

Perpendicularity

x: 0.242 to 0.302,

y: 0.248 to 0.308

x: 0.262 to 0.282,

y: 0.268 to 0.288

White Purity

(APL 70%)

(APL 25%)

Offset Adjustment

5. Input white raster signal (5%=5 IRE) from Component jack.

INPUT SIGNAL

5%=5IRE

6. Enter the service mode.

7. To enter the Auto Calibration adjustment mode, press [6] button on the service remote control unit.

8. To start auto adjustment, press [CH o] button on the service remote control unit.

- In the auto adjustment mode, “Please Wait”

appears on the screen.

- Upon completion, “OK” and appears on the

screen.

- If the auto adjustment failure, “ NG” appears on

the screen.

L = 50 cm

INPUT: WHITE 70%,25%

1. Operate the unit for more than 20 minutes.

2. Input the White Purity.

INPUT SIGNAL

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. [CVBS] Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S 1” mode.

[YUV]

Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S 2” mode.

Color Analyzer

25%=25IRE70%=70IRE

6-3 L5820EA

[RGB]

Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S 3” mode.

5. [CVBS]----(APL 70%) Press “6” button to select “DB 1(C/D/S 1)” for Blue adjustment. Press “4” button to select “DR 1(C/D/S

1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “DB 1(C/ D/S 1)” or “DR 1(C/D/S 1)”. Refer to “1. Initial Setting.”

[CVBS]----(APL 25%)

Press “3” button to select “COB 1(C/D/S 1)” for Blue adjustment. Press “1” button to select “COR 1(C/D/S 1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “COB 1(C/D/S 1)” or “COR 1(C/D/S 1)”. Refer to “1. Initial Setting.” After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.

6. [YUV]----(APL 70%) Press “6” button to select “DB 2(C/D/S 2)” for Blue adjustment. Press “4” button to select “DR 2(C/D/S

2)” for Red adjustment.When “x” value and “y” value are not within specification, adjust “DB 2(C/ D/S 2)” or “DR 2(C/D/S 2)”. Refer to “1. Initial Setting.”

[YUV]----(APL 25%)

Press “3” button to select “COB 2(C/D/S 2)” for Blue adjustment. Press “1” button to select “COR 2(C/D/S 2)” for Red adjustment.When “x” value and “y” value are not within specification, adjust “ C OB 2 (C / D/ S 2) ” o r “ CO R 2 (C / D / S 2 ) ”. Refer to “1. Initial Setting.” After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.

7. [RGB]----(APL 70%) Press “6” button to select “DB 3(C/D/S 3)” for Blue adjustment. Press “4” button to select “DR 3(C/D/S

3)” for Red adjustment.When “x” value and “y” value are not within specification, adjust “DB 3(C/ D/S 3)” or “DR 3(C/D/S 3)”. Refer to “1. Initial Setting.”

[RGB]----(APL 25%)

Press “3” button to select “COB 3(C/D/S 3)” for Blue adjustment. Press “1” button to select “COR 3(C/D/S 3)” for Red adjustment.When “x” value and “y” value are not within specification, adjust “ C OB 3 (C / D/ S 3) ” o r “ CO R 3 (C / D / S 3 ) ”. Refer to “1. Initial Setting.” After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.

8. Turn the power off and on again. (Main power button on the TV unit.)

6-4 L5820EA

BLOCK DIAGRAMS

System Control Block Diagram

REMOTE

SENSOR

RCV52

CN54BCN111

REMOTE82

LED-235

LED-144

DRIVE

Q463

DRIVE

Q462

D55D54

POWER POWER

LED CBA

CN104ACN104B

AUDIO-MUTE

VOLUME420

SCL14 10

123

INVERTER

CIRCUIT

LCD MODULE

BACKLIGHT-ON12EXT-PWM10

CN701

DRIVE

Q507

CN101ACN101B

BACKLIGHT-SW

13 11

Q508

BACKLIGHT-ADJ

12 12

TO AUDIO

BLOCK DIAGRAM

SCL

SDA

VOLUME

AUDIO-MUTE

SDA15 9

SCL

TO VIDEO SELECTOR

BLOCK DIAGRAM

SDA

P-ON-H1

P-ON-H2

CN102ACN102B

P-ON-H118 6

TO POWER SUPPLY

BLOCK DIAGRAM

P-ON-H3

P-ON-H217 7

MAIN CBADIGITAL MAIN CBA UNIT

P-ON-H316 8

LED-251LED-1

RTC-IN

KEY-IN1

IC101

(TV MICRO CONTROLLER)

KEY-IN144

CN11B CN11A

VOLUME

AUDIO-MUTE

TO DIGITAL

SIGNAL PROCESS

SDA

SCL

567

282726

SCL

SDA

BUS-OPEN

IC103 (MEMORY)

BLOCK DIAGRAM

SCL

SDA

XOUT

OSC

P-ON-H159P-ON-H2

P-ON-H3

IC102

RESET

AL+5V

BACKLIGHT-SW

BACKLIGHT-ADJ

X100

XIN

10MHz

KEY SWITCH

FUNCTION CBA

7-1

L5820BLS

Video Selector Block Diagram

VIDEO SIGNAL

JK704

(SCART)

WF9

VIDEO-OUT1

VIDEO-OUT2

TO DIGITAL

VIDEO-R15

CN104A

343332

SIGNAL PROCESS

VIDEO-G14

VIDEO-B13

(CN104B)

BLOCK DIAGRAM

RGB-SYNC17

WF8WF7

WF7

WF1

WF2WF3

VIDEO11

CN103A

S-VIDEO-Y14

TO DIGITAL

S-VIDEO-C13

SIGNAL PROCESS

BLOCK DIAGRAM

COMPONENT-Y6COMPONENT-Pb8COMPONENT-Pr

(CN103B)

WF5 WF6

WF4

VIDEO

INPUT

SELECTOR

I2C

I/F

IC701

(VIDEO SELECTOR)

MAIN CBA

SDA

SCL

TO SYSTEM CONTROL

BLOCK DIAGRAM

JK702

VIDEO

VIDEO-IN3

JK704

(SCART)

VIDEO-IN1

VIDEO-IN2

3 4

JK703

S-VIDEO

-IN

JK704

7371692249

11715

(SCART)

B-IN1

G-IN1

R-IN1

322836

B-IN2

G-IN2

R-IN2

JK701

COMPONENT

Y-IN

COMPONENT

Pb-IN

COMPONENT

Pr-IN

TU31

(TUNER UNIT)

ANT-IN

(ANALOG)

7-2

L5820BLV

Audio Block Diagram

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

AUDIO SIGNAL

IC801

(AUDIO AMP)

CLN10

SP(L) 2

SP-GND 1

CN11BCN54 CN10

SP(L)47

SP(R)38

AMP

5 7

WF10

CLN11

CN11

SP(R) 2

SP-GND 1

TO SYSTEM

CONTROL

BLOCK DIAGRAM

VOLUME

AUDIO-MUTE

JK704

(SCART)

AUDIO(L)-OUT1

AUDIO(R)-OUT1

AUDIO(L)-OUT2

AUDIO(R)-OUT2

3221

AMP

2 12

FUNCTION CBA

VOLUME

CONTROL

MUTE

CONTROL

611

MAIN CBA

100

IC701

(AUDIO SELECTOR)

L-CH

IC851

(SOUND PROCESSOR)

8987858179

317 2

30AUDIO 6 43

R-CH

IF SIGNAL

PROCESS

SIF

(L-CH)

AUDIO SW

I2C I/F

(R-CH)

I2C I/F

13 12

SDA

SCL

JK702

AUDIO SW

94929088868280

JK704

HDMI(L)21 3

HDMI(R)20 4

HDMI-AUDIO(L)

HDMI-AUDIO(R)

23 1

22 2

CN103B CN103A

HDMI(L)

(SCART)

JK701

HDMI(R)

DIGITAL MAIN CBA UNIT

TU31

(TUNER UNIT)

TO SYSTEM

CONTROL

BLOCK DIAGRAM

AUDIO(L)-IN3

AUDIO(R)-IN3

AUDIO(R)-IN2

AUDIO(L)-IN2

AUDIO(L)-IN1

AUDIO(R)-IN1

7-3

COMPONENT

AUDIO(L)-IN

AUDIO(R)-IN

COMPONENT

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

JK201

HDMI

JK202

AUDIO(L)-IN

HDMI

L5820BLA

AUDIO(R)-IN

Digital Signal Process Block Diagram

LCD MODULE

LVDS TX0(+)4

LVDS TX0(-)3

LVDS TX1(+)8

LVDS TX1(-)7

LVDS TX2(+)12

LVDS TX2(-)11

LVDS TX3(+)20

LVDS TX3(-)19

LVDS CLK(+)16

LVDS CLK(-)15

CN400

AUDIO SIGNAL

VIDEO SIGNAL

IC333 (SCALER) IC400 (LVDS TRANSMITTER)

A/D

ANALOG

442113

CONVERTER

404231

56~202326

R DATA

(0-7)

133

135

139

143~~106

DIGITAL

191

R DATA

SIGNAL

PROCESS

(SCALER)

196

200

(0-7)

7776818085

LVDS

G DATA

(0-7)

113

116

119

201~202

29~~374245

B DATA

(0-7)

121~~122

123

206

208

210~~211

G DATA

(0-7)

127

132

B DATA

(0-7)

214

HDVDEN

HDHDVD

PLL

105

CLK

85VD89

CLK

190

CLK

I2C

I2C I/F

I/F

Q401Q400

66 69

SDA

SCL

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

HDMI(L)

HDMI(R)

DIGITAL MAIN CBA UNIT

L-CH

R-CH

VIDEO-R

CN104B

TO VIDEO

VIDEO-G

VIDEO-B

(CN104A)

SELECTOR

BLOCK DIAGRAM

RGB-SYNC 7

IC201 (HDMI INTERFACE)

CN103B

746879

VIDEO

S-VIDEO-Y

S-VIDEO-C

COMPONENT-Y

1310111816

(CN103A)

TO VIDEO

SELECTOR

BLOCK DIAGRAM

CLAMP A/D

MUX

COMPONENT-Pb

COMPONENT-Pr

JK200

MUX MATRIX

HDMI

RECEIVER

35343837414043

79461

DATA 0(-)

DATA 1(-)

DATA 0(+)

DATA 1(+)

DATA 2(+)

DATA 2(-)

HDMI

101216

CLOCK(-)

CLOCK(+)

-IN

DDCDATA

DDCCLOCK

IC100

(AUDIO D/A CONVERTER)

AUDIO

D/A

CONVERTER

8 15146

2223272120

AUDIO

DECODER

Q209

I2C

I/F

SDA

SCL

IC200 (HDMI MEMORY)

Q210

7-4

L5820BLLCD

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

P-ON+5V

+33V

CONTROL

BLOCK DIAGRAM

P-ON-H3

Q503

P-ON+5V(2)

+5V REG.

IC516

1 2

Q534

Q532

SW +5V

Q531

INV+24V

TO SYSTEM

P-ON-H2

P-ON-H1

MAIN CBA

AL+3.3V

+3.3V REG.

IC513

1 2

+3.3V

+3.3V REG.

IC514

1 2

Q510

P-ON+3.3V

SW +3.3V

Q512

P-ON+1.8V

+1.8V REG.

IC531

1 2

AL+1.5V

AL+9V

+9V REG.

Q502

+1.5V REG.

IC532

1 3

+5V REG.

IC515

1 3

Q533

P-ON+12V

+22V

SW +22V

Q804,Q805,Q806

AL+5V

Q801

REG.

SHUNT

D509

T601

Q603

HOT COLD

L603

BRIDGE

RECTIFIER

D610 - D613

LINE

FILTER

L601

LINE

FILTER

L602

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

F601

T4A L 125V

IC601

(FEEDBACK)

Q601

IC602

3 2

LIMITER

(ISOLATOR)

Q602

SW-CLT

REG.

SHUNT

IC631

(FEEDBACK)

D569

Q631

3 2

SW-CTL

T631

Q632

AC601

AC CORD

7-5

L5820BLP

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “!” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

8-1 LC4P_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 LC4P_SC

Main 1/5 Schematic Diagram

CN701

1 23.8 2 23.8 3 23.8 4 23.8 5 23.8 60 70 80

95.3 10 4.3 11 0.1 12 2.7

CN702

1 23.8 2 23.8 3 23.8 4 23.8

5 23.8

10 0

VOLTAGE CHART

Pin No. Voltage

NOTE:

# is an unnecessary part of the circuit configuration; therefore servicing is not required, for this product operates independently of this part.

8-3

L5820SCM1

Main 2/5 Schematic Diagram

NOTE:

# is an unnecessary part of the circuit configuration; therefore servicing is not required, for this product operates independently of this part.

8-4

L5820SCM2

Main 3/5 Schematic Diagram

CN103A

14.6

24.6

32.5

42.5

63.8

70 80

90 10 0 11 2.4 12 0 13 2.5 14 2.4 15 0 16 --17 --18 --19 --20 --21 5.0 22 5.0 23 ---

VOLTAGE CHART

Pin No. Voltage

8-5 L5820SCM3

Main 4/5 Schematic Diagram

CN101A CN104A

10 10

21.8 2 ---

30 3---

43.3 4 ---

50 5---

65.0 6 ---

70 70

80 82.5

95.3 94.8 10 5.3 10 4.9 11 3.3 11 0 12 5.0 12 2.7 13 0 13 2.4 14 --- 14 2.4 15 --- 15 2.4 16 --- 16 0 17 --- 17 2.4 18 --- 18 0 19 --- 19 --20 --- 20 1.4 21 --- 21 0 22 --- 22 --23 --- 23 3.3

CN102A

10 2 --30 4 --50

62.7

73.2

9 --10 0.2 11 3.7 12 -0.6 13 0 14 5.0 15 0 16 0 17 3.3 18 3.3 19 0 20 1.6 21 0 22 3.3

23 0

Pin No. Voltage

NOTE:

# is an unnecessary part of the circuit configuration; therefore servicing is not required, for this product operates independently of this part.

VOLTAGE CHART

8-6

L5820SCM4

Main 5/5 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

8-7

L5820SCM5

Function Schematic Diagram

VOLTAGE CHART

CN11B

Pin No. Voltage

1--2---

35.0

45.0

55.0 60

75.2

85.2 90

10 0

8-8

L5820SCF

LED Schematic Diagram

VOLTAGE CHART

CN54B

Pin No. Voltage

25.0

35.0

43.5

50.1

8-9

L5820SCL

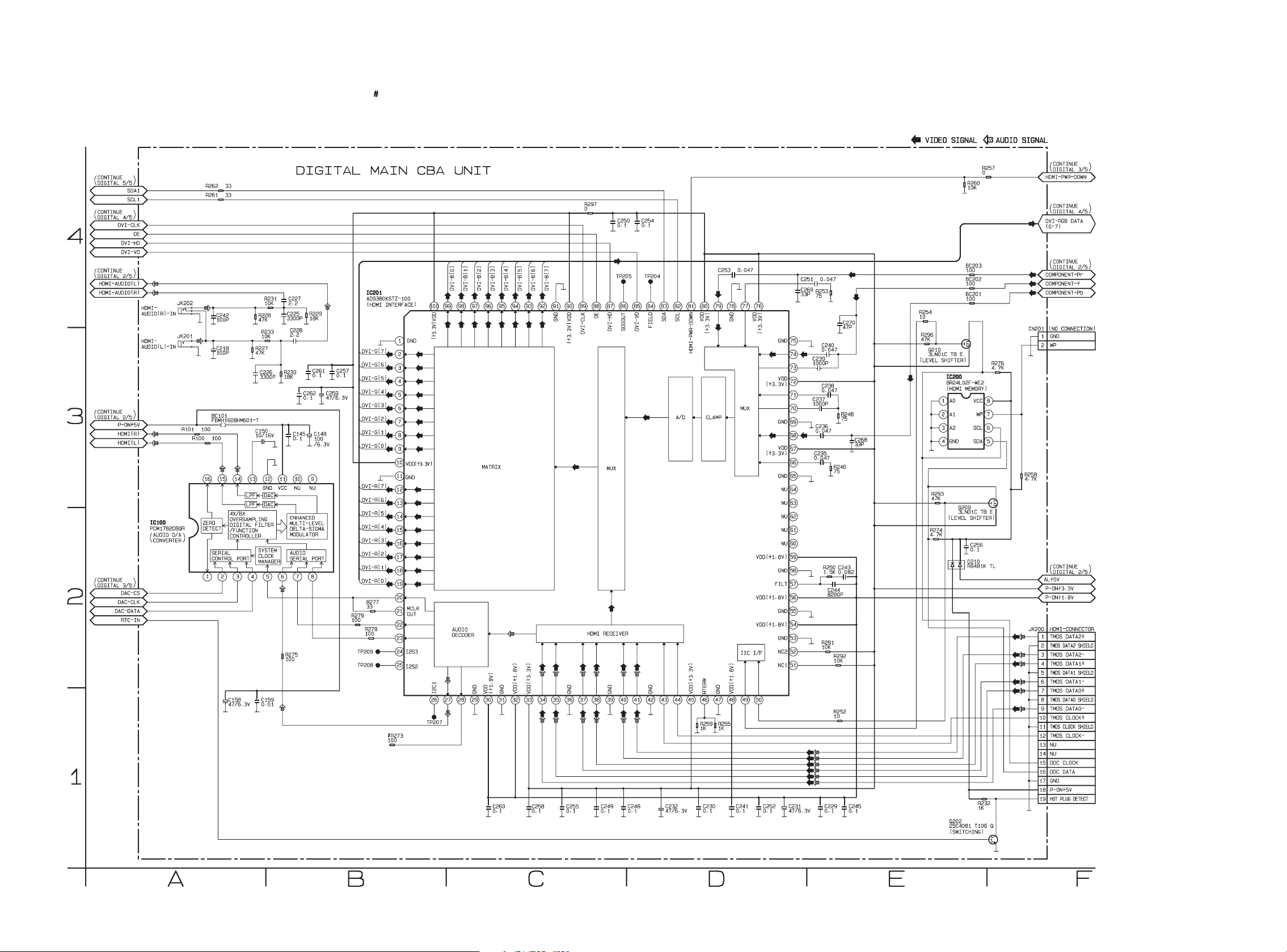

Digital Main 1/5 Schematic Diagram

NOTE:

# is an unnecessary part of the circuit configuration; therefore servicing is not required, for this product operates independently of this part.

8-10

L5820SCD1

Digital Main 2/5 Schematic Diagram

8-11

L5820SCD2

Digital Main 3/5 Schematic Diagram

NOTE:

# is an unnecessary part of the circuit configuration; therefore servicing is not required, for this product operates independently of this part.

8-12

L5820SCD3

Digital Main 4/5 Schematic Diagram

8-13

L5820SCD4

Digital Main 5/5 Schematic Diagram

8-14

L5820SCD5

Main CBA Top View

Because a hot chassis ground is present in the power supply circut, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly, when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

8-15

BL5820F01011-1

Main CBA Bottom View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

WF10

PIN 5OF IC801

WF2

PIN 14 OF CN103A

WF3

PIN 13 OF CN103A

WF1

PIN 11 OF CN103A

WF6

PIN 9 OF CN103A

WF5

PIN 8 OF CN103A

WF4

PIN 6 OF CN103A

WF9

PIN 15 OF CN104A

WF7

PIN 13 OF CN104A

WF8

PIN 14 OF CN104A

8-16

BL5820F01011-1

Function CBA Top View

LED CBA Top View

Function CBA Bottom View

BL5820F01011-2

LED CBA Bottom View

BL5820F01011-3

8-17

WAVEFORMS

WF1 ~ WF6 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 11 of CN103A

CVBS 0.2V 20µs

Pin 14 of CN103A

WF4

WF5

Pin 6 of CN103A

COMPONENT-Y 0.2V 20µs

Pin 8 of CN103A

S-VIDEO-Y 0.2V

WF3

Pin 13 of CN103A

S-VIDEO-C 0.2V

20µs

COMPONENT-Pb 0.2V 20µs

WF6

Pin 9 of CN103A

COMPONENT-Pr 0.2V 20µs

9-1

L5820WF

WF7 ~ WF10 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF7

WF8

Pin 13 of CN104A

B 0.5V

Pin 14 of CN104A

20µs

WF10

Pin 5 of IC801

AUDIO 0.5V 0.5ms

G 0.5V

WF9

Pin 15 of CN104A

R 0.5V

9-2

L5820WF

WIRING DIAGRAMS

LVDS-TX0(-)

GND

1325476

CN400

CN111CN54B

GND

13254

GND

LVDS-TX0(+)

783

LED-1

AL+5V

REMOTE

LVDS-TX1(-)

GND

LED-2

LVDS-TX2(-)

GND

LVDS-TX1(+)

LVDS-TX2(+)

GND

LVDS-CLK(-)

LVDS-CLK(+)

10131211141517161918212022

GND

LVDS-TX3(-)

CN11B CN11A

LVDS-TX3(+)

GNDNULCD+5V

KEY-IN1

KEY-IN2

354

KEY-IN1

KEY-IN2

LCD

LCD+5V

25242726292830

GND

AL+5V

546

798

GND

SP(L)

AL+5V

MODULE

SP(R)



GNDNUGNDNUCONFIG-2

SP-GND

CONFIG-1

SP-GND

HDMI-IN

HDMI

AUDIO(L)-IN

HDMI

AUDIO(R)-IN

BACK

LIGHT

LED CBA

FUNCTION CBA

CN10

SP-GND

DIGITAL MAIN CBA UNITMAIN CBA

CLN10

SP(L)

CN11

CLN11

SP-GND

SP(R)

1325476

CN101B

CN103B

232122192017181615

HDMI-AUDIO(R)

HDMI-AUDIO(L)

1325476

CN103A

CN101A

P-ON+1.8V

GND

1325476

TU31

TUNER UNIT

HDMI(R)

HDMI(L)

P-ON+3.3V

GND

COMPONENT-Y

GND

P-ON+5V

GND

10131211141517161918212022

GND

LCD+5V

BACKLIGHT-SW

BACKLIGHT-ADJ

1411121310

VIDEO

GND

COMPONENT-Pr

COMPONENT-Pb

10131211141517161918212022

BACKLIGHT-SW

LCD+5V

GND

10131211141517161918212022

9785634

GND

S-VIDEO-C

S-VIDEO-Y

GNDNUNUNUNUNUNICAM-RESET

BACKLIGHT-ADJ

GNDNUNUNUNUNUNU

GND

P-ON+5V

GND

P-ON+3.3V

SP801

GND

P-ON+1.8V

RGB-CONT

NUNUNU

SPEAKER

L-CH

SP802

SPEAKER

1325476

GND

CN102B

CN104B

CN104A

CN102A

1325476

CN701

INV+24V

AL+1.5V

AL+3.3V(A)

232122192017181615

REMOTE(NU)

GND

1325476

GND

1325476

INV+24V

R-CH

GND

AL+3.3V(D)

LED-4(NU)

P-ON-H1

GND

10131211141517161918212022

FBIN

PROTECT-1

PROTECT-2

RAPID

VIDEO-B

VIDEO-G

FBIN

GND

AL+5V

1325476

CN702

INV+24V

9785634

VIDEO-R

GND

INV+24V

GND

AL+5V

AL+3.3V(D)

1411121310

GND

SCL

SDA

AFT-IN

IF-AGC

10131211141517161918212022

PROTECT-1

PROTECT-2

P-ON-H3

P-ON-H2

10131211141517161918212022

101211NU

SEL

GND

EXT-PWM

BACKLIGHT-ON

P-ON-H3

P-ON-H2

GND

RGB-SYNC

GND

AL+3.3V(D)

INV+24V

GNDNUGNDNUGND

P-ON-H1

GNDNUVOLUME

GNDNUAUDIO-MUTE

AL+3.3V(D)

GND

AL+1.5V

GND

INV+24V

AL+3.3V(A)

GND

10GND

GND

CN54

SP(L)

SP(R)

SP-GND

SCART JACK

(AV1/AV2)

S-VIDEO

VIDEO

-IN3

AUDIO(L)

-IN3

AUDIO(R)

-IN3

COMPONENT

Y-IN

COMPONENT

10-1

Pb-IN

COMPONENT

AUDIO(L)

COMPONENT

Pr-IN

-IN

COMPONENT

AUDIO(R)

-IN

AC CORD

AC601

L5820WI

Cabinet

EXPLODED VIEWS

CLN11

LED CBA

B25

CLN10

B25

SP802

LCD1

B20

Function CBA

B16

AC601

B31

B16

B30

SP801

See Electrical Parts List for parts with this mark.

Digital Main CBA Unit

B22

B21

Main CBA

B24

A26

B23

B28

L10

A24

A25

L13

11-1 L5820CEX

B10

A18

L10

A25

L13

L10

Packing

[ A ]

X2-1, X2-2, X2-3, X2-4, X2-5, X2-6, X2-7, X2-8

[ B ]

X2-1

[ C ]

X2-2, X2-4, X2-7

Tape

[ D ]

X2-1, X2-7, X2-9, X2-10, X2-11, X2-12, X2-13, X2-14

Packing Tape

Comparison Chart of Models and Marks

Model Mark

LCD-A2706 LCD-B2706 LCD-C2706 LCD-D2706

A B C D

Packing Tape

Some Ref. Numbers are not in sequence.

Packing Tape

FRONT

Packing Tape

11-2 L5820PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

LCD-A2706 A

LCD-B2706 B

LCD-C2706 C

LCD-D2706 D

Ref. No. Mark Description Part No.

A1 FRONT CABINET L5820EA 1EM021473

A3 CONTROL PLATE L5820EA 1EM322257

A4 REAR CABINET L5820EA 1EM021474

A5 DECORATION PLATE L5820EA 1EM121715

A7 FUNCTION KNOB L5820EA 1EM121699

A18 STAND COVER L5820EA 1EM221422

A24 STAND BASE PLATE L4300UA 1EM121113

A25 STAND RUBBER FOOT L5001CB 1EM423855

A26 STAND HINGE L4300UA 1EM220784

B1 PANEL HOLDER L4300UA 1EM120994

B2 PCB HOLDER(JPN/PAL) L4430JA 1EM121626

B3 SHIELD BOX(PAL) L5820EA 1EM221411

B4 CHASSIS BLACKET L5820EA 1EM121698

B5 JACK HOLDER(A) L5820EA 1EM221412

B6 JACK HOLDER(D) L5820EA 1EM221413

B16 CLOTH(10X190XT0.3) L0200UA 1EM420019

B20 INSULATION SHEET L5820EA 1EM322281

B21 CAUTION LABEL L3207UH ----------

B25 CLOTH(15X220XT1.0) L4430JA 1EM423841

B28 CLOTH(10X30XT0.5) B5900UA 0EM404486

CLN10 WIRE ASSEMBLY 001 WIRE ASSEMBLY

CLN11 WIRE ASSEMBLY 001 WIRE ASSEMBLY

CLN11B WIRE ASSEMBLY 002 WX1L5820-002 WX1L5820-002

CLN54B WIRE ASSEMBLY 003 WIRE ASSEMBLY

CLN400 WIRE ASSEMBLY 010 L5820EA WX1L5820-010

CLN701 WIRE ASSEMBLY 004 L5820EA WX1L5820-004

CLN704 WIRE ASSEMBLY 103 WX1L4300-103 WX1L4300-103

L1 SCREW P-TIGHT 4X14 BIND HEAD GBJP4140

L2 SCREW P-TIGHT M4X14 PAN

L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

L5 SCREW P-TIGHT 3X10 BIND HEAD+ GBJP3100

L6 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

L8 DOUBLE SEMS SCREW M4X6 M4X6 FPJ34060

L9 SCREW B-TIGHT 3X10 BIND HEAD+

L10 SCREW P-TIGHT M3X12 DISH HEAD+ GDJP3120

L13 DOUBLE SEMS SCREW M4X9 + BLACK

LCD1 LCD MODULE(CMO) V270B1-L01 TLCD100CME05

SP801 SPEAKER S0516F06 DSD0813XQ002

SP802 SPEAKER S0516F06 DSD0813XQ002

001

003

HEAD+BLK

BLK

L0130UA

WX1L5820-001

WX1L5820-003

GPHP4140

GBHB3100

0EM408146A

Ref. No. Mark Description Part No.

ACCESSORY

X3 REMOTE CONTROL NF004RD

Ref. No. Mark Description Part No.

A6! A RATING LABEL L5820EA ----------

A6! B RATING LABEL L5821BB ----------

A6! C RATING LABEL L5822FC ----------

A6! D RATING LABEL L5823RD ----------

B22 PCB POST L0650UA 1EM421819

B30 JACK LABEL(A) L5820EA ----------

B31 JACK LABEL(D) L5820EA ----------

L1 SCREW P-TIGHT 4X14 BIND HEAD GBJP4140

L2 SCREW P-TIGHT M4X14 PAN

L6 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

L7 SCREW S-TIGHT M3X4 BIND HEAD GBJS3040

L8 DOUBLE SEMS SCREW M4X6 M4X6 FPJ34060

NF004RD

HEAD+BLK

NF004RD

GPHP4140

PACKING

S1 A CARTON L5820EA 1EM322202

S1 B CARTON L5821BB 1EM322305

S1 C CARTON L5822FC 1EM322306

S1 D CARTON L5823RD 1EM322307

S2 STYROFOAM TOP L5820EA 1EM021475

S3 STYROFOAM BOTTOM L5820EA 1EM021476

S4 SET BAG L5820EA 1EM322297

S5 A SERIAL NO.LABEL L5820EA ----------

S5 B SERIAL NO. LABEL L5821BB ----------

S5 C SERIAL NO. LABEL L5822FC ----------

S5 D SERIAL NO. LABEL L5823RD ----------

S6 STAND SHEET L5820EA 1EM423791

S7 HOLD PAD L5820EA 1EM423853

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2-1! A,B,D OWNERS MANUAL(EN) L5820EA 1EMN21993

X2-2! A,C OWNERS MANUAL(FR) L5820EA 1EMN21994

X2-3! A OWNERS MANUAL(EL) L5820EA 1EMN21995

X2-4! A,C OWNERS MANUAL(IT) L5820EA 1EMN21996

X2-5! A OWNERS MANUAL(ES) L5820EA 1EMN21997

X2-6! A ONWERS MANUAL(NL) L5820EA 1EMN21998

X2-7! A,C,D OENERS MANUAL(DE) L5820EA 1EMN21999

X2-8! A OWNERS MANUAL(SV) L5820EA 1EMN22000

X2-9! D OWNERS MANUAL(PL) L5820EA 1EMN22006

X2-10! D OWNERS MANUAL(RU) L5820EA 1EMN22007

X2-11! D OWNERS MANUAL(HU) L5820EA 1EMN22008

X2-12! D OWNERS MANUAL(CS) L5820EA 1EMN22009

X2-13! D OWNERS MANUAL(SK) L5820EA 1EMN22010

X2-14! D OWNERS MANUAL(AR) L5820EA 1EMN22011

X5 BATTERY R6RC/2P XB0M601MS001

20060731 12-1 L5820CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

LCD-A2706 A

LCD-B2706 B

LCD-C2706 C

LCD-D2706 D

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT 1ESA13573

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA FUNCTION CBA LED CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C31 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASDL101

ELECTROLYTIC CAP. 100µF/35V M or CE1GMASTM101

ELECTROLYTIC CAP. 100µF/35V M CA1G101SP085 C32 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C33 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C34 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C35 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASDL101

ELECTROLYTIC CAP. 100µF/35V M or CE1GMASTM101

ELECTROLYTIC CAP. 100µF/35V M CA1G101SP085 C36 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

C40 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220 C42 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C43 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C44 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

1ESA14775

----------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C405 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C501 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDL0R1

ALUMINUM ELECTROLYTIC CAP 0.1µF/50V M orCE1JMASTMR10

ELECTROLYTIC CAP. 0.1µF/50V M CA1JR10SP085 C502 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTM471

ELECTROLYTIC CAP. 470µF/16V M CA1C471SP085 C503 ELECTROLYTIC CAP. 3300µF/35V M or CE1GMZNDL332

CAP ELE 3300µF/35V M CE1GMZPDL332 C504 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTM101

ELECTROLYTIC CAP. 100µF/16V M CA1C101SP085 C505 ELECTROLYTIC CAP. 10µF/100V M or CE2AMASDL100

ALUMINUM ELECTROLYTIC CAP 10µF/100V MCE2AMASTM100

C506 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011 C507 ELECTROLYTIC CAP. 3300µF/35V M or CE1GMZNDL332

CAP ELE 3300µF/35V M CE1GMZPDL332 C508 ALUMINUM ELECTROLYTIC CAP 1000µF/35V

C509 CERAMIC CAP. R K 1500pF/2KV(HR) or CCD3DKA0R152

C511 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

C513 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C520 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

C530 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

C531 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103 C532 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASDL102

C533 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

C534 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103 C536 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

C539 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 or CE1AMZNDL472

C540 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103 C541 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

C545 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C546 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C547 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C548 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C549 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C550 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C551 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASDL102

M or

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZPDL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZADL102

ELECTROLYTIC CAP. 1000µF/35V M CA1G102SP084

CERAMIC CAP. 1500pF/2KV or CA3D152PAN04

CERAMIC CAP. BL 1500pF/2KV CA3D152XF003

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085

ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTM221

ELECTROLYTIC CAP. 220µF/25V M CA1E221SP085

ALUMINUM ELECTROLYTIC CAP 1000µF/10V

M or

ELECTROLYTIC CAP. 1000µF/10V M CA1A102SP085

ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTM101

ELECTROLYTIC CAP. 100µF/10V M CA1A101SP085

ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASTM471

ELECTROLYTIC CAP. 470µF/6.3V M CA0K471SP085

ELECTROLYTIC CAP. 4700µF/10V M CE1AMZPDL472

ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASTM102

ELECTROLYTIC CAP. 1000µF/6.3V M CA0K102SP085

ALUMINUM ELECTROLYTIC CAP 1000µF/10V

M or

CE1GMZNTM102

CE1AMASTM102

200606731 13-1 L5820EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 1000µF/10V M CA1A102SP085

C552 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

C553 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

C554 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTM101 ELECTROLYTIC CAP. 100µF/10V M CA1A101SP085

C556 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTM101 ELECTROLYTIC CAP. 100µF/10V M CA1A101SP085

C557 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTM221 ELECTROLYTIC CAP. 220µF/25V M CA1E221SP085

C558 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASTM102 ELECTROLYTIC CAP. 1000µF/6.3V M CA0K102SP085

C559 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

C560 ELECTROLYTIC CAP. 4700µF/10V M P=7.5 or CE1AMZNDL472

ELECTROLYTIC CAP. 4700µF/10V M CE1AMZPDL472 C562 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C563 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C564 ALUMINUM ELECTROLYTIC CAP 1000µF/35V

C566 CERAMIC CAP. BN 470pF/2KV or CCD3DKA0B471

C567 CAP ELE STD-85 4700µF 6.3V SL or CE0KMZNDL472

C570 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

C575 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

C605 FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

C606 FILM CAP.(P) 0.033µF/50V J or CA1J333MS029

C607 CERAMIC CAP. 100pF/2KV or CA3D101PAN04

C609! ELECTROLYTIC CAPACITOR 180µF/400V CA2H181NC229

C610 CERAMIC CAP. BN 470pF/2KV or CCD3DKA0B471

C611 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C612! ACROSS THE LINE CAP. 0.1U/250V or CT2E104DC015

! ACROSS THE LINE CAP. 0.1µF/250V K or CT2E104DC011 ! METALIZED FILM CAP. 0.1µF/250V CT2E104MS037

C613! ACROSS THE LINE CAP. 0.1U/250V or CT2E104DC015 ! ACROSS THE LINE CAP. 0.1µF/250V K or CT2E104DC011

M or

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZPDL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZADL102

ELECTROLYTIC CAP. 1000µF/35V M CA1G102SP084

CERAMIC CAP. 470pF/2KV or CA3D471PAN04

CERAMIC CAP. RB 470pF/2KV or CA3D471TE006

CERAMIC CAP. BL 470pF/2KV or CA3D471XF003

CERAMIC CAP. HR 470pF/2KV CCD3DKA0R471

ELECTROLYTIC CAP. 4700µF/6.3V SM CE0KMZPDL472

ALUMINUM ELECTROLYTIC CAP 10µF/50V M orCE1JMASTM100

ELECTROLYTIC CAP. 10µF/50V M CA1J100SP085

ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTM101

ELECTROLYTIC CAP. 100µF/10V M CA1A101SP085

FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

CAP POLYESTER FILM 0.1µF/50V J CA1J104SER04

FILM CAP.(P) 0.033µF/50V J or CMA1JJS00333

CAP POLYESTER FILM 0.033µF/50V J CA1J333SER04

CERAMIC CAP. RB 100pF/2KV or CA3D101TE006

CERAMIC CAP. BL 100pF/2KV CA3D101XF003

CERAMIC CAP. 470pF/2KV or CA3D471PAN04

CERAMIC CAP. RB 470pF/2KV or CA3D471TE006

CERAMIC CAP. BL 470pF/2KV or CA3D471XF003

CERAMIC CAP. HR 470pF/2KV CCD3DKA0R471

CE1GMZNTM102

Ref. No. Description Part No.

! METALIZED FILM CAP. 0.1µF/250V CT2E104MS037 C614 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C615! SAFETY CAP. 3300pF/250V KX CA2E332MR050 C633 FILM CAP.(P) 0.12µF/50V J or CA1J124MS029

STACKED FILM CAP. 0.12µF/50V J or CMA1JJS00124 CAP POLYESTER FILM 0.12µF/50V J CA1J124SER04

C636 FILM CAP.(P) 0.01µF/50V J or CA1J103MS029

FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103 CAP POLYESTER FILM 0.01µF/50V J CA1J103SER04

C638 ELECTROLYTIC CAPACITOR 180µF/400V CA2H181NC226

C639 CERAMIC CAP. R K 680pF/2KV(HR) or CCD3DKA0R681

CERAMIC CAP. 680pF/2KV or CA3D681PAN04

CERAMIC CAP. BL 680pF/2KV CA3D681XF003

C701 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C702 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASTM101 ELECTROLYTIC CAP. 100µF/6.3V M CA0K101SP085

C703 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C704 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTM471 ELECTROLYTIC CAP. 470µF/16V M CA1C471SP085

C707 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

C708 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

C710 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C711 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTM471 ELECTROLYTIC CAP. 470µF/16V M CA1C471SP085

C712 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C713 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473

C716 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

C717 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

C719 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C720 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C721 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C722 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C723 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C724 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085

C725 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C726 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C727 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104

C730 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021 C734 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C735 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C737 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C738 CHIP CERAMIC CAP. F Z 0.047µF/50V CHD1JZ30F473

C739 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C740 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C746 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C747 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C750 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C751 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C766 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085 C767 CERAMIC CAP.(AX) F Z 0.1µF/50V CA1J104TU014 C768 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085 C769 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085

200606731 13-2 L5820EL

Ref. No. Description Part No.

C770 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C771 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C772 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C773 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C774 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C775 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C776 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C777 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C778 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C779 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C780 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085 C781 CHIP CERAMIC CAP. F Z 0.47µF/10V ---------- C782 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C783 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C784 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C785 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C786 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C787 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085 C788 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V M orCE1CMASTM470

ELECTROLYTIC CAP. 47µF/16V M CA1C470SP085 C789 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C790 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C791 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C792 CHIP CERAMIC CAP. F Z 0.47µF/10V CHD1AZ30F474 C801 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTM221

ELECTROLYTIC CAP. 220µF/25V M CA1E221SP085 C802 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTM221

ELECTROLYTIC CAP. 220µF/25V M CA1E221SP085 C804 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP 1µF/50V M or CE1JMASTM1R0

ELECTROLYTIC CAP 1µF/50V M CA1J1R0SP085 C805 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP 1µF/50V M or CE1JMASTM1R0

ELECTROLYTIC CAP 1µF/50V M CA1J1R0SP085 C806 FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

CAP POLYESTER FILM 0.1µF/50V J CA1J104SER04 C807 FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

CAP POLYESTER FILM 0.1µF/50V J CA1J104SER04 C808 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASDL101

ALUMINUM ELECTROLYTIC CAP 100µF/25V

M or

ELECTROLYTIC CAP. 100µF/25V M CA1E101SP085 C810 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASDL3R3

ALUMINUM ELECTROLYTIC CAP 3.3µF/50V M orCE1JMASTM3R3

ELECTROLYTIC CAP. 3.3µF/50V M CA1J3R3SP085 C812 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASDL101

ALUMINUM ELECTROLYTIC CAP 100µF/25V

M or

ELECTROLYTIC CAP. 100µF/25V M CA1E101SP085 C814 ALUMINUM ELECTROLYTIC CAP 1000µF/35V

C815 ELECTROLYTIC CAP. 4.7µF/25V M or CE1EMASDL4R7

M or

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZPDL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZADL102

ELECTROLYTIC CAP. 1000µF/35V M CA1G102SP084

CE1EMASTM101

CE1GMZNTM102

Ref. No. Description Part No.

ELECTROLYTIC CAP. 4.7µF/25V M or CA1E4R7SP085 ALUMINUM ELECTROLYTIC CAP 4.7µF/25V M CE1EMASTM4R7

C816 ELECTROLYTIC CAP. 4.7µF/25V M or CE1EMASDL4R7

ELECTROLYTIC CAP. 4.7µF/25V M or CA1E4R7SP085 ALUMINUM ELECTROLYTIC CAP 4.7µF/25V M CE1EMASTM4R7

C851 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTM101 ELECTROLYTIC CAP. 100µF/10V M CA1A101SP085

C852 CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJ3CH151

C853 CHIP CERAMIC CAP. CH J 150pF/50V CHD1JJ3CH151 C854 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C855 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C857 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C858 CHIP CERAMIC CAP. CH D 3pF/50V CHD1JD3CH3R0

C859 CHIP CERAMIC CAP. CH D 3pF/50V CHD1JD3CH3R0

C860 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680

C861 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680 C862 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C863 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C864 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C865 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASDL3R3

ALUMINUM ELECTROLYTIC CAP 3.3µF/50V M orCE1JMASTM3R3

ELECTROLYTIC CAP. 3.3µF/50V M CA1J3R3SP085 C866 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C867 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C868 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C869 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C872 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CE1CMASTM100

ELECTROLYTIC CAP. 10µF/16V M CA1C100SP085 C873 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C874 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C875 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C876 CHIP CERAMIC CAP.(1608) CH J 22pF/50V ---------C877 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C878 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C901 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C902 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C903 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C905 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C906 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C907 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C909 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C910 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C911 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C913 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C914 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C915 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C917 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C918 CHIP CERAMIC CAP. B K 270pF/50V CHD1JK30B271 C919 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C920 CHIP CERAMIC CAP. B K 270pF/50V CHD1JK30B271 C921 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C922 CHIP CERAMIC CAP. B K 270pF/50V CHD1JK30B271 C923 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C924 CHIP CERAMIC CAP. B K 270pF/50V CHD1JK30B271

CONNECTORS

CN01 TERMINAL PRINTBORD PIN MS-PIN155155 JTEA001CHY01

CN54 PH CONNECTOR TOP 4P B4B-PH-K-S

CN101A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

(LF)(SN)

J3PHC04JG029

200606731 13-3 L5820EL

Ref. No. Description Part No.

CN102A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN103A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN104A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN701 PH CONNECTOR TOP 12P B12B-PH-K-

CN702 PH CONNECTOR TOP 10P B10B-PH-K-

S(LF)(SN)

J3PHC12JG029

J3PHC10JG029

DIODES

D31 ZENER DIODE MTZJT-7733B or QDTB00MTZJ33

ZENER DIODE DZ-33BSBT265 NDTB00DZ33BS

D500 ZENER DIODE MTZJT-7712B or QDTB00MTZJ12

ZENER DIODE DZ-12BSBT265 NDTB00DZ12BS

D501 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D502 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D503 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D504 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D505 ZENER DIODE MTZJT-7727B or QDTB00MTZJ27

ZENER DIODE DZ-27BSBT265 NDTB00DZ27BS

D506 DIODE 1ZC33(Q) QDLZ001ZC33Q

D507 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D508 DIODE SCHOTTKY YG802C10R QDQZYG802C10

D509 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

D510 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D511 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D514 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D516 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D517 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D531 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D534 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D535 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D536 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D537 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D538 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D540 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D541 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D542 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D543 ZENER DIODE MTZJT-774.7B or QDTB0MTZJ4R7

ZENER DIODE DZ-4.7BSBT265 NDTB0DZ4R7BS

D544 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D545 DIODE 1ZC13(Q) QDLZ001ZC13Q

D546 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D547 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D548 RECTIFIER DIODE ERA22-02 QDPZ0ERA2202

D549 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D550 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

Ref. No. Description Part No.

D551 DIODE ZENER 1ZB8.2(Q) QDLZ01ZB8R2Q

D553 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D554 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D556 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D558 ZENER DIODE MTZJT-7739B or QDTB00MTZJ39

ZENER DIODE DZ-39BSBT265 NDTB00DZ39BS

D560 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D561 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D562 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D564 RECTIFIER DIODE FR202-B/P or NDQZ000FR202

FAST RECOVERY DIODE FR202 NDWZ000FR202

D565 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D566 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D567 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D568 DIODE 1ZC43(Q) QDLZ001ZC43Q

D569 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

D570 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D571 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004

D572 SCHOTTKY BARRIER DIODE ERB81-004 or AERB81004***

SCHOTTKY BARRIER DIODE 21DQ04 QDQZ0021DQ04

D573 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 or QDPZ0ERB4402

DIODE FR154BD NDL1000FR154

D574 DIODE ZENER 1ZC27(Q) QDLZ001ZC27Q

D575 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 or QDPZ0ERB4402

DIODE FR154BD NDL1000FR154

D601 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D602 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D603 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D604 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D605 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D606! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D607! DIODE ZENER 1ZC27(Q) QDLZ001ZC27Q

D608! DIODE ZENER 1ZC18(Q) QDLZ001ZC18Q

D610! DIODE 1N5399-B/P or NDLZ001N5399

! DIODE 1N5397-B or NDLZ001N5397

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D611! DIODE 1N5399-B/P or NDLZ001N5399

! DIODE 1N5397-B or NDLZ001N5397

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D612! DIODE 1N5399-B/P or NDLZ001N5399

! DIODE 1N5397-B or NDLZ001N5397

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D613! DIODE 1N5399-B/P or NDLZ001N5399

! DIODE 1N5397-B or NDLZ001N5397

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D631 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D632 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

200606731 13-4 L5820EL

Ref. No. Description Part No.

D633 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D634! DIODE ZENER 1ZC27(Q) QDLZ001ZC27Q

D635! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! SWITCHING DIODE 1N4148 NDTZ001N4148

D636! DIODE ZENER 1ZC18(Q) QDLZ001ZC18Q

D637 DIODE TRANSIENT VOLTAGE SUPPRE

D638 DIODE FAST RECOVERY FR157 NDLZ000FR157

D639 DIODE TRANSIENT VOLTAGE SUPPRE

D640 DIODE FAST RECOVERY FR157 NDLZ000FR157

D701 SWITCHING DIODE 1SS400 or QD1Z001SS400

D702 SWITCHING DIODE 1SS400 or QD1Z001SS400

D800 SWITCHING DIODE 1SS400 or QD1Z001SS400

D801 ZENER DIODE MTZJT-7710B or QDTB00MTZJ10

D802 SWITCHING DIODE 1SS400 or QD1Z001SS400

D803 SWITCHING DIODE 1SS400 or QD1Z001SS400

D810 SWITCHING DIODE 1SS400 or ----------

D811 SWITCHING DIODE 1SS400 or QD1Z001SS400

D831 SWITCHING DIODE 1SS400 or QD1Z001SS400

D970 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D971 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D972 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D973 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D974 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D975 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D976 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D977 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D978 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D979 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D980 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D981 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D982 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D983 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D984 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D985 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D986 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D987 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

D988 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

P6KE440ABE

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

ZENER DIODE DZ-10BSBT265 NDTB00DZ10BS

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

SWITCHING DIODE KDS160E-RTK/P ----------

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

DIODE ZENER SMD 015AZ5.6 Y QD1Y015AZ5R6

NDLZP6KE440A

Ref. No. Description Part No.

D989 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y QD1Y015AZ5R6

ICS

IC513 REGULATOR(PB FREE) PQ033EF01SZH QSZBA0SSH060

IC514 REGULATOR(PB FREE) PQ033EF01SZH QSZBA0SSH060

IC515 IC VOLTAGE REGULATOR 5V KIA7805API/P NSZBA0SJY041

IC516 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054

IC531 REGULATOR PQ018EF01SZH QSZBA0SSH075

IC532 REGULATOR IC(3.5V) PQ035ZN1HZPH QSZBA0TSH078

IC601 PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC602 PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC631 PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC701 IC INTERFACE R2S11007FP QSZBA0RHT054

IC801 AUDIO POWER IC AN17805A QSZBA0SMS007

IC851 IC AUDIO PROCESSOR MSP3417G-QG-B8-V3 NSZBA0SP3005

COILS

L31 INDUCTOR 22µH-K-5FT LLARKBSTU220 L503 COIL CHOKE 5.6µH LLC5R6MMS002 L504 COIL CHOKE 5.6µH LLC5R6MMS002

L505 PCB JUMPER D0.6-P5.0 JW5.0T L540 INDUCTOR 220µH-J-26T LLAXJATTU221

L601! LINE FILTER JLB2481 or LLEG0Z0XB005

! LINE FILTER ST0606ET24-009 LLEG0Z0Y2019

L602! LINE FILTER JLB2481 or LLEG0Z0XB005

! LINE FILTER ST0606ET24-009 LLEG0Z0Y2019

L603 CHOKE COIL ETQR42T041B LLEE0Z0MS002 L701 INDUCTOR 12µH--J-26T LLAXJATTU120 L702 INDUCTOR 100µH-K-5FT LLARKBSTU101 L703 INDUCTOR 100µH-K-5FT LLARKBSTU101 L704 INDUCTOR 100µH-K-5FT LLARKBSTU101 L705 INDUCTOR 100µH-J-26T LLAXJATTU101 L706 INDUCTOR 100µH-J-26T LLAXJATTU101 L707 INDUCTOR 12µH-J-26T LLAXJATTU120 L852 INDUCTOR 18µH-K-26T LLAXKATTU180 L853 INDUCTOR 10µH-K-26T LLAXKATTU100 L854 INDUCTOR 10µH-K-26T LLAXKATTU100

L855 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q501 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q502 TRANSISTOR(PB FREE) KTC2026-Y/P NQEYKTC2026P

Q503 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q507 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q508 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q510 TRANSISTOR S2Y52(FUNAI Q H) QQWZ00S2Y52Q

Q512 NPN TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q531 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

200606731 13-5 L5820EL

Ref. No. Description Part No.

Q532 PNP TRANSISTOR POWER 2SA1887(F) or QQWZ2SA1887F

TRANSISTOR 2SA1931(Q) QQZZ2SA1931Q

Q533 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q534 NPN TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q601! TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

! TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q602 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q603! FET MOS 2SK3799(Q) QFQZ2SK3799Q

Q631! TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

! TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q632! MOS FET 2SK3798(Q) QFWZ2SK3798Q

Q701 RES. BUILT-IN TRANSISTOR KRA103M-AT/P or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q702 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TE2 F T) QQS12SA1015F

Q703 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q704 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q705 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q801 NPN TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q804 PNP TRANSISTOR POWER 2SA1887(F) or QQWZ2SA1887F

TRANSISTOR 2SA1931(Q) QQZZ2SA1931Q

Q805 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TE2 F T) QQS12SA1015F

Q806 TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

RESISTORS

R30 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R31 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R32 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R33 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R39 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R501 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

Ref. No. Description Part No.

R502 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

R503 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R504 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

R505 CHIP RES. 1/10W F 6.8k Ω or RRXAFR5H6801

CHIP RES. 1/10W F 6.8k Ω or RRXAFR5Z6801 RES CHIP 1608 1/10W F 6.80k Ω RTW6801YF002

R506 CHIP RES. 1/10W F 22k Ω or RRXAFR5H2202

CHIP RES.(1608) 1/10W F 22k Ω or RRXAFR5Z2202

RES CHIP 1608 1/10W F 22.0k Ω RTW2202YF002 R507 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R508 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R509 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R510 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R511 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R512 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R513 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R514 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R515 CHIP RES. 1/10W J 3.9k Ω or RRXAJR5Z0392

RES CHIP 1608 1/10W J 3.9k Ω RRXA392YF002 R516 CHIP RES. 1/10W F 2.2k Ω or RRXAFR5H2201

CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5Z2201

RES CHIP 1608 1/10W F 2.20k Ω RTW2201YF002

R517 PCB JUMPER D0.6-P5.0 JW5.0T R518 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R519 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R521 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R524 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R525 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R526 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R527 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R531 PCB JUMPER D0.6-P5.0 JW5.0T

R533 PCB JUMPER D0.6-P5.0 JW5.0T R535 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R536 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R539 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R540 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R541 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R542 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R544 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R545 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R546 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R547 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R548 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R549 CHIP RES. 1/10W F 470 Ω or RRXAFR5H4700

CHIP RES.(1608) 1/10W F 470 Ω or RRXAFR5Z4700

RES CHIP 1608 1/10W F 470 Ω RTW4700YF002 R550 CHIP RES. 1/10W F 2.2k Ω or RRXAFR5H2201

CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5Z2201

RES CHIP 1608 1/10W F 2.20k Ω RTW2201YF002 R551 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R553 CHIP RES. 1/10W F 1.6k Ω or RRXAFR5H1601

200606731 13-6 L5820EL

Ref. No. Description Part No.

CHIP RES.(1608) 1/10W F 1.6k Ω or RRXAFR5Z1601 RES CHIP 1608 1/10W F 1.60k Ω RTW1601YF002

R554 CHIP RES. 1/10W F 1.0k Ω or RRXAFR5H1001

CHIP RES. 1/10W F 1k Ω or RRXAFR5Z1001 RES CHIP 1608 1/10W F 1.00k Ω RTW1001YF002

R555 METAL OXIDE FILM RES. 1W J 1k Ω or RN01102ZU001

METAL OXIDE FILM RES. 1W J 1k Ω or RN01102KE010 METAL OXIDE FILM RES. 1W J 1k Ω RN01102DP003

R556 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R557 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R558 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R559 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R561 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R562 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R565 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R566 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R571 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R572 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R574 METAL OXIDE FILM RES. 2W J 0.56 Ω or RN02R56KE009

METAL OXIDE FILM RES. 2W J 0.56 Ω RN02R56DP004 R575 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z5601

RES CHIP 1608 1/10W F 5.60k Ω RTW5601YF002 R576 CHIP RES. 1/10W F 1.8k Ω or RRXAFR5H1801

CHIP RES. 1/10W F 1.8k Ω or RRXAFR5Z1801

RES CHIP 1608 1/10W F 1.80k Ω RTW1801YF002 R577 METAL OXIDE FILM RES. 2W J 1 Ω RN021R0DP004 R578 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R579 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R580 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R586 CHIP RES. 1/10W F 2.2k Ω or RRXAFR5H2201

CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5Z2201

RES CHIP 1608 1/10W F 2.20k Ω RTW2201YF002

R588 PCB JUMPER D0.6-P5.0 JW5.0T R590 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R591 CHIP RES. 1/10W J 270k Ω or RRXAJR5Z0274

RES CHIP 1608 1/10W J 270k Ω RRXA274YF002 R592 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R594 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R595 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R603 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R604 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R605 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R606 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R607 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R608 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

R609! PCB JUMPER D0.6-P5.0 JW5.0T R610 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R611 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R612 PCB JUMPER D0.6-P5.0 JW5.0T R613 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R614 PCB JUMPER D0.6-P5.0 JW5.0T R615! CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R616 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564

Ref. No. Description Part No.

R617 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R618 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R620! RES METAL OXIDE 3W 0.47 Ω RN03JZPZ0R47 R621! CEMENT RESISTOR 5W J 0.82 Ω RW05R82PAK10 R622! CARBON RES. 1/2W J 3.3M Ω or RCX2335DP001 ! GLASS GLAZE RES. 1/2W J 3.3M Ω RXX2JZLZ0335

R623 PCB JUMPER D0.6-P5.0 JW5.0T R632 CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R633 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R634 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R635 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R636 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R637 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R638 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R639 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R640 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R641 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R643! RES METAL OXIDE 3W 0.68 Ω RN03JZPZ0R68 R701 CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R702 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R703 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R704 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R705 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R706 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R707 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R708 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R709 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R710 CHIP RES. 1/10W J 8.2k Ω or RRXAJR5Z0822

RES CHIP 1608 1/10W J 8.2k Ω RRXA822YF002

R711 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R712 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R713 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R714 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R715 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R716 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R717 CHIP RES. 1/10W J 470 Ω or RRXAJR5Z0471

RES CHIP 1608 1/10W J 470 Ω RRXA471YF002

R718 CHIP RES. 1/10W J 1M Ω or RRXAJR5Z0105

RES CHIP 1608 1/10W J 1.0M Ω RRXA105YF002

R719 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R720 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R721 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R722 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R727 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R728 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R730 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

200606731 13-7 L5820EL

Ref. No. Description Part No.

R731 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R732 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R733 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R734 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002 R735 CHIP RES. 1/10W J 8.2k Ω or RRXAJR5Z0822

RES CHIP 1608 1/10W J 8.2k Ω RRXA822YF002 R736 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R737 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R738 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R739 CHIP RES.(1608) 1/10W F 75 Ω or RRXAFR5H75R0

CHIP RES. 1/10W F 75 Ω or RRXAFR5Z75R0

RES CHIP 1608 1/10W F 75 Ω RTW75R0YF002 R740 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R741 CHIP RES.(1608) 1/10W F 75 Ω or RRXAFR5H75R0

CHIP RES. 1/10W F 75 Ω or RRXAFR5Z75R0

RES CHIP 1608 1/10W F 75 Ω RTW75R0YF002 R744 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R745 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R746 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R747 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R748 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R749 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R750 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R751 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R752 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R760 CHIP RES. 1/10W J 820 Ω or RRXAJR5Z0821

RES CHIP 1608 1/10W J 820 Ω RRXA821YF002 R761 CHIP RES. 1/10W J 820 Ω or RRXAJR5Z0821

RES CHIP 1608 1/10W J 820 Ω RRXA821YF002 R762 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R763 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R767 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R770 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R771 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R772 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R800 CHIP RES.(1608) 1/10W 0 Ω or RRXAJR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R801 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R802 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R809 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002 R810 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002 R811 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R812 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R813 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R814 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R815 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R816 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R821 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R822 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R823 CHIP RES. 1/10W J 8.2k Ω or RRXAJR5Z0822

RES CHIP 1608 1/10W J 8.2k Ω RRXA822YF002 R827 METAL OXIDE FILM RES. 2W J 0.33 Ω or RN02R33ZU001

METAL OXIDE FILM RES. 2W J 0.33 Ω or RN02R33KE010

METAL OXIDE FILM RES. 2W J 0.33 Ω RN02R33DP004 R828 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R829 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R833 METAL OXIDE FILM RES. 2W J 560 Ω or RN02561ZU001

METAL OXIDE FILM RES. 2W J 560 Ω or RN02561KE010

METAL OXIDE FILM RES. 2W J 560 Ω RN02561DP004 R834 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27KE010

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004 R851 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002 R852 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R853 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R854 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R855 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R858 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R859 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R860 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R861 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R862 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R901 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R902 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R903 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R905 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R906 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R907 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R909 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R910 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R911 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R913 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R914 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

200606731 13-8 L5820EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R915 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002

R917 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R918 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R919 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R920 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R921 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R922 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R923 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R924 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R925 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R926 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R927 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R928 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

MISCELLANEOUS

B9 HEAT SINK EAB ASSEMBLY L4300UA 1EM422612

B10 HEAT SINK PIS ASSEMBLY L0200UA or 0EM408833A

HEAT SINK PKP ASSEMBLY L4200EA 1EM420855

B23 HEAT SINK PLT ASSEMBLY L0700UZ 1EM423290

B24 HEAT SINK EAF ASSEMBLY L5820EA 1EM423722

BC501 PCB JUMPER D0.6-P5.0 JW5.0T

BC502 PCB JUMPER D0.6-P5.0 JW5.0T

BC503 PCB JUMPER D0.6-P5.0 JW5.0T

BC507 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC508 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC534 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC535 PCB JUMPER D0.6-P5.0 JW5.0T

BC536 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC587 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC589 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC603 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC604 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC632 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

BC633 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH608 FUSE HOLDER MSF-015 XH01Z00LY001

FH609 FUSE HOLDER MSF-015 XH01Z00LY001

JK701 RCA JACK RCA-610CCT-02B-06 JYRL050YUQ10

JK702 JACK SW RCA PCB L YKC21-4399V JYRL030JC011

JK703 JACK SW DIN PCB L DIN-435C JYEL040YUQ02

JK704 JACK RGB PCB L SC-201Z4 JXGL420SNJ01

JS501 PCB JUMPER D0.6-P5.0 JW5.0T

JS502 PCB JUMPER D0.6-P15.0 JW15.0T

L4 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA601! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR NVQZVR10D471

SA606! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR NVQZVR10D471

T601! TRANS POWER ETS49BP186ND LTT4PC0MS001

T631! TRANS POWER 6739 LTT3PC0KT013

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

X851 XTAL 18.432MHz FXD186LLN001

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA

Consists of the following:

----------

CAPACITORS

C11 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C12 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C21 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

CONNECTORS

CN10 PH CONNECTOR SIDE 2P S2B-PH-K-

CN11 PH CONNECTOR SIDE 2P S2B-PH-K-

CN11B PH CONNECTOR SIDE10PIN S10B-PH-K-S

S(LF)(SN)

(LF)(SN)

J3PHC02JG030

J3PHC10JG030

RESISTORS

R11 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R12 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R13 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R14 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R15 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R16 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002 R17 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R18 CHIP RES. 1/10W J 220 Ω or RRXAJR5Z0221

RES CHIP 1608 1/10W J 220 Ω RRXA221YF002 R27 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R28 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

SWITCHES

SW11 TACT SWITCH SKQSAB SST0101AL038

SW12 TACT SWITCH SKQSAB SST0101AL038

SW13 TACT SWITCH SKQSAB SST0101AL038

SW14 TACT SWITCH SKQSAB SST0101AL038

SW15 TACT SWITCH SKQSAB SST0101AL038

SW16 TACT SWITCH SKQSAB SST0101AL038

SW17 TACT SWITCH SKQSAB SST0101AL038

MISCELLANEOUS

BC01 CORE(CHIP BEADS) MMZ1608A152ET LLEC030TE002

BC02 CORE(CHIP BEADS) MMZ1608A152ET LLEC030TE002

BC11 PCB JUMPER D0.6-P5.0 JW5.0T

LED CBA

Ref. No. Description Part No.

LED CBA

Consists of the following:

CAPACITORS

C58 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C59 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C60 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C63 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C64 ELECTROLYTIC CAP. 47µF/10V M H7 or CE1AMASSM470

ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

CONNECTOR

CN54B PH CONNECTOR SIDE 5P S5B-PH-K-

S(LF)(SN)

DIODES

D54 LED L-53HT NP4Z000L53HT

D55 LED 333GT/E NPHZ00333GTE

RESISTORS

R53 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

----------

J3PHC05JG030

200606731 13-9 L5820EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R57 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

R60 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R64 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R65 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

MISCELLANEOUS

BC52 PCB JUMPER D0.6-P5.0 JW5.0T

RCV52 PHOTO LINK MODULE KSM-712TH2E USESJRSKK044

Ref. No. Mark Description Part No.

MISCELLANEOUS

AC601! A,C,D AC CORD CEE 1800MM BLACK WAE0182LW004

AC601! B AC CORD BS 1800MM BLACK WAB0182LW017

TU31 TUNER UNIT TMFE2X402A UTUNPSGAL012

200606731 13-10 L5820EL

Funai a2706 schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

HOW TO INITIALIZE THE LCD TELEVISION

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAMS

EXPLODED VIEWS
