46FD753P 39FL753P 32FL553P / 32FL553 29FL553P / 29FL553 24FL553P / 24FL553

LED LCD HD Television

Instruction Manual

English

Contents

UNIT INFORMATION ...................................2

Trademark Information ..............................2

Servicing.................................................... 2

Cabinet Cleaning.......................................2

Panel Cleaning ..........................................2

Remote Control .........................................3

Control panel ............................................. 4

Terminal ....................................................5

INITIAL SETUP ............................................6

OPERATIONS ..............................................7

Watching a TV Programme .......................7

Favourite ...................................................7

EPG(Electronic Programme Guide) .......... 7

Sleep Timer ............................................... 8

Sound Select .............................................8

Subtitle Settings ........................................8

Teletext Settings........................................8

Switching the Input Source Mode.............. 9

SmartConnect ...........................................9

Recording ................................................ 10

Photo / Music / Video Playback...............11

OTHER SETTINGS ....................................15

Channel Settings .....................................15

PC Settings .............................................18

Picture Adjustment ..................................18

Sound Adjustment ...................................19

Time Settings ..........................................20

Lock Settings...........................................21

Setup Adjustment ....................................23

Hotel Mode Settings ................................26

TROUBLESHOOTING GUIDE...................28

SPECIFICATIONS......................................30

Input Resolution ......................................32

Multimedia Format...................................32

UNIT INFORMATION

Trademark Information

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• DVB is a registered trademark of the DVB Project.

• The “HD TV” Logo is a trademark of

DIGITALEUROPE.

Servicing

• Should your unit become inoperative, do not try to correct the problem by yourself. There are no userserviceable parts inside. Take the unit to a Service Centre for servicing.

Cabinet Cleaning

• Gently wipe the front panel and other exterior surfaces of the unit with a soft cloth.

• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

• If the LCD panel should require cleaning, wipe it with a cotton or soft cloth. Before cleaning the panel, disconnect the power cord.

Remote Control

5 6

7 8

10 11

1. (Power)

Turn the unit on and go into the standby mode.

2. SLEEP

Refer to “Sleep Timer” (p. 8).

3. Number buttons

Select the desired channel in TV mode and enters the password in the PIN code input field.

4. EXIT

Returns to the previous display.

5. Ÿ / ź / Ż / Ź (Cursor)

6. OK

7. MENU

Displays the menu.

8. AUDIO

Select audio language/ mode. Refer to “Sound Select” (p. 8).

9. /

Adjust the audio volume. Refer to “To adjust the volume” (p. 7).

14 15

21 22

10. (Mute)

Turn off the sound. Refer to “To adjust the volume” (p. 7).

11. RED / GREEN / YELLOW / BLUE

Use for “EPG(Electronic Programme Guide)” (p. 7) / “[Programme Edit]” (p. 16)

12. DISPLAY

Displays the channel number or input source.

13. SOURCE

Switch the input source mode. Refer to “Switching the Input Source Mode” (p. 9).

14. PICTURE MODE

Change the picture mode. Refer to “[Picture Mode]” (p. 18).

15. SOUND MODE

Change the sound mode. Refer to “[Sound Mode]” (p. 19).

16. FAV / FAV

Use for “Favourite” (p. 7).

17. FAV

Use for “Favourite” (p. 7).

18. EPG

Use for “EPG(Electronic Programme Guide)” (p. 7).

19.

Select a channel. Refer to “To select a channel” (p. 7).

20. (Play / Pause) / (Skip backward) /

(Skip forward) / (Stop) / (Rewind) /

(Fast-forward)

Use for “Recording” (p. 10) / “Photo / Music / Video Playback” (p. 11).

21. REC (Record)

Use for “Recording” (p. 10).

22. (Subtitle)

Displays the subtitle list. Refer to “Subtitle Settings” (p. 8).

23. (Expand) / (Subpage) / (Hold) /

(Text) / (Reveal) / (Index)

Use for “Teletext Settings” (p. 8).

Control panel

76543

39FL753P/32FL553P/32FL553/ 29FL553P/29FL553/24FL553P/24FL553

46FD753P

This window has no function.

Keys on Rear. Control Keys are located on the Rear side of the TV.

1. Standby / Power indicator

(Power on : no light, Standby : red)

2. Infrared sensor window

Receive the infrared rays transmitted from the remote control.

3. VOL Ż / Ź

• Watching TV, VOL Ż / Ź on the front panel

works the same function as / . Refer to “9. / ” (p. 3).

• On the menu, VOL Ż / Ź on the front panel

works the same function as Ż / Ź (cursor).

4. CH Ÿ / ź (46FD753P) PROG Ÿ / ź (39FL753P/32FL553P/32FL553/

29FL553P/29FL553/24FL553P/24FL553)

• Watching TV, PROG Ÿ / ź and CH Ÿ / ź on

the front panel works the same function as

Refer to “19. ” (p. 3).

• On the menu, PROG Ÿ / ź and CH Ÿ / ź on

the front panel works the same function as Ÿ / ź (cursor).

5. MENU Refer to “7. MENU” (p. 3).

6. SOURCE

Refer to “13. SOURCE ” (p. 3).

• On the menu, SOURCE on the front panel

works the same function as OK.

7. (Power)

Refer to “1. (Power)” (p. 3).

Terminal

765

39FL753P/32FL553P/32FL553/ 29FL553P/29FL553/24FL553P/24FL553

46FD753P

1. AC power cord inlet

2. HDMI (HDMI 1 / HDMI 2) input jacks

3. Coaxial digital audio output jack

4. (Aerial) input jack

5. Headphone audio output jack

6. SCART jack

7. Component video, Composite video and Audio (L/R) input jacks

8. CI slot

9. USB terminal (p. 10, 11)

• Data input from USB flash memory only.

• User should not connect any devices to the USB terminal

such as digital camera, keyboard, mouse, etc. (because these will not work.)

• The software update is, in most cases, handled by an authorised service person or in some circumstances the user may be asked to do the software update themselves.

10. PC (VGA) input jack

11. Audio input jack for PC connection

HDMI (HDMI 3) input jack for MHL function

P series only - (46FD753P/39FL753P/32FL553P/ 29FL553P/24FL553P)

INITIAL SETUP

This section will guide you through the unit's initial setup which includes selecting a language for your onscreen menu and auto scan, which automatically scans and memorises viewable channels. 1 After making all the necessary connections, turn

on the unit pressing .

First Time Installation

Home Mode

OSD Language

Country

2 Use Ż / Ź to select the location.

• If you select [Retail Mode], the confirm message will

appear.

Use

Ÿ / ź

to select

[OSD Language]

the language you want, using Ż / Ź.

4 Use Ÿ / ź to select [Country], then select the

country you want, using Ż / Ź.

5 Press OK to enter [Auto Tuning].

Auto Tuning

Tune Type

Digital Type

Scan Type

Network ID

Frequency

Symbol Rate

Back Start

6 Use Ÿ / ź to select [Tune Type], then select

[DTV], [ATV] or both channels, using Ż / Ź.

7 Use Ÿ / ź to select [Digital Type], then select

[DVB-T] or [DVB-C], using Ż / Ź.

8 Use Ÿ / ź to select [Scan Type], then select

[Full] or [Quick], using Ż / Ź.

9 Use Ÿ / ź to select the item you want, and then

adjust the setting, using Ż / Ź.

10 Press OK to start scanning.

Auto Tuning

ATV + DTV

DVB-T

Quick

Auto

English

Germany

, the

n select

• When scanning starts, confirmation menu will appear.

• To turn back previous page, pressing MENU button in

[Auto Tuning] menu.

• In case when not all available cable channels are found through [Full] scanning mode, these programs can be scanned by selecting [Quick] mode. Please note, that [Quick] mode scanning can take additional time.

• Depending on cable TV provider specification, correct subscription to cable signals cannot be guaranteed.

• When the scanning is completed, the lowest memorised digital or analogue channel will be displayed.

• If you press MENU during channel scanning, this operation will be paused, then press MENU again to exit the initial setup.

• You can set the setup again. Refer to “[First Time Installation]” (p. 25)

OPERATIONS

Read this first

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

EPG(Electronic Programme Guide)

For Digital TV operation

You can easily find a channel or see the detailed channel information. EPG gives you scheduled information of the TV programme.

1 Press EPG to display [PROGRAMME GUIDE]

menu and use Ÿ / ź to select a channel.

Watching a TV Programme

To select a channel

Use repeatedly to select your desired channel, or use the Number buttons to enter a channel number, then press OK for quicker access. (e.g.) If you want to select the channel 24 without pressing OK, press 2 first, then press 4 within 3 seconds.

To adjust the volume

Use / to adjust the audio volume. Press to turn on or off the sound right away.

• You can recover the original volume by pressing again

or / .

Favourite

You can easily find a favourite channel.

• You can set favourite channel at “[Programme Edit]” (p. 16).

1 Press FAV while watching a programme to show

the favourite channel list.

2 Use Ÿ / ź to select the channel you want, then

press OK.

Favorite List

1 TF1 HD

2 France 2 HD

3 European sport

4 LCI4

DTV

06:45 - 08:25 20 Jan 2013

The Wing in the sky/ The cherry tree/ The Road of flower

20 Jan 2013 08:17:51 20 Jan 2013

1 TF1 HD

2 France 2 HD

3 European Sport

4 LCI 4

5 AFC

PROGRAMME GUIDE

06:45-07:00

07:00-09:00

09:00-10:00

10:00-10:55

10:55-11:15

Weather

NNN News

Sports News

Japanese Cartoon

Traffic and Weather

Prev Day Next DayRecord Remind

DetailsMove View Exit

[Record] : RED

Select the programme you want and press RED to reserve the recording.

[Remind] : GREEN

Select the programme you want and press GREEN to remind the reservation.

[Prev Day] : YELLOW

Press YELLOW to move to the page of previous day.

[Next Day] : BLUE

Press BLUE to move to the page of next day.

[Move View] : Ÿ / ź / Ż / Ź

It is possible to use Ÿ / ź / Ż / Ź (Cursor).

[Details] : DISPLAY

Press DISPLAY to display the detail information.

[Exit] : EXIT

Press to exit the menu.

Page Up/Down Select

• Use FAV / to select the favourite channel while

watching a programme.

• Use Ż / Ź to move to the previous or next page.

3 Press EXIT to exit.

Sleep Timer

The sleep timer can be set the unit to go to the standby mode after an incremental period of time. 1 Press SLEEP repeatedly to change the sleep

time period.

• Available options are; Off / 10min / 20min / 30min / 60min / 90min / 120min / 180min / 240min.

• Press SLEEP repeatedly until [Off] appears to cancel the sleep timer.

• If the unit goes into standby mode, the sleep timer will be cancelled.

Sound Select

For Digital TV operation

Press AUDIO to display currently selected audio language with the number of available ones and press repeatedly to cycle through them.

Dolby D : Dolby Digital sound

Dolby D+ : Dolby Digital Plus sound

AAC : HE-AAC sound

MPEG : MPEG sound

For Analogue TV operation

Press AUDIO to display currently selected audio mode and press repeatedly to cycle through the available audio mode. (e.g.)

Subtitle Settings

You can change the subtitle settings used for TV programmes.

1 Press (Subtitle) to display the subtitle

language list.

2 Use Ÿ / ź to select the subtitle language you

want, then press OK.

Teletext Settings

You can change the teletext settings used for TV programmes.

1 Press (Text) to turn on the teletext decoder.

2 Press (Text) repeatedly to show the teletext in

transparent mode.

• To enlarge fonts, press .

• To select the teletext subpages, press .

• To directly select the page numbers shown at the bottom of

the TV screen, use RED / GREEN / YELLOW / BLUE.

• To call up the hidden information, press .

• To hold the current page, press .

• To go back to the start page, press .

3 Press EXIT to turn off the teletext decoder.

NICAM STEREO Mono

[NICAM DUAL I NICAM DUAL II Mono

NICAM MONO Mono

Stereo Mono

DUAL I DUAL II

Mono

Switching the Input Source Mode

You can switch the input source mode to TV mode or external input mode.

1 Press SOURCE .

2 Use Ÿ / ź to select the input mode you want,

then press OK.

46FD753P/39FL753P/32FL553P/29FL553P/ 24FL553P

Input Source

DTV

ATV

SCART

YPbPr

HDMI1

HDMI2

HDMI3/MHL

Media

Move Select

SmartConnect

This unit can display the screen of other device with MHL function and use the remote control of this unit to operate it. During the connection, the device is charged up.

Setup for SmartConnect

You must connect the HDMI cable to HDMI3/MHL input jack of this unit and micro USB cable to the device with MHL function (shown below).

32FL553/29FL553/24FL553

Input Source

DTV

ATV

SCART

YPbPr

HDMI1

HDMI2

Media

Move Select

1 Press SOURCE to display the input source

mode.

2 Use Ÿ / ź to select [HDMI3/MHL] on the list,

then press OK to display the screen of the connected device.

3 Release the lock of the connected device and

use remote control to operate it.

Note for SmartConnect

• If you want to exit this mode, select any other input source mode. Refer to “Switching the Input Source Mode” (p. 9).

• HDMI1 and HDMI 2 input jacks do not accept the function.

• Available features are limited on remote control operation.

• Use HDMI and micro USB cable. If you use any other cable,

we cannot guarantee.

• The connected cable between the unit and a device is not supplied with this unit.

• We do not guarantee the device with all MHL function can be supported on this unit.

• Funai cannot be held responsible if your device is not supported, nor will Funai accept any liability for damage or loss of stored data.

• Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.

• To avoid damaging the connecting device and the unit always turn off the unit before you unconnect the cable.

• When the unit does not recognise the connected device, try reconnecting it.

• For details, please access: http://www.mhlconsortium.org/

Recording

This unit can record a TV programme. Use a USB flash memory for saving the data.

Setup for Recording / Playback

You must connect the USB flash memory to USB terminal of this unit (shown below).

Playback

2 Press (Index) to call up the recorded list.

3 Use Ÿ / ź to select the desired file, then press

OK to start the playback.

Recorded List

1/1

Programme Title Date

Movie: The player

1 30/01/2013

Today’s news

30/01/2013

[6% Used]

01:05:01 Jan

01:08:31 (00:01:20)

Movie: The player

01:08:31 (00:01:20)

A player starts his carrer in new school. He founds great competitions and face off against them. He gets better rapidly and his team will make the legend...

• The USB flash memory is not supplied with this unit.

• USB 2.0 High speed flash memory is recommended.

• The unit recognise a USB flash memory only.

Do not use a USB hub and an extension cord between the USB flash memory and the unit. Always connect the USB flash memory to this unit directly.

• We do not guarantee the all USB flash memory can be supported on this unit.

1 Press SOURCE to display the input source

mode and use Ÿ / ź to select [DTV], then press OK.

• If you want to exit this mode, select any other input source mode. Refer to “Switching the Input Source Mode” (p. 9).

Record

2 Select the channel you want, then press REC to

start recording the current programme.

[00:00:40]

Play FB FF Prev. Next Pause Stop

2 France 2 HD

3 Press to stop the recording.

• When you stop the recording, it will return to normal broadcast television.

• When the storage space of disk is shortage, it will appear a warning message. Then it stops recording automatically and returns to normal broadcast television.

(0002:50:19)

08:31

DeleteMove

Play Exit

Operation in Playback Press OK to display the menu.

Press to play or pause the playback.

/ :

Press to rewind or fast-forward the playback. Every press on / will rewind or fast-forward faster up to five.

/ :

Press to skip backward or forward the file.

Press to stop the playback.

EXIT:

Press to disappear the menu during the menu appears.

Photo / Music / Video Playback

This unit can play picture, music and video files. Use the USB flash memory that contains the files.

Setup for Playback

You must connect the USB flash memory to USB terminal of this unit (shown below).

1 Press SOURCE to display the input source

mode and use Ÿ / ź to select [Media], then press OK.

• If you want to exit this mode, select any other input source mode. Refer to “Switching the Input Source Mode” (p. 9).

Note for Playback

• You can check Multimedia Specification. Refer to “Multimedia Format” (p. 32).

• The USB flash memory is not supplied with this unit.

• The unit recognise a USB flash memory only.

Do not use a USB hub and an extension cord between the USB flash memory and the unit. Always connect the USB flash memory to this unit directly.

• We do not guarantee the all USB flash memory can be supported on this unit.

• Funai cannot be held responsible if your USB flash memory is not supported, nor will Funai accept any liability for damage or loss of stored data.

• A USB flash memory that required its own driver or the device with a special system such as fingerprint recognition are not supported.

• Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.

• To avoid damaging the USB flash memory and the unit always turn off the unit before you remove the USB flash memory.

• This unit is not allowed to use the USB flash memory which requires external power supply (500 mA or more).

• This unit can be recognised up to 60,000 files in the USB flash memory.

• This unit may not be recognised if the length of the file names is too long. Only English characters can be recognised.

• This unit does not support NTFS or the file other than FAT16 and FAT32 file system. If the file is not supported, error message appears.

• When the unit does not recognise the USB flash memory, try reconnecting it.

• This unit cannot play back a file which go over the limit of file restriction.

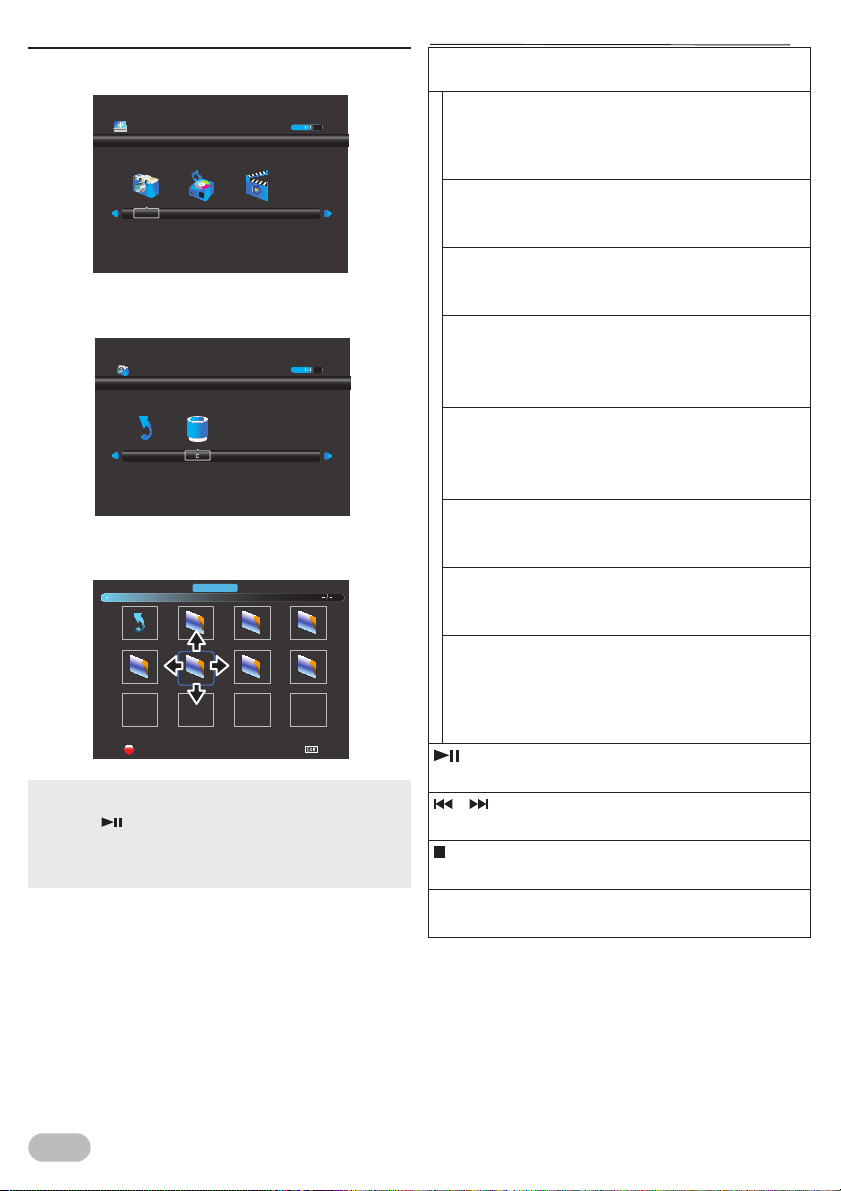

[PHOTO]

2 Use Ż / Ź to select [PHOTO], then press OK.

USB 2.0

MOVIEMUSICPHOTO

3 Use Ż / Ź to select [C], then press OK to enter

the file.


Return

4 Use Ÿ / ź / Ż / Ź to select the desired file, then

press OK.


Live 2011. 1..

Return

Kyoto 2010...

Delete

• The check box is displayed at the right bottom by pressing

the OK. The files having the check box are played by pressing . If they are not selected, then all playable files in the folder are played.

• If you put audio files into the folder of picture files, you can play music during the slideshow.

Memory 20...

Marriage cel..

Aniversary ...

Exit

Operation in Slideshow OK / DISPLAY :

Press to display the menu.

[Repeat]:

Use Ż / Ź to select [Repeat] and press OK to switch the repeat mode: [Repeat None], [Repeat

1] and [Repeat All] in order.

[Music]:

Use Ż / Ź to select [Music] and press OK to play the music file in the same folder.

[Rotate](right-handed or left-handed rotate):

Use Ż / Ź to select [Rotate] and press OK to turn the picture clockwise by 90 degrees.

[Zoom In]:

Use Ż / Ź to select [Zoom In] and press OK to zoom in the display.

The zoom factor: 2x, 4x and 8x

[Zoom Out]:

Use Ż / Ź to select [Zoom Out] and press OK to zoom out the display.

The zoom factor: 1x, 2x and 4x

[Playlist]:

Use Ż / Ź to select [Playlist] and press OK to display the playlist.

[Info.]:

Use Ż / Ź to select [Info.] and press OK to display the information of the current file.

[Move View]:

Use Ż / Ź to select [Move View] and press OK to enter the move view mode, and use Ÿ / ź / Ż / to move the picture, if the picture big enough to surpass the screen.

Press to play or pause the slideshow.

/ :

Press to skip backward or forward the file.

Press to stop the slideshow.

EXIT:

Press to go back to the previous screen.

[MUSIC]

2 Use Ż / Ź to select [MUSIC], then press OK.

USB 2.0

MOVIEMUSICPHOTO

3 Use Ż / Ź to select [C], then press OK to enter

the file.

MUSIC

Return

4 Use Ÿ / ź / Ż / Ź to select the desired file, then

press OK.

MUSIC

Return

Ferdinand F..

Reeeed

New songs ...

Mercury feat...

Operation in Playback OK / DISPLAY :

Press to display the menu.

[Repeat]:

Use Ż / Ź to select [Repeat] and press OK to switch the repeat mode: [Repeat None], [Repeat

1] and [Repeat All] in order.

[MUTE]:

Use Ż / Ź to select [MUTE] and press OK.

[Playlist]:

Use Ż / Ź to select [Playlist] and press OK to display the playlist.

[Info.]:

Use Ż / Ź to select [Info.] and press OK to display the information of the current file.

[Goto Time]:

Use Ż / Ź to select [Goto Time] and press OK to move the time you want in the playback.

Press to play or pause the playback.

/ :

Press to rewind or fast-forward the playback.

/ :

Press to skip backward or forward the file.

Press to stop the playback.

EXIT:

Press to go back to the previous screen.

Delete

Exit

• The check box is displayed at the right bottom by pressing the OK. The files having the check box are played by pressing . If they are not selected, then all playable files in the folder are played.

[MOVIE]

2 Use Ż / Ź to select [MOVIE], then press OK.

USB 2.0

MOVIEMUSICPHOTO

3 Use Ż / Ź to select [C], then press OK to enter

the file.

MOVIE

Return

4 Use Ÿ / ź / Ż / Ź to select the desired file, then

press OK.

MOVIE

La camis...

Une Nouv...

La vida de...

Exit

Return

El coche...

How to use fu...

Delete

Osaka footba...

Operation in Playback OK / DISPLAY :

Press to display the menu.

[Repeat]:

Use Ż / Ź to select [Repeat] and press OK to switch the repeat mode: [Repeat None], [Repeat

1] and [Repeat All] in order.

A-B Repeat:

Use Ż / Ź to select A-B Repeat and press OK to switch the limited repeat mode: [Set A], [Set B] and [None] in order.

[Playlist]:

Use Ż / Ź to select [Playlist] and press OK to display the playlist.

[Info.]:

Use Ż / Ź to select [Info.] and press OK to display the information of the current file.

[Slow Forward]:

Use Ż / Ź to select [Slow Forward] and press OK to play slow.

[Step Forward]:

Use Ż / Ź to select [Step Forward] and press OK to play frame-by-frame playback.

[Goto Time]:

Use Ż / Ź to select [Goto Time] and press OK to move the time you want in the playback.

Press to play or pause the playback.

/ :

Press to rewind or fast-forward the playback.

/ :

Press to skip backward or forward the file.

Press to stop the playback.

EXIT:

Press to go back to the previous screen.

OTHER SETTINGS

Read this first

Before adjust each setting, press MENU to display the menu. To exit the menu, press MENU.

Some settings need to enter PIN code. Refer to “Lock Settings” (p. 21).

Channel Settings

You can edit the channel settings. 1 Use Ż / Ź to select [CHANNEL].

Auto Tuning

ATV Manual Tuning

DTV Manual Tuning

CHANNEL

Move SelectReturn Exit

[Auto Tuning]

You can scan the DTV, ATV or both channel in your area automatically.

2 Use Ÿ / ź to select [Auto Tuning], then press

OK.

• If you set [Lock System] to [On], you have to enter the 6- digit PIN code you set using the Number buttons.

Tune Type

Digital Type

Scan Type

Network ID

Frequency

Symbol Rate

3 Use Ÿ / ź to select [Tune Type], then select

[DTV], [ATV] or both channels, using Ż / Ź.

4 Use Ÿ / ź to select [Digital Type], then select

[DVB-T] or [DVB-C], using Ż / Ź.

5 Use Ÿ / ź to select [Scan Type], then select

[Full] or [Quick], using Ż / Ź.

6 Use Ÿ / ź to select the item you want, and then

adjust the setting, using Ż / Ź.

7 Press OK to start scanning.

Programme Edit

Schedule List

Signal Information

CI Information

Auto Tuning

ATV + DTV

Back Start

DVB-T

Quick

Auto

• When scanning starts, confirmation menu will appear.

• To turn back previous page, pressing MENU button in

[Auto Tuning] menu.

• In case when not all available cable channels are found

through [Full] scanning mode, these programs can be scanned by selecting [Quick] mode. Please note, that [Quick] mode scanning can take additional time.

• Depending on cable TV provider specification, correct subscription to cable signals cannot be guaranteed.

• When the scanning is completed, the lowest memorised digital or analogue channel will be displayed.

• If you press MENU during channel scanning, this operation will be paused, then press MENU again to exit the initial setup.

< For DVB-T scanning >

[ATV Manual Tuning]

For Analogue TV operation

You can search ATV channel manually in your area.

2 Use Ÿ / ź to select [ATV Manual Tuning], then

press OK.

• If you set [Lock System] to [On], you have to enter the 6- digit PIN code you set using the Number buttons.

3 Use Ÿ / ź to select [Current CH], then use Ż /

Ź to select the channel you want.

4 Use Ÿ / ź to select [Color System], then use Ż

/ Ź to select the system you want.

5 Use Ÿ / ź to select [Sound System], then use

Ż / Ź to select the system you want.

6 Use Ÿ / ź to select [Fine-Tune], then use Ż / Ź

to adjust the setting.

7 Use Ÿ / ź to select [AFC], then use Ż / Ź to

select [On] or [Off].

• If you set to [On], this unit adjust tuning to near channel automatically.

8 Use Ÿ / ź to select [Search], then use Ż or Ź

to start scanning.

[DTV Manual Tuning]

For Digital TV operation

You can search DTV channel manually in your area.

2 Use Ÿ / ź to select [DTV Manual Tuning], then

press OK.

• If you set [Lock System] to [On], you have to enter the 6- digit PIN code you set using the Number buttons.

3 Use Ż / Ź to select the channel you want, then

press OK to start scanning.

< For DVB-C scanning >

[CADTV Manual Tuning]

For Digital TV operation

You can search CADTV channel manually in your area.

2 Use Ÿ / ź to select [CADTV Manual Tuning],

then press OK.

CADTV Manual Tuning

Frequency

Symbol(ks/s)

QAM Type

Bad GoodNormal

3 Use Ÿ / ź to select [Frequency] and press OK,

then use Ÿ / ź to adjust.

4 Use Ÿ / ź to select [Symbol(ks/s)] and press

OK, then use Ÿ / ź to adjust.

5 Use Ÿ / ź to select [QAM Type] and press OK,

then use Ÿ / ź to select the type.

6 After the settings, press OK to start scanning.

474.000 MHz

6900

QAM 16

NO SIGNAL

[Programme Edit]

For Digital TV operation

You can edit the programme settings.

• You can check favourite channel list at “Favourite” (p. 7).

2 Use Ÿ / ź to select [Programme Edit], then

press OK to show programme edit list.

Delete channels : [Delete]

3 Use Ÿ / ź to select the channel you want,

then press RED to delete the current channel.

Setting unshown channels : [Skip]

3 Use Ÿ / ź to select the channel you want,

then press BLUE to set the current channel as unshown channel.

Setting favourite channels : [Fav]

Using Favourite function. Refer to “Favourite” (p. 7).

3 Use Ÿ / ź to select the channel you want,

then press FAV to set the current channel as favourite.

Switching channel number : [Move]

You can switch the current programme with the other channel number.

3 Use Ÿ / ź to select the channel you want,

then press YELLOW, and use the Number buttons to enter the other channel number you want to set, then press OK.

New channel number : [Move]

You can place the current programme to new channel number.

3 Use Ÿ / ź to select the channel you want,

then press YELLOW, and use the Number buttons to enter the unused channel number you want to set, then press OK.

[Schedule List]

For Digital TV operation

You can see the detailed channel information and reserve TV programme.

2 Use Ÿ / ź to select [Schedule List], then press

OK to display the list.

Schedule List

1/1

Programme Title Date

Movie: The player

1 30/01/2013

Today’s news

30/01/2013

[6% Used]

01:05:01 Jan

01:08:31 (00:01:20)

Movie: The player

01:08:31 (00:01:20)

A player starts his carrer in new school. He founds great competitions and face off against them. He gets better rapidly and his team will make the legend...

[Signal Information]

For Digital TV operation

You can see the detail information about the signal.

2 Use Ÿ / ź to select [Signal Information], then

press OK to display the detail.

Signal Information

Channel: 21 (474.00MHz)

Quality: 100

Strength: 100

Network: NEOTION NETWORK

Modulation: QAM 64

Delete EditAddMove

Exit

Add new reservasion

3 Press YELLOW to display reservation menu.

Schedule Setup

40 B_LCN40d

Type

Mode

Start Time

End Time 01:06 01 Jan

Modulation: QAM 64

Reminder

Everyday

01:06 01 Jan

BackSelect

4 Use Ÿ / ź to select service selection, use Ż / Ź

to select the service you want.

5 Use Ÿ / ź to select [Type], use Ż / Ź to select

[Reminder] or [Recorder].

6 Use Ÿ / ź to select [Mode], use Ż / Ź to select

[Once], [Everyday] or [Weekly].

[Once] : on any day you choose, up to 12 months

[Everyday] : at the same time on the same channel

[Weekly] : at the same time on the same channel

away

every day

every week; for example, every Monday

7 Use Ÿ / ź to select [Start Time], use Ż / Ź to

select the date/time and use Ÿ / ź to adjust.

8 Use Ÿ / ź to select [End Time], use Ż / Ź to

select the date/time and use Ÿ / ź to adjust.

9 After the adjustment, press OK to save it.

[CI Information]

For Digital TV operation

You can see the detail information about the Common Interface, if you have inserted the CI card.

2 Use Ÿ / ź to select [CI Information], then press

OK to display the detail.

• We do not guarantee the all cards can be supported on this unit.

Delete a reservation

3 Use Ÿ / ź to select the item you want in

[Schedule List], and then press RED to delete

the reservation.

Edit a reservation

3 Use Ÿ / ź to select the item you want in

[Schedule List], and then press BLUE to edit

the reservation.

• To edit a reservation, refer to "Add new reservasion".

PC Settings

You can adjust the PC screen position, size and phase.

Before you begin

You must connect your PC to this unit and select [PC] at [Input Source]. Refer to “Switching the Input Source Mode” (p. 9).

1 Use Ż / Ź to select [SCREEN].

Auto Adjust

SCREEN

H-Offset

V-Offset

Size

Phase

Position Reset

Picture Adjustment

You can adjust the picture settings according to your personal preference. These settings are automatically stored after exiting the picture menu.

1 Use Ż / Ź to select [PICTURE].

Picture Mode

Contrast

Brightness 50


Move SelectReturn Exit

Colour

Tint

Sharpness

Backlight

Colour Temp

Noise Reduction

Standard

Normal

Middle

Move SelectReturn Exit

[Auto Adjust]

Each setting will be adjusted automatically.

2 Use Ÿ / ź to select [Auto Adjust], then press

OK.

[H-Offset] / [V-Offset] / [Size] / [Phase]

Each setting can be adjusted manually.

[H-Offset] : horizontal picture adjustment

[V-Offset] : vertical picture adjustment

[Size] : clock adjustment

[Phase] : phase adjustment

2 Use Ÿ / ź to select the item you want, then

adjust the settings according to your personal preference.

• After press OK and appear the settings display, you can

adjust them.

[Position Reset]

2 Use Ÿ / ź to select [Position Reset], then press

OK.

[Picture Mode]

Each setting will be adjusted manually.

[Dynamic] :higher contrast

[Standard] : standard

[Mild] : lower contrast

[Personal] : manual setting

2 Use Ÿ / ź to select [Picture Mode], then press

OK.

3 Use Ÿ / ź to select [Dynamic], [Standard],

[Mild] or [Personal], then press OK.

• You can change picture mode easily using PICTURE MODE.

• Press PICTURE MODE repeatedly to select picture mode you want. In this function, you can set also assign the picture mode individually to each input mode.

[Contrast] / [Brightness] / [Colour] / [Tint] / [Sharpness]

Each setting can be adjusted manually.

[Contrast] : contrast adjustment

[Brightness] : brightness adjustment

[Colour] : colour adjustment

[Tint] : redness/greenness adjustment

[Sharpness] : sharpness adjustment

2 Use Ÿ / ź to select the item you want, then

press OK, and then appear the setting display, adjust the setting, using Ż / Ź.

• You can adjust the settings, if you set [Personal] in [Picture Mode].

[Backlight]

You can adjust backlight brightness.

2 Use Ÿ / ź to select [Backlight], then press OK,

and then appear the setting display, adjust the setting, using Ż / Ź.

[Colour Temp]

You can change the colour tone of the picture.

[Cold] : bluer tone

[Normal] : average tone

[Warm] : redder tone

2 Use Ÿ / ź to select [Colour Temp], then press

OK.

3 Use Ÿ / ź to select [Cold], [Normal] or [Warm],

then press OK.

Sound Adjustment

You can adjust the sound settings according to your personal preferences. 1 Use Ż / Ź to select [SOUND].

Sound Mode

Treble

Bass

SOUND

Move SelectReturn Exit

Balance

SPDIF Mode

AD Switch

[Sound Mode]

Each setting can be adjusted manually.

[Standard] : standard

[Music] : appropriate for listening to music

[Movie] : appropriate for watching a movie

[Sports] :

[Personal] : manual setting

2 Use Ÿ / ź to select [Sound Mode], then press

OK.

3 Use Ÿ / ź to select [Standard], [Music],

[Movie], [Sports] or [Personal], then press OK.

• You can change sound mode easily using SOUND MODE.

• Press SOUND MODE repeatedly to select sound mode you

want.

appropriate for watching a sport programme

Standard

PCM

Off

[Noise Reduction]

You can adjust to reduce the appearance of digitising error caused by the compression.

2 Use Ÿ / ź to select [Noise Reduction], then

press OK.

3 Use Ÿ / ź to select [Off], [Low], [Middle] or

[High], then press OK.

[Treble] / [Bass] / [Balance]

You can set left / right speaker setting.

[Treble] : high pitched tone adjustment

[Bass] : low pitched tone adjustment

[Balance] : volume balance setting for left and right

2 Use Ÿ / ź to select the item you want, then

press OK, and then appear the setting display, adjust the setting, using Ż / Ź.

• You can adjust [Treble] and [Bass] settings, if you set [Personal] in [Sound Mode].

speakers

Time Settings

You can change Time setting. 1 Use Ż / Ź to select [TIME].

Clock

Time Zone

Sleep Timer

TIME

Move SelectReturn Exit

Auto Standby

OSD Timer

20 / Jan 13:12

Berlin GMT+1

Off

4 H

15 S

[SPDIF Mode]

If this unit is connected with coaxial digital audio output jack to your device, you can set this mode.

[PCM] :

[Auto] : The SPDIF output is the same with the input

[Off] : Turn OFF the SPDIF output.

The SPDIF output is PCM format, regardless of the input sound format.

sound format.

2 Use Ÿ / ź to select [SPDIF Mode], then select

[PCM], [Auto] or [Off], using Ż / Ź.

[AD Switch]

For Digital TV operation

You can adjust audio output setting and volume for visually impaired.

2 Use Ÿ / ź to select [AD Switch], then select

[On] or [Off], using Ż / Ź.

• Only MPEG sound is available for this function.

[Clock]

For Digital TV operation [Clock] will change with the area which you have

selected in the Time Zone.

• It is not available to adjust the time.

[Time Zone]

You can set the time zone according to the resident area.

2 Use Ÿ / ź to select [Time Zone], then press OK.

3 Use Ÿ / ź / Ż / Ź to select the time you want,

then press OK.

[Sleep Timer]

The sleep timer can be set the unit to go to the standby mode after an incremental period of time.

2 Use Ÿ / ź to select [Sleep Timer], then press

OK.

3 Use Ÿ / ź to select the time you want, then

press OK.

• You can set also SLEEP button on Remote Control, refer to “Sleep Timer” (p. 8).

[Auto Standby]

You can set the time to go into standby mode automatically as no activity is detected after power is turned on. In spite of this setting, the unit goes into standby mode automatically if there is no signal input from the antenna terminal and no user operation for 15 minutes.

2 Use Ÿ / ź to select [Auto Standby], then press

OK.

3 Use Ÿ / ź to select the time you want, then

press OK.

[OSD Timer]

You can set the OSD displaying time during no activity is detected after press MENU.

2 Use Ÿ / ź to select [OSD Timer], then press

OK.

3 Use Ÿ / ź to select the time you want, then

press OK.

Lock Settings

You can set following lock settings.

Before you change the lock settings

You must remember your own PIN code. Every lock settings need PIN code.

1 Use Ż / Ź to select [LOCK].

Lock System

Set Password

Block Program

Parental Guidance

LOCK

Move SelectReturn Exit

Key Lock

Hotel Mode

[Lock System]

You can set all lock settings. If you set to [On], all lock settings work.

2 Use Ÿ / ź to select [Lock System], then press

OK to set to [On].

3 Use the Number buttons to enter the 6-digit PIN

code you set.

• If you have not set up your PIN code, enter 111111.

• When you enter correct PIN code, you can change following

settings.

• After you move to other settings, you have to enter your PIN code again to proceed Parental setting.

• If you set to [On], below settings need to enter PIN code due to change the settings. : [Auto Tuning], [ATV Manual Tuning], [DTV Manual

Tuning], [Programme Edit], [First Time Installation] and [Reset].

Off

[Set Password]

You can set your own PIN code.

2 Use Ÿ / ź to select [Set Password], then press

OK.

Please enter old password

Please enter new password

Confirm new password

Clear Cancel

3 Use the Number buttons to enter the 6-digit PIN

code you set.

4 Use the Number buttons to enter the new 6-digit

number.

5 Use the Number buttons to enter the same

6-digit number again.

[Block Program]

2 Use Ÿ / ź to select [Block Program], then

press OK.

3 Press GREEN to lock the current channel.

• To unlock programme, input the PIN code you set.

[Parental Guidance]

You can set the parental rating to avoid watching an inappropriate programme for your children.

2 Use Ÿ / ź to select [Parental Guidance], then

press OK.

3 Use Ÿ / ź to select the age restriction, then

press OK.

[Key Lock]

You can set [Key Lock] and unlock with PIN code.

2 Use Ÿ / ź to select [Key Lock], then select [On]

or [Off], using Ż / Ź.

• If you set to [On], you cannot use the buttons on the unit.

[Hotel Mode]

2 Use Ÿ / ź to select [Hotel Mode], then press

OK to enter [Hotel Mode] menu.

• Refer to “Hotel Mode Settings” (p. 26).

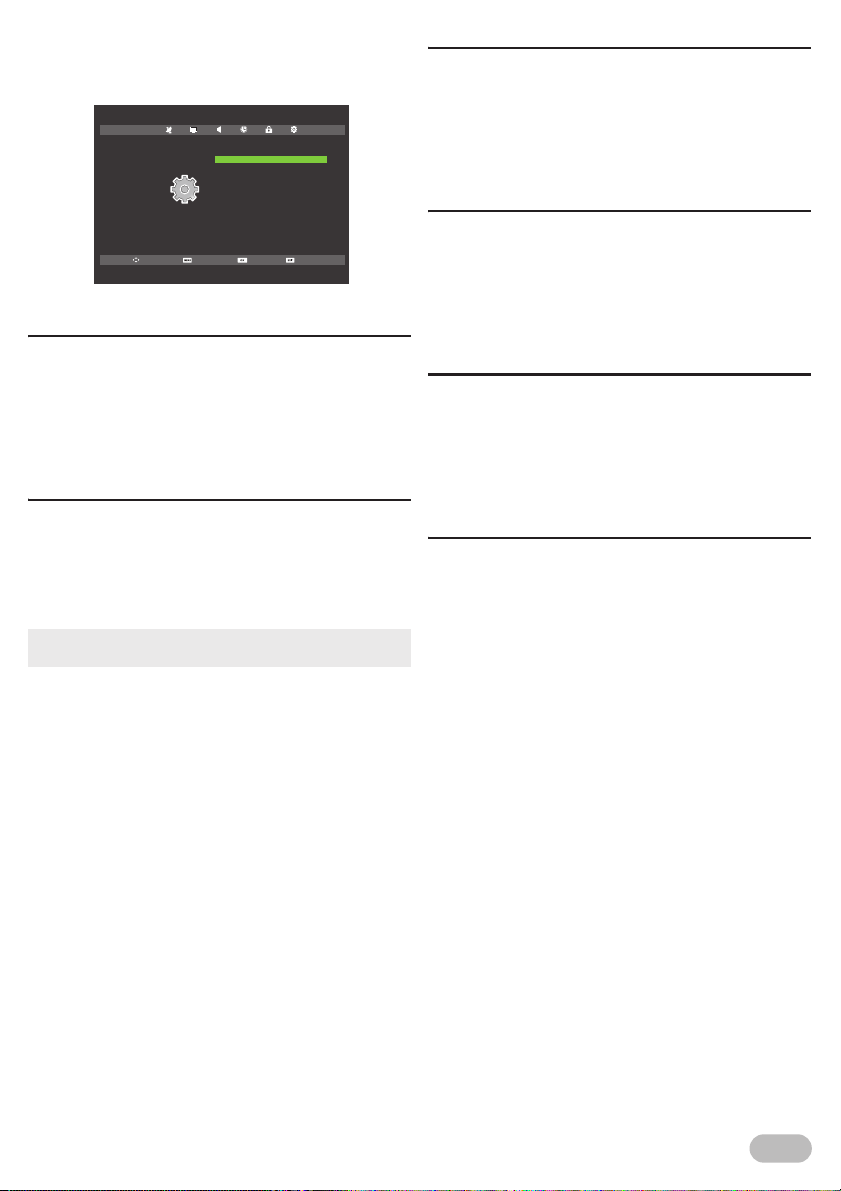

Setup Adjustment

You can change other setting. 1 Use Ż / Ź to select [SETUP].

OSD Language

TT Language

Audio Languages

SETUP

Move SelectReturn Exit

[OSD Language]

You can select the preferred on-screen language.

2 Use Ÿ / ź to select [OSD Language], then

press OK.

3 Use Ÿ / ź / Ż / Ź to select the language you

want, then press OK.

[TT Language]

You can select the preferred teletext language.

2 Use Ÿ / ź to select [TT Language], then press

OK.

3 Use Ÿ / ź / Ż / Ź to select the language you

want, then press OK.

• You can set also buttons on Remote Control, refer to “Teletext Settings” (p. 8).

Subtitle Language

Hearing Impaired

PVR File System

Aspect Ratio

First Time Installation

Reset

Software Update(USB)

HDMI CEC

Off

16:9

[Audio Languages]

You can select the preferred audio language.

2 Use Ÿ / ź to select [Audio Languages], then

press OK.

3 Use Ÿ / ź / Ż / Ź to select the language you

want, then press OK.

[Subtitle Language]

You can select the preferred subtitle language.

2 Use Ÿ / ź to select [Subtitle Language], then

press OK.

3 Use Ÿ / ź / Ż / Ź to select the language you

want, then press OK.

[Hearing Impaired]

You can set Hearing Impaired mode.

2 Use Ÿ / ź to select [Hearing Impaired], then

select [On] or [Off] using Ż / Ź.

[Hearing Impaired]:

Provides audio service for hearing impaired.

[PVR File System]

You can check the USB speed.

2 Use Ÿ / ź to select [PVR File System], then

press OK.

[Aspect Ratio]

[4:3] [16:9][Auto]*

[Zoom2] [Zoom1][Full Screen]*

[4:3] [16:9][Auto]*

[Zoom2] [Zoom1][Full Screen]*

Display modes can be selected when your TV receives a 16:9 or 4:3 video signal. Three types of display modes can be selected for a PC Input signal.

2 Use Ÿ / ź to select [Aspect Ratio], then press

OK.

3 Use Ÿ / ź to select the TV screen display mode

you want, then press OK.

• You cannot set screen display mode in playback mode.

For 16:9 video signal

[Auto]

*D TV, ATV, AV, SCART on ly

[4:3]

[16:9]

[Zoom1]

[Zoom2]

[Full Screen]

*DTV, HDMI only

: Displays a proportionally stretched picture

automatically.

: Displays a 16:9 picture at a 4:3 size.

The picture is shortened horizontally. Sidebars

appear on both edge of the TV screen. : Displays a 16:9 picture at its original size.

: Displays a picture at its enlarged size without

changing its horizontal and vertical ratio. This

crops out all sides of the picture. : Displays a picture at its enlarged bigger size

without changing its horizontal and vertical ratio.

This crops out all sides of the picture. : Displays a picture at its original size.

For 4:3 video signal

[Auto]

*DTV, ATV, AV, SCART only

[4:3]

[16:9]

[Zoom1]

[Zoom2]

[Full Screen]

*DTV, HDMI only

: Displays a proportionally stretched picture

automatically.

: Displays a 4:3 picture at its original size.

Sidebars appear on both edge of the TV screen.

: Displays a 4:3 picture at a 16:9 size; the picture

is stretched more horizontally.

: Displays a 4:3 picture at a 16:9 size; at its

enlarged size without changing its horizontal and vertical ratio. This crops out all sides of the picture.

: Displays a 4:3 picture at a 16:9 size. At its

enlarged size bigger than changing its horizontal and vertical ratio. This crops out all sides of the picture.

: Displays a picture at its original size.

For PC Input signal

[4:3]

[16:9]

: Displays a picture at a 4:3 size. Sidebars appear

on both edges of the TV screen.

: Displays a picture at a 16:9 size; the picture is

stretched more horizontally.

[Zoom1]

[16:9][4:3]

without

• This unit can also be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this video connection and it requires stereo mini plug conversion cable for analog audio signal as well.

• Refer to 16:9 video signal on this page if PC has HDMI Output.

• PC resolution standards: 753P series - 1920 x 1080

For details, refer to “Input Resolution” (p. 32)

553/553P series - 1360 x 768

[First Time Installation]

You can set initial setup again. Refer to “INITIAL SETUP” (p. 6).

2 Use Ÿ / ź to select [First Time Installation],

then press OK.

3 Follow steps 2 to 10 in “INITIAL SETUP” (p. 6).

[Reset]

You can restore the all settings except channel setting and parental lock settings.

2 Use Ÿ / ź to select [Reset], then press OK.

3 Press Ż to select [Yes] to reset to default

settings.

• After you select [Yes], the unit go into standby and turns on

automatically.

[Software Update(USB)]

It is available to update software using USB.

2 Use Ÿ / ź to select [Software Update(USB)],

then press OK.

[HDMI CEC]

This function allows you to operate the linked functions between devices with HDMI CEC feature and this unit connecting through an HDMI cable.

• Your device must be compatible with HDMI CEC in order to use this function.

• We do not guarantee the all devices can be supported on this unit.

[HDMI CEC]

If you set to [On], HDMI CEC function allows your device to act in conjunction with this unit.

2 Use Ÿ / ź to select [HDMI CEC], and then

select [On] or [Off], using Ż / Ź.

[Auto Power]

If you set to [On], when your device turns on, this unit also turns on automatically.

2 Use Ÿ / ź to select [Auto Power], and then

select [On] or [Off], using Ż / Ź.

[Device Menu]

You can see the device title menu of your device.

2 Use Ÿ / ź to select [Device Menu], then

press OK to display the detail.

Hotel Mode Settings

You must enter [Lock System] due to proceed Hotel Mode setting. For details, refer to “Lock Settings” (p. 21).

1 Use Ż / Ź to select [LOCK].

2 Use Ÿ / ź to select [Lock System], then press

OK.

[Source Lock]

You can lock the source one by one. If you set to [On], the source does not appear on the display.

5 Use Ÿ / ź to select [Source Lock], then press

OK.

6 Use Ÿ / ź to select the source you want, then

press OK to set to [On].

Lock System

Set Password

Block Program

Parental Guidance

LOCK

Move SelectReturn Exit

Key Lock

Hotel Mode

Off

3 Use the Number buttons to enter the 6-digit PIN

code you set.

[Hotel Mode]

4 Use Ÿ / ź to select [Hotel Mode], then press

OK to enter [Hotel Mode] menu.

5 Use Ÿ / ź to select [Hotel Mode], then press Ż

/ Ź to select [On] to adjust following settings.

Hotel Mode

Source Lock

Default Source

Default Prog

HOTEL

Move SelectReturn Exit

Default Volume

Max Volume

Import Database

Export Database

Clear Lock

Off

100

DTV Off

ATV

SOURCE LOCK

Move SelectReturn Exit

SCART

YPbPr

HDMI1

HDMI2

HDMI

HDMI3 / MHL Off

Media

Off

[Default Source]

You can set the first displaying source as the unit turns on.

5 Use Ÿ / ź to select [Default Source], then

press OK.

6 Use Ÿ / ź to select the source you want, then

press OK to set the default.

[Default Prog]

If you set [ATV] in [Default Source], you can set the the first displaying ATV programme number as the unit turns on.

5 Use Ÿ / ź to select [Default Prog], then press

OK.

6 Use Ÿ / ź to select the programme you want,

then press OK to set the default.

[Default Volume]

You can set default audio volume as the unit turns on.

5 Use Ÿ / ź to select [Default Volume], then

press Ż / Ź to adjust the audio volume.

[Max Volume]

You can set maximum limit of audio volume.

5 Use Ÿ / ź to select [Max Volume], then press Ż

/ Ź to adjust the audio volume.

• If you set to [On] in [Lock System], you cannot turn the

volume up over setup volume.

[Import Database]

You can import the Hotel Mode settings from USB flash memory.

5 Use Ÿ / ź to select [Import Database], then

press OK.

• After importing, the unit will go into the standby mode automatically.

• If a USB flash memory does not insert, an error message will appear.

[Export Database]

You can export the current menu settings to USB flash memory.

5 Use Ÿ / ź to select [Export Database], then

press OK.

• During exporting, LED on front panel will turn into red. (It’ll take about 5 - 10sec.)

• After exporting, no message will appear.

• It takes about 10 seconds to complete the exporting the

data.

• If a USB flash memory does not insert, an error message will appear.

[Clear Lock]

You can restore the Hotel Mode settings.

5 Use Ÿ / ź to select [Clear Lock], then press

OK.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save you time and money.

Problem Possible Remedy

• Is unit plugged in?

Remote control does not work

Bars on TV screen

Picture distorted

Picture rolls vertically

No colour

Ghosts in picture

Poor reception on some channels

Weak picture

Lines or streaks in picture

Picture blurred

Sound OK, picture poor

Picture OK, sound poor

No picture or sound

Different colour marks on TV

screen

• Power at outlet?

• Check batteries in remote control.

• If outside antenna is being used, check for broken wire.

• Check for local interference.

• Try a new channel, if OK, then possibly due to poor channel reception.

• If outside antenna is being used, check for broken wire.

• Surrounding temperature is too low.

• Try a new channel, if OK, then possibly due to poor channel reception.

• If outside antenna is being used, check for broken wire.

• Check for local interference.

• Try a new channel, if OK, then possibly due to poor channel reception.

• Is antenna connected to terminal on the back of the unit?

• If outside antenna is being used, check for broken wire.

• Adjust [Colour] control.

• Try a new channel, if OK, then possibly due to poor channel reception.

• Is antenna connected to terminal on the back of the unit?

• If outside antenna is being used, check for broken wire.

• Check for local interference.

• Try a new channel, if OK, then possibly due to poor channel reception.

• Is antenna connected to terminal on the back of the unit?

• If outside antenna is being used, check for broken wire.

• Adjust [Contrast] and [Brightness] control.

• Surrounding temperature is too low.

• Try a new channel, if OK, then possibly due to poor channel reception.

• If outside antenna is being used, check for broken wire.

• Check for local interference.

• Try a new channel, if OK, then possibly due to poor channel reception.

• If outside antenna is being used, check for broken wire.

• Try a new channel, if OK, then possibly due to poor channel reception.

• Is antenna connected to terminal on the back of the unit?

• If outside antenna is being used, check for broken wire.

• Check for local interference.

• Adjust [Contrast] and

• Try a new channel, if OK, then possibly due to poor channel reception.

• Check for local interference.

• Try a new channel, if OK, then possibly due to poor channel reception.

• Is unit plugged in?

• Power at outlet?

• Is unit’s power on?

• Is antenna connected to terminal on the back of the unit?

• If outside antenna is being used, check for broken wire.

• Unplug the AC power cord and wait for about 1 minute, then plug the AC

power cord and turn on the unit again.

• Try a new channel, if OK, then possibly due to poor channel reception.

[Brightness] control.

Problem Possible Remedy

Black or luminous point on TV

screen

• It is quality of the LCD Panel.

SPECIFICATIONS

46.0 inches / 116.80cm (46FD753P)

38.6 inches / 98.04cm (39FL753P)

Panel size

Television system DVB-T/C(MPEG2/MPEG4-H.264), PAL-B/G, D/K, SECAM-B/G, D/K, L

Sound output

Remote control Digital encoded infrared light system

Operating temperature 0 °C to 40 °C

Power requirements AC 220-240 V ~ , 50 Hz

Power consumption

- Energy class A

31.5 inches / 80.01cm (32FL553P, 32FL553)

28.5 inches / 72.39cm (29FL553P, 29FL553)

23.6 inches / 59.94cm (24FL553P, 24FL553)

10 W, 8 ȍ × 2 (46FD753P)

8 W, 8 ȍ × 2 (39FL753P)

8 W, 8 ȍ × 2 (32FL553P, 32FL553)

8 W, 8 ȍ × 2 (29FL553P, 29FL553)

5 W, 8 ȍ × 2 (24FL553P, 24FL553)

90 W / stand by: less than 0.5W (46FD753P)

62 W / stand by: less than 0.5W (39FL753P)

52 W / stand by: less than 0.5W (32FL553P)

44 W / stand by: less than 0.5W (32FL553)

50 W / stand by: less than 0.5W (29FL553P)

42 W / stand by: less than 0.5W (29FL553)

35 W / stand by: less than 0.5W (24FL553P)

30 W / stand by: less than 0.5W (24FL553)

Ter min als

Antenna UHF/VHF 75 ȍ

Audio input RCA jack x 2 (L/R)

Composite video input RCA jack ×1

Component video input RCA jack ×3 (Y/Pb/Pr)

HDMI input (19 pin) HDMI x 2

HDMI input (with MHL function) HDMI x 1 (46FD753P, 39FL753P, 32FL553P, 29FL553P, 24FL553P)

PC input D-Sub 15pin x 1 (RGB) / Mini jack Ø3.5 mm x 1 (Audio)

SCART SCART x 1

Headphone audio output Mini jack Ø3.5 mm x 1

Coaxial digital audio output RCA jack × 1

USB terminal

Common Interface CI slot × 1

Dimensions

without base

Dimensions

with base

USB × 1

H: 657.5 mm / W: 1088.8 mm / D: 122.0 mm (46FD753P)

H: 542.0 mm / W: 912.0 mm / D: 60.0 mm (39FL753P)

H: 451.5 mm / W: 754.6 mm / D: 57.0 mm (32FL553P, 32FL553)

H: 412.0 mm / W: 686.5 mm / D: 57.0 mm (29FL553P, 29FL553)

H: 350.8 mm / W: 576.9 mm / D: 53.7 mm (24FL553P, 24FL553)

H: 707.9 mm / W: 1088.8 mm / D: 270.3 mm (46FD753P)

H: 587.5 mm / W: 912.0 mm / D: 214.0 mm (39FL753P)

H: 494.7 mm / W: 754.6 mm / D: 180.0 mm (32FL553P, 32FL553)

H: 456.0 mm / W: 686.5 mm / D: 180.0 mm (29FL553P, 29FL553)

H: 389.4 mm / W: 576.9 mm / D: 139.8 mm (24FL553P, 24FL553)

• Protruding parts excluded.

12.40 kg (46FD753P)

Weight

without base

Weight

with base

8.68 kg (39FL753P)

5.61 kg (32FL553P, 32FL553)

4.80 kg (29FL553P, 29FL553)

3.35 kg (24FL553P, 24FL553)

14.40 kg (46FD753P)

10.00 kg (39FL753P)

5.85 kg (32FL553P, 32FL553)

5.04 kg (29FL553P, 29FL553)

3.53 kg (24FL553P, 24FL553)

Input Resolution

• HD models: 32FL553P/32FL553/29FL553P/29FL553/24FL553P/24FL553

• Full HD models: 46FL753P/39FL753P

YPbPr IN

(Component video)

PC(VGA) IN

HD models

PC(VGA) IN

Full HD models

Resolution Resolution Refresh rate Resolution Refresh rate

480i/p 640 x 480 60Hz / 72Hz / 75Hz 640 x 480 60Hz / 72Hz / 75Hz 576i/p 720 x 400 70Hz 720 x 400 70Hz

720p 800 x 600 60Hz / 72Hz / 75Hz 800 x 600 60Hz / 72Hz / 75Hz

1080i 1024 x 768 60Hz / 70Hz / 75Hz 1024 x 768 60Hz / 70Hz / 75Hz

HDMI

Resolution Refresh rate

480i/p 60Hz 1360 x 768 60Hz 1280 x 960 60Hz 576i/p 50Hz 1280 x 1024 60Hz

720p 50Hz / 60Hz 1360 x 768 60Hz

1080i/p 50Hz / 60Hz 1680 x 1050 60Hz

1080p 24Hz 1920 x 1080 60Hz

1280 x 768 60Hz / 75Hz 1280 x 768 60Hz / 75Hz

1280 x 800 60Hz 1280 x 800 60Hz

Multimedia Format

[PHOTO]

File Ext. Codec Remark

.jpg/.jpeg

File Ext. AUDIO Codec Remark

.mp3 MP3

Container VIDEO Codec AUDIO Codec Max Resolution

.avi .mkv .mov

.mp4

Format FAT32 / FAT16

Progressive JPEG Max Resolution: 1024 x 768

Baseline JPEG Max Resolution: 8192 x 8192

[MUSIC]

Sample rate: 32k - 48kHz

Bit rate: 32k - 320kbps

Channel: Mono / Stereo

[MOVIE]

H.264

MPEG 2 MP3, Dolby Digital, AAC 720 x 576

MP3, Dolby Digital, AAC 1920 x 1080

File system

File Format

A39Q1EP/A33T1EP/A33F1EP/A33F0EP/A33M1EP/A33M0EP/A33L1EP/A33L0EP

★★★★★

Funai 46FD753P, 39FL753P, 32FL553P, 32FL553, 29FL553P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
