Funai 27A-850 User Manual

SERVICE MANUAL

Sec. 1: Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s

Sec. 2: Deck Mechanism Section

I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism

Sec. 3: Exploded views and Parts List Section

I Exploded views I Parts List

VIDEO CASSETTE RECORDER

27A-850

PAL

MAIN SECTION

VIDEO CASSETTE RECORDER

27A-850

Sec. 1: Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1

Function Indicator Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-11

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Waveforms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1

SPECIFICATIONS

Description Unit Minimum Nominal Maximum Remark

1. Video

1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 FL6A 1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2

1-3. Video S/N Y (R/P) dB 40 45

1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode 1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode 1-6. Resolution (PB) Line 230 245 SP Mode

2. Servo

2-1. Jitter Low µsec 0.07 0.12 SP Mode 2-2. Wow & Flutter % 0.3 0.5 SP Mode

3. Normal Audio

3-1. Output (PB) dBV -9 -6 -3 SP Mode 3-2. Output (R/P) dBV -9 -6 -1.5 SP Mode 3-3. S/N (R/P) dB 36 41 SP Mode 3-4. Distortion (R/P) % 1.0 4.0 SP Mode 3-5. Freq. resp (R/P) at 200Hz dB -7 -4 SP Mode (-20dB ref. 1kHz) at 6kHz dB -10 -4 SP Mode

SP Mode,

W/O Burst

4. Tuner

4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode 4-2. Video S/N dB 39 42 E -E Mode 4-3. Audio output dB -10 -6 -2 E-E Mode 4-4. Audio S/N dB 40 46 E-E Mode

5. Hi-Fi Audio

5-1. Output dBV -12 -8 -4 SP Mode 5-2. Dynamic Range dB 70 85 SP Mode 5-3. Freq. resp (6dB B.W) Hz 20 ~ 20K SP Mode

Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed and some may drop s lightly bel ow these spec s. Limit sp ecs rep resent the a bsolute wo rst con dition that still migh t be considered acceptable; In no case should a unit fail to meet limit specs.

1-1-1 HE450SP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special safety-related charac teristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special s afe ty c har ac te rist ic s ar e i den tified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fi re, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized prod uct safety and electrical codes of the countries in whic h th ey are to be sold. However, in order to maintain such comp lianc e, it is equ ally impor tant to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spur ious rad iation. T hese m ust also be replaced only with specified re pla ce men ts. Examples: RF converters, RF c ables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1)Insulation tape

2)PVC tubing

3)Spacers

4)Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wir es do n ot co ntact h eat pr od uc -

ing parts (heatsinks, oxide metal fil m re sisto rs, fus ible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord h as been repl aced, ch eck that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power tr ansformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1)Remove the old connector by cutting the wires at a point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to th e complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, discon nect the AC plug from the AC outlet.

1-2-1 H8740SFP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterio ration. Observe that screws , parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified cleara nce distanc e (d) and (d’) between sol dered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

T able 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d) (d’)

230 V

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

≥ 3mm(d)

≥ 6 mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure acr oss the ter minals of l oad Z. See Fig. 2 and the following table.

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Fig.

Exposed Accessible Part

AC Voltmeter (High Impedance)

One side of Power Cord Plug Prongs

Fig.

T able 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

230 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

1-2-2 H8740SFP

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indi-

cated as shown.

Top View

Input

b. For other ICs, pin 1 and every fifth pin are indicated

as shown.

in 1

c. The 1st pin of every male connector is indicated as

shown.

in 1

Bottom View

How to Remove / Install Flat Pac k-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:.

(1) Prepare the hot-air flat pack-IC desoldering

machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

(2) Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3) Bottom of th e flat pack-IC is fixed with glue to the

CBA; when removing entire fl at pack-IC, fir st apply soldering iron to center of the fla t pack-IC and hea t up. Then remove (glue will be melted). (Fig . S-1-6)

(4) Releas e the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Instructions for Connectors

1. When you c onn ect o r di scon nec t the FF C (Fl exib le Foil Connector) cable, be sure to first disconnect the AC cord.

2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Caution:

1. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

2. The flat pack-I C on th e CB A i s a ffixed with g lue , so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

Machine

Flat Pack-IC

Fig. S-1-2

1-3-1 NOTE_1

With Soldering Iron:

F S

(1)Using desoldering braid, remove the solder from all

pins of the flat pack-IC. Wh en you use solder flux which is applied to all pins of the f lat pack-IC, you can remove it easily. (Fig. S-1-3)

lat Pack-IC

Desoldering Braid

(4) Bottom of th e flat pack-IC is fixed with glue to the

CBA; when removing entire fl at pack-IC, fir st apply soldering iron to center of the fla t pack-IC and hea t up. Then remove (glue will be melted). (Fig . S-1-6)

(5) Releas e the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a sold ering iron, care must be taken to ensure that the flat pack-IC is not being hel d by glue. When the flat pack-IC is removed from the CBA, handle it ge ntl y bec au se it may be damaged if force is applied.

Soldering Iron

Hot Air Blower

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which sold er will not adhere (iron wir e). When heating the pi ns , use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Iron Wire

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Sha Pin

ine Tip oldering Iron

Fig. S-1-4

CBA

Fine Tip Soldering Iro

(3)Bottom of the flat pack-IC is fix ed with glue to the

CBA; when removing enti re flat pack-IC, fi rst apply soldering iron to c en ter o f th e f lat pack-I C an d h eat up. Then remove (glue will be melted). (Fig. S-1-6)

(4)Release the fla t pack-IC from the CBA us ing twee-

zers. (Fig. S-1-6)

Tweezers

Flat Pack-IC

With Iron Wire:

(1)Using desoldering braid, remove the solder from all

Fig. S-1-6

pins of the flat pack-IC. Wh en you use solder flux which is applied to all pins of the f lat pack-IC, you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solde r melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5

1-3-2 NOTE_1

2. Installation

P i

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA so you can install a replac ement flat pack-IC more easily.

(2)The “ I ” mark on the flat pack-IC in dicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when position ing for installation. Then presolder the four corne rs of th e fla t pack-IC. (See Fig. S-1-8.)

(3)Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

Example :

in 1 of the Flat Pack-IC

s indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semi-conductors

Electrostatic breakdown of the semi-conductors may occur due to a po tential difference ca used by electr ostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a gr oundin g band (1MΩ) that is properly grounded to re move any static electricity th at may be charged on the body.

2. Ground for Workbench

Be sure to place a c onductive sheet or copper plate with proper grounding (1MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electri city charge on clothing will not escape through the body grounding band , be careful to avoid contacting semi-conductors with your clothing.

< Incorrect >

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

CBA

< Correct >

Grounding Ban

1MΩ

CBA

1MΩ

Conductive Sheet or Copper Plate

1-3-3 NOTE_1

PREPARATION FOR SERVICING

How to Enter the Service Mode

About Optical Sensors

Caution:

An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically.

What to do for preparation

Insert a tape into the D eck Mechanis m Assembly and press the PLAY button. The tape will be loaded into the Deck Mechanism Ass embly. Make sure the power is on, connect TP507 (SENSOR INHIBITION) to GND. This will stop the functio n of Tape Start Sensor, Tape End Sensor and Reel Sensors . (If these TPs are connected before plugging in the unit, the function of the sensors will stay valid.) See Fig. 1.

Note: Because the Tape End Sensors are inactive, do not run a tape all the way to the start or the end of the tape to avoid tape damage.

Q505

Q504

TP507

S-INH

Fig. 1

1-4-1 HE470PFS

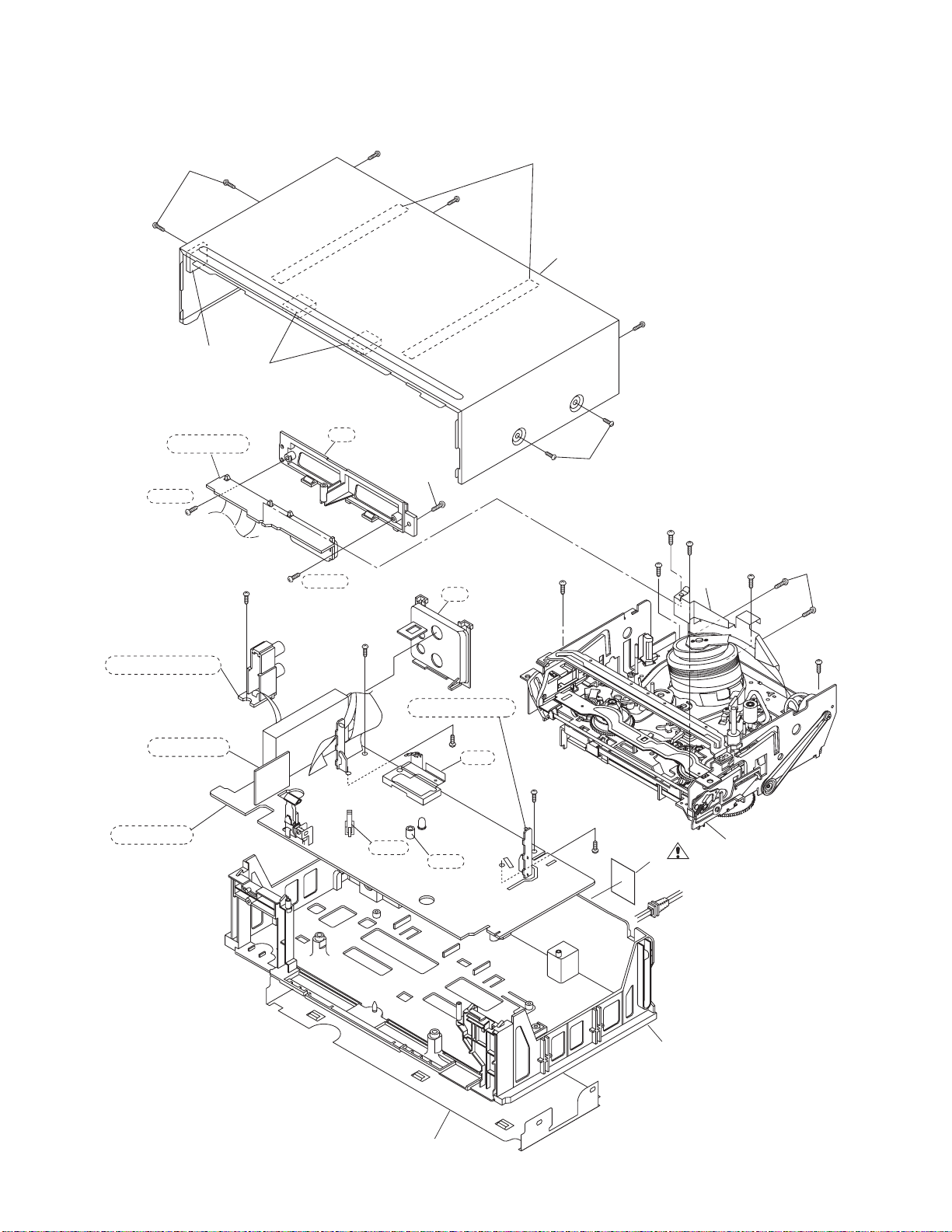

CABINET DISASSEMBLY INSTRUCTIONS

)

1. Disassembly Flowchart

This flowchart indicates the disassem bly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally.

[1] Top Case

[2] Front Assembly

[3] VCR Chassis Unit

[4] Jack CBA

[5] Deck Assembly

[6] Main CBA

[7] Cylinder Shield

[8] Jack Board

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[1] Top Case 1 7(S-1) -

PART

REMOVE/*UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/DESOLDER

Note

(1): Identification (location) No. of parts in the figures (2):Name of the part (3):Figure Number for reference (4): Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5):Refer to “Reference Notes.”

Reference Notes

CAUTION: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them.

1. Remove five Screws (S-2), three Screws (S-3) and Screw (S-4). Then, slowly lift the VCR Chassis Unit (Deck Assembly, Jack CBA and Main CBA) up.

2. When reassembling, solder wire jumpers as shown in Fig. 5.

3. Before installing the Deck Assembly, be sure to place the pin of LD-SW on Main CBA as sho wn in Fig. 6. Then, install the Deck Assembly while aligning the hole of Cam Gear with the pin of LD-SW, the shaft of Cam Gear with the hole of LD-SW as shown in Fig. 6.

(S-1)

Front

[2]

Assembly VCR

[3]

Chassis Unit

[4] Jack CBA 4 Desolder, (S-5) -

Deck

[5]

Assembly

[6] Main CBA 5 *(L-3) -

Cylinder

[7]

Shield Jack

[8]

Board

↓

(1)

↓

(2)

2 *3(L-1),*4(L-2) -

3 5(S-2), 3(S-3), (S-4), 1

5,6 2(S-6), Desolder 2,3

52(S-7) -

5 ---------- -

↓

(3)

↓

(4)

[1] T op Case

↓

(5)

1-5-1 HE450DC

(S-1

Fig. 1

(L-2)

(S-5)

[4] Jack CBA

Desolder

[2] Front Assembly

(S-2)

(S-3)

[3]VCR Chassis Unit

(L-1)

(S-2)

(S-3)

(L-2)

Fig. 4

Fig. 2

(S-2)

(S-4)

(S-3)

(S-2)

Fig. 3

1-5-2 HE450DC

[7] Cylinder Shield

FE Head

Cylinder Assembly

(S-7)

[8] Jack Board

(L-3)

From FE Head

From Cylinder Assembly

(S-6)

TOP VIEW

From AC Head Assembly

AC Head Assembly

[5] Deck Assembly

[6] Main CBA

(S-6)

From Capstan Motor Assembly

Lead with blue stripe

[6] Main CBA

[5] Deck Assembly

Shaft

Hole

LD-SW

SW507 LD-SW

Cam Gear

Hole

[6] Main CBA

Fig. 6

Printing

Lead with blue stripe

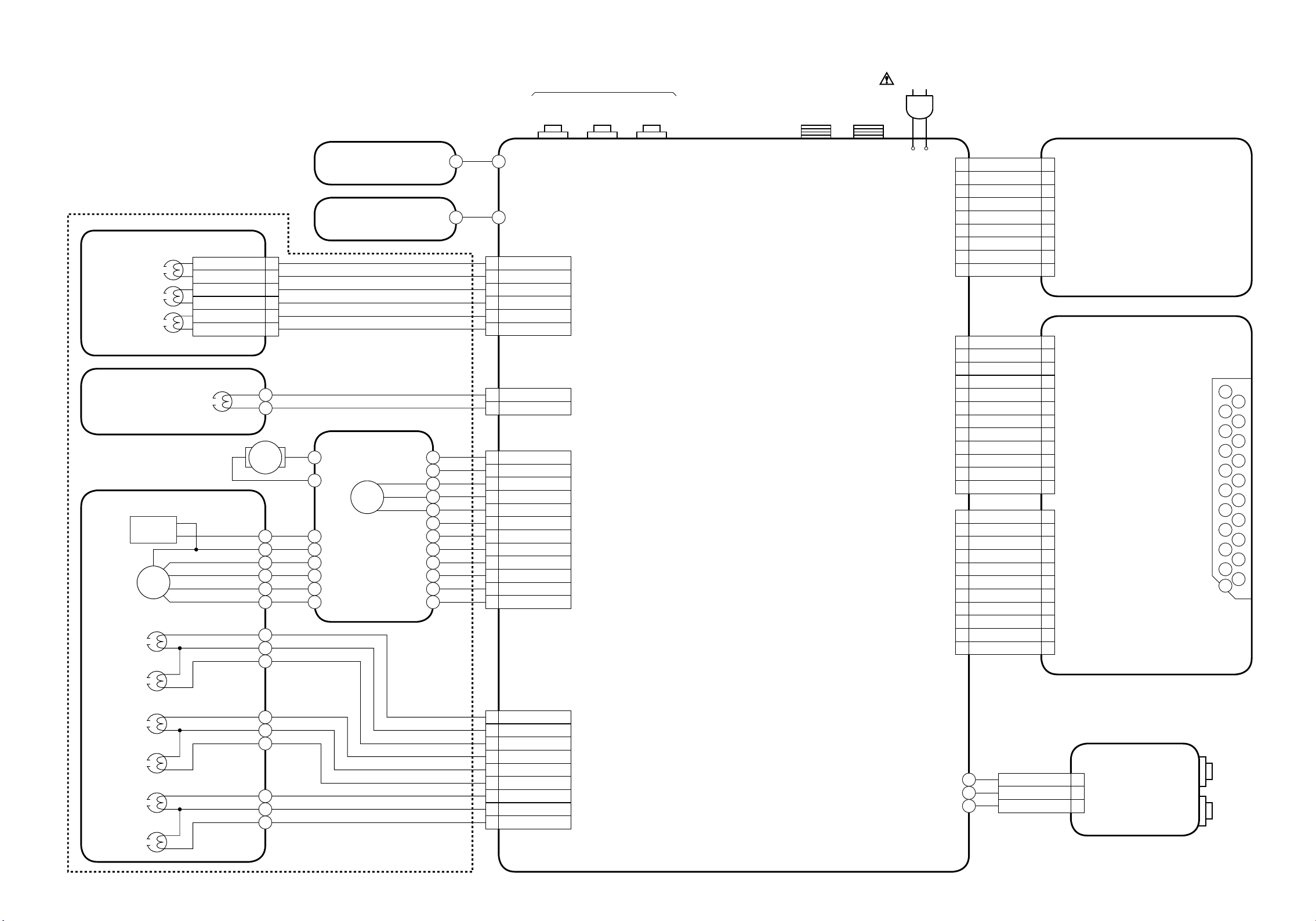

Lead connections of Deck Assembly and Main CBA

Lead with blue stripe

Desolder from bottom

side

Fig. 5

1-5-3 HE450DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

)

C C

General Note: "CBA" is an abbreviation for "Circuit Board Assembly."

NOTE:

1.Electrical adjus tments are required after replacing circuit components a nd certain mechanical parts. It is important to do these a djustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

2.To perform these a lignment / confirmation procedures, make sure that the tracki ng co ntrol is set in the center position: P ress eith er "L5??" or "K" button on the remote control unit first, then the "PLAY" button (Front Panel only).

Test Equipment Required

1.Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50V/Div., F-Range: DC~AC-20MHz

2.Alignment Tape (FL6A)

Head Switching Position Adjustment

Purpose:

To determine the Head Switching point during playback.

Symptom of Misadjustment:

May cause Head Switching noise or ver tical jitter in the picture.

Test point Adj.Point Mode Input

J23(V-OUT)

TP502(RF-SW)

GND

Tape

FL6A Oscilloscope

Connections of Measurement Equipment

Main CBA

VR501

(Switching Point)

(MAIN CBA)

Measurement

Equipment

J23

GND

TP502

PLAY

(SP)

6.5H±1H

(412.7µs±60µs)

Oscilloscop

-----

Spec.

CH1 CH Trig. (+

Figure 1

EXT. Syncronize Trigger Point

H1 H2

Reference Notes: Playback the Alignment tape and adjust VR501 so that the V-sync front edg e of the CH1 video output waveform is at the 6.5H(412.7µs) delaye d p os ition fr om the rising edge of the CH2 head switching pulse waveform.

1.0H

6.5H

Switching Pulse

0.5H V-Syn

1-6-1 HE240EA

Servo/System Control Block Diagram

BLOCK DIAGRAMS

Q504

ST-S

SENSOR CBA

Q505

END-S

SENSOR CBA

(DECK ASSEMBLY)

AC HEAD ASSEMBLY

CONTROL HEAD

CL287

5 5CTL(+) 6 6CTL(-)

CL504

MAIN CBA

END-S

SW507 LD-SW

Q503

T-REEL

AL+5V

PS503TP505

S-REEL

D502 S-LED

TIMER+5V

AL+5V

Q501

RESET

RS501

REMOTE SENSOR

SW508

RESET

IC501

(SERVO/SYSTEM CONTROL)

REMOCON-IN

LD-SW9

CTL(+) CTL(-)

94 10

ST-S

END-S T-REEL

S-REEL79

RESET

KEY- 1

KEY- 2

DRV-DATA

DRV-STB DRV-CLK

68 69 70

KEY SWITCH

IC561

(FIP DRIVE)

DRV-DATA

DRV-STB

DRV-CLK

TP507

SENS-INH

KEY SWITCH

S10

G1 G2 G3 G4

S1 S2

S7 S8 S9

23 22 21 20

13 14 16 17

FP562

LED CLOCK

7 8

TU701(TUNER UNIT)

SDA

SCL

IC503 (MEMORY)

SDA

SCL

CYLINDER ASSEMBLY CAPSTAN MOTOR

DRUM MOTOR

SENSOR

LOADING MOTOR

CAPSTAN MOTOR

VR501 SW-POINT

CL502

12 P-ON+15V 11

AL+12V(2)

10 GND

D-PG

D-CONT

LM-FWD/REV

GND

C-CONT

C-F/R

C-FG

P-ON+5V

AL+12V/+20.5V

AL+5V

FROM/TO POWER SUPPLY BLOCK

AL+5V

SW506

REC-SAFETY

P-ON+15V AL+12V

P-ON+5V AL+12V/+20.5V

C-POW-SW P-ON-H P-DOWN-L

PG-DELAY

REC-SAF-SW

D-PG

D-CONT77 LM-FWD/REV

C-CONT

C-F/R

C-FG

C-POW-SW

P-ON-H

P-DOWN-L

A-MUTE-H

Hi-Fi-H-SW

A-MODE

LINE-MUTE

IIC-BUS SDA

IIC-BUS SCL

D-REC-H

RF-SW

C-ROTA

D-V SYNC

H-A-SW

H-A-COMP

V-ENV

C-SYNC

19 32 28

72 71 33 18 15 13 16

IIC-BUS SDA

IIC-BUS SCL

A-MUTE-H

IIC-BUS SDA

IIC-BUS SCL

Hi-Fi-H-SW

A-MODE

LINE-MUTE

IIC-BUS SDA

IIC-BUS SCL

D-REC-H

RF-SW

C-ROTA

D-V SYNC

H-A-SW

H-A-COMP

V-ENV

C-SYNC

TO AUDIO BLOCK

FROM/TO Hi-Fi AUDIO BLOCK

FROM/TO VIDEO BLOCK

1-7-1 1-7-2 HE4F0BLS

Video Block Diagram

MAIN CBA

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

V-OUT1

V-IN1

SERVO/SYSTEM CONTROL BLOCK

JACK CBA

JK101

Q101

19 20

BUFFER

TU701

TU-VIDEO

JK756 V-IN-F

CL101

1 3 3

VIDEO

V-OUT1

V-IN1

V-IN1TO TU-VIDEO

CL151

Q351

BUFFER

WF1

J23

V-OUT

IC501 (OSD)

OSD

CHARACTER MIX

IC301

(Y/C SIGNAL PROCESS)

48 50 52

54 56

61 63

TUNER

PB/EE

TUNER

IN1

PB/EE

MUTE

IN1

IN2

FRT

IN2

FRT

MUTE

COLOR

-IN

FROM SERVO/SYSTEM CONTROL BLOCK

50 55

BYPASS

CHARA. INS.

FBC

AGC VXO

AGC

Y. DELAY

1/2

IIC-BUS SDA IIC-BUS SCL

LUMINANCE SIGNAL PROCESS

CCD 1H DELAY

CHROMINANCE SIGNAL PROCESS

Y/C MIX

69684643

SERIAL

DECORDER

7978

R P R P

REC FM AGC

HEAD AMP

EP HEAD AMP

D-REC-H

C-ROTA/RF-SW

D-V-SYNC

H-A-SW

H-A-COMP

V-ENV

C-SYNC

96 95 93 94

90 89 88 87

70 62 71 83 84 67

V-COM

WF1

TP502

RF-SW

CL253

V(R)-1

V(L)-1

V(L)-2

V(R)-2

D-REC-H

RF-SW

C-ROTA

D-V-SYNC

H-A-SW

H-A-COMP

V-ENV

C-SYNC

(DECK ASSEMBLY)

CYLINDER ASSEMBLY

1 2 3 4 5 6

FROM/TO SERVO/SYSTEM CONTROL BLOCK

VIDEO (R)-1 HEAD

VIDEO (L)-1 HEAD

VIDEO (L)-2 HEAD

VIDEO (R)-2 HEAD

V-OUT2

V-IN2

JK102

19 20

Q102

BUFFER

CL102

V-OUT2

V-IN2 3

CL152

58 59

2928

X301

4.433619MHz

TP301

C-PB

WF2

1-7-3 1-7-4 HE4F0BLV

Audio Block Diagram

PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC

MAIN CBA

TO Hi-Fi AUDIO BLOCK

(DECK ASSEMBLY)

ACE HEAD ASSEMBLY

AUDIO HEAD

AUDIO ERASE HEAD

N-A-PB N-A-REC

CL287 A-PB/REC 4 A-COM 3 AE-H 1 AE-H/FE-H 2

CL504 4 A-PB/REC 3 A-COM 1 AE-H 2 AE-H/FE-H

Q401

Q402

BIAS OSC

+5V

Q406

IC301

(AUDIO SIGNAL PROCESS) 1513 17

TUNER IN2

INV

ATT

REC AMP

5 6

1 2

PB-ON

EQ AMP

SP/LP-ON

AUTO BIAS

100

IN1

ALC DET

ALC

LINE AMP

REC-ON

MUTE

FULL ERASE HEAD

FE HEAD

SERIAL

DECODER

68 69

A-MUTE-H IIC-BUS SDA IIC-BUS SCL

TO SERVO/SYSTEM CONTROL BLOCK

CL501 2 FE-H 1 FE-H-GND

Q405 (PB=ON)

Q403

SWITCHING D-REC-OFF

+5V

AUDIO HD-SW CONTROL

1-7-5 1-7-6 HE4F0BLA

Hi-Fi Audio Block Diagram

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

A-IN1(R) A-IN1(L) A-OUT1(R) A-OUT1(L)

A-IN2(R) A-IN2(L) A-OUT2(R) A-OUT2(L)

JACK CBA

JK101

2 6 1 3

JK102

2 6 1 3

CL101

CL102

A-IN1(R) A-IN1(L) 8

A-OUT1(R) A-OUT1(L) 12

A-IN2(R) A-IN2(L) 8

A-OUT2(R) A-OUT2(L) 11

CL151

CL152

67 65

(Hi-Fi AUDIO SIGNAL PROCESS)

IC451

ALC

MAIN CBA

CN701 CN1

TU-AUDIO(R) TU-AUDIO(L)

4 5

AFV CBA

IF SIGNAL PROCESS

OUTPUT SELECT

CN1

SIF

CN701

MUTE-ON

VCO MUTE

MUTE-ON

73 74

76 77 75

CL509

A-OUT1(L)

A-OUT1(R)

JK751

SUB JACK CBA

TU701

SIF

AUDIO

A-OUT (L)

A-OUT (R)

JK758 A-IN(R)-F

JK757 A-IN(L)-F

TO AUDIO BLOCK

N-A-REC N-A-PB

52 56 54 50 60

78 80

61 71

R-CH INSEL

2 6

L-CH

8 4

INSEL

ALC

R-CH PNR

L-CH PNR

SW NOISE

LIM DEV

SW NOISE

DO DET

R-CH BPF

NOISE DET

HOLD PULSE

L-CH BPF

COMP

VCO

LPF

MIX V/I

LPF

VCO

COMP

LIM

ENV DET

34 33

LOGIC

LINE-MUTE

37 38

Q451

21 53

IIC-BUS SDA IIC-BUS SCL

A-MODE

LINE-MUTE

Hi-Fi-H-SW

CL253

Hi-Fi-A(R) 9 Hi-Fi-COM 8 Hi-Fi-A(L) 7

FROM/TO SYSTEM CONTROL BLOCK

CYLINDER ASSEMBLY

Hi-Fi AUDIO (R) HEAD

Hi-Fi AUDIO (L) HEAD

1-7-7 1-7-8

HE4F0BLH

Power Supply Block Diagram

AC001

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

HOT CIRCUIT. BE CAREFUL.

F001 T1.6A L 250V

L003

LINE FILTER

D001 - D004

BRIDGE RECTIFIER

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

T001

Q051

Q001

Q052

Q057

Q058

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

MAIN CBA

P-ON+15V P-ON+32V P-ON-H

Q053

Q055

Q054

AL+12V/+20.5V AL+9V AL+12V C-POW-SW AL+5V TIMER+5V P-ON+5V P-DOWN-L P-OFF-H

HOT

Q003

Q002

IC001

ERROR VOLTAGE DET

Q004 (SHUNT REGULATOR)

REG

Q059

Q056

COLD

HE4F0BLP1-7-9 1-7-10

FUNCTION INDICATOR SYMBOLS

Note:

The following symb ol s wil l appear on the indica tor panel to ind ic ate the c urre nt m ode or o per at ion of the VCR . On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons.

Display panel

" H "= LED Light on, " L "= LED Light off

LED MODE INDICATOR ACTIVE

CASSETTE "IN" CASSETTE "OUT"

CLOCK " 88:88 ON POWER ON " PWR." ON REC " REC " ON REC PAUSE " REC " Blinks at 0.8Hz interval T-REC,OTR

When reel and capstan mechanism is not functioning correctly

When tape loading mechanism is not functioning correctly

When cassette loading mechanism is not functioning correctly

When the drum is not working properly

P-ON Power safety detection

" " " "

" "

" " " 1 "

" " " 2 "

" " " 3 "

" " " 4 "

" " " 5 "

ON OFF

ON (T-REC OFF,T-REC incomplete Blinks at 0.8Hz interval)

Blinks at 0.8Hz interval

S-INH condition All modes Blinks at 0.8Hz interval

1-7-11 HE450FIS

(

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot nece ssar ily b e ob tai ned by us ing repl ac ement components rated for higher voltage, wattage, etc. Replacement parts that have th ese spe cial safety characteristics are identified in this manual and its supplements; electrical comp onents having such features are identified by the mark " ! " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same s afety character istics as specified in the parts list may create shock, fire, or other hazards.

Capacitor Temperature Markings

Mark

Capacity

change rate

Standard

temperature

Temperature

range

Notes:

1. Do not use the part n umber shown on thes e drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms

(K=10

3. Resistor wattages are 1/4W or 1/6W unless o therwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identi fied by fou r digits. The fir st two digits are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits.

, M=106).

-6

µF).

(B)

(F) +30 - 80% 20°C -25~+85°C

(SR)

(Z) +30 - 80% 20°C -10~+70°C

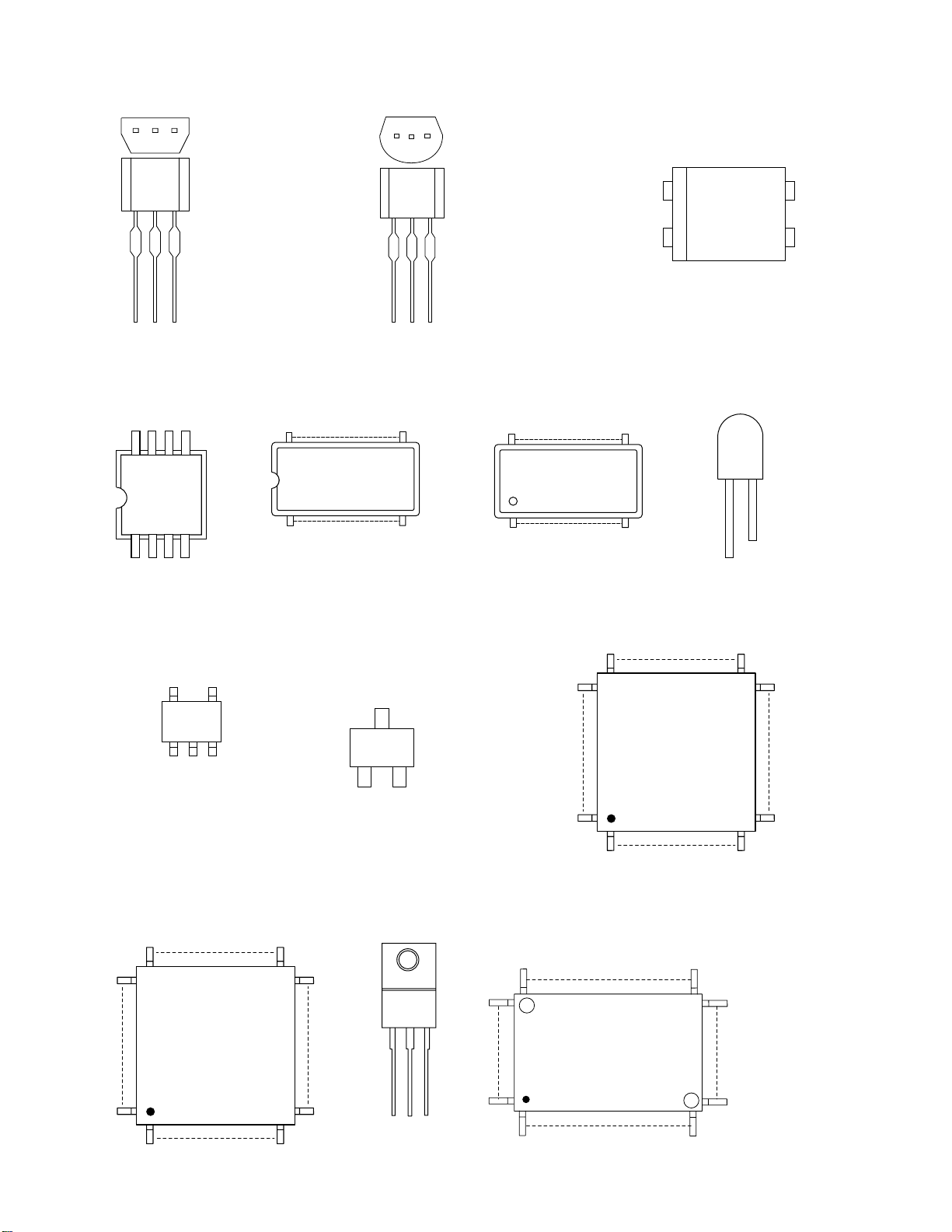

Capacitors and transistors are represented by the following symbols.

±10%

±15%

CBA Symbols

(Top View) (Bottom View)

Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

20°C -25~+85°C

Schematic Diagram Symbols

Digital Transistor

Electrolytic Capacitor

(Top View)

E C B

(Top View)

E C B

NPN Transistor

NPN Digital Transistor

PNP Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

1-8-1 SCPA1

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING

PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supp ly. Otherwise it may c ause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only origina l replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Mode: SP/REC

6. Voltage indications for PLAY and REC modes on the schematics are as shown below:

Unit: Volts

The same voltage for both PLAY & REC modes

7. How to read converged lines

-D3 Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3

2. "1-B1" means that line number "1" goes to area "B1

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side.

5.0

231

5.0

PLAY mode REC mode

(2.5)

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

: Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

1-8-2 SCRK05

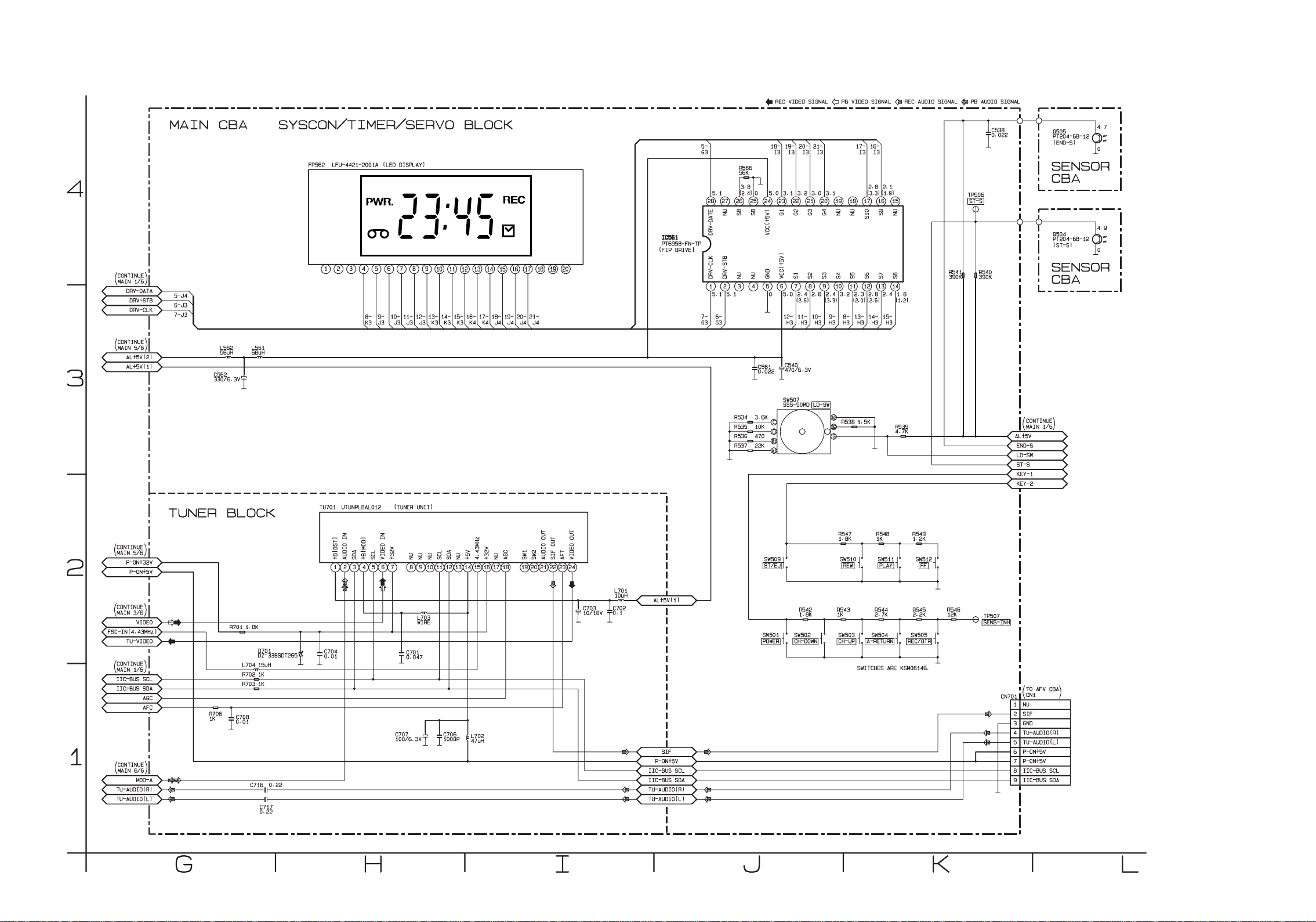

Main 1/6 Schematic Diagram

1-8-3

1-8-4

HE4F0SCM1

Main 2/6 & Sensor Schematic Diagram

1-8-5

1-8-6

HE4F0SCM2

Main 3/6 Schematic Diagram

1-8-7

1-8-8

HE4F0SCM3

Main 4/6 & Jack Schematic Diagram

1-8-9

1-8-10

HE4F0SCM4

Main 5/6 Schematic Diagram

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

1-8-11

1-8-12

HE4F0SCM5

Main 6/6 Schematic Diagram

1-8-13 1-8-14

HE4F0SCM6

AFV Schematic Diagram

1-8-15

1-8-16

HE4F0SCAFV

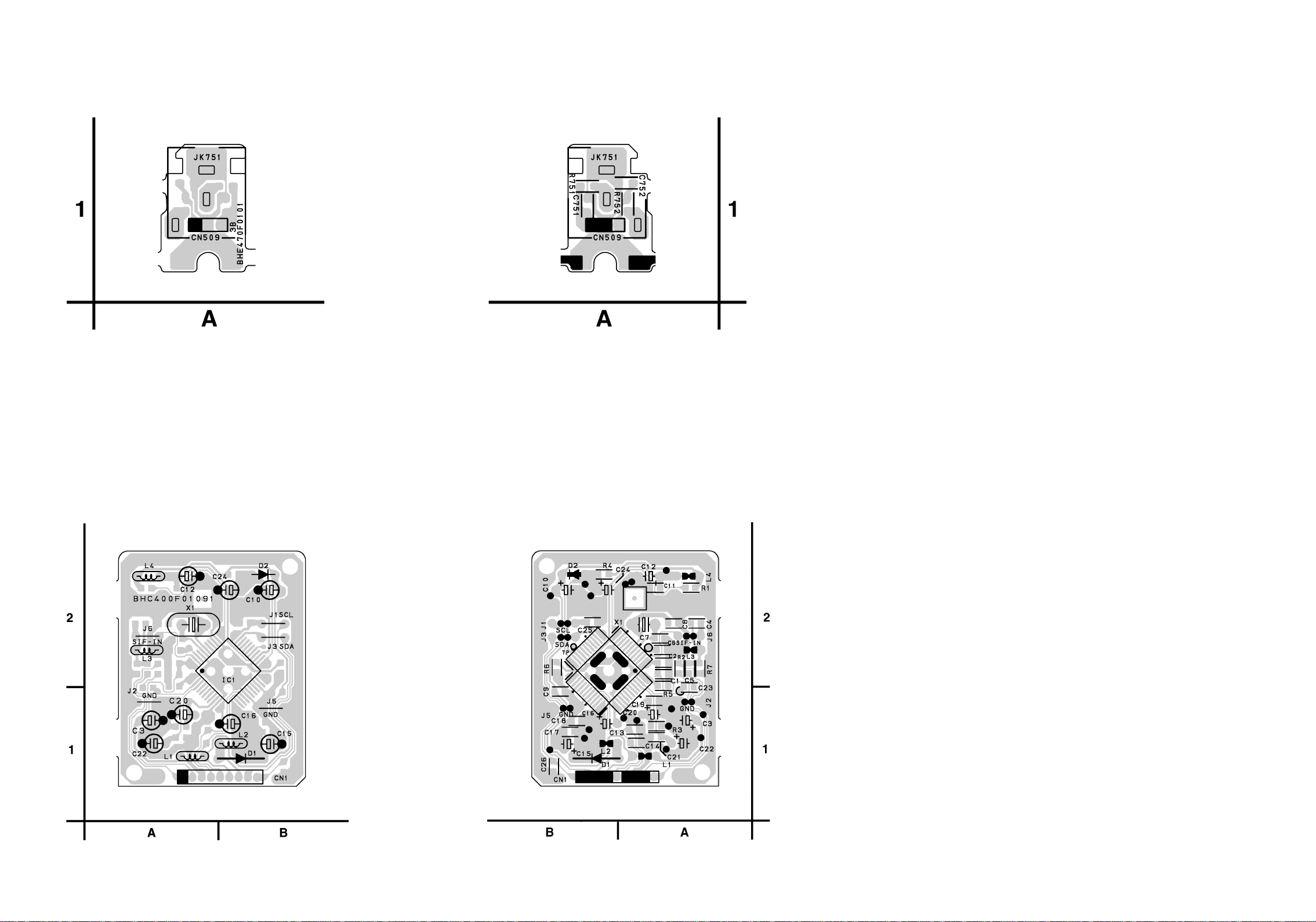

Main CBA Top View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Sensor CBA Top View

BHB300F01014-A

BHB300F01014-B

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF1

J23 V-OUT

VR501

SW-P

WF2

TP502

RF-SW

1-8-17

1-8-18

TP507

S-INH

TP501

CTL

WF3

TP301

C-PB

BHE470F01013-A

Main CBA Bottom View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

1-8-19

1-8-20

BHE470F01013-A

Jack CBA Top View

Jack CBA Bottom View

BHE470F01013-C

1-8-21

1-8-22

Sub Jack CBA Top View

Sub Jack CBA Bottom View

BHE470F01013-B

AFV CBA Top View

AFV CBA Bottom View

BHC400F01091

1-8-23 1-8-24

WAVEFORMS

WF2

UPPER

(TP301 of Main CBA)

WF1

LOWER

(TP502 of Main CBA)

C-PB 10mV x 10

RF-SW 0.5V x 10

5msec

WF3

UPPER

(J23 of Main CBA)

WF1

LOWER

(TP502 of Main CBA)

V-OUT 0.1V x 10

RF-SW 0.5V x 10

50usec

WF3

(J23 of Main CBA)

V-OUT E-E 10usec 50mV x 10

1-9-1 U27WFPAL

WIRING DIAGRAM

FRONT

AC CORD

(DECK ASSEMBLY)

AC HEAD ASSEMBLY

AUDIO

ERASE HEAD

AUDIO HEAD

CONTROL HEAD

FE HEAD

FULL ERASE HEAD

CYLINDER ASSEMBLY

PG SENSOR

DRUM MOTOR

VIDEO (R)1 HEAD

MOTOR

CL287

AE-H

AE-H/FE-H

A-COM

A-PB/REC

CTL(+)

CTL(-)

VIDEOINAUDIO

IN (R)

SENSOR CBA

(BHB300F01014)

SENSOR CBA

(BHB300F01014)

CL504 1 2 3 4 5 6

CAPSTAN MOTOR

MLOADING

CAPSTAN MOTOR

AE-H

AE-H/FE-H2

A-COM3

A-PB/REC4

CTL(+)5

CTL(-)

CL501

FE-H2

FE-H GND1

CL502

1 AL+12V/+20.5V

P-ON+5V

2 3 C-FG 4

C-F/R

C-CONT5

GND

LM-FWD/REV

D-CONT8

D-PG9

GND

AL+12V(2)

P-ON+15V12

AUDIO IN (L)

MAIN CBA

(BHE470F01013A)

ANT-IN ANT-OUT

CN701 CN1

1 NU

SIF

2 3 GND 4

TU-AUDIO(R) TU-AUDIO(L)5 P-ON+5V

P-ON+5V

IIC-BUS SCL8 IIC-BUS SDA9

CL151 CL101

1 V-OUT1

GND

2 3 V-IN1 4

AL+12V(1) NU5 A-OUT1(R)

JK1-8P-OUT

A-IN1(L)8 NU9 A-IN1(R)

GND

A-OUT1(L)12

CL152 CL102

1 V-OUT2

GND

2 3 V-IN2 4

NU GND5 A-OUT2(R)

SC2-IN

A-IN2(L)8 A-IN2(R)9 GND

A-OUT2(L)

1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8

9 10 11 12

9 10 11

AFV CBA (BHC400F01091)

JACK CBA (BHE470F01013C)

JK101,102

VIDEO (L)1 HEAD

VIDEO (L)2 HEAD

VIDEO (R)2 HEAD

Hi-Fi AUDIO (L) HEAD

Hi-Fi AUDIO (R) HEAD

CL253 V(R)-11 V-COM2

3 V(L)-1

V(L)-2

V-COM5 V(R)-26 Hi-Fi-A(L)7 Hi-Fi-COM8 Hi-Fi-A(R)9

A-OUT1(R) A-OUT1(L) GND

CL509 1

SUB JACK CBA

(BHE470F01013B)

HE4F0WI1-10-1 1-10-2

AUDIO OUT(R)

AUDIO OUT(L)

IC PIN FUNCTION DESCRIPTIONS

IC501( SERVO / SYSTEM CONTROL IC )

“H” ≥ 4.5V, “L” ≤ 1.0V

IN/

No.

OUT

1IN

2IN

3IN

4IN

5IN

6IN

7IN

8IN

9IN

10 OUT

11 -

12 13 OUT

14 IN

15 OUT

OUT

18 OUT

19 OUT

21 22 23 -

Signal

Name

SC2-IN

PG-DELAY

POW-SAF

END-S

AFC

V-ENV

KEY-1

KEY-2

LD-SW

ST-S N.U. Not Used

N.U. Not Used D-V- SYNC REMOCON-INRemote

C-ROTA

H-A-SW

H-A-COMP

RF-SW

HiFi-H-SW N.U. Not Used DAVN-L N.U. Not Used

N.U. Not Used N.U. Not Used

Function

Input Signal from Pin 8 of SCART2

Video Head Switching Pulse Signal Adjusted Voltage

P-ON Power Detection Input Signal

Tape End Position Detect Signal

Automatic Frequency Control Signal

Video Envelope Comparator Signal

Key Scan Input Signal 1

Key Scan Input Signal 2

Deck Mode Positio n Detector Signal

Tape Start Position Detector Signal

Dummy V-sync Output

Control Sensor Color Phase Rotary

Changeover SIgnal Video Head Amp

Switching Pulse Head Amp

Comparator Signal Video Head

Switching Pulse HiFi Audio Head

Switching Pulse

VPS/PDC Data Receive = “L”

Active

Level

A/D

H/Hi-

H/L

IN/

No.

OUT

24 25 26 -

27 OUT

28 OUT 29 -

30 -

31 IN

32 IN

33 OUT

34 IN 35 IN

36 OUT 37 38 IN

z L

39 OUT 40 41 42 43 IN

44 IN

45 OUT 46 -

47 48 IN 49 50 IN 51 52 OUT 53 -

Signal

Name

N.U. Not Used N.U. Not Used N.U. Not Used

RGBTHROUGH

LINE MUTE N.U. Not Used

N.U. Not Used

REC-SAF-SW

A-MODE

D-REC-H

RESET XC-IN Sub Clock

XC-OUT Sub Clock Vcc Vcc X-IN Main Clock Input X-OUT Main Clock Input Vss Vss(GND) N.U. Not Used N.U. Not Used CLKSEL Clock Select (GND)

OSC

OUT

OSC NUB Not Used

LP LP FSC-IN

[4.43MHz] OSDVss OSDVss

OSD-V-IN N.U. Not Used OSD-V-OUT OSDVcc OSDVcc

Function

SCART 2 RGB Through Control Signal

Audio Mute Control Signal

Recording Safety SW Detect (With Record tab="L" /With out Record tab="H")

Hi-Fi T ape Detection Signal

Delayed Record Signal

System Reset Signal (Reset=”L”)

Clock Input for letter size

Clock Output for letter size

4.43MHz Clock Input

OSD Video Signal Input

OSD Video Signal Output

Active

Level

H/L

1-11-1 HE4F0PIN

IN/

No.

OUT

54 55 -

56 57 -

58 IN

59 OUT

60 61 62 63 64 65 -

66 OUT

67 IN

68 OUT

69 OUT

70 OUT

71 OUT

IN/

OUT 73 OUT 74 75 -

76 OUT

77 OUT

78 OUT

79 IN

80 IN

81 OUT 82 -

Signal

Name

HLF

Function

LPF Connected

Terminal (Slicer) N.U. Not Used N.U. Not Used N.U. Not Used

C-SYNC

Composite

Synchronized Pulse

SCART 1 8Pin 8POUT-1

Output Control

Signal N.U. Not Used N.U. Not Used N.U. Not Used N.U. Not Used N.U. Not Used N.U. Not Used C-POWER-SWCapstan Power

Switching Signal P-ON-H

DRV-DATA

DRV-STB

DRV-CLK

IIC BUS- SCL

IIC BUS- SDA

Power On Signal at

High

LED Clock Driver IC

Control Data

LED Clock Driver IC

Chip Select Signal

LED Clock Driver IC

Control Clock

C BUS Control

Clock

C BUS Control

Data P-OFF-H Power Off at High N.U. Not Used N.U. Not Used

C-CONT

D-CONT

Capstan Motor

Control Signal

Drum Motor Control

Signal

Capstan Motor C-F/R

FWD/REV Control

Signal (FWD=”L”/

REV=”H”) S-REEL

T-REEL

LM-FWD/REV

Supply Reel

Rotation Signal

Take Up Reel

Rotation Signal

Loading Motor

Control Signal N.U. Not Used

Active

Level

PUL

H/L

PWM

H/L

PUL

H/L/

Hi-z

IN/

OUT

No.

83 OUT

Signal

Name

A-MUTE-H

Audio Mute Control Signal (Mute = “H”)

CTL Frequency

OUT

FF/REW-L

Characteristics Switching Signal (FF/REW=”L”)

85 -

N.U. Not Used

Power Voltage

86 IN

P-DOWN-L

Down Detector Signal

Capstan Motor

87 IN

C-FG

Rotation Detection

Pulse 88 89 -

N.U. Not Used N.U. Not Used

Drum Motor Phase/ 90 IN

D-PFG

Frequency

Generator 91 92 -

93 94 OUT

95 OUT

96 -

97 98 -

AMPVREF OUT

AMPVREF

V-Ref for CTL AMP

IN V-Ref for CTL AMP

P80/C P80/C Terminal CTL -

CTL +

AMPC

CTLAMPout

Playback/Record

Control Signal (-)

Playback/Record

Control Signal (+)

CTL AMP

Connected Terminal

To Monitor for CTL

AMP Output

AMPVcc AMPVcc

A/D Converter 99 -

AVcc

Power Input/

Standard

Voltage Input

100 IN

AGC

Tuner IF Output

Signal

Notes:

Abbreviation for Active Level:

PWM -----Pulse Wide Modulation A/D--------Analog - Digital Converter

Function

Active

Level

PUL

H/L

PUL

A/D

1-11-2 HE4F0PIN

LEAD IDENTIFICATIONS

E C B

CAT24WC04JI BR24C04F-W

BN1L4M-T BN1F4M-T BA1F4M-T KTA1266(GR) KTC3199(Y,GR,BL) 2SC2785(J.H.F.K) KRA103M KRC103M KRA104M KTA1281(Y)

PT-6958-FN-TP

E C B

2SC1815-BL(TPE2) 2SC1815-Y(TPE2) 2SC1815-GR(TPE2) 2SC3266-Y (TPE2) 2SC2120-Y(TPE2) KTC3203(Y) 2SC1815-BL(TPE2) 2SA1020(Y) KTC3205(Y) 2SA1015-GR(TPE2)

LC74793JM-TRM

LTV-817(B.C)-F EL817(A,B,C)

PT204-6B-12 MID-32A22

MSP3407G-QG-B8

RN1511(TE85R) FMG4A T148

C1 C2

KTA1504GR-RTK KTA1504Y-RTK KTC3875Y-RTK KRC103SRTK

MSP3407G-QG-B8-V3

B1 E B2

LA72648M

2SK3566

100

G D S

LA71750AM-MTB QSZAB0RMB151

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Referenc S: Source G: Gate D: Drain

1-12-1 HE450LE

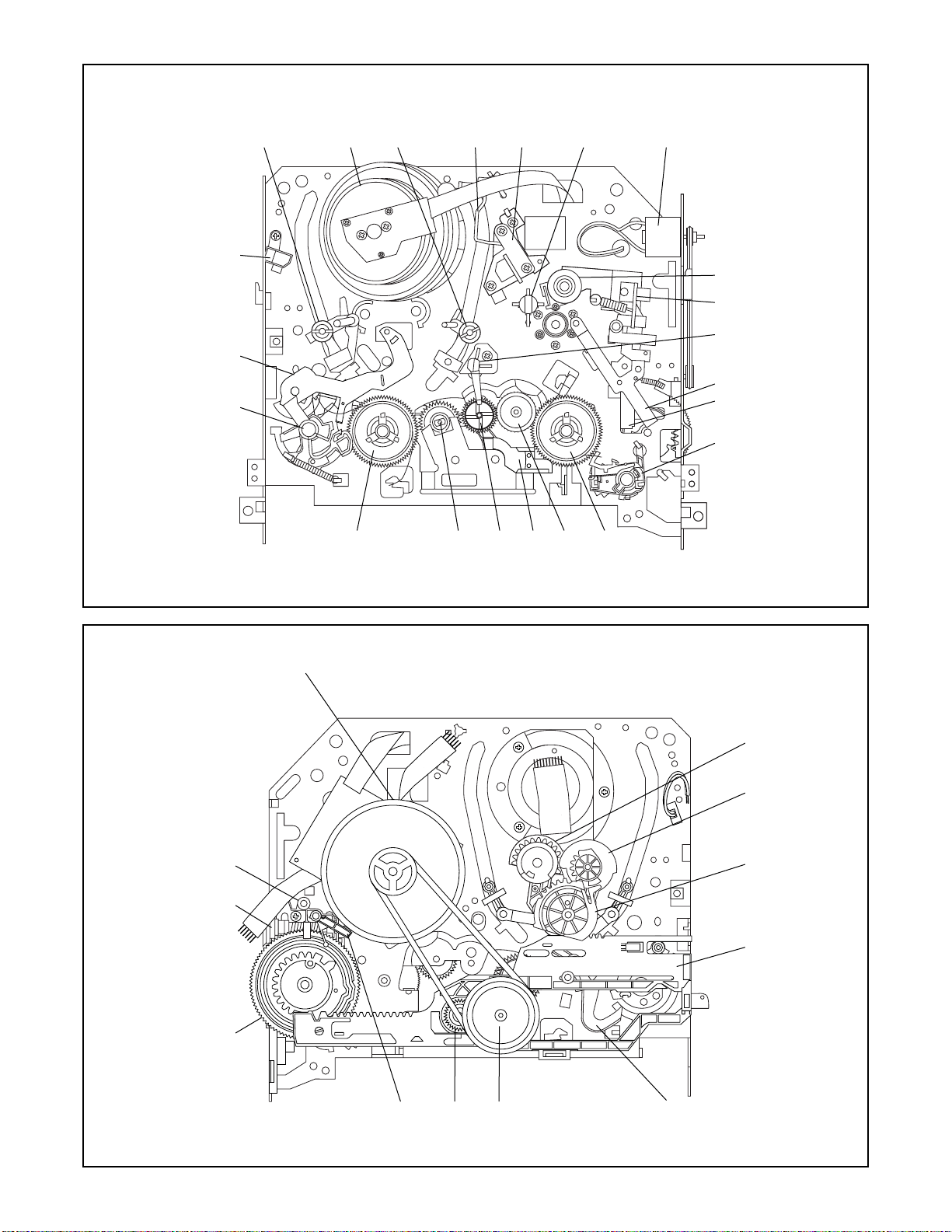

DECK MECHANISM

SECTION

VIDEO CASSETTE RECORDER

27A-850

Sec. 2: Deck Mechanism Section

I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism

TABLE OF CONTENTS

Standard Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1-1

Service Fixtures and Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2-1

Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1

Disassembly / Assembly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4-1

Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-8

STANDARD MAINTENANCE

Service Schedule of Components

H: Hours : Check I: Change

Deck Periodic Service Schedule

Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H

B2 Cylinder Assembly

B3 B8

B587 Tension Lever Assembly

B31

B573,B574

B37 Capstan Motor B52

*B73

B86 F Brake Assembly (HI) II B133 B410 B414 M Brake (SP) Assembly (HI) II

Loading Motor Assembly Pulley Assembly

AC Head Assembly Reel S, Reel T

Cap Belt FE Head Assembly

Idler Assembly (HI) Pinch Arm Assembly

B416 B525

Notes:

1.Clean all parts for the tape tr ansport (Upp er Drum with Video Head / Pinch Roll er / Audio Control Head / Full Erase Head) using 90% lsopropyl Alcohol.

2.After cleaning the parts, do all DECK ADJUSTMENTS.

3.For the reference numbers listed above, refer to Deck Exploded Views. * B73 ------ Recording Model only

M Brake (TU) Assembly (HI) LDG Belt

2-1-1 U27MENHS

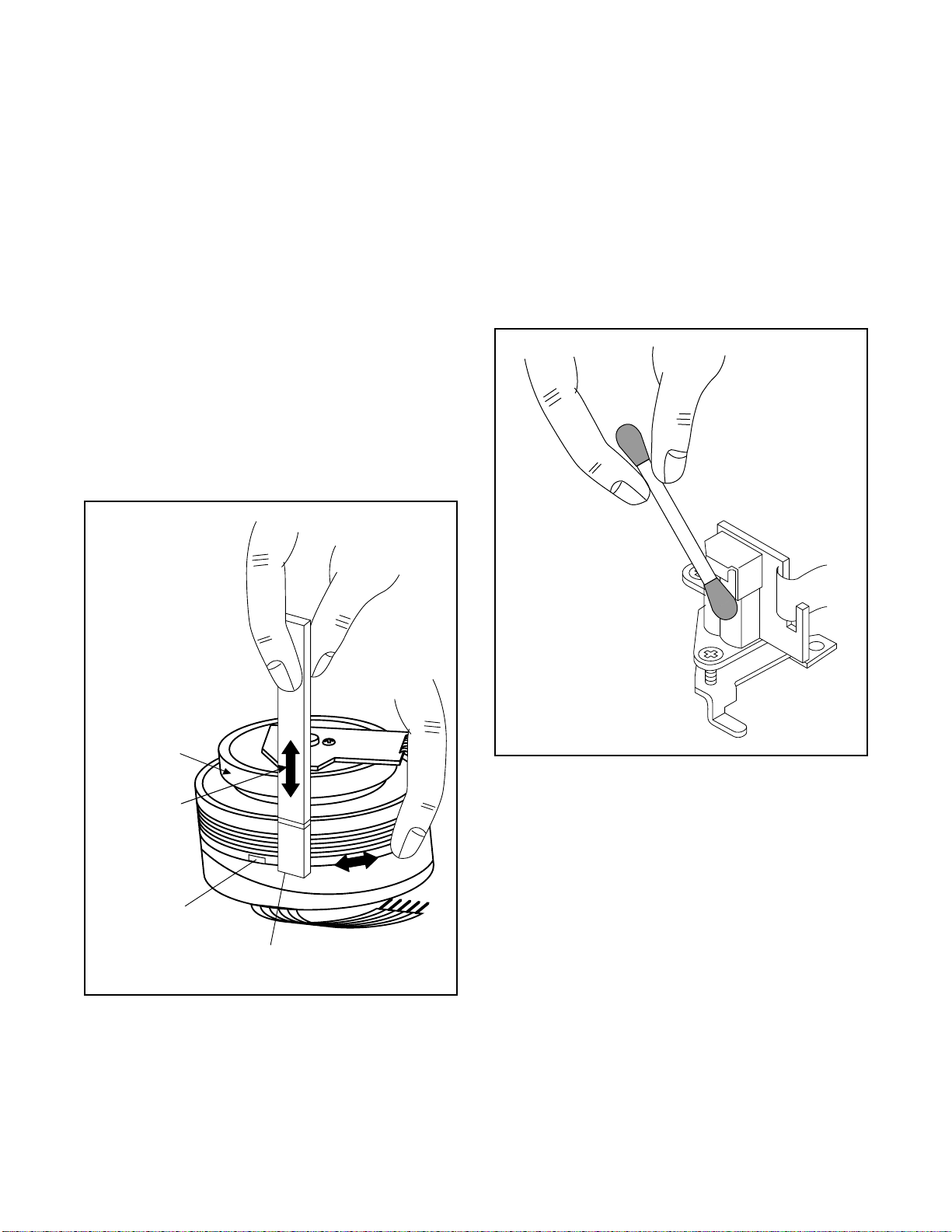

Cleaning

Cleaning of Video Head

Clean the head with a head cleanin g stick or chamois cloth.

Procedure

1.Remove the top cabinet.

2.Put on a glove (thin type) to avoid touching the upper and lower drum with your bare hand.

3.Put a few d rops of 90% Isopropyl alcohol o n the head cleaning stick or on the chamois cloth and, by slightly pressi ng it a gai ns t th e he ad tip , tur n the upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard material, but since it i s very thin, avoid clea ning it vertically.

2.Wait for the cleaned part to dry thorough ly before operating the unit.

3.Do not reuse a stained head cleaning stick or a stained chamois cloth.

Cleaning of Audio Control Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% is opropyl alcohol and clean the audio control head. Be careful not to damage the upper drum and other tape running parts.

Notes:

1.Avoid cleaning the audio control head vertically.

2.Wait for the cleaned part to dry thoroughly before operating the unit or damage may occur.

ACE Hea

Upper Cylinder

Do Not !

ideo Head

Cleaning Stick

2-1-2 U27MENHS

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-3

J-2

J-4

J-5

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape FL6A Head Adjustment of Audio Control Head J-1-2 Alignment Tape FL6N8

(1 speed only) FL6NS8 (2 speed only)

J-2 Guide Roller Adj.Screwdr i ve r Available

Locally

J-3 Mirror Available

Locally

J-4 Azimuth Adj.Screwdriver + Available

Locally

J-5 X Value Adj.Screwdriver - Available

Locally

2-2-1 U25PFIX

Azimuth and X Value Adjustment of Audio Control Head / Adjustment of Envelope Waveform

Guide Roller

Tape Transportation Check

A/C Head Height

X Value

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignme nt for the tape to correctly run starts on the next page. Refer to the information below on this page if a tape gets stuck , for example, in the mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Insert a cassette tape. Though the tape will not be automatically loaded, make sure that the cassette tape is all the way in at the inlet of the Cassette Holder. To confirm this, lightly push the cassette tape further in and see if the tape c omes bac k out, by a spring motion, just as much as you have pushed in.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 f or a minute or two to complete this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure t hat the Moving gui de preparations are in the Eject Position.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 until the Moving guide preparations come to the Eject Position. Stop turning when the preparations begin clicking or can not be moved further. However, the tape will be left wound around the cylinder.

5. Turn the LDG Belt in t he app ropriat e dir ection c ontinuously, and the cassette tape will be ejected. Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction shown in Fig. M1 . Rel eas e the lo ck in g tabs s hown in Fig. M1 and contin ue turning the LDG Belt un til the Cassette Holder comes to the tape-loaded position. Allow a minute or two to complete this task.

Top View

Moving guide T preparation (Eject Position)

Moving guide S preparation (Eject Position)

Push the tape to load it.

Push the locking tab gently to unloc when loading without a cassette.

UNLOAD /EJECT

LOAD

Side View

LDG Belt

Fig. M1

Bottom View

LDG Belt (B)

UNLOAD /EJECT

Cam Gear

Fig. M2

2-3-1 U27PMAPC

1.Tape Interchangeability Alignment

Note: To do these alignmen t proc edu re s, mak e sur e that the Tracking Control Circuit is set to the center position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope VHS Alignment Tape (FL6NS8) Guide Roller Adj. Screwdriver X-Value Adj. Screwdriver

Note: Before starting this Mechanical Alignment, do all Electrical Adjustment procedures.

lowchart of Alignment for tape traveling

Loading (Use a blank tape.)

Not good

Adjust the height of the Guide Rollers (Supply side and take-up side). (Use a blank tape.) (pg. 2-3-3)

Check to see that the tape is not creasing and that there is no slack on the supply and take-up side Guide Rollers. (Use a blank tape.)

Adjust the X Value for maximum envelope. (pg. 2-3-3) (Use Alignment Tape.)

Adjust the envelope. (pg. 2-3-4)

Check the envelope.

Adjust the Audio Section. (Azimuth Alignment) (pg. 2-3-4)

1-A

1-B

1-C

1-D

Not good

Do the final tape-traveling test to see that the tape runs normally in play mode without creasing or slacking.

Completion

1-A

Check the audio output.

Check the following:

1. X Value (pg. 2-3-3)

2. Envelope (pg. 2-3-4) OK

1-D

1-B, 1-C

Not good

2-3-2 U27PMAPC

Adjust the X value and envelope.

1-B, 1-C

1-A. Preliminary/Final Checking and

Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged. Note: Do not use an Alignment Tape for this proce-

dure. If the unit is not correctl y aligned, the tape may be damaged.

1. Playback a blank cassette tape and check to s ee that the tape runs without creasing at Guide Rollers [2] and [3], and at points A and B on the le ad surface. (Refer to Fig. M3 and M4.)

2. If creasing is apparent, align the height of the guide rollers by turning the to p of Guide Rollers [2] and [3] with a Guide Roller Adj. Screwdrive r. (Refer to Fig. M3 and M5.)

Guide Roller [2]

Take-up Guide Post [4]

Lead Surface of Cylinder

Correct

Guide Roller

Tape

Guide Roller [3]

Tape

Incorrect

ACE Head

Fig. M3

Fig. M4

3. Check to se e tha t the tape r uns wi thou t cr ea si ng a t Take-up Guide Post [4] or without snaking between Guide Roller [3] and AC Head. (Fig. M3 and M5)

4. If creasing or snaking is apparent, adjust the Tilt Adj. Screw of the AC Head. (Fig. M6)

Azimuth Adj. Screw

AC Head

X-Value Adj. Screwdriver

Tilt Adj. Screw

Fig. M6

1-B. X Value Alignment

Purpose:

To align the Horizontal Position of the Audio/Co ntrol/ Erase Head.

Symptom of Misalignment:

If the Horizontal Position of the Audio/Control/Erase Head is not proper ly a ligned , m ax imu m e nv el ope ca nnot be obtained at the Neutral position of the Tracking Control Circuit.

1. Connect the oscilloscope to TP301 (C-PB) and TP501 (CTL) on the Main CBA. Use TP502 (RFSW) as a trigger.

2. Playback the Gray Scale of the Alignment Tape (FL6NS8) and confirm that the PB FM signal is present.

3. Set the Tracking Control Circ uit to the center position by pressing CH UP button then “ PLAY ” button on the unit. (Refer to note on bottom of page 2-3-4.)

4. Use the X-Value Adj. Screwdriver so that the PB FM signal at TP301 (C-PB) is maximum. (Fig. M6)

5. Press CH UP button on the unit until the CTL waveform has shifted by approx. +2msec. Make sure that the envelope is simply attenuated (shrinks in height) during this process so that you will know the envelope has been at its peak.

Tape

Take-up Guide Post

Fig. M5

2-3-3 U27PMAPC

6. Press CH DOWN button on the unit until the CTL waveform has shifted from its origi nal position (not the position achie ved in step 5, b ut the position of CTL waveform in step 4) by approximately -2msec. Make sure that th e envelope is simply attenuated (shrinks in heigh t) once CTL waveform passes its original position and is fur ther bro ught in the minu s direction.

7. Set the Tracking Co ntrol Circuit to the ce nter posi tion by pressing CH UP button and then “ PLAY ” button.

1-C. Checking/Adjustment of Envelope

Waveform

Purpose:

To achieve a satisfactory picture and precise tracking.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the picture. The tracki ng will then lose precision and the playback picture w ill be distorted by any sligh t variation of the Tracking Control Circuit.

1. Connect the osci lloscope to TP301 (C-PB) on the Main CBA. Use TP502 (RF-SW) as a trigger.

2. Playback the Gray Scale on the Alignment Tape (FL6NS8). Set the Tracking Control Circuit to the center position by pressing CH UP b utton and then “ PLAY ” button on the unit. Adjust the height of Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3) watching the oscill oscope di splay so that the enve lope becomes as flat as possible. To do this adjustment, turn the top of the Guide Roller with the Guide Roller Adj. Screwdriver.

3. If the envelo pe is as shown in Fig. M7, ad just the height of Guide Ro ll er [2] (Re fer to Fig. M3) s o that the waveform looks like the one shown in Fig. M9.

4. If the envelo pe is as shown in Fig. M8, ad just the height of Guide Ro ll er [3] (Re fer to Fig. M3) s o that the waveform looks like the one shown in Fig. M9.

5. When Guide R ollers [2] and [3] (Refer to Fig.M3) are aligned properly, there is no envelope drop either at the beginning or end of track as shown in Fig. M9.

Note: Upon completion of the adjustment of Guide Rollers [2] and [3] (Refer to Fig. M3), check the X Value by pushin g the CH UP or DOWN buttons al ternately, to check the symmetry of the envelope. Check the number of pushe s to ensure cente r position. The number of pushes CH UP button to achieve 1/2 level of envelope should match the number of pushes CH DOWN button from center. If required, redo the “X Value Alignment.”

1-D. Azimuth Alignment of Audio/Con-

trol/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/ Control/Erase Head meets tape tracks proper ly.

Symptom of Misalignment:

If the position of the Audio/Control/Erase Head is not properly aligned, the Audio S/N Ratio or Frequency Response will be poor.

1. Connect the oscilloscope to the audio output jack on the rear side of the deck.

2. Playback the alignment tape (FL6NS8) and confirm that the audio signal output level is 6kHz.

3. Adjust Azimuth Adj. Screw so that the output level on the AC Voltmeter or the waveform on the oscilloscope is at maximum. (Fig. M6)

Dropping envelope level at the beginning of track.

Fig. M7

Dropping envelope level at the end of track.

Fig. M8

Envelope is adjusted properly. (No envelope drop)

Fig. M9

2-3-4 U27PMAPC

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1.) All the following proc edures, including those for adjustment and replacement of parts, should be done in Ejec t mode; see the positions of [44] and [45] in Fig.DM1 on page 2-4-3. When reassembling, follow the steps in reverse order.

STEP /LOC.

No.

[10] [2] Tape Guide Arm Assembly T DM1,DM8 *(P-2) [11] [10] C Door Opener T DM1,DM8 *(L-4) [12] [11] Pinch Arm (B) T DM1,DM8 *(P-3) [13] [12] Pinch Arm Assembly T DM1,DM8 [14] [14] FE Head Assembly T DM1,DM9 (S-5) [15] [15] Prism T DM1,DM9 (S-6) [16] [2] Slider Shaft T DM10 *(L-5) [17] [16] C Drive Lever (SP) T DM10 [18] [16] C Drive Lever (TU) T DM10 (S-7),*(P-4) [19] [19] Capstan Motor B DM2,DM11 3(S-8), Cap Belt [20]

[21] [20]

*[22]

[23] [22] [24] [22]

[25] [26]

[27] [28] [26] TR Gear C B DM2,DM13 (C-5)

[29] [28] [30] [29] [31] [31] [32] [26] Idler Assembly (HI) B DM1,DM14 *(L-9) [33] [26]

START-

ING

No.

[1] [1] Guide Holder A T DM3 2(S-1) [2] [1] Cassette Holder Assembly T DM4 [3] [2] Slider (SP) T DM5 *(L-1) [4] [2] Slider (TU) T DM5 *(L-2) [5] [4] Lock Lever T DM5 *(L-3),*(P-1) [6] [2] Cassette Plate T DM5 (S-1A) [7] [7] Cylinder Assembly T DM1,DM6 Desolder, 3(S-2)

[8] [8] Loading Motor Assembly T DM1,DM7 [9] [9] AC Head Assembly T DM1,DM7 (S-4)

[20]

[22] F Brak e As se mbly (HI ) B DM2,DM12 *(L-6)

[25]

[20],[25]

[22],[23],

[26]

Clutch Assembly (HI) B DM2,DM12 (C-1) Center Gear B DM12

Worm Holder B DM2,DM13 (S-9),*(L-7),*(L-8) Pulley Assembly (HI) B DM2,DM13 Mode Gear B DM2,DM13 (C-2) Mode Lever (HI) B DM2,DM13 (C-3)

Cam Gear (A) (HI) B DM2,DM13 (C-4)

TR Gear Spring B DM13 TR Gear A/B B DM13 FF Arm (HI) B DM1,DM13

BT Arm B DM2,DM14 *(P-5)

PART

Fig. No.

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

Desolder, LDG Belt, 2(S-3)

ADJUSTMENT

CONDITION

(+)Refer to Alignment Sec.Pg.2-4-8

2-4-1 U27HSPAL2DA

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

↓

(1)

START-

ING

No.

↓

(2)

PART

Loading Arm (SP) Assembly

Loading Arm (TU) Assembly

M Brake (TU) Assembly (HI)

M Brake (SP) Assembly (HI)

M Gear (HI) T DM1,DM15 (C-6)

Moving Guide S Preparation

Moving Guide T Preparation

↓

(3)

Fig. No.

B DM2,DM14

T DM1,DM15

T DM1,DM15 *(P-6)

T DM1,DM16

↓

(4)

↓

(5)

STEP /LOC.

No.

[34] [26]

[35] [34]

[36] [16],[26]

[37] [2],[26] [38] [37] Tension Lever Assembly T DM1,DM15

[39] [38] T Lever Holder T DM15 *(L-10) [40] [40] [41] [15],[40] Sensor Gear (HI) T DM1,D M15 (C-7)

[42] [36],[40] Reel T T DM1,DM15 [43] [38] Reel S T DM1,DM15

[44] [34],[38]

[45] [35] [46] [19] TG Post Assembly T DM1,DM16 *(L-11) [47] [27] Rack Assembly R DM17 [48] [47] F Door Opener R DM17

[49] [49] Cleaner Assembly T DM1,DM6 [50] [49] CL Post T DM6 *(L-12)

↓

(6)

ADJUSTMENT

CONDITION

(+)Refer to Alignment Sec.Pg.2-4-8

↓

(7)

(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as identification (location) No. of parts in the figures. (2): Indicates the part to start disassembling with in order to disassemble the part in column (1). (3):Name of the part (4): Location of the part: T=Top B=Bottom R=Right L=Left (5): Figure Number (6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2). (7): Adjustment Information for Installation

(+):Refer to Deck Exploded Views for lubrication.

* [ 22 ] F Brake Assembly (HI) is not used in 2 head model.

2-4-2 U27HSPAL2DA

T op View

[14]

[38]

[37]

[45][44] [46][9]

[7] [49] [8]

[32][43] [41] [40][31] [42]

[13] [11]

[15]

[10] [12]

[36]

Bottom View

[23]

[24]

[27]

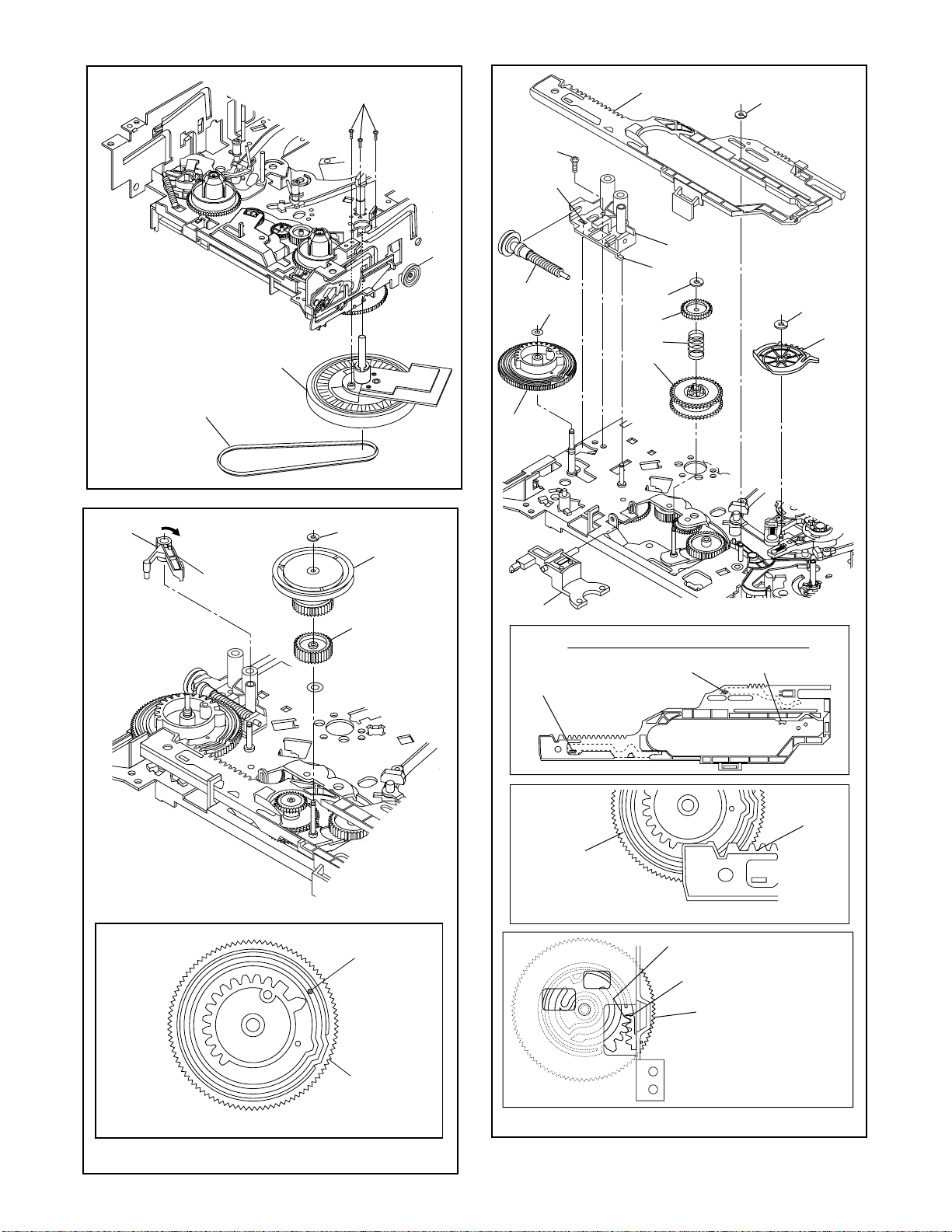

Fig. DM1

[19]

[35]

[34]

[25]

[26]

[33][20][28][22]

Fig. DM2

2-4-3 U27HSPAL2DA

(S-1)

[1]

(S-1)

Fig. DM3

(S-1A)

[7]

[3]

(L-1)

[6]

(L-2)

(P-1)

[49]

[4]

(L-3)

[5]

Fig. DM5

Pin D

Pin C

Slots B

First, while pushing the locking tab as shown in the right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A. Then, remove Pin C and Pin D on [2] from the slots B as shown.

[2]

Pin A

Locking tab

Pull up

Slide

Pin B

Slot A

View for A

Fig. DM4

Desolder from bottom

(S-2)

View for A

[50]

(L-12)

Lead with Red Stripe

Fig. DM6

2-4-4 U27HSPAL2DA

[9]

)

(S-4)

[8]

[14]

(S-5)

(S-6)

[15]

(S-3)

Adj. Screw

[13]

LDG Belt

Desolder from bottom

Lead with White Stripe

View for A

[8]

Fig. DM7

[11]

(L-4)

(P-3)

[12]

[10]

Fig. DM9

[17]

(L-5)

[16]

[18]

(P-4)

(P-2

Pin of [12]

View for A

Pin of [10]

Groove of [27]

[27]

(S-7)

Fig. DM10

When reassembling [10] and [12], confirm that pin of [10] and pin of [12] are in the groove of [27] as shown.

Fig. DM8

2-4-5 U27HSPAL2DA

Cap Belt

[19]

(S-8)

Fig. DM1

[24]

[27]

(S-9)

(L-8)

(C-4)

(C-5)

[28] [29]

[30]

[26]

(L-7)

(C-3)

[23]

(C-2)

[25]

[22]

turn

(L-6)

(C-1)

[21]

Pin on [22]

[20]

[31]

Position of Mode Lever when installed

Pin of [36]

Bottom View

[27]

Pin of [33]

Align [26] and [27] as shown.

First groove on [27]

Pin of [37]

First tooth on [44]

[26]

Position of pin on [22]

[27]

Fig. DM12

[27]

When reassembling [27], meet the first groove on [27] to the first tooth on

T op Vie w

[44] as shown.

Fig. DM13

2-4-6 U27HSPAL2DA

[33]

(P-5)

[32]

(L-9)

Refer to the Alignment Section, Page 2-4-8.

[35]

[34]

Fig. DM14

[44]

[45]

[46]

(L-11)

Fig. DM16

(P-6)

[37]

(C-7)

[41]

[39]

turn

(C-6)

[40]

turn

[43]

(L-10)

[42]

[38]

[36]

turn

[48]

[47]

Slide

Fig. DM17

Fig. DM15

2-4-7 U27HSPAL2DA

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the individual gears and levers that make up the tape loading/unloading mechanism. Since information about the state of the mechanism is provided to the System Control Circuit only through the Mode Switch, it is essential that the corr ect relatio nship bet ween ind ividual gears and levers be maintained.

All alignments are to be performed with the mechanism in Eject mode, in the sequenc e given. Each

procedure assumes th at all pr evious pro cedures hav e been completed.

IMPORTANT:

If any one of these al ignments is not p erformed properly, even if off by only one tooth, the unit will unload or stop and it ma y res ult in damag e to th e m echan ical or electrical parts.

Alignment points in Eject Position

T op View

Alignment 3

Alignment 1

Loading Arm (SP) and (TU) Assembly

Install Loading Arm ( SP) and (TU) Assembly so that their triangle marks point to each other as shown in Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other, install the Loading Arm (SP) Assembly so that the last tooth of the gear meets the most ins ide teeth of the Mode Gear. See Fig. AL2.

Alignment 1

Triangle Marks

Loading Arm (SP) Assembly

Last T ooth

Alignment 2

Loading Arm (TU) Assembly

Most inside teeth of Mode Gear

Mode Gear

Fig. AL2

Alignment 3

Cam Gear (A) (HI), Rack Assembly

Install the Rack As s emb ly s o that th e first tooth on the gear of the Rack Assembly meets the firs t groove on

Bottom View

Alignment 1

Alignment

Fig. AL1

the Cam Gear (A) (HI) as shown in Fig. AL3.

op View

First groove on the Cam Gear (A)

Cam Gear (A)

Alignment 3

First tooth

Gear on Rack Assemb

Fig. AL3

2-4-8 U27HSAPM

EXPLODED VIEWS AND

PARTS LIST SECTION

VIDEO CASSETTE RECORDER

27A-850

Sec. 3: Exploded views and Parts List Section

I Exploded views I Parts List

TABLE OF CONTENTS

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-1

Mechanical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3-1

Deck Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4-1

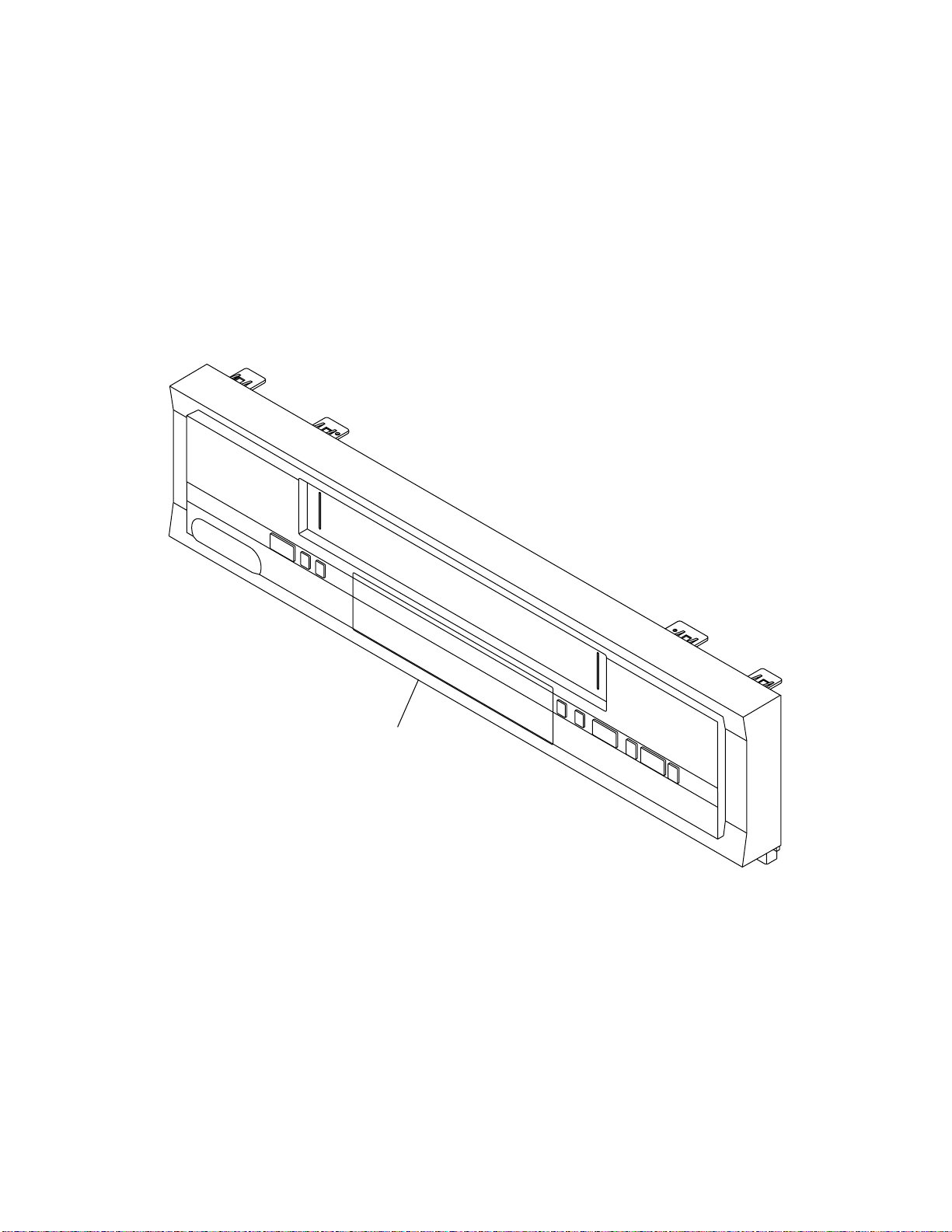

Front Panel

EXPLODED VIEWS

A1X

3-1-1 HE450FEX

Cabinet

2L011

JACK CBA

2L022

2B9

2L041

2B9

2L022

2L011

2L012

2L011

2B18

2L021

2L011

2L021

2L042

2L021

2B5

2L021

2L051

SUB JACK CBA

AFV CBA

MAIN CBA

2L041

SENSOR CBA

2B46

2B8

2L031

2B7

2L041

2L099

2L02

1B1

A10

3-1-2 HE450CEX

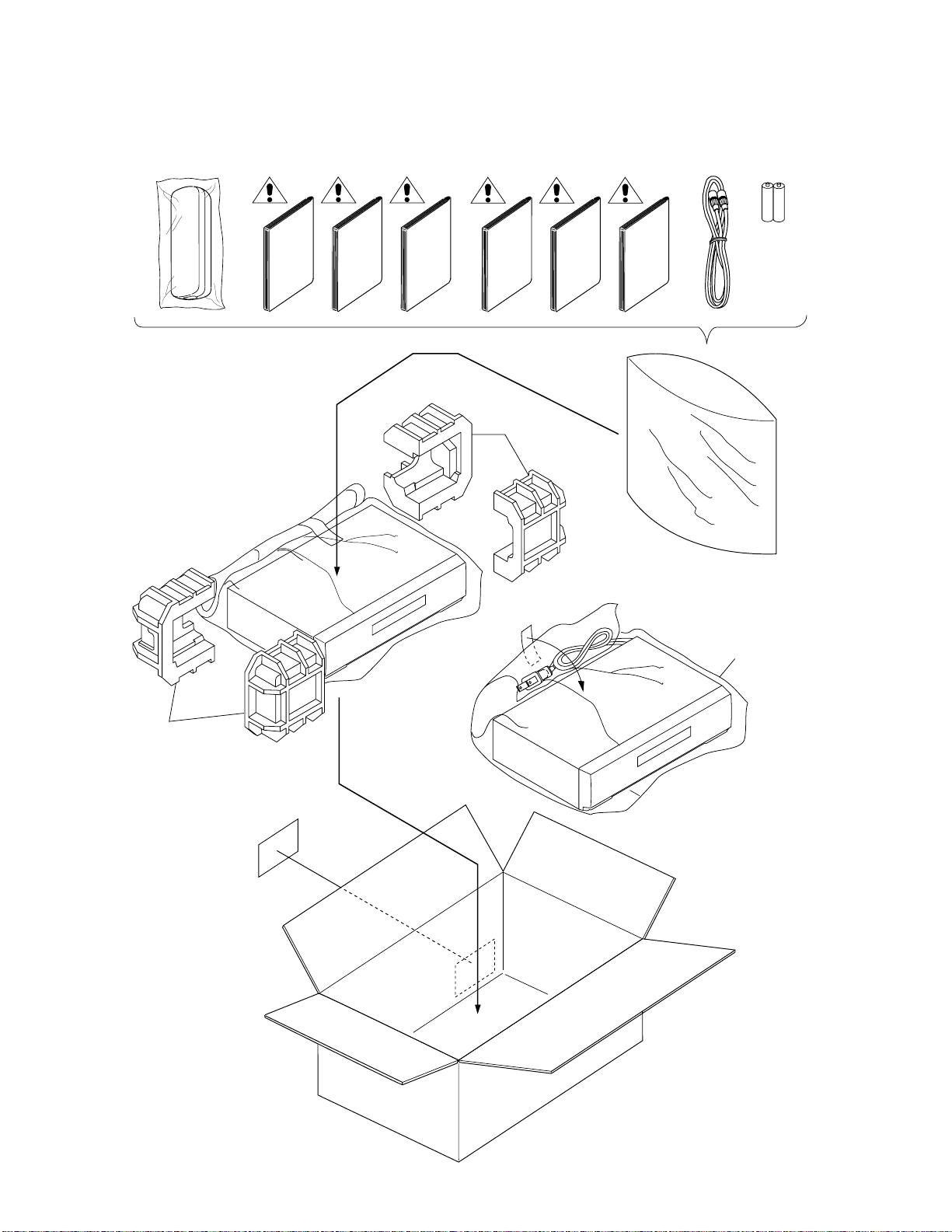

Packing

Some Ref. Numbers are not in sequence.

X20A

X20B

X20C

X20D

X20E

X20F

Unit

A14

3-1-3 HE4F0PEX

DECK EXPLODED VIEWS

Deck Mechanism View 1

L1191

B73

B10

L1053

B411

B567

L1467

B494

Mark Description

Floil G-684G or Multemp MH-D SLIDUS OIL #150

B35

B553

(Blue grease)

B12

B11

B571

L1450

B492

B74

L1051

B37

B410

L1450

B121

Chassis Assembly Top View (Lubricating Point)

B501

L1466

B126

B86

Some Ref. Numbers are not in sequence.

Chassis Assembly Bottom View (Lubricating Point)

3-1-4 U27HSPA2DEX

Deck Mechanism View 2

B487

B587

B416

B521

B591

Mark Description

Floil G-684G or Multemp MH-D SLIDUS OIL #150 SANKOUL FG84M

(Yellow grease)

(Blue grease)

B508

B414

B572

B565

B499

B417

B568

B573

B585

B574

B518 B564

B584

B590

B148

B592

B31

B522

L1151

L1406

B558

B557

B525

B578

B579

B582

B580

B583

B579

View for A

Some Ref. Numbers are not in sequence.

B581

B559

B516

B133

B52

B551

B507

B488

B491

B513

Bottom Side (Grease point)

3-1-5 U27HSPA2DEX

Deck Mechanism View 3

L1321

B355

L1341

B347

B482

Mark Description

Floil G-684G or Multemp MH-D SLIDUS OIL #150

L1321

B354

B483

B425

(Blue grease)

B562

B563

B300

B313

B529

B360

B359

B361

B555

Some Ref. Numbers are not in sequence.

B303

B514

3-1-6 U27HSPA2DEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety. Before replacing any of these compone nts, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assign ed part numbers (---------) are not available.

Ref. No. Description Part No.

A1X FRONT ASSEMBLY HE450ED 0VM204197 A2 CASE, TOP(AN THRACIT E) HE240E D 0VM 101267 A3 CHASSIS(U27F-GMBH) HE240ED 0VM000177 A4 JACK BOARD(U27 FTZ) HE480ED

A5 JACK BOARD(2-21P) HE470ED

A7 PANEL, BOTTOM(RESET) HE240ED 0VM305896 A10! LABEL, RATING HE4F0ED ---------A14 LABEL, SERIAL NO. HE240ED or ----------

1B1 DECK ASSEMBLY CZD012/VM17E0 N17E0FL 2B5 SHEILD, CYLINDER HC460ED 0VM305182 2B7 HEAD SHIELD ASSEMBLY HE470ED

2B8 BUSH, LED(F) H3700UD

2B9 CUSHION HC460ED 0VM413251 2B18 FIBER, T OP CASE HC460ED 0VM412906 2B46 ROHM HOLDER H7770JD

2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ GBCP3100 2L012 SCREW, P-TIGHT 3X10 BIND HEAD+ GBCP3100 2L021 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100 2L022 SCREW, P-TIGHT M3X10 WASHER HEAD+

2L031 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060 2L041 P-TIGHT SCREW 3X8 BIND + GBMP3080 2L042 P-TIGHT SCREW 3X8 BIND + GBMP3080 2L051 SCREW, S-TIGHT M3X5 BIND HEAD+ GBMS3050 2L099 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080

S1 GIFT BOX CARTON HE4F0ED 0VM306320 S2 STYROFOAM HE47 0ED 0VM20 3850 S3 UNIT, BAG V4010PA 0VM4064 53B

X1 REMOTE CONTROL UNIT 364/CRC005 or N9473ED

X2 DRY BATTERY R6P/2 S or XB0M451T0001

X3 RF CORD PAL 1.2M or WPZ0122LG001

X4 ACCESSORY BAG K8092BA 0VM40 4632 X20A! OWNER'S MANUAL(DANISH) HE4F0ED 0VMN03514 X20B! OWNER'S MANUAL(SWEDISH) HE4F0ED 0VMN03515 X20C! OWNER'S MANUAL(FINNISH) HE4F0ED 0VMN03516 X20D! OWNER'S MANUAL(NORWEGIAN)HE4F0ED 0VMN03517

(See Electrical Parts List)

LABEL, BAR CODE HE4F0ED ----------

(See Electrical Parts List)

PACKING

ACCESSORIES

REMOTE CONTROL UNIT 364/CRC007 NA664ED

DRY BATTER Y ES-GR6M-C XB0M571GLP01

RF CABLE CC1001020012010 WPZ0122LW001

Ref. No. Description Part No.

X20E! OWNER'S MANUAL(GERMAN) HE4F0ED 0VMN03632 X20F! OWNER'S MANUAL(ENGLISH) HE4F0ED 0VMN03633

20030425 3-2-1 HE4F0CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are n ot assigned part number s (---------)

are not available.

2. Tolerance of Capacitors and Resistors are noted

with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MCV CBA

Ref. No. Description Part No.

MCV CBA 0 VSA14166 Consists of the following Main CBA(MCV-A) -----------SUB JACK CBA(MCV-B) -----------JACK CBA(MCV-C) -----------SENSOR CBA 0VSA13549

MAIN CBA

Ref. No. Description Part No.

Main CBA ( MCV-A) ----------Consists of the following

CAPACITORS

C002! METALLIZED FILM CAP. 0.068µF/275V K or CT2E683HJE06 ! METALLIZED FILM CAP . 0.068µF/250V K CT2E683DC011 C003! SAFETY CAP . 2200pF/250V or CCN2EMP0E222 ! SAFETY CAP. 2200pF /250V CA2E222MR049

C004 ELECTROL YTIC CAP. 33µF/400V M(L•Z) CA2H330NC010 C005 CERAMIC CAP . B K 0.01µF/500V CCD2JKP0B103 C006 CERAMIC CAP . SL K 56pF/1KV or CCD3AKPSL560

CERAMIC CAP . SL J 56pF/1KV CCD3AJPSL560 C007 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102 C008 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562 C010 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J CA1J223MS0 29 C011 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVS L10 0 C012 ELECTROL YTIC CAP. 10µF/50V M H7 CE1JMAV SL10 0 C014 ELECTROL YTIC CAP. 470µF/35V M or CE1GMASDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMASTL471 C017 ELECTROL YTIC CAP. 470µF/16V M or CE1CMA SDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471 C018 ELECTROL YTIC CAP. 100µF/16V M or CE1CMA SDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C020 ELECTROL YTIC CAP. 1000µF/16V M CE1CMZPTL102 C021 ELECTROL YTIC CAP. 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471 C025 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562

Ref. No. D e scr ip tion Part No.

C026 ELECTROL YTIC CAP. 47 µF/16V M H7 CE1CMAVSL470 C053 ELECTRIC DOUBLE LA YER CAP0.047F/5.5V Z orCA0J473NE0 03

ELECTRIC DOUBLE LAYER CAP . 0.047F/5.5V Z CA0J473MS014

C056 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473

C057 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C060 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C061 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C157 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C158 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102 C251 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C252 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102 C253 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C254 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C302 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223 C303 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C304 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C305 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224

CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224 C307 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473 C308 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223 C309 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C310 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473 C312 CHIP CERAMIC CAP . B K 8200pF/50V CHD1JK30B822 C313 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C314 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C315 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C316 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C317 ELECTROL YTIC CAP. 47 µF/6.3V M H7 CE0KMAVSL470 C318 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C319 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C320 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C321 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C322 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C323 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C324 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJ3CH680

20030425 3-3-1 HE4F0EL

Ref. No. Description Part No.

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680

C325 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104

C326 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680 C327 ELECTROL YTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47 C328 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C329 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680 C330 CERAMIC CAP .(AX) F Z 0.1µF/50V CCA1JZTFZ104 C332 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C333 ELECTROL YTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47 C334 ELECTROL YTIC CAP. 4.7µF/25V M NP H7 CP1EMAVSB4R7 C335 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVS L10 0 C336 CHIP CERAMIC CAP . CH J 1000pF/50V or CHD1JJ3CH102

CHIP CERAMIC CAP. CH J 1000pF/25V or CHD1EJ3CH102

CHIP CERAMIC CAP. CG J 1000pF/50V CHD1JJ3CG102 C337 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C338 ELECTROL YTIC CAP. 100µF/6.3V H7 CE0KMAVSL101 C339 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C340 CHIP CERAMIC CAP . CH J 120pF/50V or CHD1JJ3CH121

CHIP CERAMIC CAP. CG J 120pF/50V CHD1JJ3CG121 C341 CHIP CERAMIC CAP . CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221 C342 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C343 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C345 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680 C346 CHIP CERAMIC CAP . CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680 C347 CHIP CERAMIC CAP . CH D 10pF/50V or CHD1JD3CH100

CHIP CERAMIC CAP. CG D 10pF/50V CHD1JD3CG100 C351 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C352 ELECTROL YTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C401 ELECTROL YTIC CAP. 47µF/6.3V M H7 CE0KMA VSL4 70 C402 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMASSL221 C403 CERAMIC CAP . B K 470pF/100V CCD2AKS0B471 C404 FILM CAP.(P) 0.018µF/100V J or CMA2AJP00183

FILM CAP.(P) 0.018µF/50V J CMA1JJP00183 C411 CHIP CERAMIC CAP . CH J 820pF/50V or CHD1JJ3CH821

CHIP CERAMIC CAP . CH J 820pF/25V or CHD1EJ3CH821

CHIP CERAMIC CAP. CG J 820pF/50V CHD1JJ3CG821 C412 CHIP CERAMIC CAP . B K 1800pF/50V CHD1JK30B182 C414 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C415 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVS L10 0 C416 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C417 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C418 CHIP CERAMIC CAP . CH J 33pF/50V or CHD1JJ3CH330

CHIP CERAMIC CAP. CG J 33pF/50V CHD1JJ3CG330 C419 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472

Ref. No. D e scr ip tion Part No.

C421 ELECTROL YTIC CAP. 33 µF/6.3V M H7 CE0KMAVSL330 C422 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C424 ELECTROL YTIC CAP. 22 µF/6.3V M H7 CE0KMAVSL220 C425 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C428 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221 C430 ELECTROL YTIC CAP. 47 µF/6.3V M H7 CE0KMAVSL470 C431 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C451 ELECTROL YTIC CAP. 47 µF/16V M H7 CE1CMAVSL470 C452 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C453 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C454 ELECTROL YTIC CAP. 22 µF/10V M H7 CE1AMAVSL220 C455 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C456 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C457 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C458 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C459 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C460 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472 C461 ELECTROL YTIC CAP. 22 µF/10V M H7 CE1AMAVSL220 C462 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C463 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C464 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C465 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C466 ELECTROL YTIC CAP. 22 0µF/6.3V M H7 CE0KMAVSL221 C467 ELECTROL YTIC CAP. 22 µF/10V M H7 CE1AMAVSL220 C468 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472 C469 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C470 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C471 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C472 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C473 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C474 ELECTROL YTIC CAP. 22 µF/6.3V M H7 CE0KMAVSL220 C475 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C476 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C477 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C478 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C479 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C480 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C481 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C482 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7 C483 ELECTROL YTIC CAP. 4. 7µF/25V M H7 CE1EMAVSL4R7

20030425 3-3-2 HE4F0EL

Ref. No. Description Part No.

C484 ELECTROL YTIC CAP. 10µF/16V M H7 CE1CMAVS L10 0 C485 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104

C486 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C489 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C501 ELECTROL YTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221 C502 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C506 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101 C508 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C510 ELECTROL YTIC CAP. 22µF/10V M H7 CE1AMAVSL 220 C511 ELECTROL YTIC CAP. 100µF/6.3V H7 CE0KMAVSL101 C512 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C513 CHIP CERAMIC CAP . CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220 C514 CHIP CERAMIC CAP . CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220 C515 CHIP CERAMIC CAP . CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180 C516 CHIP CERAMIC CAP . CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180 C517 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472 C518 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473 C519 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C520 CHIP CERAMIC CAP . CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP. CG J 100pF/50V CHD1JJ3CG101 C521 CHIP CERAMIC CAP . CH J 560pF/50V or CHD1JJ3CH561

CHIP CERAMIC CAP. CG J 560pF/50V CHD1JJ3CG561 C522 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220 C523 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102 C524 CHIP CERAMIC CAP . CH J 330pF/50V or CHD1JJ3CH331

CHIP CERAMIC CAP. CG J 330pF/50V CHD1JJ3CG331 C526 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472 C527 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220 C529 CERAMIC CAP .(AX) Y M 0.01µF/16V CCA1CMT0Y103 C530 CERAMIC CAP .(AX) F Z 0.022µF/25V CCA1EZTFZ223 C531 CERAMIC CAP .(AX) Y M 0.01µF/16V CCA1CMT0Y103 C532 ELECTROL YTIC CAP. 22µF/6.3V M H7 CE0KMASSL220 C533 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C535 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C538 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223 C540 ELECTROL YTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471 C561 CHIP CERAMIC CAP . B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP . B K 0.022µF/25V CHD1EK30B223 C562 ELECTROL YTIC CAP. 330µF/6.3V M H7 CE0KMASSL331 C563 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP . FZ Z 0 .1µF/50V CHD1JZ3FZ104 C564 CHIP CERAMIC CAP . CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP. CG J 100pF/50V CHD1JJ3CG101

Ref. No. D e scr ip tion Part No.

C701 CHIP CERAMIC CAP . B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP . B K 0.047µF/25V CHD1EK30B473

C702 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C703 ELECTROL YTIC CAP. 10 µF/16V M H7 CE1CMAVSL100 C704 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C706 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102 C707 ELECTROL YTIC CAP. 10 0µF/6.3V H7 CE0KMAVSL101 C708 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C716 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224

CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224 C717 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224

CHIP CERAMIC CAP. FZ Z 0.22µF/25V CHD1EZ3FZ224 C756 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C757 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C851 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220 C852 CHIP CERAMIC CAP. CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220 C853 CHIP CERAMIC CAP . B K 4700pF/50V CHD1JK30B472 C854 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103 C855 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C856 CHIP CERAMIC CAP. CH J 180pF/50V or CHD1JJ3CH181

CHIP CERAMIC CAP. CG J 180pF/50V CHD1JJ3CG181 C859 ELECTROL YTIC CAP. 47 µF/6.3V M H7 CE0KMAVSL470 C862 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JK30B103

CONNECTOR

CN701 AFV PCB ASSEMBLY CP2500/C461 HC461AFV

DIODES

D001 RECTIFIER DIODE 1N4005 NDQZ001N4005 D002 RECTIFIER DIODE 1N4005 NDQZ001N4005 D003 RECTIFIER DIODE 1N4005 NDQZ001N4005 D004 RECTIFIER DIODE 1N4005 NDQZ001N4005 D005 RECTIFIER DIODE BA159 or NDQZ000BA159

RECTIFIER DIODE ERA22-10 QDPZ0ERA2210 D006 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133 D007 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133 D008 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133 D009 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133 D011 RECTIFIER DIODE BA158 NDQZ000BA158 D012 RECTIFIER DIODE FR202 NDQZ000FR202 D013 RECTIFIER DIODE FR202 NDQZ000FR202 D014 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340 D015 ZENER DIODE DZ-8.2BSAT 265 or NDTA0DZ8R2BS

ZENER DIODE MTZJT-778.2A QDTA0MTZJ8R2 D018 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133 D019 ZENER DIODE DZ-5.1BSBT265 or NDTB0DZ5R1BS

ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D021 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133

20030425 3-3-3 HE4F0EL

Ref. No. Description Part No.

D051 RECTIFIER DIODE 1N4005 NDQZ001N4005 D052 RECTIFIER DIODE 1N4005 NDQZ001N4005 D053 RECTIFIER DIODE 1N4005 NDQZ001N4005 D054 RECTIFIER DIODE 1N4005 NDQZ001N4005 D055 RECTIFIER DIODE 1N4005 NDQZ001N4005 D056 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS

ZENER DIODE MTZJT -77 5.6C QDTC0MTZJ5R6

D057 ZENER DIODE DZ-10BSBT265 or NDTB00DZ10BS

ZENER DIODE MTZJT-7710B QDTB00MTZJ10

D058 ZENER DIODE DZ-33BSDT265 or NDTD00DZ33BS

ZENER DIODE MTZJT-7733D QDTD00MTZJ33

D153 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS

ZENER DIODE MTZJT -7711A QDTA00MTZJ1 1

D154 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS

ZENER DIODE MTZJT -7711A QDTA00MTZJ1 1

D155 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS

ZENER DIODE MTZJT -7711A QDTA00MTZJ1 1

D156 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS

ZENER DIODE MTZJT -7711A QDTA00MTZJ1 1

D301 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D501 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D502 LED MIE-534A2 or NPZZM1E534A2

LED SIR-563ST3F P or QPQPS1R563ST LED SIR-563ST3F Q QPQQS1R563ST

D553 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D701 ZENER DIODE DZ-33BSDT265 or NDTD00DZ33BS

ZENER DIODE MTZJT-7733D QDTD00MTZJ33

ICS

IC001! PHOTOCOUPLER EL817A or NPEA000EL817 ! PHOTOCOUPLER EL817B or NPEB000EL817 ! PHOTOCOUPLER EL81 7C or NPEC000EL817 ! PHOTOCOUPLER LTV -817B-F or NPEB0L TV817F ! PHOTOCOUPLER LTV -817C-F NPEC0LT V817F

IC301 IC:Y/C/A LA71750EM-MPB-E QSZBA0RSY020 IC451 IC:HIFI LA72648M-MPB-E QSZBA0RSY033 IC501 MICROCONTROLLER 16BIT M37762MCA-

IC503 IC:EEPROM CAT24WC04JI or NSZBA0SBG002

IC561 IC:LED DRIVER PT6958-FN-TP NSZBA0TG2003

AC1GP

IC:MEMORY BR24C04F-W QSMBA0SRM004

QSZAB0RMB151

COILS

L001 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001 L002 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001 L003! LINE FIL TER 56 MH TLF14C B5630R2 or LLBG00ZTU022 ! LINE FILTER 50 MH LF-4 D-E503 LLBG00ZKQ009 L009 CHOKE COIL 47 µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005

L010 CHOKE COIL 47 µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005 L012 INDUCTOR 10 0µH-J-5FT LLARJCSTU10 1 L251 INDUCTOR 5. 6µH-K-26T LLAXKATTU5R6 L301 INDUCTOR 10 0µH-K-26T LLAXKATTU101 L402 CHOKE COIL 47 µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005 L403 INDUCTOR 47 µH-K-5FT LLARKBSTU470 L451 INDUCTOR 47 µH-K-5FT LLARKBSTU470 L452 INDUCTOR 27 µH-K-5FT LLARKBSTU270 L501 INDUCTOR 10 0µH-K-26T LLAXKATTU101

Ref. No. D e scr ip tion Part No.

L561 INDUCTOR 68µH-K-26T LLAXKA TTU680 L562 INDUCTOR 56µH-K-26T LLAXKA TTU560 L701 INDUCTOR 10µH-K-26T LLAXKA TTU100 L702 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005 L703 PCB JUMPER D0.6-P5.0 JW5.0T L704 INDUCTOR 15µH-K-26T LLAXKA TTU150 L851 INDUCTOR 1.8µH-K-26T LLAXKATTU1R8

TRANSISTORS

Q001 FET 2SK3566 QFWZ02SK3566 Q002 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC2785(K) or QQSK02SC2785

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 Q003 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC2785(K) or QQSK02SC2785

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 Q004 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q051 RES. BUILT-IN TRANSIST OR KRA104M or NQSZ0KRA104M

RES. BUILT -IN TRANSIST OR BN1L4M-T QQSZ00BN1 L4M Q052 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M

RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M Q053 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q054 TRANSISTOR KTC3205(Y) or NQSY0KTC3205

TRANSISTOR 2SC3266-Y(TPE2) QQSY02SC3266 Q055 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q056 RES. BUILT-IN TRANSIST OR KRA103M or NQSZ0KRA103M

RES. BUILT -IN TRANSIST OR BN1F4M-T QQSZ00BN1F4M Q057 TRANSISTOR KTA1281(Y) or NQSY0KTA1281

TRANSISTOR 2SA1020(Y) QQSY02SA1 020 Q058 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M

RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M Q059 RES. BUILT-IN TRANSISTO R KRC103M or NQSZ0KRC103M

RES. BUILT -IN TRANSIST OR BA1F4M-T QQSZ00BA1F4M Q351 CHIP TRANSISTOR KTA1504GR-RT K or NQ140KTA1504

CHIP TRANSISTOR KTA1 504Y -R TK NQ1Y0KTA1504 Q352 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q401 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q402 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q403 RES. BUILT-IN TRANSIST OR KRA103M or NQSZ0KRA103M

RES. BUILT -IN TRANSIST OR BN1F4M-T QQSZ00BN1F4M

20030425 3-3-4 HE4F0EL

Ref. No. Description Part No.

Q405 CHIP TRANSISTOR FMG4A T148 or QQ2Z000FMG4A

CHIP TRANSISTOR RN151 1(TE85R) QQ2Z00RN1511 Q406 CHIP TRANSIST OR KTC3 875Y-RT K NQ1Y0KTC3875 Q451 CHIP TRANSISTOR KRC103S RTK NQ1Z0KRC103S Q501 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC2785(K) or QQSK02SC2785

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 Q502 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT -IN TRANSISTOR BA1F4M-T QQSZ00BA1F 4M Q503 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22 Q551 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC2785(K) or QQSK02SC2785

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 Q552 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT -IN TRANSISTOR BA1F4M-T QQSZ00BA1F 4M

RESISTORS

R002 METAL OXIDE FILM RES. 1W J 150k Ω or RN01154ZU001

METAL OXIDE FI LM RES. 1W J 150k Ω RN01154KE009 R003 CARBON RES. 1/4W J 1M Ω RCX4JA T Z010 5 R004 CARBON RES. 1/4W J 1M Ω RCX4JA T Z010 5 R005 CARBON RES. 1/6W G 680 Ω or RCX6GATZ0681

CARBON RES. 1/4W G 680 Ω RCX4GATZ0681 R006 METAL OXIDE FILM RES. 1W J 1.8 Ω or RN01 1R8ZU001

MET AL OXID E FILM RES. 1W J 1.8 Ω RN011R8KE009 R007 CARBON RES. 1/6W J 22k Ω or RCX6JAT Z022 3

CARBON RES. 1/ 4W J 22k Ω RCX4JATZ0223 R008 CARBON RES. 1/6W J 100k Ω or RCX6JA TZ010 4

CARBON RES. 1/ 4W J 100k Ω RCX4JA TZ0 104 R009 CARBON RES. 1/6W G 3.3k Ω or RCX6GA TZ0 332

CARBON RES. 1/4W G 3.3k Ω RCX4GA TZ033 2 R01 1 CARBON RES. 1/ 4W J 390k Ω RCX4JA TZ0 394 R012 CARBON RES. 1/4W J 390k Ω RCX4JAT Z0394 R013 CARBON RES. 1/6W J 470k Ω or RCX6JA TZ047 4

CARBON RES. 1/ 4W J 470k Ω RCX4JA TZ0 474 R014 CARBON RES. 1/6W J 100k Ω or RCX6JA TZ010 4

CARBON RES. 1/ 4W J 100k Ω RCX4JA TZ0 104 R015 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R016 CARBON RES. 1/6W J 100k Ω or RCX6JA TZ010 4

CARBON RES. 1/ 4W J 100k Ω RCX4JA TZ0 104 R017 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224 R018 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R021 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R022 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R023 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R024 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R025 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331 R026 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R027 CARBON RES. 1/6W J 1k Ω or RCX6JAT Z0102

CARBON RES. 1/ 4W J 1k Ω RCX4J ATZ0102 R028 CARBON RES. 1/4W J 1M Ω RCX4JA T Z010 5 R054 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181 R058 CARBON RES. 1/6W J 820 Ω or RCX6JA TZ0 821

CARBON RES. 1/ 4W J 820 Ω RCX4JAT Z082 1 R060 CARBON RES. 1/6W J 2.7k Ω or RCX6JATZ0272

CARBON RES. 1/ 4W J 2.7 k Ω RCX4JA T Z027 2 R061 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R062 CARBON RES. 1/6W J 10k Ω or RCX6JAT Z010 3

CARBON RES. 1/ 4W J 10k Ω RCX4JATZ0103 R063 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R064 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

Ref. No. D e scr ip tion Part No.

R065 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R066 CHIP RES.(1608) 1/ 10W J 4 7k Ω RRXAJR5Z0473 R067 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R068 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R069 CARBON RES. 1/6W J 8.2k Ω or RCX6JATZ0822

CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822

R070 CARBON RES. 1/6W J 10k Ω or RCX6JATZ0103

CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R071 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182

CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R072 CHIP RES.(1608) 1/ 10W J 6 8k Ω RRXAJR5Z0683 R073 CARBON RES. 1/6W J 1 Ω or RCX6JATZ01R0

CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0 R251 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222 R252 CHIP RES.(1608) 1/ 10W J 3 9k Ω RRXAJR5Z0393 R301 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122 R302 CHIP RES.(1608) 1/ 10W J 8 .2k Ω RRXAJR5Z0822 R305 CHIP RES.(1608) 1/ 10W J 3 .9k Ω RRXAJR5Z0392 R307 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472 R308 CHIP RES.(1608) 1/ 10W J 6 .8k Ω RRXAJR5Z0682 R309 CHIP RES.(1608) 1/ 10W J 1 00 Ω RRXAJR5Z0101 R310 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R31 1 CHIP RE S.(1 608) 1/ 10W J 1 8k Ω RRXAJR5Z0183 R312 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R313 CHIP RES.(1608) 1/ 10W J 1 8k Ω RRXAJR5Z0183 R315 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222 R316 CHIP RES.(1608) 1/ 10W J 6 .8k Ω RRXAJR5Z0682 R317 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122 R318 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472 R319 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R320 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R321 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JA TZ0330 R322 CHIP RES.(1608) 1/ 10W J 7 5 Ω RRXAJR5Z0750 R323 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JA TZ0330 R324 CHIP RES.(1608) 1/ 10W J 4 7k Ω RRXAJR5Z0473 R325 CHIP RES.(1608) 1/ 10W J 3 3 Ω RRXAJR5Z0330 R326 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N

CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N R330 CHIP RES.(1608) 1/ 10W J 5 .6M Ω RRXAJR5Z0565 R331 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R332 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N

CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N R333 CHIP INDUCTOR MLG1608B18NJT000 or LLACJB3TE18N

CHIP INDUCTOR HK1608 18NJ-T LLACJB3TU18N R334 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000 R351 CHIP RES.(1608) 1/ 10W J 1 80 Ω RRXAJR5Z0181 R352 CHIP RES.(1608) 1/ 10W J 1 50 Ω RRXAJR5Z0151 R355 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R357 CHIP RES.(1608) 1/ 10W J 2 20 Ω RRXAJR5Z0221 R358 CHIP RES.(1608) 1/ 10W J 1 .5k Ω RRXAJR5Z0152 R360 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182 R361 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R401 CHIP RES.(1608) 1/ 10W J 5 .6k Ω RRXAJR5Z0562 R402 CHIP RES.(1608) 1/ 10W J 2 2k Ω RRXAJR5Z0223 R403 CHIP RES.(1608) 1/ 10W J 4 7k Ω RRXAJR5Z0473 R404 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R407 CARBON RES. 1/6W J 820 Ω or RCX6JATZ0821

CARBON RES. 1/4W J 820 Ω RCX4JATZ0821

20030425 3-3-5 HE4F0EL

Ref. No. Description Part No.

R408 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R409 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R411 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R412 CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273 R413 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334 R414 CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121 R415 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R416 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182 R417 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122 R418 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R421 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R422 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R425 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R426 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R429 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R430 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R431 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R451 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822 R452 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R453 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R454 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R455 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R456 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R457 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R458 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R459 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R460 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471 R461 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R462 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R463 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822 R464 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R465 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822 R466 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R467 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R468 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R469 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R470 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R471 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R472 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151 R473 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151 R474 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R475 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R476 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330 R477 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330 R478 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R479 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R480 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R481 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R501 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R502 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R503 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R504 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R505 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R506 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R509 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R510 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R511 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R513 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182 R514 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821 R515 CARBON RES. 1/6W J 1k Ω or RCX6JAT Z0102

CARBON RES. 1/ 4W J 1k Ω RCX4J ATZ0102

Ref. No. D e scr ip tion Part No.

R516 CHIP RES.(1608) 1/ 10W J 3 30k Ω RRXAJR5Z0334 R517 CHIP RES.(1608) 1/ 10W J 5 60 Ω RRXAJR5Z0561 R518 CHIP RES.(1608) 1/ 10W J 4 70 Ω RRXAJR5Z0471 R520 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R521 CHIP RES.(1608) 1/ 10W J 2 20k Ω RRXAJR5Z0224 R522 CHIP RES.(1608) 1/ 10W J 3 9k Ω RRXAJR5Z0393 R523 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R524 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R525 CHIP RES.(1608) 1/ 10W J 1 .5k Ω RRXAJR5Z0152 R526 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182 R527 CHIP RES.(1608) 1/ 10W J 6 80 Ω RRXAJR5Z0681 R528 CHIP RES.(1608) 1/ 10W J 1 8k Ω RRXAJR5Z0183 R529 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R530 CHIP RES.(1608) 1/ 10W J 1 80 Ω RRXAJR5Z0181 R531 CHIP RES.(1608) 1/ 10W J 6 8k Ω RRXAJR5Z0683 R533 CHIP RES.(1608) 1/ 10W J 3 3k Ω RRXAJR5Z0333 R534 CARBON RES. 1/6W G 3.6k Ω or RCX6GATZ0362

CARBON RES. 1/4W G 3.6k Ω RCX4GATZ0362 R535 CARBON RES. 1/6W G 10k Ω or RCX6GATZ0103

CARBON RES. 1/4W G 10k Ω RCX4GATZ0103 R536 CARBON RES. 1/6W G 470 Ω or RCX6GATZ0471

CARBON RES. 1/4W G 470 Ω RCX4GATZ0471 R537 CARBON RES. 1/6W G 22k Ω or RCX6GATZ0223

CARBON RES. 1/4W G 22k Ω RCX4GATZ0223 R538 CARBON RES. 1/6W G 1.5k Ω or RCX6GATZ0152

CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152 R539 CARBON RES. 1/6W G 4.7k Ω or RCX6GATZ0472

CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472 R540 CHIP RES.(1608) 1/ 10W J 3 90k Ω RRXAJR5Z0394 R541 CHIP RES.(1608) 1/ 10W J 3 90k Ω RRXAJR5Z0394 R542 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182 R543 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R544 CHIP RES.(1608) 1/ 10W J 2 .7k Ω RRXAJR5Z0272 R545 CHIP RES.(1608) 1/ 10W J 2 .2k Ω RRXAJR5Z0222 R546 CHIP RES.(1608) 1/ 10W J 1 2k Ω RRXAJR5Z0123 R547 CHIP RES.(1608) 1/ 10W J 1 .8k Ω RRXAJR5Z0182 R548 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R549 CHIP RES.(1608) 1/ 10W J 1 .2k Ω RRXAJR5Z0122 R551 CHIP RES.(1608) 1/ 10W J 1 00 Ω RRXAJR5Z0101 R552 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R556 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R557 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R566 CHIP RES.(1608) 1/ 10W J 5 6k Ω RRXAJR5Z0563 R604 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R605 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R61 1 CHIP RE S.(1 608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R613 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R624 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000 R625 CHIP RES.(1608) 1/ 10W J 1 0k Ω RRXAJR5Z0103 R701 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182

CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R702 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0102

CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R703 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0102

CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R706 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R756 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000 R757 CHIP RES.(1608) 1/ 10W J 7 5 Ω RRXAJR5Z0750 R758 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472 R759 CHIP RES.(1608) 1/ 10W J 4 .7k Ω RRXAJR5Z0472 R851 CHIP RES.(1608) 1/ 10W J 1 .5k Ω RRXAJR5Z0152

20030425 3-3-6 HE4F0EL

Ref. No. Description Part No.

R852 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R853 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

SWITCHES

SW501 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041 TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01

SW502 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041 TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01

SW503 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041 TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01

SW504 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041 TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01

SW505 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01 SW506 LEAF SWITCH MXS01830MVP0 SSC0101MCE03 SW507 ROT ARY MODE SWITCH SSS-50MD or SSR0106KB002

ROTARY MODE SWITCH R8100245 SSR0106U3002 SW508 T ACT SWITCH KSM061 1B SST0101HH004 SW509 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01 SW510 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01 SW511 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01 SW512 T ACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TA CT SWIT CH TC-1104(H=9.5) SST0101DN G01

MISCELLANEOUS

2B7 HEAD SHIELD ASSEMBL Y HE470ED 0VM414333 2B8 BUSH, LED(F) H3700UD 0VM409508 2B46 ROHM HOLDER H7770JD 0VM304573 A4 JACK BOARD(U27 FTZ) HE480ED 0VM203840 AC001! AC CORD PE8B2CG1H0A-057 WAE0172LW003 F001! FUSE T1.6AL/250V or PAGC20BW3162

! FUSE T1.6AL/250V or 1790994 ! FUSE 50T016H 1.6A/250V PAGH20BHV162

FH001 FUSE HOLDER MSF-015 XH01Z00LY001 FH002 FUSE HOLDER MSF-015 XH01Z00LY001 FP562 LED DISPLAY LFU-4421-2001A NP7Z4212001A J902 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001 JK756 RCA JACK(YE LLOW) MS P-281 V4-B JXRL010LY003 JK757 RCA JACK(WH ITE) M SP-281 V1-B JXRL010LY005 JK758 RCA JACK(RE D) MSP-2 81V3- A JYRL010LY002 JW001 FLAT CABLE, 11P AWG26#2651/P1.25/150 WX1HC460-002 JW002 FLAT CABLE, 1 2P A WG 26#26 51/ P1. 25/15 0 WX1 HC460 -003 PS503 PHOTO INTERRUPTER RPI-302C70 QPWZP1302C70 RS501 REMOTE RECEIVER MIM-93M9DKF or USESJRSUNT03

REMOTE RECEIVER PIC-37042LQ USESJRSKK038 T001! SWITCHING TRANSFORMER CSA-SW0233A LTT00 EPSA135 TP301 PCB JUMPER D0.6-P10.0 JW10.0T TP501 PCB JUMPER D0.6-P6.0 JW6.0T TP502 PCB JUMPER D0.6-P5.0 JW5.0T TP506 PCB JUMPER D0.6-P5.0 JW5.0T

Ref. No. D e scr ip tion Part No.

TP507 PCB JUMPER D0.6-P6.0 JW6.0T TU701 TUNER UNIT TMDG2-631A UTUNPLBAL012 VR501 CARBON P.O.T. 100k Ω B VRCB104HH014 X301 X'T AL 4.43 3619 MHz or FXC445LLN0 01

X'TAL 4.433619MHz 1811388 X501 X'T AL 12.0 00MH z FXD126LDS00 1 X502 X'TAL 32.768kHz(20PPM) or FXC323LQUA01

X'TA L 3 2.768 kHz( 20P PM) FXC323L DS00 2

SUB JACK CBA

Ref. No. D e scr ip tion Part No.

SUB JACK CBA(MCV-B) -----------

Consists of the following

CAPACITORS

C751 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C752 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222

RESISTORS

R751 CHIP RES.(1608) 1/ 10W J 8 20 Ω RRXAJR5Z0821 R752 CHIP RES.(1608) 1/ 10W J 8 20 Ω RRXAJR5Z0821

MISCELLANEOUS

JK751 RCA JACK MSP-282V-12 PBSN JXRL030L Y01 1 JW004 FLAT CABLE, 3P A WG2 6#2651 /P2.0/ 200 WX 1HE48 0-001

JACK CBA

Ref. No. D e scr ip tion Part No.

JACK CBA (MCV-C) -----------

Consists of the following

CAPACITORS

C101 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C102 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C103 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C104 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C105 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C107 ELECTROL YTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C108 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JK30B102 C109 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C110 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C111 CHIP CERAMIC CAP . CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C112 CHIP CERAMIC CAP. CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471 C113 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C115 ELECTROL YTIC CAP. 10 0µF/16V M H7 CE1CMAVSL101 C116 ELECTROL YTIC CAP. 47 0µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 4 70µF/6.3V M CE0KMASTL471 C117 ELECTROL YTIC CAP. 47 0µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 4 70µF/6.3V M CE0KMASTL471

DIODES

D101 ZENER DIODE DZ-1 1BSA T265 or NDTA00DZ11BS

ZENER DIODE MTZJT-771 1A QDTA00MTZJ1 1 D102 ZENER DIODE DZ-1 1BSA T265 or NDTA00DZ11BS

ZENER DIODE MTZJT-771 1A QDTA00MTZJ1 1 D103 ZENER DIODE DZ-1 1BSA T265 or NDTA00DZ11BS

ZENER DIODE MTZJT-771 1A QDTA00MTZJ1 1

20030425 3-3-7 HE4F0EL

Ref. No. Description Part No.

D105 ZENER DIODE DZ-11BSA T265 or NDT A00DZ11BS

ZENER DIODE MTZJT -7711A QDTA00MTZJ1 1

COILS

L101 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001 L102 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

TRANSISTORS

Q101 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q102 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

RESISTORS

R101 CARBON RES. 1/4W J 820 Ω RCX4JATZ0 821 R103 CARBON RES. 1/4W J 820 Ω RCX4JATZ0 821 R104 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2

R106 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2 R108 CARBON RES. 1/4W J 68 Ω R CX4JATZ0680 R109 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R11 0 CARBON RES. 1/ 4W J 820 Ω RCX4JAT Z082 1 R11 2 CARBON RES. 1/ 4W J 820 Ω RCX4JAT Z082 1 R11 3 CARBON RES. 1/ 6W J 4.7 k Ω or RCX6JA T Z0472

CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2 R11 5 CARBON RES. 1/ 6W J 4.7 k Ω or RCX6JA T Z0472

CARBON RES. 1/ 4W J 4.7 k Ω RCX4JA T Z047 2 R11 6 CARBON RES. 1/ 6W J 15k Ω or RCX6JA T Z015 3

CARBON RES. 1/ 4W J 15k Ω RCX4JATZ0153 R117 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R11 8 CARBON RES. 1/ 4W J 68 Ω RCX4JA TZ0 680 R119 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R120 CARBON RES. 1/6W J 680 Ω or RCX6JA TZ0 681

CARBON RES. 1/ 4W J 680 Ω RCX4JAT Z068 1 R123 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R125 CARBON RES. 1/6W J 680 Ω or RCX6JA TZ0 681

CARBON RES. 1/ 4W J 680 Ω RCX4JAT Z068 1 R126 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R127 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

MISCELLANEOUS

2L022 SCREW , P-TIGHT M3X10 W ASHER HEAD+ GCMP3100 A5 JACK BOARD(2-21P) HE470ED 0VM203835 JK101 RGB CONNECTOR MRC-021V-01 JXGL210LY002 JK102 RGB CONNECTOR MRC-021V-01 JXGL210LY002

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA 0VSA13549

Consists of the following

TRANSISTORS

Q504 PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12 Q505 PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12 Q504 PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22 Q505 PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22

Ref. No. D e scr ip tion Part No.

CAPACITORS

C1 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C4 CHIP CERAMIC CAP . CH J 56pF/50V or CHD1JJ3CH560

CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560

C5 CHIP CERAMIC CAP . CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C6 CHIP CERAMIC CAP . CH J 56pF/50V or CHD1JJ3CH560

CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560

C7 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP . CJ C 3pF/50V or CHD1JC3CJ3R0 CHIP CERAMIC CAP . CH D 3pF/50V CHD1JD3CH3R0

C8 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP . CJ C 3pF/50V or CHD1JC3CJ3R0

CHIP CERAMIC CAP . CH D 3pF/50V CHD1JD3CH3R0 C11 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103 C12 ELECTROLYTIC CAP . 1 0µF/16V M H7 CE1CMASSL100 C13 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103 C14 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JK30B103 C15 ELECTROLYTIC CAP . 1 0µF/16V M H7 CE1CMASSL100 C16 ELECTROLYTIC CAP . 1 0µF/16V M H7 CE1CMASSL100 C17 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C19 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C20 ELECTROLYTIC CAP . 3 .3µF/50V M H7 CE1JMASSL3R3 C21 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP . F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104 C22 ELECTROLYTIC CAP . 1 0µF/16V M H7 CE1CMASSL100 C24 ELECTROLYTIC CAP . 0 .22µF/50V M H7 CE1JMASSLR22

CONNECTORS

CN1 ANGLE PIN HEADER, 9P 6029B-1-09Z003-T 5700069

DIODES

D2 SWITCHING DIODE 1N4148 M or NDT Z01N4148 M

SWITCHING DIODE 1SS133(T-7 7) QDTZ001SS133

ICS

IC1 IC:AUDIO PROCESSOR MSP3417G-QG-B8 or NSZBA0SP3002

IC:AUDIO PROCESSOR MSP3417G-QG-B8-V3 NSZBA0SP3005

COILS

L1 INDUCTOR 10µH-K-26T LLAXKATTU100 L2 PCB JUMPER D0.6-P5.0 JW5.0T L3 INDUCTOR 18µH-K-26T LLAXKATTU180 L4 INDUCTOR 10µH-K-26T LLAXKATTU100

RESISTORS

R1 CHIP RES.(1608) 1/ 10W J 1 k Ω RRXAJR5Z0102 R4 CHIP RES.(1608) 1/ 10W J 1 20k Ω RRXAJR5Z0124 R5 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000 R6 CHIP RES.(1608) 1/ 10W 0 Ω RRXAZR5Z0000

MISCELLANEOUS

X1 X'T AL 1 8.432MHz FXD186LLN001

AFV CBA

Ref. No. Description Part No.

AFV CBA 0VSA12355 Consists of the following

20030425 3-3-8 HE4F0EL

DECK PARTS LIST

NOTE:

Four different, but interchangeable, types of B558 (LOADING MOTOR) may be i nstalled in these models. Please confirm B558 (LOADING MOTOR) type by a part number on it. B558 (LO ADING MOTOR) type va ries in combination with L1151. Please see Table 1 for details and combination.

Table 1 (B558 and L1151 Combination)

LOADING MOTOR (B558) SCREW (L1151)

Description Parts No. Description Parts No.

LOADING MOTOR M31E-1 R-14 7376

LOADING MOTOR M31E-1 R-14 7391

LOADING MOTOR MDB2B80

LOADING MOTOR MDB2B82

Ref. No. Desc ri pt ion Part No.

B2 CYLINDER ASSEMBLY MK12 P AL 4HD HI FI or N1767CYL

CYLINDER ASSEMBLY(V) MK12 PAL 4HD HIFI N1769CYL B3 LOADING MOTOR ASSEMBLY MK11 TVCR 0VSA13465 B8 PULLEY ASSEMBLY(HI) MK12 0VSA13501 B9 MOVING GUIDE S PREPARA TION MK12 0VSA13560 B10 MOVING GUIDE T PREPARATION MK12 0VSA13562 B11 LOADING ARM(TU) ASSEMBLY MK12 0VSA13300 B12 LOADING ARM(SP) ASSEMBLY MK12 0VSA13299 B31 AC HEAD ASSEMBLY MK12 0VSA13275 B35 TAPE GUIDE ARM ASSEMBL Y MK12 0VSA13277 B37 CAPSTAN MOTOR 288/VCCM012 N9671CML B52 CAP BELT MK10 0VM411 13 8 B73 FE HEAD ASSEMBLY MK1 1 or N9742FEL

FE HEAD ASSEMBLY MK11 or N9743FEL

FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005

FE HEAD(MK11) VTR-1X2ERS11-148 or DHVEC01TE004

FE HEAD(MK12) VTR-1X 2ERS11-155 or DHVEC0 1 TE00 5

FE HEAD(MK12) HVFHP0047A DHVEC01AL007 B74 PRISM MK10 0VM202870 B86 F BRAKE ASSEMBLY(HI) M K12 0VSA13447 B121 WORM MK12 0 VM41409 1 B126 PULLEY MK12 0VM414330B B133 IDLER ASSEMBL Y(HI) MK12 0VSA13451 B148 TG CAP MK6 0VM407664C B300 C DRIVE LEVER(TU) MK12 0VM203773 B303 F DOOR OPENER MK12 or 0VM203751C

F DOOR OPE NER M K12 0VM203 751 B313 C DRIVE SPRING MK 12 0VM414145 B347 GUIDE HOLDER A MK10 0VM304920 B354 SLIDER(TU) MK12 0VM101172F B355 SLIDER(SP) MK12 or 0VM101182F

SLIDER(SP) SUB ASSEMBL Y MK12 or 0VDM12542

SLIDER(SP) MK12 0VM101182H B359 CLEANER LEVER MK10 0VM304413 B360 CLEANER ROLLER MK9 0VM410032C B361 CL POST MK10 0VM411114 B410 PINCH ARM(A) ASSEMBL Y(4) MK12 or 0VSA13572

MMDZB12 MM0 0 3

MMDZB12 MM0 0 4

MMDZB12 SJ 00 8

MMDZB10 SJ 00 1

SCREW, SEMS M2.6X4 PAN HEAD+

SCREW, SEMS M3X4 PAN HE AD+

CPM39040

CPM33040

Ref. No. Description Part No.

PINCH ARM(A) ASSEMBLY(5) MK12 0VSA13788 B411 PINCH SPRING MK12 0VM414644 B414 M BRAKE(SP) ASSEMBL Y(HI) MK12 0VSA13655 B416 M BRAKE(TU) ASSEMBL Y(HI) MK12 0VSA13449 B417 TENSION SPG(3002654) MK12 0VM414221E B425 LOCK LEVER SPRING MK10 0VM411110 B482 CASSETTE PLA TE MK12 0VM203749 B483 LOCK LEVER MK12 0VM414095 B487 BAND BRAKE(SP) MK12 0VM305723 B488 MODE LEVER(HI) MK12 0VM101175J B491 CAM GEAR(A)(HI) MK12 0VM101 176 B492 MODE GEAR(LM) MK12 0VM204236 B494 C DOOR OPENER MK12 0VM305719 B499 T LEVER HOLDER MK12 0VM305729 B501 WORM HOLDER MK12 0VM203767 B507 REEL WASHER MK9 5*2.1* 0.5 0VM410058 B508 S BRAKE SPRING(HI) MK12 0VM414899 B513 P.S.W F 6* 2.55*0 .5 0VM402629A B514 SCREW RACK MK10 0VM41 1535 B516 REEL WASHER MK9 5*2.1* 0.5 0VM410058 B518 P.S.W CUT 1.6X4.0X0.5T 0VM408485A B521 REV BRAKE SPG(HI) MK12 0VM414943 B522 TG POST ASSEMBL Y MK10 0VSA11012 B525 LDG BELT MK11 0VM412804 B529 CLEANER ASSEMBL Y MK10 0VSA1 1 1 61 B551 FF ARM(HI) MK12 0VM306183 B553 REV SPRING MK11 0VM412555 B555 RACK ASSEMBLY MK12 0VSA13289 B557 MOTOR PULLEY U5 0VM403205A B558 LOADING MOTOR MDB2B82 or MMDZB10SJ001

LOADING MOTOR MDB2B80 or MMDZB12SJ008

LOADING MOTOR M31E-1 R-14 7376 or MMDZB12MM003

LOADING MOTOR M31E-1 R14 7391 MMDZB12MM004 B559 CLUTCH ASSEMBLY(HI) MK12 0VSA13450 B562 C DRIVE LEVER(SP) MK12 0VM203772 B563 SLIDER SHAFT MK12 0VM305762 B564 M GEAR(HI) MK12 0VM305755 B565 SENSOR GEAR(HI) MK12 0VM305756 B567 PINCH ARM(B) MK12 0VM305718 B568 BT ARM MK12 0VM305728 B571 P.S.W CUT 1.6X4.0X0.5T 0VM408485A B572 P.S.W CUT 1.6X4.0X0.5T 0VM408485A B573 REEL S MK11 0VM203436 B574 REEL T MK10 0VM202872C B578 TR GEAR A MK10 0VM304440 B579 TR GEAR B MK12 0VM305900 B580 TR GEAR C MK12 0VM305743A B581 CENTER GEAR MK11 0VM305081 B582 TR GEAR SPRING MK10 0VM411187 B583 CAM WASHER MK12 0VM414741 B584 TR GEAR SHAFT MK10 0VM411 186 B585 PSW(317505) MK11 0VM413663 B587 TENSION LEVER ASSEMBL Y MK12 0VSA13279 B590 BRAKE ARM(TU) MK12 0VM203752E B591 BAND BRAKE(TU) MK12 0VM305724C B592 TG POST MK10 0VM41 1 108E L1051 SCREW, B-TIGHT M2.6X6 PA N HEAD+ GPMB9060 L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080 L1151 SCREW, SEMS M3X4 PAN HEAD + or CPM33040

SCREW, SEMS M2.6X4 PAN HEAD+ CPM39040 L1191 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080

20030425 3-4-1 HE4F0DPL

Ref. No. Desc ri pt ion Part No.

L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060 L1341 SCREW, P-TIGHT 2X8 PAN HEAD + GPMP2080 L1406 AC HEAD SCREW MK9 0VM410964 L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050 L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060 L1467 SCREW, S-TIGHT M2.6X5 WASHER HEAD+ GCMS9050

20030425 3-4-2 HE4F0DPL

27A-850

HE4F0ED

Funai 27A-850 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

MAIN SECTION

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

PREPARATION FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

FUNCTION INDICATOR SYMBOLS

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

IC PIN FUNCTION DESCRIPTIONS

LEAD IDENTIFICATIONS

STANDARD MAINTENANCE

SERVICE FIXTURE AND TOOLS

MECHANICAL ALIGNMENT PROCEDURES

ALIGNMENT PROCEDURES OF MECHANISM

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST

DECK PARTS LIST
