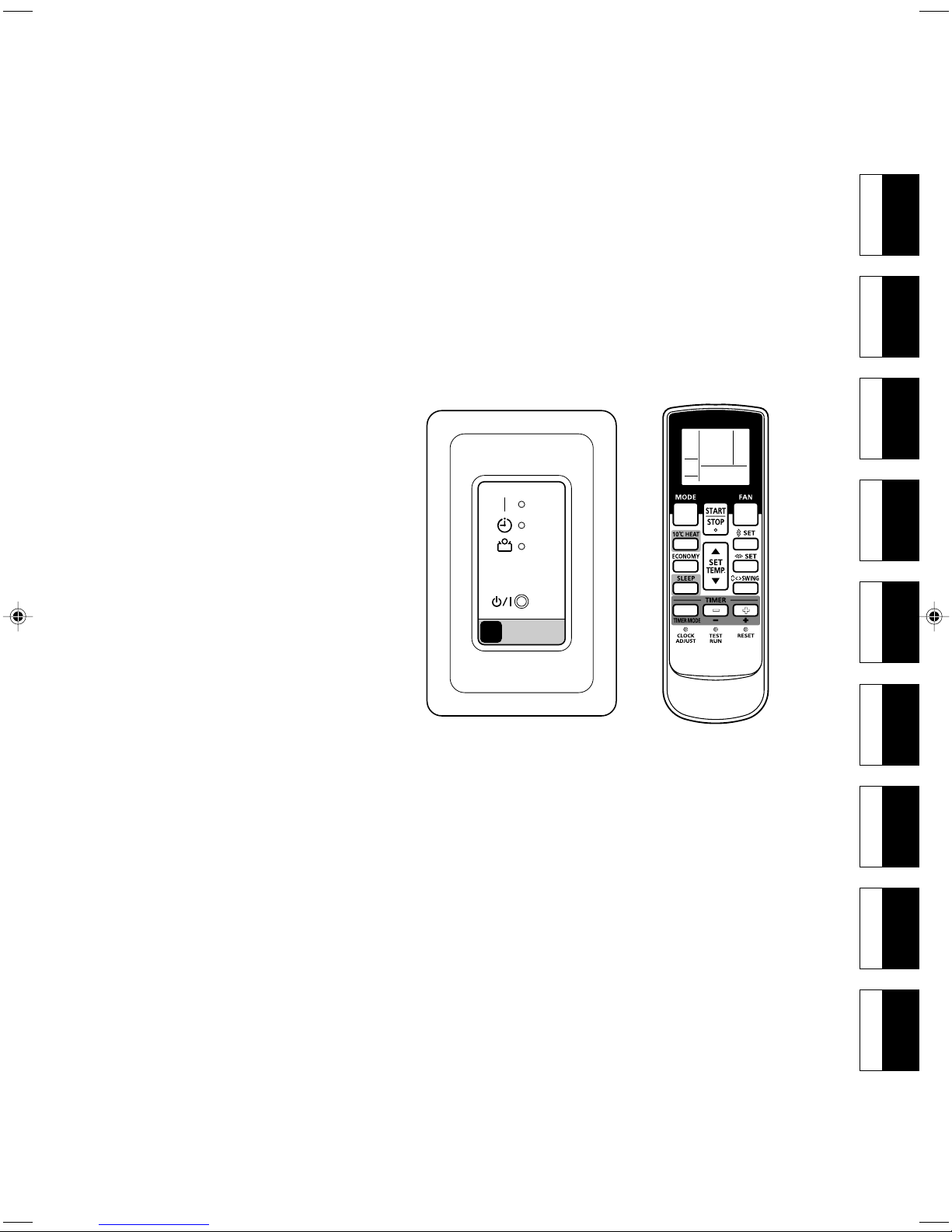

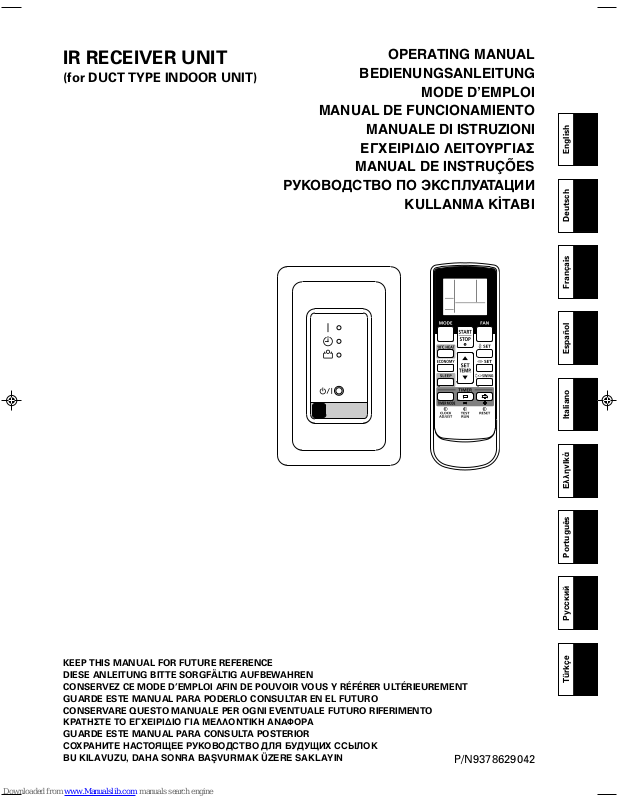

IR RECEIVER UNIT
(for DUCT TYPE INDOOR UNIT)
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
KULLANMA K‹TABI
English
Deutsch
Français
Español
Italiano
KEEP THIS MANUAL FOR FUTURE REFERENCE
DIESE ANLEITUNG BITTE SORGFÄLTIG AUFBEWAHREN
CONSERVEZ CE MODE D’EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT
GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO
CONSERVARE QUESTO MANUALE PER OGNI EVENTUALE FUTURO RIFERIMENTO
ΚΡΑΤΗΣΤΕ ΤΟ ΕΓΧΕΙΡΙ∆ΙΟ ΓΙΑ ΜΕΛΛΟΝΤΙΚΗ ΑΝΑΦΟΡΑ
GUARDE ESTE MANUAL PARA CONSULTA POSTERIOR
СОХРАНИТЕ НАСТОЯЩЕЕ РУКОВОДСТВО ДЛЯ БУДУЩИХ ССЫЛОК
BU KILAVUZU, DAHA SONRA BAfiVURMAK ÜZERE SAKLAYIN
P/N9378629042
EλληvIkά
Português
Русский
Türkçe
CONTENTS
SAFETY PRECAUTIONS ....................................... 1
FEATURES AND FUNCTIONS .............................. 2
NAME OF PARTS ................................................... 2
PREPARATION ....................................................... 4
OPERATION ........................................................... 5
TIMER OPERATION ............................................... 7
SLEEP TIMER OPERATION ................................... 8
MANUAL AUTO OPERATION ............................... 8
ECONOMY OPERATION ........................................ 9
10 °C HEAT OPERATION ....................................... 9
FILTER INDICATOR RESET.................................... 9
CLEANING AND CARE ........................................ 10
SELECTING THE REMOTE CONTROLLER
SIGNAL CODE ..................................................... 10
TROUBLESHOOTING .......................................... 11
OPERATING TIPS ................................................. 12
SAFETY PRECAUTIONS
● Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
● The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
● “WARNING” and “CAUTION” have the following meanings in these instructions:
WARNING
● Do not attempt to install this air conditioner by yourself.
● This unit contains no user-serviceable parts. Always consult authorized service personnel for repairs.
● When moving, consult authorized service personnel for disconnection and installation of the unit.
● Do not become over-exposed to cold air by staying in the direct path of the airflow of the air conditioner
for extended periods of time.
● Do not insert fingers or objects into the outlet port or intake grilles.
● Do not start and stop air conditioner operation by disconnecting the power supply cord and so on.
● Take care not to damage the power supply cord.
● In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
This mark indicates procedures which, if improperly performed, might lead to the death or
serious injury of the user.
CAUTION
● Provide occasional ventilation during use.
● Do not direct air flow at fireplaces or heating apparatus.
● Do not climb on, or place objects on, the air conditioner.
● Do not hang objects from the indoor unit.
● Do not set flower vases or water containers on top of air conditioners.
● Do not expose the air conditioner directly to water.
● Do not operate the air conditioner with wet hands.
● Do not pull power supply cord.
● Turn off power source when not using the unit for extended periods.
● Always turn off the electrical breaker whenever cleaning the air conditioner or changing the air filter.
● Connection valves become hot during Heating; handle with care.
● When restarting after a long period of disuse in the winter, turn the power switch on at least 12 hours
This mark indicates procedures which, if improperly performed, might possibly result in
personal harm to the user or damage to property.
before starting the unit.
● Check the condition of the installation stand for damage.
● Do not place animals or plants in the direct path of the air flow.
● Do not drink the water drained from the air conditioner.
● Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art
works.
● Do not apply any heavy pressure to radiator fins.
● Operate only with air filters installed.
● Do not block or cover the intake grille and outlet port.
● Ensure that any electronic equipment is at least 1m away from either the indoor or outdoor units.
● Avoid installing the air conditioner near a fireplace or other heating apparatus.
● When installing the indoor and outdoor units, take precautions to prevent access by infants.
● Do not use inflammable gases near the air conditioner.
En-1
FEATURES AND FUNCTIONS
ECONOMY OPERATION
Limits the maximum operation current, and performs operation with the power consumption suppressed. When
economy operation mode is operated, the room temperature will be little higher than the set-temp under cooling
mode and lower than set-temp under heating mode, Therefore, the economy mode is able to save more energy than
other normal mode.
AUTO CHANGEOVER
The operation mode (cooling, dry, heating) is switched automatically to maintain the set temperature, and the temperature is kept constant at all times.
10 °C HEAT OPERATION
The room temperature can be set to go no longer than 10°C, thus
ensuring that the room does not get too cold when no occupied.
PROGRAM TIMER
The program timer allows you to integrate OFF timer and
ON timer operations in a single sequence. The sequence can
involve 1 transition from OFF timer to ON timer, or from ON
timer to OFF timer, within a 24 hour period.
SLEEP TIMER
When the “SLEEP” button is pressed during Heating mode,
the air conditioner’s temperature setting is gradually lowered during the period of operation; during cooling mode,
the temperature setting is gradually raised during the period of operation. When the set time is reached, the unit
automatically turns off.
WIRELESS REMOTE CONTROLLER
The Wireless Remote Controller allows convenient control
of air conditioner operation.
HORIZONTAL AIRFLOW: COOLING/
DOWNWARD AIRFLOW: HEATING
For cooling, use horizontal airflow so the cool air does not
blow directly on the occupants in the room. For heating,
use downward airflow to send powerful, warm air to the
floor and create a comfortable environment.
OMNI-DIRECTIONAL AIR FLOW
(SWING OPERATION)
3-dimensional control over air direction swing is possible
through dual use of both an UP/DOWN air direction swing
and RIGHT/LEFT air direction swing. Since UP/DOWN air
direction flaps operate automatically according to the operating mode of the unit, it is possible to set air direction based
on the operating mode.
IMPORTANCE
You can use both wired and wireless remote controller simultaneously. But function is limited.
[The restricted functions for wireless remote controller ones]
• SLEEP TIMER
• TIMER
• 10 °C HEAT OPERATION

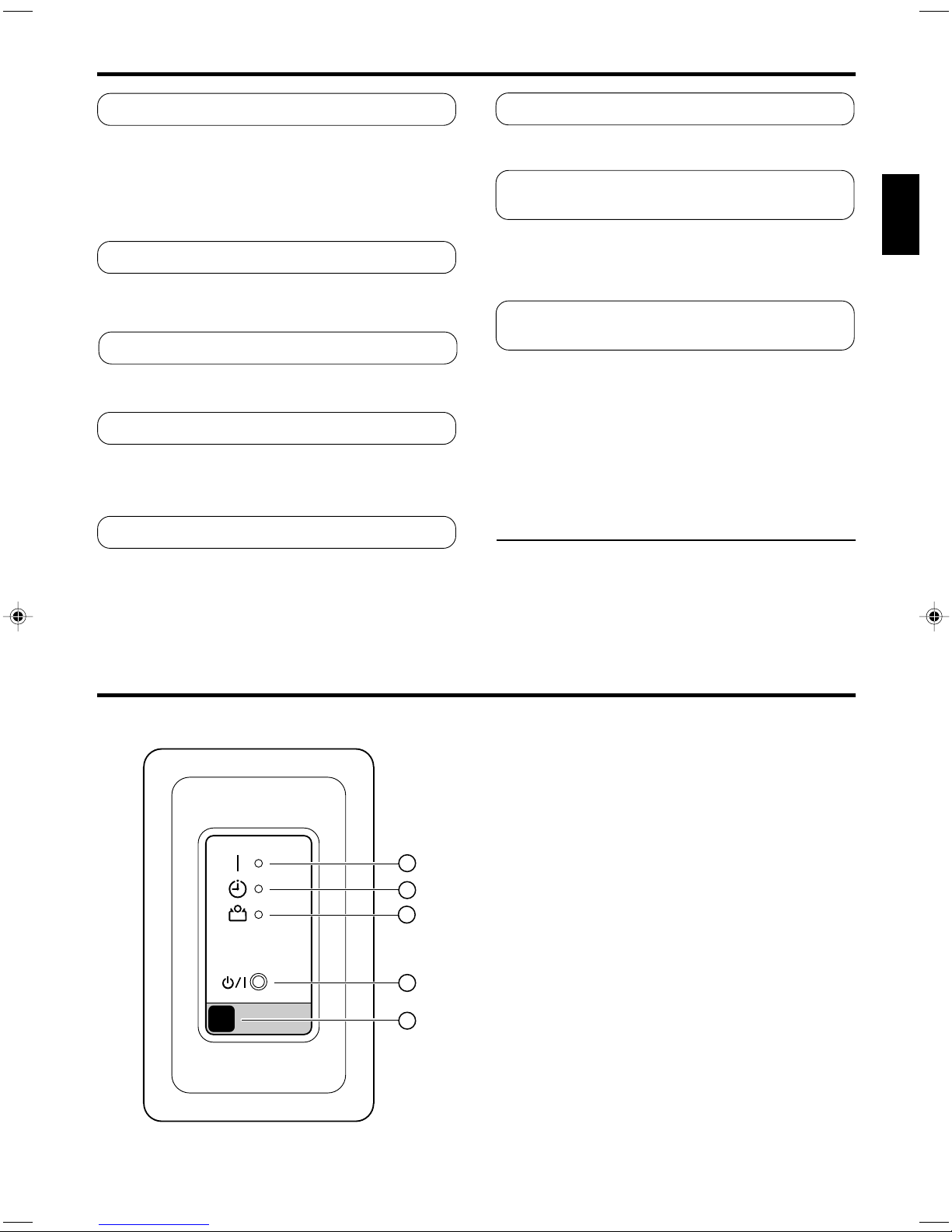

NAME OF PARTS
Receiver unit control panel
1
2
3
1 OPERATION indicator lamp (GREEN)
2 TIMER indicator lamp (ORANGE)
3 ECONOMY indicator lamp (GREEN)
4 “MANUAL AUTO” button
4
5
5 REMOTE CONTROL SIGNAL RECEIVER
En-2

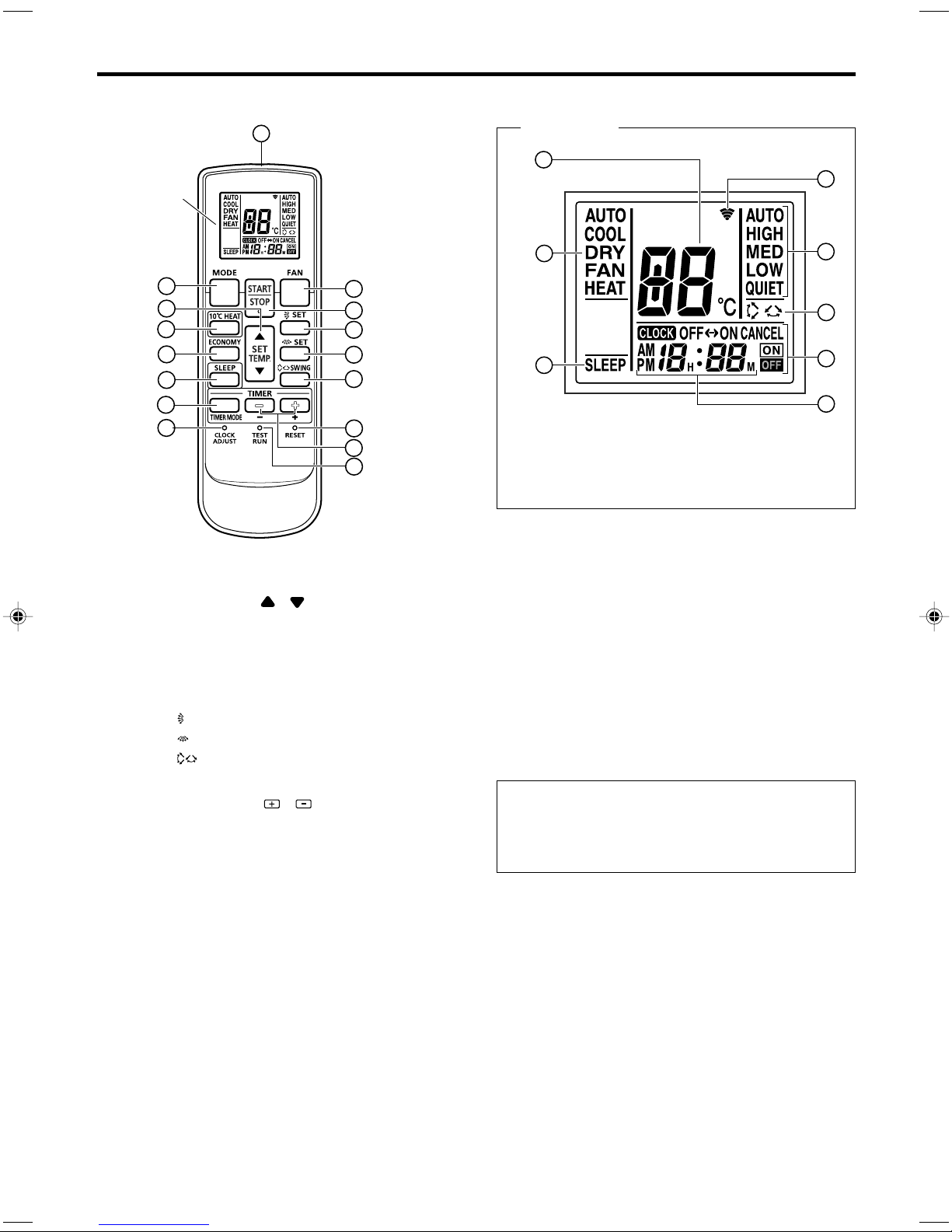

NAME OF PARTS
Remote controller
16
Display
Display panel
17
20
1
2
3
4
5
11
13
6
7
8
9
10
14
12
15
1 “MODE” button
2 “SET TEMP. (
/ )” button
3 “10 °C HEAT” button
4 “ECONOMY” button
5 “SLEEP” button
6 “FAN” button
7 “START/STOP” button
8 “ SET” button (Vertical)
9 “ SET” button (Horizontal)
0 “ SWING” button
A “TIMER MODE” button
B “TIMER SET (
/ )” button
C “CLOCK ADJUST” button
D “RESET” button
E “TEST RUN” button
● This button is used when installing the conditioner, and should not be used under normal
conditions, as it will cause the air conditioner’s temperature function to operate incorrectly.
● If this button is pressed during normal operation, the unit will switch to test operation
mode, and the receiver unit control panel’s
OPERATION Indicator Lamp (green) and
TIMER Indicator Lamp (orange) will begin to
flash simultaneously.
● To stop the test operation mode, press the
“START/STOP” button to stop the air condi-
tioner.
18
19
To facilitate explanation, the accompanying illustration
has been drawn to show all possible indicators; in actual operation, however, the display will only show those
indicators appropriate to the current operation.
21
22
23
24
F Signal Transmitter
G Temperature SET Display
H Operation Mode Display
I SLEEP Display
J Transmit Indicator
K Fan Speed Display
L SWING Display
M Timer Mode Display
N Clock Display
Some indoor units may not be equipped with the functions corresponding to all of the buttons on this remote
controller. The indoor unit will beep and the OPERATION,
TIMER and ECONOMY lamp flash when a remote controller button is pressed if the function is not available.
En-3

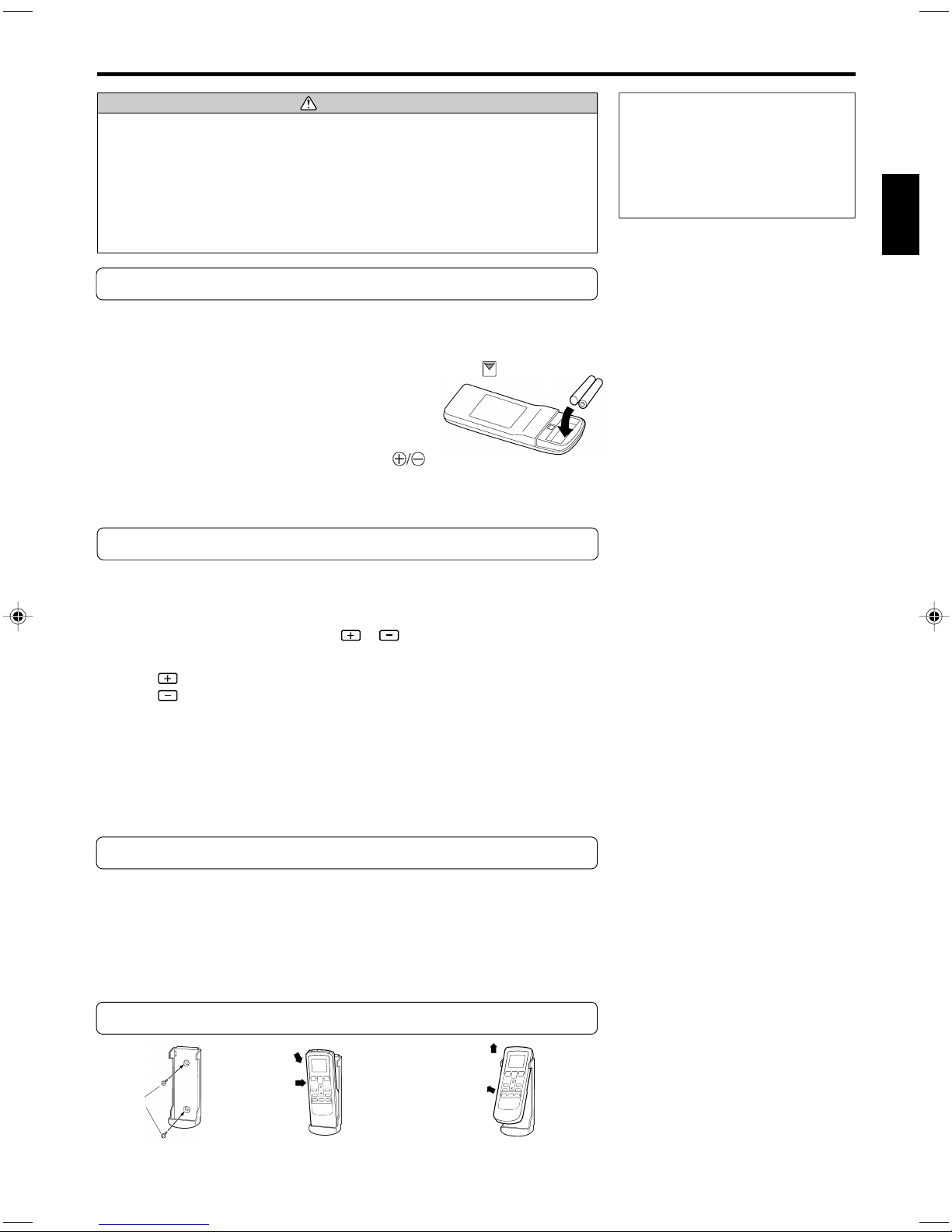

PREPARATION
CAUTION
• Take care to prevent infants from accidentally swallowing batteries.
• When not using the Remote Controller for an extended period, re-
move the batteries to avoid possible leakage and damage to the unit.
•
If leaking battery fluid comes in contact with your skin, eyes, or mouth, imme-
diately wash with copious amounts of water, and consult your physician.
•
Dead batteries should be removed immediately and disposed of properly,
either in a battery collection receptacle or to the appropriate authority.
• Do not attempt to recharge dry batteries.
Load Batteries (R03/LR03
××
× 2)
××
Press and slide the battery compartment lid on the re-
1
verse side to open it.
Slide in the direction of the arrow while pressing the mark.
Insert batteries.
2
Be sure to align the battery polarities ( ) correctly.
Close the battery compartment lid.
3
Set the Current time
Never mix new and used batteries, or
batteries of different types.
Batteries should last about 1 year under
normal use. If the Remote Controller's operating range becomes appreciably reduced, replace the batteries and press the
“RESET” button with the tip of a ballpoint
pen or other small object.
Press the “CLOCK ADJUST” button.
1
Use the tip of a ball-point pen or other small object to press the button.
Use the “TIMER SET ( / )” buttons to adjust the
2
clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
(Each time the buttons are pressed, the time will be advanced/reversed in
1 minute increments; hold the buttons depressed to change the time
quickly in 10 minute increments.)
Press the “CLOCK ADJUST” button again.
3
This completes the time setting and starts the clock.
To Use the Remote Controller
● The Remote Controller must be pointed at remote control signal receiver to operate correctly.
● Operating Range: About 5 m.
● When a signal is properly received by the receiver unit control panel, some lamp
will be flashed.
● If no lamp is flashed, press the Remote Controller button again.
Remote Controller Holder
Insert
Press in
Screws
1 Mount the Holder. 2 Set the Remote Controller.
Slide up
Pull out
3 To remove the Remote
Controller (when use at
hand).
En-4

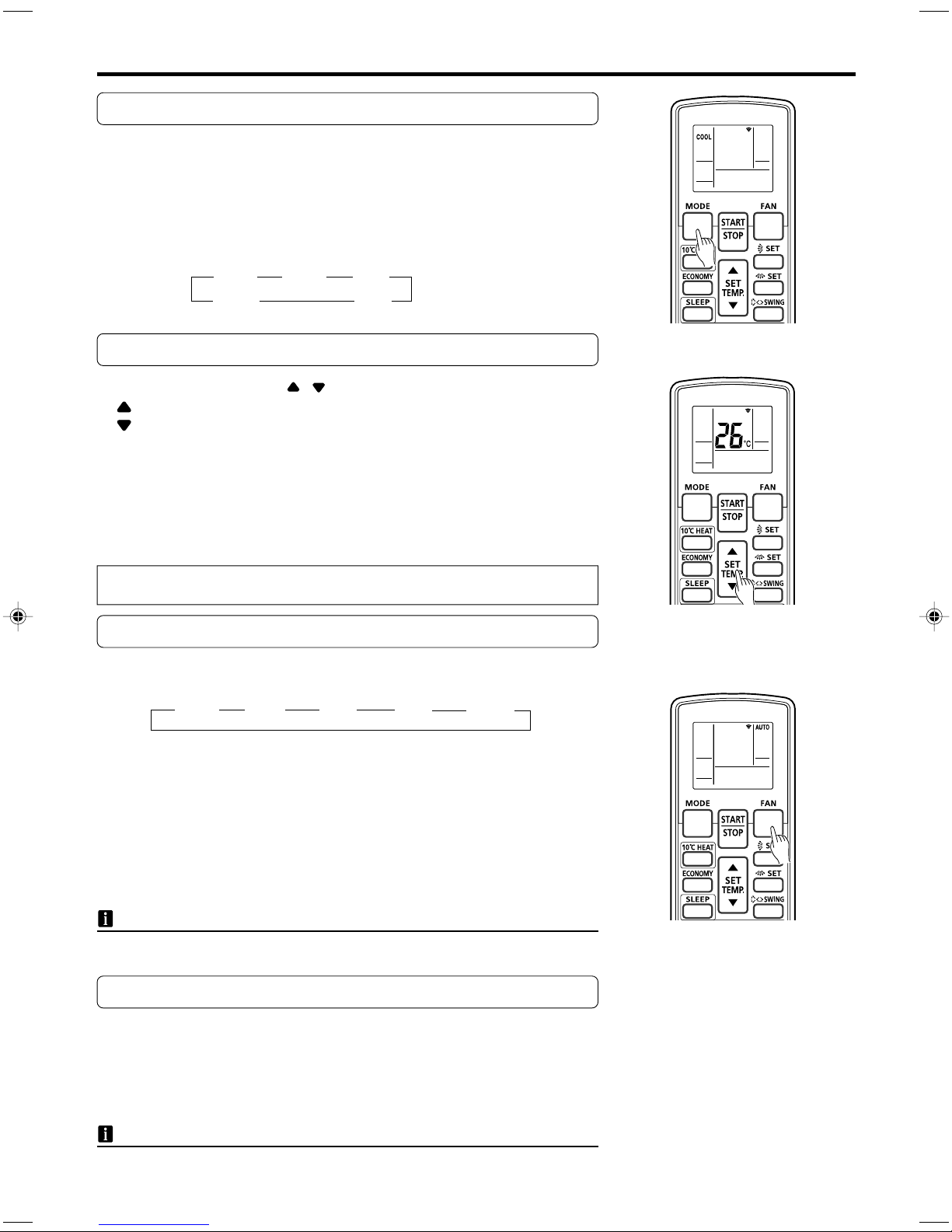

OPERATION
To Select Mode Operation
Press the “START/STOP” button.
1
The receiver unit control panel’s OPERATION Indicator Lamp (green) will
light.
The air conditioner will start operating.
Press the “MODE” button to select the desired mode.
2
Each time the button is pressed, the mode will change in the following
order.
About 3 seconds later, the entire display will reappear.
To Set the Room temperature
sss
AUTO COOL DRY
HEAT FAN
tt
Example: When set to COOL.
Press the “SET TEMP. ( )” button.
button: Press to raise the temperature setting.
button: Press to lower the temperature setting.
● Temperature setting range:
AUTO .................................. 18 - 30 °C
Heating ............................... 16 - 30 °C
Cooling/Dry ........................ 18 - 30 °C
The temperature cannot be used to set room temperature during the FAN mode
(the temperature will not appear on the Remote Controller's Display).
About 3 seconds later, the entire display will reappear.
The set temperature should be considered a standard value, and may differ
somewhat from the actual room temperature.
/
To Set the Fan Speed
Press the “FAN” button.
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW QUIET
About 3 seconds later, the entire display will reappear.
When set to AUTO:
Heating: Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the temperature
of the air issued from the indoor unit is low.
Cooling: As the room temperature approaches that of the temperature setting,
the fan speed becomes slower.
Fan: The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation and at the start
of the Heating mode.
ssss
s
Example: When set to 26 °C.
NOTES
• The QUIET is not available depending on the model. Please refer to the operat-
ing manual for the indoor unit.
QUIET Operation
When set to Quiet:
QUIET operation begins. The indoor unit’s airflow will be reduced for quieter operation.
● QUIET operation cannot be used during Dry mode. (The same is true when dry
mode is selected during AUTO mode operation.)
● During Quiet operation, Heating and Cooling performance will be reduced some-
what. If the room does not warm up/cool down when using QUIET Operation,
please adjust the air conditioner’s Fan Speed.
NOTES
• The QUIET operation is not available depending on the model. Please refer to
the operating manual for the indoor unit.
En-5
Example: When set to AUTO.
OPERATION
To Stop Operation
Press the “START/STOP” button.
The OPERATION Indicator Lamp (green) will go out.
About AUTO CHANGEOVER Operation
AUTO: ● When AUTO CHANGEOVER operation first selected, the fan will ope-
rate at very low speed for about 1 minute, during which time the unit
detects the room conditions and selects the proper operating mode.
If the difference between temperature setting and actual room tem-
perature is more than +2 °C
→ Cooling or dry operation
(Monitor operation may be selected if the outdoor temperature is
low.)
If the difference between temperature setting and actual room temperature is within ±2 °C
→ Monitor operation
If the difference between temperature setting and actual room tem-
-
perature is more than
→ Heating operation
(Monitor operation may be selected if the outdoor temperature is
high.)
2 °C
● When the air conditioner has adjusted your room’s temperature to near
the temperature setting, it will begin monitor operation. In the monitor
operation mode, the fan will operate at low speed. If the room temperature subsequently changes, the air conditioner will once again
select the appropriate operation (Heating, Cooling) to adjust the temperature to the value set in the temperature.
(The monitor operation range is ±2 °C relative to the temperature setting.)
● If the mode automatically selected by the unit is not what you wish,
select one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ● Use to warm your room.
● When Heating mode is selected, the air conditioner will operate at very
low fan speed for about 3 to 5 minutes, after which it will switch to the
selected fan setting. This period of time is provided to allow the indoor
unit to warm up before beginning full operation.
● When the room temperature is very low, frost may form on the outside
unit, and its performance may be reduced. In order to remove such
frost, the unit will automatically enter the defrost cycle from time to
time. During Automatic Defrosting operation, the OPERATION Indicator Lamp (green) will flash, and the heat operation will be interrupted.
● After the start of heating operation, it takes some time before the room
gets warmer.
Cooling: ● Use to cool your room.
Dry: ● Use for gently cooling while dehumidifying your room.
● You cannot heat the room during Dry mode.
● During Dry mode, the unit will operate at low speed; in order to adjust
room humidity, the indoor unit’s fan may stop from time to time. Also,
the fan may operate at very low speed when adjusting room humidity.
● The fan speed cannot be changed manually when Dry mode has been
selected.
Fan: ● Use to circulate the air throughout your room.
During Heating mode:
Set the temperature to a temperature setting that is higher than the current room
temperature. The Heating mode will not
operate if the temperature is set lower
than the actual room temperature.
During Cooling/Dry mode:
Set the temperature to a temperature setting that is lower than the current room
temperature. The Cooling and Dry modes
will not operate if the temperature is set
higher than the actual room temperature,
the fan alone will operate.
During Fan mode:
You can not use the unit to heat and cool
your room.
En-6
TIMER OPERATION
Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P. 4).
If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the timer.
To Use the ON timer or OFF timer
Press the “START/STOP” button
1
(if the unit is already operating, proceed to step 2).
The receiver unit control panel’s OPERATION Indicator Lamp (green) will
light.
Press the “TIMER MODE” button to select the OFF
2
timer or ON timer operation.
Each time the button is pressed the timer function changes in the following order:
CANCEL OFF ON
PROGRAM (OFF → ON, OFF ← ON)
The receiver unit control panel’s TIMER Indicator Lamp (orange) will light.
Use the “TIMER SET ( / )” buttons to adjust
3
the desired OFF time or ON time.
Set the time while the time display is flashing (the flashing will continue
for about 5 seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
To Use the Program timer
Press the “START/STOP” button
1
(if the unit is already operating, proceed to step 2).
The receiver unit control panel’s OPERATION Indicator Lamp (green) will
light.
sss
To Cancel the Timer
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Perform steps 2 and 3.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the “START/STOP” button.
t
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Temperature Setting,
QUIET mode), after making the timer setting
wait until the entire display reappears, then
press the appropriate buttons to change the
operating condition desired.
To Cancel the Timer
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal
operation.
Set the desired times for OFF timer and ON timer.
2
See the section “To Use the ON timer or OFF timer” to set the desired
mode and times.
About 3 seconds later, the entire display will reappear.
The receiver unit control panel’s TIMER Indicator Lamp (orange) will light.
Press the “TIMER MODE” button to select the PRO-
3
GRAM timer operation (OFF
ON or OFF ON will
display).
The display will alternately show “OFF timer” and “ON timer”, then change
to show the time setting for the operation to occur first.
● The program timer will begin operation. (If the ON timer has been se-
lected to operate first, the unit will stop operating at this point.)
About 5 seconds later, the entire display will reappear.
About the Program timer
● The program timer allows you to integrate OFF timer and ON timer operations in
a single sequence. The sequence can involve 1 transition from OFF timer to ON
timer, or from ON timer to OFF timer, within a 24 hour period.
● The first timer function to operate will be the one set nearest to the current time.
The order of operation is indicated by the arrow in the Remote Controller's Display (OFF → ON, or OFF ← ON).
● One example of Program timer use might be to have the air conditioner auto-
matically stop (OFF timer) after you go to sleep, then start (ON timer) automatically in the morning before you arise.
To Change the Timer Settings
Follow the instructions given in the section
1.
“To Use the ON Timer or OFF Timer” to
select the timer setting you wish to change.
2. Press the “TIMER MODE” button to se-
lect either OFF
To Stop Air Conditioner Operation
while the Timer is Operating
Press the “START/STOP” button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Temperature Setting,
QUIET mode), after making the timer setting
wait until the entire display reappears, then
press the appropriate buttons to change the
operating condition desired.
ON or OFF ON.
En-7

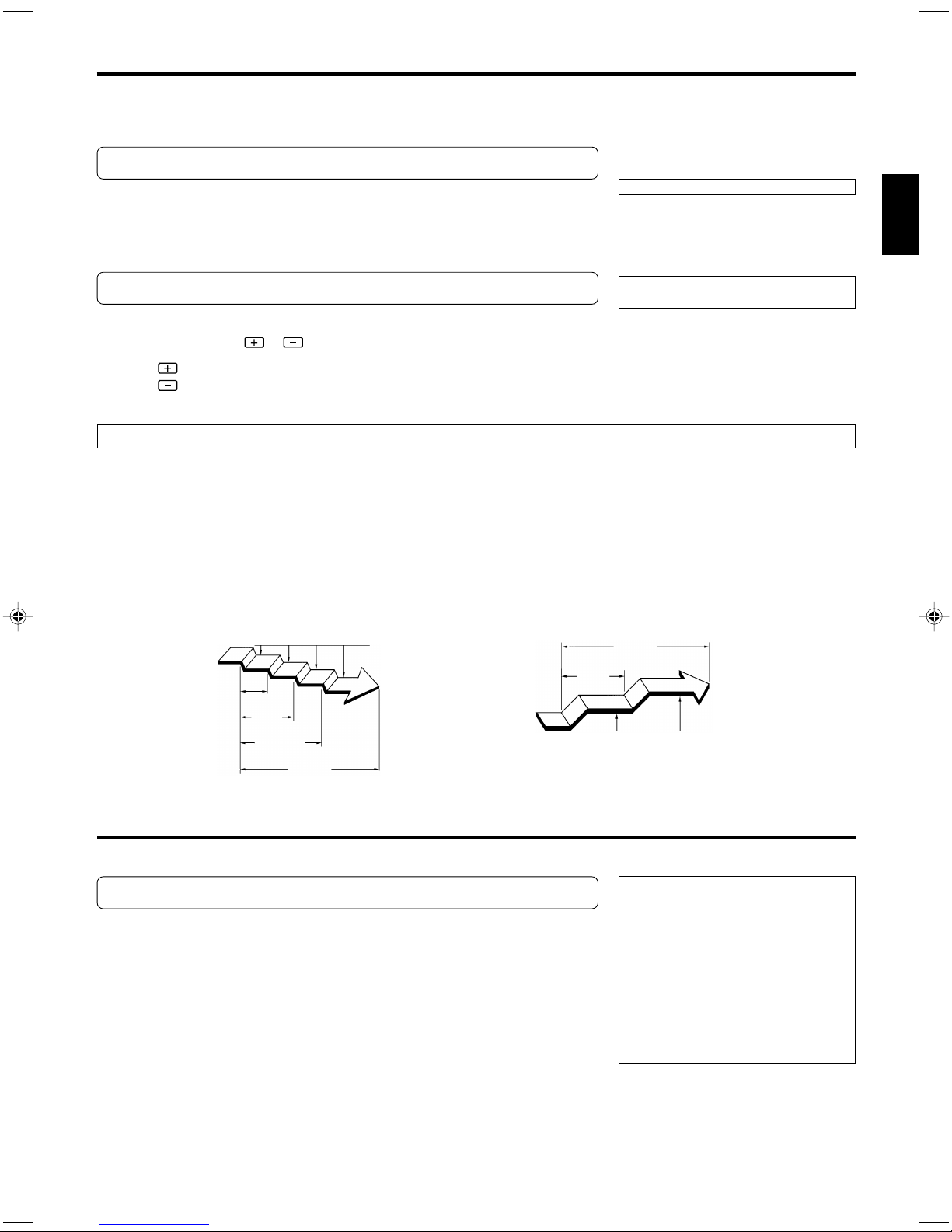

SLEEP TIMER OPERATION
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the sleep
timer.
To Use the SLEEP Timer
While the air conditioner is operating or stopped, press the
“SLEEP” button.
The receiver unit control panel’s OPERATION Indicator Lamp (green) lights and the
TIMER Indicator Lamp (orange) light.
To Cancel the Timer:
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Press the “SLEEP” button once again and set the time using
the “TIMER SET (
/ )” buttons.
To Stop the Air Conditioner During
Timer Operation:
Press the “START/STOP” button.
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
About the SLEEP Timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifies the temperature
setting in accordance with the set time setting. When the set time has elapsed, the air conditioner completely stops.
During Heating operation:
When the SLEEP timer is set, the temperature setting is
automatically lowered 1 °C every 30 minutes. When the temperature has been lowered a total of 4 °C, the temperature
setting at that time is maintained until the set time has elapsed,
at which time the air conditioner automatically turns off.
SLEEP timer setting
Set temp
1 °C
2 °C
3 °C
4 °C
30
minutes
1 hour
1 hour
30 minutes
Set time
During Cooling/Dry operation:
When the SLEEP timer is set, the temperature setting is automatically raised 1 °C every 1 hour. When the temperature has
been raised a total of 2 °C, the temperature setting at that
time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
Set time
1 hour
1 °C
Set temp
2 °C
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the remote controller is lost or otherwise unavailable.
How To Use the Main Unit Controls
Press the “MANUAL AUTO” button within 10 seconds from 3
seconds on the receiver unit control panel.
To stop operation, press the “MANUAL AUTO” button within 10 seconds from 3
seconds once again.
● When the air conditioner is operated
with the controls on the receiver unit,
it will operate under the same mode
as the AUTO mode selected on the remote controller.
However, about Multi-type Air conditioner, the Heat pump model will follow the operating mode of the other
indoor unit.
● The fan speed selected will be “AUTO”
and the temperature setting will be
24 °C.
En-8

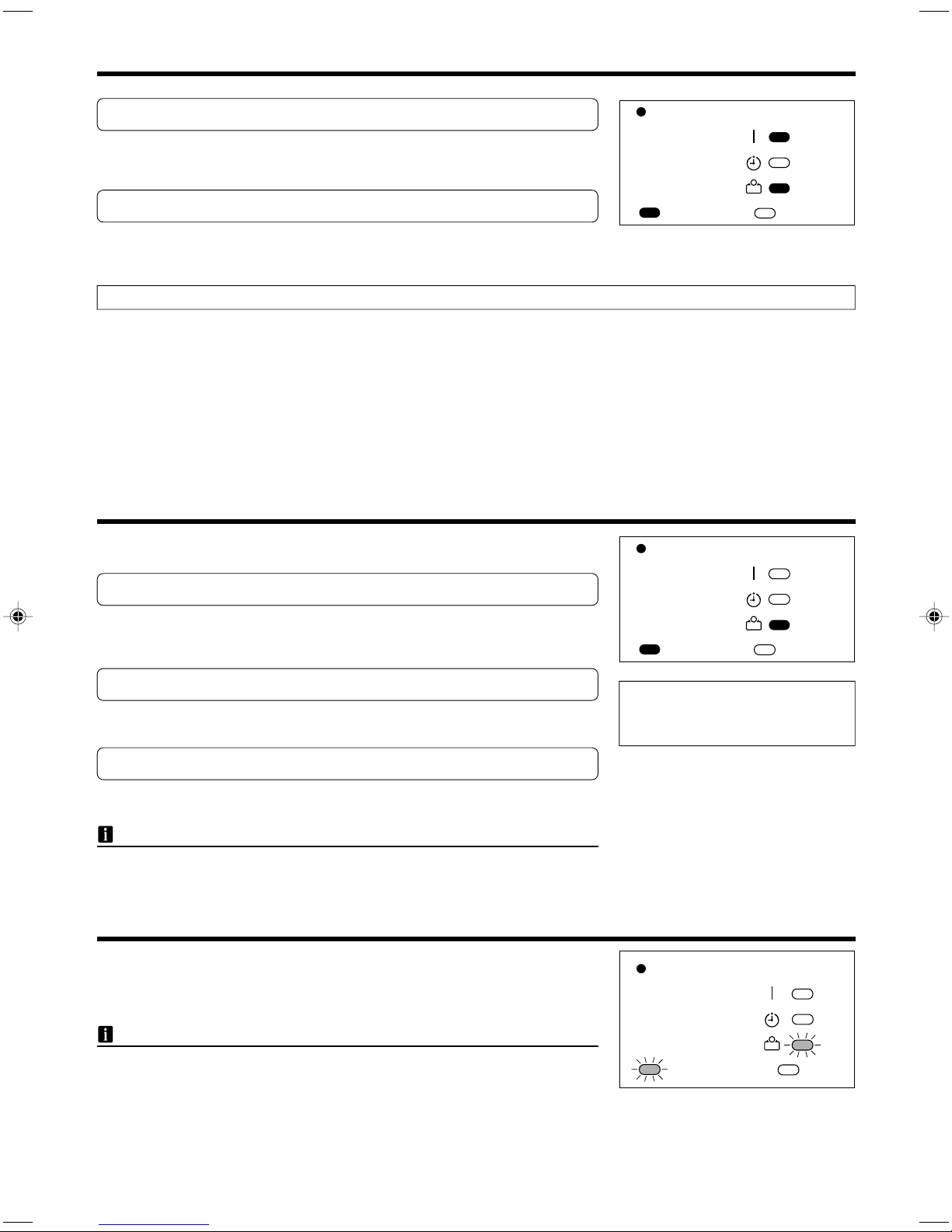

ECONOMY OPERATION
Begin Air Conditioner operation before performing this procedure.
To Use the ECONOMY Operation
Press the “ECONOMY” button.
The ECONOMY Indicator Lamp (green) will light.
Economy operation begins.
Indicator Lamp
To Stop the ECONOMY Operation
:
Lighting
:
OFF
Press the “ECONOMY” button again.
The ECONOMY Indicator Lamp (green) will go out.
Normal operation begins.
About ECONOMY Operation
•
At the maximum output, ECONOMY Operation is approximately 70% of normal air conditioner operation for cooling and heating. (Single-Type)
• At the maximum output, ECONOMY OPERATION (All indoor unit) is approximately 70% of normal air conditioner operation
for cooling and heating. (Multi-Type)
• During ECONOMY operation, the temperature setting automatically changes according to the temperature to avoid Unnecessary cooling and heating for the most economical operation.
● If the room is not cooled (or heated) well during economy operation, select normal operation.
● During the monitor period in the AUTO mode, the air conditioner operation will not change to ECONOMY operation even if
ECONOMY operation is selected by pressing the “ECONOMY” operation button.
When economy operation mode is operated, the room temperature will be little higher than the set-temp under cooling mode and
●
lower than set-temp under heating mode. Therefore, the economy mode is able to save more energy than other normal mode.
10 °C HEAT OPERATION
•
The room temperature can be maintained at 10°C by pressing the “10 °C HEAT”
button so as to prevent the room temperature from falling too far.
To use 10 °C HEAT OPERATION
Press the “10 °C HEAT” button
The OPERATION indicator lamp (green) will go out, and the ECONOMY
indicator lamp (green) will light.
Indicator Lamp
:
Lighting
:
OFF
To stop 10 °C HEAT OPERATION
Press the “START/STOP” button
Then the OPERATION stops and the ECONOMY indicator lamp (green) will go out.
About the 10 °C HEAT OPERATION
• The 10 °C HEAT OPERATION will not operate if the room temperature is
high enough.
NOTES
• The 10 °C HEAT operation is not available depending on the model. Please refer
to the operating manual for the indoor unit.
FILTER INDICATOR RESET
• It lights on if the filter became dirty.
Clean the filter referring to “CLEANING AND CARE (indoor unit operating manual)”.
After cleaning, press the “MANUAL AUTO” button (indoor unit) for 2 seconds or
less on the receiver unit control panel.
NOTES
As the factory setting, FILTER SIGN is not displayed.
•
Please consult authorized service personnel when you want to display FILTER SIGN.
While 10 °C HEAT OPERATION is in
progress, only Airflow Direction Set
can be used.
Indicator Lamp
::
Flashing (3 times) OFF
En-9
CLEANING AND CARE
CAUTION
• Before cleaning the unit, be sure to stop the unit and disconnect the power supply.
• Turn off the electrical breaker.
• A fan operates at high speed inside the unit, and personal injury could result.
●
When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the unit
be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service personnel.
● When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
● Do not expose the unit body to liquid insecticides or hairsprays.
● If the unit will not be operated for a period of 1 month or more, be sure to allow the inner parts of the unit to dry
thoroughly, in advance, by operating the unit in fan mode for half a day.
Cleaning the Air Filter
● Dust can be cleaned from the air filter either with a vacuum cleaner, or by washing the filter in a solution of mild detergent
and warm water. If you wash the filter, be sure to allow it to dry thoroughly in a shady place before reinstalling.
● If dirt is allowed to accumulate on the air filter, air flow will be reduced, lowering operating efficiency and increasing noise.

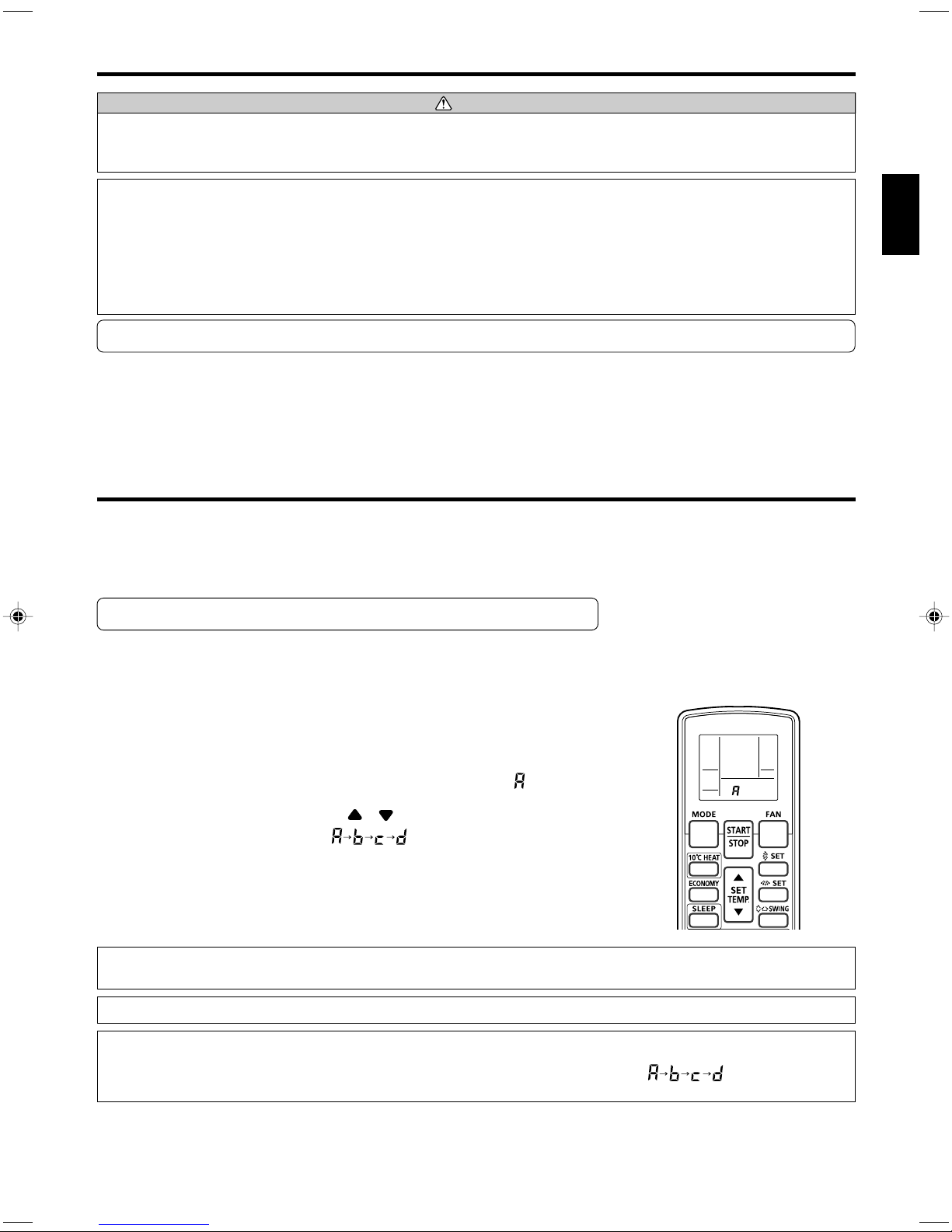

SELECTING THE REMOTE CONTROLLER SIGNAL CODE
When 2 or more air conditioners are installed in a room and the remote controller is operating an air conditioner other than the
one you wish to set, change the signal code of the remote controller to operate only the air conditioner you wish to set
(4 selections possible).
When 2 or more air conditioners are installed in a room, please contact your retailer to set the individual air conditioner signal
codes.
Selecting the Remote controller Signal Code
Use the following steps to select the signal code of the remote controller. (Note that
the air conditioner cannot receive a signal code if the air conditioner has not been
set for the signal code.)
Press the “START/STOP” button until only the clock is
1
displayed on the remote controller display.
Press the “MODE” button for at least 5 seconds to dis-
2
play the current signal code (initially set to
).
Press the “SET TEMP. ( / )” buttons to change the
3
signal code between
. Match the code on the
display to the air conditioner signal code.
Press the “MODE” button again to return to the clock
4
display. The signal code will be changed.
If no buttons are pressed within 30 seconds after the signal code is displayed, the system returns to the original clock
display. In this case, start again from step 1.
The air conditioner signal code is set to A prior to shipment. Contact your retailer to change the signal code.
The remote controller resets to signal code A when the batteries in the remote controller are replaced. If you use a
signal code other than signal code A, reset the signal code after replacing the batteries.
If you do not know the air conditioner signal code setting, try each of the signal codes (
code which operates the air conditioner.
) until you find the
En-10
TROUBLESHOOTING
WARNING
• In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical
breaker and consult authorized service personnel.
• Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.
• Always be sure to turn off the electrical breaker to ensure that power is completely off.
NORMAL
FUNCTION
Symptom
Doesn’t operate immediately:
Noise is heard:
Smells:
Mist or steam is
emitted:
Problem
● If the indoor unit is stopped and then immediately started again,
the compressor will not operate for about 3 minutes, in order to
prevent fuse blowouts.
●
Whenever the electrical breaker is turned off then on again the
protection circuit will operate for about 3 minutes, preventing unit
operation during that period.
● During operation or immediately after stopping the unit, the sound
of water flowing in the air conditioner’s piping may be heard.
Also, noise may be particularly noticeable for about 2 to 3 minutes after starting operation (sound of refrigerant flowing).
● During operation, a slight squeaking sound may be heard. This is
the result of minute expansion and contraction of the front panel
due to temperature changes.
●
During Heating operation, a sizzling sound may be heard occasional.
This sound is produced by the Automatic Defrosting operation.
● Some smell may be emitted from the indoor unit. This smell is
the result of room smells (furniture, tobacco, etc.) which have
been taken into the indoor unit.
● During Cooling or Dry operation, a thin mist may be seen emitted
from the indoor unit. This results from the sudden Cooling of
room air by the cool air emitted from the indoor unit, resulting in
condensation and misting.
● During Heating operation, the outdoor unit’s fan may stop, and
steam may be seen rising from the unit. This is due to Automatic
Defrosting operation.
See Page
—
—
12
—
—
12
Airflow is weak or stops:
Water is produced from
the outdoor unit:
● When Heating operation is started, fan speed is temporarily very
low, to allow internal parts to warm up.
● During Heating operation, if the room temperature rises above
the temperature setting, the outdoor unit will stop, and the indoor unit will operate at very low fan speed. If you wish to warm
the room further, set the temperature for a higher setting.
● During Heating operation, the indoor unit will temporarily stop
operation (between 7 and 15 minutes) as the Automatic Defrosting mode operates. During Automatic Defrosting operation, the
OPERATION Indicator Lamp will flash.
● During Dry mode, the indoor unit will operate at low speed; in
order to adjust room humidity, the indoor unit’s fan may stop
from time to time. Also, the fan may operate at very low speed
when adjusting room humidity.
● During QUIET operation, the fan will operate at very low speed.
● In the monitor of AUTO operation, the fan will operate at very
low speed.
●
In case of Multi-type unit, if multiple units are operated in different operation modes as shown below, the units operated afterward will stop and the OPERATION indicator lamp (green) will flash.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
● During Heating operation, water may be produced from the outdoor unit due to Automatic Defrosting operation.
—
12
6
5
6
13
12
En-11
TROUBLESHOOTING
Symptom
CHECK ONCE
MORE
If the problem persists after performing these checks, or if you notice burning smells, or the OPERATION Indicator Lamp
and the TIMER Indicator Lamp flashes, immediately stop operation, turn off the electrical breaker and consult authorized
service personnel.
Doesn’t operate at all:
Poor Cooling (or Heating)
performance:
The unit operates
differently from the Remote
Controller’s setting:
● Has the circuit breaker been turn off?
● Has there been a power failure?
● Has a fuse blown out, or a circuit breaker been tripped?
● Is the timer operating?
● Is the Air Filter dirty?
● Are the air conditioner’s intake grille or outlet port blocked?
● Did you adjust the room temperature settings (temperature) cor-
rectly?
● Is there a window or door open?
● In the case of Cooling operation, is a window allowing bright sun-
light to enter? (Close the curtains.)
● In the case of Cooling operation, are there heating apparatus and
computers inside the room, or are there too many people in the
room?
● Is the unit set for QUIET operation?
● Are the Remote Controller’s batteries dead?
● Are the Remote Controller’s batteries loaded properly?
Items to check
See Page
—
7 - 8
—
5
4
OPERATING TIPS
Operation and Performance
Heating Performance
● This air conditioner operates on the heat-pump principle, absorbing heat from outdoor air and transferring that
heat to indoor unit. As a result, the operating performance is reduced as outdoor air temperature drops. If you
feel that insufficient heating performance is being produced, we recommend you use this air conditioner in
conjunction with another kind of heating appliance.
● Heat-pump air conditioners heat your entire room by
recirculating air throughout the room, with the result that
some time may be required after first starting the air conditioner until the room is heated.
Microcomputer-controlled Automatic Defrosting
● When using the Heating mode under conditions of low
outdoor temperature and high humidity, frost may form
on the outdoor unit, resulting in reduced operating performance.
In order to prevent this kind of reduced performance, this
air conditioner is equipped with a Microcomputercontrolled Automatic Defrosting function. If frost forms,
the air conditioner will temporarily stop, and the defrosting circuit will operate briefly (for about 7-15 minutes).
During Automatic Defrosting operation, the OPERATION
Indicator Lamp (green) will flash.
● After heating operation stops, if frost forms on the outdoor unit, the unit will start Automatic Defrosting operation. At this time, the outdoor unit will automatically stop
after operating for a few minutes.
(However, some type of multi-type air conditioner doesn't
provide this function.)
En-12
OPERATING TIPS
AUTO Restart
In Event of Power Interruption
● The power supply to the air conditioner is stopped by a
power interruption. The air conditioner will then restart
automatically in its previous mode when the power is
restored.
Simultaneous Use of Multiple Units
● When using a multi-type air conditioner, the multiple
indoor units can be operated simultaneously, but when
2 or more indoor units of the same group are operated
simultaneously, the heating and cooling efficiency will
be less than when a single indoor unit is used alone.
Accordingly, when you wish to use more than 1 indoor
unit for cooling at the same time, the use should be concentrated at night and other times when less output is
required. In the same way, when multiple units are used
simultaneously for heating, it is recommended that they
be used in conjunction with other auxiliary space heaters, as required.
● Seasonal and outdoor temperature conditions, the struc-
ture of the rooms and the number of persons present
may also result in differences of operating efficiency.
We recommend that you try various operating patterns
in order to confirm the level of heating and cooling output provided by your units, and use the units in the way
that best matches your family's lifestyle.
● If you discover that 1 or more units delivers a low level
of cooling or heating during simultaneous operation,
we recommend that you stop simultaneous operation
of the multiple units.
● Operation cannot be done in the following different op-
erating modes.
If the indoor unit is instructed to do an operating mode
that it cannot perform, the OPERATION indicator lamp
(green) on the indoor unit will flash (1 second on, 1 second off) and the unit will go into the standby mode.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
●
If a power interruption occurs during TIMER operation, the
timer will be reset and the indoor unit will begin (or stop)
operation at the new time setting. In the event that this kind
of timer fault occurs, the TIMER Indicator Lamp will flash.
● Use of other electrical appliances (electric shaver, etc.) or
nearby use of a wireless radio transmitter may cause the
air conditioner to malfunction. In this event, temporarily
turn off the circuit breaker, turn it on and then use the
Remote Controller to resume operation.
● Operation can be done in the following different operat-
ing modes.
Cooling mode and dry mode
Cooling mode and fan mode
Dry mode and fan mode
● The operating mode (heating mode or cooling (dry)
mode) of the outdoor unit will be determined by the operating mode of the indoor unit that was operated first.
If the indoor unit was started in fan mode, the operating
mode of the outdoor unit will not be determined.
For example, if indoor unit (A) was started in fan mode
and then indoor unit (B) was then operated in heating
mode, indoor unit (A) would temporarily start operation in fan mode but when indoor unit (B) started operating in heating mode, the OPERATION indicator lamp
(green) for indoor unit (A) would begin to flash (1 second on, 1 second off) and it would go into standby
mode. Indoor unit (B) would continue to operate in heating mode.
NOTES
●
During use of the heating mode, the outdoor unit will
occasionally commence the defrost operation for brief
periods. During the defrosting operation, if the user sets
the indoor unit for heating again, the defrosting mode
will continue, and the heating operation will begin after
completion of defrosting, with the result that some time
may be required before warm air is emitted.
●
During use of the heating mode, the top of the indoor
unit may become warm, but this is due to the fact that
coolant is circulated through the indoor unit even when
it is stopped; it is not a malfunction.
En-13
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Loading...
